ASRock Steel Legend SL-850G / SL-850GW

序号

Lab IDAR85002548

Certification ID252548

Test Result Report ID: 24PS2548A
Certificate Issue Date: Aug 24, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	ASRock
Model	Steel Legend SL-850G / SL-850GW
OEM/ODM	HEC
Serial Number
Product Specifications
Manufacturer-Provided Information
额定电压 (Vrms)	100-240
额定电流 (Arms)	5-10
额定频率 (Hz)	50-60
额定功率 (W)	850
Operating Temperature (Continuous Full Load) (°C)
类别	ATX12V
线材设计	Fully Modular
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
散热	135mm Fluid Dynamic Bearing Fan (S1352512EH-3M)
半被动运转	✓ (selectable)
Cybenetics Testing Information
Lab ID	AR85002548
Date of receipt	Aug 9, 2024
Testing Date	Aug 24, 2024
Report Issued Date	Aug 24, 2024
被测品纪录	The result apply to both the black and white models.
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

线材与接头(Non-accredited measurements)

模组化线材
描述	线材数量	总连接器数量	Gauge	In Cable Capacitors
ATX 接头 20+4 pin (600mm)	1	1	18AWG	否
4+4 pin EPS 12V 接头 (640mm)	2	2	18AWG	否
6+2pin PCIe接头 (590mm+140mm)	2	4	18AWG	否
6+2pin PCIe接头 (590mm)	1	1	18AWG	否
12+4 pin PCIe (645mm) (600W)	1	1	16-24AWG	否
SATA接头 (450mm+120mm+120mm)	3	9	18AWG	否
4-pin Molex (440mm+110mm+110mm)	1	3	18AWG	否

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

电源规范

组		3.3V	5V	12V	5VSB	-12V
最大功率	安培	20	20	70.9	3	0.3
最大功率	瓦	120		850	15	3.6
最大总功率 (W)		850

Parts Description

General Data
Manufacturer (OEM)	HEC
PCB Type	Double-Sided
Primary Side
Transient Filter	4x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (X capacitor Discharge IC)
Inrush Protection	1x NTC Thermistor 5D-15 (5 Ohm @25°C) & Relay
Bridge Rectifier(s)	2x GBU15K (800V, 15A)
APFC MOSFETs	2x Infineon IPA60R099P7 (650V, 20A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode	1x CREE C6D10065A (650V, 10A @ 155°C)
Bulk Cap(s)	1x Nippon Chemi-Con (400V, 560uF, 2000h @ 105°C, KMR)
Main Switchers	2x Infineon IPA60R120P7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm)
APFC Controller	1x Champion CM6500UNX & 1x Champion CM03X
Resonant Controller	1x Champion CM6901T6X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	No info
5V & 3.3V	DC-DC Converters: 2x Potens PDC39F2BX (30V, 76A @ 100°C, Rds(on): 2.95mOhm) PWM Controller(s): 1x ANPEC APW7159C
Filtering Capacitors	Electrolytic: 2x Nippon Chemi-con (2-5,000 @ 105°C, KZE) 2x Rubycon (2-10,000 @ 105°C, YXF), 2x Rubycon (3-6,000 @ 105°C, YXG), 1x Rubycon (4-10,000 @ 105°C, YXJ), 3x Rubycon (6-10,000 @ 105°C, ZLH), 1x Rubycon (6-10,000 @ 105°C, YXH) Polymer: 31x Nippon Chemi-con
Supervisor IC	Weltrend WT7527RT (OCP, OVP, UVP, SCP, PG)
Fan Model	Nuvoton MS51FBAE
Fan Model	RL4Z S1352512EH-3M (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB/12VSB Circuit
Rectifier	1x PXY PS1060L (60V, 10A)
Standby PWM Controller	Excelliance MOS EM85690

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)	28-32 / 82.4-89.6
符合ErP Lot3/6规范	✓
符合(EU) No 617/2013规范	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
平均效率 (>1450 load combinations)	89.823%
Average Noise Output (>1450 Load Combinations)	18.27dBA
PF平均值 (>1450 Load Combinations)	0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load	70.773%
待机功率耗损	0.0556W
Non-Accredited
12V Ripple (Full Load)	44.38mV
5V Ripple (Full Load)	16.97mV
3.3V Ripple (Full Load)	17.24mV
5VSB Ripple (Full Load)	18.29mV
12V Load Regulation	0.36%
5V Load Regulation	0.42%
3.3V Load Regulation	0.74%
5VSB Load Regulation	2.33%
Inrush Current	33.530A

Accredited
平均效率 (>1450 load combinations)	91.931%
Average Noise Output (>1450 Load Combinations)	17.54dBA
PF平均值 (>1450 Load Combinations)	0.944
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.136%
待机功率耗损	0.1105W
Non-Accredited
12V Ripple (Full Load)	46.46mV
5V Ripple (Full Load)	17.19mV
3.3V Ripple (Full Load)	16.66mV
5VSB Ripple (Full Load)	17.94mV
12V Load Regulation	0.41%
5V Load Regulation	0.46%
3.3V Load Regulation	0.74%
5VSB Load Regulation	2.37%
Inrush Current	65.710A
12V Transient Response (200%)	11.48V
5V Transient Response (200%)	4.979V
3.3V Transient Response (200%)	3.152V
5VSB Transient Response (200%)	4.960V
保持时间 & PG信号	18.20ms
AC Loss to PWR_OK Hold Up Time	15.70ms
PWR_OK Inactive to DC Loss Delay	2.50ms
PSU Timings: T1 (20% / 100%)	53.0ms	53.0ms
PSU Timings: T3 (20% / 100%)	123.0ms	123.0ms
12V OCP (29.0°C / 41.4°C)	85.60A (120.73%), 12.139V	84.20A (118.76%), 12.155V
5V OCP (29.0°C / 41.4°C)	31A (155.00%), 5.049V	30.4A (152.00%), 5.05V
3.3V OCP (29.0°C / 41.4°C)	30.1A (150.50%), 3.243V	29.4A (147.00%), 3.243V
5VSB OCP (29.0°C / 41.4°C)	4.1A (136.67%), 5.051V	4A (133.33%), 5.055V
OPP (27.93°C / 44.99°C)	123.84%	121.73%

保持时间 & PG信号

Hold-Up Time (ms)	18.2
AC Loss to PWR_OK Hold Up Time (ms)	15.7
PWR_OK Inactive to DC Loss Delay (ms)	2.5

待机电源

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.09 V	115.05 V	113.85 V	115.13 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.94 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.08 %	N/A	0.19 %	2.00 %	PASS
Real Power:	0.056 W	-0.004 W	N/A	0.090 W	N/A	N/A
Apparent Power:	9.964 W	9.903 W	N/A	10.028 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.05 V	230.95 V	227.70 V	231.11 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.417	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.15 %	N/A	0.26 %	2.00 %	PASS
Real Power:	0.110 W	0.065 W	N/A	0.167 W	N/A	N/A
Apparent Power:	34.258 W	34.005 W	N/A	34.501 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

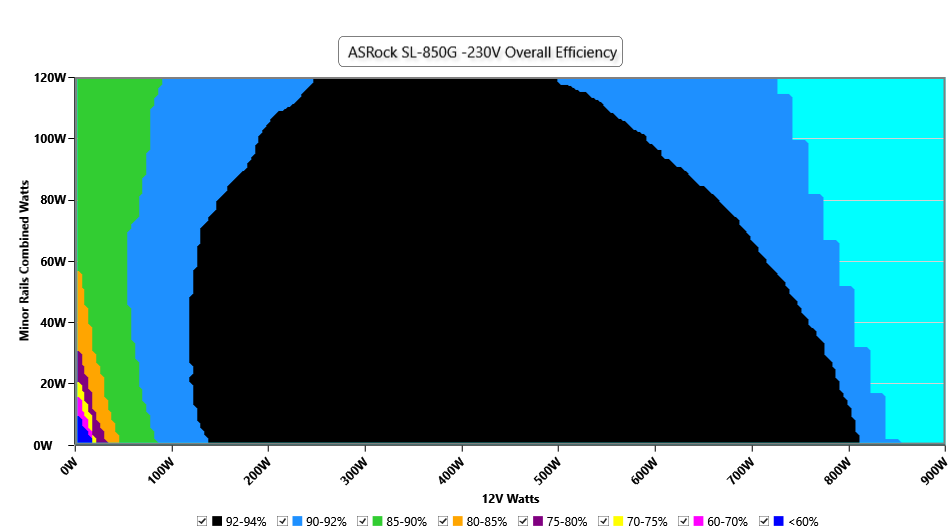

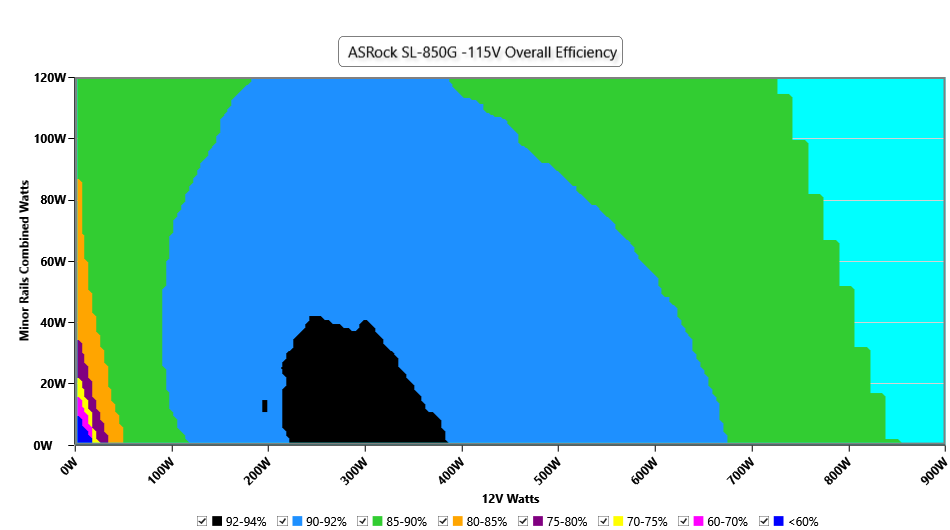

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

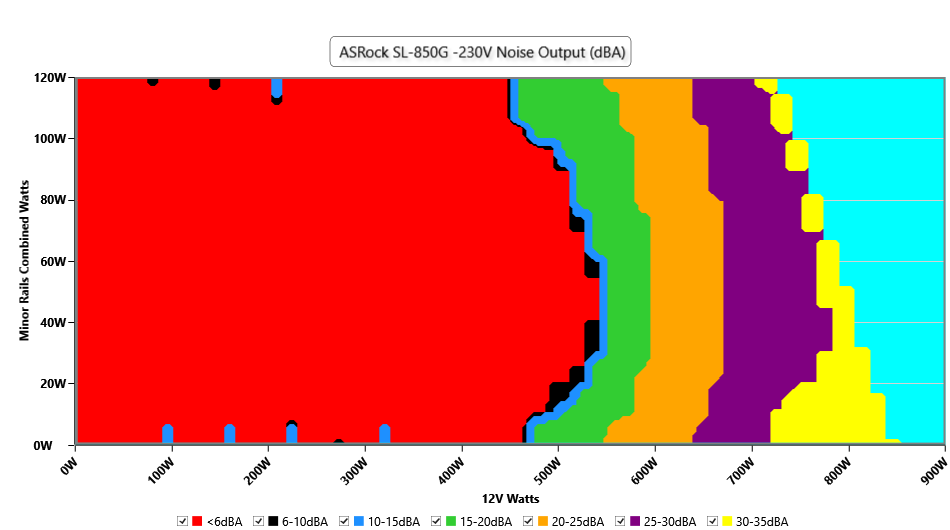

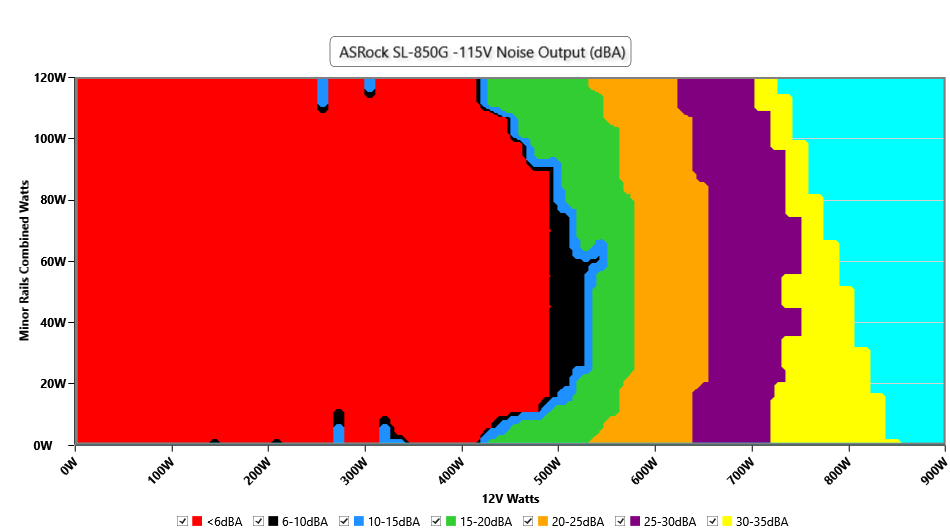

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Noise under high ambient temperature (indicative)

115V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	0 RPM · <6.0 dB(A) · 32.0 °C	0 RPM · <6.0 dB(A) · 48.9 °C	fan off in both
20%	0 RPM · <6.0 dB(A) · 34.8 °C	0 RPM · <6.0 dB(A) · 48.2 °C	fan off in both
50%	436 RPM · <6.0 dB(A) · 29.7 °C	447 RPM · <6.0 dB(A) · 42.2 °C	fan off in both
100%	1048 RPM · 25.8 dB(A) · 30.5 °C	1679 RPM · 39.5 dB(A) · 45.5 °C	+13.7 dB(A)

230V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	0 RPM · <6.0 dB(A) · 35.2 °C	0 RPM · <6.0 dB(A) · 48.0 °C	fan off in both
20%	0 RPM · <6.0 dB(A) · 34.3 °C	0 RPM · <6.0 dB(A) · 48.8 °C	fan off in both
50%	431 RPM · <6.0 dB(A) · 31.5 °C	450 RPM · <6.0 dB(A) · 42.4 °C	fan off in both
100%	943 RPM · 21.4 dB(A) · 30.6 °C	1680 RPM · 39.6 dB(A) · 45.4 °C	+18.2 dB(A)

INFO

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter, with the fan stopped; with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

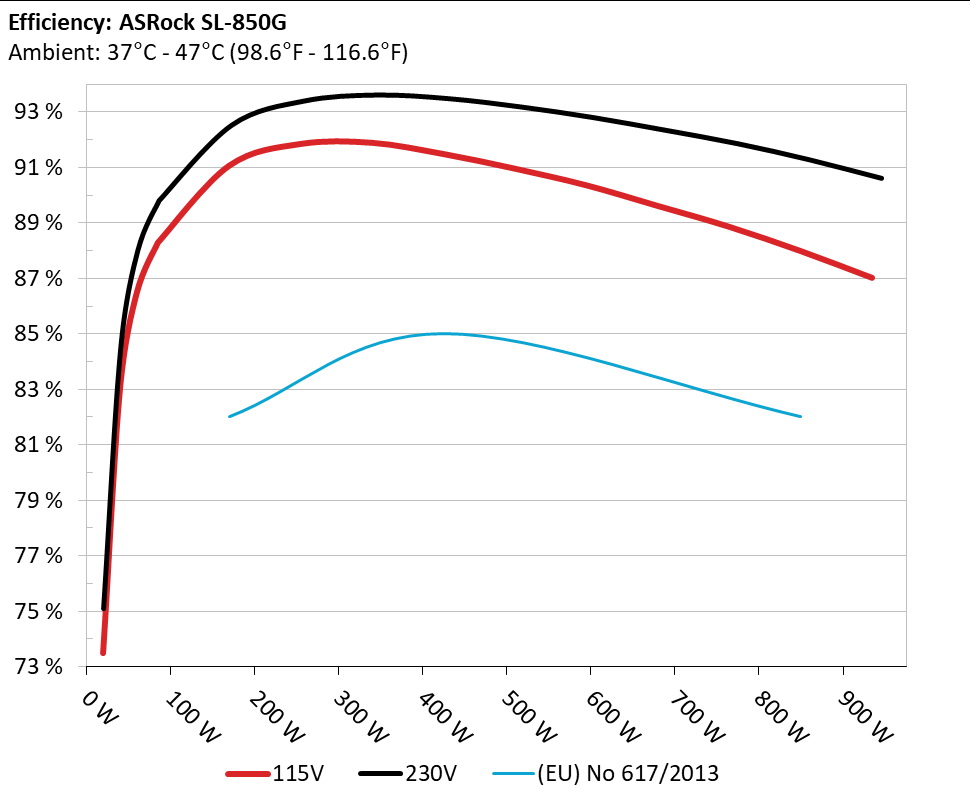

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

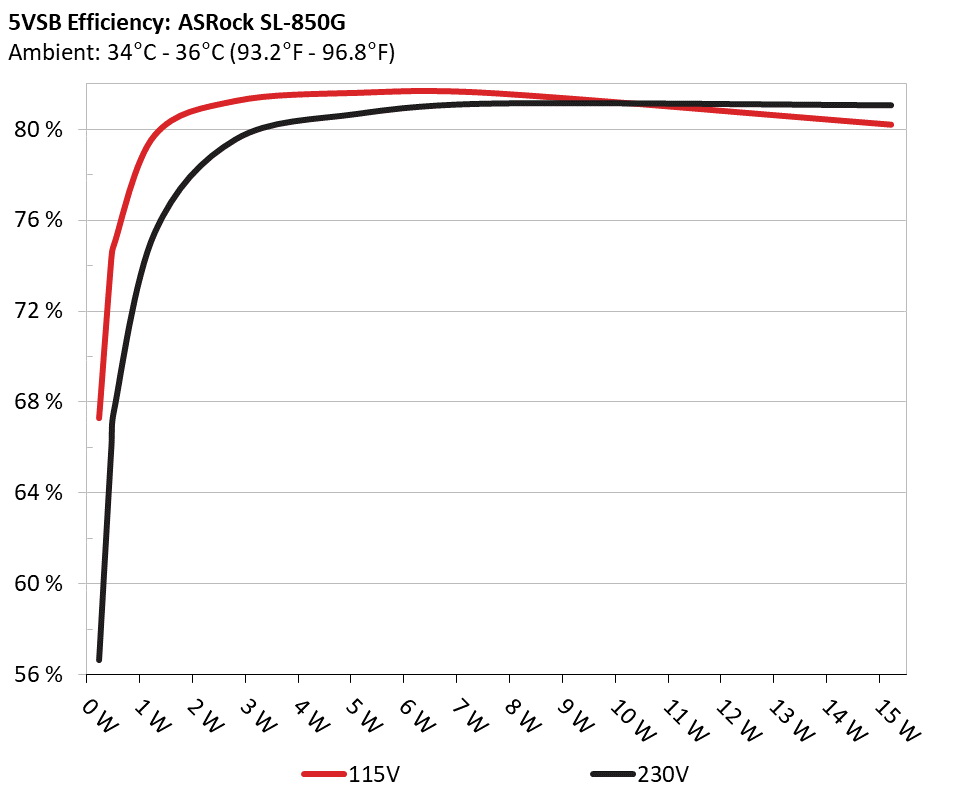

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 #	5VSB	DC/AC (瓦)	效率	PF/AC 电压
1	0.045A	0.231W	67.299%	0.033
1	5.136V	0.343W	67.299%	114.92V
2	0.09A	0.462W	74.31%	0.06
2	5.134V	0.622W	74.31%	114.92V
3	0.55A	2.818W	81.257%	0.264
3	5.125V	3.468W	81.257%	114.92V
4	1A	5.115W	81.61%	0.349
4	5.115V	6.267W	81.61%	114.91V
5	1.5A	7.659W	81.599%	0.412
5	5.105V	9.386W	81.599%	114.92V
6	3A	15.222W	80.212%	0.487
6	5.075V	18.977W	80.212%	114.9V

测试 #	5VSB	DC/AC (瓦)	效率	PF/AC 电压
1	0.045A	0.231W	56.659%	0.012
1	5.136V	0.409W	56.659%	229.9V
2	0.09A	0.462W	65.987%	0.02
2	5.135V	0.701W	65.987%	229.91V
3	0.55A	2.818W	79.548%	0.098
3	5.125V	3.543W	79.548%	229.88V
4	1A	5.115W	80.663%	0.164
4	5.116V	6.342W	80.663%	229.89V
5	1.5A	7.658W	81.118%	0.204
5	5.106V	9.439W	81.118%	229.88V
6	2.999A	15.223W	81.043%	0.318
6	5.076V	18.783W	81.043%	229.89V

Protection Features

OCP (Normal @ 29.0°C)	12V: 85.60A (120.73%), 12.139V 5V: 31A (155.00%), 5.049V 3.3V: 30.1A (150.50%), 3.243V 5VSB: 4.1A (136.67%), 5.051V
OCP (Hot) @ 41.4°C)	12V: 84.20A (118.76%), 12.155V 5V: 30.4A (152.00%), 5.05V 3.3V: 29.4A (147.00%), 3.243V 5VSB: 4A (133.33%), 5.055V
OPP (Normal @ 27.9°C)	1052.66W (123.84%)
OPP (Hot @ 45.0°C)	1034.70W (121.73%)
OTP	✓ (110°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

10-110%负载测试

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
10%	5.199A	1.971A	2.02A	0.978A	85.005	88.285%	0	<6.0	48.94°C	0.968
10%	12.195V	5.074V	3.267V	5.114V	96.283	88.285%	0	<6.0	40.45°C	114.89V
20%	11.406A	2.957A	3.033A	1.176A	169.951	91.063%	0	<6.0	48.18°C	0.973
20%	12.191V	5.072V	3.265V	5.104V	186.631	91.063%	0	<6.0	40.54°C	114.86V
30%	17.963A	3.452A	3.54A	1.374A	254.962	91.847%	0	<6.0	51.42°C	0.974
30%	12.186V	5.071V	3.263V	5.095V	277.593	91.847%	0	<6.0	41.26°C	114.83V
40%	24.529A	3.946A	4.048A	1.573A	340.055	91.888%	0	<6.0	52.66°C	0.979
40%	12.183V	5.069V	3.261V	5.085V	370.073	91.888%	0	<6.0	41.84°C	114.81V
50%	30.742A	4.935A	5.065A	1.774A	424.906	91.482%	447	<6.0	42.15°C	0.983
50%	12.179V	5.066V	3.258V	5.075V	464.468	91.482%	447	<6.0	50.44°C	114.77V
60%	36.934A	5.925A	6.083A	1.975A	509.433	90.957%	861	19	42.81°C	0.987
60%	12.174V	5.064V	3.255V	5.064V	560.081	90.957%	861	19	49.79°C	114.74V
70%	43.199A	6.917A	7.103A	2.177A	594.73	90.356%	962	22.1	43.26°C	0.989
70%	12.167V	5.061V	3.253V	5.054V	658.211	90.356%	962	22.1	50.3°C	114.71V
80%	49.471A	7.907A	8.124A	2.28A	679.573	89.611%	1133	25	43.63°C	0.991
80%	12.162V	5.058V	3.25V	5.045V	758.359	89.611%	1133	25	51.19°C	114.67V
90%	56.141A	8.404A	8.621A	2.383A	765.007	88.855%	1428	34.9	44.06°C	0.993
90%	12.157V	5.056V	3.248V	5.037V	860.963	88.855%	1428	34.9	51.85°C	114.64V
100%	62.551A	8.901A	9.15A	2.989A	849.807	87.98%	1679	39.5	45.47°C	0.994
100%	12.152V	5.055V	3.246V	5.018V	965.912	87.98%	1679	39.5	53.04°C	114.6V
110%	68.834A	9.896A	10.268A	2.993A	934.374	87.02%	1925	44.3	46.68°C	0.995
110%	12.147V	5.052V	3.243V	5.011V	1073.751	87.02%	1925	44.3	54.96°C	114.56V
CL1	0.115A	14.276A	14.69A	0A	121.301	84.436%	1179	29.3	40.35°C	0.978
CL1	12.200V	5.057V	3.247V	5.125V	143.657	84.436%	1179	29.3	47.39°C	114.87V
CL2	0.115A	19.762A	0A	0A	101.362	83.426%	1177	29.3	40.5°C	0.974
CL2	12.200V	5.059V	3.26V	5.13V	121.499	83.426%	1177	29.3	45.46°C	114.87V
CL3	0.114A	0A	20.316A	0A	67.399	78.796%	640	7.6	40.15°C	0.965
CL3	12.198V	5.069V	3.249V	5.13V	85.538	78.796%	640	7.6	45.41°C	114.89V
CL4	69.903A	0A	0A	0A	849.57	88.803%	1475	36.2	45.21°C	0.994
CL4	12.154V	5.067V	3.26V	5.089V	956.699	88.803%	1475	36.2	51.21°C	114.61V

The results above are not used in the certification process

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
10%	5.280A	2A	2A	1A	86.223	89.795%	0	<6.0	48.02°C	0.835
10%	12.201V	5.074V	3.267V	5.115V	96.023	89.795%	0	<6.0	40.26°C	229.88V
20%	11.600A	3A	3A	1.2A	172.614	92.514%	0	<6.0	48.81°C	0.917
20%	12.196V	5.072V	3.265V	5.104V	186.582	92.514%	0	<6.0	40.73°C	229.87V
30%	18.242A	3.5A	3.5A	1.4A	258.688	93.386%	0	<6.0	52.6°C	0.94
30%	12.191V	5.071V	3.263V	5.095V	277.009	93.386%	0	<6.0	41.28°C	229.85V
40%	24.908A	4A	4A	1.6A	345	93.602%	0	<6.0	51.75°C	0.952
40%	12.187V	5.069V	3.261V	5.084V	368.583	93.602%	0	<6.0	41.95°C	229.83V
50%	31.206A	5.001A	5.001A	1.8A	430.902	93.472%	450	<6.0	42.39°C	0.96
50%	12.182V	5.066V	3.258V	5.074V	460.997	93.472%	450	<6.0	50.04°C	229.82V
60%	37.530A	5.999A	6A	2A	516.936	93.171%	864	19.1	42.83°C	0.965
60%	12.175V	5.063V	3.255V	5.063V	554.829	93.171%	864	19.1	49.03°C	229.81V
70%	43.826A	6.999A	7A	2.2A	602.581	92.791%	965	22.3	43.19°C	0.969
70%	12.168V	5.06V	3.252V	5.053V	649.4	92.791%	965	22.3	49.09°C	229.79V
80%	50.187A	7.999A	8.001A	2.3A	688.443	92.335%	1135	25	43.74°C	0.972
80%	12.162V	5.058V	3.25V	5.044V	745.596	92.335%	1135	25	49.98°C	229.78V
90%	56.886A	8.499A	8.5A	2.4A	774.24	91.851%	1429	34.9	44.34°C	0.975
90%	12.157V	5.056V	3.248V	5.036V	842.935	91.851%	1429	34.9	50.51°C	229.76V
100%	63.368A	8.999A	9A	3A	859.776	91.269%	1680	39.6	45.42°C	0.978
100%	12.151V	5.054V	3.246V	5.017V	942.017	91.269%	1680	39.6	51.67°C	229.74V
110%	69.769A	9.998A	10A	3A	945.406	90.602%	2001	45	46.87°C	0.979
110%	12.146V	5.052V	3.244V	5.011V	1043.471	90.602%	2001	45	53.29°C	229.73V
CL1	0.118A	14.456A	14.459A	0A	121.497	86.056%	1181	29.4	41.36°C	0.893
CL1	12.201V	5.057V	3.248V	5.125V	141.186	86.056%	1181	29.4	47.5°C	229.87V
CL2	0.116A	19.991A	0A	0A	102.55	84.829%	1178	29.3	40.27°C	0.873
CL2	12.200V	5.059V	3.26V	5.13V	120.89	84.829%	1178	29.3	45°C	229.88V
CL3	0.116A	0A	20.003A	0A	66.422	80.153%	641	7.7	41.3°C	0.807
CL3	12.198V	5.069V	3.25V	5.13V	82.869	80.153%	641	7.7	45.3°C	229.88V
CL4	70.838A	0A	0A	0A	860.892	91.982%	1521	36.9	45.87°C	0.977
CL4	12.153V	5.067V	3.26V	5.089V	935.934	91.982%	1521	36.9	50.48°C	229.75V

The results above are not used in the certification process

20-80瓦负载测试

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
20W	1.218A	0.492A	0.505A	0.195A	20.004	73.484%	0	<6.0	43.67°C	0.87
20W	12.193V	5.076V	3.27V	5.135V	27.223	73.484%	0	<6.0	36.7°C	114.93V
40W	2.681A	0.689A	0.706A	0.292A	40.001	83.001%	0	<6.0	44.1°C	0.936
40W	12.194V	5.076V	3.27V	5.132V	48.192	83.001%	0	<6.0	37.48°C	114.91V
60W	4.144A	0.886A	0.908A	0.39A	60	86.477%	0	<6.0	46.15°C	0.957
60W	12.194V	5.076V	3.27V	5.129V	69.382	86.477%	0	<6.0	38.59°C	114.9V
80W	5.602A	1.084A	1.11A	0.488A	79.949	88.423%	0	<6.0	46.89°C	0.966
80W	12.195V	5.076V	3.269V	5.126V	90.416	88.423%	0	<6.0	39.52°C	114.89V

The results above are not used in the certification process

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
20W	1.240A	0.5A	0.5A	0.2A	20.332	75.101%	0	<6.0	41.49°C	0.489
20W	12.200V	5.077V	3.27V	5.136V	27.075	75.101%	0	<6.0	36.5°C	229.89V
41W	2.720A	0.7A	0.7A	0.3A	40.569	84.449%	0	<6.0	41.59°C	0.669
41W	12.200V	5.077V	3.27V	5.133V	48.041	84.449%	0	<6.0	37.12°C	229.89V
61W	4.224A	0.9A	0.9A	0.4A	61.098	88.007%	0	<6.0	44.06°C	0.767
61W	12.199V	5.076V	3.27V	5.129V	69.424	88.007%	0	<6.0	38.2°C	229.88V
81W	5.704A	1.1A	1.1A	0.5A	81.332	89.977%	0	<6.0	45.55°C	0.824
81W	12.199V	5.076V	3.269V	5.126V	90.392	89.977%	0	<6.0	39.14°C	229.88V

The results above are not used in the certification process

纹波测量

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	19.03mV	14.82mV	13.61mV	13.76mV	Pass
20% Load	20.52mV	14.92mV	13.40mV	13.91mV	Pass
30% Load	20.77mV	15.17mV	13.86mV	15.14mV	Pass
40% Load	23.69mV	14.51mV	13.20mV	15.04mV	Pass
50% Load	25.99mV	15.58mV	14.58mV	15.34mV	Pass
60% Load	25.48mV	14.51mV	13.76mV	15.04mV	Pass
70% Load	27.52mV	14.87mV	13.71mV	15.65mV	Pass
80% Load	29.06mV	14.61mV	14.63mV	16.42mV	Pass
90% Load	30.90mV	15.02mV	15.30mV	15.81mV	Pass
100% Load	44.38mV	16.97mV	17.24mV	18.29mV	Pass
110% Load	47.37mV	16.68mV	16.87mV	17.40mV	Pass
Crossload1	24.30mV	15.90mV	15.65mV	15.40mV	Pass
Crossload2	17.80mV	17.01mV	13.20mV	13.97mV	Pass
Crossload3	16.88mV	14.82mV	16.68mV	14.02mV	Pass
Crossload4	44.99mV	15.20mV	14.35mV	16.55mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	17.80mV	14.46mV	13.45mV	13.91mV	Pass
20% Load	20.00mV	14.46mV	13.25mV	13.96mV	Pass
30% Load	22.76mV	15.68mV	14.48mV	14.83mV	Pass
40% Load	23.79mV	15.28mV	13.91mV	13.86mV	Pass
50% Load	25.12mV	14.87mV	14.37mV	14.68mV	Pass
60% Load	25.79mV	14.10mV	13.66mV	14.68mV	Pass
70% Load	26.60mV	15.38mV	14.58mV	15.19mV	Pass
80% Load	28.91mV	15.89mV	14.68mV	16.73mV	Pass
90% Load	32.59mV	15.07mV	15.81mV	15.60mV	Pass
100% Load	46.46mV	17.19mV	16.66mV	17.94mV	Pass
110% Load	47.67mV	16.96mV	17.51mV	18.60mV	Pass
Crossload1	24.79mV	15.57mV	14.93mV	15.27mV	Pass
Crossload2	18.21mV	17.73mV	13.30mV	15.04mV	Pass
Crossload3	18.52mV	14.30mV	15.55mV	14.17mV	Pass
Crossload4	45.75mV	15.11mV	14.66mV	16.85mV	Pass

The results above are not used in the certification process
