ABKO CM-500B
Serial Number
Lab IDAB50002559
Certification ID252559
  • Test Result Report ID: 24PS2559A
  • Certificate Issue Date: Sep 3, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandABKO
製造商 (OEM)Guangzhou PREE Electronic Technology Co., Ltd
SeriesCM-B
Model NumberCM-500B
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)220-230
Rated Current (Arms)6.3
Rated Frequency (Hz)60
Rated Power (W)500
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (W12025HZ12SEMA)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181841.72.50.3
Watts9050012.53.6
Total Max. Power (W)500

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (490mm) 1 1 18-20AWG No
4+4 pin EPS12V (625mm+140mm) 1 2 18AWG No
6+2 pin PCIe (580mm+140mm) 1 2 18AWG No
SATA (450mm+140mm) / 4-pin Molex (+140mm) 2 4 / 2 18-20AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✗
(EU) No 617/2013 Compliance✓

Performance Summary 230V

效率評比BRONZE
噪音評比A-
Average Efficiency (>1450 load combinations)84.401%
Average Noise Output (>1450 Load Combinations)26.91dBA
Average PF (>1450 Load Combinations)0.977
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.2337W
12V Ripple (Full Load)53.25mV
5V Ripple (Full Load)27.93mV
3.3V Ripple (Full Load)35.17mV
5VSB Ripple (Full Load)44.19mV
12V Load Regulation1.57%
5V Load Regulation4.08%
3.3V Load Regulation4.77%
5VSB Load Regulation5.19%
Inrush Current63.220A
12V Transient Response (150%)11.64V
5V Transient Response (150%)4.864V
3.3V Transient Response (150%)3.159V
5VSB Transient Response (150%)4.943V
Hold-Up Time & Power Ok Signal11.60ms
AC Loss to PWR_OK Hold Up Time21.10ms
PWR_OK Inactive to DC Loss Delay-9.50ms
PSU Timings: T1 (20% / 100%)79.0ms53.0ms
PSU Timings: T3 (20% / 100%)357.0ms357.0ms
12V OCP (30.3°C / 46.1°C)62.80A (150.60%), 11.453V*High ripple61.20A (146.76%), 12.155V
5V OCP (30.3°C / 46.1°C)29.9A (166.11%), 4.791V*High ripple29.1A (161.67%), 4.793V*High ripple
3.3V OCP (30.3°C / 46.1°C)30.2A (167.78%), 3.187V*High ripple29.2A (162.22%), 3.194V*High ripple
5VSB OCP (30.3°C / 46.1°C)4.5A (180.00%), 4.862V*High ripple4.3A (172.00%), 4.874V*High ripple
OPP (30.19°C / 43.39°C)142.62%141.62%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)11.6
AC Loss to PWR_OK Hold Up Time (ms)21.1
PWR_OK Inactive to DC Loss Delay (ms)-9.5

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.76 V 230.70 V 227.70 V 230.84 V 232.30 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.18 % 2.00 % PASS
Real Power: 0.234 W 0.185 W N/A 0.301 W N/A N/A
Apparent Power: 19.742 W 18.111 W N/A 21.522 W N/A N/A
Power Factor: 0.013 N/A N/A N/A N/A N/A

Graphs 230V

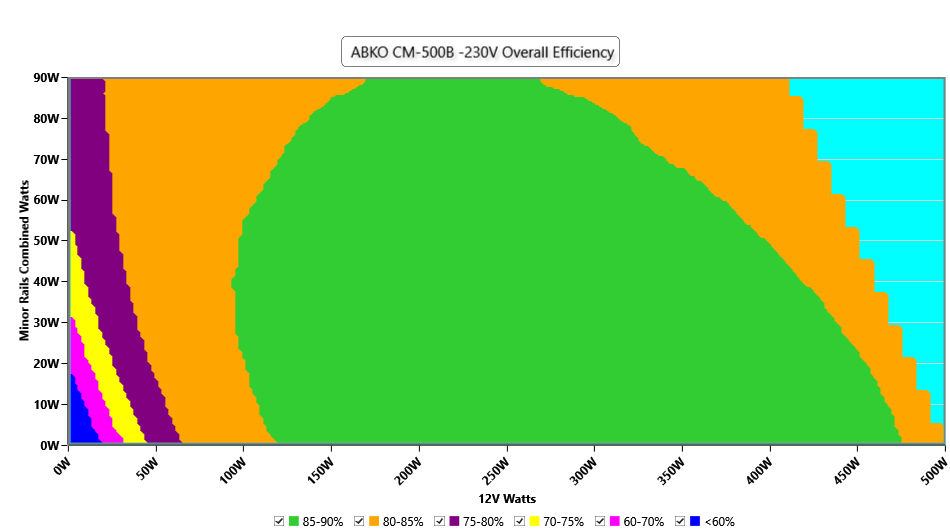

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

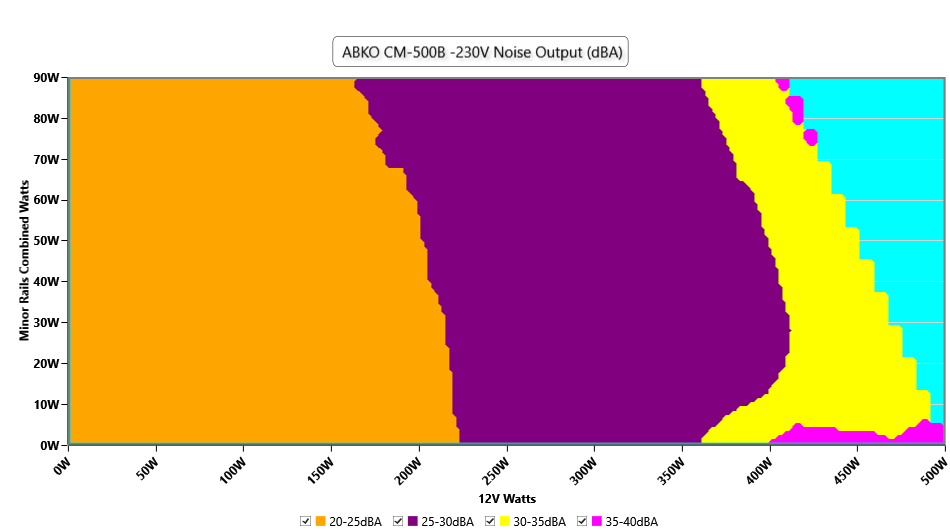

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

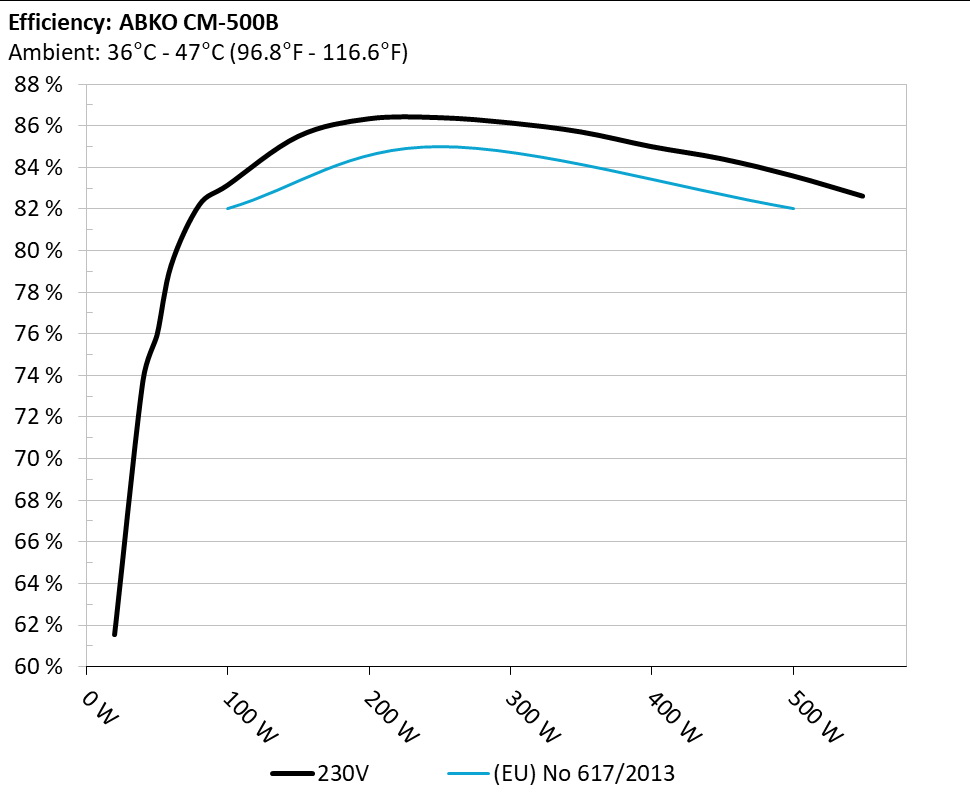

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

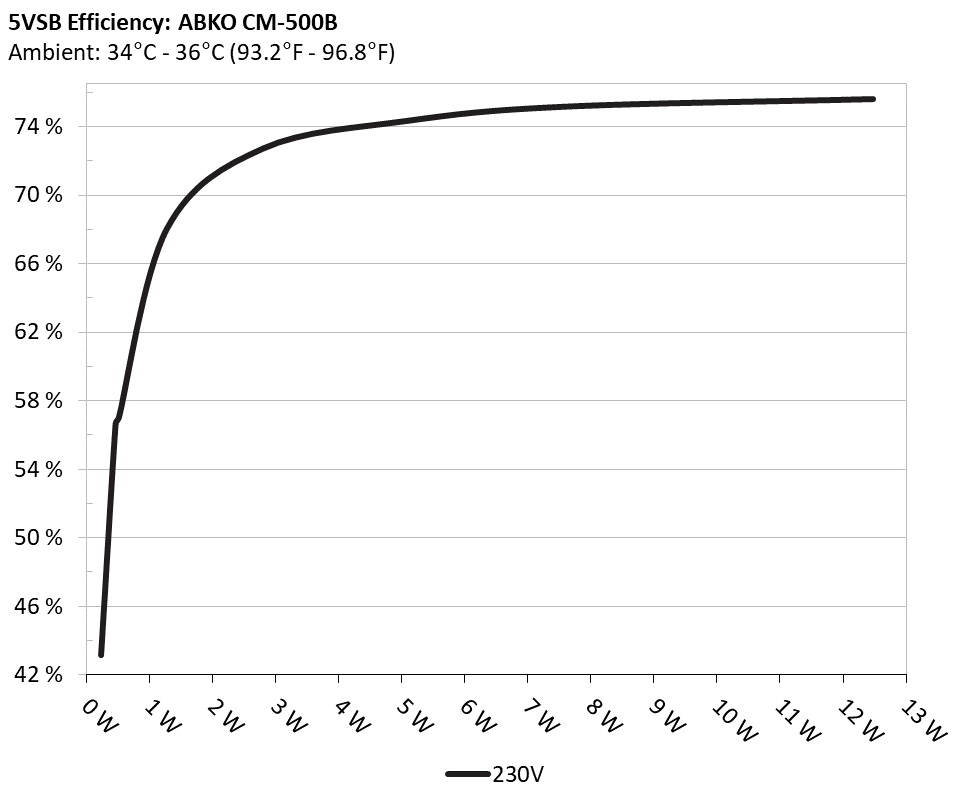

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 42.674% 0.033
5.125V 0.544W 229.92V
2 0.09A 0.461W 56.145% 0.05
5.122V 0.832W 229.89V
3 0.55A 2.803W 72.233% 0.192
5.097V 3.881W 229.91V
4 1A 5.073W 73.838% 0.271
5.073V 6.871W 229.88V
5 1.5A 7.57W 74.671% 0.316
5.046V 10.136W 229.9V
6 2.5A 12.479W 75.113% 0.365
4.992V 16.614W 229.89V

Protection Features

OCP (Normal @ 30.3°C)12V: 62.80A (150.60%), 11.453V*
High ripple: 127.3mV
5V: 29.9A (166.11%), 4.791V*
High ripple: 60.59mV
3.3V: 30.2A (167.78%), 3.187V*
High ripple: 62.15mV
5VSB: 4.5A (180.00%), 4.862V*
High ripple: 151.59mV
OCP (Hot @ 46.1°C)12V: 61.20A (146.76%), 12.155V
5V: 29.1A (161.67%), 4.793V*
High ripple: 57.93mV
3.3V: 29.2A (162.22%), 3.194V*
High ripple: 55.25mV
5VSB: 4.3A (172.00%), 4.874V*
High ripple: 174.61mV
OPP (Normal @ 30.2°C)713.10W (142.62%)
OPP (Hot @ 43.4°C)708.10W (141.62%)
OTP✓ (170°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
PWR_OKInaccurate
NLO✓
Fan Failure Protection✗
SIPSurge: None
Inrush: NTC

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 2.272A 1.973A 1.975A 0.989A 50.002 75.945% 909 24.4 34.17°C 0.875
12.503V 5.069V 3.342V 5.058V 65.838 38.09°C 229.89V
20% 5.530A 2.971A 2.977A 1.192A 99.935 83.154% 912 24.5 34.9°C 0.952
12.481V 5.048V 3.326V 5.034V 120.181 39.43°C 229.87V
30% 9.142A 3.477A 3.485A 1.397A 149.97 85.507% 917 24.9 35.18°C 0.976
12.462V 5.034V 3.314V 5.013V 175.389 41.02°C 229.87V
40% 12.764A 3.985A 3.998A 1.603A 200.016 86.35% 926 25.4 35.97°C 0.985
12.442V 5.019V 3.302V 4.991V 231.636 42.94°C 229.86V
50% 16.059A 5.004A 5.023A 1.813A 249.977 86.402% 941 25.9 36.02°C 0.989
12.421V 4.997V 3.285V 4.966V 289.32 45.21°C 229.85V
60% 19.368A 6.032A 6.059A 2A 299.899 86.153% 962 26.3 36.99°C 0.991
12.402V 4.975V 3.269V 4.943V 348.102 48.05°C 229.85V
70% 22.686A 7.07A 7.107A 2.238A 350.042 85.716% 984 27.4 37.42°C 0.993
12.383V 4.951V 3.251V 4.916V 408.376 51.2°C 229.83V
80% 26.012A 8.115A 8.165A 2.349A 399.478 85.016% 1159 32 37.9°C 0.993
12.363V 4.928V 3.233V 4.896V 469.884 52.9°C 229.83V
90% 29.763A 8.649A 8.694A 2.46A 449.706 84.425% 1236 34.1 38.01°C 0.992
12.338V 4.913V 3.221V 4.879V 532.677 53.03°C 229.82V
100% 33.524A 9.187A 9.259A 2.572A 500.003 83.604% 1694 42.7 39.92°C 0.992
12.314V 4.897V 3.208V 4.86V 598.061 55.37°C 229.81V
110% 36.910A 10.258A 10.442A 2.58A 549.426 82.631% 1785 44.6 40.69°C 0.991
12.290V 4.873V 3.189V 4.845V 664.918 57.31°C 229.79V
CL1 0.111A 10.985A 10.979A 0.001A 91.292 78.175% 948 26 34.56°C 0.951
12.497V 4.933V 3.252V 5.059V 116.775 46.16°C 229.88V
CL2 0.113A 18.278A 0A 0.001A 91.387 76.952% 945 26 35.1°C 0.952
12.501V 4.922V 3.288V 5.076V 118.755 43.26°C 229.9V
CL3 0.112A 0A 18.205A 0.002A 60.809 70.774% 933 25.6 35.03°C 0.918
12.501V 5.006V 3.263V 5.07V 85.922 42.1°C 229.87V
CL4 40.608A 0A 0A 0.002A 499.939 85.032% 1595 41 39.03°C 0.992
12.311V 5.045V 3.311V 5.059V 587.95 51.79°C 229.81V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.188A 0.49A 0.491A 0.196A 20.001 61.543% 870 23.4 30.16°C 0.747
12.507V 5.097V 3.361V 5.112V 32.5 32.89°C 229.88V
40W 2.614A 0.687A 0.688A 0.294A 40 73.731% 885 23.5 31.55°C 0.836
12.502V 5.091V 3.357V 5.103V 54.249 34.34°C 229.89V
60W 4.044A 0.885A 0.886A 0.393A 59.999 79.303% 894 23.9 32.32°C 0.898
12.495V 5.086V 3.353V 5.094V 75.657 35.8°C 229.87V
80W 5.470A 1.083A 1.084A 0.492A 79.947 82.209% 901 24.1 33.15°C 0.936
12.487V 5.08V 3.348V 5.085V 97.248 36.96°C 229.89V

The results above are not used in the certification process

Ripple Measurements 230V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 21.9 mV 19.2 mV 20.9 mV 48.5 mV Pass
20% Load 22.5 mV 20.0 mV 22.0 mV 45.3 mV Pass
30% Load 24.3 mV 20.3 mV 21.7 mV 44.3 mV Pass
40% Load 25.6 mV 19.8 mV 21.6 mV 43.7 mV Pass
50% Load 27.7 mV 20.1 mV 23.1 mV 42.3 mV Pass
60% Load 30.1 mV 20.3 mV 25.2 mV 42.4 mV Pass
70% Load 33.3 mV 22.1 mV 26.1 mV 41.8 mV Pass
80% Load 38.1 mV 24.4 mV 30.9 mV 41.7 mV Pass
90% Load 40.4 mV 23.8 mV 29.8 mV 39.9 mV Pass
100% Load 53.3 mV 27.9 mV 35.2 mV 44.2 mV Pass
110% Load 57.0 mV 28.4 mV 36.3 mV 45.9 mV Pass
Crossload 1 28.9 mV 27.4 mV 28.5 mV 66.6 mV Fail
Crossload 2 37.4 mV 35.6 mV 21.7 mV 60.2 mV Fail
Crossload 3 32.2 mV 19.1 mV 33.9 mV 69.5 mV Fail
Crossload 4 50.2 mV 23.0 mV 28.9 mV 65.5 mV Fail

The results above are not used in the certification process

ABKO CM-500B

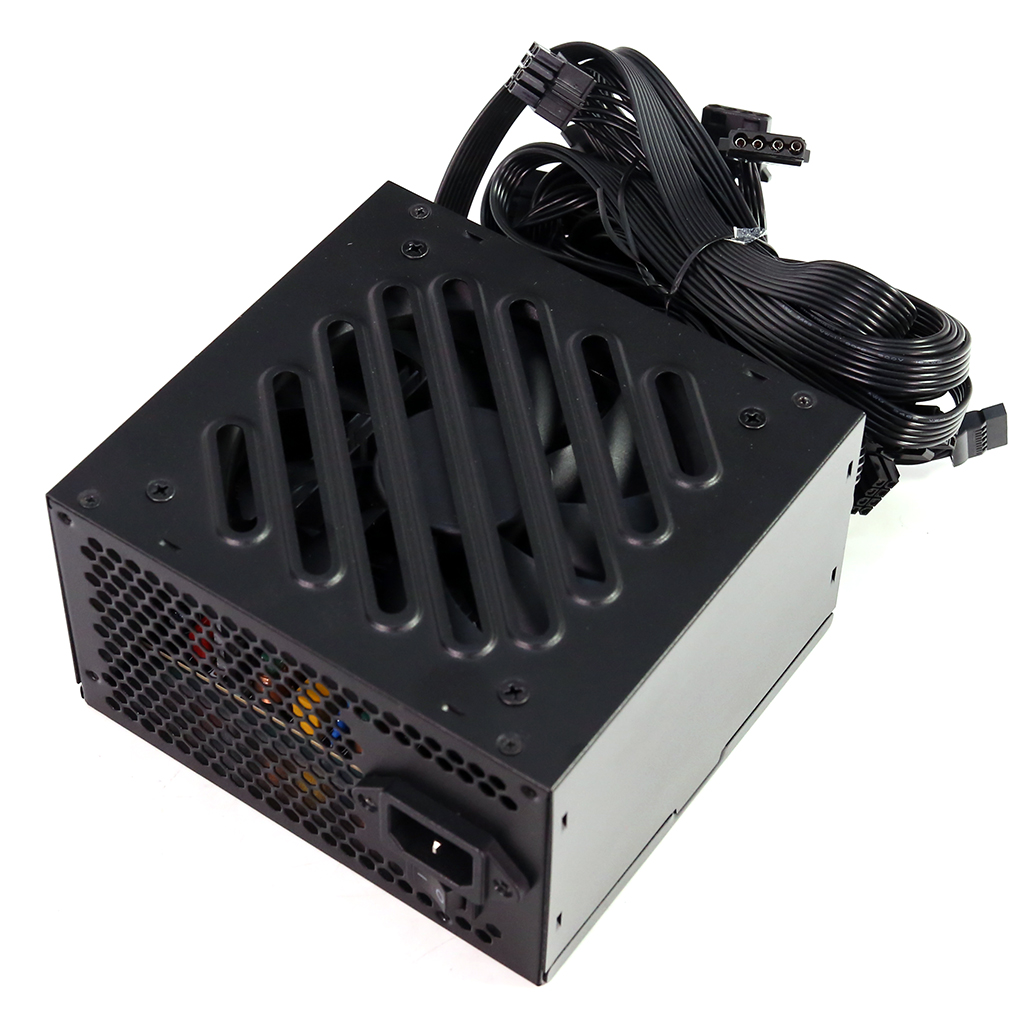

Top side

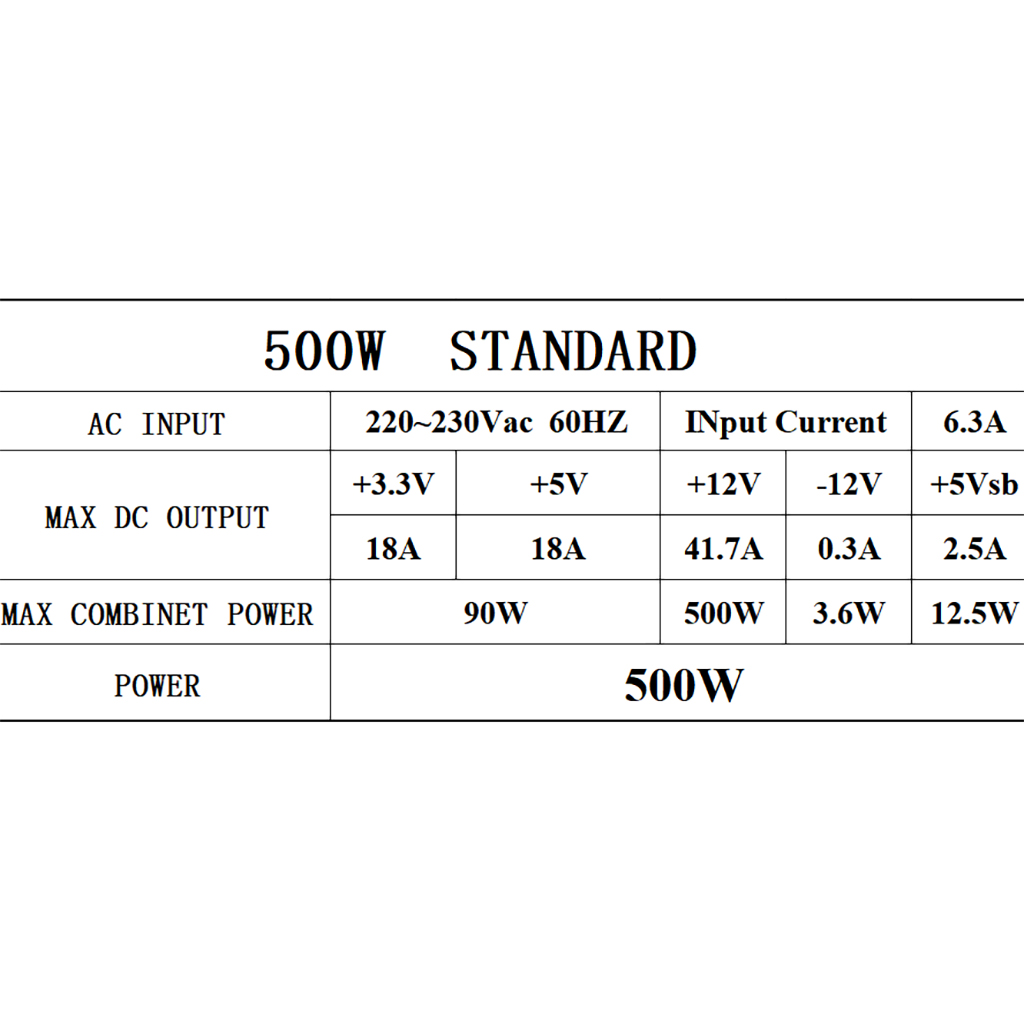

Power specifications label
