CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

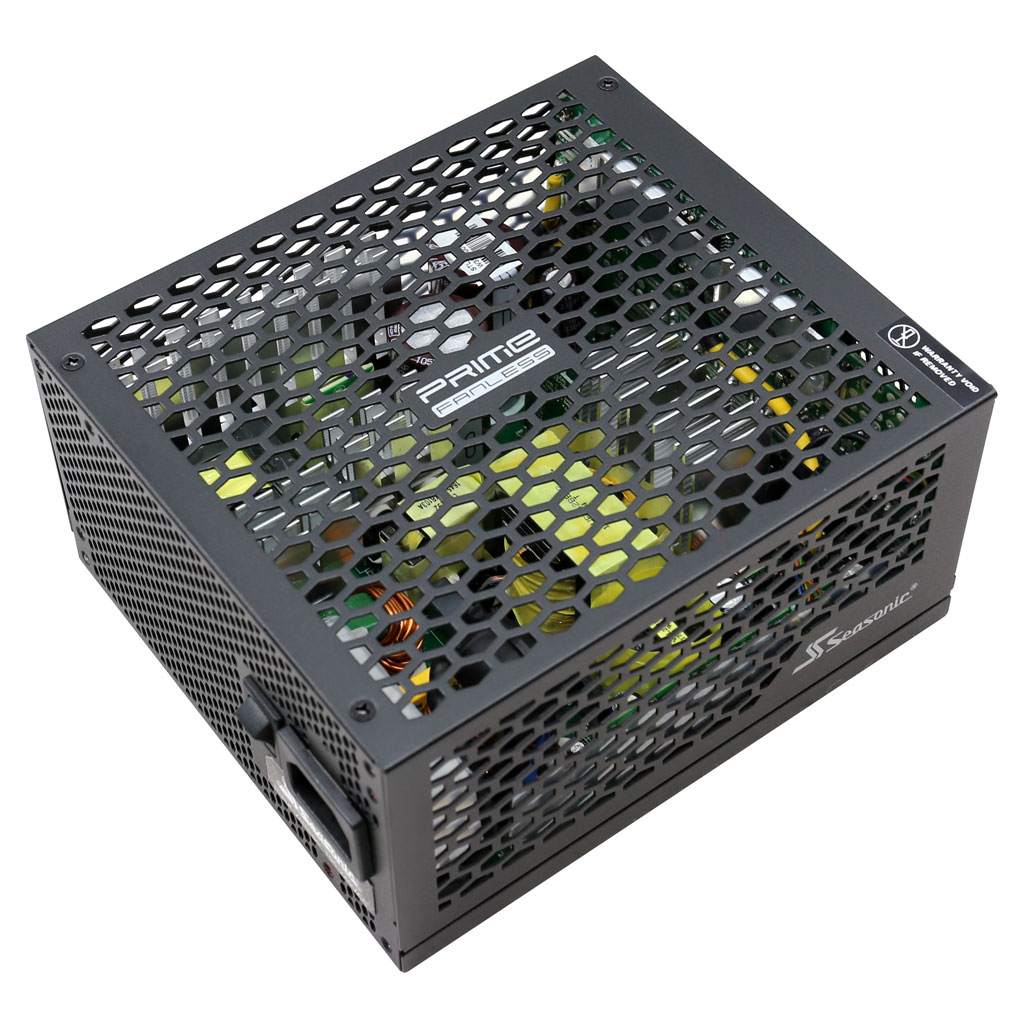

Seasonic Prime Titanium Fanless 600W
Serial NumberR1708TA105680169
Lab ID258
Certification ID25258
  • Test Result Report ID:
  • Certificate Issue Date: Dec 29, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSeasonic
製造商 (OEM)Seasonic
SeriesPrime Titanium
Model NumberSSR-600TL
Serial NumberR1708TA105680169
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-4
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Dimensions (W x H x D)
CoolingPassive
Semi-Passive Operation✗
Cable DesignFully Modular

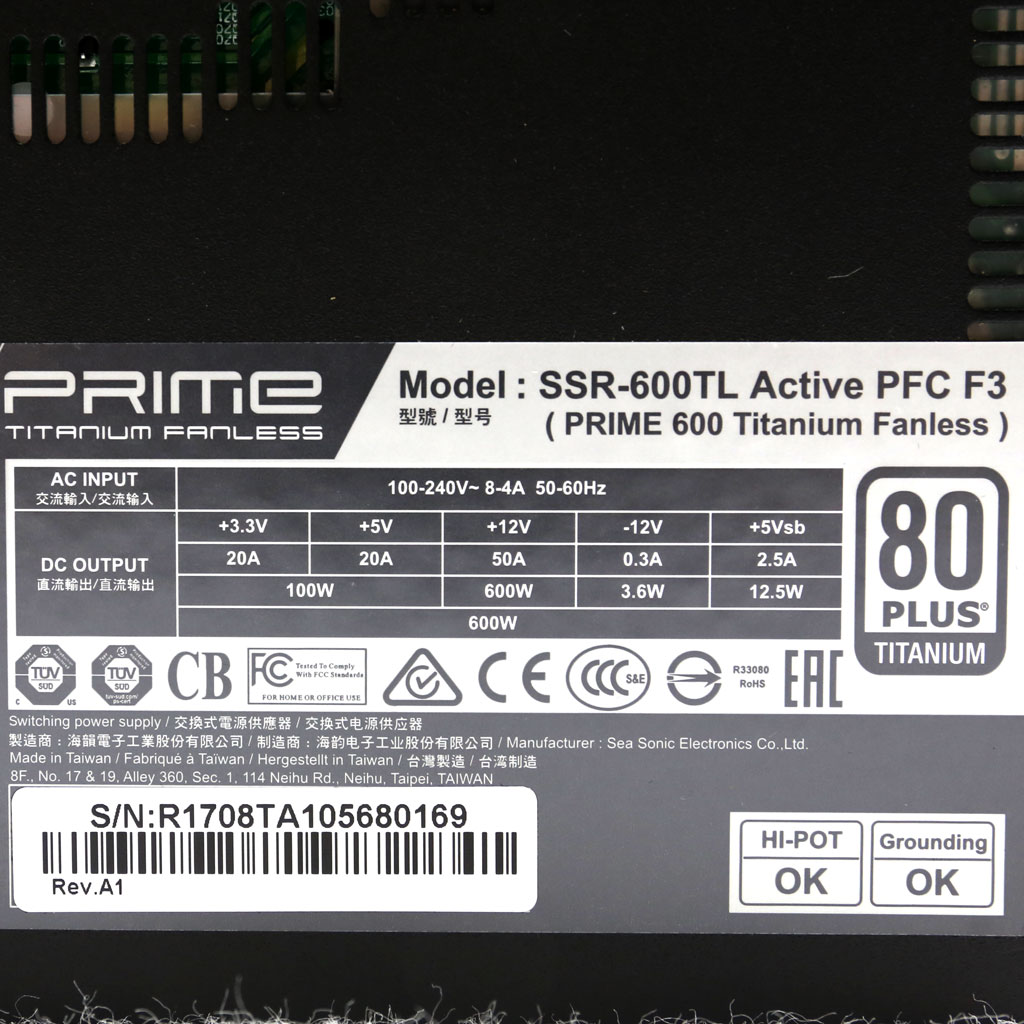

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 50 2.5 0.3
Watts 100 600 12.5 3.6
Total Max. Power (W) 600

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm+80mm) 2 4 18AWG No
SATA (450mm+110mm+110mm+110mm) 1 4 18AWG No
SATA (350mm+110mm) 1 2 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
AC Power Cord (1350mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model Prime Fanless
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETS 2x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14 Ohm)
APFC Boost Diode 1x CREE C3D06060A (600V, 6A @ 154°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 450uF, 2000h @ 105°C, CE)
1x Nippon Chemi-Con (400V, 390uF, 2000h @ 105°C, CE)
Main Switchers 4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14 Ohm)
Drivers For Main Switchers 2x Silicon Labs Si8230BD
APFC Controller ON Semiconductor NPC1654
Switching Controller Champion CM6901
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon BSC014N04LS (40V, 100A @ 25°C, 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Nippon Chemi-Con (105°C, W), Nippon Chemi-Con (4,000-10,000h @ 105°C, KY), Nippon Chemi-Con (4,000-10,000h @ 105°C, KYB), Rubycon (5VSB circuit, 3,000-6,000h @ 105°C, YXG), Nichicon (4,000-10,000h @ 105°C, HE)
Polymers: FPCAP, Nippon Chemi-Con
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG ) & AS393M
5VSB Circuit
Buck Converter AME5268 (3A
Rectifiers STMicroelectronics STU6N65K3 (650V, 3A @ 100°C, 1.3Ohm), 6A4 SBR (400V, 6A @ 75°C), Infineon BSC0906NS (30V, 40A @ 100°C, 4.5 mOhm)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

效率評比TITANIUM
噪音評比A++
Average Efficiency (>1450 load combinations)92.462%
Average Noise Output (>1450 Load Combinations)6.00dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0544W
12V Ripple (Full Load)18.31mV
5V Ripple (Full Load)14.62mV
3.3V Ripple (Full Load)11.11mV
5VSB Ripple (Full Load)8.75mV
12V Load Regulation0.13%
5V Load Regulation0.12%
3.3V Load Regulation0.24%
5VSB Load Regulation1.13%
Inrush Current25.419A
效率評比GOLD
噪音評比A++
Average Efficiency (>1450 load combinations)93.957%
Average Noise Output (>1450 Load Combinations)6.00dBA
Average PF (>1450 Load Combinations)0.932
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0888W
12V Ripple (Full Load)18.19mV
5V Ripple (Full Load)14.28mV
3.3V Ripple (Full Load)11.24mV
5VSB Ripple (Full Load)8.21mV
12V Load Regulation0.10%
5V Load Regulation0.10%
3.3V Load Regulation0.21%
5VSB Load Regulation1.15%
Inrush Current63.971A
Hold-Up Time & Power Ok Signal41.00ms
AC Loss to PWR_OK Hold Up Time36.20ms
PWR_OK Inactive to DC Loss Delay4.80ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)41
AC Loss to PWR_OK Hold Up Time (ms)36.2
PWR_OK Inactive to DC Loss Delay (ms)4.8

待機電源消耗

Tables

Graphs

INFO

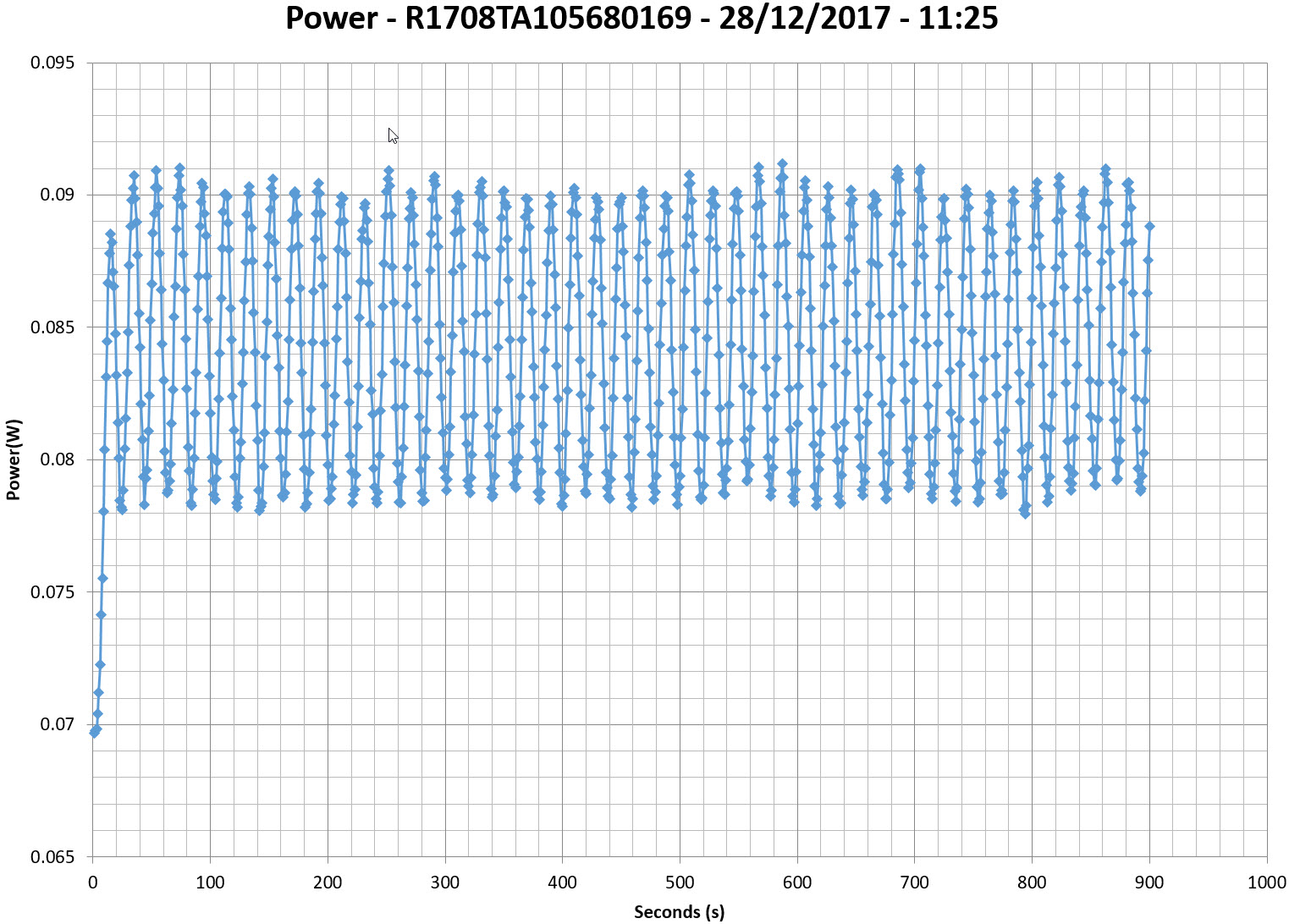

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

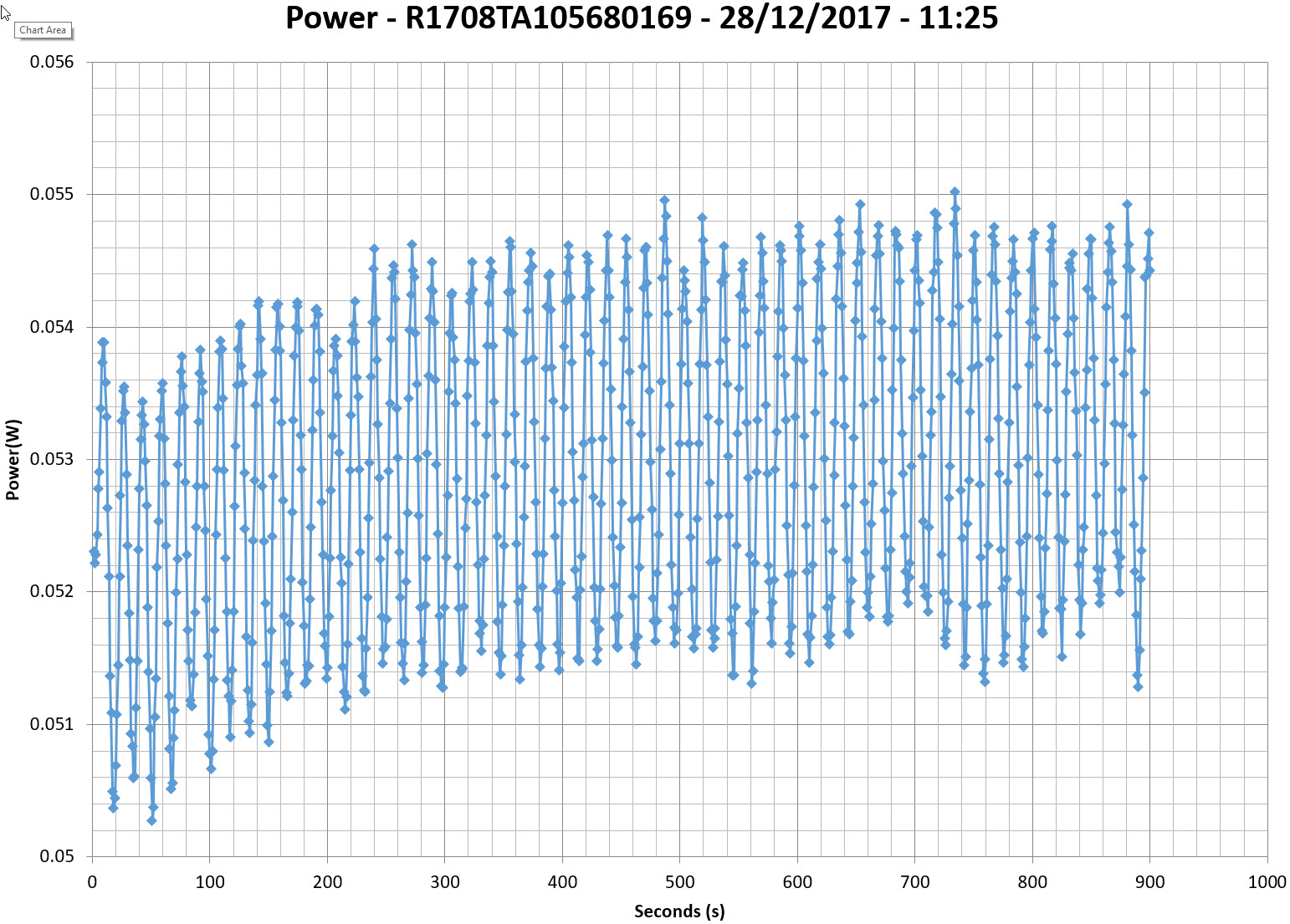

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

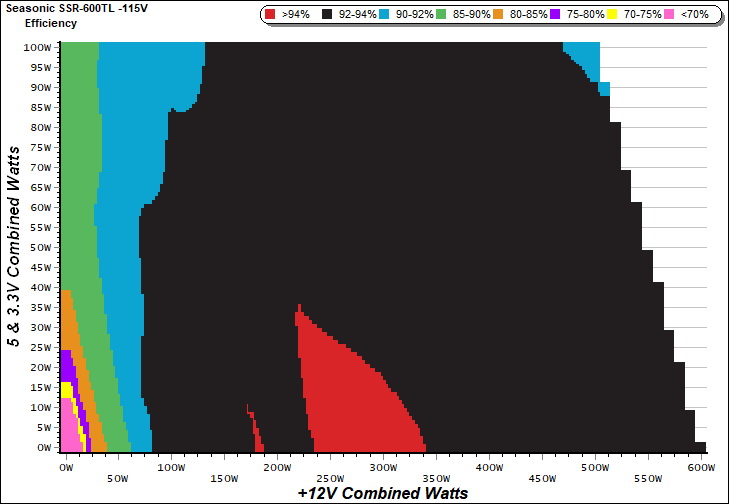

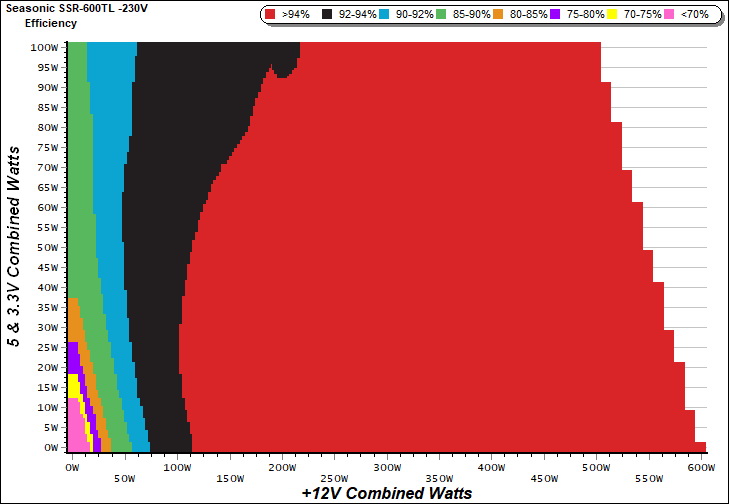

Efficiency Graph

INFO

This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

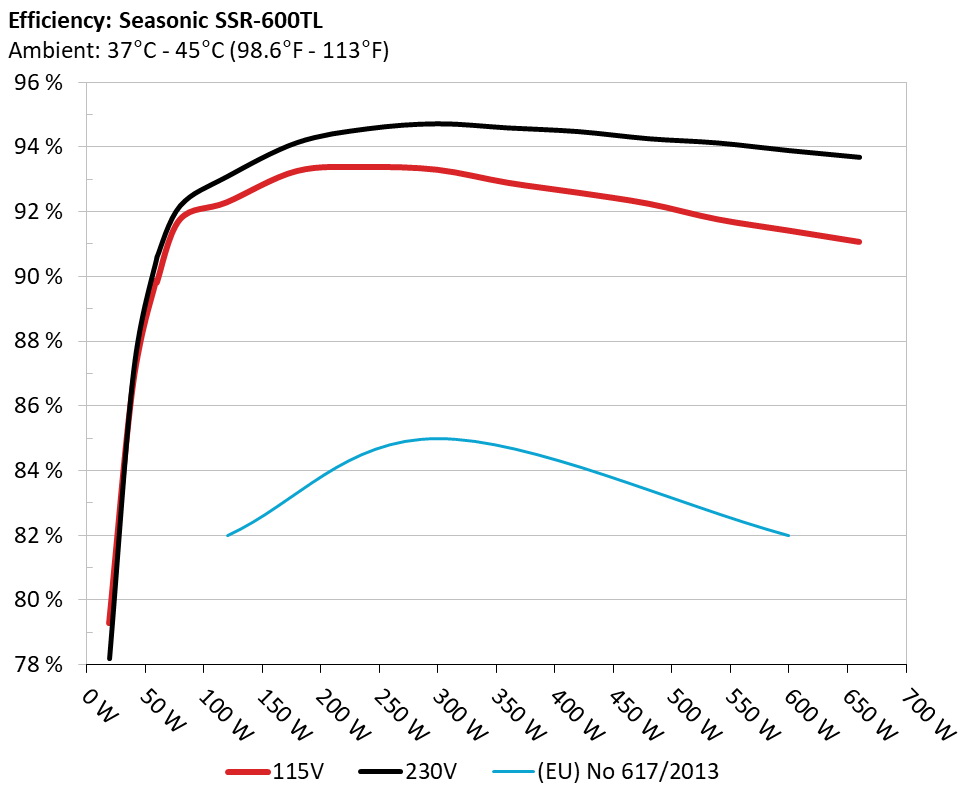

Efficiency under high ambient temperature

INFO

The PSU’s efficiency under high ambient temperatures

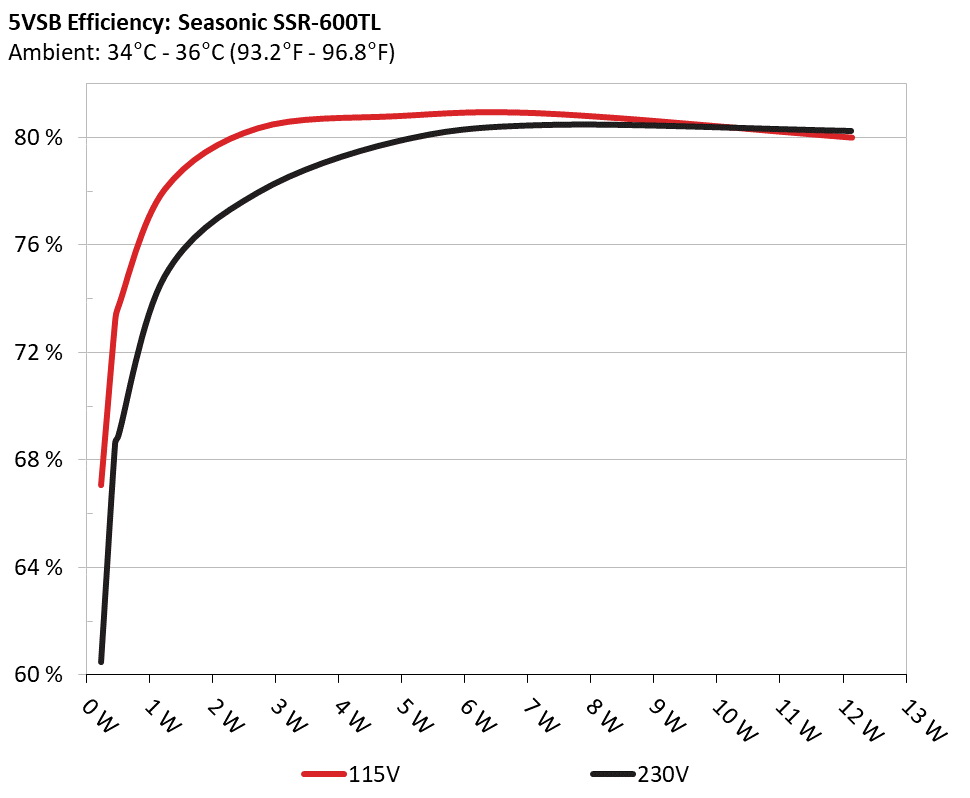

5VSB Efficiency

INFO

The efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222 67.069% 0.029
4.938V 0.331 115.27V
2 0.090A 0.444 73.147% 0.053
4.936V 0.607 115.27V
3 0.550A 2.706 80.344% 0.240
4.920V 3.368 115.26V
4 1.000A 4.906 80.797% 0.343
4.906V 6.072 115.25V
5 1.500A 7.335 80.889% 0.404
4.890V 9.068 115.26V
6 2.500A 12.143 79.999% 0.464
4.857V 15.179 115.25V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222 60.490% 0.011
4.937V 0.367 230.81V
2 0.090A 0.444 68.624% 0.019
4.936V 0.647 230.81V
3 0.550A 2.705 77.954% 0.095
4.918V 3.470 230.81V
4 1.000A 4.904 79.857% 0.158
4.903V 6.141 230.81V
5 1.500A 7.330 80.479% 0.216
4.886V 9.108 230.81V
6 2.500A 12.128 80.254% 0.298
4.851V 15.112 230.81V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.152A 1.983A 1.972A 0.997A 59.929 89.810% 0 <6.0 43.80°C 0.945
12.164V 5.041V 3.343V 5.015V 66.729 37.70°C 115.29V
2 7.298A 2.976A 2.960A 1.198A 119.660 92.300% 0 <6.0 44.52°C 0.983
12.163V 5.040V 3.342V 5.011V 129.643 37.87°C 115.21V
3 11.804A 3.474A 3.441A 1.399A 179.568 93.269% 0 <6.0 44.98°C 0.992
12.162V 5.040V 3.341V 5.005V 192.526 38.08°C 115.13V
4 16.316A 3.969A 3.950A 1.601A 239.601 93.393% 0 <6.0 45.76°C 0.993
12.160V 5.039V 3.340V 5.000V 256.550 38.46°C 115.05V
5 20.495A 4.962A 4.940A 1.802A 299.693 93.308% 0 <6.0 46.86°C 0.995
12.159V 5.038V 3.339V 4.995V 321.186 39.33°C 115.06V
6 24.679A 5.953A 5.929A 2.004A 359.813 92.907% 0 <6.0 48.67°C 0.992
12.157V 5.038V 3.339V 4.991V 387.284 40.51°C 114.98V
7 28.829A 6.949A 6.917A 2.207A 419.540 92.601% 0 <6.0 50.42°C 0.992
12.156V 5.037V 3.338V 4.986V 453.064 41.33°C 114.89V
8 33.046A 7.943A 7.910A 2.410A 480.051 92.258% 0 <6.0 52.65°C 0.993
12.154V 5.037V 3.337V 4.981V 520.338 42.76°C 114.81V
9 37.595A 8.441A 8.393A 2.410A 539.364 91.774% 0 <6.0 54.01°C 0.994
12.152V 5.036V 3.336V 4.980V 587.707 43.64°C 114.81V
10 42.210A 8.939A 8.904A 2.512A 600.069 91.425% 0 <6.0 55.02°C 0.995
12.150V 5.035V 3.336V 4.978V 656.353 44.26°C 114.72V
11 47.161A 8.940A 8.904A 2.512A 660.122 91.077% 0 <6.0 57.43°C 0.995
12.148V 5.035V 3.335V 4.977V 724.796 45.18°C 114.63V
CL1 0.733A 12.002A 12.000A 0.000A 109.494 88.811% 0 <6.0 54.21°C 0.980
12.158V 5.038V 3.343V 5.062V 123.289 43.91°C 115.21V
CL2 50.007A 1.001A 1.000A 1.000A 620.818 91.973% 0 <6.0 55.39°C 0.995
12.147V 5.036V 3.335V 5.007V 675.002 43.84°C 114.70V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.151A 1.982A 1.972A 0.997A 59.900 90.519% 0 <6.0 45.23°C 0.720
12.161V 5.040V 3.342V 5.015V 66.174 37.45°C 230.80V
2 7.297A 2.975A 2.961A 1.198A 119.616 93.087% 0 <6.0 45.75°C 0.855
12.159V 5.040V 3.342V 5.010V 128.499 37.71°C 230.76V
3 11.803A 3.470A 3.441A 1.399A 179.500 94.141% 0 <6.0 46.63°C 0.914
12.159V 5.040V 3.341V 5.005V 190.672 38.19°C 230.72V
4 16.314A 3.969A 3.950A 1.601A 239.525 94.568% 0 <6.0 47.62°C 0.945
12.157V 5.039V 3.340V 4.999V 253.283 39.07°C 230.72V
5 20.494A 4.961A 4.939A 1.802A 299.610 94.723% 0 <6.0 48.37°C 0.959
12.156V 5.038V 3.339V 4.995V 316.300 39.55°C 230.73V
6 24.675A 5.953A 5.930A 2.004A 359.710 94.595% 0 <6.0 49.12°C 0.971
12.155V 5.038V 3.338V 4.990V 380.265 40.27°C 230.68V
7 28.825A 6.947A 6.920A 2.207A 419.432 94.483% 0 <6.0 51.43°C 0.974
12.154V 5.037V 3.338V 4.985V 443.921 41.48°C 230.64V
8 33.044A 7.942A 7.908A 2.410A 479.937 94.262% 0 <6.0 53.09°C 0.980
12.152V 5.036V 3.337V 4.980V 509.154 42.32°C 230.59V
9 37.592A 8.440A 8.389A 2.410A 539.234 94.130% 0 <6.0 54.19°C 0.983
12.150V 5.036V 3.336V 4.980V 572.862 43.07°C 230.54V
10 42.204A 8.937A 8.902A 2.512A 599.934 93.894% 0 <6.0 56.54°C 0.984
12.149V 5.035V 3.336V 4.977V 638.945 44.00°C 230.54V
11 47.158A 8.938A 8.903A 2.512A 659.975 93.687% 0 <6.0 59.14°C 0.987
12.146V 5.035V 3.335V 4.976V 704.446 45.24°C 230.54V
CL1 0.726A 12.000A 11.995A 0.000A 109.381 89.696% 0 <6.0 56.03°C 0.847
12.156V 5.038V 3.343V 5.061V 121.946 43.75°C 230.95V
CL2 49.996A 0.999A 0.997A 1.000A 620.614 94.409% 0 <6.0 57.99°C 0.985
12.146V 5.035V 3.335V 5.007V 657.368 44.11°C 230.58V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.171A 0.491A 0.476A 0.199A 19.304 79.277% 0 <6.0 0.779
12.156V 5.041V 3.344V 5.035V 24.350 115.34V
2 2.427A 0.991A 0.985A 0.398A 39.795 86.688% 0 <6.0 0.904
12.156V 5.041V 3.344V 5.030V 45.906 115.32V
3 3.610A 1.486A 1.464A 0.597A 59.305 89.879% 0 <6.0 0.944
12.166V 5.041V 3.343V 5.026V 65.983 115.29V
4 4.860A 1.984A 1.973A 0.797A 79.715 91.769% 0 <6.0 0.965
12.164V 5.041V 3.343V 5.021V 86.865 115.26V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.176A 0.494A 0.476A 0.199A 19.372 78.201% 0 <6.0 0.456
12.151V 5.040V 3.344V 5.035V 24.772 230.82V
2 2.431A 0.989A 0.985A 0.398A 39.817 87.056% 0 <6.0 0.631
12.151V 5.040V 3.343V 5.030V 45.737 230.81V
3 3.612A 1.486A 1.464A 0.597A 59.308 90.614% 0 <6.0 0.717
12.161V 5.040V 3.342V 5.025V 65.451 230.79V
4 4.861A 1.982A 1.972A 0.797A 79.695 92.192% 0 <6.0 0.783
12.161V 5.040V 3.342V 5.021V 86.445 230.79V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 13.2 mV 7.5 mV 5.8 mV 3.3 mV Pass
20% Load 15.4 mV 8.3 mV 6.8 mV 3.5 mV Pass
30% Load 17.4 mV 9.1 mV 7.2 mV 3.8 mV Pass
40% Load 11.9 mV 9.4 mV 7.6 mV 4.3 mV Pass
50% Load 10.6 mV 9.7 mV 8.1 mV 4.7 mV Pass
60% Load 12.5 mV 10.9 mV 8.5 mV 5.3 mV Pass
70% Load 14.1 mV 11.9 mV 8.9 mV 6.3 mV Pass
80% Load 15.2 mV 13.5 mV 10.1 mV 7.5 mV Pass
90% Load 16.4 mV 13.7 mV 9.9 mV 8.1 mV Pass
100% Load 18.3 mV 14.6 mV 11.1 mV 8.8 mV Pass
110% Load 19.6 mV 15.0 mV 11.3 mV 9.1 mV Pass
Crossload 1 16.3 mV 11.2 mV 9.8 mV 4.2 mV Pass
Crossload 2 18.4 mV 12.8 mV 8.5 mV 8.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.8 mV 7.3 mV 5.9 mV 3.4 mV Pass
20% Load 17.1 mV 8.1 mV 6.9 mV 3.4 mV Pass
30% Load 18.9 mV 8.5 mV 7.0 mV 3.7 mV Pass
40% Load 11.9 mV 8.9 mV 7.7 mV 4.1 mV Pass
50% Load 10.5 mV 9.8 mV 8.1 mV 4.6 mV Pass
60% Load 12.1 mV 10.5 mV 8.4 mV 5.1 mV Pass
70% Load 14.4 mV 11.7 mV 9.0 mV 5.9 mV Pass
80% Load 15.1 mV 12.8 mV 9.9 mV 6.9 mV Pass
90% Load 16.5 mV 13.7 mV 10.4 mV 7.7 mV Pass
100% Load 18.2 mV 14.3 mV 11.2 mV 8.2 mV Pass
110% Load 19.2 mV 14.5 mV 11.3 mV 8.6 mV Pass
Crossload 1 18.3 mV 11.1 mV 10.1 mV 4.2 mV Pass
Crossload 2 18.3 mV 12.5 mV 8.2 mV 7.8 mV Pass

The results above are not used in the certification process

Seasonic Prime Titanium Fanless 600W

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
