| 115V | 230V | |
| Scheme: ETA-EMI PSU |  |
 |
| 115V | 230V | |
 |
 |
Scheme: LAMBDA PSU |
Outside Validation Scope

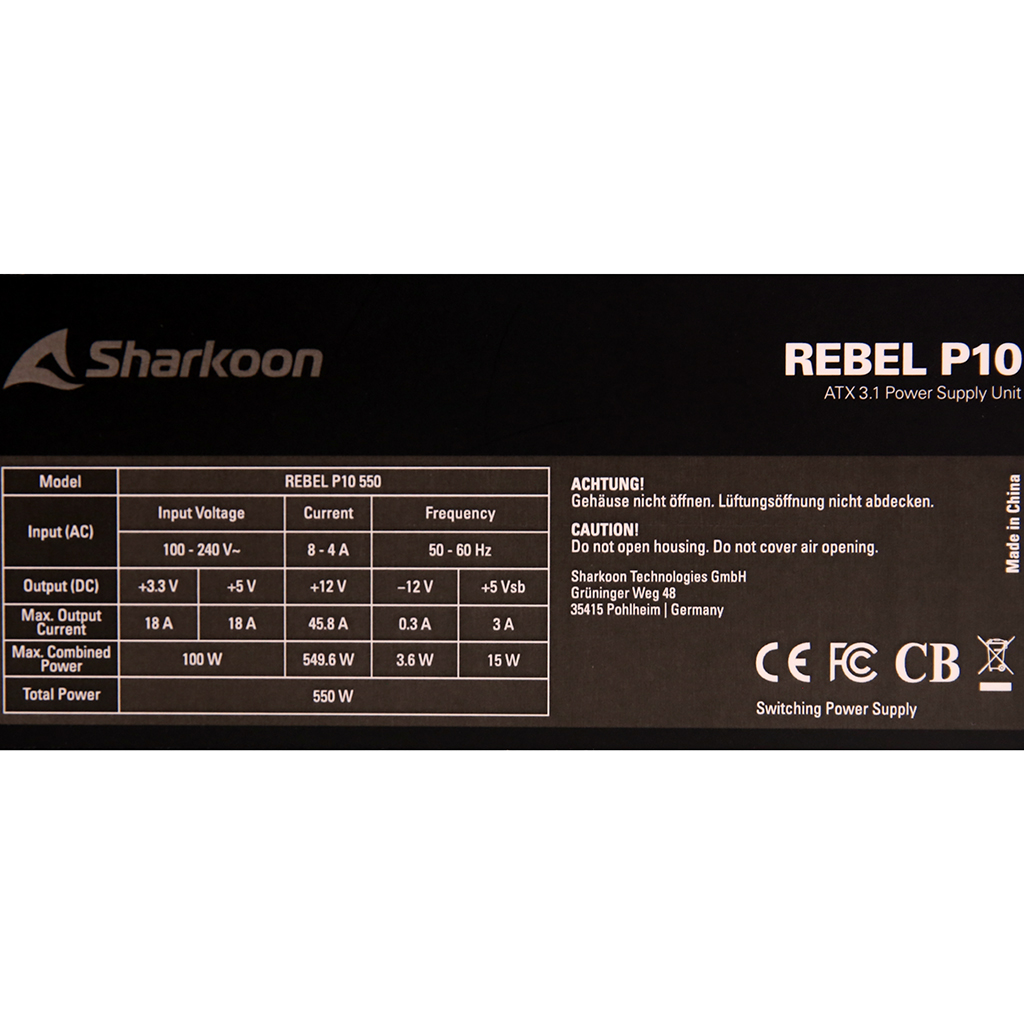

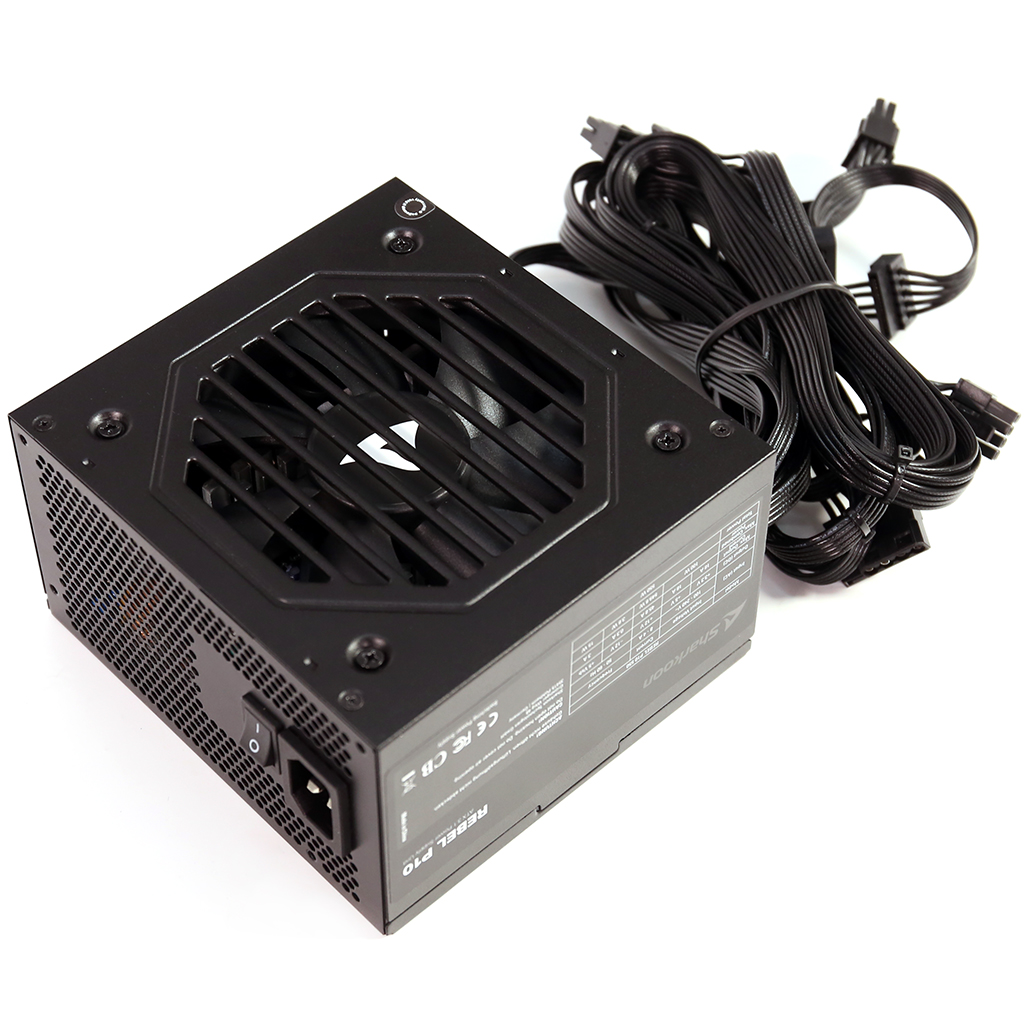

| Product Identification Details | |
| Brand | Sharkoon |
| Model | Rebel P10 550 |
| OEM/ODM | Andyson |
| Serial Number | |
| Product Specifications | |
| Manufacturer-Provided Information | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 4-8 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 550 |
| Operating Temperature (Continuous Full Load) (°C) | |
| Type | ATX12V |
| Cable Design | Fixed cables |
| Warranty | - |
| Cybenetics Measurements | |
| Dimensions (W x H x D) | |
| Weight | |
| Cooling | 120mm Sleeve Bearing Fan (S1202512L) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | SK55002589 |
| Date of receipt | Nov 29, 2024 |
| Testing Date | Nov 15, 2024 |
| Report Issued Date | Nov 15, 2024 |
| Engineer Name | - |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature | |

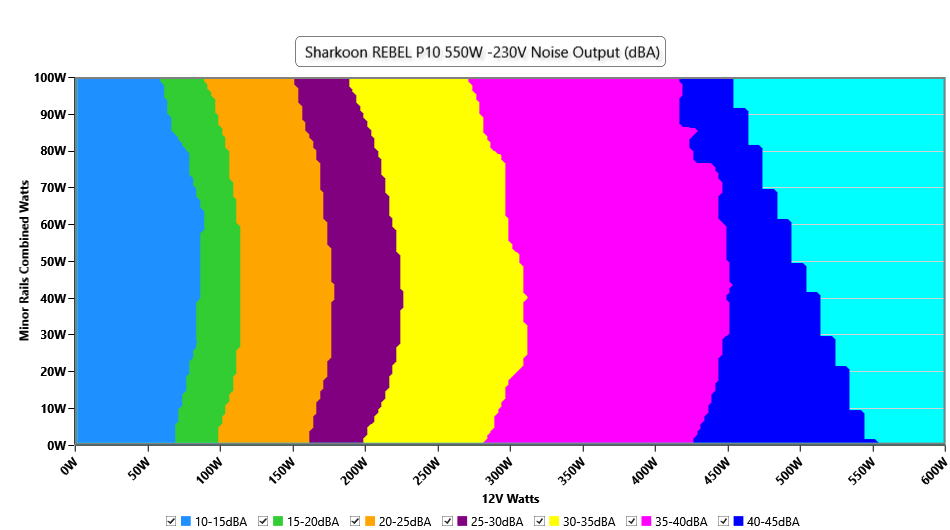

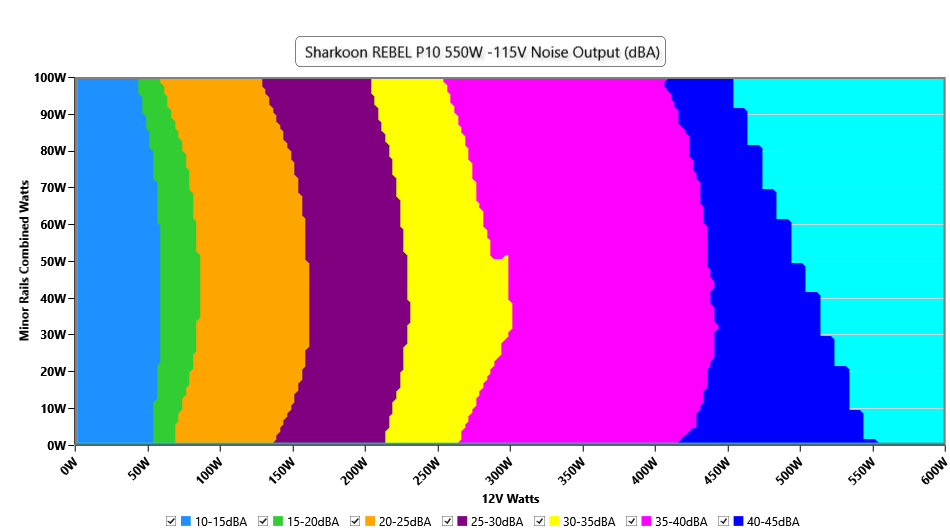

| Load | Normal ambient fan · noise · intake | High ambient fan · noise · intake | Noise change |
|---|---|---|---|
| 10% | 680 RPM · 11.3 dB(A) · 31.0 °C | 999 RPM · 23.6 dB(A) · 40.1 °C | +12.3 dB(A) |
| 20% | 704 RPM · 12.8 dB(A) · 30.7 °C | 1170 RPM · 28.2 dB(A) · 40.6 °C | +15.4 dB(A) |
| 50% | 1163 RPM · 28.0 dB(A) · 30.4 °C | 1629 RPM · 37.5 dB(A) · 42.2 °C | +9.5 dB(A) |
| 100% | 1791 RPM · 40.0 dB(A) · 30.9 °C | 1914 RPM · 41.4 dB(A) · 45.6 °C | +1.4 dB(A) |
| Load | Normal ambient fan · noise · intake | High ambient fan · noise · intake | Noise change |
|---|---|---|---|
| 10% | 642 RPM · 10.0 dB(A) · 30.3 °C | 1176 RPM · 28.4 dB(A) · 40.0 °C | +18.4 dB(A) |
| 20% | 676 RPM · 11.1 dB(A) · 30.1 °C | 1306 RPM · 31.9 dB(A) · 40.6 °C | +20.8 dB(A) |
| 50% | 1213 RPM · 29.2 dB(A) · 31.0 °C | 1749 RPM · 39.1 dB(A) · 42.0 °C | +9.9 dB(A) |
| 100% | 1659 RPM · 38.2 dB(A) · 30.1 °C | 1975 RPM · 42.6 dB(A) · 45.2 °C | +4.4 dB(A) |
Informational. Not part of the ETA or LAMBDA rating.
