Cybenetics Test - ABKO STH-1000B-M

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

ABKO STH-1000B-M

Serial Number

Lab IDAB10002595

Certification ID252595

Test Result Report ID: 24PS2595A
Certificate Issue Date: Oct 8, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Main Specs

Product Identification Details
Brand	ABKO
Model	STH-1000B-M
OEM	Dongguan Changhu Electronics
Serial Number
Product Specifications
Manufacturer
Rated Voltage (Vrms)	220
Rated Current (Arms)	10
Rated Frequency (Hz)	60
Rated Power (W)	1000
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fully Modular
Warranty
Cybenetics
Dimensions (W x H x D)
Weight
Cooling	140mm Hydro Dyanmic Bearing Fan (BDH14025S)
Semi-Passive Operation	✓
Cybenetics Testing Information
Lab ID	AB10002595
Date of receipt	Sep 17, 2024
Testing Date	Oct 4, 2024
Report Issued Date	Oct 8, 2024
DUT Notes	All tests were carried out at 220V.
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (590mm)	1	1	18-24AWG	No
4+4 pin EPS12V (640mm)	2	2	18AWG	No
6+2 pin PCIe (600mm+145mm)	2	4	18AWG	No
12+4 pin PCIe (605mm) (600W)	1	1	16-24AWG	No
SATA (500mm+150mm+150mm)	2	6	18AWG	No
4-pin Molex (500mm+150mm+150mm)	1	3	18AWG	No

Protection Features(Non-accredited measurements)

Over Power Protection	✗
Over Current (+12V) Protection	-
Over Temperature Protection	-
Short Circuit Protection	✓ (except -12V)
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

Power Specifications(Manufacturer)

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	17	17	83.4	2.5	0.3
Max. Power	Watts	100		1000	12.5	3.6
Total Max. Power (W)		1000

Parts Description

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary 230V

Accredited
Average Efficiency (>1450 load combinations)	88.018%
Average Noise Output (>1450 Load Combinations)	40.64dBA
Average PF (>1450 Load Combinations)	0.963
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.2055W
Non-Accredited
12V Ripple (Full Load)	62.75mV
5V Ripple (Full Load)	34.47mV
3.3V Ripple (Full Load)	19.81mV
5VSB Ripple (Full Load)	57.59mV
12V Load Regulation	3.07%
5V Load Regulation	4.82%
3.3V Load Regulation	4.52%
5VSB Load Regulation	4.49%
Inrush Current	67.950A
12V Transient Response (200%)	11.17V
5V Transient Response (200%)	4.826V
3.3V Transient Response (200%)	3.096V
5VSB Transient Response (200%)	4.848V
Hold-Up Time & Power Ok Signal	16.60ms
AC Loss to PWR_OK Hold Up Time	16.00ms
PWR_OK Inactive to DC Loss Delay	0.60ms
PSU Timings: T1 (20% / 100%)	35.0ms	25.0ms
PSU Timings: T3 (20% / 100%)	126.0ms	125.0ms
OPP (29.57°C / 0.00°C)	141.91%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	16.6
AC Loss to PWR_OK Hold Up Time (ms)	16
PWR_OK Inactive to DC Loss Delay (ms)	0.6

Vampire Power

Tables 230V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	220.64 V	220.60 V	217.80 V	220.71 V	222.20 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.15 %	0.12 %	N/A	0.19 %	2.00 %	PASS
Real Power:	0.206 W	0.158 W	N/A	0.280 W	N/A	N/A
Apparent Power:	27.776 W	27.452 W	N/A	28.142 W	N/A	N/A
Power Factor:	0.007	N/A	N/A	N/A	N/A	N/A

Graphs 230V

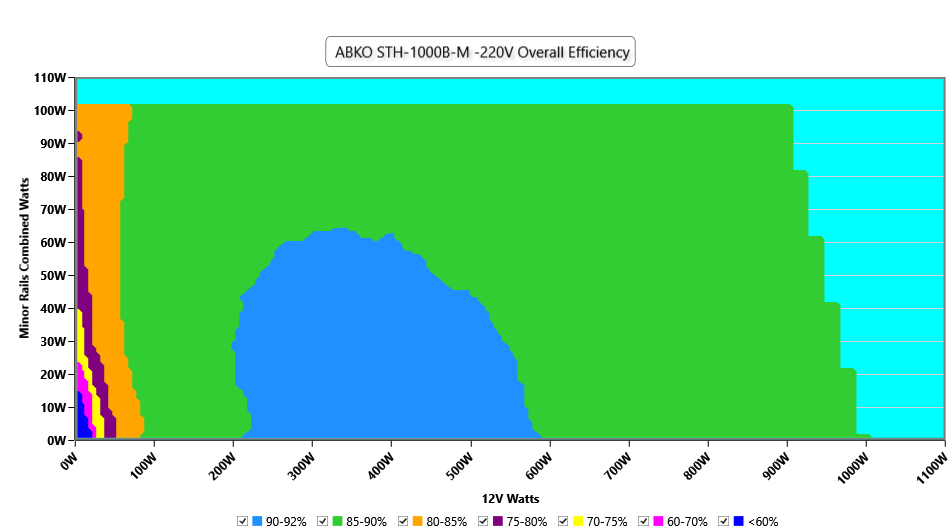

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

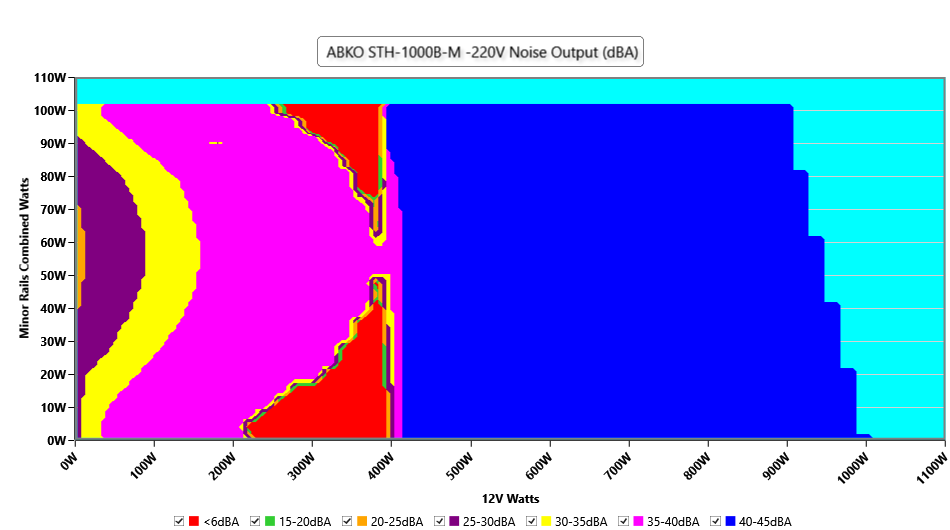

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

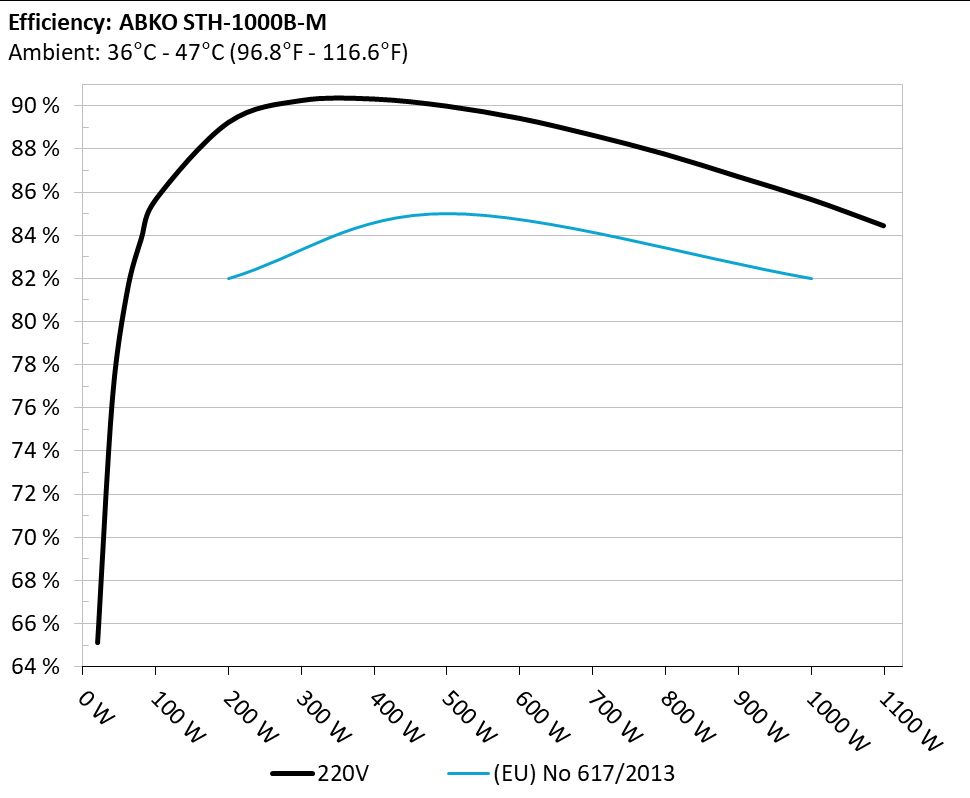

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

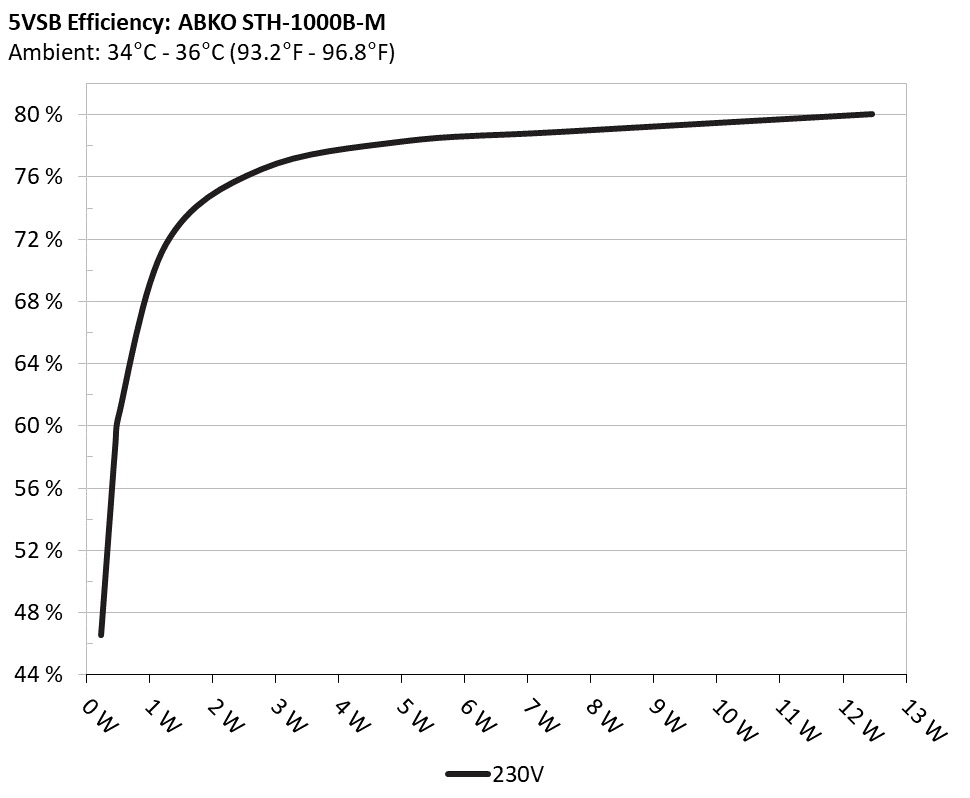

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	46.551%	0.017
1	5.054V	0.49W	46.551%	219.85V
2	0.09A	0.455W	58.829%	0.027
2	5.053V	0.775W	58.829%	219.84V
3	0.55A	2.772W	76.494%	0.117
3	5.04V	3.625W	76.494%	219.85V
4	1A	5.027W	78.292%	0.175
4	5.027V	6.425W	78.292%	219.83V
5	1.5A	7.519W	78.903%	0.228
5	5.012V	9.53W	78.903%	219.85V
6	2.5A	12.459W	80.041%	0.293
6	4.983V	15.566W	80.041%	219.83V

Protection Features

OCP (Normal @ -°C)	-
OCP (Hot) @ -°C)	-
OPP (Normal @ 29.6°C)	1419.13W (141.91%)
OPP (Hot @ -°C)	-
OTP	-
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✗
PWR_OK	PWR_OK inactive to DC loss delay <=1ms
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.406A	1.952A	1.967A	0.998A	100.014	85.545%	1502	40.7	40.45°C	0.869
10%	12.240V	5.124V	3.355V	5.012V	116.942	85.545%	1502	40.7	42.11°C	219.82V
20%	13.853A	2.942A	2.966A	1.202A	199.979	89.245%	1630	42.6	40.72°C	0.942
20%	12.205V	5.1V	3.339V	4.991V	224.064	89.245%	1630	42.6	43.14°C	219.83V
30%	21.692A	3.444A	3.474A	1.409A	300.038	90.254%	1726	43.7	41.32°C	0.962
30%	12.169V	5.083V	3.325V	4.97V	332.438	90.254%	1726	43.7	45.01°C	219.79V
40%	29.543A	3.949A	3.986A	1.617A	399.658	90.322%	1736	43.9	41.77°C	0.975
40%	12.134V	5.065V	3.312V	4.95V	442.477	90.322%	1736	43.9	45.64°C	219.77V
50%	37.108A	4.961A	5.006A	1.827A	499.39	89.993%	1739	43.9	42.28°C	0.98
50%	12.096V	5.041V	3.296V	4.928V	554.922	89.993%	1739	43.9	48.18°C	219.74V
60%	44.794A	5.983A	6.036A	2A	599.738	89.425%	1738	43.9	42.75°C	0.984
60%	12.057V	5.015V	3.281V	4.909V	670.663	89.425%	1738	43.9	49.83°C	219.73V
70%	52.463A	7.016A	7.071A	2.251A	699.643	88.649%	1736	43.9	43.15°C	0.987
70%	12.019V	4.989V	3.267V	4.889V	789.222	88.649%	1736	43.9	51.48°C	219.71V
80%	60.240A	8.059A	8.11A	2.36A	799.606	87.766%	1736	43.9	43.66°C	0.99
80%	11.981V	4.963V	3.255V	4.873V	911.062	87.766%	1736	43.9	53.39°C	219.69V
90%	68.421A	8.601A	8.635A	2.473A	899.364	86.732%	1736	43.9	44.87°C	0.992
90%	11.940V	4.941V	3.243V	4.852V	1036.954	86.732%	1736	43.9	57.89°C	219.67V
100%	76.732A	9.147A	9.202A	2.588A	1000.079	85.67%	1735	43.9	45.01°C	0.993
100%	11.898V	4.919V	3.227V	4.831V	1167.373	85.67%	1735	43.9	61.9°C	219.64V
110%	84.699A	10.224A	10.38A	2.597A	1099.847	84.447%	1738	43.9	46.61°C	0.995
110%	11.855V	4.89V	3.208V	4.813V	1302.422	84.447%	1738	43.9	64.77°C	219.63V
CL1	0.115A	12.079A	11.975A	0.001A	101.304	79.012%	1734	43.8	42.25°C	0.884
CL1	12.246V	4.984V	3.315V	5.026V	128.214	79.012%	1734	43.8	48.92°C	219.82V
CL2	0.113A	17.158A	0A	0.001A	86.383	77.794%	1731	43.8	41.15°C	0.861
CL2	12.253V	4.953V	3.342V	5.037V	111.043	77.794%	1731	43.8	45.1°C	219.81V
CL3	0.113A	0A	16.886A	0.001A	57.488	72.068%	1668	43.2	40.78°C	0.802
CL3	12.252V	5.12V	3.322V	5.036V	79.772	72.068%	1668	43.2	42.77°C	219.83V
CL4	84.059A	0A	0A	0.001A	999.979	86.102%	1740	43.9	45.14°C	0.993
CL4	11.897V	5.056V	3.273V	4.93V	1161.388	86.102%	1740	43.9	58.22°C	219.65V

The results above are not used in the certification process

Light Load Tests 230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.211A	0.485A	0.489A	0.198A	19.999	65.113%	790	23.1	36.13°C	0.55
20W	12.263V	5.156V	3.373V	5.048V	30.715	65.113%	790	23.1	36.82°C	219.87V
40W	2.666A	0.679A	0.685A	0.297A	40.003	76.265%	1196	35.1	37.99°C	0.699
40W	12.261V	5.153V	3.373V	5.043V	52.454	76.265%	1196	35.1	40.21°C	219.86V
60W	4.124A	0.874A	0.881A	0.397A	60.004	81.28%	1259	36.3	38.38°C	0.784
60W	12.254V	5.148V	3.371V	5.037V	73.826	81.28%	1259	36.3	39.95°C	219.83V
80W	5.579A	1.069A	1.078A	0.497A	79.954	83.846%	1440	39.6	39.8°C	0.835
80W	12.247V	5.143V	3.367V	5.031V	95.356	83.846%	1440	39.6	42.16°C	219.82V

The results above are not used in the certification process

Ripple Measurements 230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	18.9 mV	12.8 mV	12.7 mV	14.3 mV	Pass
20% Load	23.0 mV	17.0 mV	14.8 mV	18.6 mV	Pass
30% Load	30.8 mV	18.7 mV	16.2 mV	23.6 mV	Pass
40% Load	33.7 mV	19.6 mV	16.5 mV	26.0 mV	Pass
50% Load	36.6 mV	22.1 mV	16.5 mV	29.3 mV	Pass
60% Load	38.6 mV	24.0 mV	17.1 mV	32.2 mV	Pass
70% Load	42.2 mV	26.5 mV	16.9 mV	36.4 mV	Pass
80% Load	44.7 mV	26.6 mV	17.0 mV	44.5 mV	Pass
90% Load	48.0 mV	27.5 mV	19.1 mV	43.2 mV	Pass
100% Load	62.8 mV	34.5 mV	19.8 mV	57.6 mV	Fail
110% Load	66.5 mV	36.0 mV	21.2 mV	62.9 mV	Fail
Crossload 1	28.9 mV	19.5 mV	17.7 mV	36.3 mV	Pass
Crossload 2	24.3 mV	18.5 mV	19.0 mV	33.3 mV	Pass
Crossload 3	20.6 mV	16.6 mV	18.4 mV	30.8 mV	Pass
Crossload 4	63.6 mV	35.5 mV	21.0 mV	62.3 mV	Fail

The results above are not used in the certification process

ABKO STH-1000B-M

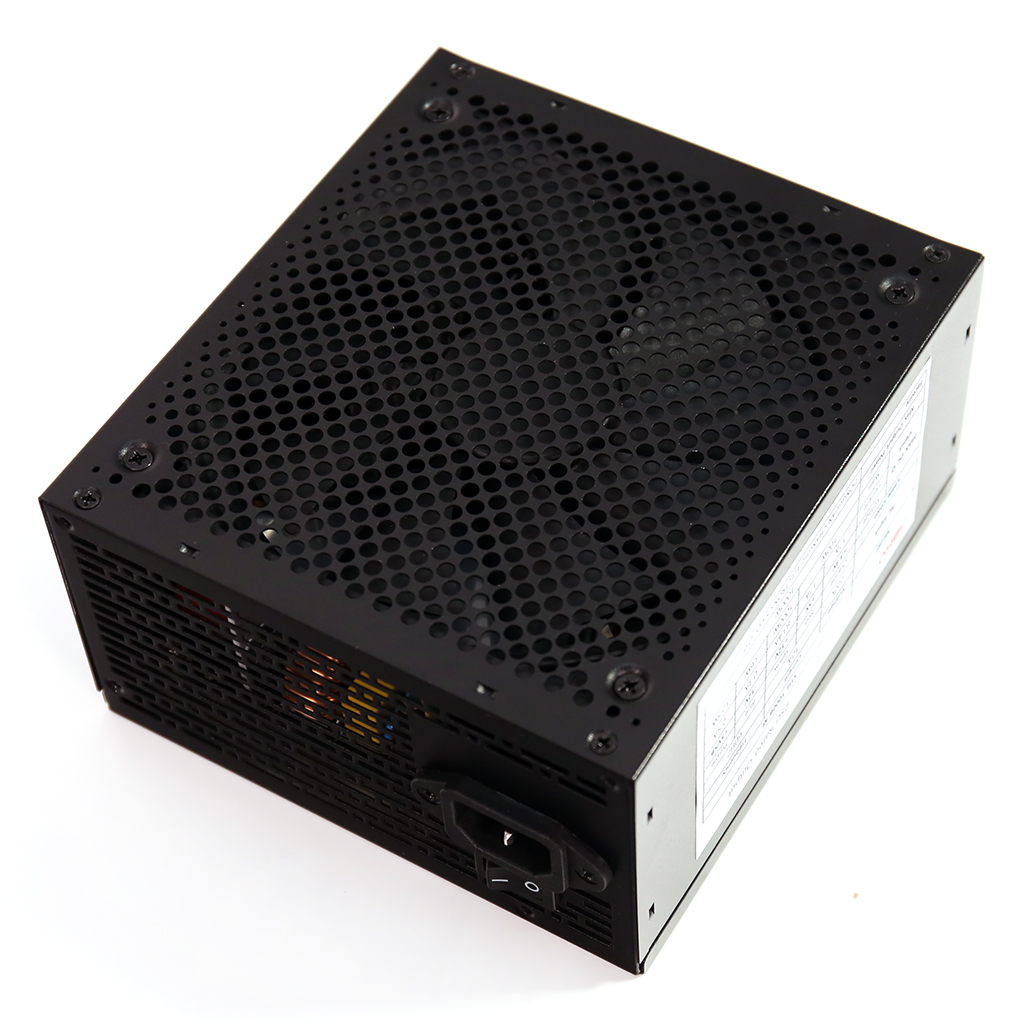

Top side

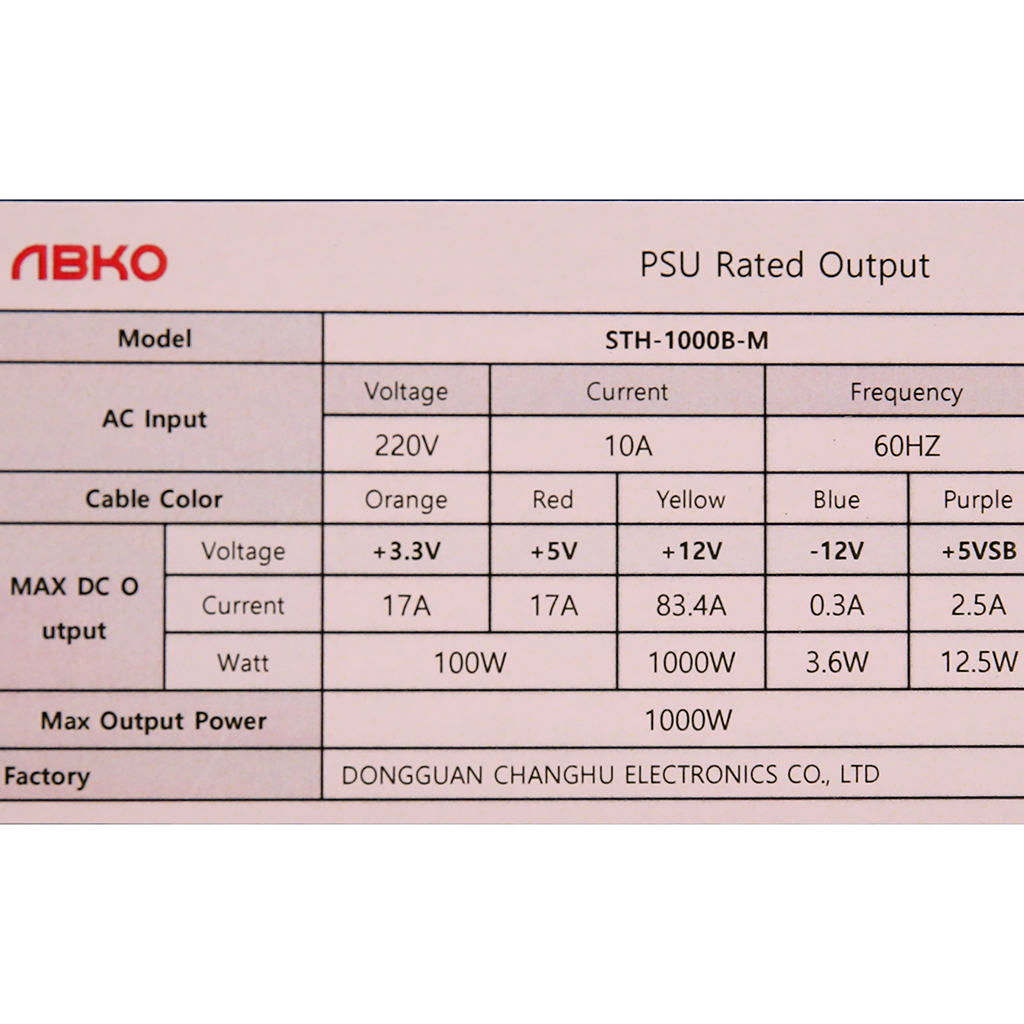

Power specifications label
