Cooler Master X MIGHTY Platinum 2000 230V

Serial NumberMPSK001AFBPBEU1243800001

Lab IDCM20002597

Certification ID252597

Test Result Report ID: 24PS2597A
Certificate Issue Date: Oct 9, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Main Specs

Product Identification Details
Brand	Cooler Master
Model	X MIGHTY Platinum 2000 230V
OEM	Cooler Master
Serial Number	MPSK001AFBPBEU1243800001
Product Specifications
Manufacturer
Rated Voltage (Vrms)	200-240
Rated Current (Arms)	12
Rated Frequency (Hz)	50-60
Rated Power (W)	2000
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fully Modular
Warranty	-
Cybenetics
Dimensions (W x H x D)
Weight
Cooling	120mm Fluid Dynamic Bearing Fan (HA1215H12SF-Z)
Semi-Passive Operation	✓
Cybenetics Testing Information
Lab ID	CM20002597
Date of receipt	Sep 23, 2024
Testing Date	Oct 7, 2024
Report Issued Date	Oct 9, 2024
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (640mm)	1	1	18AWG	No
4+4 pin EPS12V (640mm)	1	1	16AWG	No
8 pin EPS12V (640mm)	1	1	16AWG	No
6+2 pin PCIe (550mm)	4	4	16-18AWG	No
12+4 pin PCIe (640mm) (600W)	2	2	16-28AWG	No
SATA (490mm+140mm+140mm+140mm)	3	12	18AWG	No
4-pin Molex (490mm+120mm+120mm+120mm)	1	4	18AWG	No
M/B USB Connector (800mm)	1	1	24AWG	-
AC Power Cord (1350mm) - C19 coupler	1	1	16AWG	-

Protection Features(Non-accredited measurements)

Over Power Protection	-
Over Current (+12V) Protection	-
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

Power Specifications(Manufacturer)

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	166.6	3	0.3
Max. Power	Watts	120		1999.2	15	3.6
Total Max. Power (W)		2000

Parts Description

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary 230V

Accredited
Average Efficiency (>1450 load combinations)	92.704%
Average Noise Output (>1450 Load Combinations)	25.71dBA
Average PF (>1450 Load Combinations)	0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1670W
Non-Accredited
12V Ripple (Full Load)	45.63mV
5V Ripple (Full Load)	24.50mV
3.3V Ripple (Full Load)	22.81mV
5VSB Ripple (Full Load)	17.93mV
12V Load Regulation	0.53%
5V Load Regulation	1.52%
3.3V Load Regulation	2.09%
5VSB Load Regulation	3.64%
Inrush Current	Too low to detect
12V Transient Response (200%)	11.09V
5V Transient Response (200%)	4.847V
3.3V Transient Response (200%)	3.183V
5VSB Transient Response (200%)	4.848V
Hold-Up Time & Power Ok Signal	21.90ms
AC Loss to PWR_OK Hold Up Time	17.20ms
PWR_OK Inactive to DC Loss Delay	4.70ms
PSU Timings: T1 (20% / 100%)	116.0ms	118.0ms
PSU Timings: T3 (20% / 100%)	128.0ms	126.0ms
12V OCP (27.4°C / °C)	-
5V OCP (27.4°C / °C)	25.07A (125.35%), 5.018V
3.3V OCP (27.4°C / °C)	25.3A (126.50%), 3.35V
5VSB OCP (27.4°C / °C)	4.7A (156.67%), 4.956V
OPP (0.00°C / 0.00°C)	0.00%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	21.9
AC Loss to PWR_OK Hold Up Time (ms)	17.2
PWR_OK Inactive to DC Loss Delay (ms)	4.7

Stromverbrauch im Ruhezustand

Tables 230V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.02 V	230.92 V	227.70 V	231.10 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.26 %	2.00 %	PASS
Real Power:	0.167 W	0.118 W	N/A	0.227 W	N/A	N/A
Apparent Power:	43.596 W	43.273 W	N/A	44.003 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Graphs 230V

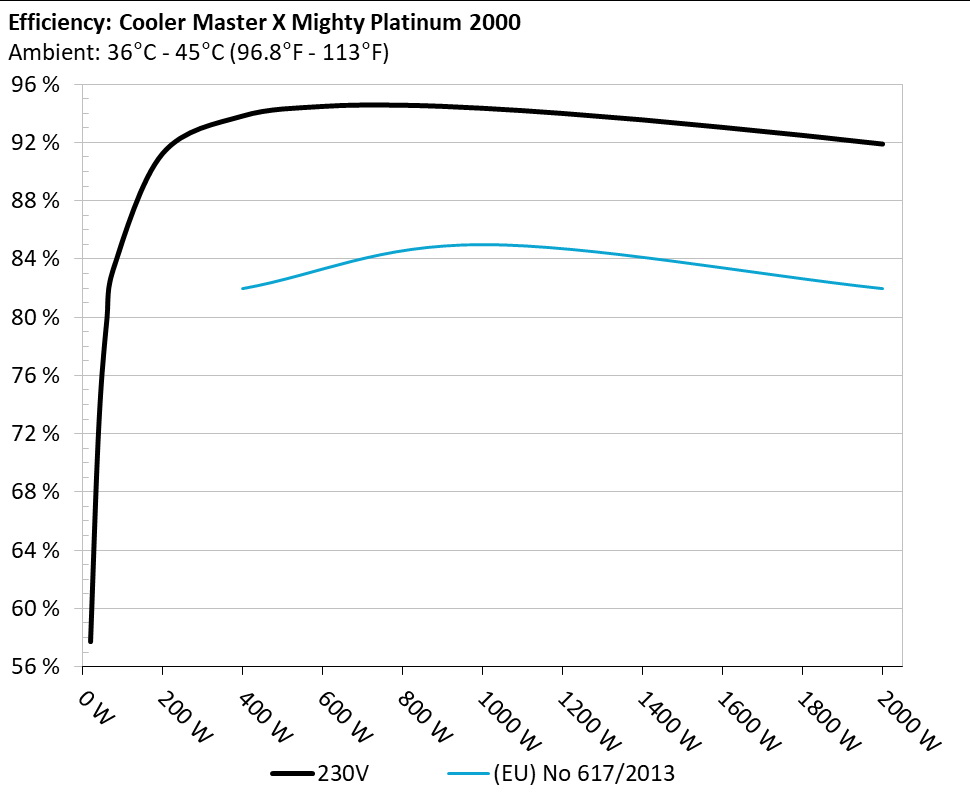

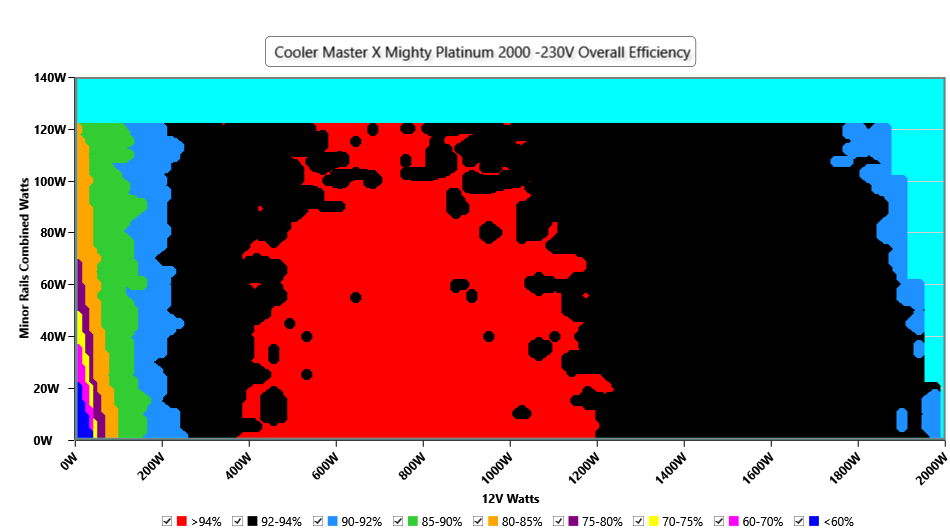

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

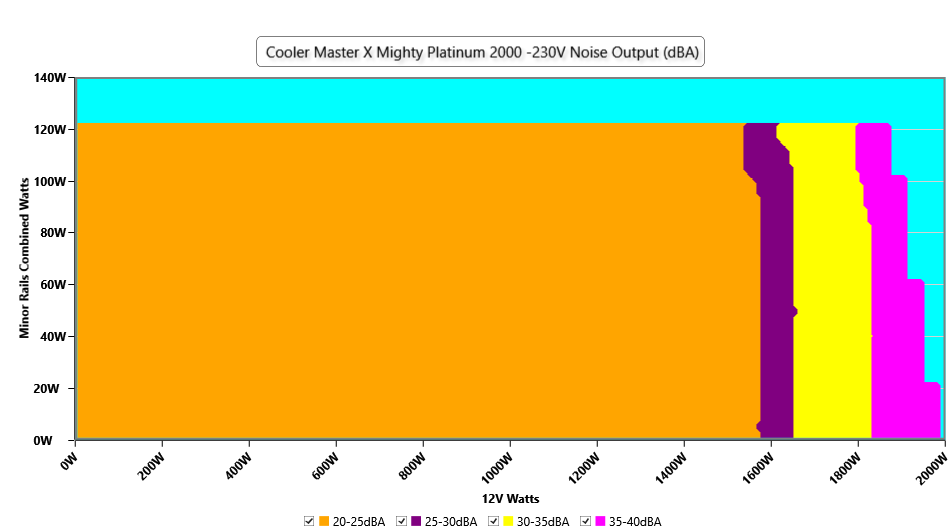

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

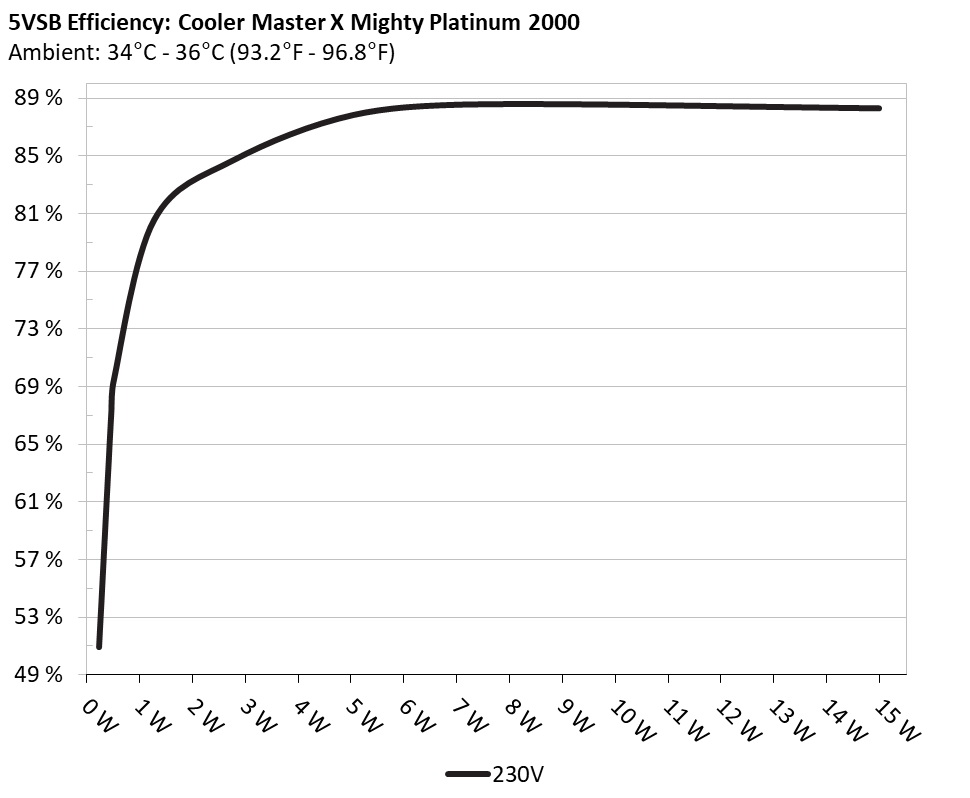

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	50.909%	0.01
1	5.067V	0.45W	50.909%	229.87V
2	0.09A	0.456W	66.976%	0.015
2	5.066V	0.681W	66.976%	229.86V
3	0.55A	2.781W	84.729%	0.07
3	5.055V	3.283W	84.729%	229.84V
4	1A	5.045W	87.853%	0.119
4	5.044V	5.743W	87.853%	229.84V
5	1.5A	7.55W	88.597%	0.169
5	5.032V	8.521W	88.597%	229.84V
6	3.001A	14.992W	88.309%	0.285
6	4.997V	16.977W	88.309%	229.84V

Protection Features

OCP (Normal @ 27.4°C)	12V: - 5V: 25.07A (125.35%), 5.018V 3.3V: 25.3A (126.50%), 3.35V 5VSB: 4.7A (156.67%), 4.956V
OCP (Hot @ -°C)	-
OPP (Cold @ -°C)	-
OPP (Hot @ -°C)	-
OTP	✓ (120°C @ Secondary Side)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	14.763A	1.978A	1.96A	0.993A	200.018	91.231%	0	<6.0	43.76°C	0.97
10%	12.085V	5.057V	3.367V	5.037V	219.291	91.231%	0	<6.0	40.24°C	229.8V
20%	30.531A	2.971A	2.946A	1.195A	399.676	93.802%	0	<6.0	45.2°C	0.989
20%	12.079V	5.049V	3.361V	5.021V	426.047	93.802%	0	<6.0	40.86°C	229.77V
30%	46.651A	3.471A	3.443A	1.399A	599.28	94.46%	0	<6.0	44.93°C	0.994
30%	12.073V	5.043V	3.354V	5.006V	634.446	94.46%	0	<6.0	41.23°C	229.73V
40%	62.850A	3.971A	3.943A	1.603A	799.677	94.544%	0	<6.0	49.51°C	0.996
40%	12.068V	5.036V	3.348V	4.991V	845.819	94.544%	0	<6.0	41.96°C	229.7V
50%	78.667A	4.972A	4.939A	1.809A	999.384	94.335%	516	22.2	42.2°C	0.997
50%	12.062V	5.029V	3.341V	4.975V	1059.334	94.335%	516	22.2	48.17°C	229.67V
60%	94.588A	5.978A	5.941A	2A	1199.864	93.981%	798	22.2	42.95°C	0.998
60%	12.053V	5.019V	3.333V	4.959V	1276.696	93.981%	798	22.2	47.8°C	229.63V
70%	110.452A	6.986A	6.947A	2.226A	1399.641	93.539%	1113	24.8	43.41°C	0.998
70%	12.046V	5.011V	3.326V	4.943V	1496.338	93.539%	1113	24.8	47.86°C	229.6V
80%	126.405A	7.997A	7.957A	2.333A	1599.642	93.025%	1394	30.3	43.96°C	0.998
80%	12.038V	5.002V	3.318V	4.929V	1719.368	93.025%	1394	30.3	48.17°C	229.57V
90%	142.705A	8.51A	8.457A	2.442A	1799.441	92.472%	1650	37.5	44.5°C	0.998
90%	12.031V	4.994V	3.311V	4.915V	1945.893	92.472%	1650	37.5	48.16°C	229.52V
100%	158.818A	9.024A	8.989A	3.07A	1999.387	91.876%	1850	38.5	45.07°C	0.999
100%	12.024V	4.986V	3.304V	4.887V	2176.192	91.876%	1850	38.5	48.14°C	229.49V
CL1	0.117A	14.348A	14.223A	0A	121.312	84.526%	455	22.2	40.63°C	0.942
CL1	12.083V	5.032V	3.353V	5.062V	143.527	84.526%	455	22.2	47.96°C	229.81V
CL2	0.116A	19.836A	0A	0A	101.35	82.988%	0	<6.0	43.84°C	0.925
CL2	12.086V	5.039V	3.362V	5.065V	122.136	82.988%	0	<6.0	40.17°C	229.81V
CL3	0.115A	0A	19.618A	0A	67.387	77.821%	0	<6.0	44.52°C	0.866
CL3	12.089V	5.056V	3.364V	5.065V	86.597	77.821%	0	<6.0	40.93°C	229.82V
CL4	166.254A	0A	0A	0A	2000.081	92.057%	1750	38.2	44.78°C	0.999
CL4	12.030V	5.011V	3.319V	4.968V	2173.15	92.057%	1750	38.2	47.82°C	229.48V

The results above are not used in the certification process

Light Load Tests 230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.494A	0.489A	0.197A	20.005	57.703%	0	<6.0	41.64°C	0.59
20W	12.086V	5.061V	3.373V	5.065V	34.687	57.703%	0	<6.0	36.32°C	229.83V
40W	2.704A	0.691A	0.685A	0.296A	40.003	72.2%	0	<6.0	42.23°C	0.755
40W	12.087V	5.062V	3.373V	5.062V	55.402	72.2%	0	<6.0	37.34°C	229.83V
60W	4.180A	0.889A	0.88A	0.395A	60.002	79.663%	0	<6.0	41.41°C	0.839
60W	12.087V	5.062V	3.373V	5.058V	75.315	79.663%	0	<6.0	38.19°C	229.81V
80W	5.652A	1.086A	1.076A	0.495A	79.945	83.551%	0	<6.0	45°C	0.885
80W	12.088V	5.062V	3.372V	5.055V	95.693	83.551%	0	<6.0	39.58°C	229.81V

The results above are not used in the certification process

Ripple Measurements 230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	17.6 mV	16.6 mV	15.2 mV	8.7 mV	Pass
20% Load	19.0 mV	16.9 mV	18.6 mV	9.7 mV	Pass
30% Load	20.9 mV	17.5 mV	17.0 mV	10.7 mV	Pass
40% Load	21.8 mV	18.0 mV	16.9 mV	10.2 mV	Pass
50% Load	20.7 mV	17.9 mV	17.3 mV	10.0 mV	Pass
60% Load	22.7 mV	18.6 mV	18.5 mV	10.5 mV	Pass
70% Load	22.9 mV	20.2 mV	18.7 mV	11.7 mV	Pass
80% Load	24.9 mV	20.3 mV	19.4 mV	11.7 mV	Pass
90% Load	28.6 mV	20.7 mV	20.3 mV	13.8 mV	Pass
100% Load	45.6 mV	24.5 mV	22.8 mV	17.9 mV	Pass
Crossload 1	22.3 mV	20.6 mV	18.3 mV	25.8 mV	Pass
Crossload 2	22.4 mV	23.8 mV	18.0 mV	21.3 mV	Pass
Crossload 3	19.3 mV	17.1 mV	19.5 mV	21.1 mV	Pass
Crossload 4	45.2 mV	22.0 mV	19.3 mV	37.6 mV	Pass

The results above are not used in the certification process

Cooler Master X MIGHTY Platinum 2000 230V

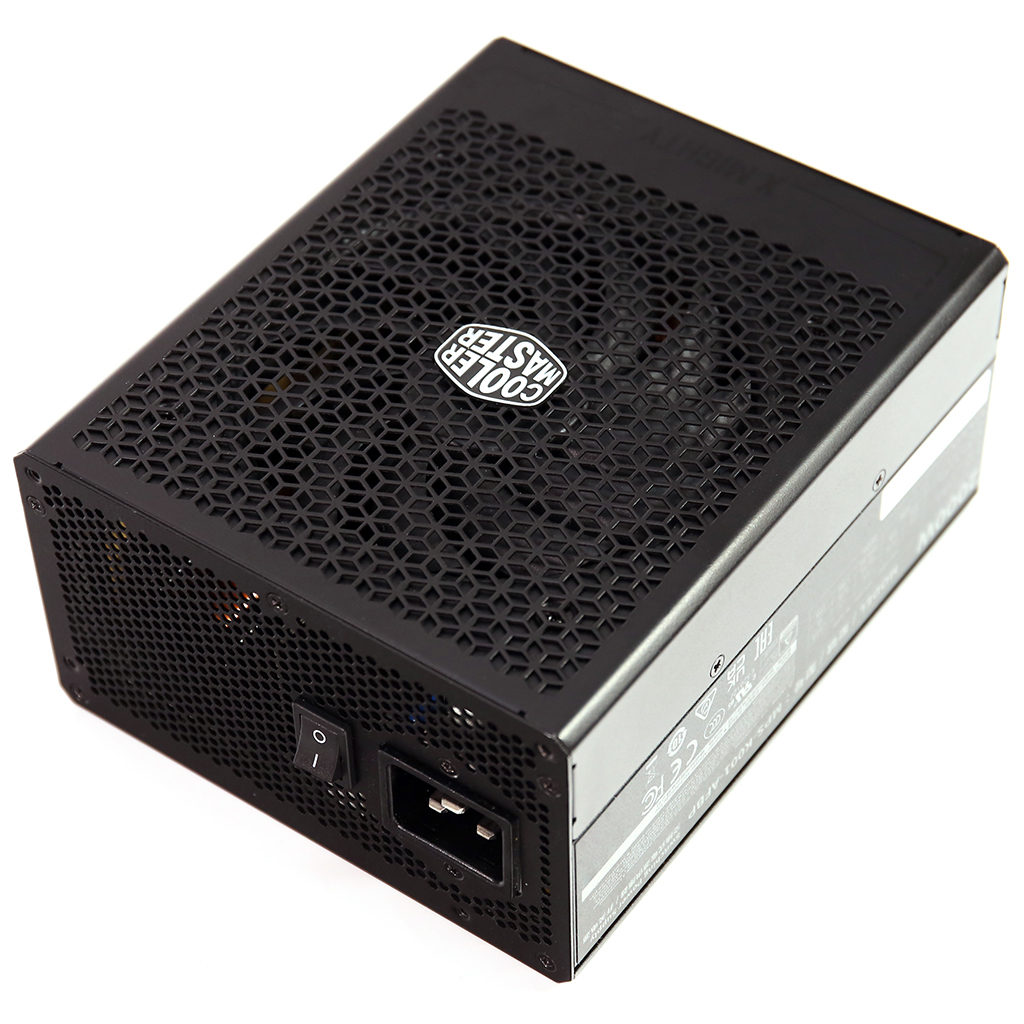

Top side

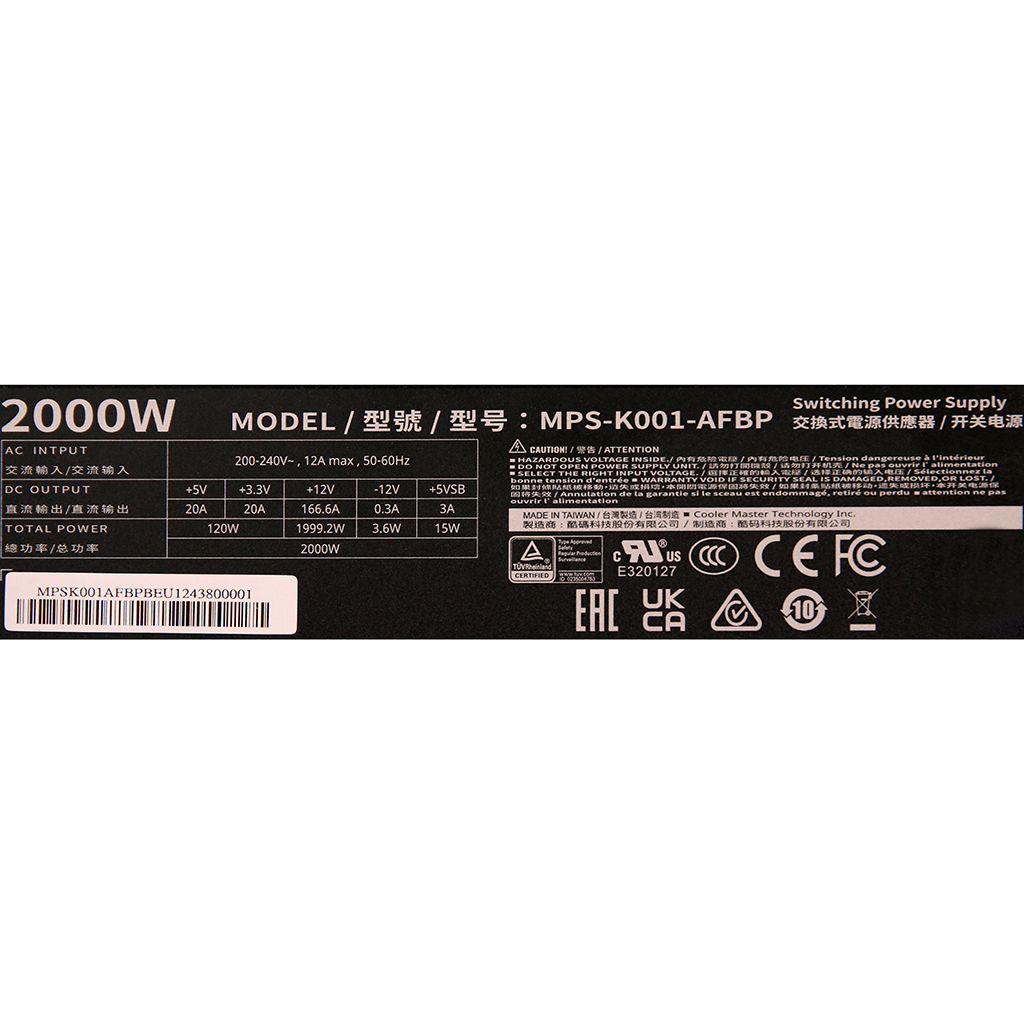

Power specifications label
