Cybenetics Test - Super Flower Zillion FG 850W

Super Flower Zillion FG 850W

Serial Number

Lab IDSF85002667

Certification ID252667

Test Result Report ID: 24PS2667A
Certificate Issue Date: Dec 2, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Main Specs

Product Identification Details
Brand	Super Flower
Model	Zillion FG 850W
OEM	No Info
Serial Number
Product Specifications
Manufacturer
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	5-10
Rated Frequency (Hz)	50-60
Rated Power (W)	850
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fully Modular
Warranty
Cybenetics
Dimensions (W x H x D)
Weight
Cooling	120mm Fluid Dynamic Bearing Fan (ZFF122512H)
Semi-Passive Operation	✓ (selectable)
Cybenetics Testing Information
Lab ID	SF85002667
Date of receipt	Nov 13, 2024
Testing Date	Dec 2, 2024
Report Issued Date	Dec 2, 2024
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (600mm)	1	1	18-20AWG	No
4+4 pin EPS12V (700mm+150mm)	2	4	18AWG	No
6+2 pin PCIe (700mm)	3	3	18AWG	No
12+4 pin PCIe (700mm) (600W)	1	1	16-28AWG	No
SATA (500mm+150mm+150mm+150mm)	2	8	18AWG	No
4-pin Molex (500mm+150mm+150mm+150mm)	2	8	18AWG	No
FDD Adapter (+105mm)	1	1	22AWG	No
AC Power Cord (1385mm) - C13 coupler	1	1	17AWG	-

Protection Features(Non-accredited measurements)

Over Voltage Protection	✓
Under Voltage Protection	✓
Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓

Power Specifications(Manufacturer)

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	70.5	2.5	0.3
Max. Power	Watts	100		846	12.5	3.6
Total Max. Power (W)		850

Parts Description

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	89.695%
Average Noise Output (>1450 Load Combinations)	24.92dBA
Average PF (>1450 Load Combinations)	0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.907%
Standby Power Consumption	0.0777W
Non-Accredited
12V Ripple (Full Load)	19.66mV
5V Ripple (Full Load)	17.19mV
3.3V Ripple (Full Load)	22.20mV
5VSB Ripple (Full Load)	12.98mV
12V Load Regulation	0.24%
5V Load Regulation	0.58%
3.3V Load Regulation	0.93%
5VSB Load Regulation	2.60%
Inrush Current	33.480A

Accredited
Average Efficiency (>1450 load combinations)	91.921%
Average Noise Output (>1450 Load Combinations)	24.97dBA
Average PF (>1450 Load Combinations)	0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1748W
Non-Accredited
12V Ripple (Full Load)	19.13mV
5V Ripple (Full Load)	17.89mV
3.3V Ripple (Full Load)	20.32mV
5VSB Ripple (Full Load)	9.09mV
12V Load Regulation	0.24%
5V Load Regulation	0.60%
3.3V Load Regulation	0.96%
5VSB Load Regulation	2.62%
Inrush Current	69.750A
12V Transient Response (200%)	11.33V
5V Transient Response (200%)	4.910V
3.3V Transient Response (200%)	3.202V
5VSB Transient Response (200%)	4.975V
Hold-Up Time & Power Ok Signal	24.20ms
AC Loss to PWR_OK Hold Up Time	21.10ms
PWR_OK Inactive to DC Loss Delay	3.10ms
PSU Timings: T1 (20% / 100%)	110.0ms	109.0ms
PSU Timings: T3 (20% / 100%)	133.0ms	133.0ms
12V OCP (26.7°C / 43.9°C)	97.20A (137.87%), 12.070V	90.40A (128.23%), 12.076V
5V OCP (26.7°C / 43.9°C)	31.2A (156.00%), 4.967V	31.7A (158.50%), 4.967V
3.3V OCP (26.7°C / 43.9°C)	30.3A (151.50%), 3.351V	30.8A (154.00%), 3.351V
5VSB OCP (26.7°C / 43.9°C)	4.2A (168.00%), 4.998V	4.2A (168.00%), 4.995V
OPP (26.37°C / 42.79°C)	130.77%	116.94%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	24.2
AC Loss to PWR_OK Hold Up Time (ms)	21.1
PWR_OK Inactive to DC Loss Delay (ms)	3.1

Stromverbrauch im Ruhezustand

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.06 V	115.02 V	113.85 V	115.09 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.96 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.19 %	2.00 %	PASS
Real Power:	0.078 W	-0.001 W	N/A	0.119 W	N/A	N/A
Apparent Power:	17.377 W	16.721 W	N/A	18.054 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.02 V	230.94 V	227.70 V	231.08 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.17 %	0.15 %	N/A	0.24 %	2.00 %	PASS
Real Power:	0.175 W	0.134 W	N/A	0.244 W	N/A	N/A
Apparent Power:	56.769 W	55.680 W	N/A	57.968 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

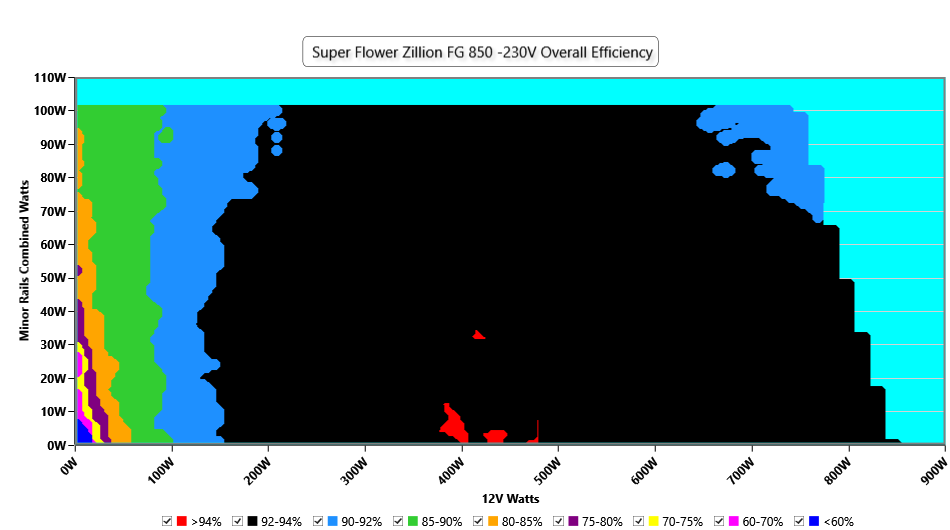

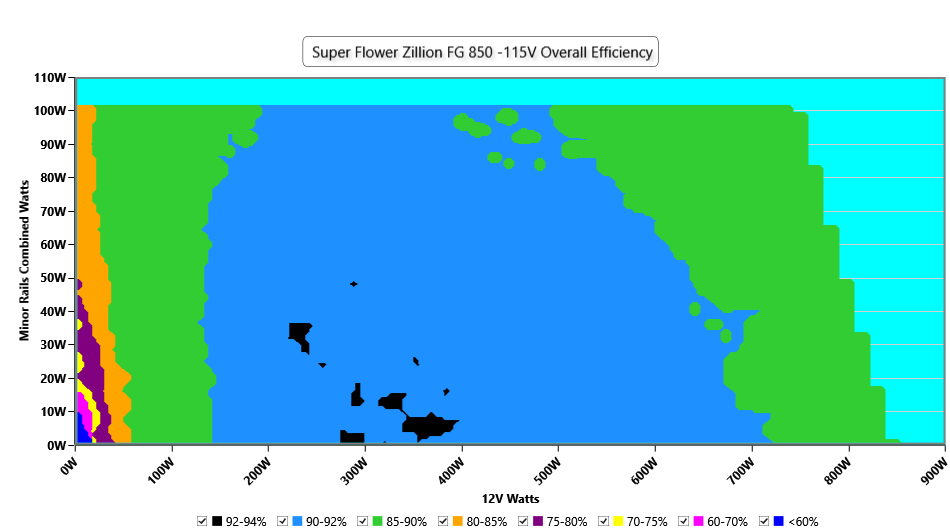

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

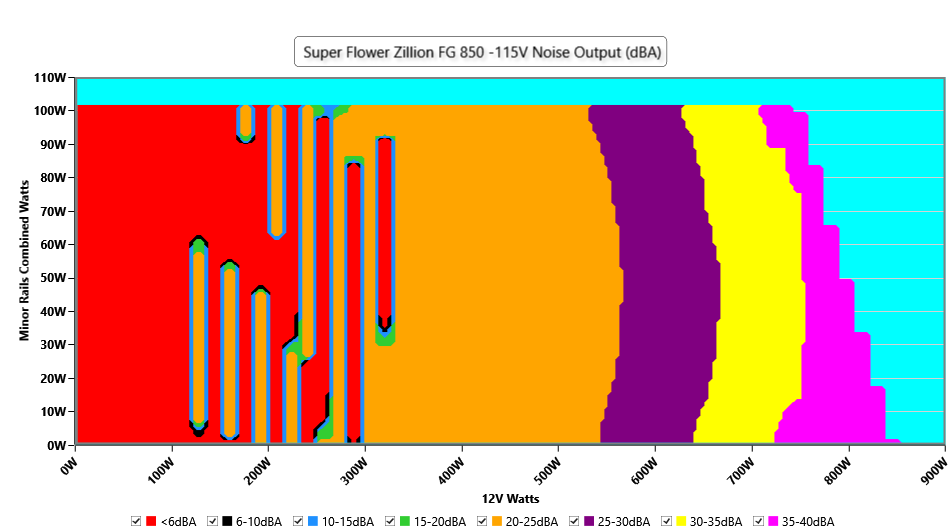

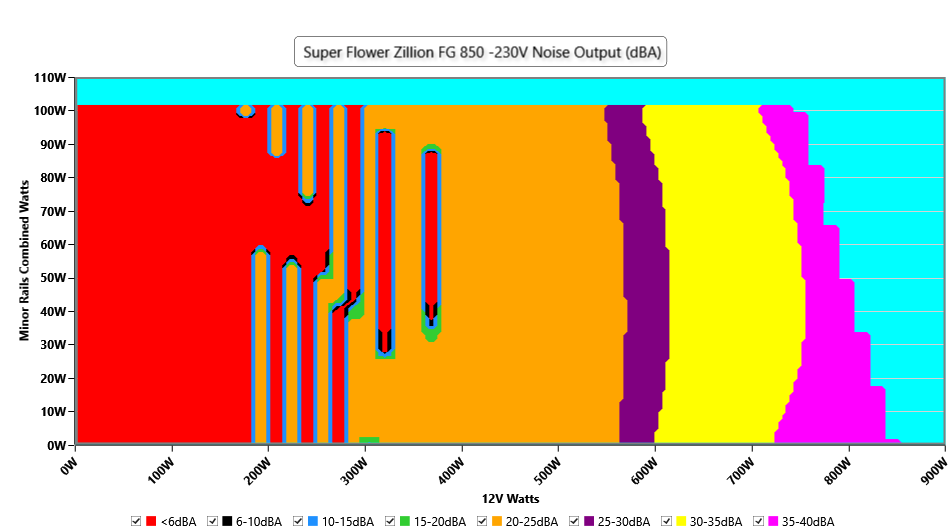

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

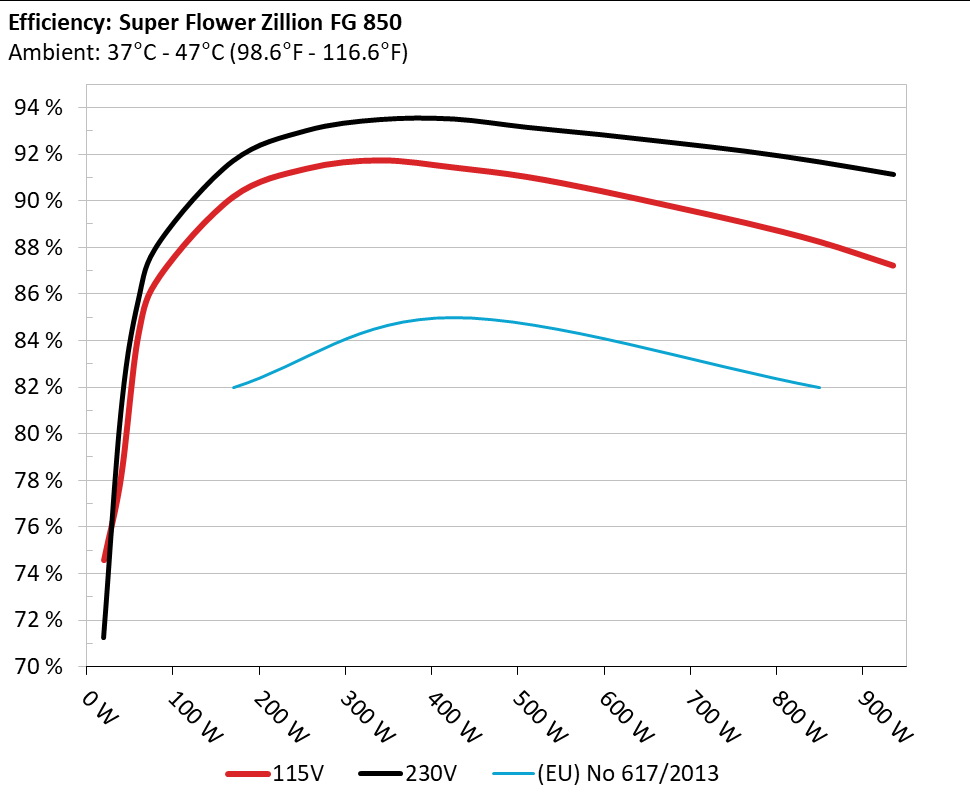

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

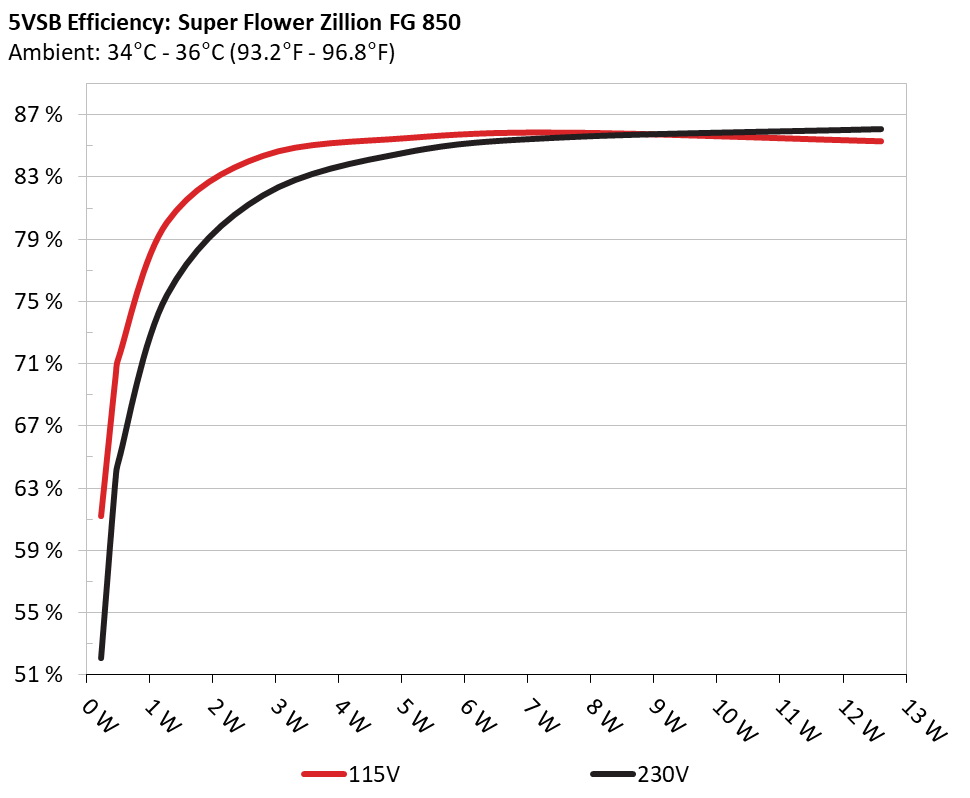

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229W	61.19%	0.024
1	5.096V	0.375W	61.19%	114.99V
2	0.09A	0.459W	70.167%	0.041
2	5.095V	0.654W	70.167%	115.01V
3	0.55A	2.797W	84.341%	0.188
3	5.085V	3.316W	84.341%	115V
4	1A	5.075W	85.48%	0.29
4	5.074V	5.938W	85.48%	114.99V
5	1.5A	7.596W	85.83%	0.36
5	5.063V	8.85W	85.83%	114.99V
6	2.501A	12.602W	85.276%	0.438
6	5.04V	14.778W	85.276%	114.99V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	52.07%	0.008
1	5.096V	0.443W	52.07%	230.08V
2	0.09A	0.459W	63.544%	0.014
2	5.095V	0.723W	63.544%	230.09V
3	0.55A	2.797W	81.802%	0.064
3	5.084V	3.42W	81.802%	230.08V
4	1A	5.075W	84.569%	0.109
4	5.074V	6.002W	84.569%	230.08V
5	1.5A	7.596W	85.536%	0.154
5	5.062V	8.88W	85.536%	230.08V
6	2.501A	12.601W	86.059%	0.229
6	5.039V	14.643W	86.059%	230.08V

Protection Features

OCP (Normal @ 26.7°C)	12V: 97.20A (137.87%), 12.070V 5V: 31.2A (156.00%), 4.967V 3.3V: 30.3A (151.50%), 3.351V 5VSB: 4.2A (168.00%), 4.998V
OCP (Hot @ 43.9°C)	12V: 90.40A (128.23%), 12.076V 5V: 31.7A (158.50%), 4.967V 3.3V: 30.8A (154.00%), 3.351V 5VSB: 4.2A (168.00%), 4.995V
OPP (Normal @ 26.4°C)	1111.52W (130.77%)
OPP (Hot @ 42.8°C)	994.00W (116.94%)
OTP	✓ (134°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.242A	1.995A	1.966A	0.987A	85.01	86.784%	0	<6.0	49.28°C	0.955
10%	12.096V	5.015V	3.358V	5.065V	97.96	86.784%	0	<6.0	40.23°C	114.95V
20%	11.500A	2.994A	2.952A	1.188A	169.98	90.172%	860	20.9	40.92°C	0.992
20%	12.093V	5.011V	3.354V	5.053V	188.503	90.172%	860	20.9	46.68°C	114.92V
30%	18.108A	3.496A	3.451A	1.389A	254.996	91.374%	861	20.9	41.18°C	0.996
30%	12.090V	5.008V	3.348V	5.041V	279.07	91.374%	861	20.9	47.47°C	114.9V
40%	24.726A	3.997A	3.947A	1.591A	340.093	91.732%	867	21	41.98°C	0.998
40%	12.088V	5.005V	3.344V	5.029V	370.745	91.732%	867	21	49.38°C	114.88V
50%	31.003A	4.999A	4.939A	1.795A	425.173	91.428%	927	23.1	42.13°C	0.998
50%	12.084V	5.002V	3.342V	5.016V	465.051	91.428%	927	23.1	51.06°C	114.86V
60%	37.238A	6.003A	5.932A	1.999A	509.713	91.028%	1141	29.8	42.82°C	0.998
60%	12.082V	4.999V	3.338V	5.004V	559.973	91.028%	1141	29.8	51.81°C	114.83V
70%	43.542A	7.008A	6.927A	2.205A	595.049	90.429%	1367	32.4	43.28°C	0.998
70%	12.078V	4.996V	3.336V	4.991V	658.037	90.429%	1367	32.4	52.57°C	114.81V
80%	49.850A	8.014A	7.923A	2.309A	679.88	89.748%	1570	37.8	43.86°C	0.998
80%	12.075V	4.993V	3.332V	4.981V	757.546	89.748%	1570	37.8	53.58°C	114.79V
90%	56.559A	8.518A	8.41A	2.415A	765.329	89.041%	1757	40.3	44.65°C	0.998
90%	12.072V	4.99V	3.33V	4.971V	859.562	89.041%	1757	40.3	54.7°C	114.77V
100%	63.202A	9.023A	8.928A	2.52A	850.036	88.241%	1869	43	45.36°C	0.998
100%	12.069V	4.988V	3.327V	4.961V	963.335	88.241%	1869	43	56.13°C	114.74V
110%	69.585A	10.031A	10.016A	2.525A	935.437	87.223%	1873	43	46.77°C	0.998
110%	12.067V	4.985V	3.325V	4.952V	1072.541	87.223%	1873	43	58.78°C	114.72V
CL1	0.116A	12.047A	11.849A	0A	101.323	82.915%	948	23.8	40.09°C	0.976
CL1	12.092V	4.998V	3.351V	5.076V	122.194	82.915%	948	23.8	45.59°C	114.94V
CL2	0.116A	20.054A	0A	0A	101.406	82.004%	907	22.3	41.46°C	0.977
CL2	12.096V	4.987V	3.362V	5.082V	123.641	82.004%	907	22.3	46.52°C	114.94V
CL3	0.116A	0A	19.703A	0A	67.402	76.907%	865	21	41.12°C	0.938
CL3	12.092V	5.017V	3.35V	5.077V	87.643	76.907%	865	21	45.78°C	114.95V
CL4	70.384A	0A	0A	0A	849.831	88.972%	1862	43	45.69°C	0.998
CL4	12.074V	5.004V	3.336V	5.031V	955.119	88.972%	1862	43	55.74°C	114.74V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.242A	1.995A	1.967A	0.988A	85.013	88.24%	859	20.9	40.44°C	0.716
10%	12.096V	5.014V	3.356V	5.064V	96.357	88.24%	859	20.9	45.07°C	230.06V
20%	11.501A	2.995A	2.955A	1.188A	169.991	91.704%	856	20.8	40.57°C	0.871
20%	12.093V	5.01V	3.35V	5.052V	185.356	91.704%	856	20.8	43.88°C	230.05V
30%	18.110A	3.496A	3.452A	1.389A	255.008	93.006%	860	20.9	41.32°C	0.937
30%	12.090V	5.007V	3.347V	5.04V	274.188	93.006%	860	20.9	45.29°C	230.04V
40%	24.728A	3.997A	3.948A	1.591A	340.104	93.479%	866	21	41.62°C	0.969
40%	12.088V	5.005V	3.344V	5.029V	363.862	93.479%	866	21	46.27°C	230.03V
50%	31.006A	5A	4.939A	1.795A	425.202	93.504%	919	22.8	42.42°C	0.983
50%	12.084V	5.002V	3.342V	5.016V	454.734	93.504%	919	22.8	47.46°C	230.01V
60%	37.240A	6.003A	5.932A	1.999A	509.733	93.15%	1154	30	42.63°C	0.987
60%	12.081V	4.999V	3.339V	5.003V	547.228	93.15%	1154	30	47.99°C	230V
70%	43.544A	7.009A	6.928A	2.205A	595.067	92.838%	1345	32.2	43.18°C	0.991
70%	12.078V	4.996V	3.335V	4.991V	640.957	92.838%	1345	32.2	48.65°C	229.99V
80%	49.853A	8.014A	7.924A	2.31A	679.901	92.487%	1573	37.8	43.86°C	0.993
80%	12.075V	4.993V	3.332V	4.98V	735.145	92.487%	1573	37.8	49.63°C	229.98V
90%	56.562A	8.519A	8.41A	2.415A	765.353	92.115%	1756	40.3	44.6°C	0.995
90%	12.073V	4.99V	3.33V	4.97V	830.927	92.115%	1756	40.3	50.21°C	229.97V
100%	63.205A	9.024A	8.928A	2.521A	850.064	91.66%	1873	43	45.79°C	0.996
100%	12.069V	4.988V	3.327V	4.96V	927.41	91.66%	1873	43	51.71°C	229.96V
110%	69.587A	10.031A	10.016A	2.525A	935.456	91.125%	1878	43	46.53°C	0.997
110%	12.067V	4.985V	3.325V	4.951V	1026.56	91.125%	1878	43	53.31°C	229.94V
CL1	0.117A	12.047A	11.847A	0A	101.328	84.226%	1143	29.8	40.82°C	0.775
CL1	12.092V	4.998V	3.351V	5.075V	120.335	84.226%	1143	29.8	45.82°C	230.05V
CL2	0.116A	20.055A	0A	0A	101.409	83.494%	938	23.5	41.21°C	0.777
CL2	12.095V	4.987V	3.361V	5.082V	121.456	83.494%	938	23.5	45.1°C	230.05V
CL3	0.116A	0A	19.703A	0A	67.405	78.215%	868	21	41.38°C	0.685
CL3	12.092V	5.017V	3.35V	5.077V	86.19	78.215%	868	21	45.34°C	230.05V
CL4	70.392A	0A	0A	0A	849.902	92.257%	1878	43	45.6°C	0.996
CL4	12.074V	5.004V	3.335V	5.03V	921.265	92.257%	1878	43	50.81°C	229.95V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.498A	0.492A	0.196A	20.01	74.597%	0	<6.0	45.13°C	0.702
20W	12.098V	5.017V	3.356V	5.09V	26.882	74.597%	0	<6.0	36.71°C	114.97V
40W	2.703A	0.698A	0.688A	0.295A	40.008	78.23%	0	<6.0	43.83°C	0.845
40W	12.097V	5.017V	3.357V	5.086V	51.163	78.23%	0	<6.0	37.07°C	114.96V
60W	4.178A	0.897A	0.885A	0.394A	60.007	84.293%	0	<6.0	46.47°C	0.89
60W	12.097V	5.017V	3.357V	5.082V	71.211	84.293%	0	<6.0	38.59°C	114.96V
80W	5.650A	1.097A	1.081A	0.493A	79.974	86.776%	0	<6.0	46.31°C	0.947
80W	12.096V	5.016V	3.357V	5.078V	92.18	86.776%	0	<6.0	39.22°C	114.95V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.498A	0.491A	0.197A	20.014	71.255%	0	<6.0	44.92°C	0.364
20W	12.098V	5.018V	3.358V	5.09V	28.222	71.255%	0	<6.0	36.62°C	230.06V
40W	2.703A	0.698A	0.688A	0.295A	40.011	80.926%	0	<6.0	44.06°C	0.502
40W	12.098V	5.018V	3.358V	5.086V	49.454	80.926%	0	<6.0	37.89°C	230.06V
60W	4.178A	0.897A	0.884A	0.394A	60.01	85.695%	0	<6.0	43.64°C	0.621
60W	12.097V	5.017V	3.358V	5.081V	70.046	85.695%	0	<6.0	38.37°C	230.06V
80W	5.650A	1.097A	1.081A	0.493A	79.982	88.18%	0	<6.0	45.85°C	0.699
80W	12.096V	5.017V	3.359V	5.077V	90.711	88.18%	0	<6.0	39.01°C	230.05V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	7.53mV	7.04mV	5.14mV	7.39mV	Pass
20% Load	7.48mV	8.52mV	6.87mV	7.28mV	Pass
30% Load	8.34mV	8.93mV	7.43mV	7.28mV	Pass
40% Load	9.26mV	6.94mV	6.61mV	7.79mV	Pass
50% Load	9.21mV	10.66mV	8.09mV	7.23mV	Pass
60% Load	10.07mV	9.23mV	7.78mV	7.75mV	Pass
70% Load	10.79mV	9.90mV	8.39mV	8.76mV	Pass
80% Load	11.35mV	10.35mV	13.63mV	8.40mV	Pass
90% Load	12.46mV	15.91mV	19.02mV	8.20mV	Pass
100% Load	19.66mV	17.19mV	22.20mV	12.98mV	Pass
110% Load	23.81mV	22.32mV	21.08mV	12.77mV	Pass
Crossload1	13.14mV	14.47mV	16.39mV	16.78mV	Pass
Crossload2	7.68mV	9.64mV	6.36mV	11.62mV	Pass
Crossload3	7.58mV	8.01mV	14.29mV	11.56mV	Pass
Crossload4	21.30mV	17.49mV	17.03mV	17.64mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	7.89mV	6.63mV	5.09mV	7.18mV	Pass
20% Load	7.13mV	8.57mV	6.46mV	7.24mV	Pass
30% Load	7.94mV	8.67mV	7.37mV	7.39mV	Pass
40% Load	8.09mV	7.96mV	7.27mV	7.34mV	Pass
50% Load	9.21mV	7.96mV	6.56mV	8.56mV	Pass
60% Load	11.14mV	9.34mV	8.09mV	7.79mV	Pass
70% Load	10.84mV	9.85mV	8.34mV	8.36mV	Pass
80% Load	11.40mV	11.68mV	15.00mV	9.32mV	Pass
90% Load	11.91mV	15.71mV	17.95mV	8.10mV	Pass
100% Load	19.13mV	17.89mV	20.32mV	9.09mV	Pass
110% Load	21.73mV	18.91mV	20.82mV	8.00mV	Pass
Crossload1	7.80mV	10.22mV	14.11mV	12.23mV	Pass
Crossload2	7.73mV	10.15mV	7.22mV	11.82mV	Pass
Crossload3	7.43mV	7.80mV	14.60mV	11.87mV	Pass
Crossload4	20.27mV	18.42mV	16.75mV	16.84mV	Pass

The results above are not used in the certification process

Super Flower Zillion FG 850W

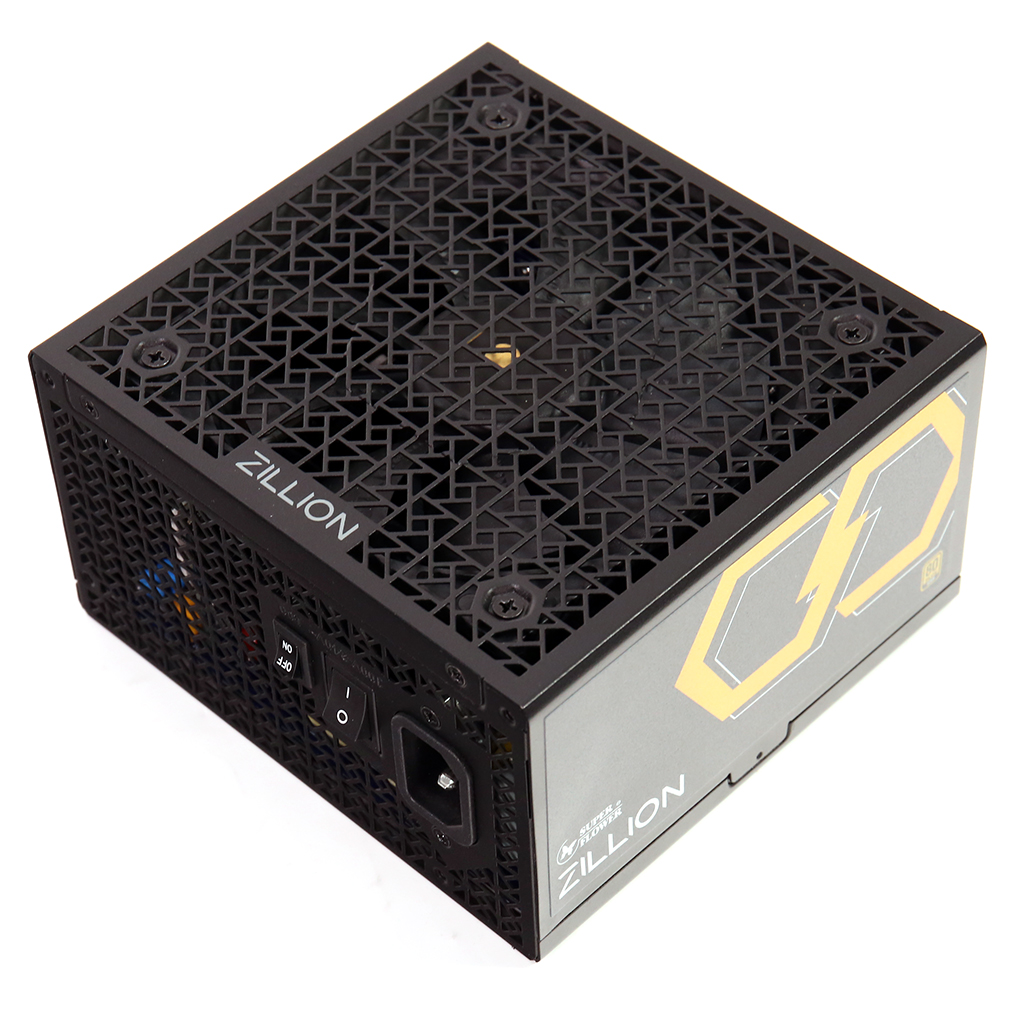

Top side

Power specifications label
