Corsair HX1000i Shift (ATX v3.1)
Serial Number-
Lab IDCR10002699
Certification ID252699
  • Test Result Report ID: 24PS2699A
  • Certificate Issue Date: Jan 10, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Manufacturer (OEM)CWT
SeriesHXi Shift
Model NumberHX1000i
Serial Number-
Fan Report LinkCorsair NR140HP
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6.5-13
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Fluid Dynamic Bearing Fan (NR140HP)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252583.33.50
Watts150999.617.50
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (610mm) 1 1 16-20AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (650mm) 2 2 16-18AWG No
2x 6+2 pin PCIe (650mm) 1 2 16AWG No
12+2 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (455mm+110mm+110mm+110mm) 2 8 18AWG No
4-pin Molex (455mm+100mm+100mm+100mm) 2 8 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -
iQue cable (90 deg. connector) (200mm) 1 1 - -
iQue cable (straight connector) (600mm) 1 1 - -
USB 2.0 (530mm) 1 1 - -

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor SCK-20150 (15 Ohm) & Relay
Bridge Rectifier
2x ShinDengen LL25XB60 (600V, 25A @ 113°C)
APFC MOSFETs
2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode
2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s)
Nippon Chemi-Con (420V, 560uF, 2,000h @ 105°C, KMR)
Rubycon (420V, 470uF, 2000h @ 105°C, MXE)
APFC Cut-Off
Sync Power SPN5003 (reducing no load consumption)
Main Switchers
2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)

Digital Controllers

2x Texas Instruments UCD3138A
MCU
IC Driver Silicon Labs Si8233BD
Topology Primary side: Digital, Interleaved PFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 10x Infineon BSC014N04LS (40V, 145A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
6x Nippon Chemi-Con (@ 105°C, W)
 2x Rubycon (6-10,000h @ 105°C, ZLH)
Rubycon (4-10,000h @ 105°C, YXF)
Polymer:
7x Nippon Chemi-con, 26x FPCAP
Supervisor IC Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Controller / Micro Controller Microchip PIC32MM0064GPM036
Fan Model Corsair NR140P (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Synchronous Rectification IC
Leadtrend LD8926AA1
Standby PWM Controller
On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)90.161%
Average Noise Output (>1450 Load Combinations)16.65dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load67.545%
Standby Power Consumption0.0156W
12V Ripple (Full Load)25.79mV
5V Ripple (Full Load)14.90mV
3.3V Ripple (Full Load)15.60mV
5VSB Ripple (Full Load)18.39mV
12V Load Regulation0.68%
5V Load Regulation0.67%
3.3V Load Regulation0.89%
5VSB Load Regulation1.56%
Inrush Current5.650A
Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)91.832%
Average Noise Output (>1450 Load Combinations)16.70dBA
Average PF (>1450 Load Combinations)0.936
Efficiency With 10W (≤500W) or 2% (>500W) Load67.561%
Standby Power Consumption0.0759W
12V Ripple (Full Load)28.08mV
5V Ripple (Full Load)17.99mV
3.3V Ripple (Full Load)17.33mV
5VSB Ripple (Full Load)21.61mV
12V Load Regulation0.68%
5V Load Regulation0.65%
3.3V Load Regulation0.86%
5VSB Load Regulation1.54%
Inrush Current11.320A
12V Transient Response (200%)11.09V
5V Transient Response (200%)4.916V
3.3V Transient Response (200%)3.225V
5VSB Transient Response (200%)4.881V
Hold-Up Time & Power Ok Signal23.50ms
AC Loss to PWR_OK Hold Up Time19.40ms
PWR_OK Inactive to DC Loss Delay4.10ms
PSU Timings: T1 (20% / 100%)133.0ms128.0ms
PSU Timings: T3 (20% / 100%)128.0ms128.0ms
12V OCP (27.6°C / 45.3°C)102.00A (122.45%), 11.989V103.20A (123.89%), 11.985V
5V OCP (27.6°C / 45.3°C)35A (140.00%), 5.069V35.3A (141.20%), 5.064V
3.3V OCP (27.6°C / 45.3°C)34.6A (138.40%), 3.365V34.6A (138.40%), 3.361V
5VSB OCP (27.6°C / 45.3°C)4.7A (134.29%), 5.079V4.6A (131.43%), 5.069V
OPP (27.58°C / 43.29°C)120.90%120.91%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.5
AC Loss to PWR_OK Hold Up Time (ms)19.4
PWR_OK Inactive to DC Loss Delay (ms)4.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.04 V 115.01 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.21 % 2.00 % PASS
Real Power: 0.016 W 0.001 W N/A 0.032 W N/A N/A
Apparent Power: 16.986 W 16.140 W N/A 17.865 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.99 V 230.88 V 227.70 V 231.04 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.076 W 0.038 W N/A 0.118 W N/A N/A
Apparent Power: 53.846 W 52.657 W N/A 55.077 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A

Graphs

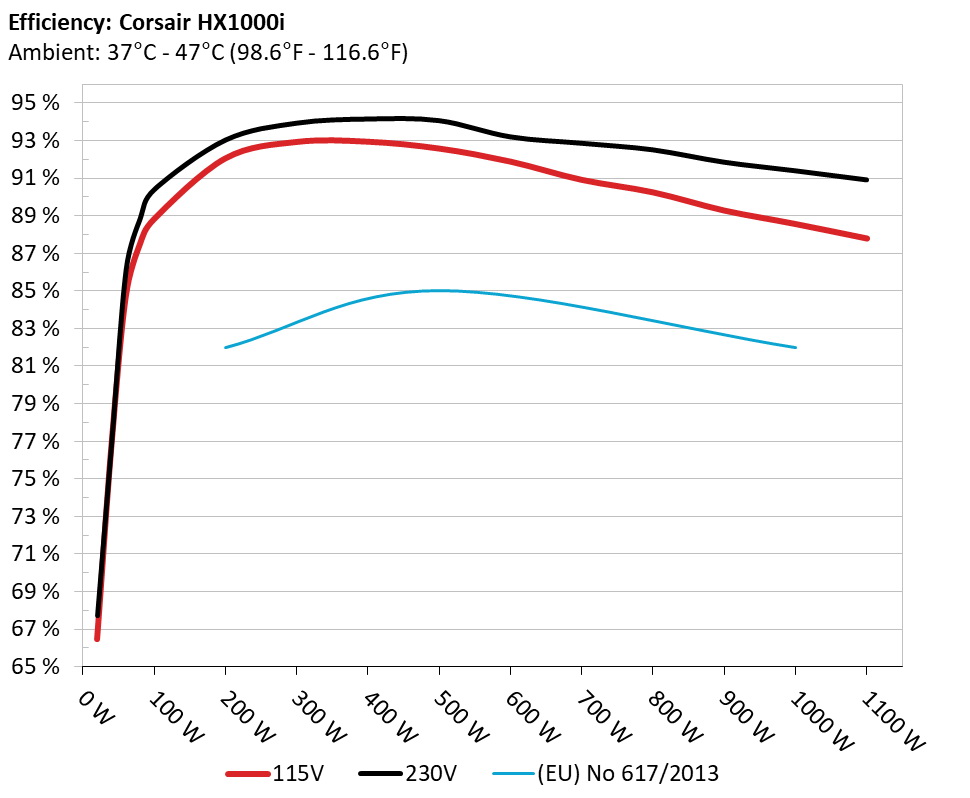

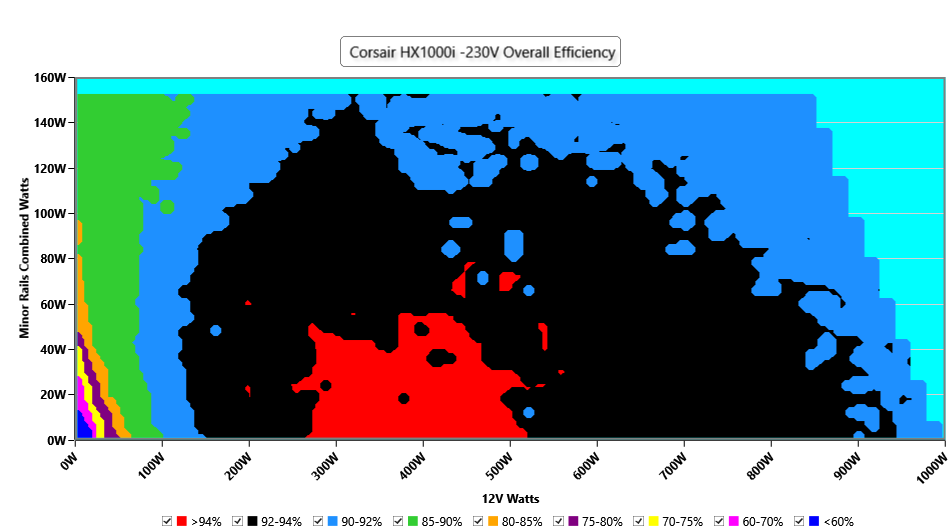

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

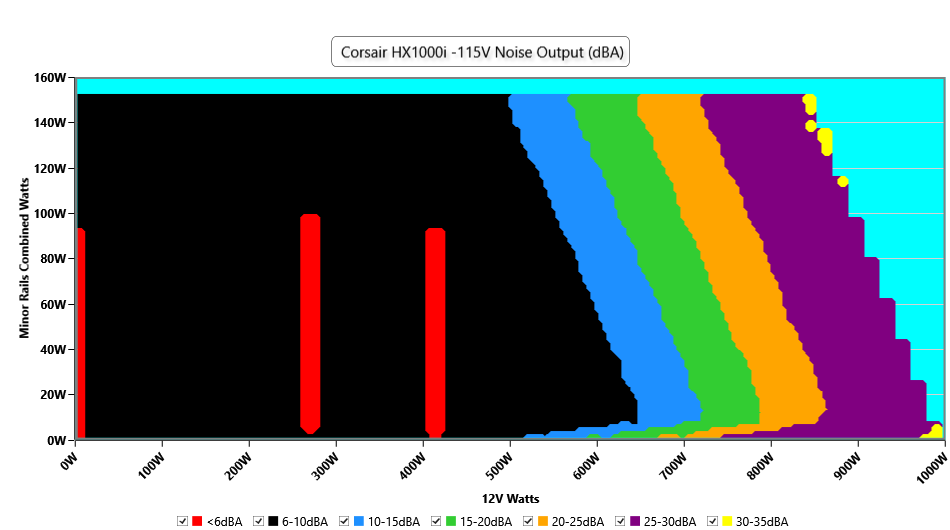

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

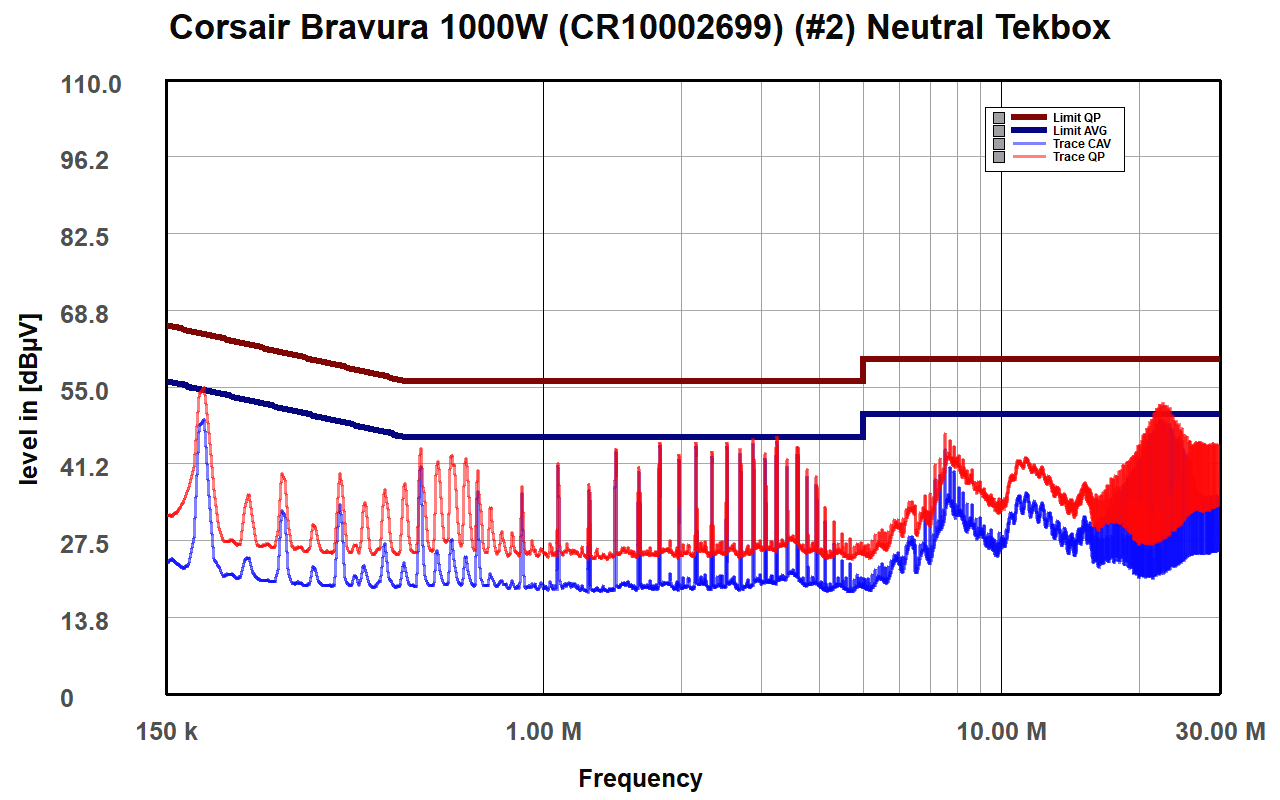

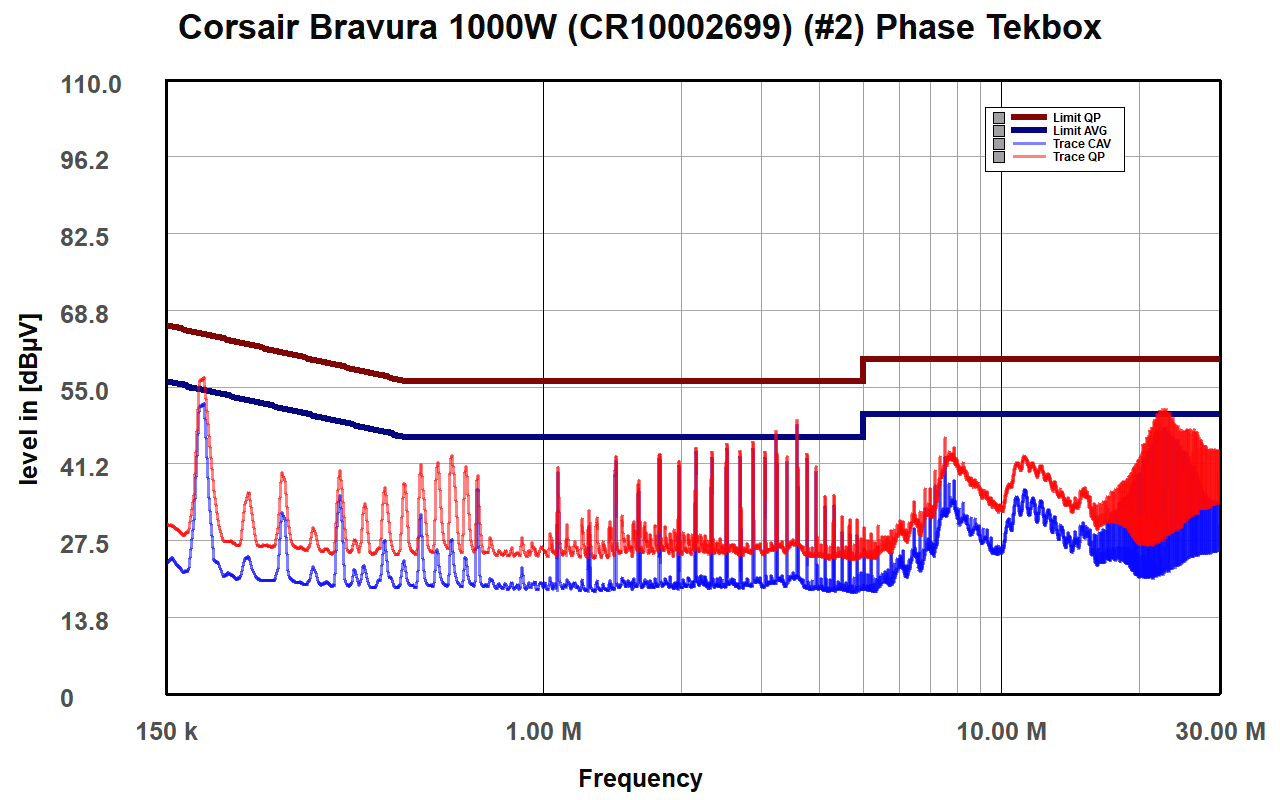

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

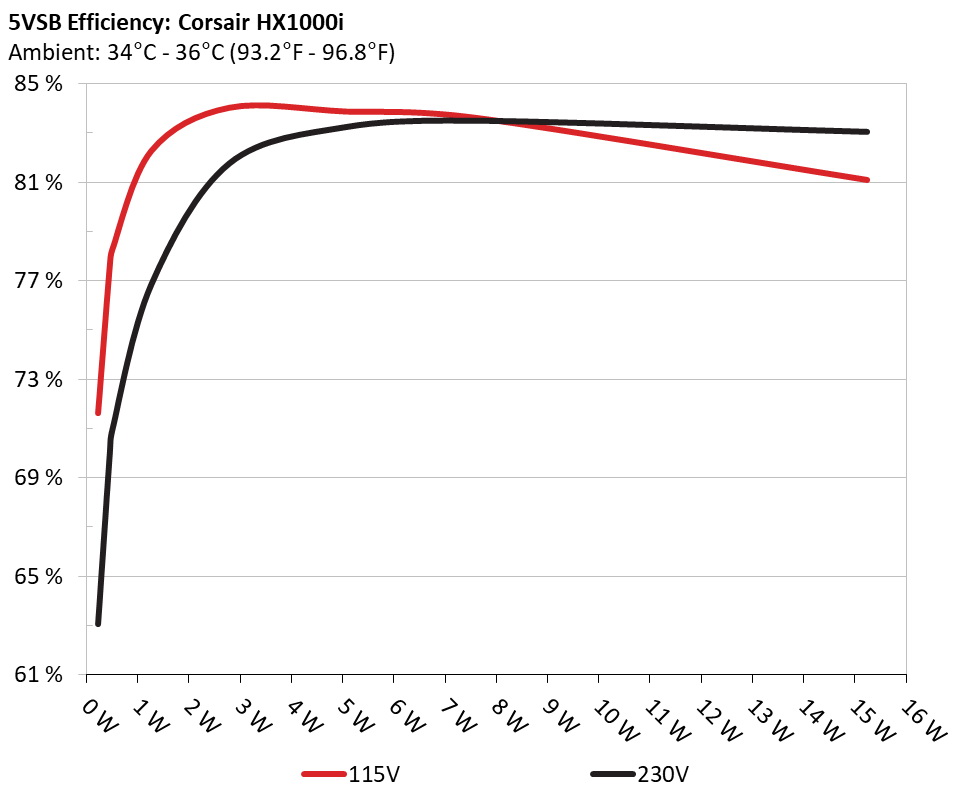

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 71.622% 0.021
5.068V 0.318W 114.93V
2 0.09A 0.456W 77.592% 0.039
5.068V 0.588W 114.93V
3 0.55A 2.788W 84.037% 0.2
5.07V 3.318W 114.92V
4 1A 5.071W 83.881% 0.317
5.072V 6.046W 114.91V
5 1.5A 7.61W 83.622% 0.403
5.073V 9.101W 114.92V
6 3A 15.233W 81.101% 0.517
5.078V 18.783W 114.91V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 63.048% 0.007
5.069V 0.362W 229.88V
2 0.09A 0.456W 69.948% 0.013
5.069V 0.653W 229.89V
3 0.55A 2.788W 81.746% 0.065
5.07V 3.411W 229.89V
4 1A 5.072W 83.228% 0.114
5.071V 6.094W 229.88V
5 1.5A 7.61W 83.481% 0.164
5.073V 9.115W 229.88V
6 3A 15.233W 83.03% 0.286
5.078V 18.346W 229.88V

Protection Features

OCP (Normal @ 27.6°C)12V: 102.00A (122.45%), 11.989V
5V: 35A (140.00%), 5.069V
3.3V: 34.6A (138.40%), 3.365V
5VSB: 4.7A (134.29%), 5.079V
OCP (Hot @ 45.3°C)12V: 103.20A (123.89%), 11.985V
5V: 35.3A (141.20%), 5.064V
3.3V: 34.6A (138.40%), 3.361V
5VSB: 4.6A (131.43%), 5.069V
OPP (Normal @ 27.6°C)1209.03W (120.90%)
OPP (Hot @ 43.3°C)1209.06W (120.91%)
OTP✓ (106°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✓
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.500A 1.965A 1.94A 0.987A 99.976 88.834% 0 <6.0 49.39°C 0.889
12.059V 5.088V 3.401V 5.067V 112.54 40.04°C 114.89V
20% 14.026A 2.95A 2.913A 1.186A 199.923 92.067% 0 <6.0 51.44°C 0.991
12.051V 5.084V 3.398V 5.059V 217.149 40.51°C 114.85V
30% 21.911A 3.444A 3.402A 1.386A 299.969 92.942% 0 <6.0 53.35°C 0.994
12.045V 5.081V 3.395V 5.051V 322.763 41.13°C 114.82V
40% 29.765A 3.939A 3.891A 1.586A 399.479 92.956% 0 <6.0 56.05°C 0.995
12.037V 5.078V 3.392V 5.043V 429.752 41.52°C 114.79V
50% 37.360A 4.928A 4.87A 1.788A 499.206 92.593% 0 <6.0 58.8°C 0.995
12.010V 5.073V 3.388V 5.034V 539.146 42.44°C 114.75V
60% 44.989A 5.918A 5.85A 1.989A 599.754 91.893% 478 6.2 42.54°C 0.997
12.002V 5.07V 3.385V 5.027V 652.654 54.25°C 114.71V
70% 52.482A 6.907A 6.83A 2.191A 699.479 90.924% 578 11.8 43.16°C 0.998
12.011V 5.068V 3.383V 5.02V 769.304 54.36°C 114.68V
80% 60.118A 7.897A 7.812A 2.295A 799.495 90.257% 716 20.3 43.61°C 0.998
12.003V 5.064V 3.379V 5.011V 885.522 55.64°C 114.64V
90% 68.110A 8.395A 8.292A 2.399A 899.296 89.29% 1010 31.1 44.67°C 0.998
11.992V 5.061V 3.376V 5.003V 1007.271 57.43°C 114.6V
100% 75.898A 8.894A 8.803A 3.003A 999.308 88.57% 1197 36.1 45.61°C 0.998
11.985V 5.059V 3.374V 4.995V 1128.051 57.68°C 114.56V
110% 83.625A 9.889A 9.88A 3.008A 1099.933 87.797% 1353 39.3 46.37°C 0.998
11.977V 5.055V 3.371V 4.986V 1253.03 58.56°C 114.52V
CL1 0.116A 17.868A 17.675A 0A 151.296 84.576% 667 18.5 40.86°C 0.988
12.044V 5.053V 3.373V 5.051V 178.899 54.61°C 114.86V
CL2 0.115A 24.687A 0A 0A 126.238 83.437% 695 19.4 40.56°C 0.928
12.052V 5.057V 3.385V 5.057V 151.303 51.22°C 114.86V
CL3 0.115A 0A 24.469A 0A 83.898 78.14% 725 20.7 40.39°C 0.882
12.054V 5.066V 3.372V 5.058V 107.378 49.74°C 114.89V
CL4 83.355A 0A 0A 0A 999.897 89.274% 991 30.4 45.27°C 0.997
11.995V 5.074V 3.384V 4.998V 1121.162 52.69°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.502A 1.962A 1.94A 0.987A 99.996 90.085% 0 <6.0 47.32°C 0.746
12.058V 5.096V 3.402V 5.065V 111.017 40.49°C 229.88V
20% 14.028A 2.946A 2.913A 1.187A 199.952 93.062% 0 <6.0 48.17°C 0.89
12.050V 5.092V 3.399V 5.057V 214.86 40.64°C 229.86V
30% 21.915A 3.439A 3.401A 1.387A 300.002 93.957% 0 <6.0 50.1°C 0.921
12.044V 5.089V 3.396V 5.049V 319.309 41.4°C 229.85V
40% 29.773A 3.933A 3.89A 1.587A 399.566 94.174% 0 <6.0 50.35°C 0.935
12.036V 5.086V 3.394V 5.041V 424.296 41.55°C 229.83V
50% 37.368A 4.92A 4.868A 1.789A 499.287 94.09% 0 <6.0 53.81°C 0.943
12.009V 5.082V 3.39V 5.032V 530.676 42.39°C 229.81V
60% 45.017A 5.907A 5.846A 1.99A 599.821 93.224% 477 6.2 42.88°C 0.964
11.996V 5.079V 3.387V 5.026V 643.692 51.13°C 229.79V
70% 52.495A 6.895A 6.827A 2.192A 699.529 92.887% 578 11.8 43.33°C 0.973
12.009V 5.077V 3.384V 5.018V 753.049 51.21°C 229.78V
80% 60.125A 7.883A 7.808A 2.295A 799.53 92.535% 721 20.6 44.7°C 0.977
12.002V 5.073V 3.381V 5.01V 864.147 52.06°C 229.76V
90% 68.119A 8.38A 8.288A 2.399A 899.309 91.88% 873 26.7 45.27°C 0.98
11.991V 5.07V 3.378V 5.002V 978.754 52.82°C 229.74V
100% 75.905A 8.878A 8.798A 3.004A 999.339 91.422% 1162 35.3 45.52°C 0.983
11.984V 5.068V 3.376V 4.994V 1093.173 52.9°C 229.72V
110% 83.636A 9.872A 9.875A 3.009A 1099.963 90.937% 1353 39.3 46°C 0.985
11.976V 5.064V 3.372V 4.985V 1209.581 53.64°C 229.7V
CL1 0.116A 17.842A 17.671A 0A 151.3 85.552% 667 18.5 43.35°C 0.867
12.044V 5.06V 3.373V 5.05V 176.846 58.92°C 229.87V
CL2 0.115A 24.651A 0A 0A 126.243 84.347% 687 19.1 42.72°C 0.843
12.051V 5.065V 3.386V 5.057V 149.67 57.95°C 229.87V
CL3 0.115A 0A 24.462A 0A 83.9 79.094% 727 20.8 41.66°C 0.737
12.053V 5.072V 3.373V 5.057V 106.049 54.26°C 229.88V
CL4 83.364A 0A 0A 0A 999.911 92.01% 990 30.4 45.54°C 0.983
11.994V 5.081V 3.385V 4.997V 1086.79 49.66°C 229.72V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.491A 0.485A 0.197A 19.992 66.449% 0 <6.0 46.98°C 0.737
12.067V 5.093V 3.401V 5.073V 30.095 36.03°C 114.92V
40W 2.708A 0.687A 0.679A 0.296A 39.989 76.737% 0 <6.0 45.48°C 0.802
12.066V 5.093V 3.403V 5.072V 52.119 37.76°C 114.91V
60W 4.188A 0.884A 0.872A 0.394A 59.988 84.667% 0 <6.0 46.61°C 0.824
12.063V 5.091V 3.404V 5.07V 70.86 38.02°C 114.9V
80W 5.664A 1.08A 1.066A 0.493A 79.926 87.482% 0 <6.0 48.05°C 0.86
12.060V 5.09V 3.403V 5.069V 91.351 39.04°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.49A 0.485A 0.197A 19.999 67.74% 0 <6.0 41.84°C 0.406
12.065V 5.101V 3.402V 5.071V 29.578 36.02°C 229.89V
40W 2.710A 0.686A 0.679A 0.296A 39.998 77.011% 0 <6.0 42.73°C 0.553
12.064V 5.1V 3.405V 5.069V 51.97 37.65°C 229.89V
60W 4.189A 0.882A 0.872A 0.395A 59.997 86.12% 0 <6.0 45.06°C 0.642
12.062V 5.099V 3.405V 5.068V 69.672 38.54°C 229.88V
80W 5.665A 1.079A 1.066A 0.493A 79.943 88.881% 0 <6.0 42.39°C 0.702
12.059V 5.098V 3.404V 5.067V 89.939 39.26°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load16.01mV13.59mV13.86mV13.96mVPass
20% Load15.04mV12.31mV13.04mV12.69mVPass
30% Load16.78mV12.26mV12.89mV15.09mVPass
40% Load18.93mV12.46mV11.97mV13.56mVPass
50% Load25.32mV12.92mV12.79mV13.50mVPass
60% Load19.85mV13.59mV13.35mV15.19mVPass
70% Load19.24mV11.95mV12.63mV15.96mVPass
80% Load23.02mV13.28mV13.61mV16.52mVPass
90% Load20.67mV13.64mV14.53mV16.42mVPass
100% Load25.79mV14.90mV15.60mV18.39mVPass
110% Load28.05mV15.12mV15.16mV26.06mVPass
Crossload123.89mV14.53mV17.43mV12.99mVPass
Crossload217.09mV20.59mV15.09mV14.07mVPass
Crossload315.45mV13.95mV18.77mV13.66mVPass
Crossload427.22mV12.56mV13.87mV14.82mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.25mV13.84mV13.35mV13.45mVPass
20% Load15.81mV12.87mV12.69mV13.25mVPass
30% Load17.29mV13.90mV13.61mV15.19mVPass
40% Load21.23mV14.71mV14.27mV15.14mVPass
50% Load21.28mV14.46mV15.30mV16.37mVPass
60% Load19.34mV15.43mV15.76mV18.57mVPass
70% Load19.95mV15.84mV15.29mV18.00mVPass
80% Load23.64mV15.74mV16.42mV18.26mVPass
90% Load22.92mV15.33mV16.83mV19.03mVPass
100% Load28.08mV17.99mV17.33mV21.61mVPass
110% Load32.70mV17.28mV18.39mV23.30mVPass
Crossload123.15mV15.82mV18.19mV13.19mVPass
Crossload217.65mV19.93mV12.94mV12.53mVPass
Crossload317.09mV13.95mV17.55mV13.30mVPass
Crossload428.70mV15.84mV16.33mV17.65mVPass

The results above are not used in the certification process

Corsair HX1000i Shift (ATX v3.1)

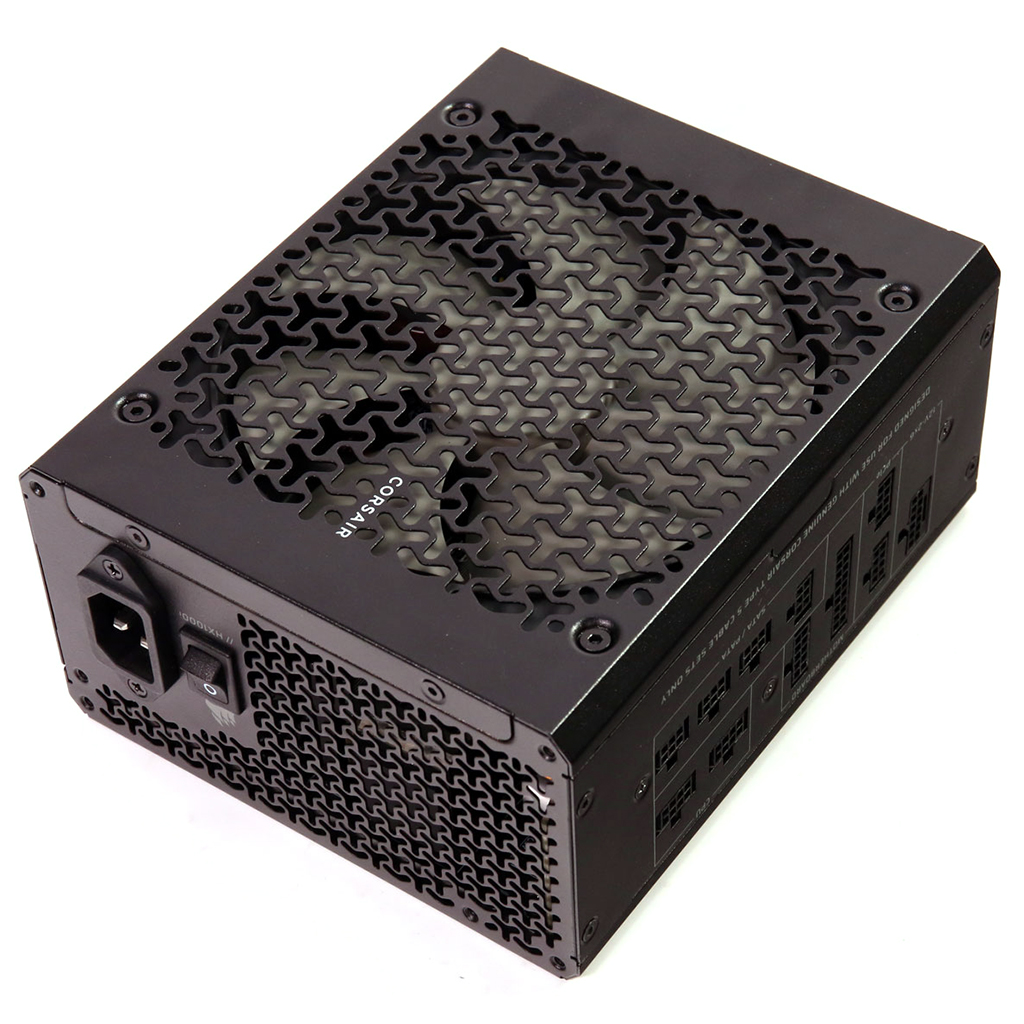

Top side

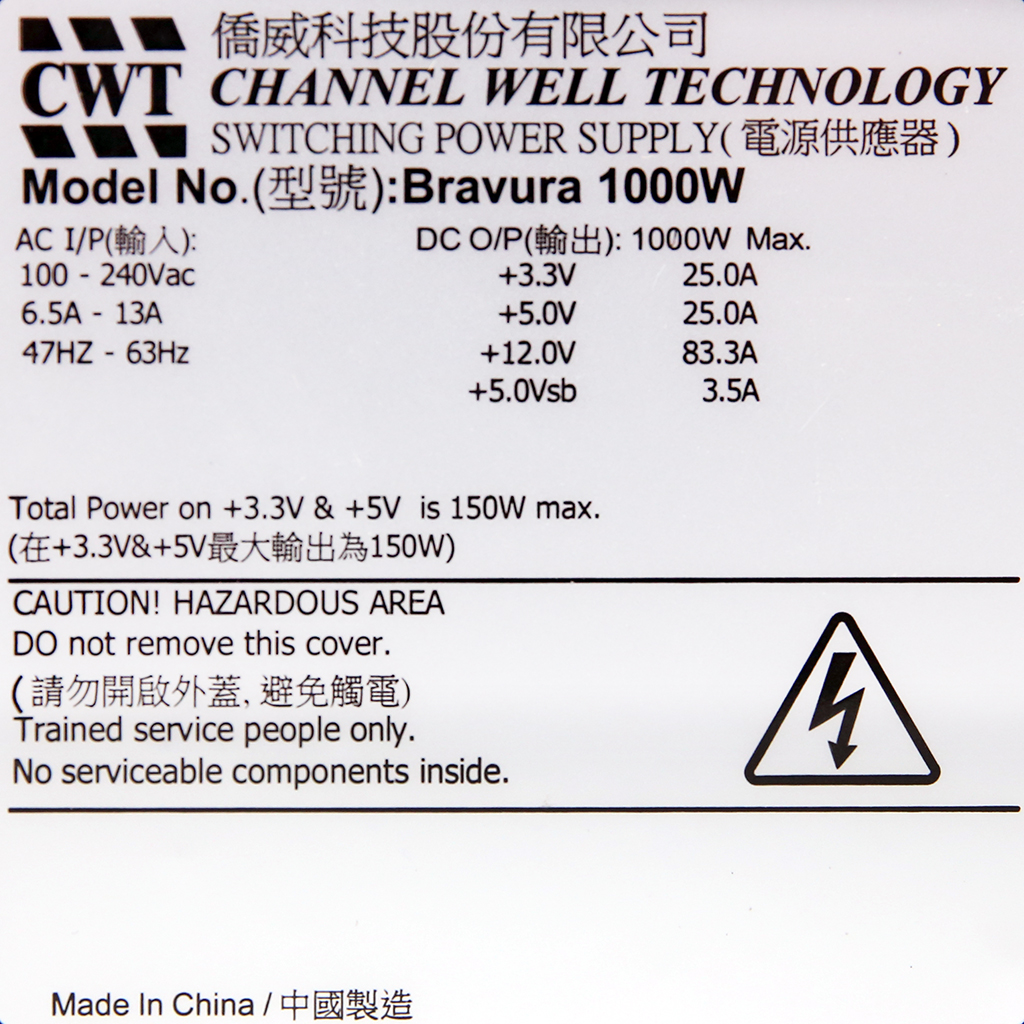

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
