CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
ABKO CM-1200P-A3.1M
序号-
Lab IDAB12002702
Certification ID252702
  • Test Result Report ID: 25PS2702A
  • Certificate Issue Date: Jan 13, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Main Specs

Product Identification Details
BrandABKO
ModelCM-1200P-A3.1M
OEMShenZhen XinWeiYe Technology Co., Ltd
Serial Number-
Product Specifications
Manufacturer
额定电压 (Vrms)100-240
额定电流 (Arms)15-10
额定频率 (Hz)50-60
额定功率 (W)1200
Operating Temperature (Continuous Full Load) (°C)
类别ATX12V
线材设计Fully Modular
Warranty
Cybenetics
Dimensions (W x H x D)
Weight
散热120mm Rifle Bearing Fan (BDU12025S)
半被动运转✓ (selectable)
Cybenetics Testing Information
Lab IDAB12002702
Date of receiptDec 19, 2024
Testing DateJan 9, 2025
Report Issued DateJan 13, 2025
被测品纪录Updated the model from CM-1200G-M to CM-1200P-A3.1M. (Date: October 10, 2025)
Engineer NameGeorgios Theodoros Sarimpalas
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

线材与接头(Non-accredited measurements)

模组化线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (600mm) 1 1 18AWG 否
4+4 pin EPS 12V 接头 (700mm) 2 2 16AWG 否
6+2pin PCIe接头 (505mm+150mm) 3 6 16-18AWG 否
12+4 pin PCIe (590mm) (600W) 1 1 16-26AWG 否
SATA接头 (505mm+150mm+150mm+150mm) 3 12 18AWG 否
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG 否
小4pin 接头 (+155mm) 1 1 22AWG 否

Protection Features(Non-accredited measurements)

Over Voltage Protection ✓
Under Voltage Protection ✓
Over Power Protection ✓
Over Current (+12V) Protection ✓
Over Temperature Protection ✓
Short Circuit Protection ✓
Surge Protection ✓

电源规范(Manufacturer)

组3.3V5V12V5VSB-12V
最大功率安培202010030.3
瓦1001200153.6
最大总功率 (W)1200

Parts Description

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Accredited
平均效率 (>1450 load combinations)89.203%
Average Noise Output (>1450 Load Combinations)40.44dBA
PF平均值 (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load74.781%
待机功率耗损0.0550W
Non-Accredited
12V Ripple (Full Load)20.91mV
5V Ripple (Full Load)9.67mV
3.3V Ripple (Full Load)14.09mV
5VSB Ripple (Full Load)16.74mV
12V Load Regulation0.54%
5V Load Regulation0.58%
3.3V Load Regulation1.21%
5VSB Load Regulation6.09%
Inrush Current35.430A
Accredited
平均效率 (>1450 load combinations)91.806%
Average Noise Output (>1450 Load Combinations)39.67dBA
PF平均值 (>1450 Load Combinations)0.960
Efficiency With 10W (≤500W) or 2% (>500W) Load74.836%
待机功率耗损0.0991W
Non-Accredited
12V Ripple (Full Load)21.48mV
5V Ripple (Full Load)9.97mV
3.3V Ripple (Full Load)14.35mV
5VSB Ripple (Full Load)16.52mV
12V Load Regulation0.90%
5V Load Regulation0.58%
3.3V Load Regulation1.21%
5VSB Load Regulation5.89%
Inrush Current70.750A
12V Transient Response (200%)11.03V
5V Transient Response (200%)4.921V
3.3V Transient Response (200%)3.182V
5VSB Transient Response (200%)4.919V
保持时间 & PG信号20.40ms
AC Loss to PWR_OK Hold Up Time18.70ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)88.0ms89.0ms
PSU Timings: T3 (20% / 100%)127.0ms127.0ms
12V OCP (28.6°C / 43.4°C)131.20A (131.20%), 12.016V130.40A (130.40%), 12.027V
5V OCP (28.6°C / 43.4°C)30.8A (154.00%), 5.032V30.8A (154.00%), 5.03V
3.3V OCP (28.6°C / 43.4°C)31.1A (155.50%), 3.329V31.2A (156.00%), 3.324V
5VSB OCP (28.6°C / 43.4°C)4.3A (143.33%), 4.867V4.4A (146.67%), 4.876V
OPP (30.21°C / 44.12°C)125.68%118.62%

保持时间 & PG信号

Hold-Up Time (ms)20.4
AC Loss to PWR_OK Hold Up Time (ms)18.7
PWR_OK Inactive to DC Loss Delay (ms)1.7

待机电源

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.02 V 115.00 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.055 W 0.050 W N/A 0.061 W N/A N/A
Apparent Power: 10.215 W 10.200 W N/A 10.238 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.12 V 230.10 V 227.70 V 230.14 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.099 W 0.085 W N/A 0.114 W N/A N/A
Apparent Power: 34.001 W 33.989 W N/A 34.016 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

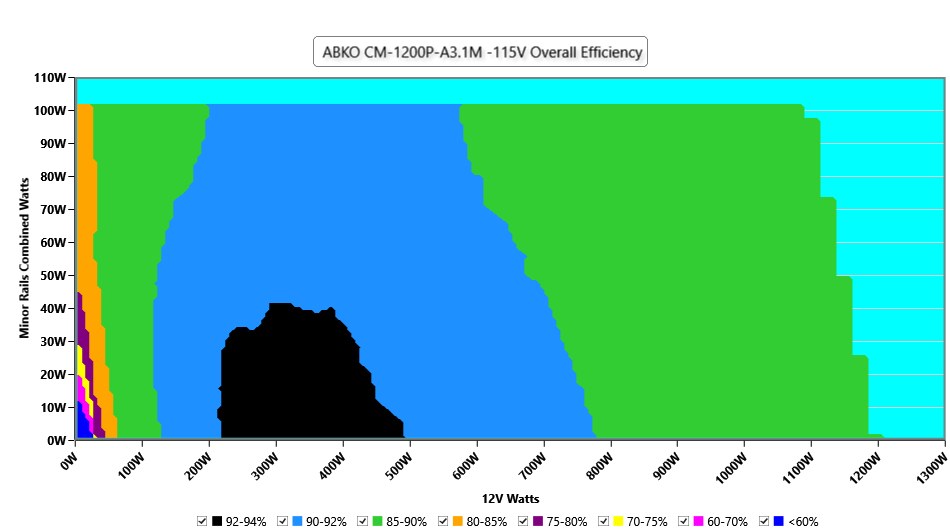

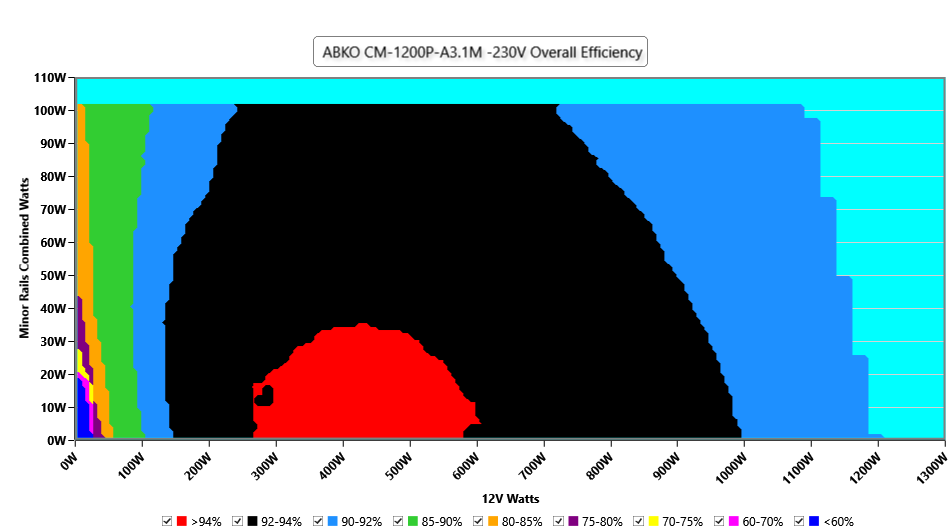

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

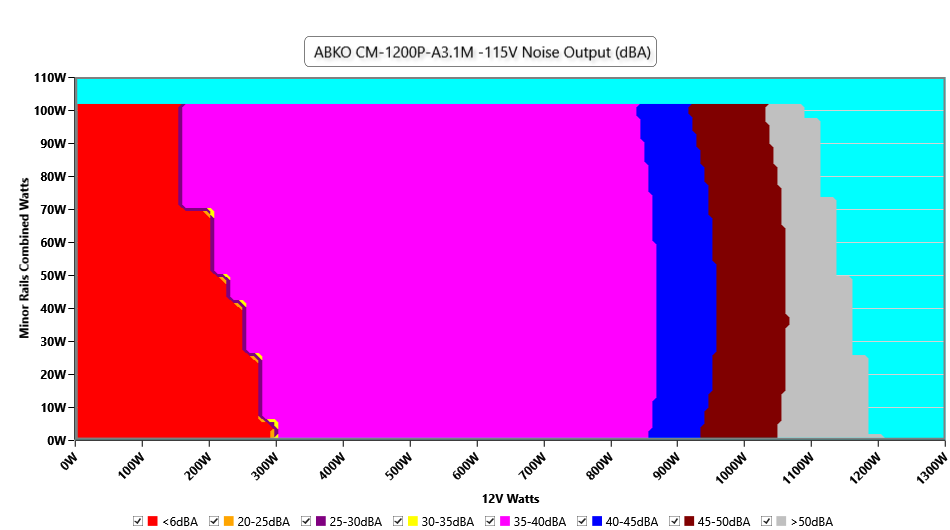

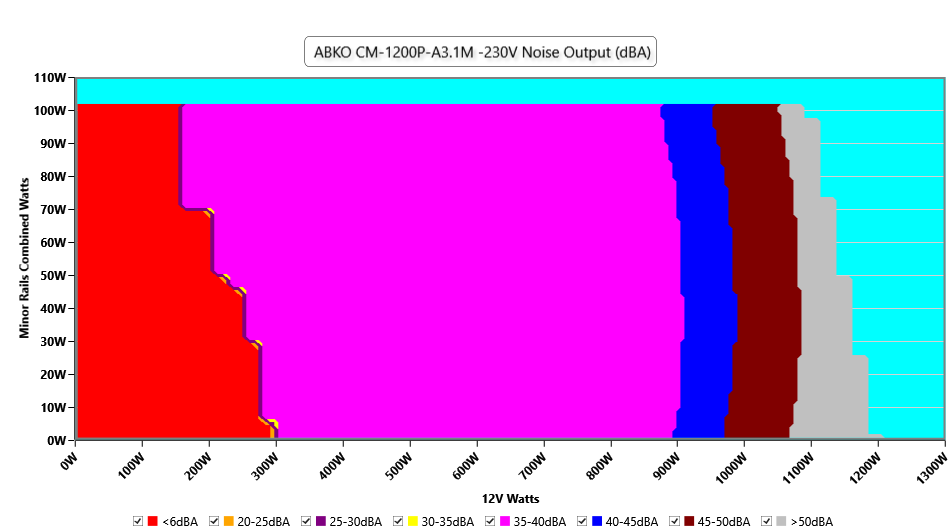

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

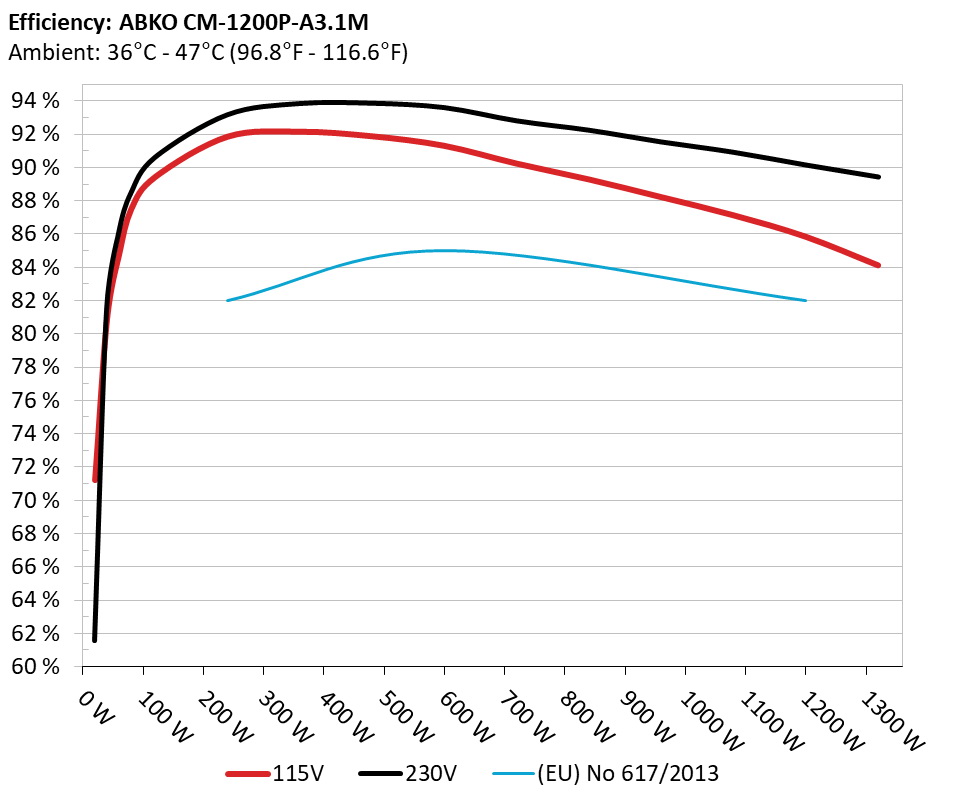

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

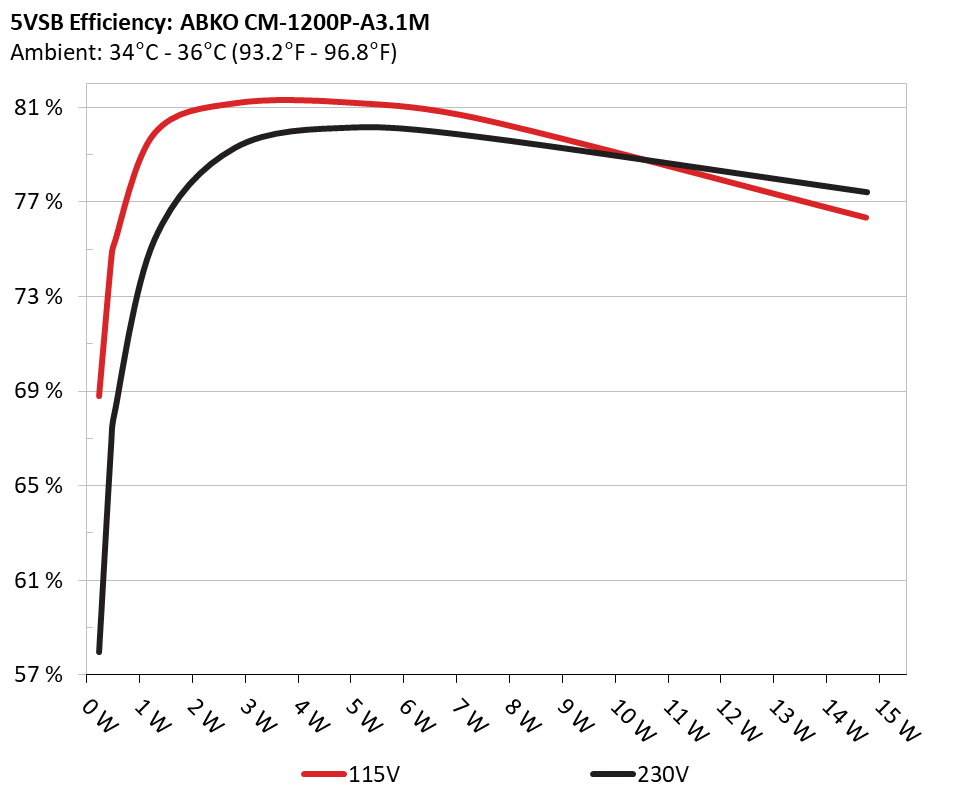

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.23W 68.779% 0.033
5.115V 0.335W 114.99V
2 0.09A 0.46W 74.604% 0.06
5.113V 0.616W 114.99V
3 0.55A 2.797W 81.191% 0.261
5.084V 3.445W 114.99V
4 1A 5.056W 81.207% 0.36
5.055V 6.226W 114.99V
5 1.5A 7.532W 80.477% 0.411
5.02V 9.359W 114.99V
6 3A 14.74W 76.344% 0.479
4.913V 19.307W 114.98V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.23W 57.983% 0.012
5.117V 0.397W 230.11V
2 0.09A 0.46W 66.837% 0.02
5.115V 0.688W 230.11V
3 0.55A 2.798W 79.282% 0.099
5.086V 3.529W 230.11V
4 1A 5.059W 80.146% 0.165
5.058V 6.312W 230.11V
5 1.5A 7.539W 79.715% 0.225
5.025V 9.458W 230.11V
6 3A 14.759W 77.412% 0.331
4.919V 19.065W 230.11V

Protection Features

OCP (Normal @ 28.6°C)12V: 131.20A (131.20%), 12.016V
5V: 30.8A (154.00%), 5.032V
3.3V: 31.1A (155.50%), 3.329V
5VSB: 4.3A (143.33%), 4.867V
OCP (Hot @ 43.4°C)12V: 130.40A (130.40%), 12.027V
5V: 30.8A (154.00%), 5.03V
3.3V: 31.2A (156.00%), 3.324V
5VSB: 4.4A (146.67%), 4.876V
OPP (Normal @ 30.2°C)1508.12W (125.68%)
OPP (Hot @ 44.1°C)1423.43W (118.62%)
OTP✓ (118°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

10-110%负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 8.136A 1.975A 1.969A 0.992A 119.999 89.441% 0 <6.0 44.72°C 0.979
12.095V 5.063V 3.352V 5.042V 134.179 40.22°C 114.94V
20% 17.298A 2.965A 2.956A 1.196A 239.96 91.857% 0 <6.0 45.25°C 0.98
12.085V 5.06V 3.349V 5.018V 261.233 40.74°C 114.91V
30% 26.777A 3.461A 3.454A 1.402A 359.316 92.153% 1344 37.3 41.09°C 0.984
12.072V 5.057V 3.344V 4.995V 389.912 45.28°C 114.87V
40% 36.345A 3.958A 3.952A 1.61A 479.687 91.884% 1346 37.3 41.52°C 0.988
12.064V 5.054V 3.34V 4.971V 522.057 46.51°C 114.82V
50% 45.527A 4.951A 4.946A 1.82A 599.473 91.312% 1351 37.3 42.26°C 0.991
12.058V 5.051V 3.336V 4.945V 656.513 49.05°C 114.79V
60% 54.763A 5.944A 5.942A 2.001A 719.856 90.245% 1362 37.4 42.77°C 0.993
12.056V 5.048V 3.332V 4.921V 797.669 51.35°C 114.76V
70% 63.943A 6.94A 6.942A 2.248A 839.768 89.294% 1698 44.6 43.19°C 0.994
12.052V 5.045V 3.328V 4.893V 940.454 52.89°C 114.72V
80% 73.224A 7.935A 7.943A 2.36A 959.774 88.234% 2137 49.4 43.89°C 0.995
12.044V 5.041V 3.323V 4.874V 1087.759 52.82°C 114.67V
90% 82.848A 8.436A 8.435A 2.472A 1079.635 87.145% 2508 56.3 44.99°C 0.996
12.035V 5.038V 3.319V 4.855V 1239 54.95°C 114.63V
100% 92.271A 8.937A 8.96A 3.118A 1199.707 85.858% 2637 56.6 45.83°C 0.996
12.030V 5.036V 3.315V 4.812V 1397.292 57.01°C 114.59V
110% 101.627A 9.936A 10.059A 3.126A 1320.337 84.137% 2611 57.7 46.78°C 0.997
12.024V 5.033V 3.31V 4.799V 1569.4 59.97°C 114.56V
CL1 0.116A 11.922A 11.87A 0A 101.317 81.781% 1356 37.4 42.08°C 0.977
12.111V 5.05V 3.345V 5.089V 123.897 48.3°C 114.94V
CL2 0.116A 19.826A 0A 0A 101.405 80.98% 1386 37.9 40.63°C 0.976
12.099V 5.044V 3.356V 5.098V 125.224 44.79°C 114.93V
CL3 0.116A 0A 19.769A 0A 67.397 75.178% 1352 37.3 40.16°C 0.969
12.097V 5.064V 3.338V 5.096V 89.647 43.35°C 114.94V
CL4 99.903A 0A 0A 0A 1200.201 86.864% 2583 57.7 45.97°C 0.996
12.014V 5.049V 3.324V 5.017V 1381.734 56.26°C 114.58V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 8.134A 1.976A 1.969A 0.992A 120.035 90.588% 0 <6.0 43.89°C 0.878
12.100V 5.064V 3.353V 5.044V 132.508 40.24°C 230.07V
20% 17.306A 2.966A 2.958A 1.195A 240.009 93.146% 1338 37.3 40.54°C 0.946
12.083V 5.059V 3.347V 5.022V 257.667 43.95°C 230.06V
30% 26.792A 3.463A 3.455A 1.4A 359.472 93.82% 1343 37.3 41.15°C 0.964
12.071V 5.056V 3.343V 5V 383.15 45.21°C 230.04V
40% 36.357A 3.959A 3.953A 1.608A 479.827 93.842% 1345 37.3 41.54°C 0.974
12.064V 5.053V 3.34V 4.977V 511.312 45.63°C 230.02V
50% 45.542A 4.952A 4.948A 1.818A 599.59 93.581% 1346 37.3 42.29°C 0.978
12.056V 5.05V 3.336V 4.952V 640.72 45.87°C 230V
60% 54.783A 5.946A 5.944A 2.001A 719.962 92.786% 1355 37.4 42.87°C 0.984
12.053V 5.047V 3.332V 4.929V 775.93 49.52°C 229.98V
70% 63.961A 6.94A 6.943A 2.244A 839.822 92.223% 1561 41.2 43.31°C 0.986
12.050V 5.045V 3.328V 4.903V 910.639 51.14°C 229.98V
80% 73.236A 7.936A 7.945A 2.355A 959.808 91.519% 2085 48.3 43.67°C 0.987
12.042V 5.041V 3.323V 4.884V 1048.747 51.56°C 229.96V
90% 82.859A 8.436A 8.436A 2.466A 1079.622 90.9% 2497 56.3 44.72°C 0.989
12.034V 5.039V 3.319V 4.867V 1187.7 54.03°C 229.93V
100% 92.278A 8.937A 8.96A 3.112A 1199.712 90.132% 2670 56.8 45.46°C 0.99
12.029V 5.036V 3.315V 4.821V 1331.058 54.83°C 229.91V
110% 101.659A 9.937A 10.06A 3.119A 1320.33 89.414% 2672 56.8 46.61°C 0.991
12.021V 5.033V 3.31V 4.809V 1476.655 56.33°C 229.89V
CL1 0.116A 11.923A 11.872A 0A 101.317 83.289% 1357 37.4 41.72°C 0.865
12.108V 5.05V 3.344V 5.091V 121.647 47.48°C 230.08V
CL2 0.116A 19.828A 0A 0A 101.405 82.236% 1361 37.4 39.93°C 0.865
12.097V 5.044V 3.356V 5.1V 123.309 43.88°C 230.07V
CL3 0.116A 0A 19.773A 0A 67.397 76.195% 1342 37.3 39.84°C 0.799
12.095V 5.064V 3.338V 5.097V 88.453 42.81°C 230.07V
CL4 99.915A 0A 0A 0A 1200.19 91.107% 2464 54.8 44.71°C 0.989
12.012V 5.049V 3.324V 5.018V 1317.351 52.74°C 229.9V

The results above are not used in the certification process

20-80瓦负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.228A 0.494A 0.492A 0.196A 19.995 71.242% 0 <6.0 42.26°C 0.839
12.088V 5.065V 3.355V 5.105V 28.074 36.04°C 114.99V
40W 2.704A 0.691A 0.689A 0.294A 39.994 80.962% 0 <6.0 45.97°C 0.929
12.087V 5.064V 3.354V 5.097V 49.4 37.37°C 114.99V
60W 4.178A 0.889A 0.885A 0.393A 59.995 84.806% 0 <6.0 44.11°C 0.959
12.092V 5.065V 3.354V 5.088V 70.746 38.64°C 114.98V
80W 5.650A 1.086A 1.082A 0.492A 79.946 87.499% 0 <6.0 42.99°C 0.971
12.093V 5.064V 3.354V 5.079V 91.369 39.76°C 114.97V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.224A 0.494A 0.492A 0.196A 20.009 61.576% 0 <6.0 37.39°C 0.52
12.137V 5.064V 3.354V 5.105V 32.494 36°C 230.08V
40W 2.704A 0.691A 0.689A 0.294A 40.007 81.521% 0 <6.0 43.47°C 0.641
12.093V 5.065V 3.355V 5.097V 49.074 37.41°C 230.08V
60W 4.177A 0.889A 0.885A 0.393A 60.006 86.068% 0 <6.0 44.37°C 0.74
12.097V 5.065V 3.355V 5.088V 69.717 38.75°C 230.08V
80W 5.649A 1.086A 1.082A 0.492A 79.979 88.433% 0 <6.0 43.35°C 0.804
12.099V 5.065V 3.354V 5.08V 90.446 39.13°C 230.08V

The results above are not used in the certification process

纹波测量

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.8 mV 6.7 mV 4.0 mV 6.0 mV Pass
20% Load 14.0 mV 7.7 mV 5.3 mV 8.0 mV Pass
30% Load 11.9 mV 8.1 mV 5.8 mV 8.2 mV Pass
40% Load 12.6 mV 7.4 mV 6.0 mV 8.3 mV Pass
50% Load 13.8 mV 9.5 mV 6.1 mV 9.7 mV Pass
60% Load 16.6 mV 8.5 mV 7.4 mV 10.6 mV Pass
70% Load 12.5 mV 7.8 mV 7.6 mV 11.8 mV Pass
80% Load 13.6 mV 8.3 mV 12.4 mV 12.2 mV Pass
90% Load 12.3 mV 7.1 mV 11.0 mV 11.7 mV Pass
100% Load 20.9 mV 9.7 mV 14.1 mV 16.7 mV Pass
110% Load 22.3 mV 9.2 mV 15.4 mV 17.8 mV Pass
Crossload 1 20.2 mV 8.8 mV 12.3 mV 8.8 mV Pass
Crossload 2 12.9 mV 9.1 mV 4.5 mV 7.5 mV Pass
Crossload 3 12.4 mV 8.0 mV 14.1 mV 8.7 mV Pass
Crossload 4 19.7 mV 8.9 mV 8.4 mV 15.5 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.9 mV 7.1 mV 4.4 mV 6.7 mV Pass
20% Load 12.6 mV 7.8 mV 4.9 mV 6.7 mV Pass
30% Load 11.8 mV 7.7 mV 5.3 mV 7.9 mV Pass
40% Load 13.3 mV 7.7 mV 5.6 mV 8.6 mV Pass
50% Load 14.2 mV 8.8 mV 6.0 mV 9.4 mV Pass
60% Load 17.1 mV 9.4 mV 7.0 mV 10.1 mV Pass
70% Load 13.8 mV 8.2 mV 6.9 mV 10.7 mV Pass
80% Load 13.5 mV 9.4 mV 12.6 mV 11.7 mV Pass
90% Load 14.0 mV 8.2 mV 13.0 mV 12.9 mV Pass
100% Load 21.5 mV 10.0 mV 14.4 mV 16.5 mV Pass
110% Load 22.1 mV 9.5 mV 15.0 mV 18.1 mV Pass
Crossload 1 19.4 mV 12.5 mV 12.2 mV 9.0 mV Pass
Crossload 2 12.7 mV 9.9 mV 4.3 mV 7.0 mV Pass
Crossload 3 12.0 mV 7.9 mV 14.3 mV 8.5 mV Pass
Crossload 4 19.7 mV 9.4 mV 8.3 mV 15.3 mV Pass

The results above are not used in the certification process

ABKO CM-1200P-A3.1M

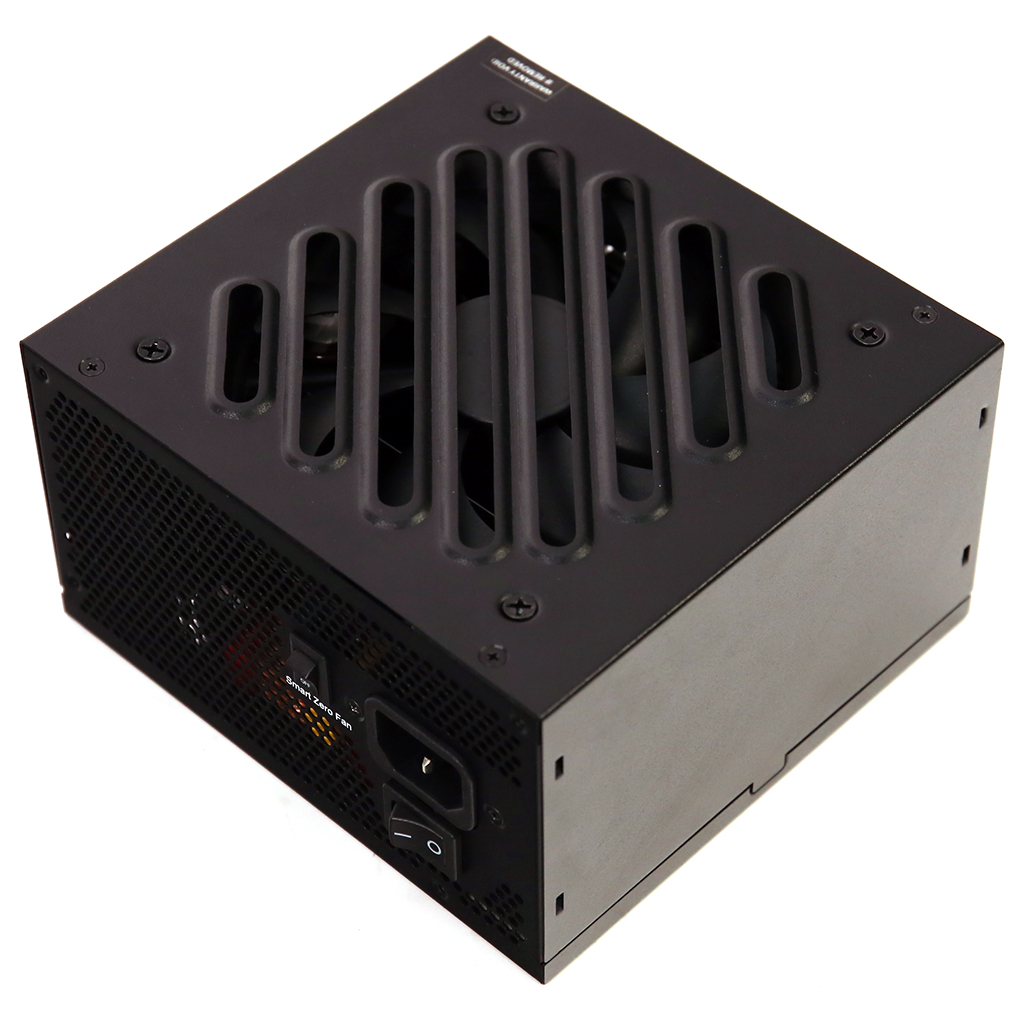

Top side

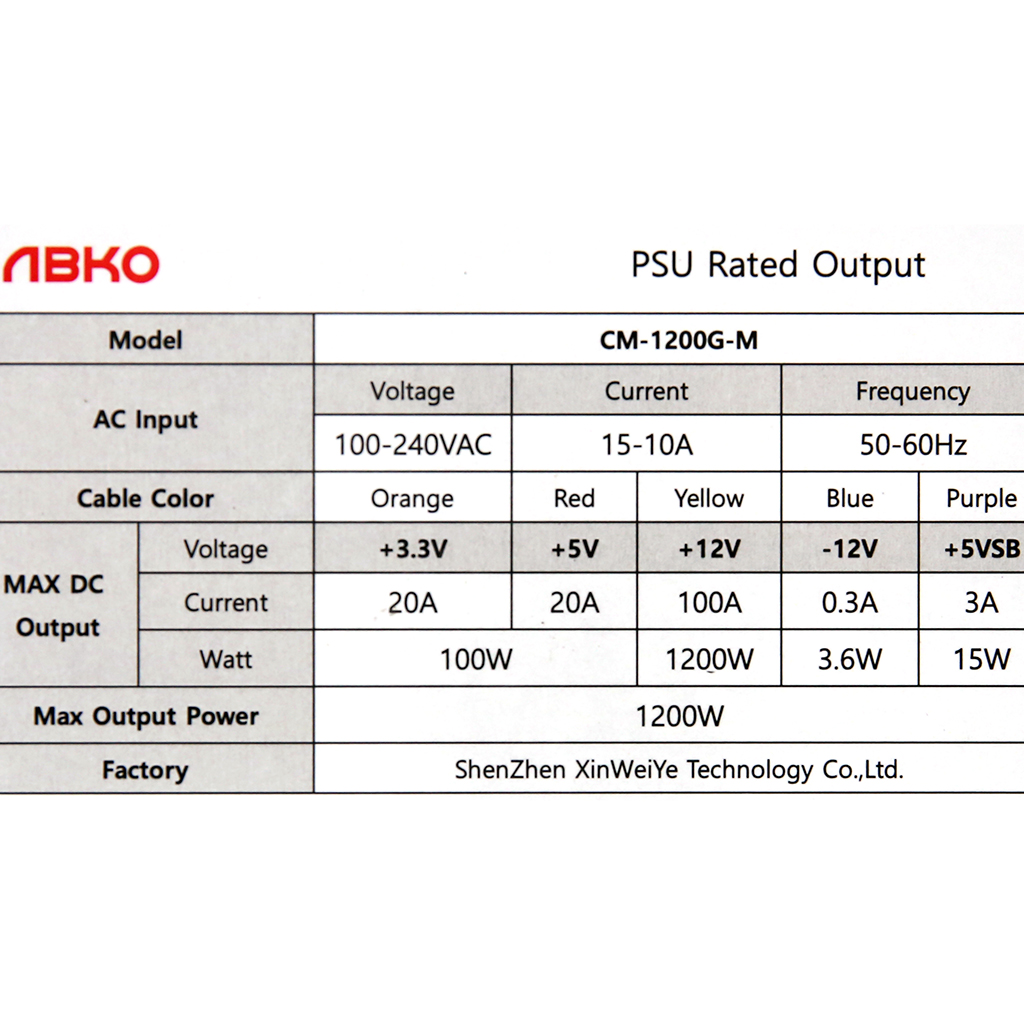

Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
