General Information
DUT Information
Brand
abee
Manufacturer (OEM)
Enhance
Series
-
Model Number
Serial Number
-
DUT Notes
The +12V and 3.3V rails drop too low during the 0.1ms (200%) ATX v3.x transient response test (10.906V and 3.119V, respectively). Therefore, the unit cannot get an ATX 3.x badge since both rails drop below the lowest limits.

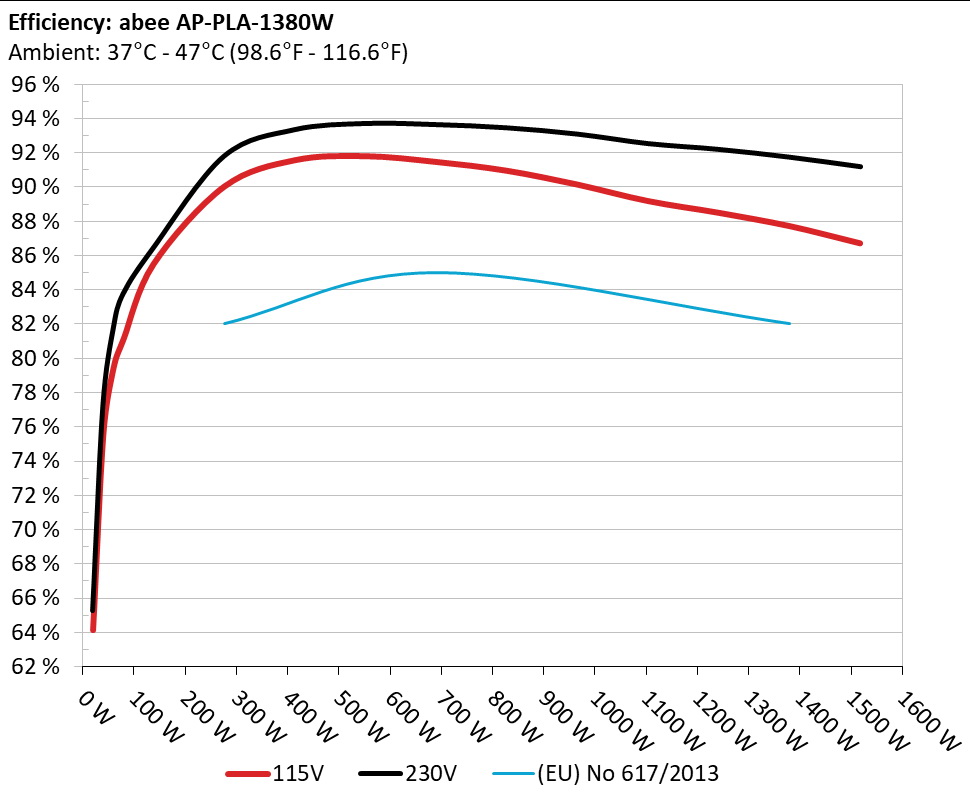

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Conducted Emissions EN55032 & CISPR 32
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB Efficiency
INFO

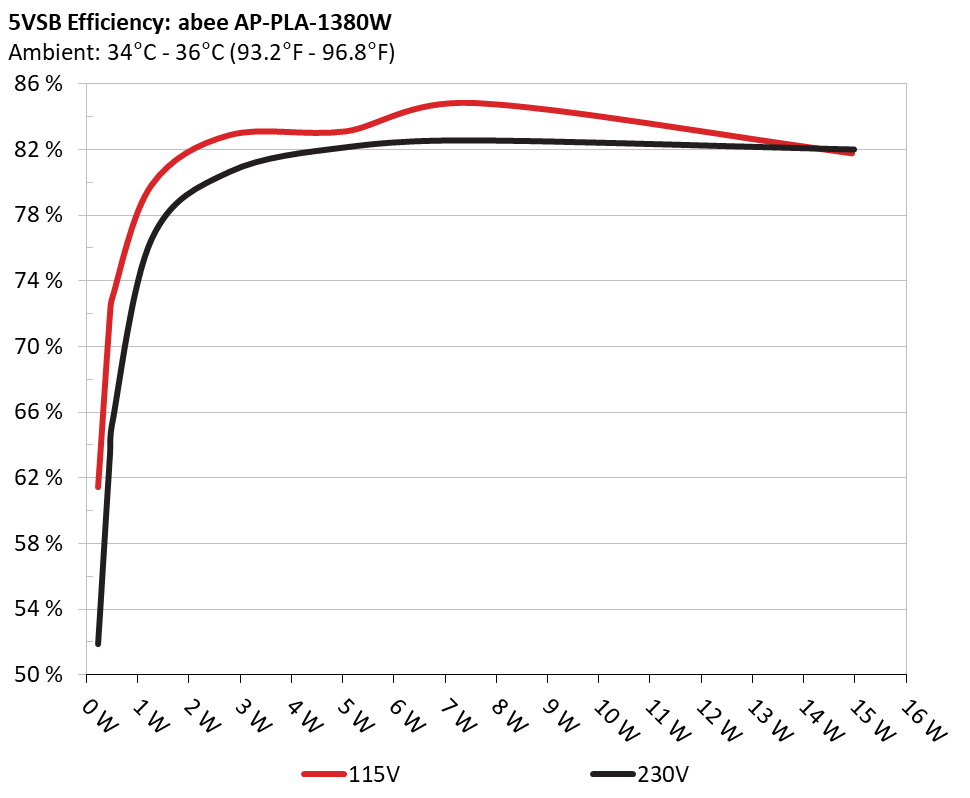

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
9.539A
1.978A
2.005A
0.988A
138.002
85.487%
974
20.1
40.09°C
0.986
12.203V
5.057V
3.292V
5.061V
161.507
45.97°C
114.83V
20%
20.106A
2.974A
3.017A
1.19A
275.968
90.006%
1082
23.4
40.82°C
0.983
12.189V
5.044V
3.282V
5.042V
306.571
46.19°C
114.78V
30%
31.004A
3.478A
3.532A
1.393A
413.619
91.549%
1083
23.4
41.1°C
0.994
12.178V
5.032V
3.27V
5.024V
451.806
47.02°C
114.73V
40%
41.948A
3.985A
4.053A
1.598A
551.572
91.784%
1333
30.1
41.84°C
0.998
12.167V
5.019V
3.257V
5.006V
600.96
47.58°C
114.69V
50%
52.597A
4.998A
5.089A
1.805A
689.732
91.451%
1543
34.5
42.14°C
0.999
12.153V
5.004V
3.243V
4.987V
754.23
49.02°C
114.64V
60%
63.268A
6.016A
6.134A
2A
827.801
90.935%
1543
34.5
42.68°C
1
12.140V
4.988V
3.228V
4.968V
910.34
50.38°C
114.59V
70%
73.968A
7.042A
7.191A
2.224A
965.957
90.126%
1800
38.8
43.17°C
1
12.125V
4.972V
3.213V
4.947V
1071.743
51.47°C
114.54V
80%
84.689A
8.072A
8.255A
2.332A
1103.548
89.167%
2462
46.8
43.84°C
1
12.111V
4.956V
3.198V
4.931V
1237.658
51.69°C
114.48V
90%
95.835A
8.602A
8.795A
2.442A
1241.772
88.482%
2461
46.8
44.63°C
1
12.096V
4.941V
3.183V
4.916V
1403.618
54.01°C
114.42V
100%
106.772A
9.138A
9.377A
3.075A
1379.383
87.711%
2454
46.8
45.27°C
1
12.078V
4.924V
3.167V
4.879V
1572.727
56.83°C
114.36V
110%
117.674A
10.193A
10.574A
3.083A
1517.574
86.704%
2456
46.8
46.36°C
1
12.061V
4.905V
3.149V
4.867V
1750.321
60.34°C
114.3V
CL1
0.116A
14.453A
14.647A
0A
121.311
76.415%
1765
38.2
41.34°C
0.984
12.171V
4.995V
3.257V
5.089V
158.842
48.15°C
114.82V
CL2
0.115A
22.049A
0A
0A
111.34
75.724%
1528
34
40.54°C
0.981
12.186V
4.986V
3.274V
5.096V
147.001
46.32°C
114.83V
CL3
0.114A
0A
22.265A
0A
73.986
70.003%
1324
30
41.49°C
0.972
12.187V
5.035V
3.26V
5.092V
105.748
45.55°C
114.84V
CL4
113.970A
0A
0A
0A
1379.935
88.66%
2478
47
45.3°C
1
12.108V
4.972V
3.197V
5.012V
1556.581
55.2°C
114.37V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
9.540A
1.978A
2.005A
0.988A
138.002
86.417%
1085
23.4
40.13°C
0.869
12.202V
5.055V
3.292V
5.06V
159.69
45.8°C
229.93V
20%
20.108A
2.975A
3.018A
1.19A
275.968
91.778%
1085
23.4
40.95°C
0.938
12.187V
5.042V
3.281V
5.041V
300.659
45.37°C
229.9V
30%
31.008A
3.48A
3.534A
1.394A
413.626
93.327%
1088
23.4
41.26°C
0.955
12.177V
5.03V
3.269V
5.023V
443.194
46.25°C
229.88V
40%
41.957A
3.988A
4.055A
1.599A
551.596
93.689%
1334
30.1
41.87°C
0.964
12.165V
5.016V
3.255V
5.004V
588.779
46.55°C
229.86V
50%
52.605A
5.001A
5.092A
1.806A
689.753
93.625%
1547
34.6
42.49°C
0.97
12.152V
5V
3.241V
4.984V
736.821
47.47°C
229.84V
60%
63.279A
6.021A
6.139A
2A
827.809
93.439%
1803
38.8
42.93°C
0.972
12.138V
4.984V
3.226V
4.965V
885.943
48.55°C
229.82V
70%
73.982A
7.049A
7.197A
2.225A
965.957
93.07%
1802
38.8
43.32°C
0.977
12.123V
4.967V
3.21V
4.944V
1037.915
49.65°C
229.8V
80%
84.701A
8.081A
8.263A
2.334A
1103.555
92.516%
2471
47
43.73°C
0.982
12.109V
4.95V
3.195V
4.928V
1192.784
49.41°C
229.78V
90%
95.842A
8.611A
8.802A
2.444A
1241.771
92.177%
2466
46.8
44.22°C
0.986
12.095V
4.935V
3.181V
4.911V
1347.052
50.61°C
229.75V
100%
106.770A
9.148A
9.382A
3.078A
1379.392
91.724%
2466
46.8
45.45°C
0.989
12.079V
4.919V
3.165V
4.873V
1503.951
53.09°C
229.73V
110%
117.677A
10.206A
10.581A
3.087A
1517.579
91.17%
2466
46.8
46.69°C
0.963
12.061V
4.899V
3.147V
4.86V
1664.49
55.41°C
229.7V
CL1
0.116A
14.465A
14.645A
0A
121.312
77.476%
1766
38.2
41.02°C
0.866
12.172V
4.991V
3.257V
5.088V
156.586
46.42°C
229.94V
CL2
0.115A
22.057A
0A
0A
111.339
77.175%
1528
34
40.58°C
0.852
12.187V
4.984V
3.274V
5.095V
144.311
45.03°C
229.94V
CL3
0.114A
0A
22.262A
0A
73.986
71.444%
1058
22.7
40.36°C
0.716
12.188V
5.035V
3.261V
5.092V
103.536
44.17°C
229.94V
CL4
113.975A
0A
0A
0A
1379.933
92.471%
2489
47.2
45.7°C
0.989
12.107V
4.969V
3.195V
5.009V
1492.259
51.77°C
229.72V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.214A
0.492A
0.498A
0.196A
20.003
64.148%
0
<6.0
40.24°C
0.741
12.227V
5.077V
3.31V
5.099V
31.226
36.88°C
114.87V
40W
2.674A
0.69A
0.699A
0.294A
40.002
75.547%
0
<6.0
41.88°C
0.823
12.223V
5.073V
3.306V
5.094V
52.959
37.87°C
114.88V
60W
4.136A
0.888A
0.899A
0.393A
60.002
79.434%
0
<6.0
43.15°C
0.855
12.217V
5.069V
3.302V
5.089V
75.561
38.11°C
114.89V
80W
5.594A
1.086A
1.101A
0.492A
79.949
81.155%
0
<6.0
45.48°C
0.871
12.212V
5.065V
3.298V
5.084V
98.517
39.79°C
114.9V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.214A
0.492A
0.498A
0.196A
20.001
65.252%
0
<6.0
38.53°C
0.398
12.228V
5.079V
3.312V
5.099V
30.652
36.69°C
229.95V
40W
2.674A
0.69A
0.698A
0.294A
40.001
77.241%
0
<6.0
40.08°C
0.544
12.224V
5.074V
3.307V
5.094V
51.834
37.84°C
229.95V
60W
4.136A
0.888A
0.899A
0.393A
60.001
81.694%
0
<6.0
39.02°C
0.636
12.219V
5.07V
3.303V
5.089V
73.476
38.67°C
229.94V
80W
5.593A
1.086A
1.1A
0.492A
79.946
83.778%
0
<6.0
42.99°C
0.7
12.214V
5.066V
3.3V
5.084V
95.405
39.26°C
229.93V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
17.89mV
9.63mV
10.45mV
7.79mV
Pass
20% Load
11.40mV
9.79mV
11.01mV
8.26mV
Pass
30% Load
14.44mV
11.23mV
10.81mV
8.26mV
Pass
40% Load
16.60mV
11.13mV
10.65mV
8.47mV
Pass
50% Load
18.25mV
11.49mV
11.33mV
8.77mV
Pass
60% Load
20.67mV
11.90mV
11.17mV
9.08mV
Pass
70% Load
22.02mV
11.85mV
11.69mV
9.45mV
Pass
80% Load
25.57mV
14.01mV
13.70mV
10.01mV
Pass
90% Load
27.17mV
15.20mV
13.81mV
11.20mV
Pass
100% Load
35.58mV
23.09mV
21.64mV
10.74mV
Pass
110% Load
39.61mV
24.73mV
22.81mV
11.52mV
Pass
Crossload1
19.06mV
13.22mV
15.52mV
6.64mV
Pass
Crossload2
15.26mV
23.85mV
9.82mV
6.25mV
Pass
Crossload3
9.69mV
9.43mV
15.67mV
5.88mV
Pass
Crossload4
35.35mV
17.73mV
14.50mV
9.05mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
17.73mV
9.17mV
10.19mV
8.26mV
Pass
20% Load
11.39mV
10.77mV
10.34mV
8.41mV
Pass
30% Load
13.97mV
10.77mV
10.91mV
8.47mV
Pass
40% Load
17.22mV
10.92mV
11.38mV
9.14mV
Pass
50% Load
18.56mV
12.16mV
10.86mV
8.88mV
Pass
60% Load
20.26mV
11.85mV
11.79mV
8.78mV
Pass
70% Load
22.43mV
11.49mV
11.48mV
9.45mV
Pass
80% Load
24.64mV
13.19mV
14.17mV
9.76mV
Pass
90% Load
27.01mV
15.45mV
14.53mV
10.68mV
Pass
100% Load
35.88mV
22.71mV
21.03mV
10.58mV
Pass
110% Load
41.56mV
24.10mV
22.08mV
12.22mV
Pass
Crossload1
20.04mV
13.75mV
15.25mV
6.34mV
Pass
Crossload2
16.19mV
24.99mV
9.93mV
6.40mV
Pass
Crossload3
11.44mV
10.35mV
15.31mV
7.02mV
Pass
Crossload4
36.86mV
17.80mV
14.73mV
8.85mV
Pass
The results above are not used in the certification process
abee AP-PLA-1380W

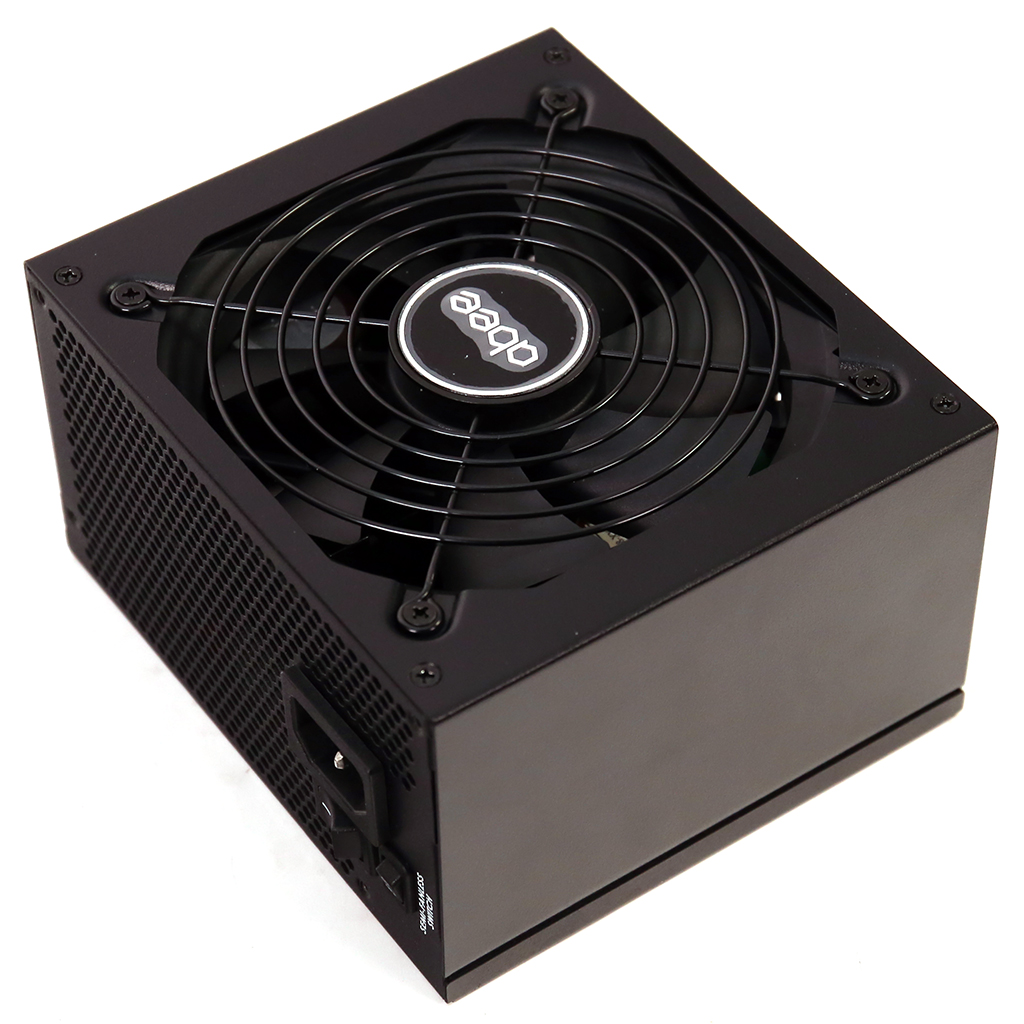

Top side

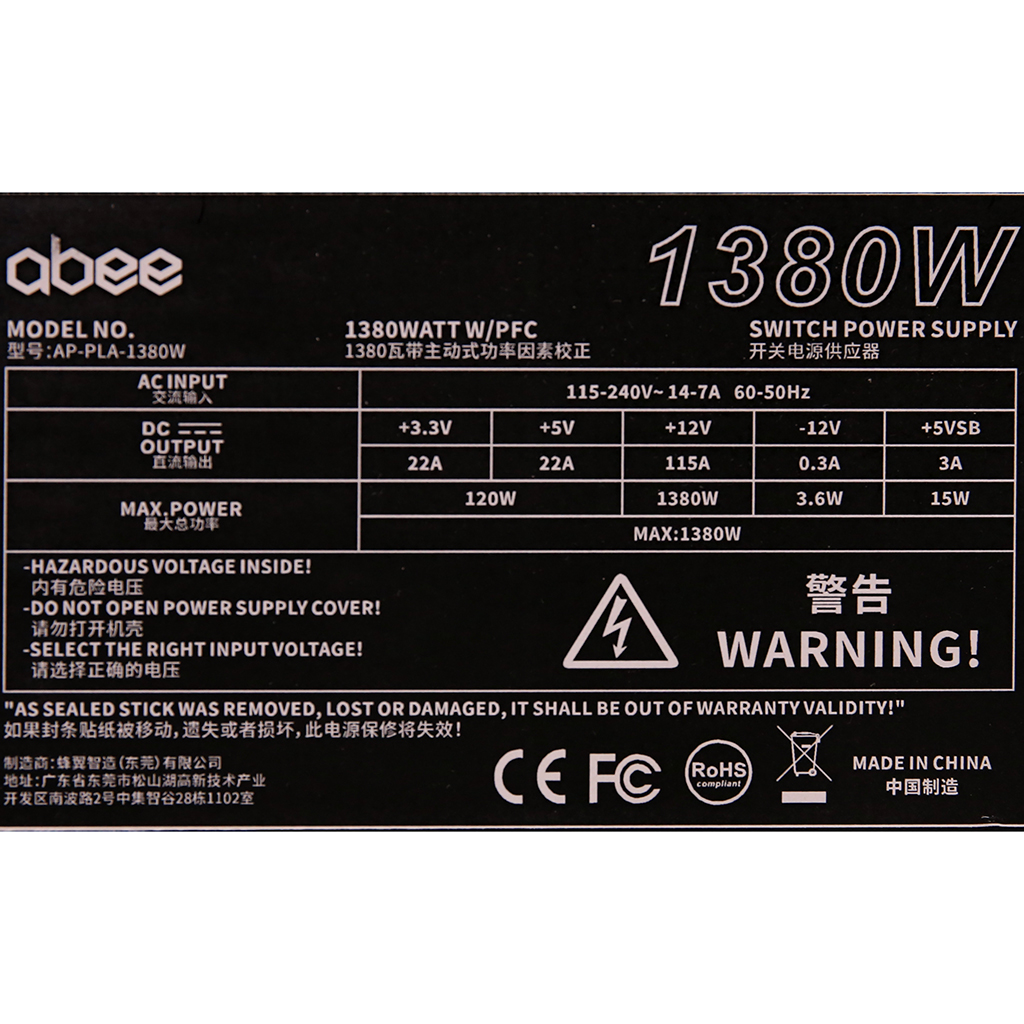

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
