| 115V | 230V | |
| Scheme: ETA-EMI PSU |  |
 |
| 115V | 230V | |
 |
 |
Scheme: LAMBDA PSU |
Outside Validation Scope
| Product Identification Details | |

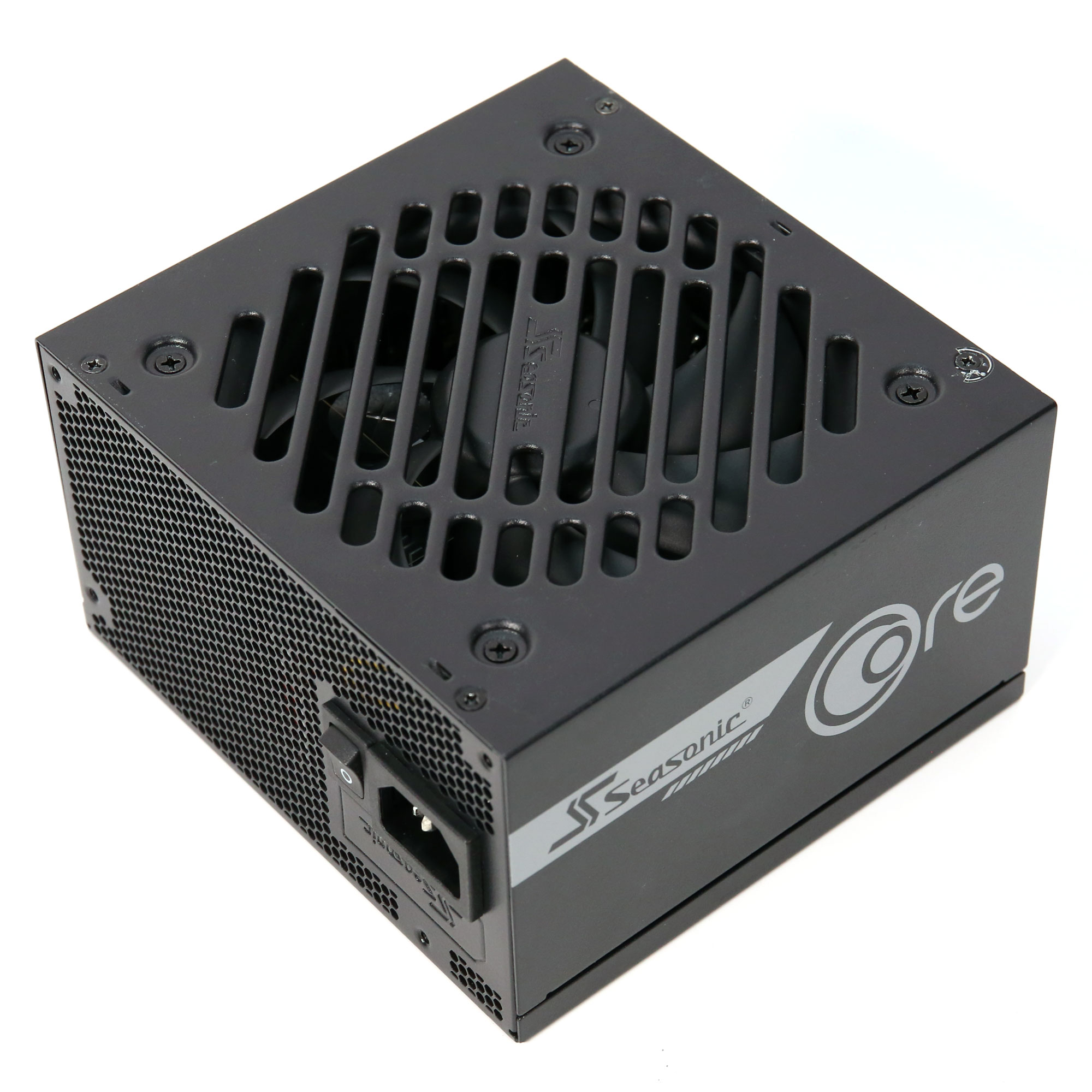

| Brand | Seasonic |
| Model | Core GX-850 ATX3 |
| OEM/ODM | Seasonic |
| Serial Number | - |
| Product Specifications | |
| Manufacturer-Provided Information | |

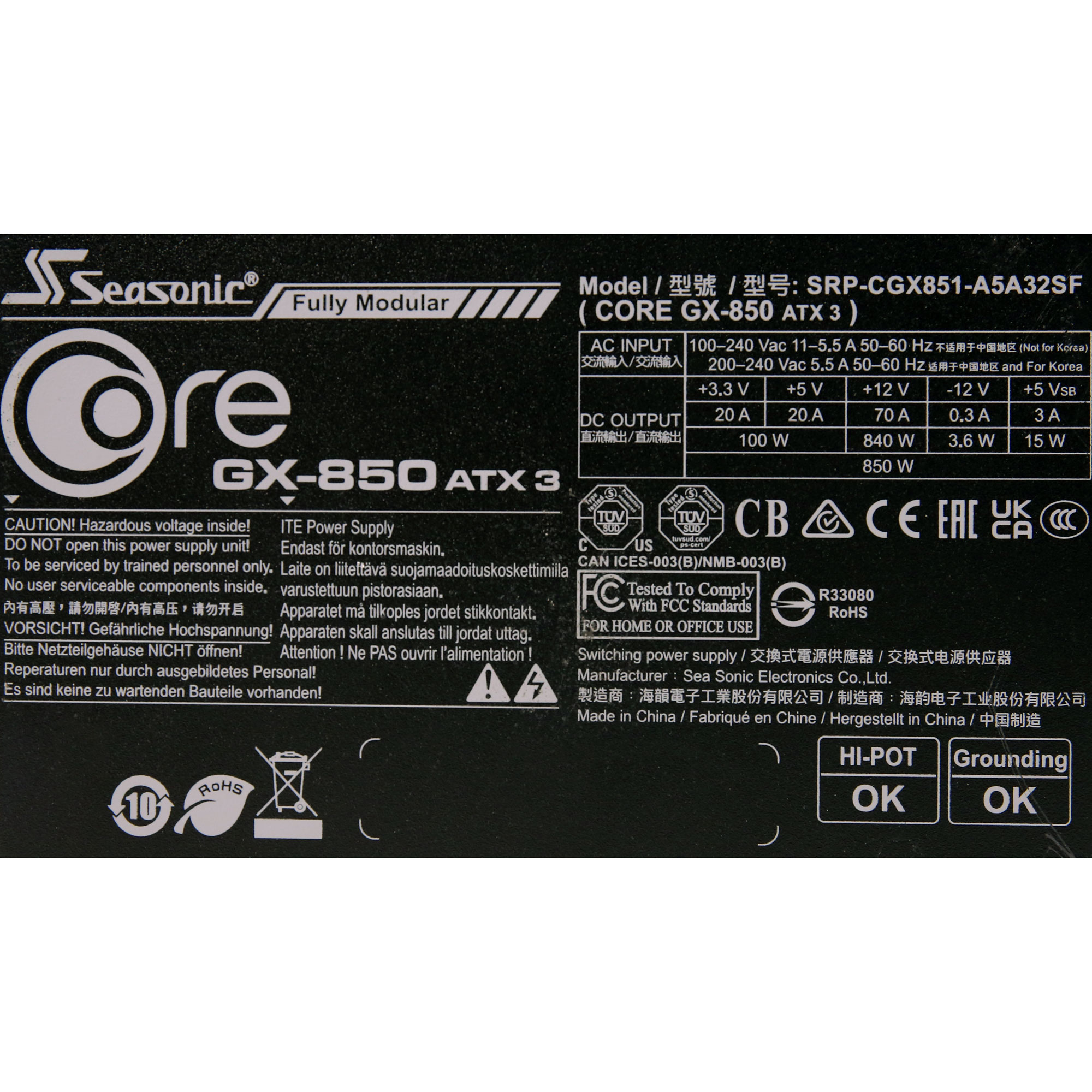

| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 5.5-11 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | - |
| Cybenetics Measurements | |
| Dimensions (W x H x D) | |
| Weight | |
| Cooling | 120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | SS85002750 |
| Date of receipt | Feb 11, 2025 |
| Testing Date | Feb 20, 2025 |
| Report Issued Date | Mar 6, 2025 |
| Engineer Name | - |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature | |

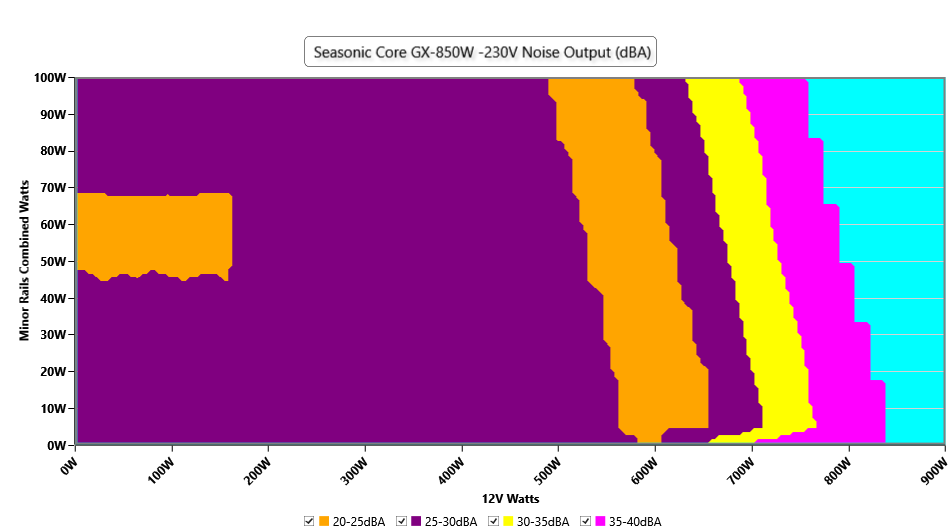

| Load | Normal ambient fan · noise · intake | High ambient fan · noise · intake | Noise change |
|---|---|---|---|
| 10% | 820 RPM · 23.2 dB(A) · 30.2 °C | 836 RPM · 25.4 dB(A) · 40.0 °C | +2.2 dB(A) |
| 20% | 818 RPM · 23.1 dB(A) · 30.5 °C | 833 RPM · 24.8 dB(A) · 40.6 °C | +1.7 dB(A) |
| 50% | 838 RPM · 25.6 dB(A) · 30.5 °C | 855 RPM · 24.3 dB(A) · 42.2 °C | -1.3 dB(A) |
| 100% | 1392 RPM · 38.5 dB(A) · 30.3 °C | 1729 RPM · 43.7 dB(A) · 45.7 °C | +5.2 dB(A) |
| Load | Normal ambient fan · noise · intake | High ambient fan · noise · intake | Noise change |
|---|---|---|---|
| 10% | 816 RPM · 23.0 dB(A) · 30.3 °C | 837 RPM · 25.5 dB(A) · 40.3 °C | +2.5 dB(A) |
| 20% | 817 RPM · 23.0 dB(A) · 30.5 °C | 833 RPM · 24.8 dB(A) · 40.8 °C | +1.8 dB(A) |
| 50% | 838 RPM · 25.6 dB(A) · 30.8 °C | 855 RPM · 24.3 dB(A) · 42.0 °C | -1.3 dB(A) |
| 100% | 1395 RPM · 38.6 dB(A) · 30.3 °C | 1718 RPM · 43.7 dB(A) · 45.1 °C | +5.1 dB(A) |
Informational. Not part of the ETA or LAMBDA rating.
