CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Tempest Gaming Pulse 650W
Serial Number-
Lab IDTE65002769
Certification ID252769
  • Test Result Report ID: 25PS2769A
  • Certificate Issue Date: Mar 19, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandTempest Gaming
Hersteller (OEM)Kinpower
SeriesPulse
Model Number
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)220-240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.230.3
Watts103650153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (475mm) 1 1 18-20AWG No
4+4 pin EPS12V (540mm) 1 1 18AWG No
6+2 pin PCIe (500mm+150mm) 1 2 18AWG No
SATA (360mm+155mm) / 4-pin Molex (+155mm) 2 4 / 2 18AWG No

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV,
Inrush Protection 1x NTC Thermistor M72 20D15 (20 ohm) & Relay
Bridge Rectifier(s)

1x
APFC MOSFETs

1x SI-Trend SI24N50F
APFC Boost Diode

1x SI-Trend SI8L600F (600V, 8A @ 25°C)
Bulk Cap(s)

1x Toshin Kogyo TK (420V, 470uF, 2,000h @ 105°C, LW)
Main Switchers

2x Fuxin Semiconductor FXN180N50F (500V, 10.2 @ 100°C, Rds(on): 0.38Ohm)
PFC / PWM Combo Controller

Champion CM6800UBX
Topology

Primary side: APFC, Double Forward Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 4x Fuxin Semiconductor FXN0206C (65V, 118A @ 100°C, Rds(on): 2.8mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic: 12x TK (@105°C, SZ) Polymer: 4x Chengx (PC)
Supervisor IC IN1S4291-SCG
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier

2x SMC Schottky SK54 (40V, 5A @ 150°C)
Standby PWM Controller

FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

WirkungsgradSILVER
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)87.785%
Average Noise Output (>1450 Load Combinations)35.79dBA
Average PF (>1450 Load Combinations)0.949
Efficiency With 10W (≤500W) or 2% (>500W) Load63.886%
Standby Power Consumption0.1587W
12V Ripple (Full Load)34.56mV
5V Ripple (Full Load)32.11mV
3.3V Ripple (Full Load)44.63mV
5VSB Ripple (Full Load)31.21mV
12V Load Regulation1.25%
5V Load Regulation1.13%
3.3V Load Regulation2.51%
5VSB Load Regulation3.21%
Inrush Current112.600A
12V Transient Response (150%)11.59V
5V Transient Response (150%)5.010V
3.3V Transient Response (150%)3.220V
5VSB Transient Response (150%)5.063V
Hold-Up Time & Power Ok Signal20.90ms
AC Loss to PWR_OK Hold Up Time18.40ms
PWR_OK Inactive to DC Loss Delay2.50ms
PSU Timings: T1 (20% / 100%)25.0ms25.0ms
PSU Timings: T3 (20% / 100%)115.0ms115.0ms
12V OCP (31.4°C / 45.8°C)73.20A (135.06%), 11.919V70.00A (129.15%), 11.923V
5V OCP (31.4°C / 45.8°C)23.3A (116.50%), 5.044V22.6A (113.00%), 5.035V
3.3V OCP (31.4°C / 45.8°C)23.4A (117.00%), 3.271V22.6A (113.00%), 3.262V
5VSB OCP (31.4°C / 45.8°C)4.6A (153.33%), 5.056V4.4A (146.67%), 5.059V
OPP (30.56°C / 45.11°C)139.93%129.02%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.9
AC Loss to PWR_OK Hold Up Time (ms)18.4
PWR_OK Inactive to DC Loss Delay (ms)2.5

Stromverbrauch im Ruhezustand

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.90 V 229.82 V 227.70 V 230.00 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.24 % 0.22 % N/A 0.28 % 2.00 % PASS
Real Power: 0.159 W 0.133 W N/A 0.177 W N/A N/A
Apparent Power: 15.264 W 15.013 W N/A 15.524 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A

Graphs 230V

Efficiency Graph

230V

INFO

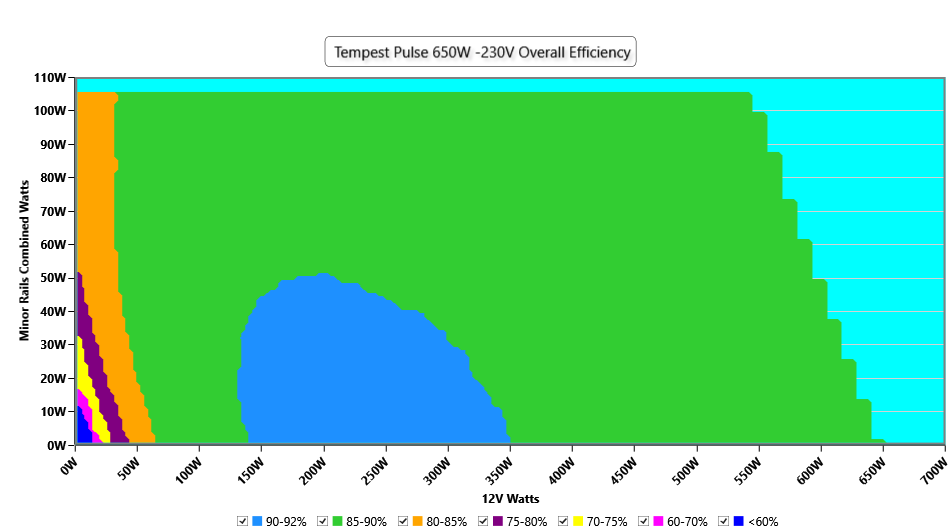

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

230V

INFO

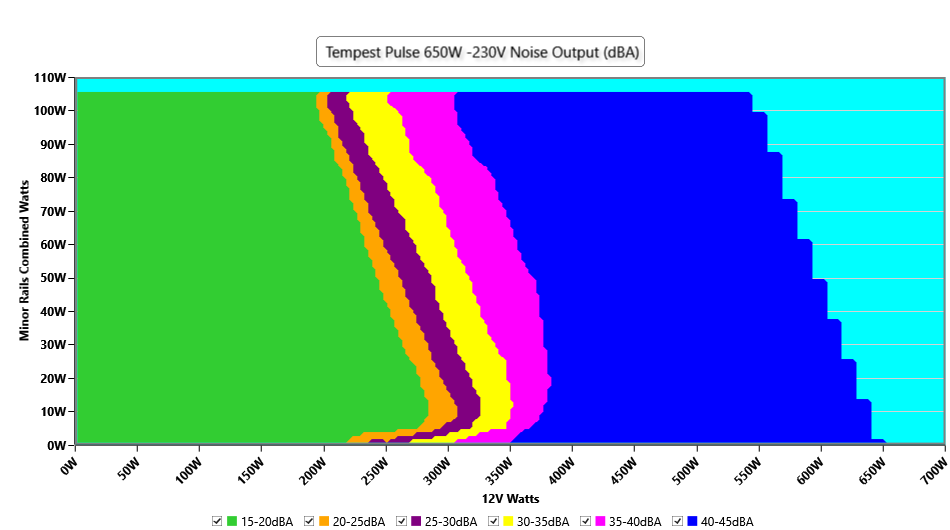

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

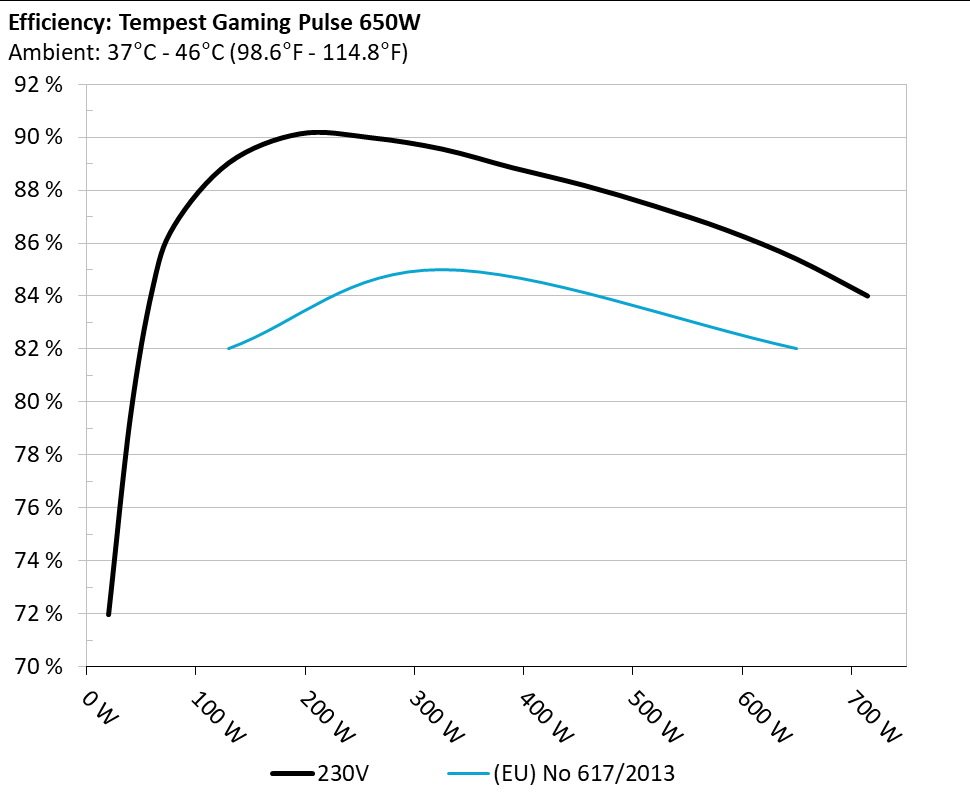

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

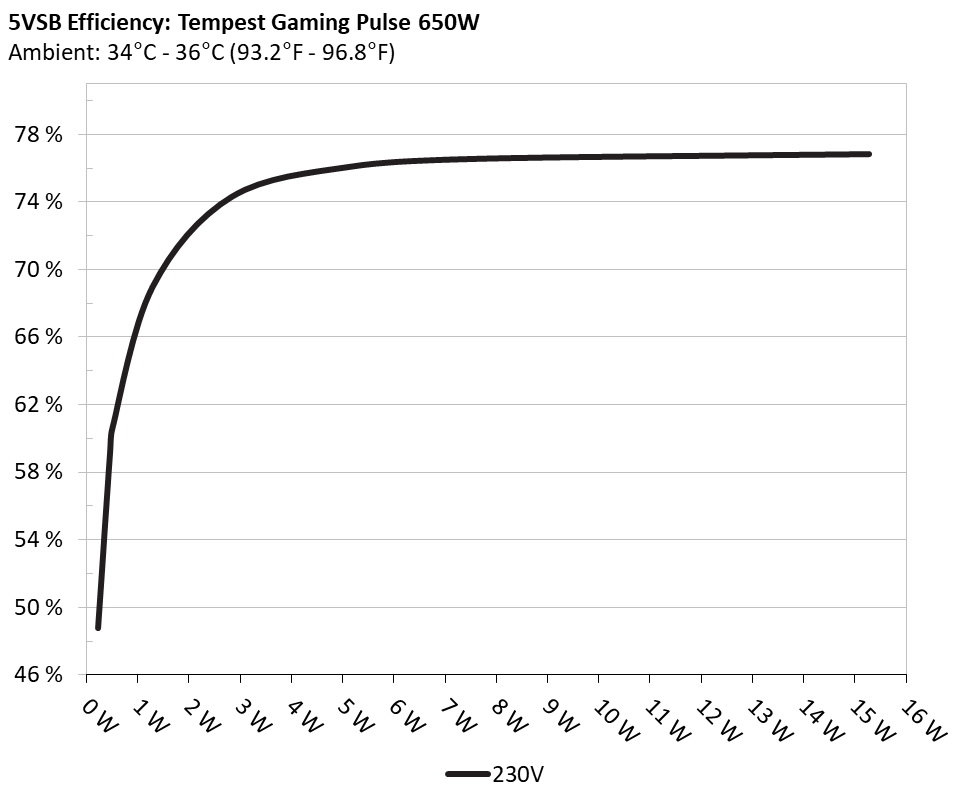

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 48.796% 0.033
5.184V 0.479W 229.91V
2 0.09A 0.466W 59.169% 0.054
5.182V 0.788W 229.89V
3 0.55A 2.842W 74.293% 0.227
5.167V 3.825W 229.89V
4 1A 5.153W 76.066% 0.328
5.153V 6.775W 229.89V
5 1.5A 7.707W 76.538% 0.391
5.138V 10.07W 229.89V
6 3A 15.27W 76.811% 0.462
5.09V 19.88W 229.89V

Protection Features

OCP (Normal @ 31.4°C)12V: 73.20A (135.06%), 11.919V
5V: 23.3A (116.50%), 5.044V
3.3V: 23.4A (117.00%), 3.271V
5VSB: 4.6A (153.33%), 5.056V
OCP (Hot @ 45.8°C)12V: 70.00A (129.15%), 11.923V
5V: 22.6A (113.00%), 5.035V
3.3V: 22.6A (113.00%), 3.262V
5VSB: 4.4A (146.67%), 5.059V
OPP (Normal @ 30.6°C)909.57W (139.93%)
OPP (Hot @ 45.1°C)838.61W (129.02%)
OTP✓ (139°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.586A 1.968A 2.003A 0.971A 65.003 84.166% 696 15.5 40.17°C 0.874
12.104V 5.082V 3.295V 5.148V 77.233 50.47°C 229.88V
20% 8.190A 2.955A 3.011A 1.169A 129.94 89.042% 699 15.5 40.72°C 0.928
12.092V 5.076V 3.288V 5.135V 145.931 52.89°C 229.87V
30% 13.154A 3.451A 3.52A 1.367A 194.943 90.142% 940 24.2 41.35°C 0.943
12.080V 5.071V 3.281V 5.121V 216.262 52.58°C 229.86V
40% 18.132A 3.948A 4.029A 1.566A 260.029 89.995% 1481 37.1 41.82°C 0.952
12.069V 5.067V 3.277V 5.108V 288.935 50.44°C 229.85V
50% 22.770A 4.94A 5.047A 1.767A 325.027 89.566% 1795 42.2 42.04°C 0.956
12.057V 5.061V 3.269V 5.094V 362.886 51.38°C 229.84V
60% 27.367A 5.934A 6.071A 1.969A 389.387 88.861% 1799 42.7 42.98°C 0.96
12.043V 5.056V 3.262V 5.08V 438.196 53.62°C 229.83V
70% 32.060A 6.931A 7.103A 2.172A 454.714 88.197% 1799 42.7 43.05°C 0.962
12.028V 5.05V 3.253V 5.065V 515.568 55.36°C 229.82V
80% 36.763A 7.929A 8.139A 2.276A 519.496 87.409% 1802 42.7 43.68°C 0.965
12.012V 5.044V 3.244V 5.053V 594.325 58.55°C 229.8V
90% 41.890A 8.433A 8.651A 2.381A 584.898 86.508% 1802 42.7 44.55°C 0.968
11.993V 5.038V 3.237V 5.041V 676.115 61.49°C 229.79V
100% 46.790A 8.94A 9.2A 2.991A 649.733 85.401% 1801 42.7 45.65°C 0.969
11.969V 5.033V 3.228V 5.015V 760.806 65.34°C 229.77V
110% 51.584A 9.948A 10.353A 2.997A 714.358 84.013% 1802 42.7 46.05°C 0.967
11.943V 5.025V 3.216V 5.005V 850.297 70.64°C 229.76V
CL1 0.116A 12.246A 12.6A 0A 104.291 83.004% 1334 34.5 42.08°C 0.918
12.079V 5.062V 3.246V 5.154V 125.649 52.77°C 229.87V
CL2 0.115A 19.782A 0A 0A 101.349 81.837% 846 22.1 40.44°C 0.917
12.078V 5.053V 3.281V 5.16V 123.81 51.66°C 229.88V
CL3 0.114A 0A 20.517A 0A 67.396 74.785% 705 15.1 40.32°C 0.89
12.088V 5.059V 3.217V 5.159V 90.116 51.28°C 229.88V
CL4 54.235A 0A 0A 0.001A 649.55 86.414% 1802 42.7 45.01°C 0.969
11.976V 5.045V 3.257V 5.111V 751.694 59.97°C 229.78V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.491A 0.499A 0.193A 20 71.967% 686 15.7 36.45°C 0.718
12.119V 5.09V 3.309V 5.176V 27.79 40.83°C 229.89V
40W 2.698A 0.688A 0.699A 0.29A 40 79.455% 690 15.5 37.96°C 0.824
12.113V 5.086V 3.303V 5.17V 50.342 44.21°C 229.88V
60W 4.174A 0.885A 0.9A 0.387A 60 84.248% 692 15.3 38.78°C 0.866
12.108V 5.084V 3.3V 5.165V 71.22 45.87°C 229.89V
80W 5.644A 1.082A 1.101A 0.484A 79.95 86.667% 694 15.5 39.52°C 0.895
12.103V 5.082V 3.298V 5.16V 92.249 46.7°C 229.88V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load17.55mV16.55mV18.41mV23.94mVPass
20% Load20.62mV18.19mV19.64mV26.85mVPass
30% Load20.05mV19.87mV21.07mV24.91mVPass
40% Load20.41mV19.93mV20.46mV26.70mVPass
50% Load21.23mV21.41mV21.64mV27.16mVPass
60% Load23.18mV19.52mV22.25mV24.86mVPass
70% Load24.35mV21.05mV23.99mV27.72mVPass
80% Load27.27mV25.24mV33.61mV27.16mVPass
90% Load30.29mV28.00mV37.09mV27.72mVPass
100% Load34.56mV32.11mV44.63mV31.21mVPass
110% Load38.28mV38.38mV47.40mV33.27mVPass
Crossload134.53mV24.25mV22.10mV16.95mVPass
Crossload230.39mV21.36mV20.51mV17.75mVPass
Crossload331.52mV29.38mV26.40mV18.98mVPass
Crossload439.08mV24.43mV29.09mV23.34mVPass

The results above are not used in the certification process

Tempest Gaming Pulse 650W

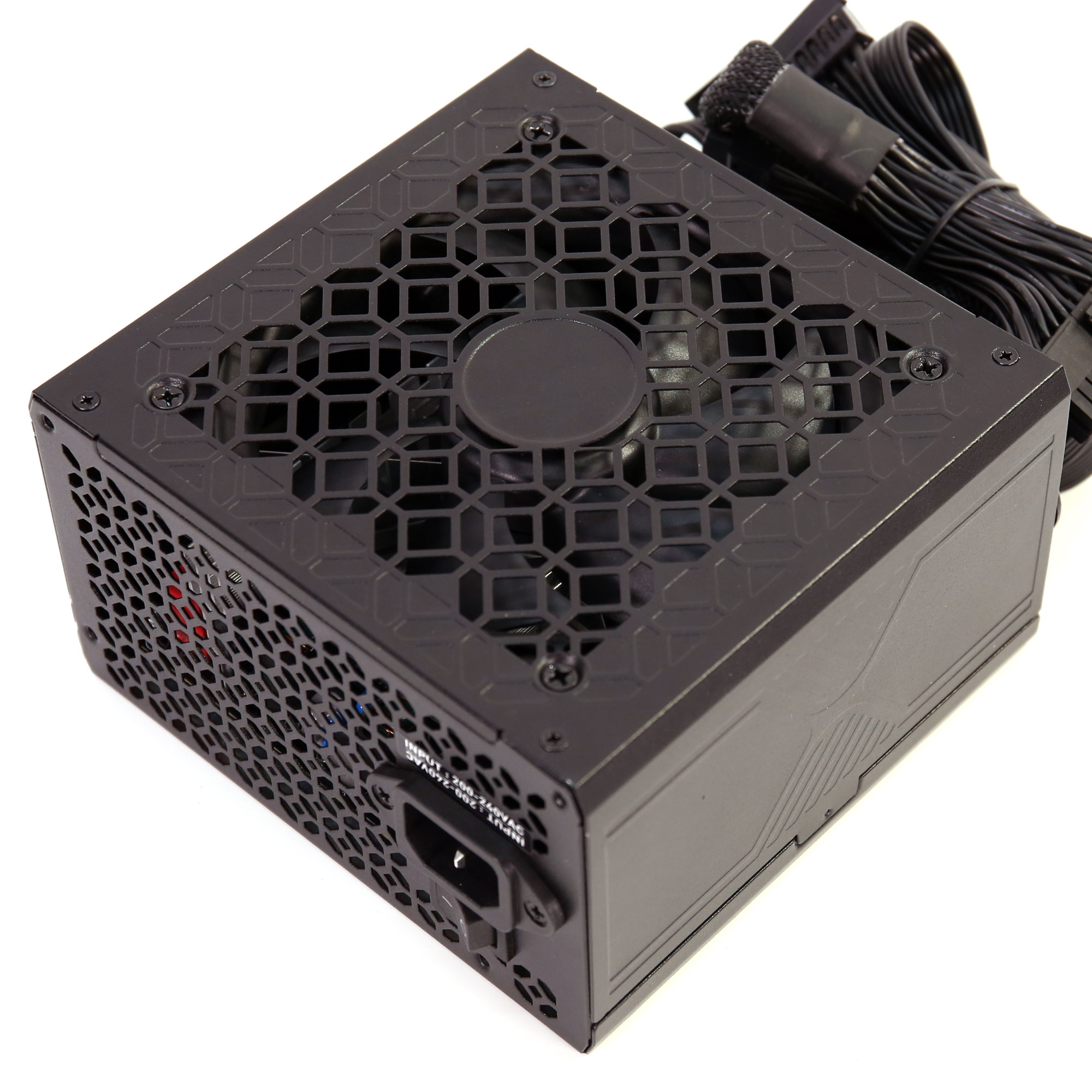

Top side

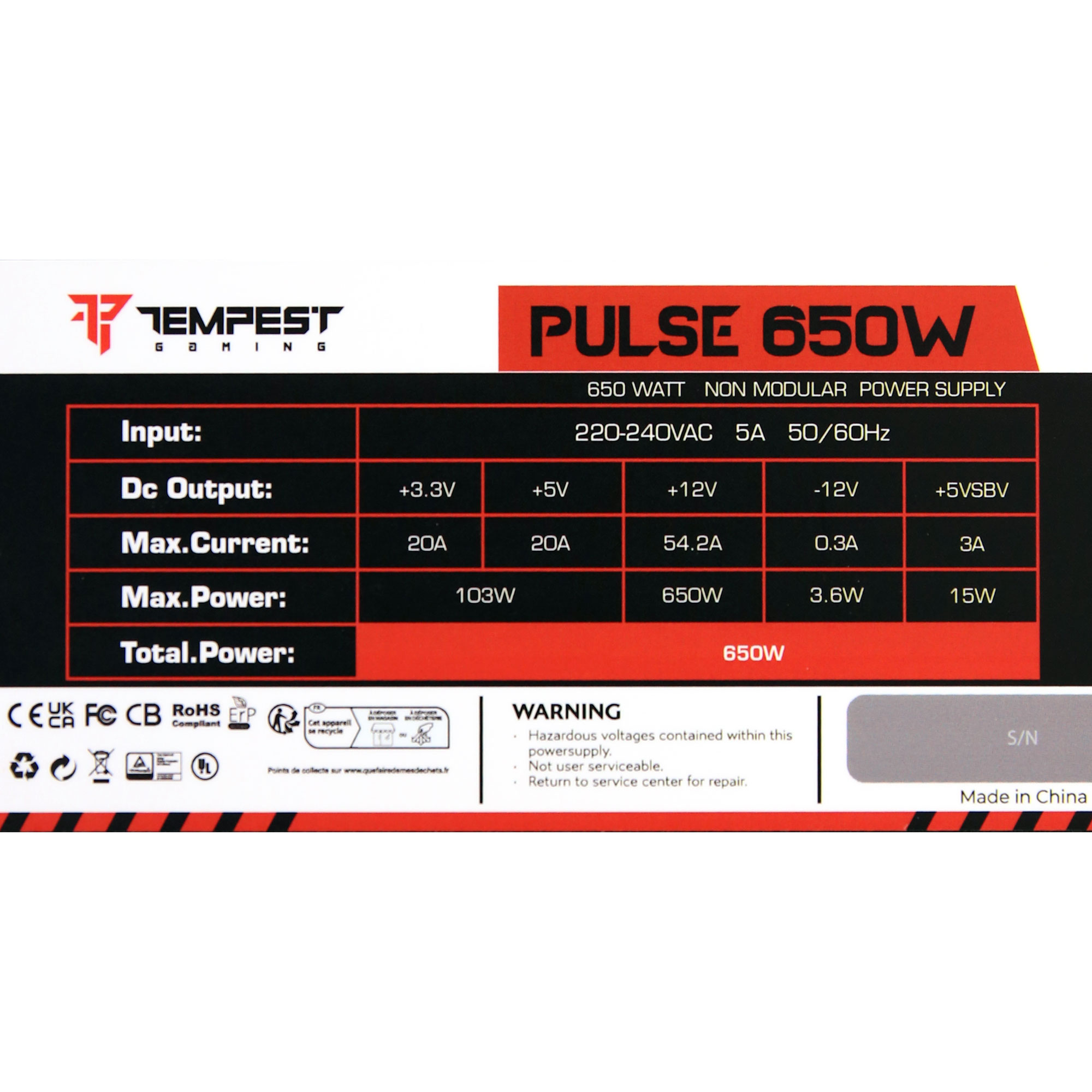

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
