CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

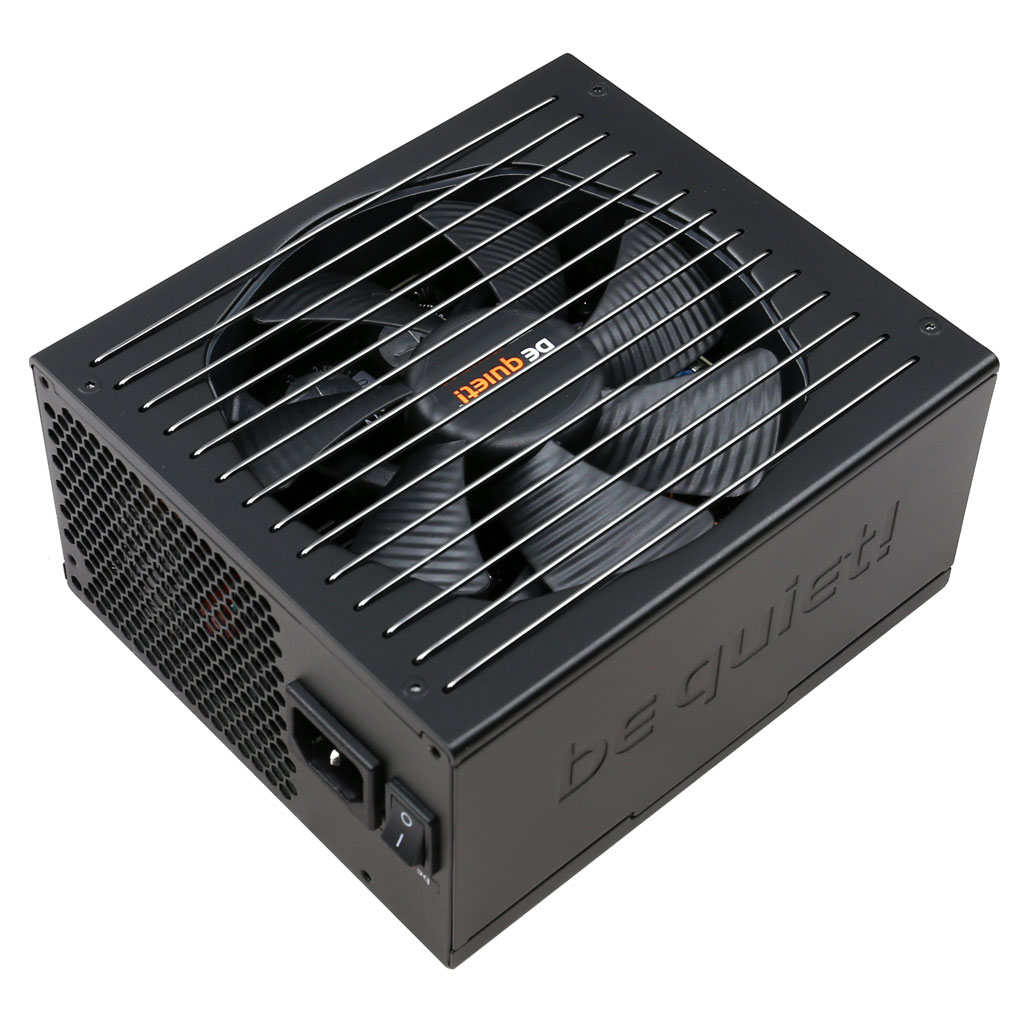

be quiet! Straight Power 11 1000W
Serial Number285S7330000095
Lab ID277
Certification ID25277
  • Test Result Report ID: 20PS277A
  • Certificate Issue Date: Jan 24, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brandbe quiet!
Hersteller (OEM)FSP
SeriesStraight Power 11
Model NumberE11-1000
Serial Number285S7330000095
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(SIW3-13525-HF-26)
Semi-Passive Operation✗
Cable DesignFully Modular

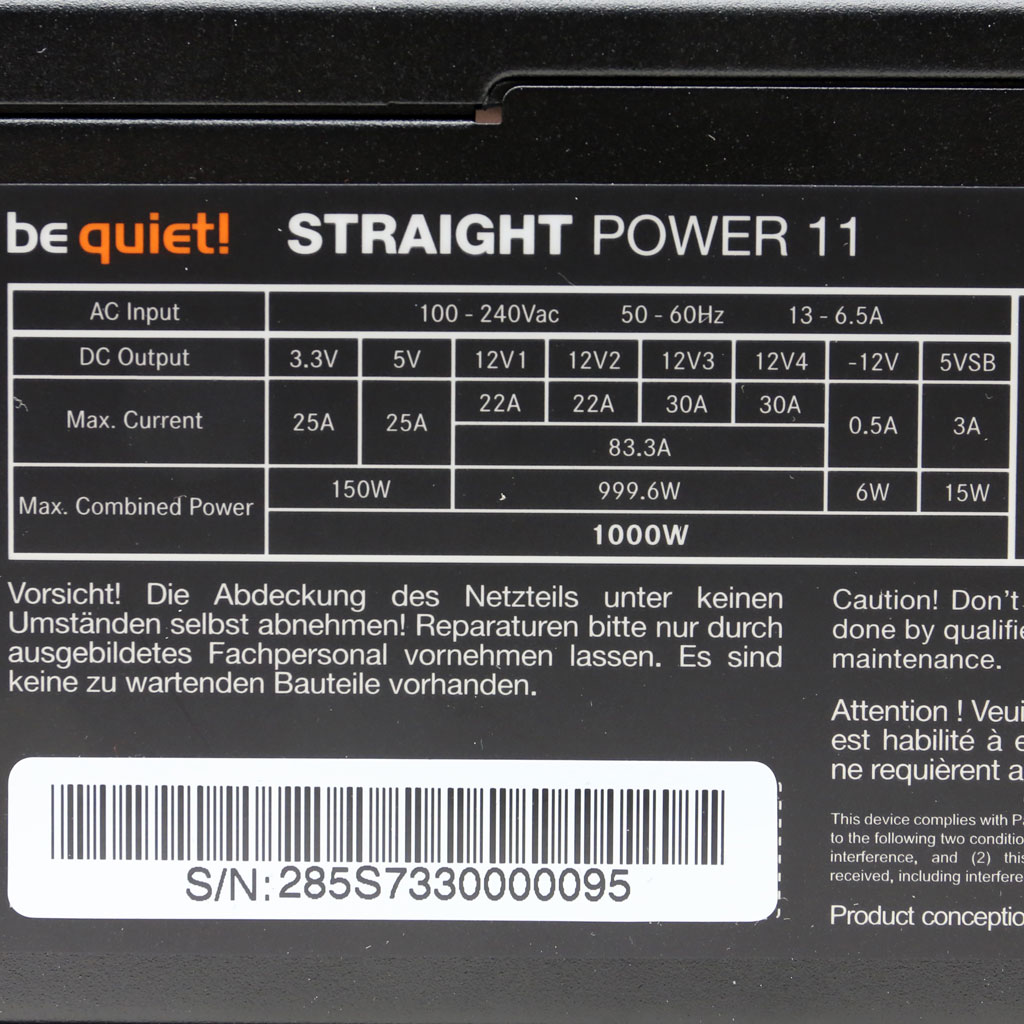

Power Specifications

Rail 3.3V 5V 12V1 12V2 12V3 12V4 5VSB -12V
Max. Power Amps 25 25 22 22 30 30 3 0.5
83.3
Watts 150 999.6 15 6
Total Max. Power (W) 1000

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
8 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (2x600mm) 3 6 18AWG No
SATA (550mm+150mm+150mm) 1 3 18AWG No
SATA (550mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (550mm+150mm) / 4 pin Molex (+150mm+150mm) 2 4 / 4 18AWG No
FDD Adapter (+150mm) 1 1 22AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
Platform Model no info (platform exclusively used by be quiet!)
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBJ2506 (600V, 25A @ 100°C)
APFC MOSFETS 3x STMicroelectronics STF28N60M2 (600V, 14A @ 100°C, 0.15Ohm)
APFC Boost Diode 1x ROHM SCS308AP (600V, 8A @ 135°C)
Hold-up Cap(s) 2x Nichicon (420V, 470uF, 3000h @ 105°C, GN)
Main Switchers 2x STMicroelectronics STF33N60M2
(650V, 16A @ 100°C, 0.125Ohm)
APFC Controller Infineon ICE2PCS02
Resonant Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Toshiba TPHR85 04PL (SOP Advance Series, 40V, 150A @ 25°C, 0.85Ohm)
5V & 3.3V DC-DC Converters: 6x DMN3009SK3 (30V, 60A @ 70°C, 5.5mOhm)
PWM Controller: 1x Anpec APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Rubycon (6-10,000 @ 105°C, ZLH), Rubycon (3-6,000 @ 105°C, ZLH), Rubycon (4-10,000 @ 105°C, YXF),
Polymers: FPCAP, Chemi-Con
Supervisor IC Weltrend WT7579 (OVP, UVP, SCP, PG)
Fan Model BQ SIW3-13525-HF-26 (135mm, 12V, 0.56A, 2600RPM, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier 1x DMN6040SK3 (30V, 13A @ 100°C, 40mOhm)
Standby PWM Controller Power Integrations InnoSwitch-EP INN2603K

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)88.470%
Average Noise Output (>1450 Load Combinations)34.02dBA
Average PF (>1450 Load Combinations)0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0444W
12V Ripple (Full Load)34.51mV
5V Ripple (Full Load)13.37mV
3.3V Ripple (Full Load)19.49mV
5VSB Ripple (Full Load)18.58mV
12V Load Regulation0.78%
5V Load Regulation1.78%
3.3V Load Regulation2.86%
5VSB Load Regulation2.69%
Inrush Current30.735A
WirkungsgradGOLD
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)90.871%
Average Noise Output (>1450 Load Combinations)34.14dBA
Average PF (>1450 Load Combinations)0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1055W
12V Ripple (Full Load)31.25mV
5V Ripple (Full Load)13.29mV
3.3V Ripple (Full Load)19.08mV
5VSB Ripple (Full Load)17.41mV
12V Load Regulation0.76%
5V Load Regulation1.77%
3.3V Load Regulation2.81%
5VSB Load Regulation2.65%
Inrush Current61.916A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal20.10ms
AC Loss to PWR_OK Hold Up Time17.90ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.1
AC Loss to PWR_OK Hold Up Time (ms)17.9
PWR_OK Inactive to DC Loss Delay (ms)2.2

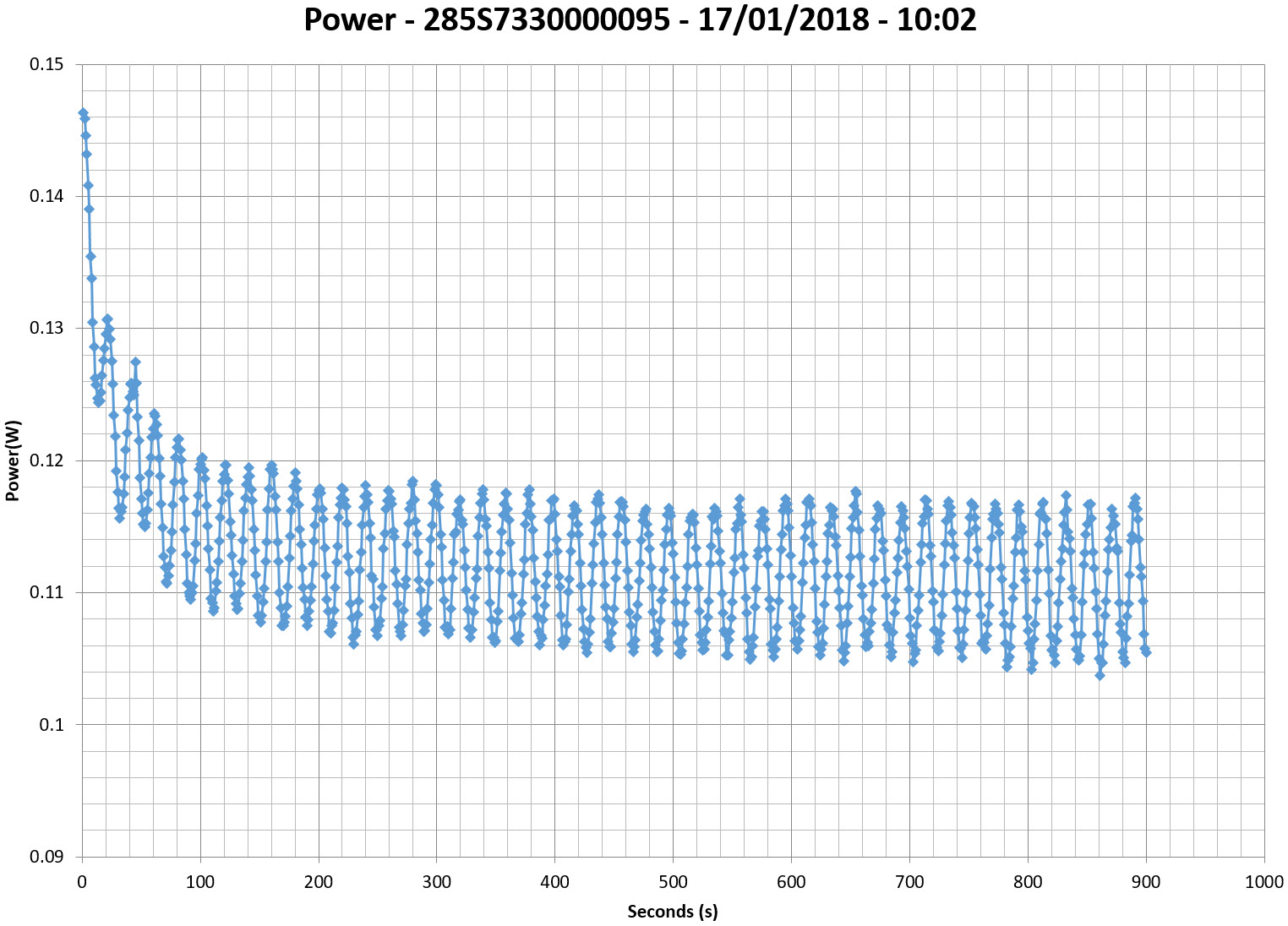

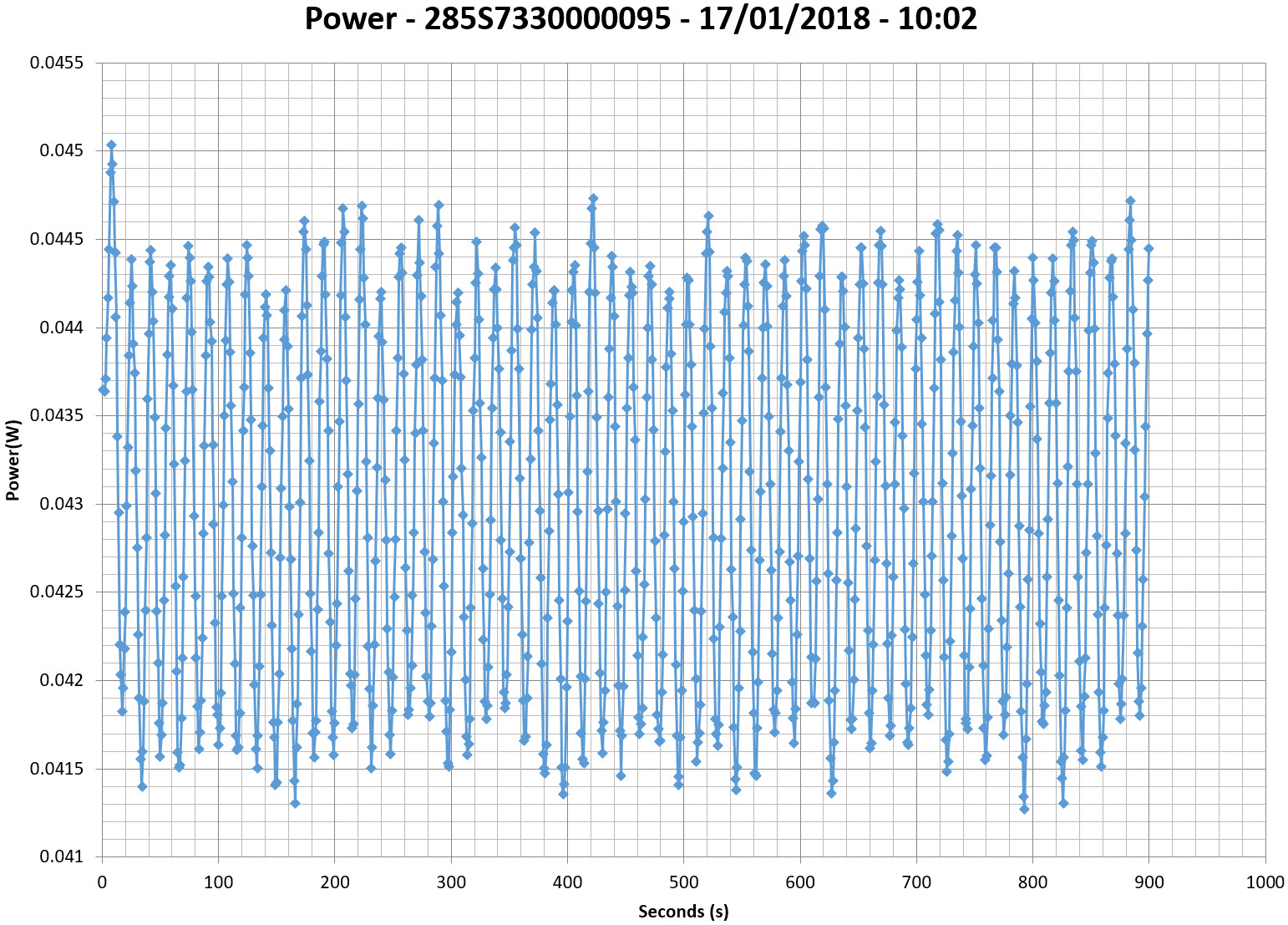

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

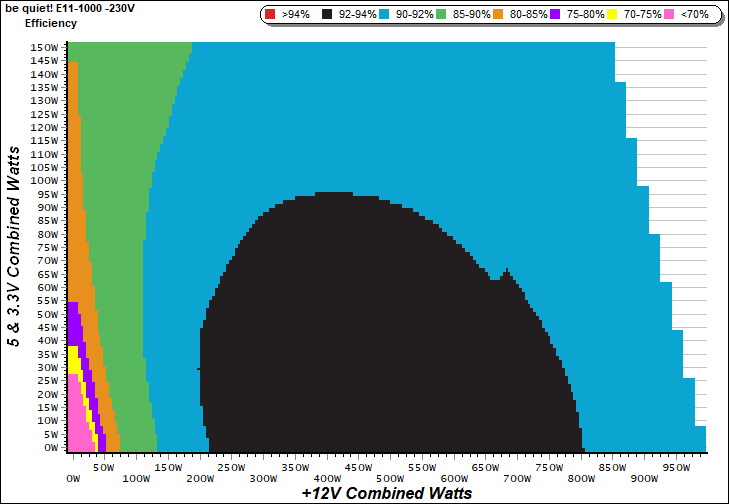

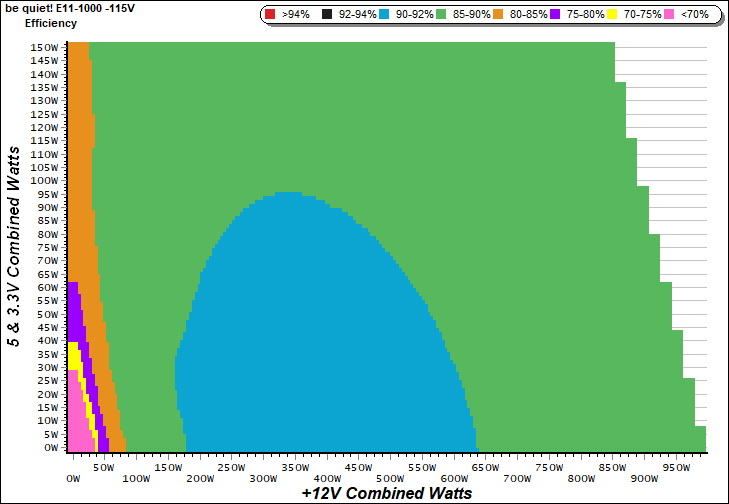

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

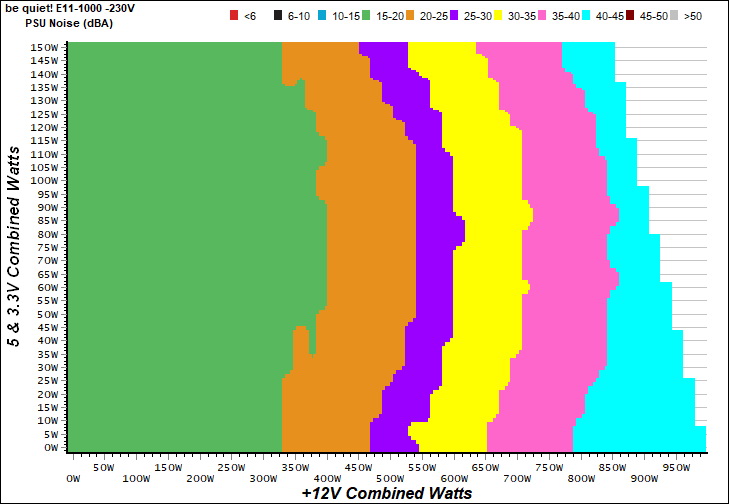

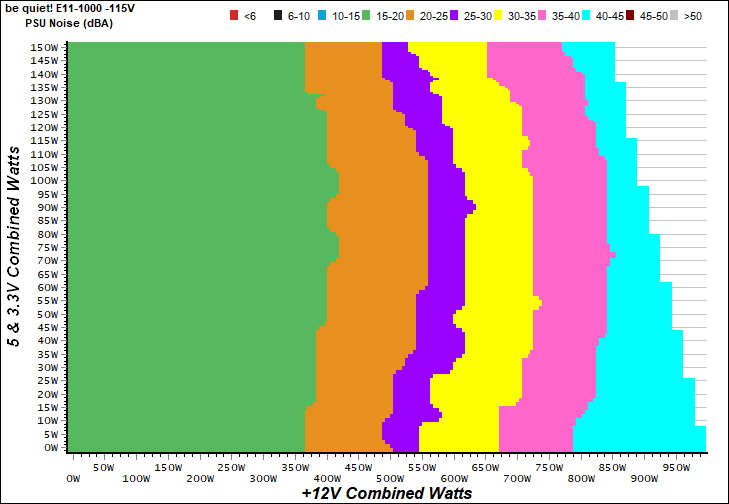

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

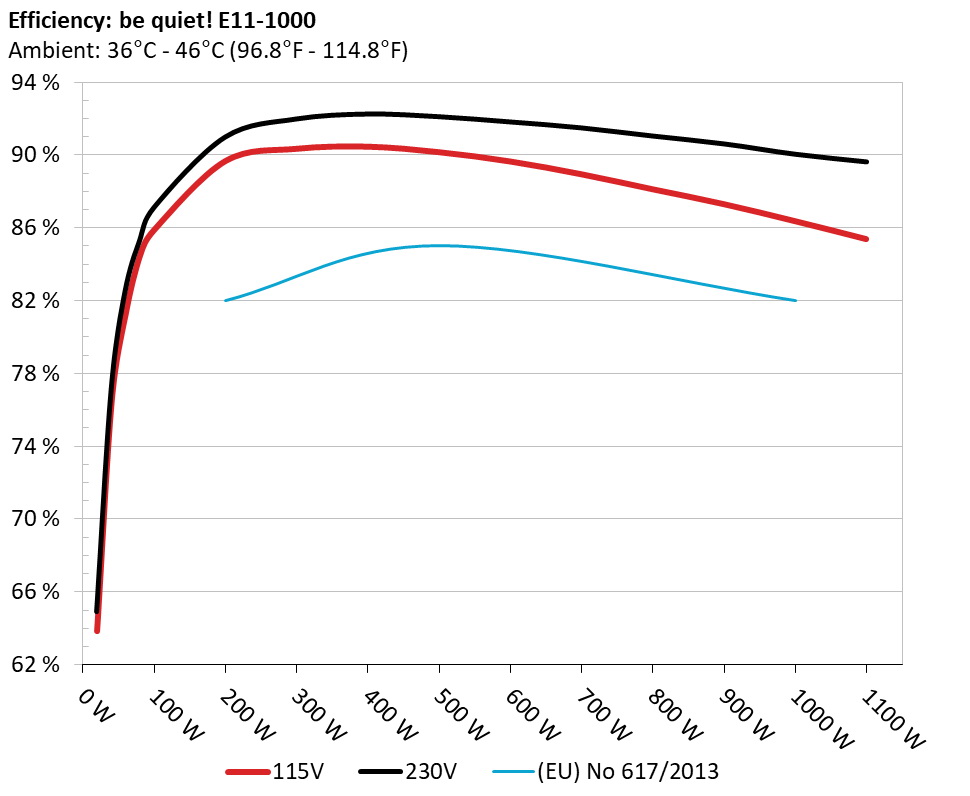

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

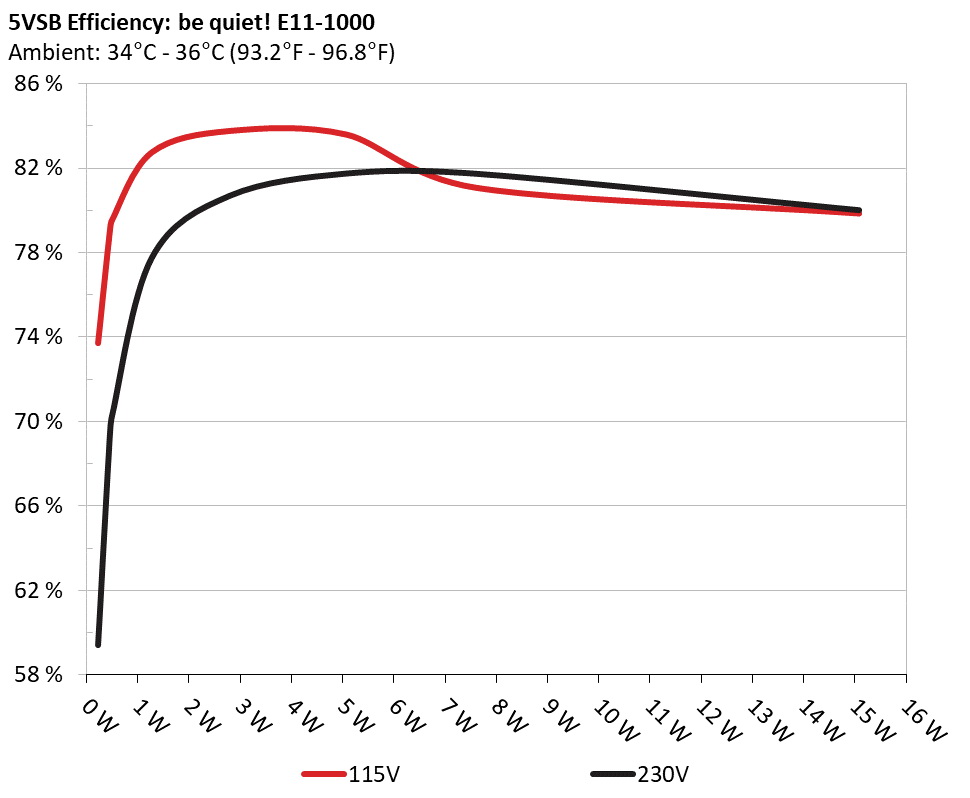

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 73.718% 0.025
5.109V 0.312 115.26V
2 0.090A 0.460 79.038% 0.046
5.110V 0.582 115.26V
3 0.550A 2.803 83.772% 0.221
5.097V 3.346 115.25V
4 1.000A 5.081 83.597% 0.320
5.082V 6.078 115.25V
5 1.500A 7.610 81.078% 0.386
5.074V 9.386 115.24V
6 2.999A 15.081 79.861% 0.464
5.029V 18.884 115.23V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 59.432% 0.011
5.107V 0.387 230.71V
2 0.090A 0.460 69.382% 0.018
5.108V 0.663 230.63V
3 0.550A 2.802 80.703% 0.090
5.095V 3.472 230.70V
4 1.000A 5.082 81.757% 0.151
5.082V 6.216 230.70V
5 1.500A 7.603 81.744% 0.207
5.068V 9.301 230.70V
6 2.999A 15.083 80.020% 0.317
5.029V 18.849 230.69V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.499A 1.984A 1.971A 0.986A 99.922 85.911% 725 19.3 37.58°C 0.977
12.054V 5.036V 3.345V 5.070V 116.309 45.60°C 115.23V
2 14.011A 2.983A 2.966A 1.185A 199.636 89.681% 830 21.2 38.05°C 0.996
12.044V 5.027V 3.335V 5.063V 222.608 46.54°C 115.09V
3 21.865A 3.486A 3.455A 1.386A 299.152 90.354% 1002 27.9 38.79°C 0.996
12.036V 5.018V 3.326V 5.051V 331.088 47.57°C 115.05V
4 29.796A 3.992A 3.978A 1.587A 399.552 90.469% 1252 32.5 39.53°C 0.997
12.027V 5.010V 3.317V 5.042V 441.644 48.91°C 114.90V
5 37.376A 5.000A 4.990A 1.790A 499.690 90.169% 1570 38.4 40.66°C 0.998
12.018V 5.000V 3.307V 5.030V 554.169 50.42°C 114.85V
6 44.971A 6.011A 6.006A 1.994A 599.811 89.655% 1920 43.3 41.55°C 0.998
12.008V 4.991V 3.296V 5.017V 669.023 51.78°C 114.70V
7 52.543A 7.027A 7.027A 2.198A 699.556 88.955% 2200 47.4 42.44°C 0.998
11.999V 4.981V 3.286V 5.005V 786.413 53.61°C 114.55V
8 60.193A 8.048A 8.059A 2.405A 800.073 88.126% 2495 49.2 43.87°C 0.998
11.989V 4.972V 3.276V 4.991V 907.879 55.61°C 114.49V
9 68.184A 8.565A 8.574A 2.408A 899.356 87.316% 2495 49.2 44.20°C 0.998
11.980V 4.963V 3.266V 4.984V 1030.001 57.30°C 114.32V
10 76.051A 9.086A 9.119A 3.023A 999.571 86.380% 2495 49.2 45.48°C 0.998
11.964V 4.953V 3.256V 4.963V 1157.180 59.56°C 114.29V
11 84.477A 9.101A 9.147A 3.027A 1099.632 85.392% 2495 49.2 45.88°C 0.998
11.955V 4.945V 3.247V 4.957V 1287.751 60.65°C 114.10V
CL1 0.731A 18.002A 18.000A 0.000A 158.534 83.111% 1885 42.6 41.86°C 0.992
12.039V 5.004V 3.314V 5.077V 190.750 52.77°C 115.12V
CL2 83.338A 1.000A 1.000A 1.000A 1011.063 86.573% 2495 49.2 45.82°C 0.998
11.973V 4.968V 3.269V 5.019V 1167.867 60.45°C 114.25V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.506A 1.985A 1.973A 0.987A 100.027 87.139% 835 21.2 38.50°C 0.884
12.055V 5.036V 3.344V 5.069V 114.790 46.00°C 230.85V
2 14.017A 2.984A 2.969A 1.186A 199.737 91.006% 920 23.8 39.14°C 0.954
12.045V 5.027V 3.334V 5.062V 219.476 46.95°C 230.76V
3 21.873A 3.488A 3.457A 1.387A 299.242 92.000% 1105 30.6 39.70°C 0.974
12.035V 5.018V 3.325V 5.049V 325.264 48.21°C 230.68V
4 29.804A 3.993A 3.979A 1.588A 399.628 92.274% 1352 33.6 40.51°C 0.985
12.026V 5.010V 3.316V 5.041V 433.088 49.67°C 230.70V
5 37.387A 5.000A 4.990A 1.790A 499.740 92.128% 1590 38.6 41.16°C 0.990
12.016V 5.000V 3.306V 5.029V 542.441 50.83°C 230.63V
6 44.981A 6.010A 6.007A 1.994A 599.835 91.841% 1855 42.4 41.68°C 0.993
12.006V 4.990V 3.296V 5.017V 653.123 51.69°C 230.55V
7 52.555A 7.028A 7.031A 2.199A 699.557 91.514% 2125 45.1 41.98°C 0.996
11.996V 4.981V 3.285V 5.004V 764.429 52.28°C 230.48V
8 60.214A 8.048A 8.061A 2.405A 800.075 91.063% 2400 48.5 42.30°C 0.996
11.985V 4.971V 3.275V 4.991V 878.595 52.94°C 230.41V
9 68.209A 8.566A 8.574A 2.408A 899.372 90.635% 2495 49.2 42.81°C 0.996
11.976V 4.962V 3.265V 4.985V 992.305 53.75°C 230.42V
10 76.055A 9.088A 9.123A 3.025A 999.778 90.064% 2495 49.2 43.03°C 0.996
11.966V 4.952V 3.255V 4.960V 1110.073 54.88°C 230.34V
11 84.492A 9.102A 9.146A 3.026A 1099.630 89.643% 2495 49.2 43.36°C 0.997
11.953V 4.944V 3.247V 4.957V 1226.678 55.57°C 230.28V
CL1 0.728A 18.002A 17.997A 0.000A 158.489 84.440% 1885 42.6 41.96°C 0.944
12.039V 5.004V 3.314V 5.077V 187.695 49.75°C 230.89V
CL2 83.333A 1.000A 0.998A 1.000A 1010.745 90.547% 2495 49.2 42.66°C 0.996
11.970V 4.968V 3.269V 5.019V 1116.261 53.41°C 230.35V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.184A 0.493A 0.475A 0.196A 19.351 63.837% 677 18.2 0.865
12.053V 5.046V 3.354V 5.100V 30.313 115.33V
2 2.451A 0.989A 0.983A 0.393A 39.824 76.468% 677 18.2 0.936
12.052V 5.043V 3.352V 5.093V 52.079 115.30V
3 3.643A 1.486A 1.459A 0.590A 59.305 81.240% 677 18.2 0.958
12.058V 5.041V 3.349V 5.085V 73.000 115.28V
4 4.905A 1.982A 1.970A 0.788A 79.717 84.490% 677 18.2 0.969
12.056V 5.038V 3.347V 5.080V 94.351 115.25V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.194A 0.495A 0.475A 0.196A 19.481 64.917% 677 18.2 0.520
12.053V 5.045V 3.353V 5.098V 30.009 230.91V
2 2.460A 0.992A 0.983A 0.393A 39.946 77.158% 677 18.2 0.705
12.053V 5.042V 3.351V 5.091V 51.772 230.90V
3 3.651A 1.488A 1.464A 0.590A 59.422 82.531% 725 19.3 0.783
12.057V 5.040V 3.349V 5.084V 72.000 230.88V
4 4.912A 1.985A 1.973A 0.788A 79.827 85.325% 755 20.8 0.841
12.057V 5.038V 3.346V 5.078V 93.556 230.86V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 21.9 mV 5.0 mV 6.8 mV 11.2 mV Pass
20% Load 17.6 mV 5.0 mV 6.7 mV 10.3 mV Pass
30% Load 17.9 mV 6.3 mV 7.7 mV 13.5 mV Pass
40% Load 19.5 mV 6.9 mV 8.5 mV 17.0 mV Pass
50% Load 21.1 mV 7.9 mV 10.7 mV 18.2 mV Pass
60% Load 23.8 mV 9.5 mV 13.9 mV 13.6 mV Pass
70% Load 26.2 mV 11.8 mV 15.1 mV 15.0 mV Pass
80% Load 29.4 mV 11.8 mV 17.3 mV 15.7 mV Pass
90% Load 31.8 mV 11.7 mV 18.2 mV 16.3 mV Pass
100% Load 34.5 mV 13.4 mV 19.5 mV 18.6 mV Pass
110% Load 37.2 mV 14.4 mV 19.9 mV 20.5 mV Pass
Crossload 1 18.6 mV 8.7 mV 11.9 mV 7.3 mV Pass
Crossload 2 34.5 mV 11.1 mV 15.6 mV 17.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 22.6 mV 4.8 mV 6.3 mV 8.4 mV Pass
20% Load 15.8 mV 5.0 mV 6.8 mV 10.7 mV Pass
30% Load 16.1 mV 6.2 mV 7.4 mV 12.9 mV Pass
40% Load 18.2 mV 7.2 mV 8.7 mV 18.1 mV Pass
50% Load 19.4 mV 8.6 mV 10.8 mV 13.0 mV Pass
60% Load 21.4 mV 9.4 mV 14.3 mV 13.9 mV Pass
70% Load 23.9 mV 11.8 mV 14.6 mV 15.4 mV Pass
80% Load 26.2 mV 12.2 mV 17.6 mV 13.8 mV Pass
90% Load 28.7 mV 12.8 mV 19.3 mV 14.8 mV Pass
100% Load 31.3 mV 13.3 mV 19.1 mV 17.4 mV Pass
110% Load 34.7 mV 13.5 mV 20.7 mV 17.5 mV Pass
Crossload 1 17.6 mV 8.7 mV 11.4 mV 7.1 mV Pass
Crossload 2 31.7 mV 10.8 mV 16.2 mV 16.8 mV Pass

The results above are not used in the certification process

be quiet! Straight Power 11 1000W

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
