Cybenetics Test - Forgeon Reactor 750W

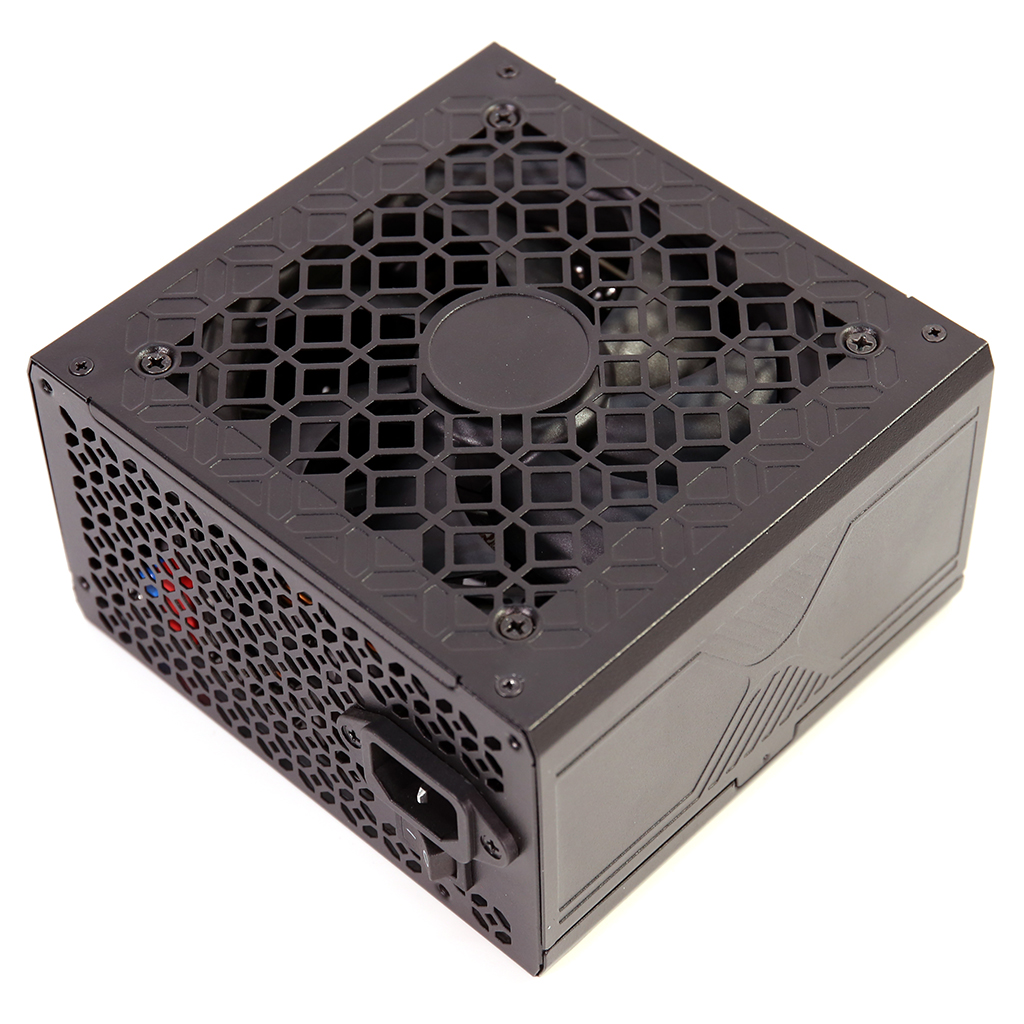

Forgeon Reactor 750W

Serial Number-

Lab IDFR75002772

Certification ID252772

Test Result Report ID: 25PS2772A
Certificate Issue Date: Mar 21, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Forgeon
Manufacturer (OEM)	Kinpower
Series	Reactor
Model Number	-
Serial Number	-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	16
Rated Frequency (Hz)	50-60
Rated Power (W)	750
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation	✗
Cable Design	Fully Modular

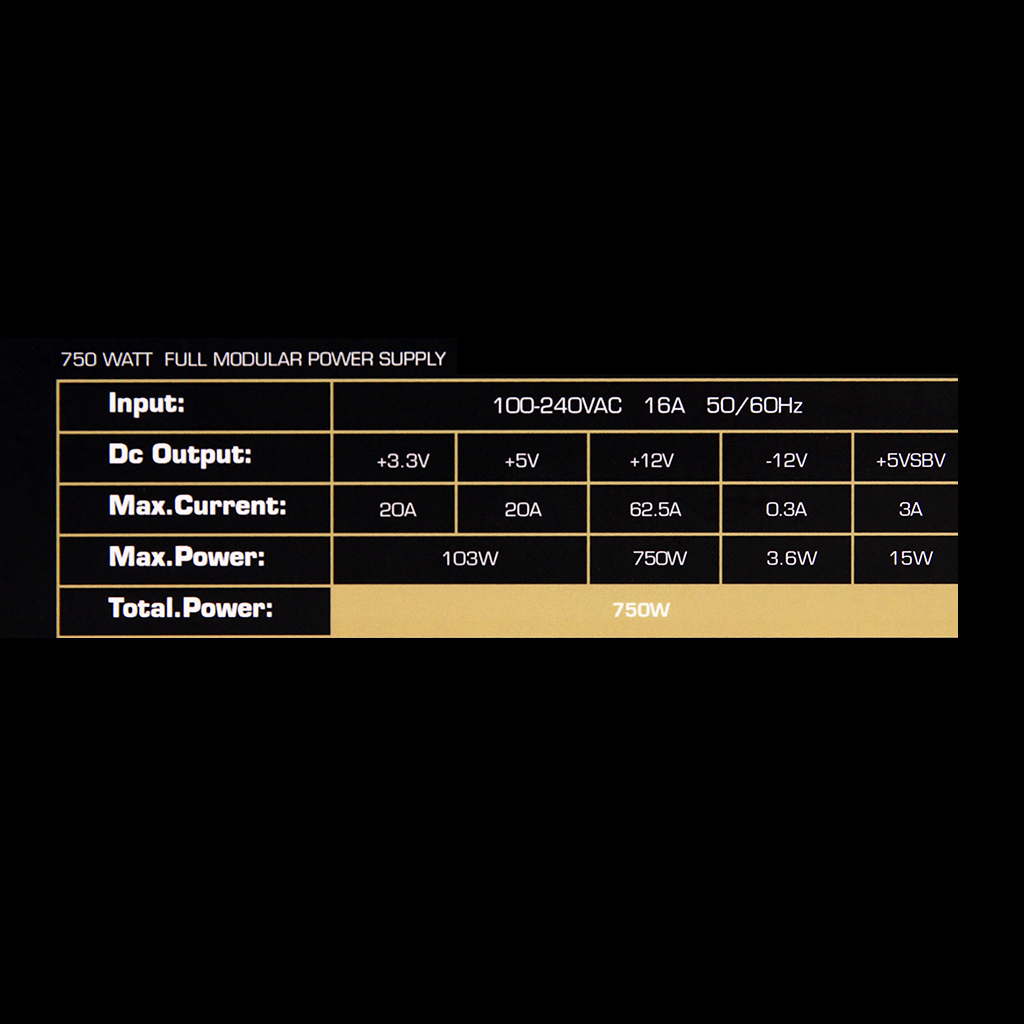

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	62.5	3	0.3
Max. Power	Watts	103		750	15	3.6
Total Max. Power (W)		750

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (595mm)	1	1	18-22AWG	No
4+4 pin EPS12V (700mm)	2	2	18AWG	No
6+2 pin PCIe (600mm+150mm)	2	4	18AWG	No
12+4 pin PCIe (605mm) (600W)	1	1	16-24AWG	No
SATA (450mm+155mm+155mm)	3	9	18AWG	No
4-pin Molex (450mm+150mm+150mm)	1	3	18AWG	No

Parts Description

General Data
Manufacturer (OEM)	Kinpower
PCB Type	Double-Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor MF72 20D15 (20 Ohm @ 25°C) & Relay
Bridge Rectifier(s)	2x GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs	2x Sanrise Tech SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm)
APFC Boost Diode	1x Global Power Technology G3S06510A (650V, 10A @ 153.5°C)
Bulk Cap(s)	1x Nippon Chemi-con (400V, 560uF, 2,000h @ 105°C, KMR)
Main Switchers	2x Sanrise Tech SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm)
APFC Controller	1x Champion CM6502UHHX
Resonant Controller	Champion CM6901X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	6x Alkaidsemi AKG40N025G (40V, 74A @ 100°C, Rds(on): 2.5mOhm)
5V & 3.3V	DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors	Electrolytic: 5x TK (@105°C, SZ) Polymer: 34x Chengx
Supervisor IC	IN1S4291-SCG
Fan Model	Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier	1x Dongke Semiconductor DK5V45R10S (45V, 10A)
Standby PWM Controller	FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	A-
Average Efficiency (>1450 load combinations)	89.866%
Average Noise Output (>1450 Load Combinations)	29.26dBA
Average PF (>1450 Load Combinations)	0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.389%
Standby Power Consumption	0.0363W
12V Ripple (Full Load)	21.83mV
5V Ripple (Full Load)	13.99mV
3.3V Ripple (Full Load)	15.00mV
5VSB Ripple (Full Load)	47.45mV
12V Load Regulation	0.70%
5V Load Regulation	0.67%
3.3V Load Regulation	0.91%
5VSB Load Regulation	2.81%
Inrush Current	11.260A

Efficiency Rating	PLATINUM
Noise Rating	A-
Average Efficiency (>1450 load combinations)	91.851%
Average Noise Output (>1450 Load Combinations)	28.16dBA
Average PF (>1450 Load Combinations)	0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load	67.774%
Standby Power Consumption	0.0857W
12V Ripple (Full Load)	21.21mV
5V Ripple (Full Load)	13.02mV
3.3V Ripple (Full Load)	14.32mV
5VSB Ripple (Full Load)	48.83mV
12V Load Regulation	0.69%
5V Load Regulation	0.67%
3.3V Load Regulation	0.94%
5VSB Load Regulation	2.81%
Inrush Current	19.050A
12V Transient Response (200%)	11.58V
5V Transient Response (200%)	5.004V
3.3V Transient Response (200%)	3.255V
5VSB Transient Response (200%)	5.034V
Hold-Up Time & Power Ok Signal	19.60ms
AC Loss to PWR_OK Hold Up Time	17.60ms
PWR_OK Inactive to DC Loss Delay	2.00ms
PSU Timings: T1 (20% / 100%)	38.0ms	38.0ms
PSU Timings: T3 (20% / 100%)	116.0ms	116.0ms
12V OCP (29.9°C / 43.1°C)	83.20A (133.12%), 12.072V	80.00A (128.00%), 12.079V
5V OCP (29.9°C / 43.1°C)	25.6A (128.00%), 5.003V	25.5A (127.50%), 5V
3.3V OCP (29.9°C / 43.1°C)	26.3A (131.50%), 3.267V	26.3A (131.50%), 3.264V
5VSB OCP (29.9°C / 43.1°C)	4.2A (140.00%), 5.079V	4.3A (143.33%), 5.077V
OPP (29.24°C / 42.24°C)	125.79%	118.88%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	19.6
AC Loss to PWR_OK Hold Up Time (ms)	17.6
PWR_OK Inactive to DC Loss Delay (ms)	2

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.07 V	115.03 V	113.85 V	115.11 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.08 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.036 W	-0.015 W	N/A	0.072 W	N/A	N/A
Apparent Power:	2.392 W	2.317 W	N/A	2.463 W	N/A	N/A
Power Factor:	0.024	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.02 V	230.90 V	227.70 V	231.09 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.27 %	2.00 %	PASS
Real Power:	0.086 W	0.046 W	N/A	0.130 W	N/A	N/A
Apparent Power:	7.995 W	7.886 W	N/A	8.104 W	N/A	N/A
Power Factor:	0.008	N/A	N/A	N/A	N/A	N/A

Graphs

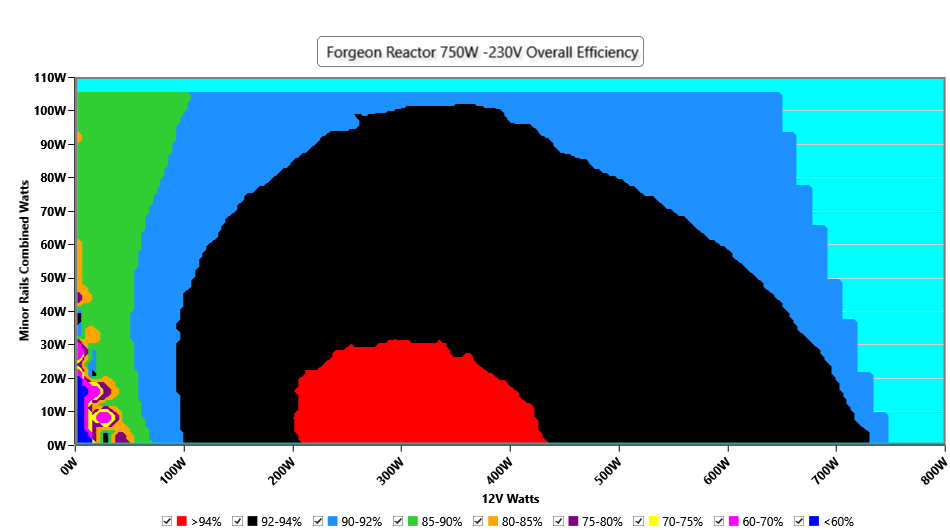

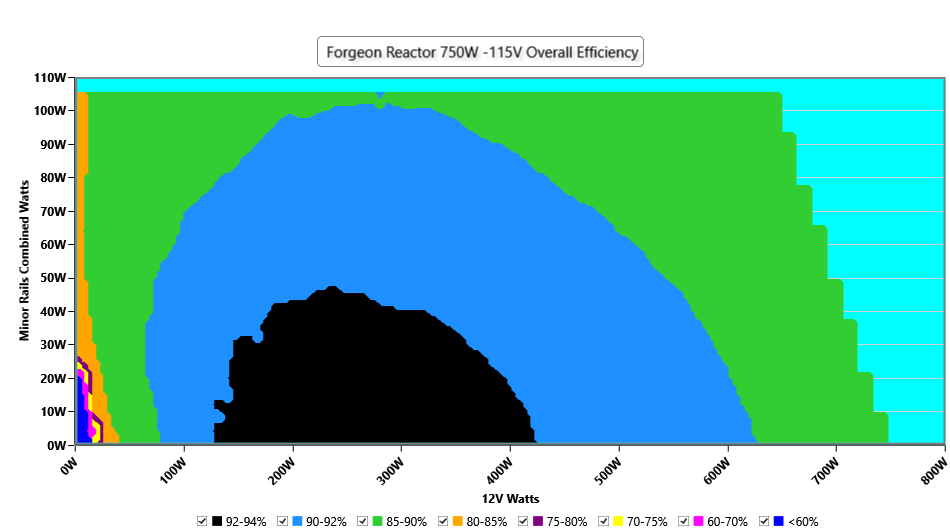

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

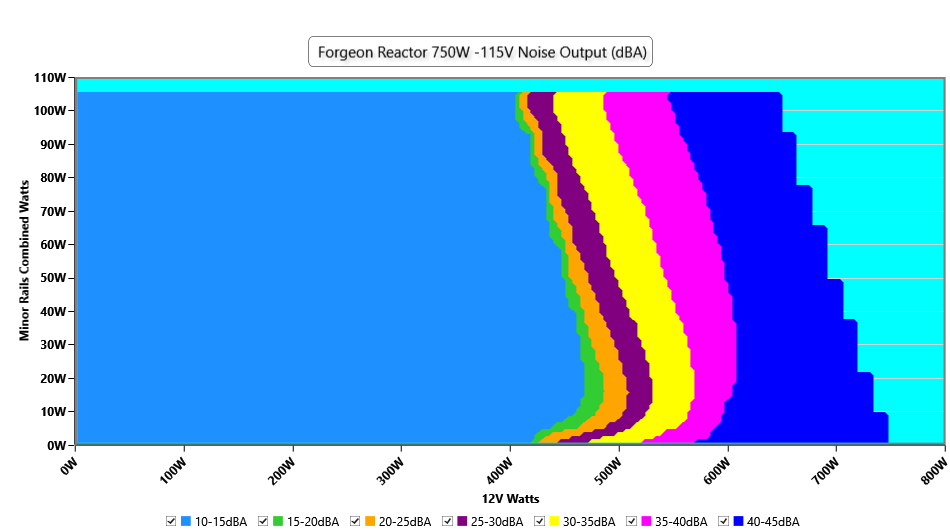

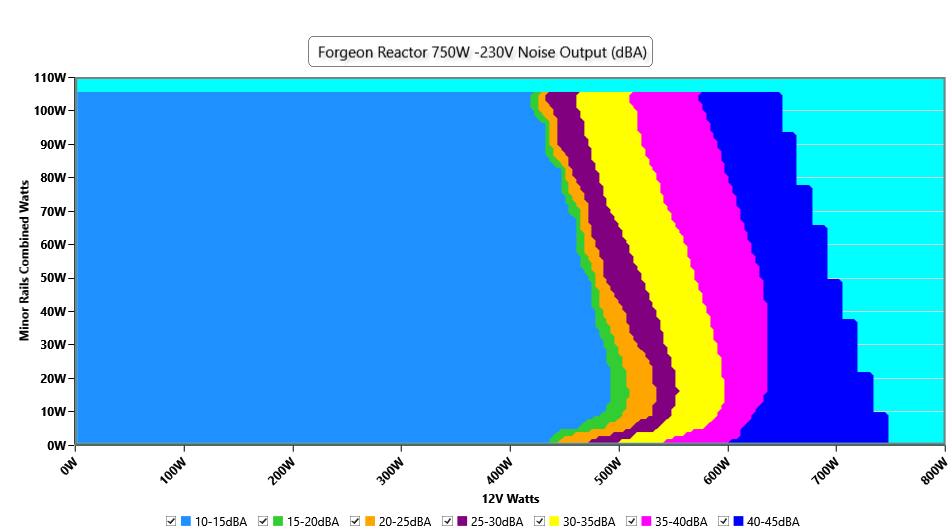

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

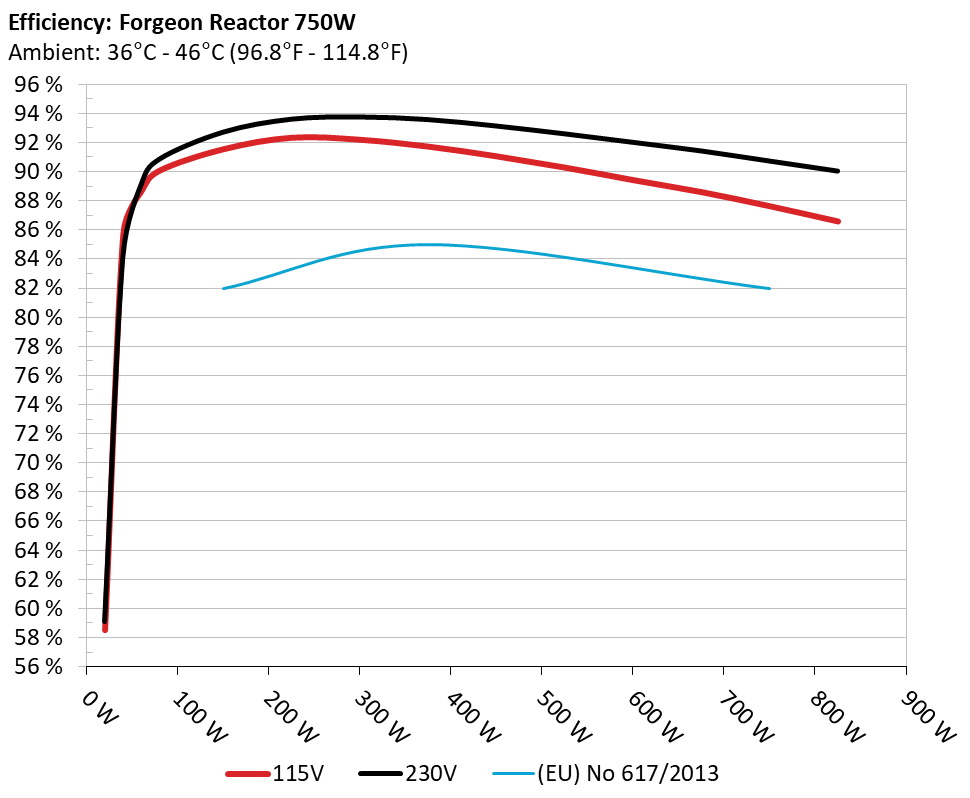

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

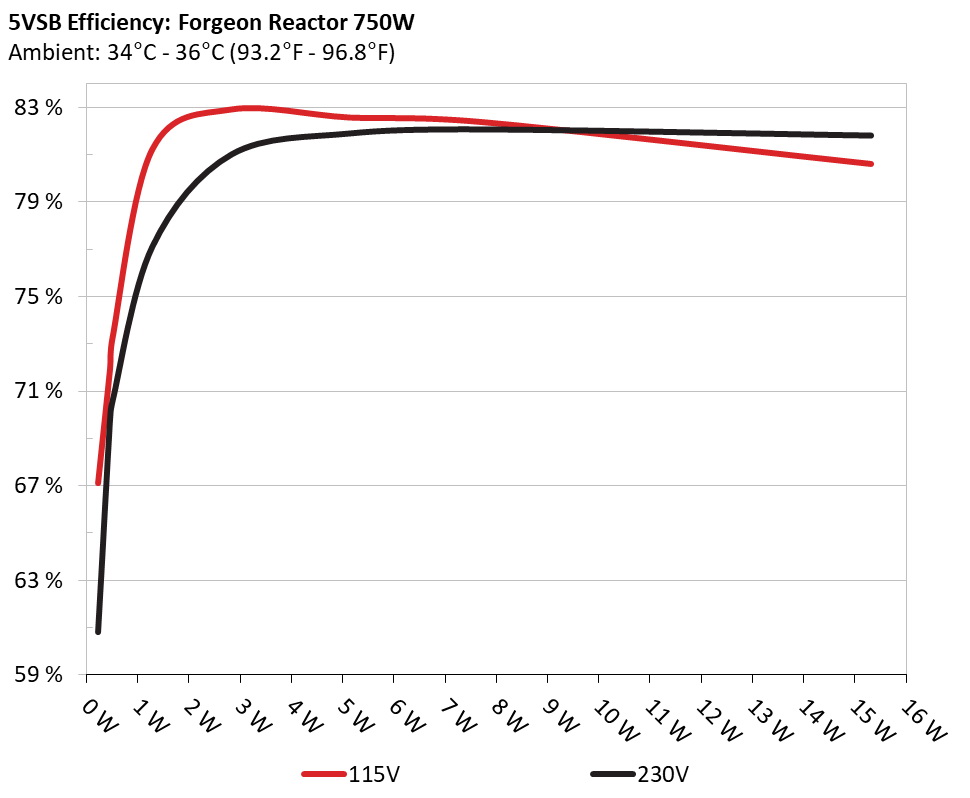

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.233W	67.13%	0.117
1	5.172V	0.347W	67.13%	114.95V
2	0.09A	0.465W	71.939%	0.197
2	5.17V	0.647W	71.939%	114.95V
3	0.55A	2.839W	82.906%	0.455
3	5.16V	3.424W	82.906%	114.95V
4	1A	5.152W	82.565%	0.514
4	5.15V	6.24W	82.565%	114.95V
5	1.5A	7.712W	82.376%	0.541
5	5.14V	9.362W	82.376%	114.95V
6	3.001A	15.324W	80.606%	0.565
6	5.107V	19.012W	80.606%	114.94V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.233W	60.804%	0.037
1	5.172V	0.383W	60.804%	230.07V
2	0.09A	0.466W	69.777%	0.063
2	5.171V	0.668W	69.777%	230.08V
3	0.55A	2.839W	81.017%	0.257
3	5.16V	3.504W	81.017%	230.07V
4	1A	5.152W	81.906%	0.351
4	5.151V	6.291W	81.906%	230.07V
5	1.5A	7.712W	82.076%	0.404
5	5.14V	9.396W	82.076%	230.07V
6	3.001A	15.325W	81.816%	0.463
6	5.108V	18.731W	81.816%	230.07V

Protection Features

OCP (Normal @ 29.9°C)	12V: 83.20A (133.12%), 12.072V 5V: 25.6A (128.00%), 5.003V 3.3V: 26.3A (131.50%), 3.267V 5VSB: 4.2A (140.00%), 5.079V
OCP (Hot @ 43.1°C)	12V: 80.00A (128.00%), 12.079V 5V: 25.5A (127.50%), 5V 3.3V: 26.3A (131.50%), 3.264V 5VSB: 4.3A (143.33%), 5.077V
OPP (Normal @ 29.2°C)	943.43W (125.79%)
OPP (Hot @ 42.2°C)	891.57W (118.88%)
OTP	✓ (144°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.394A	1.971A	1.979A	0.972A	75.008	89.087%	666	13.7	40.45°C	0.954
10%	12.153V	5.075V	3.335V	5.144V	84.198	89.087%	666	13.7	43.24°C	114.96V
20%	9.803A	2.959A	2.972A	1.169A	149.964	91.534%	670	13.8	40.56°C	0.982
20%	12.145V	5.071V	3.332V	5.132V	163.831	91.534%	670	13.8	44.42°C	114.94V
30%	15.566A	3.453A	3.469A	1.367A	224.968	92.323%	672	13.8	41.17°C	0.989
30%	12.137V	5.069V	3.329V	5.12V	243.676	92.323%	672	13.8	46.34°C	114.92V
40%	21.342A	3.949A	3.968A	1.567A	300.056	92.187%	675	13.9	41.77°C	0.992
40%	12.129V	5.066V	3.327V	5.108V	325.484	92.187%	675	13.9	47.99°C	114.91V
50%	26.748A	4.939A	4.964A	1.767A	374.711	91.718%	680	14.2	42.25°C	0.994
50%	12.120V	5.063V	3.324V	5.095V	408.544	91.718%	680	14.2	49.85°C	114.89V
60%	32.186A	5.93A	5.962A	1.968A	449.626	91.05%	1211	31.4	42.74°C	0.993
60%	12.111V	5.06V	3.322V	5.082V	493.826	91.05%	1211	31.4	49.91°C	114.87V
70%	37.638A	6.922A	6.96A	2.171A	524.562	90.281%	1726	41	43.39°C	0.994
70%	12.100V	5.058V	3.32V	5.068V	581.035	90.281%	1726	41	50.94°C	114.84V
80%	43.161A	7.916A	7.961A	2.274A	599.785	89.417%	1744	41.2	43.85°C	0.995
80%	12.091V	5.054V	3.316V	5.057V	670.769	89.417%	1744	41.2	52.54°C	114.82V
90%	49.022A	8.416A	8.451A	2.378A	674.835	88.592%	1748	41.3	44.37°C	0.995
90%	12.083V	5.051V	3.313V	5.046V	761.739	88.592%	1748	41.3	54.62°C	114.8V
100%	54.692A	8.917A	8.973A	2.986A	750.06	87.621%	1753	41.4	45.75°C	0.996
100%	12.074V	5.048V	3.31V	5.024V	856.026	87.621%	1753	41.4	58.43°C	114.77V
110%	60.244A	9.916A	10.072A	2.992A	825.095	86.575%	1755	41.4	46.42°C	0.996
110%	12.064V	5.043V	3.306V	5.014V	953.037	86.575%	1755	41.4	61.33°C	114.75V
CL1	0.116A	12.289A	12.341A	0.001A	104.32	83.788%	681	14.5	40.31°C	0.973
CL1	12.141V	5.046V	3.314V	5.149V	124.507	83.788%	681	14.5	51.31°C	114.95V
CL2	0.115A	19.914A	0A	0.001A	101.405	82.124%	679	14.2	40.89°C	0.973
CL2	12.144V	5.022V	3.323V	5.155V	123.48	82.124%	679	14.2	50.37°C	114.95V
CL3	0.115A	0A	20.007A	0A	67.4	76.491%	669	13.7	40.53°C	0.956
CL3	12.144V	5.055V	3.299V	5.154V	88.119	76.491%	669	13.7	49.37°C	114.96V
CL4	62.045A	0A	0A	0.007A	749.866	88.77%	1747	41.2	45.37°C	0.996
CL4	12.085V	5.063V	3.315V	5.103V	844.734	88.77%	1747	41.2	54.47°C	114.78V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.395A	1.971A	1.979A	0.972A	75.01	89.873%	666	13.7	40.46°C	0.794
10%	12.152V	5.074V	3.335V	5.144V	83.462	89.873%	666	13.7	43.52°C	230.09V
20%	9.804A	2.959A	2.971A	1.17A	149.972	92.725%	669	13.7	40.79°C	0.913
20%	12.144V	5.071V	3.332V	5.132V	161.737	92.725%	669	13.7	44.39°C	230.08V
30%	15.568A	3.454A	3.469A	1.368A	224.981	93.618%	672	13.8	41.06°C	0.948
30%	12.135V	5.069V	3.33V	5.12V	240.32	93.618%	672	13.8	45.48°C	230.07V
40%	21.346A	3.949A	3.967A	1.567A	300.071	93.77%	674	13.8	41.66°C	0.964
40%	12.127V	5.067V	3.328V	5.108V	320.009	93.77%	674	13.8	46.97°C	230.07V
50%	26.756A	4.939A	4.964A	1.767A	374.763	93.594%	682	14.6	42.15°C	0.972
50%	12.119V	5.063V	3.325V	5.095V	400.414	93.594%	682	14.6	49°C	230.06V
60%	32.192A	5.931A	5.961A	1.968A	449.669	93.153%	1241	32.5	42.7°C	0.977
60%	12.110V	5.06V	3.322V	5.082V	482.722	93.153%	1241	32.5	48.93°C	230.05V
70%	37.644A	6.923A	6.959A	2.171A	524.597	92.617%	1677	40.2	43.4°C	0.981
70%	12.100V	5.058V	3.32V	5.069V	566.415	92.617%	1677	40.2	49.31°C	230.04V
80%	43.167A	7.915A	7.96A	2.274A	599.815	92.032%	1744	41.2	43.6°C	0.983
80%	12.090V	5.054V	3.317V	5.057V	651.748	92.032%	1744	41.2	50.85°C	230.03V
90%	49.028A	8.416A	8.45A	2.378A	674.865	91.441%	1749	41.3	44.89°C	0.985
90%	12.082V	5.051V	3.314V	5.047V	738.033	91.441%	1749	41.3	53.32°C	230.02V
100%	54.699A	8.917A	8.972A	2.986A	750.093	90.746%	1753	41.4	45.93°C	0.986
100%	12.073V	5.048V	3.31V	5.024V	826.582	90.746%	1753	41.4	55.69°C	230.01V
110%	60.252A	9.916A	10.072A	2.992A	825.136	90.052%	1755	41.4	46.2°C	0.987
110%	12.063V	5.043V	3.306V	5.014V	916.286	90.052%	1755	41.4	58.11°C	229.99V
CL1	0.116A	12.286A	12.337A	0.001A	104.327	84.741%	684	14.8	40.39°C	0.876
CL1	12.141V	5.047V	3.315V	5.149V	123.114	84.741%	684	14.8	51.77°C	230.07V
CL2	0.115A	19.916A	0A	0.001A	101.409	82.973%	682	14.6	41.64°C	0.875
CL2	12.145V	5.021V	3.323V	5.155V	122.223	82.973%	682	14.6	51.24°C	230.07V
CL3	0.115A	0A	20.012A	0A	67.404	77.068%	671	13.8	41.44°C	0.808
CL3	12.144V	5.054V	3.298V	5.154V	87.463	77.068%	671	13.8	50.26°C	230.07V
CL4	62.053A	0A	0A	0.007A	749.927	91.8%	1749	41.3	45.67°C	0.986
CL4	12.084V	5.063V	3.316V	5.103V	816.918	91.8%	1749	41.3	52.64°C	229.99V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.222A	0.492A	0.494A	0.194A	20.005	58.51%	657	13.2	36.95°C	0.824
20W	12.152V	5.082V	3.34V	5.165V	34.19	58.51%	657	13.2	39.22°C	114.98V
40W	2.689A	0.689A	0.692A	0.291A	40.004	85.703%	658	13.3	37.49°C	0.888
40W	12.158V	5.079V	3.338V	5.163V	46.677	85.703%	658	13.3	39.41°C	114.98V
60W	4.157A	0.886A	0.89A	0.388A	60.003	88.651%	661	13.4	38.2°C	0.936
60W	12.155V	5.078V	3.337V	5.159V	67.681	88.651%	661	13.4	40.62°C	114.97V
80W	5.622A	1.084A	1.088A	0.485A	79.96	90.066%	663	13.6	39.37°C	0.957
80W	12.153V	5.077V	3.336V	5.155V	88.78	90.066%	663	13.6	41.63°C	114.96V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.223A	0.492A	0.494A	0.194A	20.01	59.096%	654	13	36.19°C	0.571
20W	12.150V	5.082V	3.341V	5.165V	33.86	59.096%	654	13	39.16°C	230.08V
40W	2.690A	0.689A	0.692A	0.291A	40.008	84.141%	657	13.2	37.43°C	0.658
40W	12.156V	5.079V	3.339V	5.163V	46.09	84.141%	657	13.2	39.71°C	230.08V
60W	4.158A	0.887A	0.89A	0.388A	60.006	89.107%	660	13.4	38.58°C	0.735
60W	12.154V	5.078V	3.338V	5.159V	67.343	89.107%	660	13.4	40.75°C	230.09V
80W	5.624A	1.084A	1.088A	0.485A	79.969	90.867%	662	13.4	39.09°C	0.807
80W	12.152V	5.076V	3.337V	5.155V	88.007	90.867%	662	13.4	41.59°C	230.09V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	9.40mV	7.04mV	5.08mV	8.61mV	Pass
20% Load	9.56mV	7.55mV	5.75mV	11.51mV	Pass
30% Load	9.51mV	8.77mV	6.20mV	15.18mV	Pass
40% Load	11.30mV	9.95mV	7.12mV	17.93mV	Pass
50% Load	12.31mV	11.12mV	8.44mV	24.86mV	Pass
60% Load	13.53mV	13.62mV	9.67mV	27.21mV	Pass
70% Load	17.10mV	14.38mV	12.31mV	32.91mV	Pass
80% Load	15.98mV	16.89mV	18.92mV	33.98mV	Pass
90% Load	16.64mV	17.14mV	15.36mV	40.50mV	Pass
100% Load	21.83mV	13.99mV	15.00mV	47.45mV	Pass
110% Load	23.26mV	15.63mV	17.03mV	52.60mV	Fail
Crossload1	14.79mV	10.19mV	14.86mV	9.29mV	Pass
Crossload2	9.46mV	10.10mV	17.60mV	8.66mV	Pass
Crossload3	9.67mV	25.45mV	16.12mV	7.95mV	Pass
Crossload4	21.17mV	12.34mV	8.85mV	41.60mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	9.96mV	6.84mV	5.59mV	8.10mV	Pass
20% Load	9.46mV	7.60mV	6.05mV	11.31mV	Pass
30% Load	8.91mV	8.62mV	6.56mV	14.11mV	Pass
40% Load	10.38mV	9.85mV	7.22mV	17.32mV	Pass
50% Load	11.55mV	10.56mV	8.34mV	23.64mV	Pass
60% Load	14.55mV	12.81mV	10.53mV	27.20mV	Pass
70% Load	16.28mV	13.42mV	11.85mV	32.61mV	Pass
80% Load	15.52mV	19.13mV	22.12mV	34.64mV	Pass
90% Load	16.23mV	11.78mV	14.09mV	41.22mV	Pass
100% Load	21.21mV	13.02mV	14.32mV	48.83mV	Pass
110% Load	22.47mV	15.42mV	22.37mV	49.66mV	Pass
Crossload1	14.08mV	9.43mV	14.12mV	8.69mV	Pass
Crossload2	8.94mV	10.25mV	17.19mV	8.10mV	Pass
Crossload3	9.51mV	23.87mV	15.87mV	7.39mV	Pass
Crossload4	21.96mV	11.90mV	8.91mV	38.31mV	Pass

The results above are not used in the certification process

Forgeon Reactor 750W

Top side

Power specifications label
