Asus ROG-THOR-1000P3-GAMING
Serial Number-
Lab IDAS10002787
  • Report: 25PS2787A
  • Receipt Date: Apr 2, 2025
  • Test Date: Apr 15, 2025
  • Report Date: Apr 16, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Seasonic
SeriesROG Thor
Model Number
Serial Number-
Fan Report LinkEverflow F1214025BL
DUT NotesThe fan speed profile is extremely relaxed.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6.5-13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Double Ball Bearing Fan (F1214025BL)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps302583.3330.3
Watts1251000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-22AWG No
4+4 pin EPS12V (1000mm) 2 2 18AWG No
6+2 pin PCIe (750mm) 4 4 18AWG No
12+4 pin PCIe (740mm) (600W) 1 1 16-24AWG No
SATA (410mm+135mm+135mm) 1 3 18AWG No
SATA (410mm+120mm+120mm+120mm) 1 4 18AWG No
4 pin Molex (415mm+165mm+165mm) 2 6 18AWG No
5V ARGB connector (800mm) 1 1 - -

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor MF72-5D20L (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s)

2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MODFET

1x Transphorm TP65H035G4WS GaN (650V, 29A @ 100°C, Rds(on): 41mOhm)
APFC Boost Diode

1x CREE C6D10065A (650V, 10A @ 155°C)
Bulk Cap(s)

1x Rubycon (420V, 680uF, 3000h @ 105°C, MXK) & 1x Rubycon (420V, 560uF, 3000h @ 105°C, MXK)
Main Switchers

4x Infineon IPP60R180P7 (650V, 11A @ 100°C, Rds(on): 0.180Ohm)
APFC Controller

1x Champion CM6502UHHX & 1x Champion CM03X (reduce the no-load consumption)
Resonant Controller

Champion CM6901T2X
Driver IC

2x Novosense NSi6602
Topology

Primary side: APFC, Full-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Infineon BSC007N04LS6 (40V, 269A @ 100°C, Rds(on): 0.7mOhm)
5V & 3.3V DC-DC Converters: 4x Nexperia PSMN4R0-30YLD (30V, 95A @ 25°C, Rds(on): 4mOhm) & 2x Nexperia PSMN3R5-30YL (30V, 100A @ 25°C, Rds(on): 3.5mOhm) PWM Controller(s): Anpec APW7159C
Filtering Capacitors

Electrolytic: 5x Rubycon (6-10,000h @105°C, ZLH) 1x Rubycon (3-6,000h @105°C, ZLQ) 3x Nichicon (2-5,000 @ 105°C, HD(M)) Polymer: 34x FPCAP, 5x Nippon Chemi-con
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, SCP, PG)
MCU Nuvoton M481LE8AE
Flash Memory Microchip SST26F016B
Fan Model Everflow F1214025BL (135mm, 12V, 0.2A , Double Ball Bearing Fan)
5VSB
Rectifier

Infineon BSC014N04LS (40V, 145A @ 100°C, Rds(on): 1.4mOhm)
Standby PWM Controller

Onsemi NCP1342AMDCDAD1R2G

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Commission Regulation (EU) No 617/2013 Testing✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)90.872%
Average Noise Output (>1450 Load Combinations)13.18dBA
Average PF (>1450 Load Combinations)0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load68.523%
Standby Power Consumption0.0164W
12V Ripple (Full Load)32.54mV
5V Ripple (Full Load)18.80mV
3.3V Ripple (Full Load)20.55mV
5VSB Ripple (Full Load)16.61mV
12V Load Regulation0.90%
5V Load Regulation0.59%
3.3V Load Regulation0.54%
5VSB Load Regulation3.31%
Inrush Current136.700A
Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)92.472%
Average Noise Output (>1450 Load Combinations)13.17dBA
Average PF (>1450 Load Combinations)0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load67.296%
Standby Power Consumption0.0830W
12V Ripple (Full Load)33.20mV
5V Ripple (Full Load)17.69mV
3.3V Ripple (Full Load)19.02mV
5VSB Ripple (Full Load)16.53mV
12V Load Regulation0.84%
5V Load Regulation0.49%
3.3V Load Regulation0.51%
5VSB Load Regulation3.27%
Inrush Current119.000A
12V Transient Response (200%)11.55V
5V Transient Response (200%)4.996V
3.3V Transient Response (200%)3.233V
5VSB Transient Response (200%)5.051V
Hold-Up Time & Power Ok Signal23.60ms
AC Loss to PWR_OK Hold Up Time20.00ms
PWR_OK Inactive to DC Loss Delay3.60ms
PSU Timings: T1 (20% / 100%)70.0ms54.0ms
PSU Timings: T3 (20% / 100%)130.0ms129.0ms
12V OCP (27.1°C / 42.9°C)109.20A (131.05%), 11.982V109.40A (131.29%), 6.987V
5V OCP (27.1°C / 42.9°C)31.9A (127.60%), 5.057V31.6A (126.40%), 5.057V
3.3V OCP (27.1°C / 42.9°C)38.6A (128.67%), 3.34V38.5A (128.33%), 3.328V
5VSB OCP (27.1°C / 42.9°C)4.5A (150.00%), 5.038V4.5A (150.00%), 5.044V
OPP (26.41°C / 42.43°C)121.31%121.31%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.6
AC Loss to PWR_OK Hold Up Time (ms)20
PWR_OK Inactive to DC Loss Delay (ms)3.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.83 V 114.79 V 113.85 V 114.88 V 116.15 V PASS
Mains Frequency: 60.01 Hz 60.00 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.18 % 2.00 % PASS
Real Power: 0.016 W 0.014 W N/A 0.018 W N/A N/A
Apparent Power: 10.645 W 10.623 W N/A 10.668 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.86 V 229.78 V 227.70 V 229.91 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.15 % 2.00 % PASS
Real Power: 0.083 W 0.055 W N/A 0.099 W N/A N/A
Apparent Power: 35.747 W 35.065 W N/A 35.862 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

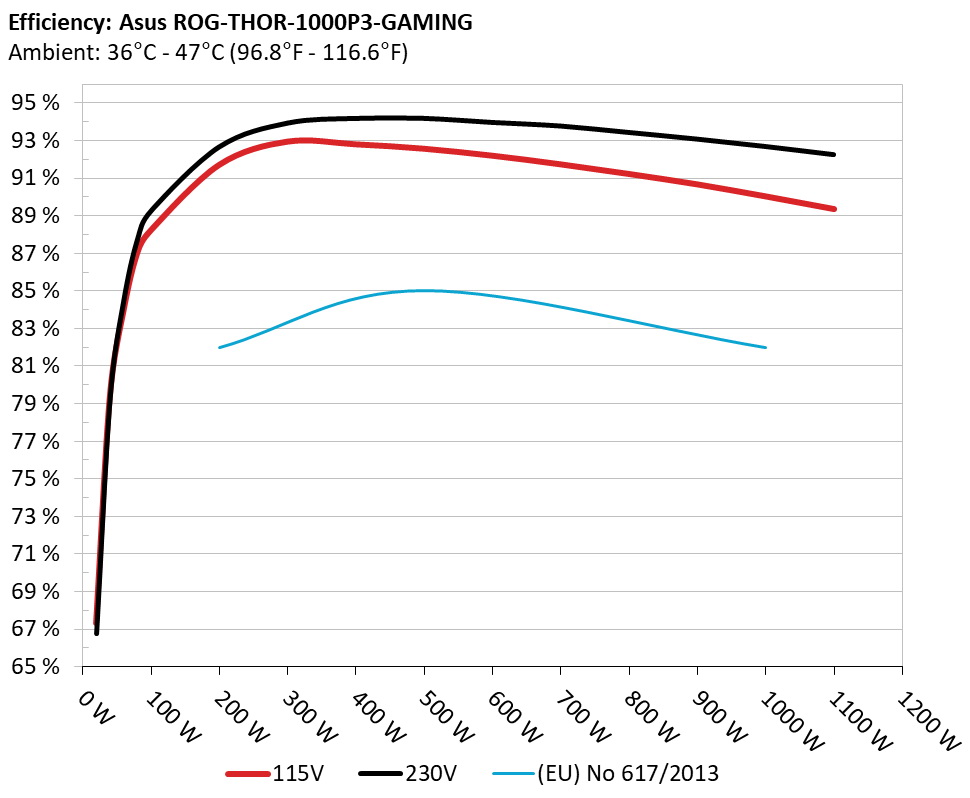

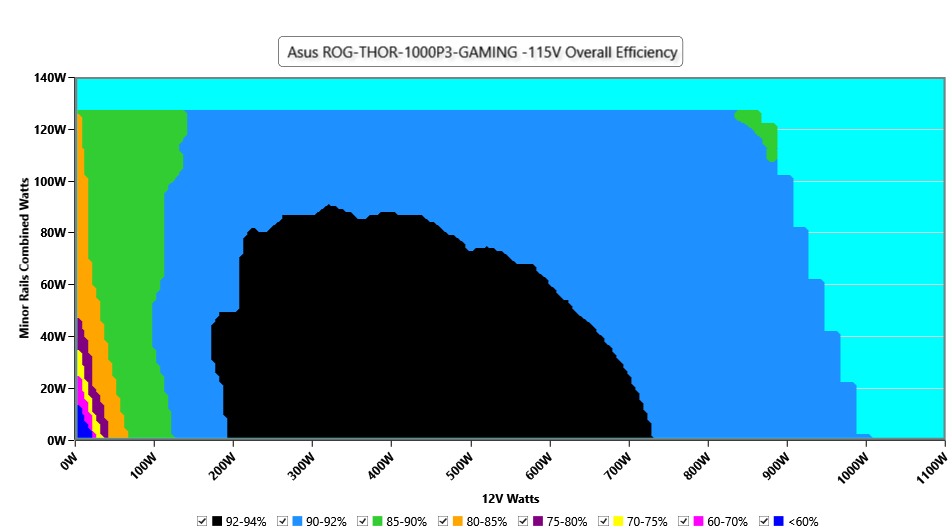

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

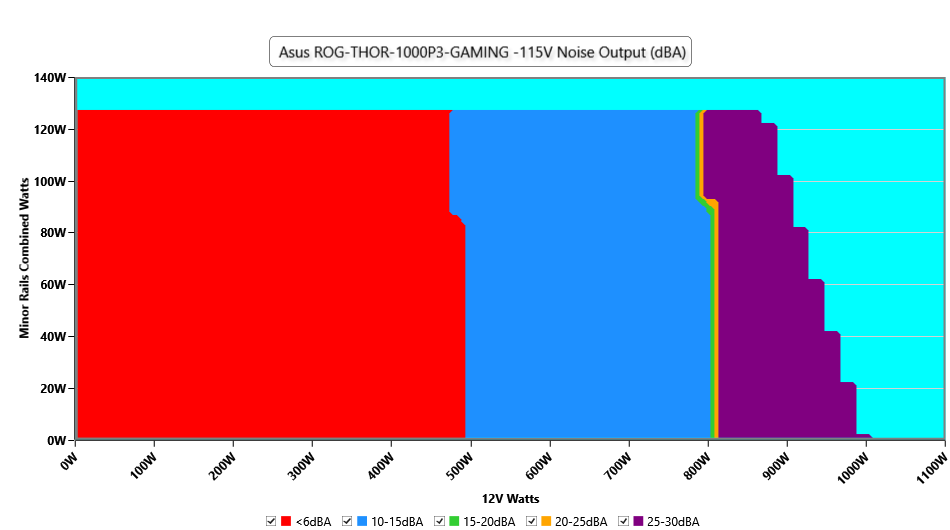

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

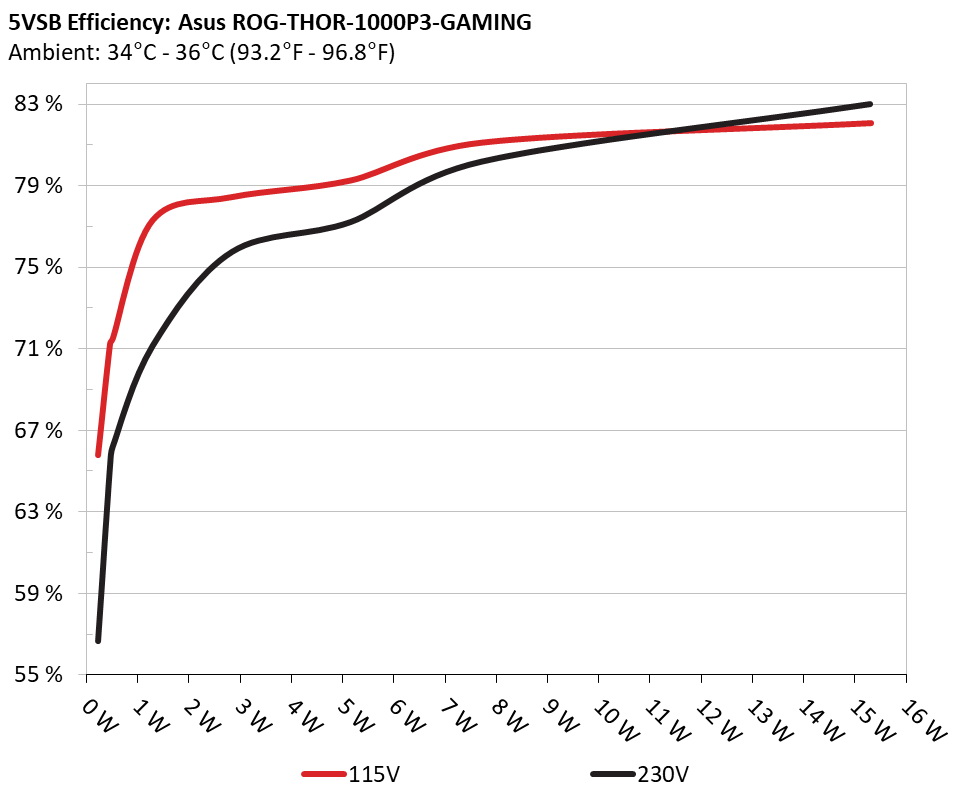

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 65.805% 0.033
5.192V 0.356W 114.83V
2 0.09A 0.467W 71.271% 0.061
5.191V 0.655W 114.84V
3 0.55A 2.847W 78.463% 0.271
5.176V 3.629W 114.84V
4 1A 5.162W 79.279% 0.381
5.162V 6.511W 114.83V
5 1.5A 7.722W 81.132% 0.432
5.147V 9.518W 114.83V
6 3A 15.309W 82.087% 0.521
5.102V 18.65W 114.82V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 56.679% 0.011
5.192V 0.413W 229.83V
2 0.09A 0.467W 65.29% 0.02
5.19V 0.716W 229.83V
3 0.55A 2.845W 75.755% 0.1
5.173V 3.755W 229.82V
4 1A 5.157W 77.217% 0.168
5.157V 6.679W 229.82V
5 1.5A 7.712W 80.179% 0.225
5.14V 9.618W 229.82V
6 3A 15.287W 82.994% 0.321
5.095V 18.419W 229.82V

Protection Features

OCP (Normal @ 27.1°C)12V: 109.20A (131.05%), 11.982V
5V: 31.9A (127.60%), 5.057V
3.3V: 38.6A (128.67%), 3.34V
5VSB: 4.5A (150.00%), 5.038V
OCP (Hot @ 42.9°C)12V: 109.40A (131.29%), 6.987V
5V: 31.6A (126.40%), 5.057V
3.3V: 38.5A (128.33%), 3.328V
5VSB: 4.5A (150.00%), 5.044V
OPP (Normal @ 26.4°C)1213.07W (121.31%)
OPP (Hot @ 42.4°C)1213.08W (121.31%)
OTP✓ (120°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32A✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.482A 1.965A 1.985A 0.972A 99.996 88.245% 0 <6.0 44.23°C 0.974
12.095V 5.089V 3.324V 5.145V 113.317 40.02°C 114.81V
20% 13.988A 2.95A 2.98A 1.17A 199.948 91.732% 0 <6.0 45.74°C 0.991
12.085V 5.085V 3.322V 5.13V 217.974 40.79°C 114.78V
30% 21.861A 3.443A 3.478A 1.368A 299.999 92.977% 0 <6.0 47.16°C 0.997
12.074V 5.083V 3.321V 5.118V 322.66 41.25°C 114.74V
40% 29.708A 3.936A 3.977A 1.568A 399.552 92.834% 0 <6.0 48.54°C 0.993
12.062V 5.081V 3.319V 5.104V 430.396 41.93°C 114.72V
50% 37.238A 4.924A 4.974A 1.768A 499.274 92.601% 0 <6.0 51.49°C 0.993
12.051V 5.078V 3.317V 5.091V 539.164 42.05°C 114.67V
60% 44.843A 5.912A 5.973A 1.971A 599.806 92.227% 494 9.9 42.56°C 0.994
12.042V 5.075V 3.315V 5.075V 650.36 58.01°C 114.64V
70% 52.404A 6.902A 6.972A 2.173A 699.569 91.767% 680 18.2 43.26°C 0.995
12.031V 5.072V 3.314V 5.062V 762.327 58.42°C 114.61V
80% 60.039A 7.891A 7.971A 2.276A 799.56 91.255% 966 28.7 43.61°C 0.996
12.020V 5.069V 3.312V 5.052V 876.188 57.79°C 114.57V
90% 68.024A 8.387A 8.458A 2.38A 899.336 90.7% 1223 35.4 44.72°C 0.996
12.008V 5.067V 3.31V 5.042V 991.549 58.9°C 114.54V
100% 75.836A 8.886A 8.976A 2.992A 999.375 90.061% 1224 35.4 45.02°C 0.996
11.996V 5.064V 3.309V 5.014V 1109.659 62.37°C 114.5V
110% 83.593A 9.879A 10.069A 2.997A 1099.994 89.382% 1224 35.4 46.37°C 0.997
11.983V 5.061V 3.307V 5.006V 1230.685 66.24°C 114.47V
CL1 0.116A 14.888A 14.988A 0A 126.301 84.928% 0 <6.0 52.68°C 0.985
12.092V 5.058V 3.309V 5.172V 148.717 42.07°C 114.79V
CL2 0.114A 24.646A 0A 0A 126.221 83.881% 617 16.3 40.27°C 0.987
12.101V 5.065V 3.303V 5.176V 150.476 49.82°C 114.81V
CL3 0.114A 0A 29.854A 0A 100.377 76.313% 617 16.3 41.54°C 0.979
12.101V 5.059V 3.316V 5.174V 131.535 49.48°C 114.81V
CL4 83.390A 0A 0A 0A 999.893 90.839% 854 25.3 44.25°C 0.996
11.990V 5.079V 3.315V 5.129V 1100.729 58.44°C 114.5V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.484A 1.966A 1.986A 0.972A 100.003 88.852% 0 <6.0 48.31°C 0.82
12.092V 5.087V 3.323V 5.144V 112.551 40.08°C 229.81V
20% 13.993A 2.951A 2.981A 1.17A 199.957 92.662% 0 <6.0 48.85°C 0.922
12.082V 5.084V 3.321V 5.129V 215.791 40.52°C 229.79V
30% 21.868A 3.444A 3.479A 1.368A 300.009 93.923% 0 <6.0 49.73°C 0.952
12.071V 5.082V 3.32V 5.117V 319.418 41.02°C 229.77V
40% 29.717A 3.938A 3.978A 1.568A 399.587 94.17% 0 <6.0 51.4°C 0.969
12.060V 5.08V 3.318V 5.103V 424.327 41.69°C 229.76V
50% 37.248A 4.925A 4.976A 1.768A 499.306 94.172% 496 10.1 42.05°C 0.975
12.049V 5.076V 3.316V 5.09V 530.206 56.51°C 229.74V
60% 44.849A 5.913A 5.974A 1.971A 599.826 93.958% 495 9.9 42.62°C 0.981
12.041V 5.074V 3.315V 5.075V 638.397 55.6°C 229.73V
70% 52.399A 6.901A 6.972A 2.173A 699.504 93.768% 680 18.2 43.18°C 0.983
12.031V 5.072V 3.313V 5.063V 745.995 52.67°C 229.71V
80% 60.035A 7.889A 7.97A 2.276A 799.532 93.426% 966 28.7 43.88°C 0.986
12.020V 5.07V 3.312V 5.053V 855.794 52.17°C 229.69V
90% 68.024A 8.385A 8.457A 2.38A 899.337 93.075% 1223 35.4 44.33°C 0.987
12.009V 5.068V 3.311V 5.043V 966.246 53.06°C 229.68V
100% 75.829A 8.882A 8.974A 2.991A 999.362 92.682% 1224 35.4 45.28°C 0.987
11.997V 5.066V 3.309V 5.015V 1078.27 55.5°C 229.66V
110% 83.578A 9.876A 10.066A 2.996A 1099.992 92.245% 1223 35.4 46.68°C 0.987
11.985V 5.063V 3.308V 5.007V 1192.468 57.54°C 229.64V
CL1 0.116A 14.883A 14.986A 0A 126.302 85.649% 0 <6.0 49.86°C 0.874
12.094V 5.059V 3.309V 5.172V 147.466 41.96°C 229.8V
CL2 0.114A 24.644A 0A 0A 126.228 84.448% 797 23.2 42.88°C 0.875
12.098V 5.066V 3.303V 5.176V 149.488 53.04°C 229.81V
CL3 0.114A 0A 29.815A 0A 100.38 77.019% 797 23.2 41.44°C 0.852
12.099V 5.059V 3.32V 5.173V 130.334 50.47°C 229.81V
CL4 83.398A 0A 0A 0A 999.914 93.266% 1217 35.1 44.73°C 0.987
11.989V 5.08V 3.316V 5.129V 1072.11 50.76°C 229.66V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.491A 0.496A 0.193A 19.997 67.316% 0 <6.0 37.8°C 0.836
12.103V 5.094V 3.327V 5.18V 29.708 36.54°C 114.85V
40W 2.702A 0.687A 0.694A 0.29A 39.999 79.343% 0 <6.0 39.3°C 0.931
12.101V 5.093V 3.326V 5.176V 50.418 37.63°C 114.83V
60W 4.176A 0.883A 0.893A 0.387A 60 83.961% 0 <6.0 40.7°C 0.95
12.099V 5.092V 3.326V 5.171V 71.463 38.34°C 114.83V
80W 5.648A 1.08A 1.091A 0.484A 79.943 87.018% 0 <6.0 42.62°C 0.972
12.096V 5.091V 3.326V 5.167V 91.871 39.06°C 114.82V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.491A 0.496A 0.193A 20.011 66.783% 0 <6.0 43.75°C 0.471
12.098V 5.091V 3.326V 5.179V 29.964 36.03°C 229.83V
40W 2.703A 0.688A 0.695A 0.29A 40.005 79.341% 0 <6.0 45.2°C 0.625
12.096V 5.09V 3.325V 5.175V 50.423 37.04°C 229.82V
60W 4.178A 0.884A 0.893A 0.387A 60.004 84.507% 0 <6.0 47.14°C 0.71
12.095V 5.09V 3.325V 5.17V 71.007 38.88°C 229.81V
80W 5.650A 1.081A 1.092A 0.484A 79.95 87.74% 0 <6.0 48.96°C 0.774
12.093V 5.089V 3.324V 5.166V 91.121 39.19°C 229.81V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load17.29mV15.45mV16.37mV11.13mVPass
20% Load18.00mV19.45mV19.55mV10.47mVPass
30% Load22.30mV16.83mV20.88mV11.03mVPass
40% Load19.13mV16.42mV17.80mV13.24mVPass
50% Load19.84mV16.37mV17.29mV13.75mVPass
60% Load19.13mV16.01mV16.42mV13.44mVPass
70% Load20.92mV17.45mV18.21mV14.06mVPass
80% Load19.54mV16.68mV18.47mV15.29mVPass
90% Load20.56mV17.45mV18.21mV15.14mVPass
100% Load32.54mV18.80mV20.55mV16.61mVPass
110% Load33.82mV19.18mV20.04mV17.69mVPass
Crossload125.41mV15.63mV18.68mV10.98mVPass
Crossload219.08mV22.63mV17.91mV10.62mVPass
Crossload317.90mV17.19mV22.78mV10.47mVPass
Crossload432.17mV17.33mV18.99mV17.04mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load17.80mV17.09mV17.70mV12.26mVPass
20% Load18.00mV18.17mV17.80mV11.49mVPass
30% Load17.95mV15.86mV18.11mV12.01mVPass
40% Load19.59mV17.29mV17.96mV14.98mVPass
50% Load17.80mV16.42mV17.14mV15.03mVPass
60% Load18.62mV16.37mV18.26mV13.50mVPass
70% Load20.92mV16.68mV18.98mV13.96mVPass
80% Load19.69mV18.53mV19.55mV14.98mVPass
90% Load21.69mV18.27mV19.34mV16.37mVPass
100% Load33.20mV17.69mV19.02mV16.53mVPass
110% Load35.90mV18.63mV20.87mV17.08mVPass
Crossload127.23mV16.10mV20.08mV11.20mVPass
Crossload218.16mV19.24mV15.34mV9.65mVPass
Crossload318.77mV17.96mV23.19mV10.82mVPass
Crossload435.64mV17.99mV18.46mV17.80mVPass

The results above are not used in the certification process

Asus ROG-THOR-1000P3-GAMING

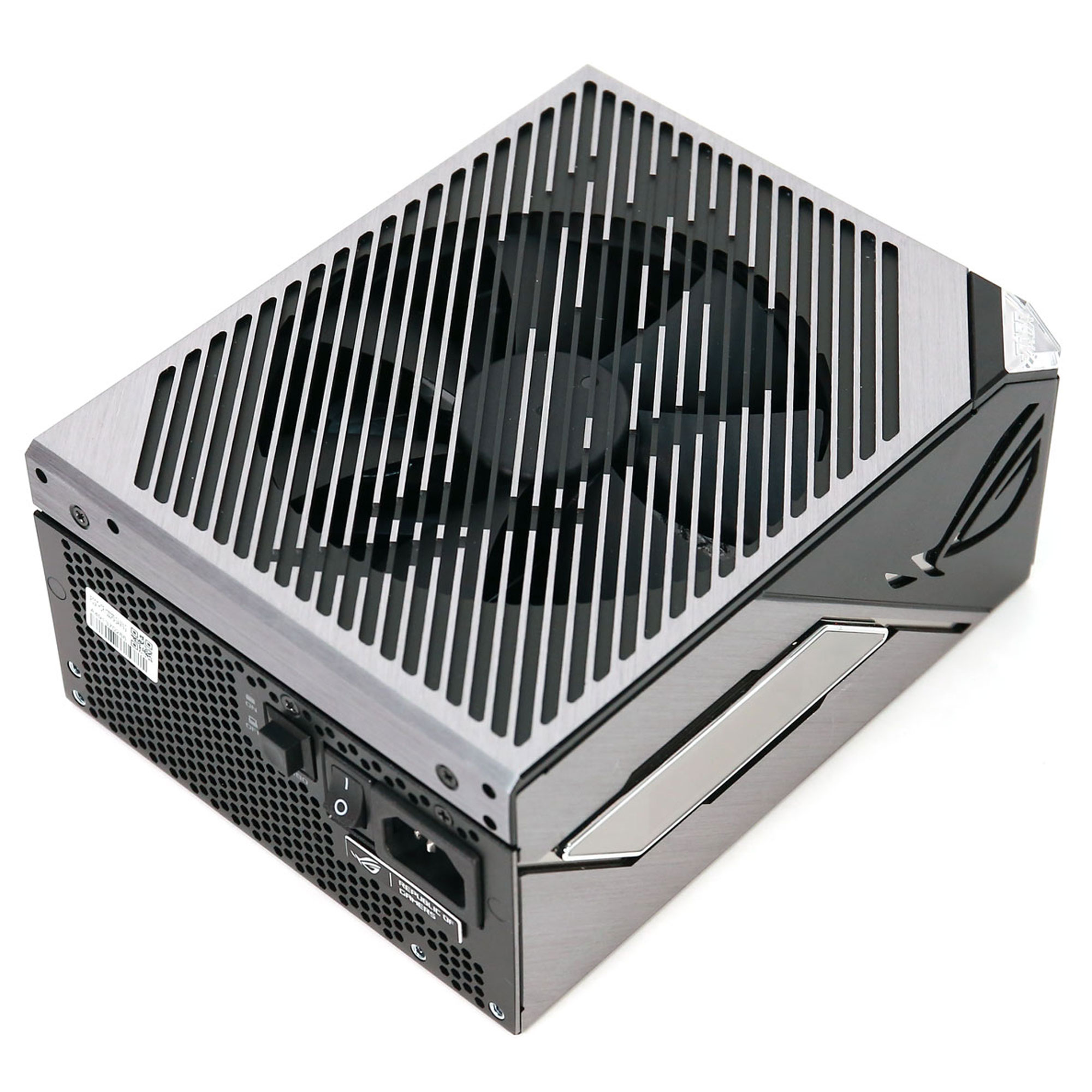

Top side

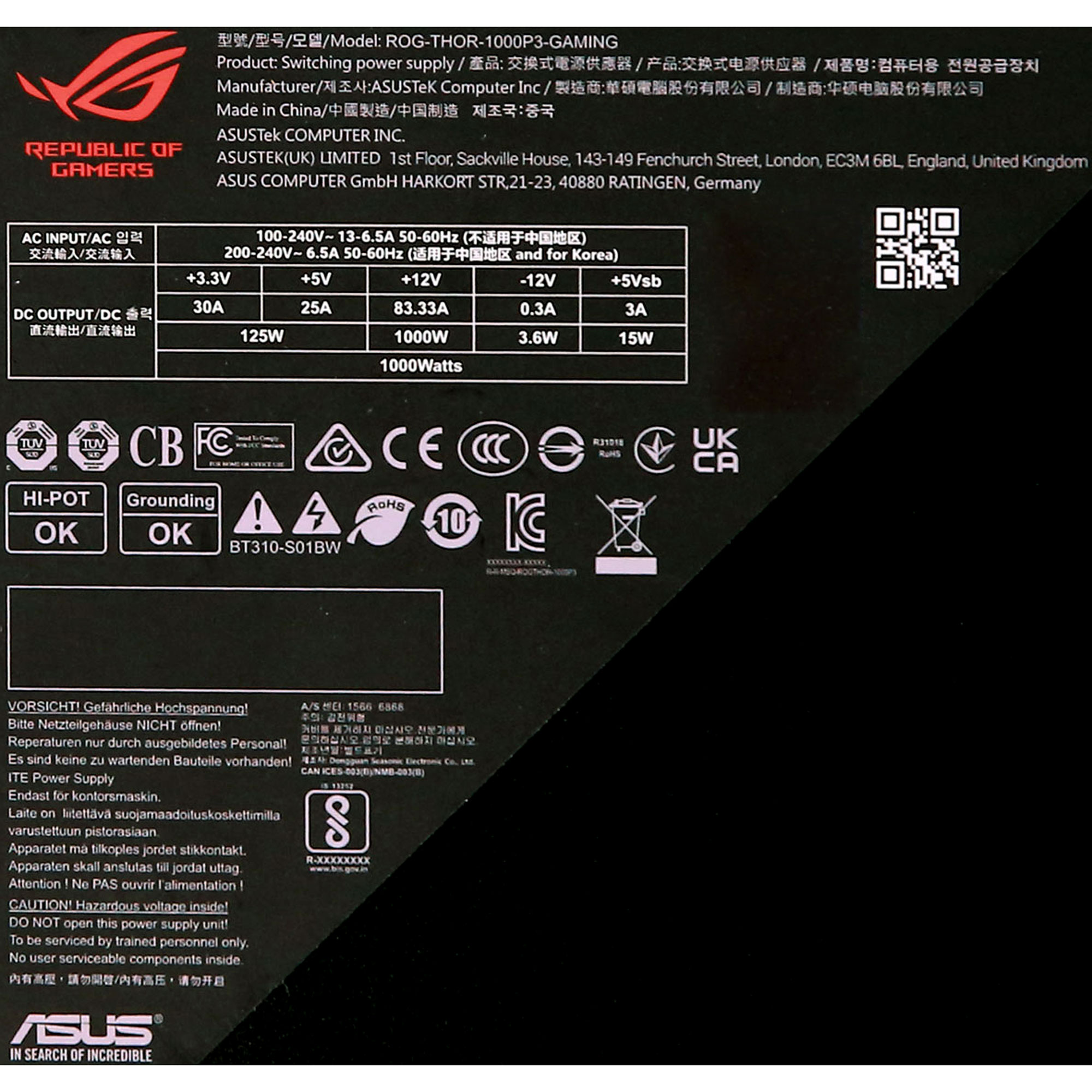

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
