CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

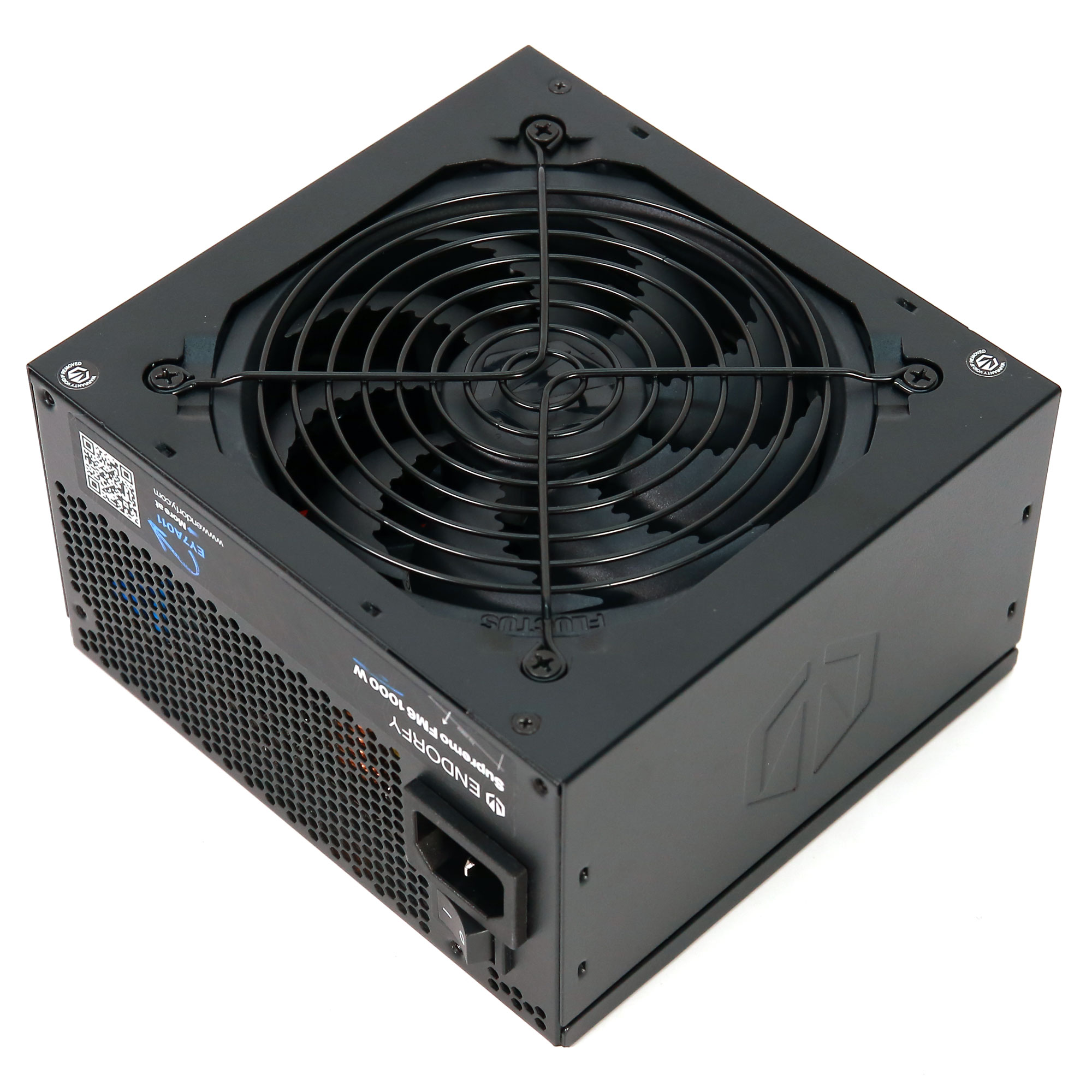

Endorfy Supremo FM6 1000W
Serial NumberEY7A0112411000904
Lab IDEY10002788
  • Report: 25PS2788A
  • Receipt Date: Apr 4, 2025
  • Test Date: Apr 16, 2025
  • Report Date: Apr 17, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEndorfy
Manufacturer (OEM)SAMA
SeriesSupremo
Model Number
Serial NumberEY7A0112411000904
DUT NotesThe OPP and OCP +12V triggering points are set too high.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6.5-13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan (Fluctus 10-1037)
Semi-Passive Operation
Cable DesignFully Modular

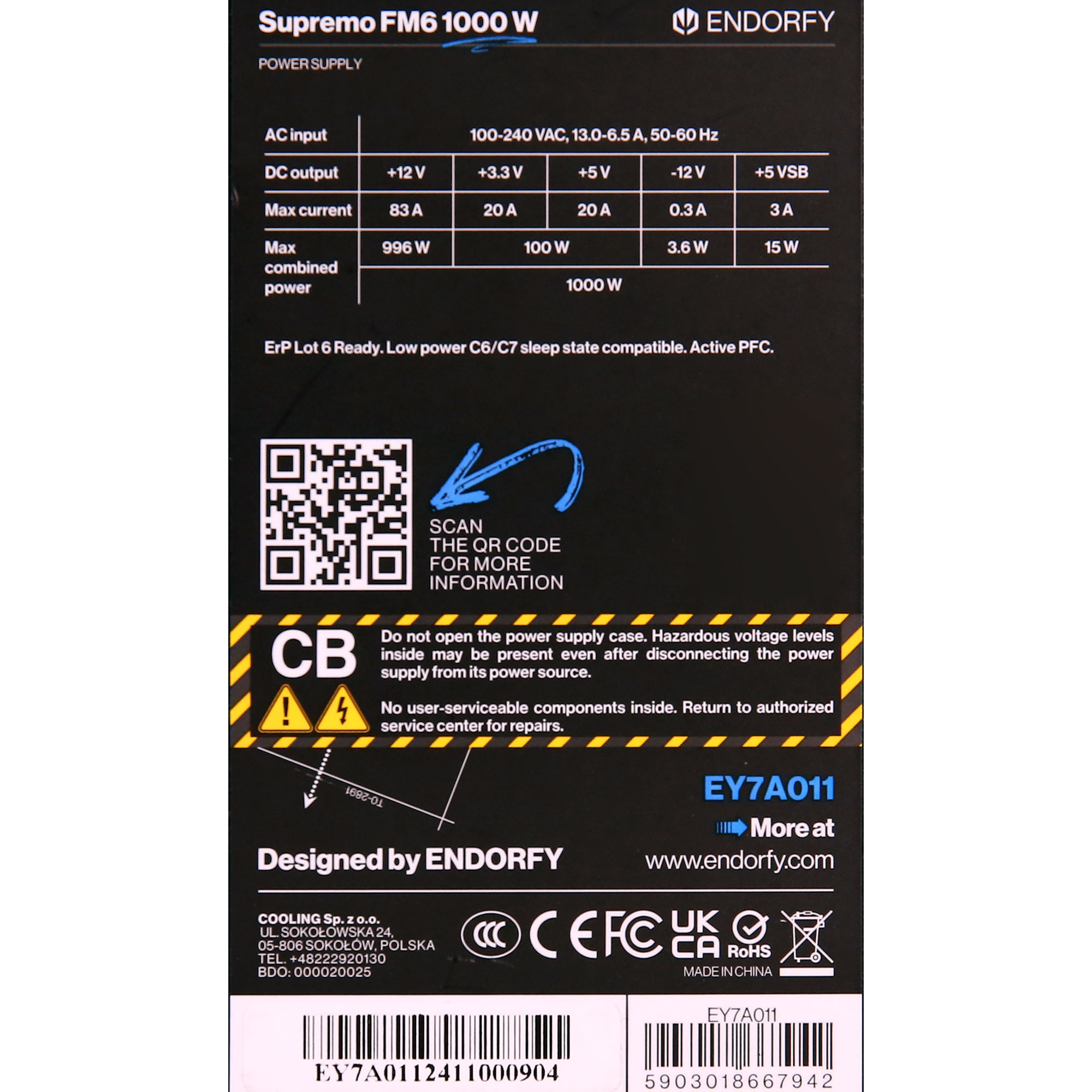

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208330.3
Watts100996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (600mm) 1 1 18-20AWG No
4+4 pin EPS12V (710mm) 2 2 18AWG No
6+2 pin PCIe (560mm) 3 3 18AWG No
12+4 pin PCIe (605mm) (600W) 1 1 16-22AWG No
SATA (560mm+155mm+155mm) 2 6 18AWG No

SATA (560mm+160mm) / 4-pin Molex (+160mm)

 1 2 / 1 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Sama
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor 5D-20 (5Ohm @ 25°C) & Relay
Bridge Rectifier(s)

2x GBU1508 (800V , 15A @ 40°C)
APFC MODFETs

2x Infineon IPP50R140CP (550V, 15A @ 100°C, Rds(on): 0.14Ohm)
APFC Boost Diode

1x CRMicro CRXF10D065G2 (650V, 9A @ 135°C)
Bulk Cap(s)

1x Nichicon (400V, 1,000uF , 2,000h @ 105°C, GG(M))
Main Switchers

4x WG B60R190
APFC Controller

1x Champion CM6500UNX
Resonant Controller

1x Champion CM6901T6X
Topology

Primary side: APFC, Full-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x 014N04A
5V & 3.3V DC-DC Converters: 4x WG N08V30 PWM Controller(s): 1x ANPEC APW7159C
Filtering Capacitors

Electrolytic: 4x Nippon Chemi-con (@ 105°C, W), 1x Nichicon (4-10,000 @ 105°C, HE) 1x Nippon Chemi-con (4-10,000 @ 105°C, KY), 2x Rubycon (4-10,000 @ 105°C, YXJ), 2x Rubycon (6-10,000 @ 105°C, ZLH), 1x Rubycon (2-10,000 @ 105°C, YXF) Polymer: 22x FPCAP
Supervisor IC Esthome EST.7610F (OVP, UVP, FPOB, PGO)
Fan Power Transistor STMicroelectronics 2SD882
Fan Model Endofy Fluctus 10-1037 (120mm, 12V, 0.15A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier

1x SB1060L SBR (60V, 10A @ 25°C)
Standby PWM Controller Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Commission Regulation (EU) No 617/2013 Testing✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)90.011%
Average Noise Output (>1450 Load Combinations)21.91dBA
Average PF (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load67.203%
Standby Power Consumption0.0437W
12V Ripple (Full Load)39.12mV
5V Ripple (Full Load)21.57mV
3.3V Ripple (Full Load)21.34mV
5VSB Ripple (Full Load)12.19mV
12V Load Regulation0.67%
5V Load Regulation0.18%
3.3V Load Regulation0.63%
5VSB Load Regulation2.49%
Inrush Current29.960A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)92.182%
Average Noise Output (>1450 Load Combinations)20.50dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load67.504%
Standby Power Consumption0.1243W
12V Ripple (Full Load)42.03mV
5V Ripple (Full Load)23.08mV
3.3V Ripple (Full Load)21.06mV
5VSB Ripple (Full Load)12.45mV
12V Load Regulation0.66%
5V Load Regulation0.16%
3.3V Load Regulation0.60%
5VSB Load Regulation2.49%
Inrush Current51.740A
12V Transient Response (200%)11.36V
5V Transient Response (200%)4.929V
3.3V Transient Response (200%)3.252V
5VSB Transient Response (200%)4.957V
Hold-Up Time & Power Ok Signal22.40ms
AC Loss to PWR_OK Hold Up Time18.10ms
PWR_OK Inactive to DC Loss Delay4.30ms
PSU Timings: T1 (20% / 100%)95.0ms96.0ms
PSU Timings: T3 (20% / 100%)108.0ms107.0ms
12V OCP (30.1°C / 44.6°C)>124.60A (150.12%), 12.003V124.00A (149.40%), 12.003V
5V OCP (30.1°C / 44.6°C)26.8A (134.00%), 4.981V26.8A (134.00%), 4.973V
3.3V OCP (30.1°C / 44.6°C)24.7A (123.50%), 3.325V24.3A (121.50%), 3.329V
5VSB OCP (30.1°C / 44.6°C)4.3A (143.33%), 5.009V4.2A (140.00%), 5.005V
OPP (30.54°C / 42.28°C)150.31%140.11%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.4
AC Loss to PWR_OK Hold Up Time (ms)18.1
PWR_OK Inactive to DC Loss Delay (ms)4.3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.10 V 115.07 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.00 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.15 % 2.00 % PASS
Real Power: 0.044 W 0.020 W N/A 0.060 W N/A N/A
Apparent Power: 9.311 W 9.289 W N/A 9.365 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.25 V 230.24 V 227.70 V 230.28 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.15 % 2.00 % PASS
Real Power: 0.124 W 0.107 W N/A 0.145 W N/A N/A
Apparent Power: 30.659 W 30.633 W N/A 30.676 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

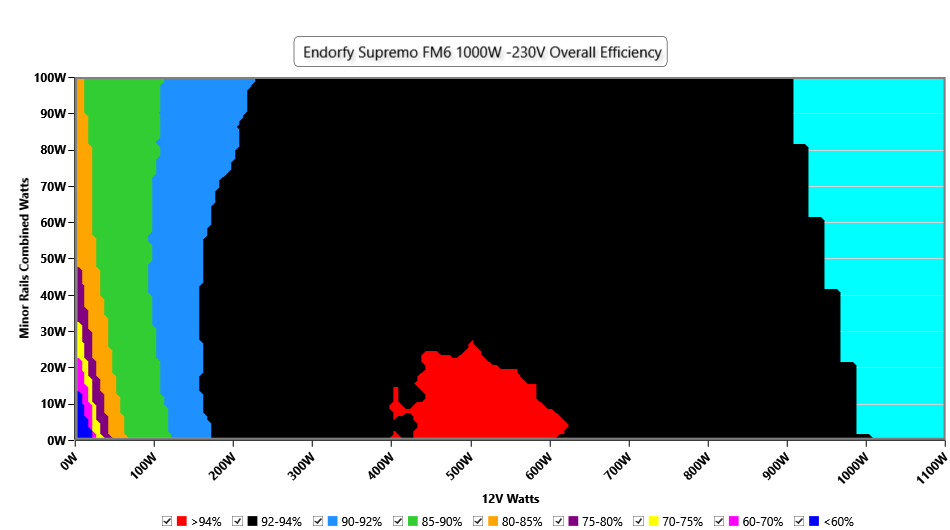

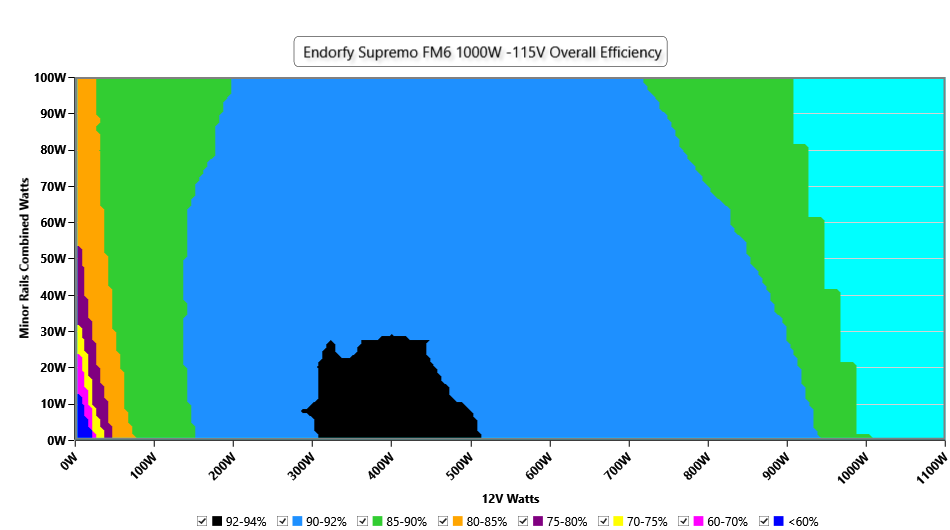

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

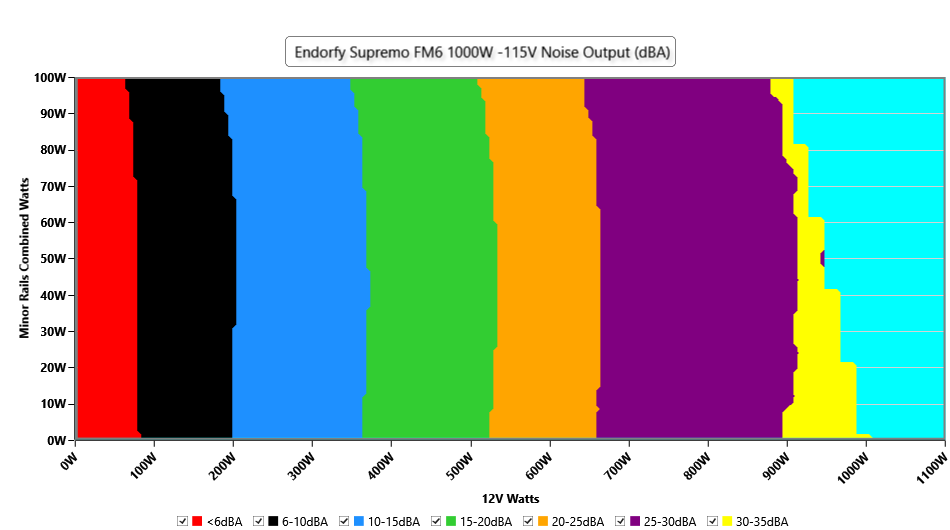

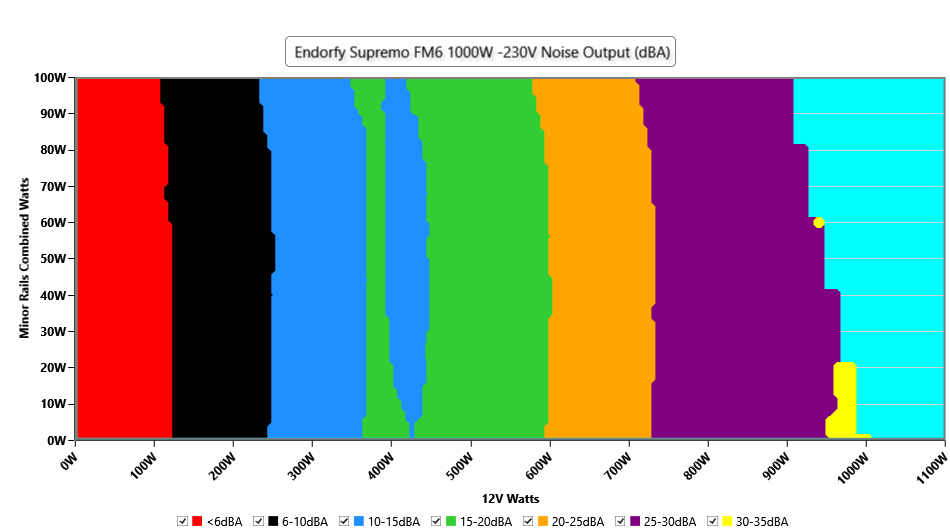

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 68.543% 0.036
5.102V 0.336W 115.07V
2 0.09A 0.459W 75.078% 0.064
5.102V 0.612W 115.07V
3 0.55A 2.801W 82.064% 0.275
5.092V 3.413W 115.07V
4 1A 5.083W 82.729% 0.372
5.082V 6.144W 115.07V
5 1.5A 7.609W 81.78% 0.422
5.072V 9.305W 115.07V
6 3.001A 15.118W 78.994% 0.49
5.039V 19.139W 115.06V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 55.166% 0.014
5.102V 0.417W 230.25V
2 0.09A 0.459W 65.351% 0.023
5.101V 0.703W 230.25V
3 0.55A 2.8W 79.148% 0.109
5.092V 3.538W 230.24V
4 1A 5.083W 80.569% 0.18
5.083V 6.308W 230.24V
5 1.5A 7.609W 81.08% 0.24
5.073V 9.386W 230.24V
6 3A 15.12W 79.921% 0.346
5.04V 18.919W 230.24V

Protection Features

OCP (Normal @ 30.1°C)12V: >124.60A (150.12%), 12.003V
5V: 26.8A (134.00%), 4.981V
3.3V: 24.7A (123.50%), 3.325V
5VSB: 4.3A (143.33%), 5.009V
OCP (Hot @ 44.6°C)12V: 124.00A (149.40%), 12.003V
5V: 26.8A (134.00%), 4.973V
3.3V: 24.3A (121.50%), 3.329V
5VSB: 4.2A (140.00%), 5.005V
OPP (Normal @ 30.5°C)1503.07W (150.31%)
OPP (Hot @ 42.3°C)1401.10W (140.11%)
OTP✓ (135°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32A✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.492A 1.999A 1.974A 0.985A 100.003 87.18% 930 15.6 40.29°C 0.966
12.077V 5.004V 3.344V 5.077V 114.707 42.5°C 115.03V
20% 14.007A 2.999A 2.963A 1.184A 199.956 90.761% 1000 18.3 40.79°C 0.979
12.069V 5.003V 3.342V 5.066V 220.311 44.24°C 115V
30% 21.885A 3.499A 3.459A 1.385A 300.008 91.624% 1071 20.3 41.08°C 0.981
12.061V 5.002V 3.34V 5.056V 327.433 44.96°C 114.97V
40% 29.734A 4A 3.955A 1.586A 399.588 91.752% 1180 23.6 41.91°C 0.981
12.053V 5.002V 3.338V 5.046V 435.509 46.67°C 114.93V
50% 37.259A 5.001A 4.948A 1.788A 499.302 91.614% 1273 25.9 42.3°C 0.982
12.045V 5.001V 3.335V 5.034V 545.004 48.27°C 114.89V
60% 44.862A 6.002A 5.942A 1.991A 599.819 91.294% 1369 28.2 42.59°C 0.984
12.037V 4.999V 3.333V 5.023V 657.019 49.03°C 114.85V
70% 52.410A 7.004A 6.937A 2.195A 699.543 90.836% 1485 30.7 43.37°C 0.986
12.029V 4.999V 3.33V 5.012V 770.118 50.68°C 114.81V
80% 60.034A 8.003A 7.932A 2.299A 799.54 90.3% 1509 31.1 43.97°C 0.988
12.021V 4.998V 3.328V 5.003V 885.425 52.26°C 114.76V
90% 67.999A 8.504A 8.417A 2.403A 899.313 89.721% 1511 31.1 44.6°C 0.989
12.013V 4.997V 3.326V 4.994V 1002.336 55.08°C 114.72V
100% 75.783A 9.006A 8.934A 3.016A 999.335 89.039% 1514 31.1 45.55°C 0.991
12.004V 4.996V 3.324V 4.974V 1122.355 57.52°C 114.68V
110% 83.504A 10.009A 10.022A 3.021A 1099.943 88.112% 1511 31.1 46.44°C 0.992
11.995V 4.995V 3.322V 4.966V 1248.35 58.41°C 114.63V
CL1 0.116A 12.03A 11.881A 0A 101.3 83.208% 1433 29.5 41.63°C 0.97
12.072V 5.004V 3.341V 5.089V 121.748 46.46°C 115.04V
CL2 0.116A 19.978A 0A 0A 101.378 81.617% 1263 25.7 42.01°C 0.971
12.077V 5.005V 3.351V 5.094V 124.214 45.62°C 115.04V
CL3 0.115A 0A 19.783A 0A 67.384 74.223% 1139 22 41.47°C 0.96
12.074V 5.004V 3.336V 5.09V 90.786 44.46°C 115.05V
CL4 83.222A 0A 0A 0A 999.897 89.767% 1493 30.9 46.34°C 0.99
12.014V 4.998V 3.331V 5.049V 1113.886 56.36°C 114.69V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.491A 1.999A 1.974A 0.985A 99.997 88.419% 972 17.1 40.39°C 0.833
12.077V 5.003V 3.344V 5.077V 113.093 42.12°C 230.23V
20% 14.006A 2.999A 2.963A 1.184A 199.948 92.191% 1029 18.8 40.72°C 0.913
12.069V 5.003V 3.342V 5.066V 216.892 43.37°C 230.22V
30% 21.883A 3.499A 3.458A 1.385A 300 93.334% 1097 21.4 41.5°C 0.941
12.062V 5.002V 3.34V 5.056V 321.434 44.25°C 230.21V
40% 29.731A 4A 3.955A 1.586A 399.578 93.59% 1166 23.4 41.59°C 0.954
12.054V 5.001V 3.338V 5.046V 426.945 44.72°C 230.19V
50% 37.256A 5.001A 4.947A 1.788A 499.295 93.651% 1257 25.6 42.26°C 0.961
12.046V 5V 3.335V 5.035V 533.146 45.76°C 230.17V
60% 44.860A 6.002A 5.941A 1.991A 599.818 93.537% 1369 28.2 42.83°C 0.966
12.037V 4.999V 3.333V 5.023V 641.265 47.1°C 230.15V
70% 52.406A 7.004A 6.936A 2.195A 699.544 93.351% 1479 30.5 43.3°C 0.97
12.030V 4.998V 3.331V 5.012V 749.372 47.49°C 230.13V
80% 60.030A 8.003A 7.931A 2.299A 799.546 93.089% 1511 31.1 43.74°C 0.972
12.021V 4.998V 3.329V 5.003V 858.903 48.85°C 230.11V
90% 67.995A 8.505A 8.416A 2.403A 899.324 92.794% 1512 31.1 44.95°C 0.975
12.013V 4.997V 3.327V 4.994V 969.152 50.55°C 230.1V
100% 75.779A 9.007A 8.932A 3.016A 999.343 92.407% 1515 31.1 45.13°C 0.977
12.004V 4.996V 3.325V 4.974V 1081.464 51.54°C 230.08V
110% 83.499A 10.009A 10.02A 3.021A 1099.946 91.981% 1514 31.1 46.44°C 0.979
11.996V 4.995V 3.323V 4.967V 1195.832 54.19°C 230.06V
CL1 0.116A 12.031A 11.88A 0A 101.301 84.106% 1384 28.6 40.35°C 0.844
12.073V 5.004V 3.341V 5.089V 120.441 43.83°C 230.23V
CL2 0.116A 19.979A 0A 0A 101.378 82.489% 1220 24.6 40.44°C 0.847
12.077V 5.004V 3.351V 5.094V 122.899 43.87°C 230.23V
CL3 0.115A 0A 19.78A 0A 67.384 75.293% 1116 21.8 41.55°C 0.791
12.074V 5.004V 3.336V 5.089V 89.5 43.91°C 230.24V
CL4 83.218A 0A 0A 0A 999.913 93.095% 1499 31 45.94°C 0.977
12.015V 4.998V 3.332V 5.049V 1074.082 51.21°C 230.07V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.5A 0.493A 0.196A 20.002 66.78% 656 <6.0 36.11°C 0.863
12.084V 5.004V 3.345V 5.098V 29.938 37.03°C 115.05V
40W 2.706A 0.699A 0.691A 0.294A 40.003 78.844% 773 9.2 37.5°C 0.931
12.082V 5.005V 3.345V 5.095V 50.74 38.44°C 115.06V
60W 4.182A 0.899A 0.888A 0.393A 60.003 83.581% 837 11.8 38.45°C 0.946
12.081V 5.004V 3.345V 5.092V 71.791 39.92°C 115.05V
80W 5.656A 1.099A 1.085A 0.491A 79.952 85.806% 885 14 39.35°C 0.961
12.079V 5.004V 3.344V 5.089V 93.176 41.16°C 115.04V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.229A 0.5A 0.493A 0.196A 20.001 67.01% 742 7.8 36.12°C 0.518
12.084V 5.004V 3.345V 5.098V 29.846 37.22°C 230.24V
40W 2.706A 0.699A 0.691A 0.294A 40.001 79.08% 832 11.6 37.11°C 0.662
12.083V 5.004V 3.345V 5.095V 50.584 38.29°C 230.24V
60W 4.182A 0.899A 0.888A 0.393A 60 84.502% 876 13.7 38.85°C 0.746
12.081V 5.004V 3.345V 5.092V 71.007 40.45°C 230.24V
80W 5.656A 1.099A 1.085A 0.491A 79.945 87.135% 915 15.1 39.12°C 0.796
12.080V 5.003V 3.344V 5.089V 91.749 40.72°C 230.24V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load19.07mV13.91mV14.22mV8.51mVPass
20% Load25.32mV15.76mV15.31mV9.34mVPass
30% Load29.08mV15.61mV15.98mV9.50mVPass
40% Load33.20mV16.59mV15.62mV9.96mVPass
50% Load36.81mV17.77mV17.33mV10.17mVPass
60% Load37.79mV17.77mV17.58mV11.46mVPass
70% Load38.25mV19.53mV18.46mV11.30mVPass
80% Load38.00mV20.87mV19.50mV12.13mVPass
90% Load39.13mV21.89mV20.32mV12.54mVPass
100% Load39.12mV21.57mV21.34mV12.19mVPass
110% Load41.58mV22.92mV21.19mV13.12mVPass
Crossload121.82mV18.99mV17.34mV9.03mVPass
Crossload227.48mV26.79mV15.67mV9.86mVPass
Crossload322.68mV14.94mV22.75mV8.26mVPass
Crossload437.39mV19.18mV18.60mV13.12mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.23mV13.19mV14.69mV8.41mVPass
20% Load25.52mV14.63mV15.00mV8.93mVPass
30% Load29.03mV15.97mV16.19mV9.76mVPass
40% Load33.00mV16.95mV16.70mV10.37mVPass
50% Load36.76mV17.72mV16.70mV10.43mVPass
60% Load37.48mV18.60mV17.79mV11.30mVPass
70% Load38.21mV20.14mV19.08mV11.41mVPass
80% Load39.13mV22.20mV20.43mV12.03mVPass
90% Load40.89mV22.20mV21.67mV12.75mVPass
100% Load42.03mV23.08mV21.06mV12.45mVPass
110% Load45.63mV24.71mV22.08mV12.46mVPass
Crossload122.88mV18.87mV16.36mV9.10mVPass
Crossload227.99mV25.66mV15.05mV9.45mVPass
Crossload322.48mV14.37mV23.22mV8.15mVPass
Crossload438.99mV19.22mV18.67mV11.35mVPass

The results above are not used in the certification process

Endorfy Supremo FM6 1000W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
