This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO

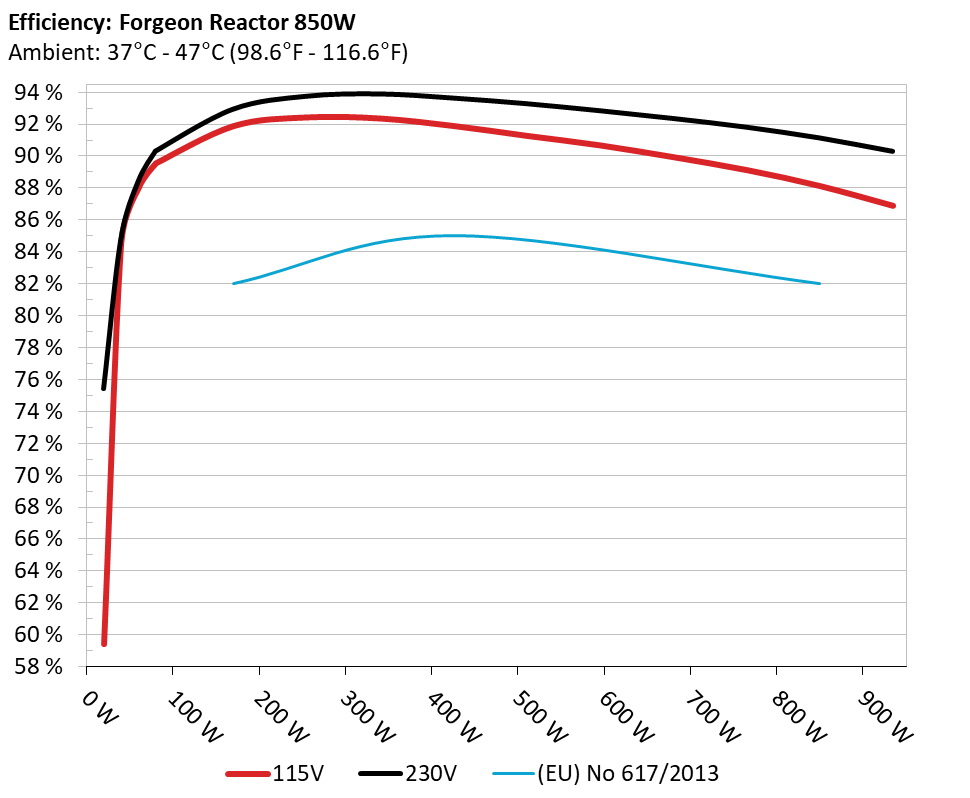

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB Efficiency
INFO

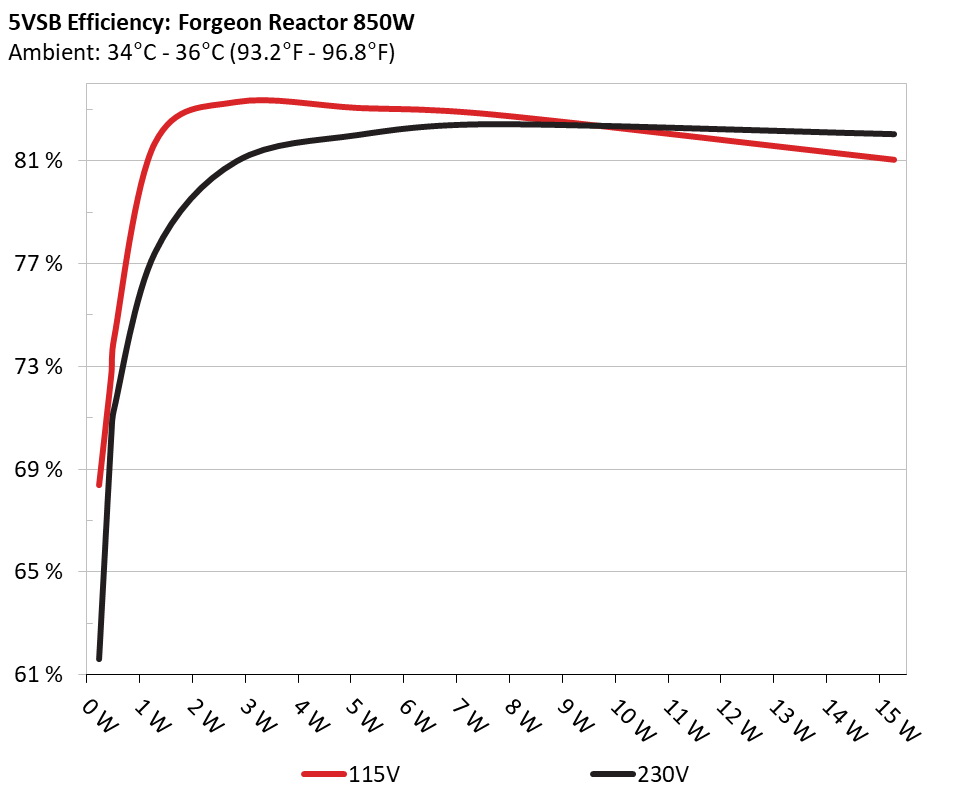

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
PWR_OK inactive to DC loss delay <=1ms
UVP (Full Load @ 90V)
✓
UVP (Damage @ 80V)
✓

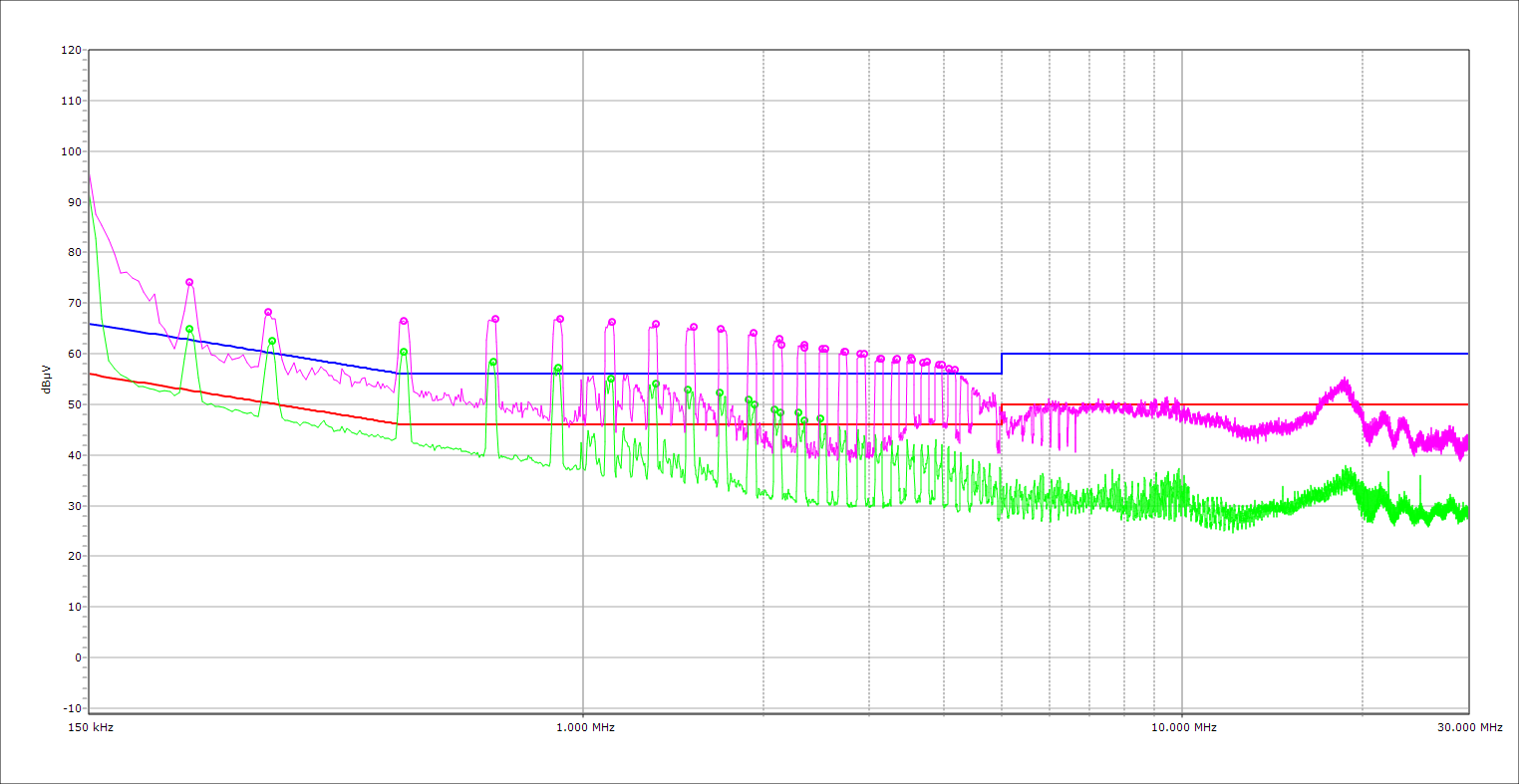

Conducted Emissions EN55032 & CISPR 32A
✗
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.192A
1.977A
1.995A
0.976A
85.017
89.443%
515
<6.0
40.45°C
0.961
12.214V
5.06V
3.309V
5.125V
95.049
43.94°C
114.91V
20%
11.400A
2.968A
2.996A
1.174A
170.004
91.899%
517
<6.0
40.95°C
0.978
12.201V
5.057V
3.305V
5.112V
184.99
45.38°C
114.89V
30%
17.966A
3.464A
3.498A
1.373A
255.034
92.444%
519
<6.0
41.1°C
0.985
12.188V
5.054V
3.303V
5.099V
275.882
48.62°C
114.86V
40%
24.552A
3.961A
4.001A
1.573A
340.135
92.376%
519
<6.0
41.7°C
0.989
12.175V
5.052V
3.3V
5.087V
368.206
49.73°C
114.84V
50%
30.819A
4.953A
5.006A
1.775A
425.321
91.905%
911
23.7
42.38°C
0.99
12.161V
5.05V
3.297V
5.073V
462.781
51.55°C
114.81V
60%
37.040A
5.946A
6.012A
1.977A
509.848
91.292%
1395
35.8
42.82°C
0.991
12.150V
5.048V
3.295V
5.059V
558.481
52.04°C
114.79V
70%
43.331A
6.938A
7.018A
2.181A
595.126
90.692%
1665
40.4
43.16°C
0.993
12.139V
5.047V
3.292V
5.046V
656.211
51.88°C
114.77V
80%
49.657A
7.935A
8.031A
2.285A
679.984
89.953%
1726
41.5
43.6°C
0.994
12.124V
5.043V
3.288V
5.033V
755.937
54.14°C
114.74V
90%
56.398A
8.435A
8.518A
2.39A
765.444
89.139%
1728
41.5
44.35°C
0.995
12.109V
5.04V
3.288V
5.021V
858.711
57.1°C
114.72V
100%
62.889A
8.936A
9.044A
3.002A
850.247
88.138%
1731
41.5
45.03°C
0.995
12.093V
5.037V
3.285V
4.999V
964.677
60.15°C
114.7V
110%
69.281A
9.938A
10.155A
3.008A
934.826
86.898%
1733
41.5
46.53°C
0.995
12.075V
5.033V
3.28V
4.988V
1075.782
64.55°C
114.67V
CL1
0.117A
12.323A
12.46A
0.001A
104.336
83.719%
526
<6.0
41.55°C
0.965
12.191V
5.032V
3.283V
5.13V
124.628
56.04°C
114.9V
CL2
0.115A
20.027A
0A
0.001A
101.418
81.811%
520
<6.0
41.61°C
0.964
12.198V
4.994V
3.301V
5.136V
123.97
54.07°C
114.9V
CL3
0.115A
0A
20.32A
0A
67.411
75.442%
519
<6.0
41.31°C
0.953
12.197V
5.029V
3.248V
5.134V
89.357
52.86°C
114.92V
CL4
70.184A
0A
0A
0.007A
849.942
89.139%
1730
41.5
45.71°C
0.995
12.110V
5.049V
3.293V
5.078V
953.51
58.02°C
114.71V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.191A
1.977A
1.994A
0.976A
85.016
90.136%
514
<6.0
40.35°C
0.879
12.214V
5.06V
3.311V
5.125V
94.318
43.81°C
230.03V
20%
11.399A
2.968A
2.994A
1.174A
170
92.949%
515
<6.0
40.91°C
0.936
12.202V
5.056V
3.307V
5.112V
182.894
44.97°C
230.02V
30%
17.964A
3.464A
3.496A
1.373A
255.023
93.762%
516
<6.0
41.17°C
0.956
12.189V
5.054V
3.304V
5.1V
271.989
46.57°C
230.01V
40%
24.550A
3.961A
3.999A
1.573A
340.127
93.905%
517
<6.0
41.7°C
0.967
12.176V
5.051V
3.302V
5.087V
362.201
47.92°C
229.99V
50%
30.815A
4.953A
5.003A
1.775A
425.285
93.647%
887
22.7
42.15°C
0.973
12.162V
5.049V
3.299V
5.073V
454.14
49.98°C
229.98V
60%
37.036A
5.946A
6.008A
1.977A
509.815
93.299%
1274
33.6
42.65°C
0.978
12.151V
5.048V
3.296V
5.059V
546.436
50.62°C
229.97V
70%
43.334A
6.939A
7.015A
2.181A
595.164
92.853%
1668
40.4
43.08°C
0.98
12.139V
5.047V
3.294V
5.046V
640.976
51.13°C
229.96V
80%
49.657A
7.936A
8.026A
2.285A
680.001
92.369%
1726
41.5
43.96°C
0.983
12.124V
5.042V
3.29V
5.034V
736.182
53.18°C
229.95V
90%
56.394A
8.436A
8.521A
2.39A
765.442
91.82%
1729
41.5
44.31°C
0.985
12.110V
5.04V
3.287V
5.022V
833.627
55.58°C
229.94V
100%
62.888A
8.938A
9.047A
3.001A
850.261
91.142%
1732
41.5
45.24°C
0.986
12.094V
5.036V
3.283V
4.999V
932.887
58.85°C
229.92V
110%
69.284A
9.94A
10.16A
3.008A
934.86
90.304%
1734
41.5
46.55°C
0.987
12.075V
5.032V
3.278V
4.988V
1035.238
63.21°C
229.9V
CL1
0.117A
12.329A
12.468A
0.001A
104.339
84.486%
524
<6.0
40.41°C
0.914
12.192V
5.03V
3.281V
5.13V
123.5
54.22°C
230V
CL2
0.115A
20.035A
0A
0.001A
101.421
82.544%
521
<6.0
41.67°C
0.914
12.199V
4.992V
3.3V
5.136V
122.874
53.4°C
230V
CL3
0.115A
0A
20.337A
0A
67.41
75.897%
520
<6.0
41.55°C
0.877
12.200V
5.028V
3.245V
5.134V
88.821
53.28°C
230.02V
CL4
70.161A
0A
0A
0.007A
849.809
92.144%
1728
41.5
45.2°C
0.986
12.112V
5.05V
3.293V
5.079V
922.26
56.69°C
229.98V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.216A
0.494A
0.498A
0.194A
20.018
59.404%
510
<6.0
36.68°C
0.897
12.225V
5.065V
3.314V
5.148V
33.697
41.33°C
114.93V
40W
2.676A
0.691A
0.697A
0.292A
40.014
84.634%
512
<6.0
38.03°C
0.93
12.222V
5.065V
3.313V
5.146V
47.281
41.72°C
114.93V
60W
4.136A
0.889A
0.897A
0.389A
60.013
88.01%
513
<6.0
38.46°C
0.949
12.220V
5.064V
3.312V
5.142V
68.187
41.86°C
114.92V
80W
5.595A
1.087A
1.097A
0.487A
79.989
89.56%
514
<6.0
39.63°C
0.959
12.217V
5.063V
3.311V
5.138V
89.312
42.86°C
114.91V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.216A
0.493A
0.497A
0.194A
20.017
75.402%
510
<6.0
36.87°C
0.606
12.229V
5.068V
3.318V
5.15V
26.549
40.28°C
230.02V
40W
2.675A
0.691A
0.697A
0.292A
40.014
84.781%
511
<6.0
37.42°C
0.755
12.225V
5.065V
3.316V
5.146V
47.196
41.11°C
230.02V
60W
4.136A
0.889A
0.896A
0.389A
60.013
88.402%
512
<6.0
38.38°C
0.831
12.221V
5.064V
3.314V
5.142V
67.888
41.66°C
230.03V
80W
5.594A
1.087A
1.096A
0.487A
79.988
90.316%
512
<6.0
39.15°C
0.872
12.218V
5.062V
3.314V
5.137V
88.567
42.47°C
230.03V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
10.2 mV
8.2 mV
6.4 mV
9.3 mV
Pass
20% Load
10.7 mV
8.9 mV
7.4 mV
12.3 mV
Pass
30% Load
11.3 mV
11.1 mV
7.9 mV
16.4 mV
Pass
40% Load
11.4 mV
12.6 mV
9.4 mV
21.9 mV
Pass
50% Load
14.2 mV
14.0 mV
10.6 mV
25.6 mV
Pass
60% Load
13.9 mV
14.4 mV
13.2 mV
31.7 mV
Pass
70% Load
16.0 mV
16.4 mV
14.7 mV
35.4 mV
Pass
80% Load
16.6 mV
18.2 mV
18.7 mV
39.7 mV
Pass
90% Load
17.8 mV
20.0 mV
19.9 mV
44.1 mV
Pass
100% Load
25.4 mV
23.9 mV
20.6 mV
45.1 mV
Pass
110% Load
28.0 mV
23.5 mV
21.6 mV
49.4 mV
Pass
Crossload 1
16.7 mV
19.2 mV
21.2 mV
11.1 mV
Pass
Crossload 2
11.4 mV
11.1 mV
15.7 mV
10.8 mV
Pass
Crossload 3
11.3 mV
27.0 mV
17.2 mV
8.5 mV
Pass
Crossload 4
22.3 mV
14.3 mV
9.4 mV
37.5 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
9.4 mV
8.1 mV
7.0 mV
9.5 mV
Pass
20% Load
10.8 mV
9.1 mV
7.2 mV
12.3 mV
Pass
30% Load
10.7 mV
10.4 mV
7.7 mV
16.6 mV
Pass
40% Load
11.5 mV
11.4 mV
8.7 mV
21.6 mV
Pass
50% Load
12.7 mV
14.1 mV
10.9 mV
26.2 mV
Pass
60% Load
14.0 mV
14.9 mV
12.2 mV
29.7 mV
Pass
70% Load
16.2 mV
16.1 mV
13.3 mV
36.3 mV
Pass
80% Load
16.6 mV
18.3 mV
18.8 mV
41.2 mV
Pass
90% Load
19.4 mV
20.9 mV
19.6 mV
44.2 mV
Pass
100% Load
26.6 mV
22.2 mV
22.7 mV
44.7 mV
Pass
110% Load
27.6 mV
24.1 mV
22.6 mV
47.8 mV
Pass
Crossload 1
15.9 mV
18.6 mV
21.4 mV
11.2 mV
Pass
Crossload 2
10.1 mV
10.8 mV
15.8 mV
11.1 mV
Pass
Crossload 3
10.2 mV
26.6 mV
17.8 mV
8.4 mV
Pass
Crossload 4
20.1 mV
15.3 mV
10.6 mV
36.1 mV
Pass
The results above are not used in the certification process
Forgeon Reactor 850W

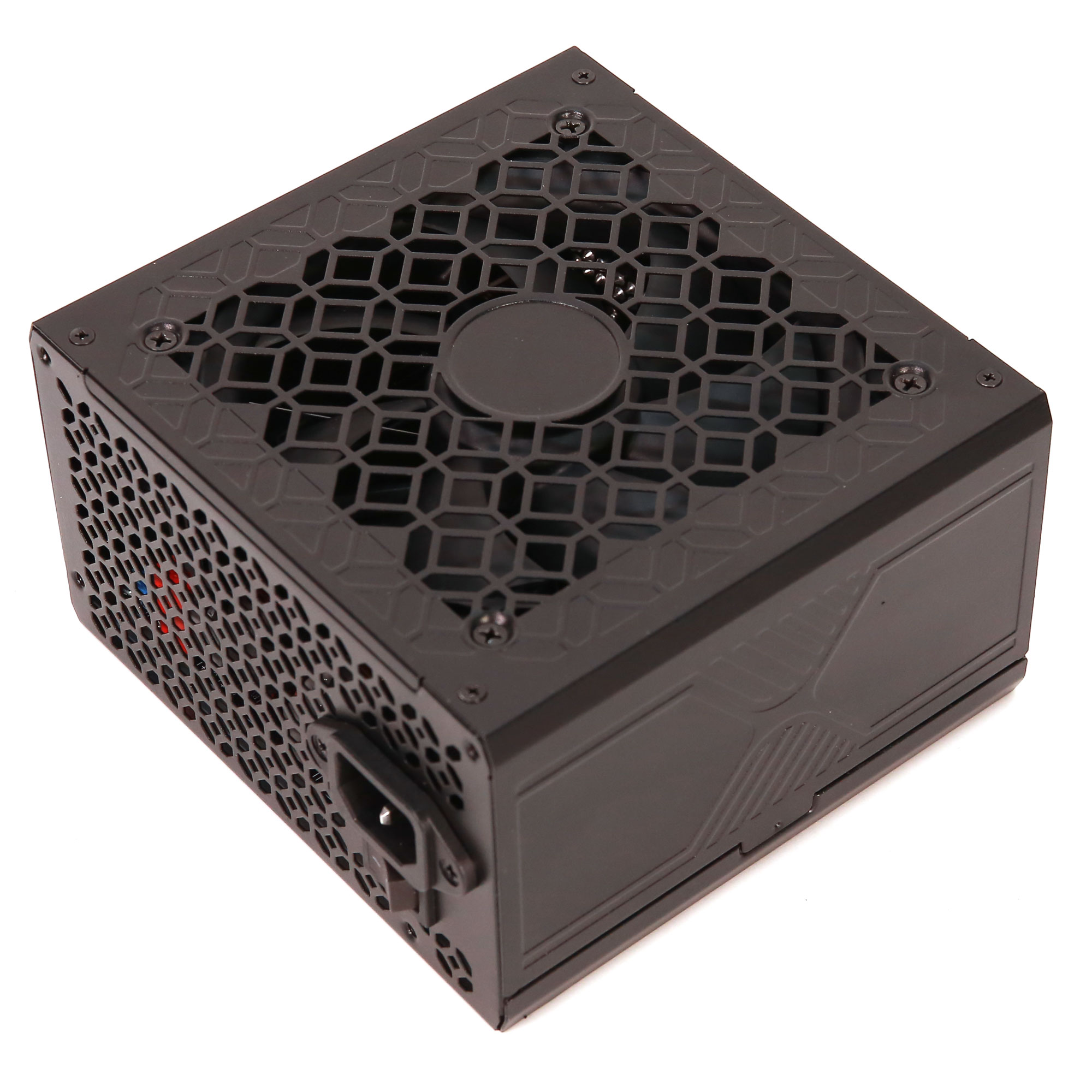

Top side

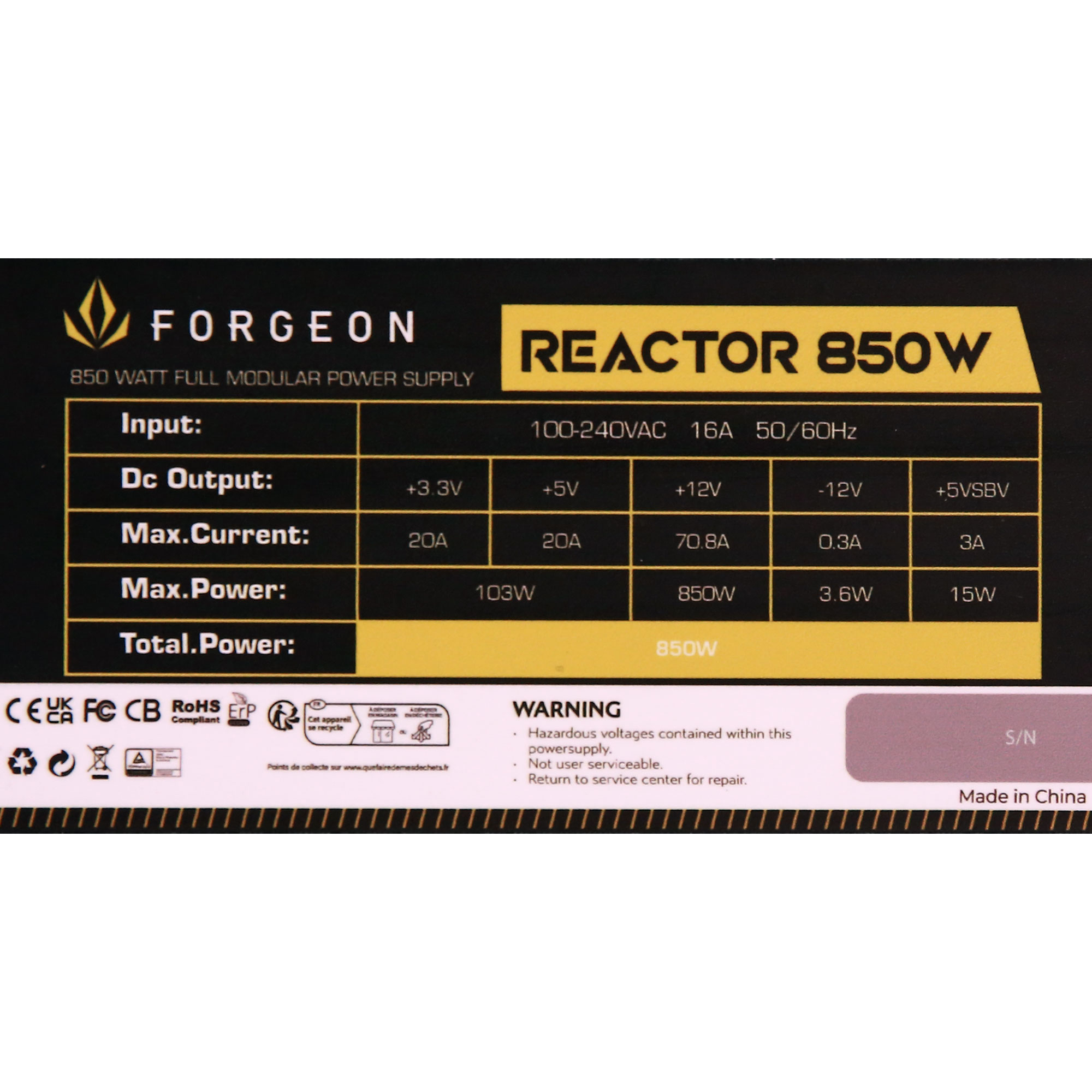

Power specifications label
