Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
In Cable Capacitors
ATX connector 24 pin (600mm)
1
1
16-18AWG
No
4+4 pin EPS12V (600mm)
4
4
16AWG
No
6+2 pin PCIe (650mm+150mm)
2
4
16-18AWG
No
6+2 pin PCIe (600mm)
3
3
16AWG
No
12+4 pin PCIe (600mm) (600W)
4
4
16-24AWG
No
SATA (550mm+105mm+105mm+105mm)
3
12
18AWG
No
4-pin Molex (550mm+105mm+105mm+105mm)
1
4
18AWG
No
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
Performance Summary 115V
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
89.954%
Average Noise Output (>1450 Load Combinations)
33.41dBA
Average PF (>1450 Load Combinations)
0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load
66.696%
Standby Power Consumption
0.1106W
12V Ripple (Full Load)
33.32mV
5V Ripple (Full Load)
15.22mV
3.3V Ripple (Full Load)
16.51mV
5VSB Ripple (Full Load)
13.22mV
12V Load Regulation
1.27%
5V Load Regulation
1.21%
3.3V Load Regulation
1.60%
5VSB Load Regulation
2.74%
Inrush Current
32.510A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
18.6
AC Loss to PWR_OK Hold Up Time (ms)
16.3
PWR_OK Inactive to DC Loss Delay (ms)
2.3
Vampire Power
Tables 115V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.07 V
115.03 V
113.85 V
115.11 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.418
1.490
PASS
Mains Voltage THD:
0.14 %
0.10 %
N/A
0.20 %
2.00 %
PASS
Real Power:
0.111 W
0.085 W
N/A
0.137 W
N/A
N/A
Apparent Power:
9.943 W
9.391 W
N/A
10.516 W
N/A
N/A
Power Factor:
0.012
N/A
N/A
N/A
N/A
N/A
Graphs 115V

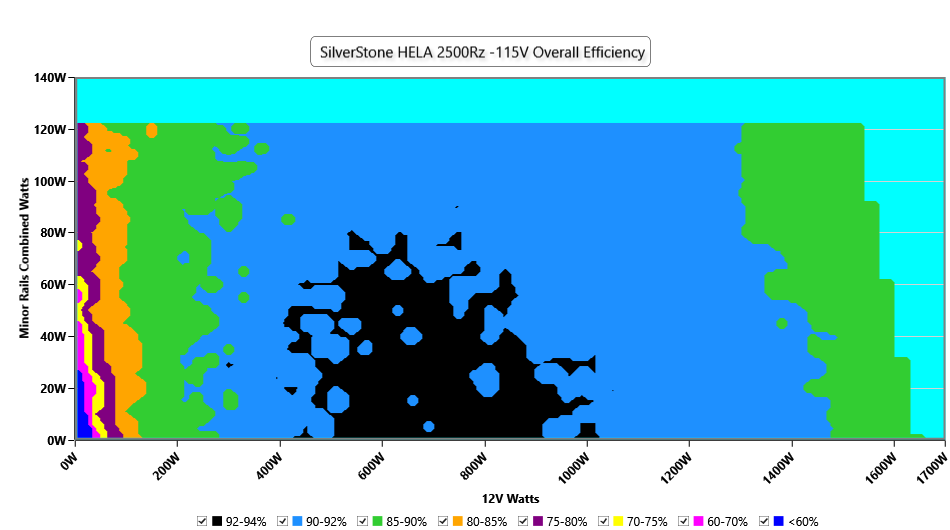

Efficiency Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

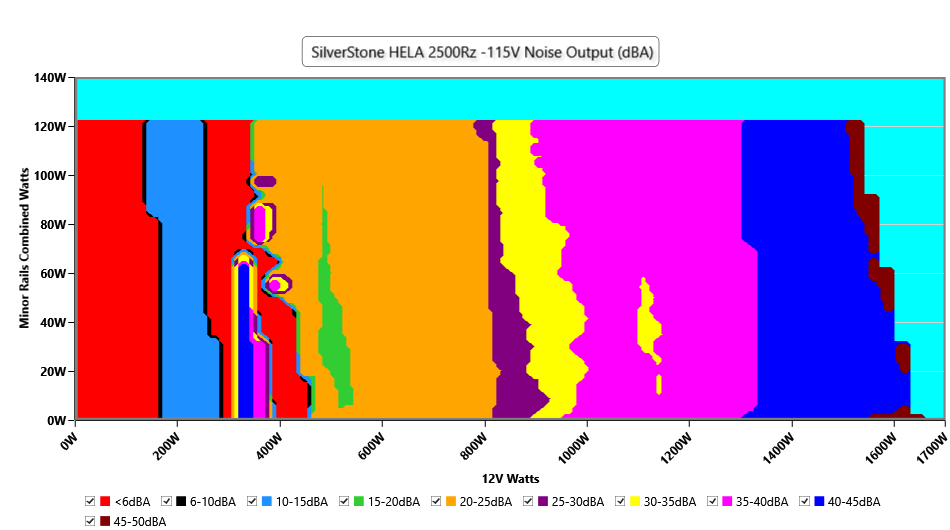

Noise Graph
115V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

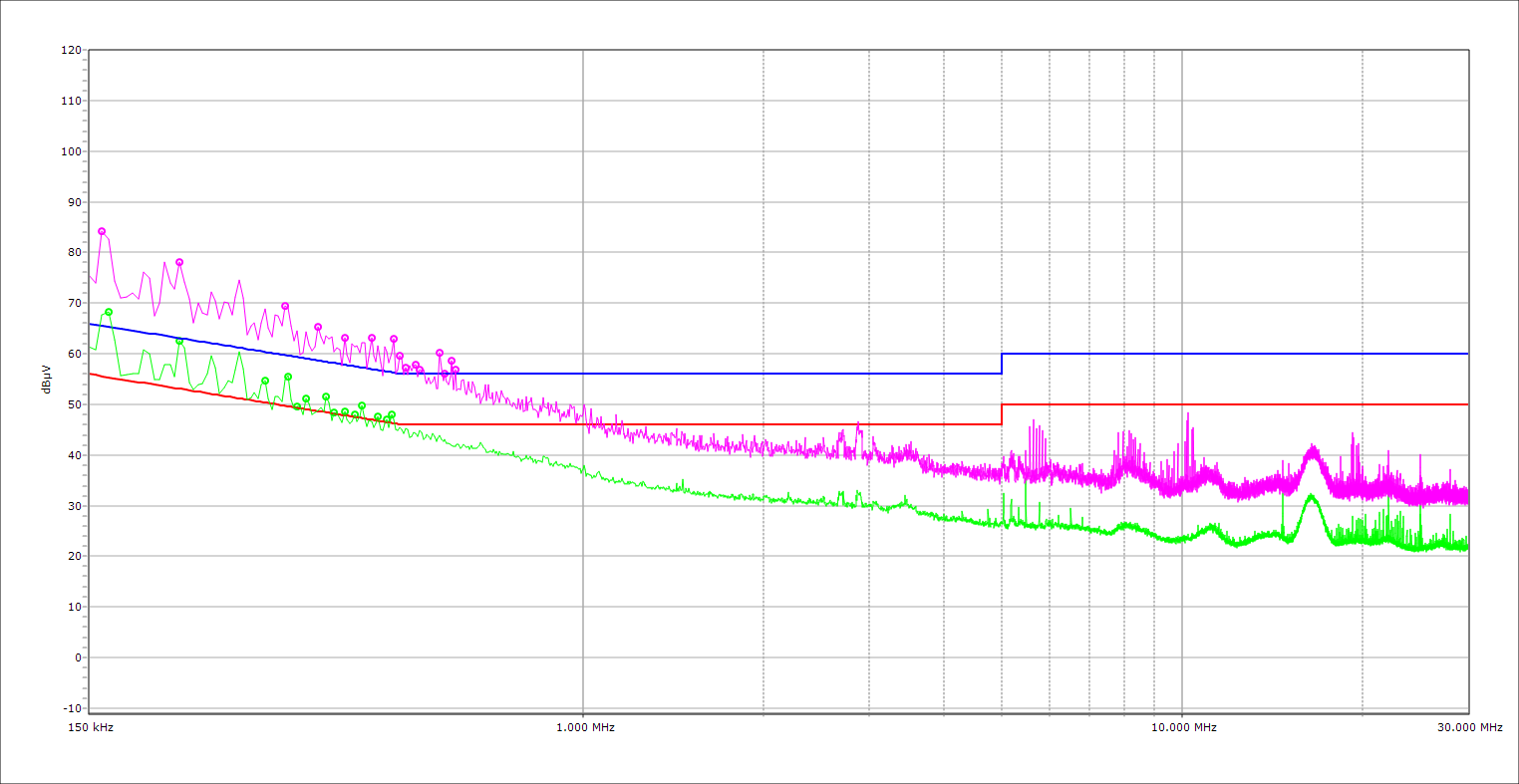

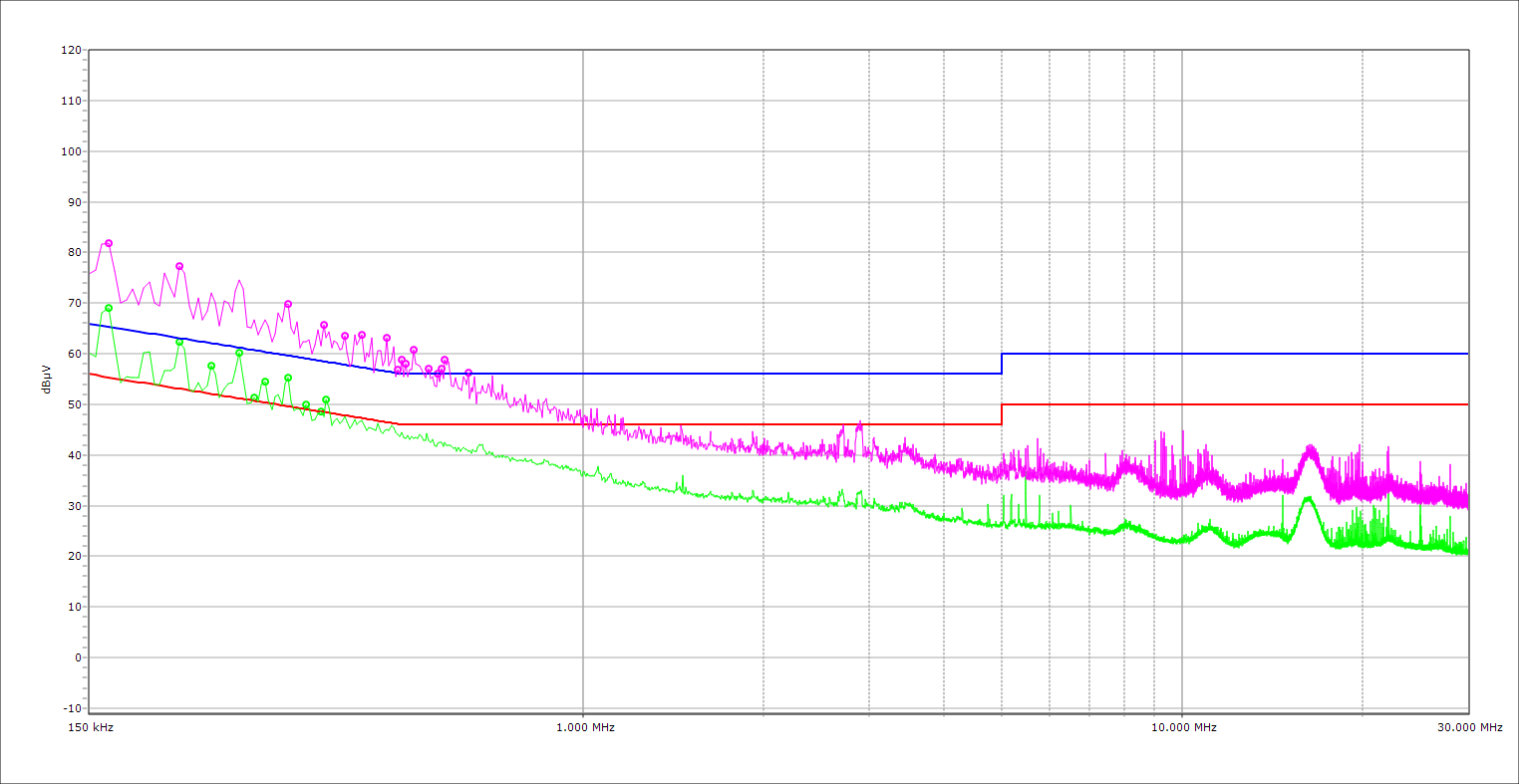

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

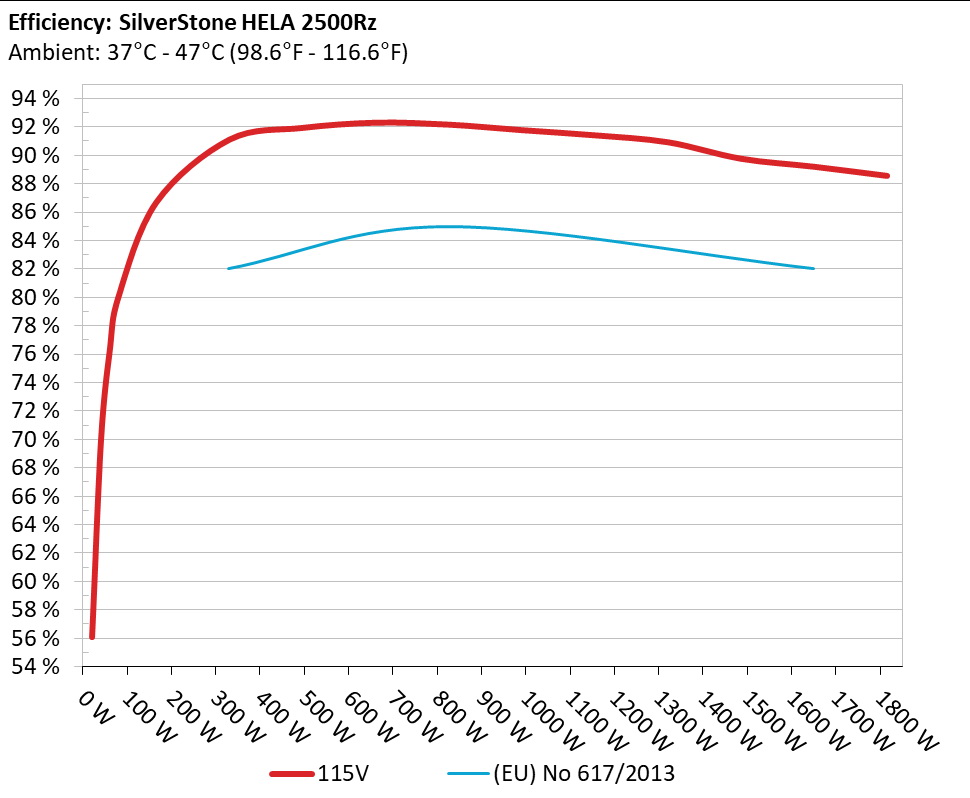

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

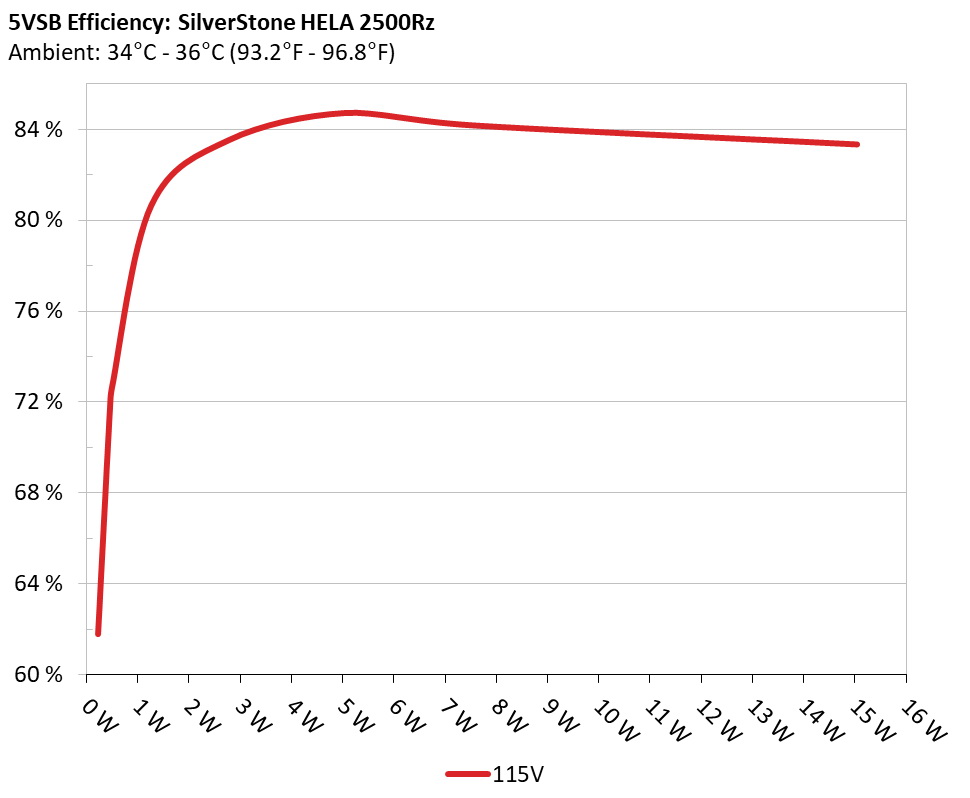

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✗
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
11.755A
1.994A
2.006A
0.991A
164.948
86.656%
524
15.3
40.74°C
0.954
12.195V
5.014V
3.289V
5.045V
190.406
48.93°C
114.8V
20%
24.581A
2.995A
3.014A
1.192A
329.947
91.075%
522
15.2
40.91°C
0.996
12.166V
5.008V
3.285V
5.033V
362.347
48.9°C
114.73V
30%
37.733A
3.497A
3.52A
1.394A
494.327
91.901%
1038
36.2
41.24°C
0.996
12.145V
5.004V
3.281V
5.021V
537.857
47.68°C
114.67V
40%
50.975A
4A
4.028A
1.597A
659.559
92.27%
1037
36.2
41.56°C
0.996
12.131V
4.999V
3.277V
5.009V
714.859
47.2°C
114.62V
50%
63.909A
5.007A
5.043A
1.801A
824.883
92.134%
1211
41.4
42.43°C
0.995
12.117V
4.993V
3.272V
4.997V
895.357
48.12°C
114.57V
60%
76.814A
6.016A
6.062A
2A
989.377
91.749%
1301
42.2
42.67°C
0.994
12.102V
4.987V
3.267V
4.985V
1076.471
48.42°C
114.45V
70%
89.800A
7.028A
7.085A
2.212A
1154.762
91.384%
1537
46.3
43.25°C
0.993
12.089V
4.98V
3.261V
4.973V
1263.715
49.79°C
114.43V
80%
102.823A
8.042A
8.11A
2.318A
1319.571
90.896%
1544
46.5
43.57°C
0.993
12.076V
4.973V
3.255V
4.962V
1437.796
50.88°C
114.41V
90%
116.240A
8.554A
8.614A
2.424A
1484.985
89.734%
1886
50.4
44.2°C
0.992
12.065V
4.968V
3.25V
4.951V
1541.012
51.77°C
114.31V
100%
129.448A
9.068A
9.152A
3.042A
1649.797
89.169%
2003
52
46.16°C
0.992
12.052V
4.962V
3.245V
4.931V
1800.358
53.17°C
114.27V
110%
142.549A
10.091A
10.284A
3.048A
1814.423
88.529%
2165
52.3
46.96°C
0.991
12.038V
4.954V
3.238V
4.922V
1785.19
54.68°C
114.11V
CL1
0.113A
14.518A
14.679A
0A
121.276
79.378%
0
<6.0
40.36°C
0.949
12.182V
4.973V
3.249V
5.056V
152.847
41.1°C
114.81V
CL2
0.113A
22.111A
0A
0A
111.291
77.579%
0
<6.0
41.52°C
0.948
12.205V
4.971V
3.267V
5.06V
143.598
40.47°C
114.8V
CL3
0.113A
0A
22.509A
0A
73.978
70.623%
523
15.2
41.32°C
0.94
12.193V
4.986V
3.225V
5.059V
104.824
49.5°C
114.81V
CL4
136.794A
0A
0A
0A
1649.508
89.5%
1911
50.6
44.13°C
0.992
12.058V
4.987V
3.263V
4.991V
1795.076
49.25°C
114.57V
The results above are not used in the certification process
Light Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.216A
0.498A
0.501A
0.197A
19.996
56.057%
0
<6.0
38.35°C
0.87
12.205V
5.019V
3.294V
5.066V
35.83
36.78°C
114.83V
40W
2.678A
0.697A
0.701A
0.296A
39.997
69.847%
0
<6.0
40.48°C
0.914
12.205V
5.022V
3.297V
5.064V
57.36
37.08°C
114.82V
60W
4.140A
0.896A
0.901A
0.395A
59.997
76.276%
0
<6.0
43.35°C
0.93
12.205V
5.022V
3.296V
5.061V
78.724
38.19°C
114.81V
80W
5.596A
1.095A
1.102A
0.494A
79.932
80.038%
0
<6.0
45.36°C
0.938
12.205V
5.02V
3.294V
5.058V
99.889
39.05°C
114.81V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
17.08mV
15.50mV
15.39mV
11.49mV
Pass
20% Load
16.83mV
14.06mV
13.80mV
9.44mV
Pass
30% Load
18.82mV
14.58mV
14.83mV
10.11mV
Pass
40% Load
18.52mV
15.55mV
15.59mV
10.26mV
Pass
50% Load
18.36mV
14.99mV
15.70mV
10.32mV
Pass
60% Load
19.64mV
15.24mV
15.44mV
10.67mV
Pass
70% Load
20.76mV
15.65mV
16.52mV
11.65mV
Pass
80% Load
23.88mV
16.37mV
17.34mV
13.29mV
Pass
90% Load
20.56mV
15.55mV
16.88mV
12.16mV
Pass
100% Load
33.32mV
15.22mV
16.51mV
13.22mV
Pass
110% Load
34.75mV
15.15mV
17.85mV
13.50mV
Pass
Crossload1
19.84mV
16.93mV
17.42mV
12.01mV
Pass
Crossload2
18.56mV
18.43mV
16.42mV
11.65mV
Pass
Crossload3
17.34mV
15.70mV
18.93mV
11.54mV
Pass
Crossload4
31.24mV
12.54mV
14.70mV
10.40mV
Pass
The results above are not used in the certification process
SilverStone HELA 2500Rz (1650W@115V)

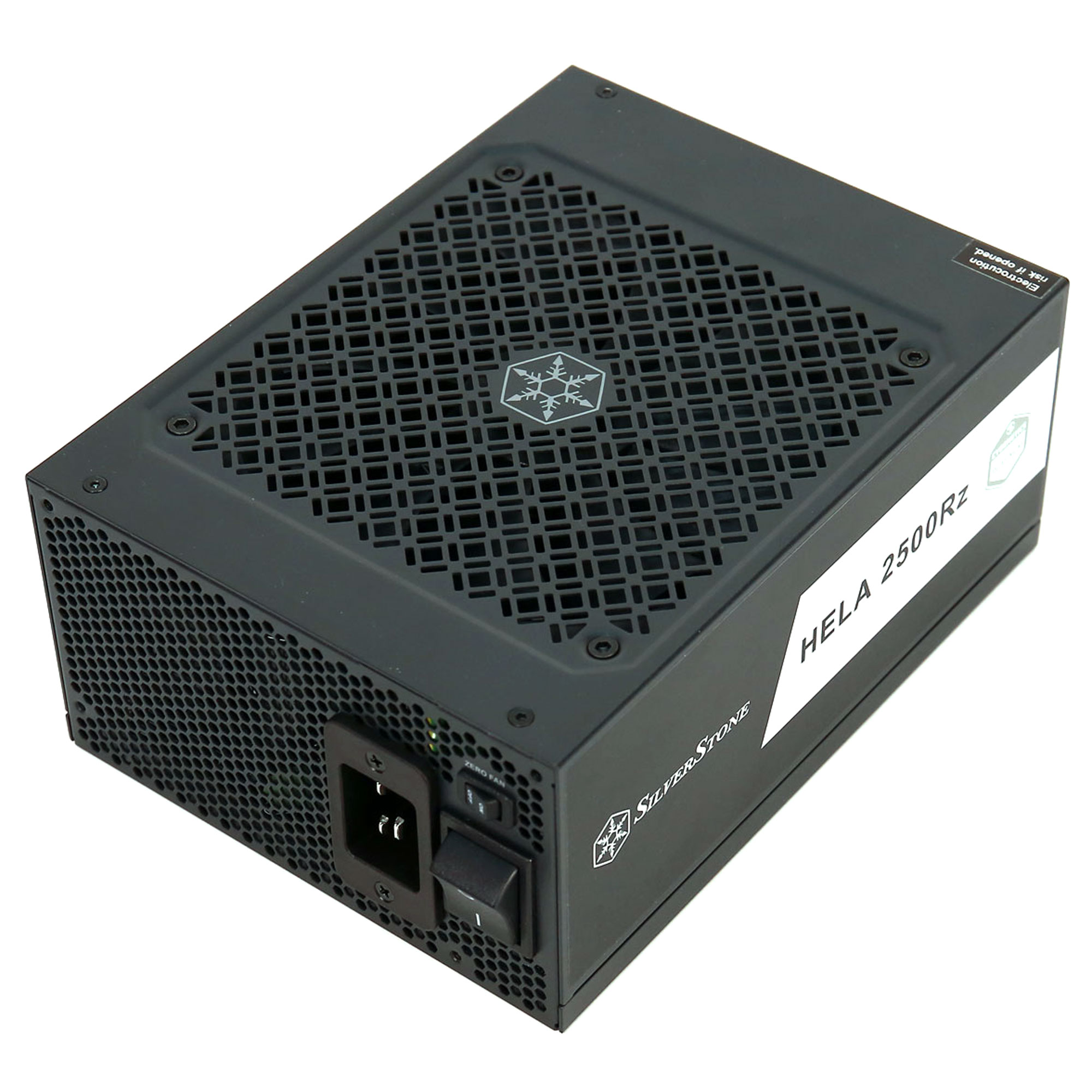

Top side

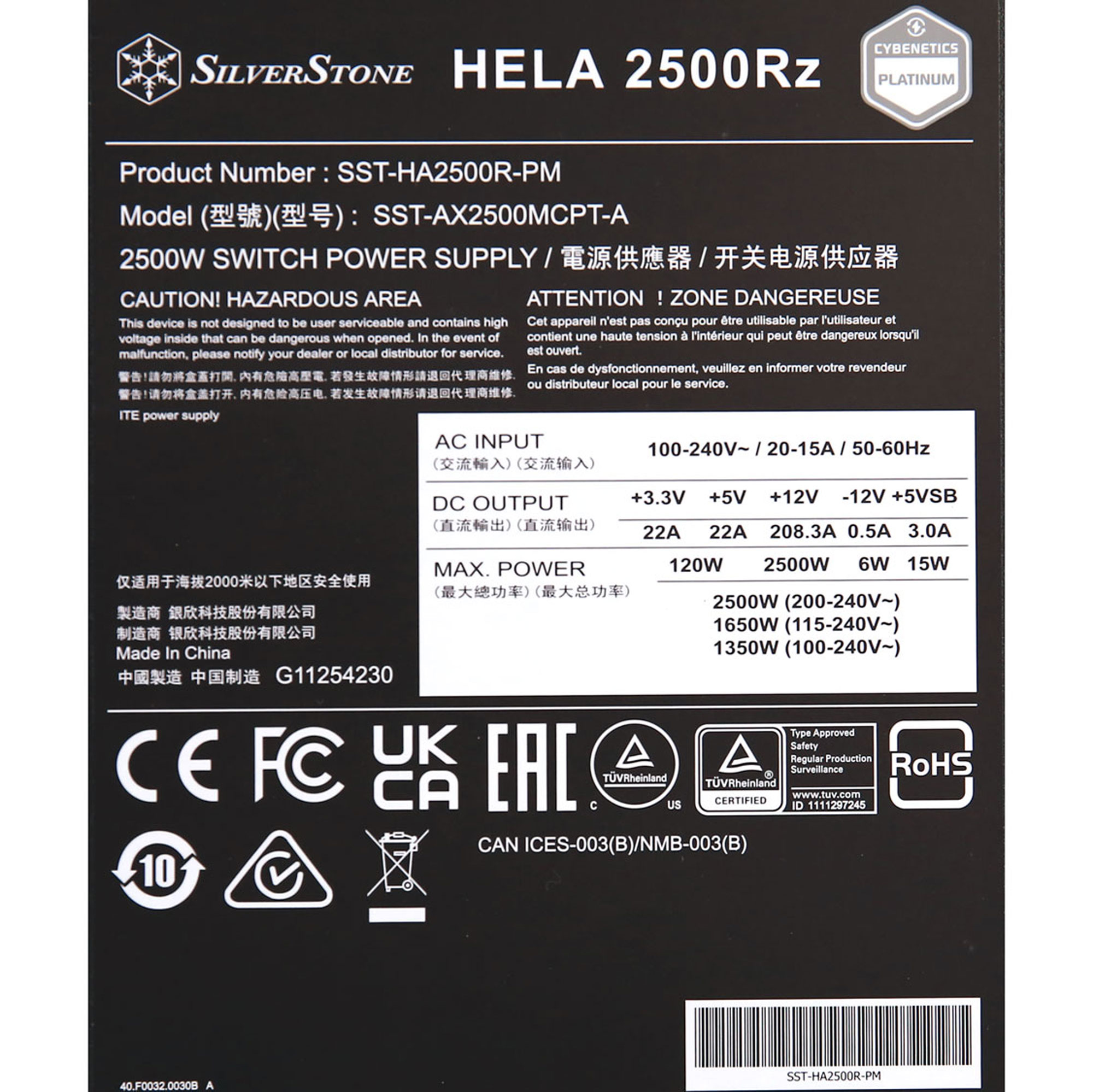

Power specifications label
