CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
SMX Daito G1 600W
Serial Number5905386993081
Lab IDSX60002820
Certification ID252820
  • Test Result Report ID: 25PS2820A
  • Certificate Issue Date: May 19, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSMX
Manufacturer (OEM)No info
SeriesDaito
Model NumberXPS-D160B
Serial Number5905386993081
DUT Notes

DUT Specifications

Rated Voltage (Vrms)220-240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Rifle Bearing Fan (EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205030.3
Watts103600153.6
Total Max. Power (W)600

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (500mm) 1 1 18-20AWG No
4+4 pin EPS12V (555mm) 1 1 18AWG No
6+2 pin PCIe (515mm+145mm) 1 2 18AWG No
SATA (385mm+155mm) / 4-pin Molex (+155mm) 2 4 / 2 18AWG No

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistors MF72 20D-15 (20 Ohm @ 25 °C) & Relay
Bridge Rectifier(s)

1x
APFC MOSFETs

2x Fuxin FXN18N50F (500V, 10.2A @ 100°C, Rds(on): 0.38Ohm)
APFC Boost Diode

1x Fuxin FXR12S60CN (600V, 12A @ 89°C)
Bulk Cap(s)

1x TK (420V, 390uF, 2000h @ 105°C, LW)
Main Switchers

2x Si-Trend SI18N50F (500V, 18A @ 125°C, Rds(on): 0.295mOhm)
PFC/PWM Combo Controller

Champion CM6800UBX
Topology

Primary side: APFC, Double Forward Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Fuxin FXN0607CN (70V, 48A @ 100°C, Rds(on): 6mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic: 12x TK (@105°C, SZ) Polymer: 4x Chengx
Supervisor IC IN1S4291-SCG
Fan Power Transistor STMicroelectronics 2SB772
Fan Model DWPH EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB
Rectifier

2x SMC SK54 SR (40V, 5A)

Standby PWM Controller

FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 230V

Efficiency RatingBRONZE
Noise RatingStandard++
Average Efficiency (>1450 load combinations)86.894%
Average Noise Output (>1450 Load Combinations)33.91dBA
Average PF (>1450 Load Combinations)0.936
Efficiency With 10W (≤500W) or 2% (>500W) Load60.770%
Standby Power Consumption0.2139W
12V Ripple (Full Load)34.08mV
5V Ripple (Full Load)35.24mV
3.3V Ripple (Full Load)35.87mV
5VSB Ripple (Full Load)27.36mV
12V Load Regulation0.78%
5V Load Regulation0.63%
3.3V Load Regulation2.52%
5VSB Load Regulation3.65%
Inrush Current73.980A
Hold-Up Time & Power Ok Signal16.70ms
AC Loss to PWR_OK Hold Up Time14.40ms
PWR_OK Inactive to DC Loss Delay2.30ms
PSU Timings: T1 (20% / 100%)19.0ms19.0ms
PSU Timings: T3 (20% / 100%)124.0ms123.0ms
12V OCP (26.2°C / 37.4°C)55.90A (111.80%), 11.919V55.00A (110.00%), 11.915V
5V OCP (26.2°C / 37.4°C)22.6A (113.00%), 5.066V21.9A (109.50%), 5.058V
3.3V OCP (26.2°C / 37.4°C)25.6A (128.00%), 3.28V24.6A (123.00%), 3.269V
5VSB OCP (26.2°C / 37.4°C)4.5A (150.00%), 5.007V4.4A (146.67%), 5.006V
OPP (26.74°C / 41.50°C)123.69%119.85%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.7
AC Loss to PWR_OK Hold Up Time (ms)14.4
PWR_OK Inactive to DC Loss Delay (ms)2.3

Vampire Power

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.02 V 230.91 V 227.70 V 231.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.28 % 2.00 % PASS
Real Power: 0.214 W 0.172 W N/A 0.275 W N/A N/A
Apparent Power: 13.006 W 12.820 W N/A 13.222 W N/A N/A
Power Factor: 0.018 N/A N/A N/A N/A N/A

Graphs 230V

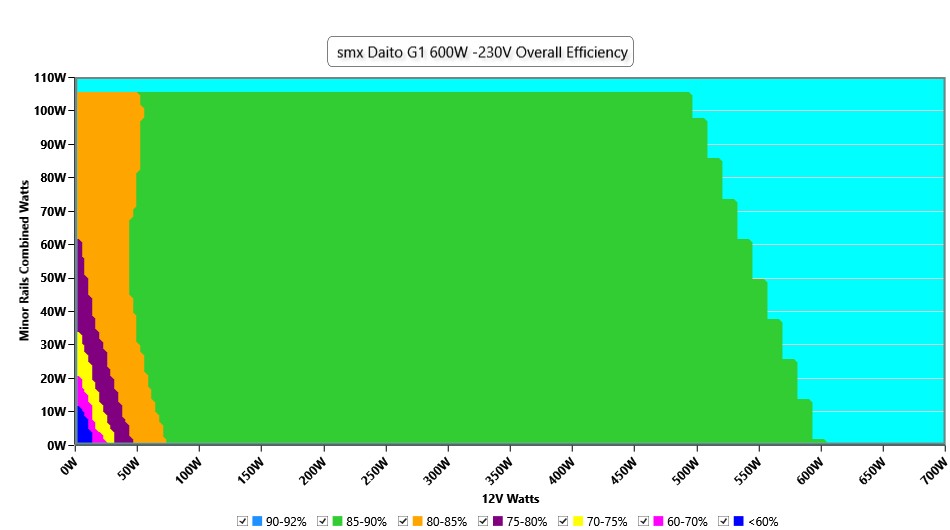

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

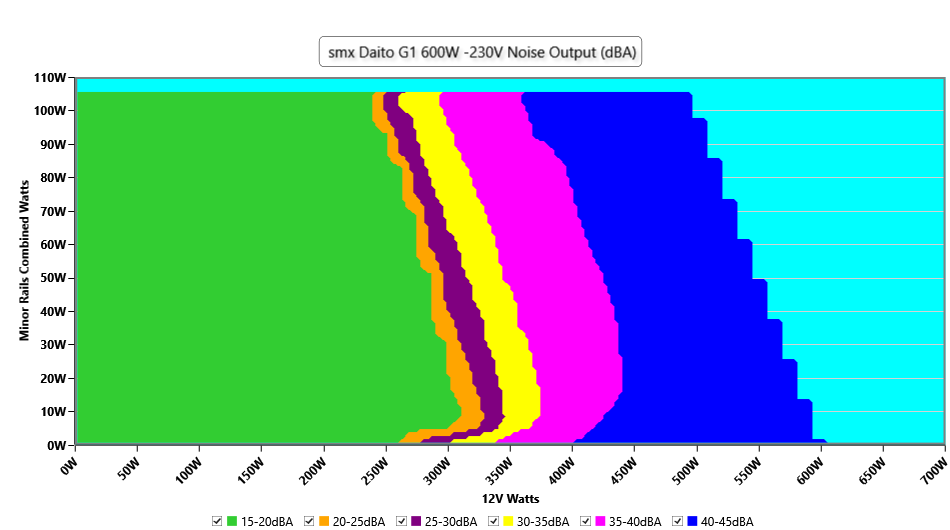

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

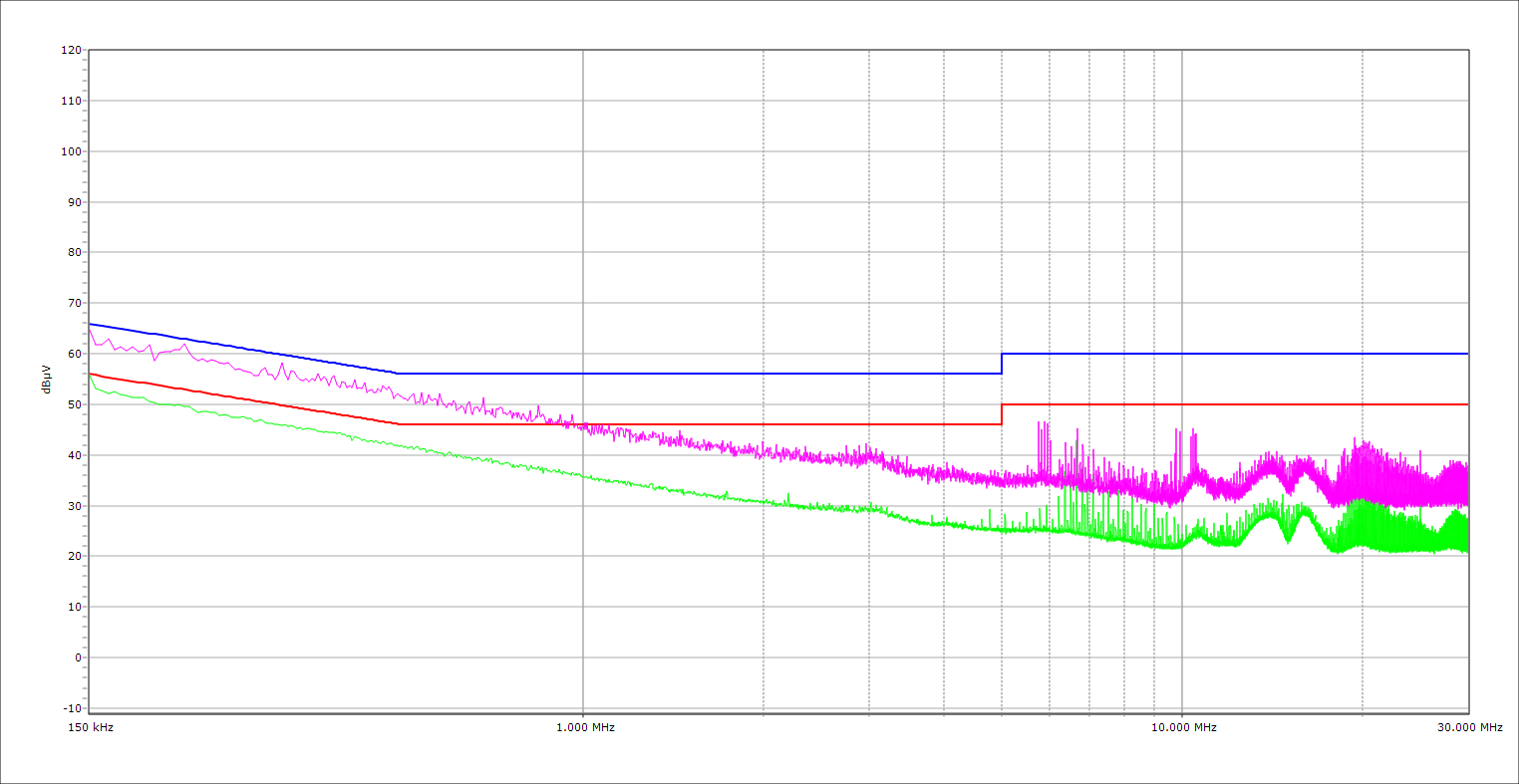

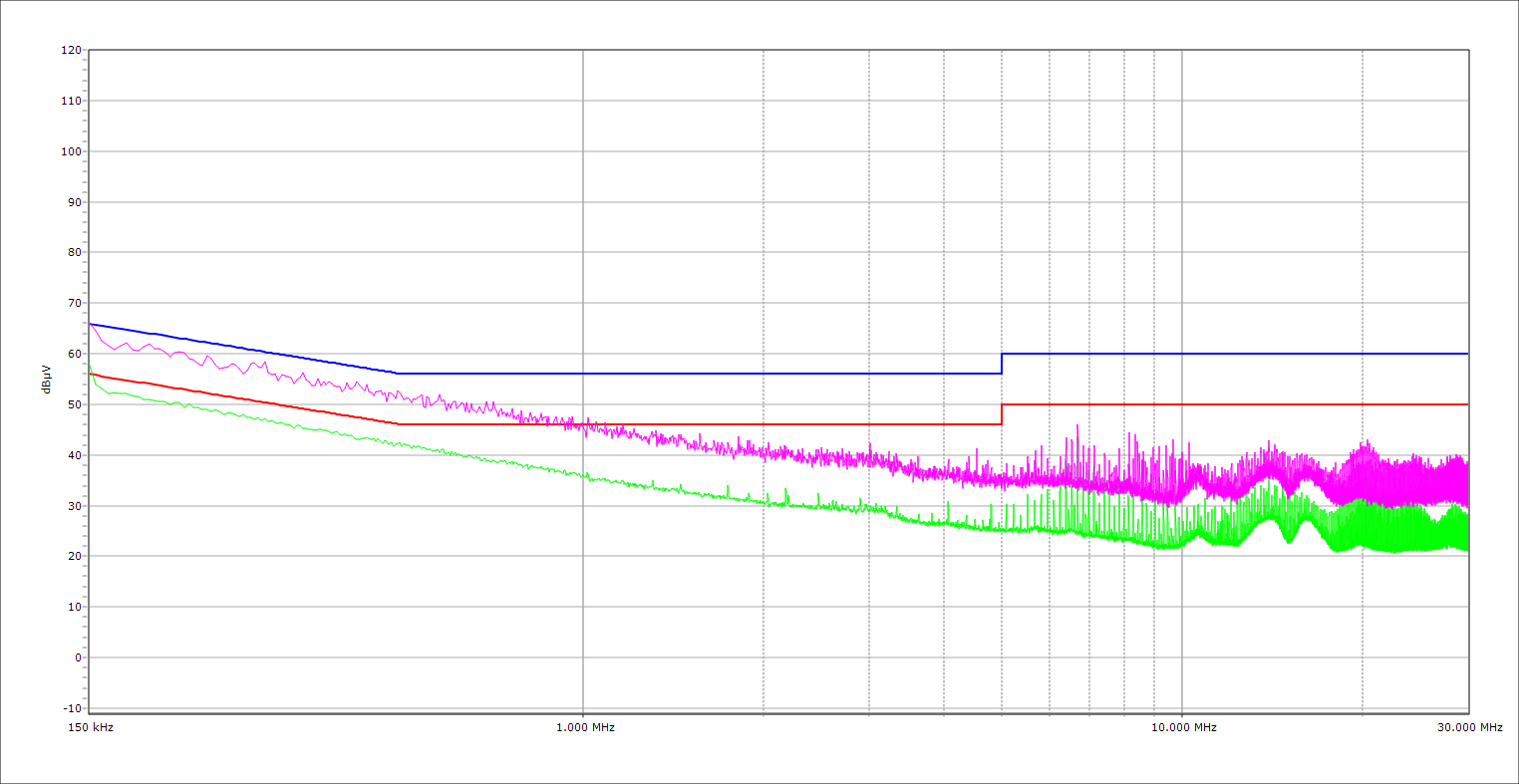

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

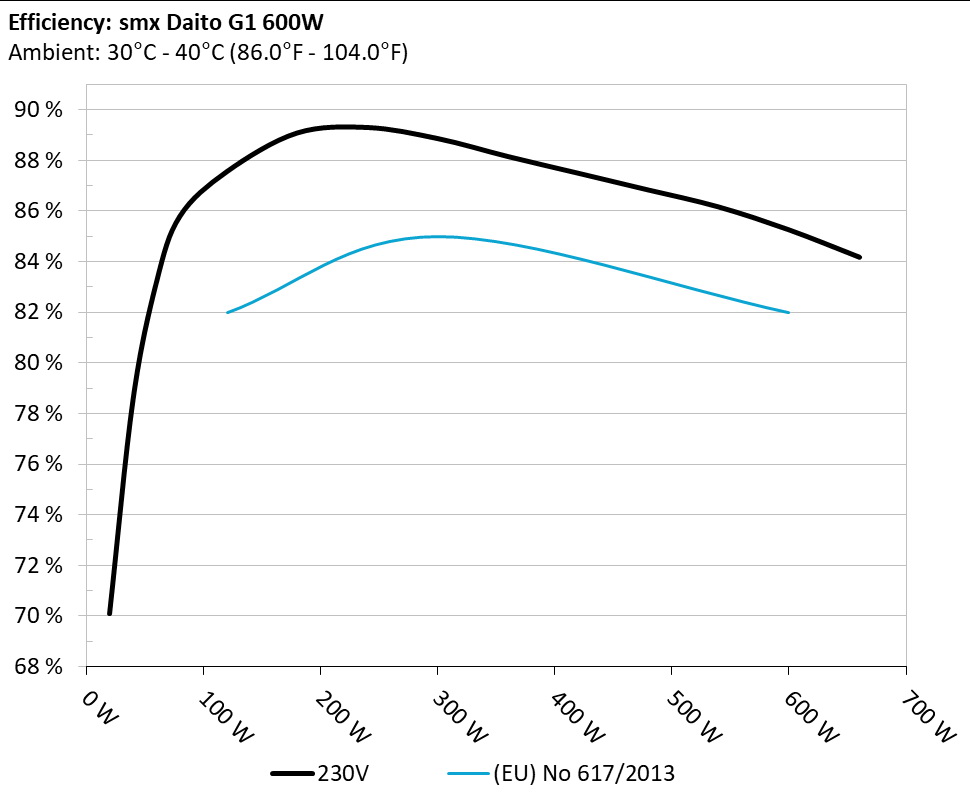

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

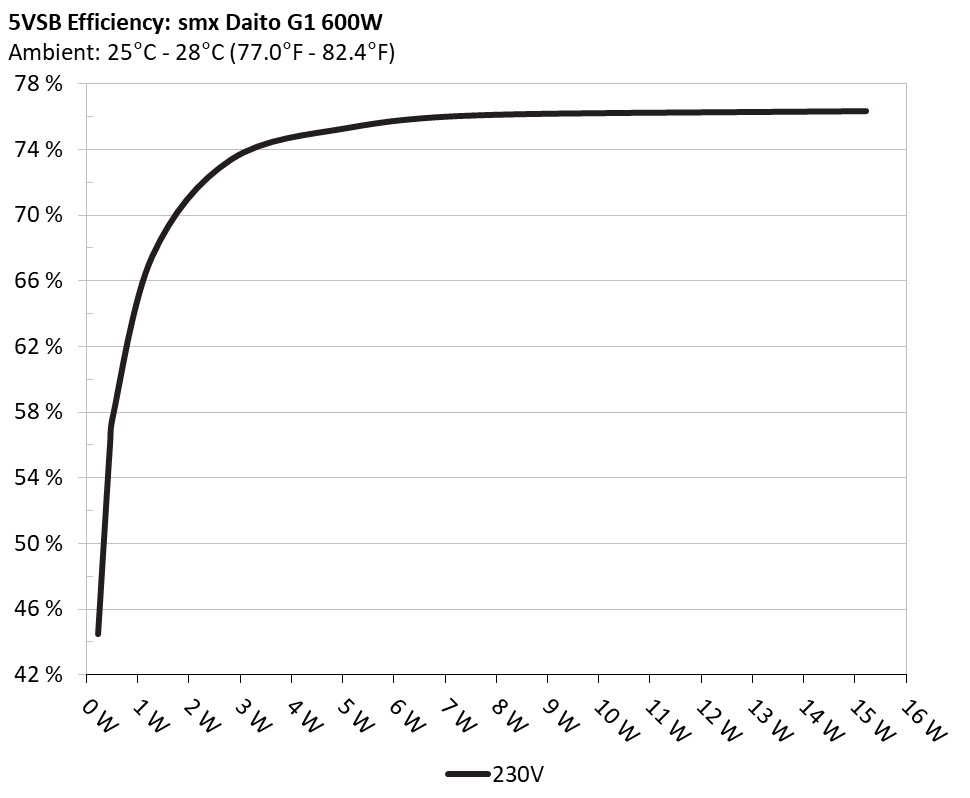

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 44.466% 0.044
5.17V 0.524W 229.84V
2 0.09A 0.465W 55.989% 0.069
5.169V 0.831W 229.85V
3 0.55A 2.835W 73.371% 0.256
5.154V 3.864W 229.82V
4 1A 5.14W 75.303% 0.352
5.14V 6.826W 229.83V
5 1.5A 7.687W 76.059% 0.409
5.124V 10.107W 229.82V
6 3A 15.226W 76.308% 0.473
5.075V 19.954W 229.82V

Protection Features

OCP (Normal @ 26.2°C)12V: 55.90A (111.80%), 11.919V
5V: 22.6A (113.00%), 5.066V
3.3V: 25.6A (128.00%), 3.28V
5VSB: 4.5A (150.00%), 5.007V
OCP (Hot @ 37.4°C)12V: 55.00A (110.00%), 11.915V
5V: 21.9A (109.50%), 5.058V
3.3V: 24.6A (123.00%), 3.269V
5VSB: 4.4A (146.67%), 5.006V
OPP (Normal @ 26.7°C)742.14W (123.69%)
OPP (Hot @ 41.5°C)719.07W (119.85%)
OTP✓ (154°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKAccurate but short
UVP (Full Load @ 180V)✓
UVP (No Damage @ 170V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.204A 1.971A 1.984A 0.975A 60.008 82.246% 886 20.9 34.14°C 0.865
11.990V 5.073V 3.327V 5.13V 72.964 39.21°C 229.81V
20% 7.432A 2.959A 2.983A 1.173A 119.945 87.531% 889 21 34.54°C 0.909
11.981V 5.07V 3.319V 5.114V 137.031 40.89°C 229.8V
30% 12.023A 3.454A 3.487A 1.373A 179.989 89.059% 891 20.7 35.27°C 0.927
11.971V 5.068V 3.313V 5.1V 202.098 42.52°C 229.79V
40% 16.622A 3.949A 3.993A 1.573A 240.035 89.276% 893 20.5 35.87°C 0.933
11.962V 5.064V 3.306V 5.085V 268.867 44.43°C 229.79V
50% 20.873A 4.94A 5.005A 1.776A 299.997 88.841% 1148 28.1 36.16°C 0.942
11.953V 5.062V 3.297V 5.069V 337.681 45.02°C 229.77V
60% 25.138A 5.93A 6.021A 1.979A 360.035 88.13% 1608 37.8 36.82°C 0.945
11.943V 5.06V 3.289V 5.053V 408.526 44.92°C 229.76V
70% 29.363A 6.922A 7.044A 2.184A 419.55 87.475% 1868 42.1 37.43°C 0.949
11.935V 5.058V 3.28V 5.037V 479.62 45.84°C 229.75V
80% 33.679A 7.915A 8.072A 2.29A 479.527 86.813% 1868 42.1 37.83°C 0.955
11.925V 5.053V 3.271V 5.024V 552.367 47.79°C 229.74V
90% 38.338A 8.417A 8.576A 2.395A 539.35 86.147% 1869 42.1 38.86°C 0.958
11.917V 5.049V 3.265V 5.012V 626.083 50.92°C 229.72V
100% 42.808A 8.92A 9.116A 3.012A 599.368 85.244% 1871 42.1 39.28°C 0.96
11.906V 5.044V 3.258V 4.981V 703.125 53.77°C 229.72V
110% 47.222A 9.921A 10.251A 3.019A 659.984 84.156% 1871 42.1 40.21°C 0.962
11.895V 5.04V 3.248V 4.969V 784.238 56.81°C 229.71V
CL1 0.117A 12.247A 12.561A 0A 104.297 81.765% 903 20.5 34.5°C 0.905
11.964V 5.062V 3.256V 5.142V 127.559 49.71°C 229.8V
CL2 0.116A 19.712A 0A 0A 101.344 81.49% 901 20 35.71°C 0.904
11.972V 5.07V 3.312V 5.148V 124.365 47.66°C 229.81V
CL3 0.116A 0A 20.406A 0A 67.384 73.534% 893 20.5 35.78°C 0.888
11.971V 5.04V 3.234V 5.147V 91.638 45.65°C 229.81V
CL4 50.300A 0A 0A 0A 599.995 86.321% 1879 42.2 39.8°C 0.959
11.928V 5.044V 3.311V 5.099V 695.082 51.04°C 229.72V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.493A 0.494A 0.194A 20.008 70.087% 878 20.7 30.33°C 0.729
11.999V 5.076V 3.34V 5.163V 28.545 34.73°C 229.82V
40W 2.726A 0.69A 0.692A 0.291A 40.007 78.524% 881 20.9 31.52°C 0.82
11.996V 5.074V 3.337V 5.157V 50.946 37.46°C 229.82V
60W 4.214A 0.887A 0.891A 0.388A 60.006 83.169% 882 20.9 32.61°C 0.863
11.992V 5.073V 3.334V 5.151V 72.151 38.13°C 229.82V
80W 5.698A 1.084A 1.089A 0.486A 79.954 85.77% 882 20.9 33.41°C 0.891
11.989V 5.072V 3.332V 5.145V 93.22 38.17°C 229.81V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load18.00mV16.99mV17.65mV21.91mVPass
20% Load21.02mV16.58mV16.93mV23.60mVPass
30% Load21.48mV18.27mV18.37mV23.34mVPass
40% Load21.74mV18.63mV19.34mV22.17mVPass
50% Load23.42mV20.01mV20.01mV21.86mVPass
60% Load24.04mV22.22mV21.39mV21.14mVPass
70% Load24.96mV25.40mV25.09mV22.57mVPass
80% Load26.59mV29.36mV30.27mV23.14mVPass
90% Load27.77mV26.02mV28.27mV23.29mVPass
100% Load34.08mV35.24mV35.87mV27.36mVPass
110% Load36.43mV37.92mV39.73mV27.93mVPass
Crossload123.88mV20.82mV23.09mV12.53mVPass
Crossload224.45mV24.12mV30.42mV12.01mVPass
Crossload322.40mV32.23mV26.37mV11.65mVPass
Crossload435.21mV23.39mV26.27mV11.77mVPass

The results above are not used in the certification process

SMX Daito G1 600W

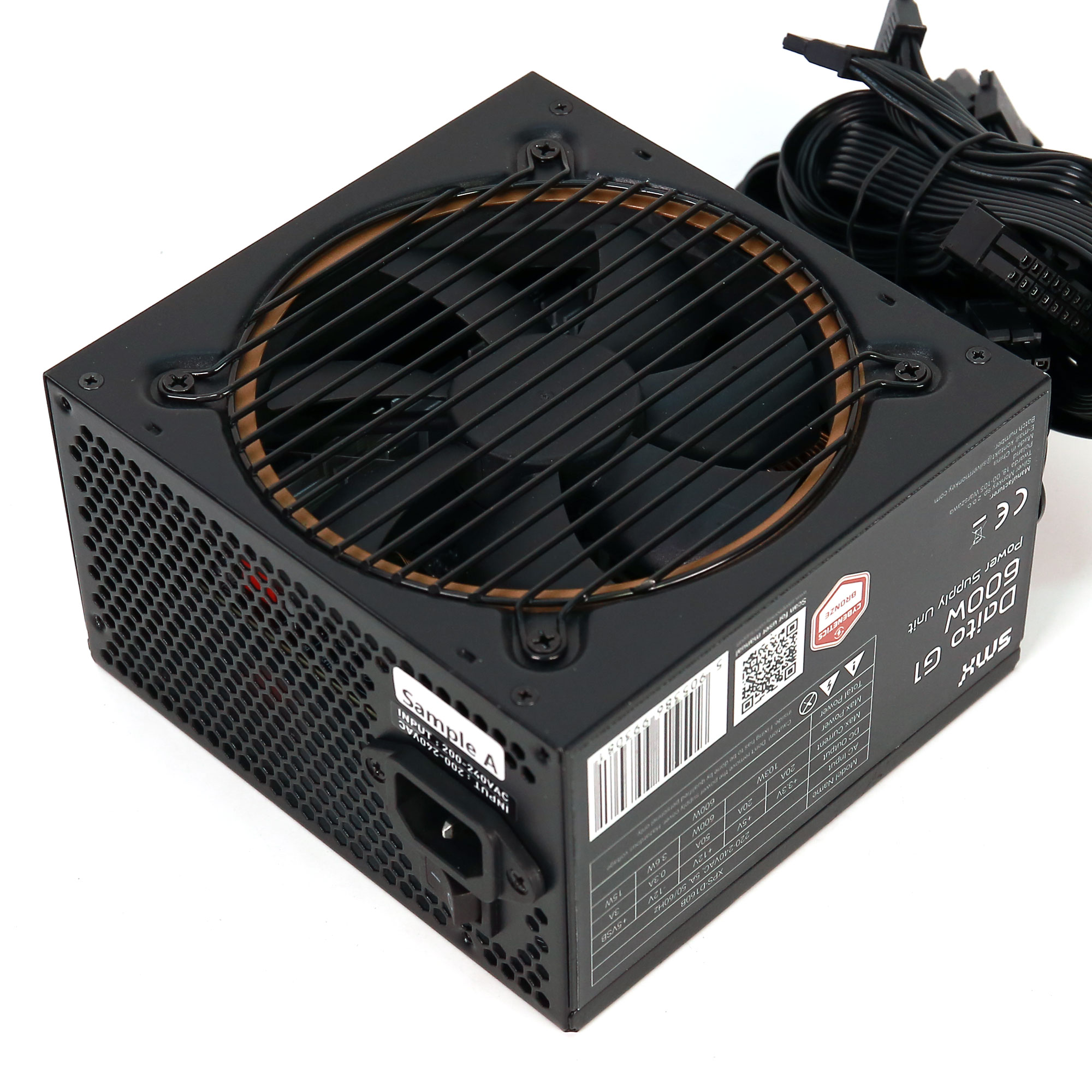

Top side

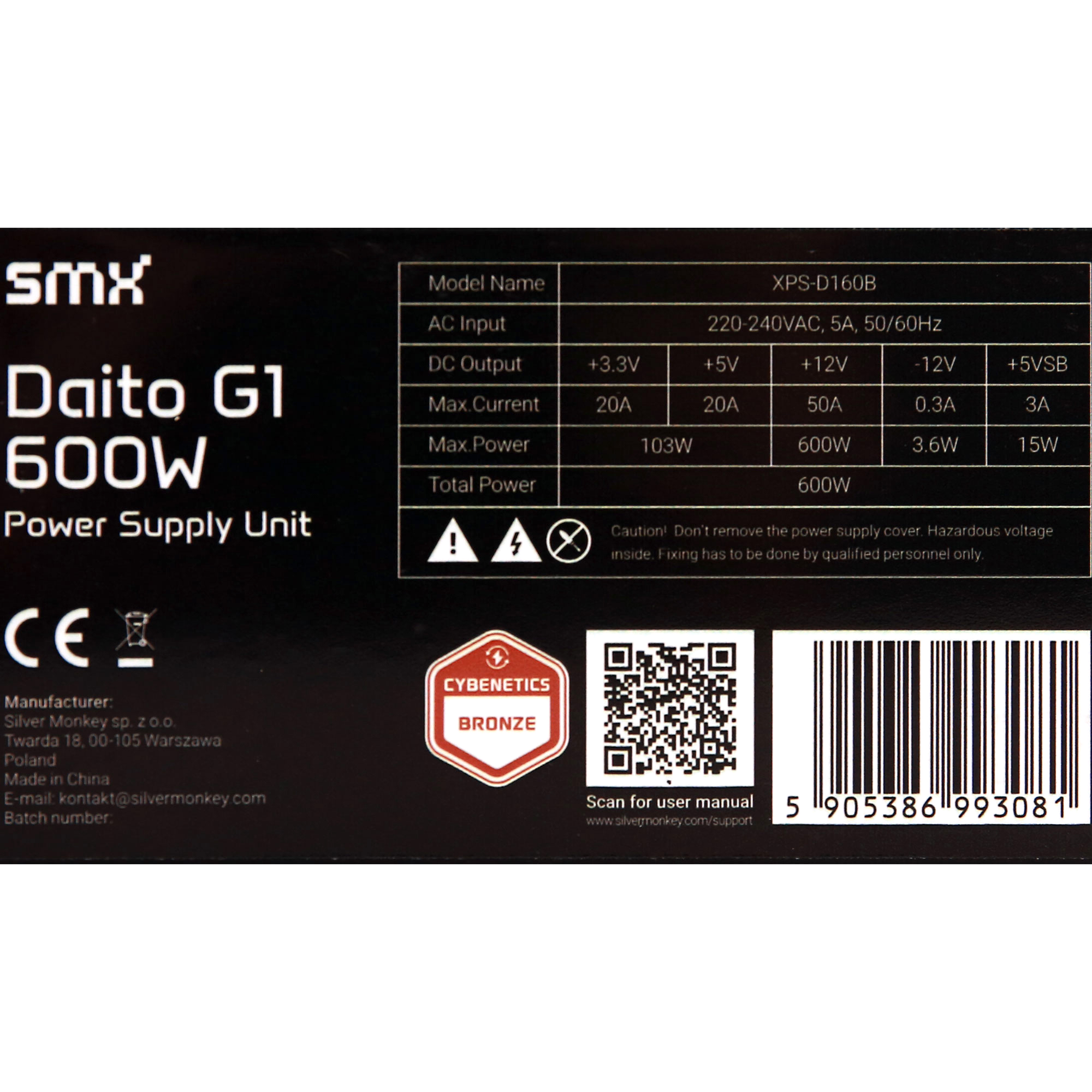

Power specifications label
