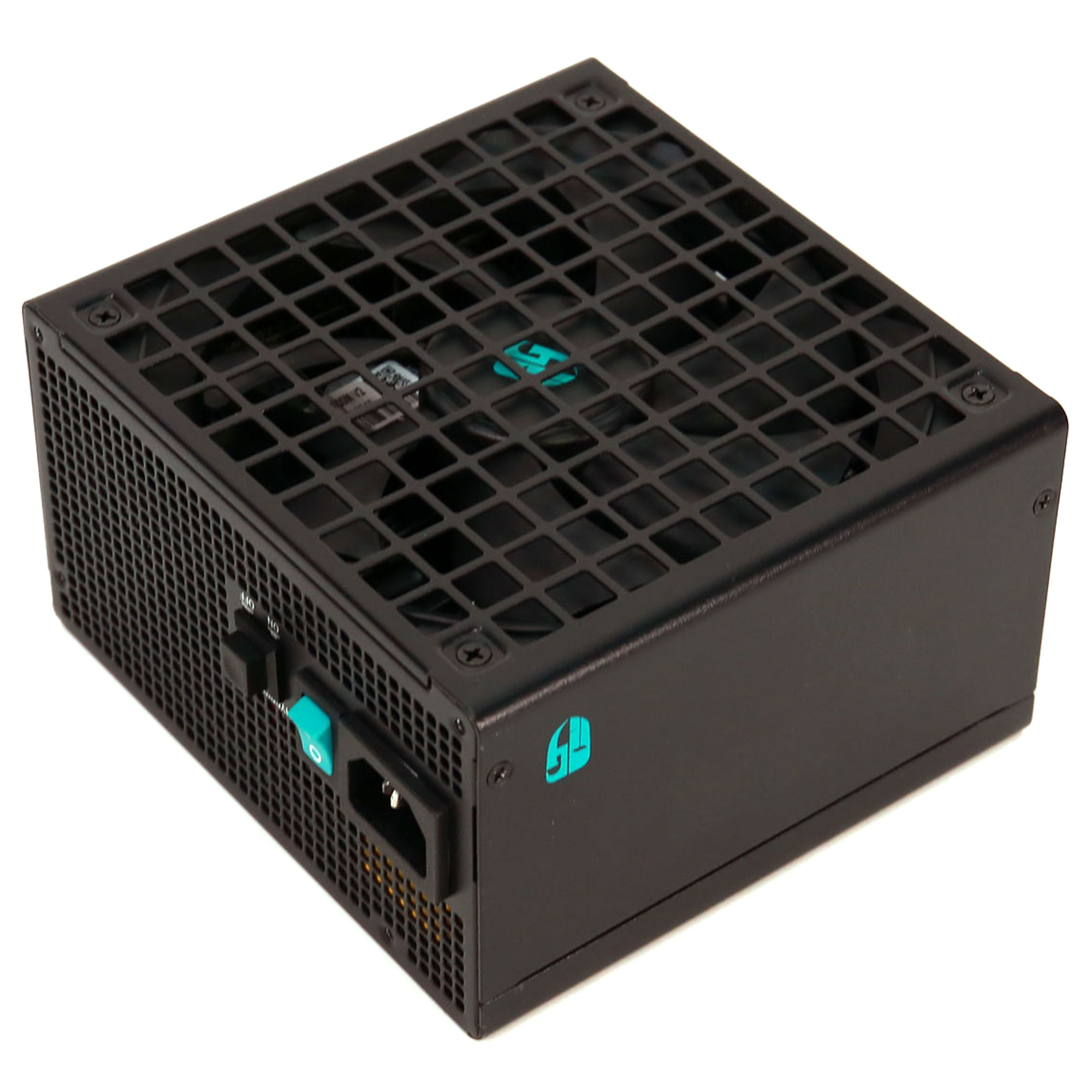

Gamer Storm PQ1000M-V2
Serial Number-
Lab IDGA10002824
Certification ID252824
  • Test Result Report ID: 25PS2824A
  • Certificate Issue Date: Jun 2, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)Seasonic
SeriesPQM -V2
Model NumberPQ100M-FD
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6.5-13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25258330.3
Watts125996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (705mm) 2 2 18AWG No
6+2 pin PCIe (605mm+125mm) 1 2 18AWG No
6+2 pin PCIe (605mm) 2 2 18AWG No
12+4 pin PCIe (655mm) (600W) 1 1 16-24AWG No
SATA (460mm+120mm+120mm) / 4-pin Molex (+120mm) 3 9 / 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 5D-20L (5 ohm) & Relay
Bridge Rectifier(s)

2x GBU1508S (800V, 15A @ 100°C)
APFC MOSFETs

2x CRMicro CRJS99N65G2BF (650V, 20A @ 100°C, Rds(on): 103mOhm)
APFC Boost Diode

1x Global Power G4S06508DT (650V, 8A @ 152°C)
Bulk Cap(s)

1x Rubycon (400V, 820uF , 2000h @ 105°C, MXK)
Main Switchers

4x CRMicro CRJS190N65GCF (650V, 13A @ 100°C, Rds(on): 210mOhm)
APFC Controller

1x Champion CM6500UNX

Resonant Controller

Champion CU6901VPA
IC DriverTopology

Primary side: APFC, Full-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x Leadpower LM45010NHM8A (45V, 228A @ 100°C, Rds(on): 0.8mOhm)
5V & 3.3V DC-DC Converters: 6x UBIQ QN3106M6N (30V, 57A @ 100°C, Rds(on): 3.8mOhm) PWM Controller(s): UPI-semi uP3861P
Filtering Capacitors

Electrolytic: 11x Teapo (2-5,000h @ 105°C, SC), Polymer: 22x Teapo
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, SCP, PG)
MCU Nuvoton M031FB0AE
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier

1x Dongke DK5V45R10S (45V, 10mOhm)
Standby PWM Controller

Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)89.401%
Average Noise Output (>1450 Load Combinations)31.10dBA
Average PF (>1450 Load Combinations)0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load76.250%
Standby Power Consumption0.0557W
12V Ripple (Full Load)24.47mV
5V Ripple (Full Load)16.92mV
3.3V Ripple (Full Load)14.13mV
5VSB Ripple (Full Load)14.20mV
12V Load Regulation0.68%
5V Load Regulation0.28%
3.3V Load Regulation0.49%
5VSB Load Regulation4.50%
Inrush Current32.800A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)91.279%
Average Noise Output (>1450 Load Combinations)31.72dBA
Average PF (>1450 Load Combinations)0.960
Efficiency With 10W (≤500W) or 2% (>500W) Load77.141%
Standby Power Consumption0.1632W
12V Ripple (Full Load)24.91mV
5V Ripple (Full Load)17.01mV
3.3V Ripple (Full Load)14.42mV
5VSB Ripple (Full Load)15.72mV
12V Load Regulation0.74%
5V Load Regulation0.34%
3.3V Load Regulation0.49%
5VSB Load Regulation4.50%
Inrush Current65.500A
12V Transient Response (200%)11.58V
5V Transient Response (200%)4.904V
3.3V Transient Response (200%)3.207V
5VSB Transient Response (200%)4.897V
Hold-Up Time & Power Ok Signal20.50ms
AC Loss to PWR_OK Hold Up Time15.50ms
PWR_OK Inactive to DC Loss Delay5.00ms
PSU Timings: T1 (20% / 100%)59.0ms64.0ms
PSU Timings: T3 (20% / 100%)127.0ms129.0ms
12V OCP (29.0°C / 43.7°C)92.20A (111.08%), 12.119V92.00A (110.84%), 12.142V
5V OCP (29.0°C / 43.7°C)34.8A (139.20%), 4.99V34.6A (138.40%), 4.992V
3.3V OCP (29.0°C / 43.7°C)36.5A (146.00%), 3.325V36.4A (145.60%), 3.32V
5VSB OCP (29.0°C / 43.7°C)6.4A (213.33%), 4.702V6.4A (213.33%), 4.754V
OPP (28.73°C / 43.01°C)114.30%113.70%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.5
AC Loss to PWR_OK Hold Up Time (ms)15.5
PWR_OK Inactive to DC Loss Delay (ms)5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.10 V 115.07 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.15 % 2.00 % PASS
Real Power: 0.056 W 0.021 W N/A 0.080 W N/A N/A
Apparent Power: 10.010 W 10.000 W N/A 10.047 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.25 V 230.22 V 227.70 V 230.27 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.163 W 0.142 W N/A 0.186 W N/A N/A
Apparent Power: 33.080 W 33.067 W N/A 33.091 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

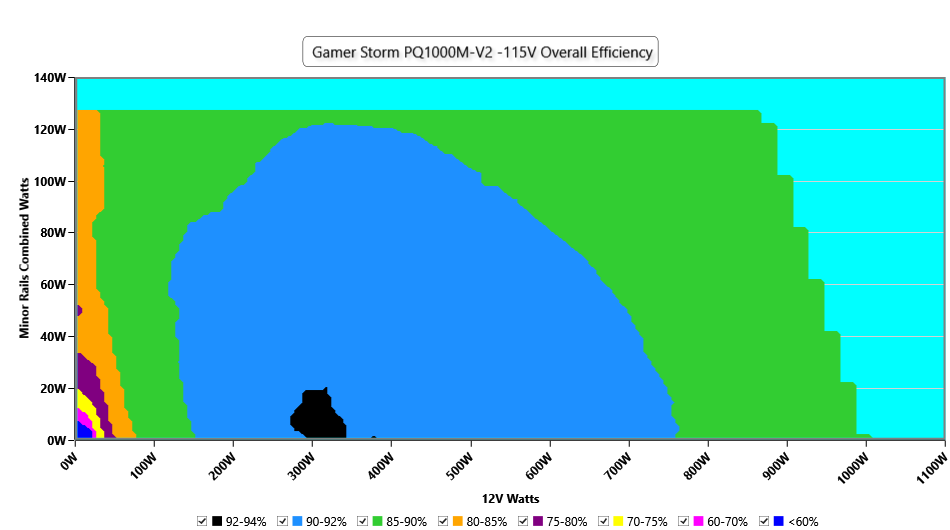

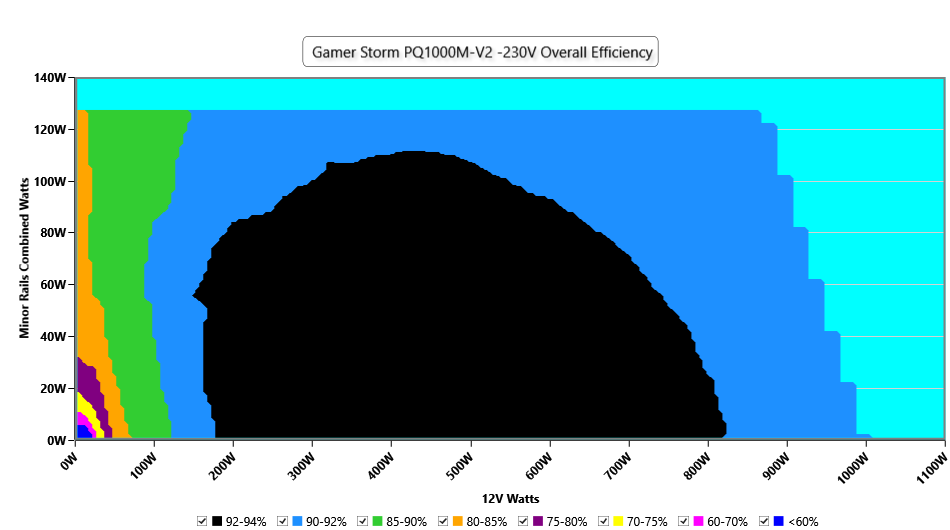

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

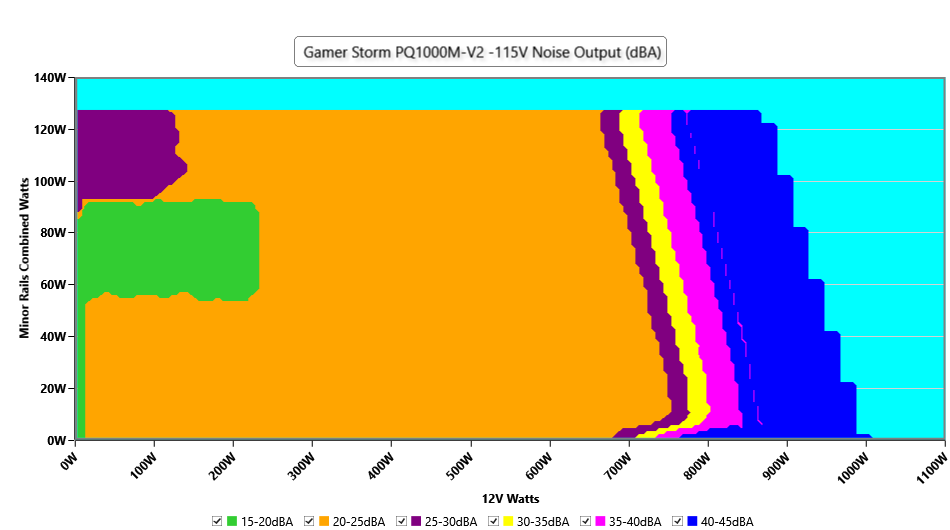

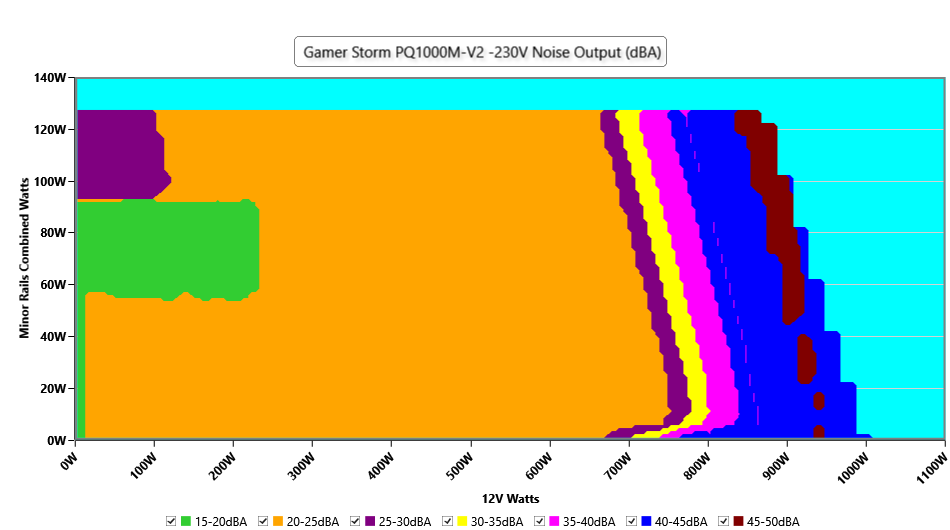

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

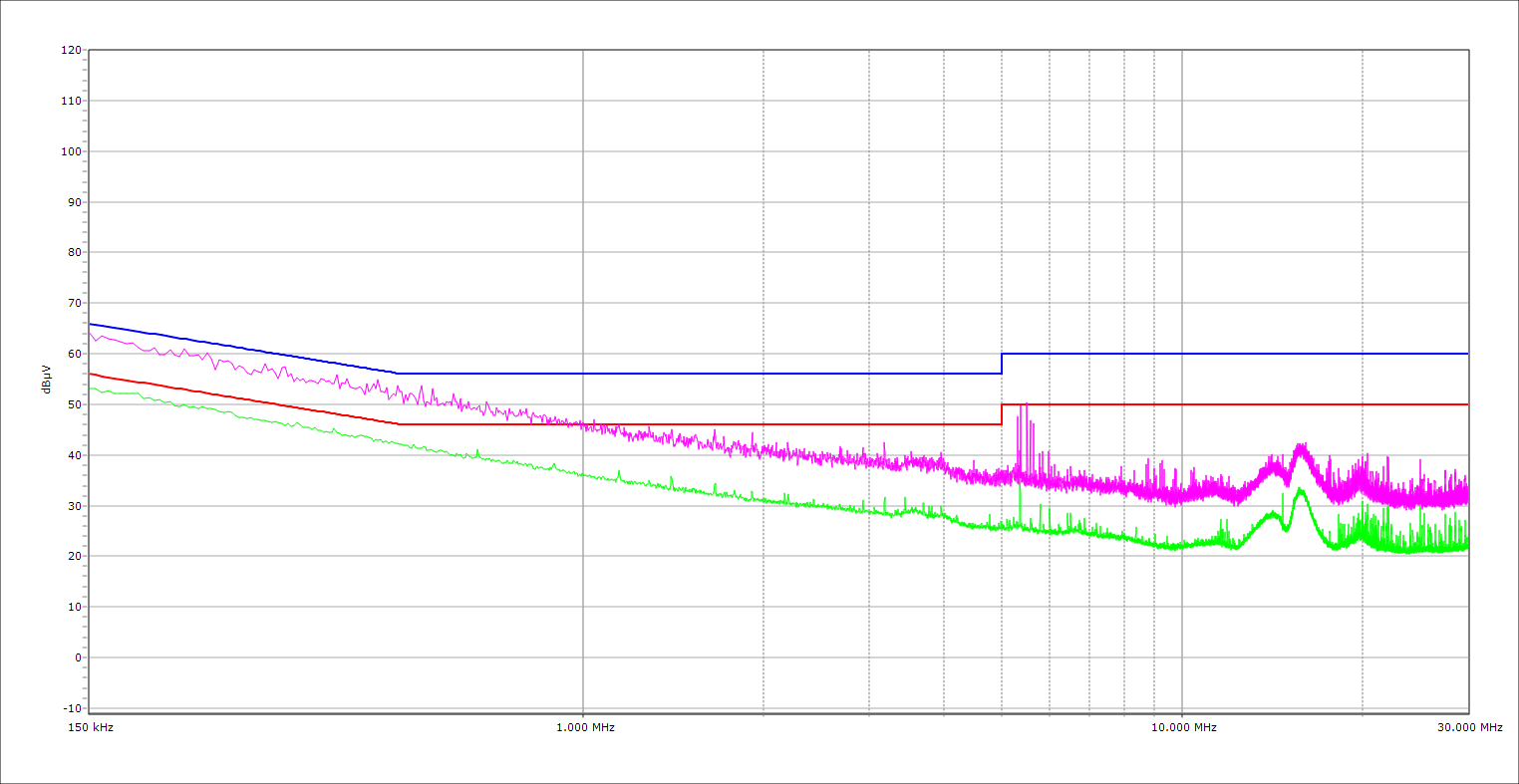

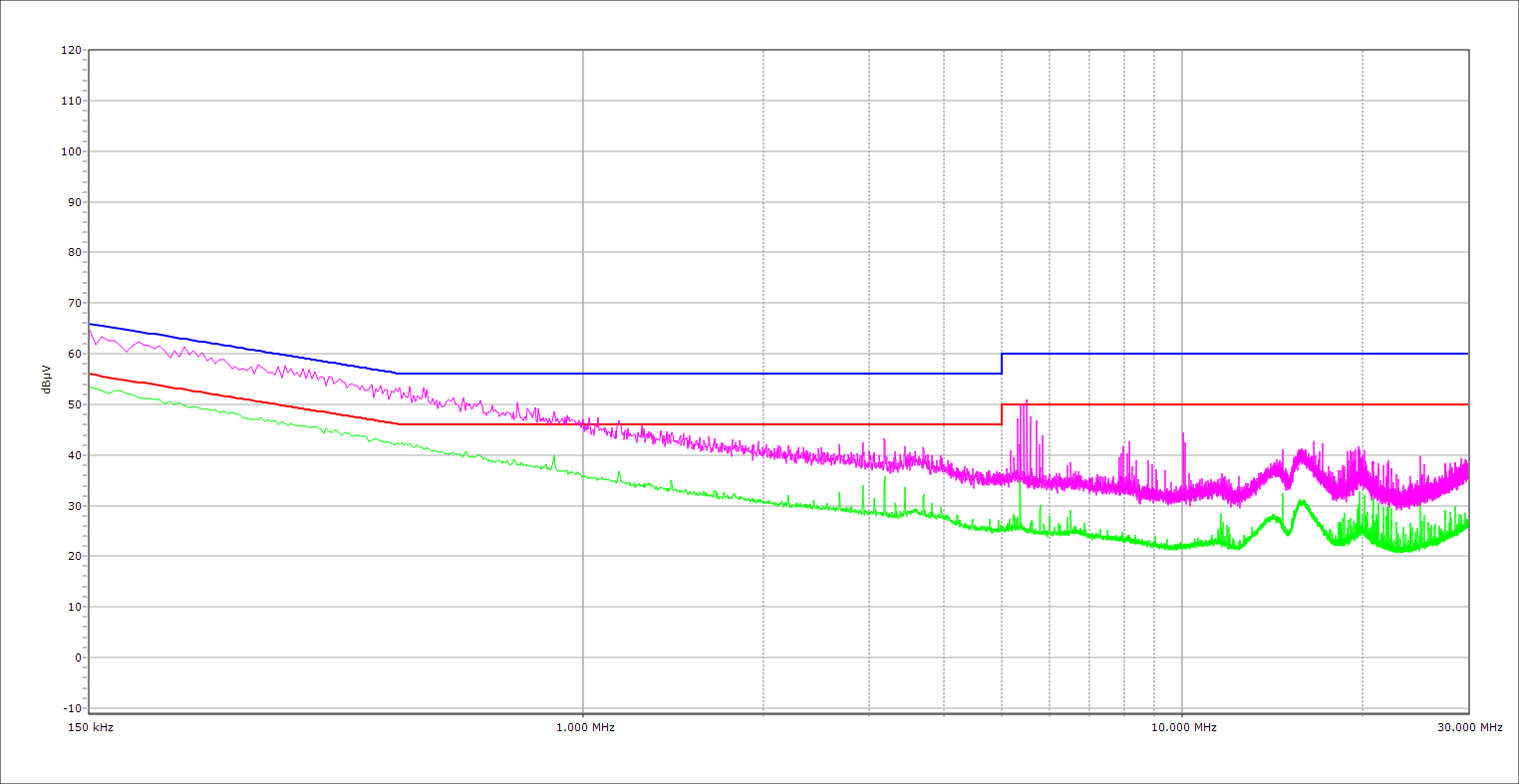

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

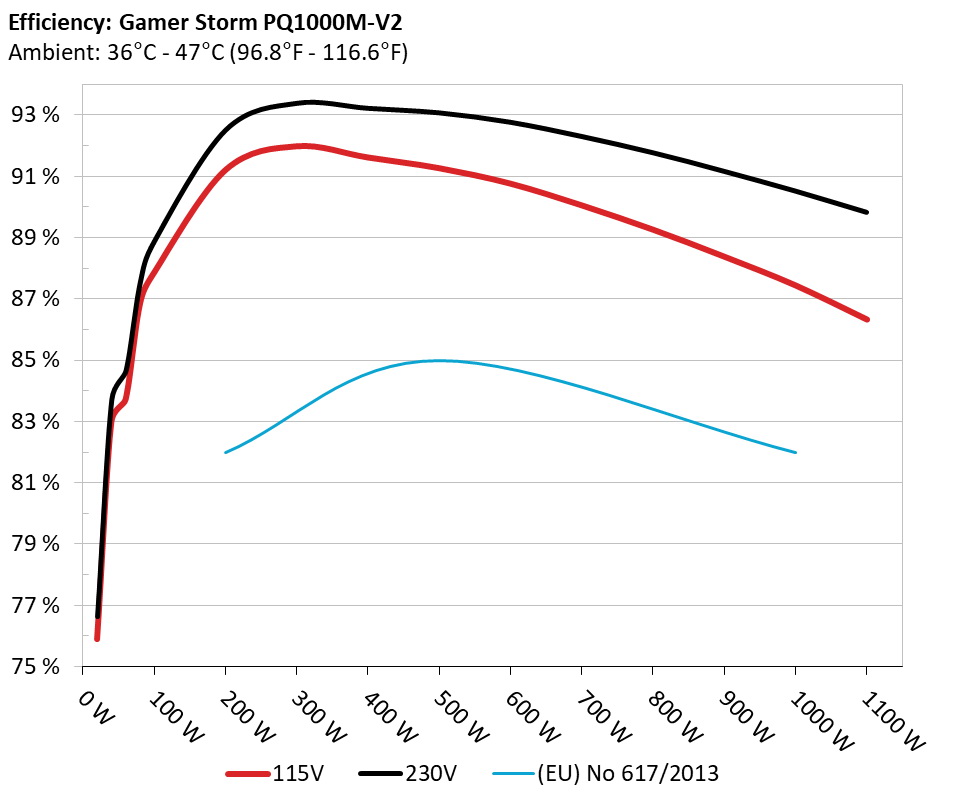

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

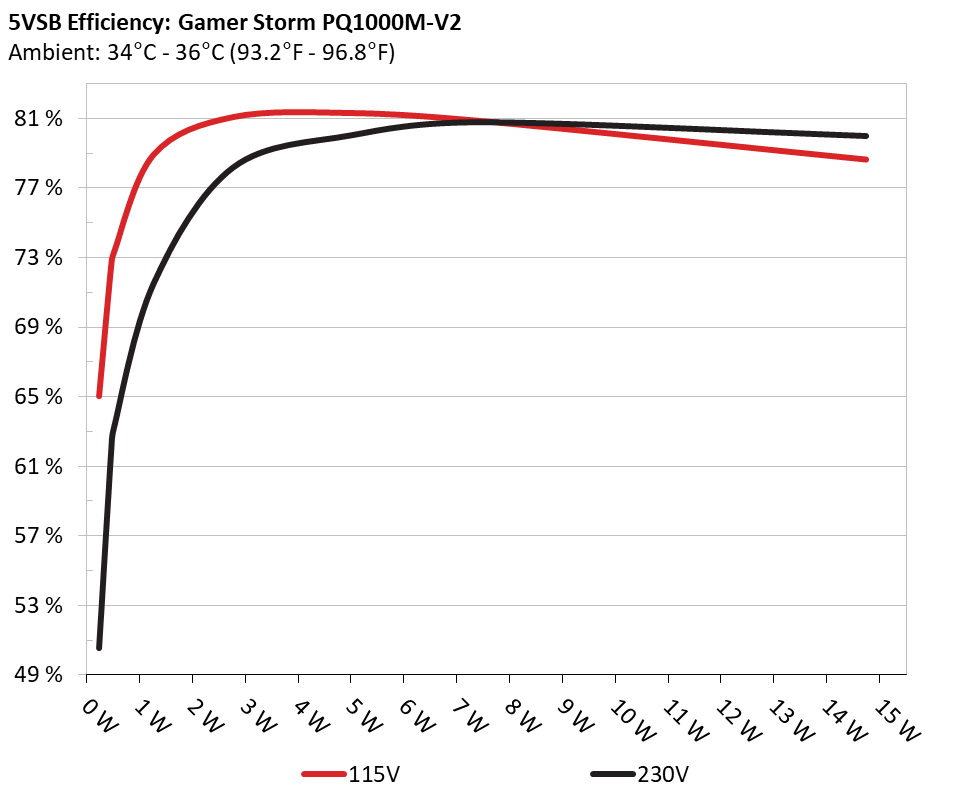

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 65.051% 0.035
5.051V 0.349W 115.08V
2 0.09A 0.455W 72.533% 0.062
5.049V 0.628W 115.08V
3 0.55A 2.765W 81.1% 0.263
5.028V 3.409W 115.09V
4 1A 5.008W 81.331% 0.362
5.008V 6.157W 115.08V
5 1.5A 7.478W 80.869% 0.415
4.985V 9.247W 115.08V
6 3A 14.748W 78.66% 0.487
4.916V 18.749W 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 50.522% 0.014
5.052V 0.45W 230.24V
2 0.09A 0.455W 61.824% 0.022
5.049V 0.736W 230.26V
3 0.55A 2.765W 78.189% 0.102
5.028V 3.536W 230.22V
4 1A 5.008W 80.045% 0.168
5.007V 6.257W 230.21V
5 1.5A 7.478W 80.795% 0.226
4.985V 9.256W 230.21V
6 3A 14.75W 80.004% 0.331
4.916V 18.44W 230.23V

Protection Features

OCP (Normal @ 29.0°C)12V: 92.20A (111.08%), 12.119V
5V: 34.8A (139.20%), 4.99V
3.3V: 36.5A (146.00%), 3.325V
5VSB: 6.4A (213.33%), 4.702V
OCP (Hot @ 43.7°C)12V: 92.00A (110.84%), 12.142V
5V: 34.6A (138.40%), 4.992V
3.3V: 36.4A (145.60%), 3.32V
5VSB: 6.4A (213.33%), 4.754V
OPP (Normal @ 28.7°C)1142.95W (114.30%)
OPP (Hot @ 43.0°C)1136.97W (113.70%)
OTP✓ (110°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.432A 1.994A 1.996A 1A 100.004 87.859% 0 <6.0 41.33°C 0.973
12.191V 5.015V 3.306V 5V 113.824 40.25°C 115.02V
20% 13.900A 2.993A 2.996A 1.204A 199.959 91.201% 0 <6.0 44.41°C 0.983
12.162V 5.013V 3.305V 4.983V 219.252 40.83°C 114.98V
30% 21.712A 3.492A 3.497A 1.41A 300.018 91.978% 0 <6.0 44.83°C 0.987
12.157V 5.013V 3.303V 4.966V 326.181 41.18°C 114.95V
40% 29.496A 3.992A 3.999A 1.617A 399.632 91.613% 910 24 41.82°C 0.988
12.151V 5.011V 3.301V 4.948V 436.223 53.84°C 114.91V
50% 36.958A 4.993A 5.002A 1.826A 499.36 91.264% 899 23.7 42.35°C 0.988
12.145V 5.009V 3.299V 4.93V 547.156 56.55°C 114.87V
60% 44.488A 5.993A 6.005A 2A 599.714 90.76% 885 23.9 42.59°C 0.989
12.140V 5.008V 3.298V 4.913V 660.77 60.22°C 114.83V
70% 51.951A 6.993A 7.009A 2.249A 699.618 90.052% 869 23.4 43.41°C 0.991
12.137V 5.007V 3.297V 4.892V 776.907 65.45°C 114.78V
80% 59.484A 7.992A 8.012A 2.359A 799.615 89.258% 991 27.4 43.76°C 0.992
12.133V 5.005V 3.295V 4.877V 895.843 68.02°C 114.74V
90% 67.383A 8.493A 8.502A 2.468A 899.389 88.381% 1537 42.1 44.01°C 0.993
12.124V 5.004V 3.293V 4.863V 1017.618 64.66°C 114.7V
100% 75.092A 8.996A 9.024A 3.11A 999.384 87.443% 1805 47.6 45.81°C 0.994
12.115V 5.003V 3.291V 4.825V 1142.898 64.63°C 114.66V
110% 82.743A 9.998A 10.122A 3.117A 1099.999 86.325% 2013 51.6 46.1°C 0.995
12.106V 5.001V 3.29V 4.813V 1274.249 65.61°C 114.61V
CL1 0.115A 15.051A 14.984A 0A 126.308 82.946% 922 24.5 40.71°C 0.98
12.187V 5.003V 3.31V 5.03V 152.276 53.06°C 115V
CL2 0.115A 24.984A 0A 0A 126.272 81.308% 920 24.5 42.17°C 0.98
12.184V 4.998V 3.311V 5.036V 155.299 52.05°C 115V
CL3 0.115A 0A 24.885A 0A 83.89 74.766% 930 24.8 41.97°C 0.973
12.198V 5.018V 3.315V 5.032V 112.205 50.28°C 115.01V
CL4 82.559A 0A 0A 0.001A 999.969 88.028% 1800 47.6 45.2°C 0.993
12.112V 5.014V 3.293V 4.976V 1135.979 61.38°C 114.66V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.424A 1.994A 1.995A 1A 99.99 88.893% 0 <6.0 47.06°C 0.871
12.203V 5.016V 3.307V 5V 112.484 40.22°C 230.25V
20% 13.886A 2.991A 2.994A 1.204A 199.943 92.517% 0 <6.0 49.68°C 0.94
12.174V 5.015V 3.306V 4.983V 216.112 40.81°C 230.23V
30% 21.693A 3.491A 3.495A 1.41A 299.998 93.393% 0 <6.0 49.81°C 0.962
12.167V 5.014V 3.305V 4.966V 321.225 41.15°C 230.2V
40% 29.483A 3.992A 3.998A 1.617A 399.577 93.23% 913 24.2 41.84°C 0.971
12.155V 5.011V 3.302V 4.949V 428.592 50.47°C 230.17V
50% 36.952A 4.992A 5.001A 1.825A 499.309 93.082% 903 23.7 42.17°C 0.976
12.145V 5.009V 3.3V 4.931V 536.417 51.13°C 230.14V
60% 44.482A 5.993A 6.004A 2A 599.674 92.774% 889 23.7 42.75°C 0.979
12.141V 5.008V 3.298V 4.914V 646.38 53.81°C 230.12V
70% 51.949A 6.993A 7.007A 2.248A 699.588 92.311% 871 23.4 43.19°C 0.982
12.137V 5.006V 3.297V 4.893V 757.856 56.61°C 230.09V
80% 59.484A 7.992A 8.009A 2.358A 799.592 91.781% 989 27.4 43.85°C 0.984
12.133V 5.005V 3.296V 4.878V 871.195 58.89°C 230.07V
90% 67.390A 8.494A 8.499A 2.468A 899.381 91.175% 1537 42.1 44.27°C 0.985
12.122V 5.004V 3.294V 4.864V 986.441 56.92°C 230.04V
100% 75.101A 8.996A 9.02A 3.109A 999.386 90.531% 1807 47.7 45.64°C 0.986
12.113V 5.002V 3.292V 4.825V 1103.924 57.2°C 230.02V
110% 82.737A 9.998A 10.117A 3.116A 1099.994 89.833% 2015 51.7 46.9°C 0.988
12.107V 5.001V 3.291V 4.815V 1224.479 58.7°C 230V
CL1 0.115A 15.05A 14.979A 0A 126.305 84.077% 923 24.5 42.67°C 0.909
12.189V 5.003V 3.311V 5.031V 150.225 53.11°C 230.18V
CL2 0.115A 24.98A 0A 0A 126.267 82.418% 922 24.5 41.52°C 0.911
12.185V 4.999V 3.311V 5.037V 153.206 50.46°C 230.18V
CL3 0.114A 0A 24.877A 0A 83.886 75.606% 928 24.8 40.49°C 0.87
12.197V 5.019V 3.316V 5.032V 110.955 48.25°C 230.19V
CL4 82.568A 0A 0A 0.001A 999.946 91.078% 1804 47.6 45.33°C 0.986
12.110V 5.014V 3.293V 4.976V 1097.906 54.74°C 230.02V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.498A 0.499A 0.198A 19.997 75.901% 0 <6.0 45.34°C 0.868
12.108V 5.016V 3.306V 5.042V 26.346 36.07°C 115.07V
40W 2.698A 0.698A 0.699A 0.298A 40 82.999% 0 <6.0 45.83°C 0.938
12.114V 5.017V 3.307V 5.036V 48.193 37.55°C 115.05V
60W 4.146A 0.897A 0.898A 0.398A 60.001 83.722% 0 <6.0 43.33°C 0.96
12.186V 5.017V 3.307V 5.03V 71.665 38.89°C 115.04V
80W 5.605A 1.097A 1.098A 0.498A 79.949 86.822% 0 <6.0 42.19°C 0.969
12.189V 5.017V 3.306V 5.025V 92.084 39.23°C 115.03V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.498A 0.499A 0.198A 20.002 76.63% 0 <6.0 44.39°C 0.49
12.126V 5.019V 3.308V 5.042V 26.088 36.93°C 230.26V
40W 2.696A 0.697A 0.698A 0.298A 40.001 83.716% 0 <6.0 45.84°C 0.676
12.127V 5.018V 3.308V 5.036V 47.778 37.81°C 230.26V
60W 4.140A 0.897A 0.898A 0.398A 59.999 84.657% 0 <6.0 45.83°C 0.78
12.202V 5.018V 3.308V 5.03V 70.875 38.04°C 230.26V
80W 5.598A 1.096A 1.097A 0.498A 79.941 87.531% 0 <6.0 48.08°C 0.834
12.202V 5.018V 3.308V 5.024V 91.331 39.24°C 230.26V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load27.69mV11.90mV11.27mV9.19mVPass
20% Load24.85mV13.03mV12.15mV10.48mVPass
30% Load19.08mV12.62mV12.05mV10.89mVPass
40% Load20.00mV13.24mV12.10mV11.51mVPass
50% Load20.62mV13.91mV13.03mV13.21mVPass
60% Load21.55mV15.66mV12.82mV12.96mVPass
70% Load22.89mV16.17mV13.60mV13.37mVPass
80% Load22.48mV16.79mV14.01mV14.50mVPass
90% Load23.41mV16.79mV13.81mV14.92mVPass
100% Load24.47mV16.92mV14.13mV14.20mVPass
110% Load24.81mV17.01mV14.60mV15.18mVPass
Crossload133.73mV15.80mV13.22mV11.73mVPass
Crossload234.96mV22.67mV13.39mV13.83mVPass
Crossload329.18mV12.73mV13.96mV11.61mVPass
Crossload425.92mV15.16mV12.97mV14.75mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load31.45mV13.03mV12.82mV10.22mVPass
20% Load26.50mV13.09mV12.88mV10.74mVPass
30% Load21.60mV14.84mV13.19mV11.20mVPass
40% Load20.98mV14.73mV13.65mV11.72mVPass
50% Load22.17mV15.35mV14.27mV13.42mVPass
60% Load23.61mV17.05mV14.22mV14.09mVPass
70% Load23.87mV17.93mV15.10mV14.09mVPass
80% Load25.06mV17.57mV16.34mV14.97mVPass
90% Load25.42mV18.65mV16.13mV15.54mVPass
100% Load24.91mV17.01mV14.42mV15.72mVPass
110% Load26.31mV17.28mV15.17mV15.73mVPass
Crossload136.87mV14.87mV13.56mV11.40mVPass
Crossload238.92mV21.90mV15.52mV13.93mVPass
Crossload332.48mV14.01mV15.41mV12.34mVPass
Crossload425.02mV16.34mV13.21mV14.63mVPass

The results above are not used in the certification process

Gamer Storm PQ1000M-V2

Top side

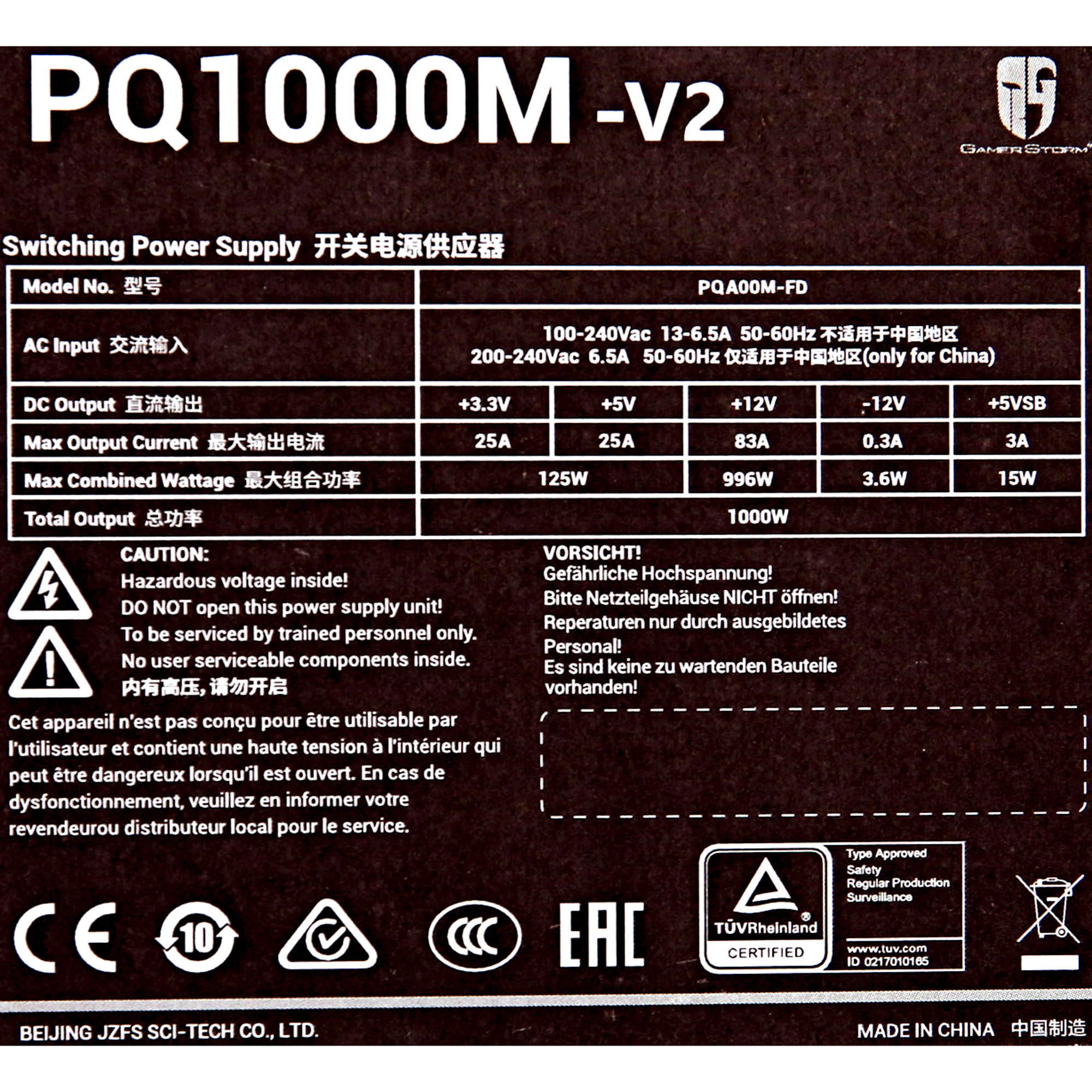

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
