CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

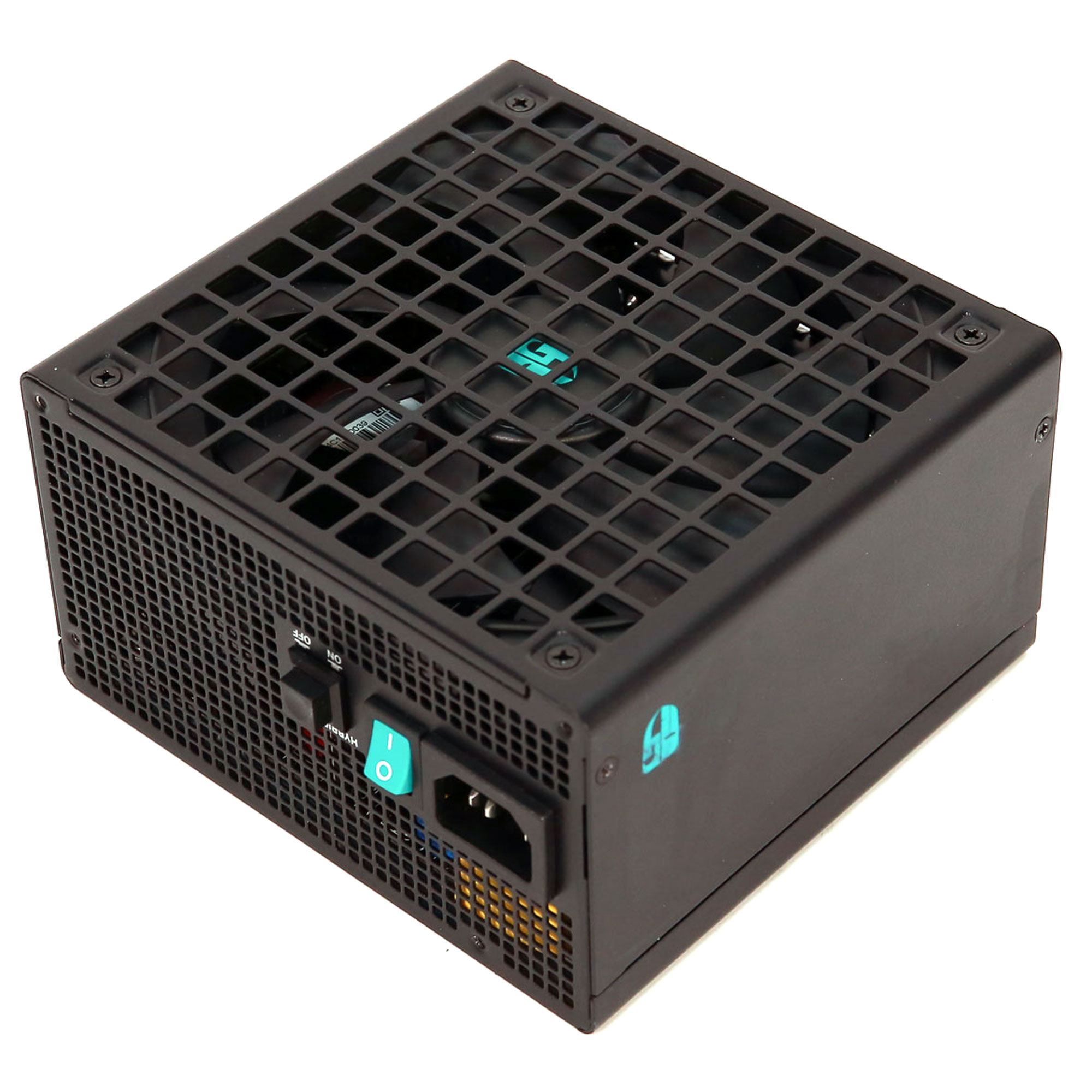

Gamer Storm PQ850M-V2
Serial Number-
Lab IDGA85002829
Certification ID252829
  • Test Result Report ID: 25PS2829A
  • Certificate Issue Date: Jun 3, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)Seasonic
SeriesPQM -V2
Model NumberPQ850M-FD
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5.5-11
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

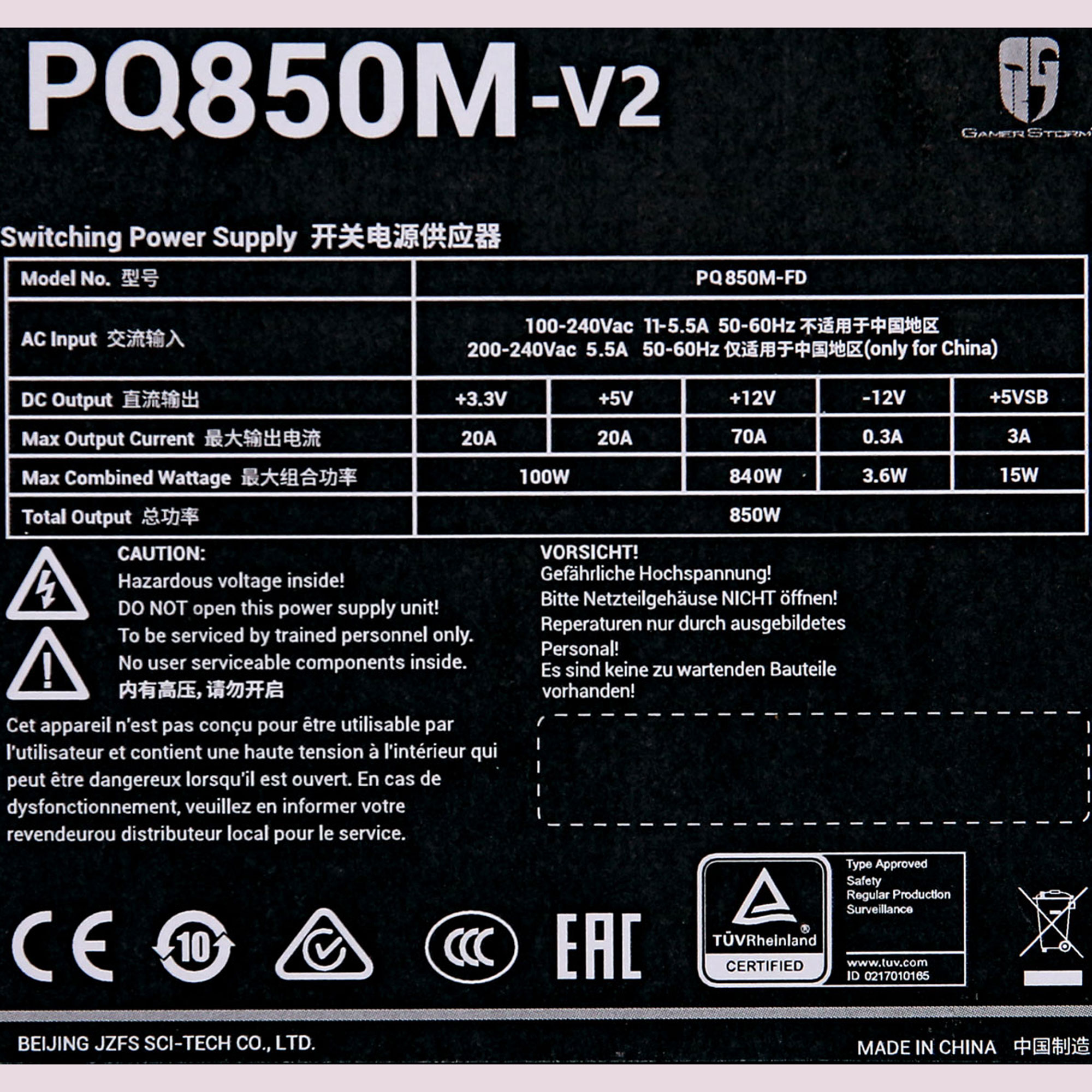

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20207030.3
Watts100840153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (705mm) 2 2 18AWG No
6+2 pin PCIe (605mm+125mm) 1 2 18AWG No
6+2 pin PCIe (605mm) 2 2 18AWG No
12+4 pin PCIe (655mm) (600W) 1 1 16-24AWG No
SATA (460mm+120mm+120mm) / 4-pin Molex (+120mm) 3 9 / 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72 5D-20L (5 ohm) & Relay
Bridge Rectifier(s)
2x GBU1508S (800V, 15A @ 100°C)
APFC MOSFETs
2x CRMicro CRJS140N65G2F (650V, 15A @ 100°C, Rds(on): 140mOhm)
APFC Boost Diode
Global Power G4S06508DT (650V, 8A @ 152°C)
Bulk Cap(s)
Nippon Chemi-Con (400V, 680uF , 2000h @ 105°C, KMR)
Main Switchers
4x CRMicro CS13N50 A0R (500V, 8.2A @ 100°C, Rds(on): 0.5Ohm)
APFC  Controller
Champion CM6500UNX
Resonant Controller
Champion CU6901VPA
IC DriverTopology
Primary side: APFC, Full-Bridge & LLC Resonant converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Leadpower LM45013NHM8A (45V, 95A @ 25°C, Rds(on): 1.1mOhm)
5V & 3.3V DC-DC Converters: 6x UBIQ QN3106M6N (30V, 57A @ 100°C, Rds(on): 3.8mOhm)
PWM Controller(s): UPI-semi uP3861P
Filtering Capacitors

Electrolytic:
11x Teapo (2-5,000h @ 105°C, SC),
Polymer: 22x Teapo
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, SCP, PG)
MCU Nuvoton M031FB0AE
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier
Dongke DK5V45R10S (45V, 10mOhm)
Standby PWM Controller
Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.286%
Average Noise Output (>1450 Load Combinations)28.53dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load71.747%
Standby Power Consumption0.0679W
12V Ripple (Full Load)26.53mV
5V Ripple (Full Load)17.91mV
3.3V Ripple (Full Load)17.89mV
5VSB Ripple (Full Load)17.47mV
12V Load Regulation0.71%
5V Load Regulation0.28%
3.3V Load Regulation0.55%
5VSB Load Regulation3.87%
Inrush Current32.010A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.020%
Average Noise Output (>1450 Load Combinations)28.68dBA
Average PF (>1450 Load Combinations)0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load73.205%
Standby Power Consumption0.1698W
12V Ripple (Full Load)26.45mV
5V Ripple (Full Load)18.47mV
3.3V Ripple (Full Load)17.31mV
5VSB Ripple (Full Load)17.59mV
12V Load Regulation0.80%
5V Load Regulation0.26%
3.3V Load Regulation0.51%
5VSB Load Regulation3.83%
Inrush Current65.280A
12V Transient Response (200%)11.65V
5V Transient Response (200%)4.937V
3.3V Transient Response (200%)3.224V
5VSB Transient Response (200%)4.924V
Hold-Up Time & Power Ok Signal20.80ms
AC Loss to PWR_OK Hold Up Time15.90ms
PWR_OK Inactive to DC Loss Delay4.90ms
PSU Timings: T1 (20% / 100%)66.0ms65.0ms
PSU Timings: T3 (20% / 100%)125.0ms124.0ms
12V OCP (25.6°C / 42.0°C)76.80A (109.71%), 12.115V76.80A (109.71%), 12.148V
5V OCP (25.6°C / 42.0°C)27.2A (136.00%), 4.999V27.3A (136.50%), 4.998V
3.3V OCP (25.6°C / 42.0°C)29A (145.00%), 3.312V28.9A (144.50%), 3.312V
5VSB OCP (25.6°C / 42.0°C)6.5A (216.67%), 4.796V6.5A (216.67%), 4.786V
OPP (26.14°C / 43.55°C)111.52%111.23%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.8
AC Loss to PWR_OK Hold Up Time (ms)15.9
PWR_OK Inactive to DC Loss Delay (ms)4.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.08 % N/A 0.21 % 2.00 % PASS
Real Power: 0.068 W 0.004 W N/A 0.107 W N/A N/A
Apparent Power: 11.260 W 10.617 W N/A 11.881 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.03 V 230.93 V 227.70 V 231.09 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.28 % 2.00 % PASS
Real Power: 0.170 W 0.128 W N/A 0.231 W N/A N/A
Apparent Power: 35.851 W 35.127 W N/A 36.526 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

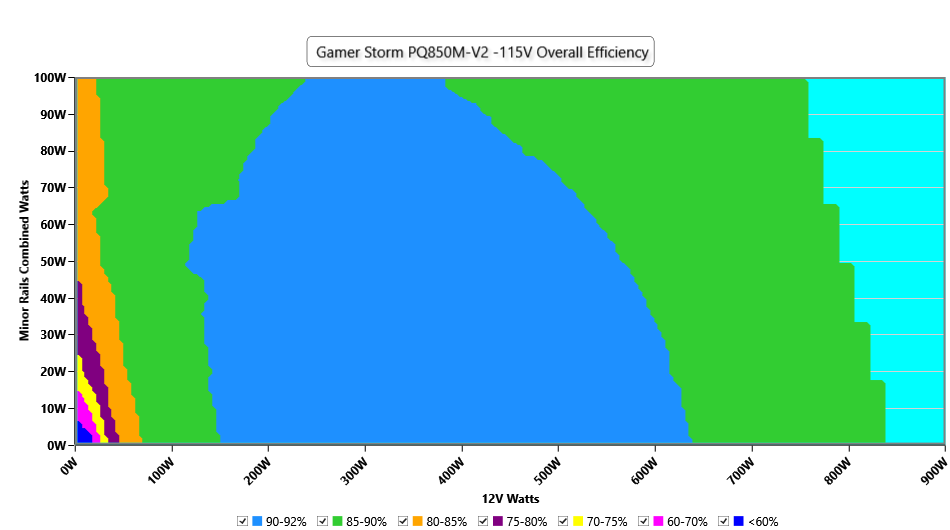

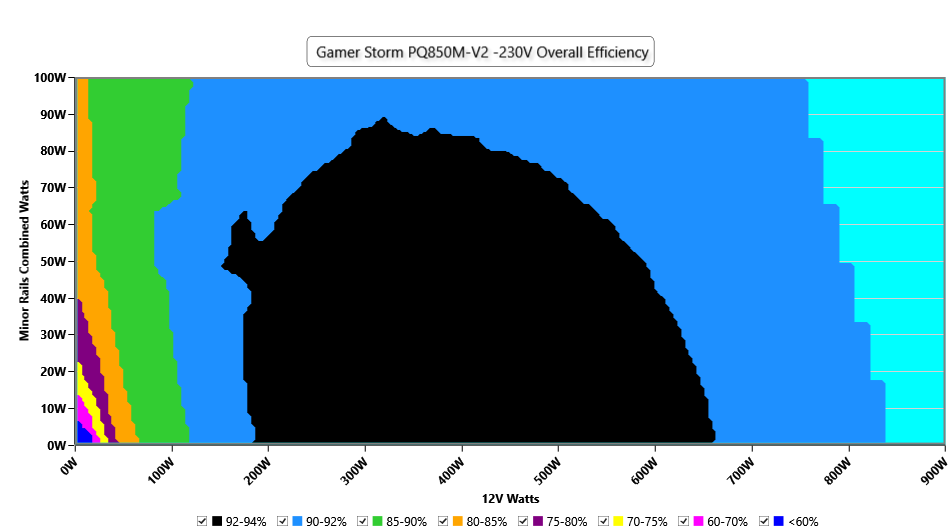

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

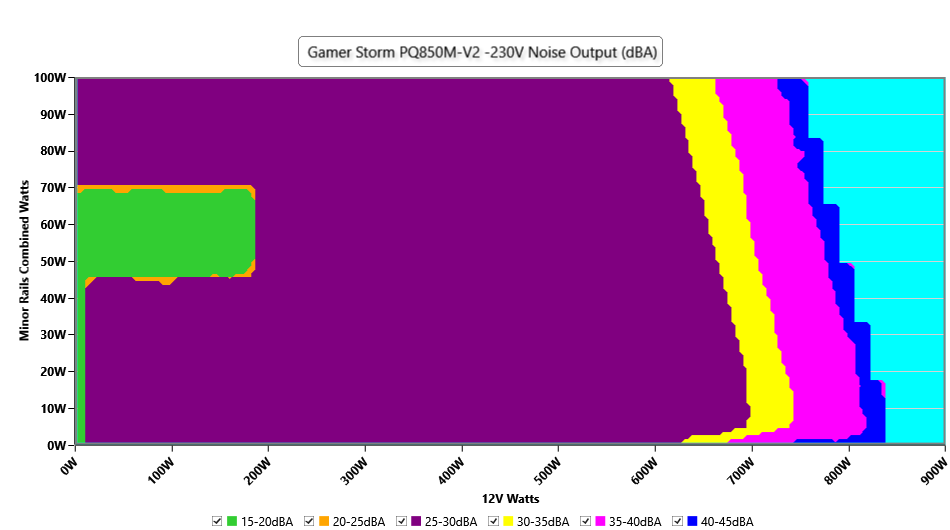

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

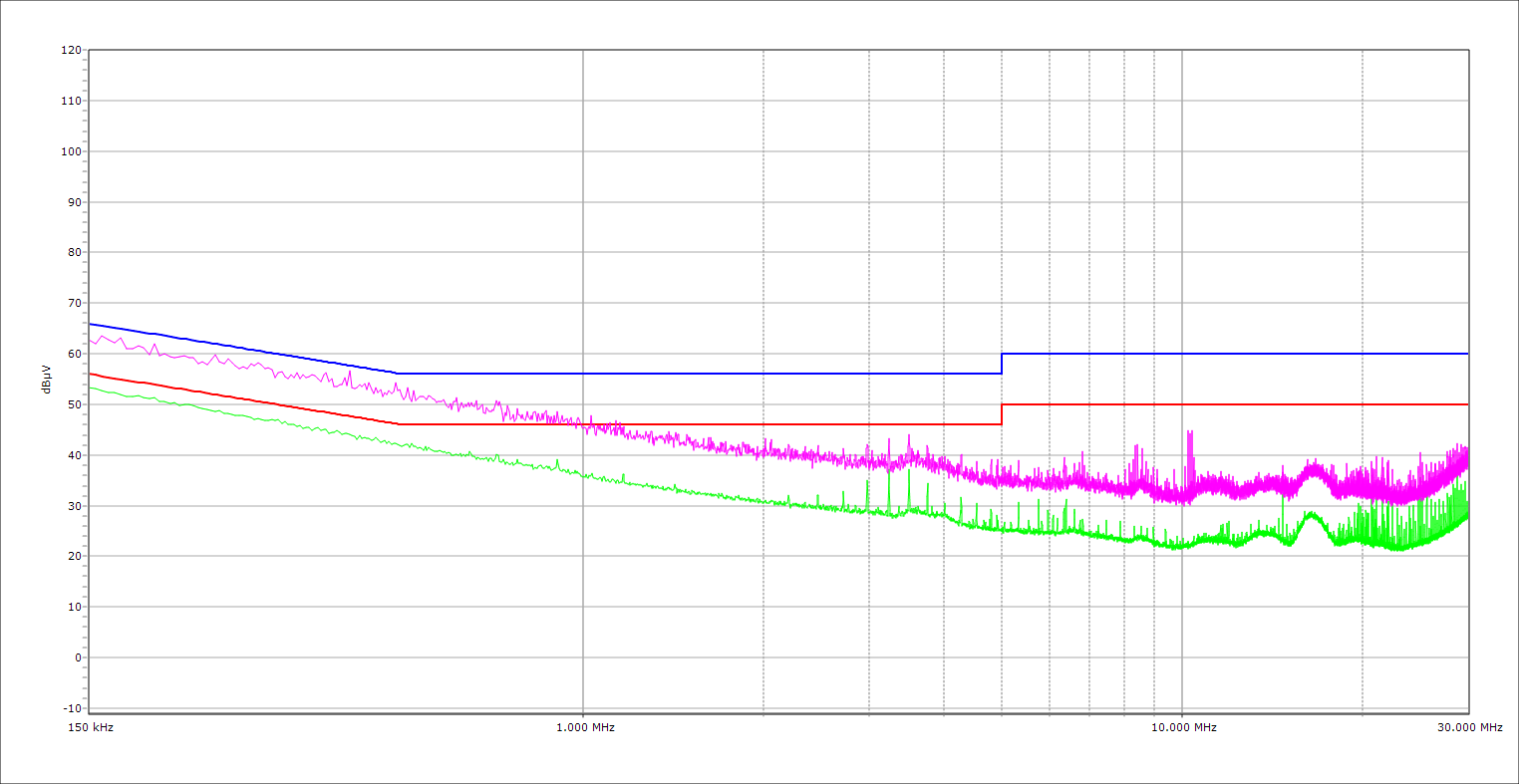

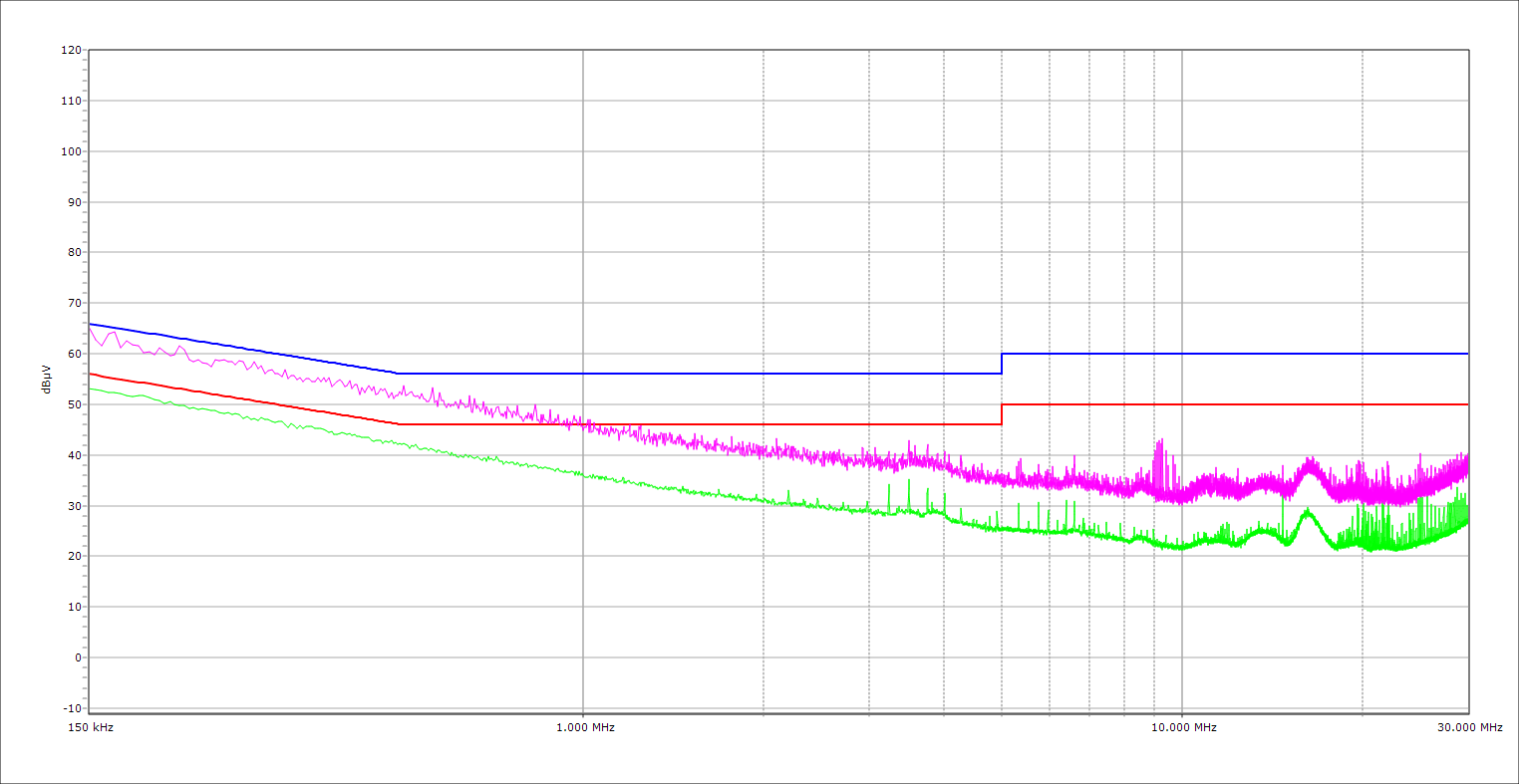

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

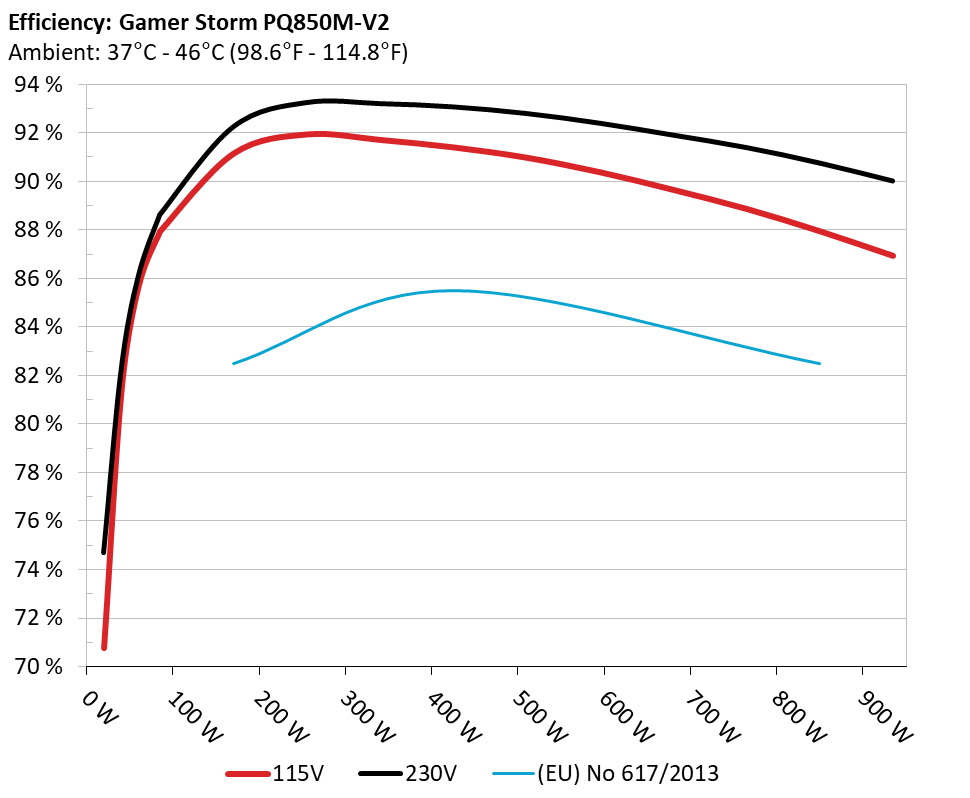

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

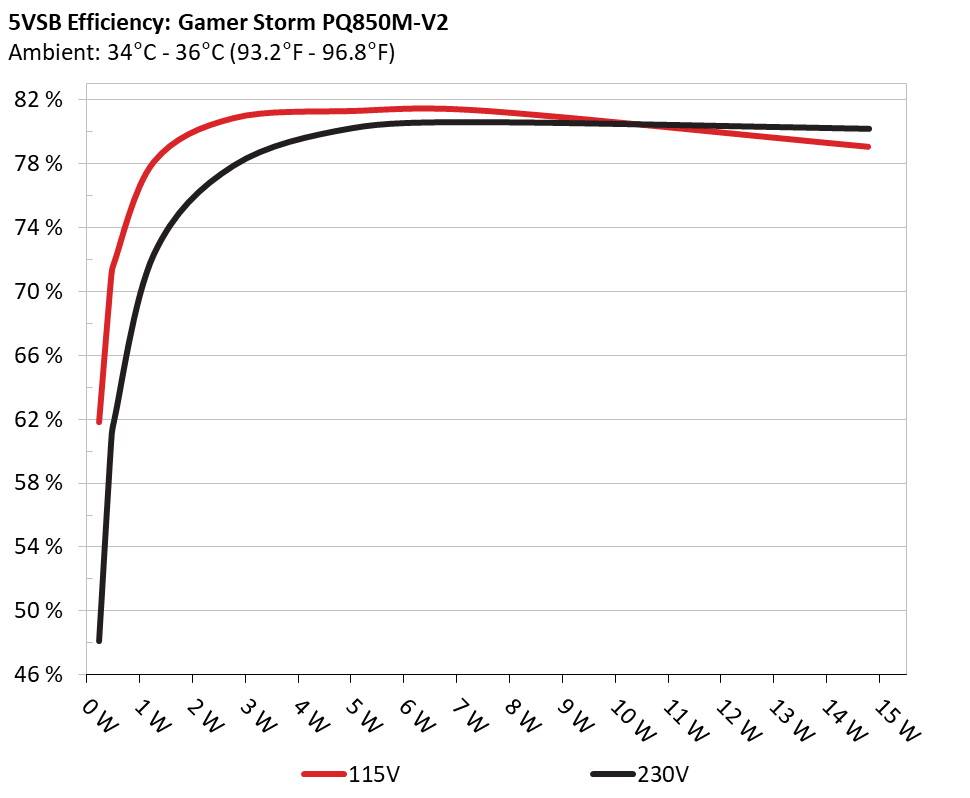

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 61.795% 0.036
5.051V 0.368W 115.09V
2 0.09A 0.455W 70.852% 0.062
5.049V 0.642W 115.09V
3 0.55A 2.767W 80.823% 0.261
5.03V 3.424W 115.09V
4 1A 5.013W 81.268% 0.359
5.012V 6.168W 115.09V
5 1.5A 7.488W 81.293% 0.411
4.992V 9.21W 115.09V
6 3A 14.788W 79.033% 0.483
4.929V 18.712W 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 48.103% 0.014
5.052V 0.473W 230.27V
2 0.09A 0.455W 60.536% 0.022
5.049V 0.752W 230.27V
3 0.55A 2.766W 77.84% 0.101
5.03V 3.554W 230.26V
4 1A 5.012W 80.197% 0.165
5.012V 6.25W 230.27V
5 1.5A 7.488W 80.568% 0.224
4.991V 9.293W 230.27V
6 3A 14.79W 80.156% 0.328
4.93V 18.452W 230.26V

Protection Features

OCP (Normal @ 25.6°C)12V: 76.80A (109.71%), 12.115V
5V: 27.2A (136.00%), 4.999V
3.3V: 29A (145.00%), 3.312V
5VSB: 6.5A (216.67%), 4.796V
OCP (Hot @ 42.0°C)12V: 76.80A (109.71%), 12.148V
5V: 27.3A (136.50%), 4.998V
3.3V: 28.9A (144.50%), 3.312V
5VSB: 6.5A (216.67%), 4.786V
OPP (Normal @ 26.1°C)947.92W (111.52%)
OPP (Hot @ 43.5°C)945.44W (111.23%)
OTP✓ (105°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.196A 1.989A 1.989A 0.999A 85.003 87.437% 0 <6.0 47.23°C 0.967
12.204V 5.027V 3.318V 5.006V 97.217 40.06°C 115.06V
20% 11.418A 2.985A 2.985A 1.202A 169.933 90.63% 0 <6.0 48.93°C 0.982
12.176V 5.025V 3.316V 4.991V 187.503 40.95°C 115.03V
30% 17.986A 3.484A 3.484A 1.407A 254.941 91.425% 0 <6.0 51.11°C 0.986
12.170V 5.024V 3.315V 4.976V 278.854 41.45°C 115V
40% 24.574A 3.982A 3.985A 1.613A 340.035 91.2% 967 25.9 41.62°C 0.986
12.160V 5.023V 3.313V 4.961V 372.847 50.24°C 114.96V
50% 30.807A 4.979A 4.984A 1.82A 424.872 90.893% 960 25.5 42.33°C 0.987
12.152V 5.022V 3.311V 4.945V 467.44 51.57°C 114.92V
60% 37.016A 5.977A 5.985A 2A 509.266 90.471% 952 25.5 42.77°C 0.988
12.146V 5.02V 3.309V 4.93V 562.901 52.76°C 114.88V
70% 43.297A 6.975A 6.987A 2.239A 594.721 89.867% 943 25.2 43.15°C 0.989
12.140V 5.019V 3.307V 4.913V 661.783 55.1°C 114.84V
80% 49.581A 7.972A 7.988A 2.347A 679.557 89.145% 933 25 43.98°C 0.991
12.135V 5.017V 3.305V 4.9V 762.306 58.35°C 114.81V
90% 56.271A 8.472A 8.477A 2.455A 764.98 88.353% 1213 33.3 44.21°C 0.992
12.128V 5.016V 3.303V 4.888V 865.835 59.06°C 114.77V
100% 62.707A 8.973A 8.997A 3.091A 849.781 87.434% 1472 41.1 45.64°C 0.993
12.121V 5.015V 3.301V 4.854V 971.906 60°C 114.73V
110% 69.037A 9.972A 10.093A 3.096A 934.374 86.424% 2018 51.6 45.27°C 0.994
12.111V 5.014V 3.299V 4.847V 1081.156 58.95°C 114.69V
CL1 0.115A 12.001A 11.981A 0A 101.302 83.307% 977 26.5 43.28°C 0.974
12.191V 5.016V 3.313V 5.035V 121.601 54.91°C 115.03V
CL2 0.115A 19.967A 0A 0A 101.394 82.218% 977 26.5 41.73°C 0.974
12.189V 5.008V 3.319V 5.039V 123.324 51.08°C 115.02V
CL3 0.114A 0A 19.934A 0A 67.387 76.351% 979 26.6 40.59°C 0.965
12.202V 5.027V 3.311V 5.036V 88.259 48.31°C 115.04V
CL4 70.111A 0A 0A 0.001A 849.553 88.215% 1544 42.7 45.44°C 0.992
12.118V 5.024V 3.306V 4.986V 963.053 54.98°C 114.73V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.198A 1.99A 1.99A 0.999A 85.009 88.131% 0 <6.0 44.12°C 0.847
12.199V 5.026V 3.318V 5.005V 96.458 40.33°C 230.14V
20% 11.424A 2.986A 2.986A 1.202A 169.962 91.753% 0 <6.0 45.67°C 0.926
12.172V 5.025V 3.316V 4.99V 185.242 40.78°C 230.12V
30% 17.994A 3.484A 3.485A 1.407A 254.977 92.761% 0 <6.0 46.03°C 0.952
12.166V 5.023V 3.314V 4.975V 274.873 41.28°C 230.1V
40% 24.585A 3.983A 3.986A 1.613A 340.074 92.717% 967 25.9 41.81°C 0.964
12.156V 5.023V 3.312V 4.961V 366.787 45.58°C 230.08V
50% 30.821A 4.98A 4.985A 1.82A 424.954 92.582% 959 25.5 42.22°C 0.97
12.149V 5.021V 3.31V 4.945V 459.005 49.86°C 230.06V
60% 37.023A 5.978A 5.986A 2A 509.337 92.313% 951 25.5 42.72°C 0.975
12.146V 5.02V 3.309V 4.93V 551.75 52.02°C 230.04V
70% 43.300A 6.977A 6.987A 2.24A 594.786 91.909% 941 25.2 43.22°C 0.978
12.140V 5.018V 3.307V 4.912V 647.144 53.62°C 230.03V
80% 49.582A 7.973A 7.988A 2.347A 679.602 91.419% 931 24.8 43.92°C 0.981
12.136V 5.017V 3.305V 4.9V 743.389 56.28°C 230.02V
90% 56.273A 8.472A 8.477A 2.455A 764.992 90.905% 1213 33.3 44.57°C 0.982
12.128V 5.016V 3.303V 4.889V 841.53 57.38°C 230.04V
100% 62.706A 8.972A 8.996A 3.09A 849.765 90.264% 1469 41 45.33°C 0.984
12.121V 5.015V 3.301V 4.856V 941.423 57.52°C 230.05V
110% 69.033A 9.972A 10.092A 3.094A 934.327 89.528% 1994 51.5 46.11°C 0.985
12.112V 5.014V 3.299V 4.849V 1043.612 56.59°C 230.06V
CL1 0.115A 12A 11.98A 0A 101.294 84.366% 977 26.5 42.65°C 0.881
12.192V 5.016V 3.314V 5.035V 120.065 54.39°C 230.22V
CL2 0.114A 19.966A 0A 0A 101.376 83.24% 977 26.5 42.65°C 0.882
12.190V 5.008V 3.319V 5.04V 121.784 50.8°C 230.23V
CL3 0.113A 0A 19.931A 0A 67.38 77.144% 979 26.6 40.82°C 0.829
12.203V 5.027V 3.311V 5.036V 87.345 48.03°C 230.25V
CL4 70.116A 0A 0A 0.001A 849.492 91.036% 1533 42.2 44.38°C 0.983
12.116V 5.024V 3.306V 4.988V 933.147 50.15°C 230.11V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.497A 0.497A 0.198A 20.001 70.26% 0 <6.0 43.19°C 0.88
12.207V 5.029V 3.319V 5.042V 28.455 36.68°C 115.08V
40W 2.678A 0.696A 0.696A 0.298A 40 80.791% 0 <6.0 44.26°C 0.94
12.206V 5.028V 3.319V 5.037V 49.527 37.04°C 115.07V
60W 4.140A 0.895A 0.895A 0.397A 59.999 85.169% 0 <6.0 45.09°C 0.956
12.205V 5.028V 3.319V 5.032V 70.449 38.64°C 115.07V
80W 5.598A 1.094A 1.094A 0.497A 79.941 87.376% 0 <6.0 46.42°C 0.966
12.204V 5.028V 3.318V 5.026V 91.491 39.39°C 115.06V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.497A 0.497A 0.198A 20.001 74.192% 0 <6.0 43.51°C 0.512
12.126V 5.028V 3.318V 5.042V 26.961 36.86°C 230.19V
40W 2.702A 0.696A 0.696A 0.298A 40.002 81.658% 0 <6.0 42.73°C 0.692
12.102V 5.028V 3.318V 5.037V 48.99 37.26°C 230.18V
60W 4.144A 0.895A 0.895A 0.398A 60.003 85.577% 0 <6.0 45.36°C 0.783
12.197V 5.028V 3.318V 5.031V 70.116 38.84°C 230.16V
80W 5.602A 1.094A 1.094A 0.497A 79.953 88.16% 0 <6.0 43.58°C 0.835
12.196V 5.027V 3.318V 5.026V 90.694 39.03°C 230.15V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 29.4 mV 12.6 mV 12.1 mV 9.9 mV Pass
20% Load 29.0 mV 13.3 mV 12.2 mV 11.0 mV Pass
30% Load 22.4 mV 14.8 mV 15.2 mV 12.4 mV Pass
40% Load 22.4 mV 25.7 mV 30.9 mV 18.8 mV Pass
50% Load 20.7 mV 14.7 mV 13.6 mV 13.5 mV Pass
60% Load 22.5 mV 14.8 mV 14.0 mV 16.1 mV Pass
70% Load 23.2 mV 16.1 mV 14.9 mV 15.0 mV Pass
80% Load 23.9 mV 16.5 mV 15.5 mV 16.4 mV Pass
90% Load 24.5 mV 16.8 mV 16.2 mV 16.3 mV Pass
100% Load 26.5 mV 17.9 mV 17.9 mV 17.5 mV Pass
110% Load 26.6 mV 18.3 mV 17.3 mV 18.7 mV Pass
Crossload 1 41.8 mV 15.0 mV 13.8 mV 11.5 mV Pass
Crossload 2 37.7 mV 17.5 mV 13.2 mV 12.7 mV Pass
Crossload 3 29.5 mV 14.2 mV 14.5 mV 11.3 mV Pass
Crossload 4 25.8 mV 16.1 mV 15.1 mV 16.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 34.5 mV 13.2 mV 12.7 mV 10.3 mV Pass
20% Load 32.1 mV 14.1 mV 13.1 mV 11.0 mV Pass
30% Load 23.4 mV 14.9 mV 15.5 mV 12.3 mV Pass
40% Load 21.0 mV 14.9 mV 14.2 mV 12.5 mV Pass
50% Load 22.0 mV 15.6 mV 15.3 mV 14.8 mV Pass
60% Load 23.7 mV 16.1 mV 15.7 mV 16.3 mV Pass
70% Load 24.9 mV 17.1 mV 16.4 mV 16.6 mV Pass
80% Load 25.6 mV 18.0 mV 17.6 mV 17.3 mV Pass
90% Load 25.8 mV 17.8 mV 17.5 mV 17.8 mV Pass
100% Load 26.5 mV 18.5 mV 17.3 mV 17.6 mV Pass
110% Load 26.9 mV 17.5 mV 16.7 mV 18.5 mV Pass
Crossload 1 41.1 mV 15.4 mV 15.6 mV 12.1 mV Pass
Crossload 2 42.2 mV 18.5 mV 13.9 mV 13.6 mV Pass
Crossload 3 32.9 mV 14.2 mV 15.6 mV 11.9 mV Pass
Crossload 4 25.6 mV 16.7 mV 15.6 mV 16.6 mV Pass

The results above are not used in the certification process

Gamer Storm PQ850M-V2

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
