Cybenetics Test - Gamer Storm PS850P

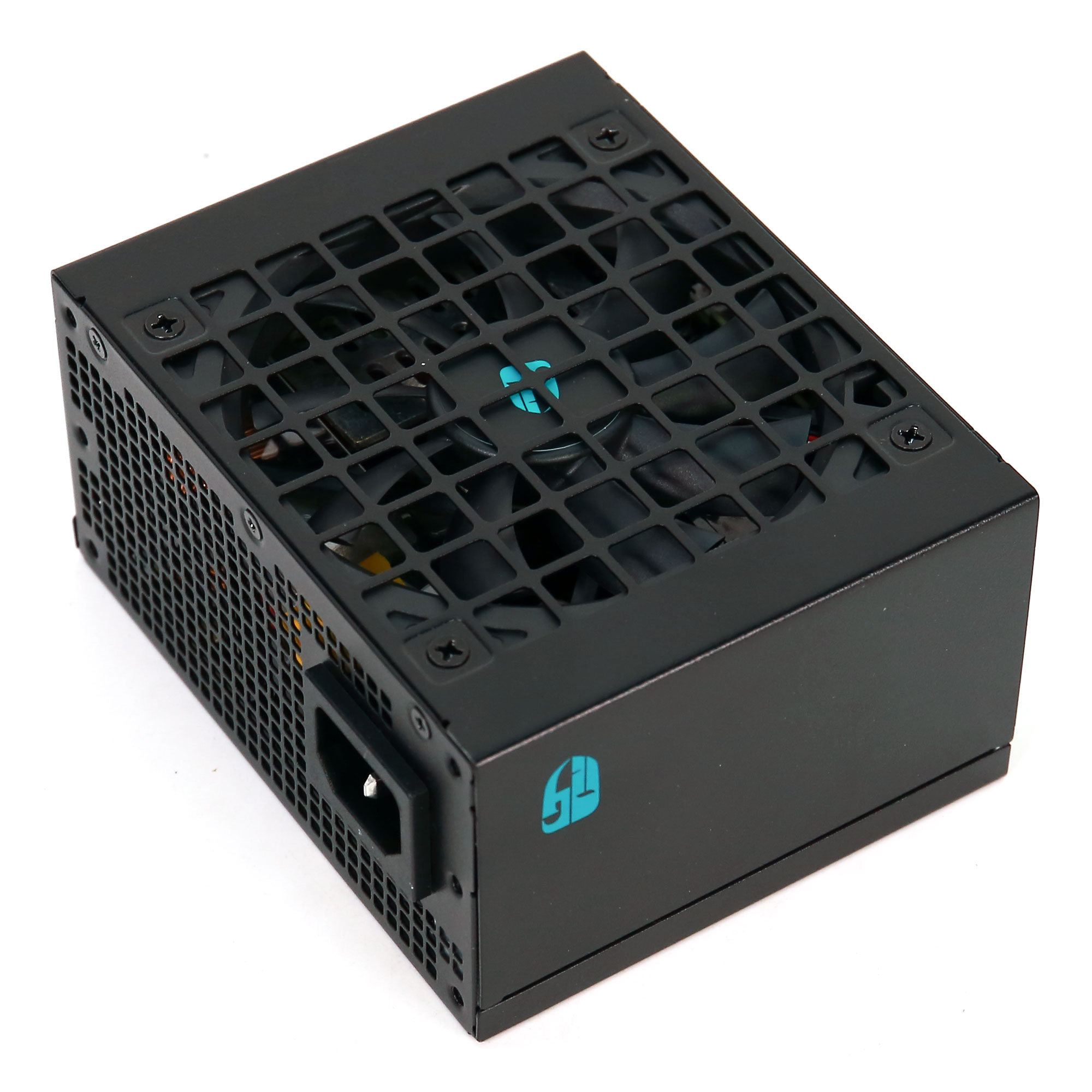

Gamer Storm PS850P

Serial Number-

Lab IDGA85002836

Certification ID252836

Test Result Report ID: 25PS2835A
Certificate Issue Date: Jun 19, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Gamer Storm
Manufacturer (OEM)	CWT
Series	PS P
Model Number	PS850P-FE
Serial Number	-
DUT Notes	Some protections need to be adjusted.

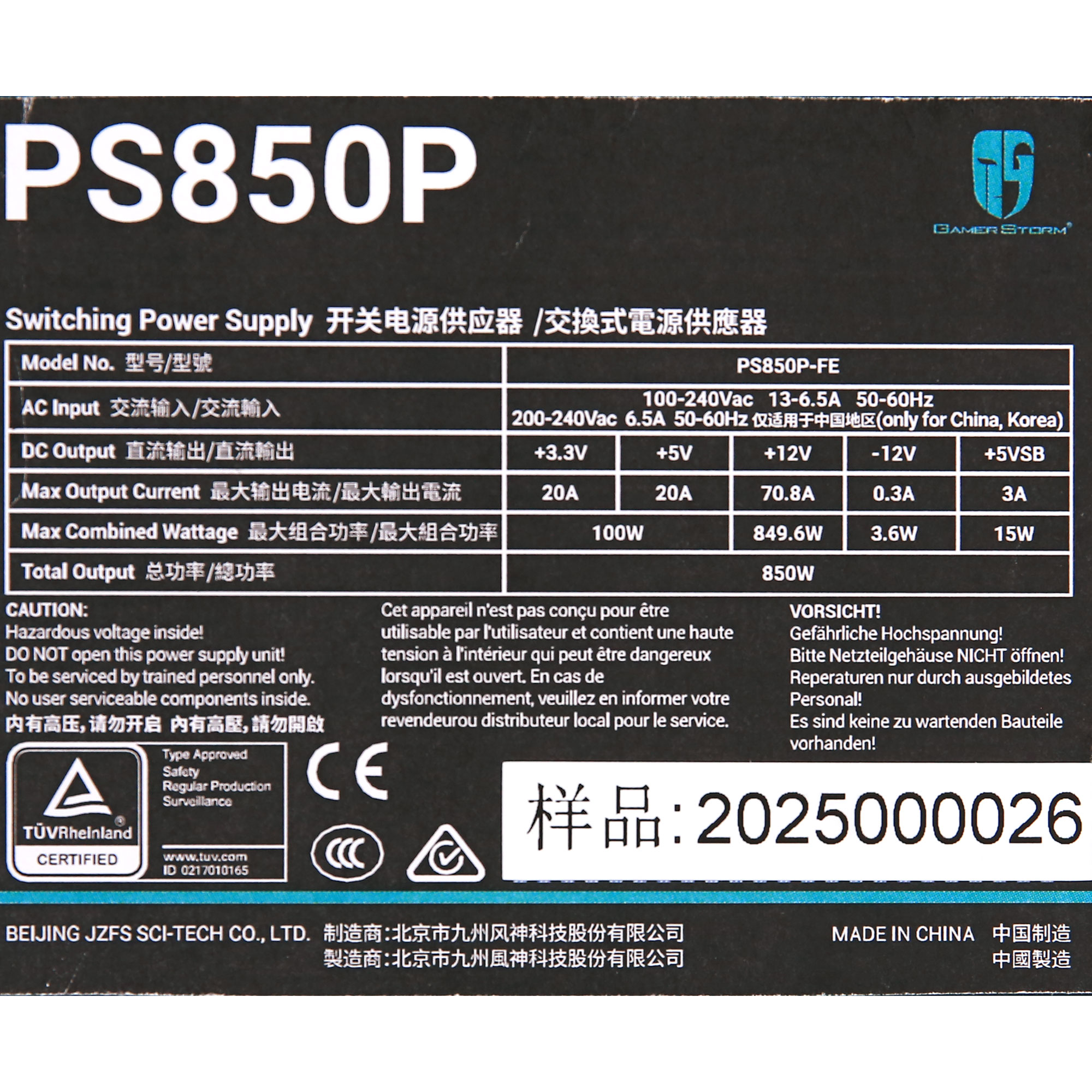

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	6.5-13
Rated Frequency (Hz)	50-60
Rated Power (W)	850
Type	SFX
Dimensions (W x H x D)
Cooling	92mm Fluid Dynamic Bearing Fan (HA9215SH12FD-F00)
Semi-Passive Operation	✗
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	70.8	3	0.3
Max. Power	Watts	100		849.6	15	3.6
Total Max. Power (W)		850

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (350mm)	1	1	18AWG	No
4+4 pin EPS12V (455mm)	2	2	18AWG	No
6+2 pin PCIe (455mm+125mm)	1	2	18AWG	No
6+2 pin PCIe (455mm)	1	1	18AWG	No
12+4 pin PCIe (450mm) (600W)	1	1	16-24AWG	No
SATA (305mm+200mm+100mm) / 4-pin Molex (+100mm)	2	6 / 2	18AWG	No
AC Power Cord (1350mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data
Manufacturer (OEM)	CWT
PCB Type	Double-Sided
Primary Side
Transient Filter	2x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Sync Power SP687 (X2 Capacitor Discharge IC)
Inrush Protection	1x NTC Thermistor SCK-056 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s)	2x
APFC MOSFETs	2x Infineon IPA60R099P7 (650V, 20A @ 100°C, Rds(on): 0.099Ohm)
Bulk Cap(s)	1x Nippon Chemi-con
Main Switchers	2x Infineon IPA60R099P6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Controller	1x Champion CM6500UNX & 1x Sync Power SPN5003 (reduce the no-load consumption)
Resonant Controller	Champion CM6901T6X
IC Driver	1x Novosense NSi6602
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs	6x Infineon BSC014NO4LS (40V, 145A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: 8x UBIQ Semiconductor QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) PWM Controller(s): Anpec APW7159C
Filtering Capacitors	Electrolytic: 1x Nichicon (4-10,000h @105°C, HE(M)) 1x Nippon Chemi-con (@105°C, W) 1x Rubycon (4-10,000h @105°C, YXJ) 1x Rubycon (2-10,000 @ 105°C, YXF) 2x Rubycon (6-10,000h @105°C, ZLH) Polymer: 12x FPCAP. 2x Nippon Chemi-con
Supervisor IC	Weltrend WT7502R (OVD, UVD, PGO)
Fan Model	Hong Hua HA9215SH12FD-F00 (92mm, 12V, 0.46A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier	1x Infineon ISC0702NLS (60V, 95A @ 100°C, Rds(on): 2.8mOhm)
Standby PWM Controller	Power Integrations INN3164C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	Standard+
Average Efficiency (>1450 load combinations)	90.676%
Average Noise Output (>1450 Load Combinations)	36.78dBA
Average PF (>1450 Load Combinations)	0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load	66.574%
Standby Power Consumption	0.0501W
12V Ripple (Full Load)	40.65mV
5V Ripple (Full Load)	32.33mV
3.3V Ripple (Full Load)	30.88mV
5VSB Ripple (Full Load)	39.06mV
12V Load Regulation	0.48%
5V Load Regulation	1.21%
3.3V Load Regulation	1.62%
5VSB Load Regulation	4.61%
Inrush Current	287.300A

Efficiency Rating	PLATINUM
Noise Rating	Standard+
Average Efficiency (>1450 load combinations)	92.415%
Average Noise Output (>1450 Load Combinations)	36.99dBA
Average PF (>1450 Load Combinations)	0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load	61.468%
Standby Power Consumption	0.0946W
12V Ripple (Full Load)	42.57mV
5V Ripple (Full Load)	30.06mV
3.3V Ripple (Full Load)	30.19mV
5VSB Ripple (Full Load)	41.24mV
12V Load Regulation	0.42%
5V Load Regulation	0.91%
3.3V Load Regulation	0.94%
5VSB Load Regulation	4.67%
Inrush Current	65.800A
12V Transient Response (200%)	11.45V
5V Transient Response (200%)	4.923V
3.3V Transient Response (200%)	3.198V
5VSB Transient Response (200%)	4.931V
Hold-Up Time & Power Ok Signal	16.50ms
AC Loss to PWR_OK Hold Up Time	14.10ms
PWR_OK Inactive to DC Loss Delay	2.40ms
PSU Timings: T1 (20% / 100%)	51.0ms	52.0ms
PSU Timings: T3 (20% / 100%)	126.0ms	126.0ms
12V OCP (27.9°C / 42.3°C)	92.00A (129.94%), 11.982V	91.40A (129.10%), 11.998V
5V OCP (27.9°C / 42.3°C)	24.9A (124.50%), 4.989V	26A (130.00%), 4.98V
3.3V OCP (27.9°C / 42.3°C)	28.8A (144.00%), 3.259V	30A (150.00%), 3.253V
5VSB OCP (27.9°C / 42.3°C)	4.9A (163.33%), 4.757V	4.8A (160.00%), 4.755V
OPP (28.34°C / 43.43°C)	126.23%	124.46%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	16.5
AC Loss to PWR_OK Hold Up Time (ms)	14.1
PWR_OK Inactive to DC Loss Delay (ms)	2.4

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.09 V	115.04 V	113.85 V	115.12 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.050 W	-0.006 W	N/A	0.095 W	N/A	N/A
Apparent Power:	11.326 W	11.103 W	N/A	11.545 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.03 V	230.93 V	227.70 V	231.09 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.27 %	2.00 %	PASS
Real Power:	0.095 W	0.048 W	N/A	0.163 W	N/A	N/A
Apparent Power:	38.319 W	37.768 W	N/A	38.896 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

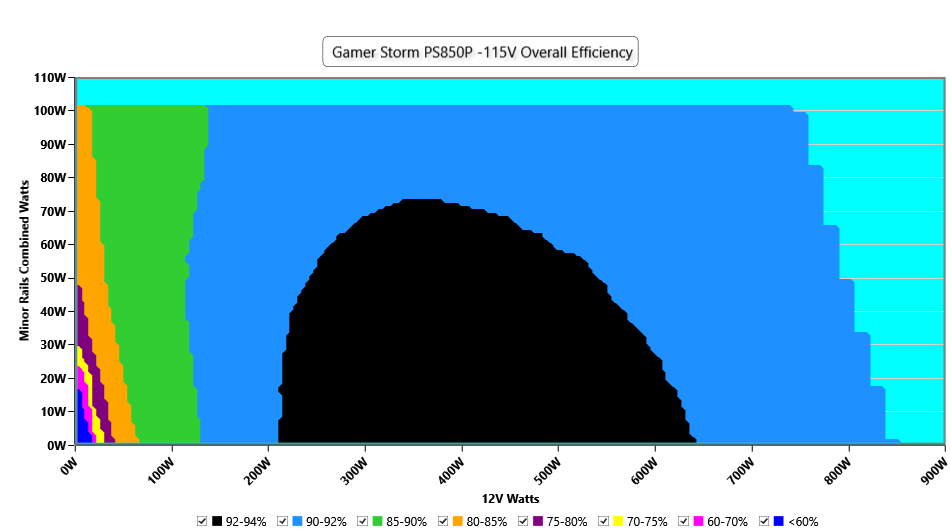

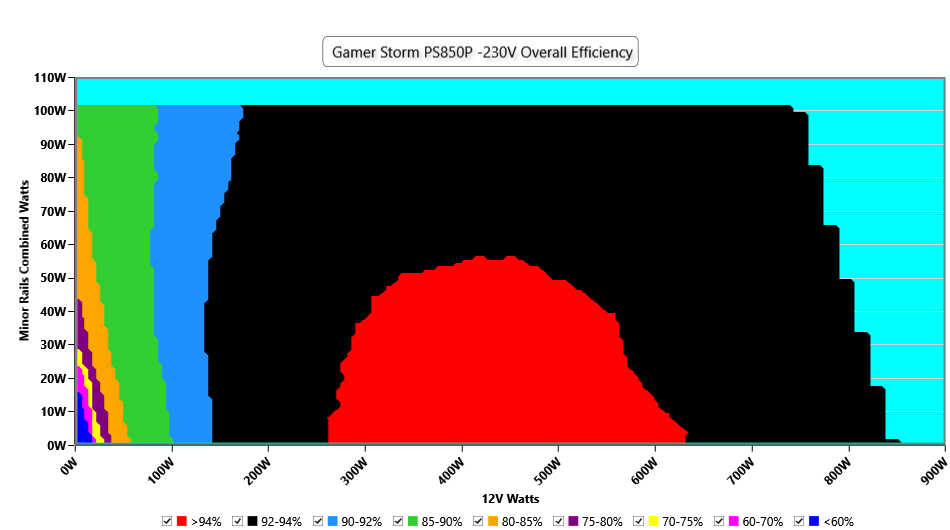

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

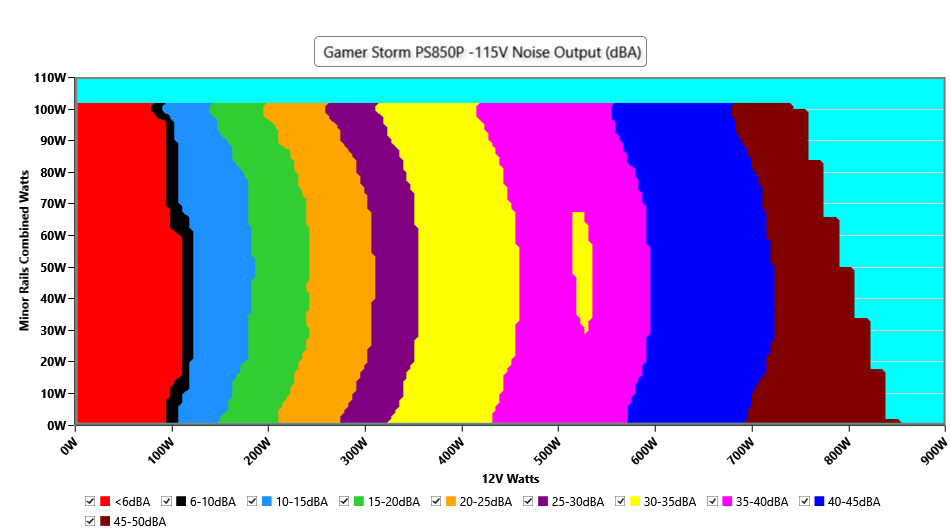

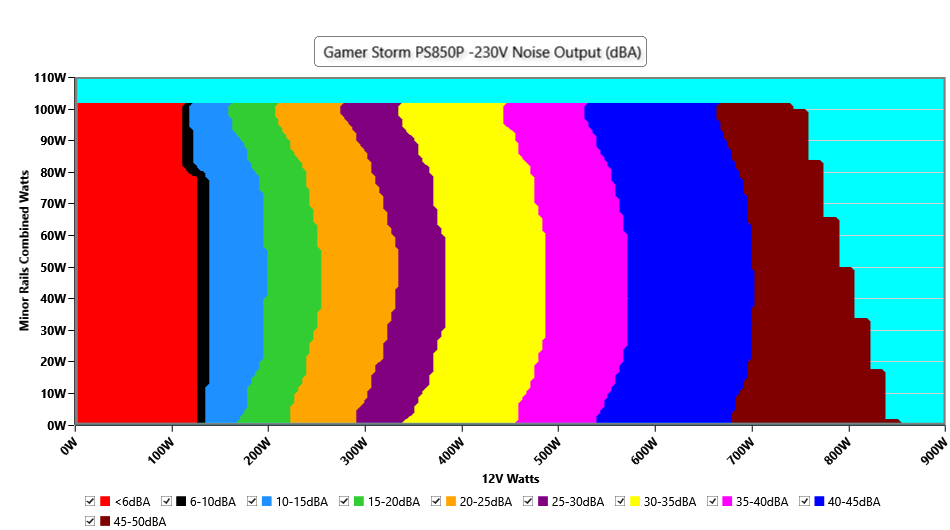

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

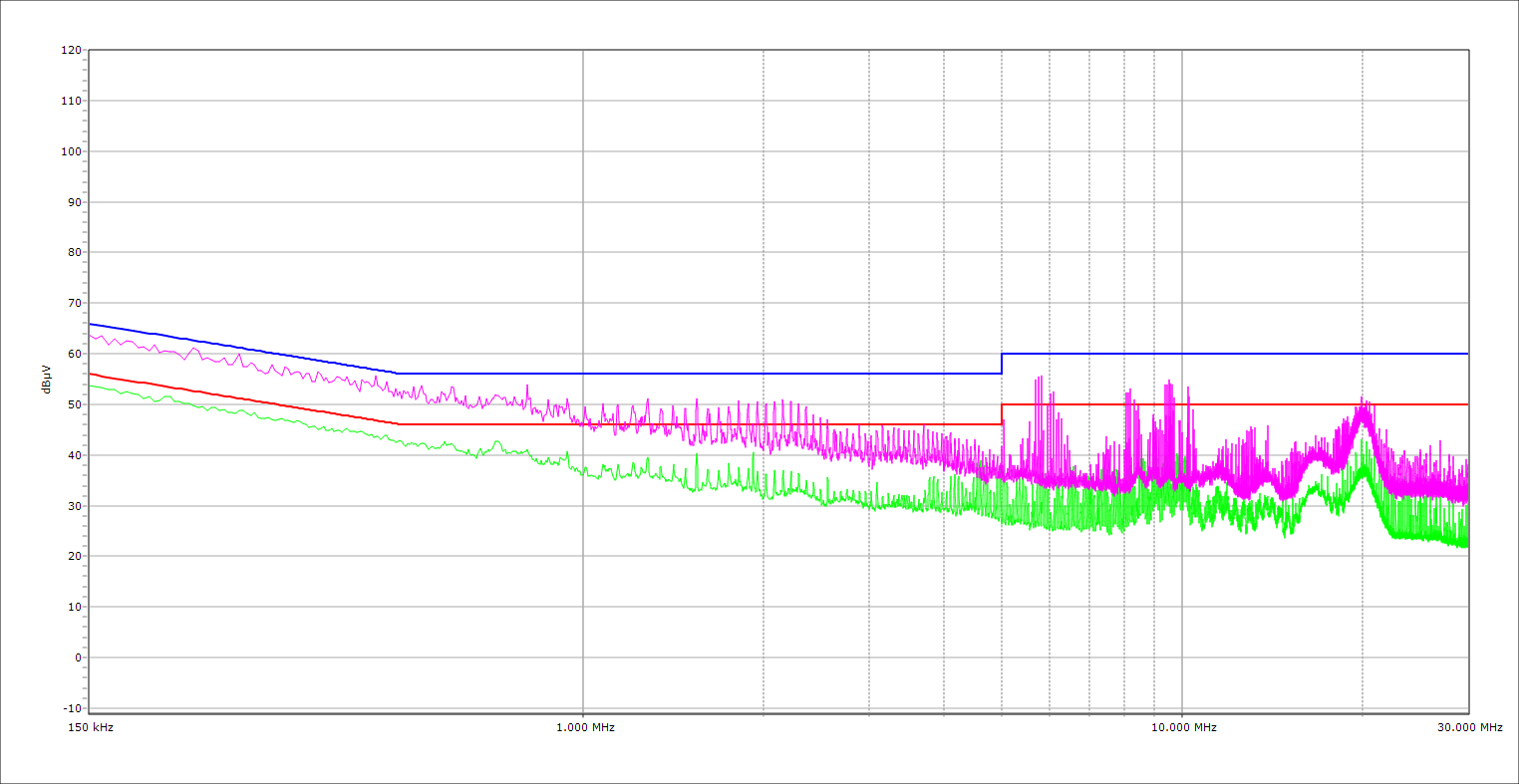

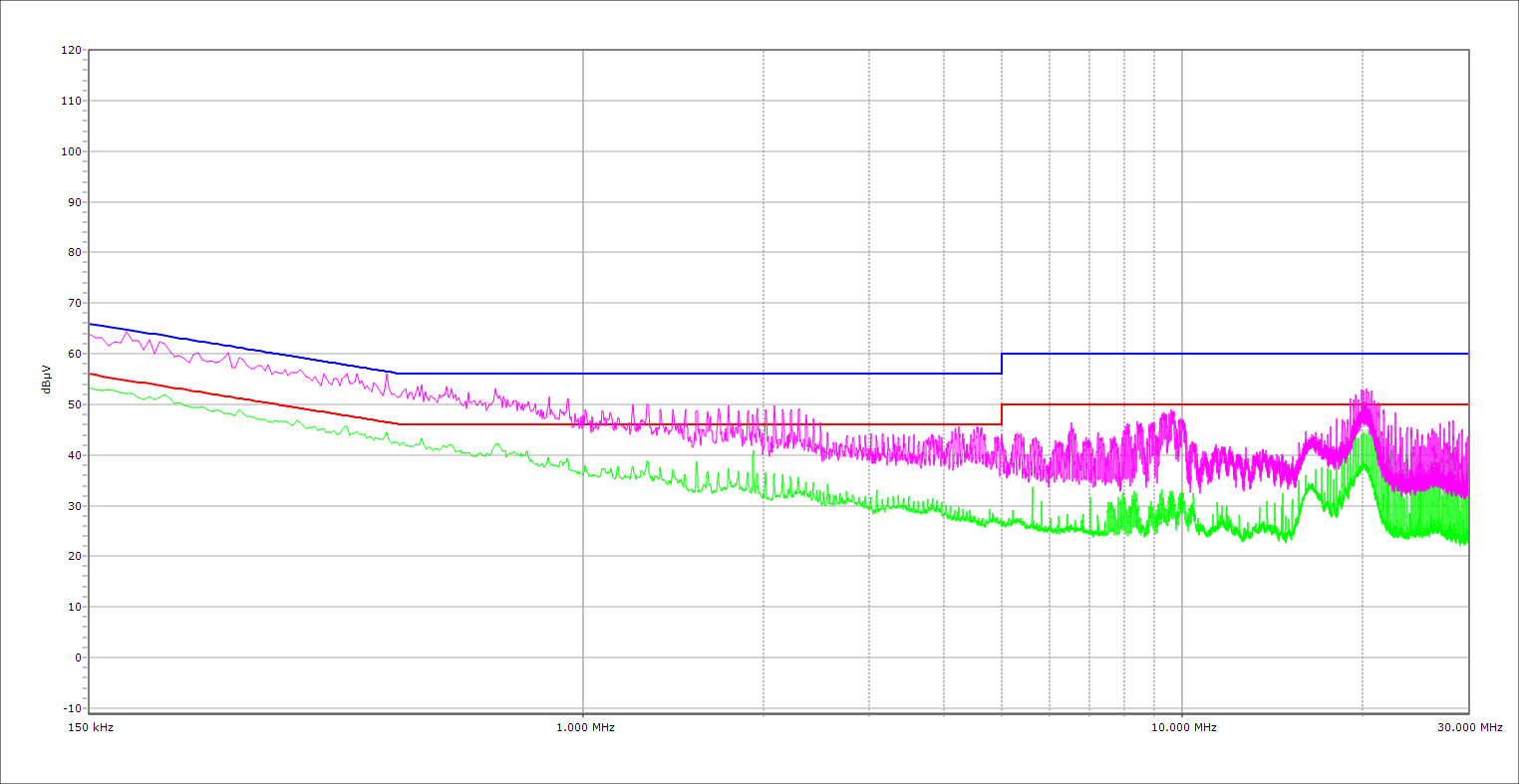

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

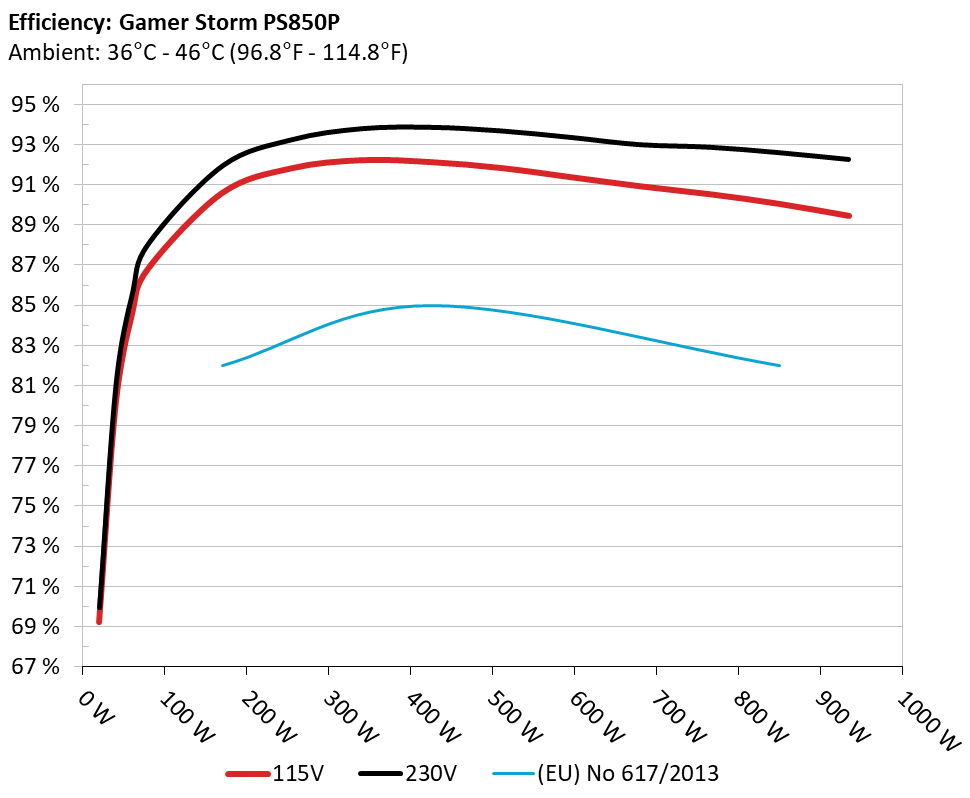

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

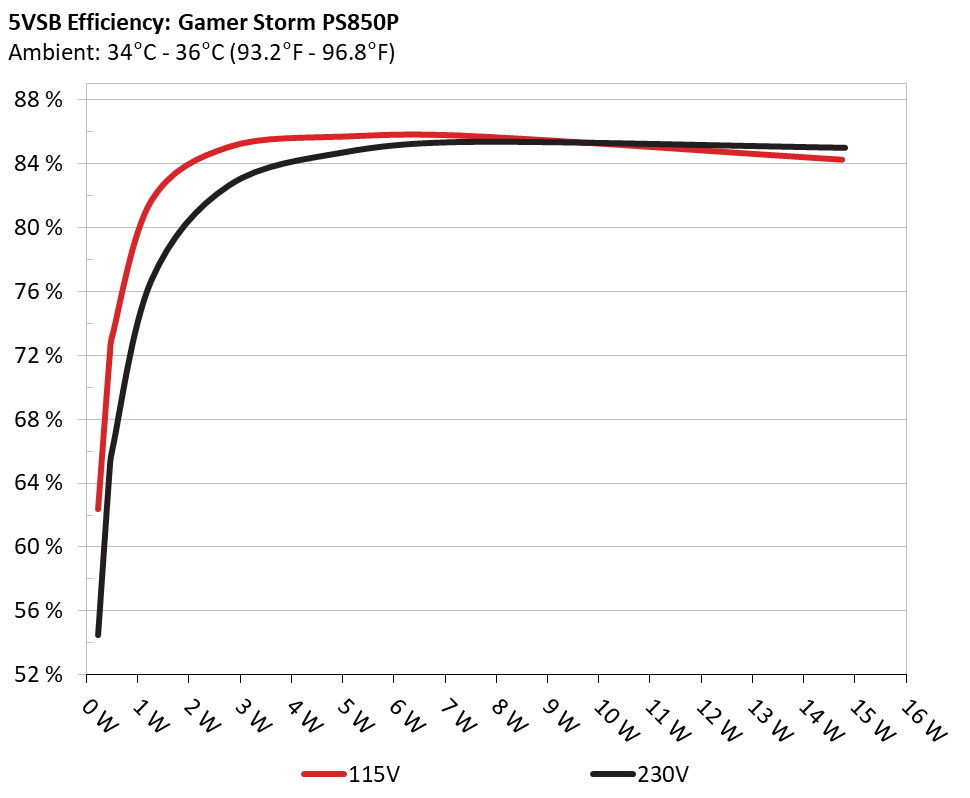

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229W	62.403%	0.034
1	5.08V	0.367W	62.403%	114.94V
2	0.09A	0.457W	72.065%	0.058
2	5.078V	0.634W	72.065%	114.93V
3	0.55A	2.783W	85.041%	0.243
3	5.058V	3.273W	85.041%	114.94V
4	1A	5.049W	85.685%	0.343
4	5.048V	5.893W	85.685%	114.95V
5	1.5A	7.531W	85.712%	0.398
5	5.02V	8.787W	85.712%	114.96V
6	3A	14.74W	84.238%	0.472
6	4.913V	17.496W	84.238%	114.96V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229W	54.481%	0.012
1	5.081V	0.421W	54.481%	230.08V
2	0.09A	0.457W	64.948%	0.019
2	5.079V	0.704W	64.948%	230.04V
3	0.55A	2.785W	82.663%	0.09
3	5.062V	3.37W	82.663%	230.06V
4	1A	5.051W	84.746%	0.15
4	5.05V	5.959W	84.746%	230.07V
5	1.5A	7.558W	85.387%	0.207
5	5.037V	8.853W	85.387%	230.07V
6	3A	14.81W	85.016%	0.313
6	4.936V	17.42W	85.016%	230.08V

Protection Features

OCP (Normal @ 27.9°C)	12V: 92.00A (129.94%), 11.982V 5V: 24.9A (124.50%), 4.989V 3.3V: 28.8A (144.00%), 3.259V 5VSB: 4.9A (163.33%), 4.757V
OCP (Hot @ 42.3°C)	12V: 91.40A (129.10%), 11.998V 5V: 26A (130.00%), 4.98V 3.3V: 30A (150.00%), 3.253V 5VSB: 4.8A (160.00%), 4.755V
OPP (Normal @ 28.3°C)	1072.93W (126.23%)
OPP (Hot @ 43.4°C)	1057.92W (124.46%)
OTP	✓ (138°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.255A	1.969A	1.992A	0.993A	85.005	86.786%	1358	24.3	40.36°C	0.978
10%	12.065V	5.081V	3.314V	5.039V	97.947	86.786%	1358	24.3	47.01°C	114.95V
20%	11.534A	2.957A	2.993A	1.194A	169.968	90.595%	1633	29.9	40.9°C	0.986
20%	12.058V	5.075V	3.308V	5.026V	187.61	90.595%	1633	29.9	49.21°C	114.92V
30%	18.166A	3.453A	3.497A	1.399A	254.981	91.833%	1991	38	41.2°C	0.985
30%	12.051V	5.07V	3.304V	5.005V	277.659	91.833%	1991	38	50.94°C	114.89V
40%	24.814A	3.95A	4.002A	1.605A	340.076	92.235%	2296	41.3	41.62°C	0.988
40%	12.044V	5.064V	3.299V	4.986V	368.704	92.235%	2296	41.3	52.31°C	114.87V
50%	31.117A	4.944A	5.011A	1.812A	425.08	92.139%	2734	43.8	42.15°C	0.99
50%	12.038V	5.058V	3.293V	4.968V	461.345	92.139%	2734	43.8	54.01°C	114.85V
60%	37.388A	5.942A	6.025A	2.001A	509.524	91.848%	2984	47.4	42.78°C	0.992
60%	12.031V	5.051V	3.287V	4.95V	554.747	91.848%	2984	47.4	55.13°C	114.83V
70%	43.731A	6.941A	7.041A	2.233A	594.95	91.391%	3311	49.1	43.41°C	0.993
70%	12.025V	5.044V	3.281V	4.927V	650.996	91.391%	3311	49.1	56.53°C	114.81V
80%	50.068A	7.942A	8.06A	2.34A	679.772	90.935%	3415	49.7	43.96°C	0.994
80%	12.021V	5.037V	3.275V	4.915V	747.537	90.935%	3415	49.7	59.1°C	114.79V
90%	56.816A	8.447A	8.561A	2.451A	765.211	90.537%	3410	49.7	44.04°C	0.995
90%	12.016V	5.032V	3.271V	4.896V	845.19	90.537%	3410	49.7	61.04°C	114.77V
100%	63.307A	8.953A	9.095A	3.099A	850.03	90.054%	3413	49.7	45.73°C	0.995
100%	12.010V	5.027V	3.266V	4.841V	943.915	90.054%	3413	49.7	64.78°C	114.75V
110%	69.663A	9.961A	10.214A	3.107A	934.622	89.458%	3409	49.7	46.17°C	0.995
110%	12.006V	5.02V	3.26V	4.828V	1044.765	89.458%	3409	49.7	68.39°C	114.72V
CL1	0.116A	11.933A	12.063A	0A	101.316	81.996%	2429	42	40.56°C	0.981
CL1	12.067V	5.045V	3.291V	5.048V	123.574	81.996%	2429	42	49.58°C	114.92V
CL2	0.117A	19.909A	0A	0A	101.417	82.594%	2069	37.6	41.27°C	0.98
CL2	12.065V	5.023V	3.315V	5.052V	122.789	82.594%	2069	37.6	48.72°C	114.92V
CL3	0.116A	0A	20.127A	0A	67.405	77.012%	1865	34.9	40.7°C	0.972
CL3	12.063V	5.086V	3.279V	5.05V	87.526	77.012%	1865	34.9	47.1°C	114.92V
CL4	70.771A	0.003A	0.004A	0.002A	849.891	90.803%	3421	49.8	45.59°C	0.995
CL4	12.009V	5.06V	3.288V	5.011V	935.981	90.803%	3421	49.8	61.25°C	114.7V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.254A	1.968A	1.989A	0.992A	85.004	87.854%	1470	27.2	40.26°C	0.837
10%	12.066V	5.084V	3.318V	5.04V	96.754	87.854%	1470	27.2	45.93°C	230.05V
20%	11.532A	2.954A	2.987A	1.194A	169.971	91.913%	1737	31.4	40.7°C	0.928
20%	12.059V	5.079V	3.314V	5.027V	184.927	91.913%	1737	31.4	47.07°C	230.04V
30%	18.164A	3.449A	3.488A	1.398A	254.986	93.22%	2080	38.1	41.08°C	0.953
30%	12.053V	5.075V	3.311V	5.007V	273.545	93.22%	2080	38.1	48.34°C	230.03V
40%	24.810A	3.945A	3.99A	1.604A	340.078	93.767%	2311	41.1	41.5°C	0.965
40%	12.046V	5.071V	3.308V	4.988V	362.685	93.767%	2311	41.1	49.14°C	230.02V
50%	31.112A	4.937A	4.993A	1.811A	425.075	93.835%	2604	44.3	42.12°C	0.972
50%	12.039V	5.066V	3.305V	4.972V	453.001	93.835%	2604	44.3	50.4°C	230.01V
60%	37.378A	5.929A	5.998A	2.001A	509.517	93.661%	3031	48.8	42.95°C	0.976
60%	12.034V	5.061V	3.302V	4.953V	543.997	93.661%	3031	48.8	52.13°C	230V
70%	43.716A	6.925A	7.006A	2.231A	594.923	93.336%	3335	49.4	43.31°C	0.979
70%	12.028V	5.056V	3.298V	4.931V	637.394	93.336%	3335	49.4	53.03°C	230V
80%	50.050A	7.921A	8.014A	2.338A	679.756	92.972%	3425	49.8	43.86°C	0.983
80%	12.025V	5.05V	3.294V	4.919V	731.141	92.972%	3425	49.8	55.26°C	229.98V
90%	56.796A	8.423A	8.506A	2.449A	765.19	92.846%	3428	49.9	44.91°C	0.984
90%	12.020V	5.047V	3.292V	4.9V	824.152	92.846%	3428	49.9	57.42°C	229.97V
100%	63.276A	8.924A	9.03A	3.1A	850.002	92.574%	3428	49.9	45.96°C	0.985
100%	12.016V	5.043V	3.289V	4.84V	918.184	92.574%	3428	49.9	59.95°C	229.96V
110%	69.632A	9.926A	10.135A	3.105A	934.604	92.24%	3425	49.8	46.3°C	0.986
110%	12.011V	5.038V	3.285V	4.832V	1013.233	92.24%	3425	49.8	62.62°C	229.95V
CL1	0.116A	11.927A	12.017A	0A	101.308	83.447%	2240	39.5	41.69°C	0.88
CL1	12.067V	5.048V	3.303V	5.05V	121.4	83.447%	2240	39.5	49.47°C	230.05V
CL2	0.117A	19.902A	0A	0A	101.41	83.833%	1977	37.8	40.89°C	0.878
CL2	12.065V	5.025V	3.319V	5.054V	120.964	83.833%	1977	37.8	48.01°C	230.05V
CL3	0.116A	0A	20.02A	0A	67.395	78.585%	1872	34.8	41.94°C	0.809
CL3	12.064V	5.09V	3.296V	5.053V	85.76	78.585%	1872	34.8	47.53°C	230.05V
CL4	70.710A	0.003A	0.004A	0.002A	849.823	93.234%	3427	49.9	45.96°C	0.985
CL4	12.018V	5.075V	3.302V	5.014V	911.496	93.234%	3427	49.9	60.11°C	229.96V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.231A	0.491A	0.497A	0.197A	20.006	69.203%	772	<6.0	36.59°C	0.863
20W	12.068V	5.088V	3.319V	5.064V	28.911	69.203%	772	<6.0	42.97°C	114.96V
40W	2.710A	0.688A	0.696A	0.296A	40.004	79.994%	775	6.1	37.31°C	0.94
40W	12.066V	5.087V	3.318V	5.06V	50.008	79.994%	775	6.1	43.55°C	114.95V
60W	4.188A	0.885A	0.895A	0.396A	60.002	84.538%	1009	14.9	38.14°C	0.965
60W	12.066V	5.086V	3.317V	5.057V	70.976	84.538%	1009	14.9	44.95°C	114.95V
80W	5.664A	1.082A	1.095A	0.495A	79.964	86.836%	1203	21.3	39.64°C	0.974
80W	12.065V	5.084V	3.316V	5.053V	92.087	86.836%	1203	21.3	46.29°C	114.95V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.232A	0.491A	0.497A	0.197A	20.004	69.947%	768	<6.0	36.29°C	0.457
20W	12.065V	5.089V	3.32V	5.066V	28.596	69.947%	768	<6.0	39.8°C	230.06V
40W	2.710A	0.688A	0.696A	0.296A	40.002	81.018%	774	<6.0	37.87°C	0.646
40W	12.065V	5.088V	3.32V	5.062V	49.375	81.018%	774	<6.0	41.37°C	230.05V
60W	4.188A	0.885A	0.895A	0.395A	60.001	85.558%	1009	14.9	38.49°C	0.756
60W	12.066V	5.087V	3.319V	5.058V	70.129	85.558%	1009	14.9	43.16°C	230.04V
80W	5.664A	1.082A	1.094A	0.495A	79.966	88.057%	1174	20.3	39.05°C	0.822
80W	12.064V	5.086V	3.319V	5.054V	90.811	88.057%	1174	20.3	44.02°C	230.04V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	10.89mV	8.88mV	8.14mV	19.00mV	Pass
20% Load	13.13mV	10.66mV	10.32mV	18.19mV	Pass
30% Load	15.98mV	12.45mV	12.97mV	20.12mV	Pass
40% Load	18.06mV	14.44mV	14.95mV	23.23mV	Pass
50% Load	21.98mV	17.50mV	17.34mV	27.77mV	Pass
60% Load	26.05mV	19.43mV	20.44mV	30.41mV	Pass
70% Load	29.66mV	21.32mV	22.38mV	30.62mV	Pass
80% Load	30.07mV	23.72mV	25.28mV	31.84mV	Pass
90% Load	32.51mV	26.47mV	28.43mV	33.17mV	Pass
100% Load	40.65mV	32.33mV	30.88mV	39.06mV	Pass
110% Load	43.31mV	35.26mV	33.51mV	41.60mV	Pass
Crossload1	17.62mV	10.33mV	11.64mV	15.82mV	Pass
Crossload2	27.17mV	11.63mV	10.58mV	18.80mV	Pass
Crossload3	23.10mV	10.71mV	9.67mV	17.78mV	Pass
Crossload4	37.82mV	28.39mV	28.35mV	19.96mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	10.84mV	8.11mV	7.27mV	15.59mV	Pass
20% Load	12.11mV	9.54mV	9.61mV	16.05mV	Pass
30% Load	14.35mV	11.48mV	11.65mV	17.53mV	Pass
40% Load	18.57mV	14.18mV	14.55mV	23.49mV	Pass
50% Load	21.83mV	17.65mV	17.09mV	27.56mV	Pass
60% Load	25.03mV	20.20mV	19.38mV	30.41mV	Pass
70% Load	28.95mV	21.22mV	22.02mV	32.30mV	Pass
80% Load	29.82mV	23.00mV	25.99mV	32.55mV	Pass
90% Load	33.38mV	26.11mV	27.26mV	31.94mV	Pass
100% Load	42.57mV	30.06mV	30.19mV	41.24mV	Pass
110% Load	43.62mV	30.71mV	32.85mV	42.50mV	Pass
Crossload1	19.08mV	10.89mV	10.96mV	15.94mV	Pass
Crossload2	27.07mV	13.06mV	10.43mV	16.81mV	Pass
Crossload3	23.71mV	9.34mV	10.22mV	18.24mV	Pass
Crossload4	39.36mV	27.04mV	27.87mV	20.07mV	Pass

The results above are not used in the certification process

Gamer Storm PS850P

Top side

Power specifications label
