CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
1st Player ACK 850W Silver
序号6974418981067
Lab ID1P85002838
Certification ID252838
  • Test Result Report ID: 25PS2838A
  • Certificate Issue Date: Jun 2, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Main Specs

Product Identification Details
Brand1st Player
ModelACK 850W Silver
OEMHelly
Serial Number6974418981067
Product Specifications
Manufacturer
额定电压 (Vrms)200-240
额定电流 (Arms)5
额定频率 (Hz)50-60
额定功率 (W)850
Operating Temperature (Continuous Full Load) (°C)
类别ATX12V
线材设计Fixed cables
Warranty
Cybenetics
Dimensions (W x H x D)
Weight
散热140mm Sleeve Bearing Fan (W14025HZ12SEMA)
半被动运转✗
Cybenetics Testing Information
Lab ID1P85002838
Date of receiptMay 12, 2025
Testing DateMay 31, 2025
Report Issued DateJun 2, 2025
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

线材与接头(Non-accredited measurements)

直出线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (560mm) 1 1 18-22AWG 否
4+4 pin EPS 12V 接头 (680mm+150mm) 1 2 18AWG 否
6+2pin PCIe接头 (625mm) 2 2 18AWG 否
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG 否
SATA接头 (450mm+155mm) / 4-pin Molex (+155mm) 2 4 / 2 18AWG 否
模组化线材
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Protection Features(Non-accredited measurements)

Over Power Protection ✓
Over Current (+12V) Protection ✓
Over Temperature Protection ✓
Short Circuit Protection ✓
Surge Protection ✓
Inrush Current Protection ✓
Fan Failure Protection ✗

电源规范(Manufacturer)

组3.3V5V12V5VSB-12V
最大功率安培202070.830.3
瓦100849.6153.6
最大总功率 (W)850

Parts Description

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Accredited
平均效率 (>1450 load combinations)88.845%
Average Noise Output (>1450 Load Combinations)34.21dBA
PF平均值 (>1450 Load Combinations)0.960
Efficiency With 10W (≤500W) or 2% (>500W) Load64.642%
待机功率耗损0.0761W
Non-Accredited
12V Ripple (Full Load)38.17mV
5V Ripple (Full Load)27.57mV
3.3V Ripple (Full Load)28.11mV
5VSB Ripple (Full Load)22.15mV
12V Load Regulation0.64%
5V Load Regulation0.26%
3.3V Load Regulation0.60%
5VSB Load Regulation2.46%
Inrush Current45.730A
12V Transient Response (200%)11.28V
5V Transient Response (200%)5.009V
3.3V Transient Response (200%)3.249V
5VSB Transient Response (200%)4.934V
保持时间 & PG信号18.20ms
AC Loss to PWR_OK Hold Up Time16.40ms
PWR_OK Inactive to DC Loss Delay1.80ms
PSU Timings: T1 (20% / 100%)29.0ms29.0ms
PSU Timings: T3 (20% / 100%)112.0ms111.0ms
12V OCP (27.9°C / 44.3°C)82.70A (116.81%), 11.980V77.80A (109.89%), 11.977V
5V OCP (27.9°C / 44.3°C)25.4A (127.00%), 5.09V24.8A (124.00%), 5.087V
3.3V OCP (27.9°C / 44.3°C)23.4A (117.00%), 3.332V22.8A (114.00%), 3.339V
5VSB OCP (27.9°C / 44.3°C)4A (133.33%), 4.977V3.9A (130.00%), 4.976V
OPP (29.21°C / 43.80°C)120.30%112.66%

保持时间 & PG信号

Hold-Up Time (ms)18.2
AC Loss to PWR_OK Hold Up Time (ms)16.4
PWR_OK Inactive to DC Loss Delay (ms)1.8

待机电源

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.83 V 229.74 V 227.70 V 229.90 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.16 % 0.12 % N/A 0.22 % 2.00 % PASS
Real Power: 0.076 W 0.065 W N/A 0.095 W N/A N/A
Apparent Power: 30.627 W 30.585 W N/A 30.659 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs 230V

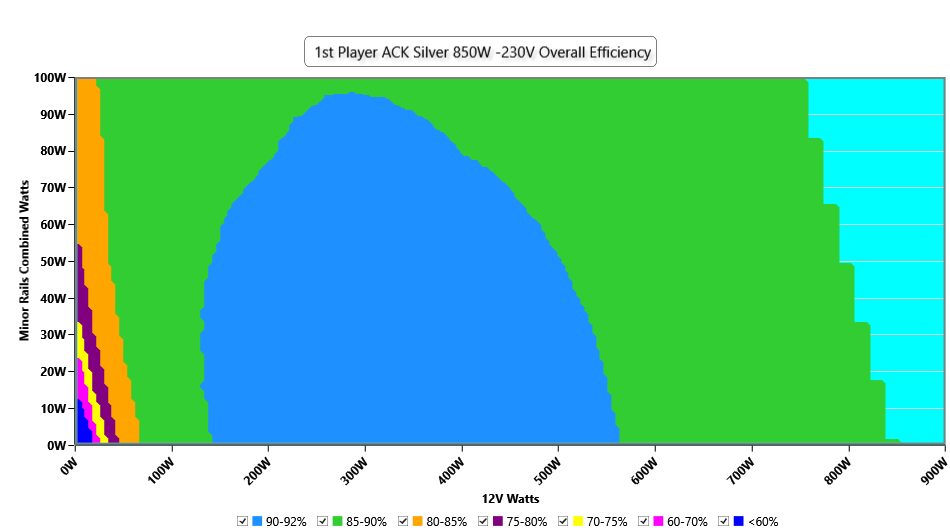

转换效率图表

230V

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

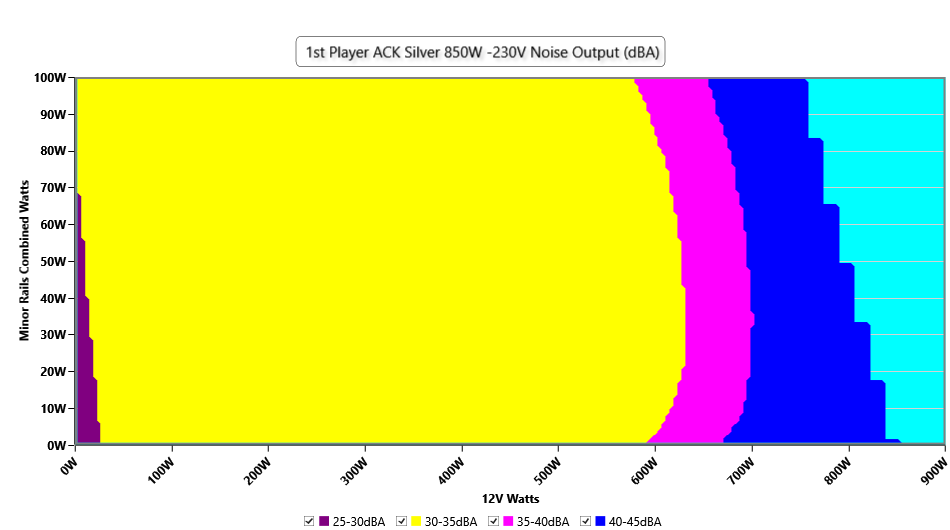

噪音值图表

230V

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

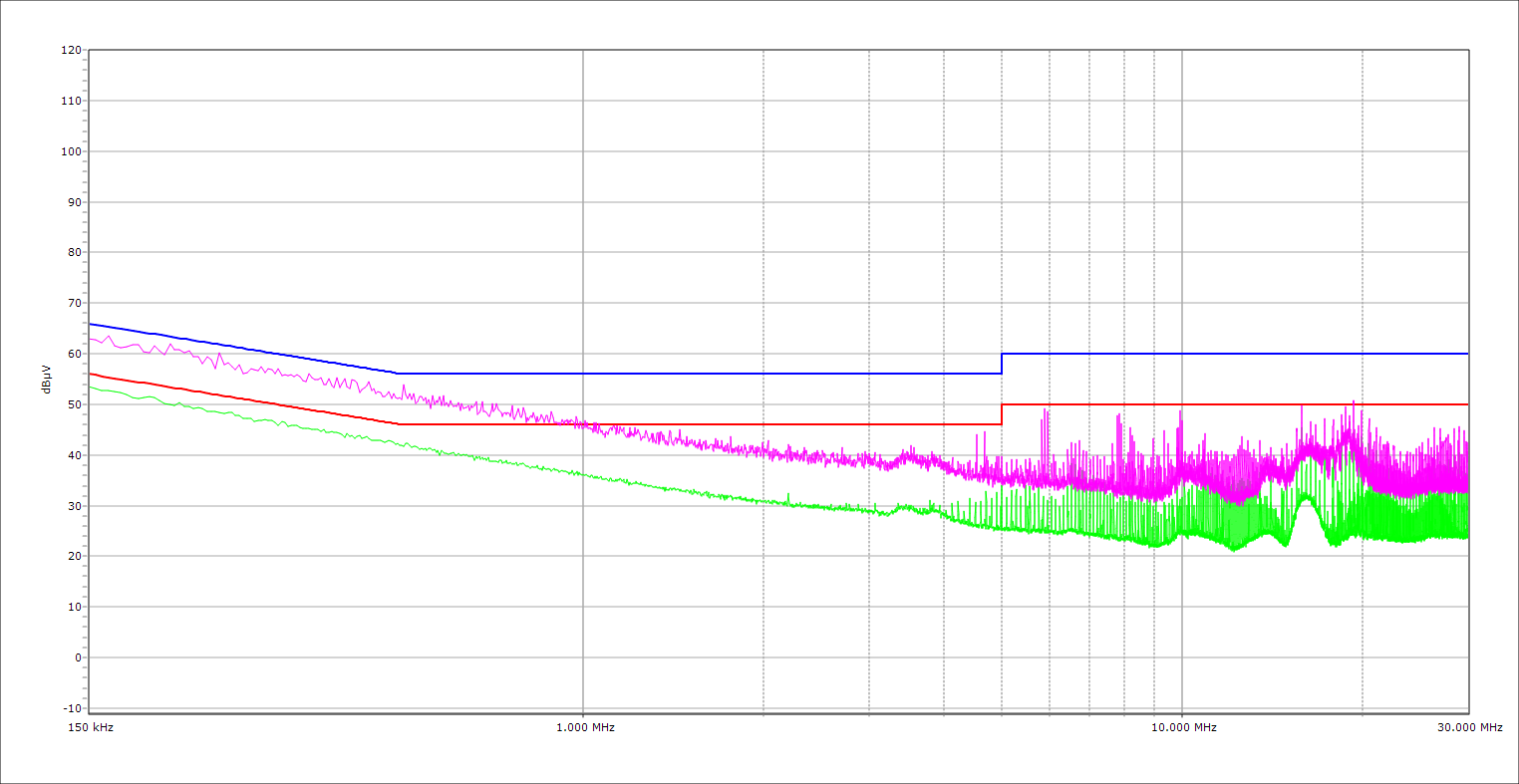

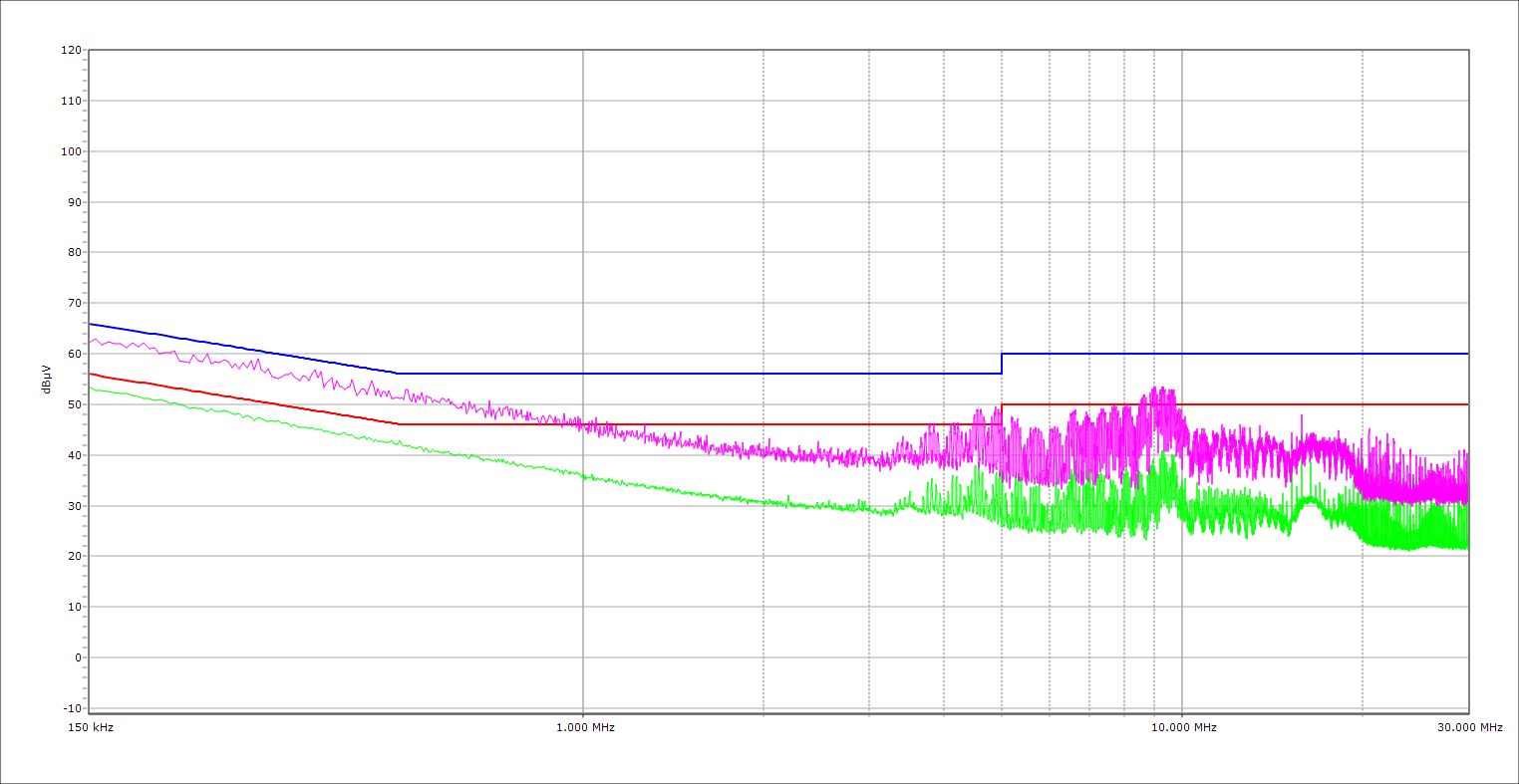

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

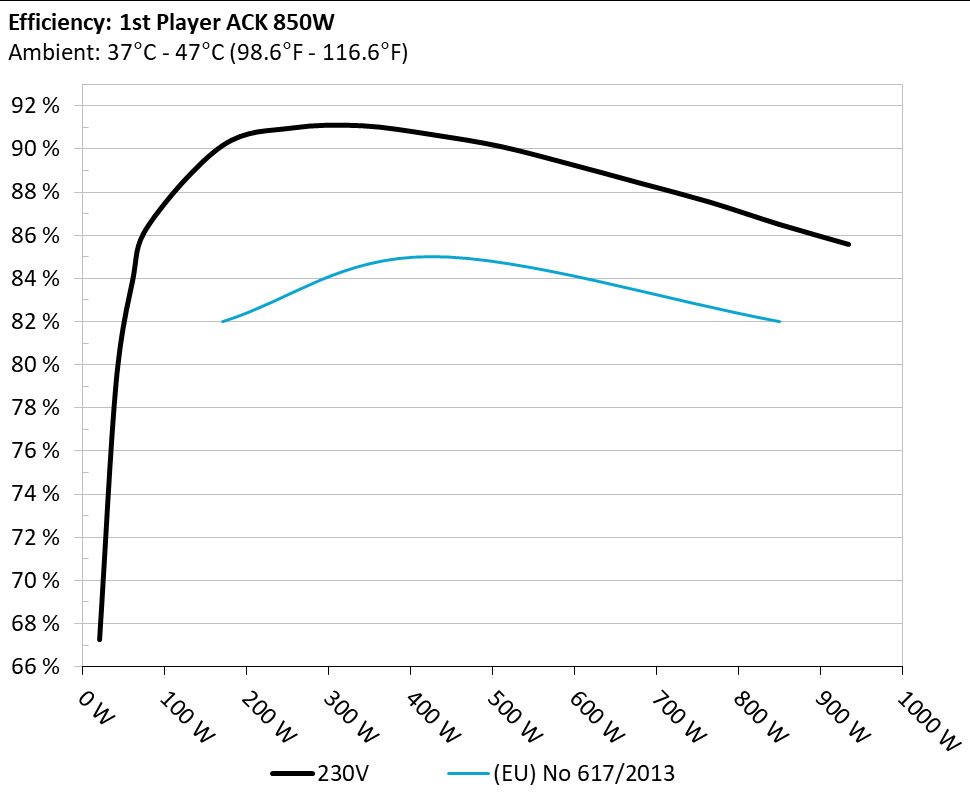

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

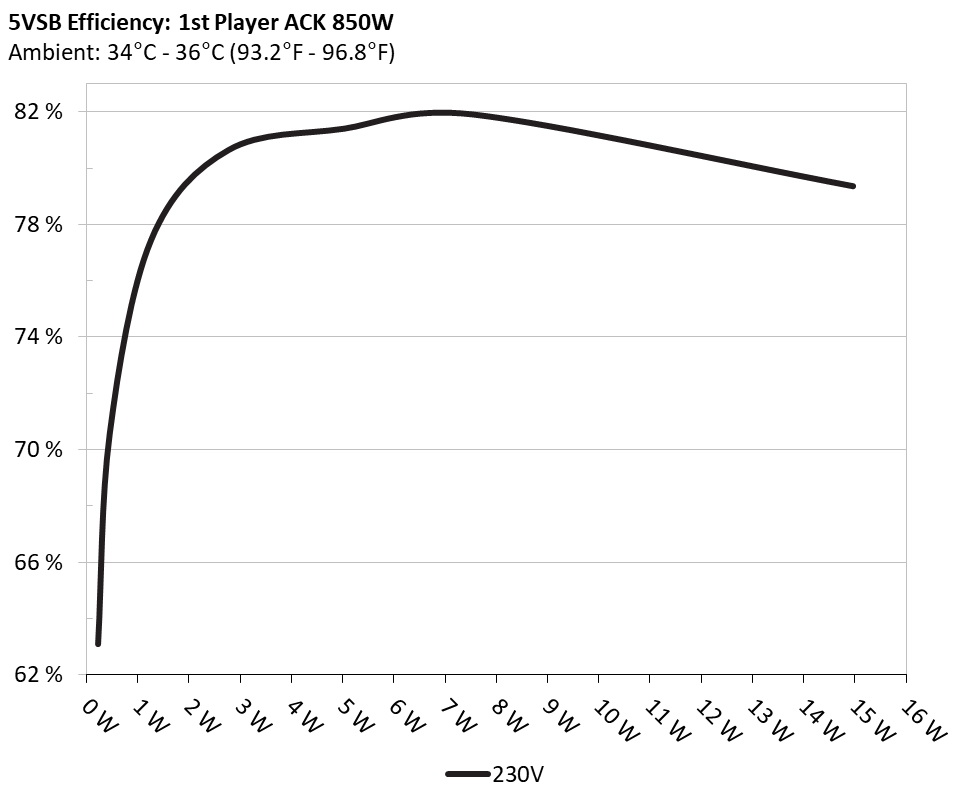

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 230V

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.228W 63.111% 0.012
5.051V 0.361W 229.82V
2 0.09A 0.455W 70.584% 0.021
5.05V 0.645W 229.82V
3 0.55A 2.772W 80.635% 0.107
5.04V 3.438W 229.82V
4 1A 5.031W 81.395% 0.181
5.031V 6.181W 229.82V
5 1.5A 7.531W 81.902% 0.246
5.02V 9.195W 229.82V
6 3A 14.967W 79.356% 0.351
4.989V 18.861W 229.82V

Protection Features

OCP (Normal @ 27.9°C)12V: 82.70A (116.81%), 11.980V
5V: 25.4A (127.00%), 5.09V
3.3V: 23.4A (117.00%), 3.332V
5VSB: 4A (133.33%), 4.977V
OCP (Hot @ 44.3°C)12V: 77.80A (109.89%), 11.977V
5V: 24.8A (124.00%), 5.087V
3.3V: 22.8A (114.00%), 3.339V
5VSB: 3.9A (130.00%), 4.976V
OPP (Normal @ 29.2°C)1022.59W (120.30%)
OPP (Hot @ 43.8°C)957.63W (112.66%)
OTP✓ (115°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 180V)✓
UVP (No Damage @ 170V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

10-110%负载测试 230V

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 5.272A 1.962A 1.974A 0.995A 85.001 86.473% 1057 30.8 40°C 0.87
12.027V 5.096V 3.343V 5.027V 98.297 43.36°C 229.81V
20% 11.566A 2.944A 2.963A 1.196A 169.924 90.151% 1058 30.8 40.78°C 0.94
12.021V 5.095V 3.341V 5.017V 188.488 45.31°C 229.79V
30% 18.219A 3.435A 3.459A 1.398A 254.926 90.968% 1059 30.9 41.24°C 0.96
12.014V 5.094V 3.339V 5.007V 280.239 46.5°C 229.78V
40% 24.887A 3.927A 3.955A 1.601A 340.01 91.071% 1058 30.8 41.98°C 0.97
12.007V 5.093V 3.337V 4.997V 373.343 47.28°C 229.77V
50% 31.192A 4.91A 4.947A 1.805A 424.778 90.664% 1065 31.1 42.23°C 0.976
12.000V 5.091V 3.336V 4.986V 468.522 50.99°C 229.75V
60% 37.483A 5.894A 5.94A 2A 509.253 90.111% 1103 32.2 42.96°C 0.98
11.992V 5.09V 3.333V 4.975V 565.14 54.51°C 229.74V
70% 43.853A 6.878A 6.935A 2.216A 594.636 89.286% 1374 38.6 43.33°C 0.982
11.984V 5.089V 3.331V 4.963V 665.991 55.65°C 229.73V
80% 50.234A 7.861A 7.93A 2.322A 679.448 88.414% 1596 43 43.76°C 0.984
11.975V 5.088V 3.328V 4.954V 768.485 57.54°C 229.71V
90% 57.026A 8.355A 8.416A 2.427A 764.874 87.53% 1730 44.6 44.28°C 0.986
11.966V 5.086V 3.327V 4.945V 873.839 59.27°C 229.69V
100% 63.565A 8.85A 8.931A 3.046A 849.701 86.498% 1792 45.8 45.02°C 0.988
11.956V 5.084V 3.325V 4.926V 982.332 62.66°C 229.68V
110% 69.977A 9.836A 10.02A 3.05A 934.265 85.574% 1802 46 46.75°C 0.989
11.947V 5.083V 3.323V 4.918V 1091.767 64.74°C 229.66V
CL1 0.115A 11.814A 11.904A 0A 101.284 82.192% 1067 31.1 44.71°C 0.899
12.016V 5.096V 3.335V 5.035V 123.236 54.89°C 229.81V
CL2 0.115A 19.568A 0A 0A 101.342 82.906% 1072 31.2 42.57°C 0.897
12.020V 5.108V 3.332V 5.039V 122.237 50.52°C 229.81V
CL3 0.115A 0A 19.754A 0A 67.377 76.17% 1059 30.9 40.96°C 0.851
12.021V 5.084V 3.341V 5.039V 88.457 47.67°C 229.82V
CL4 70.990A 0A 0A 0.002A 849.449 87.367% 1749 44.9 44.76°C 0.987
11.966V 5.086V 3.335V 4.992V 972.291 59.03°C 229.68V

The results above are not used in the certification process

20-80瓦负载测试 230V

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.234A 0.49A 0.493A 0.198A 19.997 67.255% 1047 30.3 37.43°C 0.596
12.033V 5.096V 3.345V 5.047V 29.733 39.91°C 229.83V
40W 2.716A 0.687A 0.691A 0.297A 39.997 79.115% 1050 30.4 37.46°C 0.72
12.032V 5.097V 3.345V 5.044V 50.555 40.54°C 229.82V
60W 4.200A 0.883A 0.888A 0.397A 59.997 83.848% 1052 30.4 38.57°C 0.805
12.030V 5.096V 3.344V 5.041V 71.556 41.55°C 229.81V
80W 5.678A 1.079A 1.085A 0.496A 79.934 86.469% 1054 30.6 39.35°C 0.86
12.029V 5.096V 3.344V 5.037V 92.445 42.62°C 229.81V

The results above are not used in the certification process

纹波测量 230V

Test12V5V3.3V5VSBPass/Fail
10% Load23.17mV21.30mV20.62mV14.32mVPass
20% Load22.81mV21.14mV20.22mV14.32mVPass
30% Load23.12mV23.04mV20.57mV14.42mVPass
40% Load24.40mV22.22mV20.62mV14.73mVPass
50% Load24.40mV22.79mV20.73mV15.34mVPass
60% Load26.49mV23.81mV22.52mV16.37mVPass
70% Load28.74mV26.12mV22.52mV18.27mVPass
80% Load31.92mV25.87mV25.60mV18.83mVPass
90% Load36.52mV28.07mV27.39mV20.06mVPass
100% Load38.17mV27.57mV28.11mV22.15mVPass
110% Load45.24mV28.68mV30.45mV23.24mVPass
Crossload124.21mV22.21mV24.21mV11.83mVPass
Crossload224.24mV28.48mV22.06mV12.98mVPass
Crossload323.17mV19.71mV26.47mV11.34mVPass
Crossload440.53mV26.44mV27.40mV19.79mVPass

The results above are not used in the certification process

1st Player ACK 850W Silver

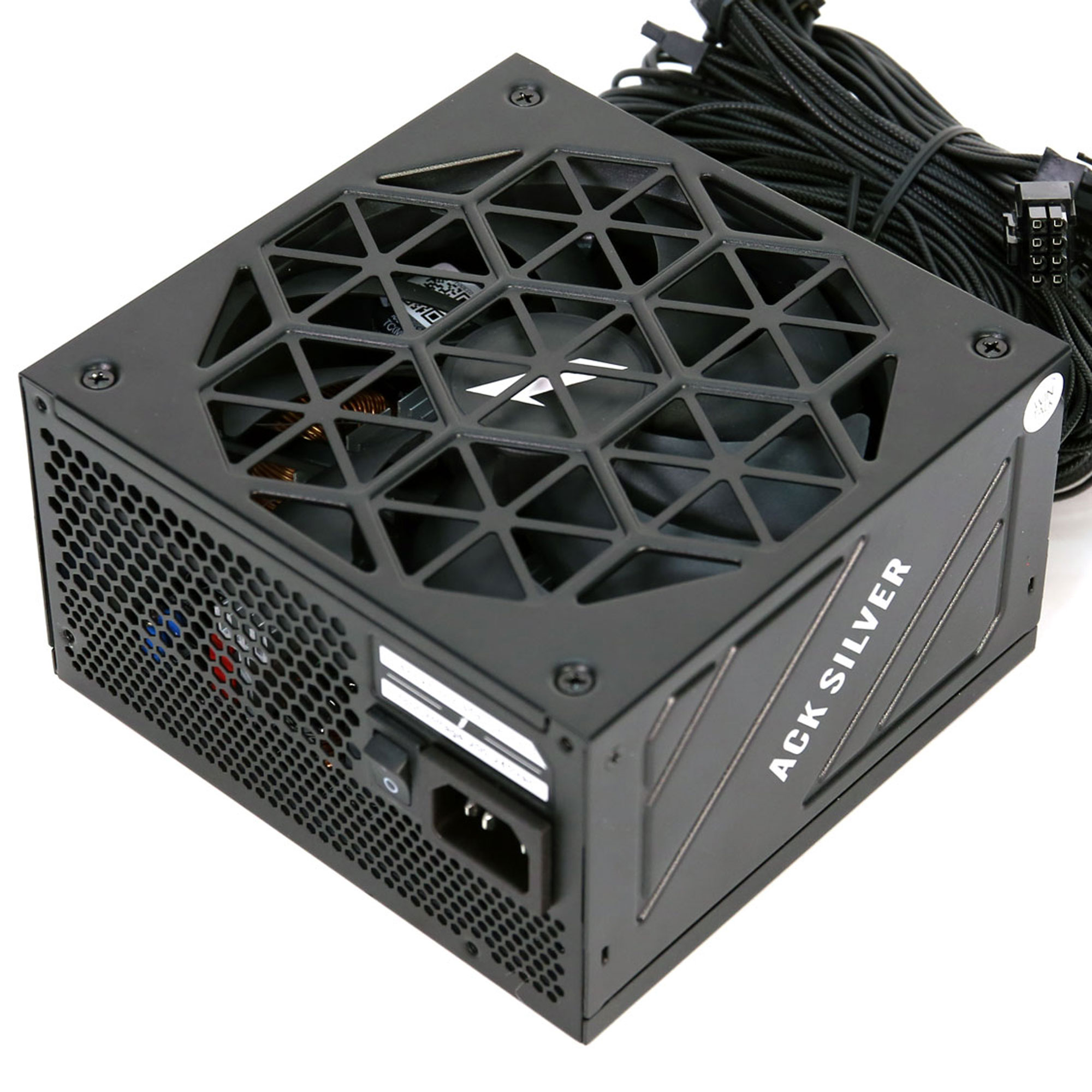

Top side

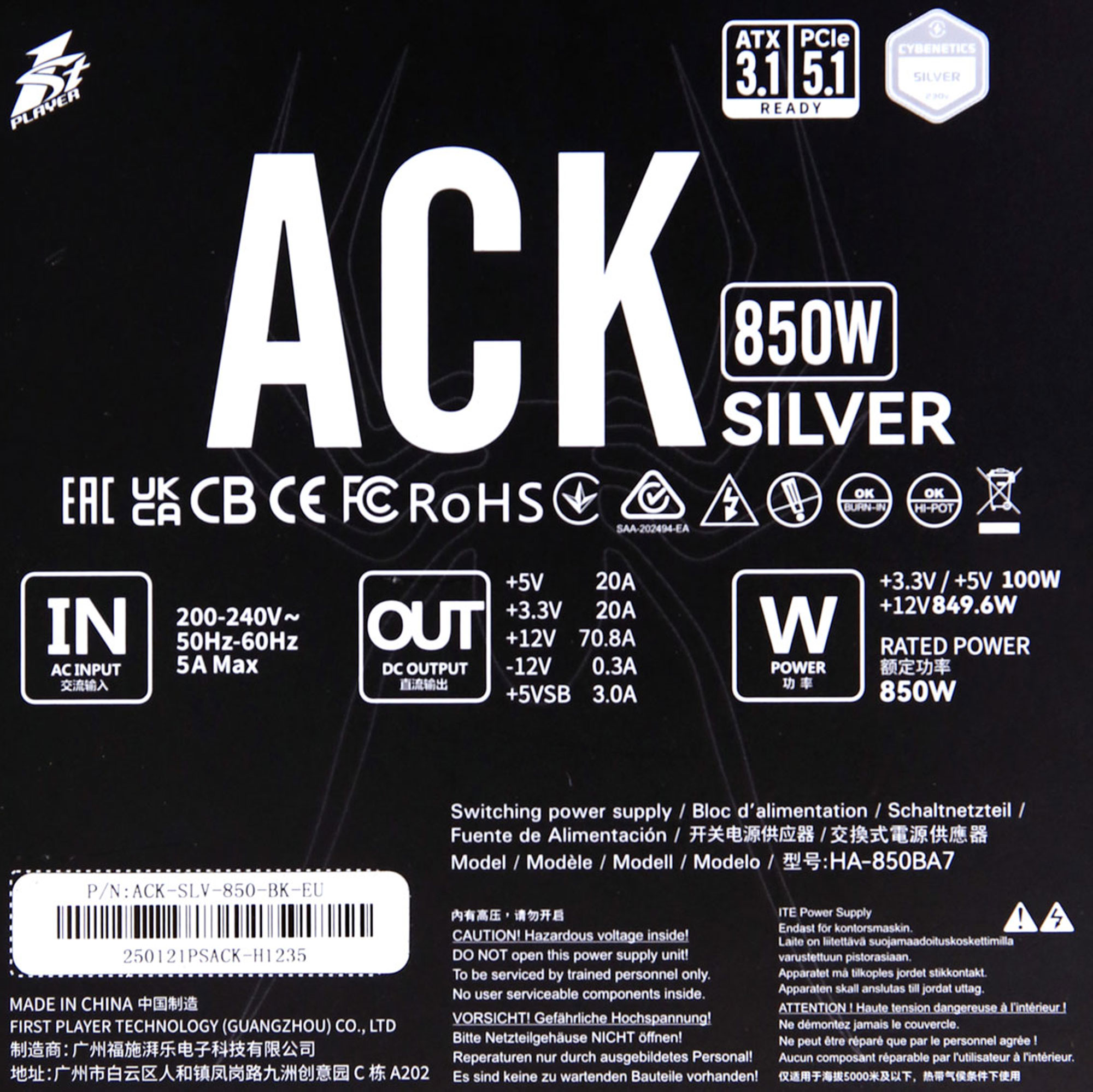

Power specifications label
