Cybenetics Test - FSP Technology Hydro G Pro 1200W (ATX v3.1)

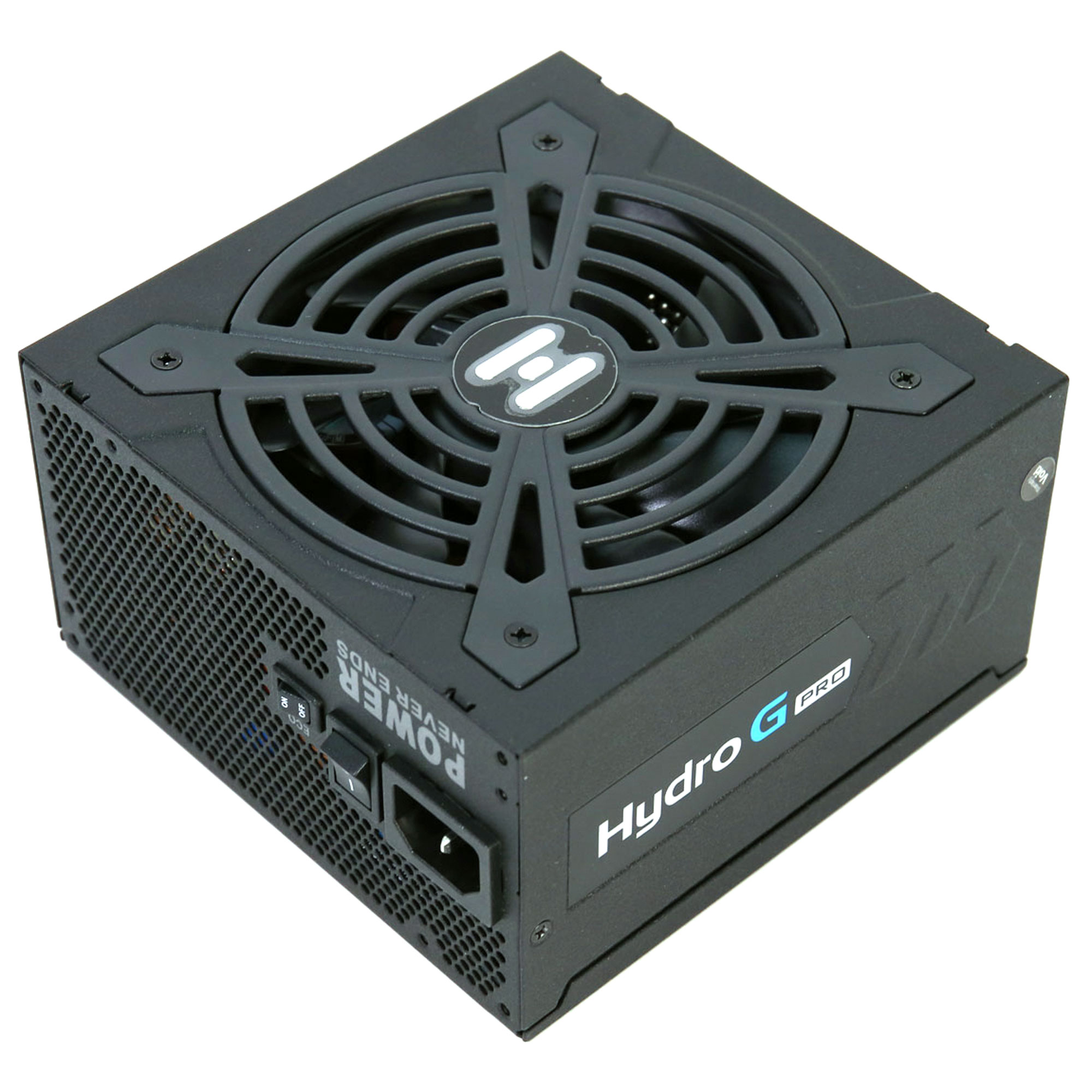

FSP Technology Hydro G Pro 1200W (ATX v3.1)

Serial NumberS4051000002

Lab IDFS12002842

Certification ID252842

Test Result Report ID: 25PS2842A
Certificate Issue Date: Jun 6, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	FSP Technology
製造商 (OEM)	FSP
Series	Hydro G Pro
Model Number	HG2-1200
Serial Number	S4051000002
DUT Notes

DUT Specifications

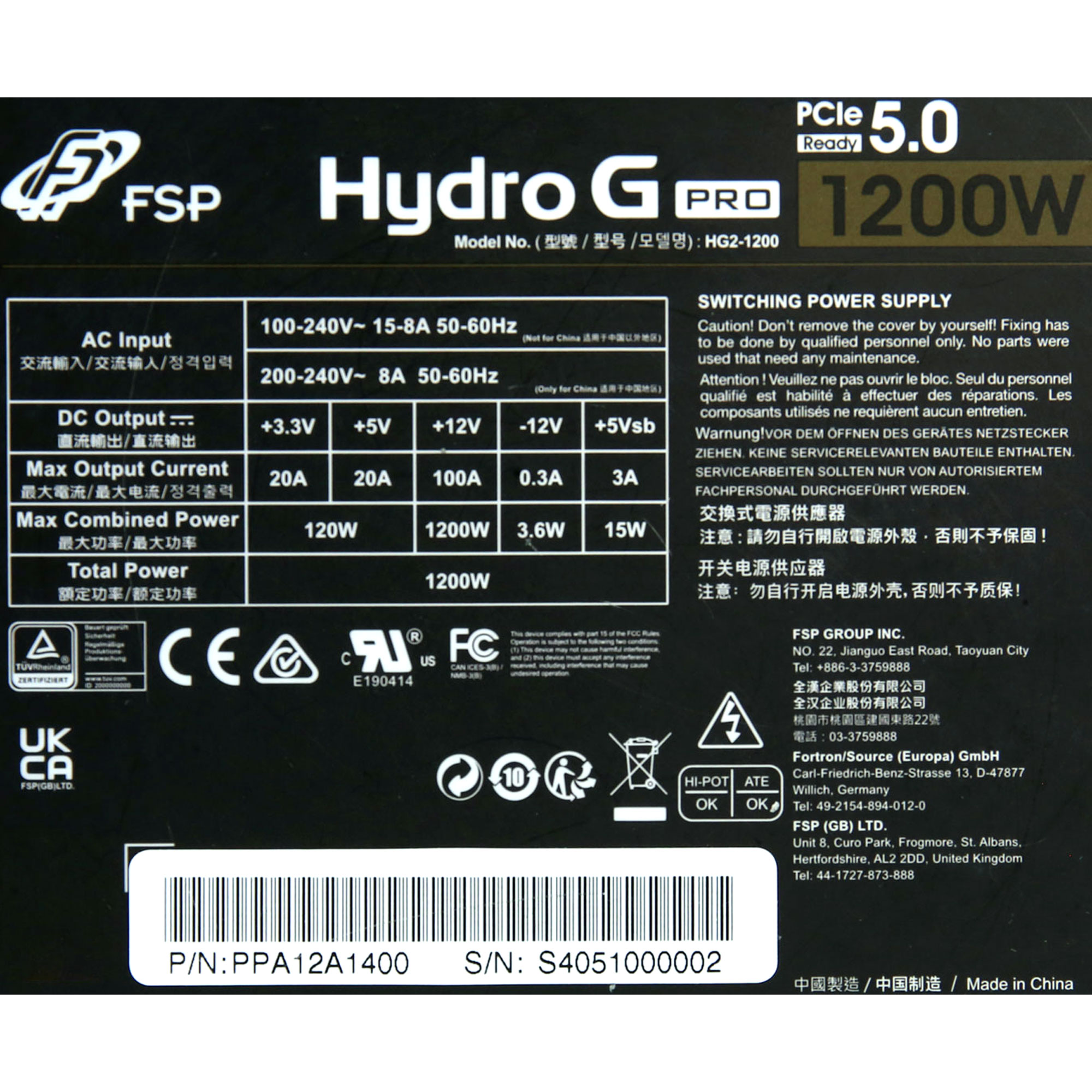

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	8-15
Rated Frequency (Hz)	50-60
Rated Power (W)	1200
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Fluid Dynamic Bearing Fan (MGA12012XF-O25)
Semi-Passive Operation	✓ (selectable)
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	100	3	0.3
Max. Power	Watts	120		1200	15	3.6
Total Max. Power (W)		1200

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (600mm)	1	1	16-22AWG	No
4+4 pin EPS12V (700mm)	2	2	18AWG	No
6+2 pin PCIe (650mm)	3	3	16AWG	No
12+4 pin PCIe (700mm) (600W)	1	1	16-24AWG	No
SATA (350mm+105mm+105mm) / 4-pin Molex (+105mm)	1	3 / 1	18AWG	No
SATA (500mm+150mm) / 4-pin Molex (+155mm+100mm)	2	4 / 4	18AWG	No
SATA (510mm+150mm+150mm+150mm)	2	8	18AWG	No

Parts Description

	General Data
Manufacturer (OEM)	FSP
PCB Type	Double-Sided
	-Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK202R0 (2Ω @ 25°C) & Relay
Bridge Rectifier(s)	2x
APFC MOSFETs	2x Wuxi TPW65R075DFD (700V, 27A @ 100°C, Rds(on): 0.075Ohm)
APFC Boost Diode	1x WeEn WNSC6D10650X (650V, 10A @ 96°C)
Bulk Cap(s)	2x (450V, 560uF each or 1120uF combined, 2000h @ 105°C, KMW)
Main Switchers	4x Infineon IPA60R120P7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm)
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CM6901X
Topology	Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
	Secondary Side
+12V MOSFETs	4x Infineon BSC007N04LS6 (40V, 269A @ 100°C, Rds(on): 0.7mOhm)
5V & 3.3V	DC-DC Converters: 4x Onsemi NTMFS1D15N03CG (30V, 173A @ 100°C, Rds(on):1.15mOhm) PWM Controllers: 1x uPI Semi uP3861P
Filtering Capacitors	Electrolytic: 4x Nippon Chemi-con (6-10,000 @ 105°C, W) 4x Nippon Chemi-con (2-5,000 @ 105°C, KZE) 3x Rubycon ( @ 105°C) 2x Rubycon (6-10,000 @ 105°C, ZLH) 1x Rubycon (1-2,000 @ 105°C, PX) Polymer: 11x CapXon, 8x Nippon Chemi-con, 10x no info
Supervisor IC	IN1S4241-SDG (OCP, OVP, UVP, SCP, PG)
Fan Controller	Grenergy GR8031
Fan Model	Protechnic Electric MGA12012XF-O25 (120mm, 12V, 0.52A, Fluid Dynamic Fan)
	5VSB Circuit
Rectifier	VB Semi 03N70I-H (700V, 5A @ 100°C, Rds(on): 1.36Ohm)
Synchronous Rectification Driver	Leadtrend LD8928CA1 Synchronous Rectification IC

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

效率評比	GOLD
噪音評比	A-
Average Efficiency (>1450 load combinations)	88.204%
Average Noise Output (>1450 Load Combinations)	27.85dBA
Average PF (>1450 Load Combinations)	0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load	61.878%
Standby Power Consumption	0.0811W
12V Ripple (Full Load)	32.24mV
5V Ripple (Full Load)	14.75mV
3.3V Ripple (Full Load)	15.95mV
5VSB Ripple (Full Load)	18.52mV
12V Load Regulation	0.49%
5V Load Regulation	0.32%
3.3V Load Regulation	1.17%
5VSB Load Regulation	2.01%
Inrush Current	76.650A

效率評比	GOLD
噪音評比	A-
Average Efficiency (>1450 load combinations)	90.306%
Average Noise Output (>1450 Load Combinations)	27.14dBA
Average PF (>1450 Load Combinations)	0.965
Efficiency With 10W (≤500W) or 2% (>500W) Load	61.993%
Standby Power Consumption	0.1840W
12V Ripple (Full Load)	38.16mV
5V Ripple (Full Load)	16.12mV
3.3V Ripple (Full Load)	17.63mV
5VSB Ripple (Full Load)	15.86mV
12V Load Regulation	0.36%
5V Load Regulation	0.40%
3.3V Load Regulation	1.20%
5VSB Load Regulation	2.12%
Inrush Current	158.900A
12V Transient Response (200%)	11.57V
5V Transient Response (200%)	4.945V
3.3V Transient Response (200%)	3.154V
5VSB Transient Response (200%)	4.931V
Hold-Up Time & Power Ok Signal	20.00ms
AC Loss to PWR_OK Hold Up Time	15.90ms
PWR_OK Inactive to DC Loss Delay	4.10ms
PSU Timings: T1 (20% / 100%)	49.0ms	48.0ms
PSU Timings: T3 (20% / 100%)	110.0ms	109.0ms
12V OCP (27.9°C / 43.0°C)	116.60A (116.60%), 12.255V	105.20A (105.20%), 12.266V
5V OCP (27.9°C / 43.0°C)	29.6A (148.00%), 4.981V	29.1A (145.50%), 4.98V
3.3V OCP (27.9°C / 43.0°C)	31.6A (158.00%), 3.262V	30.6A (153.00%), 3.25V
5VSB OCP (27.9°C / 43.0°C)	5.6A (186.67%), 4.987V	5.6A (186.67%), 4.984V
OPP (27.99°C / 45.66°C)	125.34%	114.17%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	20
AC Loss to PWR_OK Hold Up Time (ms)	15.9
PWR_OK Inactive to DC Loss Delay (ms)	4.1

待機電源消耗

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.14 V	115.13 V	113.85 V	115.18 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	60.00 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.15 %	2.00 %	PASS
Real Power:	0.081 W	0.012 W	N/A	0.143 W	N/A	N/A
Apparent Power:	10.291 W	10.279 W	N/A	10.303 W	N/A	N/A
Power Factor:	0.012	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.29 V	230.28 V	227.70 V	230.41 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.184 W	0.148 W	N/A	0.220 W	N/A	N/A
Apparent Power:	34.069 W	34.051 W	N/A	34.111 W	N/A	N/A
Power Factor:	0.006	N/A	N/A	N/A	N/A	N/A

Graphs

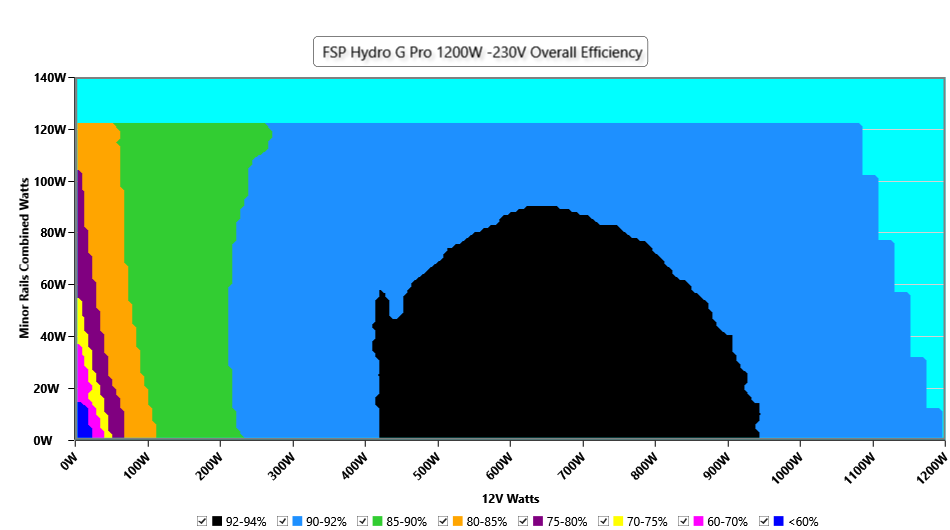

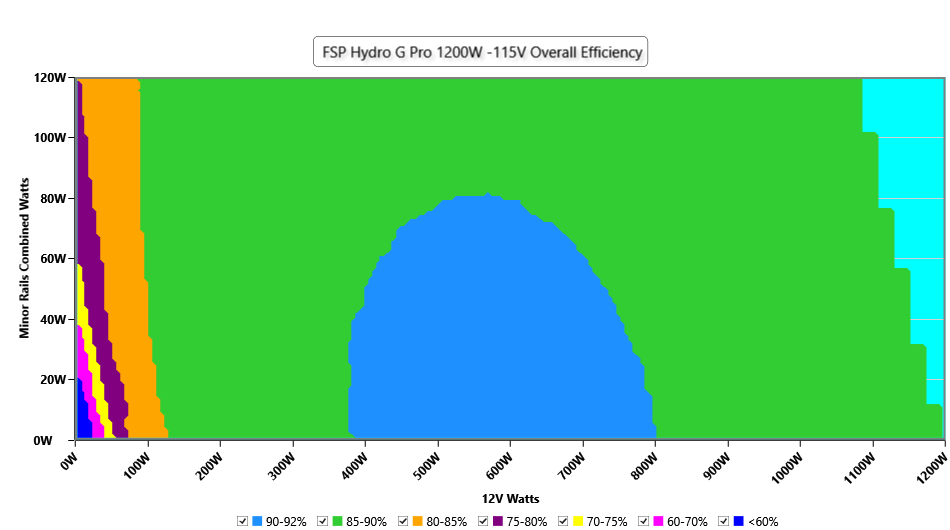

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

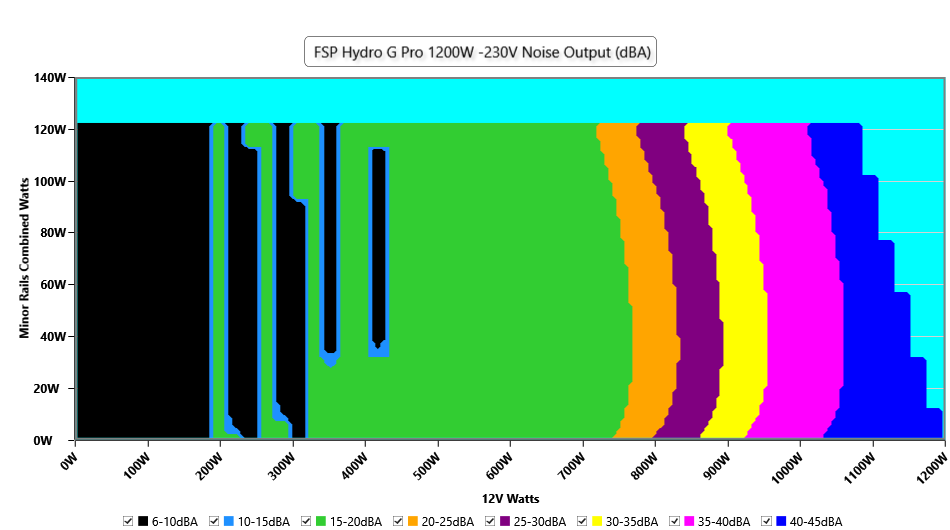

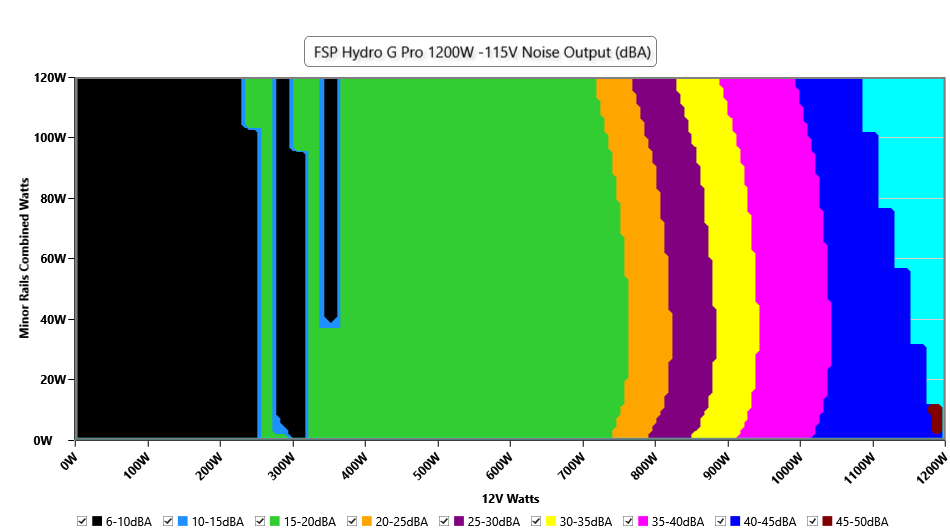

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

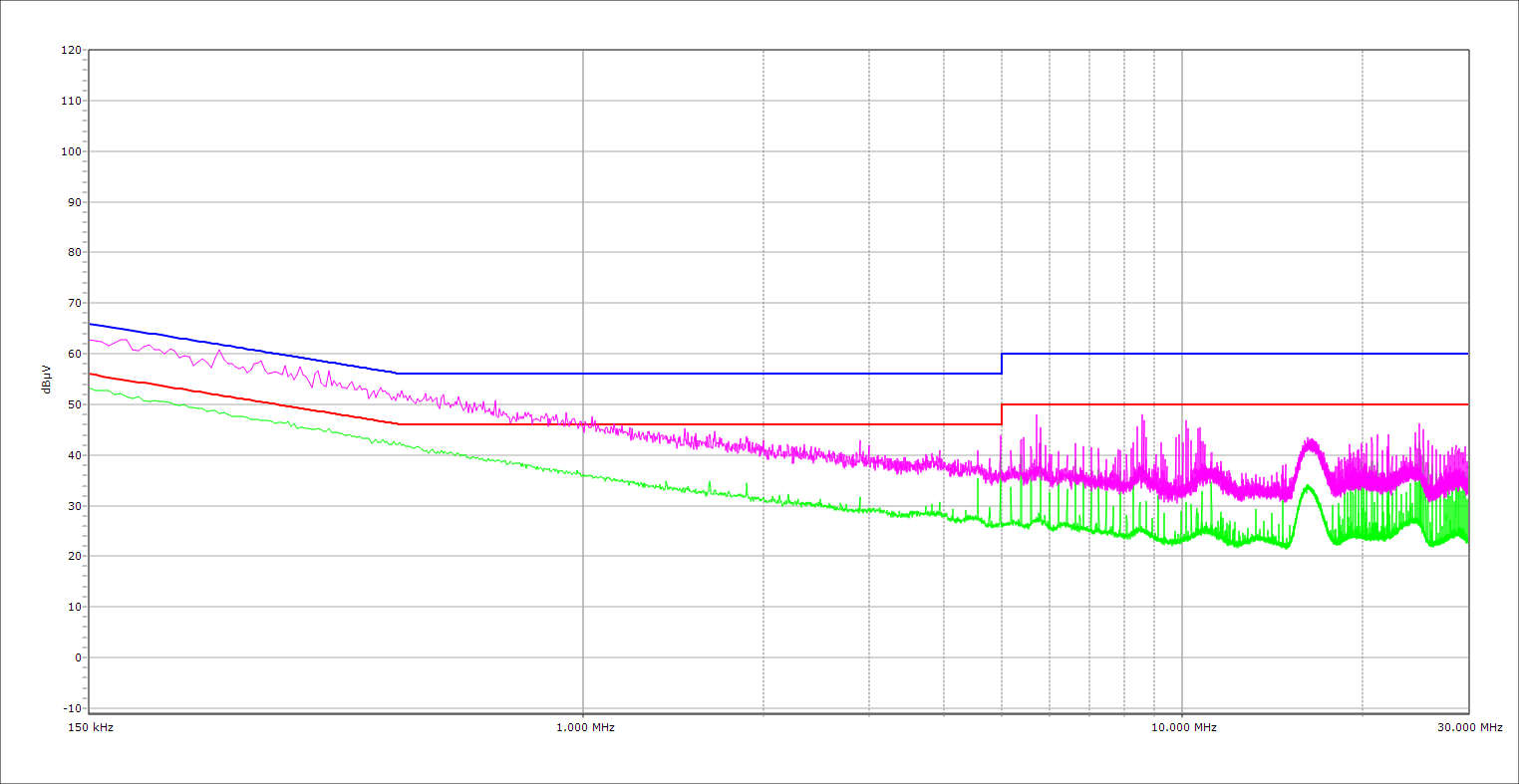

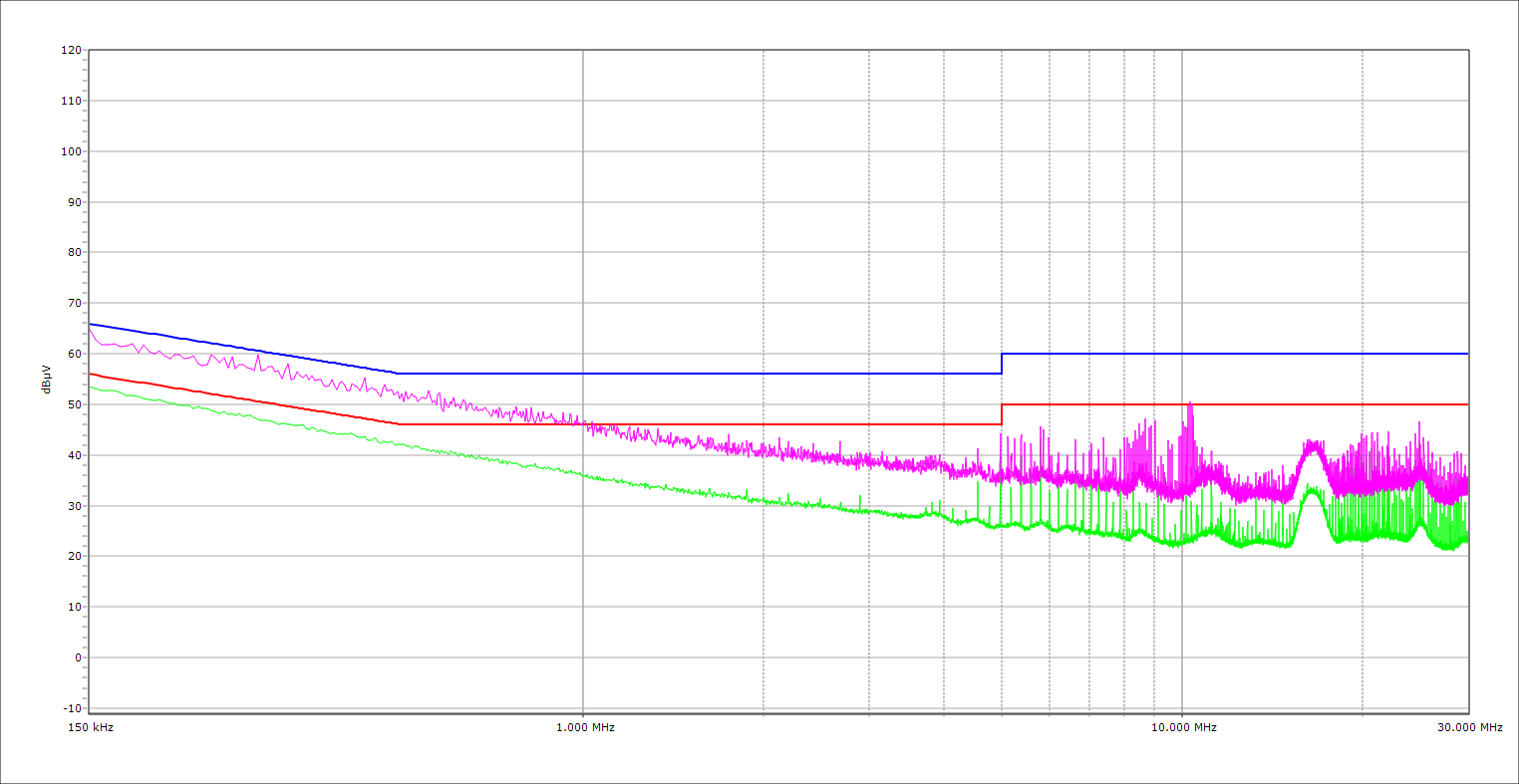

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

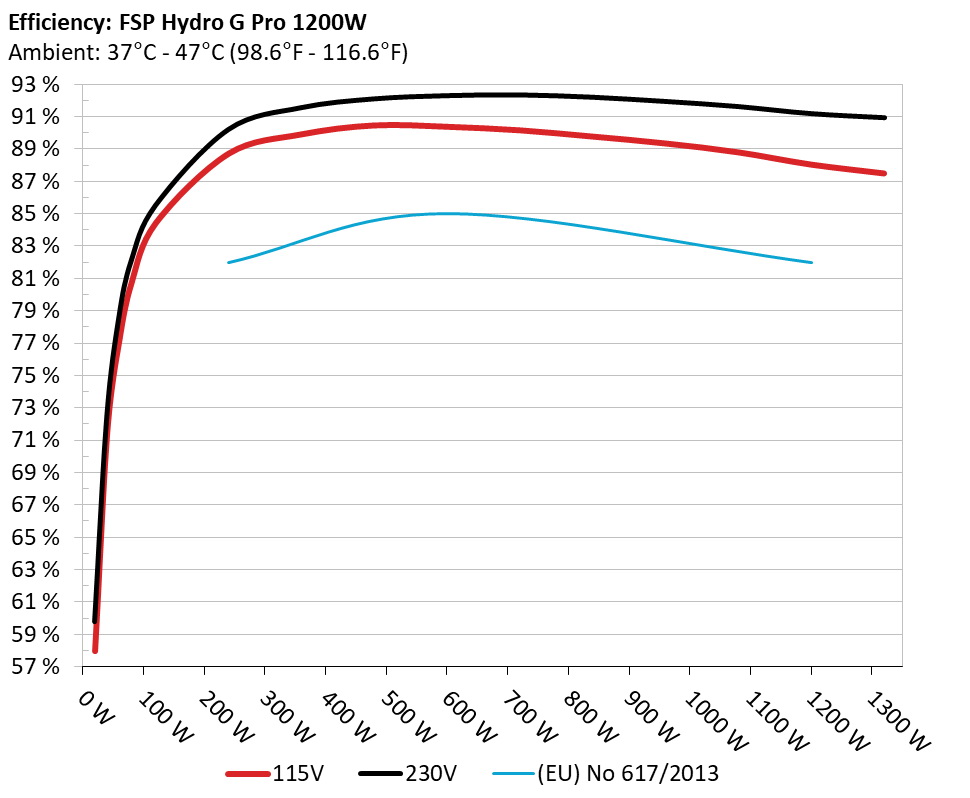

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

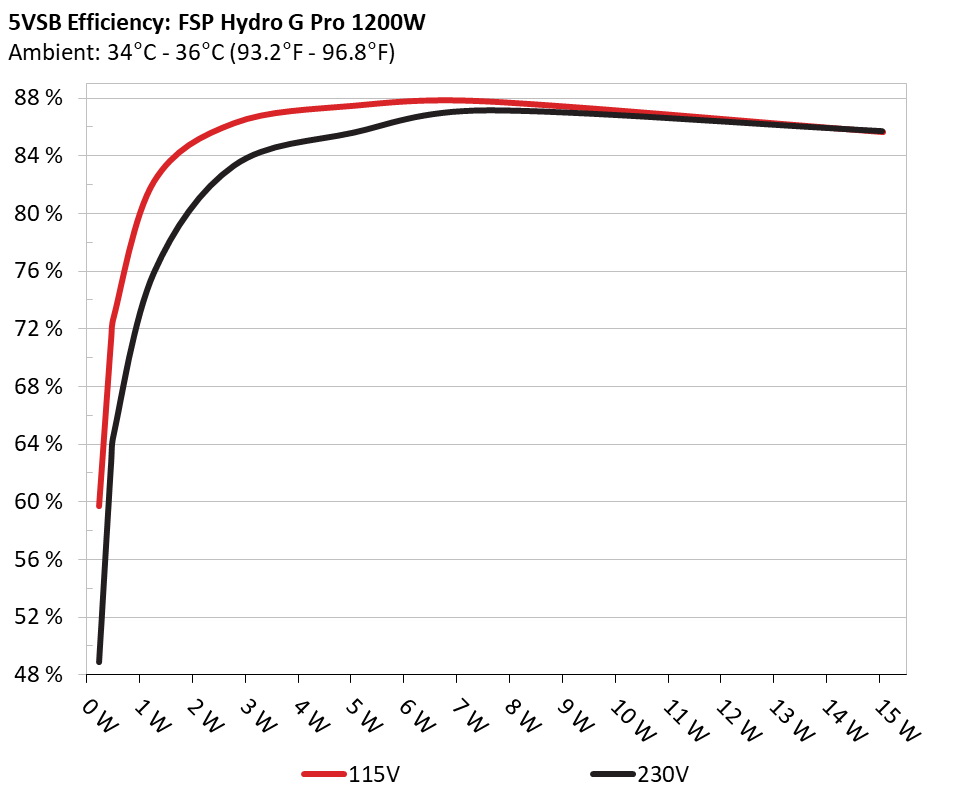

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	59.691%	0.037
1	5.068V	0.383W	59.691%	115.07V
2	0.09A	0.456W	71.267%	0.061
2	5.067V	0.64W	71.267%	115.07V
3	0.55A	2.783W	86.267%	0.24
3	5.06V	3.226W	86.267%	115.06V
4	1A	5.053W	87.479%	0.322
4	5.052V	5.776W	87.479%	115.05V
5	1.5A	7.568W	87.775%	0.372
5	5.045V	8.623W	87.775%	115.05V
6	3.001A	15.068W	85.652%	0.439
6	5.022V	17.592W	85.652%	115.04V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	48.859%	0.014
1	5.068V	0.469W	48.859%	230.19V
2	0.09A	0.456W	62.71%	0.021
2	5.067V	0.728W	62.71%	230.22V
3	0.55A	2.782W	83.336%	0.093
3	5.059V	3.341W	83.336%	230.31V
4	1A	5.051W	85.632%	0.154
4	5.051V	5.897W	85.632%	230.31V
5	1.5A	7.563W	87.171%	0.204
5	5.042V	8.676W	87.171%	230.31V
6	3A	15.053W	85.734%	0.304
6	5.017V	17.553W	85.734%	230.3V

Protection Features

OCP (Normal @ 27.9°C)	12V: 116.60A (116.60%), 12.255V 5V: 29.6A (148.00%), 4.981V 3.3V: 31.6A (158.00%), 3.262V 5VSB: 5.6A (186.67%), 4.987V
OCP (Hot @ 43.0°C)	12V: 105.20A (105.20%), 12.266V 5V: 29.1A (145.50%), 4.98V 3.3V: 30.6A (153.00%), 3.25V 5VSB: 5.6A (186.67%), 4.984V
OPP (Normal @ 28.0°C)	1504.04W (125.34%)
OPP (Hot @ 45.7°C)	1370.03W (114.17%)
OTP	✓ (152°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.023A	1.998A	2.007A	0.99A	120.007	84.423%	0	<6.0	45.37°C	0.978
10%	12.266V	5.007V	3.289V	5.05V	142.148	84.423%	0	<6.0	40.07°C	115V
20%	17.039A	2.998A	3.014A	1.19A	239.974	88.719%	0	<6.0	46.98°C	0.985
20%	12.270V	5.005V	3.285V	5.041V	270.485	88.719%	0	<6.0	40.62°C	114.95V
30%	26.335A	3.499A	3.521A	1.391A	359.282	89.911%	0	<6.0	46.51°C	0.988
30%	12.274V	5.003V	3.281V	5.032V	399.598	89.911%	0	<6.0	41.07°C	114.91V
40%	35.710A	4.001A	4.029A	1.593A	479.638	90.469%	759	16.8	41.55°C	0.989
40%	12.277V	5.001V	3.277V	5.023V	530.174	90.469%	759	16.8	51.03°C	114.86V
50%	44.709A	5A	5.039A	1.796A	599.367	90.386%	757	16.7	42.39°C	0.992
50%	12.276V	5.001V	3.275V	5.013V	663.122	90.386%	757	16.7	46.89°C	114.82V
60%	53.790A	6.002A	6.053A	1.999A	719.909	90.168%	760	16.8	42.51°C	0.994
60%	12.272V	5V	3.272V	5.004V	798.408	90.168%	760	16.8	49.34°C	114.78V
70%	62.789A	7.005A	7.07A	2.202A	839.628	89.781%	1029	27	43.11°C	0.995
70%	12.271V	4.999V	3.268V	4.996V	935.194	89.781%	1029	27	50.12°C	114.74V
80%	71.894A	8.006A	8.089A	2.306A	959.506	89.354%	1200	31.8	43.76°C	0.995
80%	12.263V	4.996V	3.264V	4.988V	1073.826	89.354%	1200	31.8	49.14°C	114.69V
90%	81.280A	8.507A	8.585A	2.41A	1079.365	88.807%	1546	40.7	44.93°C	0.996
90%	12.264V	4.996V	3.261V	4.98V	1215.406	88.807%	1546	40.7	49.22°C	114.66V
100%	90.506A	9.01A	9.114A	3.021A	1199.349	88.049%	1851	47.8	45.21°C	0.996
100%	12.260V	4.995V	3.259V	4.966V	1362.148	88.049%	1851	47.8	50.15°C	114.64V
110%	99.703A	10.022A	10.22A	3.025A	1319.96	87.497%	1215	32.1	42.73°C	0.996
110%	12.253V	4.989V	3.258V	4.959V	1508.633	87.497%	1215	32.1	49.33°C	114.61V
CL1	0.113A	14.439A	14.547A	0A	121.294	78.194%	757	16.7	41.17°C	0.98
CL1	12.297V	5V	3.279V	5.057V	155.117	78.194%	757	16.7	48.27°C	115.04V
CL2	0.113A	20.003A	0A	0A	101.37	76.542%	752	16.3	40.57°C	0.975
CL2	12.291V	4.998V	3.289V	5.064V	132.439	76.542%	752	16.3	46.19°C	115.05V
CL3	0.113A	0A	20.175A	0A	67.38	71.053%	0	<6.0	41.29°C	0.965
CL3	12.281V	5V	3.271V	5.06V	94.836	71.053%	0	<6.0	39.59°C	115.06V
CL4	97.917A	0A	0A	0.001A	1199.876	88.705%	1721	42.2	44.85°C	0.996
CL4	12.254V	4.989V	3.266V	5.017V	1352.666	88.705%	1721	42.2	49°C	114.65V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.016A	1.997A	2.007A	0.99A	119.997	85.52%	0	<6.0	49.18°C	0.893
10%	12.275V	5.008V	3.289V	5.05V	140.312	85.52%	0	<6.0	40.18°C	230.21V
20%	17.020A	2.997A	3.014A	1.19A	239.952	90.216%	0	<6.0	48.08°C	0.951
20%	12.283V	5.006V	3.285V	5.041V	265.973	90.216%	0	<6.0	40.95°C	230.2V
30%	26.304A	3.498A	3.52A	1.391A	359.181	91.566%	0	<6.0	52.32°C	0.967
30%	12.284V	5.004V	3.281V	5.032V	392.267	91.566%	0	<6.0	41.33°C	230.2V
40%	35.685A	3.998A	4.026A	1.593A	479.532	92.114%	761	16.9	41.51°C	0.975
40%	12.283V	5.003V	3.279V	5.022V	520.589	92.114%	761	16.9	46.25°C	230.18V
50%	44.702A	4.997A	5.035A	1.796A	599.263	92.31%	757	16.7	42.39°C	0.979
50%	12.276V	5.004V	3.277V	5.012V	649.186	92.31%	757	16.7	45.08°C	230.16V
60%	53.788A	5.999A	6.049A	1.999A	719.807	92.357%	757	16.7	42.81°C	0.982
60%	12.270V	5.002V	3.274V	5.003V	779.373	92.357%	757	16.7	45°C	230.14V
70%	62.799A	7.002A	7.065A	2.202A	839.53	92.213%	984	25.7	43.31°C	0.984
70%	12.268V	5V	3.27V	4.994V	910.432	92.213%	984	25.7	46.77°C	230.12V
80%	71.884A	8.003A	8.082A	2.306A	959.492	91.954%	1290	35.4	43.85°C	0.986
80%	12.265V	4.998V	3.266V	4.986V	1043.448	91.954%	1290	35.4	46.8°C	230.11V
90%	81.301A	8.506A	8.58A	2.411A	1079.311	91.636%	1574	41	44.15°C	0.987
90%	12.261V	4.996V	3.263V	4.978V	1177.827	91.636%	1574	41	46.68°C	230.09V
100%	90.536A	9.01A	9.111A	3.023A	1199.334	91.2%	1849	47.8	45.96°C	0.987
100%	12.256V	4.995V	3.26V	4.962V	1315.061	91.2%	1849	47.8	47.7°C	230.06V
110%	99.718A	10.024A	10.223A	3.027A	1319.96	90.952%	1450	38.5	45.56°C	0.988
110%	12.251V	4.988V	3.257V	4.955V	1451.314	90.952%	1450	38.5	47.94°C	230.04V
CL1	0.114A	14.444A	14.546A	0A	121.298	79.199%	761	16.9	44.52°C	0.906
CL1	12.296V	4.999V	3.279V	5.057V	153.159	79.199%	761	16.9	48.45°C	230.25V
CL2	0.113A	20.017A	0A	0A	101.379	77.561%	759	16.8	43.62°C	0.884
CL2	12.294V	4.995V	3.289V	5.064V	130.706	77.561%	759	16.8	47.68°C	230.24V
CL3	0.113A	0A	20.169A	0A	67.381	71.241%	755	16.5	42.94°C	0.825
CL3	12.284V	5V	3.272V	5.06V	94.582	71.241%	755	16.5	46.73°C	230.25V
CL4	97.923A	0A	0A	0.001A	1199.9	91.829%	1730	42.4	44.48°C	0.987
CL4	12.253V	4.99V	3.267V	5.015V	1306.671	91.829%	1730	42.4	47.1°C	230.06V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.216A	0.499A	0.501A	0.197A	20	57.939%	0	<6.0	39.84°C	0.895
20W	12.217V	5.011V	3.297V	5.066V	34.519	57.939%	0	<6.0	36.88°C	115.06V
40W	2.673A	0.699A	0.701A	0.296A	40.002	71.478%	0	<6.0	40.2°C	0.942
40W	12.231V	5.01V	3.295V	5.064V	55.966	71.478%	0	<6.0	37.34°C	115.04V
60W	4.128A	0.898A	0.902A	0.395A	60.003	77.176%	0	<6.0	41.84°C	0.956
60W	12.242V	5.01V	3.294V	5.062V	77.751	77.176%	0	<6.0	38.75°C	115.03V
80W	5.577A	1.098A	1.103A	0.494A	79.952	80.702%	0	<6.0	43.67°C	0.967
80W	12.251V	5.009V	3.292V	5.06V	99.065	80.702%	0	<6.0	39.25°C	115.02V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.213A	0.499A	0.5A	0.197A	20	59.813%	0	<6.0	38.12°C	0.526
20W	12.240V	5.015V	3.299V	5.067V	33.703	59.813%	0	<6.0	36.19°C	230.25V
40W	2.668A	0.698A	0.701A	0.296A	40.002	72.47%	0	<6.0	41.42°C	0.675
40W	12.251V	5.012V	3.296V	5.065V	55.19	72.47%	0	<6.0	37.91°C	230.23V
60W	4.124A	0.898A	0.901A	0.395A	60.004	78.627%	0	<6.0	43.41°C	0.77
60W	12.255V	5.012V	3.295V	5.062V	76.315	78.627%	0	<6.0	38.73°C	230.21V
80W	5.571A	1.098A	1.102A	0.494A	79.952	82.071%	0	<6.0	45.38°C	0.829
80W	12.263V	5.01V	3.293V	5.06V	97.42	82.071%	0	<6.0	39°C	230.19V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	20.0 mV	11.3 mV	12.9 mV	9.0 mV	Pass
20% Load	25.4 mV	11.3 mV	12.9 mV	9.5 mV	Pass
30% Load	28.2 mV	12.3 mV	13.1 mV	10.6 mV	Pass
40% Load	32.2 mV	12.2 mV	13.9 mV	11.2 mV	Pass
50% Load	36.1 mV	12.4 mV	13.8 mV	11.6 mV	Pass
60% Load	36.9 mV	13.4 mV	14.4 mV	16.7 mV	Pass
70% Load	34.8 mV	13.1 mV	14.4 mV	14.4 mV	Pass
80% Load	33.2 mV	14.7 mV	16.2 mV	15.0 mV	Pass
90% Load	33.3 mV	15.8 mV	16.4 mV	16.7 mV	Pass
100% Load	32.2 mV	14.8 mV	16.0 mV	18.5 mV	Pass
110% Load	34.2 mV	16.0 mV	16.2 mV	19.6 mV	Pass
Crossload 1	20.4 mV	12.0 mV	13.4 mV	16.5 mV	Pass
Crossload 2	19.2 mV	14.3 mV	13.5 mV	16.8 mV	Pass
Crossload 3	12.5 mV	11.2 mV	13.6 mV	16.9 mV	Pass
Crossload 4	32.2 mV	14.1 mV	15.4 mV	23.1 mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	20.7 mV	12.8 mV	13.5 mV	10.5 mV	Pass
20% Load	27.0 mV	13.2 mV	13.9 mV	10.7 mV	Pass
30% Load	31.8 mV	13.0 mV	14.5 mV	10.9 mV	Pass
40% Load	36.0 mV	13.1 mV	14.6 mV	11.1 mV	Pass
50% Load	39.5 mV	13.9 mV	15.3 mV	12.1 mV	Pass
60% Load	41.9 mV	14.2 mV	15.5 mV	16.2 mV	Pass
70% Load	39.0 mV	15.5 mV	15.6 mV	14.1 mV	Pass
80% Load	37.1 mV	16.0 mV	19.6 mV	14.9 mV	Pass
90% Load	37.7 mV	16.3 mV	17.5 mV	15.5 mV	Pass
100% Load	38.2 mV	16.1 mV	17.6 mV	15.9 mV	Pass
110% Load	39.1 mV	17.6 mV	18.7 mV	17.9 mV	Pass
Crossload 1	21.2 mV	13.6 mV	14.8 mV	17.1 mV	Pass
Crossload 2	21.1 mV	15.2 mV	15.4 mV	18.1 mV	Pass
Crossload 3	14.9 mV	13.1 mV	14.9 mV	18.0 mV	Pass
Crossload 4	36.8 mV	15.0 mV	15.8 mV	21.4 mV	Pass

The results above are not used in the certification process

FSP Technology Hydro G Pro 1200W (ATX v3.1)

Top side

Power specifications label
