Sharkoon Rebel P15 650W

Serial Number-

Lab IDSK65002865

Certification ID252865

Test Result Report ID: 25PS2865A
Certificate Issue Date: Jun 26, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	Sharkoon
Model	Rebel P15 650W
OEM/ODM	Andyson
Serial Number	-
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	4-8
Rated Frequency (Hz)	50-60
Rated Power (W)	650
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fixed cables
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	120mm Sleeve Bearing Fan (PY-1225M12S)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	SK65002865
Date of receipt	May 22, 2025
Testing Date	Jun 26, 2025
Report Issued Date	Jun 26, 2025
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (550mm)	1	1	18-22AWG	No
4+4 pin EPS12V (675mm+145mm)	1	2	18AWG	No
6+2 pin PCIe (530mm+150mm)	1	2	18AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-26AWG	No
SATA (530mm+150mm+150mm) / 4-pin Molex (+150mm)	2	6 / 2	18AWG	No
AC Power Cord (1070mm) - C13 coupler	1	1	18AWG	-

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

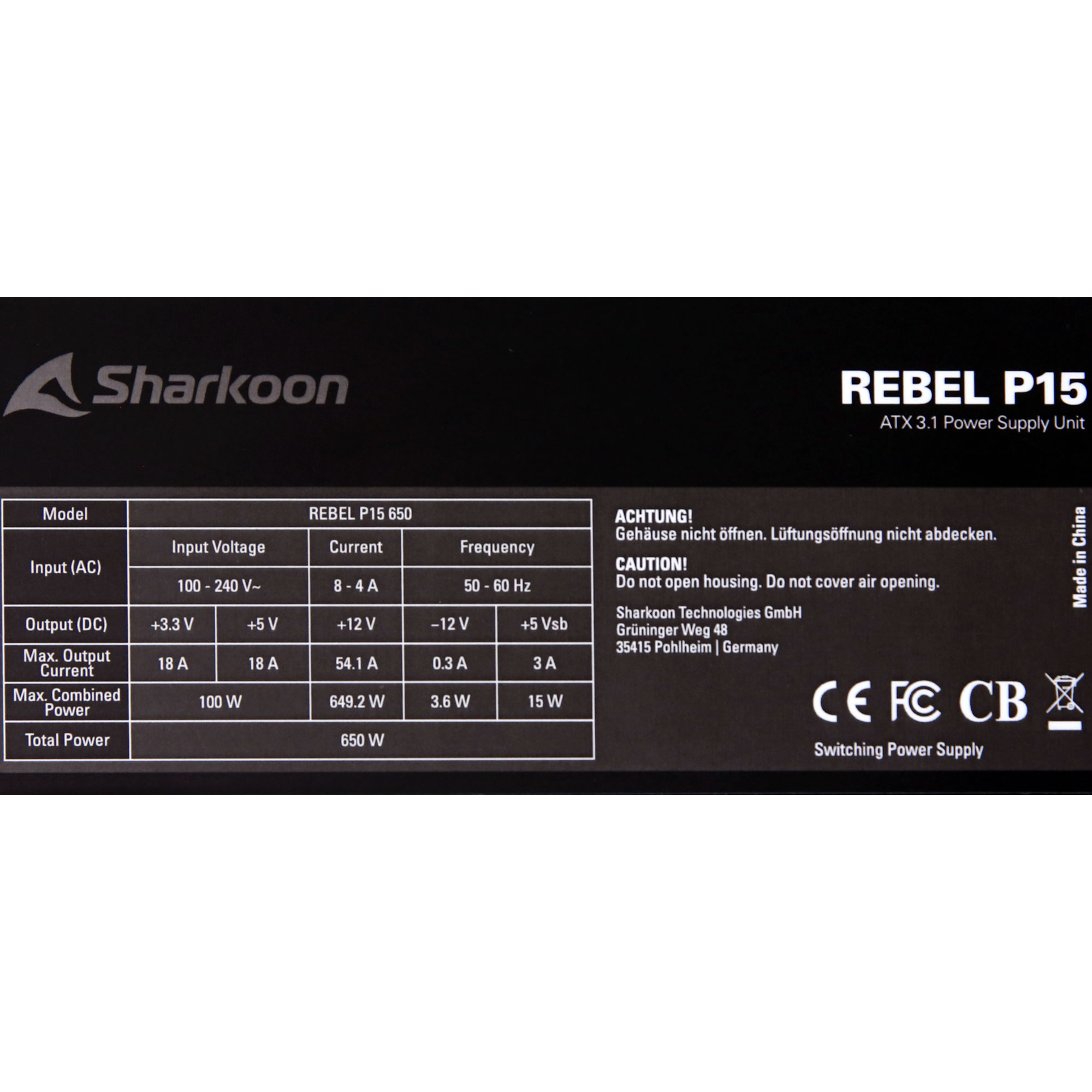

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	18	18	54.1	3	0.3
Max. Power	Watts	100		649.2	15	3.6
Total Max. Power (W)		650

Parts Description

General Data
Manufacturer (OEM)	Andyson
PCB Type	Double Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor SCK-201R5 (1.5 Ohm) & Relay
Bridge Rectifier(s)	2x GBU806 (600V, 8A @ 100°C)
APFC MOSFETs	2x PingWei PWE180N65SFMF
APFC Boost Diode	1x
Bulk Cap(s)	1x Nippon Chemi-Con (400V, 390uF, 2000h @ 105°C, KMR)
Main Switchers	2x SI24N50F
APFC Controller	Champion CM6500UNX & CM03X (Remove Phantom Power)
Resonant Controller	Champion CM6901T6X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs	4x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V	DC-DC Converters: 4x Way-On WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm) PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors	Electrolytic: 9x CS (3,000 @ 105°C, WE) 5x CS (2,000 @ 105°C, WR) Polymer: 5x Polycap, 2x Teapo
Supervisor IC	Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP)
Fan Model	Poweryear PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan).
5VSB/12VSB Circuit
Rectifier	1x PingWei PS1045L SBR (45V, 10A)
Standby PWM Controller	Esthome EST.2508

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	88.372%
Average Noise Output (>1450 Load Combinations)	31.31dBA
Average PF (>1450 Load Combinations)	0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load	60.688%
Standby Power Consumption	0.0903W
Non-Accredited
12V Ripple (Full Load)	55.61mV
5V Ripple (Full Load)	22.78mV
3.3V Ripple (Full Load)	24.28mV
5VSB Ripple (Full Load)	19.06mV
12V Load Regulation	1.03%
5V Load Regulation	1.72%
3.3V Load Regulation	2.15%
5VSB Load Regulation	3.81%
Inrush Current	32.330A

Accredited
Average Efficiency (>1450 load combinations)	90.266%
Average Noise Output (>1450 Load Combinations)	31.69dBA
Average PF (>1450 Load Combinations)	0.930
Efficiency With 10W (≤500W) or 2% (>500W) Load	61.360%
Standby Power Consumption	0.1163W
Non-Accredited
12V Ripple (Full Load)	60.97mV
5V Ripple (Full Load)	23.77mV
3.3V Ripple (Full Load)	24.30mV
5VSB Ripple (Full Load)	19.40mV
12V Load Regulation	1.02%
5V Load Regulation	1.80%
3.3V Load Regulation	2.09%
5VSB Load Regulation	3.85%
Inrush Current	65.400A
12V Transient Response (200%)	11.53V
5V Transient Response (200%)	4.953V
3.3V Transient Response (200%)	3.260V
5VSB Transient Response (200%)	5.006V
Hold-Up Time & PWR_OK Signal	14.70ms
AC Loss to PWR_OK Hold Up Time	12.90ms
PWR_OK Inactive to DC Loss Delay	1.80ms
PSU Timings: T1 (20% / 100%)	59.0ms	58.0ms
PSU Timings: T3 (20% / 100%)	117.0ms	119.0ms
12V OCP (27.6°C / 44.0°C)	75.60A (139.74%), 12.158V	73.20A (135.30%), 12.173V
5V OCP (27.6°C / 44.0°C)	23.3A (129.44%), 5.047V	23.1A (128.33%), 5.046V
3.3V OCP (27.6°C / 44.0°C)	22.1A (122.78%), 3.397V	21.7A (120.56%), 3.396V
5VSB OCP (27.6°C / 44.0°C)	4.2A (140.00%), 4.95V	4.1A (136.67%), 4.95V
OPP (28.16°C / 43.23°C)	137.34%	135.24%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	14.7
AC Loss to PWR_OK Hold Up Time (ms)	12.9
PWR_OK Inactive to DC Loss Delay (ms)	1.8

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.08 V	115.07 V	113.85 V	115.11 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	60.00 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.13 %	0.10 %	N/A	0.15 %	2.00 %	PASS
Real Power:	0.090 W	0.080 W	N/A	0.103 W	N/A	N/A
Apparent Power:	8.064 W	8.045 W	N/A	8.105 W	N/A	N/A
Power Factor:	0.010	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.25 V	230.23 V	227.70 V	230.27 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.116 W	0.095 W	N/A	0.144 W	N/A	N/A
Apparent Power:	26.376 W	26.350 W	N/A	26.392 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Graphs

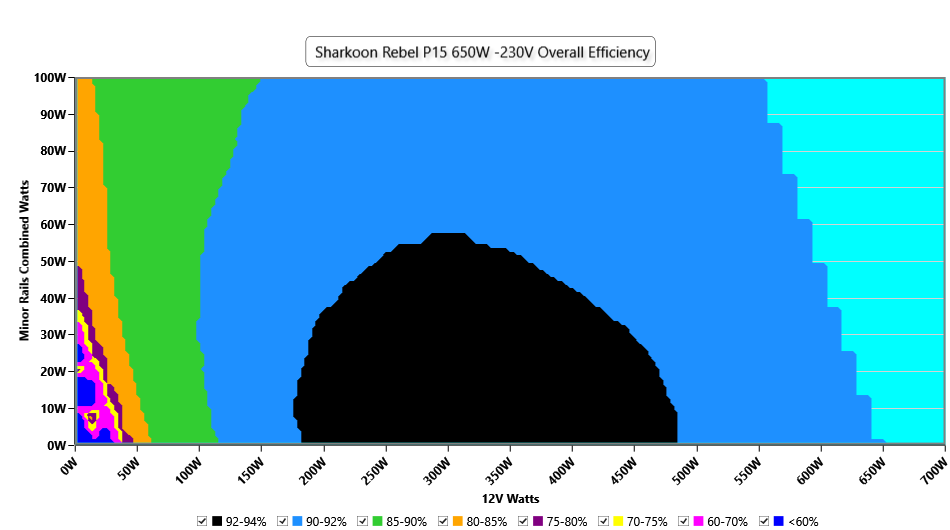

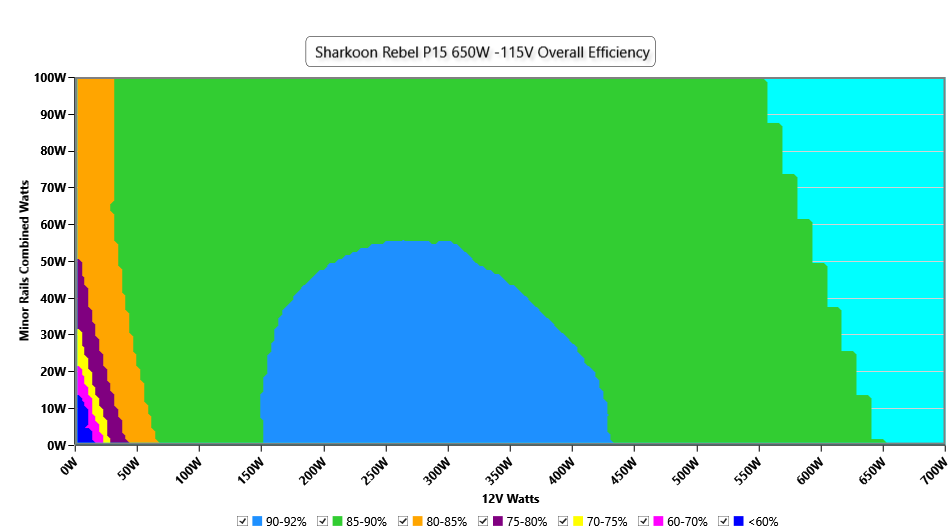

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

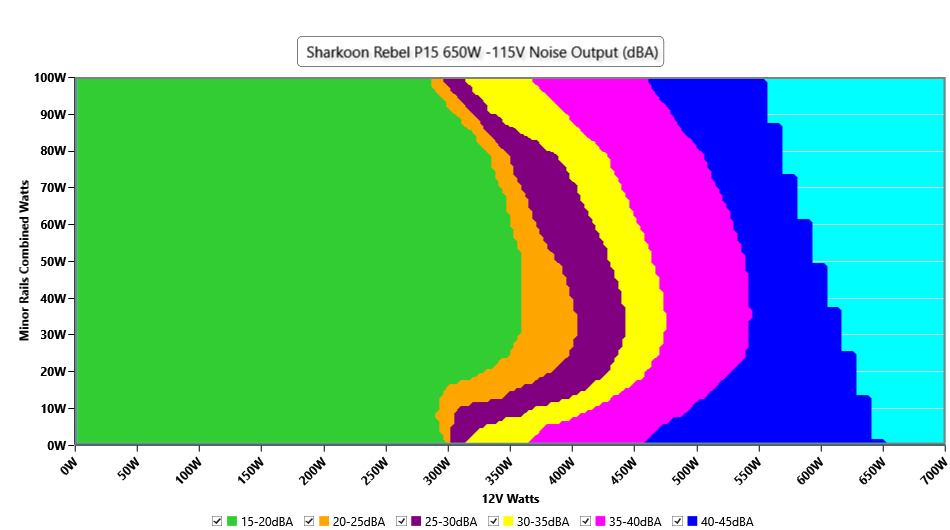

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

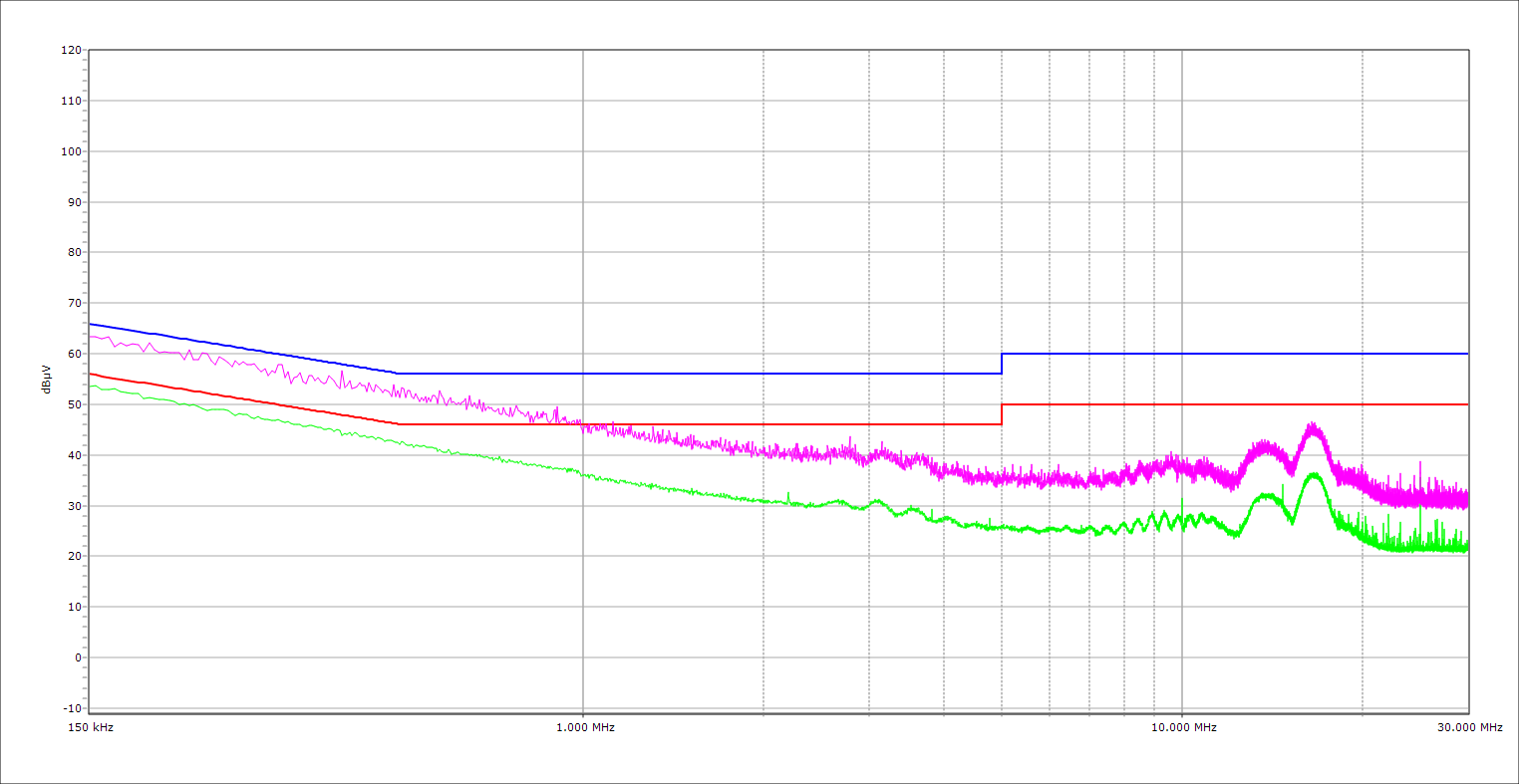

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

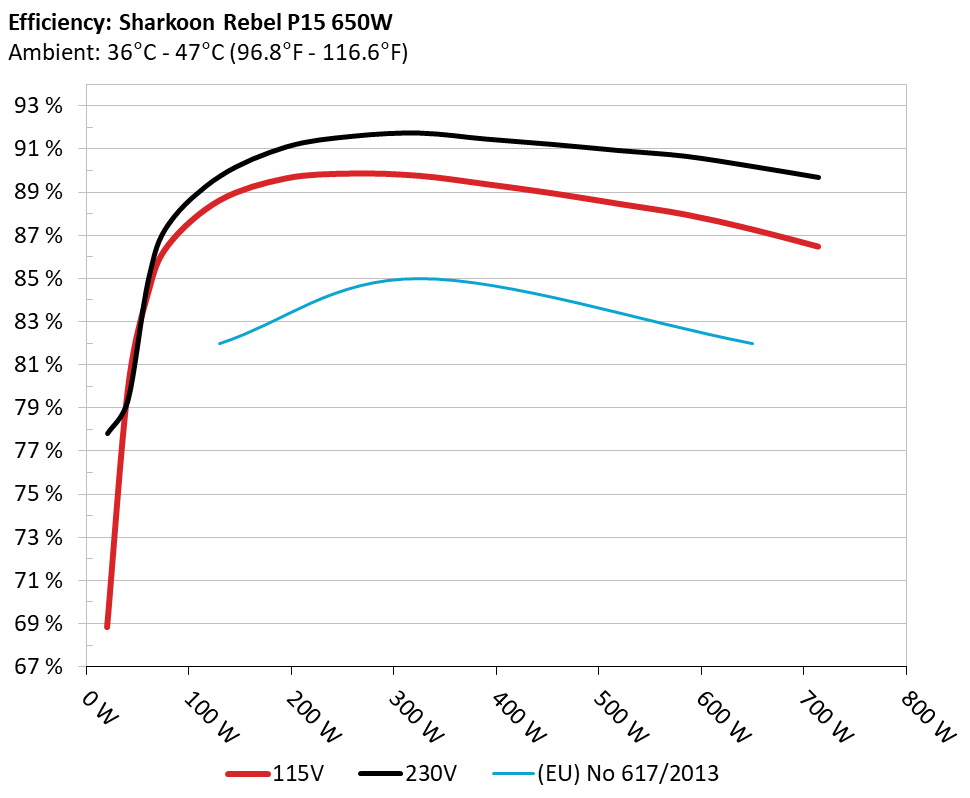

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

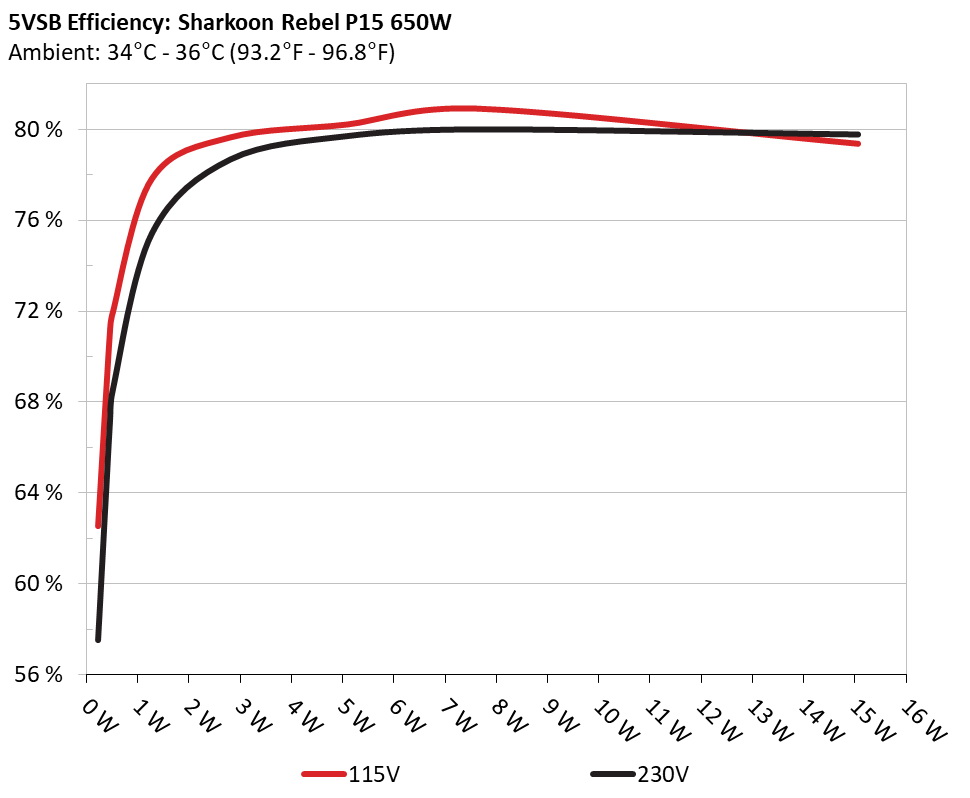

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231W	62.562%	0.045
1	5.134V	0.37W	62.562%	115.08V
2	0.09A	0.462W	71.111%	0.078
2	5.132V	0.65W	71.111%	115.08V
3	0.55A	2.813W	79.655%	0.286
3	5.115V	3.532W	79.655%	115.08V
4	1A	5.098W	80.222%	0.353
4	5.098V	6.354W	80.222%	115.08V
5	1.5A	7.617W	80.919%	0.391
5	5.078V	9.413W	80.919%	115.07V
6	3A	15.056W	79.374%	0.446
6	5.019V	18.968W	79.374%	115.07V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231W	57.535%	0.015
1	5.132V	0.402W	57.535%	230.29V
2	0.09A	0.462W	67.114%	0.026
2	5.13V	0.688W	67.114%	230.28V
3	0.55A	2.812W	78.661%	0.124
3	5.113V	3.573W	78.661%	230.27V
4	1A	5.096W	79.689%	0.196
4	5.096V	6.397W	79.689%	230.27V
5	1.5A	7.616W	79.981%	0.248
5	5.077V	9.522W	79.981%	230.27V
6	3A	15.053W	79.757%	0.33
6	5.017V	18.875W	79.757%	230.27V

Protection Features

OCP (Normal @ 27.6°C)	12V: 75.60A (139.74%), 12.158V 5V: 23.3A (129.44%), 5.047V 3.3V: 22.1A (122.78%), 3.397V 5VSB: 4.2A (140.00%), 4.95V
OCP (Hot @ 44.0°C)	12V: 73.20A (135.30%), 12.173V 5V: 23.1A (128.33%), 5.046V 3.3V: 21.7A (120.56%), 3.396V 5VSB: 4.1A (136.67%), 4.95V
OPP (Normal @ 28.2°C)	892.70W (137.34%)
OPP (Hot @ 43.2°C)	879.07W (135.24%)
OTP	✓ (112°C @ Secondary Side)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	3.542A	1.965A	1.932A	0.984A	65.004	83.869%	853	20.1	40.4°C	0.959
10%	12.255V	5.089V	3.416V	5.081V	77.506	83.869%	853	20.1	42.44°C	115.06V
20%	8.087A	2.953A	2.903A	1.184A	129.935	88.633%	857	20.3	40.63°C	0.975
20%	12.246V	5.08V	3.41V	5.066V	146.6	88.633%	857	20.3	43.9°C	115.03V
30%	12.986A	3.45A	3.395A	1.386A	194.937	89.654%	1072	26.9	41.25°C	0.969
30%	12.235V	5.073V	3.403V	5.051V	217.434	89.654%	1072	26.9	45.43°C	115.01V
40%	17.902A	3.949A	3.89A	1.589A	260.025	89.873%	1222	30.7	41.63°C	0.976
40%	12.223V	5.065V	3.394V	5.036V	289.325	89.873%	1222	30.7	45.61°C	114.99V
50%	22.483A	4.945A	4.875A	1.793A	325.021	89.768%	1525	37.1	42.22°C	0.982
50%	12.210V	5.056V	3.385V	5.021V	362.07	89.768%	1525	37.1	46.17°C	114.97V
60%	27.024A	5.945A	5.865A	1.998A	389.375	89.388%	1752	40.3	42.67°C	0.985
60%	12.195V	5.047V	3.376V	5.006V	435.601	89.388%	1752	40.3	47.15°C	114.94V
70%	31.656A	6.949A	6.861A	2.205A	454.688	88.96%	1941	43.8	43.37°C	0.988
70%	12.180V	5.038V	3.367V	4.989V	511.115	88.96%	1941	43.8	48.45°C	114.92V
80%	36.298A	7.954A	7.859A	2.311A	519.475	88.472%	1990	45.3	43.64°C	0.989
80%	12.165V	5.028V	3.359V	4.977V	587.166	88.472%	1990	45.3	49.62°C	114.9V
90%	41.343A	8.466A	8.351A	2.417A	584.874	87.975%	1992	45.3	44.37°C	0.991
90%	12.151V	5.02V	3.353V	4.965V	664.814	87.975%	1992	45.3	52.18°C	114.87V
100%	46.145A	8.98A	8.878A	3.042A	649.704	87.291%	1995	45.4	45.24°C	0.992
100%	12.136V	5.011V	3.345V	4.932V	744.294	87.291%	1995	45.4	54.9°C	114.85V
110%	50.825A	10A	9.973A	3.047A	714.339	86.49%	1994	45.4	46.05°C	0.992
110%	12.121V	5V	3.339V	4.923V	825.918	86.49%	1994	45.4	58.13°C	114.82V
CL1	0.114A	11.901A	11.681A	0A	101.289	82.424%	1513	37	40.6°C	0.987
CL1	12.247V	5.058V	3.398V	5.1V	122.887	82.424%	1513	37	43.91°C	115.04V
CL2	0.113A	17.772A	0A	0A	91.387	81.636%	1398	34.9	40.46°C	0.987
CL2	12.253V	5.064V	3.409V	5.11V	111.943	81.636%	1398	34.9	42.11°C	115.05V
CL3	0.113A	0A	17.421A	0A	60.781	75.385%	1088	27.8	41.13°C	0.96
CL3	12.249V	5.075V	3.409V	5.107V	80.628	75.385%	1088	27.8	42.76°C	115.06V
CL4	53.506A	0A	0A	0A	649.522	88.272%	1999	45.4	45.78°C	0.992
CL4	12.139V	5.039V	3.361V	5.074V	735.821	88.272%	1999	45.4	53.37°C	114.85V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	3.542A	1.966A	1.932A	0.984A	65.007	84.79%	857	20.3	40.45°C	0.777
10%	12.255V	5.088V	3.416V	5.081V	76.67	84.79%	857	20.3	43.37°C	230.23V
20%	8.087A	2.953A	2.904A	1.185A	129.941	89.747%	872	20.3	40.98°C	0.897
20%	12.246V	5.08V	3.41V	5.065V	144.788	89.747%	872	20.3	44.68°C	230.23V
30%	12.986A	3.451A	3.396A	1.386A	194.944	91.108%	1215	30.4	41.09°C	0.929
30%	12.235V	5.072V	3.401V	5.05V	213.972	91.108%	1215	30.4	44.28°C	230.22V
40%	17.904A	3.95A	3.891A	1.589A	260.032	91.601%	1469	36	41.92°C	0.944
40%	12.222V	5.064V	3.393V	5.036V	283.875	91.601%	1469	36	44.98°C	230.21V
50%	22.486A	4.946A	4.876A	1.793A	325.034	91.744%	1723	40.3	42.07°C	0.953
50%	12.208V	5.056V	3.384V	5.021V	354.285	91.744%	1723	40.3	45.64°C	230.19V
60%	27.030A	5.947A	5.867A	1.999A	389.413	91.468%	1872	43.5	42.6°C	0.956
60%	12.194V	5.046V	3.375V	5.004V	425.733	91.468%	1872	43.5	46.11°C	230.19V
70%	31.661A	6.951A	6.862A	2.206A	454.728	91.22%	1994	45.4	43.48°C	0.961
70%	12.179V	5.037V	3.367V	4.987V	498.494	91.22%	1994	45.4	47.54°C	230.17V
80%	36.303A	7.956A	7.859A	2.312A	519.51	90.935%	1996	45.4	43.68°C	0.965
80%	12.165V	5.027V	3.359V	4.975V	571.296	90.935%	1996	45.4	48.81°C	230.17V
90%	41.352A	8.469A	8.352A	2.418A	584.907	90.666%	1998	45.4	44.98°C	0.968
90%	12.149V	5.018V	3.352V	4.964V	645.121	90.666%	1998	45.4	50.8°C	230.16V
100%	46.153A	8.984A	8.877A	3.043A	649.737	90.197%	1999	45.4	45.99°C	0.969
100%	12.134V	5.008V	3.346V	4.93V	720.354	90.197%	1999	45.4	52.76°C	230.15V
110%	50.835A	10.004A	9.974A	3.048A	714.364	89.687%	1999	45.4	46.67°C	0.971
110%	12.119V	4.998V	3.339V	4.921V	796.512	89.687%	1999	45.4	54.85°C	230.13V
CL1	0.114A	11.903A	11.68A	0A	101.293	82.992%	1610	38.7	41.8°C	0.87
CL1	12.247V	5.057V	3.399V	5.099V	122.051	82.992%	1610	38.7	44.38°C	230.23V
CL2	0.113A	17.771A	0A	0A	91.391	81.975%	1550	37.2	40.23°C	0.852
CL2	12.254V	5.064V	3.409V	5.11V	111.486	81.975%	1550	37.2	42.96°C	230.23V
CL3	0.113A	0A	17.429A	0A	60.783	76.168%	1217	30.4	41.3°C	0.786
CL3	12.249V	5.076V	3.408V	5.106V	79.8	76.168%	1217	30.4	43.07°C	230.23V
CL4	53.518A	0A	0A	0A	649.551	91.165%	2008	45.5	46.02°C	0.969
CL4	12.137V	5.038V	3.36V	5.074V	712.498	91.165%	2008	45.5	51.58°C	230.15V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.212A	0.491A	0.483A	0.195A	20	68.859%	837	19	36.85°C	0.847
20W	12.260V	5.097V	3.417V	5.12V	29.045	68.859%	837	19	37.34°C	115.07V
40W	2.668A	0.687A	0.676A	0.293A	40	79.771%	843	19.2	37.14°C	0.93
40W	12.255V	5.095V	3.415V	5.114V	50.142	79.771%	843	19.2	38.45°C	115.06V
60W	4.124A	0.884A	0.87A	0.392A	60.001	84.341%	846	19.5	38.3°C	0.959
60W	12.254V	5.093V	3.414V	5.108V	71.141	84.341%	846	19.5	39.93°C	115.06V
80W	5.576A	1.081A	1.063A	0.49A	79.945	86.577%	849	19.6	39.26°C	0.964
80W	12.252V	5.091V	3.414V	5.102V	92.339	86.577%	849	19.6	41.56°C	115.05V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.212A	0.49A	0.483A	0.195A	20.008	77.786%	842	19.2	36.37°C	0.471
20W	12.258V	5.098V	3.416V	5.12V	28.61	77.786%	842	19.2	37.49°C	230.25V
40W	2.668A	0.687A	0.676A	0.293A	40.005	79.348%	847	19.5	37.47°C	0.649
40W	12.256V	5.096V	3.416V	5.113V	50.166	79.348%	847	19.5	40.1°C	230.24V
60W	4.124A	0.884A	0.87A	0.392A	60.004	84.963%	849	19.6	38.42°C	0.753
60W	12.254V	5.093V	3.415V	5.107V	70.626	84.963%	849	19.6	41.05°C	230.23V
80W	5.576A	1.081A	1.063A	0.49A	79.951	87.541%	853	20.1	39.45°C	0.815
80W	12.252V	5.09V	3.414V	5.101V	91.331	87.541%	853	20.1	42.21°C	230.23V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	14.85mV	12.62mV	14.43mV	12.03mV	Pass
20% Load	24.44mV	36.89mV	48.09mV	26.69mV	Pass
30% Load	24.64mV	13.86mV	15.88mV	12.49mV	Pass
40% Load	28.87mV	14.06mV	15.98mV	13.06mV	Pass
50% Load	32.69mV	15.20mV	16.24mV	13.99mV	Pass
60% Load	36.09mV	17.00mV	17.84mV	24.05mV	Pass
70% Load	39.70mV	18.03mV	19.50mV	14.71mV	Pass
80% Load	44.44mV	20.71mV	21.72mV	17.50mV	Pass
90% Load	50.58mV	23.29mV	23.94mV	17.34mV	Pass
100% Load	55.61mV	22.78mV	24.28mV	19.06mV	Pass
110% Load	65.36mV	27.89mV	25.62mV	21.90mV	Pass
Crossload1	18.15mV	18.25mV	18.02mV	12.41mV	Pass
Crossload2	18.56mV	18.29mV	21.10mV	12.64mV	Pass
Crossload3	17.07mV	18.34mV	20.27mV	12.08mV	Pass
Crossload4	55.59mV	13.90mV	17.08mV	16.41mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	15.67mV	14.32mV	15.51mV	12.59mV	Pass
20% Load	20.00mV	14.11mV	16.55mV	12.96mV	Pass
30% Load	25.00mV	15.20mV	17.22mV	13.53mV	Pass
40% Load	29.49mV	15.35mV	18.46mV	14.30mV	Pass
50% Load	34.34mV	16.28mV	18.15mV	14.87mV	Pass
60% Load	38.15mV	17.21mV	18.88mV	25.14mV	Pass
70% Load	42.64mV	19.21mV	20.22mV	15.07mV	Pass
80% Load	47.90mV	21.69mV	23.17mV	16.36mV	Pass
90% Load	55.47mV	24.27mV	23.79mV	18.48mV	Pass
100% Load	60.97mV	23.77mV	24.30mV	19.40mV	Pass
110% Load	71.60mV	27.72mV	26.99mV	22.17mV	Pass
Crossload1	19.38mV	26.84mV	19.04mV	12.50mV	Pass
Crossload2	19.28mV	19.37mV	21.36mV	13.27mV	Pass
Crossload3	17.74mV	18.75mV	22.34mV	12.44mV	Pass
Crossload4	60.24mV	15.84mV	18.26mV	16.20mV	Pass

The results above are not used in the certification process

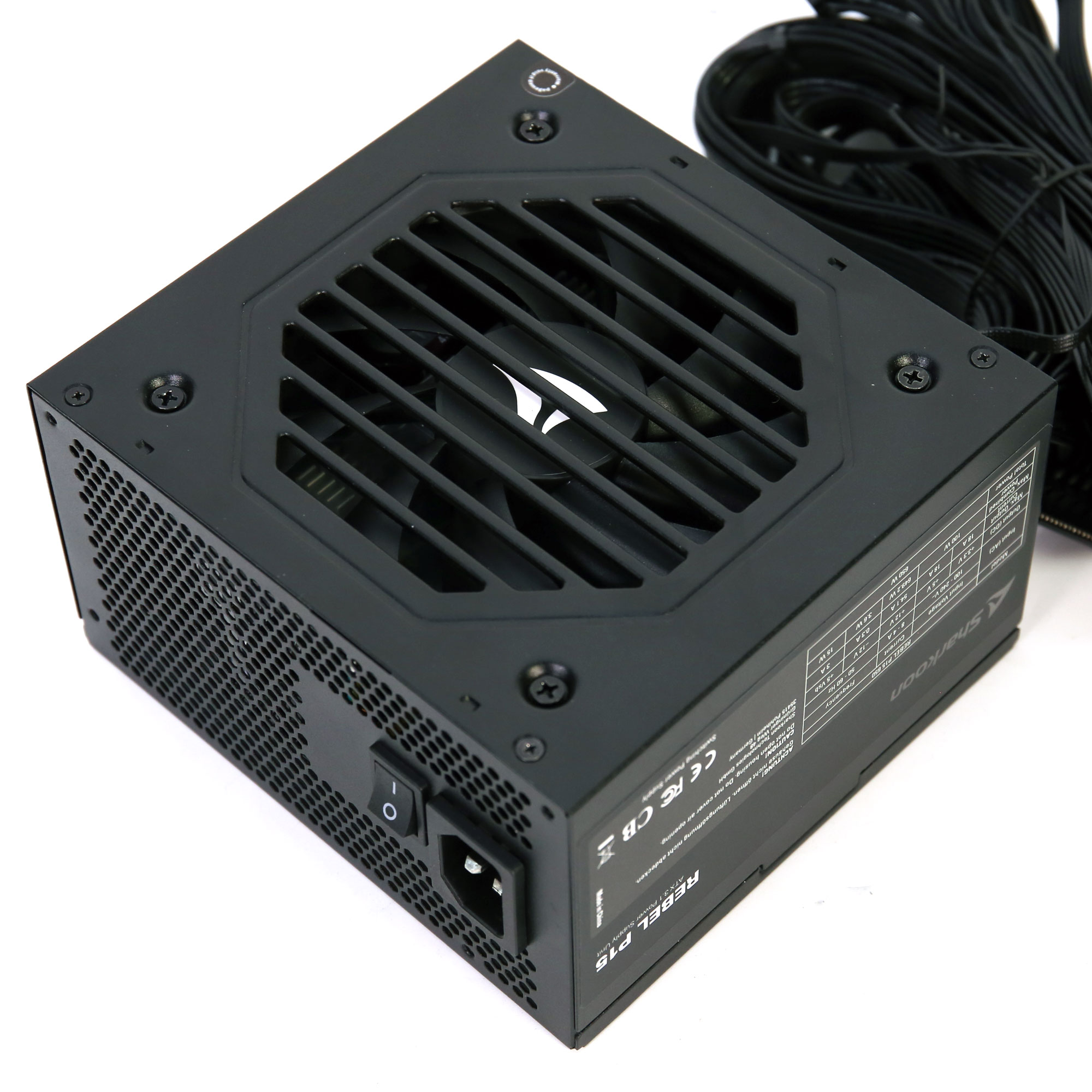

Sharkoon Rebel P15 650W

Top side

Power specifications label
