Cybenetics Test - ACEGEEK ACP1200

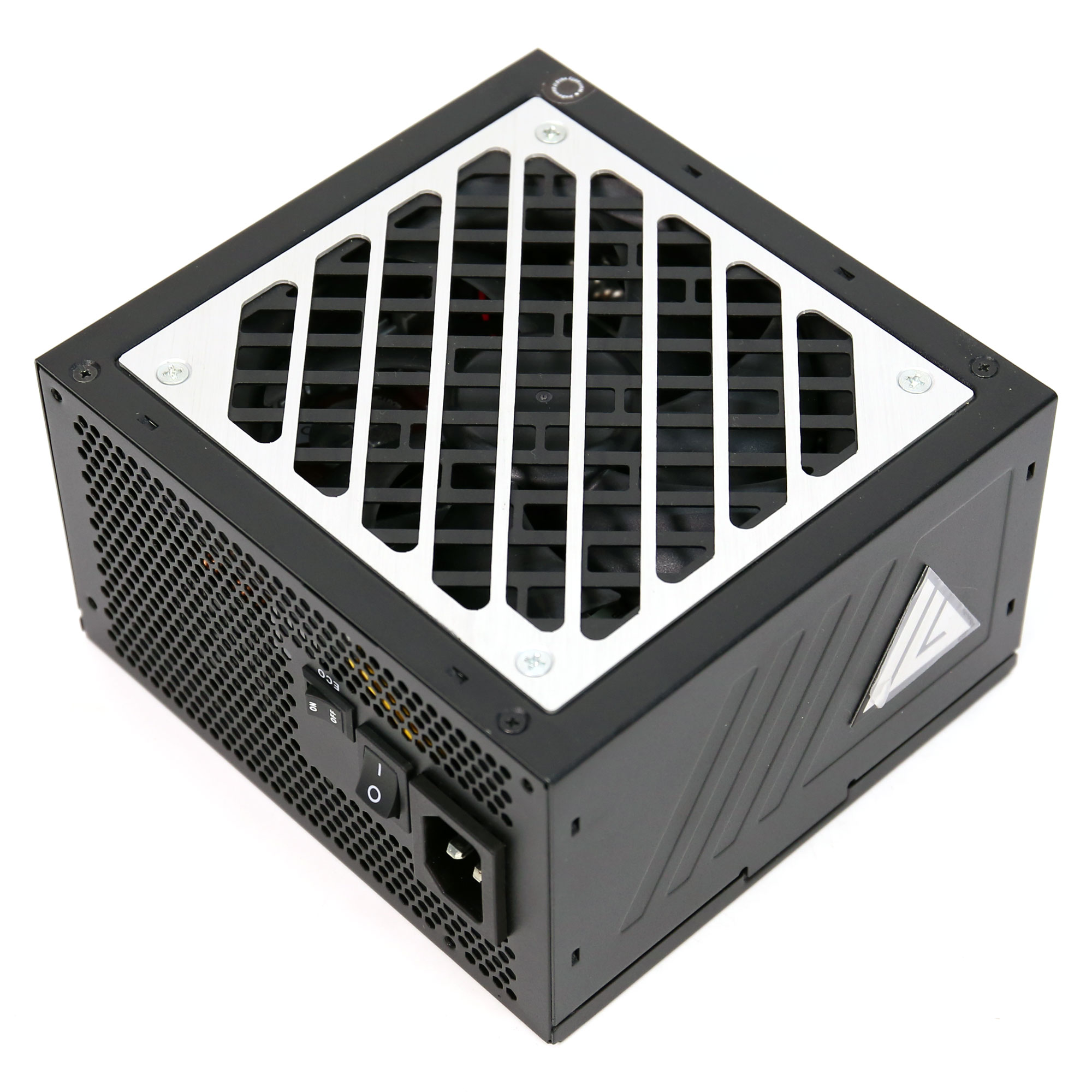

ACEGEEK ACP1200

Serial Number-

Lab IDAG12002881

Certification ID252881

Test Result Report ID: 25PS2881A
Certificate Issue Date: Jul 14, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	ACEGEEK
Manufacturer (OEM)	Andyson
Series	ACP
Model Number
Serial Number	-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	7-14
Rated Frequency (Hz)	50-60
Rated Power (W)	1200
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
Semi-Passive Operation	✓ (selectable)
Cable Design	Fully Modular

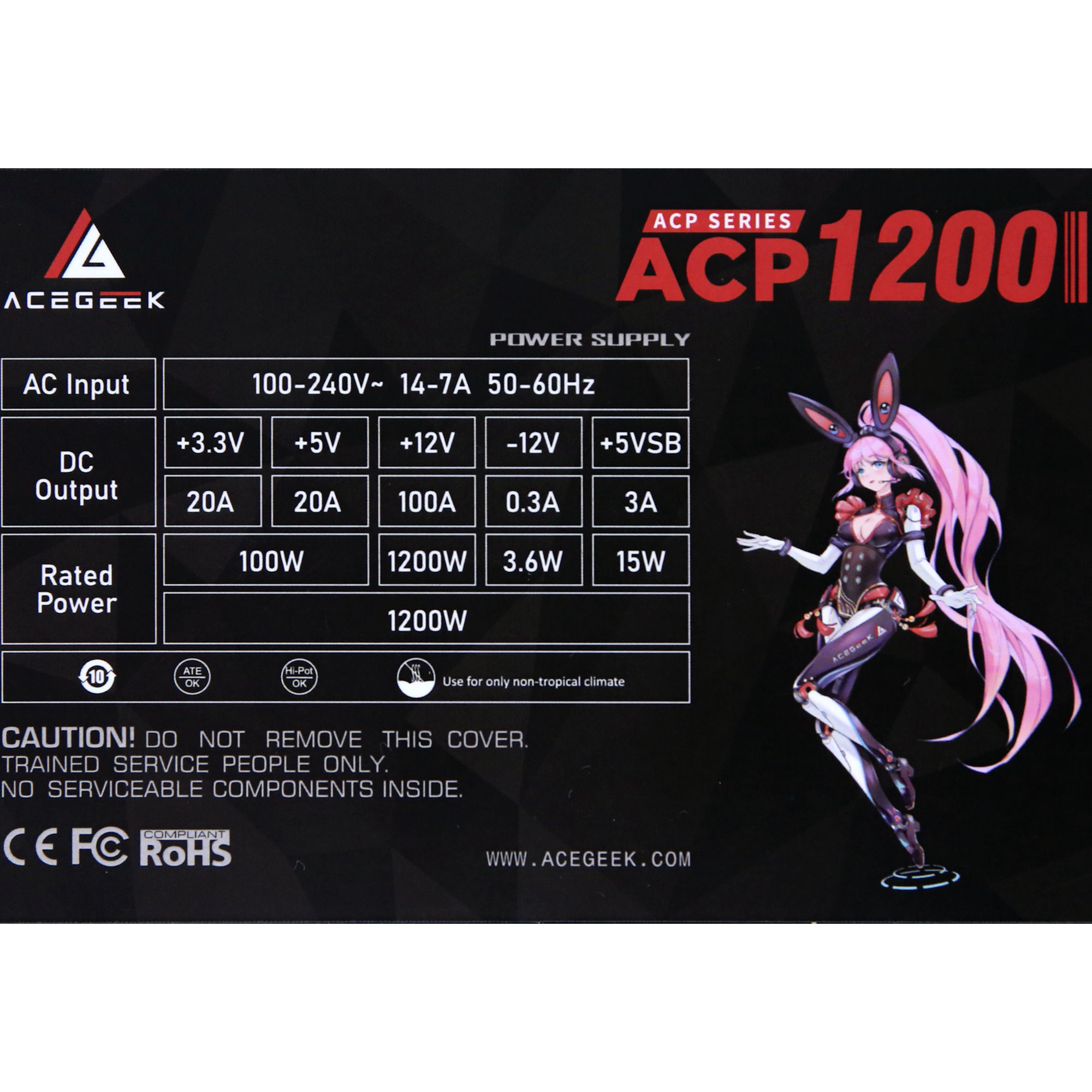

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	100	3	0.3
Max. Power	Watts	100		1200	15	3.6
Total Max. Power (W)		1200

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (610mm)	1	1	16AWG	No
4+4 pin EPS12V (700mm)	2	2	16AWG	No
6+2 pin PCIe (600mm)	3	3	16AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-24AWG	No
SATA (450mm+120mm+120mm) / 4-pin Molex (+120mm)	3	9 / 3	18AWG	No
AC Power Cord (1065mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data

Manufacturer (OEM)

Andyson

PCB Type

Double-Sided

Primary Side

Transient Filter

4x Y caps, 2x X caps, 2x CM chokes, 1x MOV

Inrush Protection

NTC Thermistor SCK205R0 (5 Ohm @ 25°C) & Relay

Bridge Rectifier(s)

2x MCC GBU2508 (800V, 25A @ 98°C)

APFC MOSFETs

2x Way-On WML53N60C4 (600V, 26A @ 100°C, Rds(on): 0.07Ohm)

APFC Boost Diode

1x CREE C3D10060 (600V, 10A @ 152°C)

Bulk Cap(s)

2x Nippon Chemi-con (450V, 560uF each or 1120uF combined, 2000h @ 105°C, KMW)

Main Switchers

4x Way-On WML36N60F2 (600V, 20A @ 100°C, Rds(on): 0.11Ohm)

APFC Controller

1x

Resonant Controller

Champion CU6901VPA

Topology

Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters

Secondary Side

+12V MOSFETs

8x Infineon BSC010N04LS (40V, 206A @ 100°C, Rds(on): 1.0mOhm)

5V & 3.3V

DC-DC Converters: 6 x Way-On WMB050N03LG4 (30V, 41A @ 100°C, Rds(on): 5.4mOhm) PWM Controller(s): ANPEC APW7159C

Filtering Capacitors

Electrolytic:
5x Nippon Chemi-con (2-5,000h @105°C, KZE)
2x Nippon Chemi-con (4-10,000h @105°C, KY)
1x Nippon Chemi-con (10,000h @105°C, LE)
2x Nichicon (4-10,000h @105°C, HE(M))
2x Rubycon (6-10,000h @105°C, ZLH)
1x Rubycon (4-10,000h @105°C, YXJ)
1x Teapo (3,000h @105°C, SC)
Polymer:
5x FPCAP, 14x Polycap, 11x no info

Supervisor IC

Weltrand WT7527RA (OVD, UVD, OCD, PGO)

MCU / Fan Controller

Weltrend WT51F104

Fan Model

Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)

5VSB Circuit

Rectifier

1x Infineon BSC027N04LS (40V, 88A @ 100°C, Rds(on): 2.7mOhm)

Standby PWM Controller

Excelliance MOS EMB8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	Standard++
Average Efficiency (>1450 load combinations)	89.909%
Average Noise Output (>1450 Load Combinations)	33.23dBA
Average PF (>1450 Load Combinations)	0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load	79.869%
Standby Power Consumption	0.0508W
12V Ripple (Full Load)	17.78mV
5V Ripple (Full Load)	15.98mV
3.3V Ripple (Full Load)	18.65mV
5VSB Ripple (Full Load)	29.85mV
12V Load Regulation	0.44%
5V Load Regulation	0.46%
3.3V Load Regulation	1.15%
5VSB Load Regulation	2.80%
Inrush Current	34.250A

Efficiency Rating	PLATINUM
Noise Rating	Standard++
Average Efficiency (>1450 load combinations)	91.887%
Average Noise Output (>1450 Load Combinations)	33.23dBA
Average PF (>1450 Load Combinations)	0.946
Efficiency With 10W (≤500W) or 2% (>500W) Load	75.655%
Standby Power Consumption	0.1270W
12V Ripple (Full Load)	17.21mV
5V Ripple (Full Load)	15.40mV
3.3V Ripple (Full Load)	18.44mV
5VSB Ripple (Full Load)	25.21mV
12V Load Regulation	0.69%
5V Load Regulation	0.26%
3.3V Load Regulation	1.00%
5VSB Load Regulation	2.84%
Inrush Current	67.250A
12V Transient Response (200%)	11.31V
5V Transient Response (200%)	4.907V
3.3V Transient Response (200%)	3.178V
5VSB Transient Response (200%)	4.948V
Hold-Up Time & Power Ok Signal	24.80ms
AC Loss to PWR_OK Hold Up Time	20.20ms
PWR_OK Inactive to DC Loss Delay	4.60ms
PSU Timings: T1 (20% / 100%)	99.0ms	100.0ms
PSU Timings: T3 (20% / 100%)	121.0ms	120.0ms
12V OCP (29.1°C / 43.9°C)	126.80A (126.80%), 12.166V	119.00A (119.00%), 12.181V
5V OCP (29.1°C / 43.9°C)	30.4A (152.00%), 5.024V	30.4A (152.00%), 5.032V
3.3V OCP (29.1°C / 43.9°C)	29.1A (145.50%), 3.331V	29.1A (145.50%), 3.333V
5VSB OCP (29.1°C / 43.9°C)	6.5A (216.67%), 4.947V	6.4A (213.33%), 4.944V
OPP (28.91°C / 42.84°C)	126.92%	117.96%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	24.8
AC Loss to PWR_OK Hold Up Time (ms)	20.2
PWR_OK Inactive to DC Loss Delay (ms)	4.6

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.09 V	115.03 V	113.85 V	115.13 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.19 %	2.00 %	PASS
Real Power:	0.051 W	-0.005 W	N/A	0.092 W	N/A	N/A
Apparent Power:	7.895 W	7.580 W	N/A	8.239 W	N/A	N/A
Power Factor:	0.010	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.05 V	230.92 V	227.70 V	231.11 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.29 %	2.00 %	PASS
Real Power:	0.127 W	0.083 W	N/A	0.200 W	N/A	N/A
Apparent Power:	25.906 W	25.491 W	N/A	26.341 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

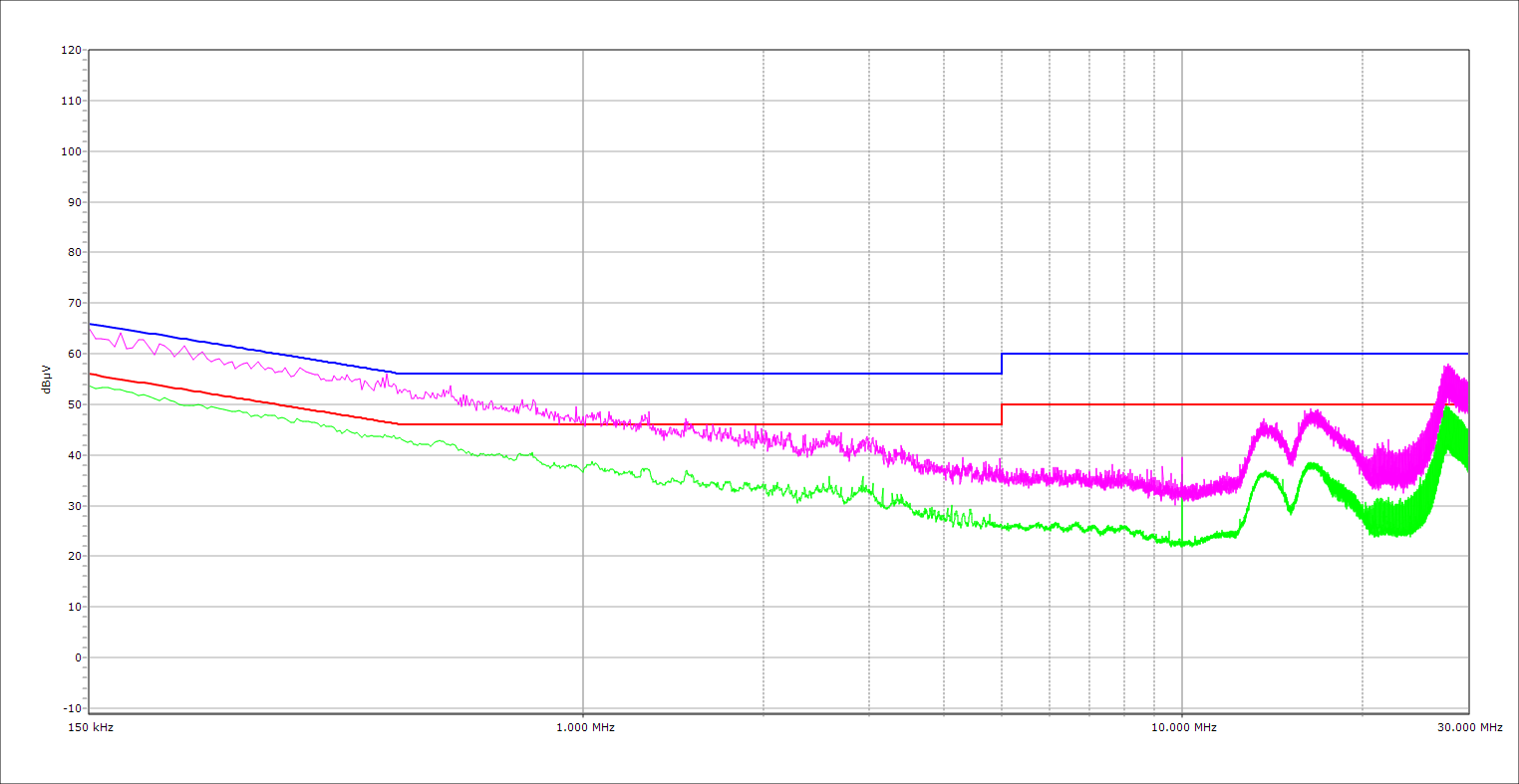

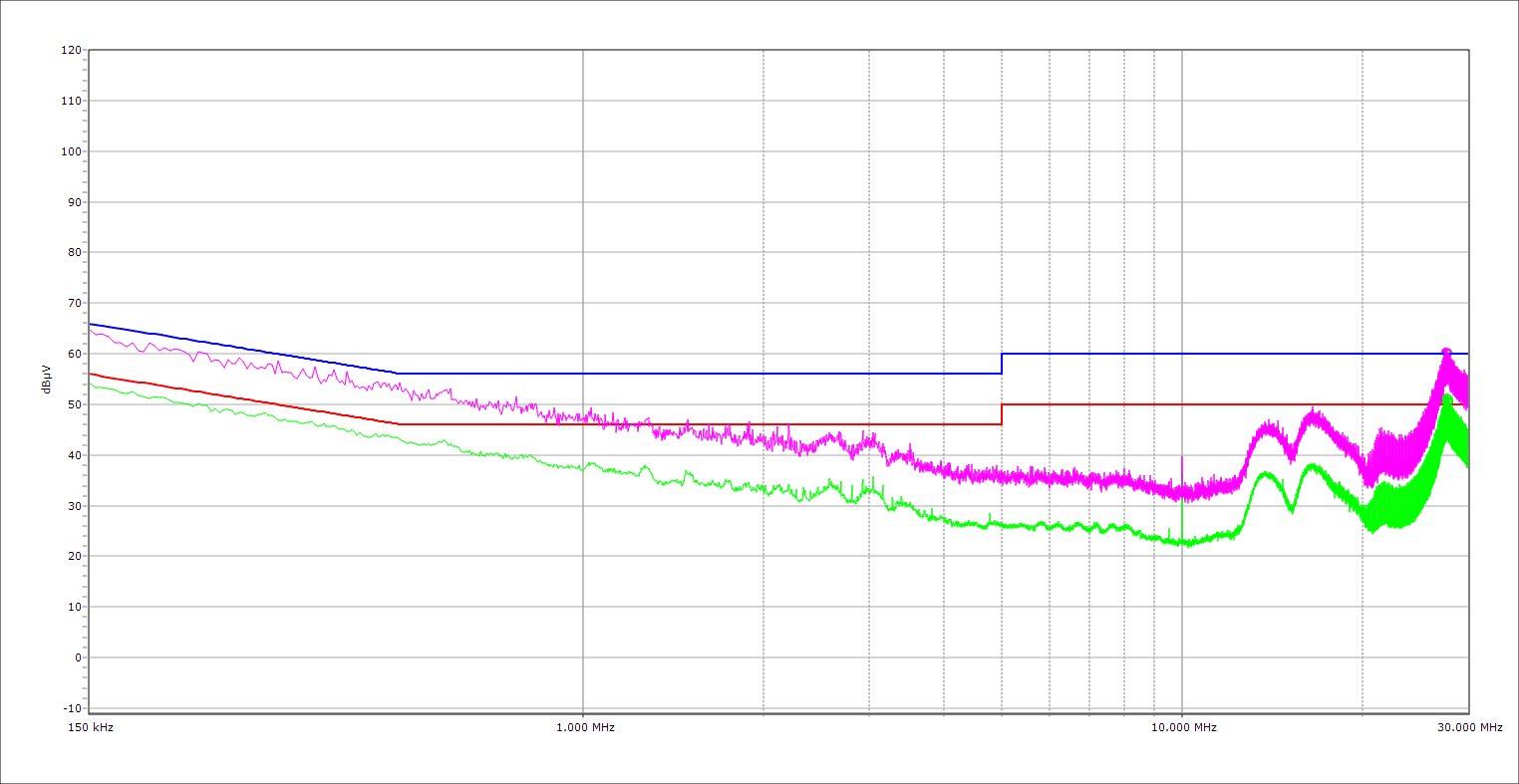

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

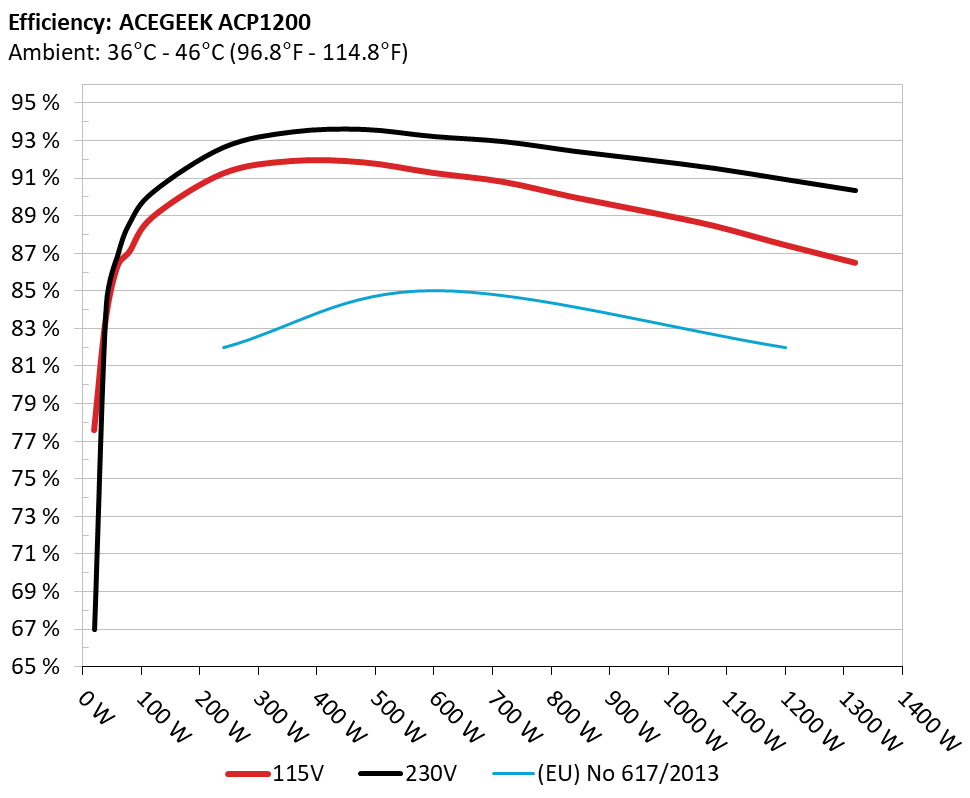

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

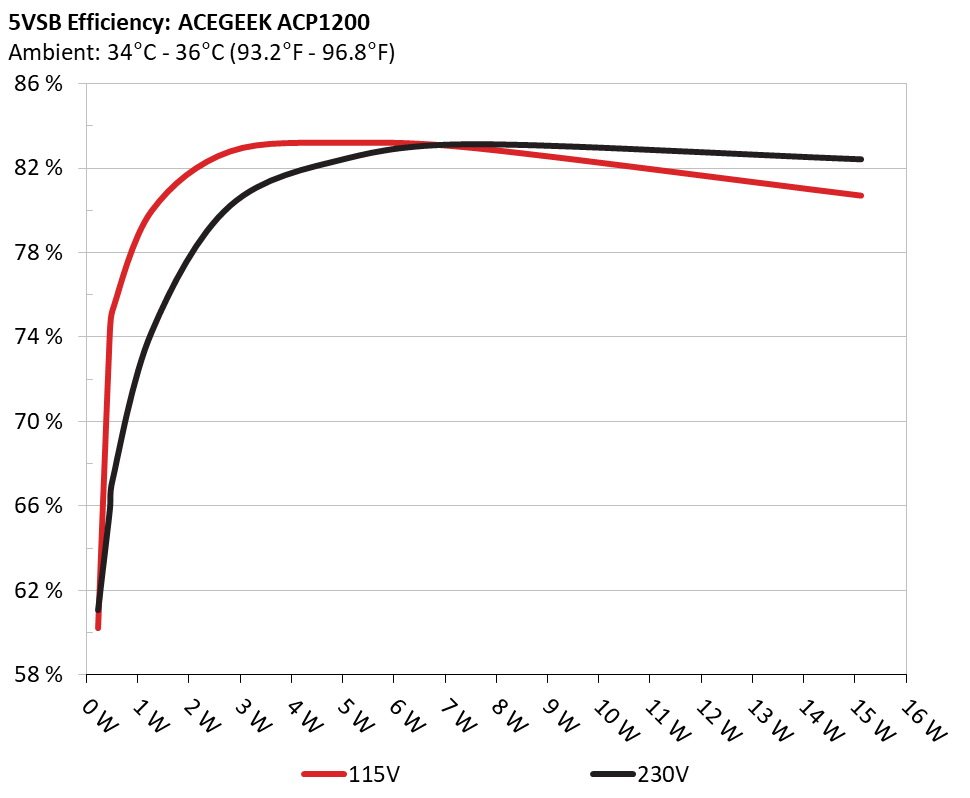

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	60.233%	0.049
1	5.114V	0.382W	60.233%	114.93V
2	0.09A	0.46W	74.26%	0.078
2	5.113V	0.619W	74.26%	114.93V
3	0.55A	2.806W	82.791%	0.3
3	5.102V	3.389W	82.791%	114.92V
4	1A	5.091W	83.198%	0.389
4	5.091V	6.119W	83.198%	114.91V
5	1.5A	7.619W	82.939%	0.43
5	5.078V	9.186W	82.939%	114.91V
6	3A	15.119W	80.702%	0.492
6	5.04V	18.735W	80.702%	114.9V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	61.064%	0.012
1	5.114V	0.316W	61.064%	229.9V
2	0.09A	0.46W	65.838%	0.027
2	5.112V	0.699W	65.838%	229.9V
3	0.55A	2.806W	80.23%	0.124
3	5.101V	3.498W	80.23%	229.89V
4	1A	5.091W	82.479%	0.198
4	5.09V	6.173W	82.479%	229.89V
5	1.5A	7.619W	83.145%	0.259
5	5.078V	9.163W	83.145%	229.89V
6	3A	15.123W	82.432%	0.355
6	5.041V	18.345W	82.432%	229.89V

Protection Features

OCP (Normal @ 29.1°C)	12V: 126.80A (126.80%), 12.166V 5V: 30.4A (152.00%), 5.024V 3.3V: 29.1A (145.50%), 3.331V 5VSB: 6.5A (216.67%), 4.947V
OCP (Hot @ 43.9°C)	12V: 119.00A (119.00%), 12.181V 5V: 30.4A (152.00%), 5.032V 3.3V: 29.1A (145.50%), 3.333V 5VSB: 6.4A (213.33%), 4.944V
OPP (Normal @ 28.9°C)	1523.01W (126.92%)
OPP (Hot @ 42.8°C)	1415.49W (117.96%)
OTP	✓ (146°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.147A	1.977A	1.974A	0.979A	119.969	88.937%	0	<6.0	48.67°C	0.974
10%	12.074V	5.057V	3.343V	5.109V	134.892	88.937%	0	<6.0	40.34°C	115.03V
20%	17.279A	2.967A	2.964A	1.177A	239.911	91.244%	0	<6.0	47.85°C	0.976
20%	12.096V	5.057V	3.339V	5.097V	262.933	91.244%	0	<6.0	40.91°C	114.99V
30%	26.562A	3.461A	3.462A	1.377A	358.019	91.909%	0	<6.0	49.88°C	0.976
30%	12.121V	5.056V	3.336V	5.085V	389.538	91.909%	0	<6.0	41.25°C	114.95V
40%	36.109A	3.956A	3.96A	1.577A	478.859	91.842%	0	<6.0	56.71°C	0.98
40%	12.120V	5.056V	3.333V	5.072V	521.392	91.842%	0	<6.0	41.69°C	114.9V
50%	45.254A	4.948A	4.956A	1.779A	598.764	91.28%	1024	27.7	42.11°C	0.983
50%	12.115V	5.053V	3.329V	5.06V	655.966	91.28%	1024	27.7	59.98°C	114.85V
60%	54.470A	5.944A	5.956A	1.981A	719.436	90.799%	1022	27.7	42.95°C	0.985
60%	12.110V	5.048V	3.324V	5.048V	792.345	90.799%	1022	27.7	58.8°C	114.81V
70%	63.639A	6.941A	6.958A	2.184A	839.27	89.983%	1680	42	43.26°C	0.987
70%	12.102V	5.043V	3.32V	5.035V	932.691	89.983%	1680	42	59.46°C	114.76V
80%	72.863A	7.936A	7.961A	2.288A	959.338	89.246%	1678	41.8	43.65°C	0.988
80%	12.098V	5.04V	3.316V	5.025V	1074.941	89.246%	1678	41.8	60.46°C	114.71V
90%	82.377A	8.434A	8.452A	2.392A	1079.146	88.457%	1677	41.8	44.12°C	0.989
90%	12.098V	5.039V	3.313V	5.016V	1219.971	88.457%	1677	41.8	62.97°C	114.66V
100%	91.726A	8.933A	8.974A	3.003A	1199.213	87.452%	2105	48.5	45.93°C	0.99
100%	12.096V	5.037V	3.309V	4.994V	1371.285	87.452%	2105	48.5	64.93°C	114.61V
110%	100.884A	9.925A	10.072A	3.009A	1319.875	86.502%	2111	48.5	46.37°C	0.99
110%	12.109V	5.037V	3.306V	4.985V	1525.827	86.502%	2111	48.5	70.3°C	114.55V
CL1	0.115A	11.907A	11.901A	0A	101.287	83.976%	1041	28.3	41.23°C	0.979
CL1	12.098V	5.056V	3.336V	5.121V	120.615	83.976%	1041	28.3	55.74°C	115.03V
CL2	0.114A	19.803A	0A	0A	101.369	82.155%	1695	42.3	40.73°C	0.978
CL2	12.080V	5.049V	3.344V	5.127V	123.392	82.155%	1695	42.3	50.71°C	115.04V
CL3	0.114A	0A	19.826A	0A	67.378	78.215%	1061	28.7	40.22°C	0.967
CL3	12.063V	5.06V	3.329V	5.123V	86.151	78.215%	1061	28.7	46.94°C	115.05V
CL4	99.228A	0A	0A	0A	1199.531	88.134%	2108	48.5	45.61°C	0.989
CL4	12.089V	5.045V	3.318V	5.07V	1361.028	88.134%	2108	48.5	59.79°C	114.61V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.162A	1.98A	1.976A	0.978A	119.962	90.248%	0	<6.0	48.5°C	0.863
10%	12.053V	5.05V	3.34V	5.111V	132.928	90.248%	0	<6.0	40.15°C	230.23V
20%	17.310A	2.971A	2.967A	1.177A	239.905	92.614%	0	<6.0	48.98°C	0.935
20%	12.075V	5.05V	3.336V	5.098V	259.039	92.614%	0	<6.0	40.54°C	230.22V
30%	26.680A	3.465A	3.464A	1.376A	358.979	93.447%	0	<6.0	49.83°C	0.953
30%	12.104V	5.05V	3.334V	5.086V	384.151	93.447%	0	<6.0	41.02°C	230.21V
40%	36.200A	3.96A	3.962A	1.577A	479.406	93.577%	0	<6.0	52.19°C	0.96
40%	12.105V	5.051V	3.331V	5.074V	512.314	93.577%	0	<6.0	41.57°C	230.19V
50%	45.348A	4.952A	4.959A	1.778A	599.133	93.2%	1025	27.7	42.33°C	0.966
50%	12.098V	5.049V	3.327V	5.061V	642.846	93.2%	1025	27.7	51.26°C	230.17V
60%	54.557A	5.948A	5.959A	1.981A	719.674	92.926%	1024	27.7	42.83°C	0.968
60%	12.095V	5.045V	3.323V	5.049V	774.459	92.926%	1024	27.7	50.31°C	230.15V
70%	63.699A	6.944A	6.961A	2.184A	839.439	92.416%	1680	42	43.32°C	0.971
70%	12.093V	5.041V	3.319V	5.036V	908.325	92.416%	1680	42	50.45°C	230.12V
80%	72.889A	7.938A	7.963A	2.288A	959.475	91.975%	1679	41.9	43.74°C	0.974
80%	12.095V	5.039V	3.315V	5.025V	1043.207	91.975%	1679	41.9	51.67°C	230.08V
90%	82.388A	8.435A	8.453A	2.393A	1079.314	91.503%	1679	41.9	44.25°C	0.975
90%	12.099V	5.038V	3.312V	5.015V	1179.537	91.503%	1679	41.9	53.23°C	230.05V
100%	91.672A	8.932A	8.975A	3.004A	1199.313	90.916%	2109	48.5	45.59°C	0.977
100%	12.104V	5.038V	3.309V	4.993V	1319.141	90.916%	2109	48.5	54.94°C	230.03V
110%	100.885A	9.924A	10.073A	3.009A	1319.916	90.322%	2113	48.5	46.25°C	0.978
110%	12.109V	5.038V	3.305V	4.984V	1461.352	90.322%	2113	48.5	56.81°C	230.01V
CL1	0.116A	11.909A	11.903A	0A	101.289	85.158%	1043	28.3	40.18°C	0.849
CL1	12.096V	5.055V	3.335V	5.122V	118.942	85.158%	1043	28.3	50.22°C	230.22V
CL2	0.114A	19.82A	0A	0A	101.381	83.341%	1695	42.3	40.11°C	0.851
CL2	12.073V	5.045V	3.343V	5.128V	121.635	83.341%	1695	42.3	46.91°C	230.22V
CL3	0.114A	0A	19.83A	0A	67.376	79.273%	1260	33.9	40.04°C	0.774
CL3	12.062V	5.06V	3.328V	5.124V	84.998	79.273%	1260	33.9	45.09°C	230.23V
CL4	99.247A	0A	0A	0A	1199.827	91.434%	2109	48.5	45.99°C	0.976
CL4	12.089V	5.045V	3.318V	5.07V	1312.236	91.434%	2109	48.5	50.99°C	230.04V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.494A	0.493A	0.195A	20.002	77.603%	0	<6.0	43.48°C	0.807
20W	12.069V	5.058V	3.347V	5.134V	25.777	77.603%	0	<6.0	36.31°C	115.06V
40W	2.708A	0.692A	0.69A	0.292A	39.996	83.534%	0	<6.0	43.89°C	0.929
40W	12.068V	5.06V	3.346V	5.13V	47.88	83.534%	0	<6.0	37.42°C	115.06V
60W	4.186A	0.889A	0.887A	0.39A	59.994	86.328%	0	<6.0	47.43°C	0.956
60W	12.069V	5.06V	3.346V	5.127V	69.496	86.328%	0	<6.0	38.01°C	115.05V
80W	5.659A	1.087A	1.085A	0.488A	79.926	87.078%	0	<6.0	48.91°C	0.968
80W	12.069V	5.059V	3.345V	5.123V	91.784	87.078%	0	<6.0	39.32°C	115.05V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.235A	0.495A	0.494A	0.195A	20.003	66.952%	0	<6.0	43.23°C	0.459
20W	12.022V	5.046V	3.341V	5.135V	25.513	66.952%	0	<6.0	36.6°C	230.17V
40W	2.717A	0.693A	0.691A	0.292A	40.004	84.232%	0	<6.0	43.19°C	0.616
40W	12.031V	5.048V	3.342V	5.132V	47.49	84.232%	0	<6.0	37°C	230.16V
60W	4.199A	0.891A	0.889A	0.39A	60.004	86.921%	0	<6.0	42.96°C	0.718
60W	12.036V	5.049V	3.341V	5.128V	69.037	86.921%	0	<6.0	38.76°C	230.15V
80W	5.673A	1.089A	1.087A	0.488A	79.933	88.592%	0	<6.0	46.42°C	0.788
80W	12.040V	5.049V	3.34V	5.125V	90.229	88.592%	0	<6.0	39.15°C	230.18V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	26.19mV	14.61mV	15.65mV	20.56mV	Pass
20% Load	53.11mV	14.20mV	15.60mV	21.12mV	Pass
30% Load	18.77mV	14.71mV	16.22mV	21.43mV	Pass
40% Load	21.03mV	19.87mV	33.30mV	38.00mV	Pass
50% Load	18.11mV	14.82mV	16.88mV	22.76mV	Pass
60% Load	17.85mV	15.17mV	17.29mV	25.63mV	Pass
70% Load	18.42mV	16.14mV	18.41mV	24.81mV	Pass
80% Load	18.57mV	16.30mV	18.77mV	26.80mV	Pass
90% Load	18.32mV	15.99mV	19.03mV	28.08mV	Pass
100% Load	17.78mV	15.98mV	18.65mV	29.85mV	Pass
110% Load	17.24mV	14.74mV	19.70mV	30.60mV	Pass
Crossload1	22.32mV	14.68mV	15.85mV	17.34mV	Pass
Crossload2	26.25mV	16.04mV	16.47mV	17.70mV	Pass
Crossload3	30.54mV	15.17mV	16.88mV	17.34mV	Pass
Crossload4	17.05mV	14.54mV	17.43mV	21.73mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	25.79mV	14.76mV	15.09mV	21.23mV	Pass
20% Load	59.86mV	14.31mV	15.75mV	21.23mV	Pass
30% Load	19.08mV	14.46mV	16.06mV	21.74mV	Pass
40% Load	18.42mV	15.38mV	16.83mV	23.02mV	Pass
50% Load	18.42mV	14.56mV	16.93mV	22.76mV	Pass
60% Load	19.08mV	14.76mV	17.04mV	24.25mV	Pass
70% Load	18.21mV	15.94mV	17.50mV	24.30mV	Pass
80% Load	18.67mV	16.50mV	18.57mV	24.60mV	Pass
90% Load	18.62mV	16.40mV	19.85mV	25.32mV	Pass
100% Load	17.21mV	15.40mV	18.44mV	25.21mV	Pass
110% Load	18.50mV	15.74mV	19.65mV	26.74mV	Pass
Crossload1	22.19mV	14.10mV	15.16mV	15.78mV	Pass
Crossload2	25.53mV	15.58mV	16.11mV	17.55mV	Pass
Crossload3	30.95mV	14.46mV	17.55mV	16.32mV	Pass
Crossload4	18.34mV	14.41mV	17.81mV	21.04mV	Pass

The results above are not used in the certification process

ACEGEEK ACP1200

Top side

Power specifications label
