CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

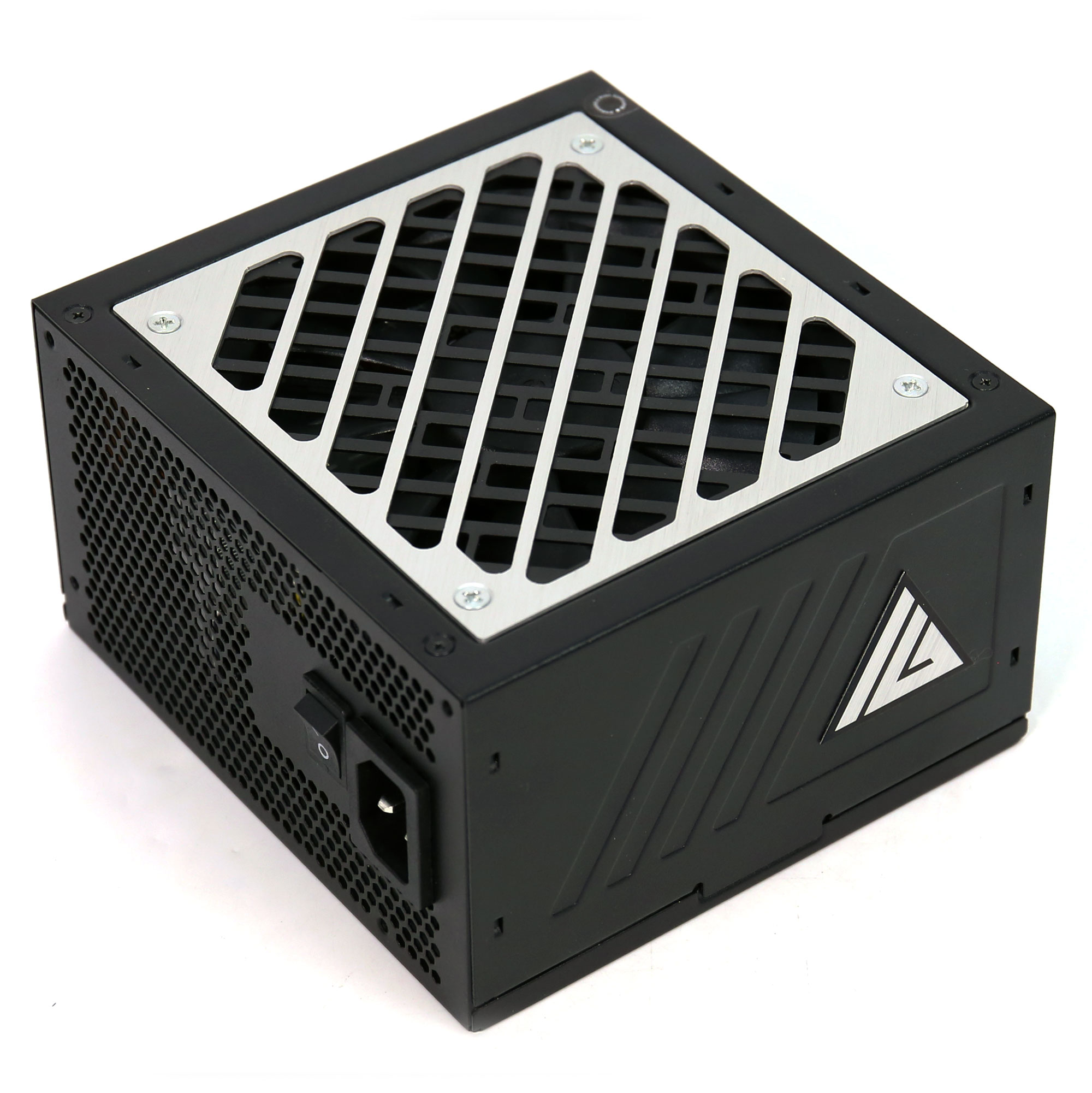

ACEGEEK ACG1000
Serial Number-
Lab IDAG10002887
Certification ID252887
  • Test Result Report ID: 25PS2887A
  • Certificate Issue Date: Jul 16, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandACEGEEK
Manufacturer (OEM)Andyson
SeriesACG
Model Number-
Serial Number-
DUT Notes

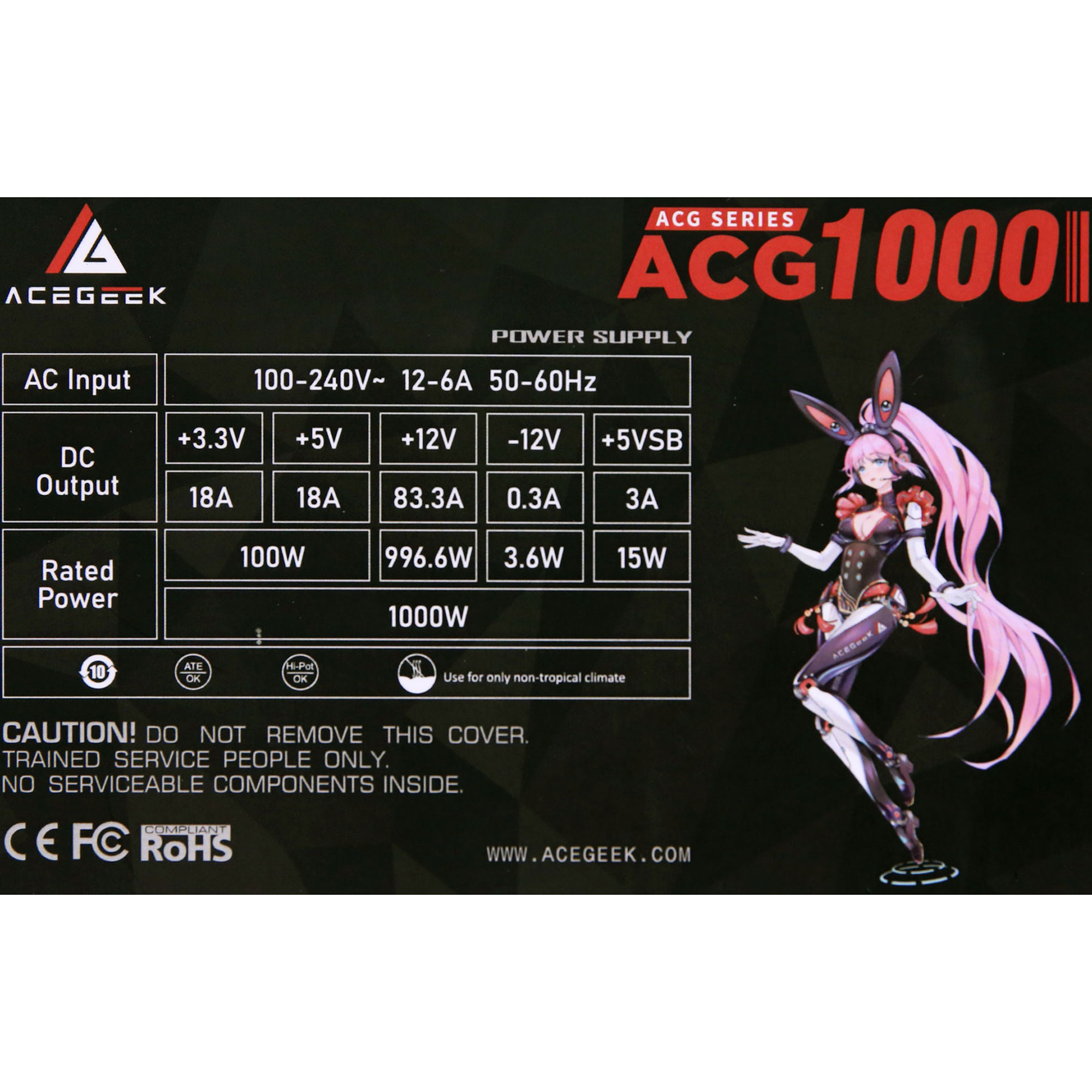

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (S1202512M)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181883.330.3
Watts100996.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 3 3 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-28AWG No
SATA (450mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (450mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG No
AC Power Cord (1065mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK 056 (5 ohm) & Relay
Bridge Rectifier(s)
2x HY Electronic GBU1506L (600V, 15A @ 100°C)
APFC MOSFETs
2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Boost Diode
1x Global Power Technology G4S06510AT (650V, 10A @ 151°C)
Bulk Cap(s)
1x Nippon Chemi-con (400V, 820uF, 2000h @ 105°C, CE)
Main Switchers
2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)

APFC Controller

Champion CM6500UNX & CM03AX (Remove Phantom Power)
Resonant Controller
AT2003SSP8
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V
DC-DC Converters: 2x Way-On WMO190N03TS (30V, 120A @ 100°C, Rds(on): 3mOhm) &
2x Way-On WMB150N03TS (30V, 95A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors

Electrolytic:
7x CS (2,000h @105°C, WR)
8x CS (3,000h @105°C, WE)
Polymer:
17x Polycap, 2x Teapo
Supervisor IC Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP)
Fan Model Globe Fan S1202512M (120mm, 12V, 0.30A, Sleeve Bearing Fan)
5VSB Circuit
Rectifier
1x PingWei PS1045L (45V, 10A)
Standby PWM Controller
Esthome EST.3026M

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard
Average Efficiency (>1450 load combinations)88.334%
Average Noise Output (>1450 Load Combinations)43.62dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load67.196%
Standby Power Consumption0.1179W
12V Ripple (Full Load)32.68mV
5V Ripple (Full Load)22.82mV
3.3V Ripple (Full Load)21.58mV
5VSB Ripple (Full Load)25.84mV
12V Load Regulation1.21%
5V Load Regulation2.96%
3.3V Load Regulation3.95%
5VSB Load Regulation6.22%
Inrush Current34.470A
Efficiency RatingGOLD
Noise RatingStandard
Average Efficiency (>1450 load combinations)90.402%
Average Noise Output (>1450 Load Combinations)43.34dBA
Average PF (>1450 Load Combinations)0.932
Efficiency With 10W (≤500W) or 2% (>500W) Load67.812%
Standby Power Consumption0.1403W
12V Ripple (Full Load)34.16mV
5V Ripple (Full Load)22.75mV
3.3V Ripple (Full Load)20.50mV
5VSB Ripple (Full Load)22.42mV
12V Load Regulation1.28%
5V Load Regulation3.14%
3.3V Load Regulation4.33%
5VSB Load Regulation6.58%
Inrush Current66.820A
12V Transient Response (200%)11.33V
5V Transient Response (200%)4.818V
3.3V Transient Response (200%)3.161V
5VSB Transient Response (200%)4.836V
Hold-Up Time & Power Ok Signal17.60ms
AC Loss to PWR_OK Hold Up Time15.70ms
PWR_OK Inactive to DC Loss Delay1.90ms
PSU Timings: T1 (20% / 100%)54.0ms52.0ms
PSU Timings: T3 (20% / 100%)126.0ms126.0ms
12V OCP (32.0°C / 43.4°C)112.80A (135.41%), 11.989V103.00A (123.65%), 12.006V
5V OCP (32.0°C / 43.4°C)23.7A (131.67%), 5.015V24A (133.33%), 5.012V
3.3V OCP (32.0°C / 43.4°C)23.6A (131.11%), 3.336V23.7A (131.67%), 3.333V
5VSB OCP (32.0°C / 43.4°C)4.3A (143.33%), 4.885V4.2A (140.00%), 4.879V
OPP (31.53°C / 43.74°C)135.46%119.16%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.6
AC Loss to PWR_OK Hold Up Time (ms)15.7
PWR_OK Inactive to DC Loss Delay (ms)1.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.10 V 115.06 V 113.85 V 115.14 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.18 % 2.00 % PASS
Real Power: 0.118 W 0.098 W N/A 0.140 W N/A N/A
Apparent Power: 8.684 W 8.095 W N/A 9.335 W N/A N/A
Power Factor: 0.014 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.06 V 230.95 V 227.70 V 231.13 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.140 W 0.100 W N/A 0.220 W N/A N/A
Apparent Power: 27.609 W 26.772 W N/A 28.469 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

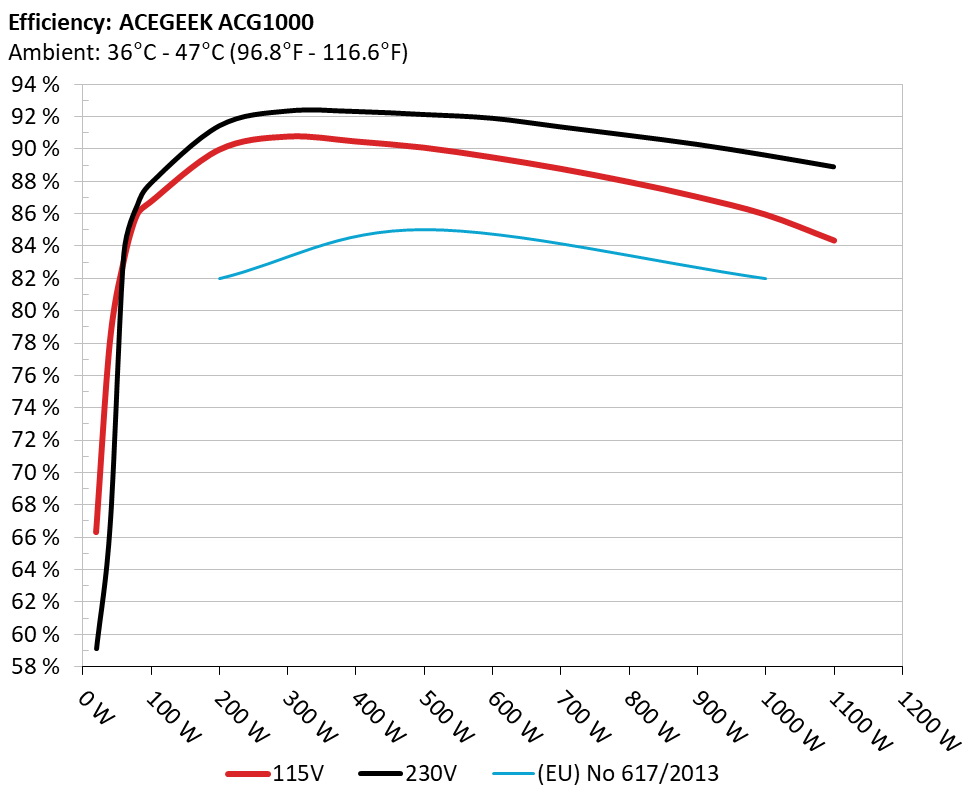

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

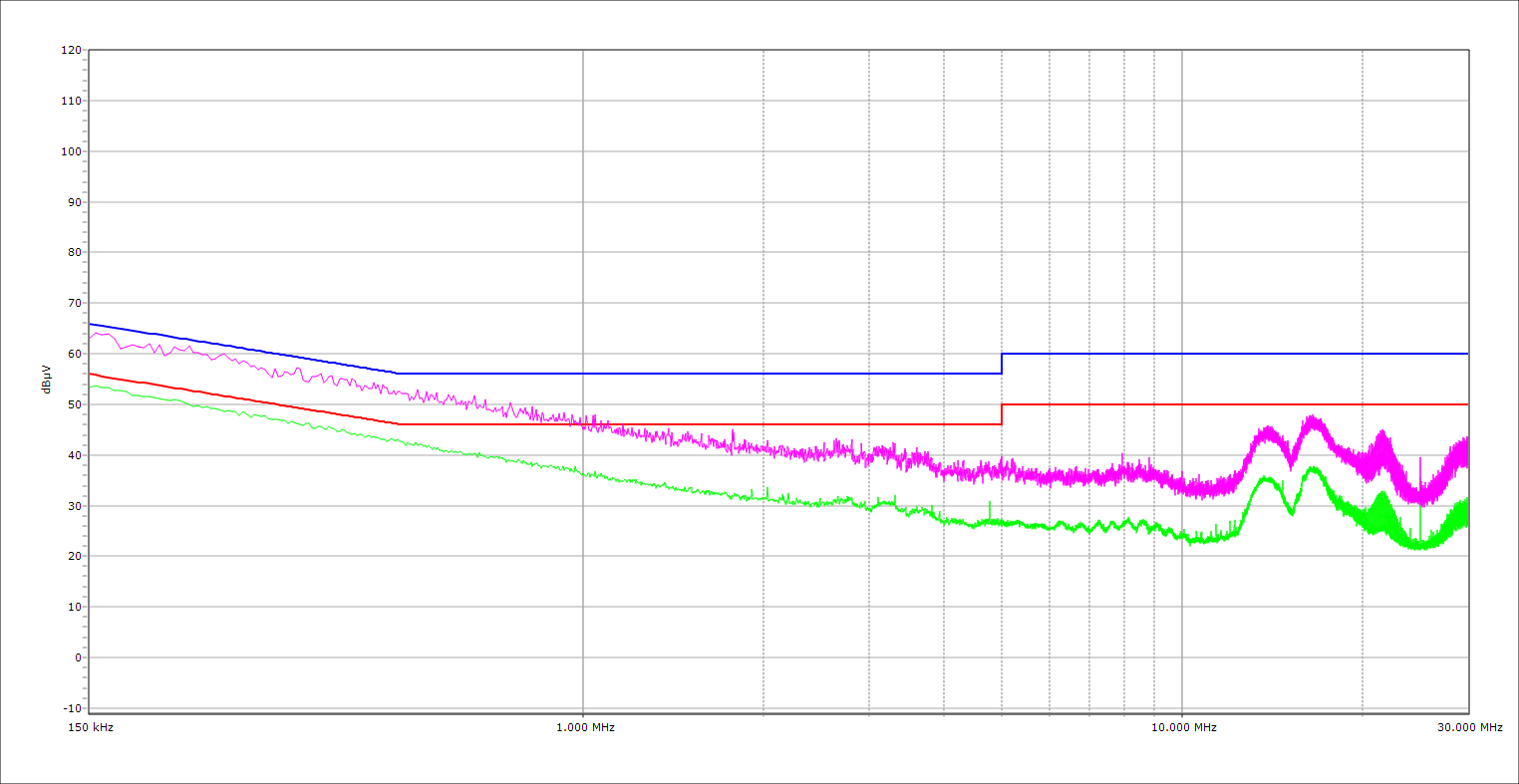

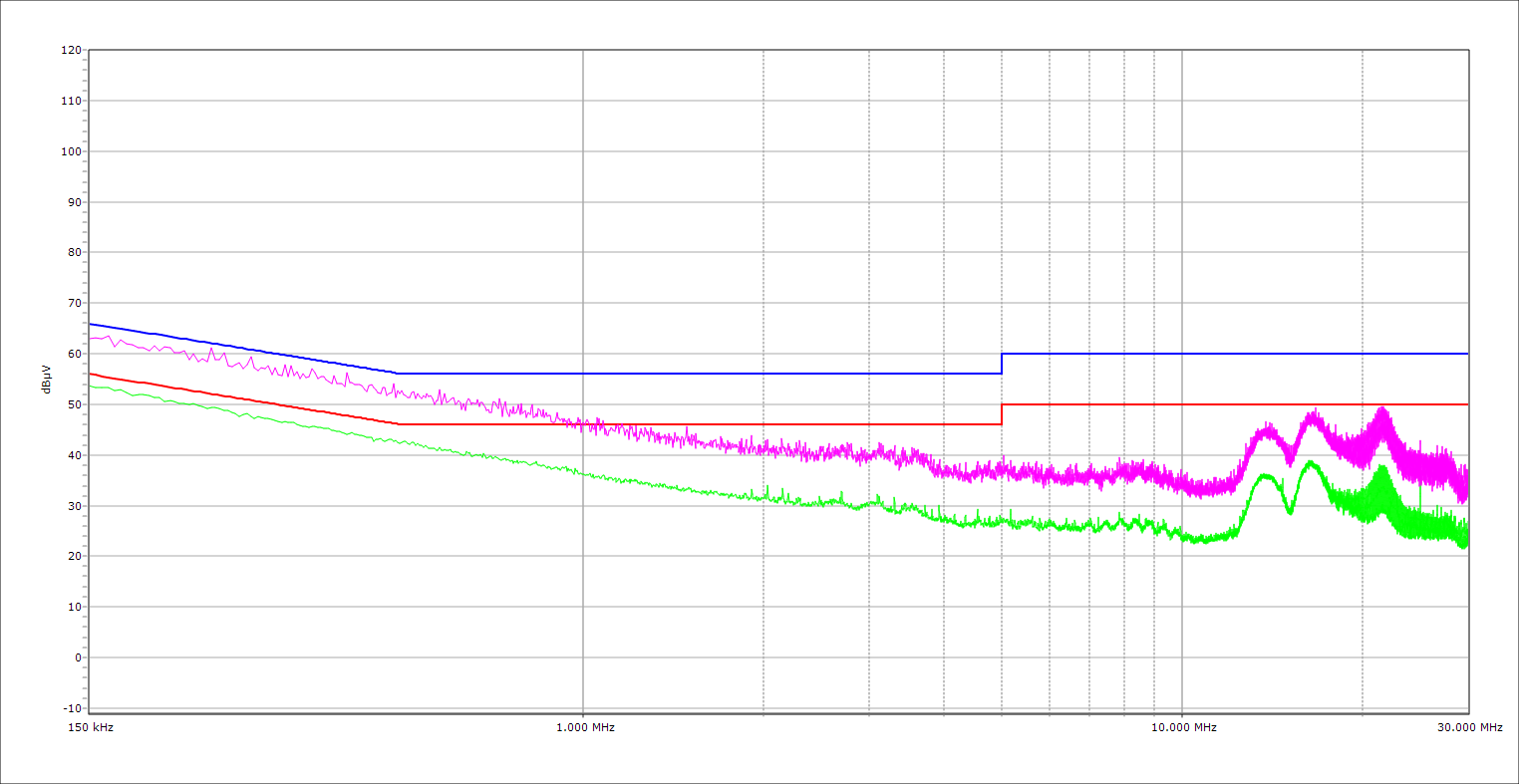

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

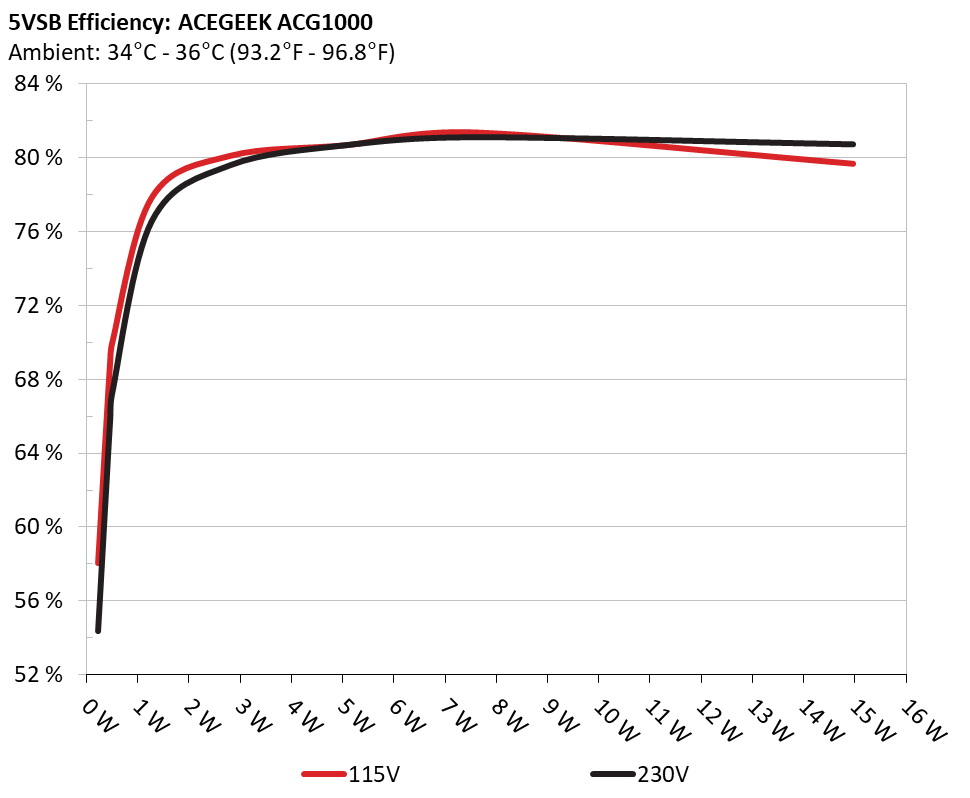

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 58.056% 0.048
5.135V 0.398W 114.93V
2 0.09A 0.462W 68.784% 0.08
5.133V 0.672W 114.93V
3 0.55A 2.811W 80.083% 0.302
5.11V 3.51W 114.92V
4 1A 5.089W 80.663% 0.379
5.088V 6.309W 114.91V
5 1.5A 7.596W 81.343% 0.43
5.063V 9.339W 114.91V
6 3A 14.961W 79.656% 0.496
4.987V 18.782W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 54.382% 0.015
5.134V 0.425W 229.9V
2 0.09A 0.462W 65.606% 0.025
5.132V 0.7W 229.9V
3 0.55A 2.811W 79.572% 0.119
5.11V 3.523W 229.93V
4 1A 5.089W 80.659% 0.195
5.088V 6.308W 229.9V
5 1.5A 7.597W 81.081% 0.237
5.063V 9.37W 229.89V
6 3A 14.965W 80.696% 0.346
4.988V 18.543W 229.89V

Protection Features

OCP (Normal @ 32.0°C)12V: 112.80A (135.41%), 11.989V
5V: 23.7A (131.67%), 5.015V
3.3V: 23.6A (131.11%), 3.336V
5VSB: 4.3A (143.33%), 4.885V
OCP (Hot @ 43.4°C)12V: 103.00A (123.65%), 12.006V
5V: 24A (133.33%), 5.012V
3.3V: 23.7A (131.67%), 3.333V
5VSB: 4.2A (140.00%), 4.879V
OPP (Normal @ 31.5°C)1354.64W (135.46%)
OPP (Hot @ 43.7°C)1191.59W (119.16%)
OTP✓ (130°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.448A 1.973A 1.949A 0.987A 99.997 86.721% 932 26.3 40.09°C 0.958
12.160V 5.069V 3.386V 5.067V 115.309 44.61°C 114.88V
20% 13.916A 2.967A 2.935A 1.19A 199.949 89.932% 937 26.4 40.95°C 0.958
12.148V 5.055V 3.373V 5.042V 222.332 46.81°C 114.75V
30% 21.750A 3.471A 3.437A 1.395A 300.016 90.748% 961 27.2 41.18°C 0.975
12.136V 5.042V 3.361V 5.018V 330.6 50.9°C 114.81V
40% 29.567A 3.978A 3.942A 1.602A 399.599 90.447% 1793 46.3 41.6°C 0.983
12.121V 5.029V 3.349V 4.993V 441.809 50.63°C 114.78V
50% 37.076A 4.986A 4.948A 1.812A 499.305 90.062% 2096 49.9 42.27°C 0.987
12.105V 5.015V 3.335V 4.968V 554.402 51.69°C 114.73V
60% 44.672A 6.002A 5.962A 2A 599.697 89.463% 2302 53.3 42.58°C 0.989
12.088V 4.999V 3.321V 4.943V 670.325 52.75°C 114.7V
70% 52.218A 7.024A 6.984A 2.238A 699.526 88.757% 2316 53.2 43.48°C 0.991
12.073V 4.983V 3.308V 4.915V 788.138 57.32°C 114.66V
80% 59.855A 8.05A 8.015A 2.35A 799.518 87.945% 2321 53.2 43.92°C 0.992
12.056V 4.968V 3.294V 4.894V 909.109 58.69°C 114.62V
90% 67.840A 8.578A 8.532A 2.463A 899.312 87.02% 2321 53.2 44.14°C 0.993
12.041V 4.953V 3.282V 4.872V 1033.458 62.05°C 114.59V
100% 75.652A 9.111A 9.086A 3.112A 999.335 85.929% 2326 53.1 45.38°C 0.994
12.024V 4.938V 3.269V 4.82V 1162.983 66.51°C 114.54V
110% 83.423A 10.159A 10.235A 3.125A 1099.956 84.325% 2326 53.1 46.81°C 0.993
12.007V 4.921V 3.254V 4.8V 1304.44 70.31°C 114.5V
CL1 0.115A 11.958A 11.812A 0A 101.287 79.013% 2303 53.3 45.76°C 0.954
12.150V 5.033V 3.361V 5.093V 128.186 55.59°C 114.87V
CL2 0.114A 17.871A 0A 0A 91.377 79.461% 1130 32.2 40.3°C 0.959
12.152V 5.035V 3.377V 5.103V 114.995 46.69°C 114.88V
CL3 0.114A 0A 17.656A 0A 60.795 71.459% 1622 42.8 40.41°C 0.982
12.150V 5.056V 3.365V 5.105V 85.077 45.02°C 114.89V
CL4 83.081A 0A 0A 0A 999.917 86.925% 2330 53.1 45.13°C 0.994
12.035V 4.975V 3.296V 5.01V 1150.324 62.6°C 114.54V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.446A 1.973A 1.949A 0.987A 99.978 87.896% 936 26.4 40.45°C 0.845
12.160V 5.069V 3.386V 5.063V 113.746 44.48°C 229.87V
20% 13.913A 2.969A 2.936A 1.191A 199.922 91.421% 945 26.7 40.73°C 0.913
12.148V 5.053V 3.372V 5.037V 218.685 47.07°C 229.86V
30% 21.748A 3.473A 3.439A 1.397A 299.969 92.33% 1358 38.1 41.24°C 0.93
12.135V 5.039V 3.359V 5.011V 324.887 48.75°C 229.83V
40% 29.560A 3.98A 3.946A 1.604A 399.452 92.3% 1864 47.3 41.95°C 0.944
12.119V 5.026V 3.346V 4.986V 432.775 49.68°C 229.83V
50% 37.075A 4.991A 4.954A 1.815A 499.184 92.114% 2153 51.4 42.1°C 0.951
12.102V 5.01V 3.331V 4.959V 541.917 50.22°C 229.81V
60% 44.676A 6.007A 5.97A 2A 599.519 91.884% 2294 53.3 42.95°C 0.955
12.083V 4.995V 3.317V 4.935V 652.474 50.83°C 229.79V
70% 52.234A 7.033A 6.997A 2.243A 699.435 91.35% 2309 53.3 43.2°C 0.96
12.067V 4.978V 3.302V 4.903V 765.672 53.54°C 229.73V
80% 59.879A 8.062A 8.032A 2.356A 799.456 90.827% 2313 53.2 43.71°C 0.965
12.050V 4.96V 3.287V 4.88V 880.19 55.45°C 229.73V
90% 67.877A 8.593A 8.553A 2.47A 899.278 90.276% 2316 53.2 44.33°C 0.969
12.034V 4.945V 3.274V 4.858V 996.151 57.68°C 229.73V
100% 75.681A 9.128A 9.114A 3.122A 999.281 89.613% 2319 53.2 45.45°C 0.973
12.019V 4.929V 3.259V 4.803V 1115.112 61.2°C 229.7V
110% 83.496A 10.177A 10.272A 3.133A 1099.876 88.887% 2324 53.1 46.79°C 0.975
11.995V 4.912V 3.242V 4.787V 1237.387 63.75°C 229.71V
CL1 0.114A 11.962A 11.82A 0A 101.287 80.27% 1817 46.6 40.91°C 0.86
12.146V 5.032V 3.359V 5.091V 126.184 46.48°C 229.88V
CL2 0.114A 17.875A 0A 0A 91.374 80.245% 1332 37.4 41.46°C 0.845
12.152V 5.034V 3.375V 5.102V 113.868 46.88°C 229.87V
CL3 0.114A 0A 17.669A 0A 60.793 71.339% 1628 43 40.1°C 0.783
12.149V 5.055V 3.362V 5.104V 85.217 44.86°C 229.88V
CL4 83.120A 0A 0A 0A 999.842 90.506% 2326 53.1 45°C 0.972
12.028V 4.968V 3.289V 5.004V 1104.725 57.84°C 229.71V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.492A 0.486A 0.195A 20.01 66.311% 922 26.1 36.02°C 0.852
12.169V 5.084V 3.398V 5.12V 30.176 40.7°C 114.9V
40W 2.688A 0.689A 0.68A 0.293A 40.003 77.991% 926 26.1 37.15°C 0.931
12.165V 5.081V 3.396V 5.112V 51.292 41.67°C 114.9V
60W 4.154A 0.886A 0.875A 0.392A 60 82.979% 927 26.1 38.05°C 0.954
12.164V 5.078V 3.393V 5.104V 72.307 42.74°C 114.89V
80W 5.617A 1.084A 1.071A 0.49A 79.946 85.928% 928 26.2 39.01°C 0.981
12.163V 5.075V 3.39V 5.097V 93.042 43.55°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.219A 0.492A 0.485A 0.195A 19.99 59.145% 931 26.2 36.7°C 0.444
12.173V 5.084V 3.4V 5.119V 29.829 40.29°C 229.89V
40W 2.686A 0.689A 0.68A 0.293A 39.989 66.857% 926 26.1 37.51°C 0.613
12.168V 5.082V 3.396V 5.112V 50.528 41.01°C 229.41V
60W 4.153A 0.886A 0.875A 0.392A 59.989 83.539% 930 26.2 38.78°C 0.737
12.166V 5.078V 3.393V 5.103V 71.809 42.7°C 229.9V
80W 5.615A 1.084A 1.07A 0.49A 79.926 86.546% 932 26.3 39.37°C 0.802
12.164V 5.075V 3.391V 5.095V 92.352 43.37°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load19.39mV18.13mV16.27mV16.06mVPass
20% Load22.51mV18.45mV17.29mV16.73mVPass
30% Load22.87mV18.34mV18.36mV17.04mVPass
40% Load22.82mV18.90mV18.98mV18.41mVPass
50% Load22.71mV20.90mV19.64mV18.26mVPass
60% Load23.53mV19.67mV20.05mV29.46mVPass
70% Load25.94mV21.20mV20.15mV21.08mVPass
80% Load26.14mV21.20mV21.99mV22.76mVPass
90% Load30.03mV22.28mV21.69mV24.60mVPass
100% Load32.68mV22.82mV21.58mV25.84mVPass
110% Load38.08mV24.04mV22.93mV26.68mVPass
Crossload120.57mV19.34mV21.60mV17.42mVPass
Crossload220.51mV17.73mV21.23mV18.62mVPass
Crossload318.98mV21.05mV19.18mV19.08mVPass
Crossload432.86mV16.77mV17.04mV24.67mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.75mV16.65mV16.32mV16.01mVPass
20% Load22.51mV17.73mV17.70mV16.68mVPass
30% Load23.38mV18.39mV18.01mV16.21mVPass
40% Load22.66mV18.65mV18.57mV17.60mVPass
50% Load23.18mV18.70mV18.62mV17.39mVPass
60% Load24.10mV19.98mV19.54mV27.72mVPass
70% Load25.53mV20.28mV20.82mV19.13mVPass
80% Load26.29mV21.76mV20.82mV20.26mVPass
90% Load29.93mV21.46mV21.99mV23.07mVPass
100% Load34.16mV22.75mV20.50mV22.42mVPass
110% Load41.80mV23.49mV21.48mV25.64mVPass
Crossload120.26mV16.91mV19.51mV16.83mVPass
Crossload219.44mV16.25mV19.39mV18.36mVPass
Crossload319.08mV20.64mV18.67mV19.18mVPass
Crossload434.75mV15.21mV15.23mV19.54mVPass

The results above are not used in the certification process

ACEGEEK ACG1000

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
