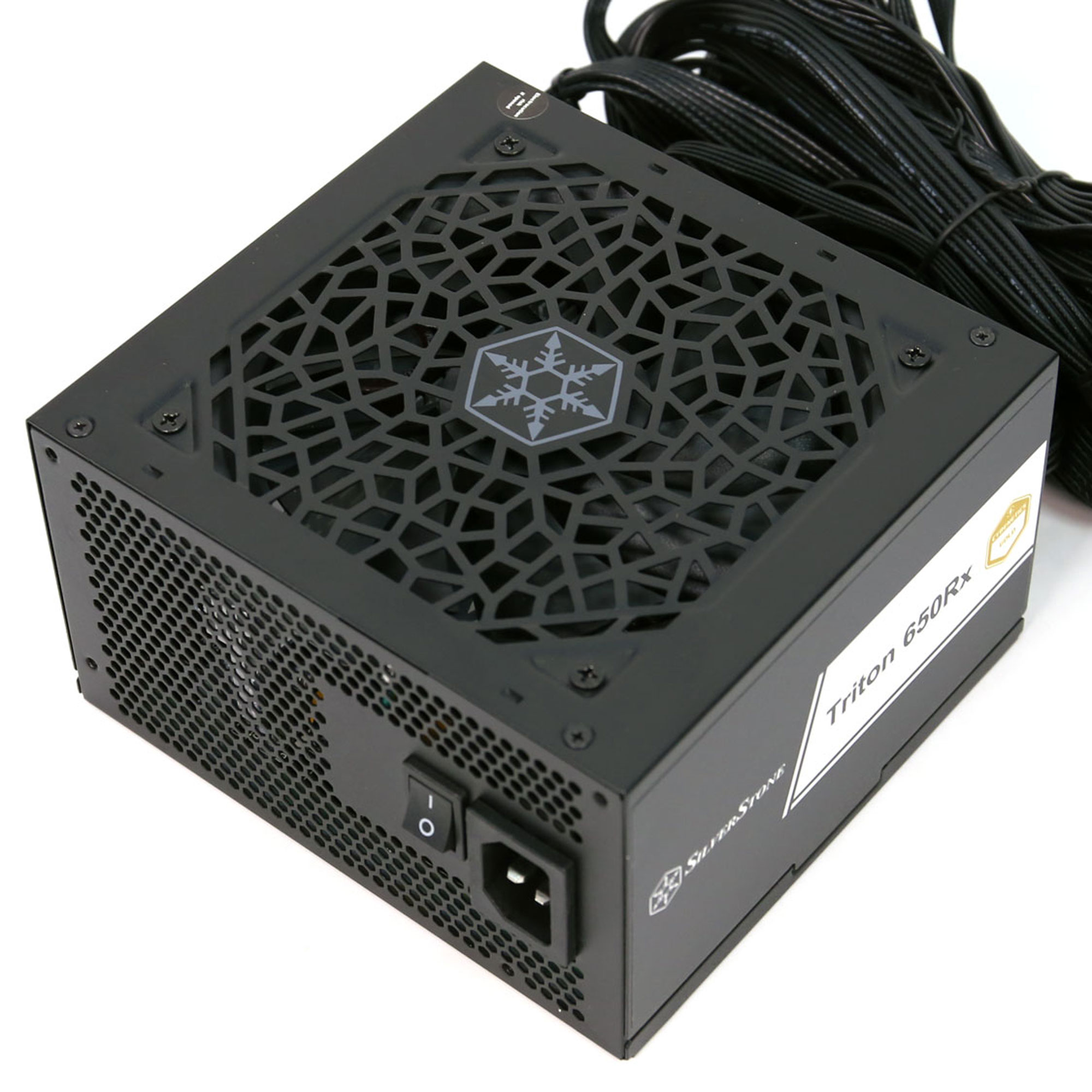

SilverStone Triton 650Rx
Serial NumberSST-TR650R-GF
Lab IDSL65002888
Certification ID252888
  • Test Result Report ID: 25PS2888A
  • Certificate Issue Date: Jul 23, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Andyson
SeriesTriton Rx
Model NumberSST-AX0650FCGD-A
Serial NumberSST-TR650R-GF
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)4-8
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (PY-1225M12s)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181854.130.3
Watts100649.2153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (560mm) 1 1 18-22AWG No
8 pin EPS12V (680mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (520mm+150mm) 1 2 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-26AWG No
SATA (510mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No
Modular Cable
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK201R5 (1.5 Ohm @ 25°C) & Relay
Bridge Rectifier(s)
2x GBU806 (600V, 8A @ 100°C)
APFC MOSFETs
2x Perfect PWE180N65MFS (650V, 13A @ 100°C, Rds(on): 180mOhm)
APFC Boost Diode
1x
Bulk Cap(s)
1x Nippon Chemi-con (400V, 390uF, 2000h @ 105°C, KMR)
Main Switchers
2x SI24N50F

APFC Controller

1x Champion CM6500UNX &
1x Champion CM03X (reduce the no-load consumption)
Resonant Controller
AT2003SSP8
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Pingwei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 2x Way-On WMO190N03TS  (30V, 120A @ 100°C, Rds(on): 3mOhm) &
2x Way-On WMO150N03TS  (30V, 98A @ 100°C, Rds(on): 3mOhm)
PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors

Electrolytic:
6x CS (2,000h @105°C, WR)
8x CS (3,000h @105°C, WE)
Polymer:
5x Polycap, 2x Teapo
Supervisor IC Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP)
Fan Model PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan)
5VSB Circuit
Rectifier
1x Pingwei PS1045L (45V, 10A)
Standby PWM Controller
Esthome EST.3026M

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)88.523%
Average Noise Output (>1450 Load Combinations)35.90dBA
Average PF (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load60.725%
Standby Power Consumption0.0839W
12V Ripple (Full Load)49.50mV
5V Ripple (Full Load)20.29mV
3.3V Ripple (Full Load)17.61mV
5VSB Ripple (Full Load)15.19mV
12V Load Regulation0.80%
5V Load Regulation2.16%
3.3V Load Regulation2.47%
5VSB Load Regulation3.17%
Inrush Current92.500A
Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)90.516%
Average Noise Output (>1450 Load Combinations)35.12dBA
Average PF (>1450 Load Combinations)0.937
Efficiency With 10W (≤500W) or 2% (>500W) Load55.115%
Standby Power Consumption0.1054W
12V Ripple (Full Load)53.54mV
5V Ripple (Full Load)20.95mV
3.3V Ripple (Full Load)17.23mV
5VSB Ripple (Full Load)14.16mV
12V Load Regulation0.84%
5V Load Regulation2.18%
3.3V Load Regulation2.47%
5VSB Load Regulation3.19%
Inrush Current213.600A
12V Transient Response (200%)11.59V
5V Transient Response (200%)4.943V
3.3V Transient Response (200%)3.247V
5VSB Transient Response (200%)4.999V
Hold-Up Time & Power Ok Signal15.00ms
AC Loss to PWR_OK Hold Up Time13.00ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)56.0ms57.0ms
PSU Timings: T3 (20% / 100%)128.0ms129.0ms
12V OCP (28.1°C / 43.5°C)76.00A (140.48%), 12.164V74.20A (137.15%), 12.160V
5V OCP (28.1°C / 43.5°C)23.3A (129.44%), 5.031V23.3A (129.44%), 5.03V
3.3V OCP (28.1°C / 43.5°C)22.2A (123.33%), 3.373V21.7A (120.56%), 3.368V
5VSB OCP (28.1°C / 43.5°C)4.4A (146.67%), 4.999V4.3A (143.33%), 4.995V
OPP (27.28°C / 43.06°C)141.30%137.39%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15
AC Loss to PWR_OK Hold Up Time (ms)13
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.09 V 115.05 V 113.85 V 115.14 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.423 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.084 W -0.007 W N/A 0.111 W N/A N/A
Apparent Power: 8.358 W 8.000 W N/A 8.759 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.06 V 230.94 V 227.70 V 231.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.29 % 2.00 % PASS
Real Power: 0.105 W 0.060 W N/A 0.178 W N/A N/A
Apparent Power: 27.798 W 26.988 W N/A 28.616 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

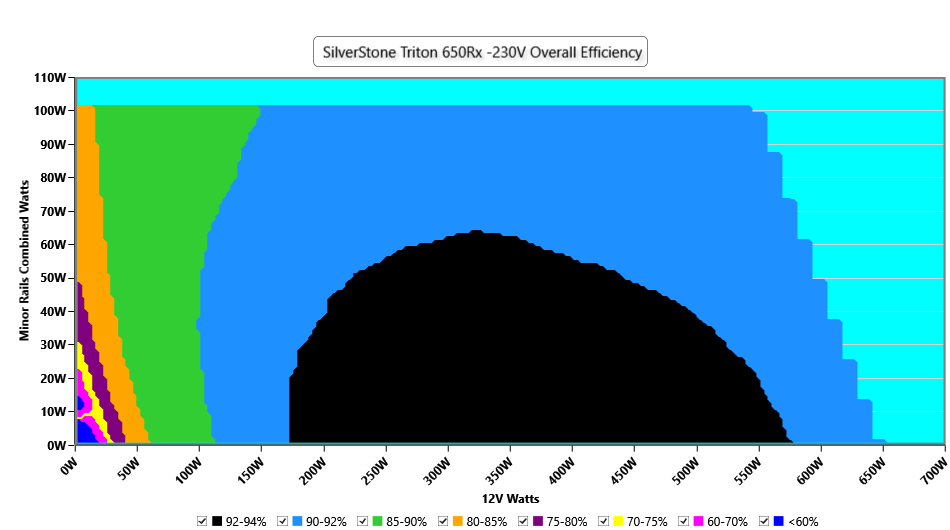

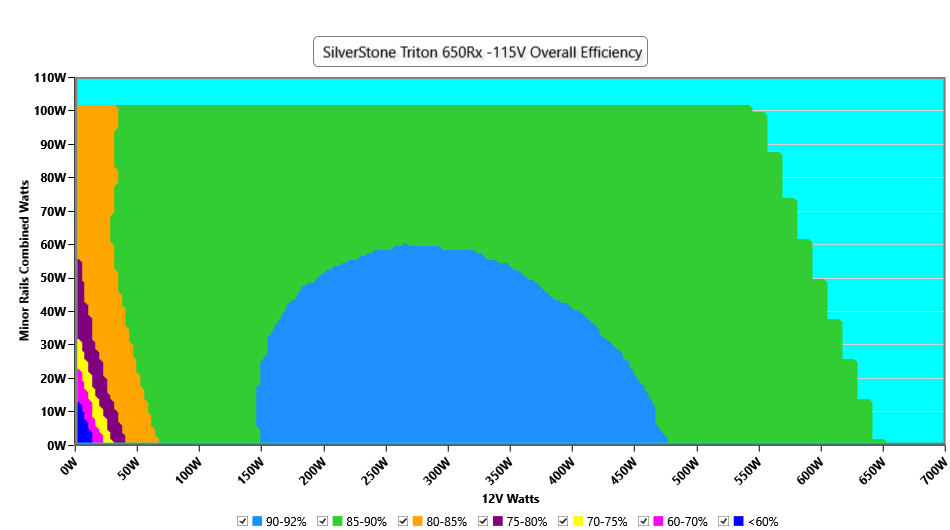

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

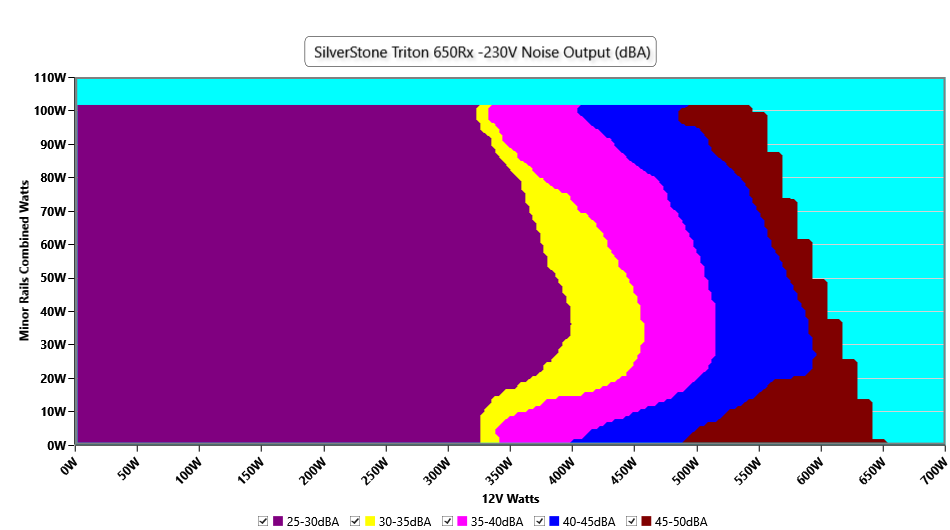

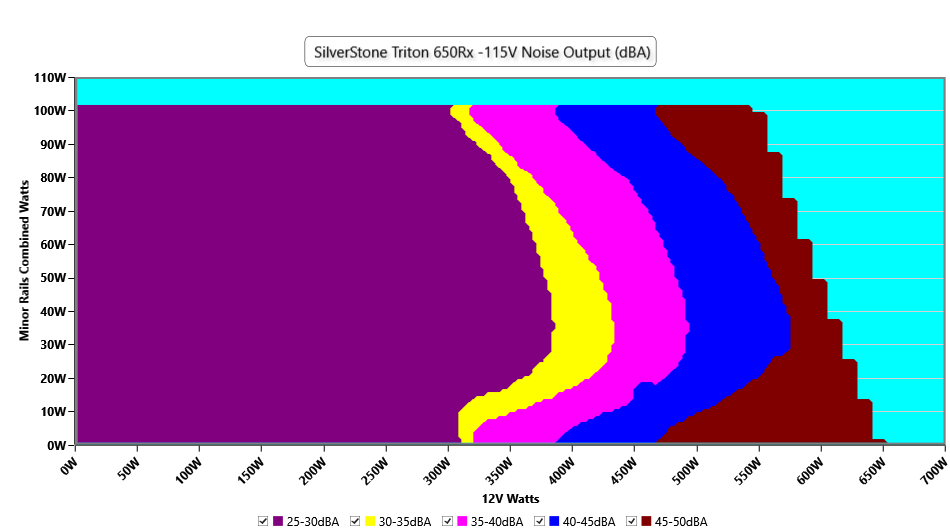

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

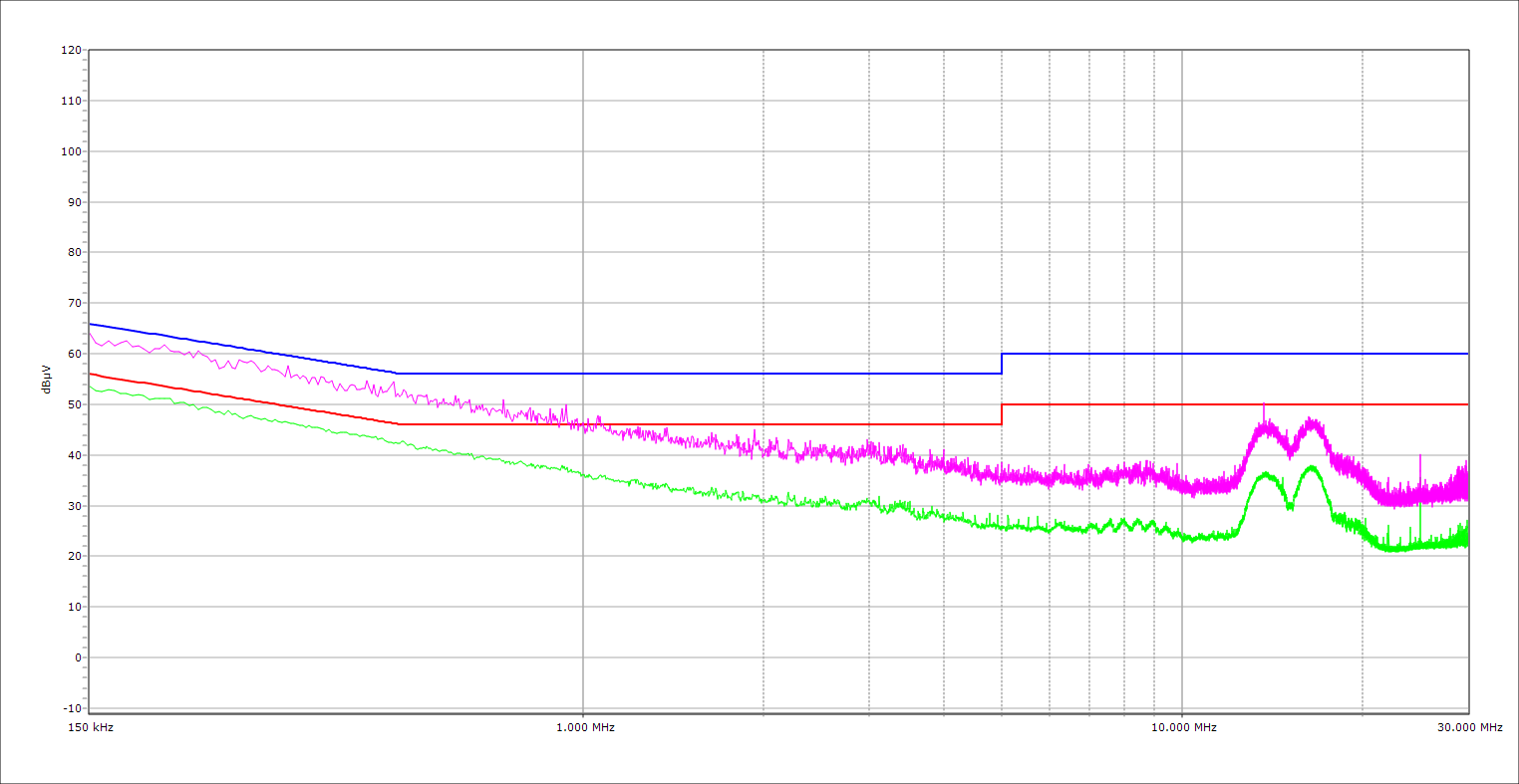

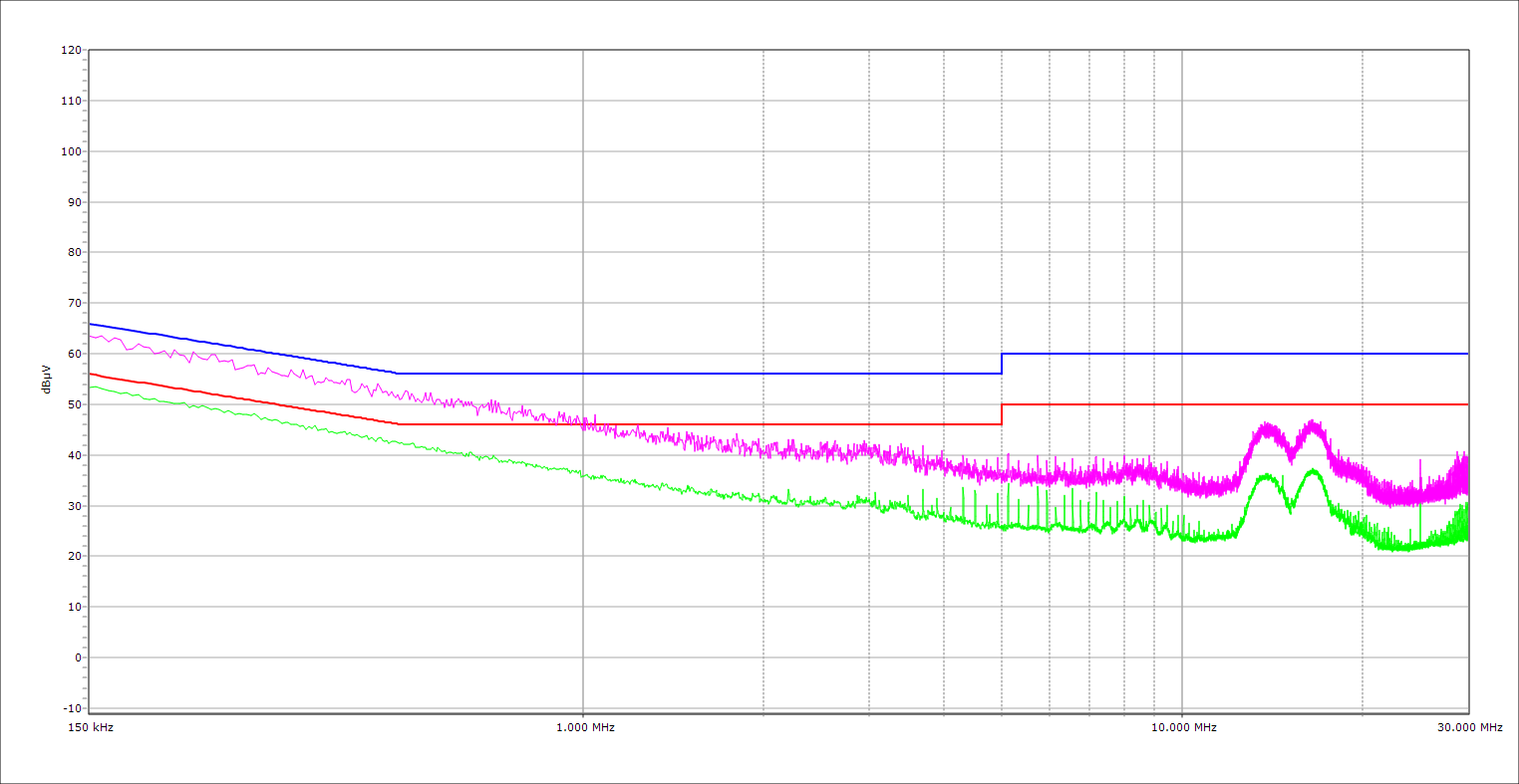

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

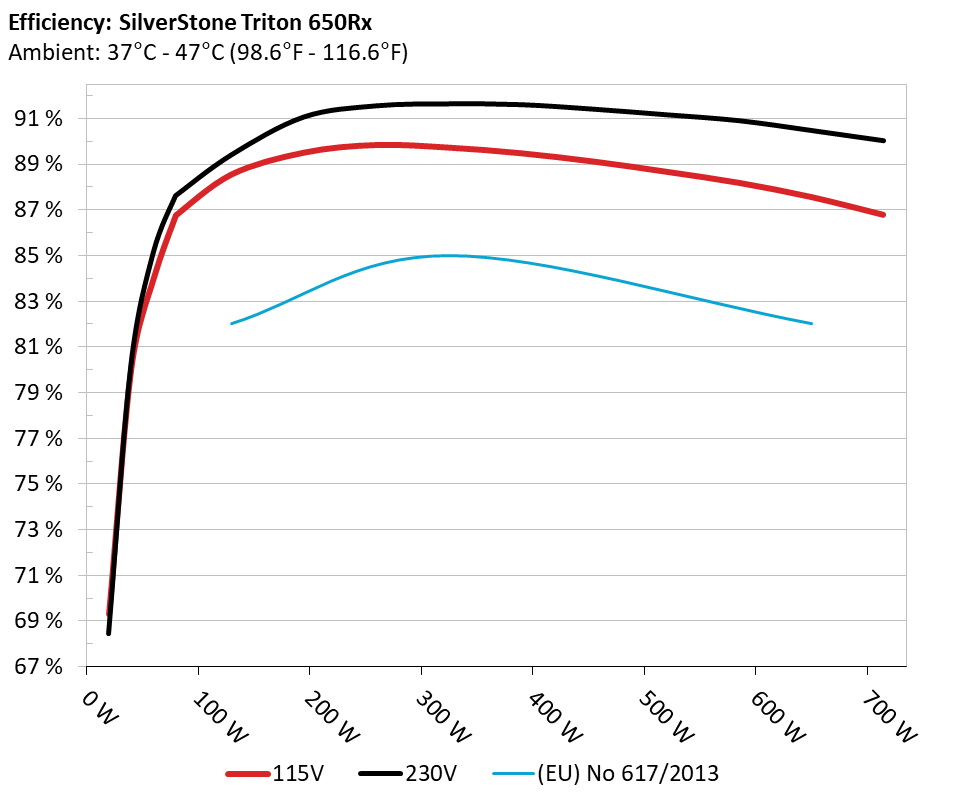

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

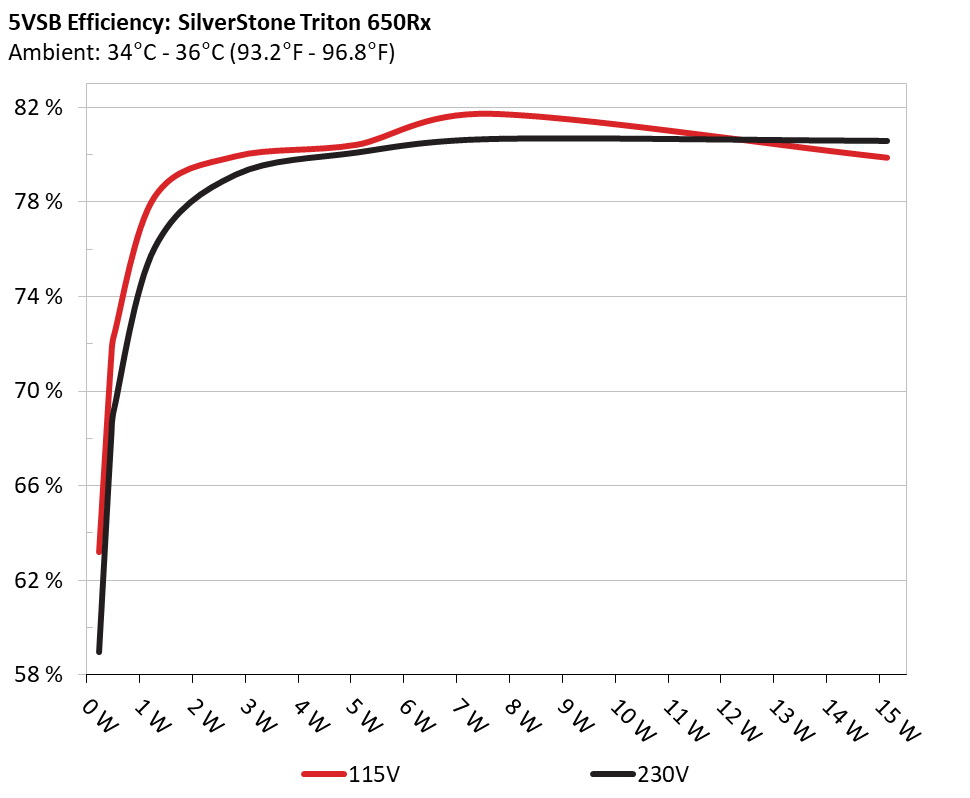

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 63.178% 0.047
5.126V 0.366W 114.98V
2 0.09A 0.461W 71.449% 0.081
5.125V 0.645W 114.94V
3 0.55A 2.813W 79.917% 0.289
5.113V 3.52W 114.97V
4 1A 5.102W 80.405% 0.353
5.1V 6.346W 114.97V
5 1.5A 7.632W 81.713% 0.389
5.086V 9.34W 114.97V
6 3.001A 15.133W 79.858% 0.443
5.043V 18.95W 114.97V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 58.954% 0.015
5.126V 0.394W 229.97V
2 0.09A 0.461W 68.07% 0.026
5.125V 0.677W 230V
3 0.55A 2.813W 79.141% 0.126
5.112V 3.554W 229.97V
4 1A 5.102W 80.079% 0.199
5.1V 6.374W 229.97V
5 1.501A 7.633W 80.648% 0.25
5.087V 9.462W 229.97V
6 3.001A 15.134W 80.569% 0.332
5.044V 18.784W 229.96V

Protection Features

OCP (Normal @ 28.1°C)12V: 76.00A (140.48%), 12.164V
5V: 23.3A (129.44%), 5.031V
3.3V: 22.2A (123.33%), 3.373V
5VSB: 4.4A (146.67%), 4.999V
OCP (Hot @ 43.5°C)12V: 74.20A (137.15%), 12.160V
5V: 23.3A (129.44%), 5.03V
3.3V: 21.7A (120.56%), 3.368V
5VSB: 4.3A (143.33%), 4.995V
OPP (Normal @ 27.3°C)918.48W (141.30%)
OPP (Hot @ 43.1°C)893.03W (137.39%)
OTP✓ (110°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.546A 1.964A 1.942A 0.983A 65.013 83.662% 846 27.3 40.38°C 0.967
12.244V 5.094V 3.399V 5.086V 77.707 44.06°C 114.93V
20% 8.093A 2.952A 2.919A 1.183A 129.967 88.545% 1026 32.9 40.74°C 0.972
12.239V 5.083V 3.392V 5.072V 146.782 45.75°C 114.93V
30% 12.989A 3.45A 3.414A 1.384A 194.969 89.499% 1233 37.5 41.03°C 0.97
12.234V 5.075V 3.383V 5.06V 217.848 46.3°C 114.92V
40% 17.898A 3.949A 3.911A 1.586A 260.058 89.832% 1523 43.3 41.74°C 0.977
12.227V 5.066V 3.375V 5.047V 289.494 47.78°C 114.91V
50% 22.472A 4.947A 4.902A 1.789A 325.055 89.717% 1738 45.8 42.01°C 0.982
12.217V 5.055V 3.366V 5.033V 362.31 48.91°C 114.9V
60% 27.020A 5.95A 5.899A 1.993A 389.604 89.47% 1878 48.5 42.87°C 0.986
12.205V 5.044V 3.356V 5.019V 435.461 50.79°C 114.88V
70% 31.641A 6.958A 6.902A 2.198A 454.933 89.107% 1939 49.2 43.2°C 0.988
12.193V 5.032V 3.347V 5.005V 510.546 52.52°C 114.86V
80% 36.271A 7.969A 7.908A 2.303A 519.731 88.664% 1941 49.2 43.97°C 0.99
12.181V 5.02V 3.338V 4.994V 586.181 54.44°C 114.84V
90% 41.306A 8.485A 8.406A 2.408A 585.157 88.178% 1940 49.2 44.32°C 0.991
12.169V 5.01V 3.33V 4.983V 663.613 56.76°C 114.83V
100% 46.092A 9.003A 8.939A 3.026A 650.02 87.558% 1940 49.2 45.47°C 0.992
12.157V 4.999V 3.322V 4.958V 742.393 59.46°C 114.8V
110% 50.761A 10.028A 10.049A 3.032A 714.653 86.781% 1937 49.1 46.53°C 0.992
12.142V 4.986V 3.313V 4.948V 823.515 63.11°C 114.78V
CL1 0.115A 11.927A 11.758A 0A 101.31 81.964% 1712 45.7 41.54°C 0.983
12.232V 5.048V 3.376V 5.092V 123.603 47.19°C 114.95V
CL2 0.114A 17.834A 0A 0A 91.406 81.148% 1687 45.5 41.14°C 0.989
12.240V 5.047V 3.392V 5.102V 112.64 45.91°C 114.95V
CL3 0.114A 0A 17.572A 0A 60.796 74.808% 1327 39.2 40.23°C 0.969
12.237V 5.083V 3.38V 5.1V 81.269 44.81°C 114.96V
CL4 53.392A 0A 0A 0A 649.782 88.708% 1945 49.3 45.39°C 0.992
12.170V 5.043V 3.343V 5.064V 732.496 57.11°C 114.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.544A 1.964A 1.941A 0.983A 65.009 84.637% 1050 33 40.17°C 0.808
12.244V 5.095V 3.4V 5.086V 76.812 45.15°C 230.09V
20% 8.093A 2.951A 2.92A 1.183A 129.96 89.415% 1100 34.6 40.73°C 0.912
12.240V 5.084V 3.391V 5.072V 145.346 45.96°C 230.09V
30% 12.988A 3.449A 3.415A 1.384A 194.965 91.077% 1359 40 41.18°C 0.934
12.234V 5.076V 3.383V 5.059V 214.066 46.16°C 230.1V
40% 17.898A 3.949A 3.912A 1.586A 260.049 91.565% 1705 45.7 41.76°C 0.948
12.227V 5.066V 3.374V 5.047V 284.008 47.99°C 230.1V
50% 22.474A 4.947A 4.903A 1.789A 325.045 91.652% 1809 47.1 42.1°C 0.954
12.216V 5.055V 3.365V 5.033V 354.651 48.6°C 230.09V
60% 27.019A 5.95A 5.9A 1.993A 389.56 91.615% 1923 48.9 42.83°C 0.958
12.204V 5.044V 3.356V 5.019V 425.215 49.44°C 230.08V
70% 31.648A 6.959A 6.903A 2.199A 454.942 91.419% 1935 49.1 43.1°C 0.963
12.191V 5.031V 3.347V 5.004V 497.649 50.35°C 230.05V
80% 36.283A 7.97A 7.91A 2.304A 519.785 91.174% 1936 49.1 43.88°C 0.967
12.179V 5.019V 3.338V 4.993V 570.1 52.18°C 230.01V
90% 41.324A 8.486A 8.409A 2.409A 585.244 90.915% 1933 49.1 44.65°C 0.969
12.166V 5.009V 3.33V 4.982V 643.73 53.88°C 229.98V
100% 46.112A 9.005A 8.942A 3.027A 650.073 90.484% 1936 49.1 45.05°C 0.97
12.153V 4.998V 3.322V 4.957V 718.442 56.27°C 229.97V
110% 50.776A 10.029A 10.053A 3.032A 714.669 90.04% 1938 49.2 46.52°C 0.971
12.139V 4.986V 3.313V 4.949V 793.724 57.99°C 229.96V
CL1 0.115A 11.925A 11.761A 0A 101.31 82.882% 1647 44.8 41.18°C 0.89
12.232V 5.048V 3.376V 5.092V 122.235 46.4°C 230.03V
CL2 0.114A 17.833A 0A 0A 91.403 81.775% 1667 45 41.09°C 0.874
12.240V 5.047V 3.392V 5.102V 111.774 45.83°C 230.03V
CL3 0.114A 0A 17.565A 0A 60.796 76.024% 1300 38.7 40.16°C 0.816
12.237V 5.083V 3.381V 5.101V 79.97 44.59°C 230.03V
CL4 53.407A 0A 0A 0A 649.793 91.581% 1943 49.3 45.32°C 0.969
12.167V 5.042V 3.342V 5.064V 709.528 54.53°C 229.97V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.213A 0.49A 0.485A 0.196A 20.012 69.317% 834 26.9 36.53°C 0.887
12.254V 5.107V 3.404V 5.115V 28.872 38.53°C 114.91V
40W 2.670A 0.686A 0.679A 0.294A 40.011 80.082% 838 27.1 37.76°C 0.947
12.250V 5.104V 3.402V 5.11V 49.964 39.9°C 114.89V
60W 4.126A 0.883A 0.874A 0.392A 60.011 83.991% 840 27.2 38.66°C 0.964
12.246V 5.101V 3.4V 5.105V 71.447 41.23°C 114.89V
80W 5.582A 1.08A 1.068A 0.49A 79.984 86.758% 842 27.2 39.18°C 0.974
12.245V 5.097V 3.399V 5.1V 92.192 42.69°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.49A 0.485A 0.196A 20.008 68.454% 831 26.8 36.93°C 0.544
12.254V 5.107V 3.404V 5.115V 29.229 39.78°C 230.1V
40W 2.668A 0.686A 0.679A 0.294A 40.006 80.212% 835 27 37.45°C 0.702
12.250V 5.104V 3.403V 5.11V 49.876 40.6°C 230.1V
60W 4.126A 0.883A 0.873A 0.392A 60.004 85.129% 842 27.2 38.55°C 0.788
12.247V 5.1V 3.4V 5.105V 70.486 42.96°C 230.1V
80W 5.581A 1.079A 1.068A 0.49A 79.969 87.629% 845 27.3 39.28°C 0.841
12.245V 5.097V 3.399V 5.1V 91.26 43.92°C 230.09V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load12.52mV11.78mV7.32mV10.90mVPass
20% Load15.47mV11.63mV7.63mV10.90mVPass
30% Load17.66mV12.09mV8.85mV10.90mVPass
40% Load19.95mV12.40mV9.51mV11.16mVPass
50% Load22.14mV12.60mV9.92mV11.36mVPass
60% Load24.63mV14.28mV9.97mV17.27mVPass
70% Load27.73mV14.79mV11.09mV10.80mVPass
80% Load31.86mV18.06mV14.90mV11.92mVPass
90% Load35.62mV18.88mV16.23mV12.33mVPass
100% Load49.50mV20.29mV17.61mV15.19mVPass
110% Load58.09mV25.97mV19.05mV16.30mVPass
Crossload124.45mV24.91mV17.47mV12.56mVPass
Crossload215.67mV13.98mV12.26mV10.80mVPass
Crossload314.50mV27.29mV16.89mV11.31mVPass
Crossload450.14mV12.62mV10.10mV14.48mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.16mV11.53mV7.68mV10.60mVPass
20% Load14.65mV12.09mV8.24mV10.75mVPass
30% Load18.06mV12.24mV8.70mV10.75mVPass
40% Load20.52mV12.75mV9.16mV10.80mVPass
50% Load22.85mV14.64mV9.46mV11.05mVPass
60% Load25.95mV13.98mV10.28mV17.93mVPass
70% Load28.19mV15.10mV11.04mV10.39mVPass
80% Load31.75mV17.24mV15.05mV11.21mVPass
90% Load38.52mV18.77mV16.73mV11.36mVPass
100% Load53.54mV20.95mV17.23mV14.16mVPass
110% Load63.58mV23.15mV18.33mV15.36mVPass
Crossload123.97mV26.20mV17.55mV12.50mVPass
Crossload215.27mV14.28mV12.20mV10.70mVPass
Crossload314.15mV15.00mV16.73mV10.95mVPass
Crossload453.02mV13.08mV9.39mV14.16mVPass

The results above are not used in the certification process

SilverStone Triton 650Rx

Top side

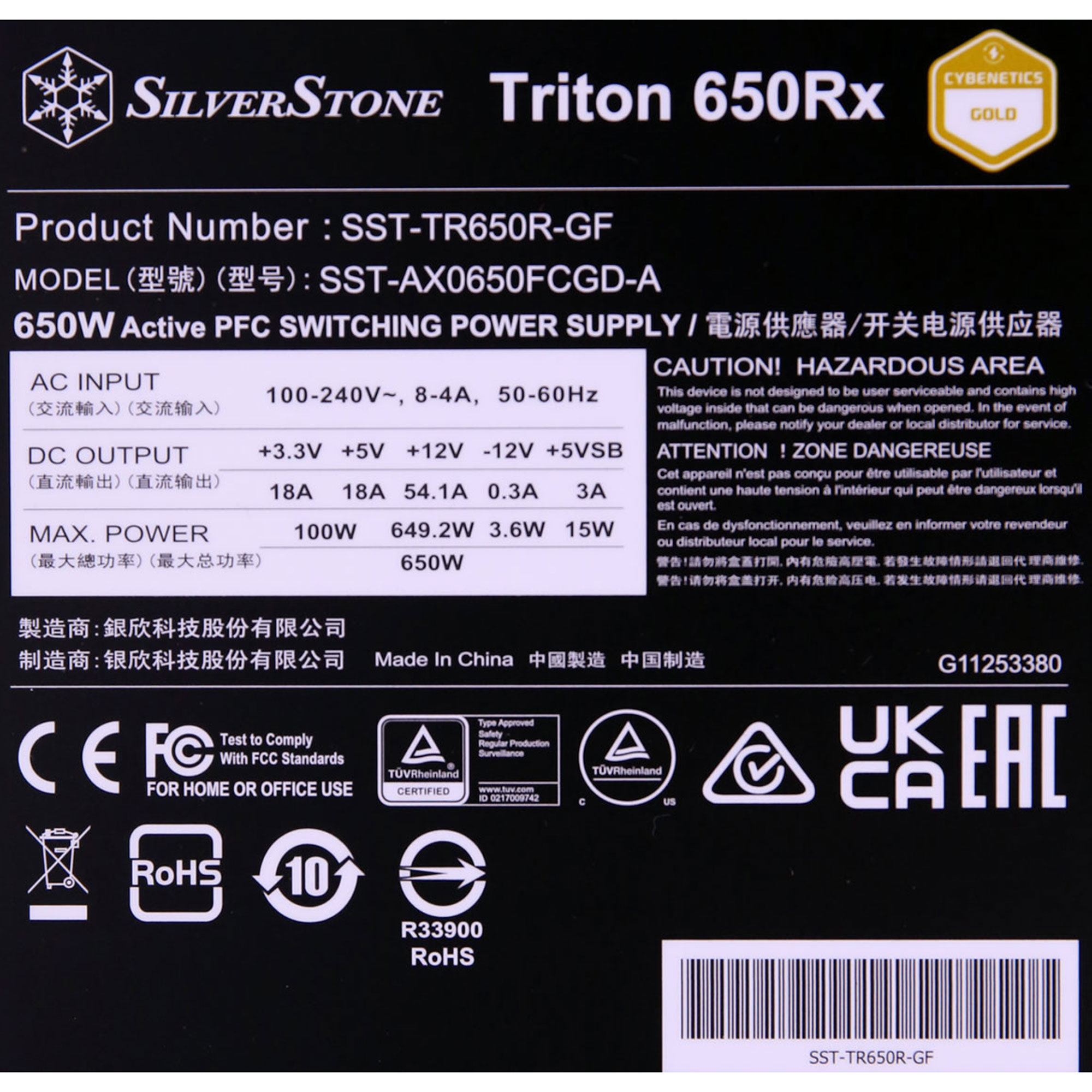

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
