Cybenetics Test - Super Flower Leadex ATX3+ 1700W

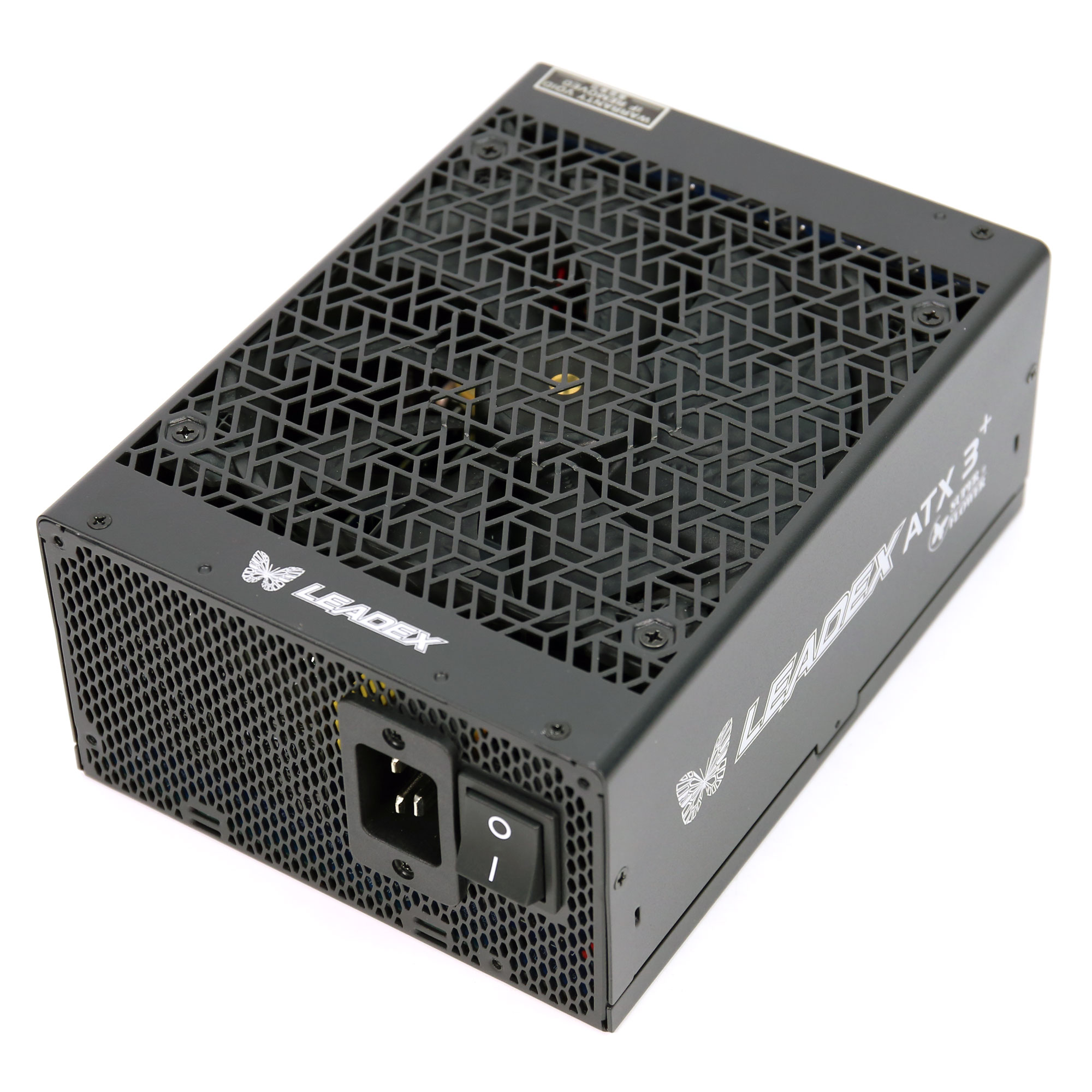

Super Flower Leadex ATX3+ 1700W

Serial NumberS2506199001

Lab IDSF17002902

Certification ID252902

Test Result Report ID: 25PS2902A
Certificate Issue Date: Jul 22, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

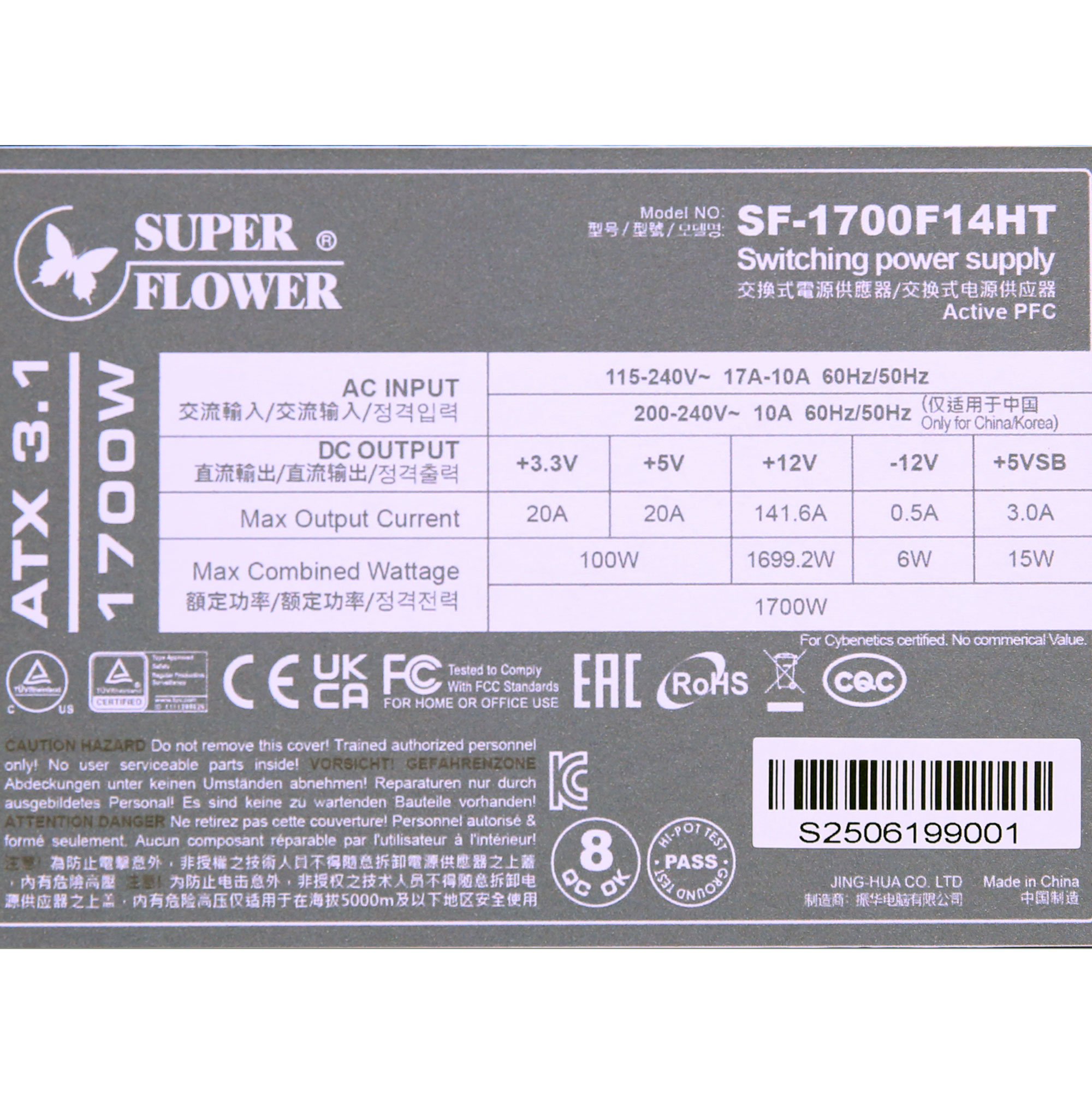

DUT Information

Brand	Super Flower
Manufacturer (OEM)	Super Flower
Series	Leadex
Model Number	SF-1700F14HT
Serial Number	S2506199001
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	115-240
Rated Current (Arms)	10-17
Rated Frequency (Hz)	50-60
Rated Power (W)	1700
Type	ATX12V
Dimensions (W x H x D)
Cooling	140mm Fluid Dynamic Bearing Fan (ZFB142512D)
Semi-Passive Operation	✓
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	141.6	3	0.5
Max. Power	Watts	100		1699.2	15	6
Total Max. Power (W)		1700

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (590mm)	1	1	16-20AWG	Yes
4+4 pin EPS12V (710mm)	2	2	16AWG	No
6+2 pin PCIe (700mm)	6	6	16AWG	No
12+4 pin PCIe (700mm) (600W)	2	2	16-26AWG	No
SATA (550mm+110mm+110mm+110mm)	4	16	18AWG	No
4-pin Molex (550mm+100mm+100mm+100mm)	1	4	18AWG	No
AC Power Cord (1680mm) - C19 coupler	1	1	16AWG	-

Parts Description

`General Data`
Manufacturer (OEM)	Super Flower
PCB Type	Double-Sided
`Primary Side`
Transient Filter	8x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor SCK 254R7 (4.7 Ohm) & Relay
Bridge Rectifier(s)	Bridgeless Design – 1x Shindengen U30K80R (800V, 2.1A @ 27°C)
APFC MOSFETs	8x Infineon FETs
APFC Boost Diode	8x Infineon IDL10G65C5 (650V, 10A @ 125°C)
Bulk Cap(s)	2x Nippon Chemi-con (450V, 560uF each or 1,120uF, 2,000h @ 105°C, KMZ) & 1x Nippon Chemi-con (450V, 470uF, 2,000h @ 105°C, KMR)
Main Switchers	4x Infineon IPB60R070CFD7 (650V, 20A @ 100°C, Rds(on): 0.070Ohm)
APFC Controller	Onsemi NCP1654 & 1x Sync Power Corp SPN5003 (For no load consumption)
Resonant Controller	MZ9W348
Topology	Primary side: APFC, Full-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	16x Infineon BSC014N04LS (40V, 145A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: 4x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm) PWM Controller(s): 1x Anpec APW7159C
Filtering Capacitors	Electrolytic: 6x Nippon Chemi-con (@105°C, W) 1x Nippon Chemi-con (4-10,000h @105°C, KY) 1x Nippon Chemi-con (4-10,000h @105°C, KYA) 2x Nippon Chemi-con (1-2,000h @105°C, KMG) 1x Rubycon (6-10,000h @105°C, ZLH) 1x Rubycon (4-10,000h @105°C, YXF) 9x CapXon (2-5,000h @105°C, KF) Polymer: 42x Nippon Chemi-con
Supervisor IC	JTC113 & LM324ADG
MCU/Fan Controller	STMicroelectronics 69425
Fan Model	ZIC ZFB142512D (140mm, 12V, 0.65A, Double Ball Bearing Fan)
`5VSB`
Rectifier	1x PFC PFR20L60CT SBR (60V, 20A)
Standby PWM Controller	29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	TITANIUM
Noise Rating	A
Average Efficiency (>1450 load combinations)	91.791%
Average Noise Output (>1450 Load Combinations)	24.72dBA
Average PF (>1450 Load Combinations)	0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.276%
Standby Power Consumption	0.0229W
12V Ripple (Full Load)	23.02mV
5V Ripple (Full Load)	18.53mV
3.3V Ripple (Full Load)	18.46mV
5VSB Ripple (Full Load)	17.07mV
12V Load Regulation	0.33%
5V Load Regulation	0.22%
3.3V Load Regulation	0.39%
5VSB Load Regulation	2.30%
Inrush Current	33.190A

Efficiency Rating	TITANIUM
Noise Rating	A
Average Efficiency (>1450 load combinations)	93.542%
Average Noise Output (>1450 Load Combinations)	23.58dBA
Average PF (>1450 Load Combinations)	0.956
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.090%
Standby Power Consumption	0.0695W
12V Ripple (Full Load)	22.85mV
5V Ripple (Full Load)	17.10mV
3.3V Ripple (Full Load)	17.28mV
5VSB Ripple (Full Load)	15.17mV
12V Load Regulation	0.31%
5V Load Regulation	0.26%
3.3V Load Regulation	0.42%
5VSB Load Regulation	2.25%
Inrush Current	66.380A
12V Transient Response (200%)	11.74V
5V Transient Response (200%)	4.981V
3.3V Transient Response (200%)	3.270V
5VSB Transient Response (200%)	4.994V
Hold-Up Time & Power Ok Signal	25.90ms
AC Loss to PWR_OK Hold Up Time	19.70ms
PWR_OK Inactive to DC Loss Delay	6.20ms
PSU Timings: T1 (20% / 100%)	103.0ms	103.0ms
PSU Timings: T3 (20% / 100%)	118.0ms	118.0ms
12V OCP (34.7°C / 44.0°C)	193.20A (136.44%), 12.021V	192.60A (136.02%), 12.021V
5V OCP (34.7°C / 44.0°C)	28.4A (142.00%), 5.024V	28.5A (142.50%), 5.024V
3.3V OCP (34.7°C / 44.0°C)	26.4A (132.00%), 3.324V	27.5A (137.50%), 3.322V
5VSB OCP (34.7°C / 44.0°C)	4.9A (163.33%), 4.971V	4.8A (160.00%), 4.988V
OPP (27.72°C / 42.37°C)	133.22%	133.22%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	25.9
AC Loss to PWR_OK Hold Up Time (ms)	19.7
PWR_OK Inactive to DC Loss Delay (ms)	6.2

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.07 V	115.03 V	113.85 V	115.14 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.417	1.415	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.15 %	0.11 %	N/A	0.21 %	2.00 %	PASS
Real Power:	0.023 W	0.010 W	N/A	0.038 W	N/A	N/A
Apparent Power:	7.495 W	7.371 W	N/A	7.630 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.03 V	230.93 V	227.70 V	231.12 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.418	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.27 %	2.00 %	PASS
Real Power:	0.069 W	0.039 W	N/A	0.097 W	N/A	N/A
Apparent Power:	24.955 W	24.710 W	N/A	25.189 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

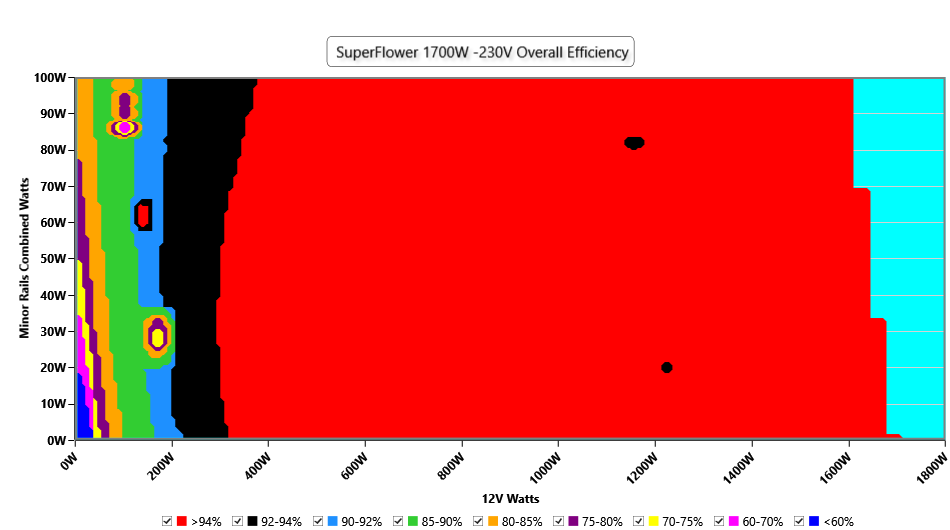

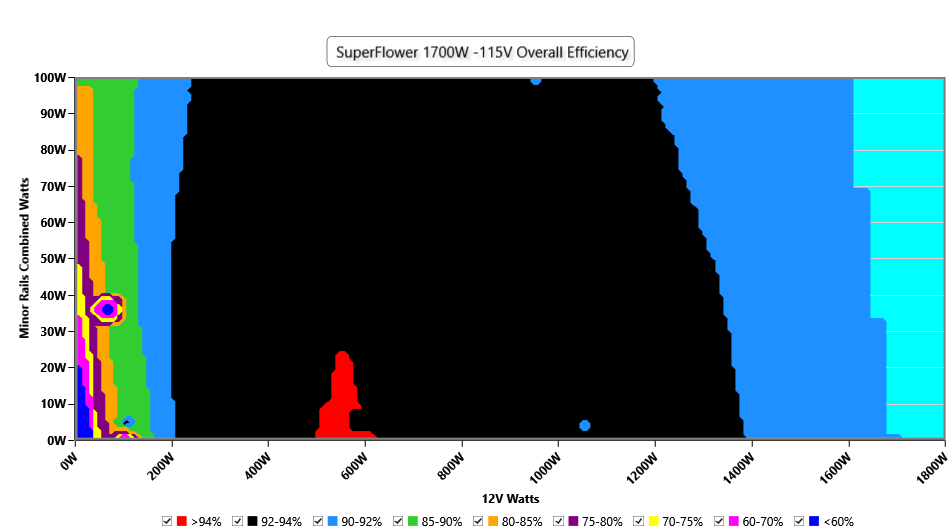

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

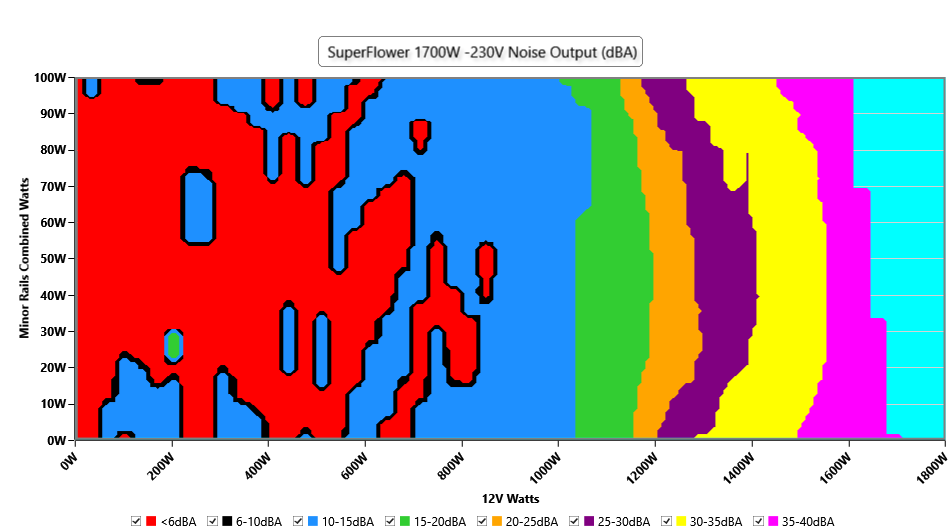

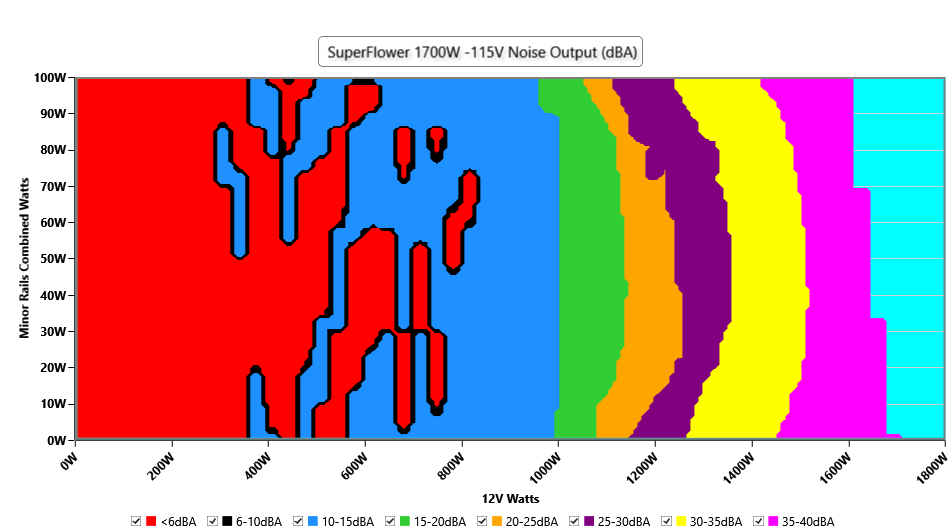

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

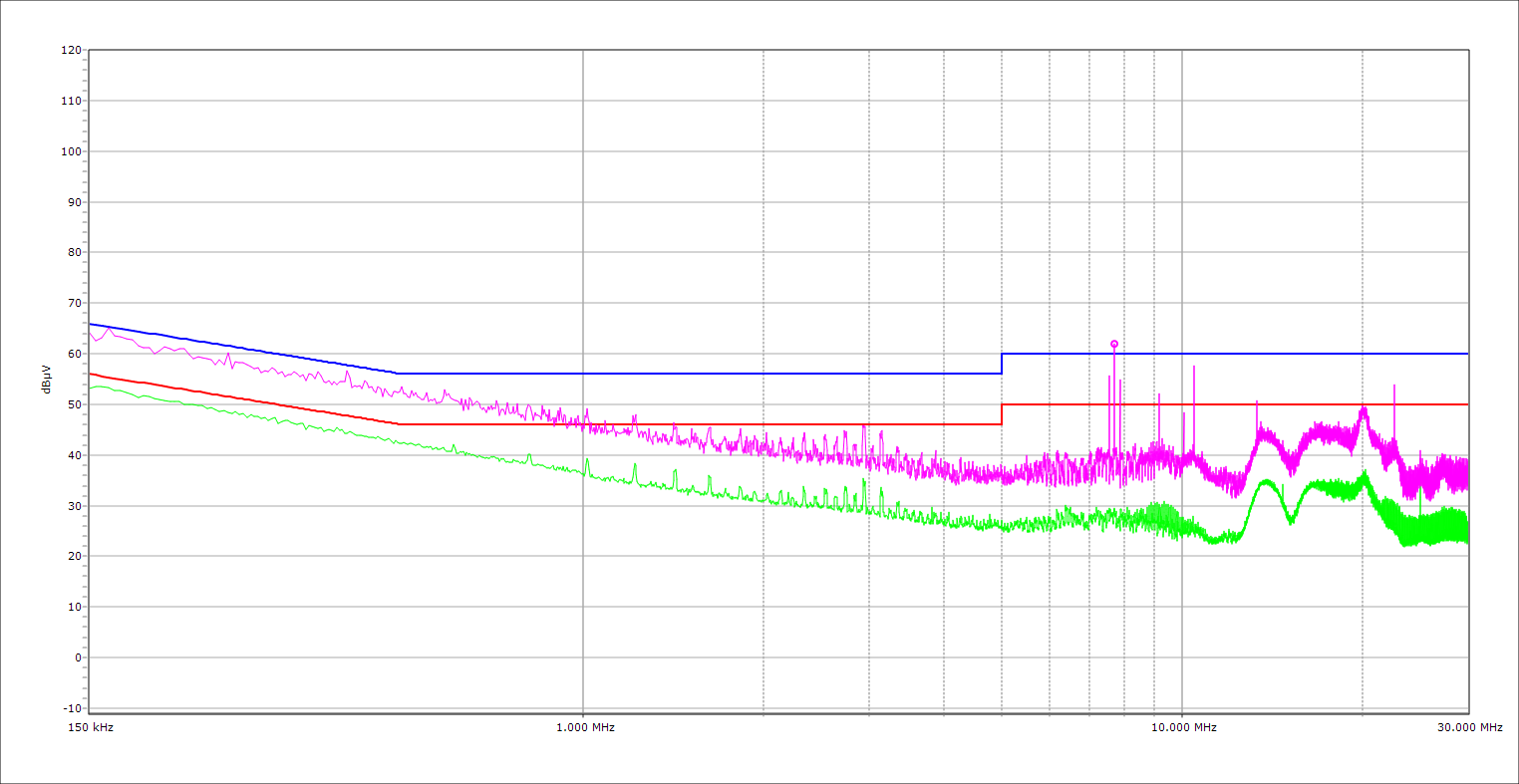

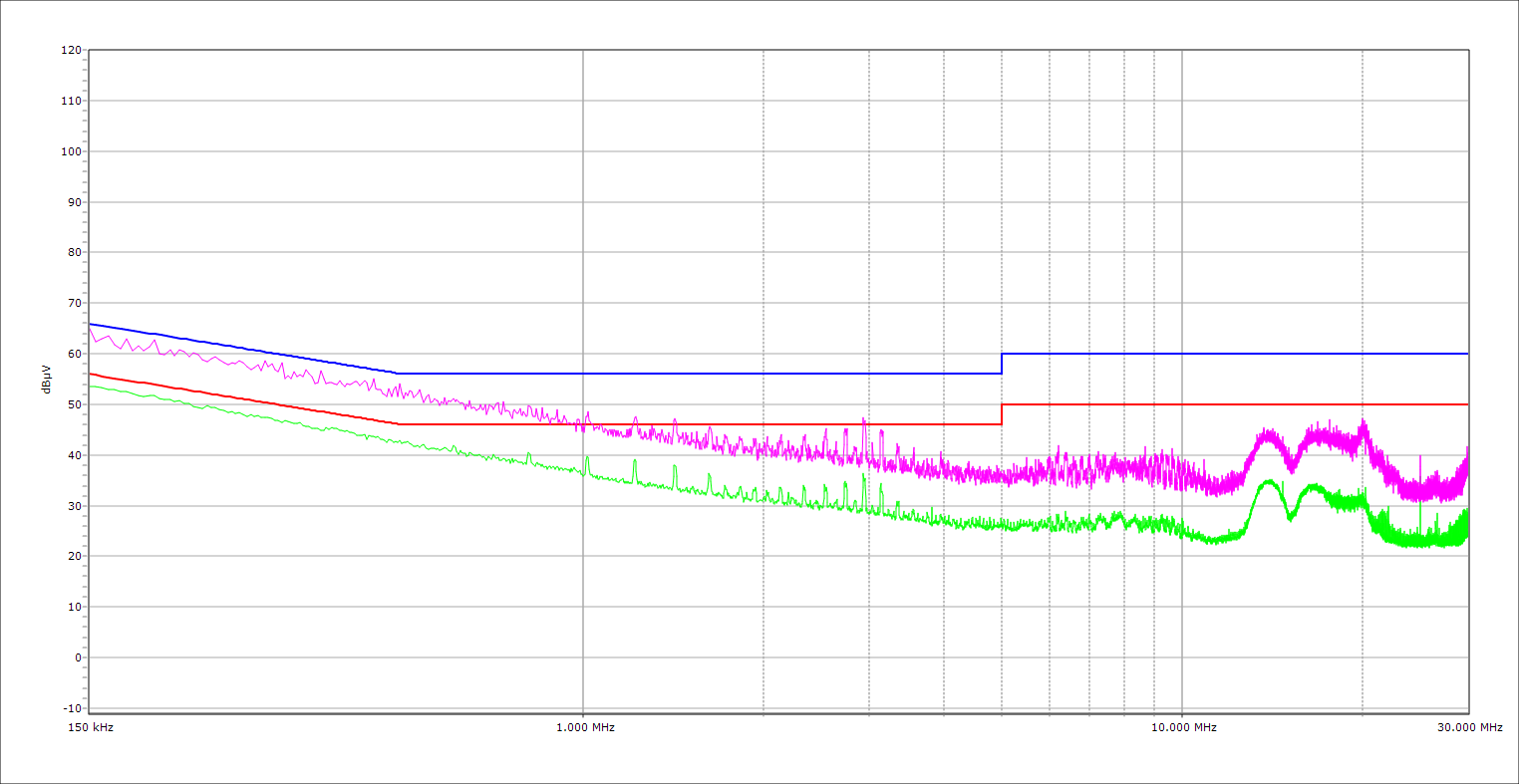

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

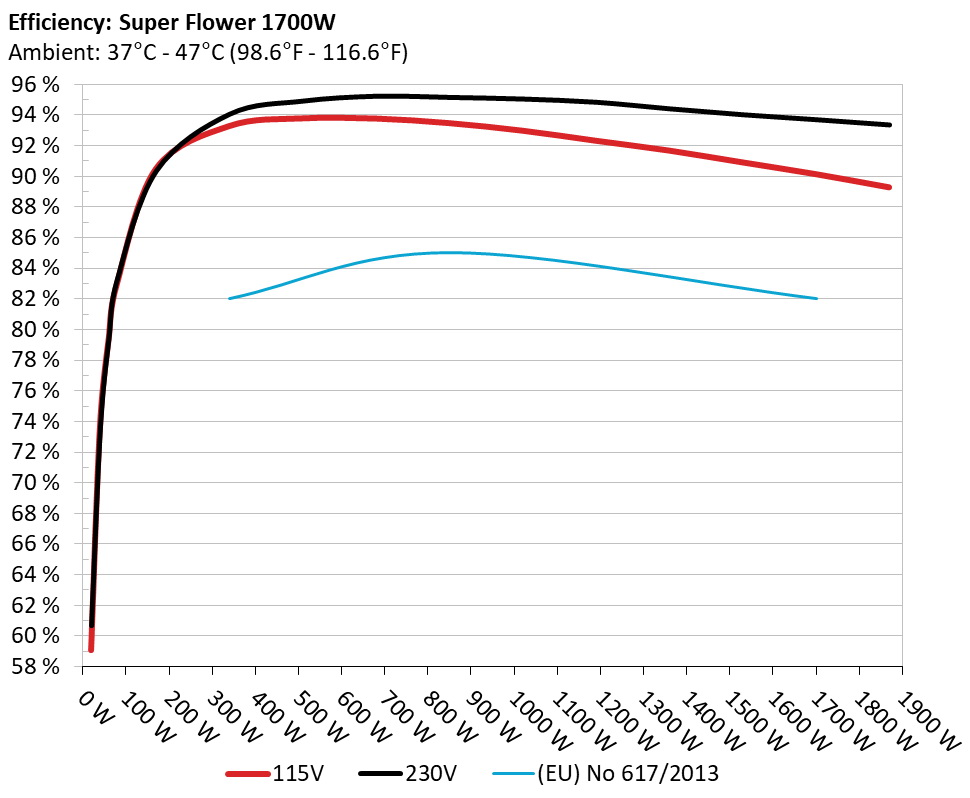

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

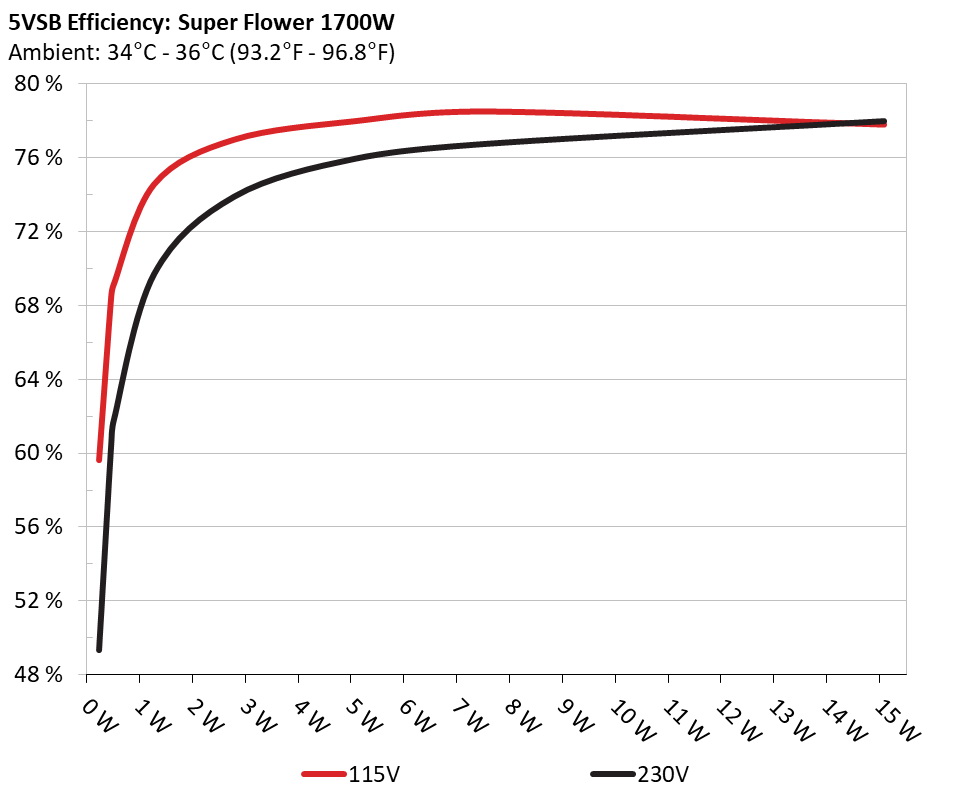

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229W	59.63%	0.023
1	5.084V	0.384W	59.63%	114.83V
2	0.09A	0.458W	68.464%	0.039
2	5.084V	0.669W	68.464%	114.83V
3	0.55A	2.792W	76.982%	0.191
3	5.075V	3.627W	76.982%	114.83V
4	1A	5.068W	77.978%	0.293
4	5.068V	6.499W	77.978%	114.83V
5	1.5A	7.589W	78.497%	0.361
5	5.058V	9.667W	78.497%	114.82V
6	3A	15.088W	77.791%	0.463
6	5.029V	19.396W	77.791%	114.83V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229W	49.329%	0.008
1	5.084V	0.466W	49.329%	229.85V
2	0.09A	0.458W	60.458%	0.013
2	5.083V	0.758W	60.458%	229.84V
3	0.55A	2.791W	73.913%	0.065
3	5.074V	3.776W	73.913%	229.83V
4	1A	5.066W	75.955%	0.111
4	5.065V	6.67W	75.955%	229.82V
5	1.5A	7.583W	76.769%	0.158
5	5.054V	9.877W	76.769%	229.82V
6	3.001A	15.081W	77.995%	0.264
6	5.026V	19.337W	77.995%	229.82V

Protection Features

OCP (Normal @ 34.7°C)	12V: 193.20A (136.44%), 12.021V 5V: 28.4A (142.00%), 5.024V 3.3V: 26.4A (132.00%), 3.324V 5VSB: 4.9A (163.33%), 4.971V
OCP (Hot @ 44.0°C)	12V: 192.60A (136.02%), 12.021V 5V: 28.5A (142.50%), 5.024V 3.3V: 27.5A (137.50%), 3.322V 5VSB: 4.8A (160.00%), 4.988V
OPP (Normal @ 27.7°C)	2264.74W (133.22%)
OPP (Hot @ 42.4°C)	2264.72W (133.22%)
OTP	✓ (95°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	12.301A	1.988A	1.987A	0.989A	170.027	90.457%	0	<6.0	52.77°C	0.989
10%	12.066V	5.031V	3.323V	5.058V	187.965	90.457%	0	<6.0	40.22°C	114.78V
20%	25.634A	2.982A	2.981A	1.189A	340.023	93.254%	0	<6.0	51.6°C	0.981
20%	12.059V	5.03V	3.321V	5.049V	364.622	93.254%	0	<6.0	40.84°C	114.73V
30%	39.300A	3.48A	3.479A	1.389A	509.715	93.754%	514	13.1	41.24°C	0.989
30%	12.052V	5.03V	3.321V	5.039V	543.675	93.754%	514	13.1	46.14°C	114.67V
40%	53.003A	3.979A	3.978A	1.591A	679.685	93.743%	511	13.1	41.79°C	0.994
40%	12.046V	5.028V	3.319V	5.03V	725.051	93.743%	511	13.1	49.1°C	114.61V
50%	66.391A	4.975A	4.975A	1.793A	849.85	93.445%	804	26	42.09°C	0.997
50%	12.040V	5.026V	3.317V	5.02V	909.467	93.445%	804	26	53.11°C	114.56V
60%	79.750A	5.972A	5.973A	1.997A	1019.933	92.953%	1116	34.7	42.71°C	0.998
60%	12.039V	5.025V	3.315V	5.009V	1097.254	92.953%	1116	34.7	55.85°C	114.48V
70%	93.151A	6.97A	6.972A	2.201A	1190.089	92.297%	1376	41.7	43.49°C	0.998
70%	12.034V	5.023V	3.314V	5V	1289.416	92.297%	1376	41.7	57.28°C	114.42V
80%	106.524A	7.966A	7.971A	2.305A	1359.658	91.657%	1587	45.8	43.8°C	0.999
80%	12.032V	5.021V	3.312V	4.99V	1483.426	91.657%	1587	45.8	58.5°C	114.36V
90%	120.303A	8.466A	8.457A	2.409A	1529.845	90.889%	1770	47.7	44.47°C	0.999
90%	12.031V	5.02V	3.311V	4.982V	1683.2	90.889%	1770	47.7	60.23°C	114.28V
100%	133.817A	8.965A	8.973A	3.022A	1699.461	90.122%	1995	50.9	45.43°C	0.999
100%	12.029V	5.02V	3.31V	4.965V	1885.724	90.122%	1995	50.9	64.6°C	114.22V
110%	147.275A	9.962A	10.062A	3.026A	1869.633	89.264%	2168	51.7	46.98°C	0.999
110%	12.027V	5.019V	3.309V	4.958V	2094.501	89.264%	2168	51.7	68.9°C	114.14V
CL1	0.118A	11.982A	11.957A	0A	101.323	79.764%	1119	34.7	42.63°C	0.976
CL1	12.075V	5.024V	3.32V	5.077V	126.555	79.764%	1119	34.7	54.85°C	114.78V
CL2	0.117A	19.886A	0A	0A	101.371	79.881%	907	29.9	42.67°C	0.975
CL2	12.074V	5.027V	3.314V	5.078V	125.48	79.881%	907	29.9	51.7°C	114.8V
CL3	0.116A	0A	19.814A	0A	67.394	73.827%	660	19.7	42.17°C	0.958
CL3	12.072V	5.032V	3.331V	5.078V	91.289	73.827%	660	19.7	50.25°C	114.8V
CL4	141.428A	0A	0A	0A	1699.979	90.783%	1802	48.1	45.1°C	0.999
CL4	12.020V	5.031V	3.316V	5.026V	1872.601	90.783%	1802	48.1	61.56°C	114.23V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	12.300A	1.987A	1.986A	0.988A	170.004	90.358%	0	<6.0	44.56°C	0.864
10%	12.066V	5.032V	3.323V	5.059V	188.147	90.358%	0	<6.0	40.26°C	229.79V
20%	25.624A	2.981A	2.98A	1.188A	339.976	94.072%	512	13.1	40.61°C	0.932
20%	12.062V	5.031V	3.322V	5.05V	361.4	94.072%	512	13.1	4.84°C	229.77V
30%	39.282A	3.479A	3.478A	1.389A	509.596	94.929%	512	13.1	41.12°C	0.956
30%	12.055V	5.03V	3.321V	5.041V	536.818	94.929%	512	13.1	47.25°C	229.74V
40%	52.984A	3.977A	3.977A	1.59A	679.576	95.247%	513	13.1	41.67°C	0.973
40%	12.049V	5.029V	3.32V	5.031V	713.487	95.247%	513	13.1	47.44°C	229.72V
50%	66.369A	4.973A	4.973A	1.793A	849.758	95.169%	727	23.6	42.59°C	0.98
50%	12.042V	5.028V	3.318V	5.022V	892.896	95.169%	727	23.6	47.04°C	229.69V
60%	79.723A	5.97A	5.971A	1.996A	1019.83	95.064%	951	31.8	42.52°C	0.986
60%	12.042V	5.026V	3.316V	5.011V	1072.781	95.064%	951	31.8	46.37°C	229.66V
70%	93.084A	6.967A	6.97A	2.199A	1189.996	94.855%	1160	36.6	43.25°C	0.987
70%	12.042V	5.024V	3.315V	5.002V	1254.532	94.855%	1160	36.6	45.45°C	229.63V
80%	106.491A	7.963A	7.966A	2.304A	1359.595	94.427%	1542	44.6	43.67°C	0.988
80%	12.036V	5.023V	3.314V	4.992V	1439.848	94.427%	1542	44.6	46.2°C	229.61V
90%	120.264A	8.462A	8.452A	2.408A	1529.805	94.04%	1756	46.8	44.68°C	0.989
90%	12.034V	5.022V	3.313V	4.985V	1626.751	94.04%	1756	46.8	46.37°C	229.57V
100%	133.770A	8.961A	8.968A	3.02A	1699.435	93.717%	1897	49.7	45.04°C	0.99
100%	12.034V	5.021V	3.311V	4.967V	1813.378	93.717%	1897	49.7	46.96°C	229.54V
110%	147.221A	9.959A	10.059A	3.024A	1869.621	93.373%	2045	51.2	45.65°C	0.99
110%	12.031V	5.02V	3.31V	4.961V	2002.316	93.373%	2045	51.2	47.59°C	229.52V
CL1	0.117A	11.982A	11.958A	0A	101.308	81.474%	909	29.9	42.78°C	0.815
CL1	12.072V	5.024V	3.319V	5.078V	124.34	81.474%	909	29.9	47.79°C	229.81V
CL2	0.116A	19.882A	0A	0A	101.348	80.492%	655	19.7	42.65°C	0.816
CL2	12.072V	5.027V	3.313V	5.079V	125.902	80.492%	655	19.7	47°C	229.81V
CL3	0.115A	0A	19.809A	0A	67.387	74.395%	510	12.8	41.78°C	0.758
CL3	12.072V	5.033V	3.332V	5.079V	90.581	74.395%	510	12.8	46.16°C	229.81V
CL4	141.380A	0A	0A	0A	1699.955	94.252%	1726	46.5	44.7°C	0.99
CL4	12.024V	5.033V	3.317V	5.028V	1803.634	94.252%	1726	46.5	45.91°C	229.55V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.497A	0.497A	0.197A	20.002	59.097%	0	<6.0	44.9°C	0.84
20W	12.069V	5.03V	3.322V	5.079V	33.845	59.097%	0	<6.0	36.02°C	114.84V
40W	2.709A	0.696A	0.695A	0.296A	40.005	73.452%	0	<6.0	48.68°C	0.916
40W	12.068V	5.03V	3.322V	5.077V	54.463	73.452%	0	<6.0	37.97°C	114.82V
60W	4.188A	0.895A	0.894A	0.394A	60.005	79.236%	0	<6.0	52.19°C	0.947
60W	12.067V	5.031V	3.322V	5.074V	75.73	79.236%	0	<6.0	38.09°C	114.81V
80W	5.662A	1.093A	1.093A	0.493A	79.958	82.995%	0	<6.0	48.48°C	0.962
80W	12.067V	5.031V	3.322V	5.071V	96.339	82.995%	0	<6.0	39.54°C	114.8V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.497A	0.496A	0.197A	20.002	60.65%	0	<6.0	40.78°C	0.444
20W	12.071V	5.034V	3.325V	5.079V	32.983	60.65%	0	<6.0	36.24°C	229.82V
40W	2.708A	0.695A	0.695A	0.295A	40.002	73.367%	0	<6.0	46.71°C	0.625
40W	12.070V	5.033V	3.324V	5.077V	54.522	73.367%	0	<6.0	37.74°C	229.82V
60W	4.187A	0.894A	0.893A	0.394A	60.002	79.379%	0	<6.0	50.65°C	0.717
60W	12.069V	5.033V	3.324V	5.074V	75.588	79.379%	0	<6.0	38.12°C	229.82V
80W	5.661A	1.093A	1.092A	0.493A	79.946	83.287%	0	<6.0	49.38°C	0.769
80W	12.068V	5.033V	3.324V	5.071V	95.985	83.287%	0	<6.0	39.35°C	229.83V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	18.97mV	16.01mV	16.78mV	11.70mV	Pass
20% Load	21.27mV	17.29mV	17.08mV	11.80mV	Pass
30% Load	22.91mV	16.83mV	17.39mV	11.75mV	Pass
40% Load	23.48mV	18.63mV	17.39mV	12.31mV	Pass
50% Load	23.43mV	20.22mV	22.16mV	13.14mV	Pass
60% Load	22.76mV	21.25mV	25.39mV	17.39mV	Pass
70% Load	23.83mV	20.83mV	21.91mV	13.03mV	Pass
80% Load	23.27mV	23.51mV	28.47mV	13.14mV	Pass
90% Load	23.32mV	21.86mV	27.45mV	20.32mV	Pass
100% Load	23.02mV	18.53mV	18.46mV	17.07mV	Pass
110% Load	23.47mV	16.94mV	17.43mV	16.77mV	Pass
Crossload1	32.54mV	16.59mV	19.37mV	26.58mV	Pass
Crossload2	45.52mV	22.22mV	18.93mV	28.01mV	Pass
Crossload3	19.03mV	18.58mV	19.39mV	22.94mV	Pass
Crossload4	23.26mV	18.37mV	17.21mV	18.43mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	19.08mV	16.68mV	17.13mV	11.65mV	Pass
20% Load	20.97mV	16.27mV	17.55mV	12.31mV	Pass
30% Load	24.70mV	16.57mV	16.93mV	11.65mV	Pass
40% Load	23.99mV	17.09mV	16.78mV	11.70mV	Pass
50% Load	22.76mV	19.20mV	21.55mV	13.96mV	Pass
60% Load	23.94mV	20.07mV	23.85mV	16.26mV	Pass
70% Load	22.56mV	18.58mV	17.08mV	12.21mV	Pass
80% Load	23.47mV	22.32mV	27.45mV	12.67mV	Pass
90% Load	31.76mV	23.30mV	34.12mV	19.34mV	Pass
100% Load	22.85mV	17.10mV	17.28mV	15.17mV	Pass
110% Load	23.14mV	17.72mV	18.92mV	15.81mV	Pass
Crossload1	17.56mV	15.49mV	17.50mV	20.82mV	Pass
Crossload2	19.28mV	20.58mV	17.70mV	21.76mV	Pass
Crossload3	18.92mV	18.27mV	20.98mV	22.89mV	Pass
Crossload4	22.43mV	15.95mV	15.46mV	17.85mV	Pass

The results above are not used in the certification process

Super Flower Leadex ATX3+ 1700W

Top side

Power specifications label
