CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

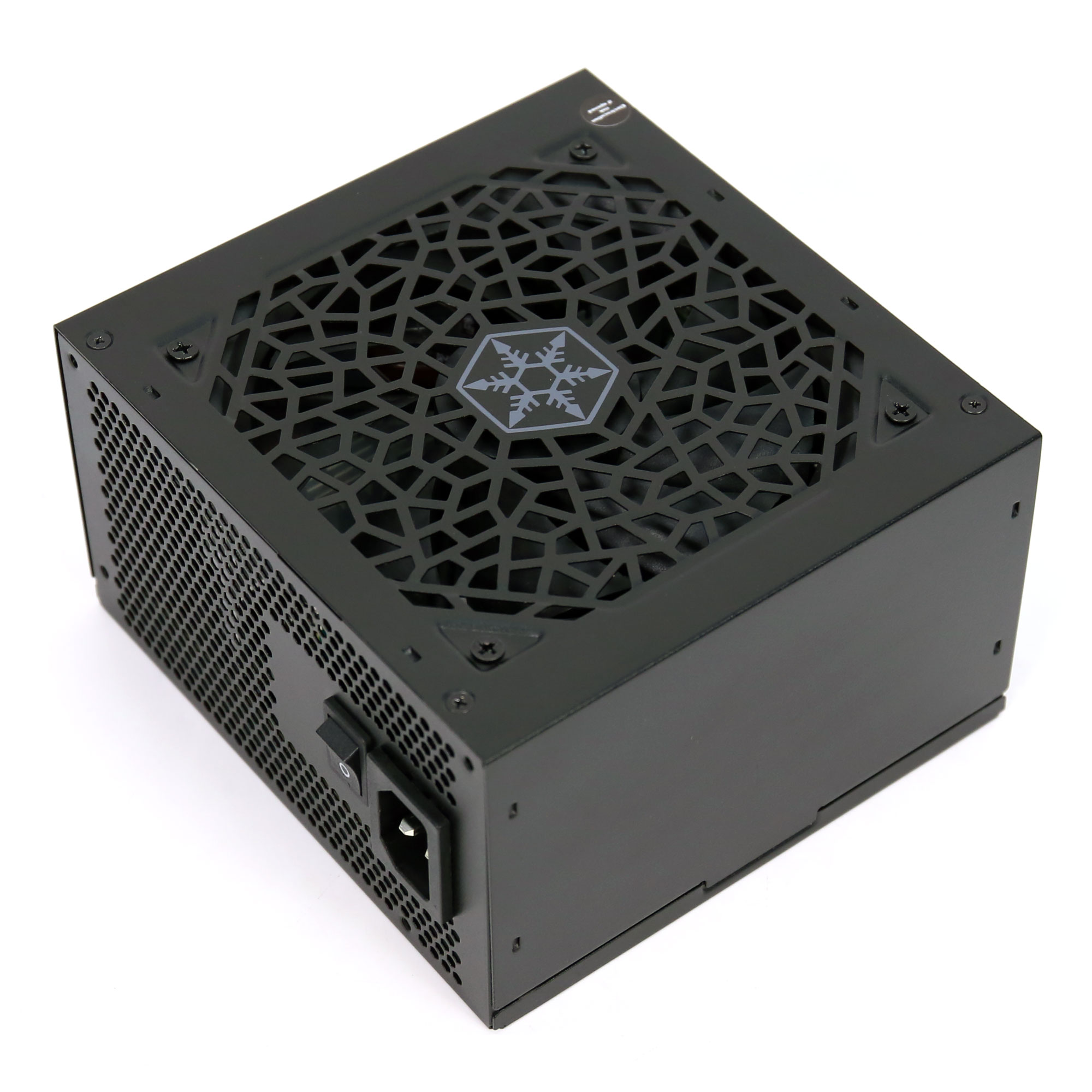

SilverStone Triton 750Rz
Serial Number-
Lab IDSL75002910
Certification ID252910
  • Test Result Report ID: 25PS2910A
  • Certificate Issue Date: Aug 4, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Andyson
SeriesTriton Rz
Model NumberSST-AX0750FCGD-7QH
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)4.5-9
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (PY-1225M12S)
Semi-Passive Operation✗
Cable DesignFully Modular

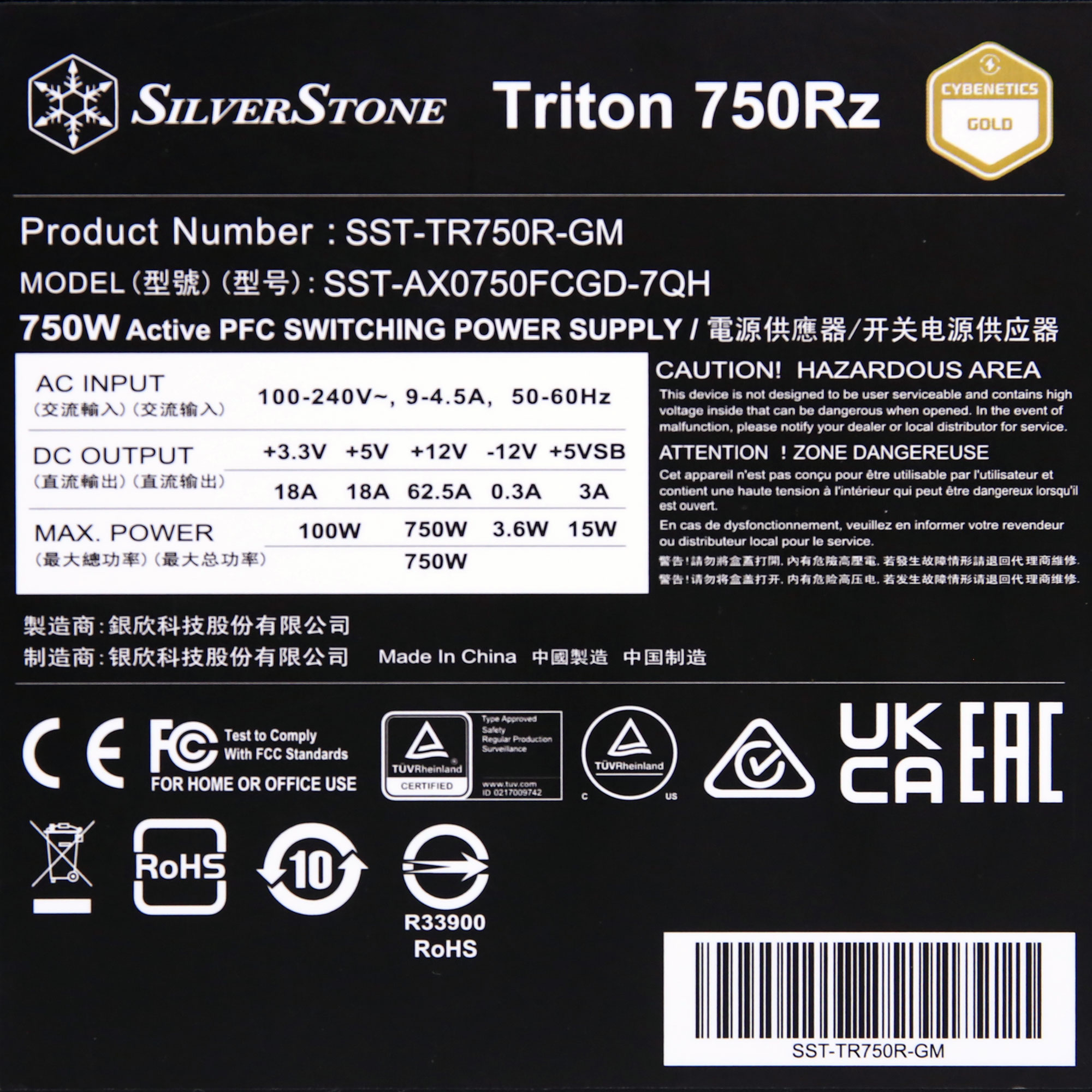

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181862.530.3
Watts100750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (600mm) 1 1 18AWG No
4+4 pin ATX12V (700mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 3 3 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (515mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (505mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG No
AC Power Cord (1350mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM)

Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK 056 (5 ohm) & Relay
Bridge Rectifier(s)
2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETs
2x PingWei PWE180N65SFMF (650V, 13A @ 100°C, Rds(on): 180mOhm)
APFC Boost Diode
1x Global Power G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s)
1x Nippon Chemi-con (400V, 470uF, 2,000h @ 105°C, KMW)
Main Switchers
2x SI24N50F
APFC Controller
Champion CM6500UNX & CM03AX (Remove Phantom Power)
Resonant Controller
Champion CM6901T6X
Topology
Primary side: APFC, Half-Bridge & LLC Resonant converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 4x WayOn WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm)
PWM Controller(s): 2x Anpec APW7164
Filtering Capacitors

Electrolytic:
1x Nippon Chemi-con (4-10,000h @105°C, KY)
1x Nichicon (6,000h @105°C, HV(M))
5x Rubycon (6-10,000h @105°C, ZLH)
2x Rubycon (4-10,000h @105°C, YXF)
2x Rubycon (4-10,000h @105°C, YXJ)
4x CS (2,000h @ 105°C WR)
Polymer:
19x Polycap, 2x Teapo
Supervisor IC Esthome EST.7630FS
Fan Model Poweryear PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan).
5VSB
Rectifier
1x Chongqing Pingwei PS1045L SBR (45V, 10A) & Chongqing Pingwei US2MG
Standby PWM Controller
Esthome EST.3026M

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)88.711%
Average Noise Output (>1450 Load Combinations)39.42dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load63.622%
Standby Power Consumption0.0754W
12V Ripple (Full Load)39.72mV
5V Ripple (Full Load)11.18mV
3.3V Ripple (Full Load)11.64mV
5VSB Ripple (Full Load)18.97mV
12V Load Regulation0.46%
5V Load Regulation1.86%
3.3V Load Regulation2.42%
5VSB Load Regulation4.85%
Inrush Current31.260A
Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)90.761%
Average Noise Output (>1450 Load Combinations)39.48dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load64.035%
Standby Power Consumption0.1032W
12V Ripple (Full Load)44.67mV
5V Ripple (Full Load)12.22mV
3.3V Ripple (Full Load)10.92mV
5VSB Ripple (Full Load)15.49mV
12V Load Regulation0.49%
5V Load Regulation1.90%
3.3V Load Regulation2.48%
5VSB Load Regulation4.83%
Inrush Current65.620A
12V Transient Response (200%)11.63V
5V Transient Response (200%)4.872V
3.3V Transient Response (200%)3.241V
5VSB Transient Response (200%)4.954V
Hold-Up Time & Power Ok Signal15.90ms
AC Loss to PWR_OK Hold Up Time14.30ms
PWR_OK Inactive to DC Loss Delay1.60ms
PSU Timings: T1 (20% / 100%)56.0ms53.0ms
PSU Timings: T3 (20% / 100%)115.0ms114.0ms
12V OCP (28.2°C / 45.0°C)89.80A (143.68%), 12.134V77.62A (124.19%), 12.162V
5V OCP (28.2°C / 45.0°C)23A (127.78%), 4.983V22.6A (125.56%), 4.979V
3.3V OCP (28.2°C / 45.0°C)23.3A (129.44%), 3.357V23.4A (130.00%), 3.356V
5VSB OCP (28.2°C / 45.0°C)4.4A (146.67%), 4.89V4.2A (140.00%), 4.894V
OPP (29.47°C / 45.27°C)143.66%119.98%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15.9
AC Loss to PWR_OK Hold Up Time (ms)14.3
PWR_OK Inactive to DC Loss Delay (ms)1.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.13 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.075 W -0.007 W N/A 0.102 W N/A N/A
Apparent Power: 8.666 W 8.005 W N/A 9.389 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.05 V 230.94 V 227.70 V 231.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.25 % 2.00 % PASS
Real Power: 0.103 W 0.065 W N/A 0.144 W N/A N/A
Apparent Power: 27.216 W 26.323 W N/A 28.135 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

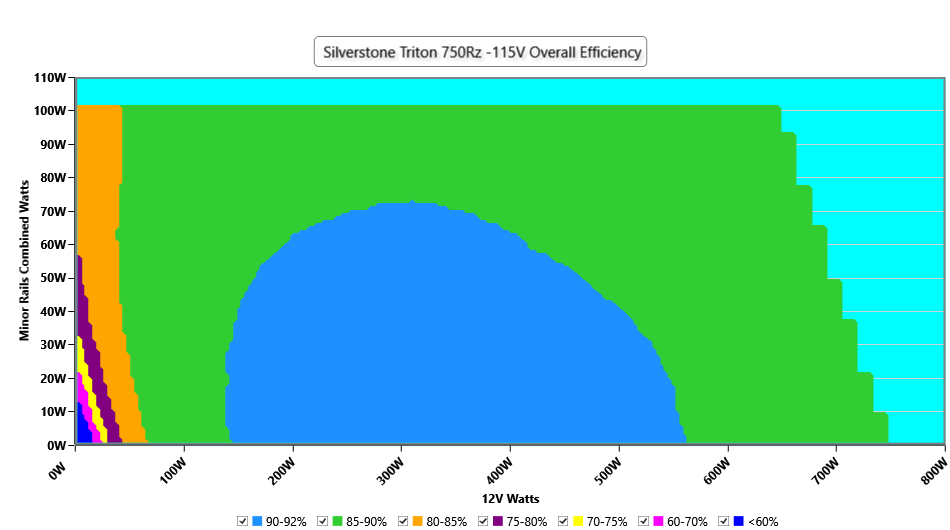

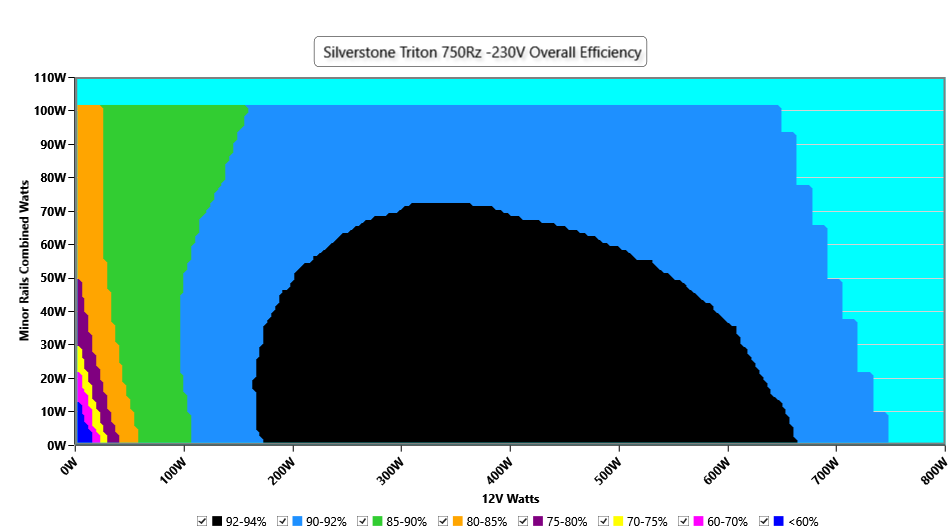

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

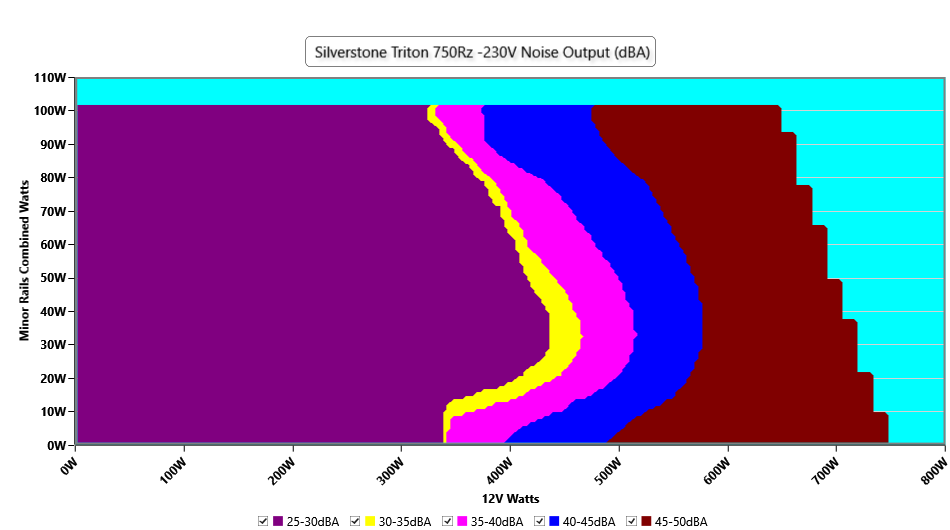

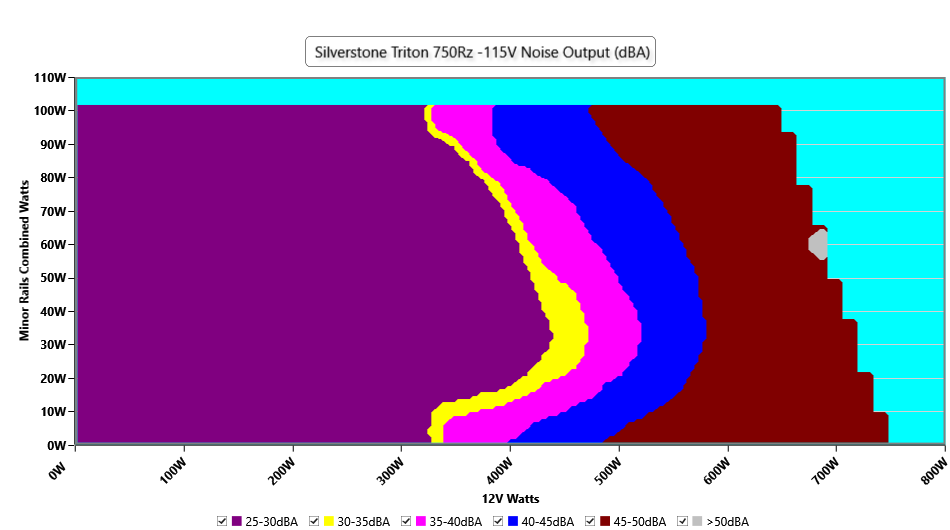

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

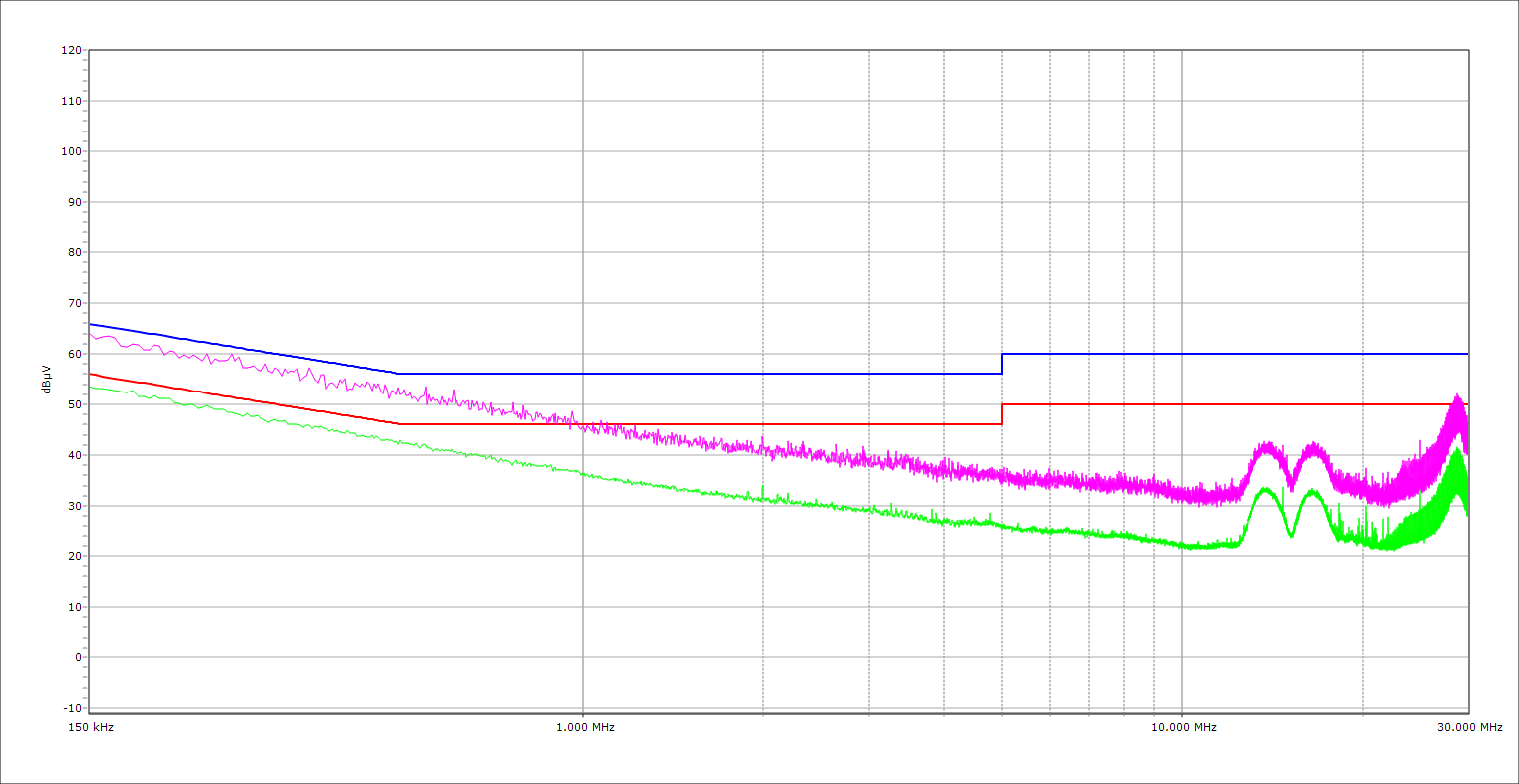

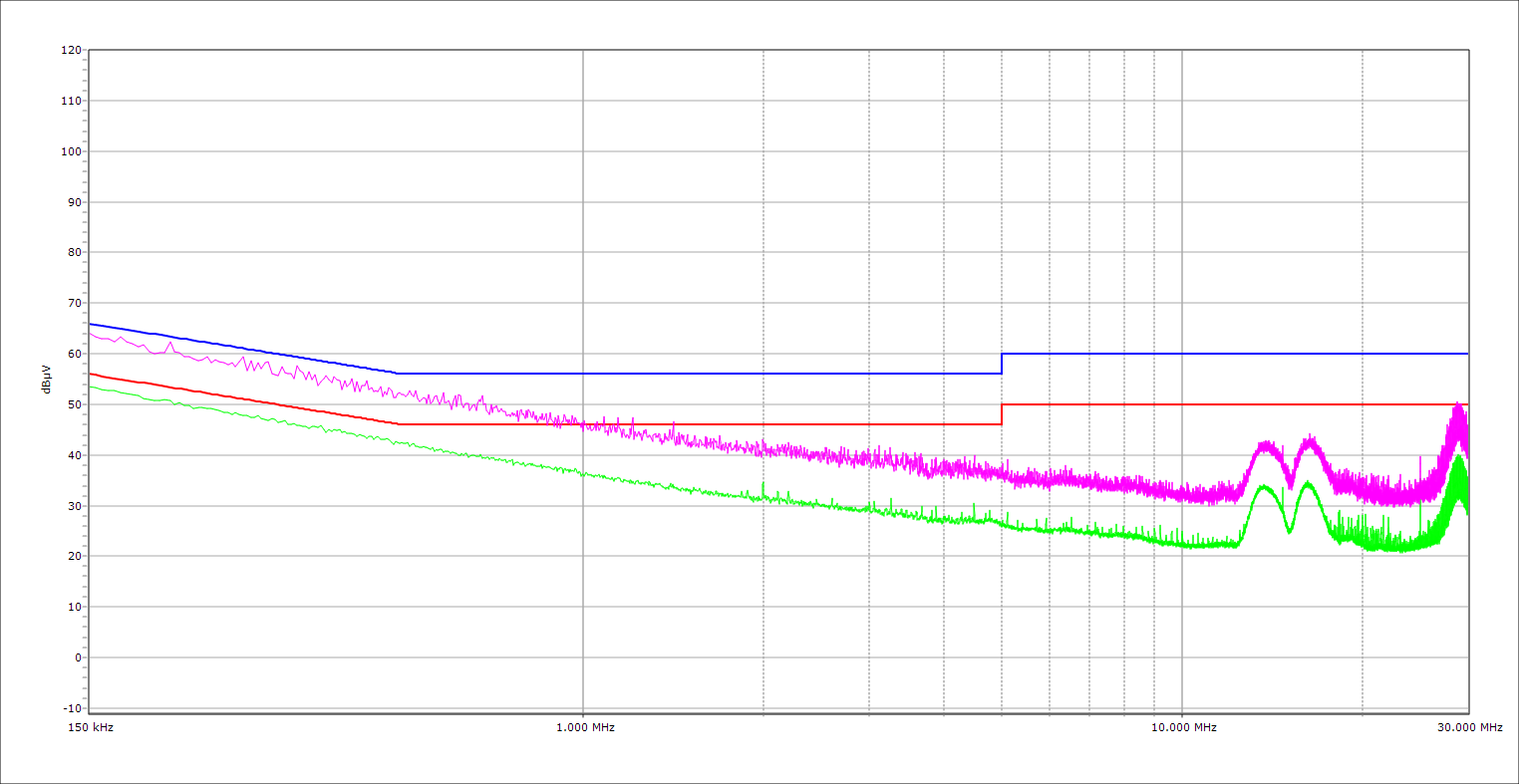

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

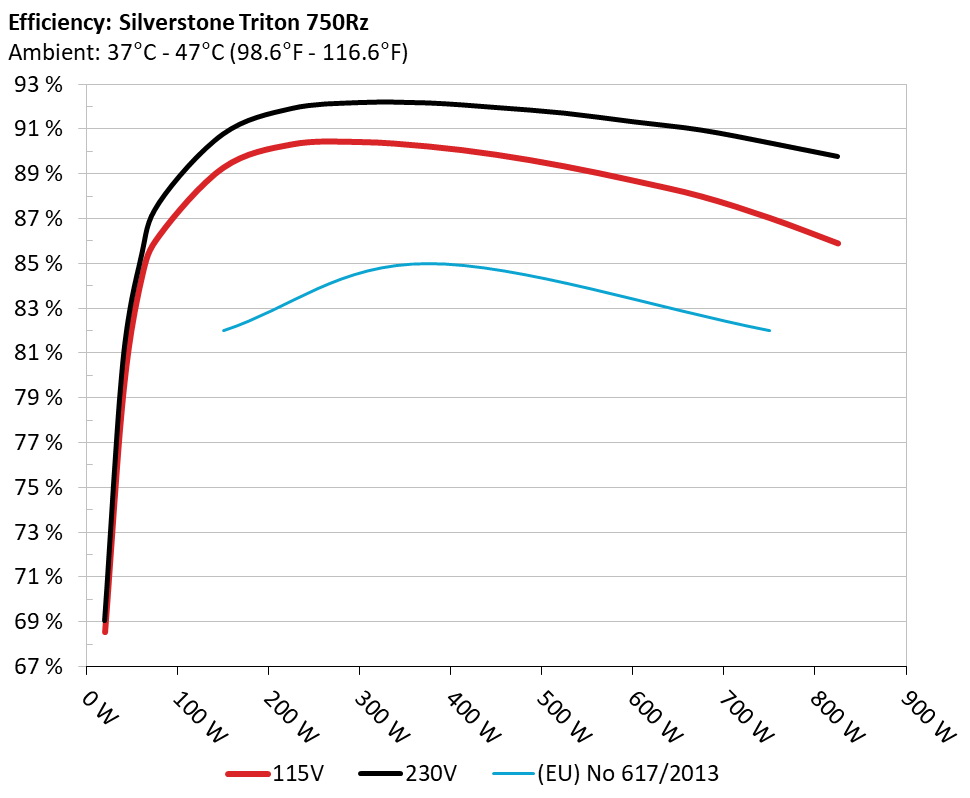

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

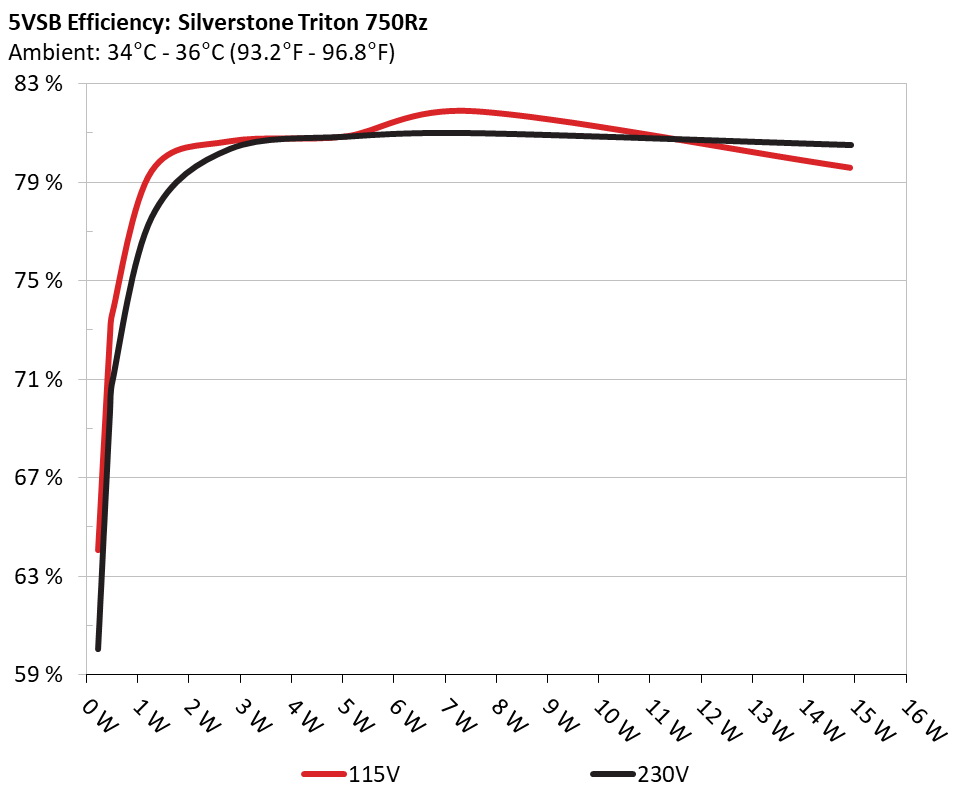

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 64.069% 0.047
5.115V 0.359W 114.96V
2 0.09A 0.46W 72.73% 0.082
5.114V 0.633W 114.96V
3 0.55A 2.802W 80.678% 0.305
5.093V 3.473W 114.95V
4 1A 5.072W 80.877% 0.384
5.071V 6.271W 114.95V
5 1.5A 7.572W 81.898% 0.427
5.046V 9.245W 114.95V
6 3.001A 14.912W 79.601% 0.472
4.97V 18.733W 114.94V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 60.027% 0.015
5.116V 0.384W 230.05V
2 0.09A 0.46W 69.562% 0.026
5.114V 0.662W 230.05V
3 0.55A 2.802W 80.351% 0.129
5.093V 3.489W 230.05V
4 1A 5.072W 80.851% 0.207
5.07V 6.274W 230.06V
5 1.5A 7.572W 80.993% 0.268
5.047V 9.35W 230.05V
6 3.001A 14.926W 80.512% 0.361
4.975V 18.54W 230.05V

Protection Features

OCP (Normal @ 28.2°C)12V: 89.80A (143.68%), 12.134V
5V: 23A (127.78%), 4.983V
3.3V: 23.3A (129.44%), 3.357V
5VSB: 4.4A (146.67%), 4.89V
OCP (Hot @ 45.0°C)12V: 77.62A (124.19%), 12.162V
5V: 22.6A (125.56%), 4.979V
3.3V: 23.4A (130.00%), 3.356V
5VSB: 4.2A (140.00%), 4.894V
OPP (Normal @ 29.5°C)1077.43W (143.66%)
OPP (Hot @ 45.3°C)899.84W (119.98%)
OTP✓ (94°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.374A 1.989A 1.949A 0.989A 75.007 84.95% 829 27.8 40.16°C 0.966
12.209V 5.028V 3.387V 5.056V 88.294 44.89°C 114.94V
20% 9.754A 2.99A 2.93A 1.191A 149.968 89.291% 834 28 40.69°C 0.972
12.206V 5.019V 3.379V 5.038V 167.955 46.71°C 114.91V
30% 15.482A 3.493A 3.426A 1.395A 224.978 90.329% 1060 33.7 41.15°C 0.969
12.203V 5.011V 3.371V 5.02V 249.064 47.39°C 114.89V
40% 21.224A 3.999A 3.925A 1.6A 300.09 90.435% 1438 41.8 41.65°C 0.976
12.197V 5.004V 3.363V 5.001V 331.831 48.88°C 114.86V
50% 26.599A 5.007A 4.919A 1.807A 374.728 90.24% 1753 46.5 42.07°C 0.981
12.189V 4.995V 3.355V 4.983V 415.259 49.95°C 114.84V
60% 32.006A 6.02A 5.918A 2.001A 449.567 89.869% 1915 49.1 42.74°C 0.985
12.180V 4.985V 3.346V 4.964V 500.247 51.5°C 114.82V
70% 37.413A 7.037A 6.92A 2.226A 524.558 89.349% 1919 49.1 43.13°C 0.987
12.173V 4.975V 3.339V 4.943V 587.09 53.66°C 114.81V
80% 42.896A 8.058A 7.93A 2.334A 599.768 88.714% 1920 49.1 43.62°C 0.989
12.166V 4.965V 3.329V 4.927V 676.07 56.03°C 114.8V
90% 48.709A 8.576A 8.431A 2.443A 674.805 88.005% 1921 49.1 44.81°C 0.99
12.160V 4.956V 3.321V 4.912V 766.784 60.06°C 114.78V
100% 54.335A 9.099A 8.967A 3.082A 750.03 87.043% 1920 49.1 45.34°C 0.991
12.153V 4.946V 3.312V 4.868V 861.683 63.02°C 114.75V
110% 59.840A 10.132A 10.082A 3.09A 825.052 85.905% 1922 49.1 46.63°C 0.992
12.145V 4.935V 3.303V 4.856V 960.431 67.66°C 114.73V
CL1 0.115A 12.051A 11.794A 0A 101.301 80.425% 1455 41.9 40.07°C 0.989
12.204V 4.995V 3.366V 5.082V 125.958 46.09°C 114.93V
CL2 0.115A 18.019A 0A 0A 91.401 79.978% 1160 36.3 40.94°C 0.987
12.204V 4.995V 3.378V 5.091V 114.282 46.61°C 114.93V
CL3 0.115A 0A 17.638A 0A 60.793 72.287% 1468 42.2 40.85°C 0.966
12.198V 5.017V 3.367V 5.091V 84.099 44.6°C 114.93V
CL4 61.678A 0A 0A 0.001A 749.767 88.287% 1930 49.4 45.09°C 0.991
12.156V 4.979V 3.334V 5.049V 849.245 60.91°C 114.76V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.375A 1.99A 1.949A 0.989A 75.019 86.477% 824 27.7 40.17°C 0.854
12.208V 5.029V 3.387V 5.056V 86.752 44.05°C 229.95V
20% 9.758A 2.99A 2.931A 1.192A 150.006 90.79% 830 27.8 40.99°C 0.92
12.205V 5.019V 3.379V 5.037V 165.221 45.5°C 229.94V
30% 15.486A 3.494A 3.427A 1.395A 225.025 91.931% 1144 36 41.24°C 0.94
12.202V 5.011V 3.371V 5.019V 244.778 46.42°C 229.93V
40% 21.230A 3.999A 3.926A 1.6A 300.131 92.197% 1508 43.3 41.66°C 0.948
12.196V 5.003V 3.363V 5.001V 325.529 47.25°C 229.93V
50% 26.618A 5.008A 4.92A 1.807A 374.918 92.181% 1797 47.3 42.32°C 0.955
12.187V 4.994V 3.355V 4.982V 406.722 48.35°C 229.92V
60% 32.025A 6.022A 5.919A 2.001A 449.77 91.979% 1908 48.9 42.83°C 0.958
12.179V 4.984V 3.346V 4.963V 488.995 48.85°C 229.91V
70% 37.444A 7.039A 6.923A 2.227A 524.777 91.727% 1909 48.9 43.08°C 0.962
12.169V 4.974V 3.338V 4.942V 572.103 50.23°C 229.9V
80% 42.923A 8.062A 7.933A 2.336A 600.007 91.343% 1912 49 43.63°C 0.966
12.163V 4.963V 3.328V 4.925V 656.876 52.26°C 229.89V
90% 48.743A 8.581A 8.435A 2.444A 675.046 90.971% 1910 48.9 44.21°C 0.969
12.156V 4.954V 3.32V 4.911V 742.047 54.39°C 229.88V
100% 54.371A 9.104A 8.971A 3.082A 750.269 90.398% 1914 49.1 45.14°C 0.971
12.148V 4.945V 3.311V 4.868V 829.959 56.78°C 229.87V
110% 59.848A 10.132A 10.085A 3.087A 825.017 89.792% 1919 49.1 46.55°C 0.972
12.143V 4.935V 3.302V 4.86V 918.811 60.18°C 229.97V
CL1 0.115A 12.051A 11.798A 0A 101.317 81.922% 1479 42.6 40.56°C 0.899
12.200V 4.996V 3.365V 5.082V 123.675 46.06°C 230.01V
CL2 0.115A 18.022A 0A 0A 91.408 81.35% 1046 33.3 40.51°C 0.887
12.203V 4.994V 3.378V 5.091V 112.365 45.96°C 230.03V
CL3 0.115A 0A 17.64A 0A 60.797 73.585% 1450 41.9 40.53°C 0.844
12.197V 5.017V 3.367V 5.091V 82.621 44.83°C 230.05V
CL4 61.656A 0A 0A 0.001A 749.864 91.407% 1921 49.1 45.23°C 0.97
12.162V 4.977V 3.334V 5.049V 820.359 55.65°C 229.98V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.217A 0.496A 0.486A 0.196A 20.007 68.541% 816 27 36.6°C 0.905
12.207V 5.038V 3.392V 5.104V 29.193 39.94°C 114.95V
40W 2.678A 0.695A 0.681A 0.294A 40.004 79.195% 819 27.2 37.01°C 0.956
12.207V 5.037V 3.391V 5.097V 50.514 40.78°C 114.95V
60W 4.140A 0.894A 0.876A 0.393A 60.003 84.315% 821 27.4 38.76°C 0.972
12.207V 5.034V 3.389V 5.09V 71.167 42.44°C 114.94V
80W 5.598A 1.094A 1.072A 0.492A 79.968 86.278% 825 27.7 39.33°C 0.967
12.208V 5.031V 3.388V 5.083V 92.686 43.82°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.218A 0.496A 0.486A 0.196A 20.013 69.07% 811 27 36.77°C 0.591
12.204V 5.039V 3.393V 5.103V 28.976 39.04°C 229.97V
40W 2.680A 0.695A 0.681A 0.295A 40.012 80.624% 815 27 37.5°C 0.732
12.205V 5.037V 3.392V 5.096V 49.629 40.23°C 229.97V
60W 4.140A 0.894A 0.876A 0.393A 60.012 85.282% 818 27.1 38.37°C 0.811
12.205V 5.034V 3.39V 5.089V 70.369 41.57°C 229.96V
80W 5.600A 1.094A 1.072A 0.492A 79.991 87.731% 821 27.4 39.2°C 0.861
12.207V 5.032V 3.388V 5.082V 91.177 42.71°C 229.95V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.70mV9.08mV6.67mV6.52mVPass
20% Load11.31mV9.28mV6.92mV7.08mVPass
30% Load14.26mV9.64mV8.34mV6.72mVPass
40% Load15.03mV10.05mV7.68mV8.20mVPass
50% Load15.38mV9.18mV8.19mV8.10mVPass
60% Load15.74mV9.44mV8.44mV15.13mVPass
70% Load17.94mV10.10mV8.19mV9.38mVPass
80% Load20.34mV10.66mV9.16mV11.82mVPass
90% Load25.53mV11.07mV9.97mV14.01mVPass
100% Load39.72mV11.18mV11.64mV18.97mVPass
110% Load46.30mV12.36mV11.32mV25.35mVPass
Crossload116.38mV12.21mV12.82mV9.09mVPass
Crossload210.53mV9.38mV5.49mV8.51mVPass
Crossload39.92mV10.46mV9.87mV8.51mVPass
Crossload439.27mV8.24mV5.69mV17.88mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.91mV9.38mV7.32mV6.67mVPass
20% Load12.84mV9.64mV7.47mV6.78mVPass
30% Load15.64mV9.59mV8.80mV6.93mVPass
40% Load16.30mV9.34mV8.08mV8.51mVPass
50% Load17.32mV9.33mV7.98mV8.91mVPass
60% Load18.91mV9.44mV8.55mV15.18mVPass
70% Load20.85mV10.05mV7.98mV10.39mVPass
80% Load25.43mV10.46mV9.61mV12.69mVPass
90% Load31.38mV11.58mV10.17mV14.22mVPass
100% Load44.67mV12.22mV10.92mV15.49mVPass
110% Load49.07mV13.17mV11.24mV17.53mVPass
Crossload117.15mV11.37mV12.16mV9.54mVPass
Crossload210.45mV9.54mV5.59mV8.71mVPass
Crossload310.23mV11.27mV10.22mV8.66mVPass
Crossload443.70mV8.18mV5.81mV13.97mVPass

The results above are not used in the certification process

SilverStone Triton 750Rz

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
