CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
SilverStone Triton 650Rz
Serial Number-
Lab IDSL65002913
Certification ID252913
  • Test Result Report ID: 25PS2913A
  • Certificate Issue Date: Aug 4, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Andyson
SeriesTriton Rz
Model NumberSST-AX0650FCGD-7QH
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)4-8
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (PY-1225M12S)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181854.130.3
Watts100649.2153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (600mm) 1 1 18AWG No
4+4 pin ATX12V (700mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 2 2 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (520mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (510mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM)

Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK 201R5 (1.5 ohm) & Relay
Bridge Rectifier(s)
2x GBU806 (600V, 8A @ 100°C)
APFC MOSFETs
2x PingWei PWE180N65SFMF (650V, 13A @ 100°C, Rds(on): 180mOhm)
APFC Boost Diode
1x Global Power G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s)
1x Nippon Chemi-con (400V, 390uF, 2,000h @ 105°C, KMR)
Main Switchers
2x SI24N50F
APFC Controller
Champion CM6500UNX & CM03AX (Remove Phantom Power)
Resonant Controller
Champion CM6901T6X
Topology
Primary side: APFC, Half-Bridge & LLC Resonant converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 2x WayOn WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm) &
2x WayOn WMB15N03TS (30V, 95A @ 100°C, Rds(on): 3mOhm)
PWM Controller(s): 2x Anpec APW7164
Filtering Capacitors

Electrolytic:
1x Nippon Chemi-con (4-10,000h @105°C, KY)
1x Nichicon (6,000h @105°C, HV(M))
5x Rubycon (6-10,000h @105°C, ZLH)
2x Rubycon (4-10,000h @105°C, YXF)
2x Rubycon (4-10,000h @105°C, YXJ)
4x CS (2,000h @ 105°C WR)
Polymer:
20x Polycap, 1x Teapo
Supervisor IC Esthome EST.7630FS
Fan Model Poweryear PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan).
5VSB
Rectifier
1x Chongqing Pingwei PS1045L SBR (45V, 10A) & Chongqing Pingwei US2MG
Standby PWM Controller
Esthome EST.3026M

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)88.773%
Average Noise Output (>1450 Load Combinations)38.15dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load62.691%
Standby Power Consumption0.0684W
12V Ripple (Full Load)41.60mV
5V Ripple (Full Load)9.60mV
3.3V Ripple (Full Load)9.32mV
5VSB Ripple (Full Load)13.15mV
12V Load Regulation0.46%
5V Load Regulation1.66%
3.3V Load Regulation2.19%
5VSB Load Regulation4.57%
Inrush Current31.415A
Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)90.696%
Average Noise Output (>1450 Load Combinations)37.28dBA
Average PF (>1450 Load Combinations)0.938
Efficiency With 10W (≤500W) or 2% (>500W) Load62.003%
Standby Power Consumption0.1018W
12V Ripple (Full Load)47.40mV
5V Ripple (Full Load)10.43mV
3.3V Ripple (Full Load)9.69mV
5VSB Ripple (Full Load)13.08mV
12V Load Regulation0.46%
5V Load Regulation1.66%
3.3V Load Regulation2.19%
5VSB Load Regulation4.63%
Inrush Current65.074A
12V Transient Response (200%)11.74V
5V Transient Response (200%)4.928V
3.3V Transient Response (200%)3.266V
5VSB Transient Response (200%)4.960V
Hold-Up Time & Power Ok Signal14.40ms
AC Loss to PWR_OK Hold Up Time12.70ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)56.0ms56.0ms
PSU Timings: T3 (20% / 100%)119.0ms119.0ms
12V OCP (30.9°C / 44.1°C)81.00A (149.72%), 12.198V77.00A (142.33%), 12.207V
5V OCP (30.9°C / 44.1°C)23A (127.78%), 5.025V23.5A (130.56%), 5.023V
3.3V OCP (30.9°C / 44.1°C)24.2A (134.44%), 3.372V24.1A (133.89%), 3.369V
5VSB OCP (30.9°C / 44.1°C)4.5A (150.00%), 4.889V4.4A (146.67%), 4.882V
OPP (28.10°C / 42.73°C)150.06%137.03%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.4
AC Loss to PWR_OK Hold Up Time (ms)12.7
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.14 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.415 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.21 % 2.00 % PASS
Real Power: 0.068 W -0.006 W N/A 0.118 W N/A N/A
Apparent Power: 8.720 W 8.100 W N/A 9.402 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.07 V 230.94 V 227.70 V 231.13 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.28 % 2.00 % PASS
Real Power: 0.102 W 0.060 W N/A 0.185 W N/A N/A
Apparent Power: 27.321 W 26.379 W N/A 28.232 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

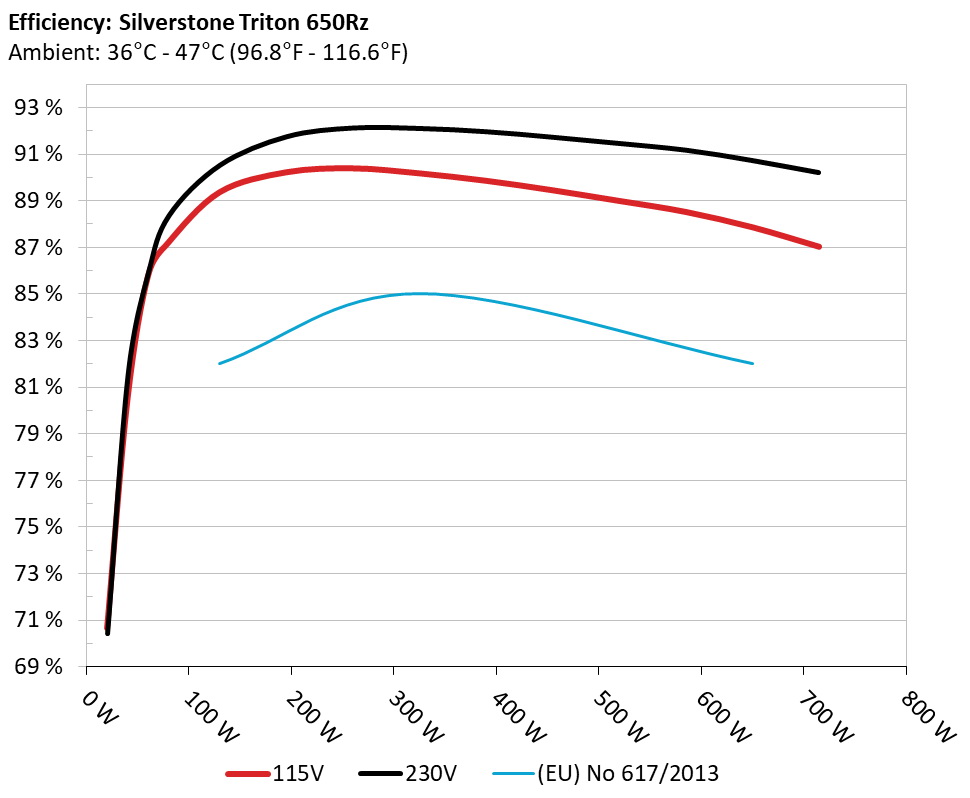

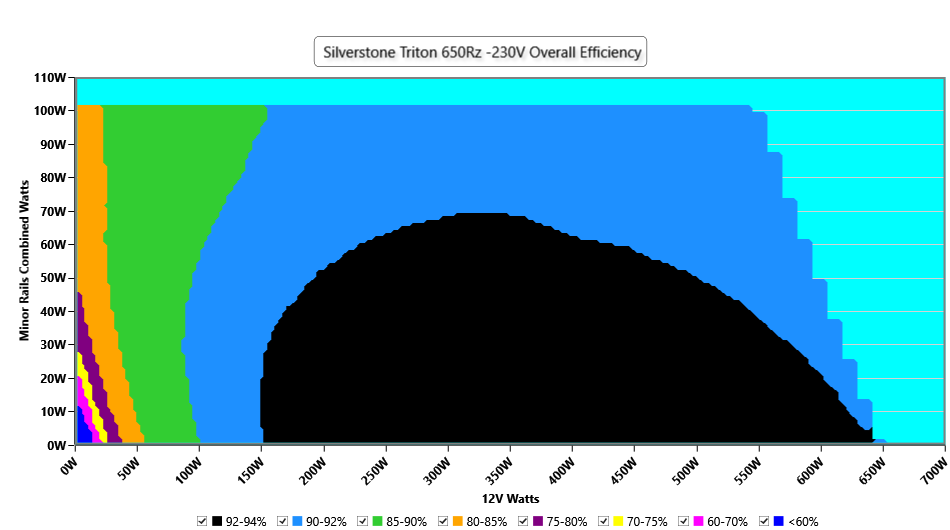

Efficiency Graph

INFO

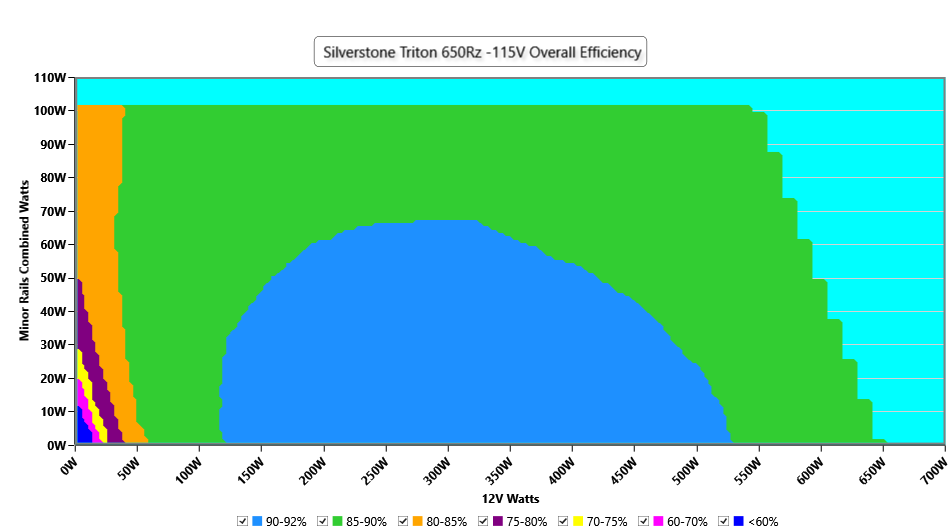

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

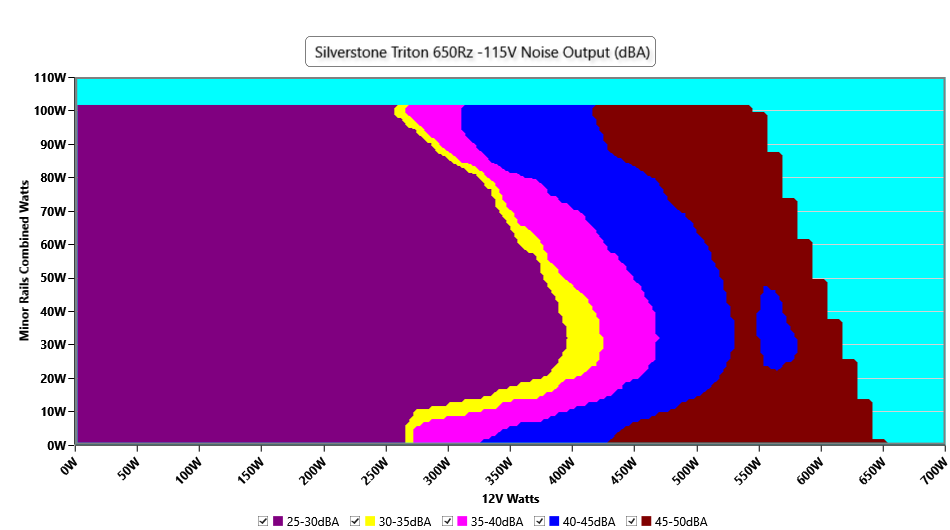

INFO

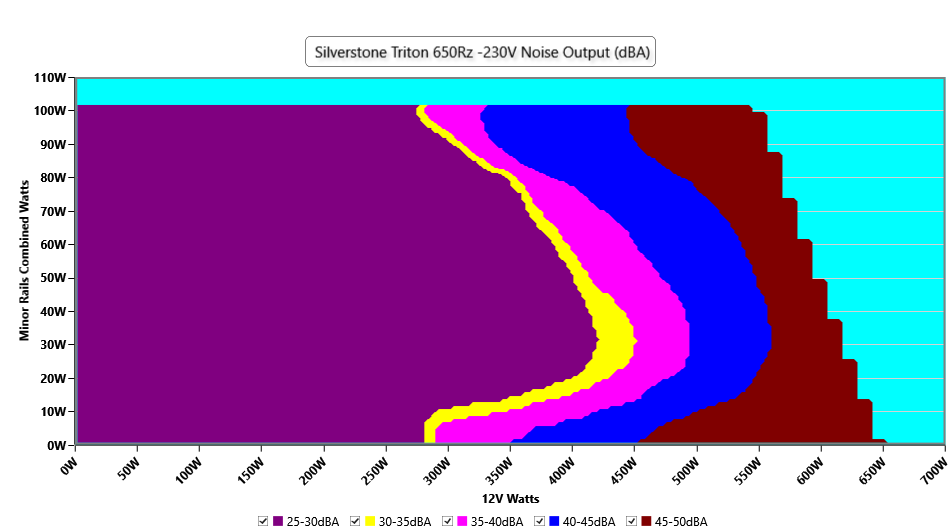

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

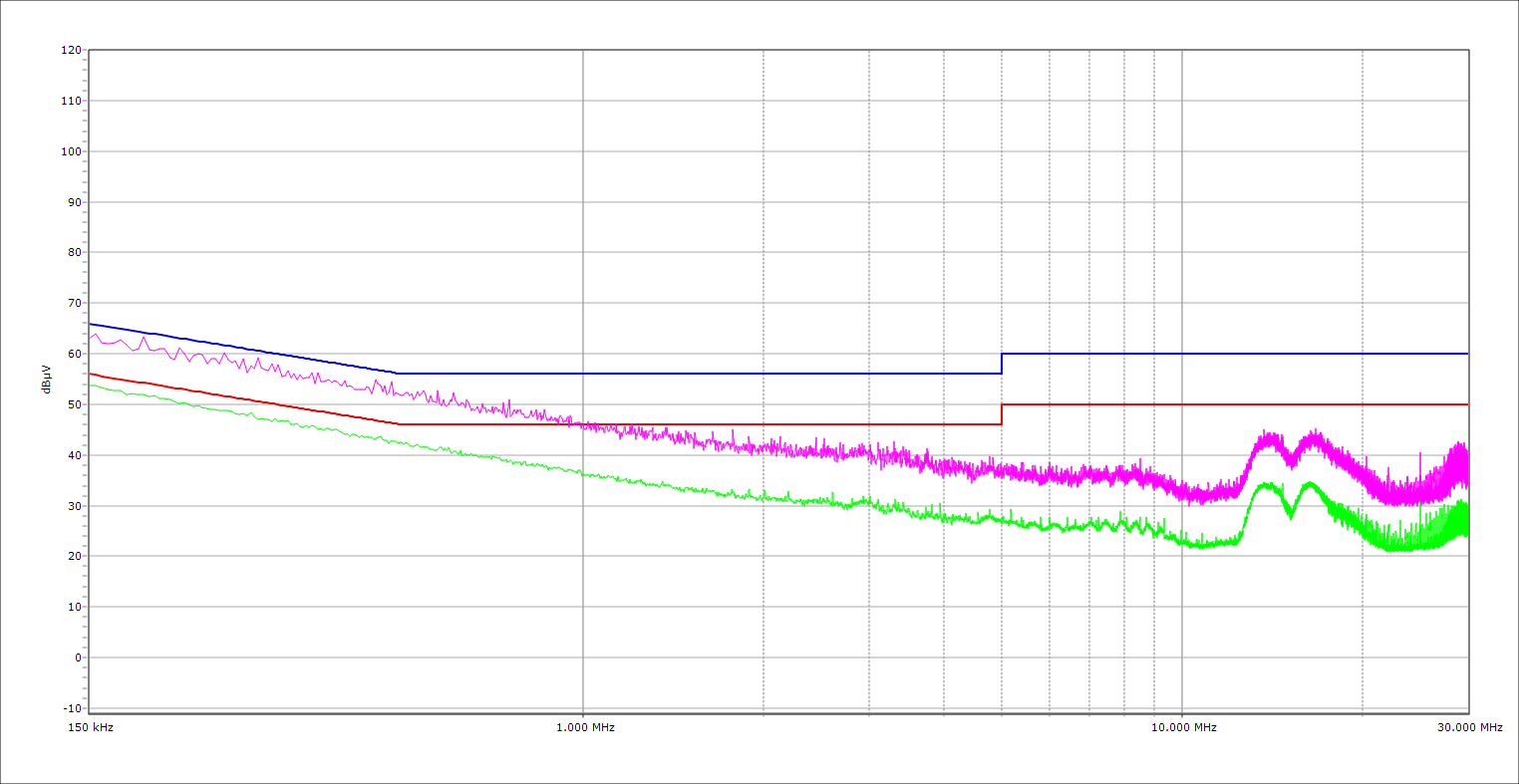

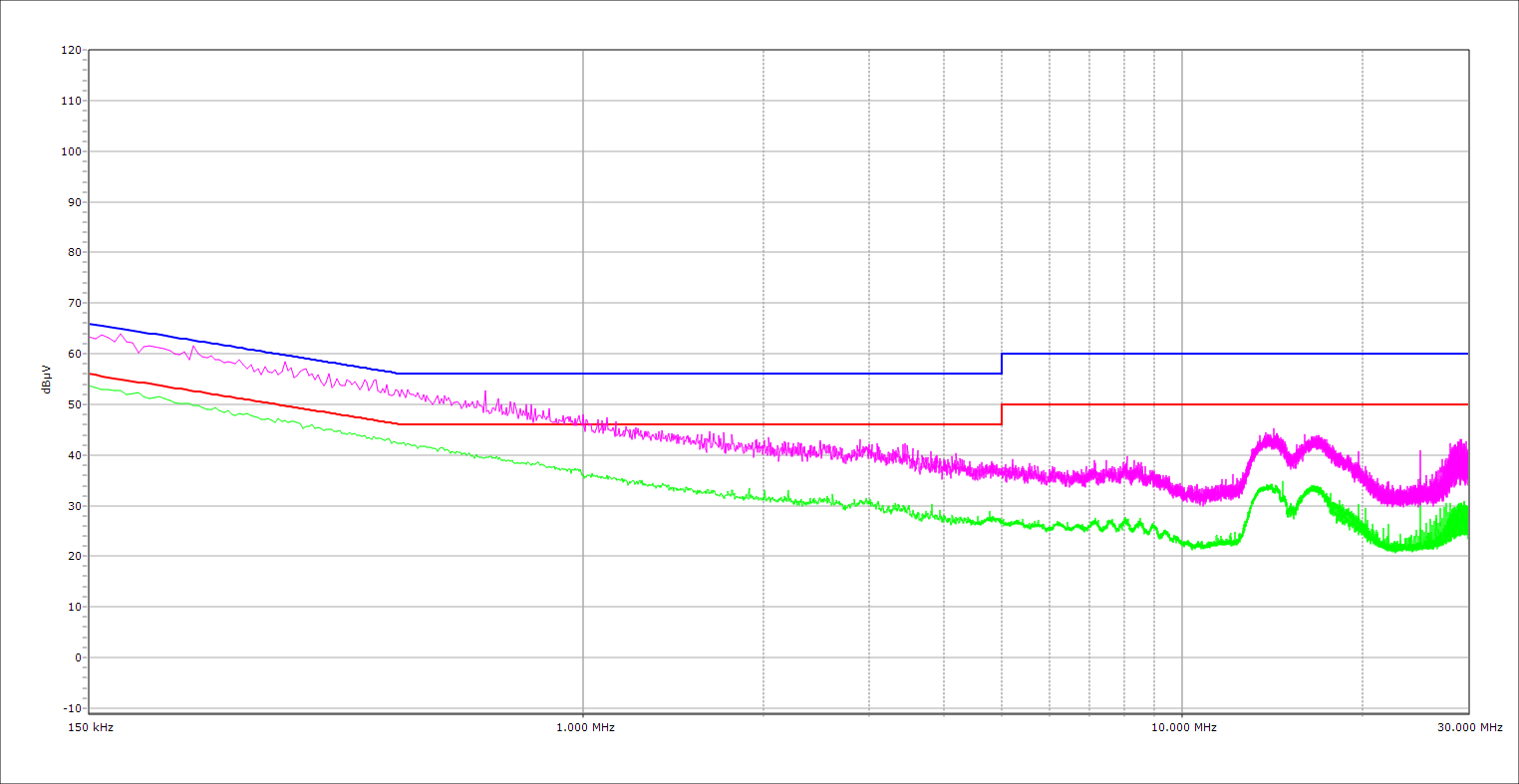

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

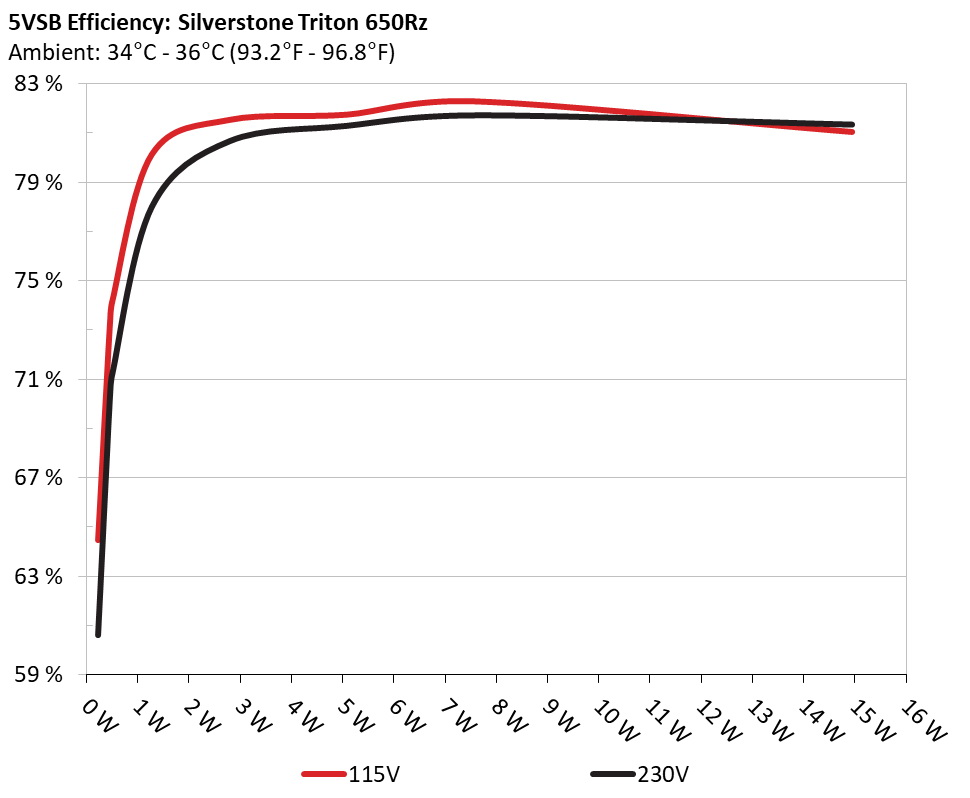

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 64.466% 0.047
5.118V 0.357W 114.95V
2 0.09A 0.461W 73.246% 0.08
5.116V 0.63W 114.95V
3 0.55A 2.803W 81.52% 0.275
5.095V 3.438W 114.93V
4 1A 5.075W 81.726% 0.322
5.074V 6.21W 114.93V
5 1.5A 7.578W 82.268% 0.349
5.05V 9.211W 114.94V
6 3A 14.935W 81.028% 0.389
4.978V 18.432W 114.94V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 60.595% 0.015
5.119V 0.38W 230.07V
2 0.09A 0.461W 70.278% 0.026
5.117V 0.657W 230.07V
3 0.55A 2.803W 80.691% 0.125
5.096V 3.472W 230.06V
4 1A 5.076W 81.309% 0.194
5.075V 6.242W 230.06V
5 1.5A 7.579W 81.737% 0.241
5.052V 9.274W 230.05V
6 3A 14.943W 81.361% 0.314
4.98V 18.36W 230.06V

Protection Features

OCP (Normal @ 30.9°C)12V: 81.00A (149.72%), 12.198V
5V: 23A (127.78%), 5.025V
3.3V: 24.2A (134.44%), 3.372V
5VSB: 4.5A (150.00%), 4.889V
OCP (Hot @ 44.1°C)12V: 77.00A (142.33%), 12.207V
5V: 23.5A (130.56%), 5.023V
3.3V: 24.1A (133.89%), 3.369V
5VSB: 4.4A (146.67%), 4.882V
OPP (Normal @ 28.1°C)975.38W (150.06%)
OPP (Hot @ 42.7°C)890.71W (137.03%)
OTP✓ (109°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.536A 1.975A 1.942A 0.988A 65.012 85.041% 823 27.6 40.47°C 0.968
12.275V 5.065V 3.399V 5.06V 76.448 45.24°C 114.93V
20% 8.072A 2.967A 2.918A 1.19A 129.97 89.371% 828 27.7 40.77°C 0.981
12.273V 5.057V 3.393V 5.042V 145.429 45.44°C 114.91V
30% 12.952A 3.467A 3.412A 1.393A 194.978 90.225% 1104 36.4 41.06°C 0.97
12.270V 5.049V 3.386V 5.025V 216.103 47.35°C 114.89V
40% 17.844A 3.968A 3.908A 1.598A 260.065 90.392% 1356 40.5 41.62°C 0.974
12.265V 5.042V 3.378V 5.008V 287.709 48.26°C 114.88V
50% 22.395A 4.969A 4.895A 1.804A 325.062 90.175% 1664 45.2 42.02°C 0.98
12.259V 5.033V 3.371V 4.99V 360.481 49.34°C 114.87V
60% 26.920A 5.974A 5.887A 2.001A 389.569 89.859% 1864 48.5 42.57°C 0.983
12.251V 5.024V 3.364V 4.972V 433.534 50.48°C 114.85V
70% 31.513A 6.982A 6.885A 2.222A 454.953 89.449% 1904 48.9 43.26°C 0.986
12.243V 5.015V 3.356V 4.952V 508.617 52.38°C 114.83V
80% 36.112A 7.992A 7.886A 2.33A 519.763 88.993% 1906 48.9 43.73°C 0.988
12.235V 5.006V 3.347V 4.938V 584.051 54.42°C 114.82V
90% 41.109A 8.505A 8.383A 2.437A 585.188 88.514% 1904 48.9 44.65°C 0.99
12.228V 4.998V 3.34V 4.924V 661.126 55.21°C 114.8V
100% 45.853A 9.021A 8.915A 3.072A 650.042 87.856% 1909 48.9 45.77°C 0.991
12.220V 4.989V 3.331V 4.883V 739.892 58.53°C 114.78V
110% 50.472A 10.042A 10.019A 3.08A 714.644 87.023% 1902 48.9 46.24°C 0.991
12.211V 4.979V 3.324V 4.872V 821.215 63.48°C 114.76V
CL1 0.114A 11.957A 11.746A 0A 101.303 81.574% 1445 41.7 40.85°C 0.988
12.262V 5.035V 3.38V 5.087V 124.186 43.45°C 114.92V
CL2 0.114A 17.869A 0A 0A 91.4 81.066% 1221 38.3 41.49°C 0.984
12.269V 5.037V 3.389V 5.095V 112.748 45.94°C 114.92V
CL3 0.114A 0A 17.555A 0A 60.795 72.513% 1687 45.5 40.92°C 0.966
12.265V 5.054V 3.383V 5.095V 83.84 43.82°C 114.93V
CL4 53.113A 0A 0A 0.001A 649.793 89.102% 1913 49 45.28°C 0.99
12.234V 5.016V 3.348V 5.057V 729.267 56.89°C 114.78V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.536A 1.975A 1.941A 0.989A 65.008 85.702% 818 27.1 40.48°C 0.822
12.276V 5.065V 3.4V 5.059V 75.854 44.1°C 230.05V
20% 8.072A 2.967A 2.919A 1.19A 129.962 90.511% 821 27.4 40.68°C 0.909
12.273V 5.056V 3.392V 5.041V 143.588 44.8°C 230.04V
30% 12.952A 3.467A 3.412A 1.394A 194.971 91.73% 1077 34.1 41.15°C 0.937
12.270V 5.049V 3.386V 5.024V 212.547 45.98°C 230.04V
40% 17.842A 3.968A 3.908A 1.598A 260.059 92.105% 1418 41.9 41.95°C 0.945
12.266V 5.041V 3.378V 5.007V 282.351 46.88°C 230.03V
50% 22.395A 4.969A 4.896A 1.805A 325.058 92.084% 1692 45.5 42.16°C 0.953
12.259V 5.033V 3.37V 4.988V 353.003 48.03°C 230.03V
60% 26.918A 5.973A 5.889A 2.001A 389.545 91.949% 1848 48.2 42.84°C 0.957
12.251V 5.024V 3.363V 4.97V 423.656 48.38°C 230.02V
70% 31.511A 6.981A 6.885A 2.222A 454.915 91.71% 1899 48.9 43.3°C 0.96
12.243V 5.015V 3.356V 4.951V 496.038 50.22°C 230.01V
80% 36.111A 7.991A 7.887A 2.33A 519.723 91.443% 1901 48.9 43.64°C 0.963
12.235V 5.006V 3.347V 4.936V 568.36 50.62°C 230.01V
90% 41.108A 8.505A 8.383A 2.438A 585.165 91.155% 1897 48.8 44.81°C 0.967
12.228V 4.998V 3.34V 4.922V 641.944 54.09°C 230V
100% 45.853A 9.02A 8.913A 3.074A 650.021 90.709% 1905 48.9 45.38°C 0.97
12.220V 4.989V 3.332V 4.88V 716.602 55.49°C 229.98V
110% 50.472A 10.041A 10.018A 3.08A 714.64 90.194% 1906 48.9 46.49°C 0.971
12.212V 4.98V 3.324V 4.87V 792.341 57.07°C 229.97V
CL1 0.114A 11.957A 11.739A 0A 101.309 82.049% 1736 46.1 40.19°C 0.895
12.265V 5.035V 3.382V 5.086V 123.476 45.55°C 230.04V
CL2 0.114A 17.867A 0A 0A 91.4 81.932% 1060 33.7 40.78°C 0.884
12.269V 5.037V 3.39V 5.095V 111.558 44.39°C 230.05V
CL3 0.114A 0A 17.553A 0A 60.794 73.609% 1549 44.5 40.1°C 0.838
12.264V 5.054V 3.384V 5.095V 82.591 41.87°C 230.05V
CL4 53.117A 0A 0A 0A 649.806 91.921% 1916 49.1 45.45°C 0.969
12.233V 5.016V 3.348V 5.057V 706.915 54.32°C 229.99V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.210A 0.493A 0.485A 0.196A 20.01 70.64% 808 26.9 36.1°C 0.894
12.276V 5.072V 3.404V 5.106V 28.327 38.89°C 114.94V
40W 2.664A 0.69A 0.679A 0.294A 40.007 80.519% 813 27 37.29°C 0.954
12.276V 5.071V 3.403V 5.099V 49.688 41.14°C 114.93V
60W 4.116A 0.888A 0.873A 0.393A 60.006 85.787% 815 27 38.42°C 0.972
12.276V 5.068V 3.401V 5.092V 69.949 41.6°C 114.93V
80W 5.567A 1.086A 1.068A 0.492A 79.974 87.213% 818 27.1 39.9°C 0.967
12.276V 5.066V 3.399V 5.085V 91.7 43.38°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.210A 0.493A 0.485A 0.196A 20.007 70.402% 801 27.3 36.89°C 0.58
12.276V 5.072V 3.403V 5.106V 28.419 38.64°C 230.05V
40W 2.664A 0.69A 0.679A 0.294A 40.005 81.492% 808 26.9 37.72°C 0.721
12.276V 5.071V 3.402V 5.099V 49.089 40.11°C 230.05V
60W 4.116A 0.888A 0.873A 0.393A 60.003 85.889% 811 27 38.24°C 0.804
12.276V 5.068V 3.4V 5.092V 69.86 41.18°C 230.05V
80W 5.566A 1.086A 1.068A 0.492A 79.967 88.336% 814 27 39°C 0.855
12.276V 5.066V 3.399V 5.085V 90.526 42.23°C 230.05V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.33mV7.96mV5.08mV7.44mVPass
20% Load12.11mV7.86mV4.93mV7.34mVPass
30% Load15.79mV7.75mV5.24mV7.54mVPass
40% Load20.01mV8.47mV7.32mV7.69mVPass
50% Load20.64mV8.47mV5.75mV8.56mVPass
60% Load20.83mV8.16mV5.95mV9.22mVPass
70% Load21.84mV8.77mV6.00mV16.76mVPass
80% Load23.90mV8.31mV8.29mV9.68mVPass
90% Load27.26mV8.82mV9.00mV12.02mVPass
100% Load41.60mV9.60mV9.32mV13.15mVPass
110% Load46.58mV10.92mV9.96mV14.69mVPass
Crossload117.71mV10.96mV10.21mV10.29mVPass
Crossload210.99mV8.52mV4.68mV9.68mVPass
Crossload311.04mV9.13mV10.68mV9.58mVPass
Crossload441.25mV9.03mV4.92mV12.98mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.46mV8.72mV5.19mV7.18mVPass
20% Load12.53mV8.16mV5.29mV7.08mVPass
30% Load16.25mV8.37mV5.29mV6.98mVPass
40% Load20.83mV8.21mV7.43mV7.39mVPass
50% Load22.22mV8.01mV6.05mV8.15mVPass
60% Load23.24mV7.86mV6.00mV8.46mVPass
70% Load24.86mV8.77mV5.85mV16.40mVPass
80% Load28.88mV8.93mV8.29mV10.60mVPass
90% Load33.62mV8.83mV8.39mV11.92mVPass
100% Load47.40mV10.43mV9.69mV13.08mVPass
110% Load51.71mV10.35mV10.00mV14.48mVPass
Crossload117.91mV11.02mV10.29mV10.03mVPass
Crossload211.09mV9.59mV5.19mV9.88mVPass
Crossload39.82mV9.18mV9.97mV9.22mVPass
Crossload446.81mV9.05mV4.06mV12.68mVPass

The results above are not used in the certification process

SilverStone Triton 650Rz

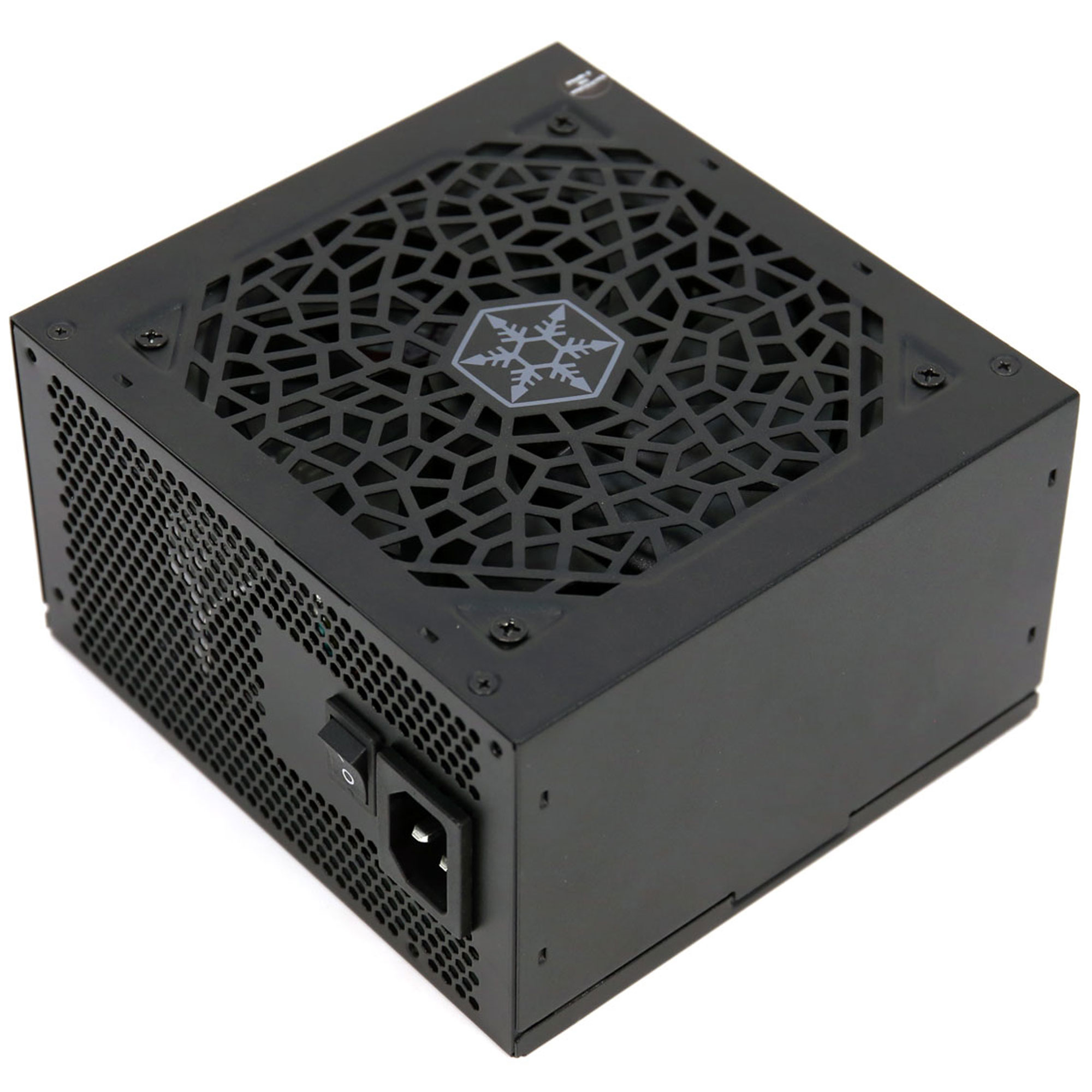

Top side

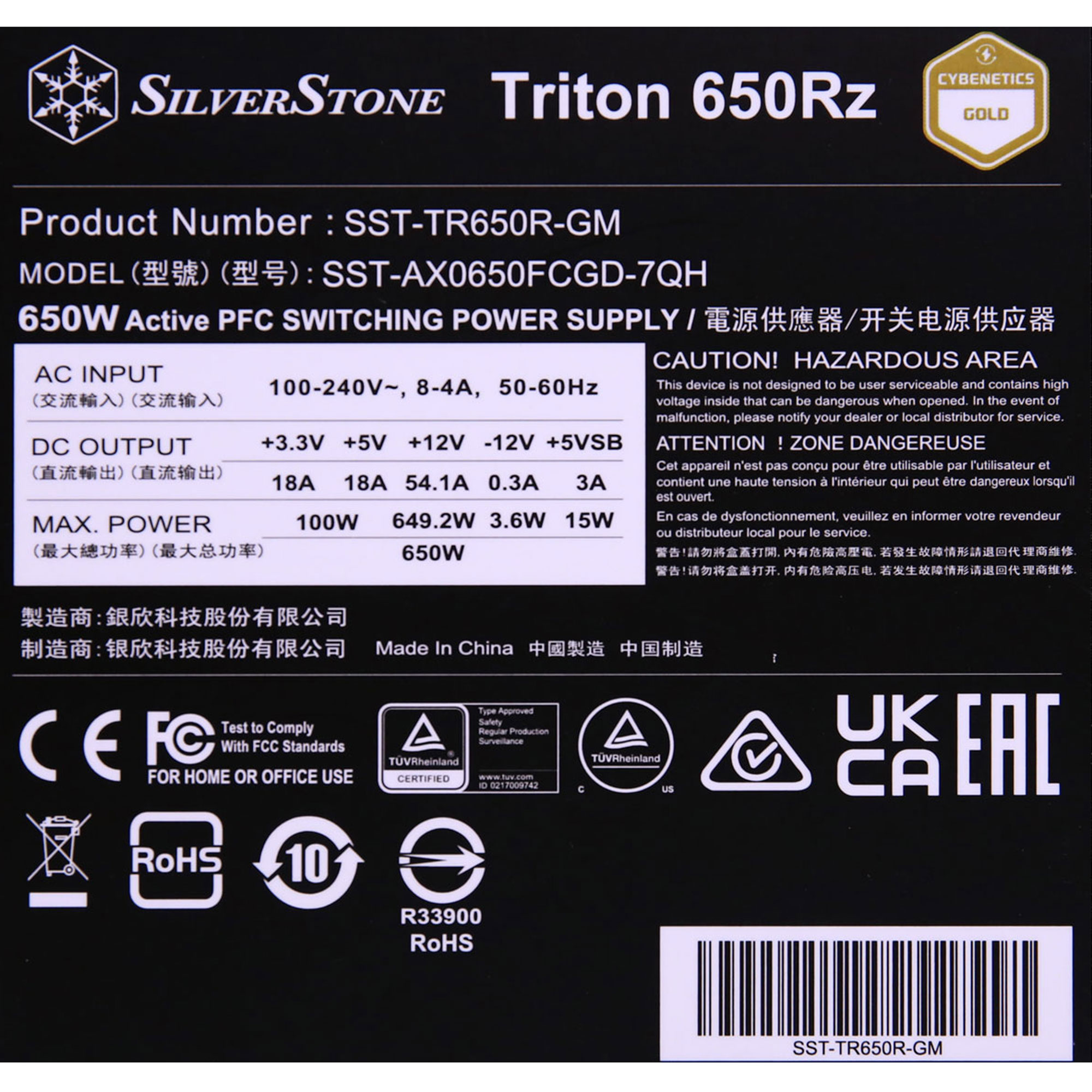

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
