APNX Max G1 1200
Serial Number-
Lab IDAP12002932
Certification ID252932
  • Test Result Report ID: 25PS2932A
  • Certificate Issue Date: Aug 25, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandAPNX
Manufacturer (OEM)CWT
SeriesMax G1
Model NumberANPS-2501
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)

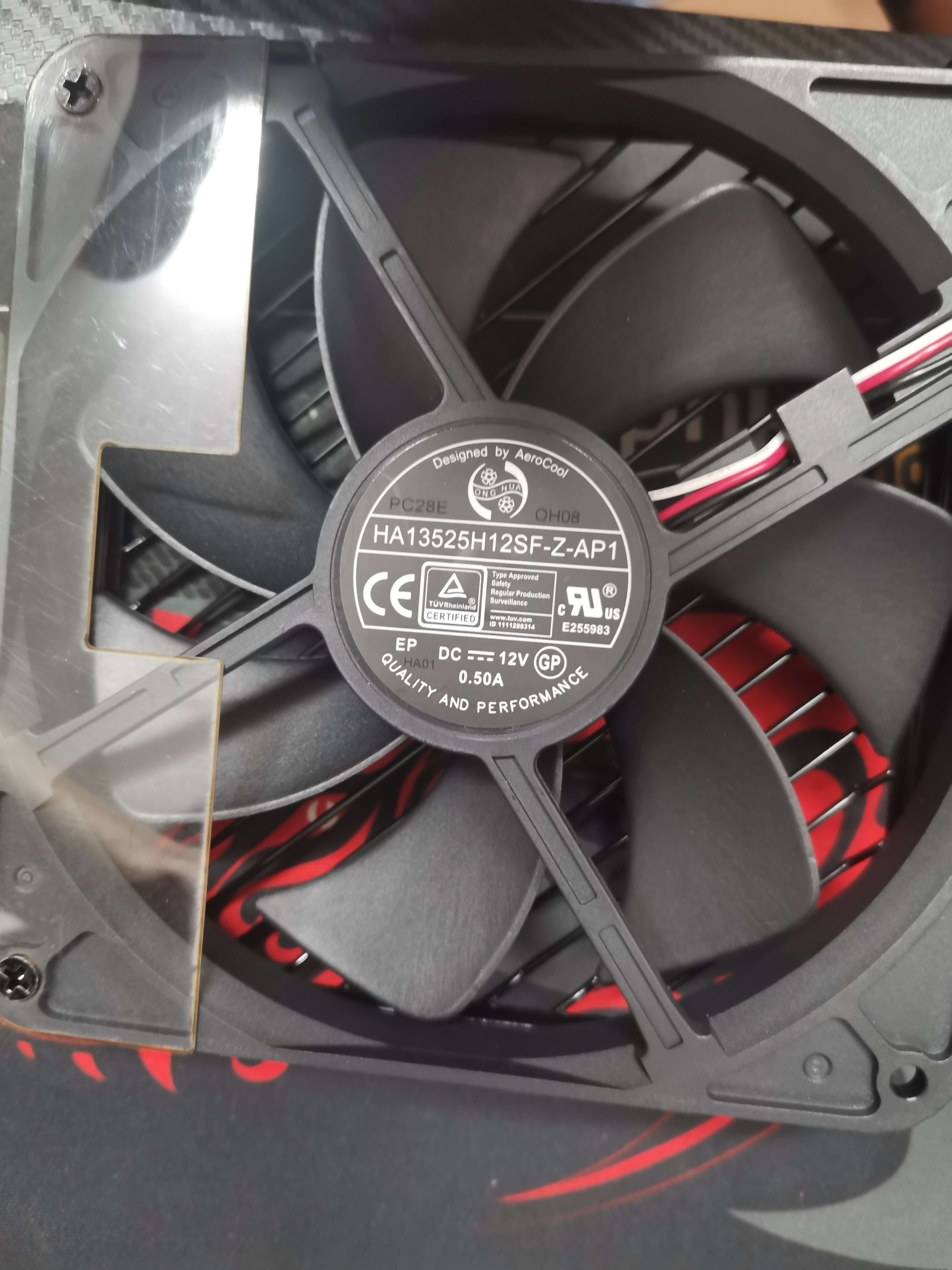

Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z-AP1)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030
Watts1101200150
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-20AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (650mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (650mm) (600W) 2 2 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG Tinned Copper

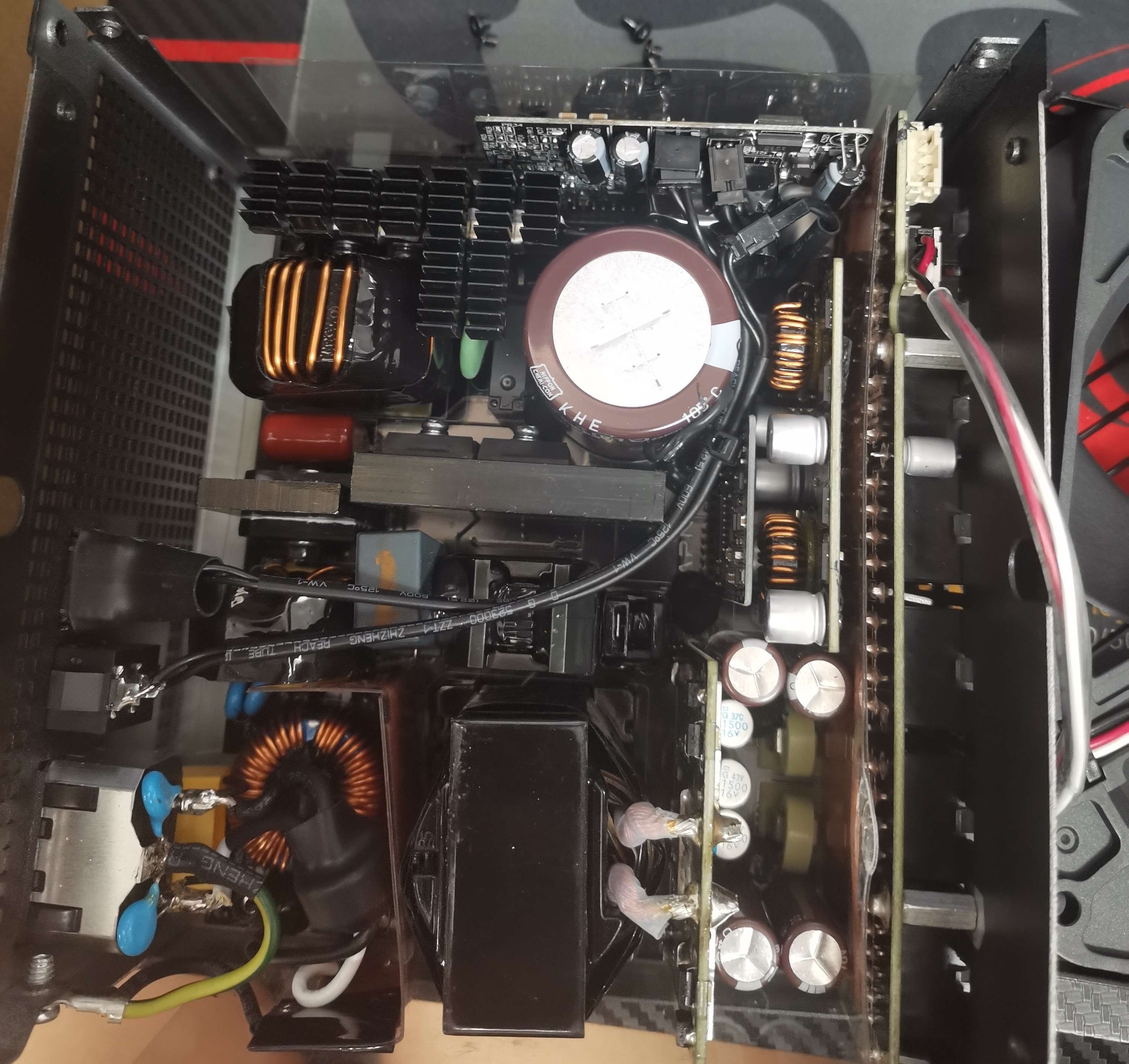

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-207R0 (7 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Vishay GBUE2560 (600V, 25A @ 140°C)
APFC MOSFETs
3x Infineon IPA60R099P6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode
2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s)
Nippon Chemi-con (420V, 1010uF, 2000h @ 105°C, KHE)
Main Switchers
2x Infineon IPW60R060P7 (650V, 30A @ 100°C, Rds(on): 0.060Ohm)

APFC Controller

Champion CM6500UNX &
Sync Power SPN5003 (reducing no load consumption)
Resonant Controller
Champion CU6901VACNH
IC Driver Novosense NSI6602
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 10x Toshiba TPHR8504PL (40V, 150A @ 25°C, Rds(on): 0.85mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): no info
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-con (@ 105°C, W)
3x Rubycon (4-10,000 @ 105°C, YXF)
Polymer:
16x Nippon Chemi-con, 10x FPCAP
Supervisor IC IN1S4241-SDG (OCP, OVP, UVP, SCP, PG)
Fan Model Hong Hua HA13525H12F-Z  (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Synchronous Rectification Driver
Lead Trend LD8926AA13 Synchronous Rectification IC
Standby PWM Controller
On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)89.307%
Average Noise Output (>1450 Load Combinations)20.54dBA
Average PF (>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load64.716%
Standby Power Consumption0.0206W
12V Ripple (Full Load)23.16mV
5V Ripple (Full Load)9.36mV
3.3V Ripple (Full Load)11.10mV
5VSB Ripple (Full Load)18.07mV
12V Load Regulation0.97%
5V Load Regulation0.42%
3.3V Load Regulation0.69%
5VSB Load Regulation1.59%
Inrush Current24.740A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)91.181%
Average Noise Output (>1450 Load Combinations)20.34dBA
Average PF (>1450 Load Combinations)0.946
Efficiency With 10W (≤500W) or 2% (>500W) Load75.728%
Standby Power Consumption0.0888W
12V Ripple (Full Load)23.28mV
5V Ripple (Full Load)8.92mV
3.3V Ripple (Full Load)11.06mV
5VSB Ripple (Full Load)17.26mV
12V Load Regulation0.94%
5V Load Regulation0.38%
3.3V Load Regulation0.72%
5VSB Load Regulation1.57%
Inrush Current49.580A
12V Transient Response (200%)11.17V
5V Transient Response (200%)4.894V
3.3V Transient Response (200%)3.199V
5VSB Transient Response (200%)4.911V
Hold-Up Time & Power Ok Signal22.70ms
AC Loss to PWR_OK Hold Up Time19.50ms
PWR_OK Inactive to DC Loss Delay3.20ms
PSU Timings: T1 (20% / 100%)60.0ms60.0ms
PSU Timings: T3 (20% / 100%)126.0ms126.0ms
12V OCP (29.5°C / 43.4°C)121.20A (121.20%), 11.948V122.60A (122.60%), 11.956V
5V OCP (29.5°C / 43.4°C)23.1A (115.50%), 5.053V23.2A (116.00%), 5.054V
3.3V OCP (29.5°C / 43.4°C)24A (120.00%), 3.332V24.3A (121.50%), 3.332V
5VSB OCP (29.5°C / 43.4°C)4.6A (153.33%), 5.036V4.5A (150.00%), 5.032V
OPP (29.71°C / 43.56°C)122.58%122.58%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.7
AC Loss to PWR_OK Hold Up Time (ms)19.5
PWR_OK Inactive to DC Loss Delay (ms)3.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.13 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.021 W 0.004 W N/A 0.038 W N/A N/A
Apparent Power: 14.887 W 14.774 W N/A 14.981 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.05 V 230.94 V 227.70 V 231.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.089 W 0.053 W N/A 0.152 W N/A N/A
Apparent Power: 50.882 W 50.511 W N/A 51.223 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

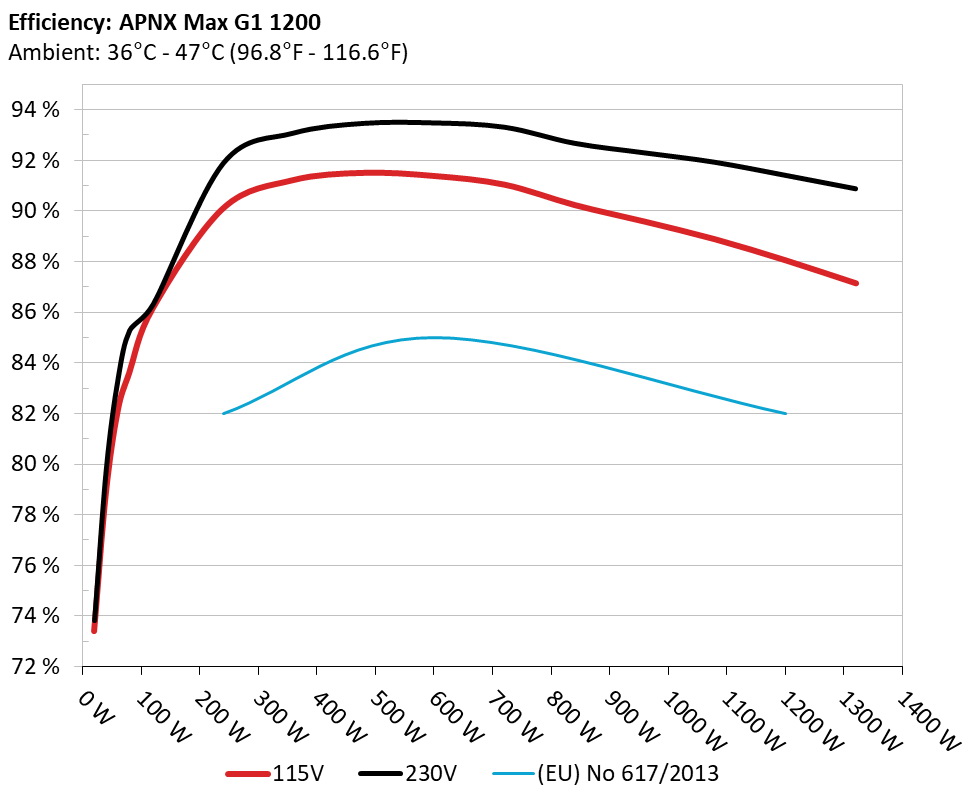

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

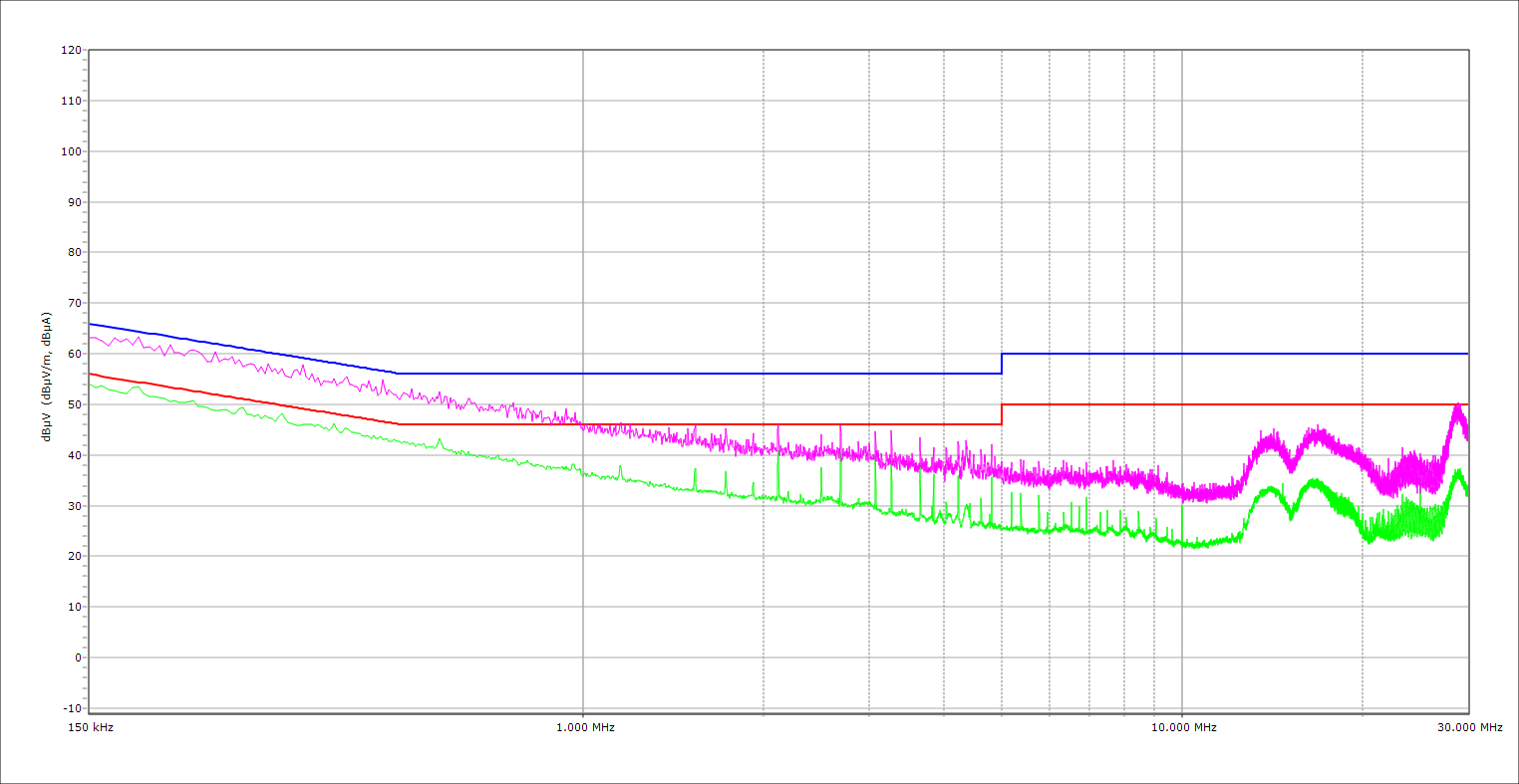

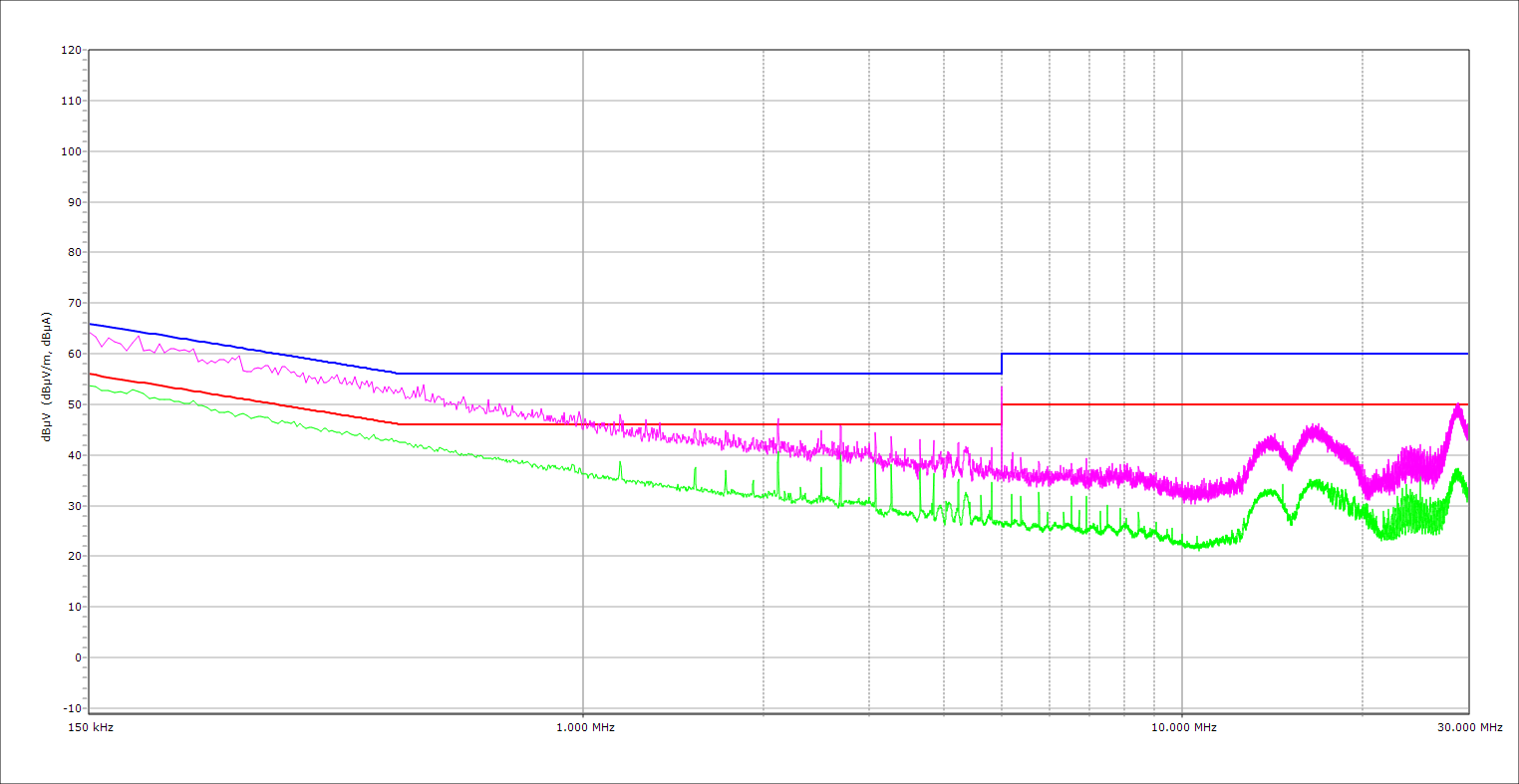

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 72.375% 0.022
5.053V 0.316W 114.93V
2 0.09A 0.455W 78.059% 0.04
5.05V 0.583W 114.93V
3 0.55A 2.775W 84.485% 0.199
5.044V 3.285W 114.93V
4 1A 5.045W 84.495% 0.304
5.043V 5.97W 114.92V
5 1.501A 7.565W 84.583% 0.36
5.041V 8.945W 114.92V
6 3.001A 15.143W 82.606% 0.455
5.047V 18.334W 114.92V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 63.499% 0.007
5.053V 0.359W 230.01V
2 0.09A 0.454W 71.961% 0.013
5.048V 0.632W 230.01V
3 0.55A 2.772W 82.066% 0.068
5.039V 3.378W 230.02V
4 1A 5.037W 83.275% 0.119
5.035V 6.049W 230.02V
5 1.501A 7.546W 83.273% 0.169
5.029V 9.061W 230V
6 3.001A 15.062W 82.764% 0.282
5.02V 18.199W 230V

Protection Features

OCP (Normal @ 29.5°C)12V: 121.20A (121.20%), 11.948V
5V: 23.1A (115.50%), 5.053V
3.3V: 24A (120.00%), 3.332V
5VSB: 4.6A (153.33%), 5.036V
OCP (Hot @ 43.4°C)12V: 122.60A (122.60%), 11.956V
5V: 23.2A (116.00%), 5.054V
3.3V: 24.3A (121.50%), 3.332V
5VSB: 4.5A (150.00%), 5.032V
OPP (Normal @ 29.7°C)1470.99W (122.58%)
OPP (Hot @ 43.6°C)1471.00W (122.58%)
OTP✓ (100°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.176A 1.982A 1.972A 0.995A 120.031 86.17% 0 <6.0 45.2°C 0.966
12.039V 5.046V 3.347V 5.027V 139.295 40.12°C 114.89V
20% 17.382A 2.975A 2.96A 1.196A 240.006 90.114% 0 <6.0 46.43°C 0.982
12.030V 5.044V 3.345V 5.019V 266.334 40.69°C 114.86V
30% 26.911A 3.472A 3.456A 1.397A 359.492 91.232% 581 6.7 41.01°C 0.984
12.019V 5.043V 3.342V 5.011V 394.055 53.73°C 114.83V
40% 36.522A 3.969A 3.953A 1.6A 479.857 91.519% 582 6.7 41.82°C 0.987
12.010V 5.041V 3.34V 5.003V 524.329 55°C 114.79V
50% 45.748A 4.964A 4.944A 1.802A 599.615 91.398% 583 6.9 42.44°C 0.99
12.003V 5.038V 3.338V 4.995V 656.046 57.23°C 114.76V
60% 55.049A 5.96A 5.937A 2.001A 720.139 91.055% 583 6.9 42.98°C 0.992
11.995V 5.036V 3.336V 4.987V 790.883 59.77°C 114.74V
70% 64.164A 6.956A 6.932A 2.21A 839.903 90.249% 900 20.5 43.18°C 0.993
12.012V 5.034V 3.333V 4.98V 930.656 60.58°C 114.71V
80% 73.566A 7.951A 7.927A 2.313A 959.877 89.592% 1106 26.8 43.88°C 0.994
11.989V 5.032V 3.331V 4.973V 1071.391 61.79°C 114.68V
90% 83.268A 8.451A 8.412A 2.417A 1079.698 88.896% 1329 32.6 44.14°C 0.995
11.976V 5.03V 3.328V 4.967V 1214.562 63.15°C 114.65V
100% 92.759A 8.95A 8.929A 3.025A 1199.78 88.067% 1569 37.1 45.24°C 0.995
11.967V 5.028V 3.326V 4.959V 1362.351 64.01°C 114.6V
110% 102.186A 9.948A 10.019A 3.029A 1320.391 87.157% 1826 41.6 46.57°C 0.996
11.959V 5.027V 3.323V 4.954V 1514.961 65.28°C 114.56V
CL1 0.118A 13.148A 13.087A 0A 111.321 80.724% 589 7.1 42.96°C 0.962
12.044V 5.035V 3.339V 5.033V 137.906 62.47°C 114.89V
CL2 0.116A 19.883A 0A 0A 101.407 79.466% 587 6.9 42.73°C 0.964
12.048V 5.03V 3.35V 5.036V 127.612 58.6°C 114.9V
CL3 0.116A 0A 19.785A 0A 67.4 73.729% 587 6.9 42.69°C 0.95
12.079V 5.038V 3.336V 5.035V 91.415 56.35°C 114.91V
CL4 100.283A 0A 0A 0A 1200.235 88.631% 1540 36.5 44.41°C 0.995
11.968V 5.037V 3.335V 4.995V 1354.195 58.11°C 114.61V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.166A 1.981A 1.972A 0.995A 120.033 86.302% 0 <6.0 52.39°C 0.857
12.054V 5.049V 3.347V 5.027V 139.083 40.31°C 230.01V
20% 17.384A 2.973A 2.96A 1.196A 240.006 91.877% 0 <6.0 53.85°C 0.936
12.028V 5.047V 3.345V 5.019V 261.229 40.81°C 230V
30% 26.909A 3.47A 3.456A 1.397A 359.471 93.063% 580 6.7 41.34°C 0.958
12.019V 5.045V 3.342V 5.011V 386.264 53.02°C 229.98V
40% 36.528A 3.967A 3.953A 1.599A 479.853 93.451% 580 6.7 41.73°C 0.967
12.009V 5.044V 3.34V 5.003V 513.485 53.77°C 229.97V
50% 45.758A 4.961A 4.945A 1.802A 599.61 93.467% 581 6.7 42.17°C 0.973
12.000V 5.041V 3.337V 4.995V 641.519 56.17°C 229.96V
60% 55.061A 5.956A 5.938A 2.001A 720.126 93.301% 582 6.7 42.68°C 0.975
11.993V 5.039V 3.335V 4.988V 771.833 59.56°C 229.94V
70% 64.181A 6.952A 6.933A 2.209A 839.896 92.665% 844 18.5 43.08°C 0.977
12.009V 5.037V 3.333V 4.98V 906.372 60.9°C 229.93V
80% 73.588A 7.947A 7.928A 2.313A 959.889 92.286% 1076 26.1 43.78°C 0.98
11.986V 5.035V 3.33V 4.973V 1040.139 62.37°C 229.92V
90% 83.289A 8.445A 8.414A 2.417A 1079.707 91.916% 1319 32.5 44.91°C 0.982
11.973V 5.034V 3.328V 4.967V 1174.662 63.53°C 229.9V
100% 92.781A 8.944A 8.932A 3.025A 1199.786 91.401% 1559 36.8 45.36°C 0.983
11.964V 5.033V 3.325V 4.96V 1312.665 64.48°C 229.88V
110% 102.213A 9.941A 10.023A 3.029A 1320.4 90.869% 1828 41.6 46.96°C 0.984
11.956V 5.031V 3.322V 4.954V 1453.081 67.61°C 229.87V
CL1 0.118A 13.134A 13.088A 0A 111.321 82.355% 586 6.9 40.73°C 0.844
12.041V 5.041V 3.339V 5.033V 135.172 58.97°C 230.01V
CL2 0.116A 19.854A 0A 0A 101.408 49.815% 587 6.9 41.24°C 0.574
12.055V 5.037V 3.35V 5.037V 186.697 57.86°C 229.97V
CL3 0.116A 0A 19.787A 0A 67.401 75.344% 587 6.9 41.64°C 0.768
12.076V 5.042V 3.335V 5.035V 89.459 55.44°C 230.02V
CL4 100.301A 0A 0A 0A 1200.261 91.995% 1542 36.5 45.17°C 0.983
11.966V 5.039V 3.334V 4.996V 1304.702 61.55°C 229.88V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.495A 0.493A 0.199A 20.016 73.421% 0 <6.0 42.9°C 0.816
12.073V 5.049V 3.349V 5.036V 27.259 36.44°C 114.93V
40W 2.706A 0.693A 0.69A 0.298A 40.01 78.851% 0 <6.0 46.97°C 0.897
12.083V 5.048V 3.349V 5.038V 50.741 37.12°C 114.92V
60W 4.185A 0.892A 0.887A 0.397A 60.007 82.086% 0 <6.0 50.51°C 0.943
12.075V 5.048V 3.349V 5.038V 73.105 38.38°C 114.91V
80W 5.668A 1.09A 1.084A 0.497A 79.981 83.625% 0 <6.0 52.44°C 0.951
12.057V 5.047V 3.349V 5.037V 95.64 39.16°C 114.91V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.495A 0.493A 0.199A 20.009 73.815% 0 <6.0 44.72°C 0.407
12.068V 5.052V 3.349V 5.036V 27.107 36.43°C 230.04V
40W 2.708A 0.693A 0.69A 0.298A 40.006 79.801% 0 <6.0 45.95°C 0.6
12.077V 5.052V 3.348V 5.038V 50.131 37.74°C 230.03V
60W 4.187A 0.891A 0.887A 0.397A 60.006 83.338% 0 <6.0 49.51°C 0.71
12.069V 5.051V 3.348V 5.038V 72.002 38.82°C 230.03V
80W 5.670A 1.089A 1.084A 0.496A 79.977 85.272% 0 <6.0 50.33°C 0.777
12.052V 5.051V 3.348V 5.037V 93.79 39.47°C 230.02V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load17.61mV7.04mV4.38mV10.70mVPass
20% Load16.59mV6.94mV4.73mV11.11mVPass
30% Load17.15mV6.78mV4.73mV11.62mVPass
40% Load19.34mV7.60mV5.34mV12.38mVPass
50% Load20.25mV7.70mV5.85mV13.71mVPass
60% Load20.66mV8.26mV6.31mV13.30mVPass
70% Load20.81mV8.16mV6.56mV12.07mVPass
80% Load21.98mV8.98mV10.17mV12.99mVPass
90% Load23.76mV9.38mV10.63mV13.91mVPass
100% Load23.16mV9.36mV11.10mV18.07mVPass
110% Load24.79mV10.26mV12.33mV17.01mVPass
Crossload115.78mV7.49mV9.53mV9.29mVPass
Crossload217.20mV8.57mV5.64mV8.87mVPass
Crossload317.96mV6.94mV13.22mV9.88mVPass
Crossload423.44mV9.15mV7.35mV10.24mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.74mV7.60mV4.58mV10.50mVPass
20% Load17.91mV6.53mV4.88mV11.11mVPass
30% Load17.86mV7.19mV5.14mV11.36mVPass
40% Load19.69mV7.45mV5.34mV12.23mVPass
50% Load21.42mV7.75mV6.00mV13.50mVPass
60% Load22.34mV8.16mV6.26mV13.35mVPass
70% Load21.83mV10.05mV6.41mV11.72mVPass
80% Load23.05mV8.98mV10.22mV12.48mVPass
90% Load24.22mV9.18mV24.06mV13.75mVPass
100% Load23.28mV8.92mV11.06mV17.26mVPass
110% Load25.60mV10.07mV11.77mV16.87mVPass
Crossload116.43mV6.96mV9.68mV8.85mVPass
Crossload2105.36mV8.87mV6.10mV9.73mVPass
Crossload318.06mV6.38mV13.38mV9.32mVPass
Crossload423.32mV8.98mV7.10mV9.94mVPass

The results above are not used in the certification process

APNX Max G1 1200

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
