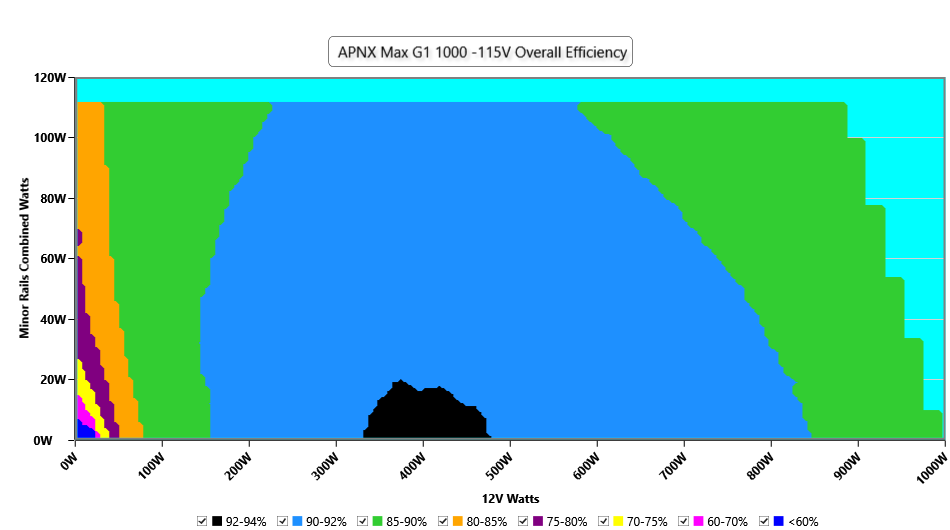

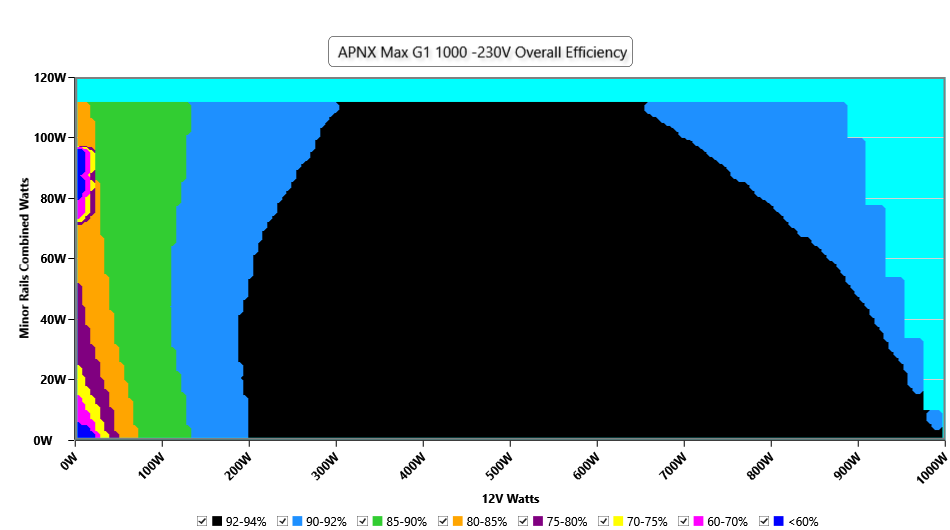

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

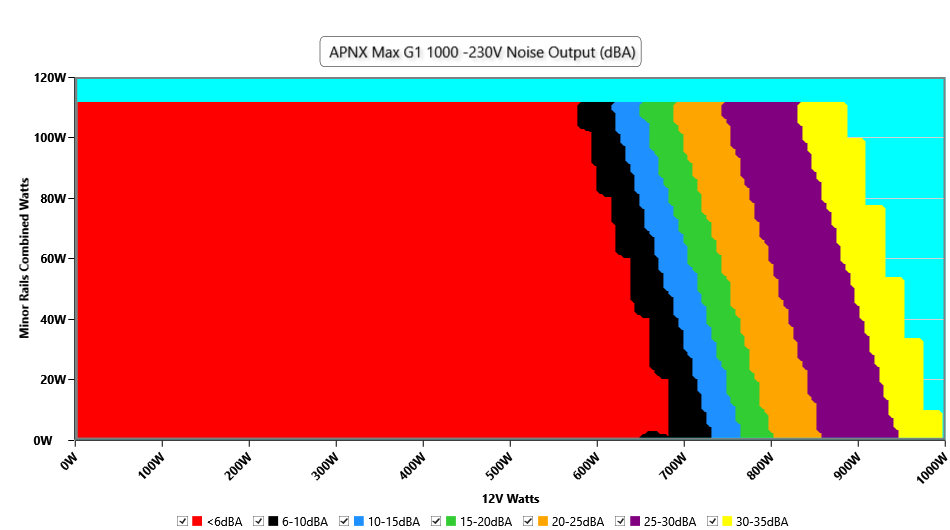

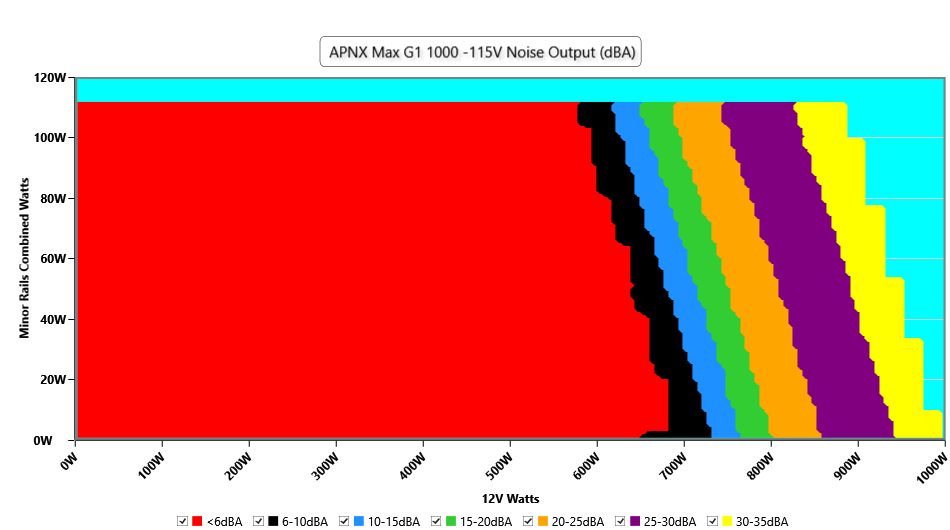

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

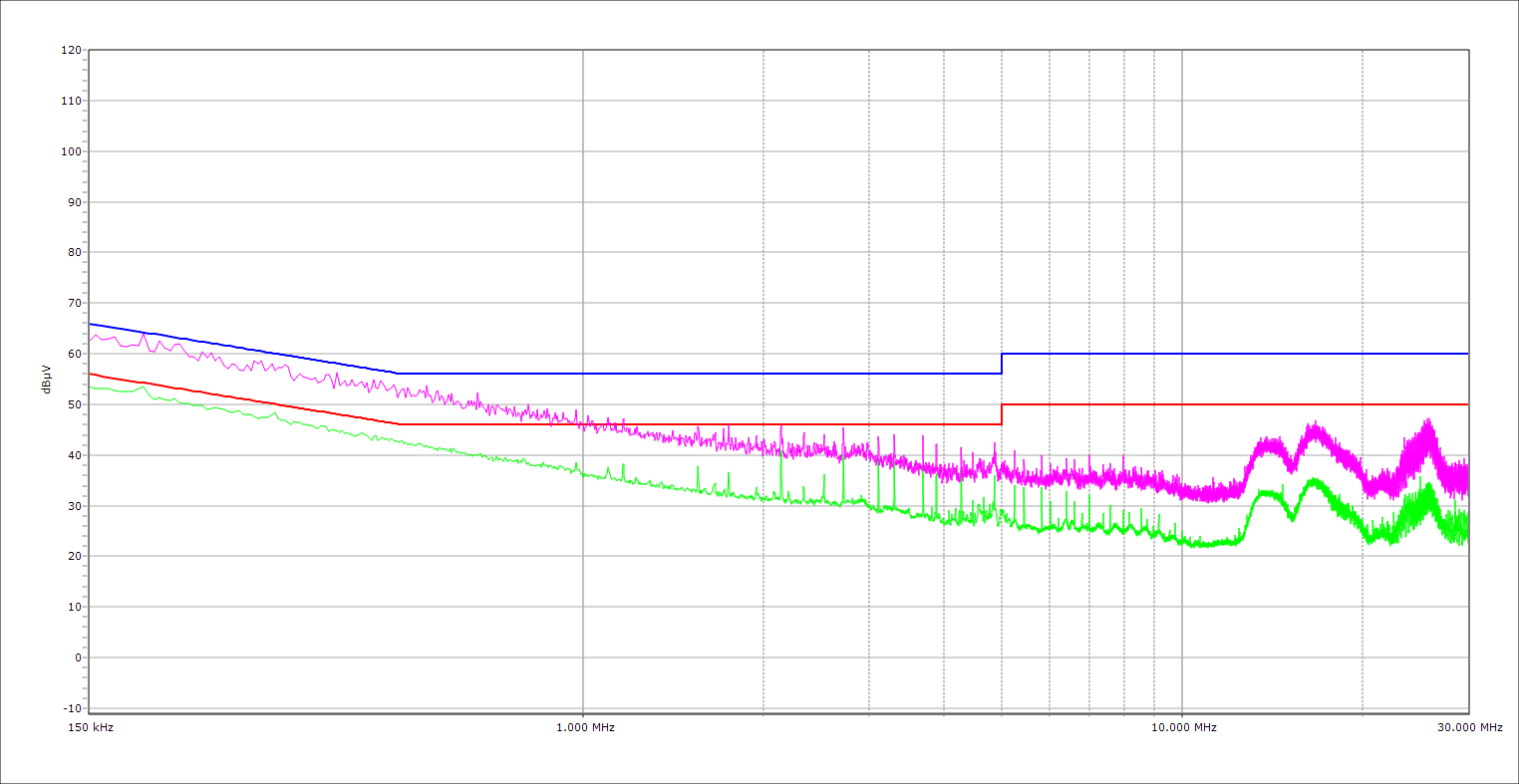

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

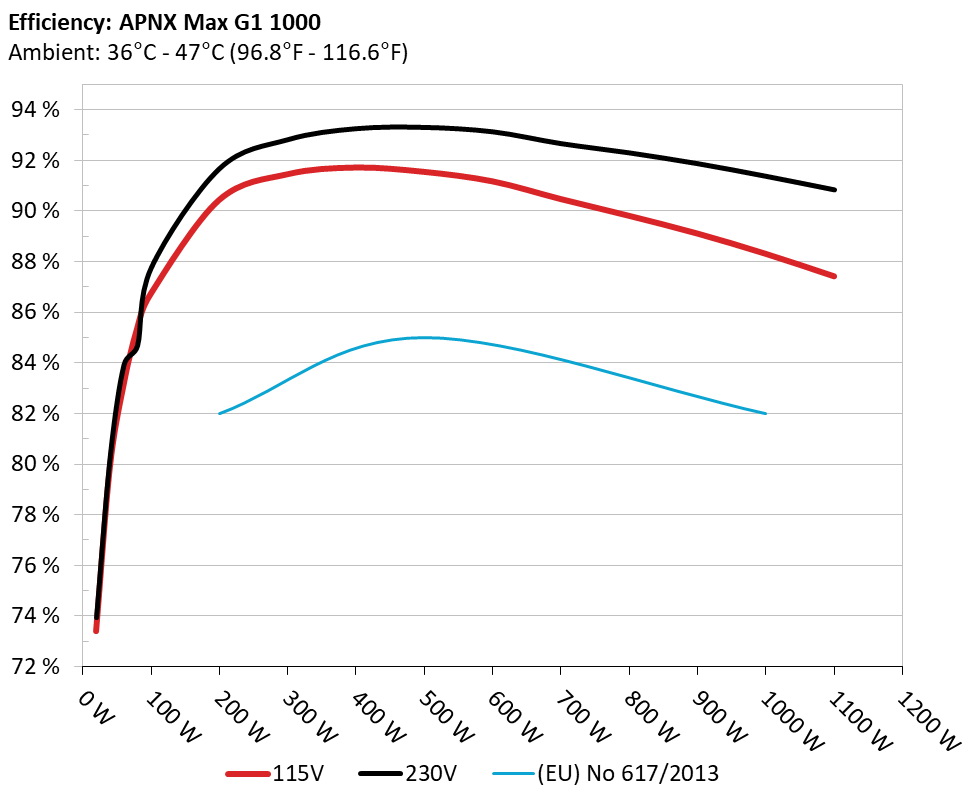

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

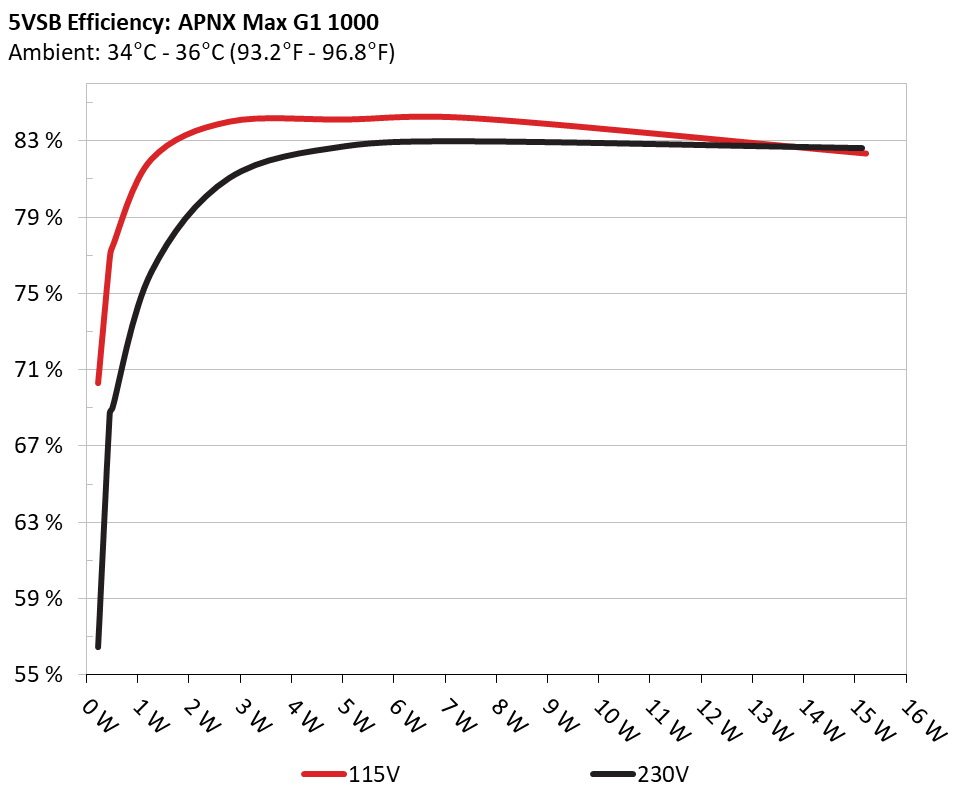

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.526A
1.976A
1.973A
0.99A
100.027
86.726%
0
<6.0
46.36°C
0.966
12.018V
5.061V
3.346V
5.052V
115.337
40.36°C
114.91V
20%
14.080A
2.967A
2.962A
1.19A
199.985
90.422%
0
<6.0
46.97°C
0.98
12.009V
5.058V
3.343V
5.044V
221.167
40.99°C
114.88V
30%
22.001A
3.462A
3.459A
1.39A
300.047
91.439%
576
6.1
41.14°C
0.983
11.999V
5.056V
3.34V
5.036V
328.138
44.72°C
114.85V
40%
29.910A
3.959A
3.956A
1.592A
399.822
91.702%
577
6.3
41.78°C
0.986
11.990V
5.053V
3.337V
5.028V
436.002
46.4°C
114.83V
50%
37.478A
4.952A
4.95A
1.794A
499.551
91.534%
577
6.3
42.34°C
0.988
11.981V
5.05V
3.334V
5.019V
545.753
47.14°C
114.8V
60%
45.128A
5.947A
5.945A
1.996A
600.103
91.159%
578
6.5
42.65°C
0.99
11.972V
5.046V
3.331V
5.011V
658.294
48.55°C
114.76V
70%
52.602A
6.943A
6.942A
2.199A
699.836
90.463%
727
13.3
43.42°C
0.992
11.990V
5.043V
3.328V
5.004V
773.616
49.96°C
114.74V
80%
60.325A
7.938A
7.94A
2.302A
799.857
89.802%
989
23.6
43.76°C
0.993
11.967V
5.04V
3.325V
4.997V
890.693
50.37°C
114.72V
90%
68.377A
8.438A
8.428A
2.405A
899.64
89.104%
1214
29.8
44.43°C
0.994
11.951V
5.037V
3.322V
4.991V
1009.655
51.1°C
114.7V
100%
76.204A
8.939A
8.948A
3.011A
999.67
88.306%
1509
35.9
45.31°C
0.995
11.942V
5.035V
3.319V
4.983V
1132.06
52.18°C
114.67V
110%
83.974A
9.939A
10.042A
3.014A
1100.312
87.414%
1748
40.1
46.72°C
0.995
11.932V
5.032V
3.316V
4.977V
1258.744
53.55°C
114.64V
CL1
0.117A
13.128A
13.101A
0A
111.315
82.816%
582
6.7
41.7°C
0.972
12.017V
5.043V
3.335V
5.055V
134.41
48.67°C
114.9V
CL2
0.117A
19.859A
0A
0A
101.405
81.463%
580
6.7
40.45°C
0.969
12.022V
5.035V
3.346V
5.06V
124.482
46.38°C
114.91V
CL3
0.116A
0A
19.801A
0A
67.398
75.29%
580
6.7
41.38°C
0.957
12.029V
5.051V
3.333V
5.058V
89.434
46.94°C
114.92V
CL4
83.736A
0A
0A
0A
1000.298
88.776%
1451
35.1
45.34°C
0.995
11.946V
5.048V
3.329V
5.02V
1126.764
51.63°C
114.67V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.526A
1.977A
1.973A
0.99A
100.034
87.759%
0
<6.0
49.01°C
0.853
12.018V
5.06V
3.346V
5.053V
113.987
40.38°C
230V
20%
14.080A
2.968A
2.962A
1.19A
199.991
91.686%
0
<6.0
49.18°C
0.931
12.009V
5.056V
3.342V
5.044V
218.127
40.51°C
230V
30%
22.000A
3.464A
3.459A
1.39A
300.051
92.832%
567
<6.0
41.37°C
0.953
12.000V
5.054V
3.34V
5.036V
323.22
45.3°C
229.99V
40%
29.912A
3.961A
3.957A
1.591A
399.852
93.266%
575
6.1
41.54°C
0.964
11.990V
5.051V
3.337V
5.028V
428.732
45.31°C
229.98V
50%
37.484A
4.954A
4.951A
1.793A
499.569
93.316%
576
6.1
42.43°C
0.971
11.980V
5.048V
3.333V
5.02V
535.354
44.94°C
229.97V
60%
45.134A
5.95A
5.946A
1.996A
600.118
93.142%
579
6.5
42.53°C
0.975
11.971V
5.044V
3.33V
5.012V
644.303
45.79°C
229.96V
70%
52.610A
6.947A
6.944A
2.199A
699.873
92.676%
636
9.2
43.27°C
0.978
11.989V
5.04V
3.327V
5.004V
755.219
46.24°C
229.94V
80%
60.337A
7.943A
7.943A
2.302A
799.877
92.309%
918
21.1
43.64°C
0.98
11.965V
5.037V
3.324V
4.998V
866.521
48.8°C
229.93V
90%
68.387A
8.445A
8.43A
2.405A
899.658
91.883%
1226
30.1
44.67°C
0.981
11.949V
5.034V
3.321V
4.991V
979.136
50.46°C
229.92V
100%
76.210A
8.946A
8.95A
3.01A
999.68
91.384%
1463
35.2
45.61°C
0.983
11.941V
5.031V
3.319V
4.984V
1093.935
50.53°C
229.91V
110%
83.980A
9.947A
10.045A
3.014A
1100.316
90.845%
1692
39.2
46.23°C
0.984
11.931V
5.028V
3.315V
4.978V
1211.198
49.99°C
229.9V
CL1
0.117A
13.14A
13.102A
0A
111.317
83.744%
580
6.7
40.8°C
0.876
12.017V
5.039V
3.335V
5.056V
132.926
46.75°C
230.02V
CL2
0.117A
19.886A
0A
0A
101.405
82.207%
578
6.5
40.51°C
0.864
12.021V
5.029V
3.346V
5.06V
123.354
44.93°C
230.02V
CL3
0.116A
0A
19.801A
0A
67.399
75.291%
577
6.3
40.17°C
0.804
12.041V
5.052V
3.333V
5.058V
89.518
44.66°C
230.03V
CL4
83.734A
0A
0A
0A
1000.217
92.018%
1453
35.1
45.79°C
0.983
11.945V
5.047V
3.329V
5.02V
1086.987
50.95°C
229.91V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.494A
0.493A
0.198A
20.008
73.419%
0
<6.0
42.18°C
0.835
12.087V
5.065V
3.348V
5.062V
27.253
36.26°C
114.93V
40W
2.706A
0.691A
0.69A
0.296A
40.006
79.853%
0
<6.0
46.14°C
0.924
12.086V
5.065V
3.348V
5.063V
50.099
37.33°C
114.92V
60W
4.188A
0.889A
0.887A
0.395A
60.005
83.114%
0
<6.0
47.7°C
0.939
12.064V
5.064V
3.347V
5.063V
72.196
38.32°C
114.91V
80W
5.686A
1.087A
1.085A
0.494A
79.972
85.344%
0
<6.0
45.66°C
0.96
12.020V
5.063V
3.347V
5.061V
93.703
39.53°C
114.92V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.494A
0.493A
0.198A
20.018
73.924%
0
<6.0
43.82°C
0.433
12.086V
5.065V
3.348V
5.061V
27.079
36.15°C
229.95V
40W
2.706A
0.691A
0.69A
0.297A
40.015
80.295%
0
<6.0
45.28°C
0.64
12.085V
5.064V
3.347V
5.063V
49.836
37.37°C
229.94V
60W
4.190A
0.889A
0.888A
0.395A
60.016
83.908%
0
<6.0
45.82°C
0.748
12.063V
5.063V
3.347V
5.063V
71.524
38.29°C
229.93V
80W
5.678A
1.087A
1.085A
0.494A
80
84.682%
0
<6.0
46.05°C
0.817
12.039V
5.062V
3.347V
5.061V
94.474
39.01°C
229.93V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
20.6 mV
7.9 mV
4.1 mV
9.1 mV
Pass
20% Load
19.0 mV
7.8 mV
4.2 mV
9.2 mV
Pass
30% Load
19.7 mV
7.6 mV
4.4 mV
9.5 mV
Pass
40% Load
21.5 mV
8.1 mV
4.6 mV
9.9 mV
Pass
50% Load
22.6 mV
8.2 mV
4.9 mV
10.7 mV
Pass
60% Load
22.5 mV
8.4 mV
4.9 mV
10.6 mV
Pass
70% Load
23.5 mV
8.6 mV
5.3 mV
9.8 mV
Pass
80% Load
25.0 mV
9.1 mV
8.4 mV
10.3 mV
Pass
90% Load
25.1 mV
9.2 mV
9.1 mV
10.7 mV
Pass
100% Load
25.2 mV
9.8 mV
9.5 mV
13.7 mV
Pass
110% Load
25.7 mV
10.0 mV
9.5 mV
14.3 mV
Pass
Crossload 1
19.6 mV
8.5 mV
8.9 mV
7.3 mV
Pass
Crossload 2
20.6 mV
9.5 mV
5.6 mV
7.5 mV
Pass
Crossload 3
16.8 mV
7.5 mV
12.3 mV
7.3 mV
Pass
Crossload 4
24.5 mV
9.5 mV
6.1 mV
7.5 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
21.9 mV
7.5 mV
4.1 mV
8.9 mV
Pass
20% Load
20.2 mV
7.4 mV
4.1 mV
9.7 mV
Pass
30% Load
20.6 mV
7.8 mV
4.2 mV
9.3 mV
Pass
40% Load
21.6 mV
8.2 mV
4.7 mV
10.0 mV
Pass
50% Load
23.1 mV
8.3 mV
4.7 mV
10.9 mV
Pass
60% Load
23.3 mV
8.8 mV
5.3 mV
10.1 mV
Pass
70% Load
22.1 mV
7.7 mV
4.8 mV
8.4 mV
Pass
80% Load
25.0 mV
9.4 mV
8.7 mV
10.1 mV
Pass
90% Load
26.0 mV
9.2 mV
8.9 mV
10.3 mV
Pass
100% Load
25.4 mV
10.2 mV
9.1 mV
14.4 mV
Pass
110% Load
27.3 mV
11.0 mV
9.7 mV
14.2 mV
Pass
Crossload 1
20.1 mV
8.3 mV
8.7 mV
7.4 mV
Pass
Crossload 2
21.7 mV
9.7 mV
5.8 mV
7.3 mV
Pass
Crossload 3
25.9 mV
7.7 mV
12.2 mV
7.6 mV
Pass
Crossload 4
25.7 mV
9.4 mV
6.0 mV
7.6 mV
Pass
The results above are not used in the certification process
APNX Max G1 1000
Top side
Power specifications label

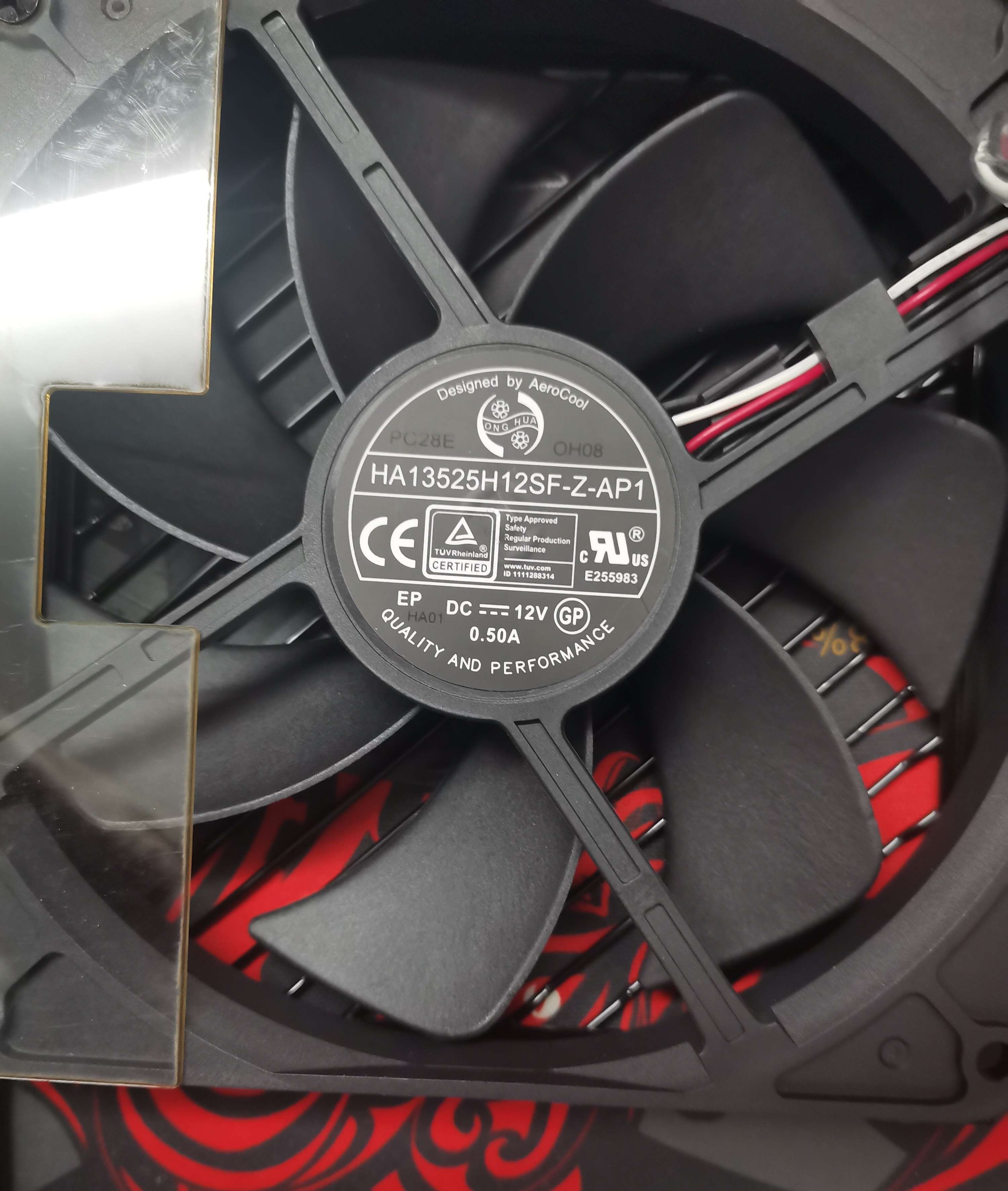

Fan

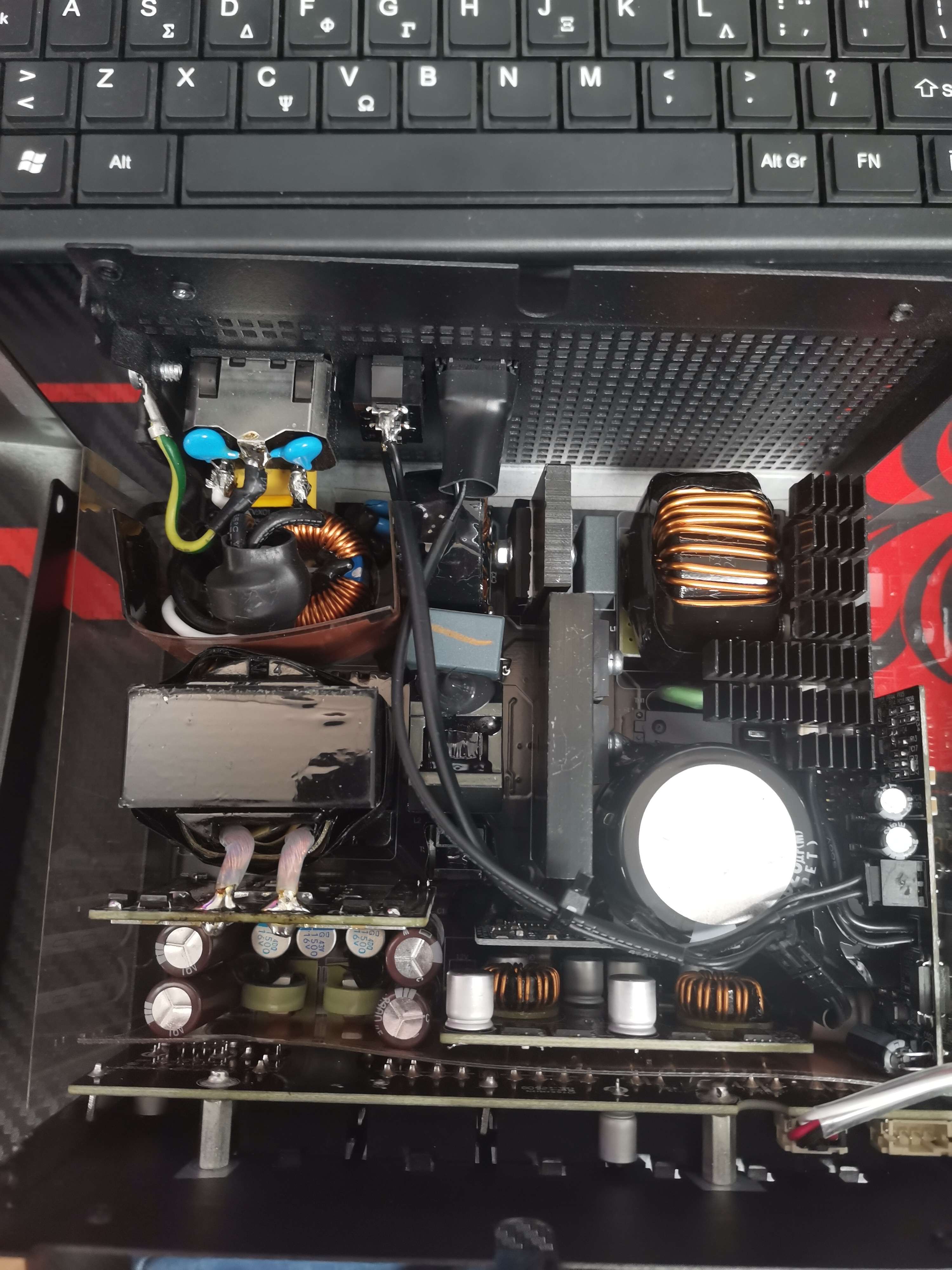

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
