CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Micronics Classic II Full Change Silver 700W (#2)
Serial Number-
Lab IDMI70002940
Certification ID252940
  • Test Result Report ID: 25PS2940A
  • Certificate Issue Date: Aug 27, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandMicronics
ModelClassic II Full Change Silver 700W (#2)
OEMSirfa
Serial Number-
Product Specifications
Manufacturer
Rated Voltage (Vrms)200--240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)700
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFixed cables
Warranty-
Cybenetics
Dimensions (W x H x D)
Weight
Cooling120mm Hydraulic Bearing Fan (GQR1225H12M)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab IDMI70002940
Date of receiptAug 1, 2025
Testing DateAug 20, 2025
Report Issued DateAug 27, 2025
DUT NotesInrush current was retested and updated on November 6, 2025.
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (575mm) 1 1 18-22AWG No
8 pin EPS12V (700mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (450mm+150mm) 1 2 18AWG No
12+4 pin PCIe (605mm) (600W) 1 1 16-24AWG No
SATA (460mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (450mm+150mm) 2 4 18AWG No

Protection Features(Manufacturer)

Over Power Protection ✓
Over Current (+12V) Protection ✓
Over Temperature Protection ✓
Short Circuit Protection ✓
Surge Protection ✓
Inrush Current Protection ✓
Fan Failure Protection ✗

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181858.330.3
Watts100700153.6
Total Max. Power (W)700

Parts Description

General Data
Manufacturer (OEM) Sirfa
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-0R78A (0.7 Ohm @25°C)
Bridge Rectifier(s)
GBU810 (1000V, 8A @ 100°C)
APFC MOSFETs
Sanrise Tech SRC65R220BS (650V, 9.5A @ 125°C, Rds(on): 220mOhm)
APFC Boost Diode
Macrocore Semiconductor HX1D06065A
Bulk Cap(s)
Teapo (420V, 390uF, 2000h @ 105°C, LE)
Main Switchers
2x Way-On WML20N50D1 (500V, 20A @ 25°C, Rds(on): 0.29Ohm)

Topology

Primary side: APFC, Double Forward
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Way-On WMK053NV8HGS (85V, 79A @ 100°C, Rds(on): 5.5mOhm)
5V & 3.3V DC-DC Converters: 4x Sanrise Tech SRT03N050L (30V, 35A @ 100°C, Rds(on): 5mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
9x Teapo (1-3,000 @ 105°C, SC)
Teapo (1,000 @ 105°C, SC)
Polymer:
6x Teapo
Supervisor IC Weltrend WT7527RT (OVP, UVP, OCP, PG)
Fan Power Transistor STMicroelectronics 2SD882
Fan Model GQR1225H12M  (120mm, 12V, 0.20A, Hydraulic Bearing Fan)
5VSB Circuit
Rectifier (High Side)
PingWei PS1045 (45V, 10A)
Standby PWM Controller
Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Accredited
Average Efficiency (>1450 load combinations)88.340%
Average Noise Output (>1450 Load Combinations)34.29dBA
Average PF (>1450 Load Combinations)0.967
Efficiency With 10W (≤500W) or 2% (>500W) Load64.158%
Standby Power Consumption0.1549W
Non-Accredited
12V Ripple (Full Load)28.88mV
5V Ripple (Full Load)24.44mV
3.3V Ripple (Full Load)26.47mV
5VSB Ripple (Full Load)25.94mV
12V Load Regulation0.91%
5V Load Regulation0.70%
3.3V Load Regulation1.07%
5VSB Load Regulation3.47%
Inrush Current75.220A
12V Transient Response (200%)11.35V
5V Transient Response (200%)4.957V
3.3V Transient Response (200%)3.207V
5VSB Transient Response (200%)4.963V
Hold-Up Time & Power Ok Signal16.30ms
AC Loss to PWR_OK Hold Up Time12.90ms
PWR_OK Inactive to DC Loss Delay3.40ms
PSU Timings: T1 (20% / 100%)57.0ms41.0ms
PSU Timings: T3 (20% / 100%)120.0ms121.0ms
12V OCP (28.8°C / 46.4°C)68.60A (117.67%), 11.973V65.80A (112.86%), 11.969V
5V OCP (28.8°C / 46.4°C)22.5A (125.00%), 5.023V22.1A (122.78%), 5.023V
3.3V OCP (28.8°C / 46.4°C)22.4A (124.44%), 3.271V21.9A (121.67%), 3.273V
5VSB OCP (28.8°C / 46.4°C)4.2A (140.00%), 4.984V4.1A (136.67%), 4.979V
OPP (30.26°C / 43.63°C)128.22%123.86%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.3
AC Loss to PWR_OK Hold Up Time (ms)12.9
PWR_OK Inactive to DC Loss Delay (ms)3.4

Vampire Power

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.04 V 230.92 V 227.70 V 231.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.29 % 2.00 % PASS
Real Power: 0.155 W 0.110 W N/A 0.224 W N/A N/A
Apparent Power: 22.964 W 21.479 W N/A 24.545 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs 230V

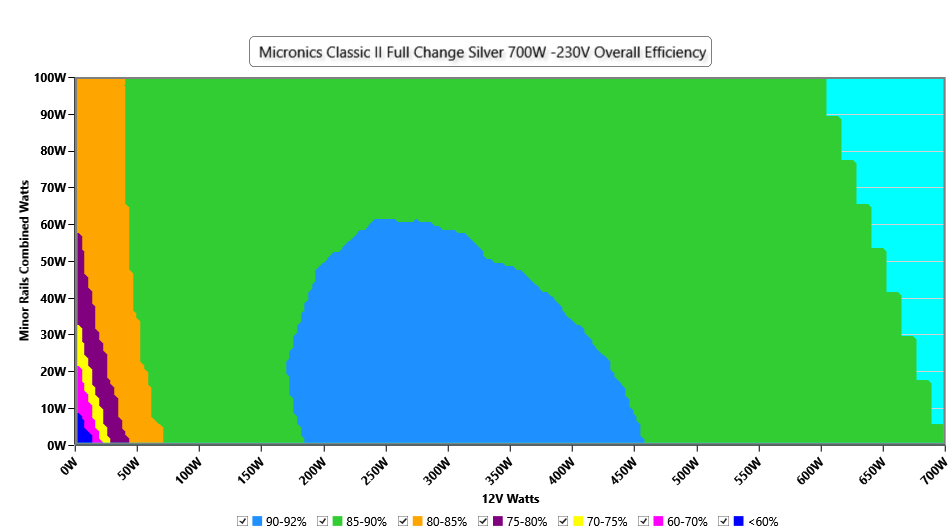

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

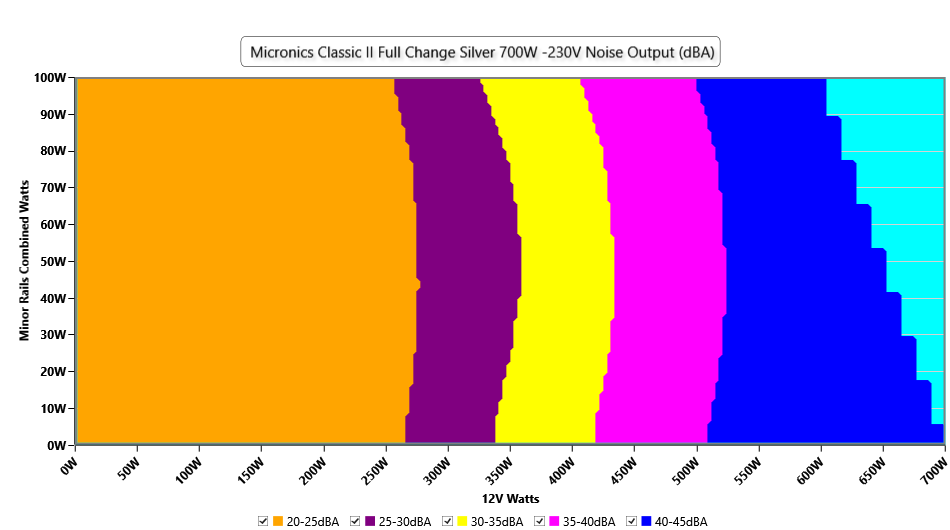

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

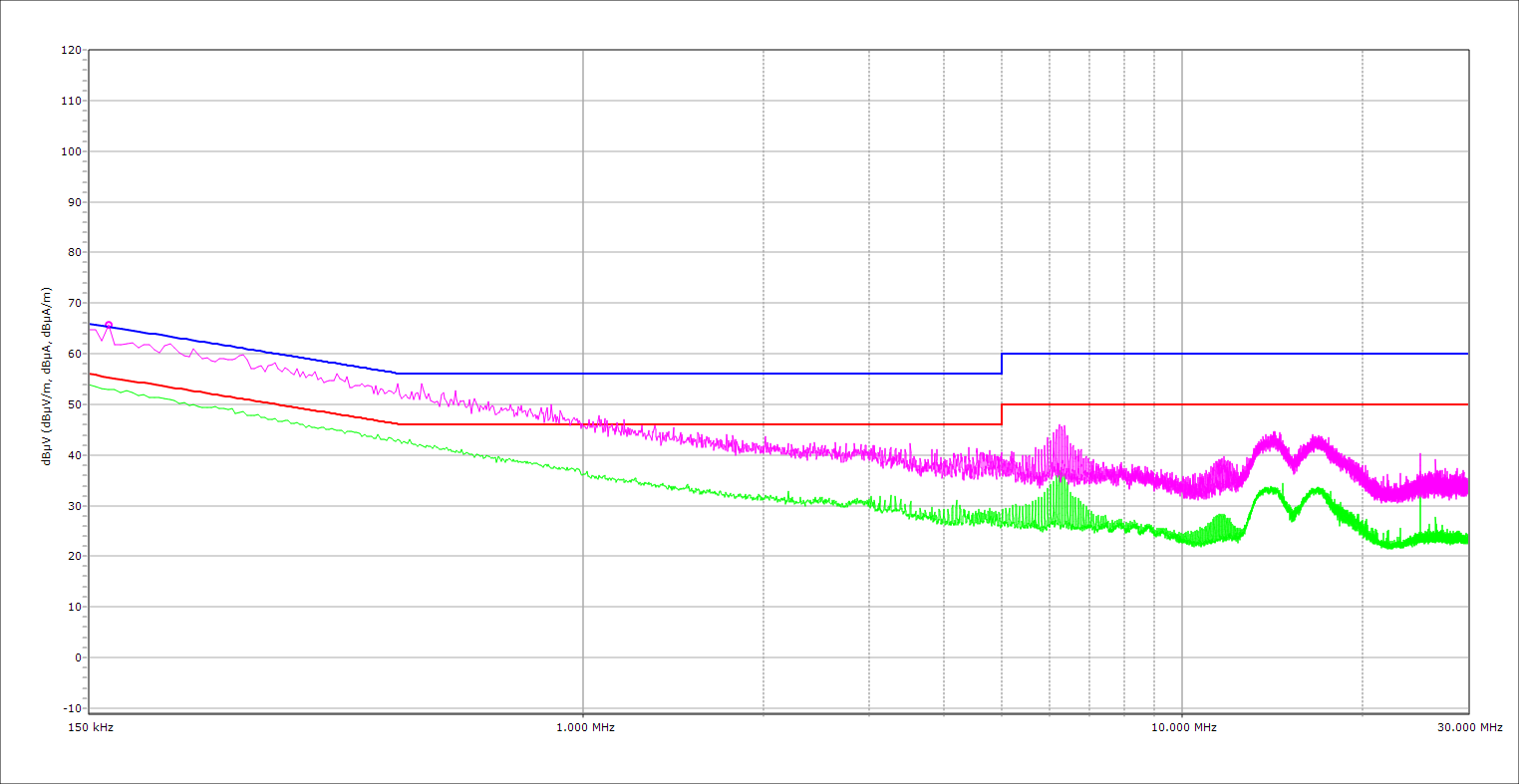

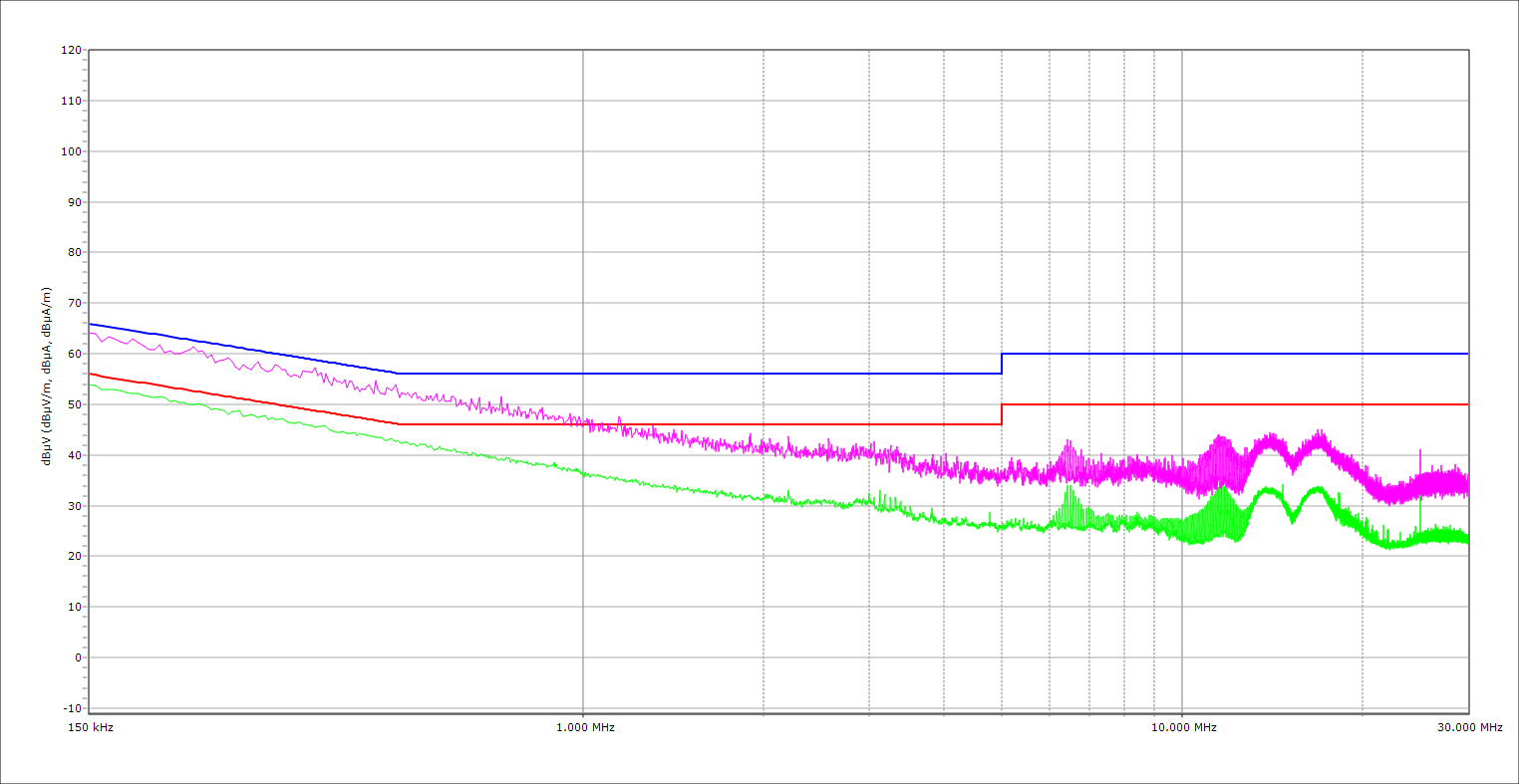

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

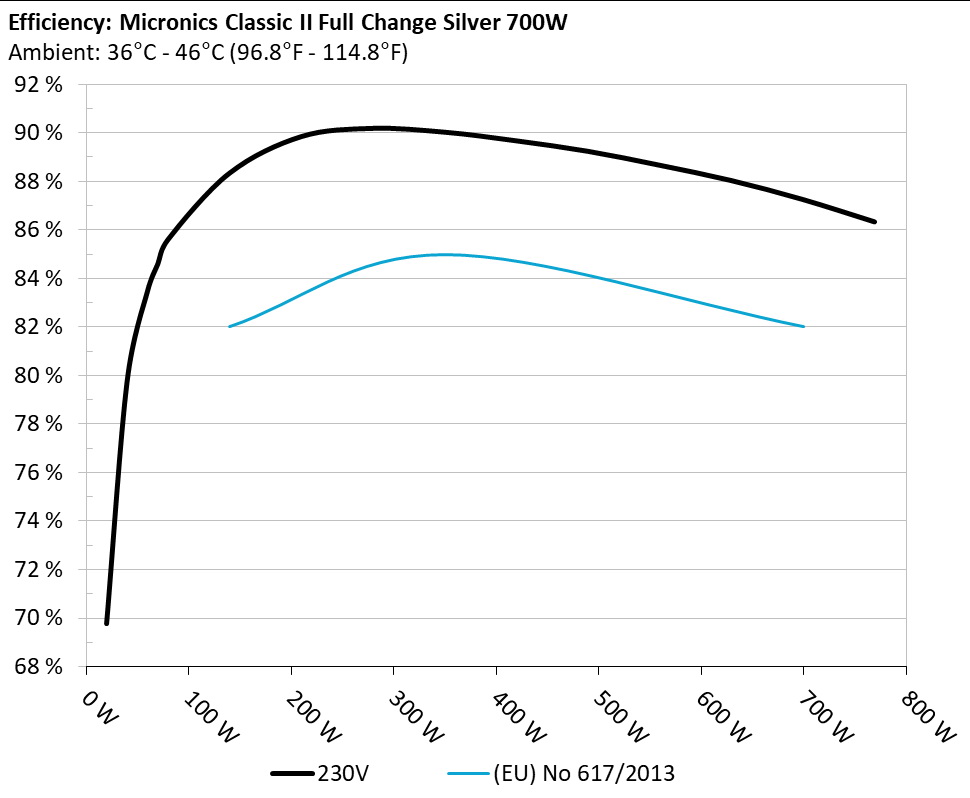

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

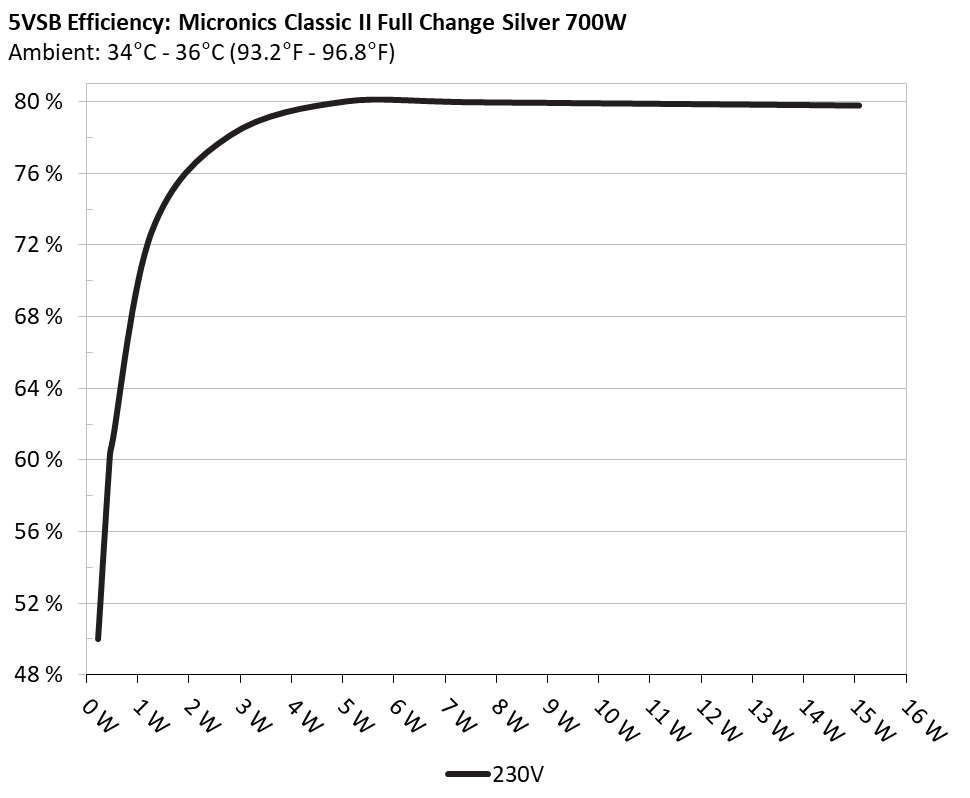

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 50.018% 0.023
5.109V 0.461W 230.22V
2 0.09A 0.46W 60.265% 0.038
5.11V 0.764W 230.24V
3 0.55A 2.804W 78.115% 0.156
5.098V 3.59W 230.23V
4 1A 5.085W 80.021% 0.225
5.086V 6.355W 230.23V
5 1.5A 7.607W 79.967% 0.272
5.072V 9.513W 230.22V
6 3A 15.083W 79.786% 0.338
5.028V 18.904W 230.21V

Protection Features

OCP (Normal @ 28.8°C)12V: 68.60A (117.67%), 11.973V
5V: 22.5A (125.00%), 5.023V
3.3V: 22.4A (124.44%), 3.271V
5VSB: 4.2A (140.00%), 4.984V
OCP (Hot @ 46.4°C)12V: 65.80A (112.86%), 11.969V
5V: 22.1A (122.78%), 5.023V
3.3V: 21.9A (121.67%), 3.273V
5VSB: 4.1A (136.67%), 4.979V
OPP (Normal @ 30.3°C)897.52W (128.22%)
OPP (Hot @ 43.6°C)867.01W (123.86%)
OTP✓ (96°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 180V)✓
UVP (No Damage @ 170V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.025A 1.988A 1.994A 0.986A 70 84.606% 912 25 40.14°C 0.799
12.025V 5.031V 3.31V 5.071V 82.737 43.5°C 230.25V
20% 9.075A 2.984A 2.995A 1.186A 139.928 88.355% 914 25 40.55°C 0.967
12.014V 5.027V 3.306V 5.057V 158.371 43.27°C 230.23V
30% 14.487A 3.483A 3.497A 1.388A 209.969 89.865% 915 25 41.26°C 0.977
12.005V 5.025V 3.303V 5.043V 233.651 43.44°C 230.22V
40% 19.911A 3.983A 4A 1.591A 280.014 90.204% 1114 31.2 41.73°C 0.98
11.994V 5.022V 3.3V 5.029V 310.425 46.86°C 230.2V
50% 24.991A 4.983A 5.006A 1.795A 349.972 90.047% 1337 36.6 42.05°C 0.982
11.983V 5.018V 3.296V 5.014V 388.655 47.42°C 230.19V
60% 30.065A 5.984A 6.014A 2A 419.759 89.691% 1480 39.5 42.95°C 0.985
11.972V 5.014V 3.293V 4.999V 468.004 46.58°C 230.17V
70% 35.175A 6.987A 7.024A 2.207A 489.862 89.259% 1606 41.7 43.1°C 0.987
11.961V 5.01V 3.289V 4.984V 548.806 46.09°C 230.16V
80% 40.301A 7.989A 8.036A 2.313A 559.475 88.686% 1797 44.1 43.58°C 0.989
11.950V 5.006V 3.285V 4.972V 630.853 49.19°C 230.14V
90% 45.838A 8.494A 8.531A 2.42A 629.68 88.051% 1947 46.2 44.27°C 0.99
11.937V 5.003V 3.282V 4.959V 715.134 49.63°C 230.13V
100% 51.124A 9A 9.059A 3.043A 699.317 87.27% 2012 47.3 45.88°C 0.991
11.925V 5V 3.278V 4.93V 801.325 54.15°C 230.12V
110% 56.359A 10.008A 10.17A 3.051A 769.539 86.346% 2007 47.2 46.41°C 0.992
11.910V 4.995V 3.274V 4.917V 891.233 52.64°C 230.1V
CL1 0.117A 12.012A 12.035A 0.001A 101.306 81.587% 1275 35.5 41.4°C 0.938
12.014V 5.011V 3.298V 5.073V 124.171 45.01°C 230.23V
CL2 0.117A 17.975A 0A 0.001A 91.404 80.281% 993 27.6 40.49°C 0.917
12.022V 5.007V 3.308V 5.084V 113.857 43.88°C 230.23V
CL3 0.117A 0A 18.024A 0.001A 60.8 76.323% 919 25.1 40.84°C 0.786
12.020V 5.026V 3.295V 5.084V 79.661 42.79°C 230.24V
CL4 58.659A 0A 0A 0.001A 699.926 88.036% 1998 47.1 46.41°C 0.992
11.932V 5.017V 3.289V 5.033V 795.053 52.61°C 230.11V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.496A 0.498A 0.196A 19.998 69.76% 881 23.9 36.43°C 0.438
12.033V 5.035V 3.313V 5.101V 28.667 39.24°C 230.26V
40W 2.717A 0.695A 0.698A 0.294A 39.998 79.748% 891 24.2 37.22°C 0.635
12.030V 5.034V 3.312V 5.096V 50.154 40.07°C 230.26V
60W 4.201A 0.894A 0.897A 0.393A 59.998 83.494% 896 24.2 38.37°C 0.764
12.027V 5.033V 3.311V 5.091V 71.861 40.91°C 230.25V
80W 5.681A 1.093A 1.097A 0.492A 79.939 85.616% 906 24.7 39.41°C 0.848
12.024V 5.033V 3.31V 5.086V 93.368 42.03°C 230.25V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load19.39mV21.07mV19.03mV13.83mVPass
20% Load19.69mV20.86mV20.17mV14.40mVPass
30% Load20.31mV22.20mV20.63mV14.61mVPass
40% Load21.60mV22.21mV21.72mV15.53mVPass
50% Load22.17mV21.84mV22.54mV17.19mVPass
60% Load23.41mV21.85mV23.22mV18.79mVPass
70% Load26.19mV22.72mV23.84mV21.16mVPass
80% Load26.40mV24.06mV25.60mV22.40mVPass
90% Load27.63mV24.57mV26.63mV23.54mVPass
100% Load28.88mV24.44mV26.47mV25.94mVPass
110% Load30.43mV25.31mV28.20mV27.04mVPass
Crossload121.07mV20.91mV22.16mV13.61mVPass
Crossload220.42mV20.97mV21.98mV13.47mVPass
Crossload323.97mV22.31mV21.98mV14.35mVPass
Crossload426.01mV23.13mV26.21mV19.22mVPass

The results above are not used in the certification process

Micronics Classic II Full Change Silver 700W (#2)

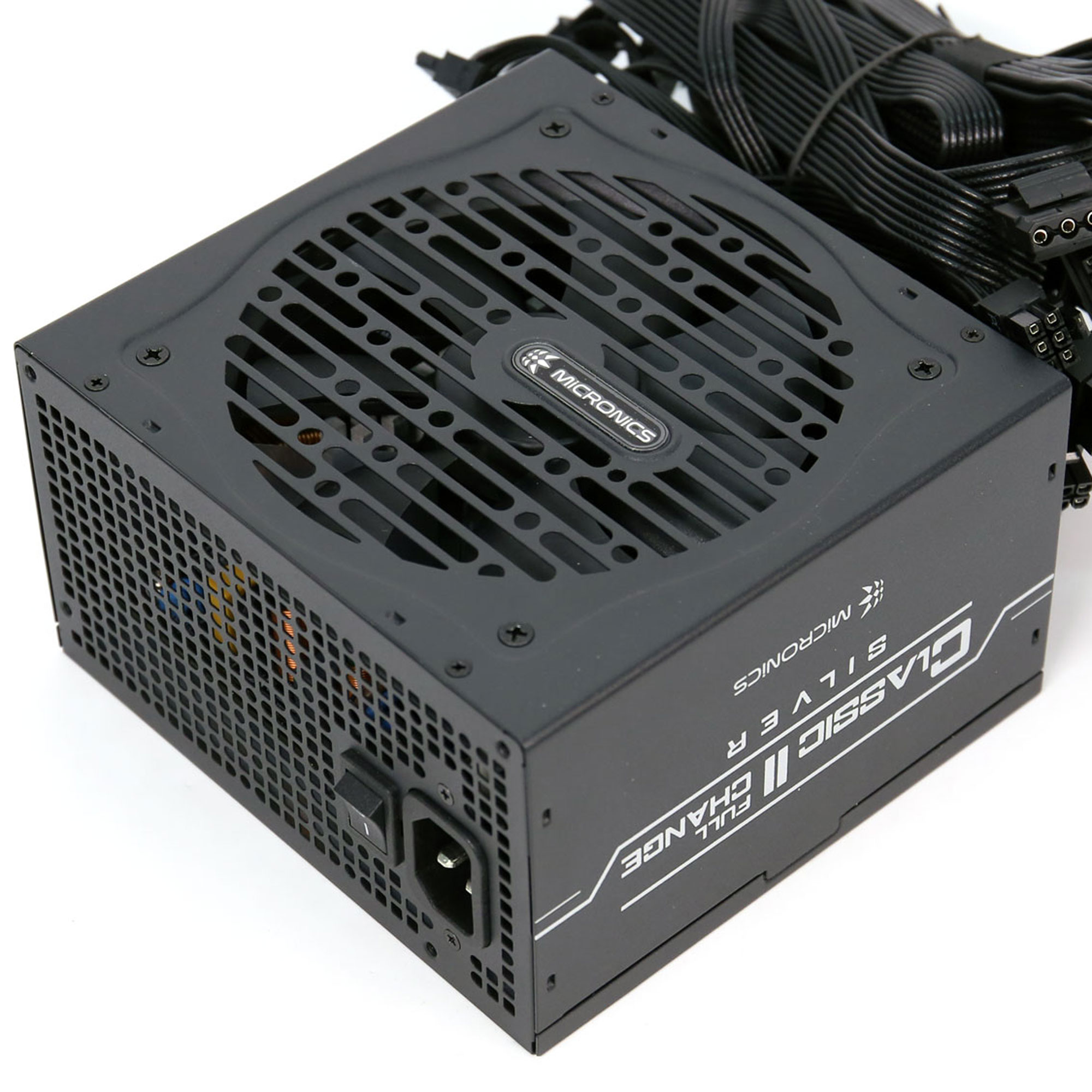

Top side

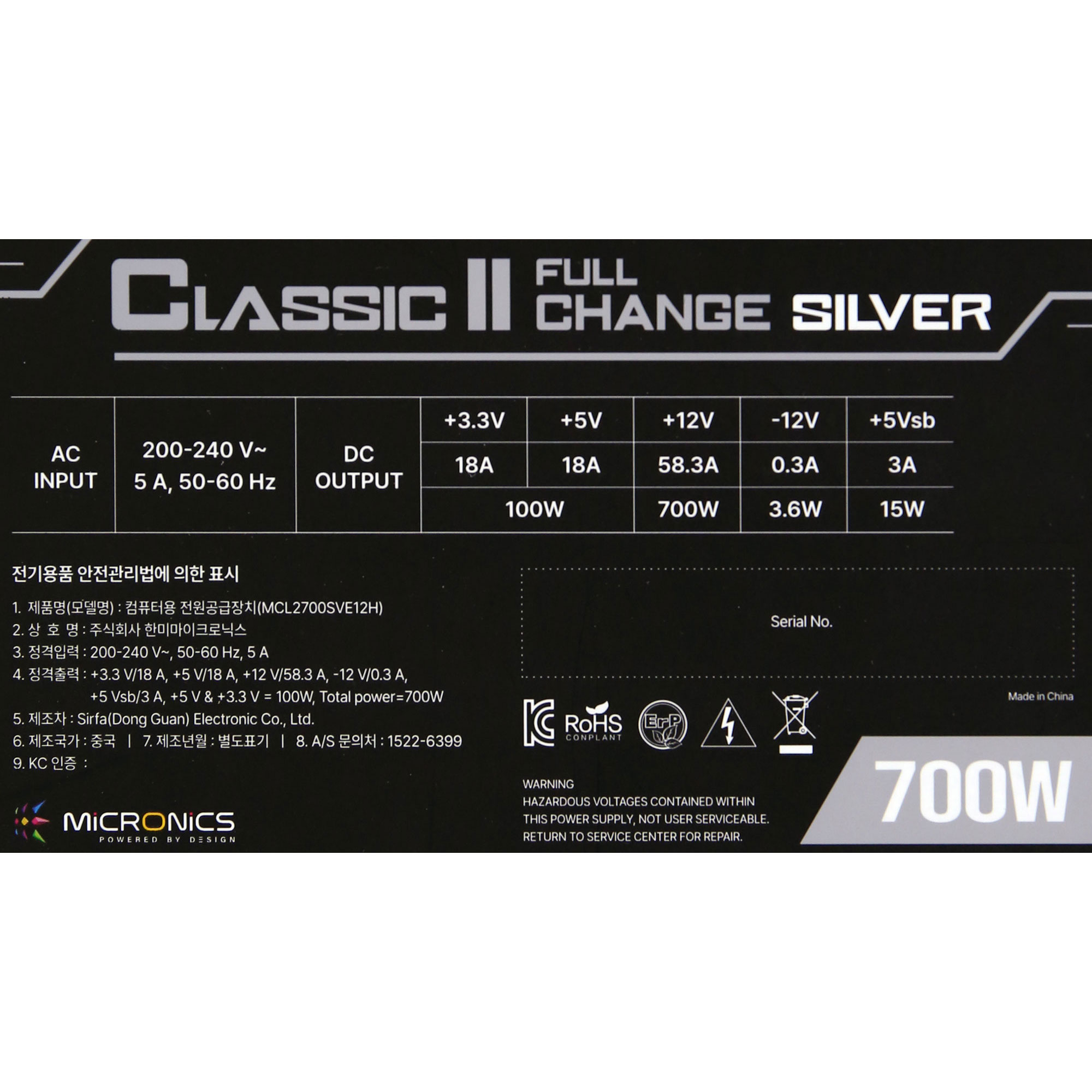

Power specifications label

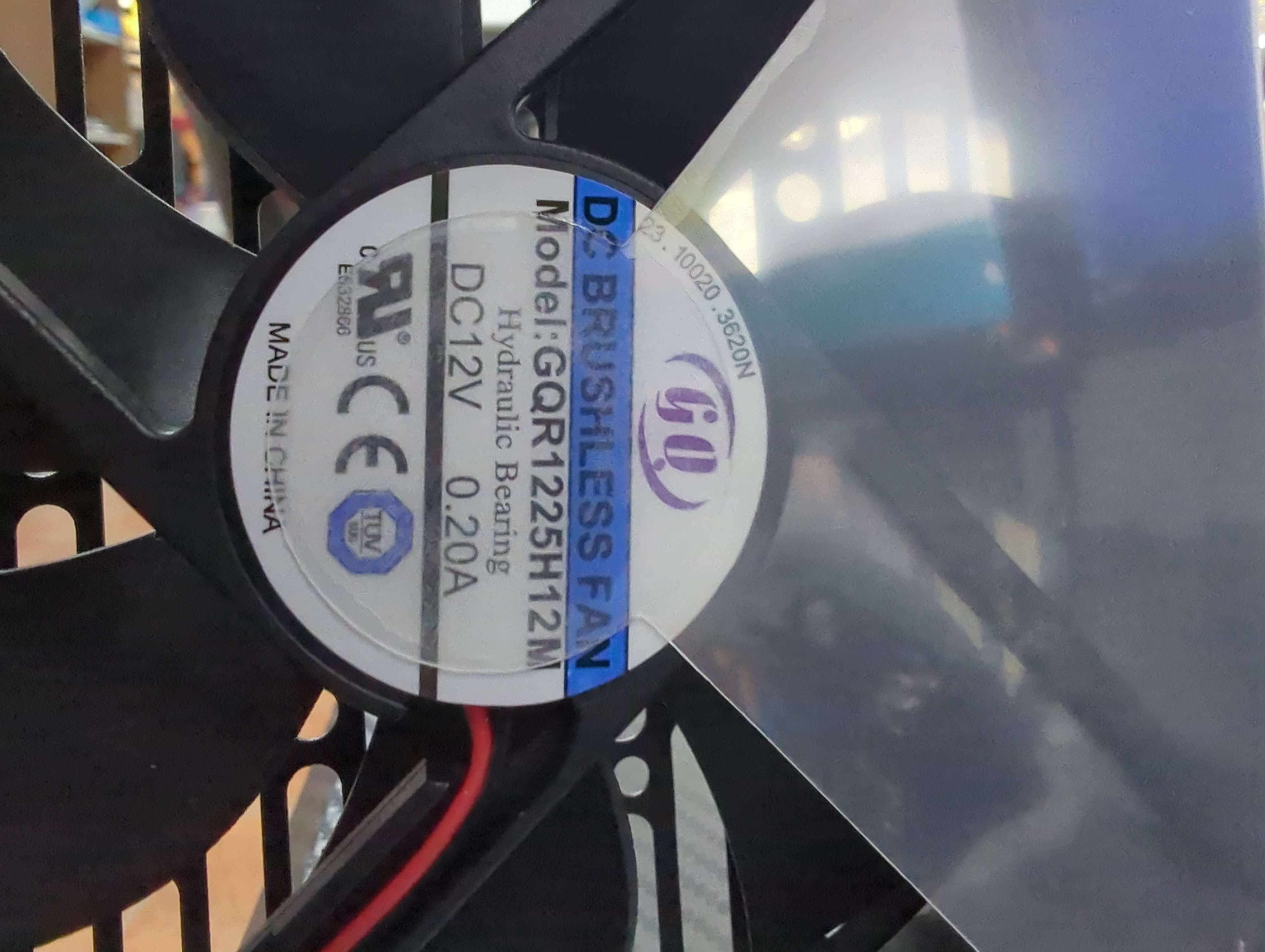

Fan

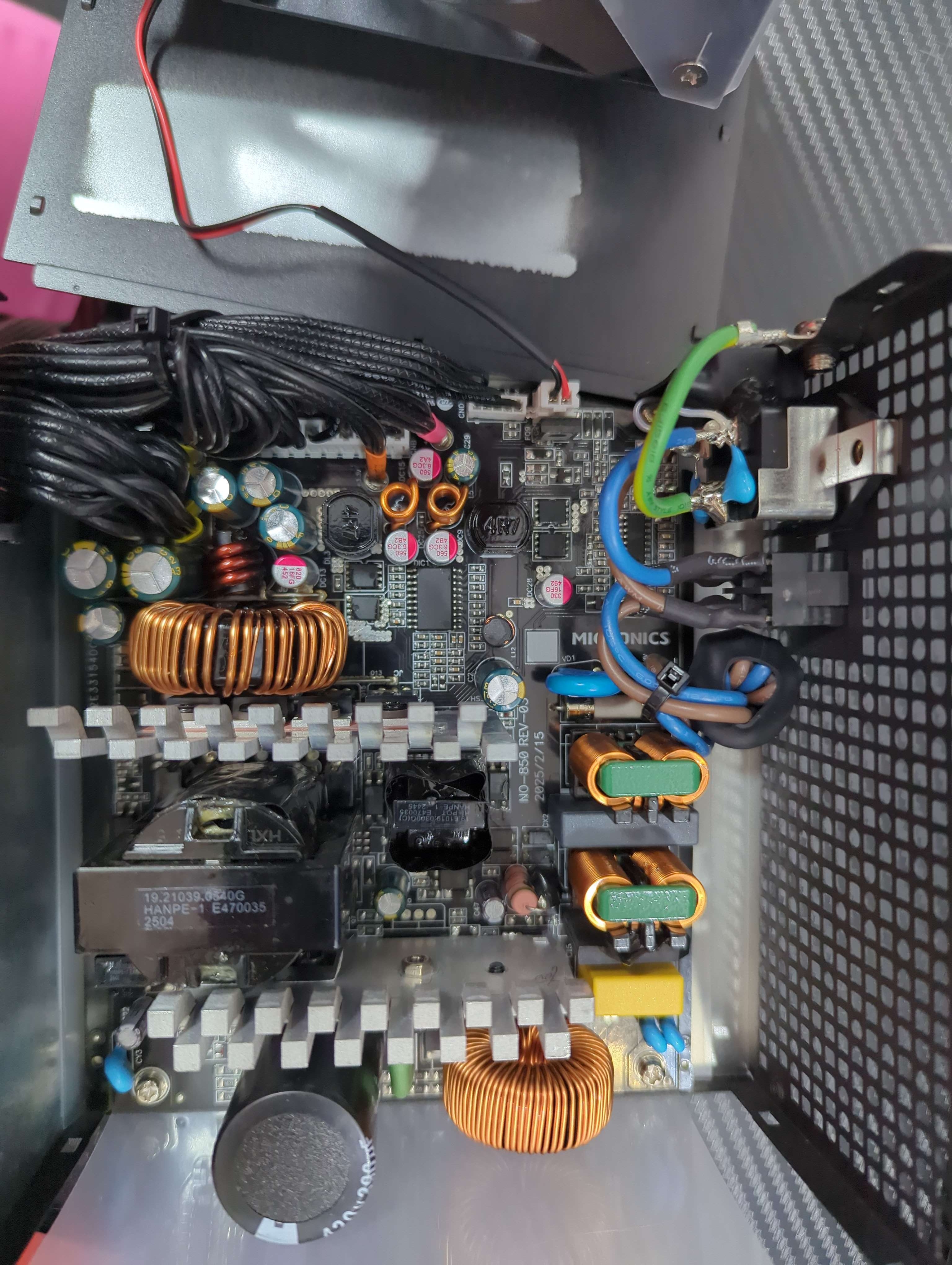

PSU Inside
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
