CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

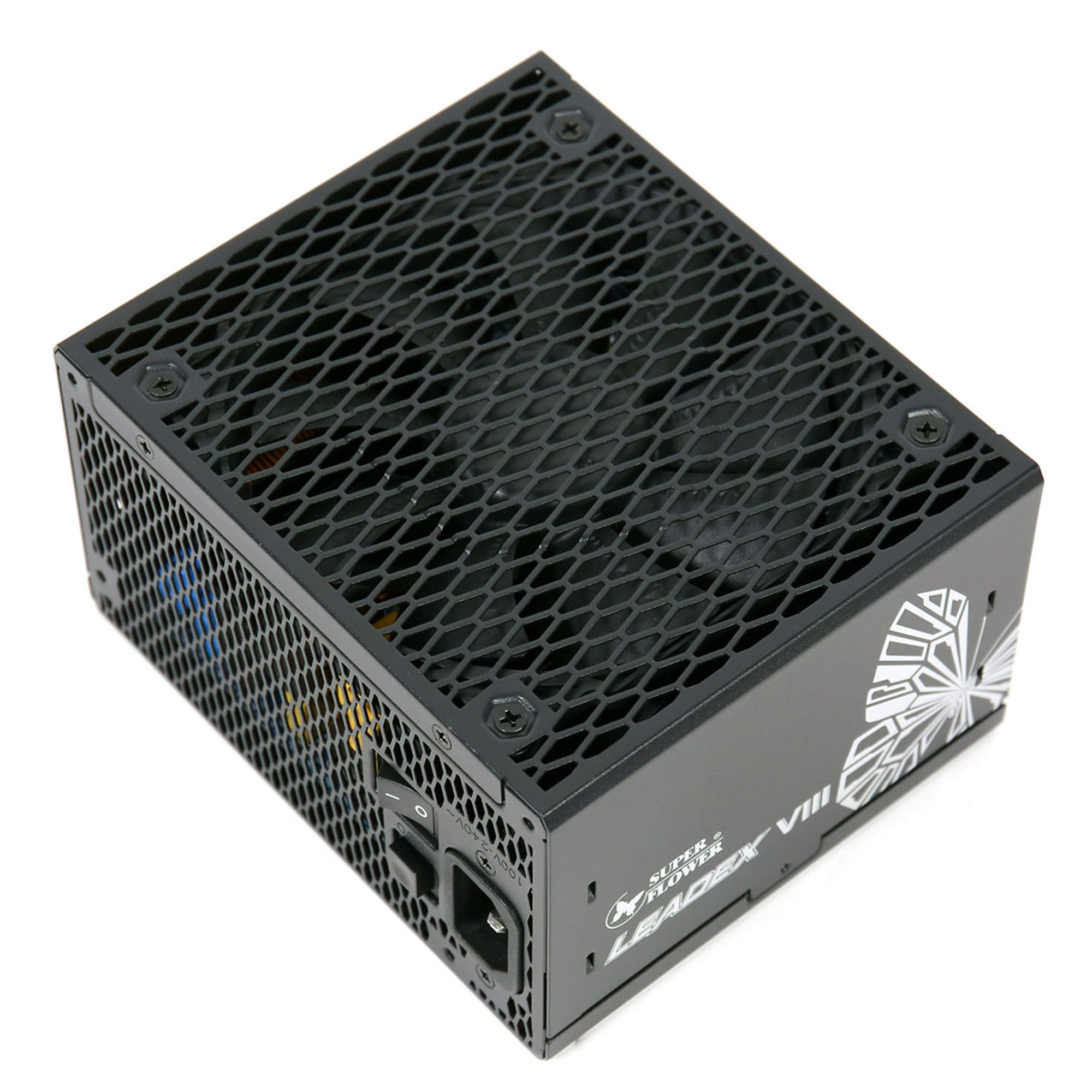

Super Flower Leadex VIII 1000W (SF-1000F14SP(E))
Serial NumberS2508199003
Lab IDSF10002962
Certification ID252962
  • Test Result Report ID: 25PS2962A
  • Certificate Issue Date: Sep 15, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex VIII
Model NumberSF-1000F14SP(E)
Serial NumberS2508199003
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Hydraulic Bearing Fan (ZFH122512H)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

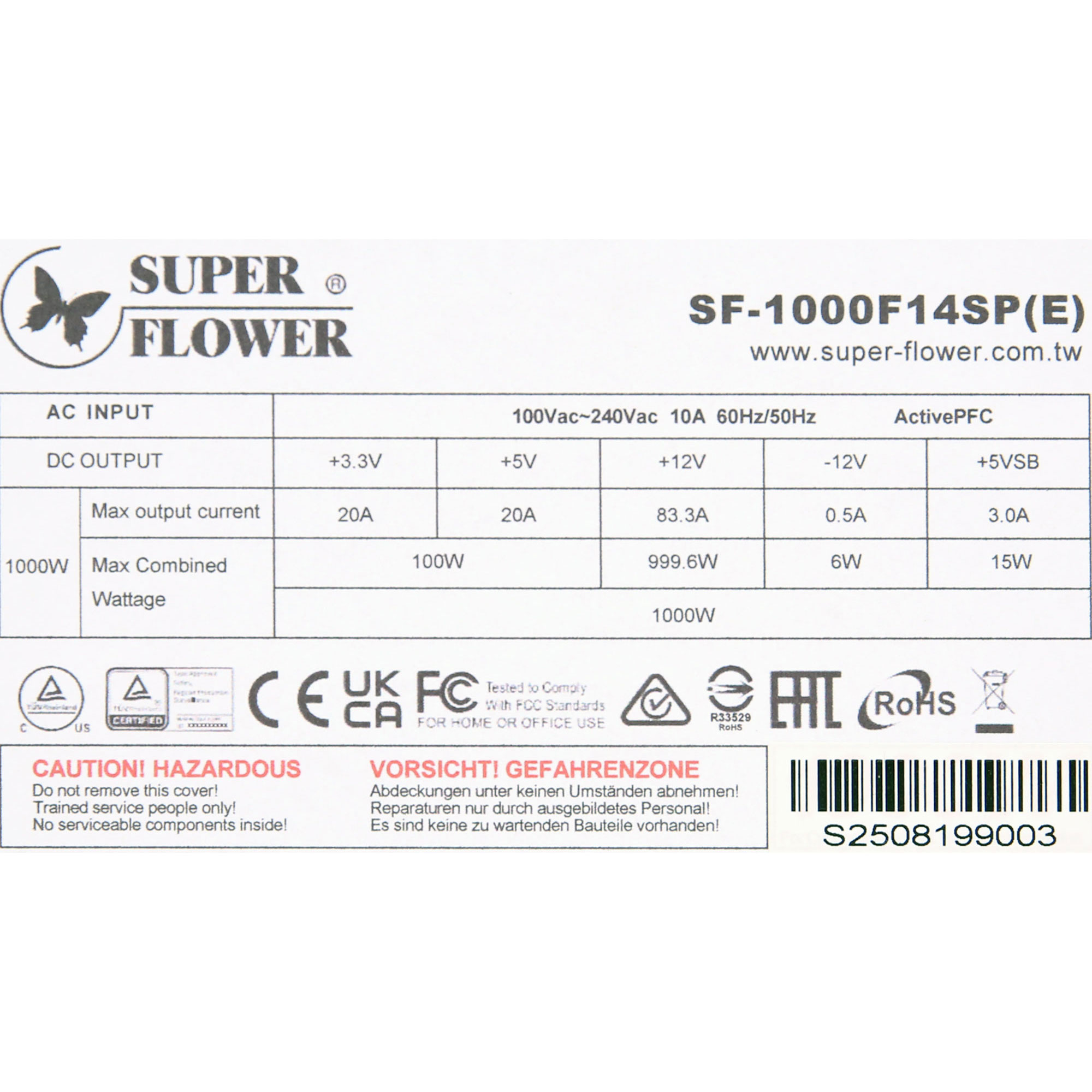

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.5
Watts100999.6156
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16-20AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (700mm) 1 2 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 2 2 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-26AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG Tinned Copper
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

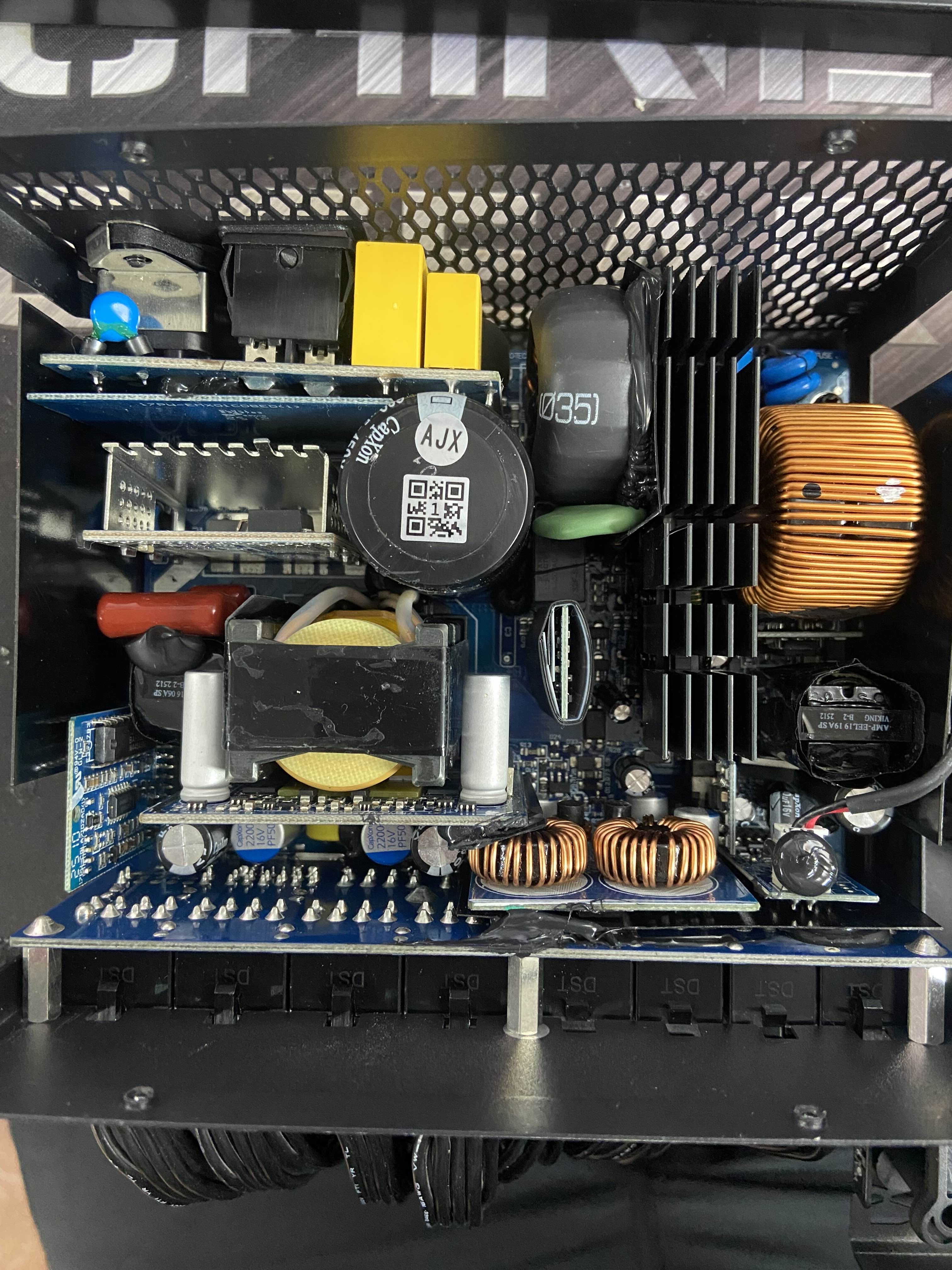

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 3x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-0512 (5 Ohm @ 25°C) & Relay
Rectifier MOSFETs
2x GBU15J (600V, 15A @ 100°C)
APFC MOSFETs
3x Sanrise SRC60R140BS (600V, 17.8A @ 125°C, Rds(on): 90mOhm)
APFC Boost Diode
1x
Bulk Cap(s)
CapXon (450V, 680uF, 2,000h @ 105°C, HP)
Main Switchers
2x Sanrise SRC60R090BS (600V, 17.8A @ 125°C, Rds(on): 90mOhm) &
Sync Power Corp SPN5003 (For no load consumption)

APFC Controller

Infineon ICE3PCS02G
Resonant Controller
STMicroelectronics MZLT407
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Sanrise SRT04N016L (40V, 77A @ 125°C, Rds(on): 1.6mOhm)
5V & 3.3V DC-DC Converters: 4x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s):  ANPEC APW7159C
Filtering Capacitors

Electrolytic:
16x CapXon (2-5,000h @105°C, KF)
5x CapXon (2,000h @105°C, KM)
Polymer:
17x CapXon
Supervisor IC JTC113 & LM324ADG

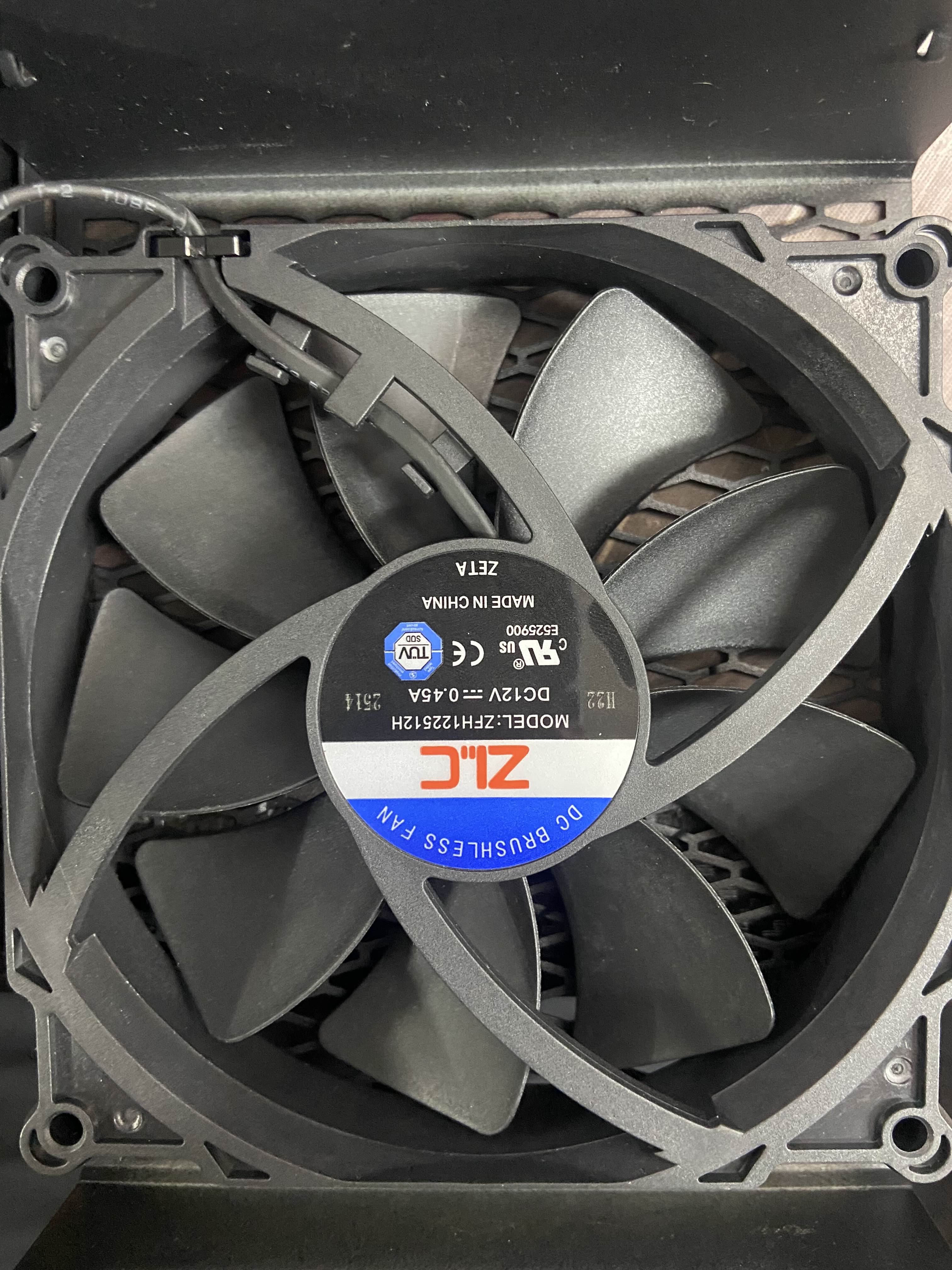

Fan Model ZIC ZFS122512H (120mm, 12V, 0.45A, Hydraulic Bearing Fan))
5VSB Circuit
Rectifier (High Side)
PFC PFR20L60CT SBR (60V, 20A)
Standby PWM Controller
29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)90.194%
Average Noise Output (>1450 Load Combinations)25.75dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load68.216%
Standby Power Consumption0.0470W
12V Ripple (Full Load)25.53mV
5V Ripple (Full Load)24.36mV
3.3V Ripple (Full Load)22.46mV
5VSB Ripple (Full Load)18.10mV
12V Load Regulation0.20%
5V Load Regulation0.22%
3.3V Load Regulation0.64%
5VSB Load Regulation1.92%
Inrush Current32.290A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)92.129%
Average Noise Output (>1450 Load Combinations)24.91dBA
Average PF (>1450 Load Combinations)0.953
Efficiency With 10W (≤500W) or 2% (>500W) Load67.433%
Standby Power Consumption0.1035W
12V Ripple (Full Load)26.51mV
5V Ripple (Full Load)23.68mV
3.3V Ripple (Full Load)22.60mV
5VSB Ripple (Full Load)15.03mV
12V Load Regulation0.20%
5V Load Regulation0.22%
3.3V Load Regulation0.61%
5VSB Load Regulation1.94%
Inrush Current66.720A
12V Transient Response (200%)11.51V
5V Transient Response (200%)4.943V
3.3V Transient Response (200%)3.216V
5VSB Transient Response (200%)5.015V
Hold-Up Time & Power Ok Signal34.60ms
AC Loss to PWR_OK Hold Up Time28.10ms
PWR_OK Inactive to DC Loss Delay6.50ms
PSU Timings: T1 (20% / 100%)121.0ms121.0ms
PSU Timings: T3 (20% / 100%)118.0ms118.0ms
12V OCP (28.4°C / 43.8°C)99.20A (119.09%), 12.058V99.00A (118.85%), 12.061V
5V OCP (28.4°C / 43.8°C)28.5A (142.50%), 5.006V26.7A (133.50%), 5.012V
3.3V OCP (28.4°C / 43.8°C)27A (135.00%), 3.306V26.6A (133.00%), 3.297V
5VSB OCP (28.4°C / 43.8°C)5.1A (170.00%), 5.025V4.9A (163.33%), 5.025V
OPP (28.08°C / 43.42°C)119.66%117.51%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)34.6
AC Loss to PWR_OK Hold Up Time (ms)28.1
PWR_OK Inactive to DC Loss Delay (ms)6.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.99 V 114.96 V 113.85 V 114.99 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.047 W 0.003 W N/A 0.086 W N/A N/A
Apparent Power: 8.070 W 8.051 W N/A 8.092 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.93 V 227.70 V 230.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.103 W 0.070 W N/A 0.140 W N/A N/A
Apparent Power: 26.220 W 26.189 W N/A 26.252 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

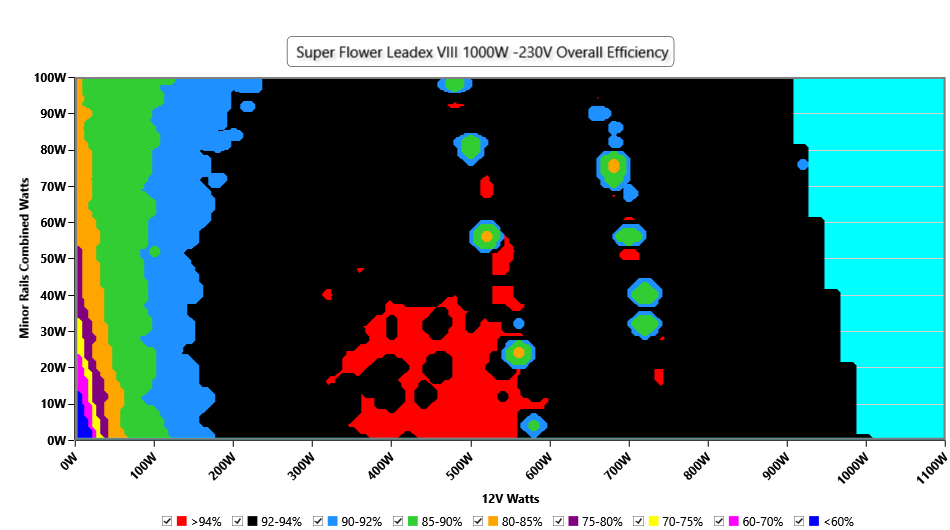

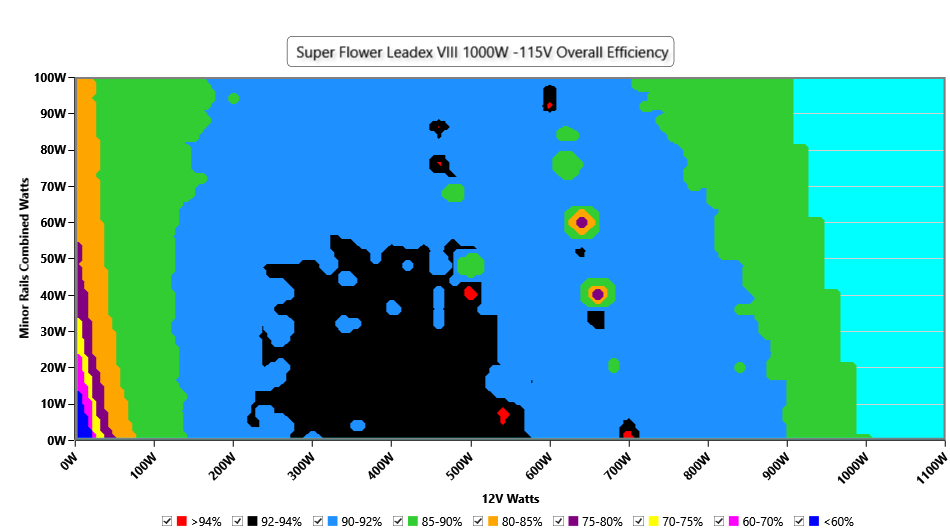

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

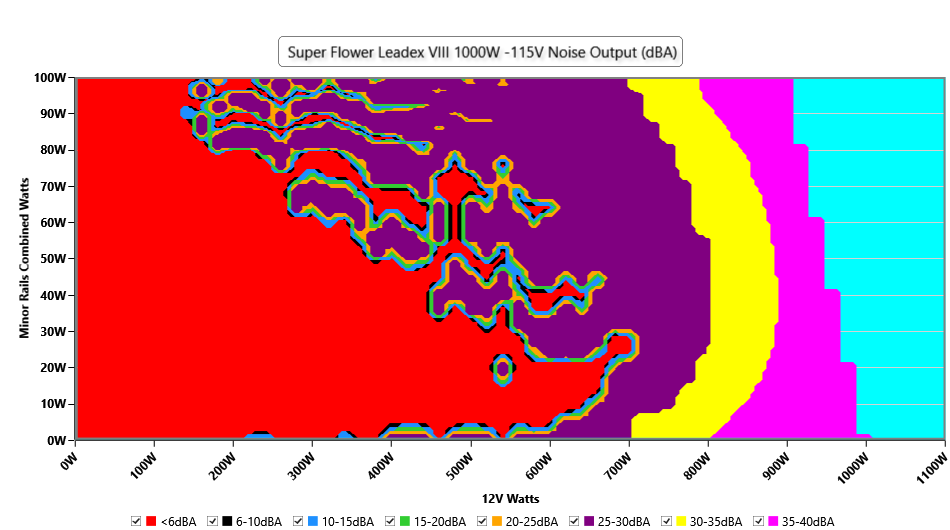

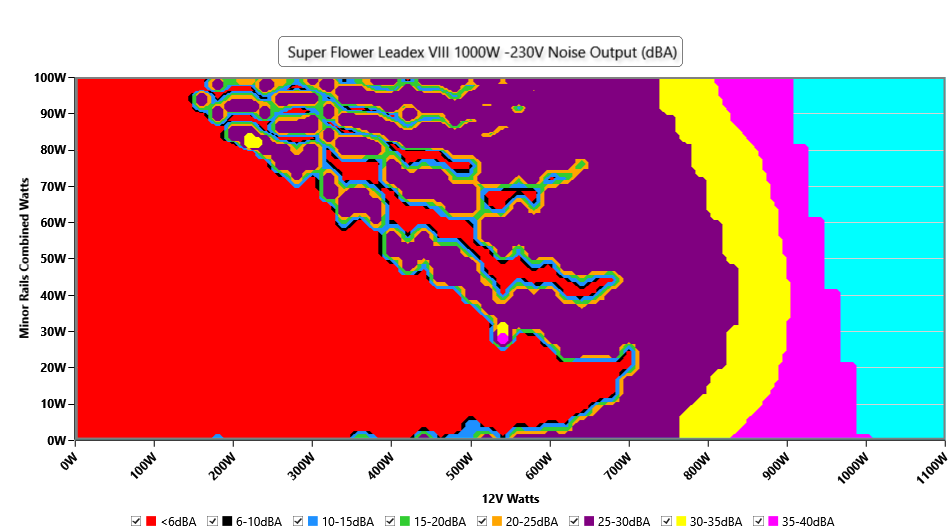

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

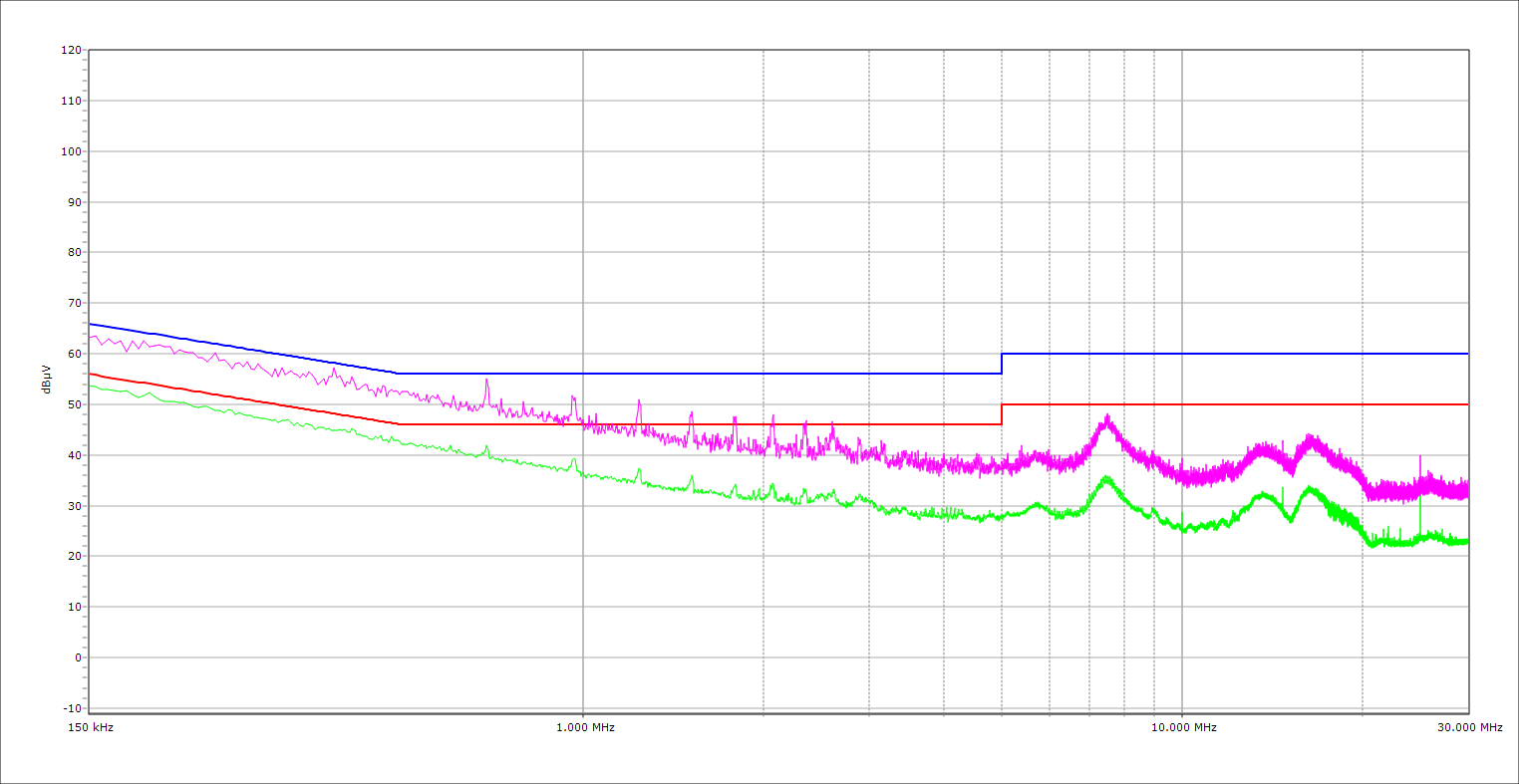

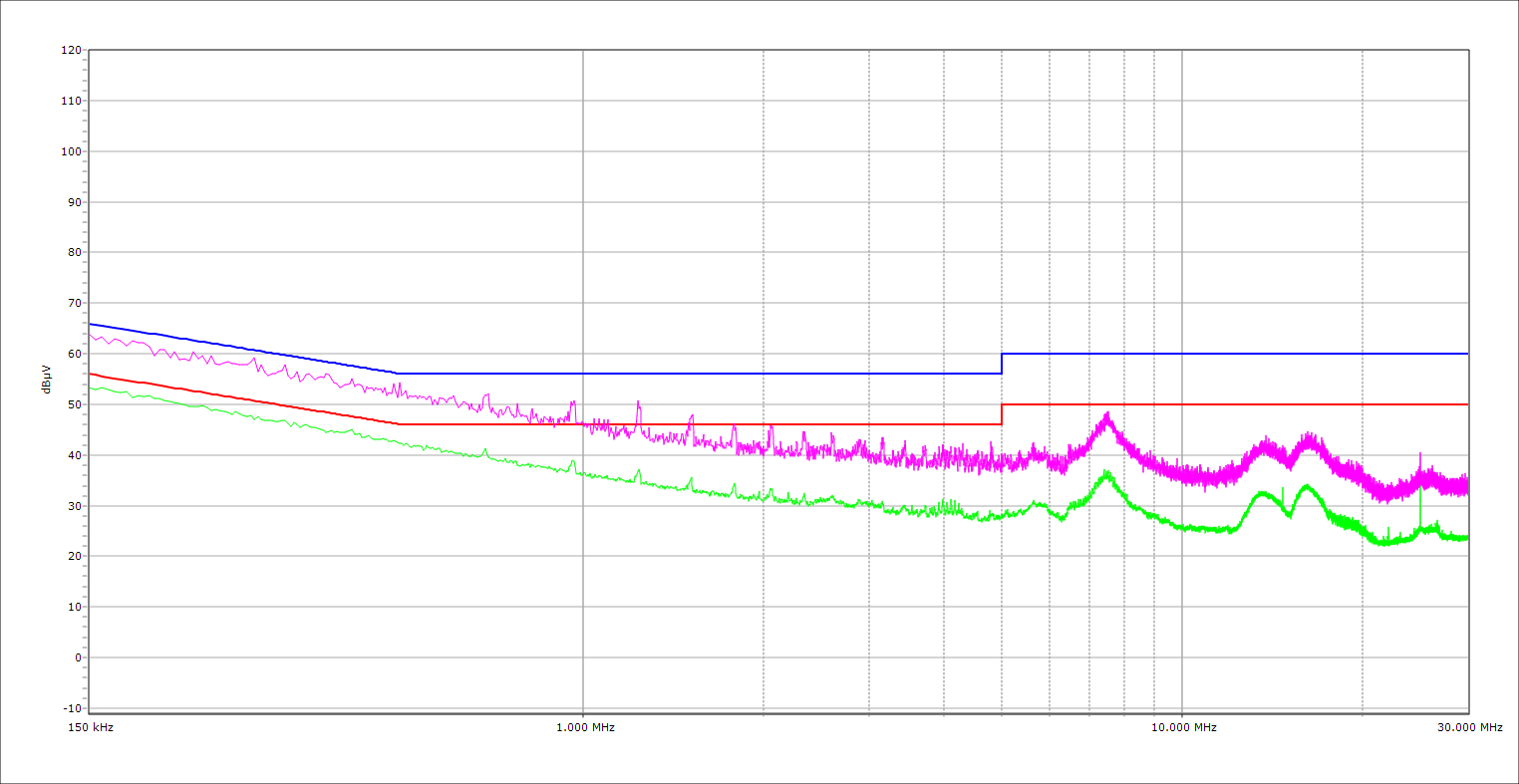

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

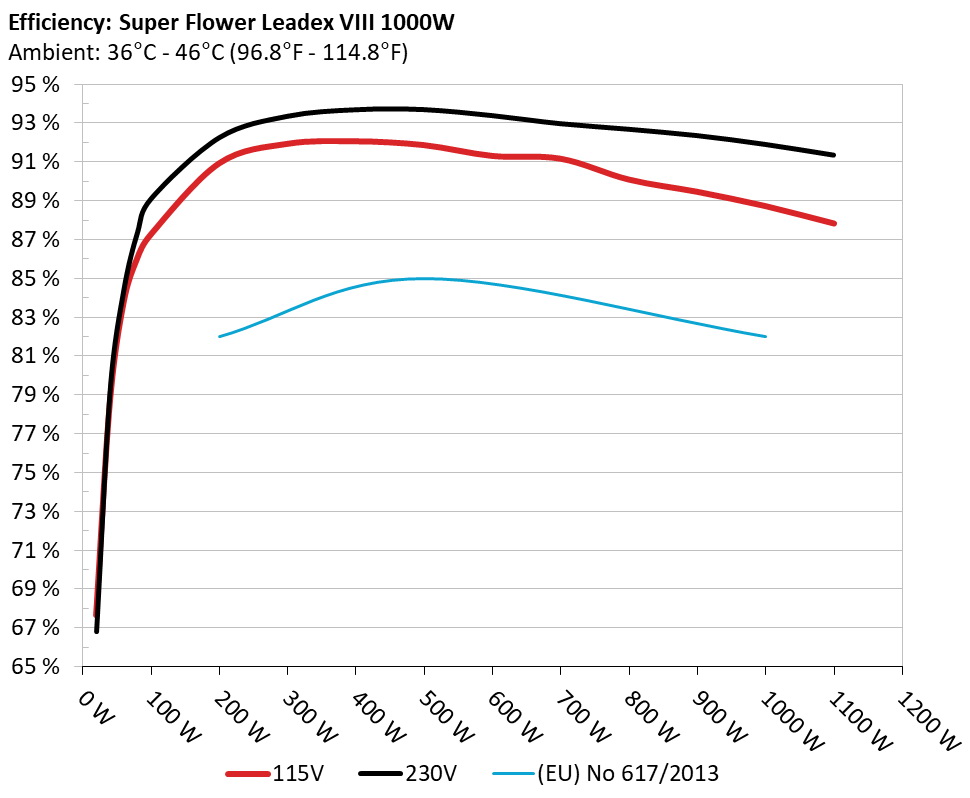

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

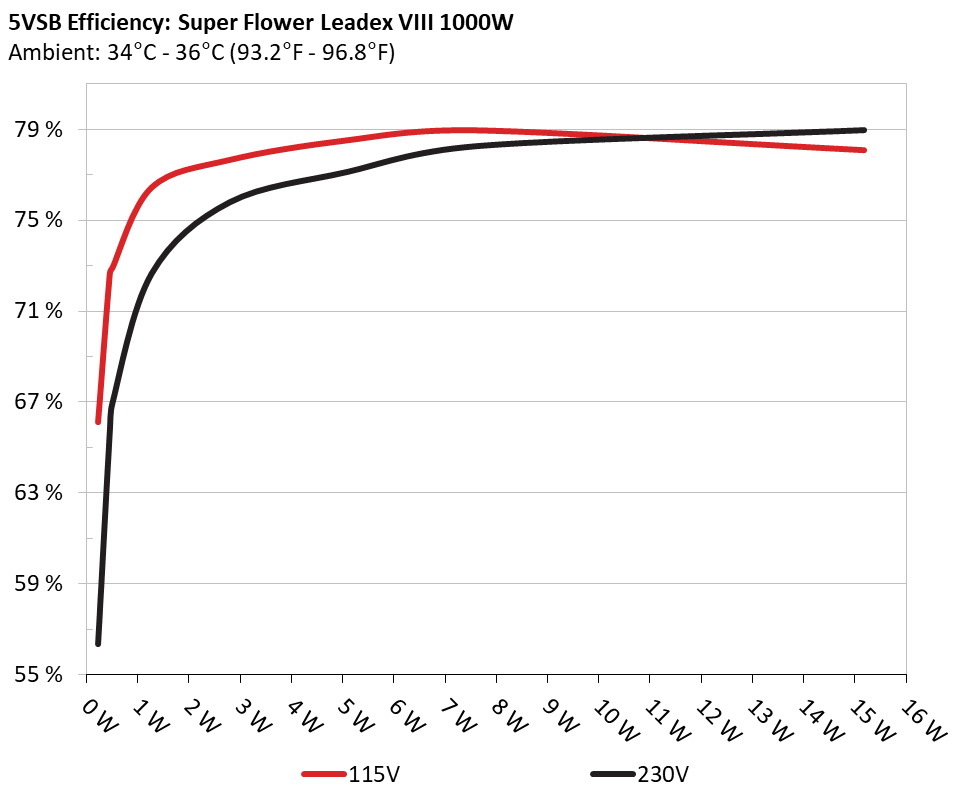

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 66.135% 0.042
5.102V 0.348W 114.87V
2 0.09A 0.459W 72.663% 0.074
5.102V 0.632W 114.87V
3 0.55A 2.803W 77.647% 0.299
5.095V 3.61W 114.88V
4 1A 5.09W 78.506% 0.374
5.089V 6.483W 114.87V
5 1.5A 7.624W 78.942% 0.423
5.082V 9.657W 114.87V
6 3A 15.182W 78.072% 0.485
5.06V 19.446W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 56.341% 0.014
5.103V 0.411W 229.87V
2 0.09A 0.459W 65.707% 0.025
5.102V 0.699W 229.9V
3 0.55A 2.803W 75.788% 0.122
5.095V 3.699W 229.88V
4 1A 5.09W 77.117% 0.197
5.089V 6.6W 229.88V
5 1.5A 7.624W 78.255% 0.242
5.082V 9.742W 229.88V
6 3.001A 15.183W 78.959% 0.346
5.06V 19.229W 229.88V

Protection Features

OCP (Normal @ 28.4°C)12V: 99.20A (119.09%), 12.058V
5V: 28.5A (142.50%), 5.006V
3.3V: 27A (135.00%), 3.306V
5VSB: 5.1A (170.00%), 5.025V
OCP (Hot @ 43.8°C)12V: 99.00A (118.85%), 12.061V
5V: 26.7A (133.50%), 5.012V
3.3V: 26.6A (133.00%), 3.297V
5VSB: 4.9A (163.33%), 5.025V
OPP (Normal @ 28.1°C)1196.58W (119.66%)
OPP (Hot @ 43.4°C)1175.09W (117.51%)
OTP✓ (107°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.498A 1.996A 1.997A 0.984A 99.994 87.257% 0 <6.0 50.94°C 0.949
12.064V 5.011V 3.304V 5.081V 114.594 40.39°C 114.84V
20% 14.019A 2.994A 2.998A 1.183A 199.945 90.92% 0 <6.0 52.26°C 0.978
12.058V 5.01V 3.302V 5.072V 219.923 40.67°C 114.8V
30% 21.899A 3.494A 3.499A 1.383A 299.996 91.926% 0 <6.0 45.08°C 0.988
12.053V 5.009V 3.301V 5.063V 326.321 41.07°C 114.77V
40% 29.745A 3.994A 4.002A 1.583A 399.564 92.056% 0 <6.0 45.05°C 0.991
12.048V 5.008V 3.299V 5.055V 434.026 41.7°C 114.74V
50% 37.257A 4.994A 5.006A 1.783A 499.281 91.862% 1082 28 42.47°C 0.993
12.045V 5.007V 3.296V 5.047V 543.516 43.68°C 114.7V
60% 44.836A 5.994A 6.011A 1.985A 599.809 91.302% 1262 33.7 42.67°C 0.994
12.044V 5.006V 3.294V 5.038V 656.97 43.12°C 114.66V
70% 52.348A 6.995A 7.018A 2.187A 699.552 91.161% 1447 37 43.1°C 0.995
12.043V 5.004V 3.292V 5.03V 769.31 44.08°C 114.63V
80% 59.923A 7.994A 8.025A 2.29A 799.55 90.086% 1672 40.5 43.9°C 0.995
12.043V 5.003V 3.29V 5.022V 887.547 44.82°C 114.59V
90% 67.832A 8.495A 8.515A 2.393A 899.337 89.46% 1870 43.4 44.54°C 0.995
12.043V 5.002V 3.288V 5.015V 1005.282 45.72°C 114.56V
100% 75.537A 8.997A 9.038A 3A 999.357 88.723% 2081 46.1 45.72°C 0.996
12.043V 5.001V 3.286V 5.001V 1126.379 46.8°C 114.51V
110% 83.167A 10A 10.14A 3.004A 1099.957 87.826% 2233 47.2 46.19°C 0.996
12.044V 5V 3.284V 4.995V 1252.407 47.65°C 114.47V
CL1 0.115A 12.022A 12.05A 0A 101.281 83.153% 1079 27.9 40.9°C 0.956
12.069V 5.007V 3.294V 5.088V 121.839 41.72°C 114.83V
CL2 0.115A 19.946A 0A 0A 101.337 81.283% 489 <6.0 41.36°C 0.957
12.070V 5.011V 3.293V 5.09V 124.69 43.08°C 114.83V
CL3 0.115A 0A 20.005A 0A 67.381 75.79% 981 25.8 41.41°C 0.945
12.068V 5.007V 3.299V 5.09V 88.91 42.56°C 114.84V
CL4 83.078A 0A 0A 0A 999.897 89.468% 1882 43.6 45.98°C 0.996
12.036V 5.006V 3.296V 5.051V 1117.572 46.78°C 114.53V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.499A 1.996A 1.997A 0.984A 100 88.693% 0 <6.0 46.59°C 0.853
12.064V 5.011V 3.305V 5.08V 112.747 40.12°C 229.86V
20% 14.020A 2.994A 2.998A 1.183A 199.96 92.263% 0 <6.0 47.52°C 0.934
12.058V 5.01V 3.302V 5.071V 216.719 40.52°C 229.86V
30% 21.901A 3.494A 3.5A 1.383A 300.025 93.365% 0 <6.0 44.52°C 0.954
12.053V 5.009V 3.3V 5.063V 321.372 41.04°C 229.84V
40% 29.753A 3.995A 4.003A 1.583A 399.65 93.699% 0 <6.0 44.57°C 0.965
12.047V 5.007V 3.298V 5.054V 426.532 41.94°C 229.82V
50% 37.263A 4.995A 5.007A 1.784A 499.339 93.705% 1082 28 42.15°C 0.971
12.045V 5.006V 3.296V 5.046V 532.885 43.86°C 229.8V
60% 44.838A 5.995A 6.012A 1.985A 599.832 93.395% 1257 33.5 42.5°C 0.978
12.044V 5.005V 3.294V 5.038V 642.241 43.44°C 229.78V
70% 52.341A 6.995A 7.018A 2.188A 699.562 92.982% 1418 36.5 43.35°C 0.981
12.045V 5.004V 3.292V 5.029V 752.196 46.68°C 229.75V
80% 59.922A 7.994A 8.024A 2.29A 799.554 92.693% 1654 40.3 43.6°C 0.984
12.043V 5.003V 3.29V 5.022V 862.58 44.85°C 229.75V
90% 67.832A 8.496A 8.515A 2.393A 899.348 92.369% 1863 43.5 44.55°C 0.985
12.043V 5.002V 3.288V 5.015V 973.656 46.1°C 229.73V
100% 75.537A 8.997A 9.037A 3.001A 999.369 91.915% 2105 46.4 45.86°C 0.988
12.044V 5.001V 3.286V 5V 1087.25 47.37°C 229.71V
110% 83.167A 10A 10.139A 3.005A 1099.971 91.36% 2236 47.1 46.32°C 0.989
12.044V 5V 3.284V 4.993V 1204.005 47.93°C 229.7V
CL1 0.115A 12.024A 12.051A 0A 101.278 84.86% 1072 27.9 40.56°C 0.857
12.070V 5.006V 3.294V 5.088V 119.288 42.97°C 229.87V
CL2 0.115A 19.946A 0A 0A 101.341 82.577% 949 25.2 40.77°C 0.86
12.069V 5.011V 3.293V 5.089V 122.731 43.04°C 229.86V
CL3 0.115A 0A 20.002A 0A 67.384 76.997% 1072 27.9 40.78°C 0.78
12.068V 5.007V 3.299V 5.089V 87.523 42.01°C 229.87V
CL4 83.082A 0A 0A 0A 999.925 92.578% 1899 43.7 45.02°C 0.987
12.035V 5.006V 3.296V 5.05V 1080.114 46.3°C 229.71V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.499A 0.499A 0.196A 20 67.674% 0 <6.0 42.72°C 0.832
12.066V 5.012V 3.307V 5.097V 29.555 36.13°C 114.87V
40W 2.710A 0.698A 0.699A 0.294A 40.001 78.566% 0 <6.0 45.52°C 0.918
12.066V 5.012V 3.306V 5.095V 50.92 37.33°C 114.86V
60W 4.188A 0.898A 0.898A 0.393A 60.001 83.737% 0 <6.0 46.33°C 0.952
12.065V 5.011V 3.306V 5.092V 71.653 38.02°C 114.85V
80W 5.662A 1.097A 1.098A 0.491A 79.943 86.019% 0 <6.0 47.85°C 0.944
12.064V 5.011V 3.306V 5.09V 92.934 39.21°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.499A 0.499A 0.196A 20.001 66.788% 0 <6.0 42.58°C 0.53
12.066V 5.012V 3.306V 5.097V 29.954 36.35°C 229.88V
40W 2.710A 0.698A 0.699A 0.294A 40.001 79.273% 0 <6.0 44.22°C 0.658
12.065V 5.012V 3.306V 5.095V 50.471 37.12°C 229.88V
60W 4.188A 0.898A 0.898A 0.393A 60.002 84.403% 0 <6.0 45.65°C 0.74
12.064V 5.011V 3.306V 5.092V 71.094 38.52°C 229.87V
80W 5.663A 1.097A 1.098A 0.491A 79.947 87.366% 0 <6.0 46.84°C 0.805
12.064V 5.011V 3.306V 5.089V 91.505 39.03°C 229.87V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load24.65mV19.97mV18.06mV13.50mVPass
20% Load23.78mV19.65mV18.37mV12.78mVPass
30% Load23.12mV19.14mV18.16mV13.03mVPass
40% Load31.20mV20.68mV23.34mV13.75mVPass
50% Load25.32mV20.53mV18.21mV12.98mVPass
60% Load25.83mV21.25mV19.65mV13.90mVPass
70% Load26.29mV22.38mV20.21mV14.73mVPass
80% Load25.63mV24.17mV20.78mV15.03mVPass
90% Load26.65mV24.22mV21.50mV16.27mVPass
100% Load25.53mV24.36mV22.46mV18.10mVPass
110% Load26.42mV23.40mV21.19mV16.93mVPass
Crossload122.01mV19.83mV19.49mV32.28mVPass
Crossload225.06mV22.89mV18.37mV33.19mVPass
Crossload327.26mV20.01mV21.91mV34.63mVPass
Crossload424.62mV21.00mV19.99mV26.70mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load31.50mV19.96mV21.50mV14.06mVPass
20% Load24.19mV19.55mV18.01mV12.78mVPass
30% Load24.09mV20.37mV18.88mV13.19mVPass
40% Load24.50mV21.71mV20.37mV12.98mVPass
50% Load25.98mV20.33mV18.98mV13.65mVPass
60% Load25.27mV20.89mV19.29mV13.14mVPass
70% Load23.27mV18.99mV17.24mV11.55mVPass
80% Load26.54mV22.32mV20.47mV14.83mVPass
90% Load26.34mV24.02mV21.70mV15.34mVPass
100% Load26.51mV23.68mV22.60mV15.03mVPass
110% Load26.87mV22.61mV20.89mV16.92mVPass
Crossload122.20mV20.20mV19.84mV30.95mVPass
Crossload225.52mV24.02mV19.14mV32.07mVPass
Crossload327.72mV20.89mV22.06mV35.04mVPass
Crossload426.05mV21.86mV20.43mV26.85mVPass

The results above are not used in the certification process

Super Flower Leadex VIII 1000W (SF-1000F14SP(E))

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
