CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

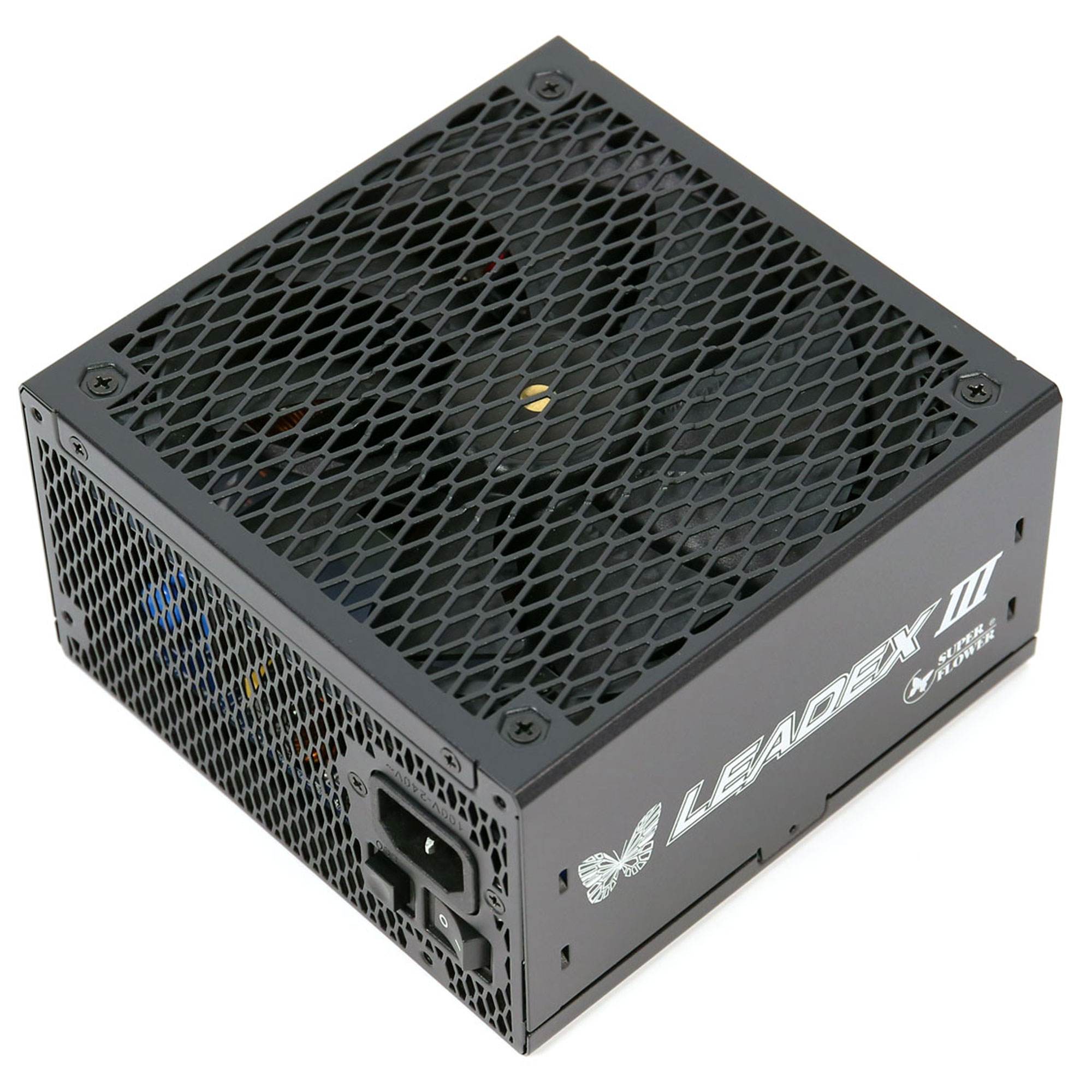

Super Flower Leadex III 1300W (SF-1300F14PE)
Serial NumberS2508199004
Lab IDSF13002963
Certification ID252963
  • Test Result Report ID: 25PS2963A
  • Certificate Issue Date: Sep 17, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III
Model NumberSF-1300F14PE
Serial NumberS2508199004
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Dual Ball Bearing Fan (ZFH142512D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

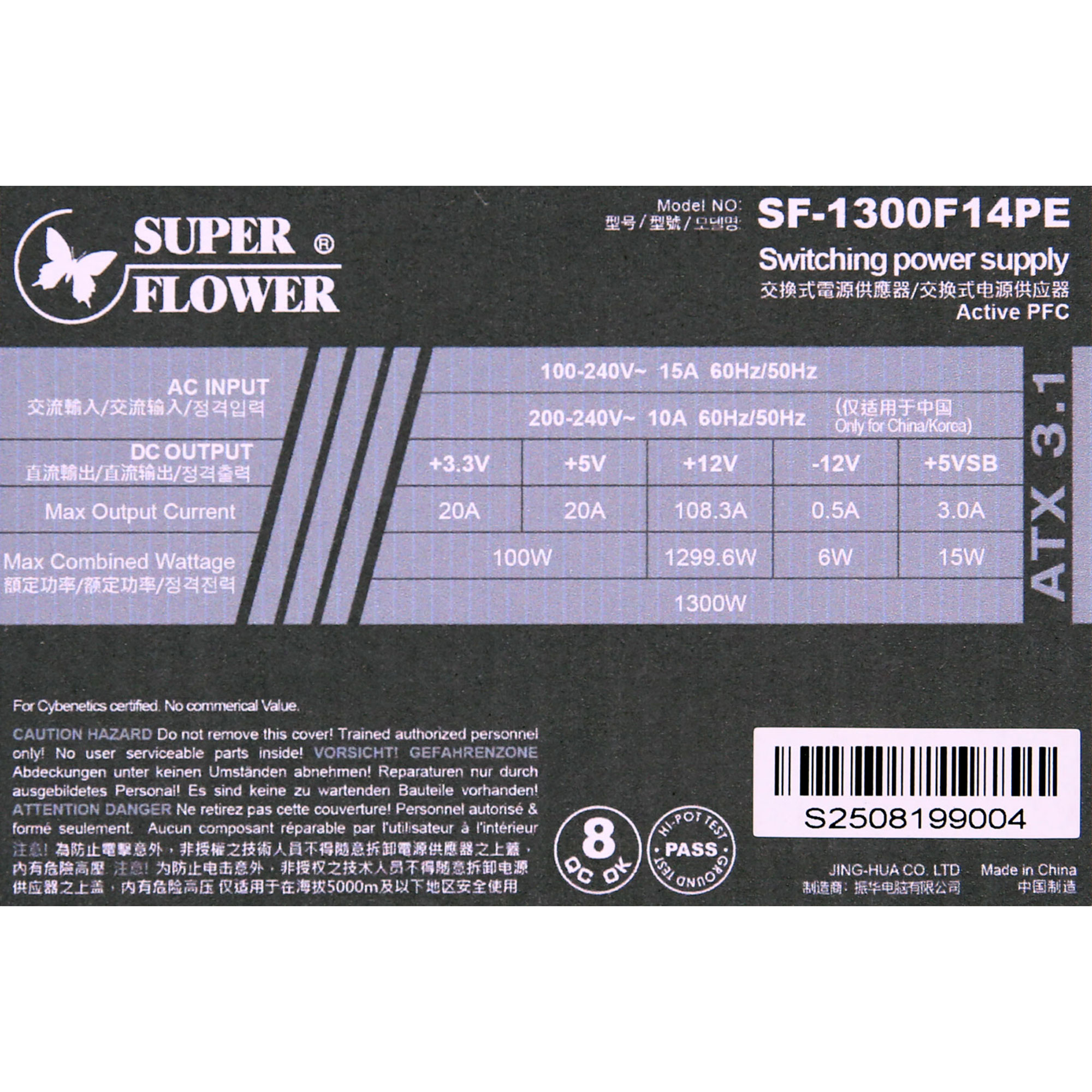

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020108.330.5
Watts1001299.6156
Total Max. Power (W)1300

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 1 2 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 2 2 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-26AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG Tinned Copper
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

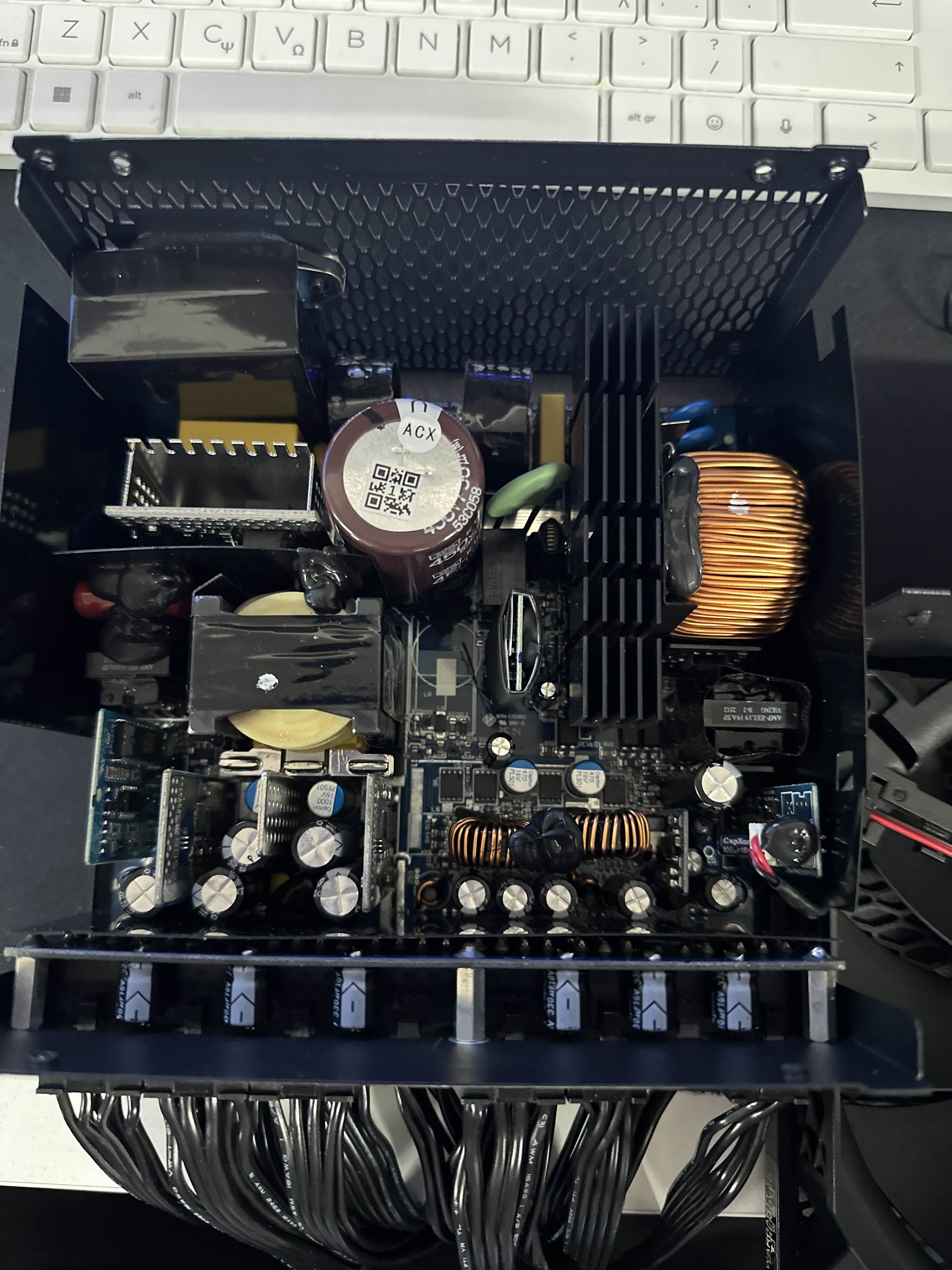

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-0512 (5 Ohm @ 25°C) & Relay
Rectifier MOSFETs
2x Yangzhou GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs
3x Sanrise SRC60R140BT (600V, 17.8A @ 125°C, Rds(on): 90mOhm)
APFC Boost Diode
Infineon IDH16G65C6 (650V, 16A @ 135°C)
Bulk Cap(s)
Nippon Chemi-Con (450V, 790uF, 2,000h @ 105°C, KHE)
Main Switchers
4x Sanrise SRC60R140BS  (600V, 17.8A @ 125°C, Rds(on): 90mOhm) &
Sync Power Corp SPN5003 (For no load consumption)

APFC Controller

29603
Resonant Controller
STMicroelectronics MZHR416
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 12x Sanrise SRT04N016L (40V, 77A @ 125°C, Rds(on): 1.6mOhm)
5V & 3.3V DC-DC Converters: 4x Alpha & Omega AON6516 (30V, 25A @ 100°C, Rds(on): 5mOhm)
PWM Controller(s): 2x ANPEC APW7073
Filtering Capacitors

Electrolytic:
29x CapXon (2-5,000h @105°C, KF)
5x CapXon (2,000h @105°C, KM)
Polymer:
14x CapXon
Supervisor IC JTC113 & LM324ADG

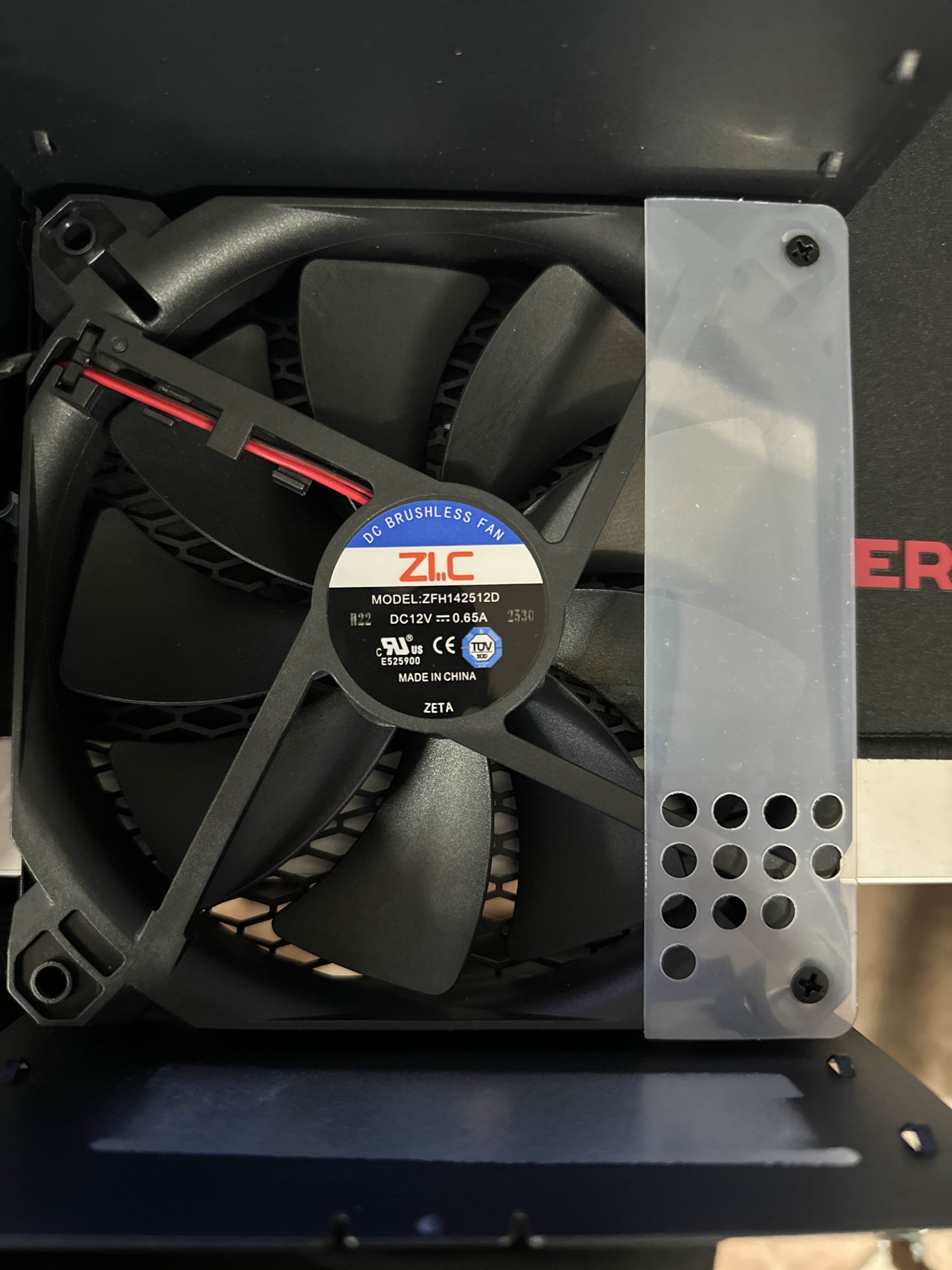

Fan Model ZIC ZFH142512D (140mm, 12V, 0.65A, Dual Ball Bearing Fan)
5VSB Circuit
Rectifier (High Side)
MOSPEC S20M60CC SBR (60V, 20A)
Standby PWM Controller
29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.186%
Average Noise Output (>1450 Load Combinations)31.11dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load70.537%
Standby Power Consumption0.0463W
12V Ripple (Full Load)26.58mV
5V Ripple (Full Load)22.02mV
3.3V Ripple (Full Load)19.05mV
5VSB Ripple (Full Load)20.50mV
12V Load Regulation0.76%
5V Load Regulation0.40%
3.3V Load Regulation0.75%
5VSB Load Regulation2.41%
Inrush Current28.630A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)92.083%
Average Noise Output (>1450 Load Combinations)29.93dBA
Average PF (>1450 Load Combinations)0.949
Efficiency With 10W (≤500W) or 2% (>500W) Load70.495%
Standby Power Consumption0.1028W
12V Ripple (Full Load)26.70mV
5V Ripple (Full Load)21.78mV
3.3V Ripple (Full Load)18.06mV
5VSB Ripple (Full Load)17.59mV
12V Load Regulation0.73%
5V Load Regulation0.34%
3.3V Load Regulation0.69%
5VSB Load Regulation2.41%
Inrush Current67.040A
12V Transient Response (200%)11.24V
5V Transient Response (200%)4.940V
3.3V Transient Response (200%)3.179V
5VSB Transient Response (200%)4.991V
Hold-Up Time & Power Ok Signal21.30ms
AC Loss to PWR_OK Hold Up Time17.70ms
PWR_OK Inactive to DC Loss Delay3.60ms
PSU Timings: T1 (20% / 100%)112.0ms111.0ms
PSU Timings: T3 (20% / 100%)112.0ms115.0ms
12V OCP (32.0°C / 44.0°C)130.00A (120.04%), 12.016V130.00A (120.04%), 12.016V
5V OCP (32.0°C / 44.0°C)24.7A (123.50%), 5.057V23.9A (119.50%), 5.06V
3.3V OCP (32.0°C / 44.0°C)24.6A (123.00%), 3.33V24.3A (121.50%), 3.33V
5VSB OCP (32.0°C / 44.0°C)5.1A (170.00%), 4.999V5A (166.67%), 5.003V
OPP (31.48°C / 43.87°C)119.44%119.44%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.3
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)3.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.00 V 114.96 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.96 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.046 W 0.001 W N/A 0.086 W N/A N/A
Apparent Power: 9.886 W 9.865 W N/A 9.910 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.98 V 229.94 V 227.70 V 229.98 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.103 W 0.064 W N/A 0.166 W N/A N/A
Apparent Power: 32.426 W 32.391 W N/A 32.469 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

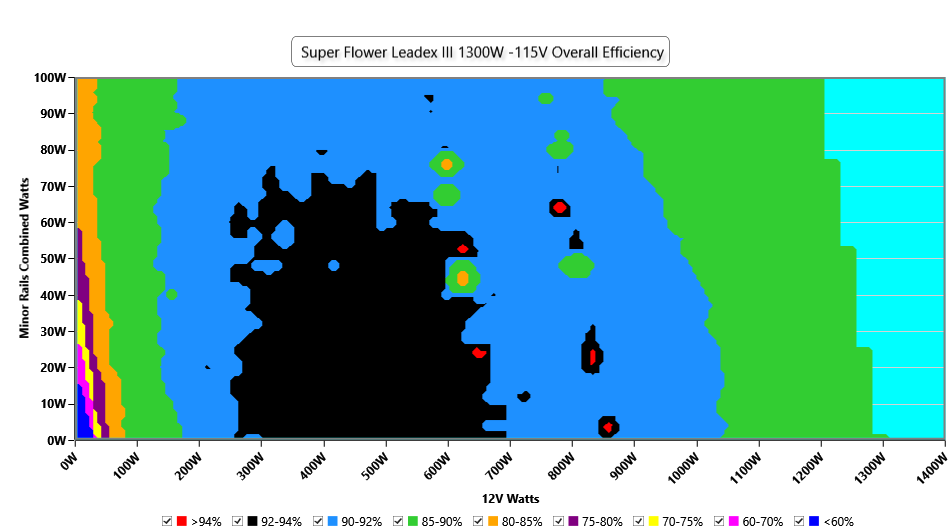

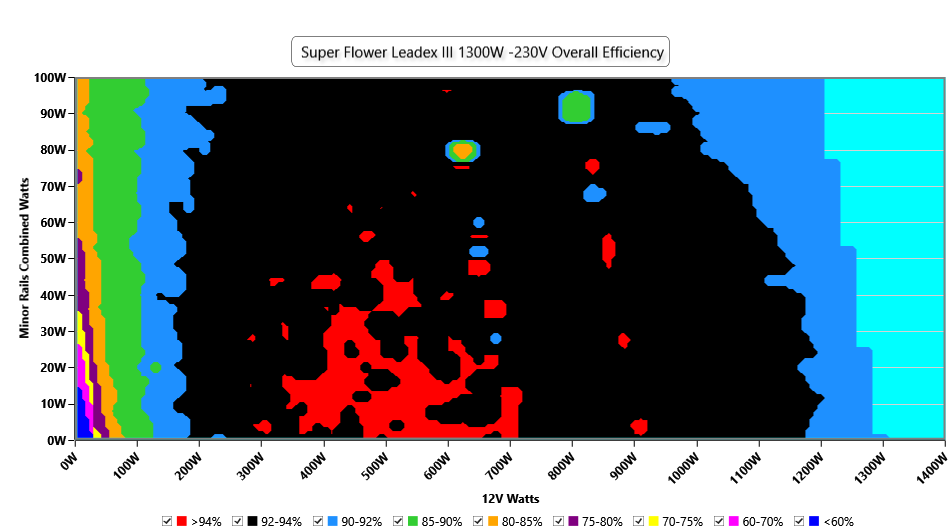

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

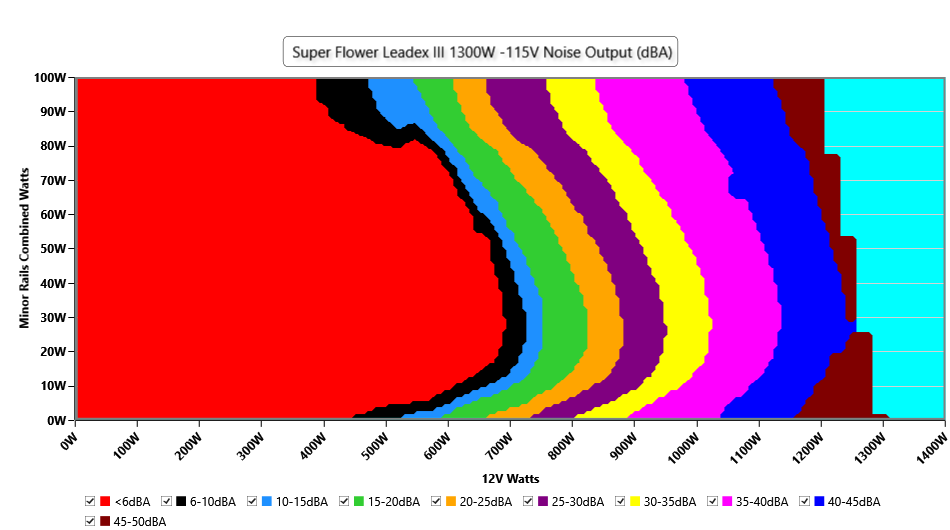

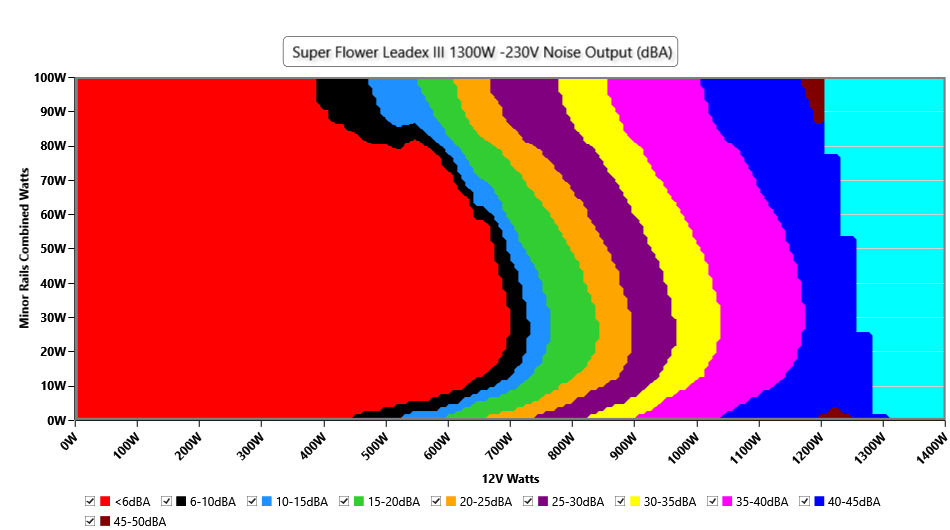

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

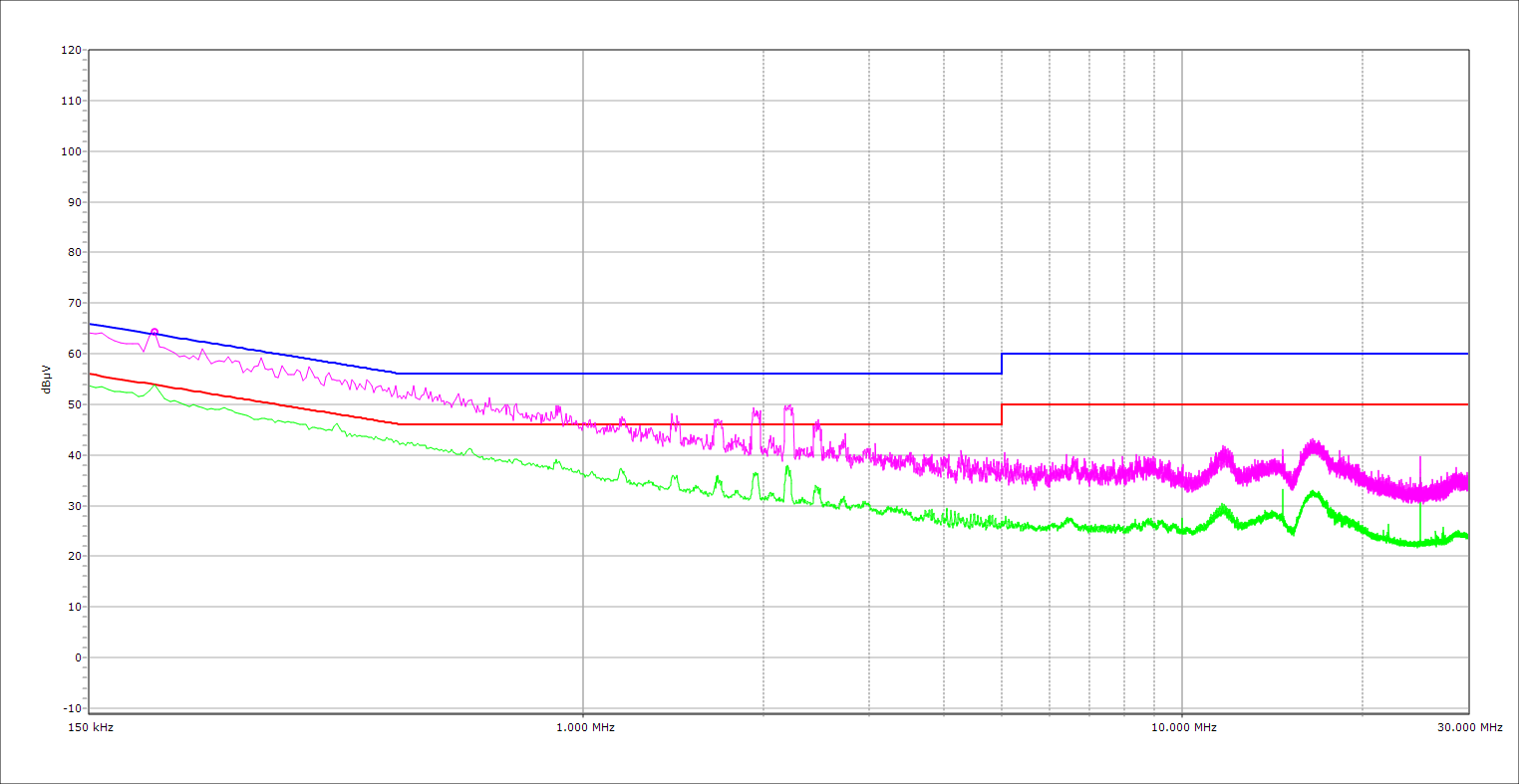

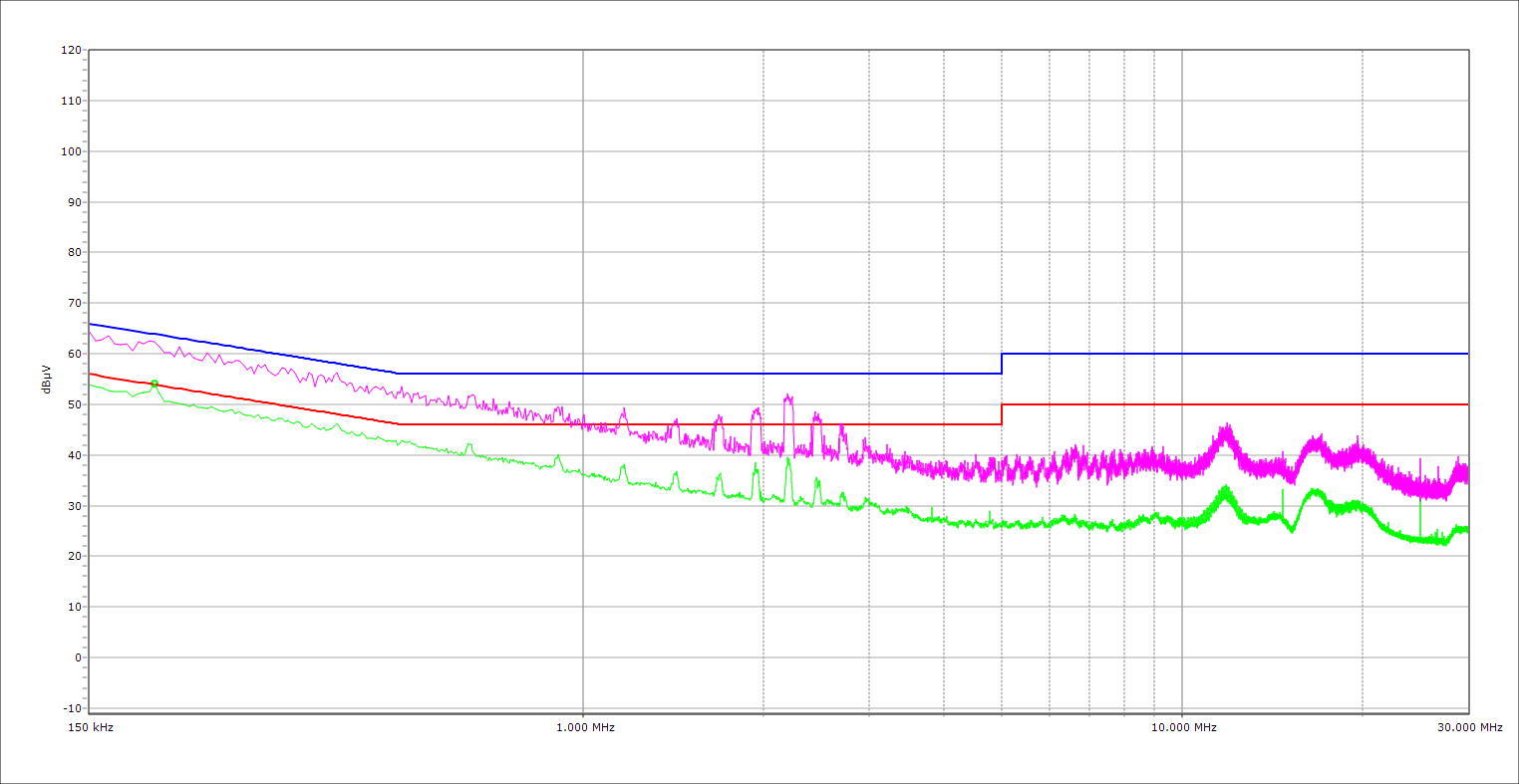

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

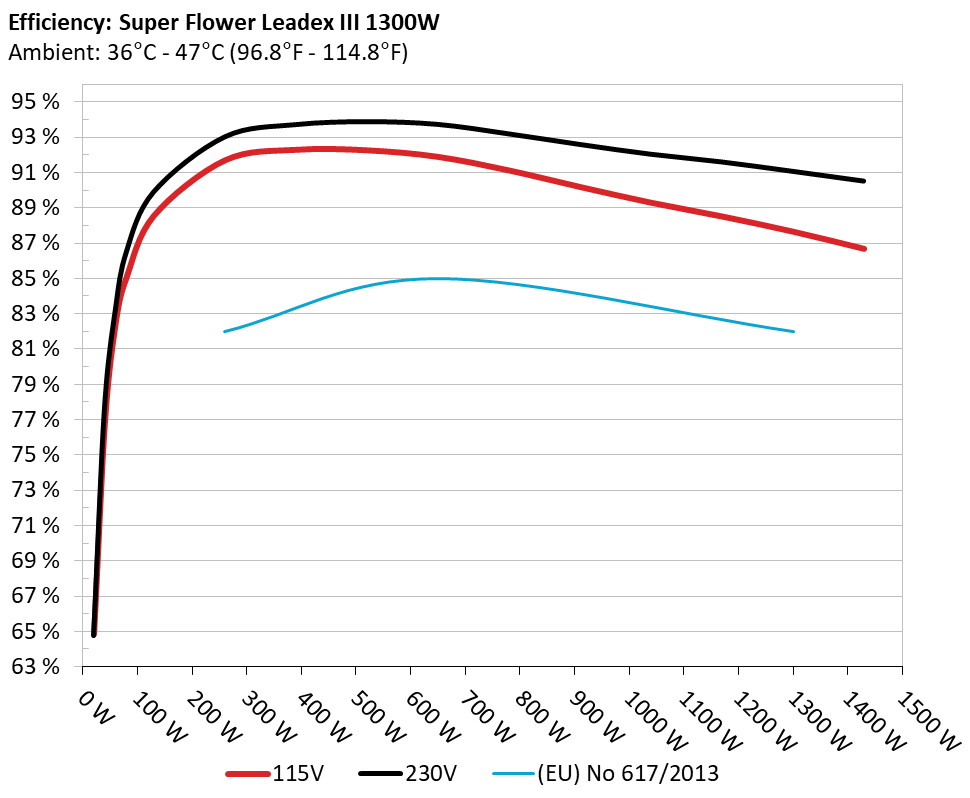

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

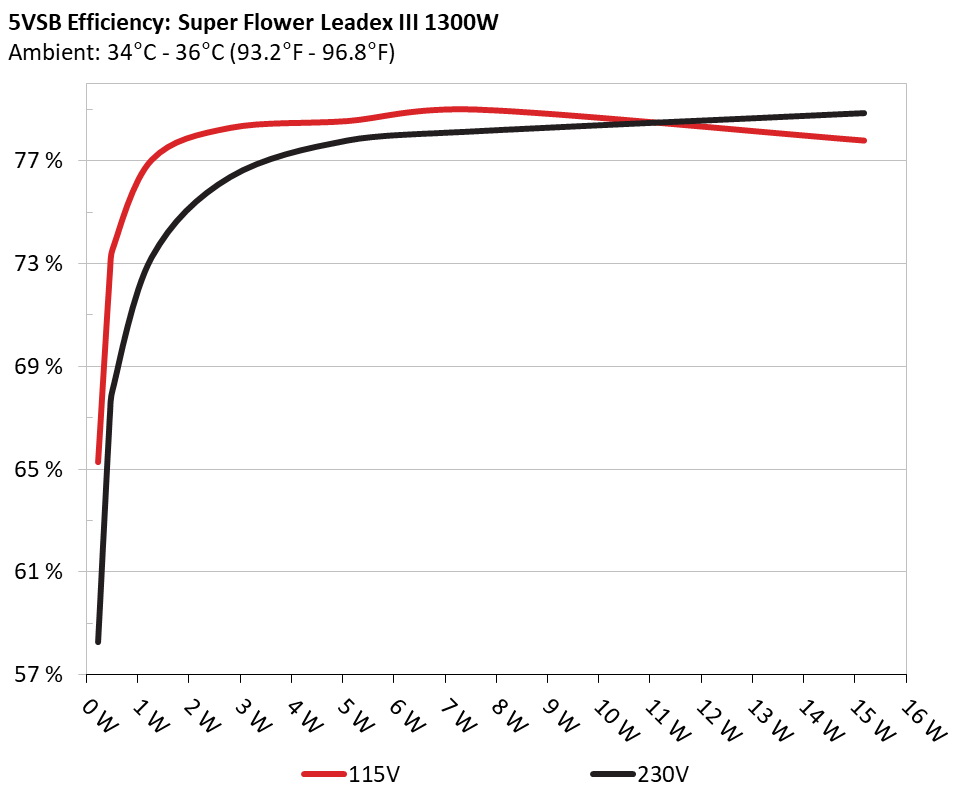

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 65.268% 0.037
5.114V 0.352W 115.04V
2 0.09A 0.46W 72.653% 0.064
5.113V 0.633W 115.04V
3 0.55A 2.808W 78.289% 0.247
5.105V 3.587W 115.04V
4 1A 5.097W 78.554% 0.314
5.097V 6.488W 115.04V
5 1.5A 7.632W 79.001% 0.348
5.087V 9.661W 115.03V
6 3A 15.176W 77.795% 0.388
5.059V 19.507W 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 58.256% 0.012
5.113V 0.395W 230V
2 0.09A 0.46W 67.106% 0.022
5.113V 0.686W 230V
3 0.55A 2.808W 76.37% 0.107
5.105V 3.677W 230V
4 1A 5.097W 77.792% 0.167
5.097V 6.553W 230V
5 1.5A 7.632W 78.155% 0.215
5.087V 9.765W 230V
6 3A 15.178W 78.858% 0.286
5.059V 19.247W 230V

Protection Features

OCP (Normal @ 32.0°C)12V: 130.00A (120.04%), 12.016V
5V: 24.7A (123.50%), 5.057V
3.3V: 24.6A (123.00%), 3.33V
5VSB: 5.1A (170.00%), 4.999V
OCP (Hot @ 44.0°C)12V: 130.00A (120.04%), 12.016V
5V: 23.9A (119.50%), 5.06V
3.3V: 24.3A (121.50%), 3.33V
5VSB: 5A (166.67%), 5.003V
OPP (Normal @ 31.5°C)1552.71W (119.44%)
OPP (Hot @ 43.9°C)1552.72W (119.44%)
OTP✓ (130°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.976A 1.977A 1.976A 0.983A 130.008 88.593% 0 <6.0 51.04°C 0.947
12.078V 5.058V 3.34V 5.086V 146.757 40.3°C 114.99V
20% 18.982A 2.967A 2.967A 1.182A 259.979 91.724% 0 <6.0 46.12°C 0.971
12.068V 5.057V 3.337V 5.075V 283.414 40.64°C 114.94V
30% 29.329A 3.463A 3.464A 1.382A 389.655 92.317% 374 <6.0 41.39°C 0.983
12.056V 5.054V 3.335V 5.065V 422.085 51.42°C 114.91V
40% 39.713A 3.96A 3.961A 1.583A 519.609 92.288% 476 6.9 41.82°C 0.987
12.047V 5.051V 3.333V 5.056V 563.023 50.19°C 114.86V
50% 49.781A 4.953A 4.956A 1.784A 649.745 91.915% 644 18.2 42.24°C 0.989
12.038V 5.048V 3.33V 5.045V 706.9 52.82°C 114.82V
60% 59.860A 5.946A 5.952A 1.986A 779.869 91.143% 954 31.8 42.72°C 0.991
12.029V 5.046V 3.327V 5.035V 855.68 52.39°C 114.76V
70% 69.952A 6.941A 6.95A 2.189A 909.968 90.207% 1364 40.8 43.18°C 0.991
12.021V 5.043V 3.324V 5.025V 1008.773 53.17°C 114.71V
80% 80.055A 7.933A 7.948A 2.293A 1039.556 89.316% 1589 44.9 43.71°C 0.991
12.013V 5.041V 3.322V 5.016V 1163.918 54.62°C 114.66V
90% 90.575A 8.432A 8.435A 2.397A 1169.771 88.531% 1779 47.5 44.48°C 0.991
12.004V 5.039V 3.32V 5.007V 1321.298 55.58°C 114.61V
100% 100.840A 8.931A 8.954A 3.008A 1299.391 87.673% 1904 49.9 45.82°C 0.991
11.996V 5.038V 3.317V 4.988V 1482.1 58°C 114.54V
110% 111.055A 9.925A 10.046A 3.012A 1429.596 86.696% 2018 51.1 46.44°C 0.989
11.988V 5.037V 3.315V 4.98V 1648.971 60.84°C 114.48V
CL1 0.116A 11.903A 11.909A 0A 101.306 81.292% 764 24.2 41.84°C 0.946
12.084V 5.056V 3.334V 5.1V 124.651 51.4°C 115V
CL2 0.116A 19.755A 0A 0A 101.358 81.236% 625 17.1 41.98°C 0.945
12.084V 5.06V 3.339V 5.1V 124.769 50.8°C 115V
CL4 108.402A 0A 0A 0A 1299.97 88.325% 1938 50 45.59°C 0.991
11.992V 5.041V 3.324V 5.053V 1471.795 56.91°C 114.56V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.978A 1.978A 1.977A 0.983A 130.025 89.931% 0 <6.0 49.07°C 0.844
12.077V 5.056V 3.339V 5.087V 144.591 40.45°C 229.98V
20% 18.985A 2.968A 2.967A 1.182A 259.993 93.047% 0 <6.0 49.91°C 0.922
12.066V 5.055V 3.337V 5.076V 279.42 40.79°C 229.95V
30% 29.332A 3.463A 3.463A 1.382A 389.7 93.742% 374 <6.0 41.25°C 0.956
12.057V 5.054V 3.335V 5.066V 415.72 51.86°C 229.93V
40% 39.711A 3.959A 3.961A 1.582A 519.641 93.907% 464 6.3 41.95°C 0.966
12.048V 5.052V 3.333V 5.056V 553.368 50.96°C 229.91V
50% 49.775A 4.952A 4.956A 1.784A 649.766 93.756% 627 17.1 42.33°C 0.972
12.039V 5.049V 3.33V 5.046V 693.045 51.56°C 229.89V
60% 59.850A 5.946A 5.952A 1.986A 779.88 93.217% 931 29.9 42.95°C 0.976
12.031V 5.046V 3.327V 5.036V 836.635 51.36°C 229.87V
70% 69.939A 6.941A 6.949A 2.189A 909.973 92.618% 1351 40.5 43.22°C 0.979
12.023V 5.044V 3.325V 5.026V 982.52 51.74°C 229.84V
80% 80.038A 7.932A 7.947A 2.292A 1039.549 92.064% 1582 44.7 43.79°C 0.981
12.015V 5.042V 3.322V 5.017V 1129.153 53.48°C 229.82V
90% 90.557A 8.431A 8.435A 2.396A 1169.776 91.627% 1741 47.1 44.67°C 0.983
12.006V 5.04V 3.32V 5.008V 1276.675 54.63°C 229.8V
100% 100.825A 8.93A 8.952A 3.007A 1299.404 91.093% 1921 49.8 45.7°C 0.984
11.998V 5.039V 3.318V 4.989V 1426.423 56.66°C 229.77V
110% 111.038A 9.925A 10.046A 3.011A 1429.598 90.543% 1935 49.9 46.91°C 0.986
11.989V 5.037V 3.315V 4.981V 1578.914 59.45°C 229.75V
CL1 0.117A 11.9A 11.908A 0A 101.305 82.292% 725 23.2 41.43°C 0.819
12.084V 5.058V 3.334V 5.1V 123.176 50.72°C 229.99V
CL2 0.116A 19.752A 0A 0A 101.354 82.219% 461 6.1 40.81°C 0.819
12.085V 5.06V 3.339V 5.1V 123.25 49.92°C 229.98V
CL4 108.387A 0A 0A 0A 1299.962 91.712% 1747 47.1 45.03°C 0.985
11.993V 5.04V 3.323V 5.054V 1417.466 55.13°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.494A 0.494A 0.196A 20.007 64.822% 0 <6.0 41.75°C 0.769
12.087V 5.057V 3.342V 5.108V 30.871 36.09°C 115.03V
40W 2.706A 0.692A 0.691A 0.294A 40.005 76.879% 0 <6.0 44.33°C 0.837
12.086V 5.057V 3.341V 5.105V 52.053 37.06°C 115.03V
60W 4.182A 0.89A 0.889A 0.392A 60.004 82.562% 0 <6.0 45.76°C 0.881
12.084V 5.057V 3.341V 5.102V 72.685 38.21°C 115.02V
80W 5.654A 1.087A 1.087A 0.49A 79.955 85.111% 0 <6.0 48.38°C 0.912
12.083V 5.058V 3.341V 5.098V 93.974 39.59°C 115.01V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.495A 0.494A 0.196A 20.005 64.773% 0 <6.0 39.34°C 0.504
12.085V 5.053V 3.341V 5.109V 30.919 36.2°C 229.99V
40W 2.706A 0.693A 0.692A 0.294A 40.005 77.726% 0 <6.0 41.88°C 0.626
12.084V 5.054V 3.341V 5.106V 51.489 37.64°C 229.99V
60W 4.182A 0.89A 0.889A 0.392A 60.006 83.291% 0 <6.0 44.1°C 0.705
12.082V 5.055V 3.34V 5.103V 72.048 38.87°C 229.99V
80W 5.656A 1.088A 1.087A 0.49A 79.965 86.536% 0 <6.0 45.53°C 0.761
12.081V 5.055V 3.34V 5.1V 92.465 39.21°C 229.99V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load20.26mV16.45mV16.47mV16.17mVPass
20% Load18.57mV16.81mV15.91mV14.78mVPass
30% Load21.28mV17.32mV16.63mV16.27mVPass
40% Load21.85mV17.98mV17.39mV15.81mVPass
50% Load23.38mV19.92mV18.16mV16.27mVPass
60% Load26.50mV23.76mV20.00mV20.51mVPass
70% Load25.58mV20.33mV18.16mV18.11mVPass
80% Load26.60mV21.51mV18.88mV22.46mVPass
90% Load28.24mV22.22mV20.67mV27.27mVPass
100% Load26.58mV22.02mV19.05mV20.50mVPass
110% Load37.26mV26.86mV29.95mV27.75mVPass
Crossload120.37mV16.77mV16.05mV27.68mVPass
Crossload220.98mV18.44mV16.93mV28.75mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload428.25mV21.38mV19.05mV27.68mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load20.57mV16.50mV17.34mV15.96mVPass
20% Load20.47mV17.73mV16.37mV15.65mVPass
30% Load21.95mV18.19mV17.50mV16.06mVPass
40% Load23.13mV18.19mV17.08mV16.11mVPass
50% Load23.38mV18.75mV16.93mV15.96mVPass
60% Load25.17mV20.64mV17.19mV16.42mVPass
70% Load25.43mV19.82mV17.70mV17.34mVPass
80% Load26.50mV22.84mV19.54mV18.72mVPass
90% Load27.16mV22.02mV18.42mV16.93mVPass
100% Load26.70mV21.78mV18.06mV17.59mVPass
110% Load28.97mV22.08mV16.86mV17.70mVPass
Crossload120.75mV17.13mV15.68mV27.39mVPass
Crossload222.36mV18.44mV16.62mV28.44mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload426.35mV19.61mV17.46mV25.84mVPass

The results above are not used in the certification process

Super Flower Leadex III 1300W (SF-1300F14PE)

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
