CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

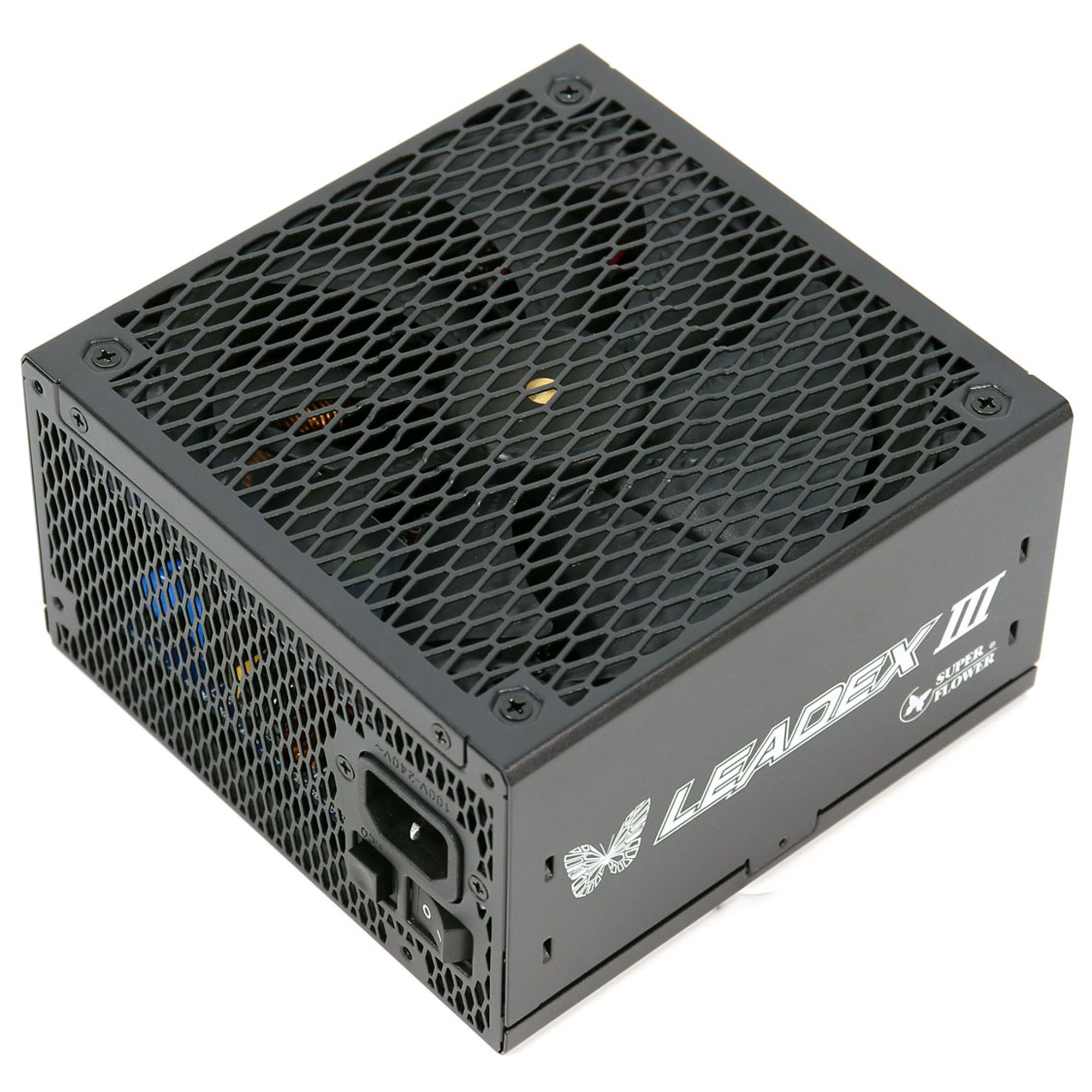

Super Flower Leadex III 1000W (SF-1000F14PE)
Serial NumberS2508199006
Lab IDSF10002964
Certification ID252964
  • Test Result Report ID: 25PS2964A
  • Certificate Issue Date: Sep 17, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III
Model NumberSF-1000F14PE
Serial NumberS2508199006
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Dual Ball Bearing Fan (ZFH142512D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

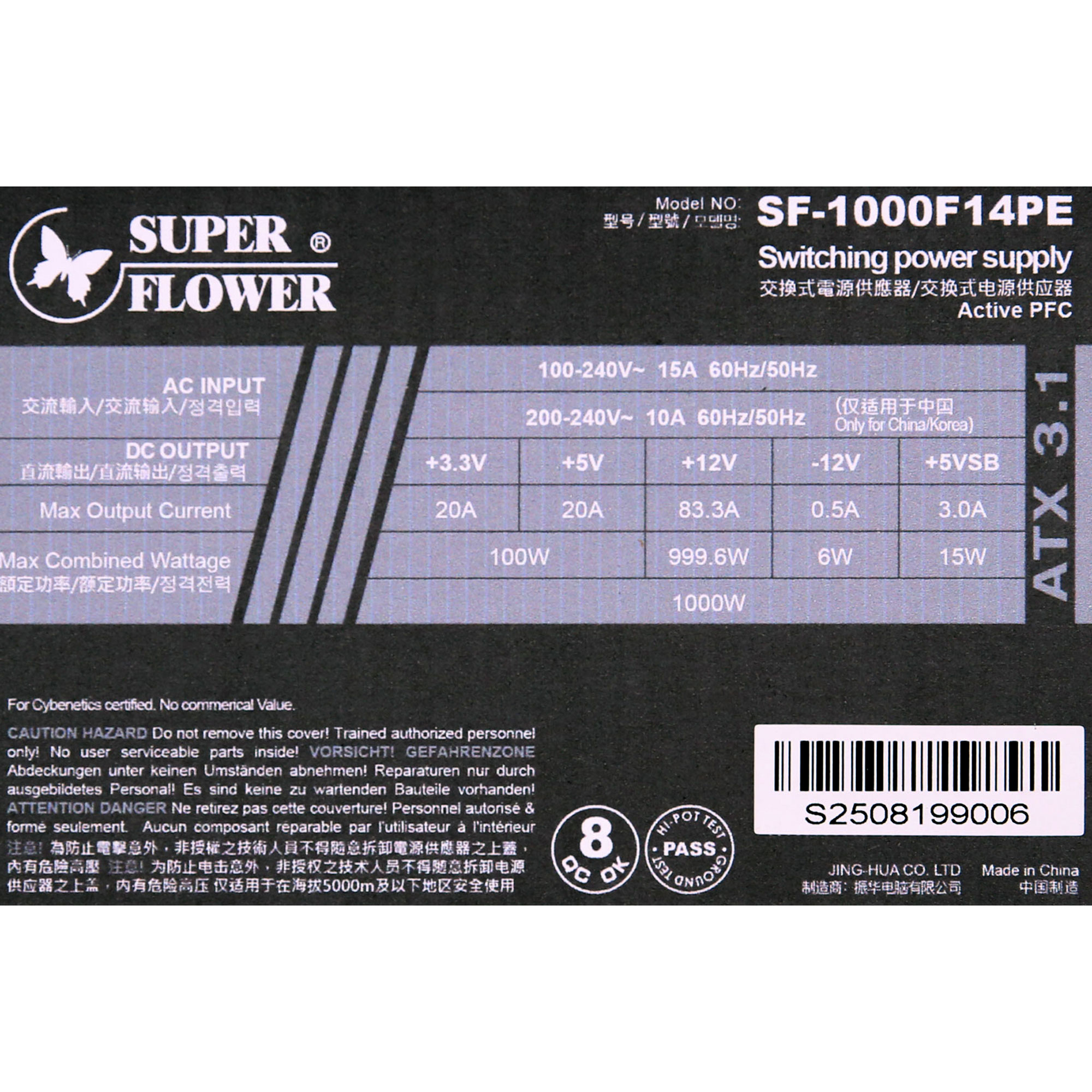

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.5
Watts100999.6156
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 1 2 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 2 2 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-26AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG Tinned Copper
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

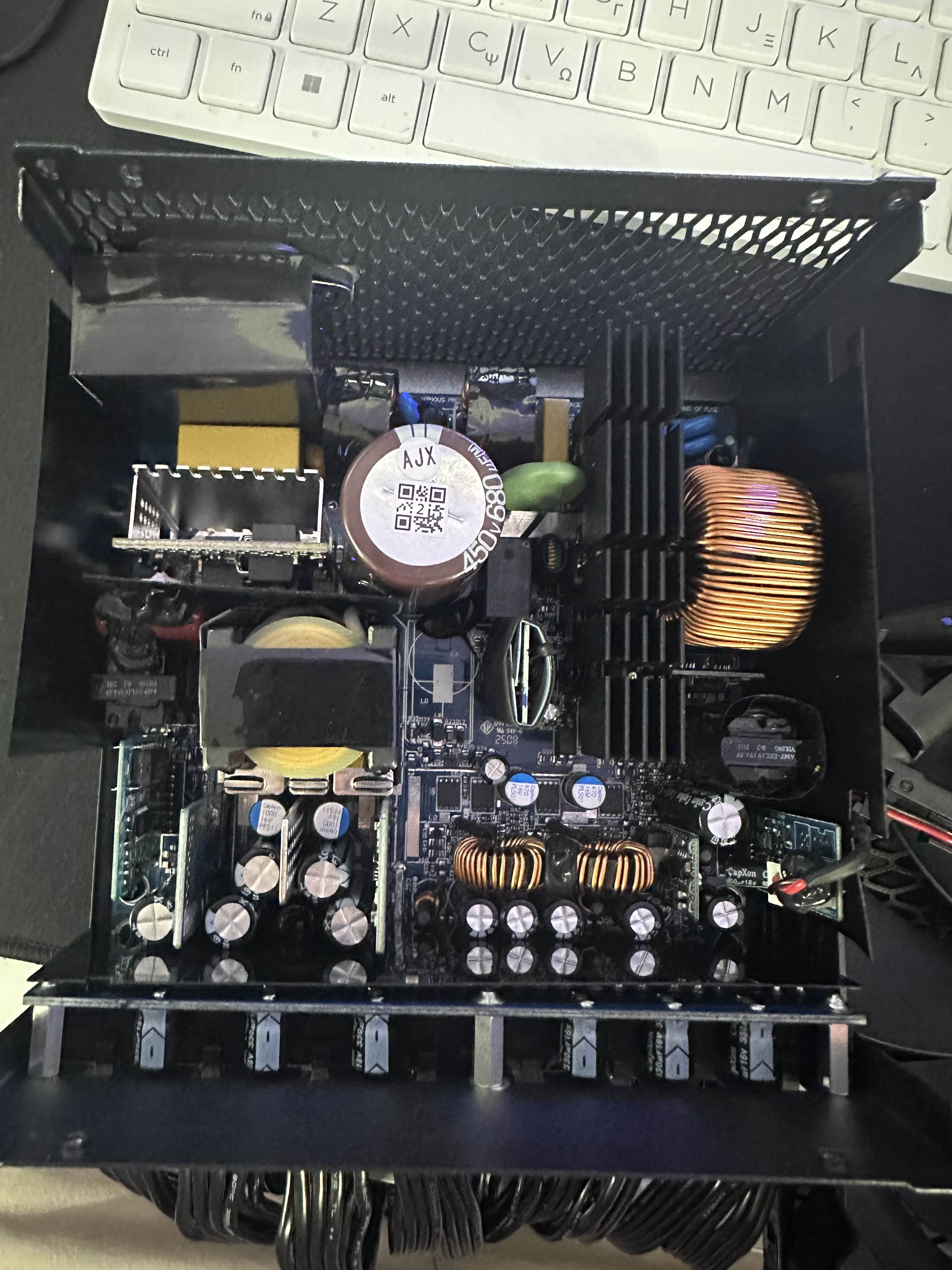

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-0512 (5 Ohm @ 25°C) & Relay
Rectifier MOSFETs
2x Yangzhou GBU15J (600V, 15A @ 100°C)
APFC MOSFETs
3x Sanrise SRC60R140BT (600V, 17.8A @ 125°C, Rds(on): 90mOhm)
APFC Boost Diode
CRREE C3D10065I (650V, 9A @ 135°C)
Bulk Cap(s)
Nippon Chemi-Con (450V, 680uF, 2,000h @ 105°C, KMZ)
Main Switchers
4x Sanrise SRC60R140BS  (600V, 17.8A @ 125°C, Rds(on): 90mOhm) &
Sync Power Corp SPN5003 (For no load consumption)

APFC Controller

Infineon ICE3PCS02G
Resonant Controller
STMicroelectronics MZA1407
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Sanrise SRT04N016L (40V, 77A @ 125°C, Rds(on): 1.6mOhm)
5V & 3.3V DC-DC Converters: 4x Alpha & Omega AON6516 (30V, 25A @ 100°C, Rds(on): 5mOhm)
PWM Controller(s): 2x ANPEC APW7073
Filtering Capacitors

Electrolytic:
29x CapXon (2-5,000h @105°C, KF)
5x CapXon (2,000h @105°C, KM)
Polymer:
14x CapXon
Supervisor IC JTC113 & LM324ADG

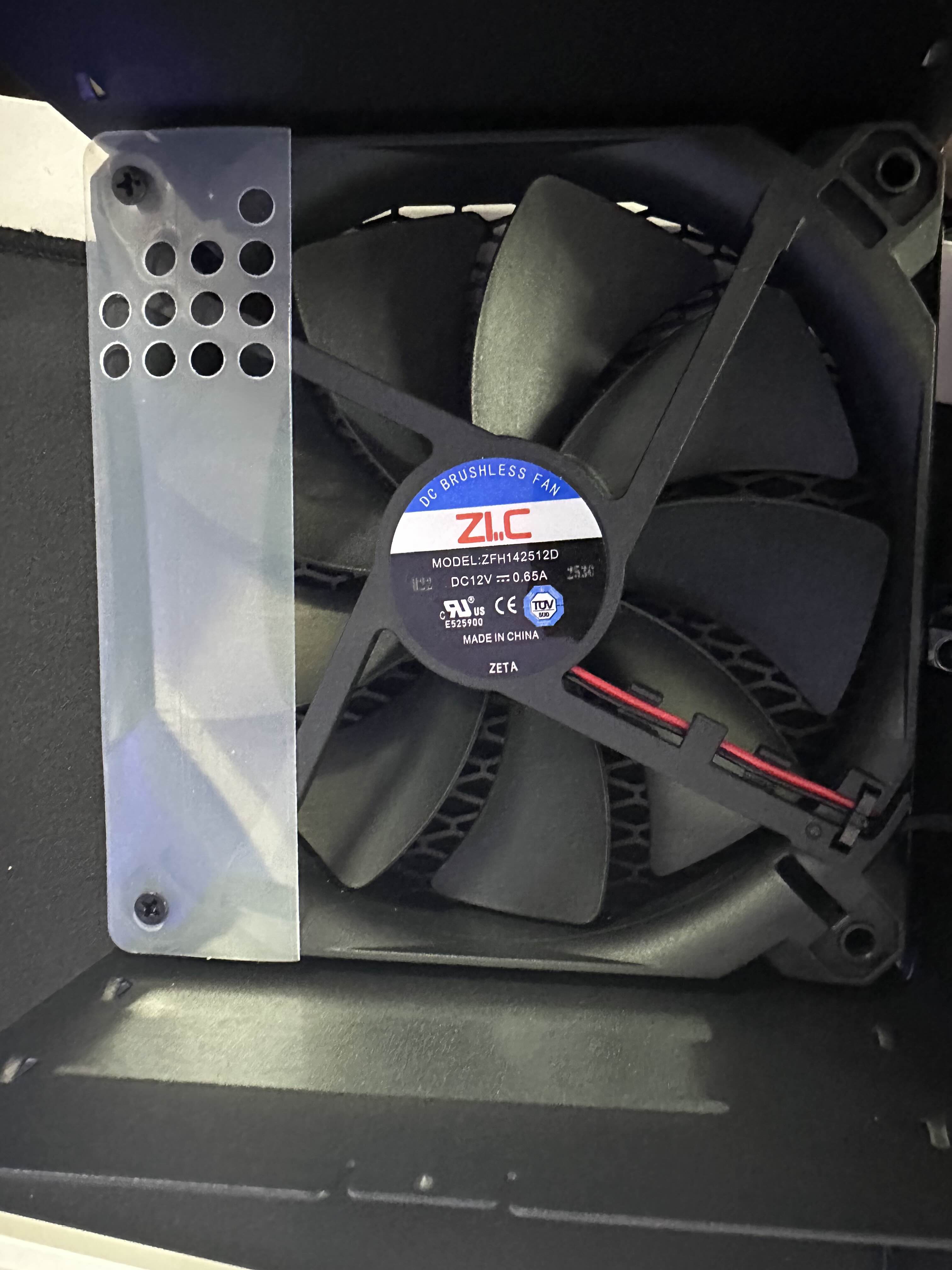

Fan Model ZIC ZFH142512D (140mm, 12V, 0.65A, Dual Ball Bearing Fan)
5VSB Circuit
Rectifier (High Side)
MOSPEC S20M60CC SBR (60V, 20A)
Standby PWM Controller
29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)90.325%
Average Noise Output (>1450 Load Combinations)25.85dBA
Average PF (>1450 Load Combinations)0.983
Efficiency With 10W (≤500W) or 2% (>500W) Load70.318%
Standby Power Consumption0.0473W
12V Ripple (Full Load)24.66mV
5V Ripple (Full Load)19.34mV
3.3V Ripple (Full Load)15.82mV
5VSB Ripple (Full Load)20.75mV
12V Load Regulation0.52%
5V Load Regulation0.52%
3.3V Load Regulation1.77%
5VSB Load Regulation1.88%
Inrush Current32.980A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)92.144%
Average Noise Output (>1450 Load Combinations)25.08dBA
Average PF (>1450 Load Combinations)0.947
Efficiency With 10W (≤500W) or 2% (>500W) Load69.156%
Standby Power Consumption0.1055W
12V Ripple (Full Load)23.67mV
5V Ripple (Full Load)20.72mV
3.3V Ripple (Full Load)15.51mV
5VSB Ripple (Full Load)15.40mV
12V Load Regulation0.52%
5V Load Regulation0.52%
3.3V Load Regulation1.74%
5VSB Load Regulation1.88%
Inrush Current66.720A
12V Transient Response (200%)11.47V
5V Transient Response (200%)4.956V
3.3V Transient Response (200%)3.216V
5VSB Transient Response (200%)5.012V
Hold-Up Time & Power Ok Signal24.50ms
AC Loss to PWR_OK Hold Up Time21.60ms
PWR_OK Inactive to DC Loss Delay2.90ms
PSU Timings: T1 (20% / 100%)118.0ms118.0ms
PSU Timings: T3 (20% / 100%)118.0ms118.0ms
12V OCP (29.7°C / 43.4°C)97.60A (117.17%), 12.035V97.40A (116.93%), 12.042V
5V OCP (29.7°C / 43.4°C)23.5A (117.50%), 5.041V21.9A (109.50%), 5.047V
3.3V OCP (29.7°C / 43.4°C)25.6A (128.00%), 3.329V25A (125.00%), 3.324V
5VSB OCP (29.7°C / 43.4°C)5A (166.67%), 5.014V4.8A (160.00%), 5.02V
OPP (29.89°C / 43.08°C)115.10%115.11%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.5
AC Loss to PWR_OK Hold Up Time (ms)21.6
PWR_OK Inactive to DC Loss Delay (ms)2.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.98 V 114.95 V 113.85 V 115.00 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.047 W 0.002 W N/A 0.087 W N/A N/A
Apparent Power: 9.739 W 9.719 W N/A 9.762 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.97 V 229.93 V 227.70 V 229.98 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.106 W 0.066 W N/A 0.148 W N/A N/A
Apparent Power: 31.967 W 31.930 W N/A 32.003 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

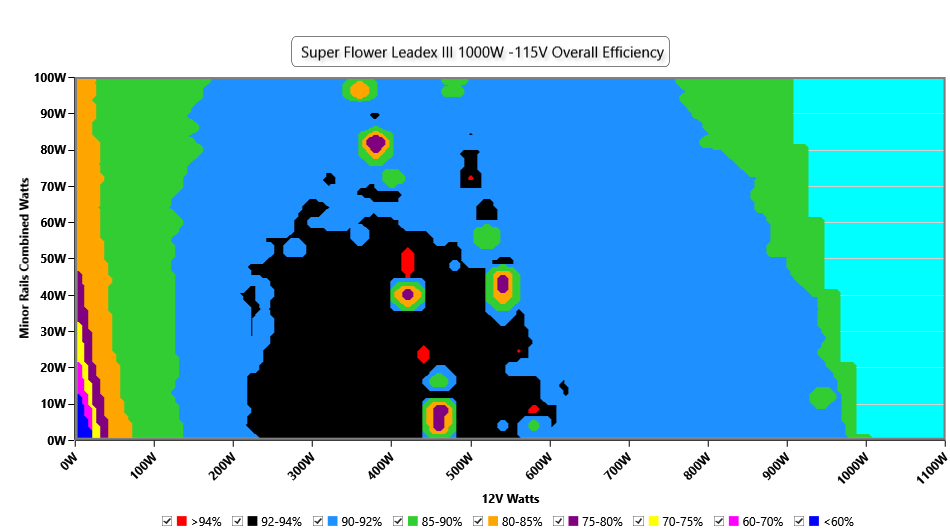

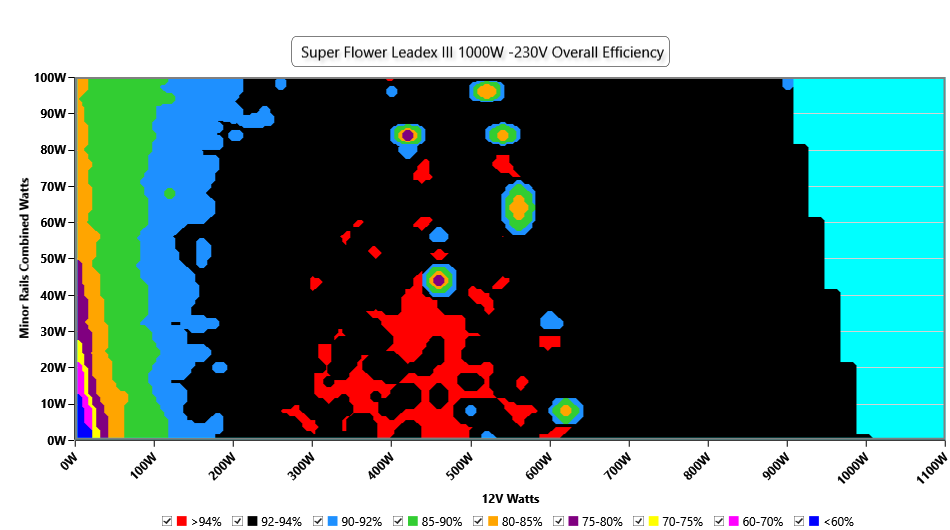

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

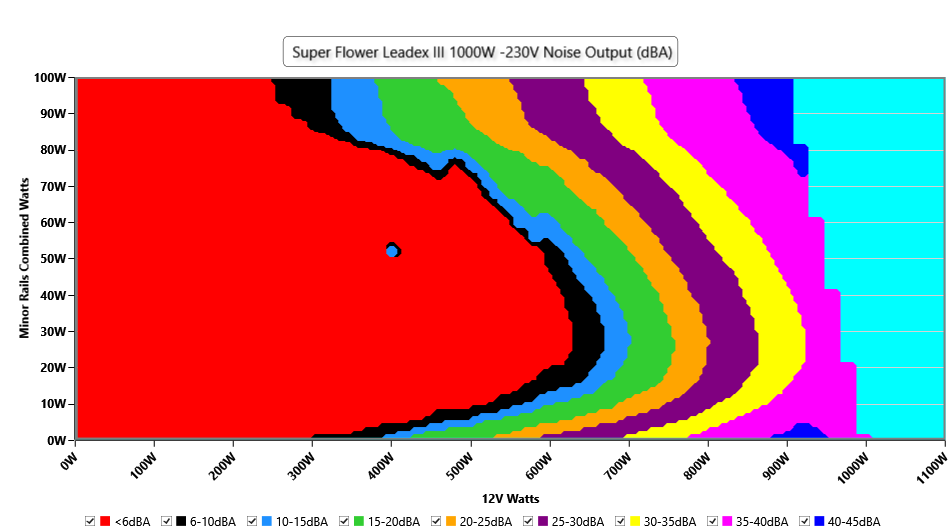

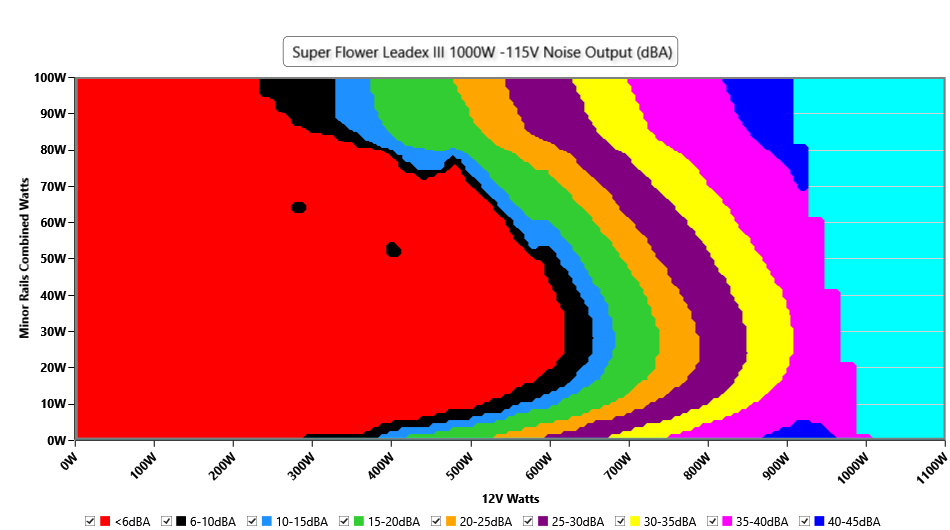

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

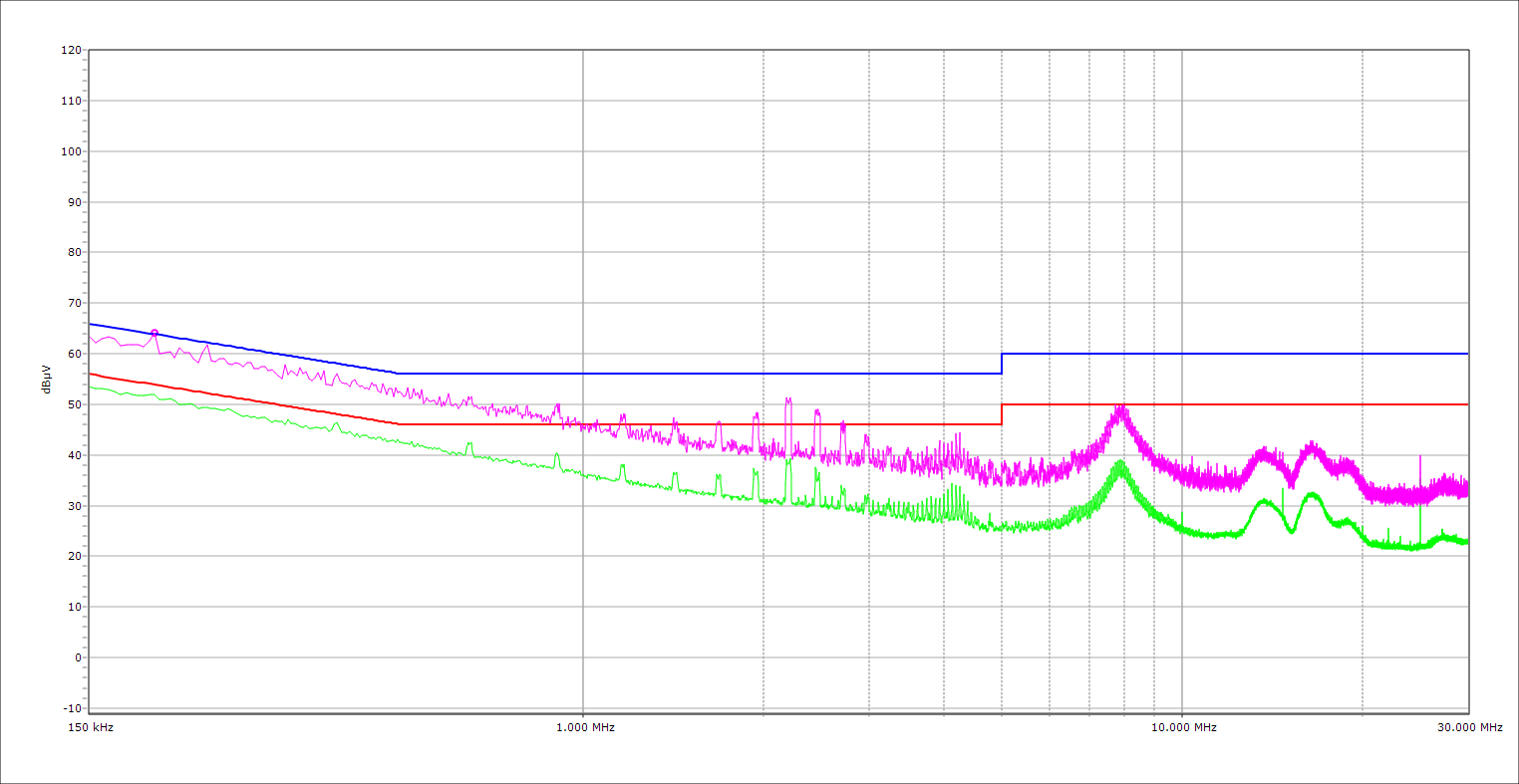

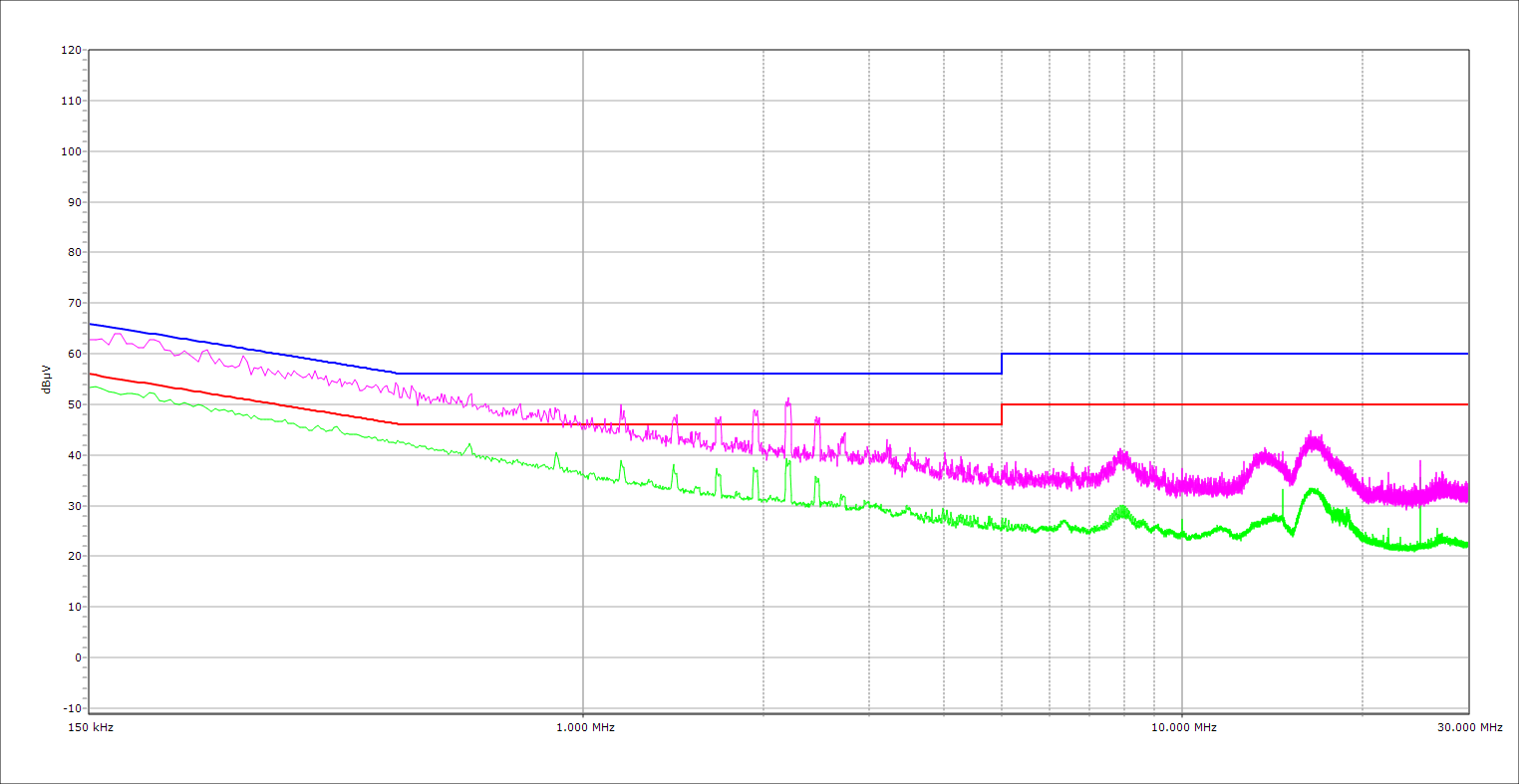

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

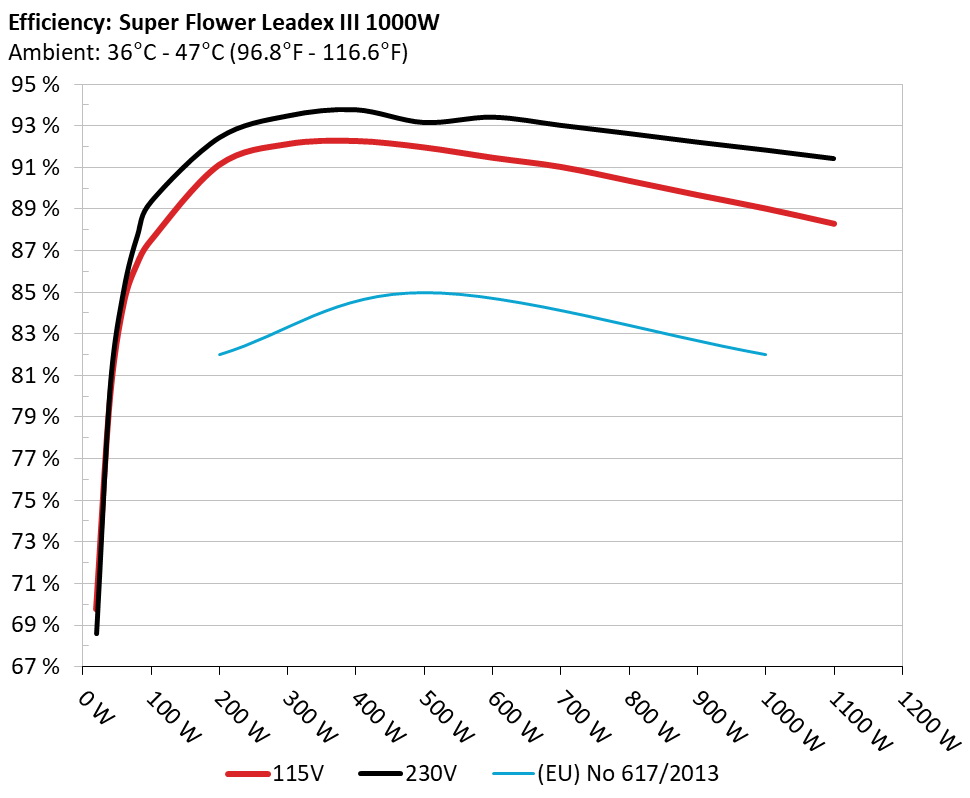

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

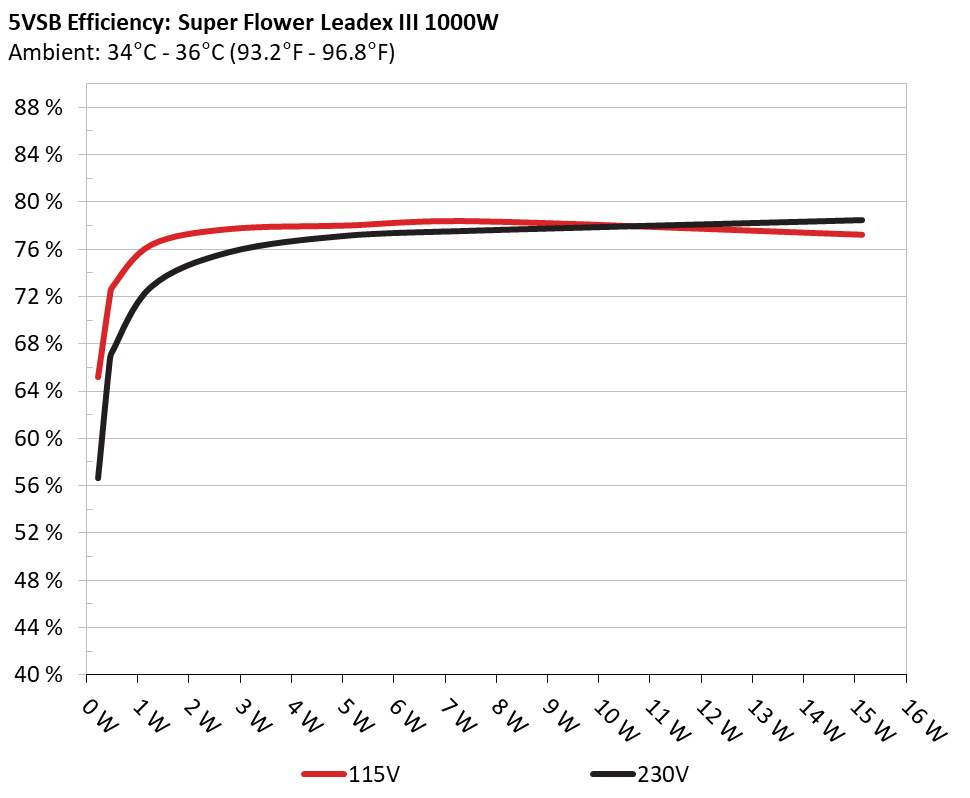

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 65.211% 0.037
5.102V 0.353W 115.03V
2 0.09A 0.459W 72.045% 0.066
5.101V 0.637W 115.03V
3 0.55A 2.801W 77.702% 0.245
5.093V 3.605W 115.04V
4 1A 5.085W 77.995% 0.309
5.084V 6.52W 115.04V
5 1.5A 7.613W 78.351% 0.342
5.075V 9.717W 115.04V
6 3A 15.135W 77.219% 0.382
5.045V 19.6W 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 56.675% 0.013
5.102V 0.406W 230V
2 0.09A 0.459W 66.663% 0.022
5.101V 0.689W 230V
3 0.55A 2.801W 75.758% 0.108
5.093V 3.698W 230V
4 1A 5.085W 77.135% 0.168
5.084V 6.592W 230V
5 1.5A 7.613W 77.564% 0.214
5.075V 9.815W 230V
6 3A 15.137W 78.447% 0.283
5.046V 19.296W 229.99V

Protection Features

OCP (Normal @ 29.7°C)12V: 97.60A (117.17%), 12.035V
5V: 23.5A (117.50%), 5.041V
3.3V: 25.6A (128.00%), 3.329V
5VSB: 5A (166.67%), 5.014V
OCP (Hot @ 43.4°C)12V: 97.40A (116.93%), 12.042V
5V: 21.9A (109.50%), 5.047V
3.3V: 25A (125.00%), 3.324V
5VSB: 4.8A (160.00%), 5.02V
OPP (Normal @ 29.9°C)1151.03W (115.10%)
OPP (Hot @ 43.1°C)1151.06W (115.11%)
OTP✓ (100°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.485A 1.98A 1.985A 0.984A 100.003 87.486% 0 <6.0 49.77°C 0.94
12.090V 5.05V 3.325V 5.081V 114.309 40.08°C 115V
20% 13.994A 2.972A 2.983A 1.183A 199.956 91.119% 376 <6.0 40.63°C 0.977
12.081V 5.048V 3.319V 5.073V 219.449 49.05°C 114.97V
30% 21.867A 3.469A 3.485A 1.382A 300.009 92.12% 375 <6.0 41.13°C 0.987
12.071V 5.045V 3.314V 5.065V 325.668 50.2°C 114.94V
40% 29.710A 3.967A 3.988A 1.582A 399.591 92.27% 504 9.6 41.82°C 0.99
12.063V 5.042V 3.31V 5.057V 433.088 51.39°C 114.9V
50% 37.224A 4.962A 4.995A 1.783A 499.296 91.966% 628 17.1 42.46°C 0.992
12.057V 5.039V 3.304V 5.049V 542.893 50.77°C 114.87V
60% 44.809A 5.959A 6.006A 1.984A 599.812 91.47% 816 25.9 42.6°C 0.993
12.051V 5.035V 3.297V 5.041V 655.741 51.26°C 114.83V
70% 52.334A 6.957A 7.022A 2.186A 699.536 91.028% 1107 36 43.17°C 0.994
12.046V 5.032V 3.29V 5.033V 768.502 52.31°C 114.79V
80% 59.931A 7.952A 8.04A 2.288A 799.534 90.359% 1411 41.9 43.58°C 0.993
12.041V 5.029V 3.283V 5.026V 884.848 52.91°C 114.76V
90% 67.868A 8.454A 8.539A 2.391A 899.333 89.679% 1697 46.5 44.21°C 0.993
12.036V 5.026V 3.279V 5.019V 1002.813 53.99°C 114.72V
100% 75.607A 8.956A 9.07A 2.998A 999.348 89.027% 1865 49.2 45.65°C 0.993
12.031V 5.024V 3.274V 5.004V 1122.536 55.67°C 114.68V
110% 83.280A 9.955A 10.19A 3.001A 1099.95 88.294% 2004 50.8 46.08°C 0.993
12.027V 5.022V 3.268V 4.998V 1245.763 58.16°C 114.63V
CL1 0.116A 11.928A 12.089A 0A 101.294 82.266% 721 23.2 41.01°C 0.946
12.088V 5.046V 3.284V 5.09V 123.13 49.29°C 115V
CL2 0.115A 19.803A 0A 0A 101.348 81.65% 478 6.9 41.41°C 0.946
12.088V 5.047V 3.328V 5.09V 124.126 48.63°C 115V
CL4 83.114A 0A 0A 0A 999.923 89.756% 1755 47.3 45.26°C 0.993
12.030V 5.029V 3.312V 5.058V 1114.109 55.47°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.486A 1.981A 1.985A 0.984A 100.007 88.882% 0 <6.0 49.64°C 0.812
12.089V 5.049V 3.324V 5.081V 112.512 40.1°C 229.98V
20% 13.995A 2.973A 2.984A 1.183A 199.96 92.432% 0 <6.0 50.81°C 0.923
12.080V 5.047V 3.318V 5.072V 216.317 40.68°C 229.96V
30% 21.868A 3.47A 3.486A 1.382A 300.01 93.476% 0 <6.0 41.47°C 0.948
12.070V 5.044V 3.314V 5.065V 320.943 41.13°C 229.95V
40% 29.714A 3.968A 3.989A 1.582A 399.587 93.773% 375 <6.0 41.95°C 0.962
12.061V 5.041V 3.309V 5.057V 426.154 54.46°C 229.93V
50% 37.227A 4.963A 4.997A 1.783A 499.303 93.16% 668 19.5 42.15°C 0.97
12.056V 5.037V 3.302V 5.049V 532.109 53.62°C 229.91V
60% 44.812A 5.96A 6.008A 1.984A 599.823 93.416% 915 29.6 42.64°C 0.977
12.051V 5.035V 3.296V 5.04V 642.126 52.91°C 229.9V
70% 52.336A 6.957A 7.023A 2.186A 699.548 93.026% 1166 37 43.13°C 0.98
12.045V 5.032V 3.29V 5.032V 751.988 52.29°C 229.88V
80% 59.937A 7.954A 8.041A 2.289A 799.547 92.632% 1412 41.9 43.71°C 0.983
12.040V 5.028V 3.283V 5.025V 863.17 51.89°C 229.86V
90% 67.876A 8.455A 8.54A 2.391A 899.345 92.219% 1683 46.4 44.26°C 0.985
12.035V 5.025V 3.279V 5.019V 975.219 52.04°C 229.84V
100% 75.616A 8.957A 9.071A 2.998A 999.351 91.839% 1844 49 45.24°C 0.987
12.030V 5.023V 3.274V 5.004V 1088.142 53.06°C 229.82V
110% 83.287A 9.958A 10.191A 3.001A 1099.946 91.428% 2005 50.8 46.52°C 0.988
12.026V 5.02V 3.268V 4.998V 1203.072 54.53°C 229.8V
CL1 0.116A 11.93A 12.086A 0A 101.295 83.453% 756 24.2 41.64°C 0.829
12.087V 5.045V 3.285V 5.09V 121.398 47.97°C 229.98V
CL2 0.116A 19.806A 0A 0A 101.351 82.916% 471 6.5 40.33°C 0.83
12.088V 5.047V 3.328V 5.09V 122.234 48.04°C 229.98V
CL4 83.129A 0A 0A 0A 999.935 92.562% 1736 47.1 45.4°C 0.987
12.028V 5.028V 3.311V 5.057V 1080.296 52.02°C 229.82V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.495A 0.495A 0.196A 20.01 69.764% 0 <6.0 42.5°C 0.767
12.093V 5.05V 3.332V 5.098V 28.684 36.19°C 115.03V
40W 2.704A 0.693A 0.694A 0.294A 40.004 79.785% 0 <6.0 42.74°C 0.871
12.093V 5.05V 3.331V 5.095V 50.14 37.14°C 115.03V
60W 4.179A 0.891A 0.892A 0.393A 60.002 84.409% 0 <6.0 42.51°C 0.915
12.092V 5.05V 3.33V 5.093V 71.087 38.91°C 115.02V
80W 5.651A 1.089A 1.09A 0.491A 79.951 86.363% 0 <6.0 47.1°C 0.925
12.091V 5.05V 3.329V 5.09V 92.576 39.41°C 115.01V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.495A 0.495A 0.196A 20.015 68.592% 0 <6.0 38.45°C 0.491
12.092V 5.048V 3.331V 5.098V 29.194 36.2°C 230V
40W 2.704A 0.693A 0.694A 0.294A 40.008 80.457% 0 <6.0 43.08°C 0.621
12.092V 5.048V 3.33V 5.095V 49.793 37.48°C 229.99V
60W 4.180A 0.891A 0.892A 0.393A 60.005 85.119% 0 <6.0 43.89°C 0.705
12.091V 5.049V 3.329V 5.093V 70.518 38.87°C 229.99V
80W 5.652A 1.089A 1.091A 0.491A 79.955 87.733% 0 <6.0 47.23°C 0.761
12.090V 5.048V 3.328V 5.09V 91.139 39.29°C 229.99V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load18.77mV15.84mV15.19mV13.35mVPass
20% Load20.31mV16.30mV15.09mV14.27mVPass
30% Load21.28mV16.35mV15.40mV13.91mVPass
40% Load22.56mV16.71mV16.16mV14.32mVPass
50% Load22.25mV17.11mV15.40mV14.32mVPass
60% Load23.43mV17.58mV15.40mV13.30mVPass
70% Load23.43mV19.01mV15.65mV13.97mVPass
80% Load23.99mV20.08mV16.73mV15.96mVPass
90% Load25.38mV19.67mV16.62mV18.46mVPass
100% Load24.66mV19.34mV15.82mV20.75mVPass
110% Load25.52mV21.53mV15.68mV20.95mVPass
Crossload118.89mV15.92mV15.23mV24.93mVPass
Crossload221.18mV18.03mV16.32mV27.01mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload423.83mV20.62mV15.41mV23.97mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.18mV14.97mV15.81mV14.37mVPass
20% Load20.77mV15.48mV14.89mV13.50mVPass
30% Load20.57mV16.50mV15.30mV13.09mVPass
40% Load21.90mV16.71mV15.91mV13.91mVPass
50% Load22.51mV17.01mV15.40mV14.22mVPass
60% Load21.43mV17.98mV15.65mV13.40mVPass
70% Load23.18mV18.04mV15.09mV13.76mVPass
80% Load23.58mV19.16mV17.08mV14.84mVPass
90% Load24.87mV19.72mV17.08mV15.65mVPass
100% Load23.67mV20.72mV15.51mV15.40mVPass
110% Load24.54mV19.76mV15.70mV16.08mVPass
Crossload119.16mV16.65mV15.22mV24.67mVPass
Crossload221.44mV18.39mV16.06mV26.70mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload423.76mV18.39mV14.73mV22.59mVPass

The results above are not used in the certification process

Super Flower Leadex III 1000W (SF-1000F14PE)

Top side
Power specifications label
Fan
PSU Inside
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
