Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (590mm)
1
1
18-20AWG
Tinned Copper
4+4 pin ATX12V (700mm)
2
2
18AWG
Tinned Copper
6+2 pin PCIe (600mm+150mm)
1
2
18AWG
Tinned Copper
6+2 pin PCIe (600mm)
1
1
16AWG
Tinned Copper
12+4 pin PCIe (600mm) (600W)
1
1
16-26AWG
Tinned Copper
SATA (500mm+150mm+150mm+150mm)
1
4
18AWG
Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm)
1
2 / 2
18AWG
Tinned Copper
AC Power Cord (1370mm) - C13 coupler
1
1
18AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A-
Average Efficiency (>1450 load combinations)
90.185%
Average Noise Output (>1450 Load Combinations)
25.89dBA
Average PF (>1450 Load Combinations)
0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load
63.160%
Standby Power Consumption
0.0493W
12V Ripple (Full Load)
26.51mV
5V Ripple (Full Load)
20.17mV
3.3V Ripple (Full Load)
16.61mV
5VSB Ripple (Full Load)
17.63mV
12V Load Regulation
0.41%
5V Load Regulation
0.32%
3.3V Load Regulation
0.60%
5VSB Load Regulation
2.46%
Inrush Current
35.040A
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
91.996%
Average Noise Output (>1450 Load Combinations)
24.69dBA
Average PF (>1450 Load Combinations)
0.942
Efficiency With 10W (≤500W) or 2% (>500W) Load
63.783%
Standby Power Consumption
0.1089W
12V Ripple (Full Load)
24.63mV
5V Ripple (Full Load)
19.46mV
3.3V Ripple (Full Load)
16.39mV
5VSB Ripple (Full Load)
16.07mV
12V Load Regulation
0.44%
5V Load Regulation
0.16%
3.3V Load Regulation
0.66%
5VSB Load Regulation
2.40%
Inrush Current
69.210A
12V Transient Response (200%)
11.47V
5V Transient Response (200%)
4.968V
3.3V Transient Response (200%)
3.205V
5VSB Transient Response (200%)
5.021V
Hold-Up Time & Power Ok Signal
26.40ms
AC Loss to PWR_OK Hold Up Time
23.30ms
PWR_OK Inactive to DC Loss Delay
3.10ms
PSU Timings: T1 (20% / 100%)
118.0ms
118.0ms
PSU Timings: T3 (20% / 100%)
113.0ms
116.0ms
12V OCP (29.5°C / 43.0°C)
88.00A (124.29%), 12.050V
87.60A (123.73%), 12.052V
5V OCP (29.5°C / 43.0°C)
24A (120.00%), 5.081V
24A (120.00%), 5.08V
3.3V OCP (29.5°C / 43.0°C)
26A (130.00%), 3.31V
26.6A (133.00%), 3.308V
5VSB OCP (29.5°C / 43.0°C)
5.1A (170.00%), 5.008V
5.1A (170.00%), 5.005V
OPP (30.29°C / 41.90°C)
123.84%
123.84%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
26.4
AC Loss to PWR_OK Hold Up Time (ms)
23.3
PWR_OK Inactive to DC Loss Delay (ms)
3.1
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
114.99 V
114.96 V
113.85 V
115.01 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.92 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.417
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.17 %
2.00 %
PASS
Real Power:
0.049 W
0.005 W
N/A
0.089 W
N/A
N/A
Apparent Power:
9.710 W
9.690 W
N/A
9.731 W
N/A
N/A
Power Factor:
0.007
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
229.98 V
229.94 V
227.70 V
229.98 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.15 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.109 W
0.069 W
N/A
0.147 W
N/A
N/A
Apparent Power:
31.872 W
31.841 W
N/A
31.908 W
N/A
N/A
Power Factor:
0.003
N/A
N/A
N/A
N/A
N/A
Graphs

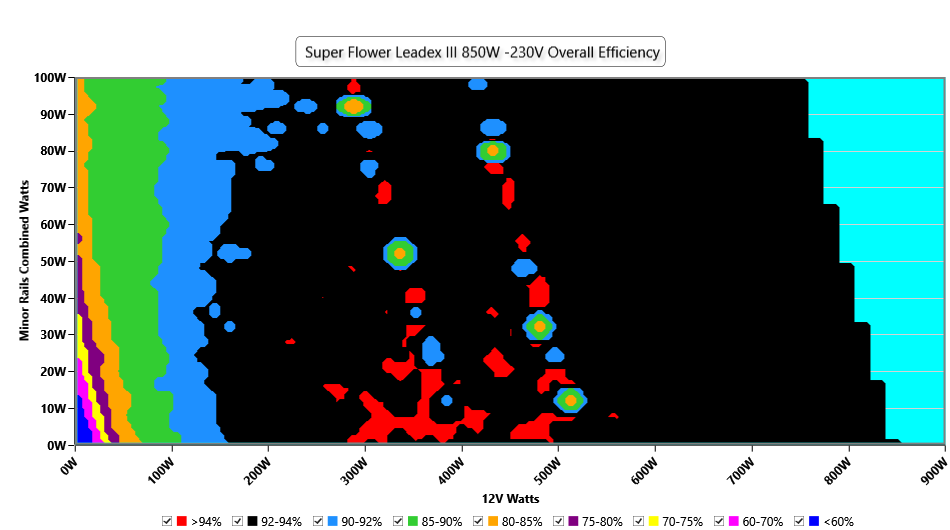

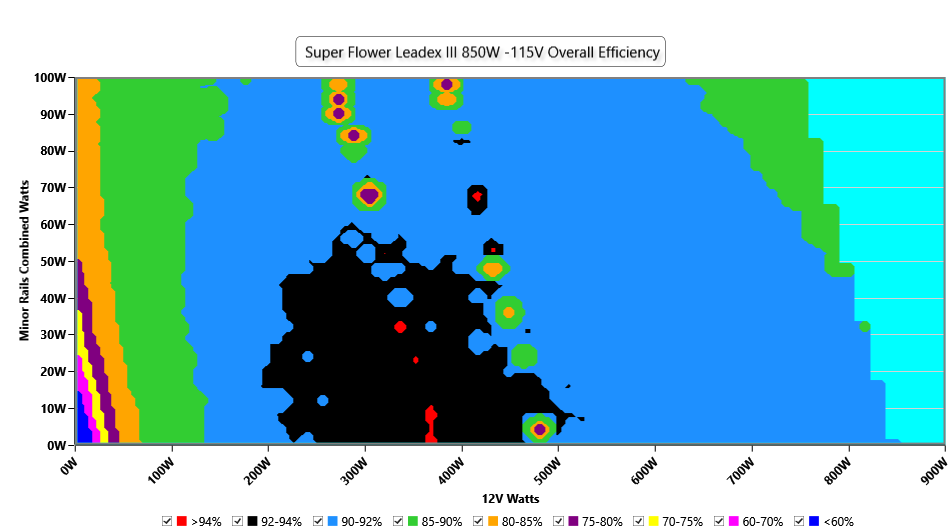

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

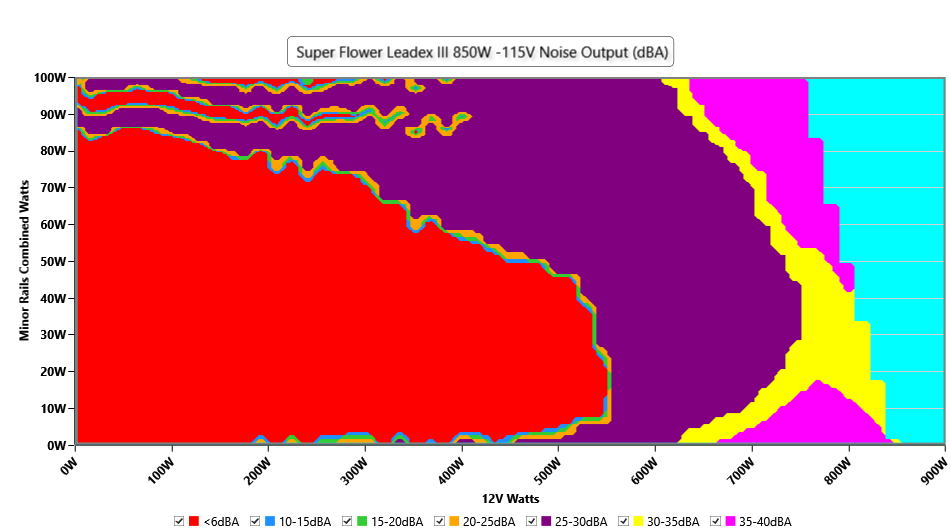

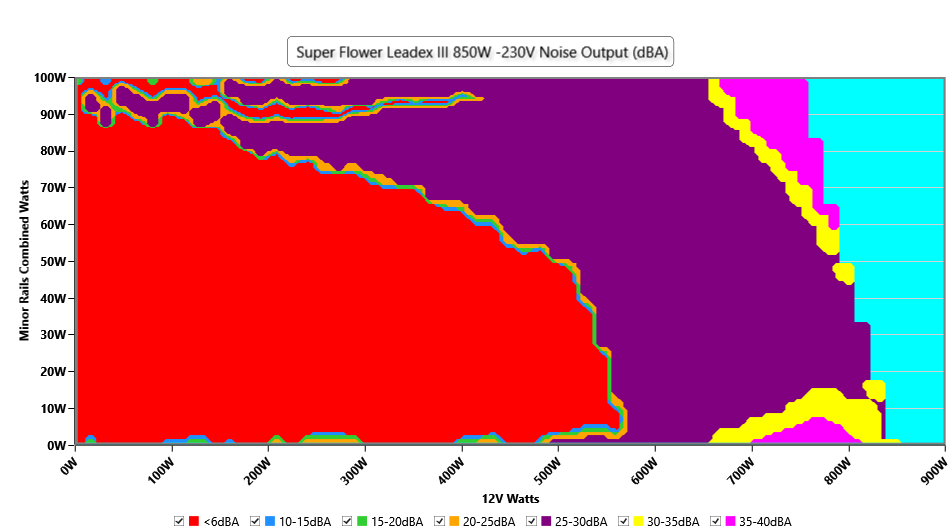

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

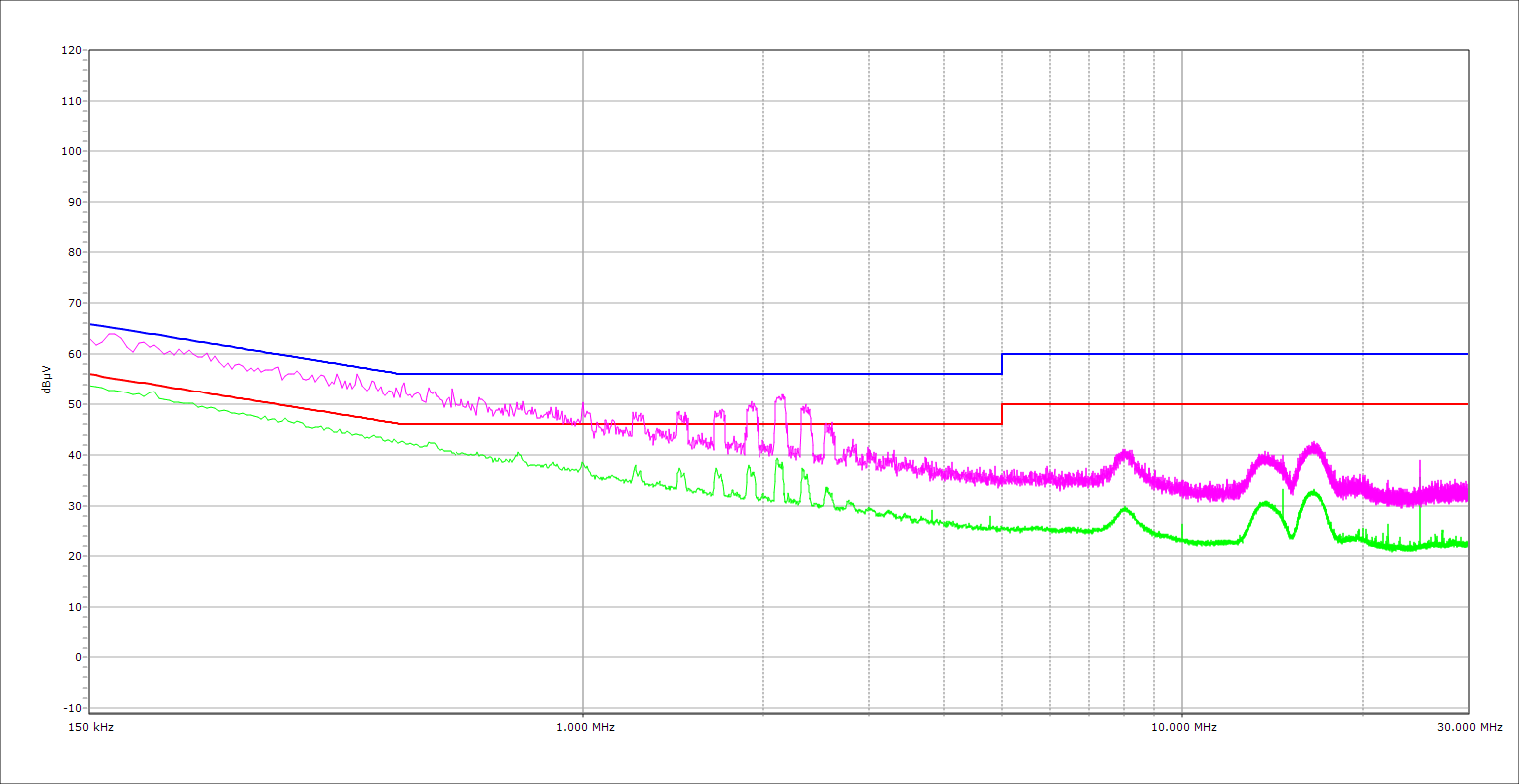

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

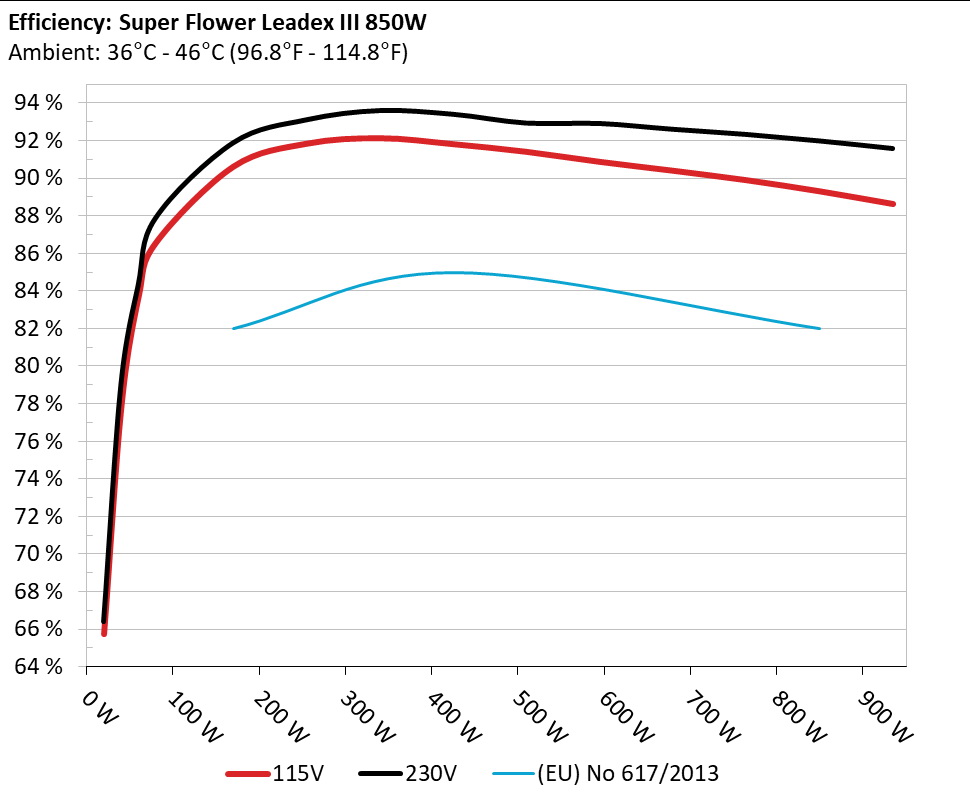

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

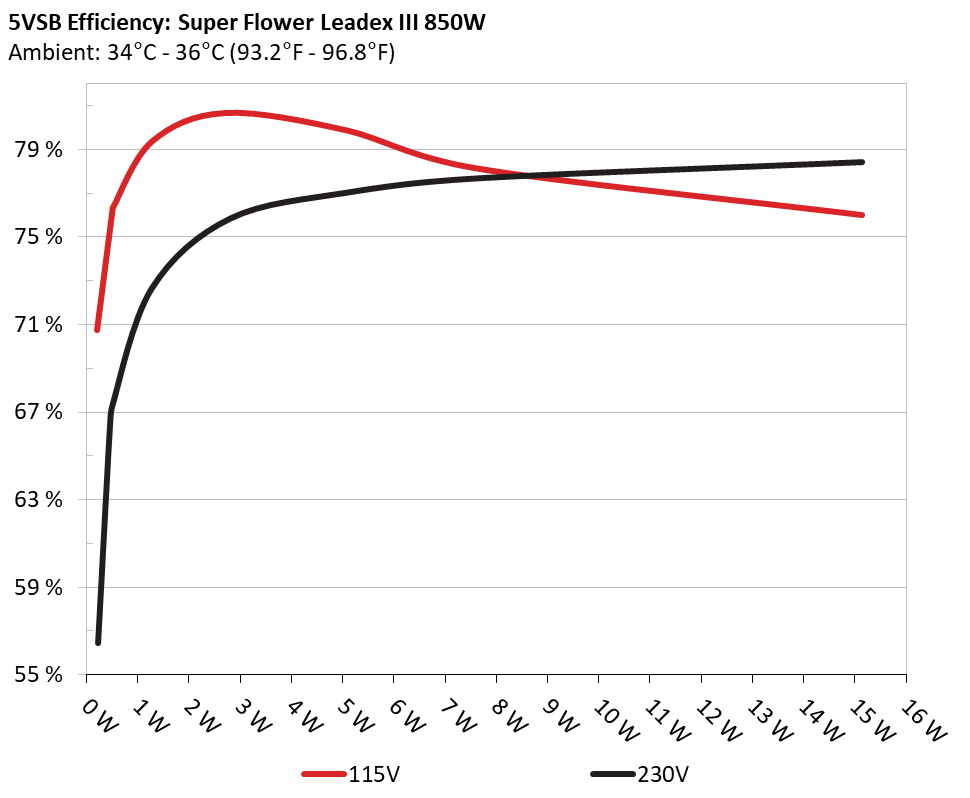

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓

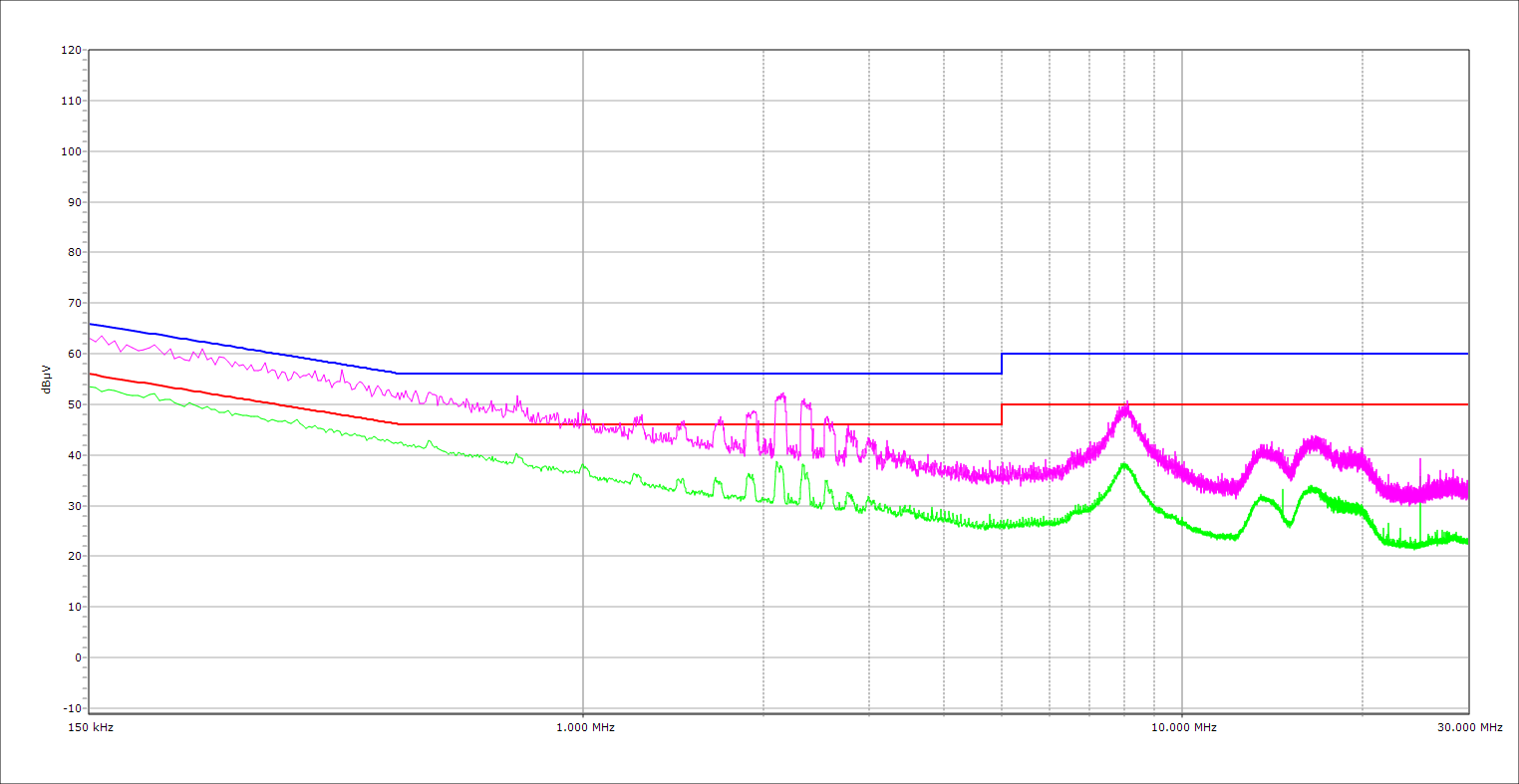

Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓

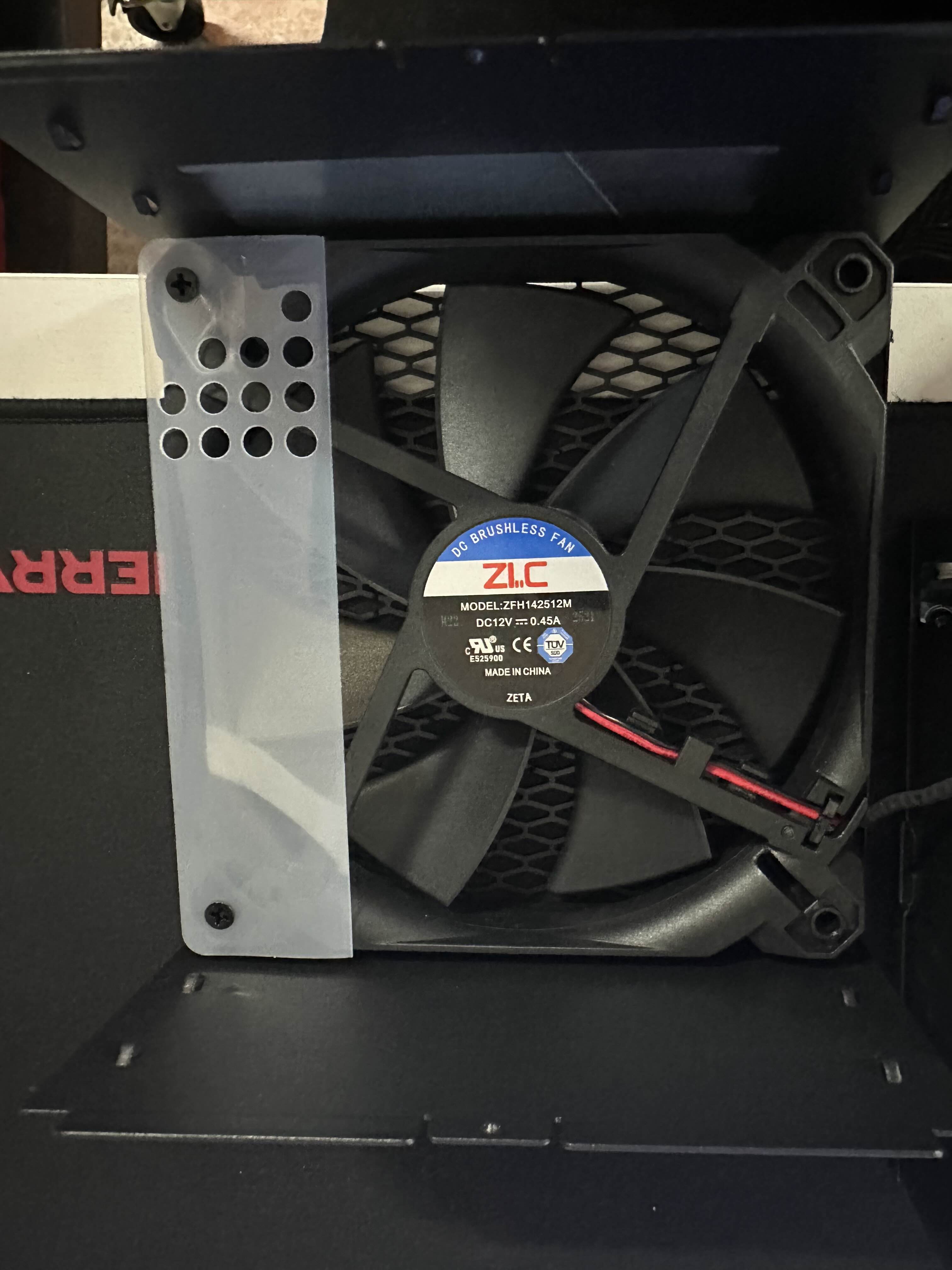

Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.250A
1.979A
1.971A
0.982A
85.014
86.436%
0
<6.0
48.15°C
0.931
12.080V
5.053V
3.349V
5.095V
98.355
40.29°C
115V
20%
11.519A
2.968A
2.959A
1.18A
169.977
90.634%
0
<6.0
51.12°C
0.972
12.072V
5.055V
3.347V
5.084V
187.534
40.68°C
114.98V
30%
18.146A
3.461A
3.453A
1.38A
254.983
91.855%
0
<6.0
49.34°C
0.984
12.065V
5.057V
3.346V
5.074V
277.616
41.15°C
114.95V
40%
24.784A
3.956A
3.948A
1.58A
340.069
92.145%
0
<6.0
45.58°C
0.989
12.059V
5.056V
3.344V
5.064V
369.062
41.63°C
114.92V
50%
31.061A
4.947A
4.939A
1.781A
424.909
91.829%
1036
28.8
42.17°C
0.991
12.054V
5.054V
3.341V
5.055V
462.712
50.62°C
114.89V
60%
37.312A
5.936A
5.932A
1.983A
509.443
91.421%
1042
29
42.54°C
0.993
12.050V
5.054V
3.338V
5.045V
557.275
52.07°C
114.86V
70%
43.631A
6.925A
6.926A
2.185A
594.739
90.885%
1333
36.1
43.12°C
0.993
12.047V
5.055V
3.336V
5.034V
654.375
52.32°C
114.83V
80%
49.959A
7.911A
7.921A
2.288A
679.556
90.413%
1502
38.9
43.75°C
0.993
12.043V
5.055V
3.333V
5.026V
751.603
52.91°C
114.8V
90%
56.690A
8.405A
8.405A
2.392A
764.977
89.908%
1662
41.6
44.61°C
0.993
12.039V
5.055V
3.331V
5.018V
850.82
53.83°C
114.77V
100%
63.157A
8.899A
8.92A
3.001A
849.793
89.314%
1825
43.7
45.4°C
0.993
12.035V
5.056V
3.33V
4.998V
951.449
55.15°C
114.73V
110%
69.498A
9.885A
10.009A
3.005A
934.352
88.642%
2005
46.2
46.4°C
0.993
12.030V
5.057V
3.327V
4.992V
1054.071
56.91°C
114.7V
CL1
0.116A
11.885A
11.923A
0A
101.294
82.493%
1034
28.8
40.76°C
0.948
12.086V
5.064V
3.33V
5.107V
122.798
48.55°C
115V
CL2
0.116A
19.698A
0A
0A
101.356
81.995%
898
24.5
40.3°C
0.948
12.086V
5.075V
3.355V
5.107V
123.608
47.82°C
115V
CL3
0.115A
0A
19.911A
0A
67.398
75.197%
1200
32.9
40.32°C
0.928
12.086V
5.056V
3.315V
5.111V
89.617
45.34°C
115.01V
CL4
70.656A
0A
0A
0A
849.536
90.098%
1586
40.3
45.38°C
0.993
12.024V
5.047V
3.349V
5.075V
942.895
53.23°C
114.74V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.248A
1.977A
1.97A
0.982A
85.005
87.752%
0
<6.0
46.61°C
0.784
12.081V
5.057V
3.351V
5.095V
96.866
40.14°C
229.99V
20%
11.517A
2.966A
2.957A
1.18A
169.948
91.888%
0
<6.0
46.1°C
0.902
12.073V
5.058V
3.348V
5.084V
184.961
40.51°C
229.97V
30%
18.143A
3.461A
3.452A
1.38A
254.956
93.113%
0
<6.0
44.14°C
0.941
12.065V
5.057V
3.346V
5.074V
273.801
41.49°C
229.96V
40%
24.783A
3.956A
3.947A
1.58A
340.044
93.605%
498
<6.0
41.54°C
0.957
12.058V
5.055V
3.344V
5.065V
363.337
48.83°C
229.94V
50%
31.058A
4.947A
4.938A
1.78A
424.857
93.409%
1036
28.8
42.48°C
0.966
12.053V
5.054V
3.342V
5.055V
454.832
48.06°C
229.93V
60%
37.314A
5.937A
5.931A
1.982A
509.399
92.942%
1041
29
42.67°C
0.973
12.049V
5.054V
3.339V
5.046V
545.854
48.01°C
229.91V
70%
43.634A
6.927A
6.926A
2.185A
594.703
92.916%
1249
34.2
43.11°C
0.978
12.045V
5.053V
3.336V
5.035V
640.038
48.72°C
229.89V
80%
49.963A
7.912A
7.92A
2.288A
679.521
92.612%
1462
38.3
43.81°C
0.981
12.041V
5.054V
3.333V
5.027V
733.742
49.97°C
229.88V
90%
56.697A
8.406A
8.404A
2.391A
764.944
92.334%
1622
41
44.44°C
0.984
12.037V
5.055V
3.332V
5.019V
828.451
50.37°C
229.87V
100%
63.170A
8.901A
8.918A
3.001A
849.775
91.99%
1796
43.2
45.05°C
0.985
12.032V
5.054V
3.33V
4.999V
923.776
52°C
229.85V
110%
69.511A
9.888A
10.006A
3.005A
934.339
91.587%
1998
46
46.29°C
0.987
12.028V
5.056V
3.328V
4.992V
1020.16
53.78°C
229.83V
CL1
0.116A
11.886A
11.918A
0A
101.293
83.568%
1211
33.5
41.89°C
0.832
12.086V
5.064V
3.331V
5.107V
121.228
49.1°C
229.98V
CL2
0.116A
19.7A
0A
0A
101.355
83.182%
1049
29.2
41.33°C
0.832
12.086V
5.074V
3.355V
5.107V
121.859
48.68°C
229.98V
CL3
0.115A
0A
19.897A
0A
67.399
76.194%
1267
34.5
41.41°C
0.762
12.086V
5.057V
3.317V
5.111V
88.463
46.02°C
229.98V
CL4
70.662A
0A
0A
0A
849.533
92.73%
1603
40.6
45.67°C
0.985
12.023V
5.048V
3.349V
5.075V
916.127
51.51°C
229.85V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.229A
0.496A
0.493A
0.195A
20.003
65.732%
0
<6.0
38.97°C
0.771
12.084V
5.041V
3.348V
5.121V
30.432
36.11°C
115.03V
40W
2.706A
0.694A
0.69A
0.293A
40.006
77.833%
0
<6.0
40.72°C
0.87
12.083V
5.045V
3.349V
5.116V
51.399
37.35°C
115.02V
60W
4.184A
0.892A
0.887A
0.391A
60.008
83.695%
0
<6.0
43.07°C
0.914
12.081V
5.048V
3.35V
5.112V
71.699
38.68°C
115.01V
80W
5.658A
1.089A
1.084A
0.49A
79.969
86.564%
0
<6.0
44.96°C
0.927
12.080V
5.05V
3.35V
5.108V
92.376
39.46°C
115.01V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.495A
0.492A
0.195A
20.008
66.406%
0
<6.0
38.94°C
0.496
12.085V
5.05V
3.352V
5.119V
30.133
36.28°C
230V
40W
2.706A
0.693A
0.689A
0.293A
40.004
79.018%
0
<6.0
43.57°C
0.629
12.084V
5.052V
3.352V
5.115V
50.651
37.09°C
229.99V
60W
4.182A
0.89A
0.886A
0.391A
60.002
84.296%
0
<6.0
43.37°C
0.707
12.082V
5.053V
3.352V
5.111V
71.211
38.76°C
229.99V
80W
5.656A
1.088A
1.083A
0.49A
79.951
87.869%
0
<6.0
42.74°C
0.77
12.080V
5.054V
3.352V
5.107V
90.999
39.41°C
229.99V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
22.61mV
16.09mV
16.52mV
14.84mV
Pass
20% Load
23.74mV
16.45mV
16.01mV
14.68mV
Pass
30% Load
23.84mV
16.71mV
16.27mV
14.88mV
Pass
40% Load
24.15mV
17.42mV
16.32mV
15.35mV
Pass
50% Load
26.76mV
17.06mV
16.73mV
14.99mV
Pass
60% Load
26.65mV
18.34mV
16.47mV
14.73mV
Pass
70% Load
26.04mV
18.34mV
16.78mV
14.88mV
Pass
80% Load
26.25mV
18.96mV
17.60mV
19.03mV
Pass
90% Load
27.16mV
19.72mV
17.19mV
17.04mV
Pass
100% Load
26.51mV
20.17mV
16.61mV
17.63mV
Pass
110% Load
26.89mV
20.24mV
17.15mV
17.77mV
Pass
Crossload1
23.06mV
16.32mV
15.78mV
25.44mV
Pass
Crossload2
24.81mV
17.73mV
16.83mV
26.60mV
Pass
Crossload3
22.77mV
18.49mV
17.19mV
26.19mV
Pass
Crossload4
26.37mV
18.68mV
16.71mV
25.07mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
21.64mV
16.10mV
16.63mV
14.43mV
Pass
20% Load
23.02mV
16.14mV
16.37mV
14.73mV
Pass
30% Load
23.12mV
16.40mV
16.52mV
13.97mV
Pass
40% Load
23.69mV
16.91mV
16.17mV
14.07mV
Pass
50% Load
25.48mV
17.73mV
16.73mV
14.84mV
Pass
60% Load
26.50mV
17.62mV
16.78mV
14.53mV
Pass
70% Load
25.53mV
17.58mV
16.37mV
14.84mV
Pass
80% Load
26.14mV
18.80mV
17.14mV
16.68mV
Pass
90% Load
26.19mV
19.62mV
16.83mV
16.11mV
Pass
100% Load
24.63mV
19.46mV
16.39mV
16.07mV
Pass
110% Load
27.02mV
18.78mV
16.26mV
16.79mV
Pass
Crossload1
23.09mV
17.63mV
15.31mV
25.35mV
Pass
Crossload2
24.56mV
19.36mV
17.75mV
26.75mV
Pass
Crossload3
23.18mV
18.29mV
17.09mV
26.09mV
Pass
Crossload4
26.45mV
17.42mV
15.29mV
23.69mV
Pass
The results above are not used in the certification process
Super Flower Leadex III 850W (SF-850F14PE)

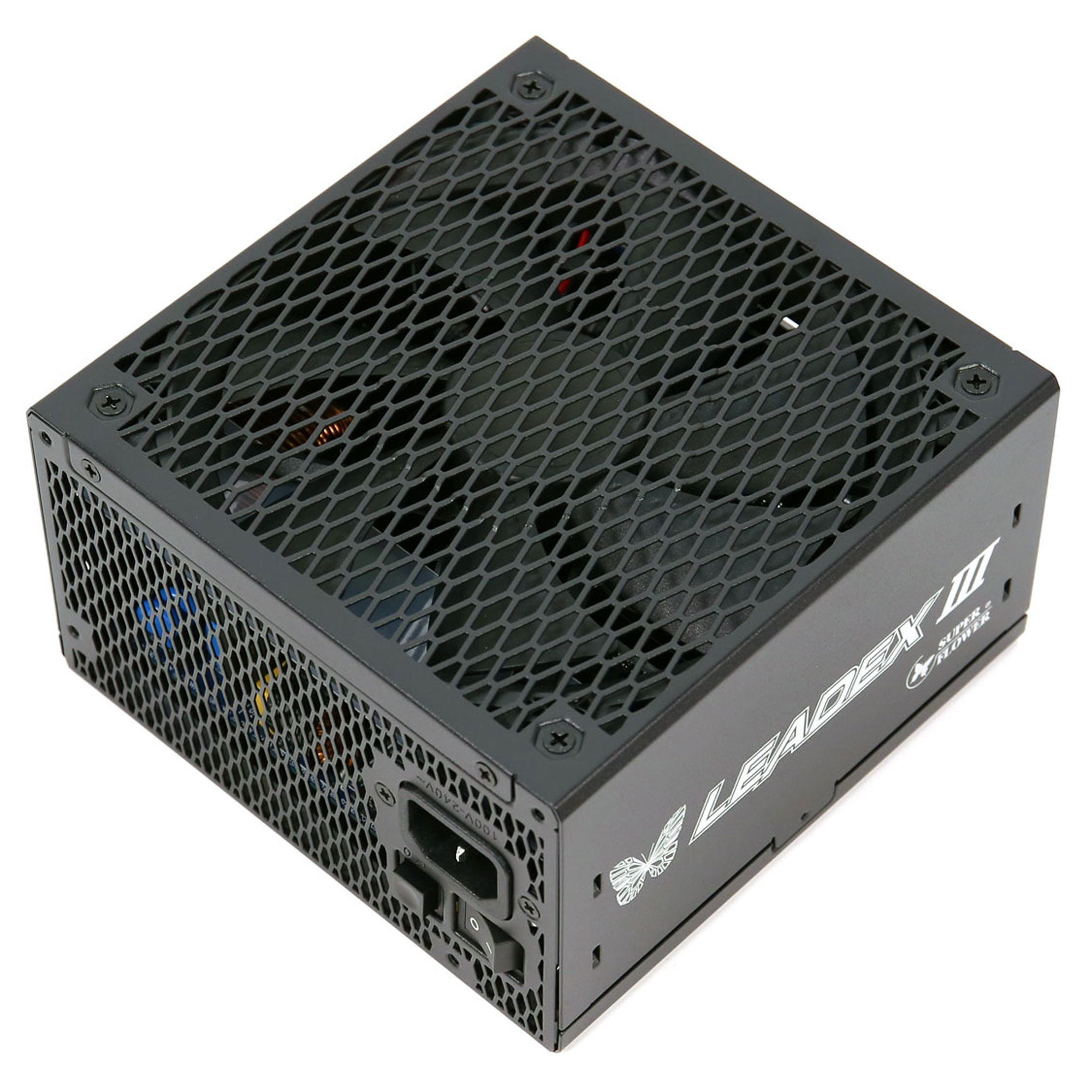

Top side

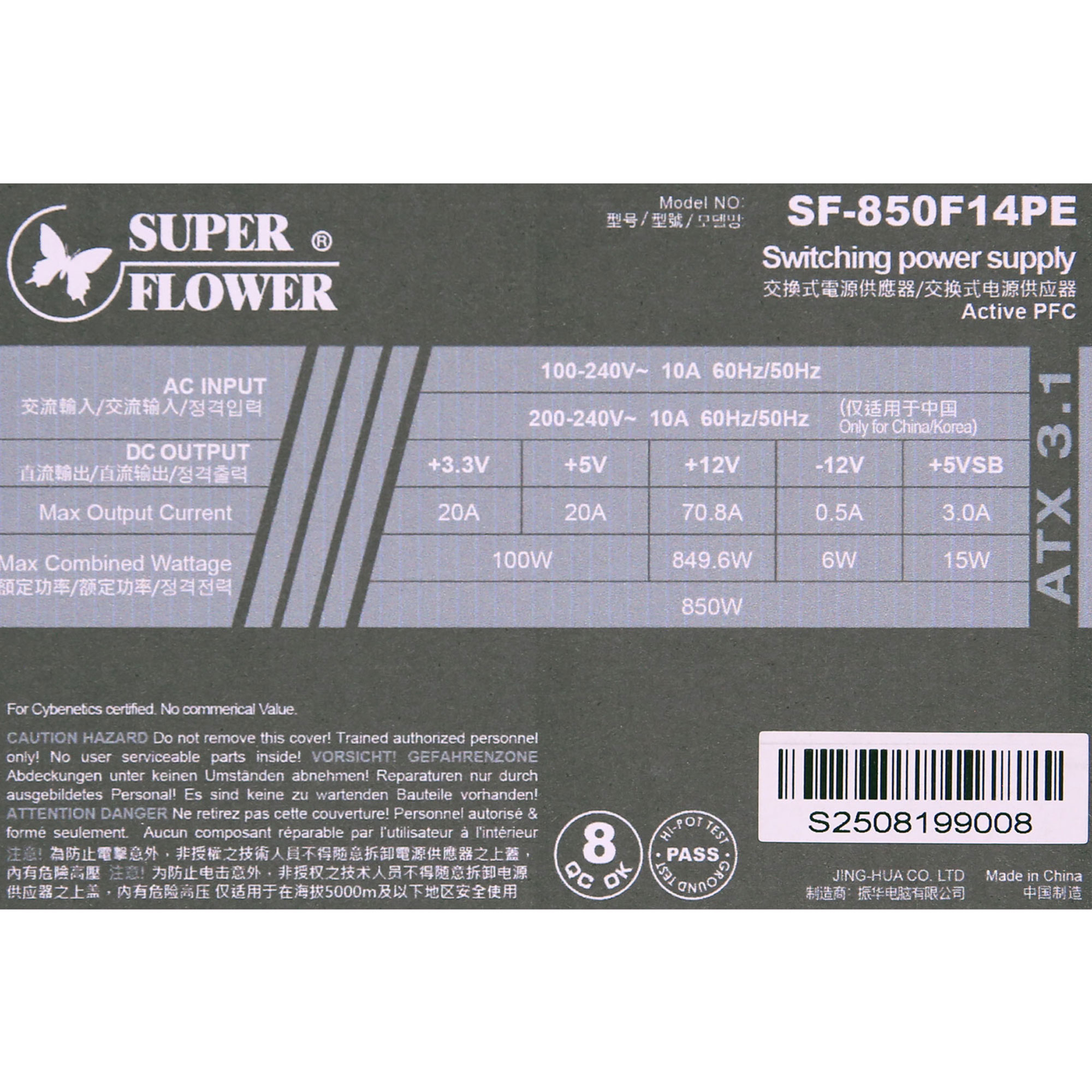

Power specifications label
Fan

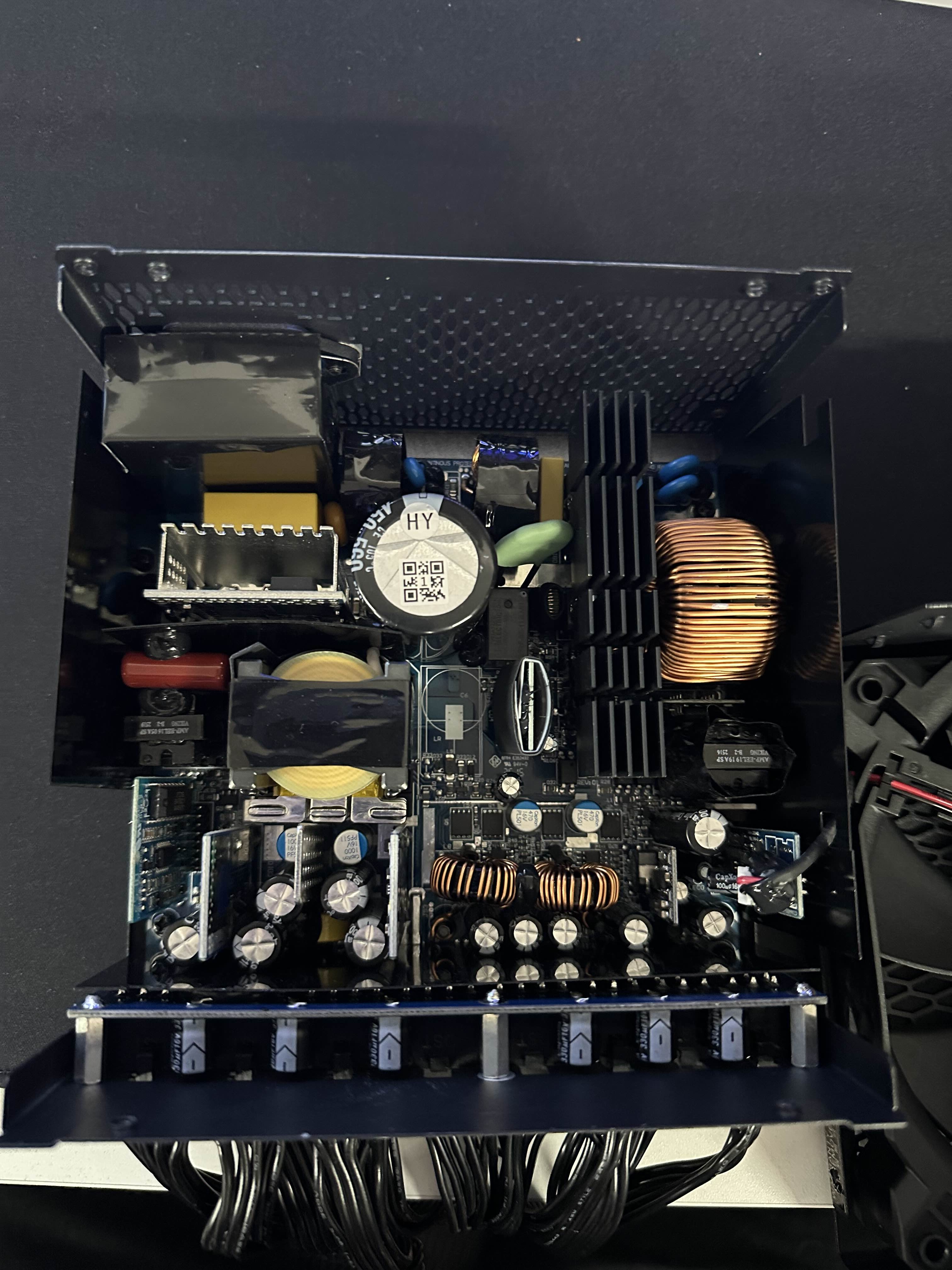

PSU Inside
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
