CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

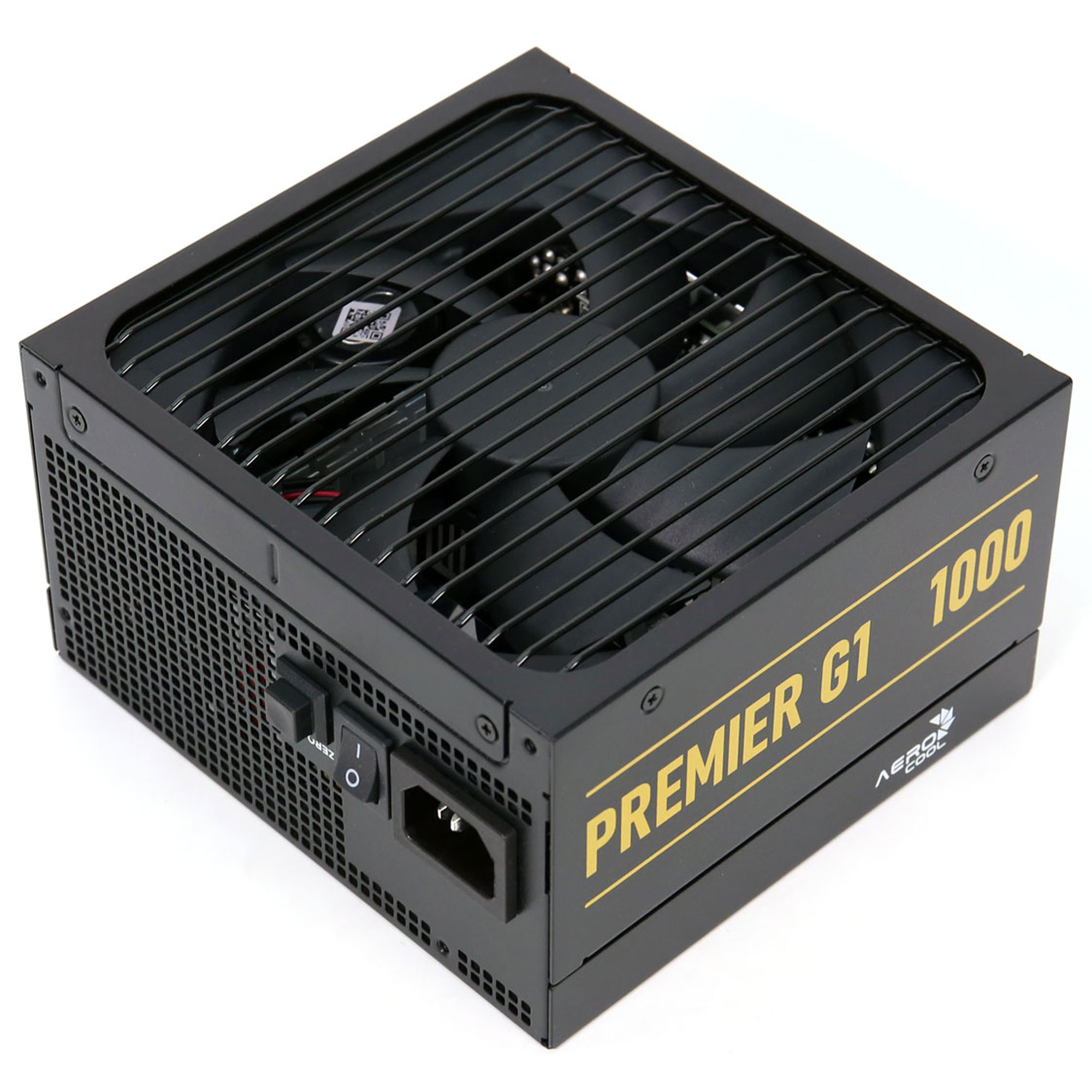

Aerocool Premier G1 1000
Serial NumberXHGPRK0FUC7580003
Lab IDAC10002966
Certification ID252966
  • Test Result Report ID: 25PS2966A
  • Certificate Issue Date: Sep 22, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandAerocool
Manufacturer (OEM)XHY POWER
SeriesPremier G1
Model NumberACPS-2501
Serial NumberXHGPRK0FUC7580003
DUT NotesInrush current was retested and updated on November 6, 2025.

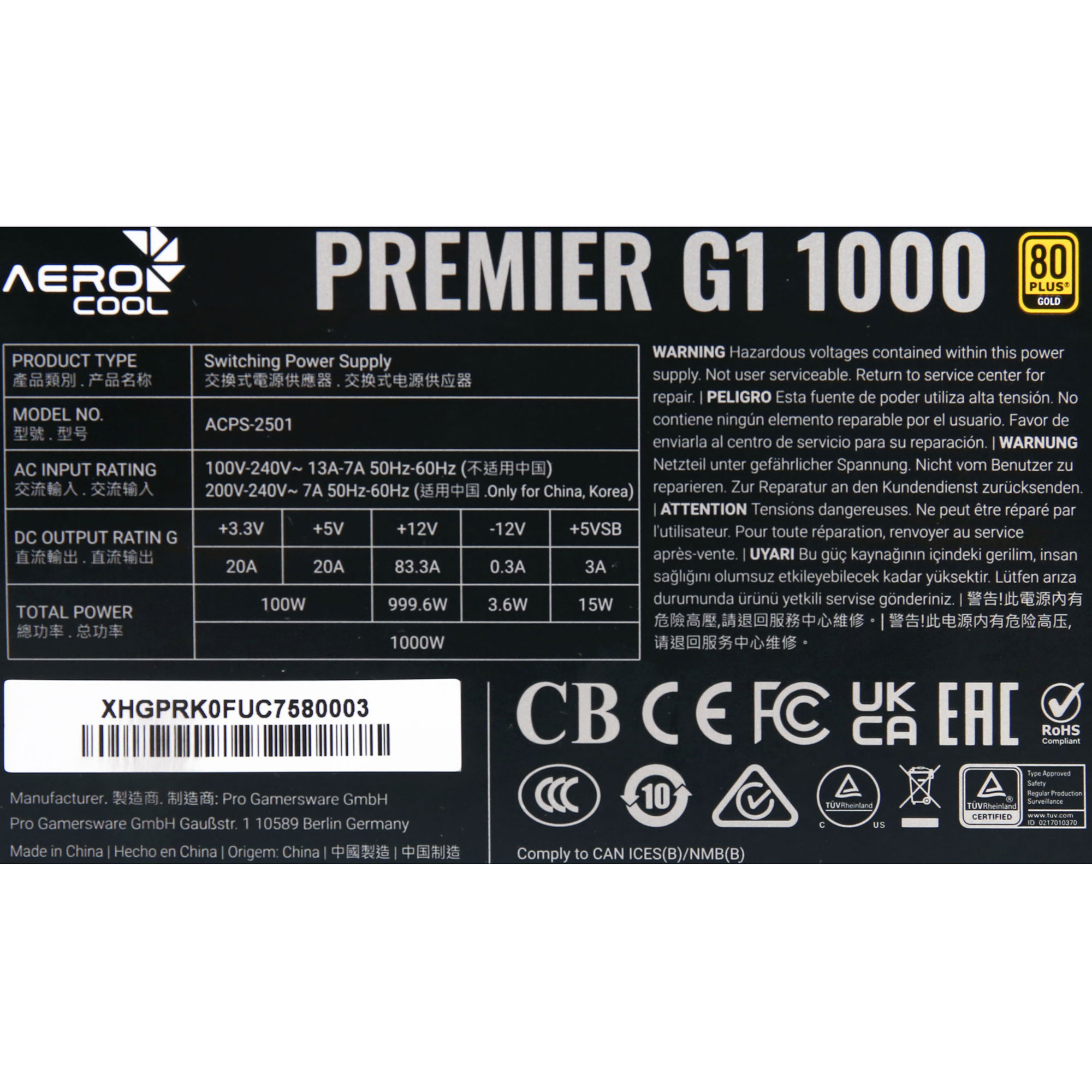

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7-13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z-AP1)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (650mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm) 2 6 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+155mm+100mm) 1 2 / 2 18AWG Tinned Copper
AC Power Cord (1380mm) - C13 coupler 1 1 16AWG -

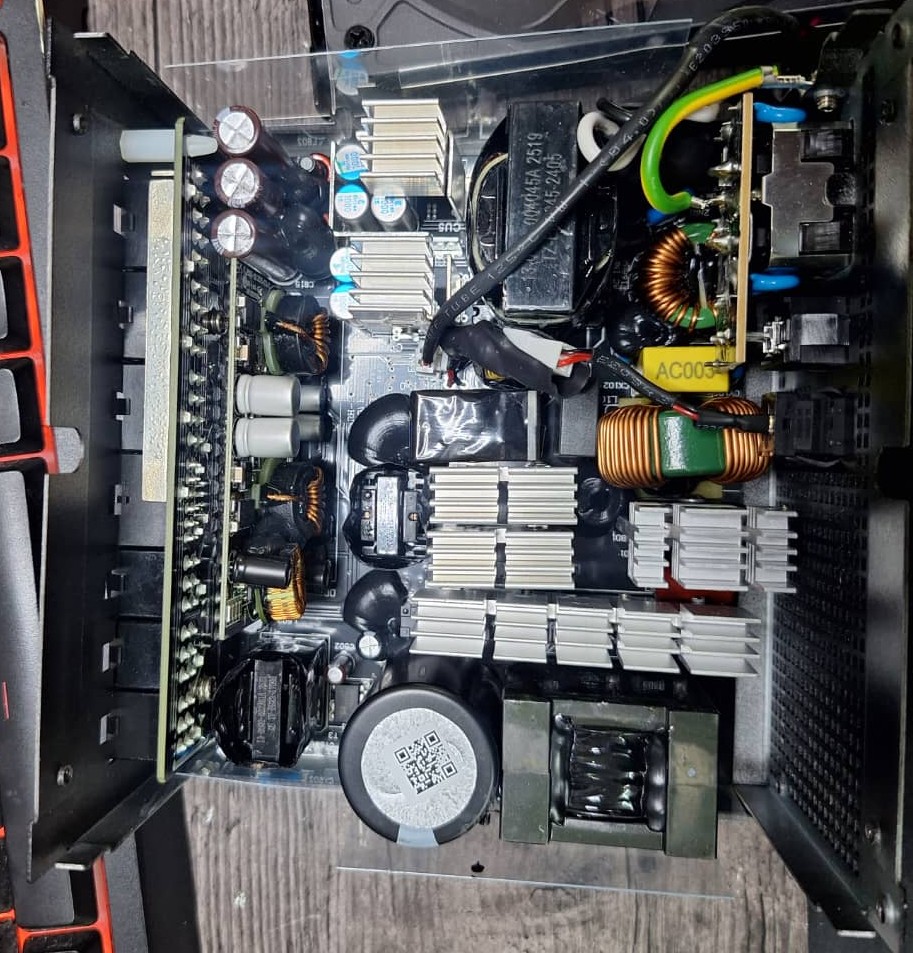

Parts Description

General Data
Manufacturer (OEM)

XHY POWER
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72 5D-15 (5 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Yangzhou GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs
2x CMS60R074D
APFC Boost Diode
Sanan SDS065J006C3 (650V, 6A @ 155°C)
Bulk Cap(s)
Elite (420V, 820uF, 2000h @ 105°C, PL(D))
Main Switchers
4x CRMicro CS20N50F A9R (500V, 12.5A @ 100°C, Rds(on): 0.3Ohm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x
5V & 3.3V DC-DC Converters: 6x Excelliance MOS EMB06N03HR (30V, 60A @ 100°C, Rds(on): 6mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
7x Elite (4-10,000 @ 105°C, EY(M))
3x Elite (2-5,000 @ 105°C, EK(M))
Elite (2-5,000 @ 105°C, ED(M))
Polymer:
9x Elite (Chinsan), 8x BIOSTAR, 2x
Supervisor IC IN1S429I-SCG (OCP, OVP, UVP, SCP, PG)

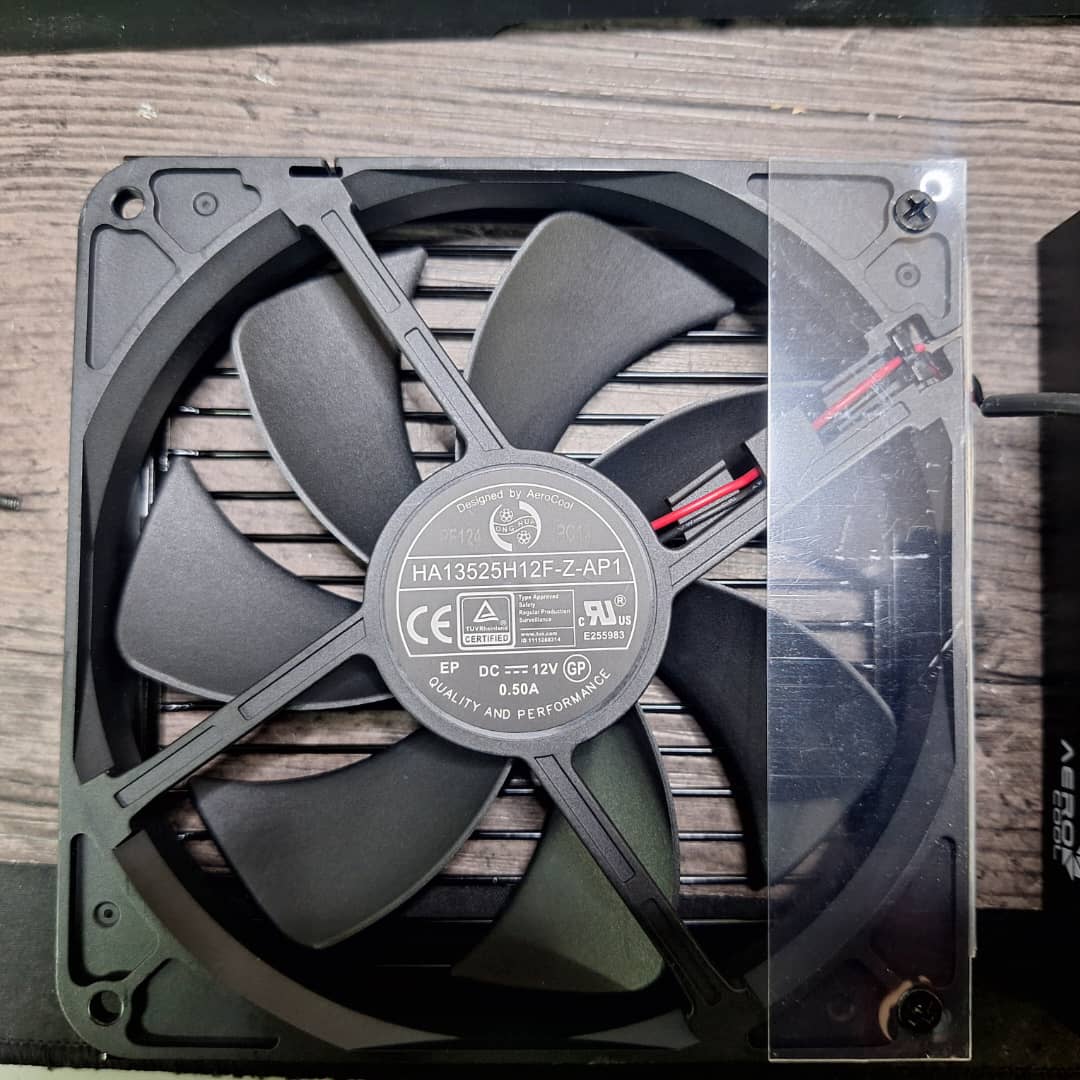

Fan Model Hong Hua HA13525H12F-Z-AP1 (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier (High Side)
Dongke DK5V60R10S (60V, 10mOhm)
Standby PWM Controller
Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)89.178%
Average Noise Output (>1450 Load Combinations)22.53dBA
Average PF (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load69.205%
Standby Power Consumption0.0361W
12V Ripple (Full Load)34.19mV
5V Ripple (Full Load)31.04mV
3.3V Ripple (Full Load)31.10mV
5VSB Ripple (Full Load)25.71mV
12V Load Regulation0.47%
5V Load Regulation0.89%
3.3V Load Regulation1.32%
5VSB Load Regulation2.68%
Inrush Current34.440A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)91.060%
Average Noise Output (>1450 Load Combinations)21.74dBA
Average PF (>1450 Load Combinations)0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load69.054%
Standby Power Consumption0.0860W
12V Ripple (Full Load)29.06mV
5V Ripple (Full Load)22.01mV
3.3V Ripple (Full Load)20.94mV
5VSB Ripple (Full Load)24.04mV
12V Load Regulation0.45%
5V Load Regulation0.99%
3.3V Load Regulation1.50%
5VSB Load Regulation2.68%
Inrush Current76.200A
12V Transient Response (200%)11.26V
5V Transient Response (200%)4.893V
3.3V Transient Response (200%)3.193V
5VSB Transient Response (200%)4.948V
Hold-Up Time & Power Ok Signal23.20ms
AC Loss to PWR_OK Hold Up Time19.00ms
PWR_OK Inactive to DC Loss Delay4.20ms
PSU Timings: T1 (20% / 100%)48.0ms46.0ms
PSU Timings: T3 (20% / 100%)129.0ms130.0ms
12V OCP (28.6°C / 45.6°C)98.40A (118.13%), 12.052V98.40A (118.13%), 12.049V
5V OCP (28.6°C / 45.6°C)22.4A (112.00%), 4.922V22.1A (110.50%), 4.924V
3.3V OCP (28.6°C / 45.6°C)24A (120.00%), 3.291V23.7A (118.50%), 3.288V
5VSB OCP (28.6°C / 45.6°C)5.4A (180.00%), 4.989V5.4A (180.00%), 4.985V
OPP (29.61°C / 44.74°C)127.10%123.61%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.2
AC Loss to PWR_OK Hold Up Time (ms)19
PWR_OK Inactive to DC Loss Delay (ms)4.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.00 V 114.96 V 113.85 V 115.04 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.94 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.036 W -0.006 W N/A 0.071 W N/A N/A
Apparent Power: 6.497 W 6.471 W N/A 6.529 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.97 V 229.93 V 227.70 V 229.97 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.086 W 0.046 W N/A 0.138 W N/A N/A
Apparent Power: 20.284 W 20.245 W N/A 20.322 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

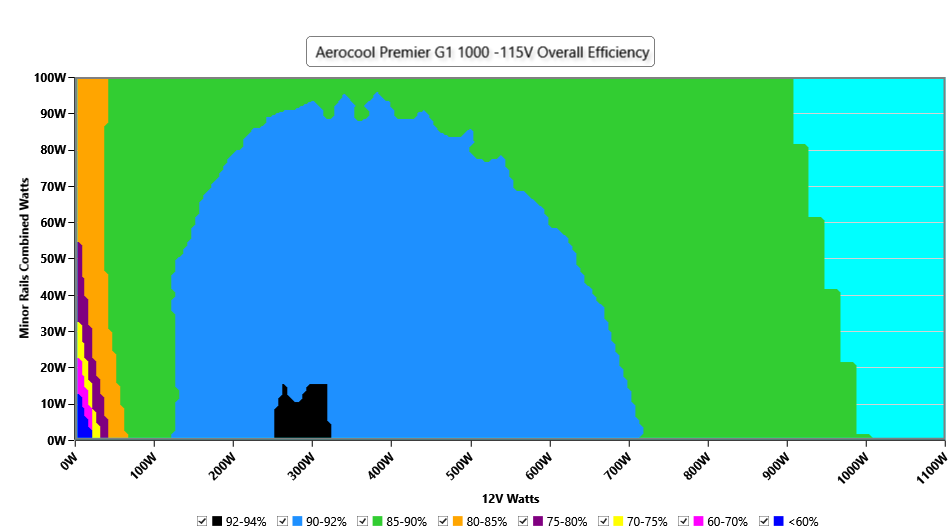

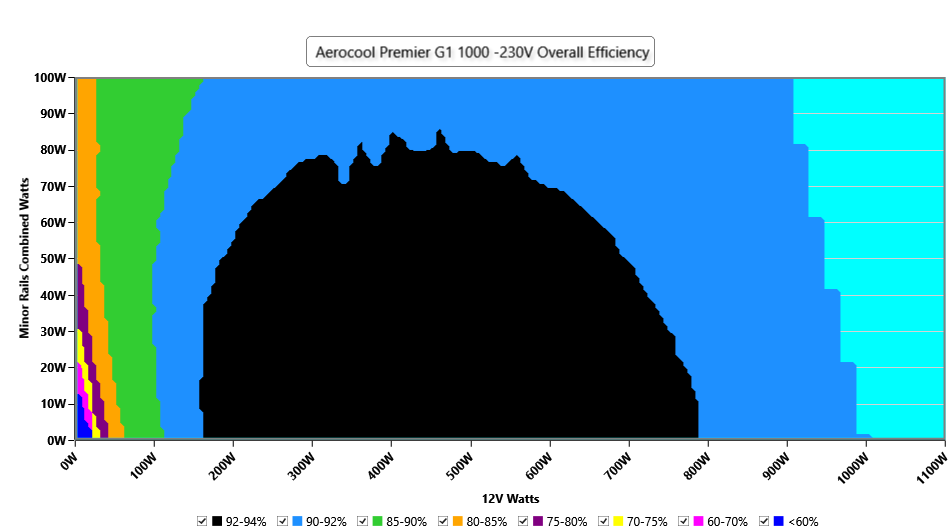

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

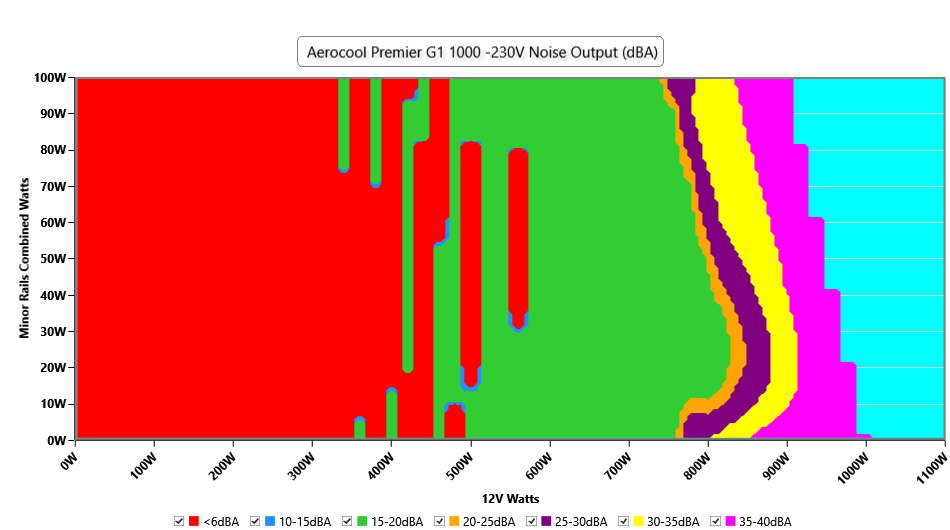

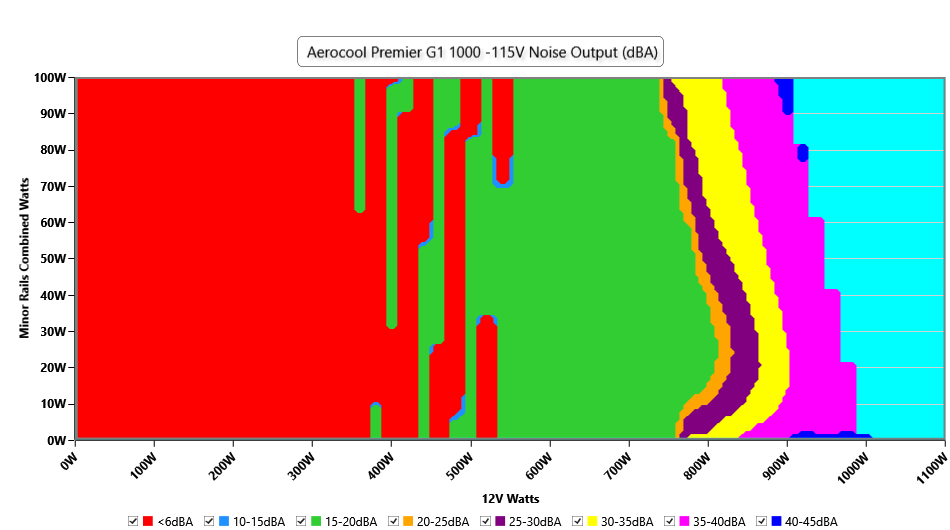

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

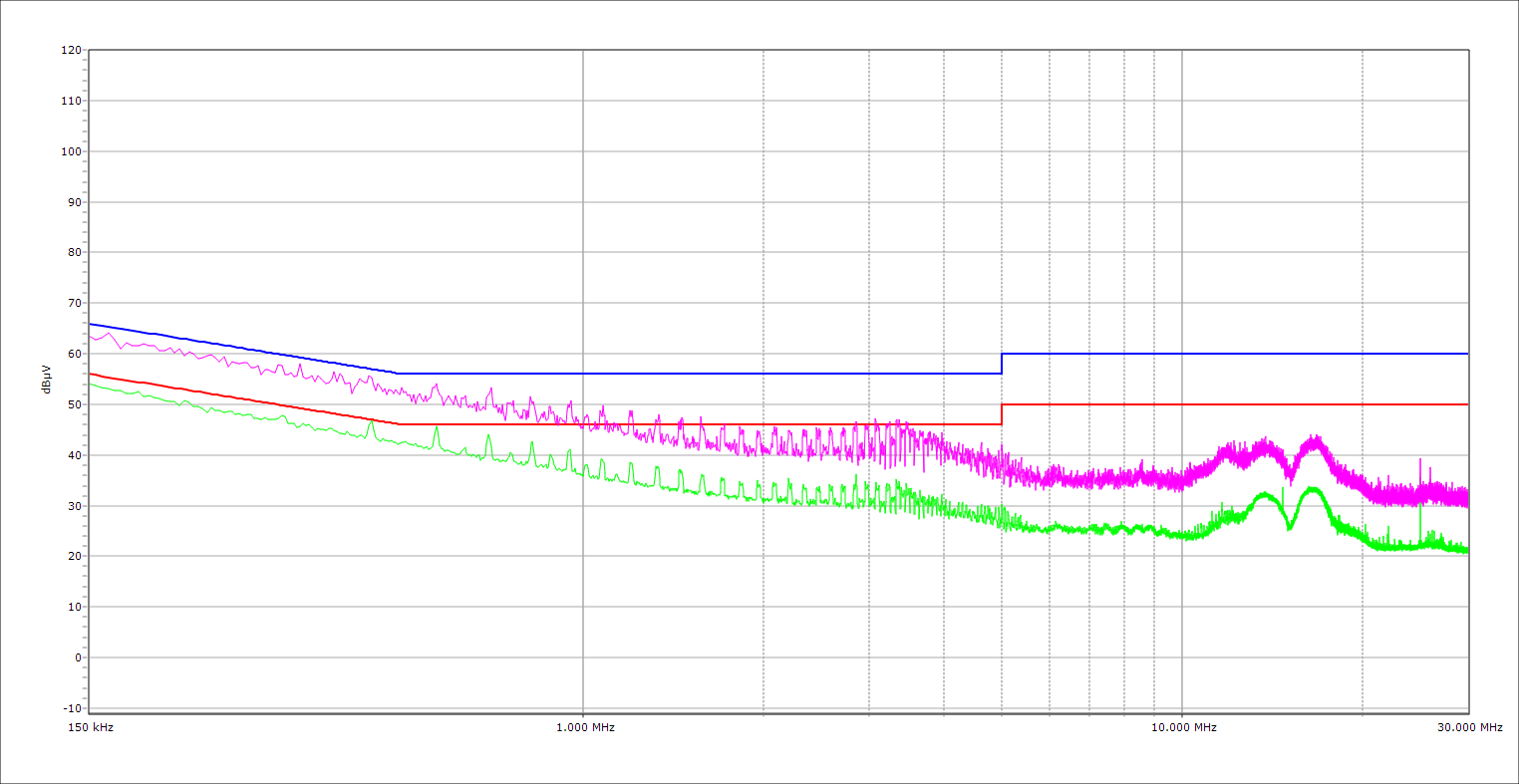

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

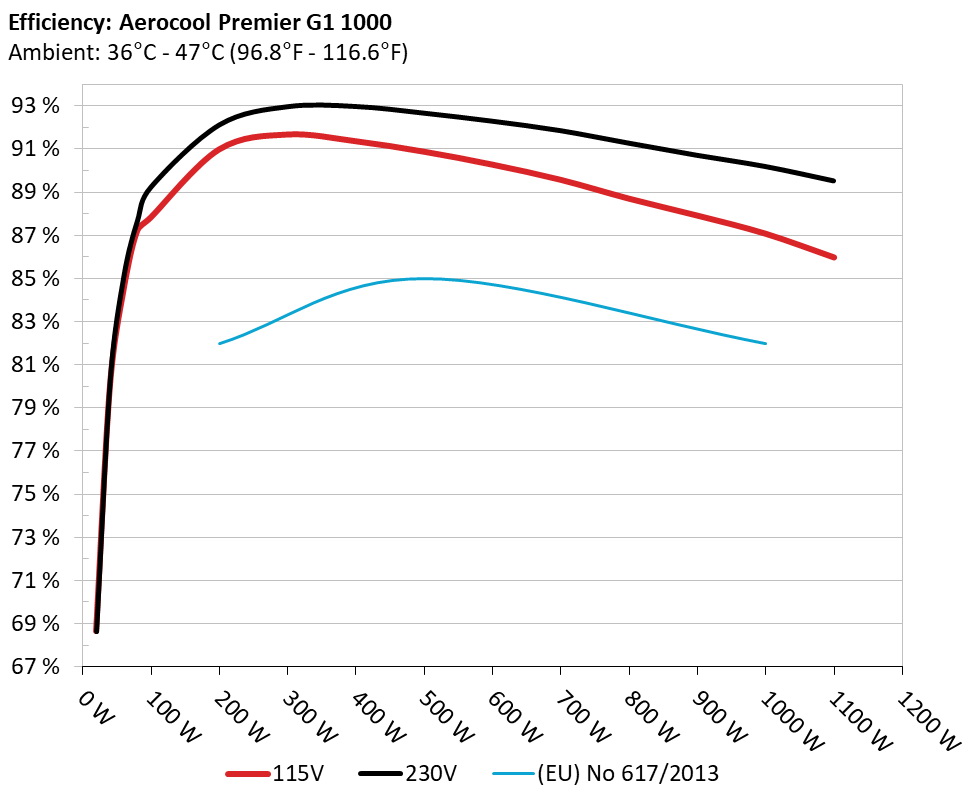

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

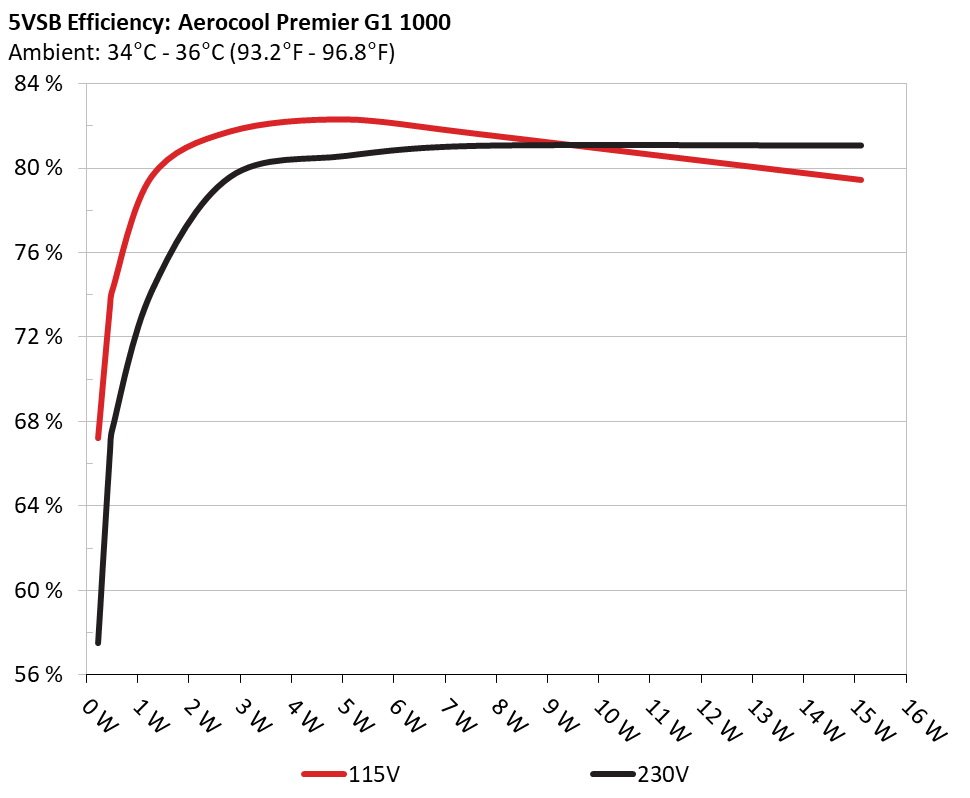

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 67.195% 0.054
5.104V 0.343W 115.05V
2 0.09A 0.46W 73.41% 0.097
5.103V 0.627W 115.05V
3 0.55A 2.802W 81.747% 0.331
5.093V 3.428W 115.04V
4 1A 5.084W 82.32% 0.406
5.083V 6.176W 115.04V
5 1.5A 7.61W 81.645% 0.44
5.072V 9.322W 115.04V
6 3.001A 15.123W 79.452% 0.49
5.04V 19.034W 115.04V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 57.505% 0.02
5.103V 0.402W 230.16V
2 0.09A 0.46W 66.527% 0.035
5.102V 0.693W 230.16V
3 0.55A 2.801W 79.594% 0.158
5.093V 3.52W 230.23V
4 1A 5.084W 80.604% 0.239
5.084V 6.308W 230.24V
5 1.5A 7.61W 81.075% 0.293
5.073V 9.387W 230.24V
6 3A 15.124W 81.092% 0.374
5.042V 18.65W 230.24V

Protection Features

OCP (Normal @ 28.6°C)12V: 98.40A (118.13%), 12.052V
5V: 22.4A (112.00%), 4.922V
3.3V: 24A (120.00%), 3.291V
5VSB: 5.4A (180.00%), 4.989V
OCP (Hot @ 45.6°C)12V: 98.40A (118.13%), 12.049V
5V: 22.1A (110.50%), 4.924V
3.3V: 23.7A (118.50%), 3.288V
5VSB: 5.4A (180.00%), 4.985V
OPP (Normal @ 29.6°C)1271.03W (127.10%)
OPP (Hot @ 44.7°C)1236.06W (123.61%)
OTP✓ (126°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.483A 2.005A 1.999A 0.985A 99.991 87.816% 0 <6.0 55.69°C 0.979
12.092V 4.989V 3.302V 5.074V 113.864 40.01°C 115.05V
20% 13.986A 3.011A 3.004A 1.185A 199.941 90.964% 0 <6.0 57.78°C 0.989
12.086V 4.982V 3.296V 5.062V 219.804 40.81°C 115.02V
30% 21.845A 3.516A 3.51A 1.386A 299.992 91.653% 0 <6.0 61.56°C 0.992
12.082V 4.977V 3.291V 5.05V 327.314 41.42°C 114.98V
40% 29.682A 4.023A 4.017A 1.588A 399.541 91.345% 864 18.5 41.91°C 0.991
12.072V 4.972V 3.286V 5.039V 437.404 59.36°C 114.94V
50% 37.190A 5.027A 5.022A 1.79A 499.261 90.862% 863 18.5 42.02°C 0.993
12.066V 4.974V 3.286V 5.028V 549.469 54.03°C 114.9V
60% 44.776A 6.038A 6.035A 1.994A 599.786 90.26% 870 19 42.71°C 0.995
12.059V 4.969V 3.281V 5.016V 664.51 56.55°C 114.86V
70% 52.288A 7.051A 7.051A 2.198A 699.506 89.561% 1350 33 43.41°C 0.996
12.056V 4.965V 3.277V 5.005V 781.047 55.34°C 114.83V
80% 59.880A 8.062A 8.067A 2.302A 799.508 88.687% 1774 41.2 43.64°C 0.997
12.051V 4.961V 3.272V 4.995V 901.491 54.38°C 114.79V
90% 67.814A 8.572A 8.565A 2.407A 899.3 87.906% 1969 43.9 44.93°C 0.997
12.045V 4.958V 3.269V 4.986V 1023.023 54.92°C 114.75V
100% 75.561A 9.083A 9.097A 3.021A 999.308 87.068% 1966 43.8 45.7°C 0.998
12.038V 4.954V 3.265V 4.965V 1147.73 57.17°C 114.71V
110% 83.241A 10.104A 10.216A 3.026A 1099.911 85.964% 1964 43.7 46.52°C 0.998
12.033V 4.948V 3.259V 4.957V 1279.509 59.92°C 114.66V
CL1 0.116A 12.134A 12.076A 0A 101.295 81.245% 856 18.3 41.72°C 0.979
12.091V 4.961V 3.287V 5.082V 124.683 49.54°C 115.04V
CL2 0.114A 20.321A 0A 0A 101.352 78.997% 0 <6.0 44.54°C 0.98
12.097V 4.919V 3.279V 5.088V 128.297 37.53°C 115.05V
CL3 0.114A 0A 20.283A 0.001A 67.379 73.405% 0 <6.0 54.26°C 0.972
12.089V 4.954V 3.254V 5.082V 91.793 40.83°C 115.05V
CL4 83.060A 0A 0A 0A 999.873 87.722% 1974 44 46.15°C 0.998
12.038V 4.978V 3.273V 5.041V 1139.823 59.16°C 114.71V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.482A 2.005A 2A 0.986A 99.996 88.747% 0 <6.0 53.21°C 0.874
12.093V 4.987V 3.299V 5.073V 112.677 40.33°C 230.21V
20% 13.985A 3.012A 3.006A 1.185A 199.945 92.137% 0 <6.0 53.74°C 0.944
12.087V 4.98V 3.293V 5.061V 217.005 40.58°C 230.19V
30% 21.846A 3.518A 3.513A 1.386A 299.996 92.98% 0 <6.0 55.93°C 0.966
12.082V 4.975V 3.288V 5.05V 322.645 41.48°C 230.18V
40% 29.675A 4.025A 4.022A 1.588A 399.552 92.99% 0 <6.0 49.81°C 0.976
12.076V 4.969V 3.282V 5.038V 429.675 41.91°C 230.16V
50% 37.178A 5.031A 5.031A 1.79A 499.263 92.684% 870 19 42.44°C 0.981
12.071V 4.97V 3.28V 5.027V 538.672 53.11°C 230.15V
60% 44.759A 6.043A 6.045A 1.994A 599.786 92.307% 876 19.1 42.72°C 0.984
12.064V 4.965V 3.276V 5.015V 649.77 53.51°C 230.13V
70% 52.286A 7.058A 7.065A 2.199A 699.515 91.87% 1211 29.6 43.44°C 0.987
12.057V 4.96V 3.27V 5.003V 761.421 51.94°C 230.12V
80% 59.880A 8.07A 8.084A 2.303A 799.514 91.289% 1694 39.8 43.74°C 0.988
12.051V 4.956V 3.266V 4.994V 875.807 51.45°C 230.1V
90% 67.824A 8.58A 8.583A 2.407A 899.299 90.727% 1974 44 44.06°C 0.989
12.044V 4.953V 3.262V 4.985V 991.211 51.43°C 230.08V
100% 75.548A 9.093A 9.117A 3.021A 999.315 90.208% 1972 44 45.49°C 0.991
12.041V 4.949V 3.257V 4.965V 1107.789 52.76°C 230.07V
110% 83.227A 10.116A 10.241A 3.026A 1099.917 89.539% 1972 44 45.99°C 0.992
12.035V 4.942V 3.251V 4.956V 1228.414 55.68°C 230.06V
CL1 0.116A 12.144A 12.098A 0A 101.293 81.957% 860 18.4 41.62°C 0.886
12.094V 4.957V 3.281V 5.082V 123.597 48.52°C 230.23V
CL2 0.115A 20.38A 0A 0A 101.351 79.287% 0 <6.0 39.66°C 0.891
12.097V 4.905V 3.278V 5.088V 127.827 37.17°C 230.24V
CL3 0.114A 0A 20.318A 0.001A 67.382 73.942% 0 <6.0 44.58°C 0.841
12.091V 4.958V 3.248V 5.082V 91.131 39.76°C 230.24V
CL4 83.088A 0A 0A 0A 999.886 90.775% 1977 44.2 45.46°C 0.991
12.034V 4.978V 3.27V 5.039V 1101.5 53.17°C 230.08V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.5A 0.499A 0.196A 19.997 68.671% 0 <6.0 48.31°C 0.867
12.094V 4.998V 3.308V 5.098V 29.141 36.16°C 115.08V
40W 2.703A 0.701A 0.699A 0.294A 39.998 79.924% 0 <6.0 49.04°C 0.937
12.094V 4.997V 3.307V 5.094V 50.047 37.05°C 115.07V
60W 4.178A 0.901A 0.898A 0.393A 59.997 84.451% 0 <6.0 51.68°C 0.963
12.095V 4.995V 3.306V 5.09V 71.041 38.08°C 115.07V
80W 5.649A 1.101A 1.098A 0.491A 79.939 87.185% 0 <6.0 54.17°C 0.972
12.093V 4.993V 3.305V 5.087V 91.687 39.14°C 115.06V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.5A 0.499A 0.196A 19.997 68.617% 0 <6.0 46.42°C 0.569
12.093V 4.998V 3.306V 5.098V 29.142 36.63°C 230.23V
40W 2.703A 0.701A 0.699A 0.294A 39.998 80.264% 0 <6.0 47.9°C 0.702
12.092V 4.996V 3.305V 5.094V 49.829 37.83°C 230.23V
60W 4.179A 0.901A 0.899A 0.393A 59.999 85.1% 0 <6.0 49.46°C 0.785
12.090V 4.994V 3.304V 5.09V 70.5 38.66°C 230.22V
80W 5.648A 1.102A 1.099A 0.491A 79.942 87.688% 0 <6.0 49.98°C 0.842
12.095V 4.992V 3.303V 5.086V 91.163 39.03°C 230.22V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load19.33mV15.71mV17.17mV17.08mVPass
20% Load22.63mV16.85mV18.15mV18.79mVPass
30% Load22.89mV17.57mV18.56mV19.92mVPass
40% Load23.87mV32.76mV45.25mV19.82mVPass
50% Load23.20mV19.11mV19.34mV20.13mVPass
60% Load23.92mV18.85mV18.77mV22.97mVPass
70% Load25.11mV18.49mV17.32mV21.88mVPass
80% Load28.61mV19.47mV19.13mV22.09mVPass
90% Load28.97mV19.37mV21.26mV22.40mVPass
100% Load34.19mV31.04mV31.10mV25.71mVPass
110% Load35.93mV29.77mV29.44mV25.84mVPass
Crossload119.80mV18.05mV20.06mV22.15mVPass
Crossload220.16mV19.58mV15.82mV20.13mVPass
Crossload318.56mV16.90mV20.89mV25.09mVPass
Crossload433.24mV30.48mV29.16mV29.41mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.49mV15.25mV16.91mV17.19mVPass
20% Load22.63mV17.26mV18.41mV18.58mVPass
30% Load22.32mV16.90mV18.15mV19.77mVPass
40% Load22.43mV17.98mV18.46mV18.89mVPass
50% Load22.89mV18.03mV18.77mV19.46mVPass
60% Load24.64mV18.50mV18.05mV20.23mVPass
70% Load24.90mV19.63mV18.56mV21.21mVPass
80% Load27.38mV18.96mV19.55mV22.35mVPass
90% Load28.93mV20.55mV20.84mV23.13mVPass
100% Load29.06mV22.01mV20.94mV24.04mVPass
110% Load31.21mV21.68mV21.34mV24.51mVPass
Crossload119.95mV17.42mV18.76mV21.60mVPass
Crossload219.85mV22.20mV17.27mV21.01mVPass
Crossload318.92mV17.26mV20.79mV24.62mVPass
Crossload429.25mV20.36mV20.20mV28.96mVPass

The results above are not used in the certification process

Aerocool Premier G1 1000

Top side
Power specifications label
Fan
PSU Inside
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
