Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (700mm)
1
1
18AWG
Tinned Copper
4+4 pin ATX12V (700mm)
2
2
18AWG
Tinned Copper
6+2 pin PCIe (650mm)
3
3
18AWG
Tinned Copper
12+4 pin PCIe (600mm) (600W)
1
1
16-26AWG
Tinned Copper
SATA (550mm+150mm+150mm)
2
6
18AWG
Tinned Copper
4-pin Molex (550mm+150mm+150mm+150mm)
1
4
18AWG
Tinned Copper
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
89.499%
Average Noise Output (>1450 Load Combinations)
34.22dBA
Average PF (>1450 Load Combinations)
0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load
63.606%
Standby Power Consumption
0.0926W
12V Ripple (Full Load)
53.24mV
5V Ripple (Full Load)
19.80mV
3.3V Ripple (Full Load)
20.91mV
5VSB Ripple (Full Load)
14.65mV
12V Load Regulation
0.24%
5V Load Regulation
1.86%
3.3V Load Regulation
3.02%
5VSB Load Regulation
5.44%
Inrush Current
24.100A
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
91.472%
Average Noise Output (>1450 Load Combinations)
33.92dBA
Average PF (>1450 Load Combinations)
0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load
70.951%
Standby Power Consumption
0.1509W
12V Ripple (Full Load)
55.22mV
5V Ripple (Full Load)
19.01mV
3.3V Ripple (Full Load)
22.04mV
5VSB Ripple (Full Load)
14.62mV
12V Load Regulation
0.29%
5V Load Regulation
1.88%
3.3V Load Regulation
2.99%
5VSB Load Regulation
5.46%
Inrush Current
63.830A
12V Transient Response (200%)
11.30V
5V Transient Response (200%)
4.944V
3.3V Transient Response (200%)
3.188V
5VSB Transient Response (200%)
4.966V
Hold-Up Time & Power Ok Signal
17.90ms
AC Loss to PWR_OK Hold Up Time
14.70ms
PWR_OK Inactive to DC Loss Delay
3.20ms
PSU Timings: T1 (20% / 100%)
63.0ms
62.0ms
PSU Timings: T3 (20% / 100%)
114.0ms
115.0ms
12V OCP (28.1°C / 42.7°C)
87.00A (122.88%), 12.029V
87.00A (122.88%), 12.040V
5V OCP (28.1°C / 42.7°C)
25.5A (127.50%), 5.104V
26A (130.00%), 5.098V
3.3V OCP (28.1°C / 42.7°C)
26.1A (130.50%), 3.338V
24.6A (123.00%), 3.334V
5VSB OCP (28.1°C / 42.7°C)
5.0A (166.67%), 4.854V
5A (166.67%), 4.836V
OPP (28.19°C / 42.78°C)
122.40%
122.40%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
17.9
AC Loss to PWR_OK Hold Up Time (ms)
14.7
PWR_OK Inactive to DC Loss Delay (ms)
3.2
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.00 V
114.98 V
113.85 V
115.01 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
60.00 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.093 W
0.067 W
N/A
0.136 W
N/A
N/A
Apparent Power:
10.113 W
10.093 W
N/A
10.135 W
N/A
N/A
Power Factor:
0.010
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.00 V
229.98 V
227.70 V
230.02 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.01 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.419
1.490
PASS
Mains Voltage THD:
0.15 %
0.13 %
N/A
0.20 %
2.00 %
PASS
Real Power:
0.151 W
0.099 W
N/A
0.235 W
N/A
N/A
Apparent Power:
33.145 W
33.106 W
N/A
33.182 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Graphs

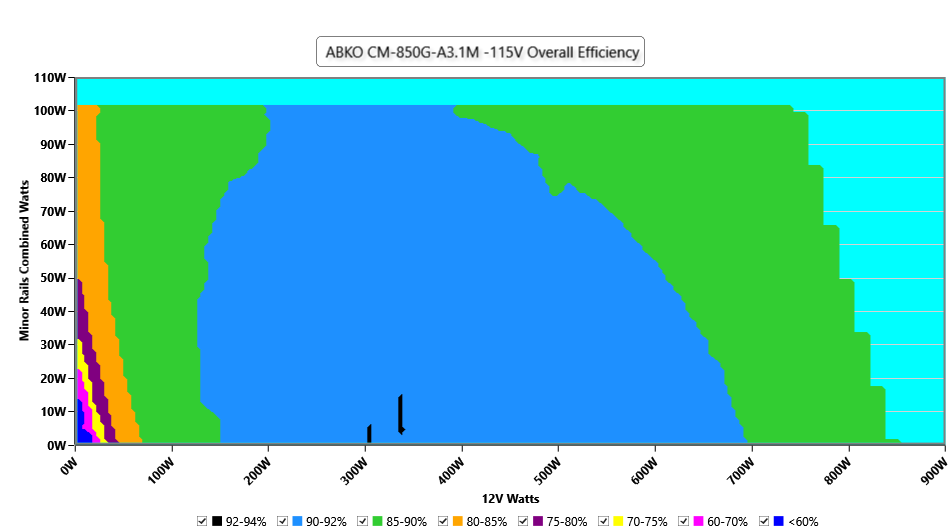

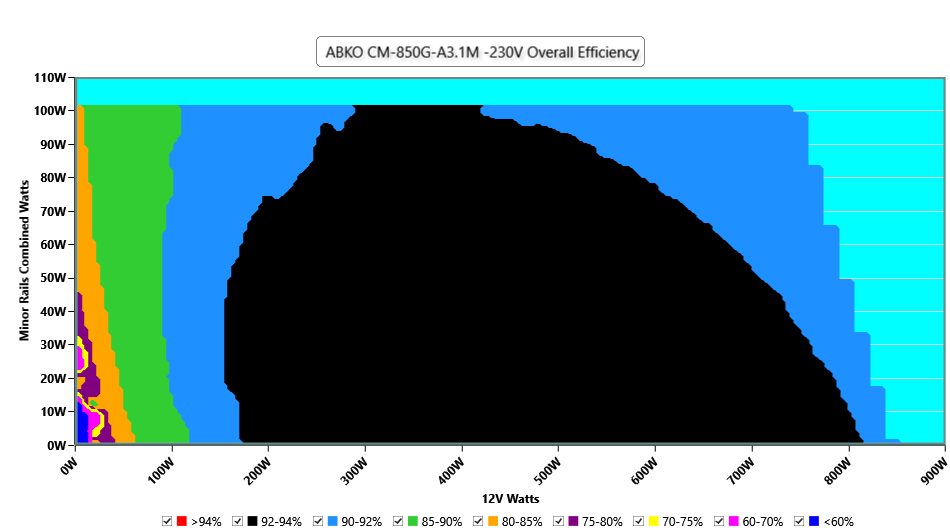

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

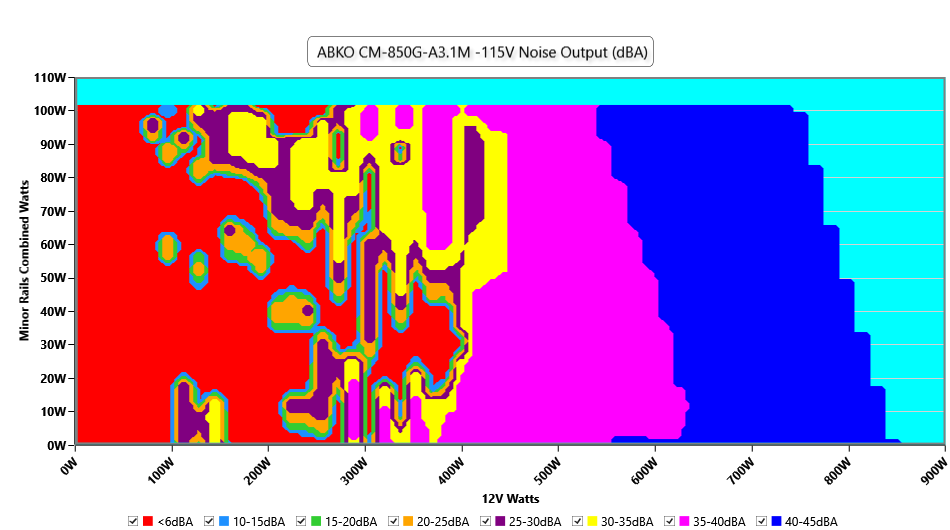

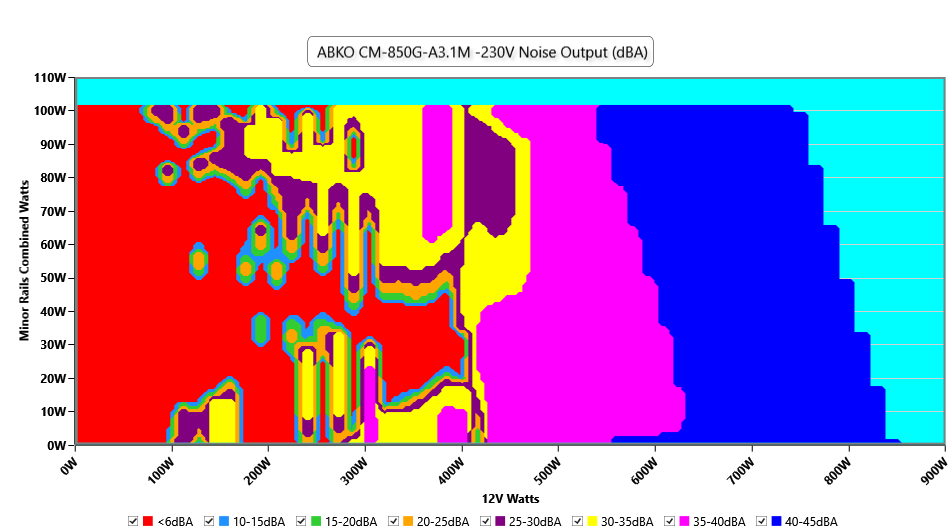

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

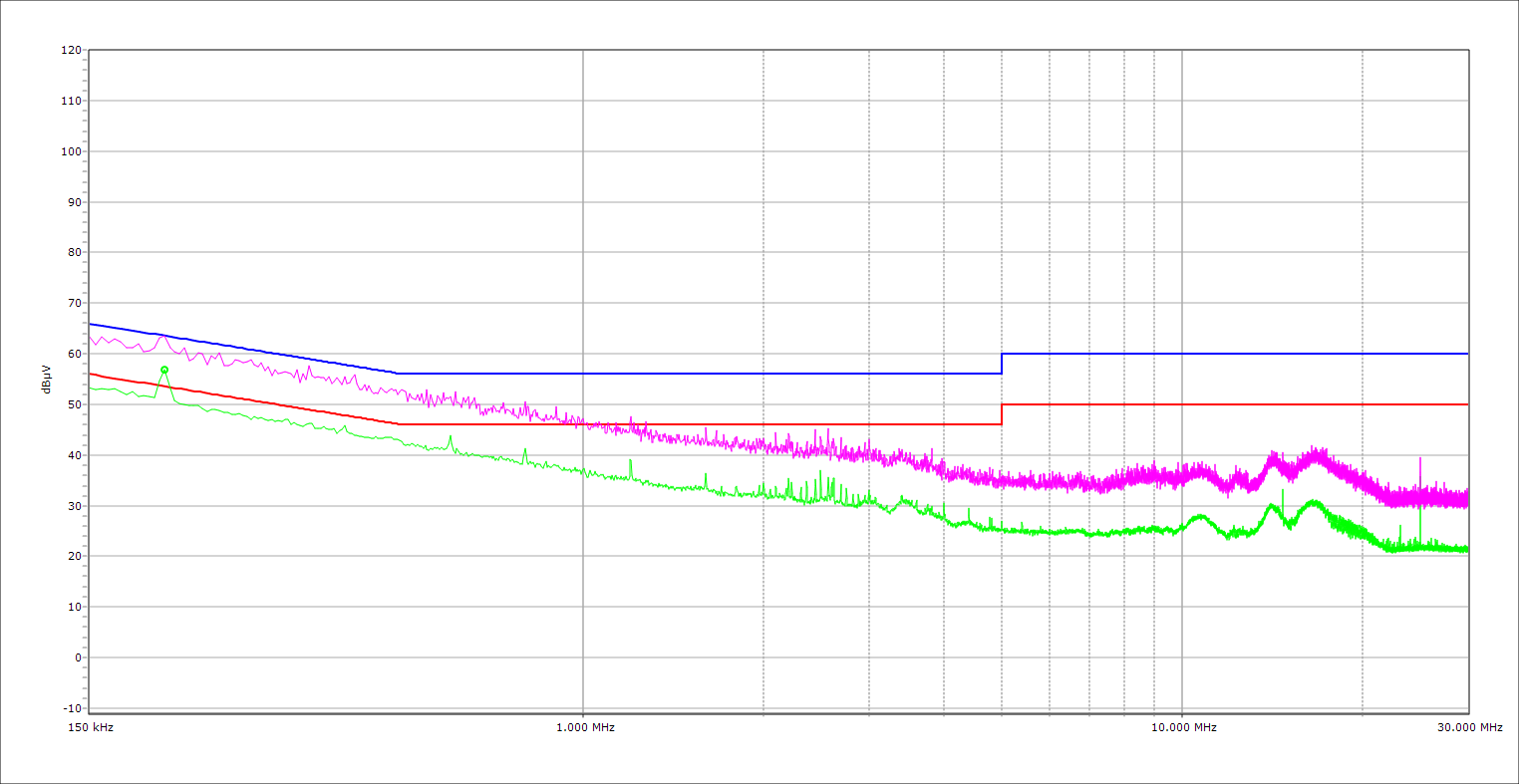

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

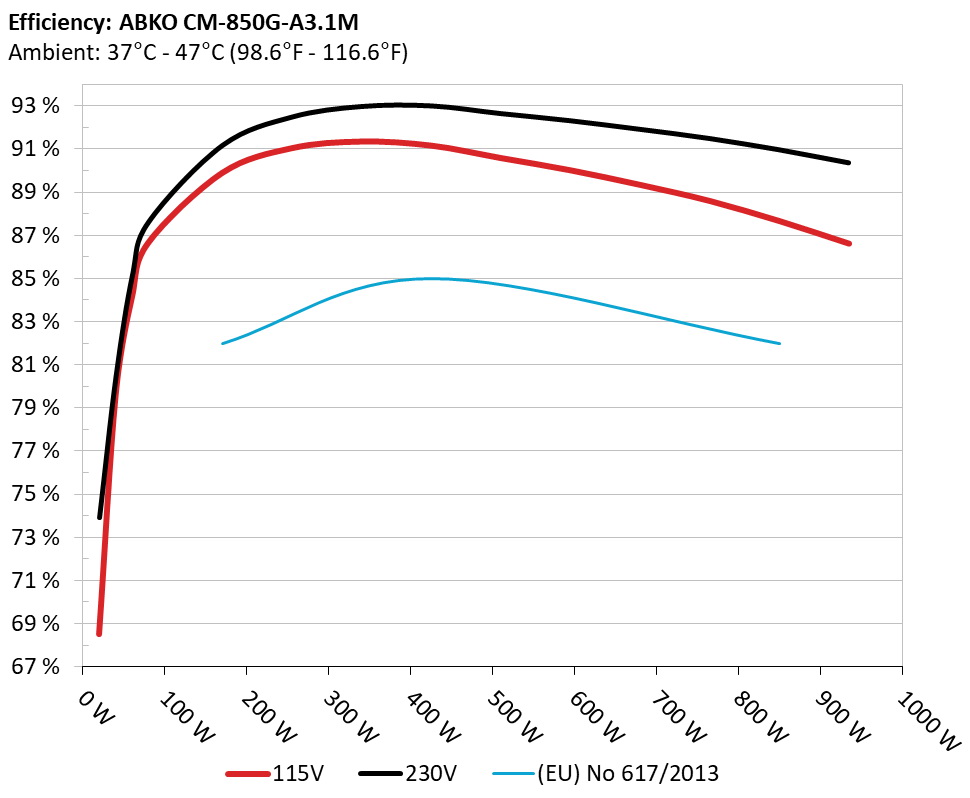

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

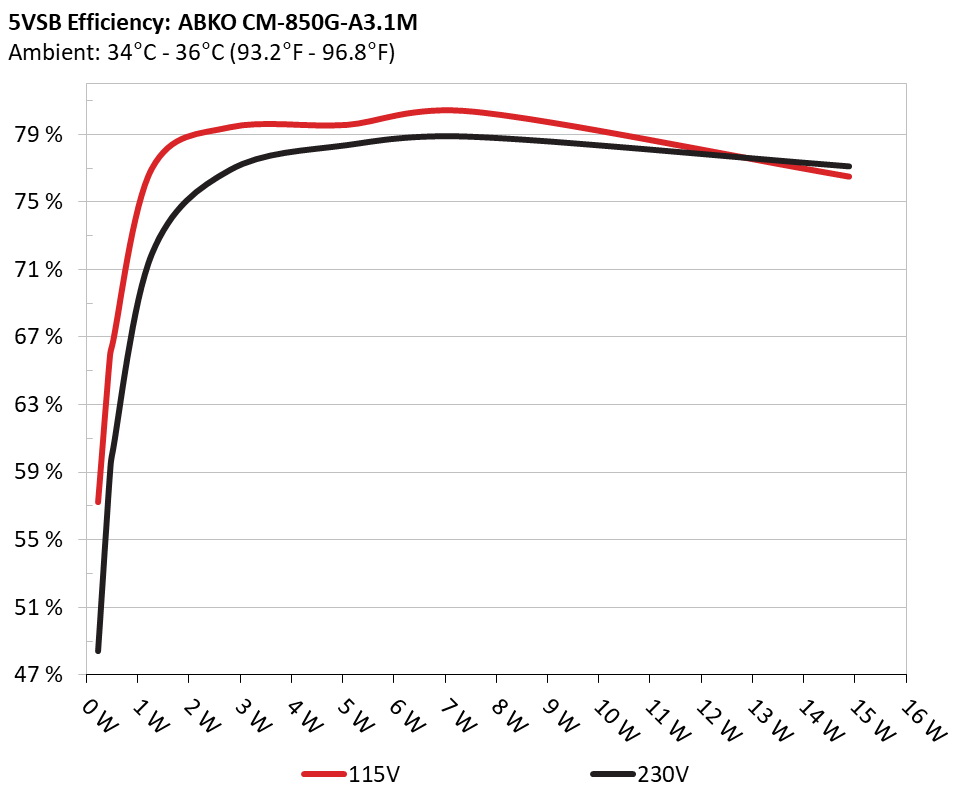

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓

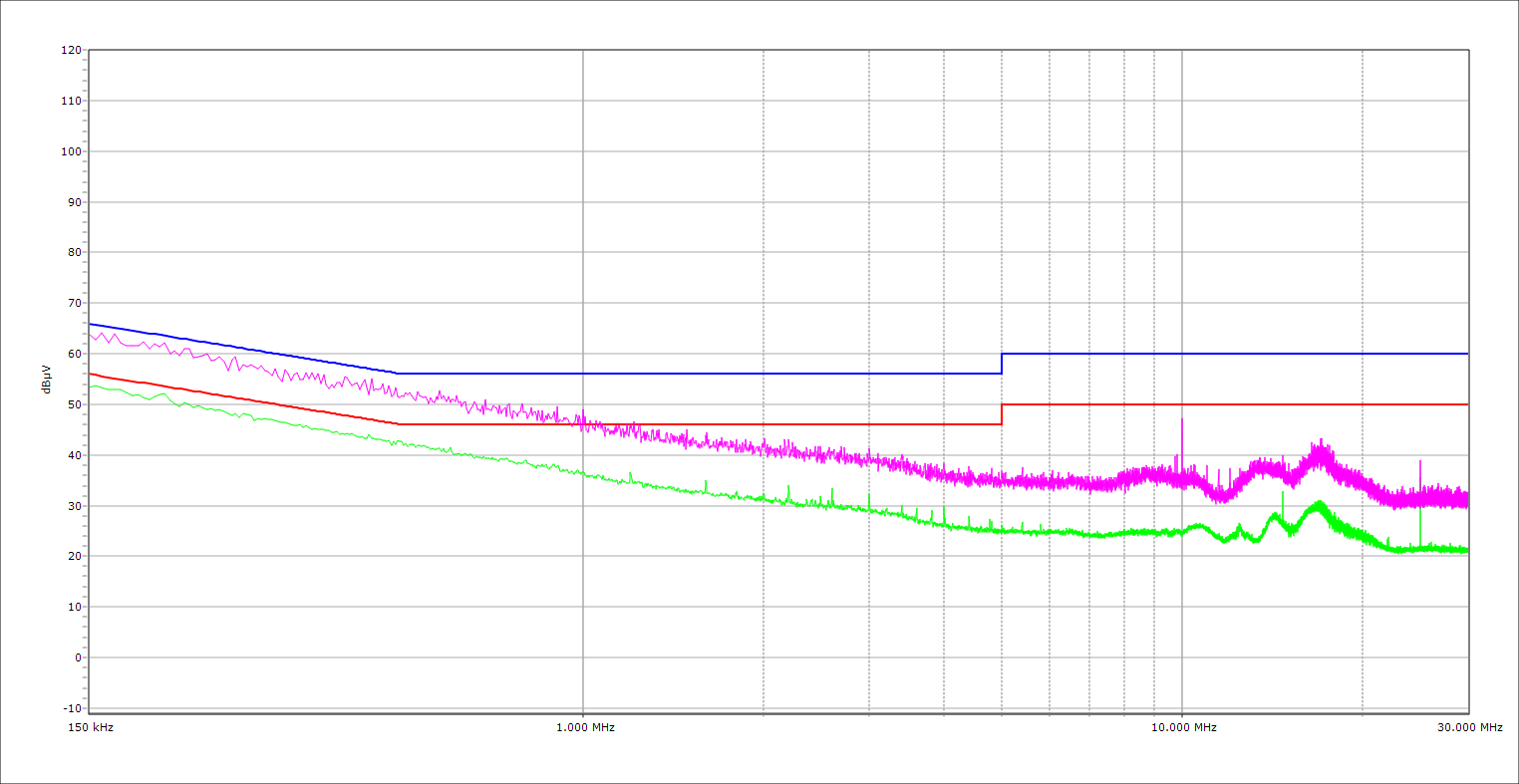

Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓

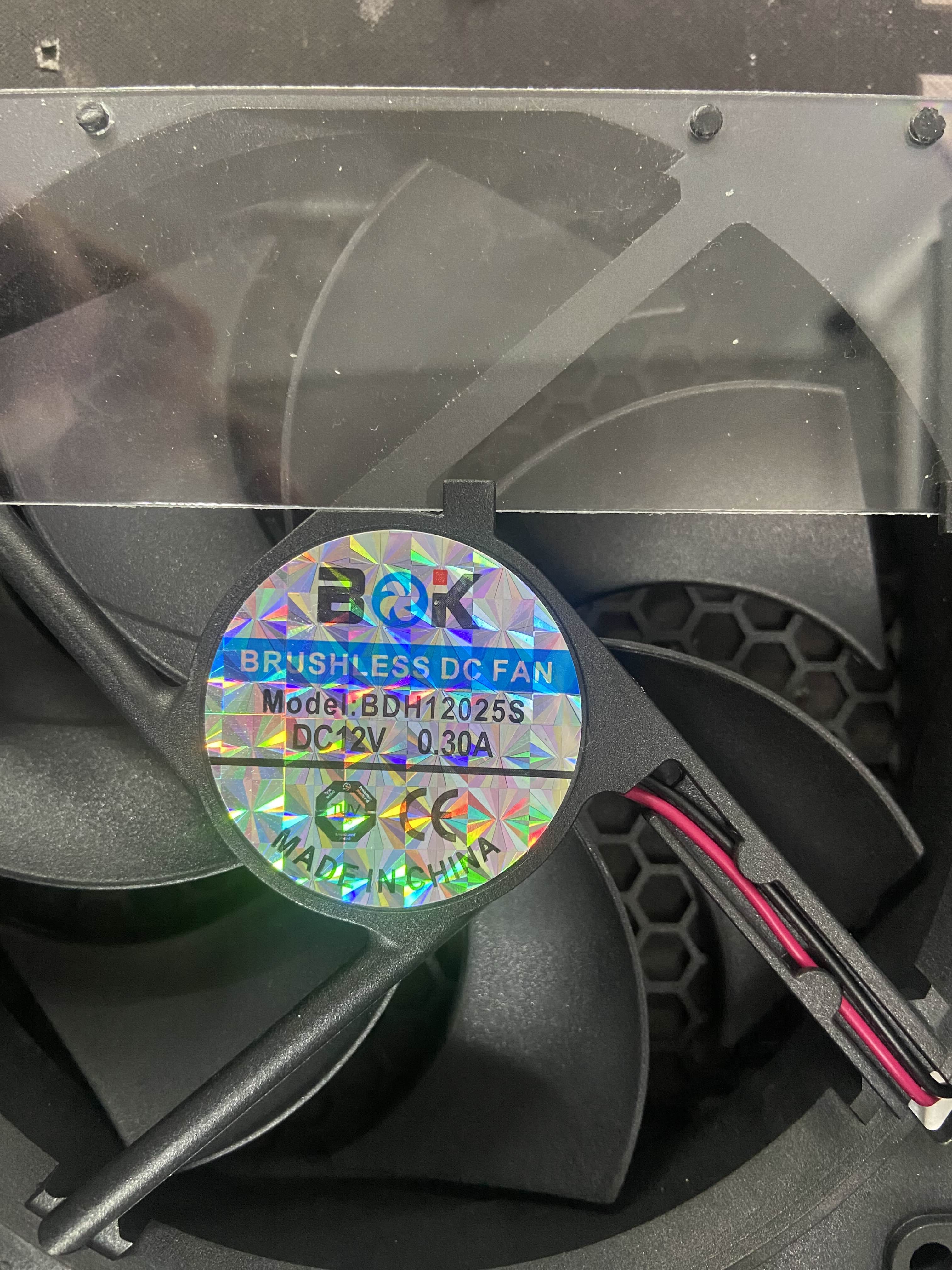

Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.253A
1.95A
1.958A
0.987A
85.015
86.312%
784
20.5
40.33°C
0.973
12.070V
5.131V
3.372V
5.067V
98.495
43.71°C
114.88V
20%
11.531A
2.931A
2.947A
1.189A
170.005
89.892%
1172
30.8
40.76°C
0.977
12.063V
5.12V
3.361V
5.047V
189.121
43.61°C
114.85V
30%
18.159A
3.426A
3.448A
1.393A
255.029
91.043%
1490
37.7
41.12°C
0.985
12.058V
5.111V
3.351V
5.026V
280.122
44.05°C
114.83V
40%
24.798A
3.922A
3.951A
1.599A
340.133
91.35%
1512
38.2
41.64°C
0.989
12.054V
5.101V
3.342V
5.006V
372.342
45.49°C
114.81V
50%
31.096A
4.912A
4.954A
1.807A
425.286
91.162%
1515
38.2
42.05°C
0.992
12.052V
5.092V
3.332V
4.984V
466.499
46.01°C
114.79V
60%
37.345A
5.906A
5.963A
2.001A
509.764
90.589%
1519
38.3
42.67°C
0.994
12.051V
5.082V
3.322V
4.962V
562.79
46.51°C
114.76V
70%
43.661A
6.904A
6.979A
2.228A
595.15
90.017%
1522
38.4
43.03°C
0.995
12.048V
5.072V
3.311V
4.939V
661.155
47.46°C
114.74V
80%
49.984A
7.905A
8A
2.337A
679.997
89.342%
1640
39.6
43.71°C
0.995
12.045V
5.061V
3.3V
4.922V
761.118
48.74°C
114.71V
90%
56.700A
8.414A
8.511A
2.448A
765.436
88.591%
1798
41.9
44.21°C
0.996
12.044V
5.053V
3.29V
4.904V
864.013
49.74°C
114.69V
100%
63.153A
8.925A
9.058A
3.09A
850.236
87.658%
1856
43.8
45.73°C
0.996
12.042V
5.044V
3.279V
4.856V
969.948
52.11°C
114.67V
110%
69.480A
9.937A
10.188A
3.098A
934.839
86.617%
2149
45.1
46.78°C
0.997
12.040V
5.033V
3.269V
4.843V
1079.283
53.55°C
114.64V
CL1
0.116A
11.794A
11.865A
0A
101.318
83.264%
1502
37.9
40.29°C
0.976
12.054V
5.105V
3.346V
5.106V
121.689
43.63°C
114.92V
CL2
0.116A
19.583A
0A
0A
101.403
81.498%
1504
38
40.18°C
0.975
12.053V
5.106V
3.365V
5.112V
124.424
43.18°C
114.93V
CL3
0.116A
0A
19.74A
0A
67.395
76.895%
1374
35.6
40.26°C
0.963
12.056V
5.122V
3.343V
5.11V
87.646
43.85°C
114.96V
CL4
70.514A
0A
0A
0.001A
849.743
88.834%
1804
42
45.47°C
0.996
12.051V
5.068V
3.307V
5.049V
956.555
51.97°C
114.76V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.253A
1.949A
1.957A
0.987A
85.004
87.307%
543
13.3
40.33°C
0.78
12.070V
5.131V
3.372V
5.067V
97.368
43.69°C
230.1V
20%
11.528A
2.93A
2.946A
1.189A
169.967
91.164%
1235
33.2
40.7°C
0.905
12.063V
5.12V
3.361V
5.046V
186.44
45.2°C
230.09V
30%
18.155A
3.424A
3.446A
1.393A
254.978
92.483%
1479
37.5
41.44°C
0.942
12.058V
5.112V
3.352V
5.026V
275.701
45.92°C
230.08V
40%
24.794A
3.921A
3.949A
1.599A
340.068
92.972%
1514
38.2
41.52°C
0.958
12.054V
5.103V
3.343V
5.005V
365.774
45.54°C
230.07V
50%
31.083A
4.91A
4.951A
1.806A
425.044
93%
1517
38.2
42.17°C
0.968
12.049V
5.093V
3.332V
4.984V
457.034
46.27°C
230.07V
60%
37.333A
5.903A
5.96A
2.001A
509.516
92.646%
1518
38.2
42.81°C
0.975
12.047V
5.083V
3.322V
4.962V
549.964
45.9°C
230.06V
70%
43.649A
6.901A
6.975A
2.228A
594.924
92.312%
1528
38.5
43.28°C
0.978
12.046V
5.074V
3.312V
4.938V
644.474
48.85°C
230.04V
80%
49.979A
7.902A
7.997A
2.338A
679.801
91.914%
1733
41
43.77°C
0.98
12.043V
5.063V
3.301V
4.92V
739.61
49.04°C
230V
90%
56.727A
8.411A
8.506A
2.448A
765.202
91.487%
1800
42
44.74°C
0.982
12.035V
5.054V
3.291V
4.903V
836.413
50.44°C
229.99V
100%
63.168A
8.923A
9.05A
3.09A
849.984
90.964%
1856
43.8
45.24°C
0.984
12.036V
5.044V
3.281V
4.855V
934.418
51.99°C
229.98V
110%
69.497A
9.936A
10.182A
3.099A
934.588
90.362%
2147
45.1
46.14°C
0.986
12.034V
5.033V
3.27V
4.842V
1034.268
53°C
229.97V
CL1
0.116A
11.788A
11.854A
0A
101.307
84.223%
1510
38.1
41.24°C
0.831
12.062V
5.107V
3.349V
5.105V
120.283
45.58°C
230.07V
CL2
0.116A
19.577A
0A
0A
101.399
82.571%
1514
38.2
41.16°C
0.834
12.055V
5.108V
3.364V
5.112V
122.803
44.77°C
230.07V
CL3
0.116A
0A
19.72A
0A
67.393
77.682%
1507
38
40.61°C
0.745
12.053V
5.121V
3.347V
5.11V
86.758
43.89°C
230.07V
CL4
70.580A
0A
0A
0.001A
849.723
91.879%
1804
42
45.72°C
0.984
12.039V
5.066V
3.304V
5.047V
924.834
51.26°C
229.97V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.232A
0.487A
0.489A
0.195A
20.013
68.497%
0
<6.0
43.64°C
0.774
12.061V
5.138V
3.378V
5.12V
29.217
36.55°C
114.9V
40W
2.710A
0.681A
0.684A
0.294A
40.012
79.529%
0
<6.0
46.99°C
0.904
12.069V
5.137V
3.378V
5.112V
50.314
37.92°C
114.89V
60W
4.187A
0.877A
0.88A
0.392A
60.011
84.121%
0
<6.0
46.48°C
0.95
12.070V
5.136V
3.376V
5.104V
71.34
38.21°C
114.88V
80W
5.662A
1.072A
1.076A
0.491A
79.989
86.652%
0
<6.0
46.62°C
0.967
12.071V
5.134V
3.374V
5.097V
92.31
39.24°C
114.88V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.231A
0.487A
0.488A
0.195A
20.007
73.917%
0
<6.0
43.41°C
0.433
12.061V
5.139V
3.379V
5.12V
28.575
36.74°C
230.09V
40W
2.714A
0.681A
0.684A
0.294A
40.007
80.438%
0
<6.0
45.65°C
0.569
12.048V
5.137V
3.378V
5.112V
49.736
37.85°C
230.06V
60W
4.188A
0.876A
0.88A
0.392A
60.006
85.127%
0
<6.0
46.17°C
0.681
12.064V
5.137V
3.376V
5.104V
70.491
38.67°C
230.04V
80W
5.663A
1.072A
1.076A
0.491A
79.972
87.619%
0
<6.0
42.22°C
0.761
12.067V
5.135V
3.375V
5.097V
91.274
39.46°C
230.07V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
21.63mV
11.68mV
8.34mV
6.32mV
Pass
20% Load
24.02mV
12.40mV
9.10mV
6.37mV
Pass
30% Load
27.48mV
12.70mV
10.02mV
7.03mV
Pass
40% Load
29.82mV
13.01mV
10.99mV
7.69mV
Pass
50% Load
32.16mV
13.16mV
11.85mV
8.10mV
Pass
60% Load
34.90mV
13.36mV
12.66mV
8.10mV
Pass
70% Load
41.72mV
16.99mV
15.26mV
10.75mV
Pass
80% Load
45.70mV
22.85mV
19.17mV
17.17mV
Pass
90% Load
49.20mV
18.36mV
20.75mV
13.61mV
Pass
100% Load
53.24mV
19.80mV
20.91mV
14.65mV
Pass
110% Load
58.63mV
20.19mV
23.15mV
16.15mV
Pass
Crossload1
27.27mV
15.31mV
18.54mV
6.18mV
Pass
Crossload2
29.36mV
13.77mV
20.55mV
6.78mV
Pass
Crossload3
24.83mV
15.76mV
14.90mV
6.88mV
Pass
Crossload4
50.01mV
15.70mV
15.41mV
11.74mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
21.07mV
10.81mV
7.93mV
6.11mV
Pass
20% Load
23.25mV
12.45mV
9.05mV
6.37mV
Pass
30% Load
26.76mV
13.06mV
9.92mV
7.08mV
Pass
40% Load
29.26mV
13.21mV
10.89mV
7.85mV
Pass
50% Load
34.86mV
14.03mV
12.56mV
8.92mV
Pass
60% Load
38.52mV
15.25mV
14.09mV
9.42mV
Pass
70% Load
42.23mV
36.88mV
18.31mV
10.90mV
Pass
80% Load
46.56mV
17.50mV
19.73mV
11.77mV
Pass
90% Load
51.19mV
18.77mV
20.55mV
12.74mV
Pass
100% Load
55.22mV
19.01mV
22.04mV
14.62mV
Pass
110% Load
59.02mV
20.28mV
22.81mV
16.57mV
Pass
Crossload1
27.29mV
15.41mV
17.25mV
6.23mV
Pass
Crossload2
29.46mV
13.93mV
20.70mV
6.98mV
Pass
Crossload3
24.12mV
15.86mV
14.75mV
6.32mV
Pass
Crossload4
51.63mV
15.99mV
14.40mV
11.73mV
Pass
The results above are not used in the certification process
ABKO CM-850G-A3.1M

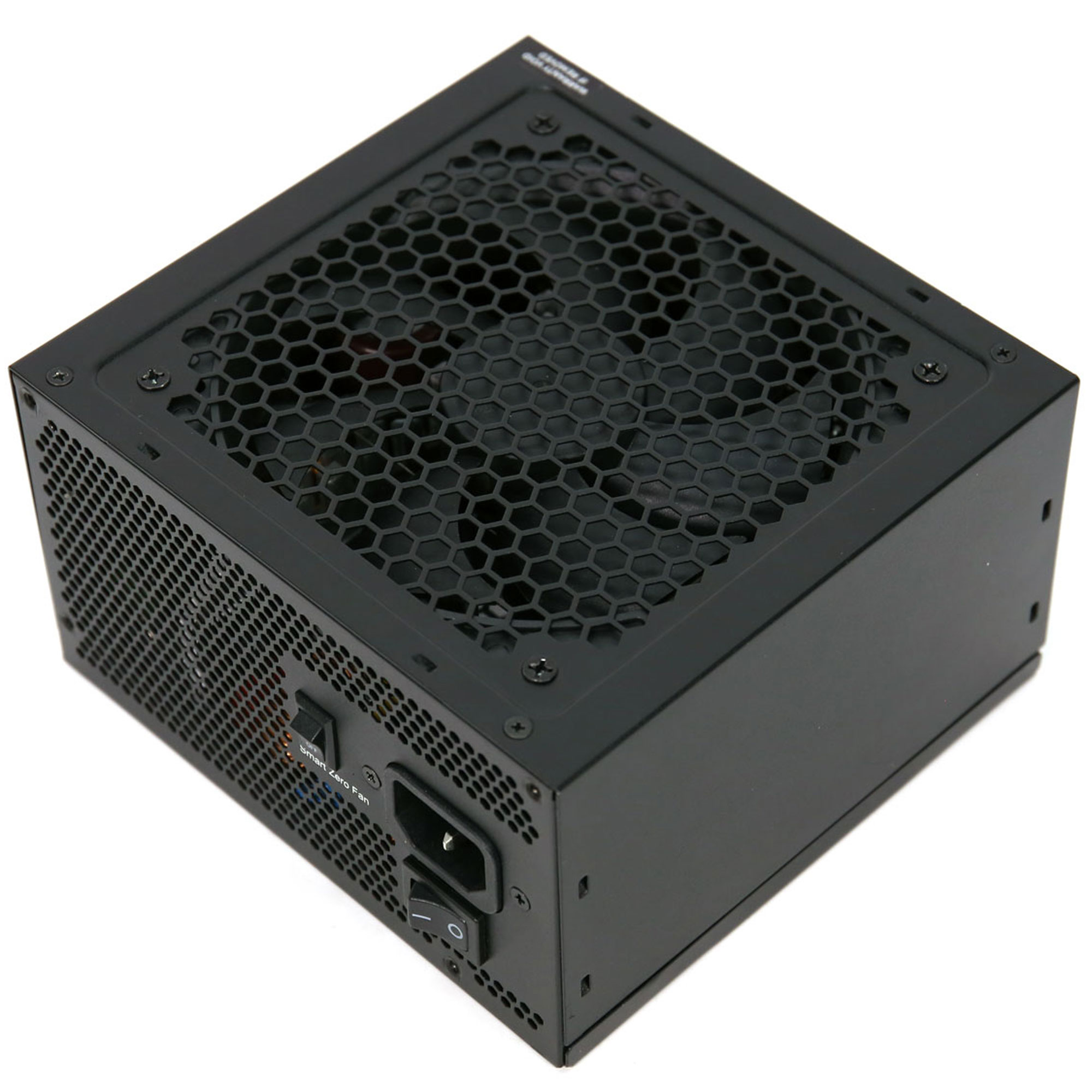

Top side

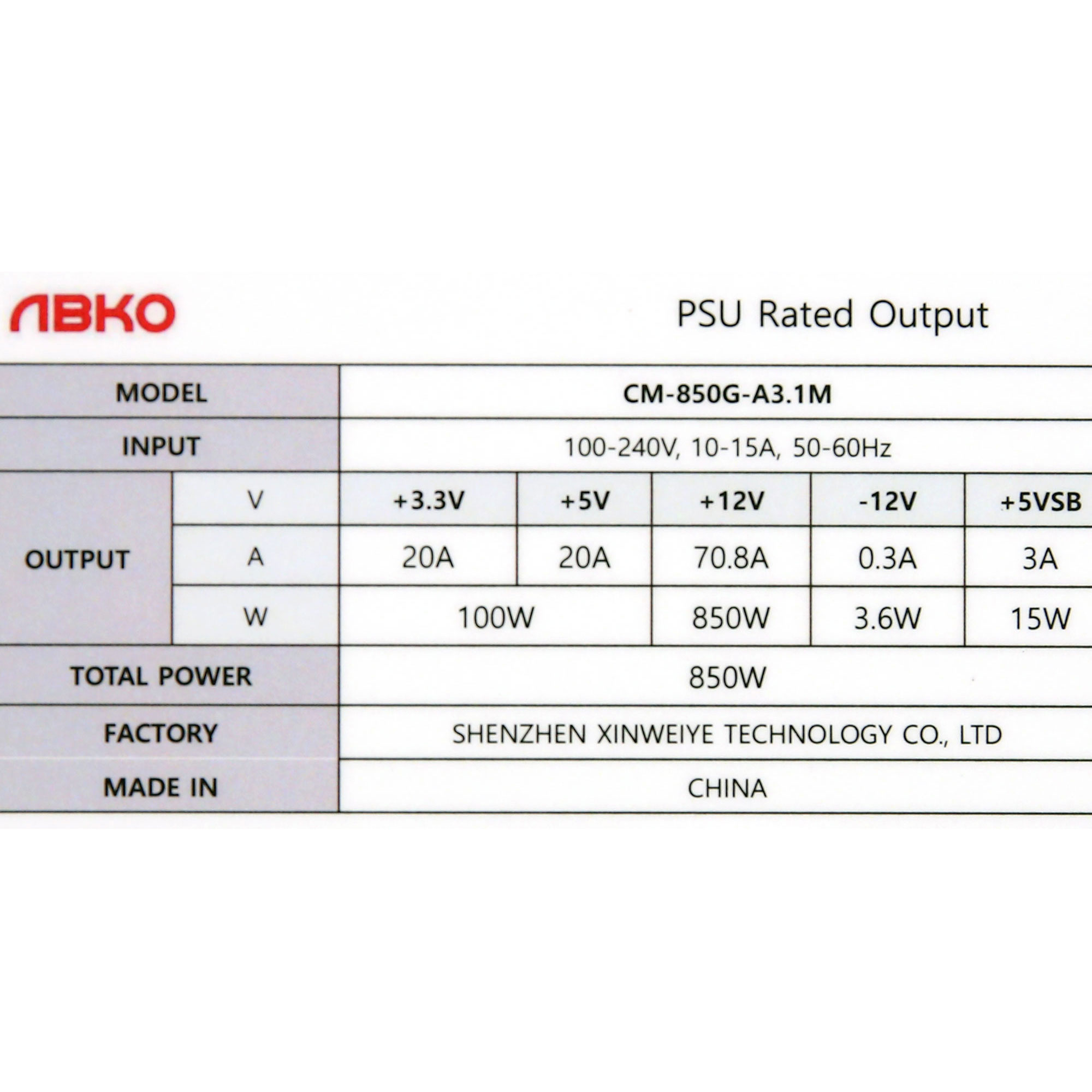

Power specifications label
Fan

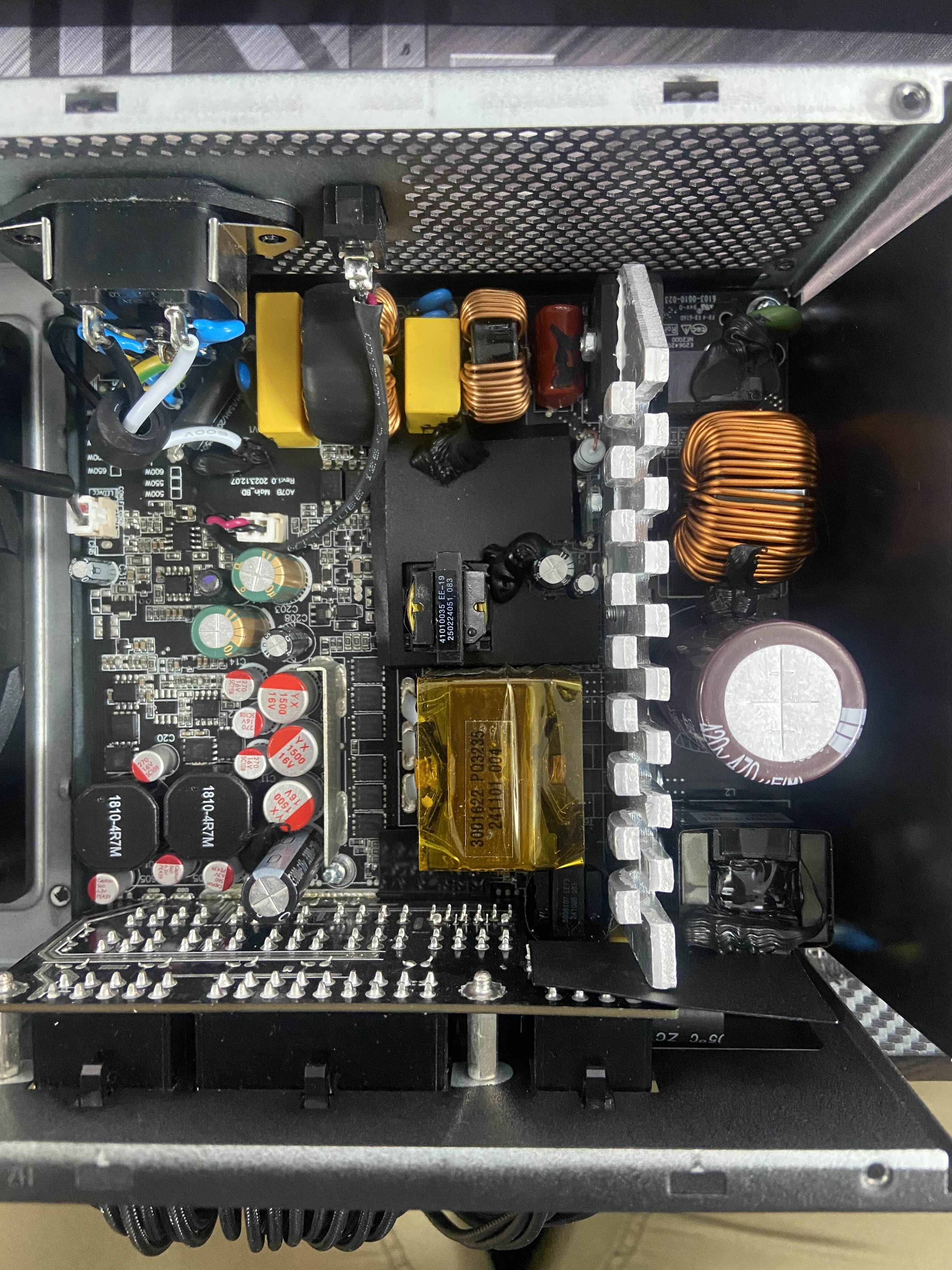

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
