Thermaltake Toughpower i 1650W
Serial NumberPSTPI1650FNFDTU1BLCW00005
Lab IDTT16502986
Certification ID252986
  • Test Result Report ID: 25PS2986A
  • Certificate Issue Date: Oct 6, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)CWT
SeriesToughpower i
Model NumberTTI-2000DH3FCP-3
Serial NumberPSTPI1650FNFDTU1BLCW00005
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-220
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1650
TypeATX12V
Dimensions (W x H x D)150 x 85 x 180mm
Cooling140mm Fluid Dynamic Bearing Fan (ZFF142512D AAP4)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2222137.530
Watts1201650150
Total Max. Power (W)1650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 16AWG Tinned Copper
2x 6+2 pin PCIe (500mm) 8 8 16-18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 4 4 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 3 12 16-24AWG Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
AC Power Cord (1360mm) - C13 coupler 1 1 14AWG -

Parts Description

General Data
Manufacturer (OEM) CWT
Platform TTA
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-25150 (15 Ohm @ 25°C) & Relay
Bridge Rectifier
2x WeEn WNB2560M (600V, 25A @ 127°C) &
Toshiba TW015N65C (650V, 82A @ 100°C, Rds(on): 21mOhm for AC Rectification)
APFC MOSFETs
2x Toshiba K040N60Z1 (600V, 52A @ 100°C, Rds(on): 0.040Ohm)
APFC Boost Diode
2x Vishay VS-3C10ET07T-M3 (650V, 10A @ 147°C)
Bulk Cap(s)
2x Nippon Chemi-Con (420V, 770uF each or 1540uF combined, 2000h @ 105°C, KHE)
Rubycon (420V, 470uF, 2000h @ 105°C, MXE)
Main Switchers
4x Infineon IPT60R105CFD7 (650V, 15A @ 100°C, Rds(on): 0.105Ohm)
IC Driver Novosense NSI6602BD
Digital Controllers
2x Texas Instruments UCD3138A &
Sync Power SPN5003 (reducing no load consumption)
Topology Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Infineon IPT007N06N (60V, 371A @ 100°C, Rds(on): 0.75mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): 1x
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-Con (@ 105°C, W)
3x Rubycon (3-6,000 @ 105°C, YXS)
Polymer:
17x Nippon Chemi-con, 23x FPCAP
Supervisor IC IN1S313I-SAG
Fan Controller / Micro Controller Nuvoton M252SD2AE
Fan Model Thermaltake TT-1425 ZFF142512D  (140mm, 12V, 0.65A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
Dongke DK5V45R10V (45V, 10mOhm)
Standby PWM Controller
GR9877B

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 115V

Efficiency RatingTITANIUM
Noise RatingStandard+
Average Efficiency (>1450 load combinations)91.371%
Average Noise Output (>1450 Load Combinations)36.44dBA
Average PF (>1450 Load Combinations)0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load73.477%
Standby Power Consumption0.0578W
12V Ripple (Full Load)38.92mV
5V Ripple (Full Load)19.76mV
3.3V Ripple (Full Load)24.28mV
5VSB Ripple (Full Load)14.82mV
12V Load Regulation0.88%
5V Load Regulation0.36%
3.3V Load Regulation0.61%
5VSB Load Regulation1.26%
Inrush CurrentToo low to detect

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.6
AC Loss to PWR_OK Hold Up Time (ms)16.6
PWR_OK Inactive to DC Loss Delay (ms)4

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.98 V 114.94 V 113.85 V 115.01 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.19 % 0.13 % N/A 0.24 % 2.00 % PASS
Real Power: 0.058 W 0.037 W N/A 0.139 W N/A N/A
Apparent Power: 9.918 W 9.901 W N/A 9.939 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs 115V

Efficiency Graph

115V

INFO

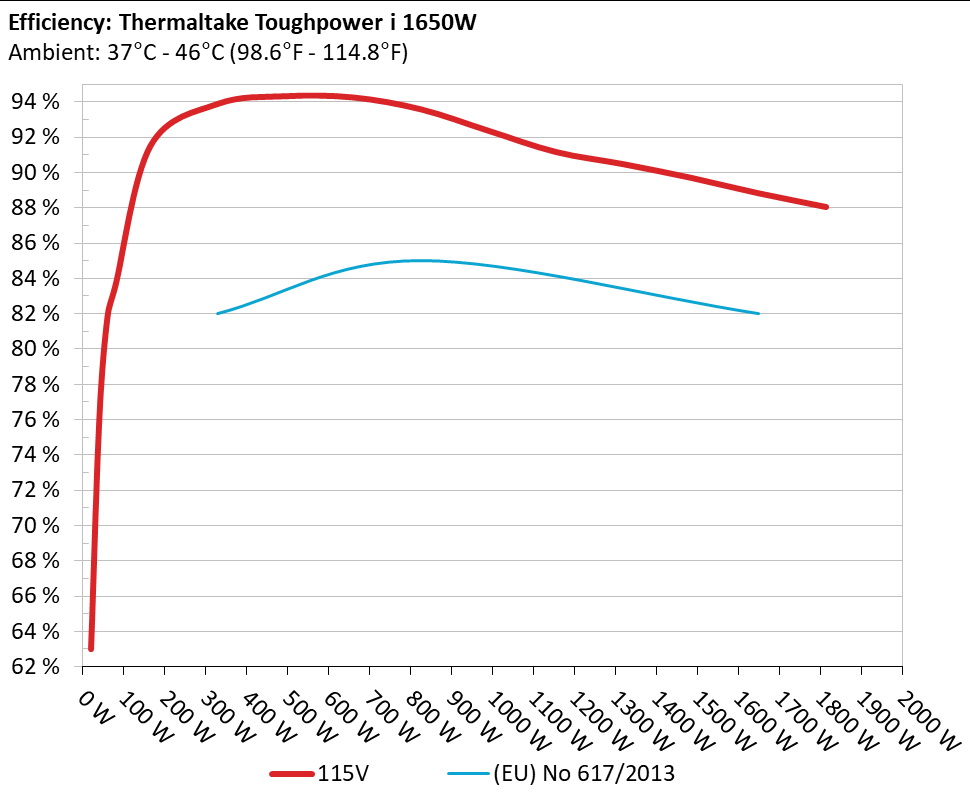

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

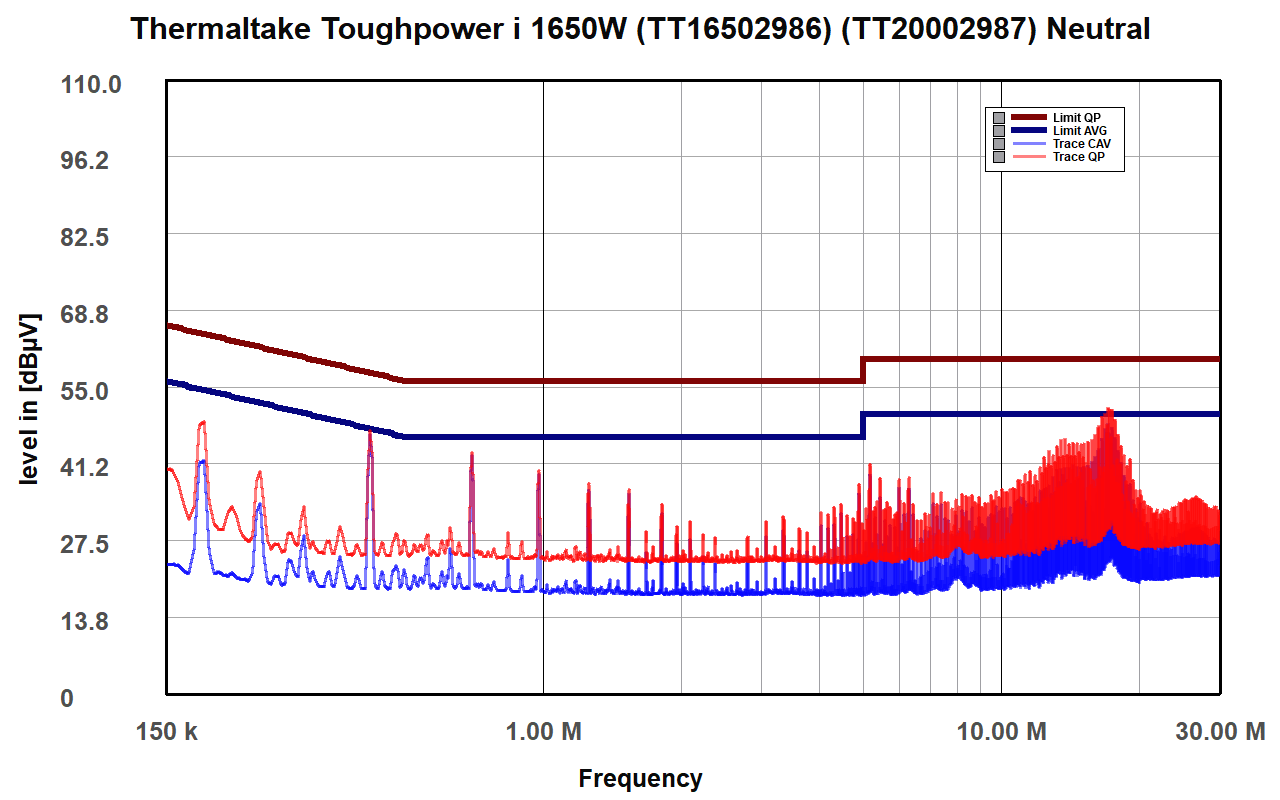

NEUTRAL

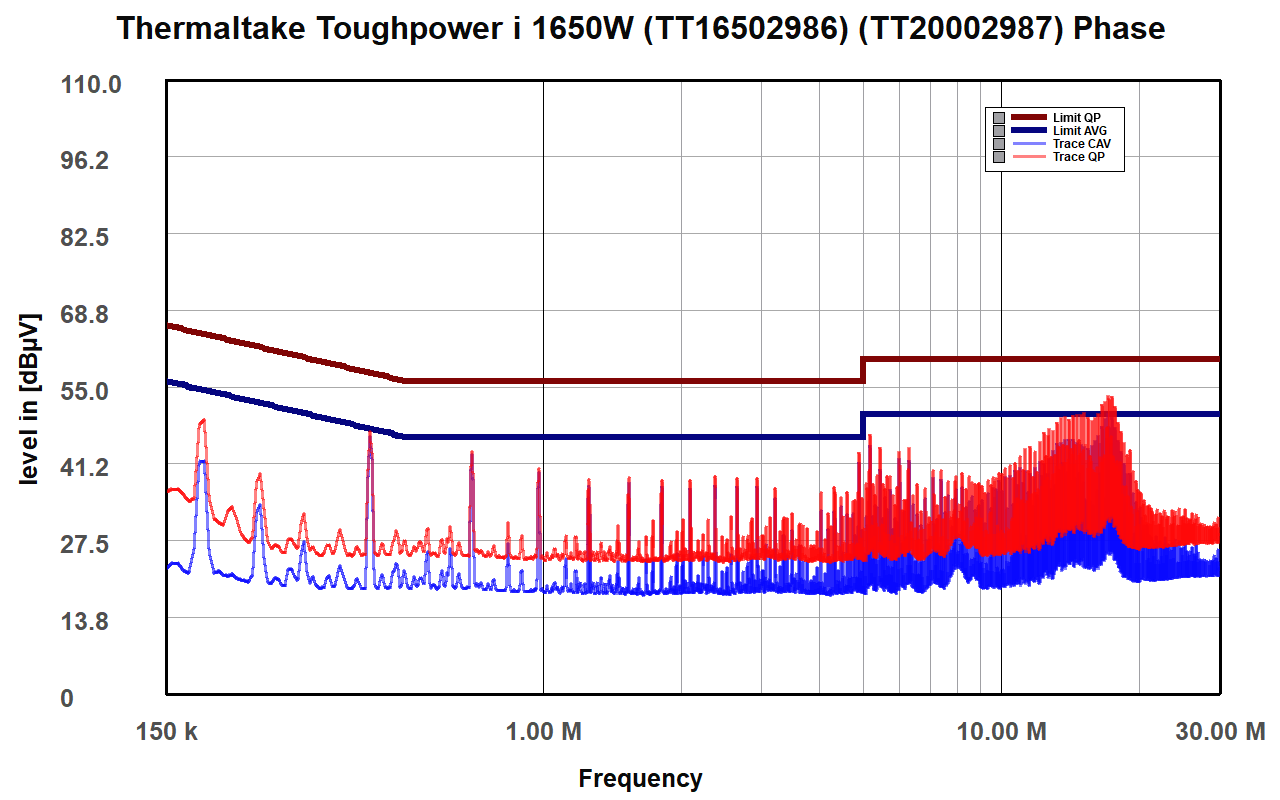

PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

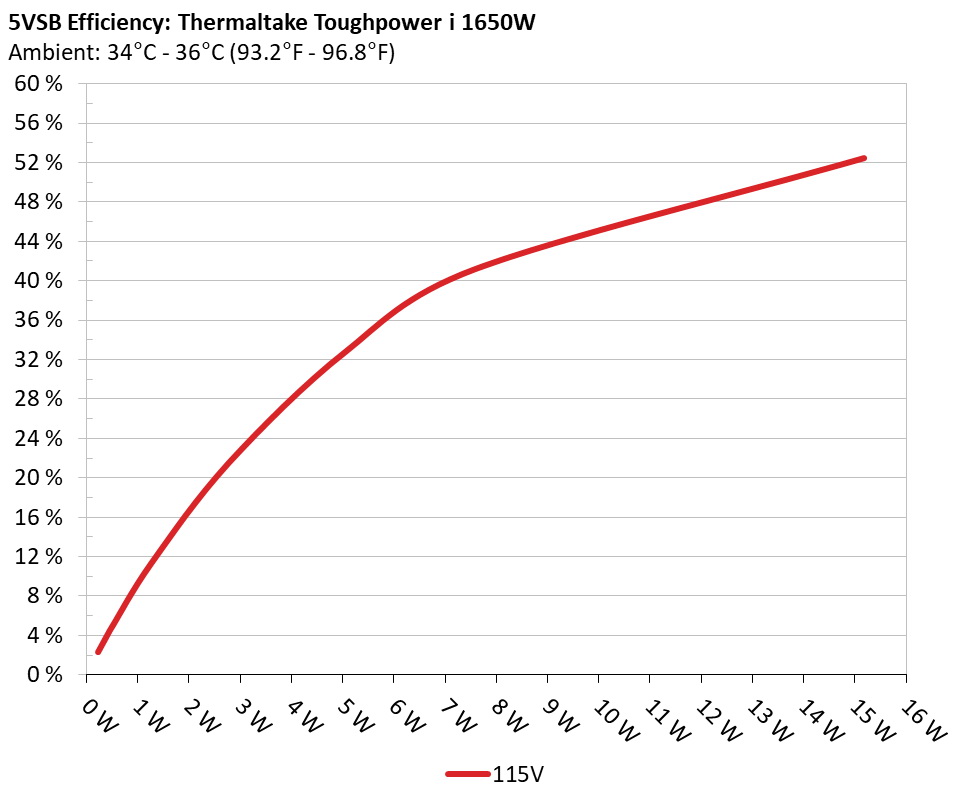

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 64.569% 0.023
5.07V 0.353W 114.9V
2 0.09A 0.456W 74.503% 0.039
5.07V 0.612W 114.89V
3 0.55A 2.789W 84.302% 0.196
5.07V 3.308W 114.87V
4 1A 5.07W 84.259% 0.313
5.069V 6.017W 114.86V
5 1.5A 7.604W 84.05% 0.4
5.068V 9.048W 114.87V
6 3.001A 15.104W 81.69% 0.521
5.034V 18.489W 114.86V

Protection Features

OCP (Normal @ 31.1°C)12V (Multi Rail): 164.40A (119.56%), 12.008V
5V: 27.8A (126.36%), 5.047V
3.3V: 27.8A (126.36%), 3.291V
5VSB: 5.3A (176.67%), 5.022V
12V2: 64.3A, 11.882V
12V3: 49.3A, 11.916V
12V4: 49.3A, 11.906V
12V5: 59.6A, 11.786V
12V6: 60.0A, 11.86V
12V7: 59.5A, 11.862V
12V8: 59.9A, 11.872V
OCP (Hot @ 42.6°C)12V (Multi Rail): 164.80A (119.85%), 12.000V
5V: 27.8A (126.36%), 5.032V
3.3V: 27.7A (125.91%), 3.277V
5VSB: 5.9A (196.67%), 4.982V
12V2: 63.6A, 11.867V
12V3: 49.2A, 11.924V
12V4: 49.2A, 11.906V
12V5: 59.6A, 11.767V
12V6: 59.8A, 11.792V
12V7: 59.4A, 11.855V
12V8: 59.8A, 11.865V
5V: 27.8A (126.36%), 5.032V
3.3V: 27.7A (125.91%), 3.277V
5VSB: 5.9A (196.67%), 4.982V
OPP (Normal @ 28.8°C)2012.73W (121.98%)
OPP (Hot @ 43.1°C)2012.72W (121.98%)
OTP✓ (80°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✓
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.827A 1.975A 1.999A 0.99A 164.978 91.512% 0 <6.0 55.1°C 0.99
12.123V 5.064V 3.302V 5.052V 180.275 40.06°C 114.82V
20% 24.692A 2.963A 3A 1.189A 329.987 93.892% 0 <6.0 55.08°C 0.994
12.113V 5.062V 3.3V 5.046V 351.452 40.8°C 114.77V
30% 37.876A 3.458A 3.503A 1.389A 494.406 94.322% 0 <6.0 57.51°C 0.996
12.101V 5.061V 3.298V 5.039V 524.171 41.35°C 114.71V
40% 51.150A 3.953A 4.005A 1.59A 659.626 94.254% 0 <6.0 56.68°C 0.996
12.090V 5.059V 3.296V 5.033V 699.293 41.6°C 114.58V
50% 64.111A 4.944A 5.011A 1.791A 824.965 93.581% 518 7.8 42.23°C 0.998
12.080V 5.057V 3.293V 5.025V 881.572 52.58°C 114.6V
60% 77.004A 5.935A 6.015A 1.992A 989.455 92.371% 1353 33.6 42.78°C 0.998
12.073V 5.055V 3.292V 5.021V 1071.257 48.45°C 114.54V
70% 90.010A 6.927A 7.021A 2.194A 1154.797 91.161% 1355 33.6 43.1°C 0.998
12.062V 5.053V 3.29V 5.014V 1266.771 50.39°C 114.48V
80% 103.039A 7.918A 8.028A 2.297A 1319.608 90.473% 1787 42.6 43.89°C 0.998
12.051V 5.051V 3.288V 5.007V 1458.589 51.41°C 114.4V
90% 116.486A 8.416A 8.518A 2.4A 1485.022 89.698% 2253 46.8 44.58°C 0.998
12.040V 5.05V 3.287V 5V 1655.559 52.83°C 114.34V
100% 129.691A 8.914A 9.04A 3.004A 1649.809 88.821% 2656 50.9 45.84°C 0.998
12.029V 5.048V 3.285V 4.994V 1857.454 55.15°C 114.26V
110% 142.788A 9.909A 10.143A 3.009A 1814.418 88.047% 2645 50.6 46.12°C 0.997
12.019V 5.046V 3.283V 4.987V 2060.781 57.59°C 114.18V
CL1 0.116A 14.306A 14.531A 0A 121.313 84.376% 535 12.1 40.91°C 0.989
12.124V 5.047V 3.282V 5.042V 143.783 60.31°C 114.82V
CL2 0.116A 21.755A 0A 0A 111.308 82.997% 527 8.3 40.15°C 0.988
12.128V 5.052V 3.277V 5.046V 134.113 57.8°C 114.82V
CL3 0.114A 0A 22.11A 0A 73.987 74.051% 521 8 40.36°C 0.984
12.129V 5.038V 3.283V 5.046V 99.917 54.81°C 114.84V
CL4 137.081A 0A 0A 0A 1649.563 89.173% 2659 51 45.23°C 0.998
12.034V 5.057V 3.295V 4.994V 1849.872 52.15°C 114.27V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.494A 0.499A 0.198A 20.01 63% 0 <6.0 44.33°C 0.91
12.135V 5.066V 3.305V 5.057V 31.821 36.91°C 114.87V
40W 2.695A 0.691A 0.699A 0.297A 40.009 76.037% 0 <6.0 46.1°C 0.963
12.132V 5.065V 3.304V 5.056V 52.63 37.87°C 114.86V
60W 4.166A 0.888A 0.899A 0.396A 60.009 81.824% 0 <6.0 45.97°C 0.973
12.130V 5.065V 3.304V 5.055V 73.341 38.33°C 114.85V
80W 5.634A 1.086A 1.099A 0.495A 79.962 83.634% 0 <6.0 50.55°C 0.983
12.128V 5.065V 3.303V 5.053V 95.603 39.55°C 114.84V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load24.09mV16.73mV15.39mV11.44mVPass
20% Load50.07mV20.79mV16.93mV11.85mVPass
30% Load30.38mV18.27mV16.83mV12.16mVPass
40% Load48.38mV19.81mV19.80mV13.54mVPass
50% Load45.06mV19.55mV18.83mV13.50mVPass
60% Load32.37mV25.20mV24.52mV13.96mVPass
70% Load33.81mV29.66mV31.09mV13.24mVPass
80% Load34.78mV32.95mV37.09mV14.11mVPass
90% Load36.52mV21.81mV24.73mV14.47mVPass
100% Load38.92mV19.76mV24.28mV14.82mVPass
110% Load42.70mV19.68mV23.65mV15.24mVPass
Crossload124.40mV16.91mV16.54mV11.66mVPass
Crossload231.46mV20.58mV17.70mV12.06mVPass
Crossload325.32mV17.50mV18.83mV11.75mVPass
Crossload418.07mV8.02mV8.28mV6.25mVPass

The results above are not used in the certification process

Thermaltake Toughpower i 1650W

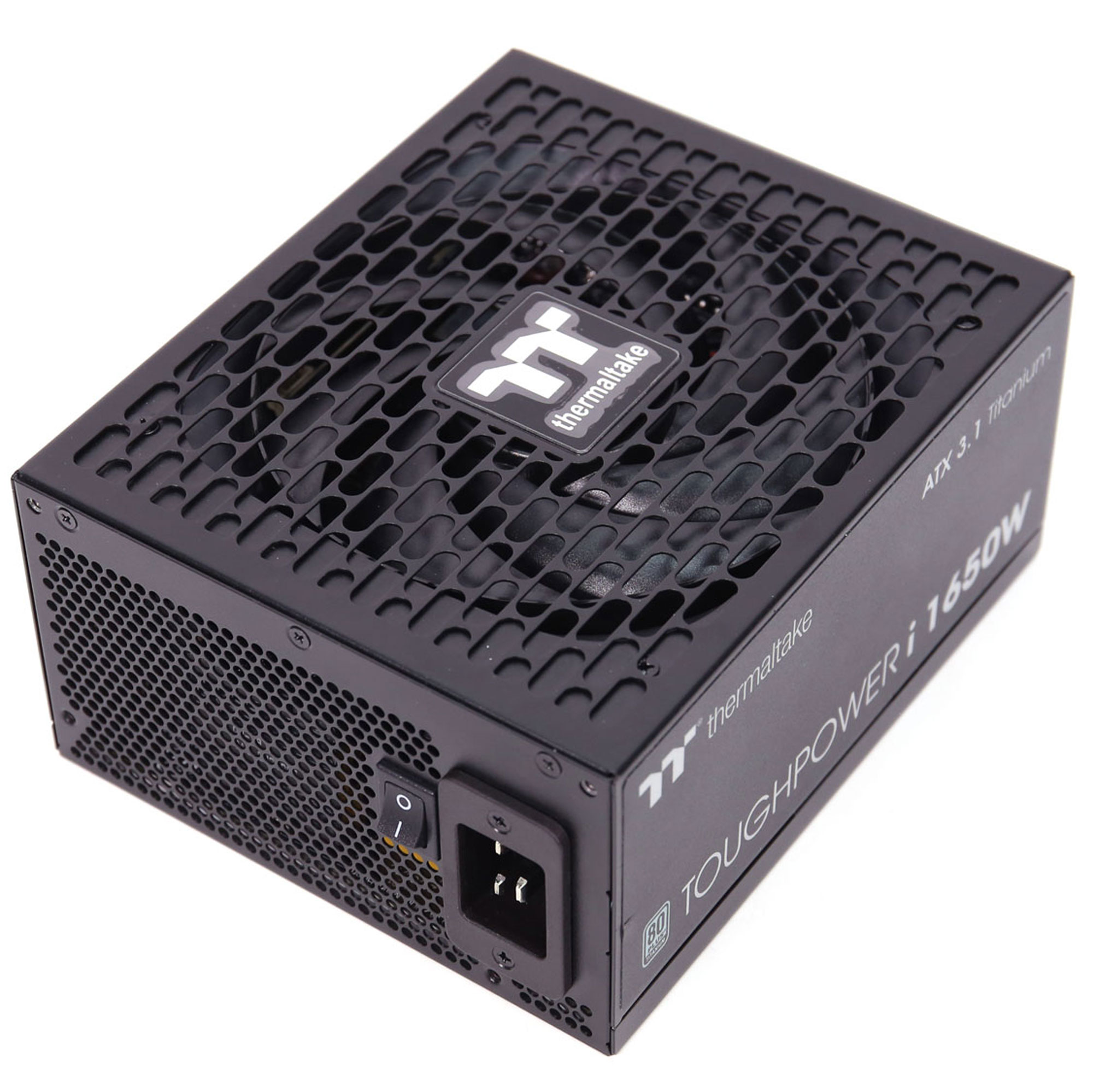

Top side

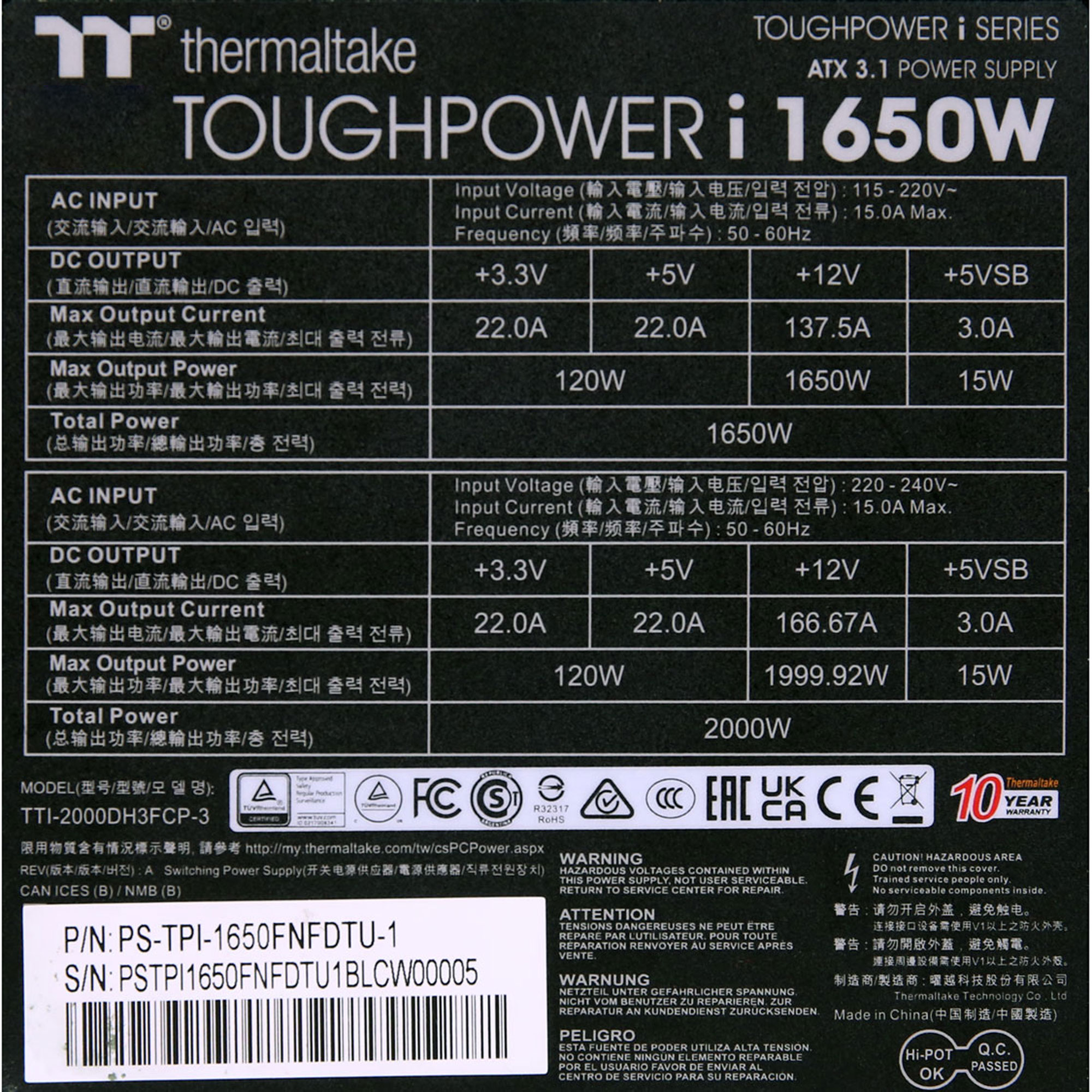

Power specifications label

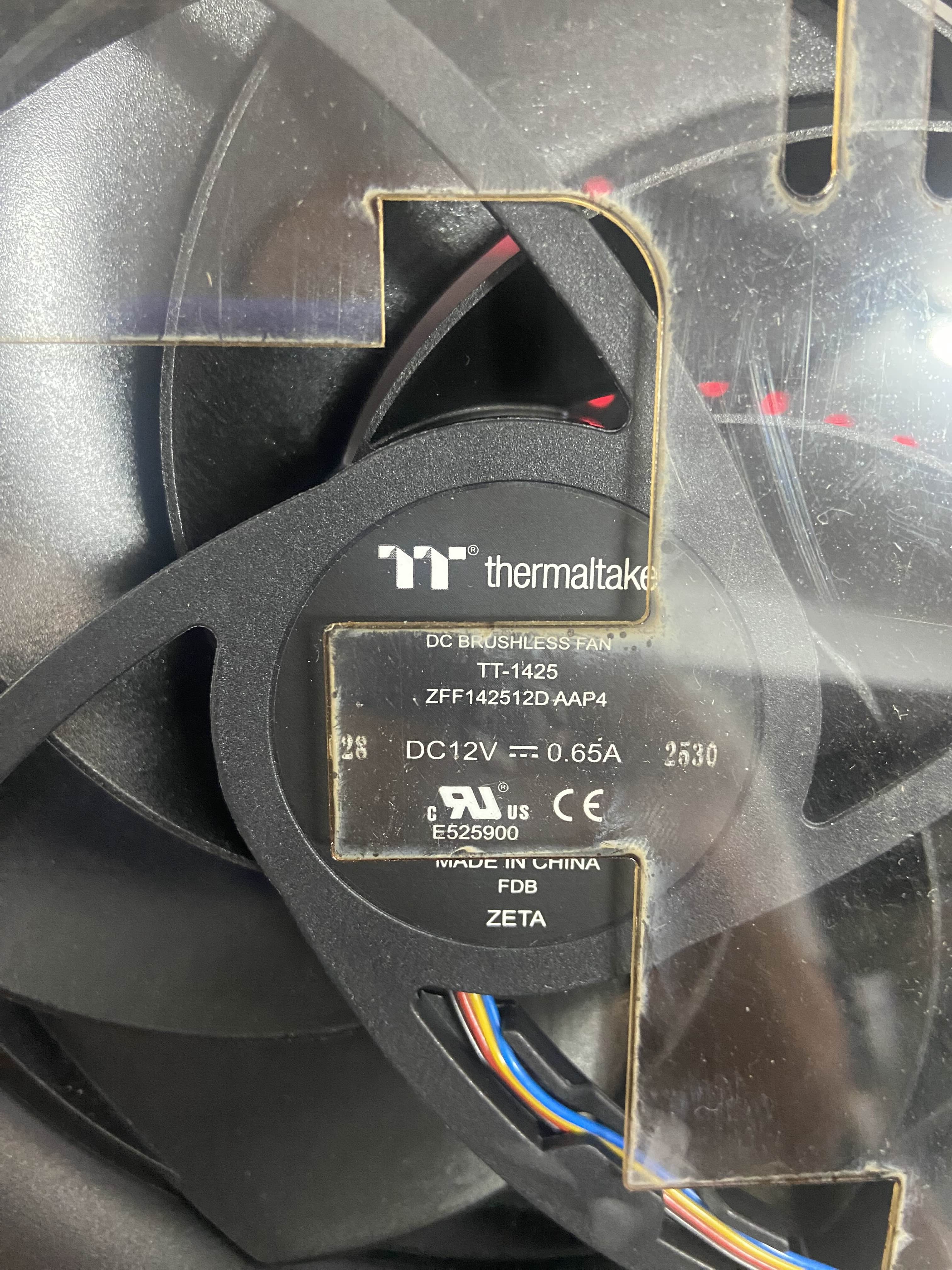

Fan

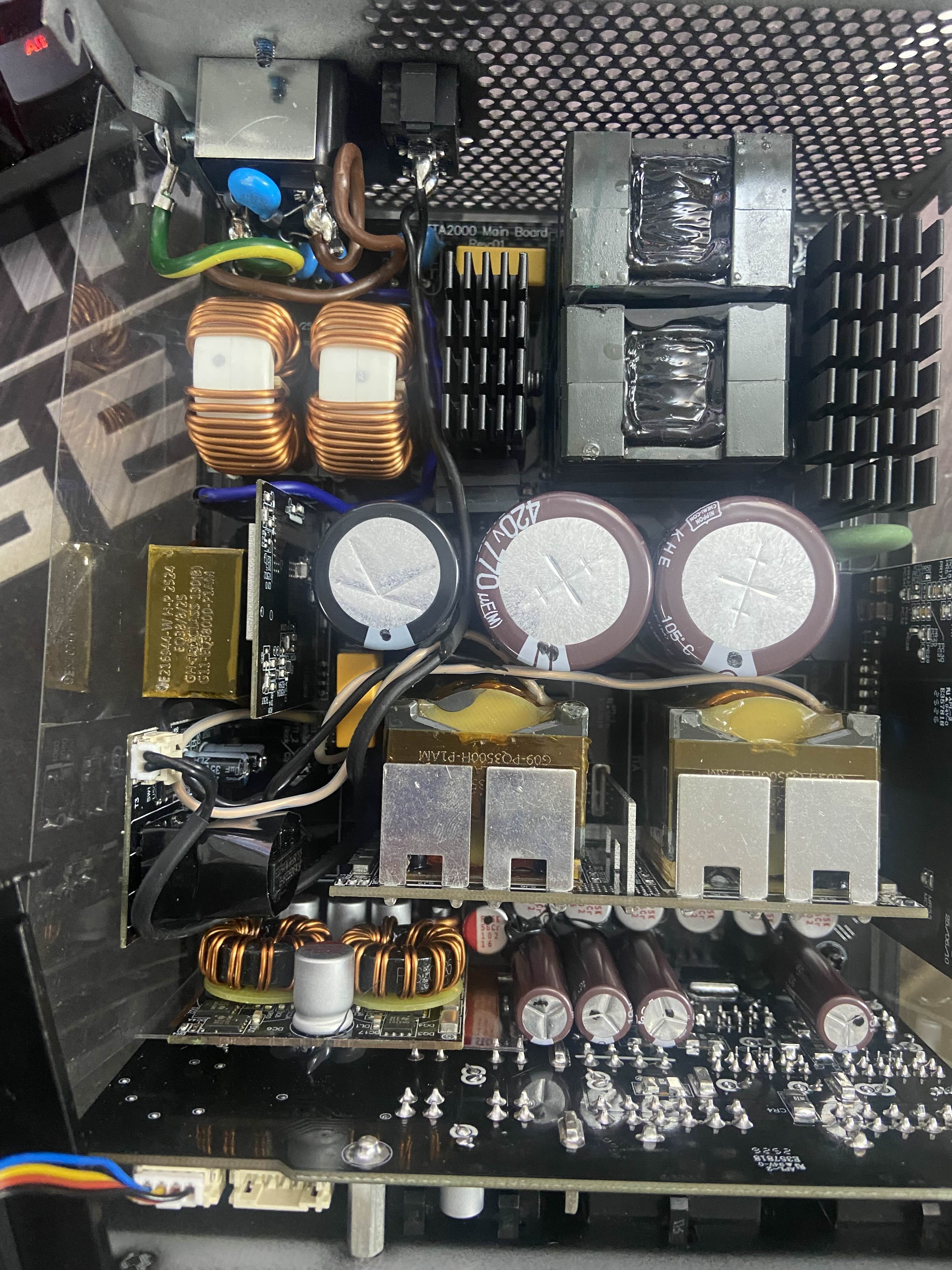

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
