CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Duex Pulse 650W
Serial Number-
Lab IDDX65003020
Certification ID253020
  • Test Result Report ID: 25PS3020A
  • Certificate Issue Date: Nov 13, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandDuex
Manufacturer (OEM)Kinpower
SeriesPulse
Model Number
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Rifle Bearing Fan (EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.230.3
Watts103650153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (590mm) 1 1 18AWG Copper
4+4 pin EPS12V (700mm) 1 1 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 18AWG Copper
SATA (450mm+150mm+150mm) 2 6 18AWG Copper
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG Copper

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72 20D-15 (20 Ohm @ 25°C) & Relay
Bridge Rectifier
1x
APFC MOSFETs
2x SI-Trend SI24N50F
APFC Boost Diode
STMicroelectronics STTH12S06 (600V, 12A @ 175°C)
Bulk Cap(s)
TK (420V, 390uF, 2000h @ 105°C, LW)
Main Switchers
2x Fuxin Semiconductor FXN18N50F (500V, 10.2A @ 100°C, Rds(on): 0.38Ohm)

PFC/PWM Combo Controller

Champion CM6800UNX
Topology Primary side: APFC, Double Forward
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x FuXin Semiconductor FXN0306C
5V & 3.3V DC-DC Converters:  4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm)
PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic:
21x TK (@105°C, SZ)
Polymer: 5x Chengx
Supervisor IC IN1S4291-SCG
Fan Model HUAXINRONG EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB Circuit
Rectifier
RS1M
Standby PWM Controller
FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Efficiency RatingBRONZE
Noise RatingStandard
Average Efficiency (>1450 load combinations)84.670%
Average Noise Output (>1450 Load Combinations)40.40dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load60.567%
Standby Power Consumption0.0637W
12V Ripple (Full Load)27.21mV
5V Ripple (Full Load)33.93mV
3.3V Ripple (Full Load)42.63mV
5VSB Ripple (Full Load)16.11mV
12V Load Regulation1.80%
5V Load Regulation4.67%
3.3V Load Regulation0.48%
5VSB Load Regulation6.91%
Inrush Current8.820A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.4
AC Loss to PWR_OK Hold Up Time (ms)12.4
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 109.98 V 109.96 V 108.90 V 110.02 V 111.10 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.17 % 0.07 % N/A 0.26 % 2.00 % PASS
Real Power: 0.064 W 0.005 W N/A 0.092 W N/A N/A
Apparent Power: 4.055 W 4.015 W N/A 4.096 W N/A N/A
Power Factor: 0.016 N/A N/A N/A N/A N/A

Graphs 115V

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

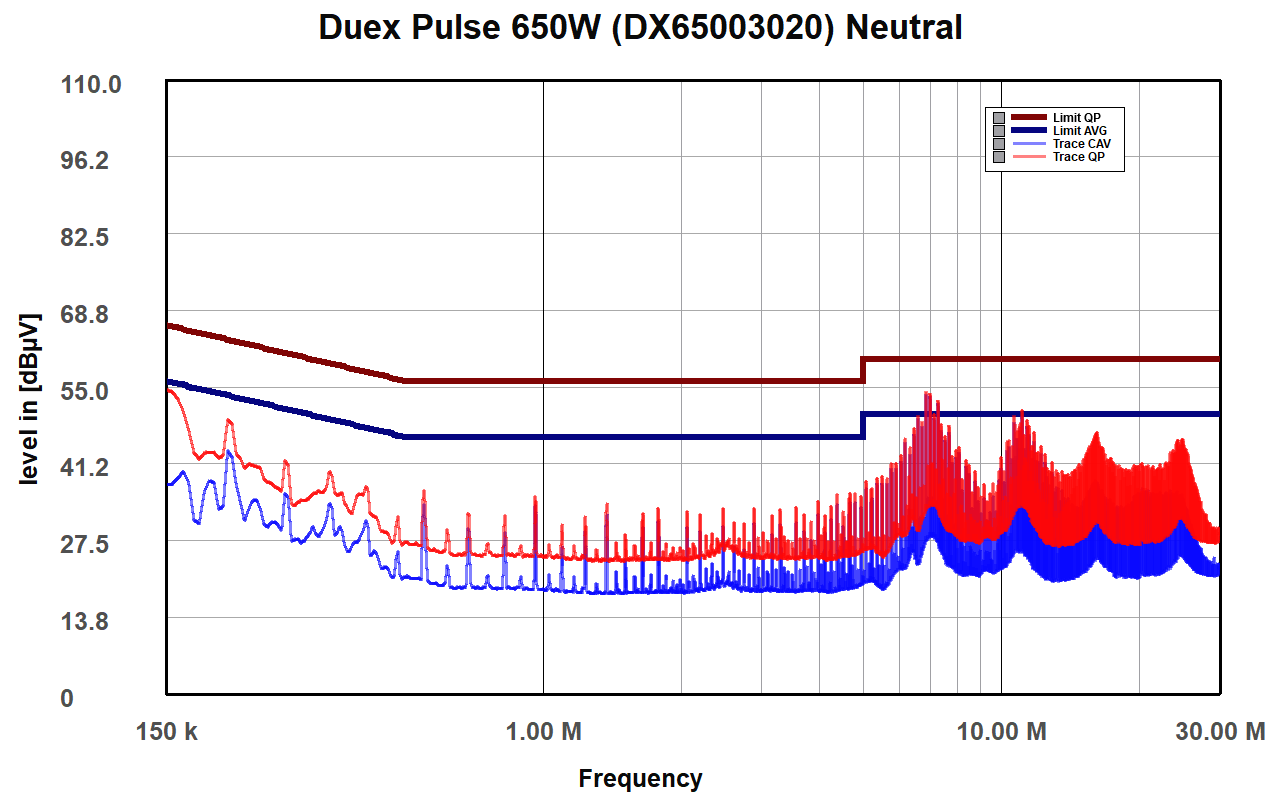

NEUTRAL

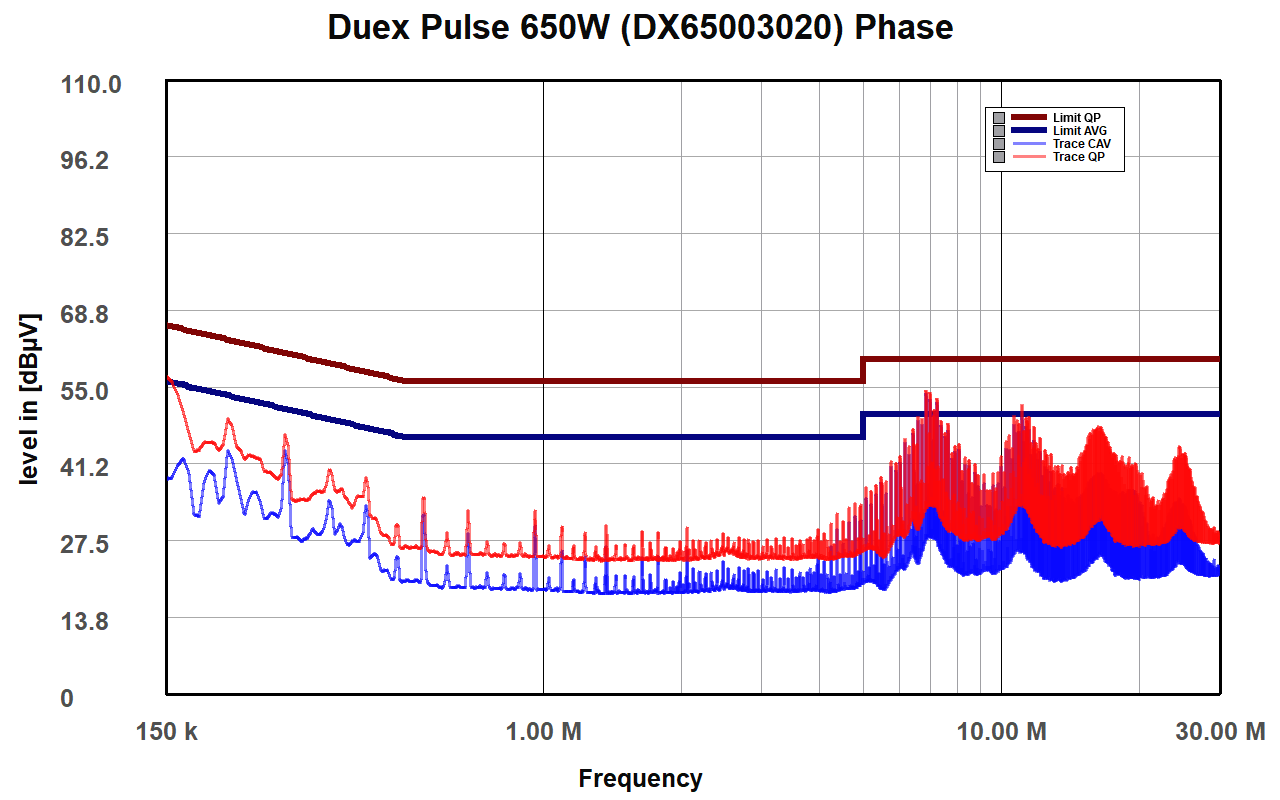

PHASE

Indicative Performance

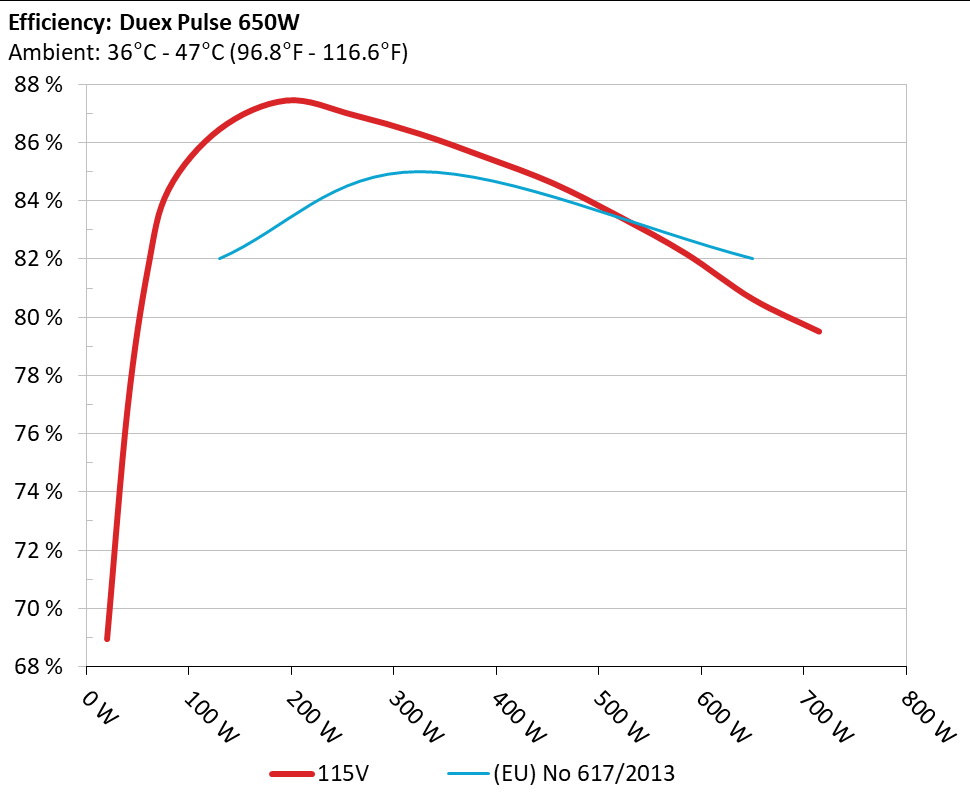

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

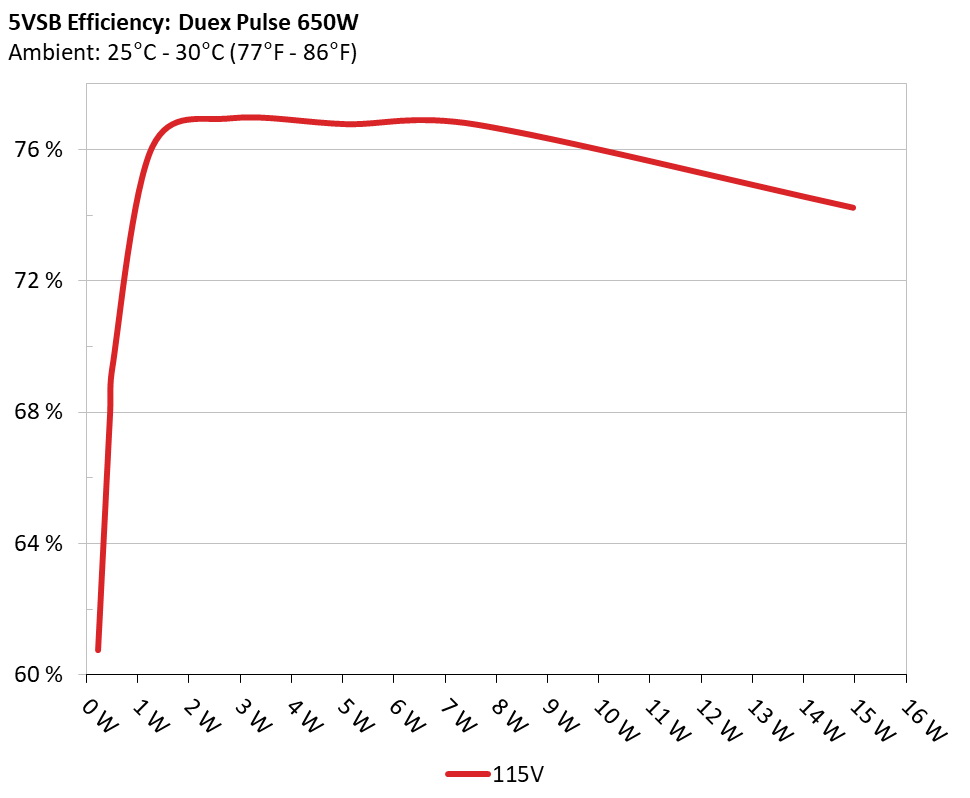

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 60.764% 0.096
5.167V 0.383W 114.96V
2 0.09A 0.465W 67.916% 0.162
5.164V 0.685W 114.97V
3 0.55A 2.826W 76.937% 0.444
5.137V 3.673W 114.98V
4 1A 5.111W 76.755% 0.514
5.11V 6.659W 114.98V
5 1.5A 7.621W 76.742% 0.545
5.079V 9.931W 114.97V
6 3.001A 14.958W 74.218% 0.572
4.985V 20.155W 114.97V

Protection Features

OCP (Normal @ 27.0°C)12V: 56.00A (103.32%), 11.930V
5V: 23.7A (118.50%), 4.974V
3.3V: 23.9A (119.50%), 3.311V
5VSB: 4.5A (150.00%), 4.879V
OCP (Hot @ 41.1°C)12V: 54.80A (101.11%), 11.933V
5V: 22.8A (114.00%), 4.961V
3.3V: 22.9A (114.50%), 3.302V
5VSB: 4.4A (146.67%), 4.88V
OPP (Normal @ 28.4°C)750.33W (115.43%)
OPP (Hot @ 43.7°C)692.71W (106.57%)
OTP✓ (125°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.595A 1.984A 1.964A 0.983A 65.02 81.444% 1014 25.8 40.45°C 0.943
12.076V 5.043V 3.362V 5.09V 79.835 43.61°C 114.89V
20% 8.219A 2.989A 2.943A 1.186A 129.994 86.45% 1018 25.9 40.95°C 0.965
12.054V 5.021V 3.365V 5.063V 150.369 44.71°C 114.86V
30% 13.207A 3.5A 3.434A 1.39A 195.009 87.43% 1019 25.9 41.03°C 0.968
12.035V 5.002V 3.365V 5.037V 223.047 46.7°C 114.85V
40% 18.216A 4.015A 3.924A 1.597A 260.107 86.934% 1614 39.5 41.83°C 0.976
12.017V 4.984V 3.365V 5.01V 299.202 46.98°C 114.84V
50% 22.889A 5.04A 4.901A 1.807A 325.116 86.284% 1996 45.4 42.45°C 0.981
11.997V 4.962V 3.368V 4.982V 376.798 46.19°C 114.82V
60% 27.555A 6.077A 5.877A 2.001A 389.72 85.476% 2159 47.3 42.74°C 0.984
11.976V 4.939V 3.37V 4.955V 455.941 47.26°C 114.8V
70% 32.290A 7.125A 6.854A 2.235A 455.128 84.591% 2165 47.3 43.01°C 0.986
11.954V 4.915V 3.372V 4.924V 538.037 49.28°C 114.79V
80% 37.049A 8.182A 7.827A 2.347A 519.934 83.446% 2160 47.3 43.92°C 0.988
11.931V 4.89V 3.373V 4.901V 623.082 51.19°C 114.77V
90% 42.235A 8.734A 8.305A 2.46A 585.352 82.164% 2163 47.3 44.23°C 0.988
11.906V 4.867V 3.372V 4.879V 712.422 53.7°C 114.76V
100% 47.188A 9.293A 8.813A 3.113A 650.179 80.615% 2168 47.3 45.09°C 0.989
11.877V 4.844V 3.37V 4.82V 806.534 56.65°C 114.76V
110% 51.998A 10.375A 9.875A 3.121A 714.784 79.505% 2173 47.3 46.55°C 0.989
11.856V 4.82V 3.373V 4.808V 899.058 57.18°C 114.72V
CL1 0.117A 12.531A 11.973A 0A 104.326 79.091% 1037 26.7 40.33°C 0.971
12.042V 4.948V 3.416V 5.12V 131.916 43.96°C 114.87V
CL2 0.116A 20.316A 0.001A 0A 101.41 76.146% 1052 27 41.03°C 0.97
12.053V 4.922V 3.343V 5.129V 133.178 44.76°C 114.87V
CL3 0.116A 0.001A 19.837A 0A 67.408 71.008% 1015 25.8 40.34°C 0.956
12.053V 5V 3.327V 5.129V 94.934 43.48°C 114.88V
CL4 54.566A 0.004A 0.003A 0A 649.999 82.33% 2191 47.3 45.27°C 0.989
11.912V 4.924V 3.326V 5.053V 789.513 47.23°C 114.74V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.493A 0.491A 0.194A 20.017 68.954% 1003 25.5 36.14°C 0.872
12.091V 5.07V 3.358V 5.153V 29.03 37.24°C 114.9V
40W 2.706A 0.692A 0.688A 0.292A 40.014 76.868% 1009 25.6 37.53°C 0.929
12.085V 5.061V 3.358V 5.143V 52.055 41.07°C 114.89V
60W 4.184A 0.891A 0.885A 0.39A 60.013 81.691% 1008 25.6 38.12°C 0.943
12.080V 5.054V 3.357V 5.132V 73.463 40.81°C 114.88V
80W 5.662A 1.09A 1.082A 0.488A 79.995 84.374% 1011 25.7 39.61°C 0.958
12.075V 5.047V 3.357V 5.122V 94.81 42.19°C 114.88V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load13.38mV13.92mV11.04mV11.11mVPass
20% Load16.18mV15.71mV13.07mV11.26mVPass
30% Load19.03mV16.93mV15.46mV11.67mVPass
40% Load16.94mV18.92mV17.44mV11.72mVPass
50% Load18.22mV21.07mV20.60mV12.17mVPass
60% Load19.84mV24.12mV23.29mV13.04mVPass
70% Load20.91mV26.22mV25.64mV13.81mVPass
80% Load22.59mV29.58mV38.40mV14.06mVPass
90% Load25.90mV31.27mV40.79mV15.03mVPass
100% Load27.21mV33.93mV42.63mV16.11mVPass
110% Load29.55mV37.08mV47.29mV16.85mVPass
Crossload113.87mV21.72mV30.99mV8.44mVPass
Crossload214.55mV28.06mV18.62mV8.76mVPass
Crossload314.91mV18.41mV33.77mV8.61mVPass
Crossload427.38mV29.29mV28.84mV11.43mVPass

The results above are not used in the certification process

Duex Pulse 650W

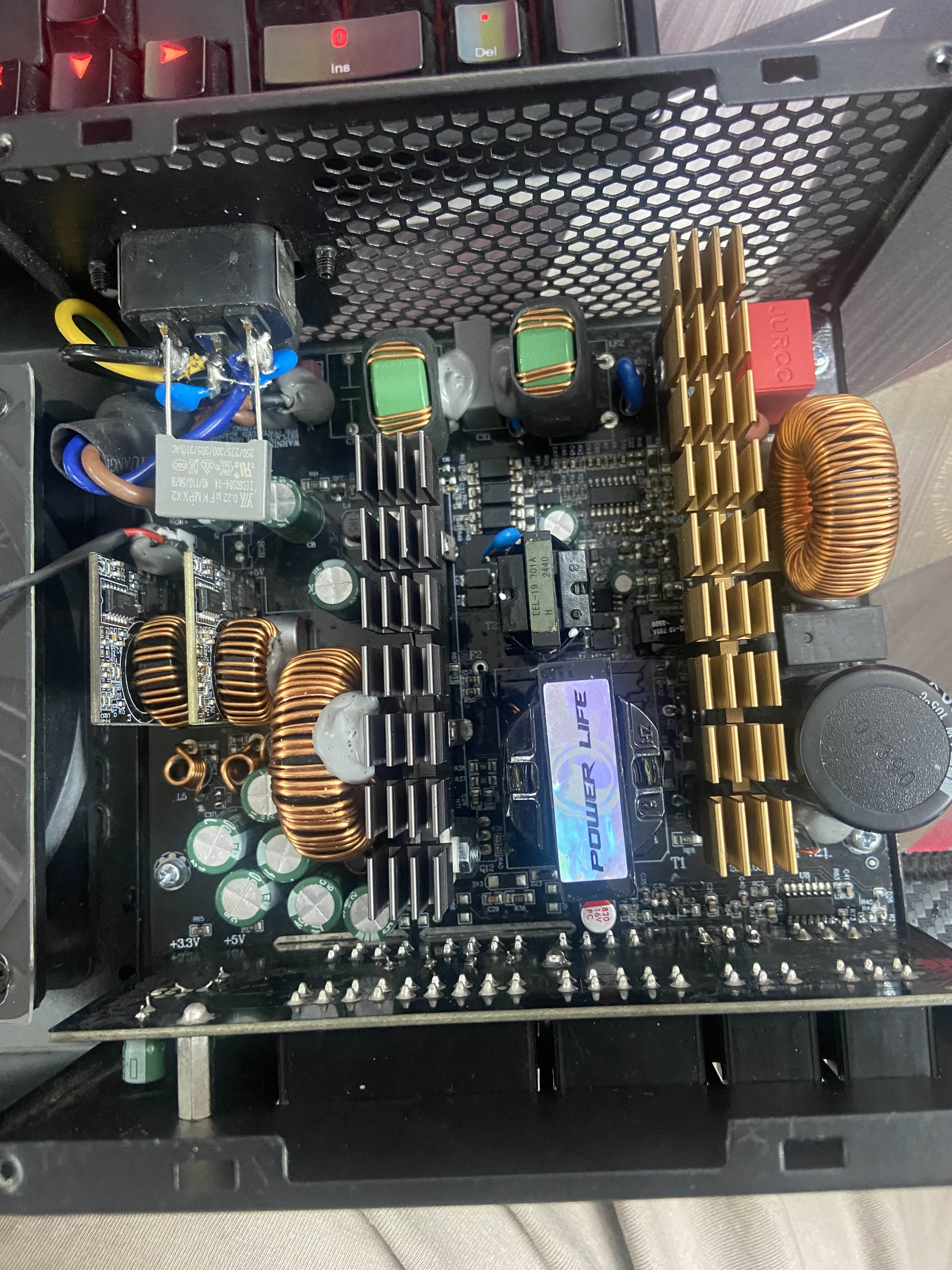

Top side

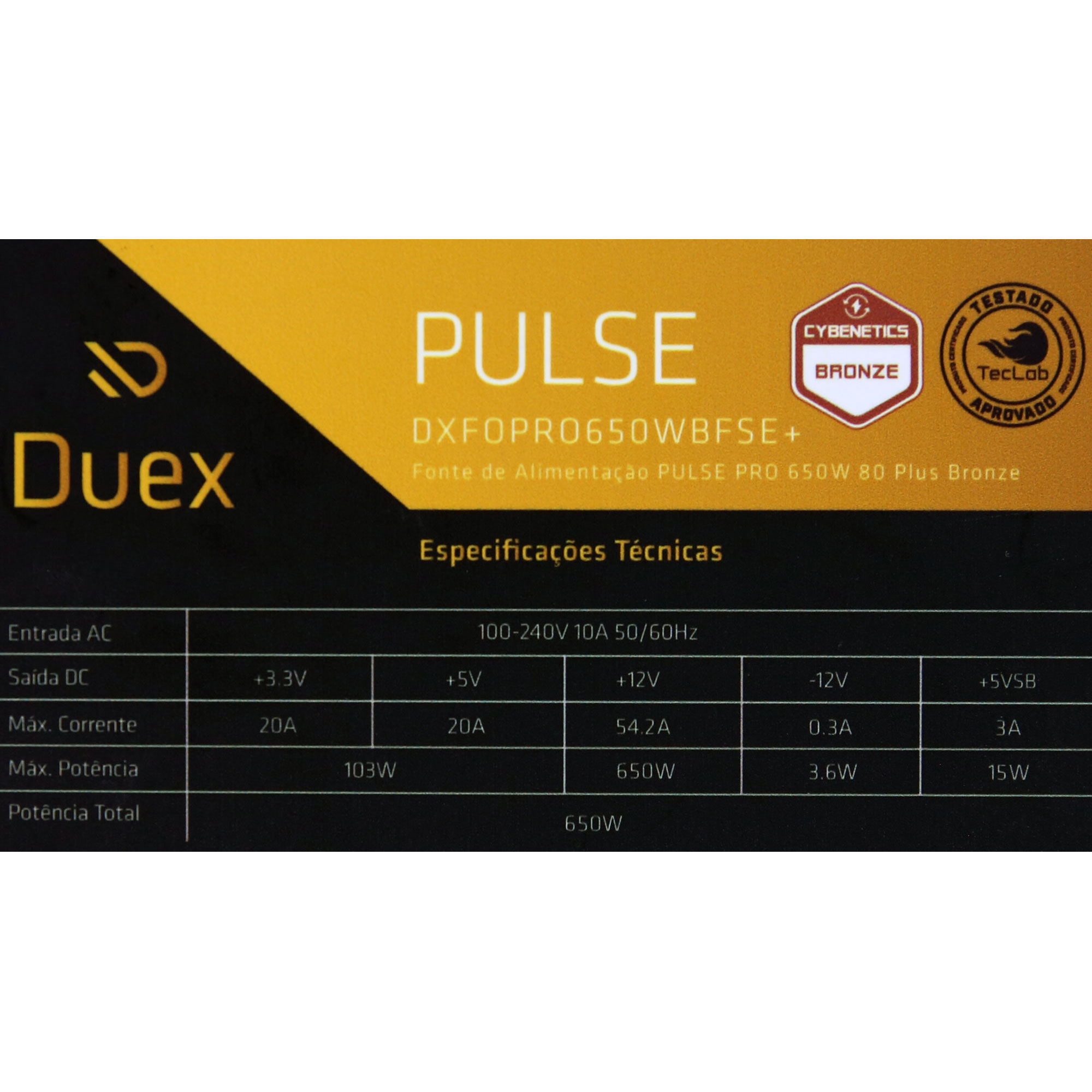

Power specifications label

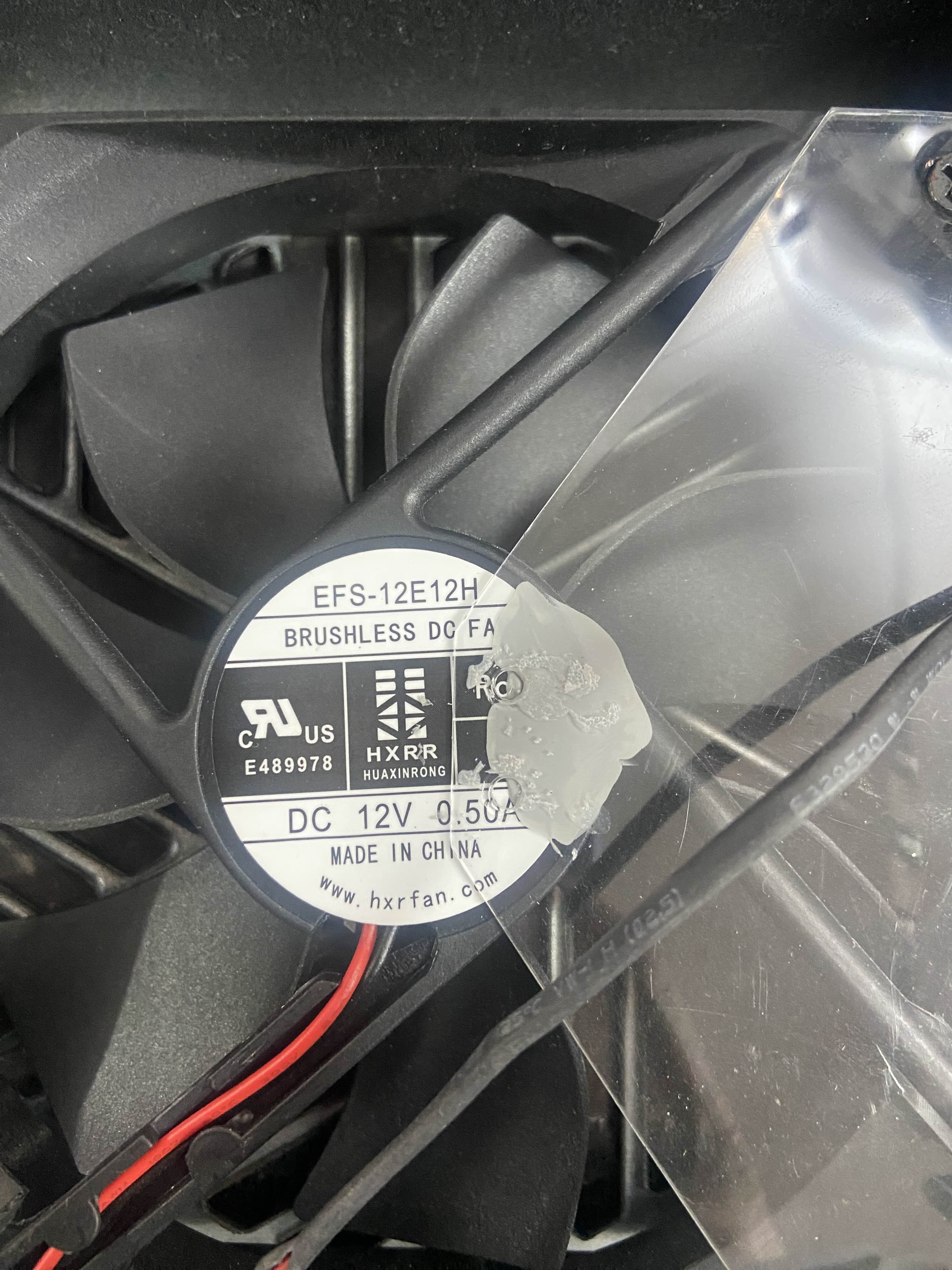

Fan

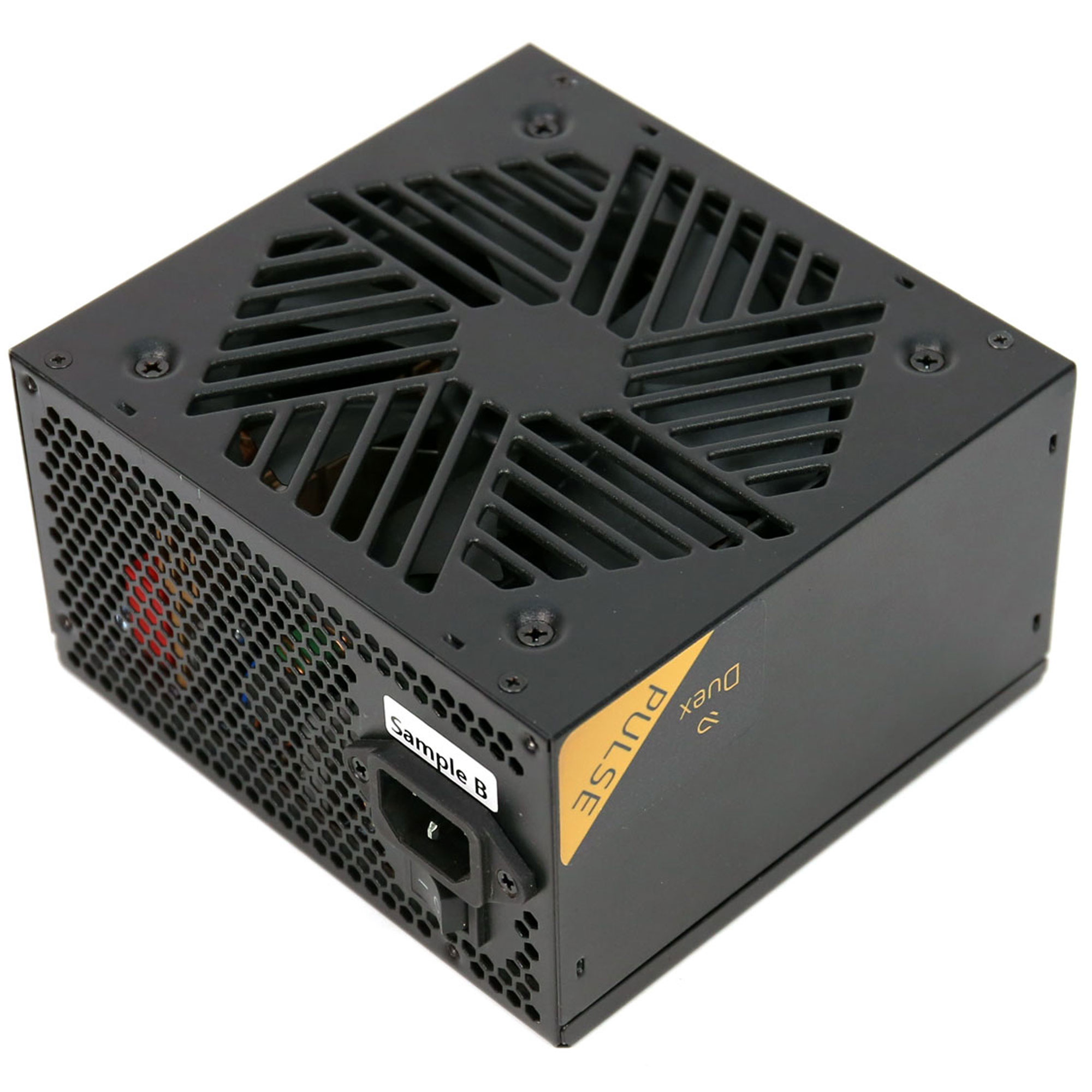

PSU
