Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 24 pin (600mm)
1
1
16-20AWG
Tinned Copper
4+4 pin EPS12V (750mm)
2
2
18AWG
Tinned Copper
6+2 pin PCIe (600mm)
1
1
16AWG
Tinned Copper
12+4 pin PCIe (600mm) (600W)
2
2
16-24AWG
Tinned Copper
SATA (500mm+150mm+150mm+150mm)
2
8
18AWG
Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm)
1
4
18AWG
Tinned Copper
AC Power Cord (1390mm) - C13 coupler
1
1
18AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
89.065%
Average Noise Output (>1450 Load Combinations)
20.88dBA
Average PF (>1450 Load Combinations)
0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load
76.547%
Standby Power Consumption
0.0149W
12V Ripple (Full Load)
27.17mV
5V Ripple (Full Load)
22.71mV
3.3V Ripple (Full Load)
23.52mV
5VSB Ripple (Full Load)
16.95mV
12V Load Regulation
0.93%
5V Load Regulation
1.02%
3.3V Load Regulation
1.63%
5VSB Load Regulation
1.22%
Inrush Current
Too low to detect
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
91.034%
Average Noise Output (>1450 Load Combinations)
20.83dBA
Average PF (>1450 Load Combinations)
0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load
60.396%
Standby Power Consumption
0.0787W
12V Ripple (Full Load)
28.26mV
5V Ripple (Full Load)
22.90mV
3.3V Ripple (Full Load)
24.99mV
5VSB Ripple (Full Load)
14.32mV
12V Load Regulation
0.90%
5V Load Regulation
1.00%
3.3V Load Regulation
1.63%
5VSB Load Regulation
1.20%
Inrush Current
Too low to detect
12V Transient Response (200%)
11.08V
5V Transient Response (200%)
4.884V
3.3V Transient Response (200%)
3.214V
5VSB Transient Response (200%)
4.873V
Hold-Up Time & Power Ok Signal
26.80ms
AC Loss to PWR_OK Hold Up Time
22.80ms
PWR_OK Inactive to DC Loss Delay
4.00ms
PSU Timings: T1 (20% / 100%)
96.0ms
68.0ms
PSU Timings: T3 (20% / 100%)
132.0ms
129.0ms
12V OCP (27.5°C / 45.5°C)
127.40A (122.38%), 12.031V
122.80A (117.96%), 12.027V
5V OCP (27.5°C / 45.5°C)
28.8A (130.91%), 5.022V
27.2A (123.64%), 5.011V
3.3V OCP (27.5°C / 45.5°C)
28.6A (130.00%), 3.348V
27.2A (123.64%), 3.337V
5VSB OCP (27.5°C / 45.5°C)
5.2A (173.33%), 5.03V
5.1A (170.00%), 5.031V
OPP (28.55°C / 46.00°C)
124.15%
119.79%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
26.8
AC Loss to PWR_OK Hold Up Time (ms)
22.8
PWR_OK Inactive to DC Loss Delay (ms)
4
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.02 V
114.99 V
113.85 V
115.08 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.96 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.417
1.490
PASS
Mains Voltage THD:
0.13 %
0.11 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.015 W
0.001 W
N/A
0.030 W
N/A
N/A
Apparent Power:
12.322 W
12.302 W
N/A
12.343 W
N/A
N/A
Power Factor:
0.001
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.00 V
229.97 V
227.70 V
230.02 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.15 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.079 W
0.041 W
N/A
0.128 W
N/A
N/A
Apparent Power:
40.690 W
40.650 W
N/A
40.726 W
N/A
N/A
Power Factor:
0.001
N/A
N/A
N/A
N/A
N/A
Graphs

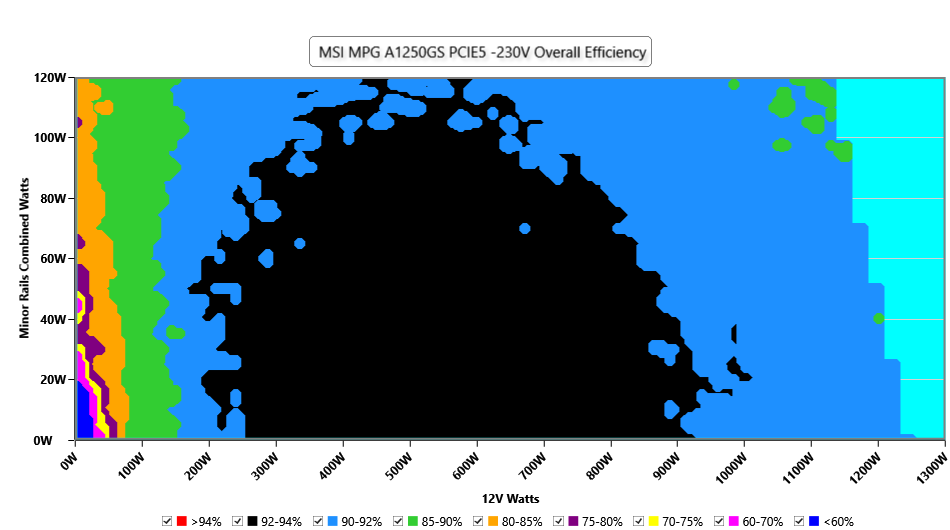

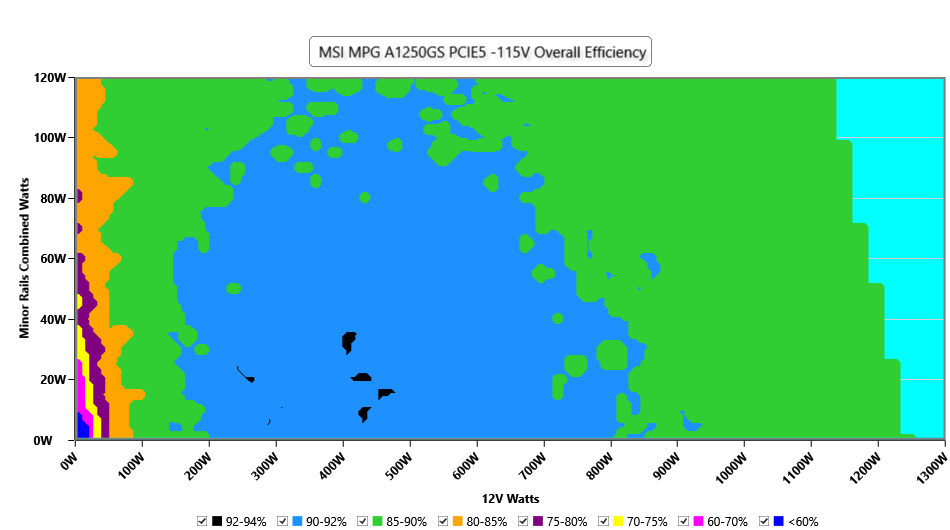

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

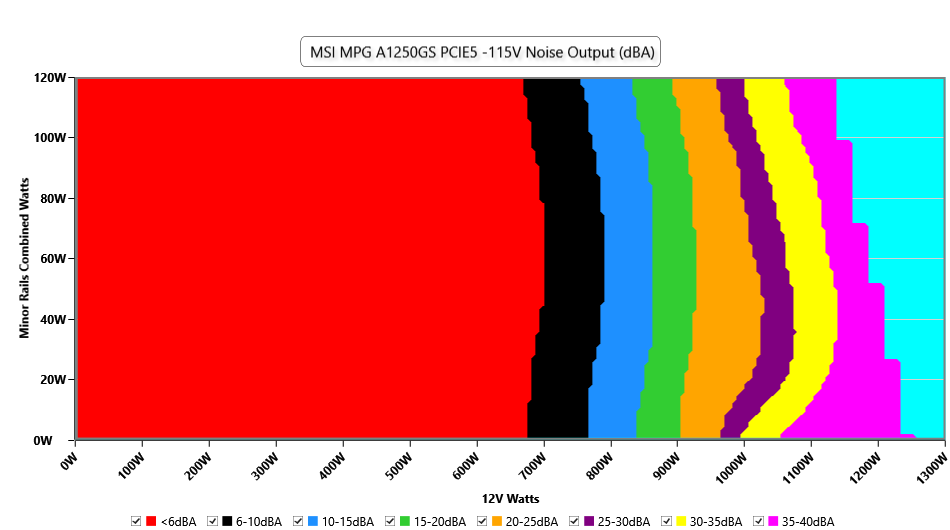

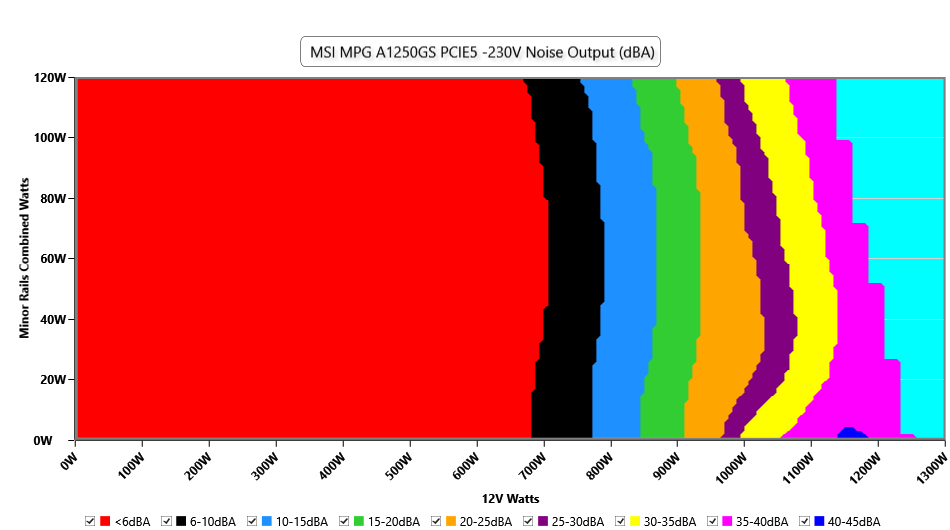

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

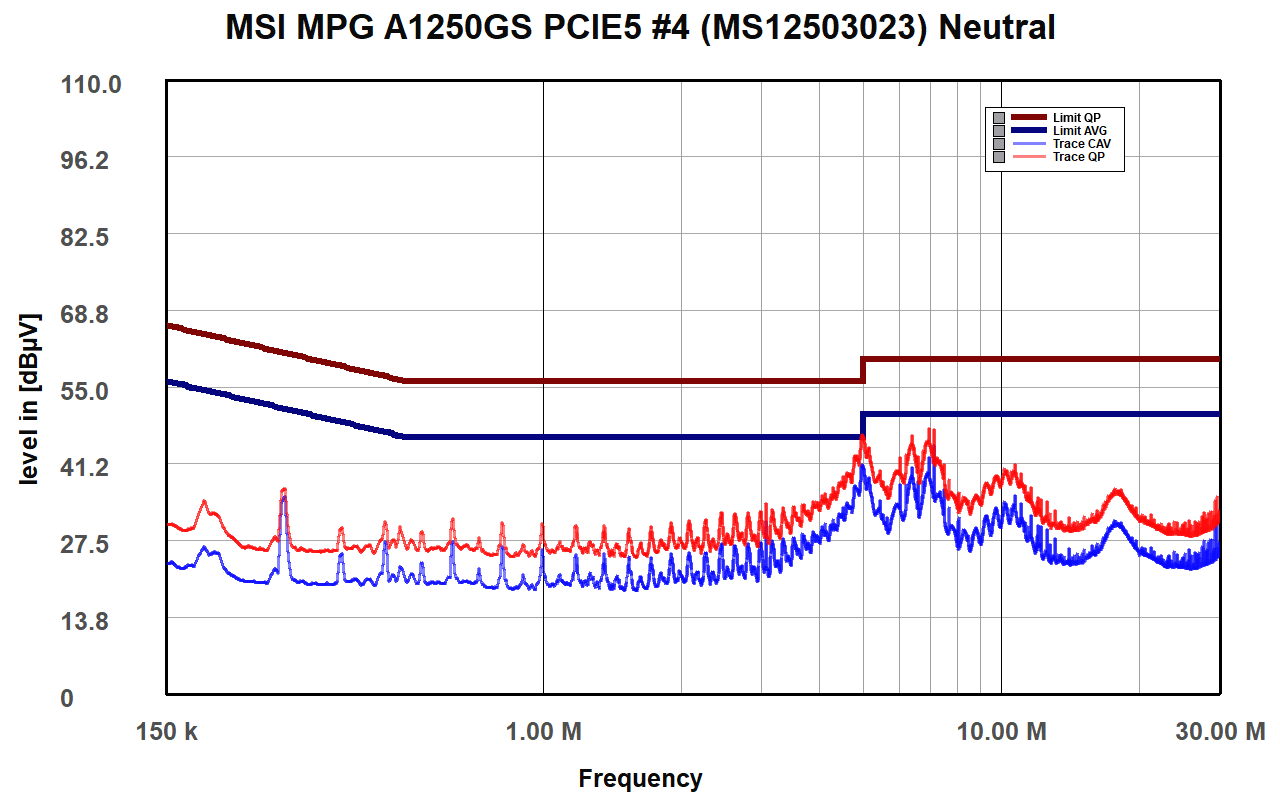

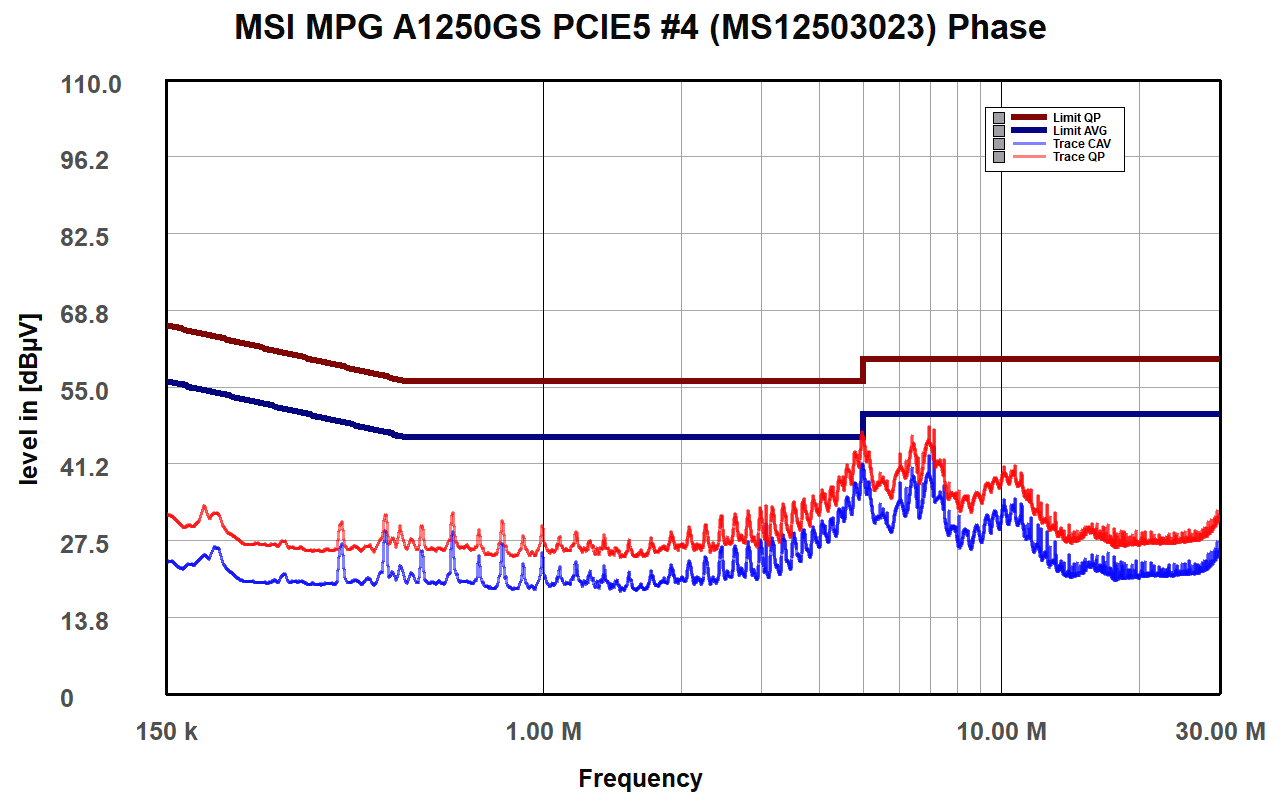

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

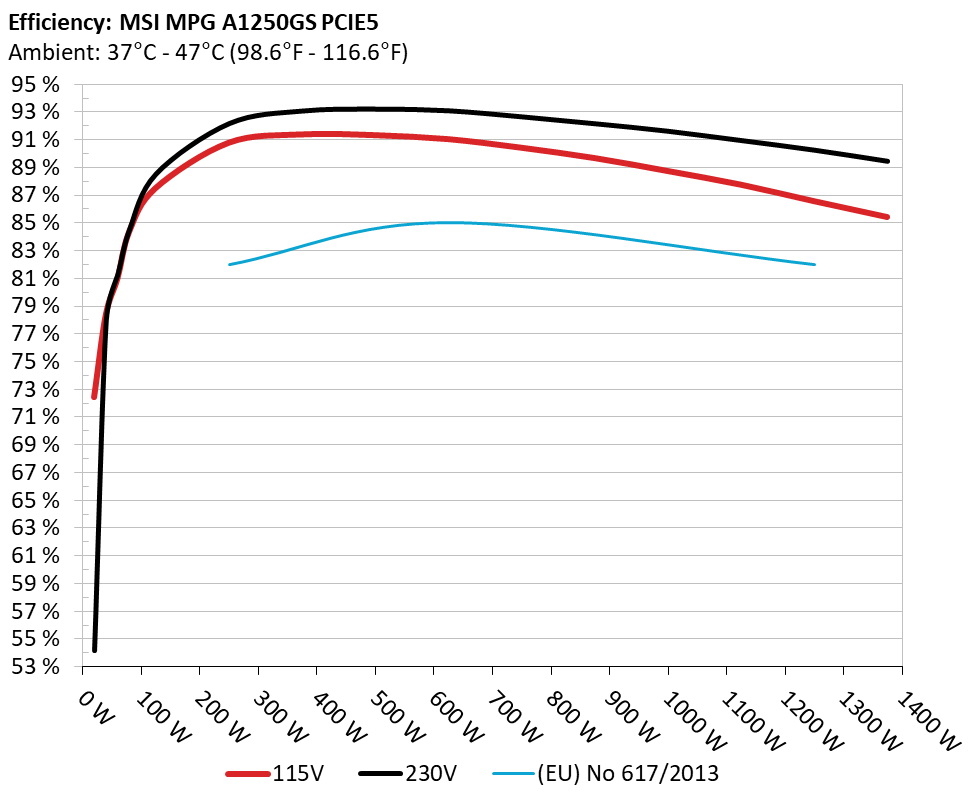

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

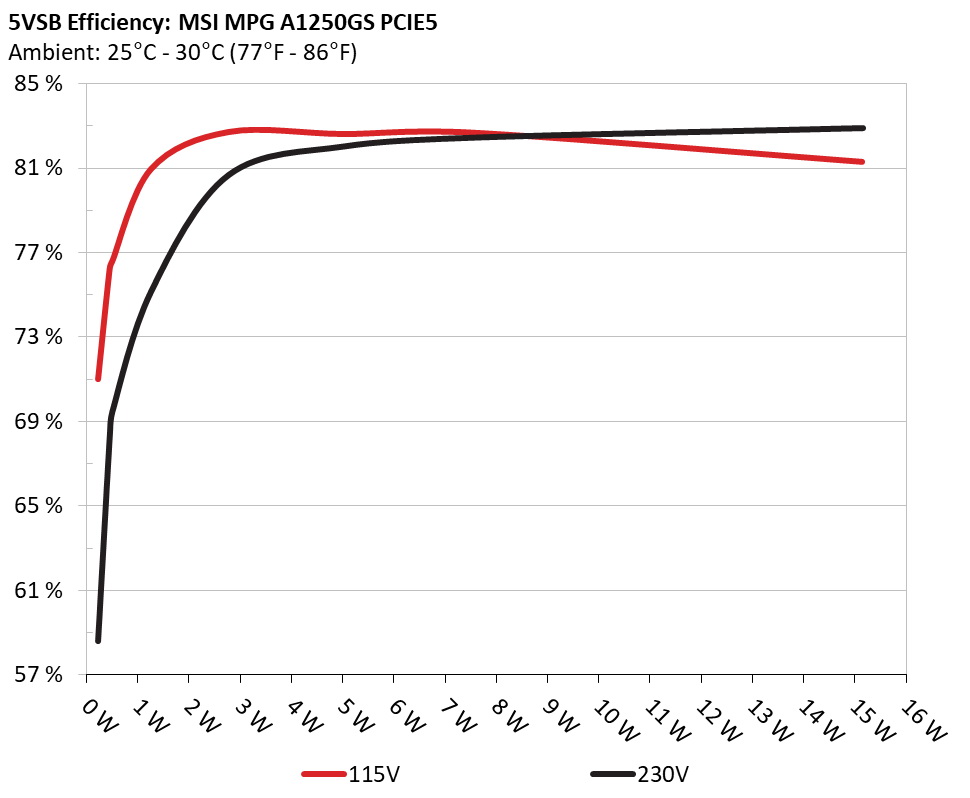

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.503A
1.983A
1.96A
0.992A
124.953
87.541%
0
<6.0
41.17°C
0.969
12.155V
5.044V
3.368V
5.039V
142.782
40.08°C
115.09V
20%
18.037A
2.978A
2.944A
1.192A
249.953
90.819%
0
<6.0
44.19°C
0.984
12.145V
5.038V
3.362V
5.033V
268.683
40.7°C
112.56V
30%
27.883A
3.478A
3.441A
1.393A
374.38
91.418%
0
<6.0
44.98°C
0.994
12.134V
5.033V
3.357V
5.027V
408.734
41.48°C
114.83V
40%
37.806A
3.978A
3.938A
1.593A
499.521
91.362%
343
<6.0
41.88°C
0.995
12.123V
5.029V
3.352V
5.021V
546.741
76.51°C
114.97V
50%
47.422A
4.977A
4.931A
1.795A
624.858
91.076%
461
<6.0
42.17°C
0.995
12.111V
5.024V
3.347V
5.015V
686.057
78.4°C
114.93V
60%
56.997A
5.979A
5.926A
1.997A
749.395
90.457%
611
9.8
42.61°C
0.995
12.098V
5.019V
3.341V
5.008V
828.448
76.93°C
114.88V
70%
66.653A
6.983A
6.926A
2.2A
874.675
89.708%
792
18.7
43.46°C
0.995
12.086V
5.014V
3.336V
5.001V
974.968
75.67°C
114.84V
80%
76.331A
7.986A
7.927A
2.303A
999.462
88.773%
1120
29.8
43.62°C
0.995
12.074V
5.008V
3.33V
4.995V
1125.833
73.6°C
114.79V
90%
86.413A
8.492A
8.42A
2.406A
1124.868
87.784%
1590
40.5
44.86°C
0.995
12.063V
5.004V
3.325V
4.989V
1281.383
70.86°C
114.74V
100%
96.252A
8.999A
8.945A
3.01A
1249.7
86.592%
2136
48.6
45.05°C
0.995
12.052V
5V
3.32V
4.983V
1443.155
69.41°C
114.69V
110%
105.988A
10.009A
10.046A
3.015A
1374.322
85.45%
2252
49.7
46.7°C
0.995
12.039V
4.995V
3.314V
4.976V
1608.434
73.37°C
114.63V
CL1
0.116A
14.379A
14.21A
0A
121.297
82.096%
386
<6.0
41.99°C
0.971
12.137V
5.021V
3.357V
5.027V
147.743
65.54°C
115.09V
CL2
0.114A
21.934A
0A
0A
111.331
80.691%
359
<6.0
40.58°C
0.969
12.146V
5.012V
3.355V
5.033V
137.964
63.51°C
115.09V
CL3
0.114A
0A
21.651A
0A
73.981
74.915%
354
<6.0
40.47°C
0.955
12.146V
5.016V
3.353V
5.029V
98.05
60.48°C
114.2V
CL4
103.580A
0A
0A
0A
1249.471
87.233%
1830
44.4
44.87°C
0.995
12.063V
5.007V
3.326V
4.986V
1432.333
65.9°C
114.65V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.503A
1.983A
1.959A
0.992A
124.955
88.494%
0
<6.0
41.73°C
0.915
12.154V
5.042V
3.369V
5.039V
141.206
40.12°C
230.35V
20%
18.038A
2.978A
2.944A
1.192A
249.959
92.13%
0
<6.0
40.62°C
0.972
12.144V
5.037V
3.363V
5.033V
271.29
38.47°C
230.33V
30%
27.885A
3.478A
3.44A
1.393A
374.399
93.036%
0
<6.0
41.28°C
0.982
12.133V
5.032V
3.358V
5.027V
402.399
38.22°C
230.31V
40%
37.808A
3.979A
3.937A
1.593A
499.539
93.176%
344
<6.0
41.54°C
0.989
12.123V
5.028V
3.353V
5.022V
536.092
63.44°C
230.28V
50%
47.423A
4.978A
4.929A
1.795A
624.882
93.055%
443
<6.0
42.24°C
0.991
12.111V
5.024V
3.348V
5.015V
671.475
65.82°C
230.26V
60%
56.997A
5.98A
5.925A
1.997A
749.415
92.62%
611
9.8
42.73°C
0.992
12.099V
5.018V
3.342V
5.008V
809.079
66.35°C
230.24V
70%
66.656A
6.985A
6.924A
2.2A
874.698
92.123%
803
19.2
43.11°C
0.994
12.086V
5.012V
3.337V
5.001V
949.454
65.92°C
230.22V
80%
76.324A
7.988A
7.925A
2.303A
999.464
91.582%
1057
28
43.76°C
0.995
12.075V
5.007V
3.331V
4.995V
1091.326
64.64°C
230.21V
90%
86.412A
8.493A
8.418A
2.406A
1124.878
90.91%
1539
39.7
44.95°C
0.995
12.063V
5.004V
3.326V
4.989V
1237.267
62.72°C
230.19V
100%
96.250A
9A
8.943A
3.01A
1249.715
90.218%
2014
46.8
45.34°C
0.996
12.052V
5V
3.321V
4.984V
1385.154
61.24°C
230.17V
110%
105.982A
10.009A
10.044A
3.014A
1374.331
89.42%
2250
49.7
46.16°C
0.996
12.040V
4.995V
3.315V
4.977V
1536.925
62.38°C
230.15V
CL1
0.116A
14.381A
14.209A
0A
121.299
82.922%
366
<6.0
41.76°C
0.92
12.138V
5.02V
3.357V
5.027V
146.304
60.73°C
230.36V
CL2
0.114A
21.939A
0A
0A
111.332
81.468%
362
<6.0
40.54°C
0.91
12.147V
5.011V
3.356V
5.033V
136.704
59.44°C
230.36V
CL3
0.114A
0A
21.652A
0A
73.982
74.971%
358
<6.0
40.76°C
0.866
12.147V
5.015V
3.353V
5.029V
98.678
57.98°C
230.36V
CL4
103.577A
0A
0A
0A
1249.467
90.838%
2046
47.1
45.43°C
0.996
12.063V
5.005V
3.326V
4.986V
1375.531
62.31°C
230.16V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.221A
0.495A
0.489A
0.198A
20
72.43%
0
<6.0
37.99°C
0.822
12.164V
5.051V
3.374V
5.044V
27.685
36.83°C
115.12V
40W
2.689A
0.693A
0.685A
0.297A
40
78.388%
0
<6.0
39.33°C
0.912
12.158V
5.05V
3.373V
5.043V
51.065
37.68°C
115.11V
60W
4.155A
0.891A
0.881A
0.397A
60
81.023%
0
<6.0
40.18°C
0.943
12.161V
5.048V
3.372V
5.042V
74.079
38.43°C
115.11V
80W
5.619A
1.09A
1.077A
0.496A
79.943
84.393%
0
<6.0
40.69°C
0.956
12.159V
5.047V
3.37V
5.041V
94.338
39.22°C
114.56V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.221A
0.495A
0.489A
0.198A
20.001
54.135%
0
<6.0
37.38°C
0.43
12.161V
5.05V
3.375V
5.044V
27.59
36.9°C
230.35V
40W
2.689A
0.693A
0.685A
0.297A
40.001
77.965%
0
<6.0
38.11°C
0.683
12.157V
5.048V
3.374V
5.043V
51.348
37.06°C
230.35V
60W
4.156A
0.892A
0.88A
0.397A
60
81.273%
0
<6.0
39.57°C
0.792
12.161V
5.047V
3.373V
5.042V
74.002
38.76°C
230.35V
80W
5.619A
1.09A
1.076A
0.496A
79.942
84.505%
0
<6.0
41.93°C
0.856
12.159V
5.046V
3.372V
5.041V
94.652
39.28°C
230.34V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
18.51mV
18.13mV
17.37mV
12.28mV
Pass
20% Load
16.71mV
16.49mV
16.55mV
11.15mV
Pass
30% Load
17.53mV
16.64mV
17.27mV
10.12mV
Pass
40% Load
17.43mV
16.13mV
17.17mV
10.53mV
Pass
50% Load
17.89mV
17.73mV
18.05mV
10.74mV
Pass
60% Load
19.64mV
18.50mV
18.46mV
11.51mV
Pass
70% Load
22.74mV
18.39mV
19.39mV
12.34mV
Pass
80% Load
23.98mV
20.55mV
20.89mV
14.04mV
Pass
90% Load
26.55mV
23.08mV
22.44mV
15.95mV
Pass
100% Load
27.17mV
22.71mV
23.52mV
16.95mV
Pass
110% Load
29.11mV
23.24mV
24.08mV
18.28mV
Pass
Crossload1
17.56mV
17.82mV
19.85mV
13.40mV
Pass
Crossload2
17.69mV
22.67mV
18.36mV
13.57mV
Pass
Crossload3
18.51mV
18.55mV
20.63mV
13.57mV
Pass
Crossload4
26.42mV
20.27mV
21.15mV
13.38mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
16.19mV
16.90mV
16.08mV
10.58mV
Pass
20% Load
17.07mV
16.79mV
17.07mV
10.63mV
Pass
30% Load
17.53mV
17.47mV
17.63mV
10.89mV
Pass
40% Load
18.77mV
17.93mV
18.41mV
11.61mV
Pass
50% Load
19.90mV
18.39mV
19.39mV
11.97mV
Pass
60% Load
20.93mV
20.04mV
21.62mV
11.82mV
Pass
70% Load
23.30mV
20.92mV
20.27mV
13.01mV
Pass
80% Load
25.00mV
20.87mV
22.24mV
13.37mV
Pass
90% Load
26.35mV
22.93mV
23.32mV
14.19mV
Pass
100% Load
28.26mV
22.90mV
24.99mV
14.32mV
Pass
110% Load
31.24mV
22.95mV
24.63mV
14.96mV
Pass
Crossload1
16.60mV
16.39mV
19.46mV
11.49mV
Pass
Crossload2
18.41mV
21.48mV
17.58mV
13.47mV
Pass
Crossload3
17.27mV
17.77mV
20.79mV
12.18mV
Pass
Crossload4
27.25mV
21.54mV
21.92mV
13.72mV
Pass
The results above are not used in the certification process
MSI MPG A1250GS PCIE5

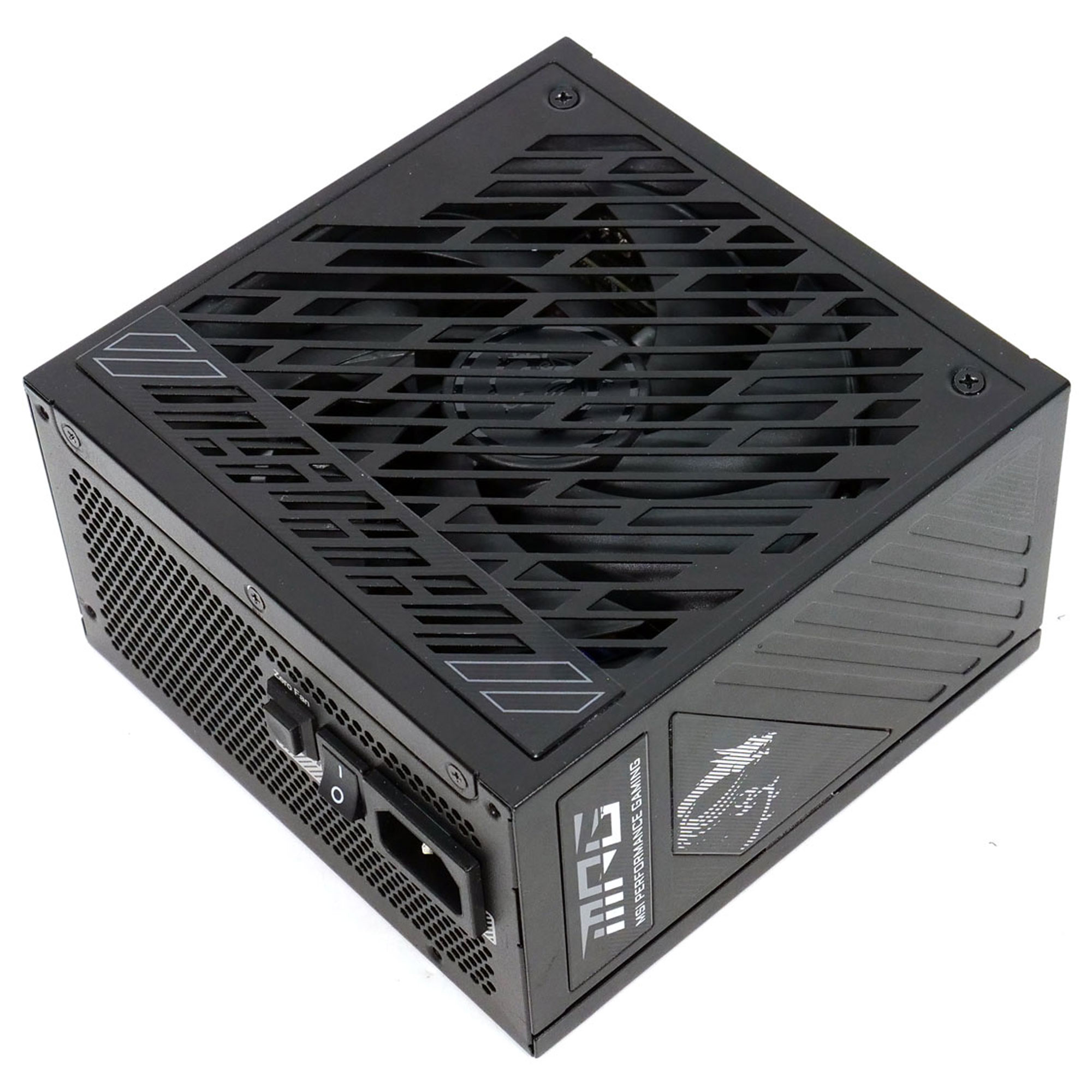

Top side

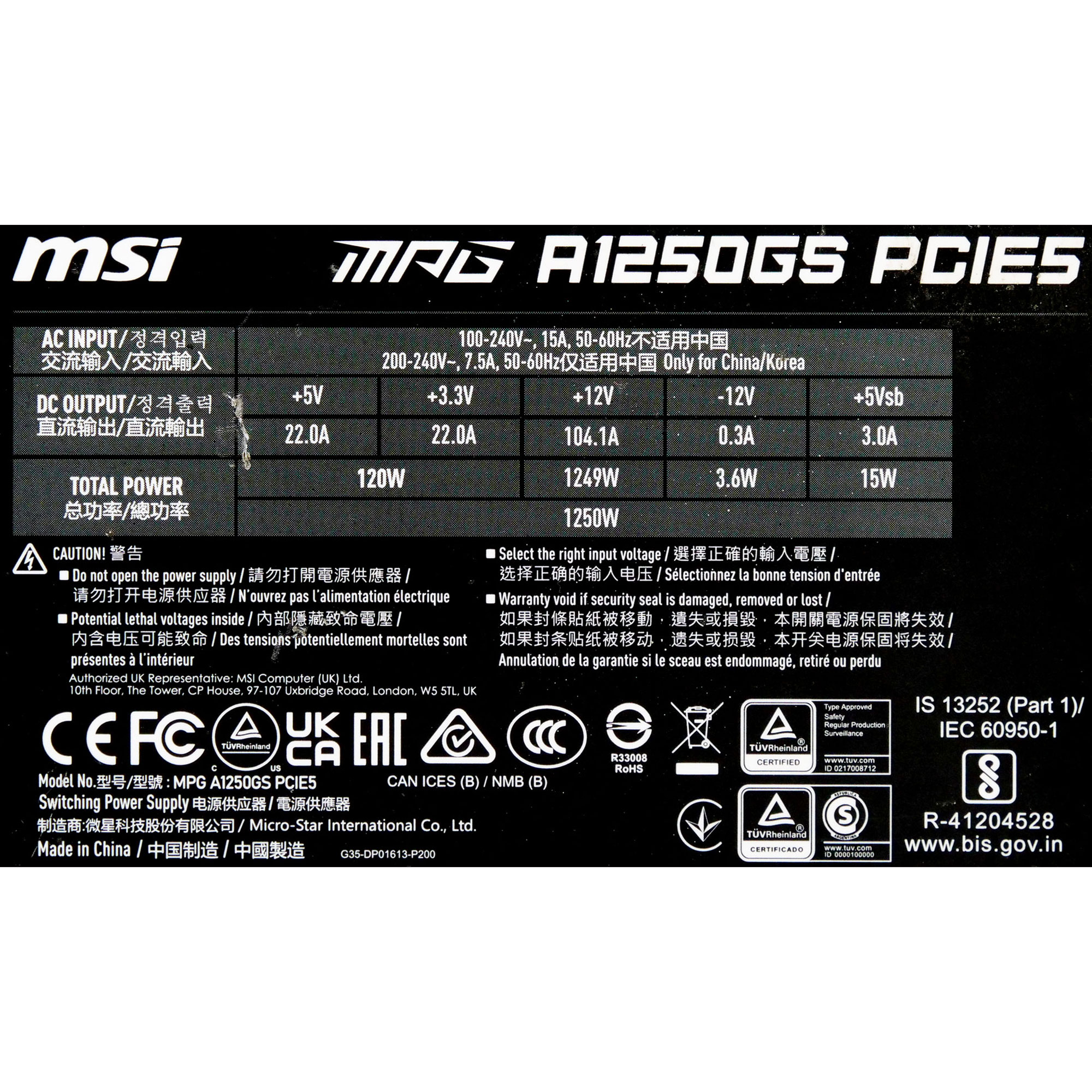

Power specifications label

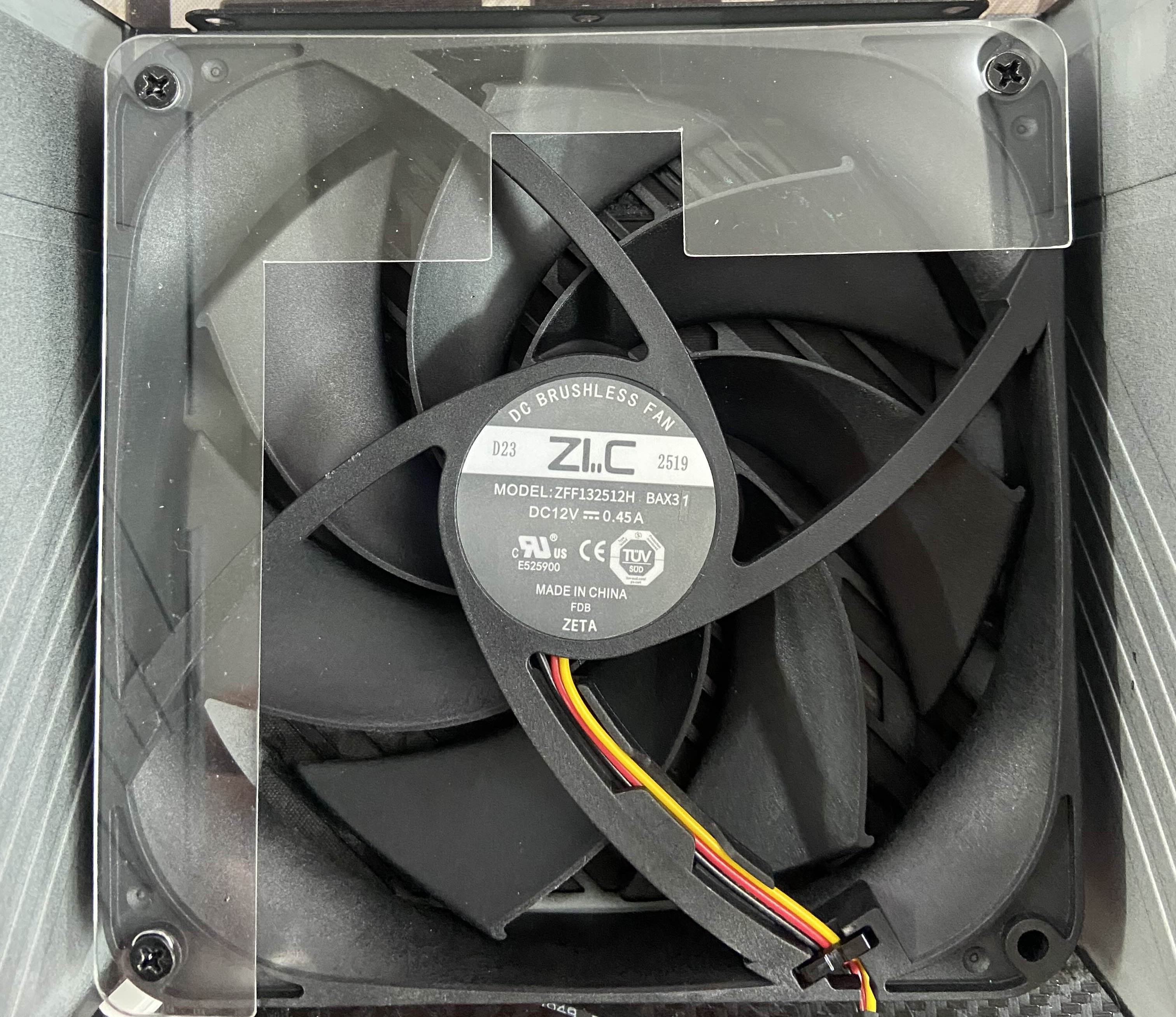

Third Photo

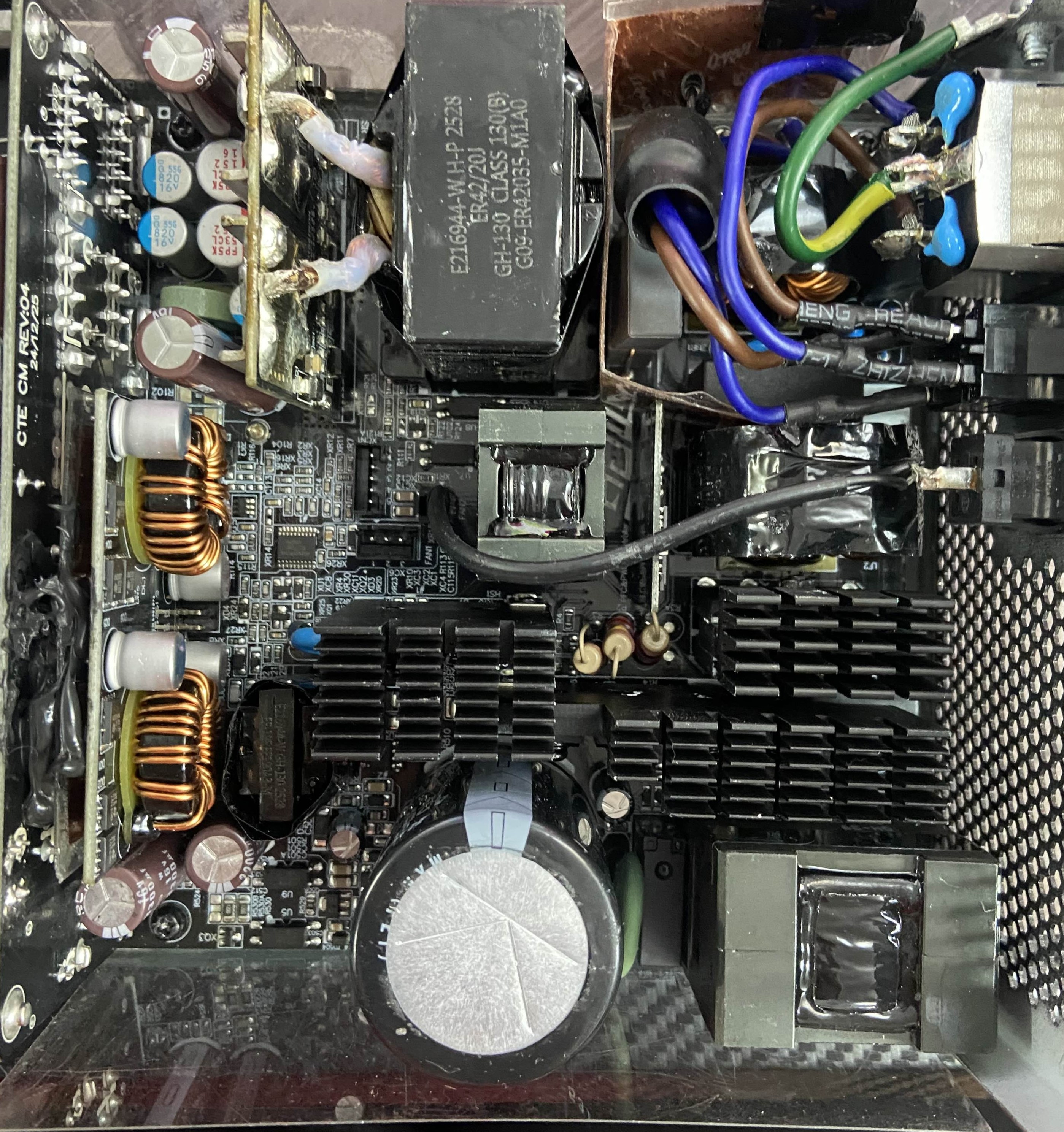

Fourth Photo
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
