CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Moaiplay Ora Pro G1 1000
Serial NumberORG01K0FFB5J0001
Lab IDMA10003028
Certification ID253028
  • Test Result Report ID: 25PS3028A
  • Certificate Issue Date: Nov 10, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandMoaiplay
Manufacturer (OEM)SANR
SeriesORA PRO G1
Model NumberORA PRO G1 1000
Serial NumberORG01K0FFB5J0001
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6.5-13
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 152mm
Cooling148mm Fluid Dynamic Bearing Fan (D14SM-12)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208330.3
Watts130996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge

Cable Type
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper

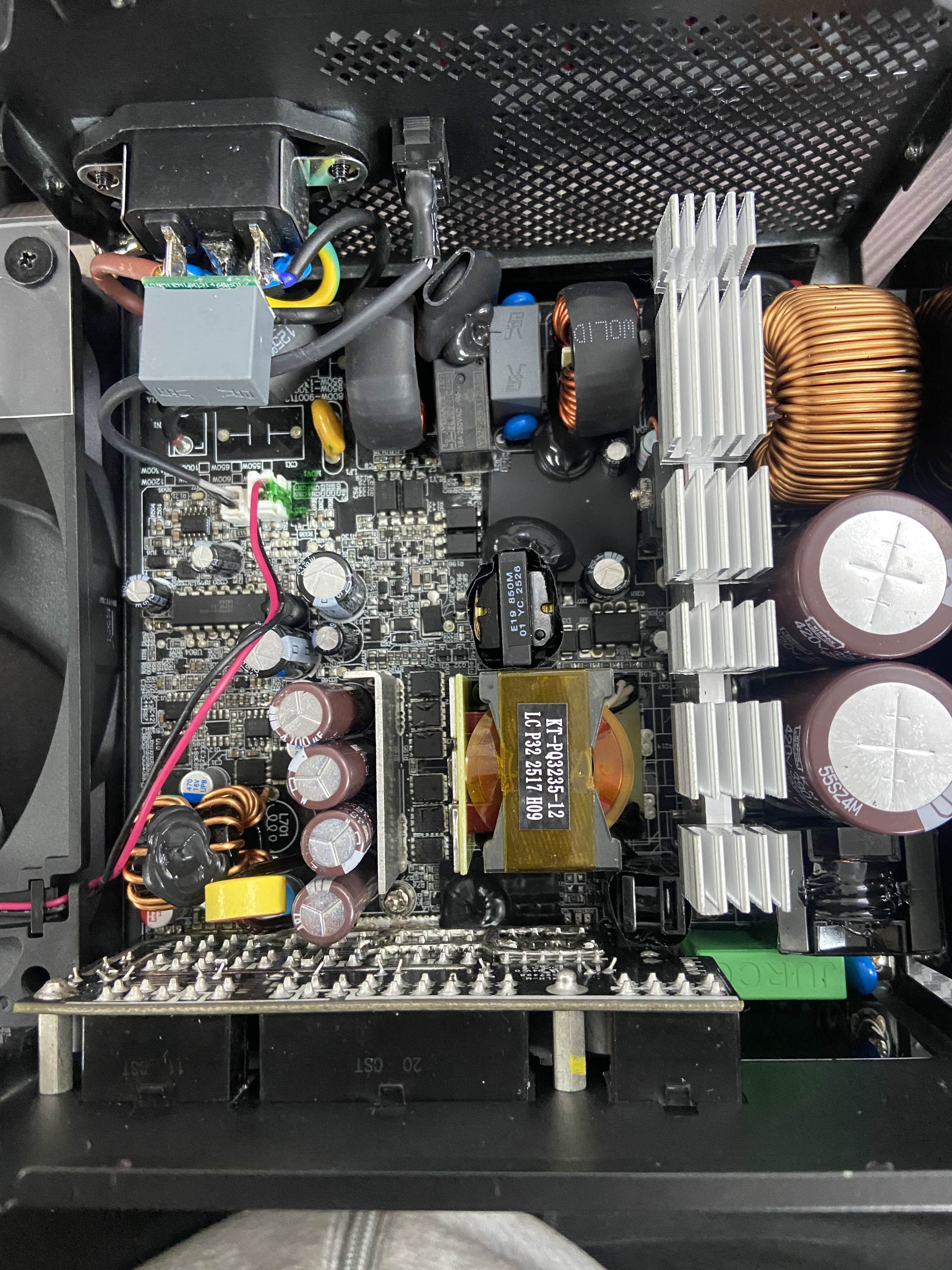

Parts Description

General Data
Manufacturer (OEM) SANR
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor M72 8D-20 (8 Ohm @ 25°C) & Relay
Bridge Rectifier
2x GBU2008 (800V, 20A @ 25°C)
APFC MOSFETs
2x Wuhan Xinyuan CWS60R125AZ (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode
PN Junction P3D06010F2 (650V, 10A @ 135°C)
Bulk Cap(s)
2x Nippon Chemi-Con (420V, 390uF each or 780uF combined, 2000h @ 105°C, KMW)
Main Switchers
2x Wuhan Xinyuan CWS60R130BF (600V, 19A @ 100°C, Rds(on): 0.130Ohm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x InPower FTG014N04SA
5V & 3.3V DC-DC Converters: 4x PTJ030N03LA
PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-Con ( @ 105°C, W)
2x Rubycon (4-10,000 @ 105°C, YXF)
2x Rubycon (3-6,000 @ 105°C, YXS)
3x Rubycon (4-10,000 @ 105°C, YXJ)
Rubycon (6-10,000 @ 105°C, ZLH)
Polymer:
16x Nippon Chemi-Con, 5x FPCAP
Supervisor IC IN1S4291-DCG
Fan Controller ANPEC APW9010

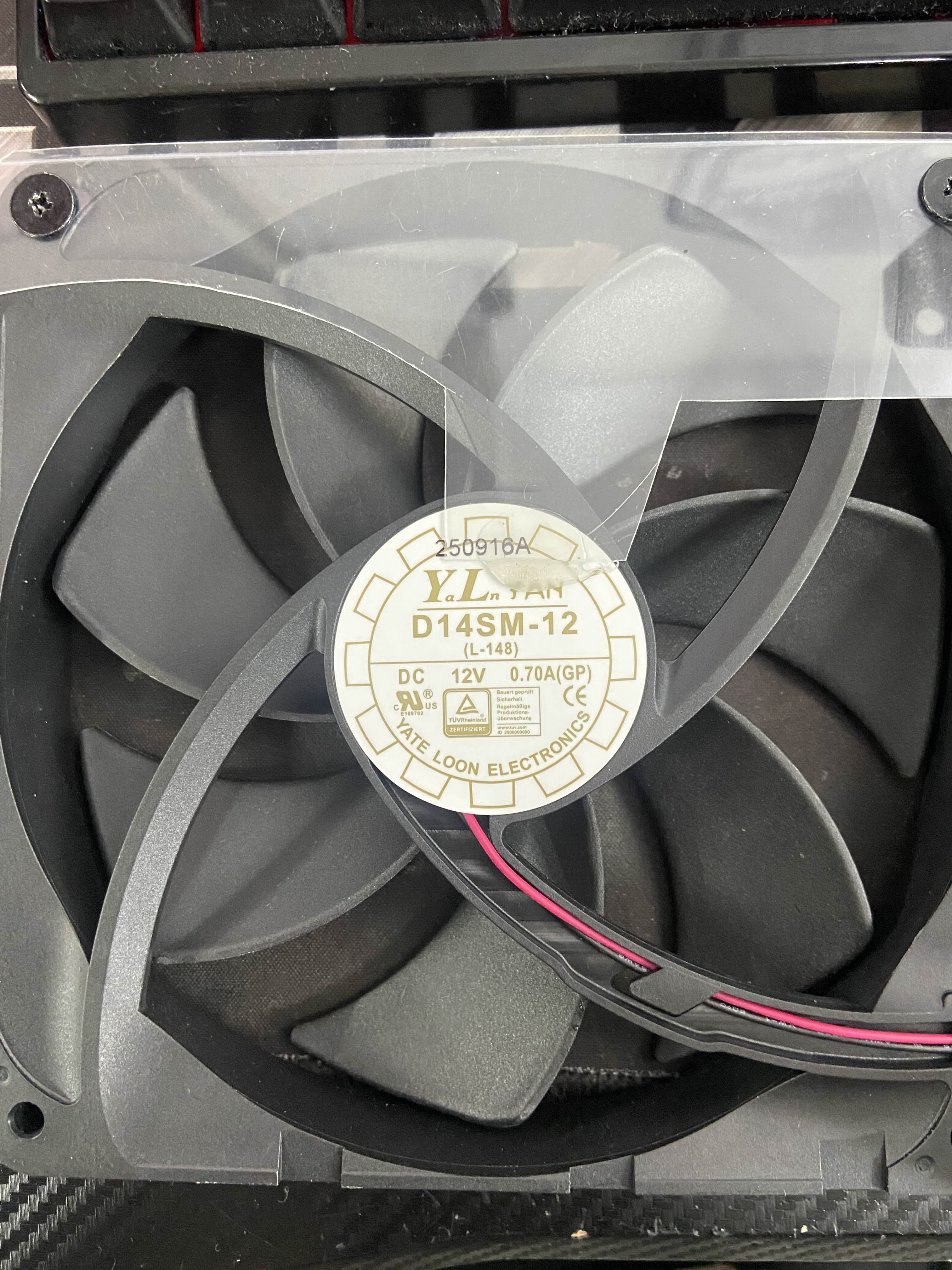

Fan Model Yate Loon D14SM-12 (148mm, 12V, 0.70A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
PingWei PS1060L (60V, 10A)
Standby PWM Controller
Depu DP2358

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)89.899%
Average Noise Output (>1450 Load Combinations)15.20dBA
Average PF (>1450 Load Combinations)0.983
Efficiency With 10W (≤500W) or 2% (>500W) Load75.250%
Standby Power Consumption0.0431W
12V Ripple (Full Load)34.37mV
5V Ripple (Full Load)23.91mV
3.3V Ripple (Full Load)25.04mV
5VSB Ripple (Full Load)23.50mV
12V Load Regulation0.52%
5V Load Regulation1.32%
3.3V Load Regulation2.55%
5VSB Load Regulation1.30%
Inrush Current22.120A
Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)92.130%
Average Noise Output (>1450 Load Combinations)14.02dBA
Average PF (>1450 Load Combinations)0.942
Efficiency With 10W (≤500W) or 2% (>500W) Load75.230%
Standby Power Consumption0.1222W
12V Ripple (Full Load)32.98mV
5V Ripple (Full Load)23.42mV
3.3V Ripple (Full Load)24.48mV
5VSB Ripple (Full Load)20.44mV
12V Load Regulation0.53%
5V Load Regulation1.42%
3.3V Load Regulation2.59%
5VSB Load Regulation1.30%
Inrush Current41.570A
12V Transient Response (200%)11.52V
5V Transient Response (200%)4.925V
3.3V Transient Response (200%)3.170V
5VSB Transient Response (200%)4.939V
Hold-Up Time & Power Ok Signal21.60ms
AC Loss to PWR_OK Hold Up Time17.00ms
PWR_OK Inactive to DC Loss Delay4.60ms
PSU Timings: T1 (20% / 100%)70.0ms71.0ms
PSU Timings: T3 (20% / 100%)121.0ms120.0ms
12V OCP (27.3°C / 43.2°C)96.00A (115.66%), 12.006V94.00A (113.25%), 12.008V
5V OCP (27.3°C / 43.2°C)29.5A (147.50%), 5.107V29.3A (146.50%), 5.107V
3.3V OCP (27.3°C / 43.2°C)29.8A (149.00%), 3.312V29.8A (149.00%), 3.311V
5VSB OCP (27.3°C / 43.2°C)3.6A (120.00%), 4.992V3.6A (120.00%), 4.991V
OPP (28.43°C / 40.39°C)125.77%123.20%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.6
AC Loss to PWR_OK Hold Up Time (ms)17
PWR_OK Inactive to DC Loss Delay (ms)4.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.00 V 114.96 V 113.85 V 115.00 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.91 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.043 W 0.008 W N/A 0.073 W N/A N/A
Apparent Power: 10.403 W 10.380 W N/A 10.425 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.97 V 227.70 V 230.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.122 W 0.078 W N/A 0.257 W N/A N/A
Apparent Power: 34.137 W 34.097 W N/A 34.182 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

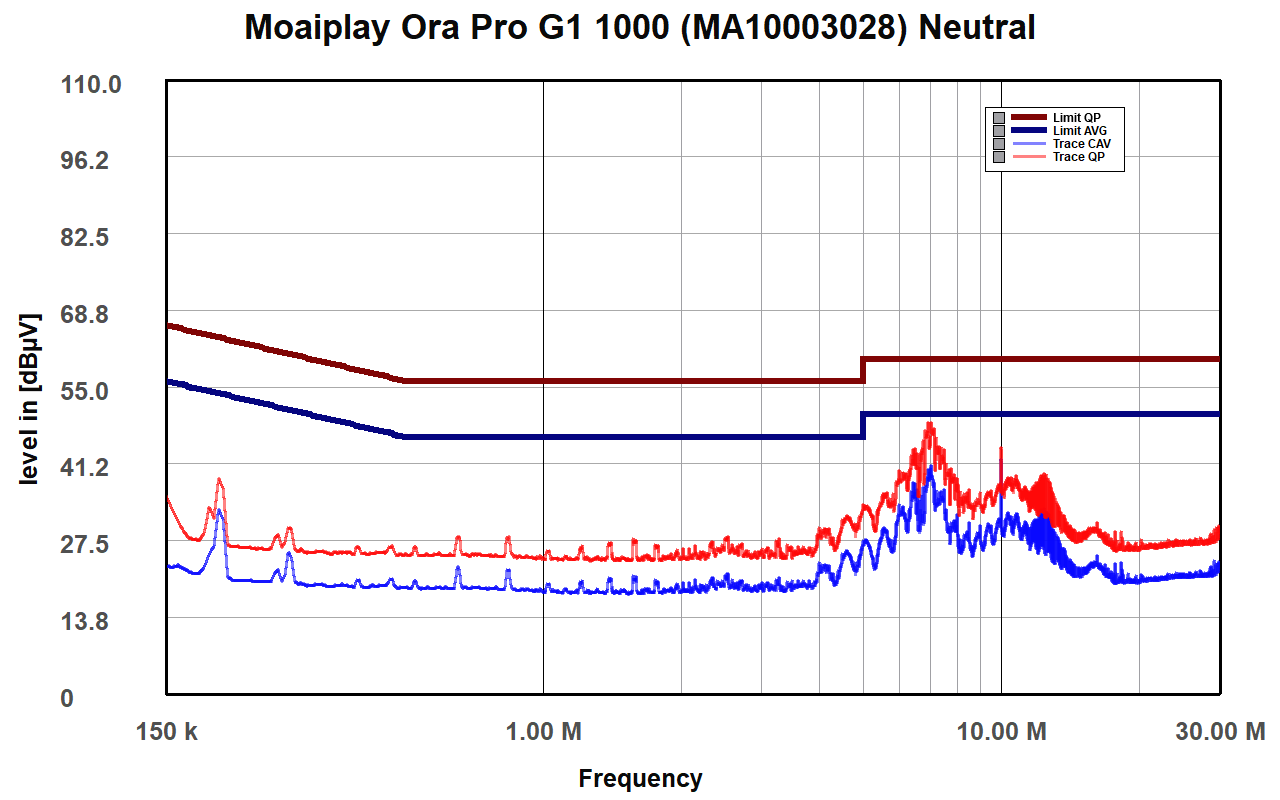

NEUTRAL

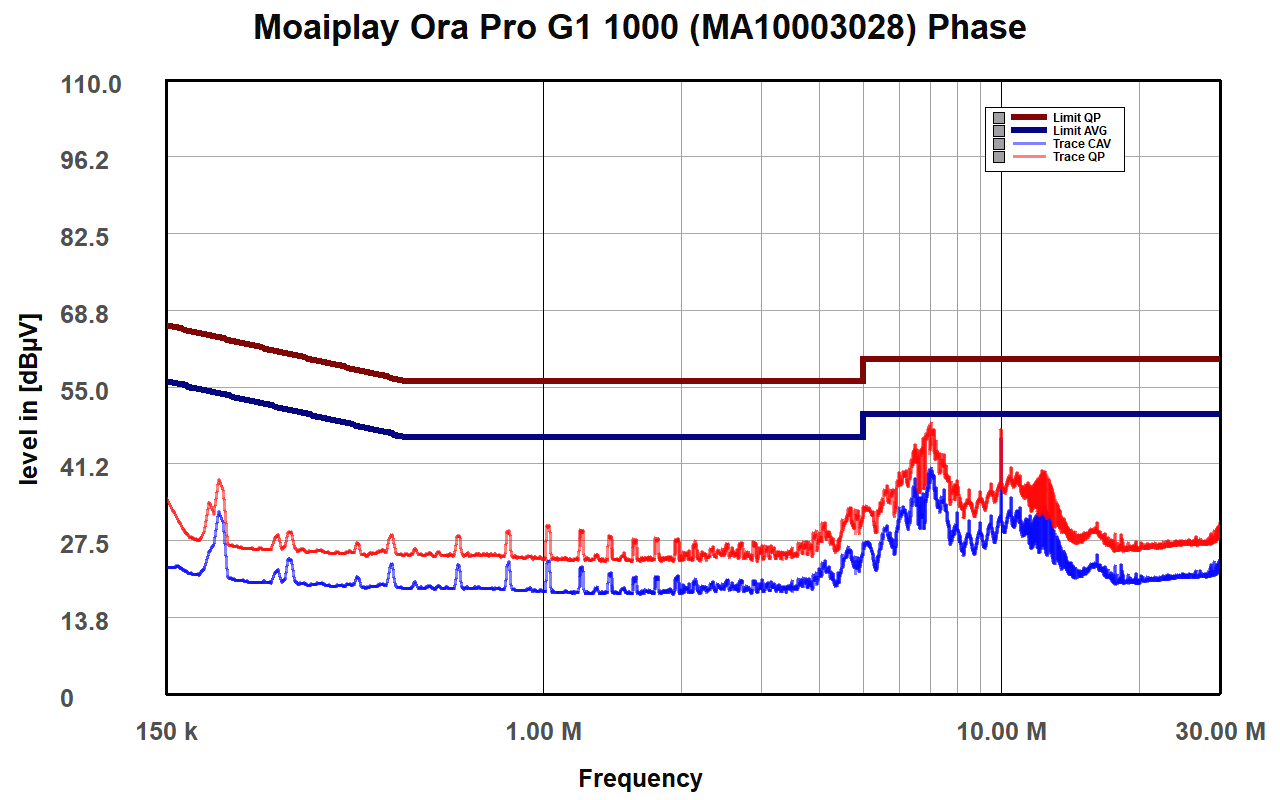

PHASE

Indicative Performance

Efficiency under high ambient temperature

5VSB Efficiency

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 69.815% 0.031
5.052V 0.326W 114.88V
2 0.09A 0.455W 75.204% 0.057
5.051V 0.605W 114.89V
3 0.55A 2.774W 80.916% 0.263
5.043V 3.428W 114.87V
4 1A 5.036W 80.42% 0.374
5.036V 6.263W 114.88V
5 1.5A 7.543W 80.005% 0.429
5.027V 9.428W 114.87V
6 3.001A 15.012W 76.962% 0.515
5.003V 19.505W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 54.172% 0.012
5.051V 0.421W 229.89V
2 0.09A 0.455W 65.736% 0.02
5.051V 0.692W 229.89V
3 0.55A 2.774W 78.509% 0.096
5.043V 3.534W 229.89V
4 1A 5.037W 79.672% 0.162
5.036V 6.322W 229.89V
5 1.5A 7.543W 79.872% 0.224
5.028V 9.445W 229.89V
6 3A 15.012W 78.705% 0.331
5.004V 19.074W 229.89V

Protection Features

OCP (Normal @ 27.3°C)12V: 96.00A (115.66%), 12.006V
5V: 29.5A (147.50%), 5.107V
3.3V: 29.8A (149.00%), 3.312V
5VSB: 3.6A (120.00%), 4.992V
OCP (Hot @ 43.2°C)12V: 94.00A (113.25%), 12.008V
5V: 29.3A (146.50%), 5.107V
3.3V: 29.8A (149.00%), 3.311V
5VSB: 3.6A (120.00%), 4.991V
OPP (Normal @ 28.4°C)1257.66W (125.77%)
OPP (Hot @ 40.4°C)1232.04W (123.20%)
OTP✓ (75°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.511A 1.969A 1.985A 0.993A 100.005 89.312% 0 <6.0 45.75°C 0.962
12.042V 5.079V 3.324V 5.035V 111.971 40.05°C 114.84V
20% 14.046A 2.957A 2.986A 1.193A 199.964 91.807% 0 <6.0 49.21°C 0.97
12.035V 5.073V 3.316V 5.03V 217.808 40.69°C 114.81V
30% 21.943A 3.453A 3.491A 1.393A 300.024 92.402% 558 11.5 41.4°C 0.979
12.030V 5.068V 3.309V 5.025V 324.699 47.02°C 114.79V
40% 29.811A 3.956A 4A 1.594A 399.618 92.319% 557 11.5 41.96°C 0.985
12.023V 5.056V 3.301V 5.019V 432.866 45.09°C 114.75V
50% 37.355A 4.952A 5.013A 1.795A 499.328 91.972% 570 12.2 42.16°C 0.988
12.015V 5.049V 3.292V 5.014V 542.912 46.32°C 114.71V
60% 44.961A 5.95A 6.031A 1.997A 599.821 91.042% 651 17.9 42.78°C 0.99
12.011V 5.043V 3.283V 5.009V 658.844 47.77°C 114.67V
70% 52.512A 6.95A 7.055A 2.199A 699.519 90.384% 715 19.4 43.44°C 0.992
12.005V 5.036V 3.275V 5.004V 773.947 49.18°C 114.63V
80% 60.140A 7.951A 8.084A 2.3A 799.514 89.57% 780 22.6 43.69°C 0.993
11.999V 5.03V 3.266V 5V 892.612 49.91°C 114.6V
90% 68.111A 8.459A 8.595A 2.402A 899.295 88.757% 877 26.8 44.61°C 0.994
11.993V 5.024V 3.257V 4.997V 1013.207 51.5°C 114.55V
100% 75.897A 8.971A 9.142A 3.01A 999.322 87.743% 1172 36.3 45.79°C 0.995
11.985V 5.016V 3.249V 4.984V 1138.918 51.11°C 114.53V
110% 83.631A 9.986A 10.279A 3.011A 1099.927 86.716% 1489 43.7 46.08°C 0.995
11.977V 5.006V 3.239V 4.982V 1268.423 51.68°C 114.48V
CL1 0.116A 15.439A 15.657A 0A 131.295 83.824% 671 18 41.95°C 0.968
12.042V 5.072V 3.295V 5.052V 156.631 46.49°C 114.82V
CL2 0.115A 19.618A 0A 0A 101.347 83.279% 581 13 41.43°C 0.967
12.045V 5.095V 3.309V 5.052V 121.691 44.39°C 114.83V
CL3 0.115A 0A 19.926A 0A 67.381 78.055% 565 12 41.89°C 0.94
12.043V 5.066V 3.312V 5.053V 86.327 44.3°C 114.84V
CL4 83.374A 0A 0A 0.001A 999.907 88.611% 817 24.6 45.09°C 0.994
11.993V 5.026V 3.271V 5.035V 1128.431 51.47°C 114.53V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.509A 1.967A 1.985A 0.993A 99.989 90.608% 0 <6.0 47.44°C 0.798
12.044V 5.082V 3.325V 5.035V 110.357 40.01°C 229.88V
20% 14.042A 2.955A 2.985A 1.193A 199.935 93.229% 0 <6.0 49.05°C 0.905
12.038V 5.076V 3.317V 5.03V 214.451 40.67°C 229.87V
30% 21.937A 3.456A 3.49A 1.393A 299.982 93.903% 556 11.5 41.32°C 0.939
12.031V 5.064V 3.309V 5.025V 319.459 43.18°C 229.85V
40% 29.799A 3.956A 3.999A 1.594A 399.488 94.066% 557 11.5 41.54°C 0.953
12.024V 5.055V 3.301V 5.02V 424.693 43.63°C 229.83V
50% 37.341A 4.952A 5.012A 1.795A 499.21 93.905% 568 12.1 42.23°C 0.962
12.017V 5.049V 3.292V 5.015V 531.614 44.95°C 229.81V
60% 44.949A 5.949A 6.03A 1.996A 599.743 93.191% 646 17.5 42.64°C 0.971
12.012V 5.043V 3.284V 5.01V 643.564 45.91°C 229.79V
70% 52.502A 6.951A 7.053A 2.198A 699.478 92.832% 713 19.4 43.43°C 0.975
12.006V 5.036V 3.275V 5.004V 753.49 47.25°C 229.77V
80% 60.130A 7.951A 8.081A 2.3A 799.486 92.398% 777 22.2 43.77°C 0.977
12.001V 5.03V 3.266V 5V 865.26 47.58°C 229.76V
90% 68.100A 8.458A 8.594A 2.402A 899.29 91.9% 899 27.3 44.98°C 0.98
11.994V 5.024V 3.258V 4.997V 978.552 49.39°C 229.74V
100% 75.884A 8.972A 9.14A 3.01A 999.311 91.31% 1149 35.7 45.12°C 0.982
11.987V 5.015V 3.249V 4.984V 1094.412 48.23°C 229.73V
110% 83.610A 9.987A 10.277A 3.011A 1099.914 90.715% 1452 42.6 46.52°C 0.983
11.979V 5.006V 3.24V 4.983V 1212.496 48.25°C 229.71V
CL1 0.116A 15.439A 15.659A 0A 131.294 85.237% 674 18 42.29°C 0.863
12.041V 5.071V 3.295V 5.052V 154.036 47.25°C 229.87V
CL2 0.115A 19.617A 0A 0A 101.35 84.61% 588 13.3 42.98°C 0.815
12.045V 5.096V 3.308V 5.052V 119.788 45.5°C 229.88V
CL3 0.115A 0A 19.931A 0A 67.382 79.375% 566 12.1 42.11°C 0.736
12.043V 5.066V 3.311V 5.053V 84.889 44.11°C 229.88V
CL4 83.383A 0A 0A 0.001A 999.925 92.177% 804 24 45.86°C 0.981
11.992V 5.024V 3.271V 5.035V 1084.791 45.98°C 229.73V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.492A 0.495A 0.198A 20.002 74.543% 0 <6.0 42.93°C 0.757
12.047V 5.082V 3.332V 5.049V 26.831 36.22°C 114.88V
40W 2.714A 0.689A 0.694A 0.297A 40.003 82.967% 0 <6.0 43.25°C 0.883
12.045V 5.081V 3.331V 5.048V 48.218 37.79°C 114.87V
60W 4.196A 0.886A 0.892A 0.396A 60.003 87.312% 0 <6.0 42.84°C 0.922
12.043V 5.08V 3.329V 5.045V 68.725 38.18°C 114.86V
80W 5.673A 1.083A 1.091A 0.496A 79.952 88.394% 0 <6.0 44.17°C 0.942
12.043V 5.08V 3.328V 5.043V 90.444 39.11°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.491A 0.495A 0.198A 20.004 74.999% 0 <6.0 42.64°C 0.406
12.051V 5.086V 3.333V 5.049V 26.673 36.39°C 229.89V
40W 2.714A 0.688A 0.693A 0.297A 40.002 84.293% 0 <6.0 43.28°C 0.561
12.049V 5.086V 3.331V 5.047V 47.454 37.88°C 229.88V
60W 4.195A 0.885A 0.892A 0.396A 60 87.894% 0 <6.0 44.39°C 0.671
12.047V 5.085V 3.33V 5.045V 68.276 38.92°C 229.88V
80W 5.671A 1.082A 1.091A 0.496A 79.941 89.867% 0 <6.0 45.31°C 0.749
12.045V 5.084V 3.328V 5.043V 88.953 39.06°C 229.88V
Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.491A 0.495A 0.198A 20.004 74.999% 0 <6.0 42.64°C 0.406
12.051V 5.086V 3.333V 5.049V 26.673 36.39°C 229.89V
40W 2.714A 0.688A 0.693A 0.297A 40.002 84.293% 0 <6.0 43.28°C 0.561
12.049V 5.086V 3.331V 5.047V 47.454 37.88°C 229.88V
60W 4.195A 0.885A 0.892A 0.396A 60 87.894% 0 <6.0 44.39°C 0.671
12.047V 5.085V 3.33V 5.045V 68.276 38.92°C 229.88V
80W 5.671A 1.082A 1.091A 0.496A 79.941 89.867% 0 <6.0 45.31°C 0.749
12.045V 5.084V 3.328V 5.043V 88.953 39.06°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load28.54mV20.33mV17.50mV11.80mVPass
20% Load39.99mV21.45mV26.88mV11.29mVPass
30% Load30.07mV18.48mV17.75mV12.47mVPass
40% Load31.30mV19.30mV20.32mV13.14mVPass
50% Load31.76mV19.97mV19.65mV14.73mVPass
60% Load32.17mV20.32mV20.06mV16.52mVPass
70% Load32.17mV21.35mV21.81mV18.42mVPass
80% Load34.47mV24.07mV24.52mV19.75mVPass
90% Load33.86mV24.53mV24.73mV21.29mVPass
100% Load34.37mV23.91mV25.04mV23.50mVPass
110% Load34.30mV24.08mV25.38mV24.81mVPass
Crossload131.41mV20.59mV22.68mV14.17mVPass
Crossload230.17mV21.66mV25.70mV14.57mVPass
Crossload327.62mV22.48mV18.21mV14.42mVPass
Crossload432.74mV22.47mV22.00mV28.22mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load28.74mV18.84mV18.11mV12.31mVPass
20% Load31.56mV18.27mV17.65mV11.49mVPass
30% Load30.33mV20.37mV19.14mV12.57mVPass
40% Load30.33mV21.35mV19.44mV12.67mVPass
50% Load31.30mV20.94mV20.01mV13.50mVPass
60% Load31.20mV20.48mV20.47mV14.16mVPass
70% Load31.76mV22.73mV20.57mV15.85mVPass
80% Load33.30mV23.66mV24.37mV17.34mVPass
90% Load32.83mV24.07mV24.37mV18.93mVPass
100% Load32.98mV23.42mV24.48mV20.44mVPass
110% Load33.75mV25.50mV24.93mV22.74mVPass
Crossload131.94mV19.18mV23.05mV14.07mVPass
Crossload231.20mV22.28mV25.81mV14.62mVPass
Crossload327.21mV22.27mV18.72mV14.73mVPass
Crossload432.43mV22.80mV20.46mV23.17mVPass

The results above are not used in the certification process

Moaiplay Ora Pro G1 1000

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
