CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Moaiplay Ora Pro G1 850
Serial NumberORG0185FFB5H0001
Lab IDMA85003031
Certification ID253031
  • Test Result Report ID: 25PS3031A
  • Certificate Issue Date: Nov 18, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandMoaiplay
Manufacturer (OEM)SANR
SeriesOra Pro G1
Model NumberOra Pro G1 850
Serial NumberORG0185FFB5H0001
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5.5-11
Rated Frequency (Hz)47-63
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)150 x 85 x 152mm
Cooling148mm Fluid Dynamic Bearing Fan (D14SM-12)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.530.3
Watts130846153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge

Cable Type
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper

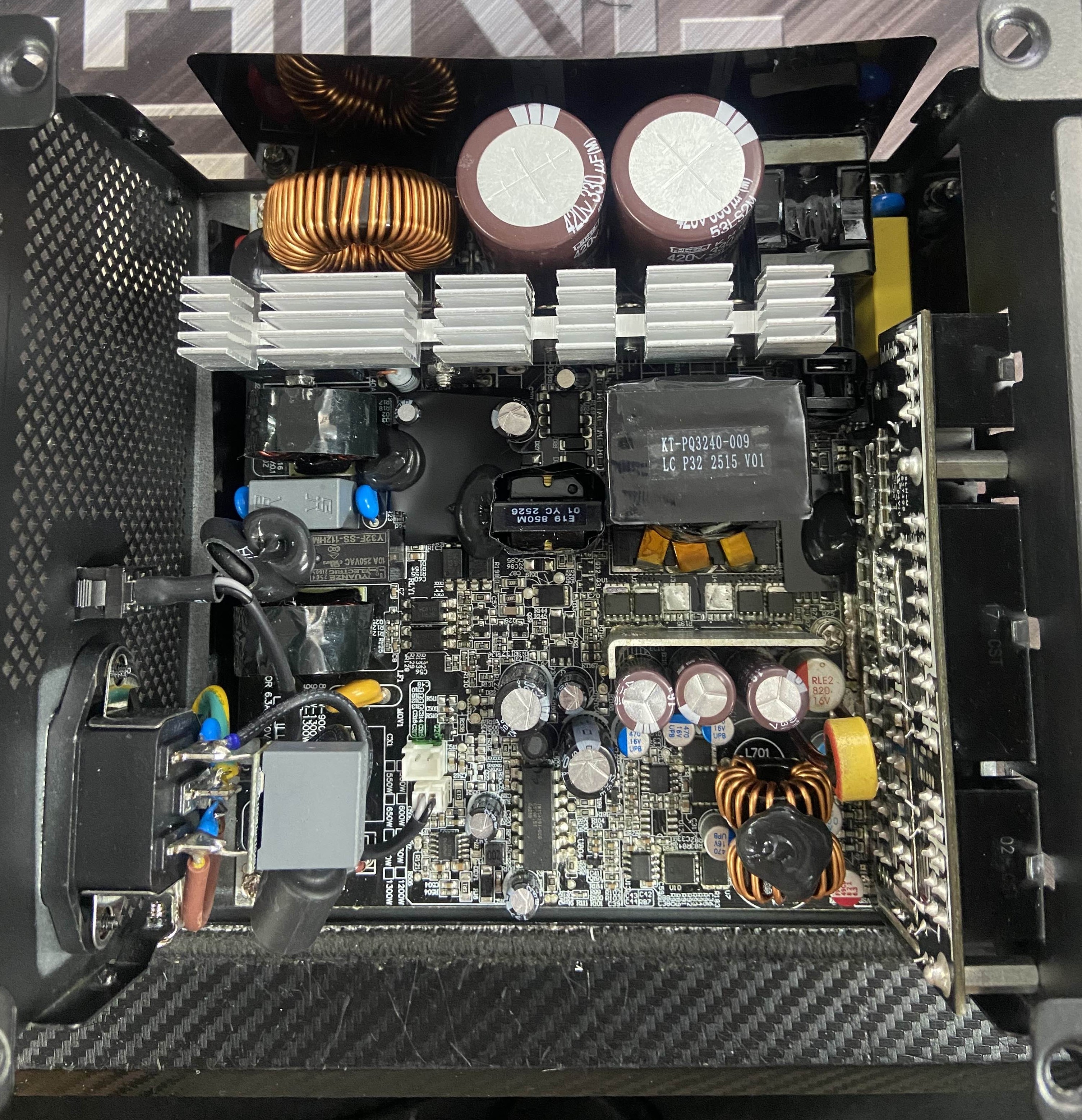

Parts Description

General Data
Manufacturer (OEM) SANR
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor M72 8D-20 (8 Ohm @ 25°C) & Relay
Bridge Rectifier
2x
APFC MOSFETs
2x Wuhan Xinyuan CWS60R125AF (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode
PN Junction P3D06008F2 (650V, 8A @ 135°C)
Bulk Cap(s)
2x Nippon Chemi-Con (420V, 330uF each or 660uF combined, 2000h @ 105°C, KMR)
Main Switchers
2x Wuhan Xinyuan CWS55R140BF (550V, 15.5A @ 100°C, Rds(on): 0.140Ohm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Nexperia PSMN1R4-40YLD (40V, 240A @ 25°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x PTJ030N03LA
PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors

Electrolytic:
3x Nippon Chemi-Con ( @ 105°C, W)
Rubycon (4-10,000 @ 105°C, YXF)
2x Rubycon (3-6,000 @ 105°C, YXS)
4x Rubycon (4-10,000 @ 105°C, YXJ)
Rubycon (6-10,000 @ 105°C, ZLH)
Polymer:
14x Nippon Chemi-Con. 5x FPCAP
Supervisor IC IN1S4291-DCG
Fan Controller ANPEC APW9010

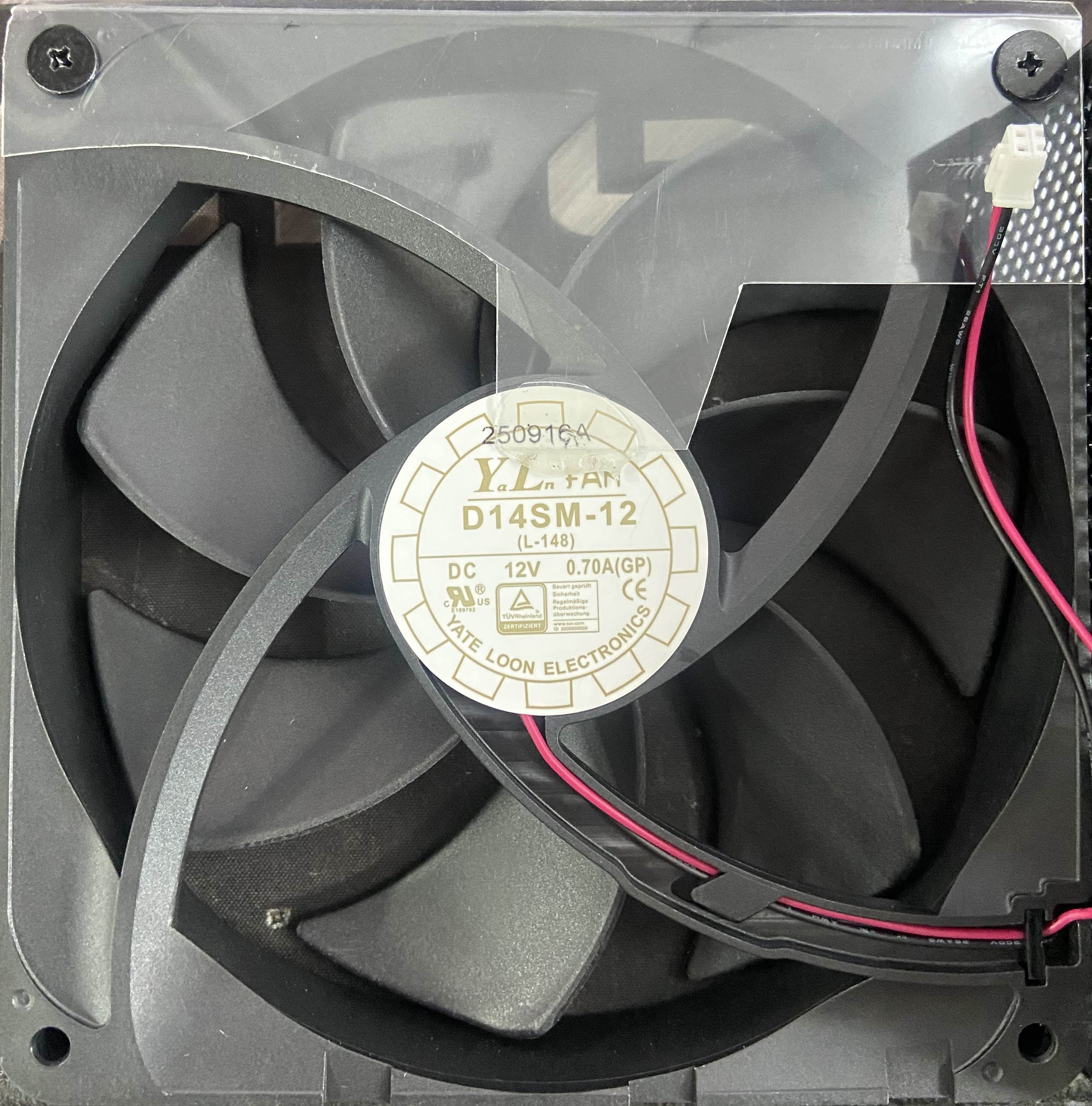

Fan Model Yate Loon D14SM-12 (148mm, 12V, 0.70A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
PingWei PS1060L (60V, 10A)
Standby PWM Controller
Depu DP2358

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingA++
Average Efficiency (>1450 load combinations)89.268%
Average Noise Output (>1450 Load Combinations)13.13dBA
Average PF (>1450 Load Combinations)0.972
Efficiency With 10W (≤500W) or 2% (>500W) Load71.913%
Standby Power Consumption0.0413W
12V Ripple (Full Load)31.53mV
5V Ripple (Full Load)22.42mV
3.3V Ripple (Full Load)22.31mV
5VSB Ripple (Full Load)29.19mV
12V Load Regulation0.33%
5V Load Regulation1.15%
3.3V Load Regulation2.43%
5VSB Load Regulation1.21%
Inrush Current20.730A
Efficiency RatingGOLD
Noise RatingA++
Average Efficiency (>1450 load combinations)91.724%
Average Noise Output (>1450 Load Combinations)12.58dBA
Average PF (>1450 Load Combinations)0.930
Efficiency With 10W (≤500W) or 2% (>500W) Load74.229%
Standby Power Consumption0.1227W
12V Ripple (Full Load)30.45mV
5V Ripple (Full Load)22.23mV
3.3V Ripple (Full Load)24.12mV
5VSB Ripple (Full Load)30.06mV
12V Load Regulation0.32%
5V Load Regulation1.15%
3.3V Load Regulation2.37%
5VSB Load Regulation1.19%
Inrush Current40.870A
12V Transient Response (200%)11.59V
5V Transient Response (200%)4.966V
3.3V Transient Response (200%)3.173V
5VSB Transient Response (200%)4.947V
Hold-Up Time & Power Ok Signal25.50ms
AC Loss to PWR_OK Hold Up Time22.90ms
PWR_OK Inactive to DC Loss Delay2.60ms
PSU Timings: T1 (20% / 100%)64.0ms64.0ms
PSU Timings: T3 (20% / 100%)106.0ms107.0ms
12V OCP (28.6°C / 42.0°C)82.70A (117.31%), 12.040V79.20A (112.34%), 12.053V
5V OCP (28.6°C / 42.0°C)29.1A (145.50%), 5.094V28.5A (142.50%), 5.1V
3.3V OCP (28.6°C / 42.0°C)29.6A (148.00%), 3.35V29.5A (147.50%), 3.334V
5VSB OCP (28.6°C / 42.0°C)3.9A (130.00%), 4.973V3.6A (120.00%), 4.975V *High Ripple (52.44mV)
OPP (26.07°C / 42.15°C)129.13%124.43%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)25.5
AC Loss to PWR_OK Hold Up Time (ms)22.9
PWR_OK Inactive to DC Loss Delay (ms)2.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.01 V 114.99 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.16 % 2.00 % PASS
Real Power: 0.041 W 0.004 W N/A 0.074 W N/A N/A
Apparent Power: 10.363 W 10.343 W N/A 10.386 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.99 V 227.70 V 230.03 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.123 W 0.082 W N/A 0.176 W N/A N/A
Apparent Power: 34.003 W 33.967 W N/A 34.036 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

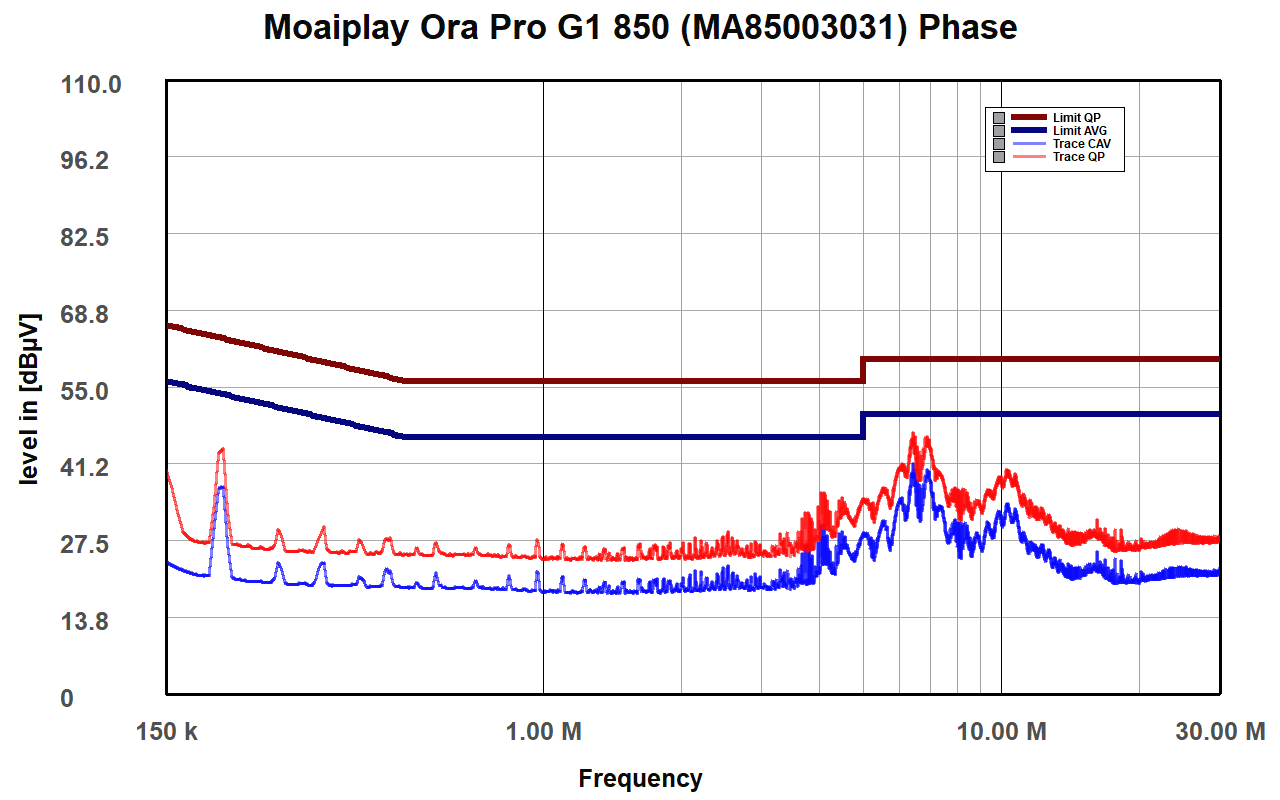

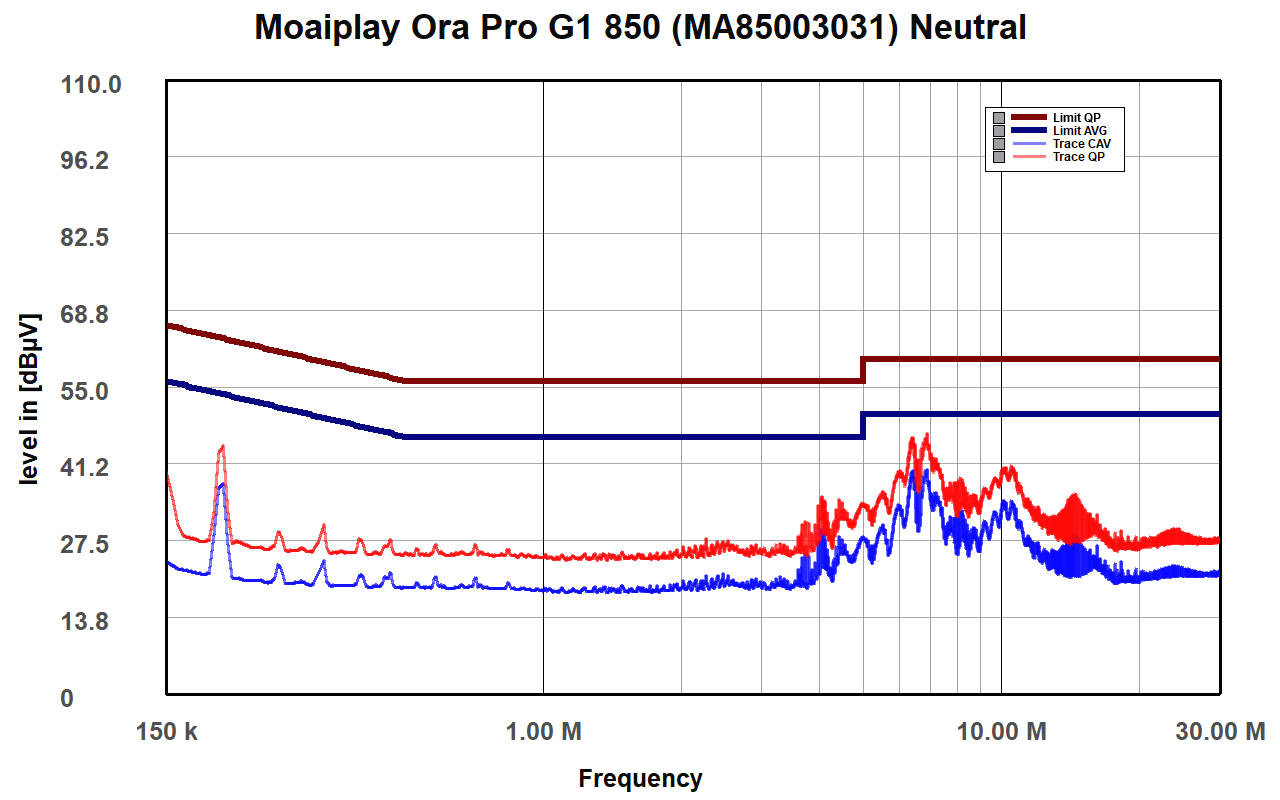

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

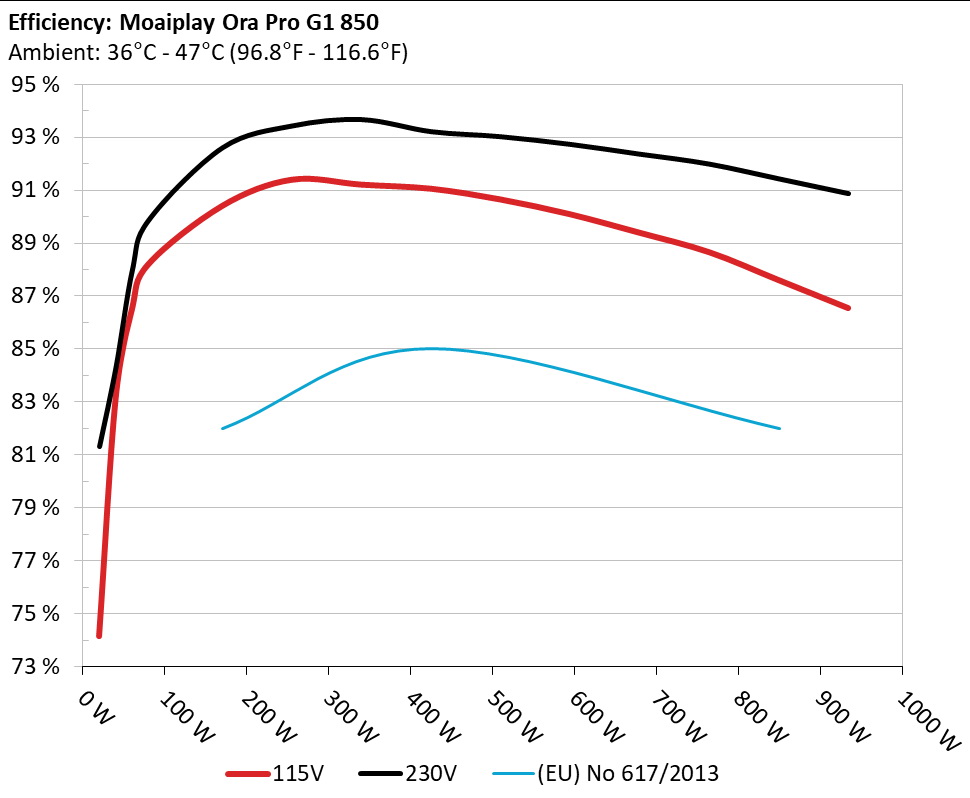

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

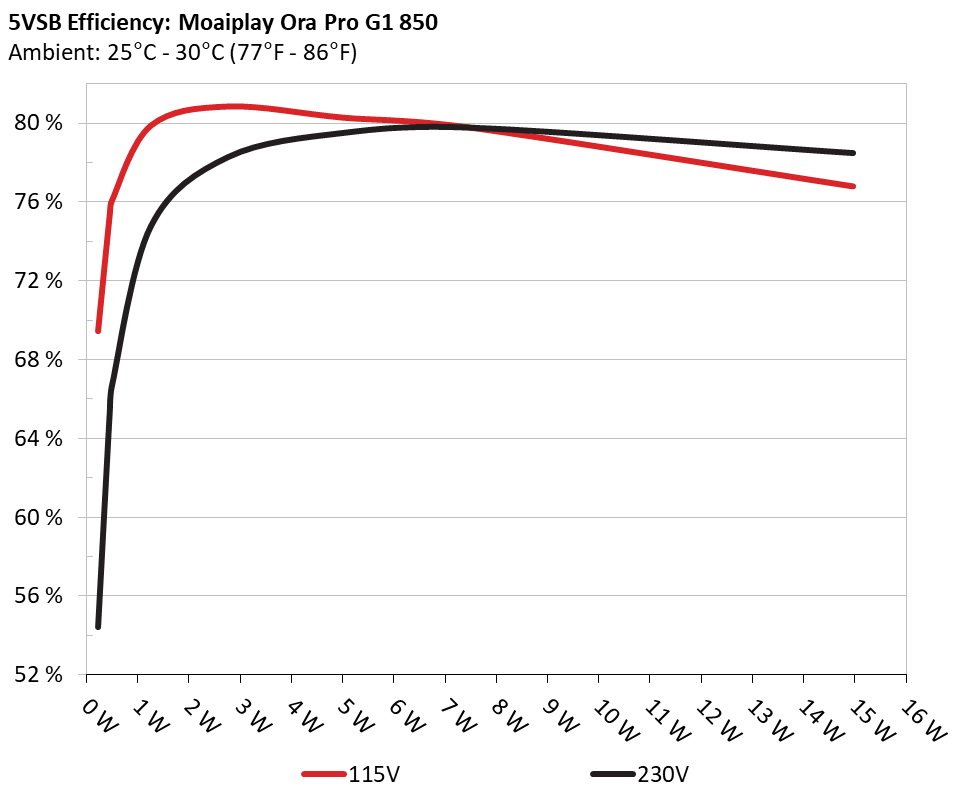

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 69.463% 0.031
5.035V 0.327W 114.87V
2 0.09A 0.453W 75.349% 0.057
5.034V 0.601W 114.87V
3 0.55A 2.765W 80.874% 0.263
5.027V 3.419W 114.87V
4 1A 5.02W 80.305% 0.373
5.02V 6.251W 114.86V
5 1.5A 7.518W 79.789% 0.428
5.012V 9.423W 114.87V
6 3A 14.964W 76.815% 0.513
4.987V 19.48W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 54.406% 0.012
5.035V 0.417W 229.9V
2 0.09A 0.453W 65.278% 0.02
5.034V 0.694W 229.9V
3 0.55A 2.765W 78.28% 0.097
5.026V 3.532W 229.88V
4 1A 5.02W 79.509% 0.163
5.019V 6.314W 229.88V
5 1.5A 7.518W 79.772% 0.225
5.011V 9.424W 229.88V
6 3.001A 14.964W 78.483% 0.333
4.987V 19.066W 229.88V

Protection Features

OCP (Normal @ 28.6°C)12V: 82.70A (117.31%), 12.040V
5V: 29.1A (145.50%), 5.094V
3.3V: 29.6A (148.00%), 3.35V
5VSB: 3.9A (130.00%), 4.973V
OCP (Hot @ 42.0°C)12V: 79.20A (112.34%), 12.053V
5V: 28.5A (142.50%), 5.1V
3.3V: 29.5A (147.50%), 3.334V
5VSB: 3.6A (120.00%), 4.975V *High Ripple (52.44mV)
OPP (Normal @ 26.1°C)1097.61W (129.13%)
OPP (Hot @ 42.1°C)1057.63W (124.43%)
OTP✓ (87°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.255A 1.96A 1.99A 0.996A 85.002 87.942% 0 <6.0 47.56°C 0.908
12.065V 5.101V 3.316V 5.019V 96.655 40.16°C 114.85V
20% 11.515A 2.943A 2.991A 1.197A 169.96 90.395% 0 <6.0 50.91°C 0.952
12.076V 5.097V 3.31V 5.014V 187.982 40.9°C 114.84V
30% 18.153A 3.438A 3.499A 1.397A 254.949 91.389% 0 <6.0 57.25°C 0.97
12.058V 5.091V 3.301V 5.01V 278.969 41.08°C 114.8V
40% 24.790A 3.935A 4.007A 1.599A 340.046 91.203% 567 12.1 41.93°C 0.975
12.055V 5.083V 3.294V 5.005V 372.84 43.29°C 114.77V
50% 31.069A 4.926A 5.022A 1.8A 424.878 91.051% 568 12.1 42.35°C 0.98
12.050V 5.076V 3.286V 5.001V 466.64 45.63°C 114.75V
60% 37.318A 5.917A 6.042A 2A 509.373 90.648% 606 14.1 42.75°C 0.983
12.047V 5.071V 3.277V 4.996V 561.924 46.28°C 114.71V
70% 43.637A 6.912A 7.067A 2.204A 594.681 90.087% 662 17.9 43.45°C 0.985
12.044V 5.064V 3.269V 4.991V 660.114 47.45°C 114.68V
80% 49.960A 7.907A 8.097A 2.306A 679.507 89.389% 721 19.9 43.71°C 0.987
12.042V 5.058V 3.26V 4.988V 760.168 48.58°C 114.67V
90% 56.685A 8.411A 8.607A 2.407A 764.922 88.651% 791 23.3 44.51°C 0.988
12.039V 5.053V 3.253V 4.985V 862.851 50.06°C 114.63V
100% 63.147A 8.916A 9.152A 3.017A 849.735 87.597% 982 29.9 45.85°C 0.988
12.036V 5.046V 3.245V 4.973V 970.051 51.28°C 114.6V
110% 69.486A 9.921A 10.288A 3.017A 934.307 86.544% 1296 40 46.6°C 0.989
12.032V 5.039V 3.236V 4.972V 1079.575 52.11°C 114.57V
CL1 0.115A 15.383A 15.756A 0A 131.294 83.069% 626 16.4 41.2°C 0.94
12.072V 5.09V 3.275V 5.036V 158.055 45.75°C 114.83V
CL2 0.115A 19.546A 0A 0A 101.351 82.876% 568 12.1 40.75°C 0.925
12.073V 5.114V 3.302V 5.036V 122.293 43.34°C 114.84V
CL3 0.115A 0A 20.084A 0A 67.38 77.746% 566 12 40.02°C 0.899
12.069V 5.084V 3.286V 5.037V 86.669 41.94°C 114.85V
CL4 70.580A 0A 0A 0.001A 849.547 88.817% 754 21.2 45.29°C 0.989
12.037V 5.059V 3.277V 5.024V 956.518 51.36°C 114.6V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.254A 1.959A 1.989A 0.996A 85.008 89.588% 0 <6.0 47.13°C 0.734
12.069V 5.105V 3.318V 5.019V 94.887 40.05°C 229.88V
20% 11.526A 2.942A 2.991A 1.197A 169.954 92.601% 0 <6.0 48.45°C 0.873
12.064V 5.099V 3.31V 5.014V 183.535 40.88°C 229.87V
30% 18.153A 3.437A 3.497A 1.397A 254.968 93.428% 567 12.1 41.42°C 0.921
12.059V 5.092V 3.303V 5.01V 272.914 42.05°C 229.85V
40% 24.796A 3.935A 4.005A 1.599A 340.066 93.669% 569 12.1 41.89°C 0.942
12.053V 5.084V 3.296V 5.006V 363.051 42.69°C 229.84V
50% 31.072A 4.924A 5.018A 1.8A 424.911 93.213% 569 12.1 42.09°C 0.953
12.050V 5.078V 3.288V 5.001V 455.852 43.75°C 229.83V
60% 37.323A 5.914A 6.037A 2A 509.4 93.024% 605 14.1 42.75°C 0.961
12.046V 5.073V 3.28V 4.997V 547.602 44.14°C 229.81V
70% 43.643A 6.908A 7.06A 2.204A 594.699 92.733% 660 17.9 43.25°C 0.967
12.043V 5.067V 3.272V 4.992V 641.303 44.78°C 229.8V
80% 49.965A 7.902A 8.087A 2.305A 679.511 92.364% 717 19.6 43.72°C 0.971
12.040V 5.061V 3.264V 4.989V 735.686 45.69°C 229.78V
90% 56.688A 8.405A 8.596A 2.407A 764.927 91.987% 785 22.9 44.77°C 0.975
12.038V 5.056V 3.257V 4.986V 831.565 47.11°C 229.77V
100% 63.149A 8.91A 9.139A 3.016A 849.738 91.428% 981 29.9 44.53°C 0.977
12.036V 5.05V 3.249V 4.974V 929.403 48.2°C 229.76V
110% 69.488A 9.915A 10.275A 3.017A 934.315 90.875% 1300 40.2 46.12°C 0.979
12.032V 5.042V 3.241V 4.973V 1028.137 49.43°C 229.74V
CL1 0.115A 12.116A 11.491A 0A 127.501 84.369% 567 12.1 40.78°C 0.682
12.067V 5.097V 3.288V 5.037V 118.424 42.35°C 229.88V
CL2 0.115A 19.538A 0A 0A 101.353 84.736% 567 12.1 41°C 0.793
12.072V 5.116V 3.303V 5.037V 119.609 42.75°C 229.87V
CL3 0.115A 0A 20.056A 0A 67.38 79.333% 568 12.1 41.16°C 0.703
12.068V 5.084V 3.29V 5.037V 84.933 41.88°C 229.88V
CL4 70.564A 0A 0A 0.001A 849.567 92.365% 801 23.8 45.41°C 0.978
12.040V 5.059V 3.277V 5.024V 919.826 47.87°C 229.76V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.49A 0.496A 0.199A 19.995 74.158% 0 <6.0 41.47°C 0.688
12.065V 5.104V 3.324V 5.033V 26.963 36.74°C 114.86V
40W 2.709A 0.686A 0.695A 0.298A 39.996 83.09% 0 <6.0 43.25°C 0.825
12.065V 5.103V 3.323V 5.031V 48.136 37.86°C 114.85V
60W 4.188A 0.882A 0.894A 0.398A 59.996 86.493% 0 <6.0 43.91°C 0.877
12.065V 5.102V 3.321V 5.029V 69.366 38.74°C 114.84V
80W 5.661A 1.078A 1.093A 0.497A 79.933 88.192% 0 <6.0 45.77°C 0.902
12.066V 5.101V 3.319V 5.027V 90.63 39.56°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.489A 0.496A 0.199A 20.004 81.322% 0 <6.0 41.15°C 0.377
12.074V 5.108V 3.326V 5.033V 26.019 36.37°C 229.89V
40W 2.708A 0.685A 0.695A 0.298A 39.999 84.31% 0 <6.0 44.86°C 0.524
12.072V 5.108V 3.325V 5.031V 47.441 37.59°C 229.89V
60W 4.186A 0.881A 0.894A 0.398A 59.999 87.985% 0 <6.0 45.67°C 0.636
12.070V 5.107V 3.323V 5.029V 68.192 38.87°C 229.89V
80W 5.660A 1.077A 1.093A 0.497A 79.943 89.867% 0 <6.0 45.6°C 0.715
12.069V 5.106V 3.321V 5.027V 88.959 39.41°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load22.15mV17.45mV16.32mV11.03mVPass
20% Load22.86mV15.29mV14.11mV9.96mVPass
30% Load24.91mV17.76mV17.14mV12.57mVPass
40% Load28.18mV19.40mV18.93mV13.60mVPass
50% Load28.79mV21.71mV23.34mV15.08mVPass
60% Load30.02mV22.74mV20.68mV16.47mVPass
70% Load29.61mV22.07mV21.19mV17.50mVPass
80% Load31.05mV21.91mV21.29mV18.99mVPass
90% Load31.71mV23.76mV22.83mV24.47mVPass
100% Load31.53mV22.42mV22.31mV29.19mVPass
110% Load32.55mV24.25mV24.24mV31.38mVPass
Crossload123.43mV21.24mV21.76mV15.56mVPass
Crossload224.96mV22.02mV20.06mV16.47mVPass
Crossload322.56mV19.61mV18.83mV15.60mVPass
Crossload430.23mV19.98mV19.91mV22.85mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load20.15mV16.68mV15.24mV10.11mVPass
20% Load21.89mV15.34mV15.29mV10.16mVPass
30% Load23.37mV15.70mV15.39mV10.82mVPass
40% Load25.01mV16.37mV17.34mV11.65mVPass
50% Load28.23mV19.30mV18.88mV12.72mVPass
60% Load27.26mV20.22mV18.42mV14.21mVPass
70% Load29.05mV20.22mV19.50mV16.26mVPass
80% Load29.92mV20.78mV21.34mV19.55mVPass
90% Load29.66mV21.45mV22.57mV22.93mVPass
100% Load30.45mV22.23mV24.12mV30.06mVPass
110% Load31.65mV23.82mV24.33mV31.69mVPass
Crossload122.71mV21.14mV22.02mV14.07mVPass
Crossload223.94mV22.48mV20.83mV16.01mVPass
Crossload320.72mV18.22mV19.03mV15.60mVPass
Crossload430.37mV19.72mV19.74mV22.59mVPass

The results above are not used in the certification process

Moaiplay Ora Pro G1 850

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
