CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Moaiplay Ora Pro G1 750
Serial NumberORG0175FFB5J0002
Lab IDMA75003032
Certification ID253032
  • Test Result Report ID: 25PS3032A
  • Certificate Issue Date: Nov 18, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandMoaiplay
Manufacturer (OEM)SANR
SeriesORA PRO G1
Model NumberOra Pro G1 750
Serial NumberORG0175FFB5J0002
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5.5-11
Rated Frequency (Hz)47-63
Rated Power (W)750
TypeATX12V
Dimensions (W x H x D)150 x 85 x 152mm
Cooling148mm Fluid Dynamic Bearing Fan (D14SM-12)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.530.3
Watts130750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge

Cable Type
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 2 2 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper

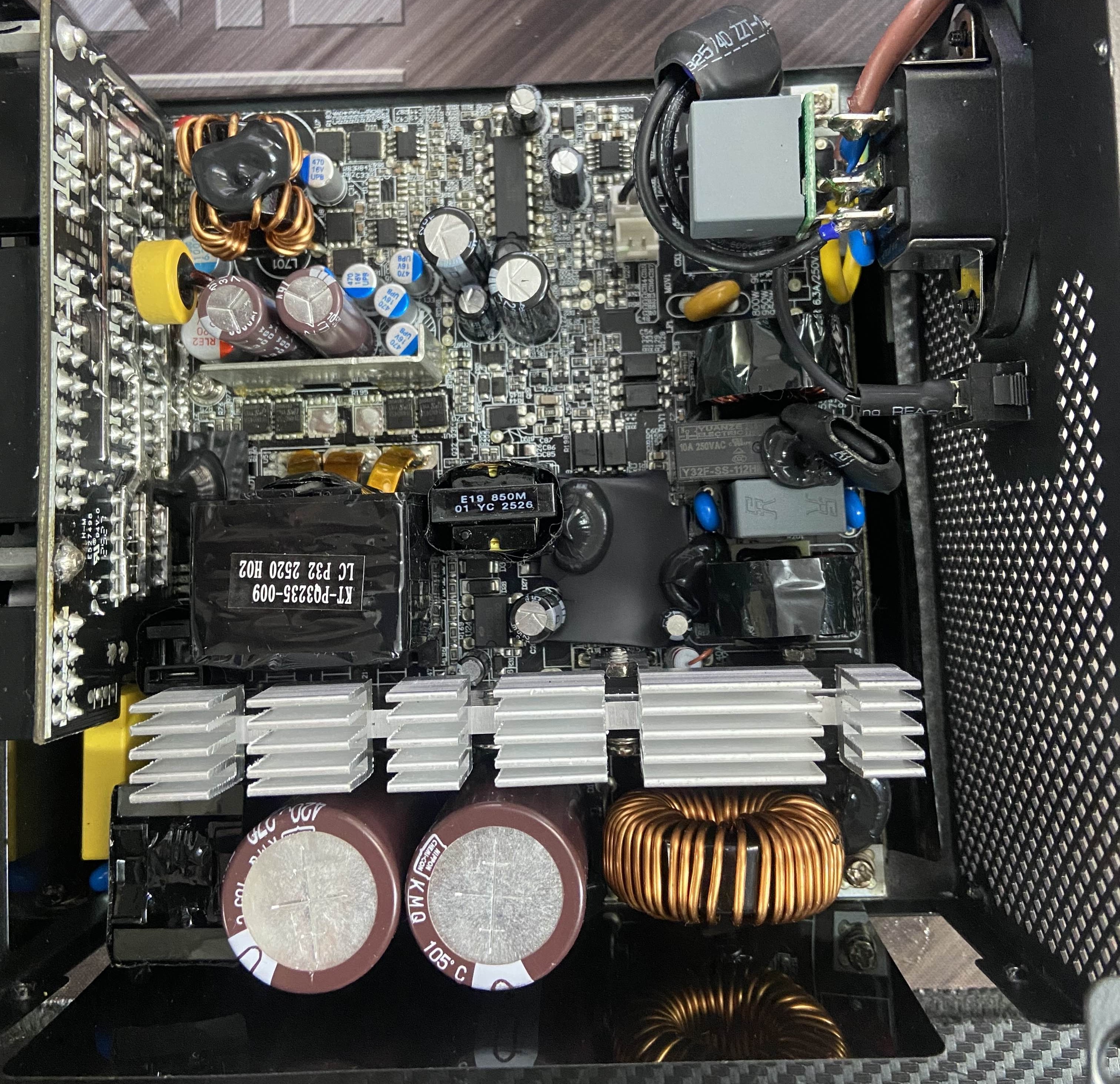

Parts Description

General Data
Manufacturer (OEM) SANR
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor M72 8D-20 (8 Ohm @ 25°C) & Relay
Bridge Rectifier
2x
APFC MOSFETs
2x Lonten LSD60R125GT (600V, 16.5A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode
PN Junction P3D06008F2 (650V, 8A @ 135°C)
Bulk Cap(s)
2x Nippon Chemi-Con (420V, 270uF each or 540uF combined, 2000h @ 105°C, KMQ)
Main Switchers
2x Wuhan Xinyuan CWS55R190BF (550V, 13A @ 100°C, Rds(on): 0.19Ohm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x InPower FTG014N04SA
5V & 3.3V DC-DC Converters: 4x PTJ030N03LA
PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors

Electrolytic:
2x Nippon Chemi-Con ( @ 105°C, W)
2x Rubycon (4-10,000 @ 105°C, YXF)
2x Rubycon (3-6,000 @ 105°C, YXS)
3x Rubycon (4-10,000 @ 105°C, YXJ)
Rubycon (6-10,000 @ 105°C, ZLH)
Polymer:
16x Nippon Chemi-Con, 5x FPCAP
Supervisor IC IN1S4291-DCG
Fan Controller ANPEC APW9010

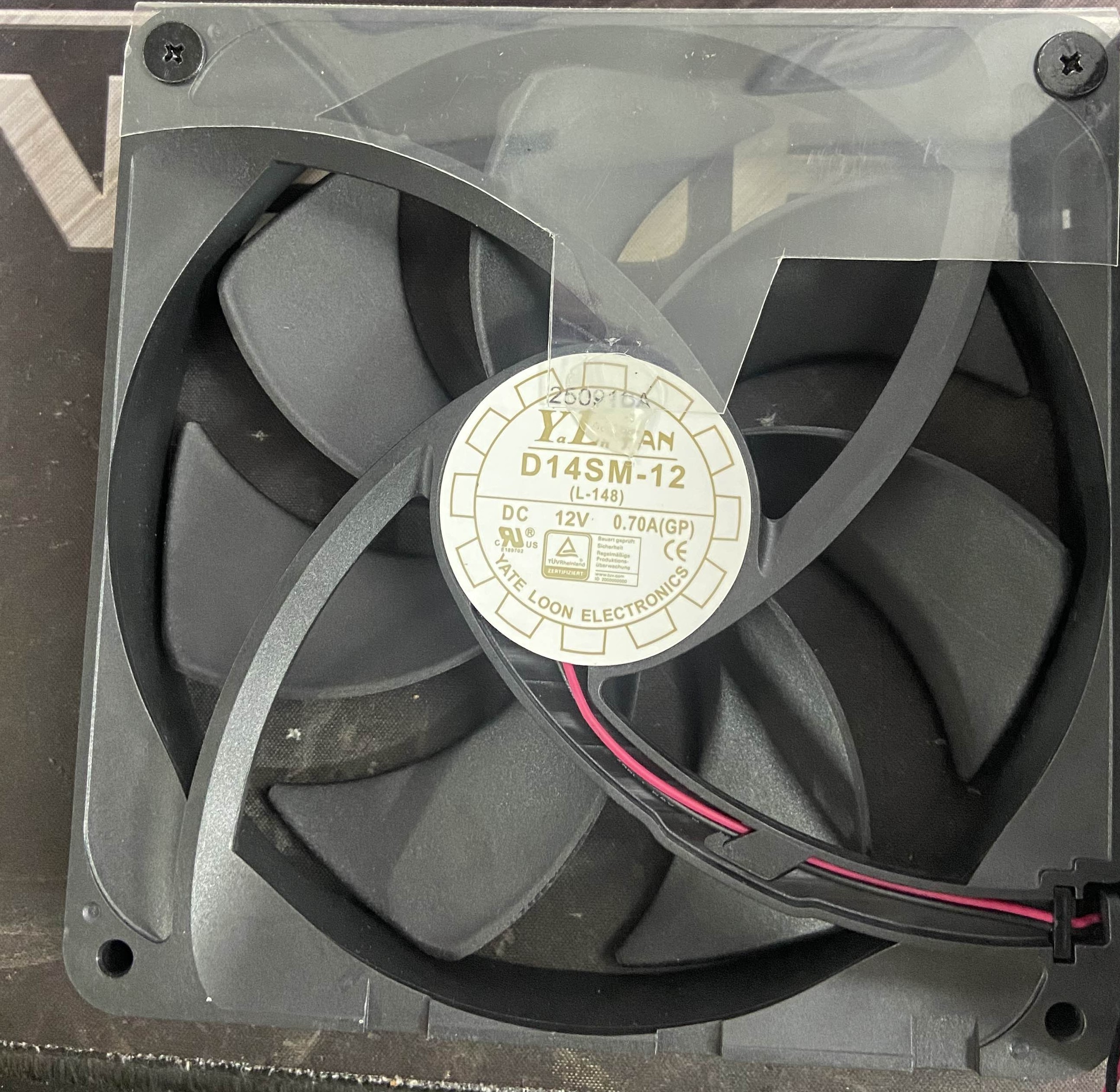

Fan Model Yate Loon D14SM-12 (148mm, 12V, 0.70A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
PingWei PS1060L (60V, 10A)
Standby PWM Controller
Depu DP2358

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)89.193%
Average Noise Output (>1450 Load Combinations)13.42dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load68.003%
Standby Power Consumption0.0522W
12V Ripple (Full Load)23.93mV
5V Ripple (Full Load)14.76mV
3.3V Ripple (Full Load)16.02mV
5VSB Ripple (Full Load)25.58mV
12V Load Regulation0.48%
5V Load Regulation1.21%
3.3V Load Regulation2.06%
5VSB Load Regulation1.16%
Inrush Current20.290A
Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)91.317%
Average Noise Output (>1450 Load Combinations)13.31dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load68.866%
Standby Power Consumption0.1603W
12V Ripple (Full Load)26.78mV
5V Ripple (Full Load)14.74mV
3.3V Ripple (Full Load)16.12mV
5VSB Ripple (Full Load)24.32mV
12V Load Regulation0.49%
5V Load Regulation1.23%
3.3V Load Regulation2.12%
5VSB Load Regulation1.18%
Inrush Current41.410A
12V Transient Response (200%)11.61V
5V Transient Response (200%)4.966V
3.3V Transient Response (200%)3.186V
5VSB Transient Response (200%)4.973V
Hold-Up Time & Power Ok Signal23.30ms
AC Loss to PWR_OK Hold Up Time20.50ms
PWR_OK Inactive to DC Loss Delay2.80ms
PSU Timings: T1 (20% / 100%)69.0ms69.0ms
PSU Timings: T3 (20% / 100%)100.0ms101.0ms
12V OCP (27.4°C / 42.3°C)75.00A (120.00%), 12.014V72.20A (115.52%), 12.021V
5V OCP (27.4°C / 42.3°C)29.5A (147.50%), 5.071V29.4A (147.00%), 5.081V
3.3V OCP (27.4°C / 42.3°C)29.7A (148.50%), 3.319V29.6A (148.00%), 3.311V
5VSB OCP (27.4°C / 42.3°C)3.8A (126.67%), 4.984V3.7A (123.33%), 4.986V
OPP (29.56°C / 45.01°C)134.43%129.63%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.3
AC Loss to PWR_OK Hold Up Time (ms)20.5
PWR_OK Inactive to DC Loss Delay (ms)2.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.03 V 115.00 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.97 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.16 % 2.00 % PASS
Real Power: 0.052 W 0.017 W N/A 0.083 W N/A N/A
Apparent Power: 10.497 W 10.474 W N/A 10.522 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.01 V 230.00 V 227.70 V 230.05 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.160 W 0.121 W N/A 0.210 W N/A N/A
Apparent Power: 34.434 W 34.399 W N/A 34.471 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

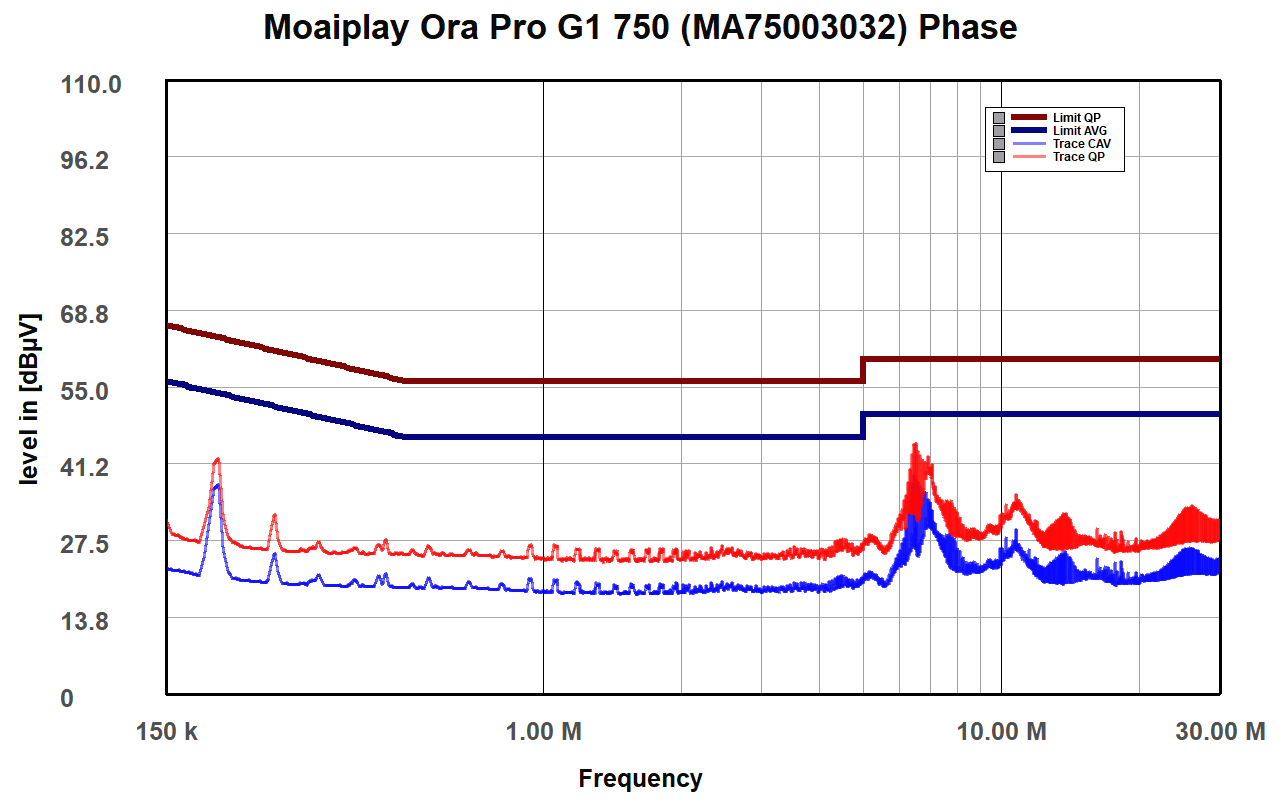

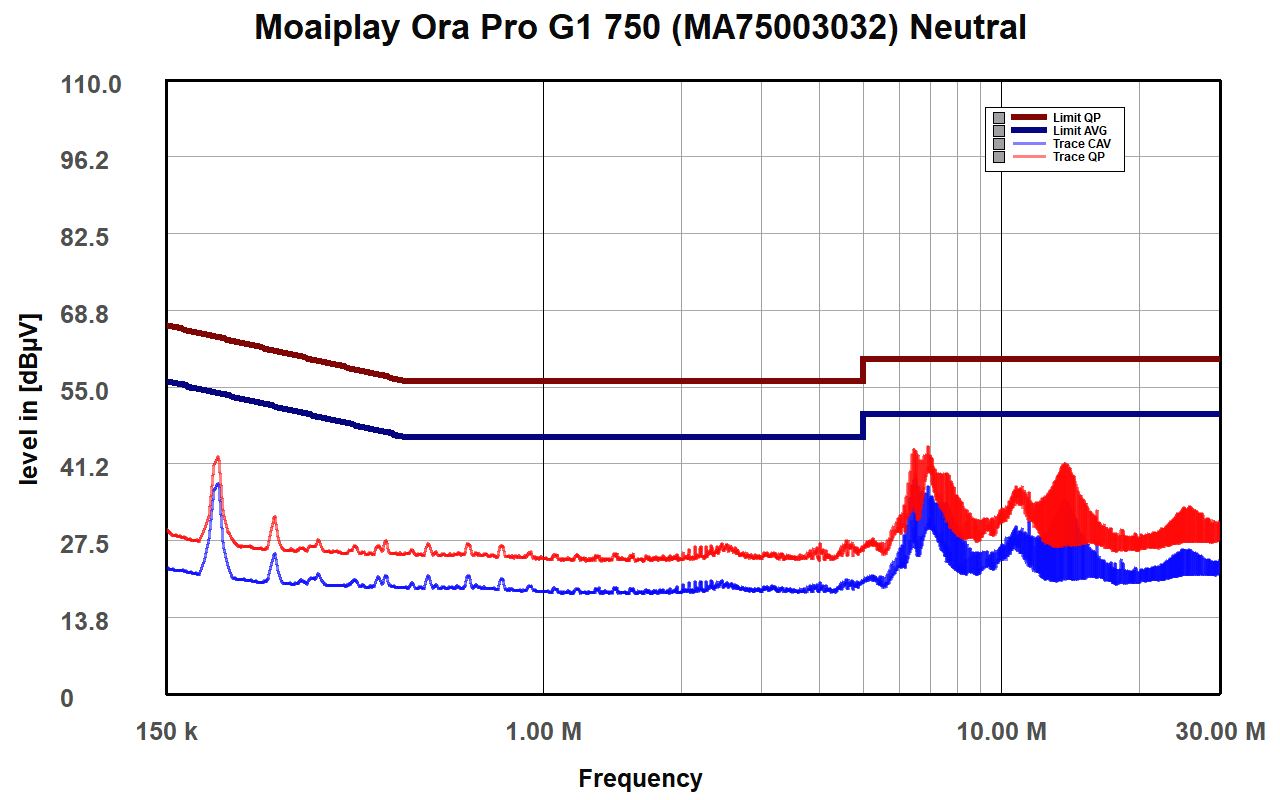

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

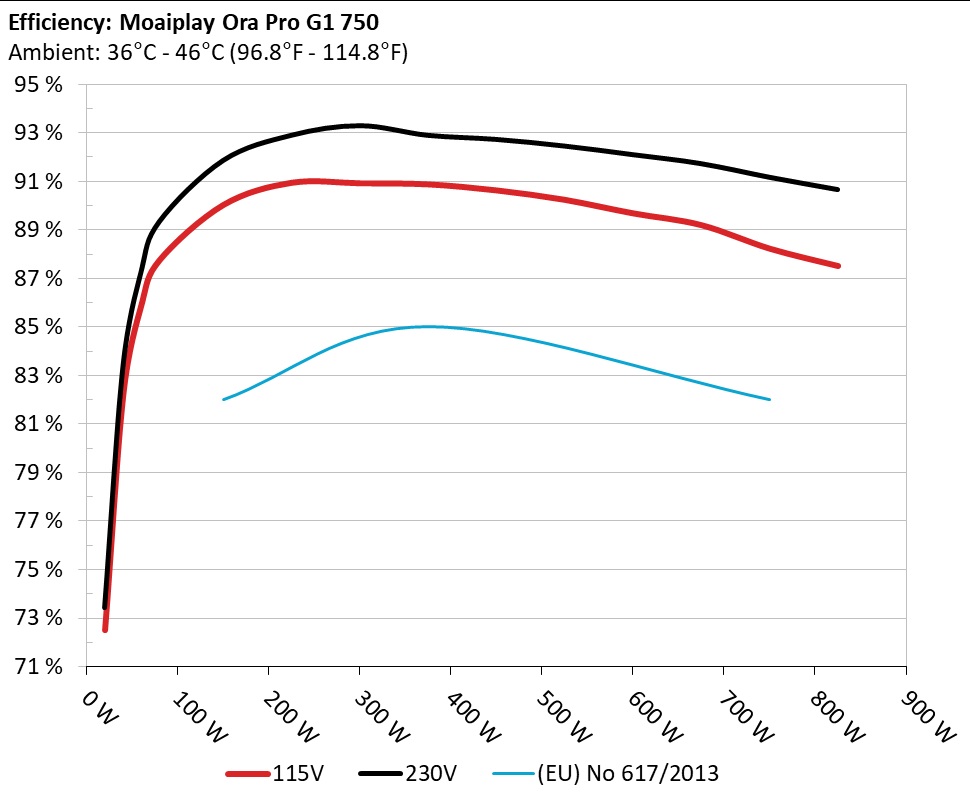

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

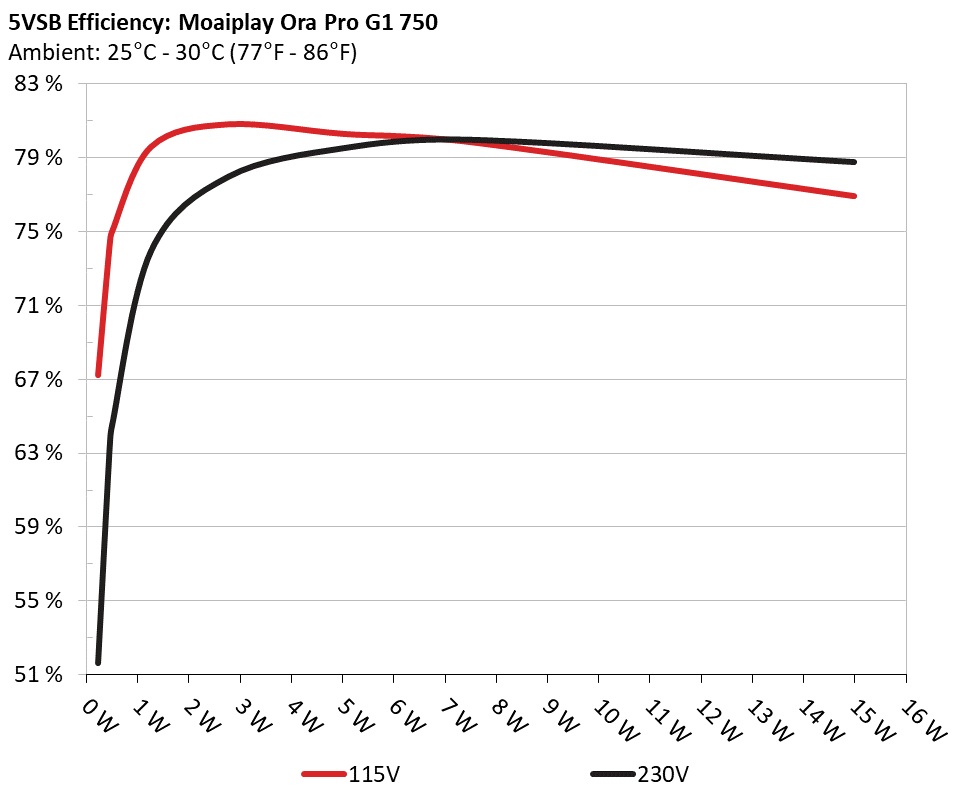

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 67.214% 0.033
5.043V 0.338W 114.98V
2 0.09A 0.454W 74.308% 0.059
5.042V 0.611W 114.98V
3 0.55A 2.77W 80.828% 0.269
5.035V 3.426W 114.98V
4 1A 5.029W 80.304% 0.381
5.028V 6.262W 114.97V
5 1.5A 7.532W 79.851% 0.444
5.02V 9.433W 114.95V
6 3.001A 14.989W 76.93% 0.525
4.996V 19.485W 114.94V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 51.645% 0.013
5.044V 0.439W 230.04V
2 0.09A 0.454W 63.329% 0.021
5.043V 0.717W 230.06V
3 0.55A 2.77W 77.946% 0.1
5.035V 3.554W 230.09V
4 1A 5.03W 79.496% 0.168
5.028V 6.327W 230.1V
5 1.5A 7.532W 79.942% 0.229
5.02V 9.421W 230.1V
6 3.001A 14.99W 78.745% 0.347
4.996V 19.036W 230.1V

Protection Features

OCP (Normal @ 27.4°C)12V: 75.00A (120.00%), 12.014V
5V: 29.5A (147.50%), 5.071V
3.3V: 29.7A (148.50%), 3.319V
5VSB: 3.8A (126.67%), 4.984V
OCP (Hot @ 42.3°C)12V: 72.20A (115.52%), 12.021V
5V: 29.4A (147.00%), 5.081V
3.3V: 29.6A (148.00%), 3.311V
5VSB: 3.7A (123.33%), 4.986V
OPP (Normal @ 29.6°C)1008.24W (134.43%)
OPP (Hot @ 45.0°C)972.24W (129.63%)
OTP✓ (86°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.418A 1.964A 1.987A 0.995A 75.008 86.599% 0 <6.0 51.25°C 0.951
12.089V 5.094V 3.321V 5.028V 86.615 40.22°C 114.95V
20% 9.855A 2.949A 2.987A 1.195A 149.971 90.019% 0 <6.0 53.08°C 0.976
12.082V 5.088V 3.314V 5.024V 166.601 40.63°C 114.94V
30% 15.644A 3.446A 3.493A 1.395A 224.976 90.932% 564 12 41.24°C 0.984
12.075V 5.08V 3.307V 5.019V 247.413 44.42°C 114.93V
40% 21.439A 3.941A 3.998A 1.596A 300.095 90.91% 645 17.5 41.97°C 0.987
12.075V 5.077V 3.302V 5.015V 330.083 51.36°C 114.92V
50% 26.870A 4.933A 5.01A 1.797A 374.76 90.866% 654 17.9 42.19°C 0.988
12.067V 5.07V 3.294V 5.01V 412.425 50.88°C 114.9V
60% 32.327A 5.928A 6.025A 1.998A 449.652 90.619% 674 18 42.75°C 0.989
12.059V 5.063V 3.287V 5.006V 496.213 50.81°C 114.88V
70% 37.793A 6.927A 7.045A 2.2A 524.489 90.232% 687 18.5 43.14°C 0.99
12.049V 5.054V 3.279V 5.001V 581.264 50.09°C 114.87V
80% 43.324A 7.923A 8.068A 2.301A 599.712 89.674% 716 19.6 43.88°C 0.991
12.044V 5.049V 3.272V 4.998V 668.775 51.12°C 114.85V
90% 49.201A 8.429A 8.575A 2.403A 674.722 89.19% 728 20 44.6°C 0.992
12.037V 5.043V 3.265V 4.995V 756.495 51.43°C 114.84V
100% 54.872A 8.935A 9.114A 3.01A 749.939 88.22% 1012 31.3 45.01°C 0.993
12.033V 5.036V 3.259V 4.984V 850.084 55.07°C 114.82V
110% 60.428A 9.943A 10.242A 3.011A 824.928 87.506% 1200 37.1 46.19°C 0.993
12.025V 5.029V 3.251V 4.982V 942.716 53.79°C 114.81V
CL1 0.116A 15.432A 15.653A 0A 131.295 83.552% 625 16.2 40.97°C 0.974
12.085V 5.074V 3.296V 5.044V 157.143 47.04°C 114.96V
CL2 0.116A 19.669A 0A 0A 101.396 82.66% 566 12.1 41.11°C 0.966
12.093V 5.084V 3.317V 5.046V 122.667 44.16°C 114.97V
CL3 0.115A 0A 19.985A 0A 67.39 77.615% 562 11.7 40.74°C 0.951
12.090V 5.089V 3.302V 5.044V 86.827 42.23°C 114.97V
CL4 62.286A 0A 0A 0.002A 749.706 89.383% 770 22.1 45.37°C 0.992
12.037V 5.052V 3.276V 5.036V 838.751 54.99°C 114.82V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.418A 1.964A 1.987A 0.995A 75.011 88.213% 0 <6.0 45.77°C 0.764
12.090V 5.094V 3.321V 5.028V 85.034 40.16°C 230.02V
20% 9.855A 2.949A 2.987A 1.195A 149.981 91.855% 0 <6.0 45.77°C 0.889
12.083V 5.088V 3.314V 5.024V 163.282 40.64°C 230.01V
30% 15.646A 3.446A 3.493A 1.395A 224.992 92.894% 562 11.7 41.19°C 0.931
12.076V 5.08V 3.308V 5.019V 242.205 43.48°C 230V
40% 21.452A 3.944A 4A 1.596A 300.091 93.292% 571 12.2 41.71°C 0.951
12.068V 5.073V 3.301V 5.015V 321.669 43.11°C 229.99V
50% 26.884A 4.937A 5.011A 1.797A 374.788 92.895% 577 12.5 42.14°C 0.961
12.062V 5.066V 3.293V 5.01V 403.453 43.13°C 229.97V
60% 32.343A 5.931A 6.027A 1.998A 449.718 92.728% 599 13.7 42.76°C 0.968
12.055V 5.06V 3.286V 5.006V 484.986 43.43°C 229.96V
70% 37.808A 6.93A 7.048A 2.2A 524.656 92.455% 651 17.9 43.15°C 0.973
12.048V 5.053V 3.279V 5.001V 567.47 44.83°C 229.95V
80% 43.341A 7.926A 8.07A 2.302A 599.876 92.098% 724 19.9 43.66°C 0.976
12.043V 5.047V 3.272V 4.998V 651.345 48.93°C 229.94V
90% 49.209A 8.43A 8.576A 2.403A 674.918 91.729% 800 23.8 44.35°C 0.979
12.038V 5.043V 3.265V 4.995V 735.776 50.26°C 229.93V
100% 54.887A 8.937A 9.117A 3.011A 750.135 91.168% 1021 31.7 45.48°C 0.981
12.033V 5.036V 3.258V 4.983V 822.805 50.22°C 229.92V
110% 60.445A 9.948A 10.248A 3.012A 825.174 90.661% 1235 38 46.35°C 0.982
12.025V 5.027V 3.25V 4.982V 910.18 49.31°C 229.9V
CL1 0.116A 15.437A 15.658A 0A 131.318 85.209% 631 16.6 40.43°C 0.881
12.087V 5.072V 3.295V 5.044V 154.114 43.93°C 229.99V
CL2 0.116A 19.675A 0A 0A 101.408 84.286% 564 12 40.43°C 0.839
12.092V 5.083V 3.316V 5.046V 120.317 42.69°C 229.99V
CL3 0.116A 0A 19.991A 0A 67.403 78.978% 562 11.7 40.18°C 0.765
12.089V 5.088V 3.301V 5.043V 85.345 41°C 230.03V
CL4 62.304A 0A 0A 0.002A 749.872 92.228% 764 22 45.43°C 0.98
12.036V 5.05V 3.275V 5.035V 813.067 48.74°C 229.99V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.229A 0.491A 0.496A 0.198A 20.009 72.523% 0 <6.0 44.54°C 0.795
12.091V 5.097V 3.326V 5.042V 27.605 36.41°C 114.94V
40W 2.704A 0.687A 0.695A 0.298A 40.007 82.214% 0 <6.0 44.88°C 0.9
12.090V 5.095V 3.324V 5.04V 48.662 37.92°C 115.01V
60W 4.180A 0.884A 0.894A 0.397A 60.006 85.913% 0 <6.0 46.59°C 0.936
12.089V 5.095V 3.323V 5.038V 69.848 38.39°C 114.95V
80W 5.654A 1.08A 1.093A 0.497A 79.976 87.748% 0 <6.0 48.18°C 0.953
12.088V 5.094V 3.322V 5.036V 91.141 39.33°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.491A 0.496A 0.198A 20.008 73.439% 0 <6.0 43.06°C 0.443
12.092V 5.098V 3.327V 5.042V 27.243 36.54°C 230.02V
40W 2.704A 0.687A 0.695A 0.298A 40.007 83.329% 0 <6.0 43.22°C 0.601
12.090V 5.096V 3.325V 5.04V 48.012 37.64°C 230.02V
60W 4.180A 0.884A 0.894A 0.397A 60.006 87.264% 0 <6.0 43.49°C 0.706
12.089V 5.095V 3.324V 5.038V 68.767 38.79°C 230.02V
80W 5.654A 1.08A 1.093A 0.497A 79.974 89.333% 0 <6.0 43.25°C 0.776
12.088V 5.094V 3.322V 5.037V 89.52 39.4°C 230.02V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load15.32mV8.62mV6.56mV7.08mVPass
20% Load18.57mV9.03mV7.22mV7.44mVPass
30% Load19.84mV9.69mV8.08mV8.20mVPass
40% Load22.69mV9.39mV8.34mV8.61mVPass
50% Load23.36mV11.99mV11.65mV9.99mVPass
60% Load22.95mV13.46mV13.58mV12.08mVPass
70% Load25.29mV12.70mV12.20mV13.50mVPass
80% Load24.47mV13.11mV13.89mV14.62mVPass
90% Load25.29mV14.08mV14.70mV18.03mVPass
100% Load23.93mV14.76mV16.02mV25.58mVPass
110% Load26.28mV16.64mV16.90mV26.36mVPass
Crossload118.83mV15.49mV15.69mV11.02mVPass
Crossload218.32mV11.37mV15.26mV12.07mVPass
Crossload316.03mV13.52mV10.83mV11.21mVPass
Crossload425.85mV12.51mV10.58mV21.18mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.47mV8.87mV7.07mV7.03mVPass
20% Load17.96mV9.74mV7.32mV7.54mVPass
30% Load19.44mV9.90mV8.09mV8.76mVPass
40% Load21.12mV10.25mV8.55mV9.27mVPass
50% Load25.09mV13.16mV12.36mV10.70mVPass
60% Load23.76mV13.31mV14.24mV11.62mVPass
70% Load24.12mV13.06mV12.36mV12.94mVPass
80% Load26.00mV13.93mV15.41mV14.52mVPass
90% Load25.95mV14.79mV15.46mV19.16mVPass
100% Load26.78mV14.74mV16.12mV24.32mVPass
110% Load26.37mV16.56mV16.53mV26.97mVPass
Crossload118.33mV14.71mV16.98mV11.33mVPass
Crossload218.32mV11.33mV15.36mV11.62mVPass
Crossload315.88mV13.62mV10.73mV11.26mVPass
Crossload425.42mV12.31mV10.83mV19.71mVPass

The results above are not used in the certification process

Moaiplay Ora Pro G1 750

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
