CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
HyperX CTK1200D-A 1200W
Serial Number-
Lab IDHX12003048
Certification ID253048
  • Test Result Report ID: 25PS3048A
  • Certificate Issue Date: Nov 25, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandHyperX
Manufacturer (OEM)Channel Well Technology
SeriesHyperX
Model NumberCTK1200D-A
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)150 x 85 x 160mm
Cooling135mm Fluid Dynamic Bearing (HA13525H12SF-Z)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25259940
Watts1501188200
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 24 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin ATX12V (650mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (650mm) 2 2 18AWG Tinned Copper
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (460mm+120mm+120mm) 4 12 18AWG Tinned Copper

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side

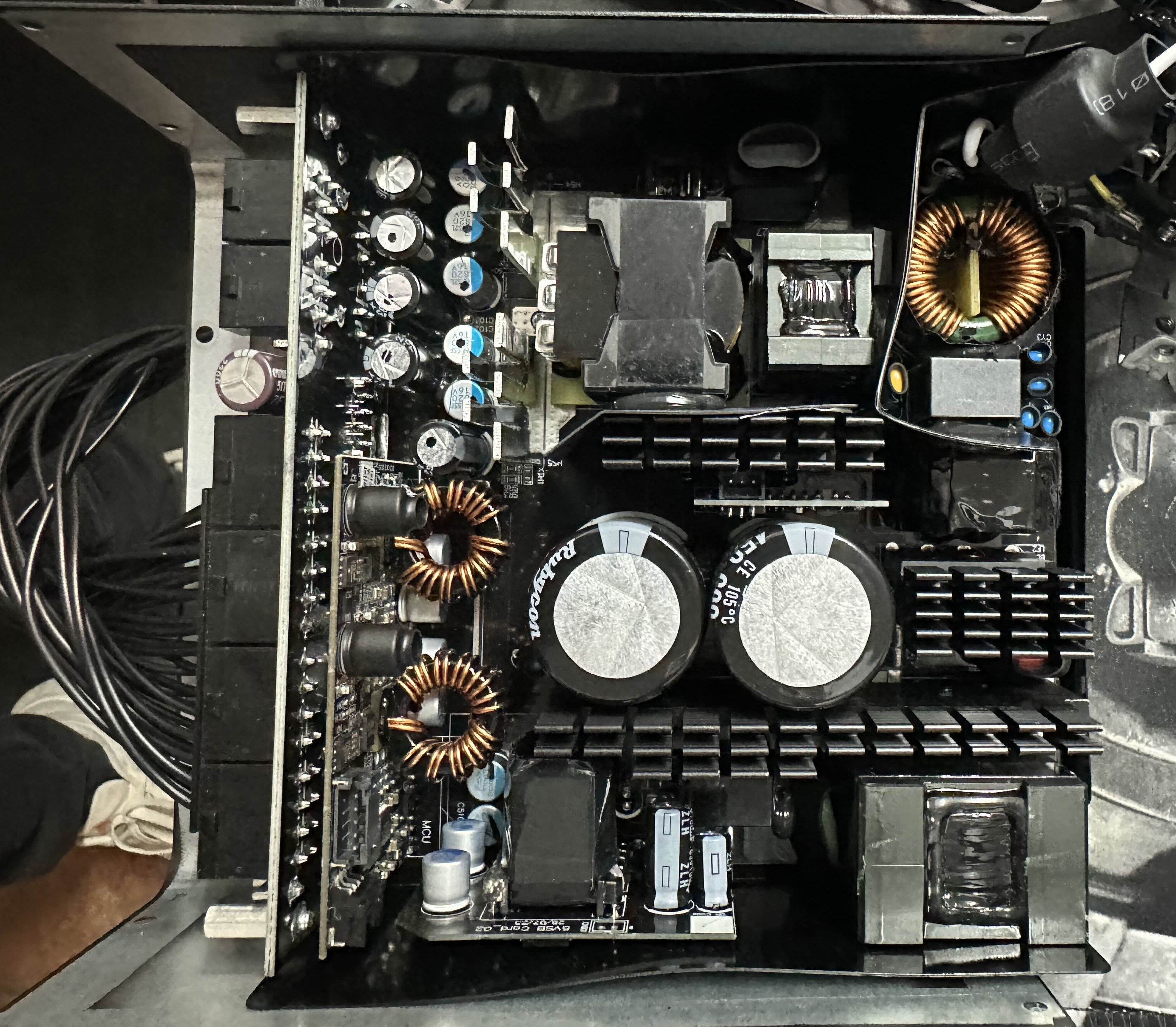

Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-25150 (15 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs
2x Infineon IPW60R070P6 (650V, 33.8A @ 100°C, Rds(on): 0.070Ohm)
APFC Boost Diode
Vishay VS-3C16ET07T-M3 (600V, 16A @ 142°C)
Bulk Cap(s)
Rubycon (450V, 680uF, 3000h @ 105°C, MXT)
Rubycon (450V, 560uF, 2000h @ 105°C, MXE)
Main Switchers
2x Infineon IPW60R099P7 (600V, 20A @ 100°C, Rds(on): 0.099Ohm)

PFC/PWM Combo Controller

MPS HR1280
Topology Primary side: Semi-Digital, APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Infineon BSC010N04LS (40V, 206A @ 100°C, Rds(on): 1.0mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
Nippon Chemi-Con (2-5,000h @ 105°C, KZE)
Nippon Chemi-Con (@ 105°C, W)
5x Rubycon (3-6,000 @ 105°C, YXS)
2x Rubycon (6-10,000 @ 105°C, ZLH)
Polymer:
25x Nippon Chemi-con, 28x FPCAP
Supervisor IC Weltrend WT7502R (OVP, UVP, OCP, PG)
Fan Controller / Microcontroller Nuvoton M032LD2AE

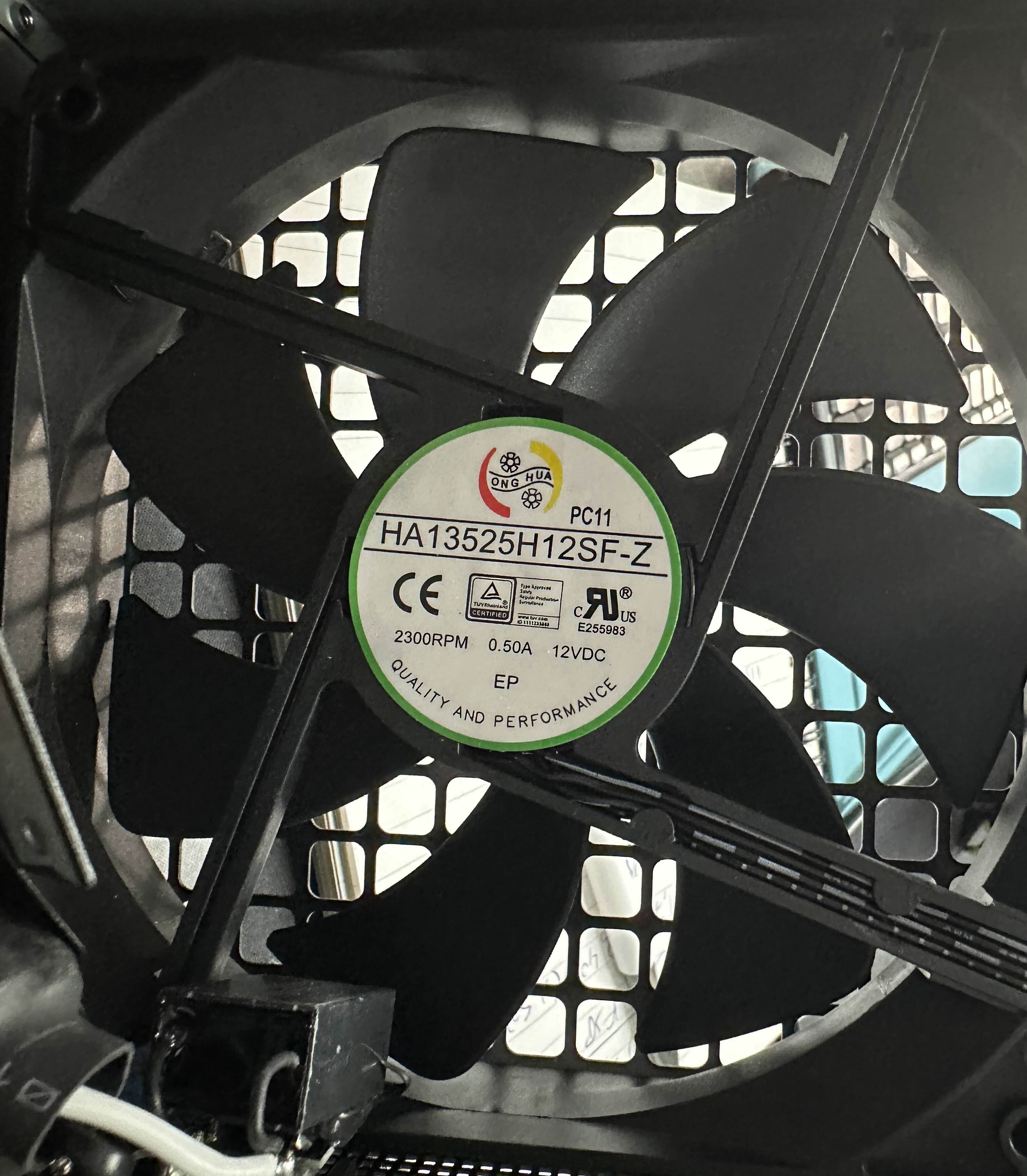

Fan Model Hong Hua HA13525H12SF-Z (135mm, 12V, 0.5A Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
PingWei PW065N12ESL (120V, 70A @ 100°C, Rds(on): 6.5mOhm)
Standby PWM Controller
Power Integration INN3675C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)89.231%
Average Noise Output (>1450 Load Combinations)13.57dBA
Average PF (>1450 Load Combinations)0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load77.170%
Standby Power Consumption0.0217W
12V Ripple (Full Load)46.74mV
5V Ripple (Full Load)19.43mV
3.3V Ripple (Full Load)18.41mV
5VSB Ripple (Full Load)28.97mV
12V Load Regulation1.05%
5V Load Regulation0.84%
3.3V Load Regulation1.93%
5VSB Load Regulation3.40%
Inrush Current17.550A
Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)91.817%
Average Noise Output (>1450 Load Combinations)13.54dBA
Average PF (>1450 Load Combinations)0.957
Efficiency With 10W (≤500W) or 2% (>500W) Load81.104%
Standby Power Consumption0.0997W
12V Ripple (Full Load)50.34mV
5V Ripple (Full Load)20.36mV
3.3V Ripple (Full Load)20.41mV
5VSB Ripple (Full Load)27.52mV
12V Load Regulation1.18%
5V Load Regulation1.13%
3.3V Load Regulation2.02%
5VSB Load Regulation3.36%
Inrush Current29.900A
12V Transient Response (200%)11.06V
5V Transient Response (200%)4.865V
3.3V Transient Response (200%)3.136V
5VSB Transient Response (200%)4.946V
Hold-Up Time & Power Ok Signal27.60ms
AC Loss to PWR_OK Hold Up Time25.40ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)90.0ms87.0ms
PSU Timings: T3 (20% / 100%)127.0ms128.0ms
12V OCP (30.1°C / 41.7°C)126.40A (127.68%), 11.920V126.80A (128.08%), 11.914V
5V OCP (30.1°C / 41.7°C)27.8A (111.20%), 4.911V27.8A (111.20%), 4.918V
3.3V OCP (30.1°C / 41.7°C)27.9A (111.60%), 3.264V28A (112.00%), 3.26V
5VSB OCP (30.1°C / 41.7°C)6.8A (170.00%), 4.4832V6.7A (167.50%), 4.899V
OPP (28.31°C / 42.89°C)129.50%129.75%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)27.6
AC Loss to PWR_OK Hold Up Time (ms)25.4
PWR_OK Inactive to DC Loss Delay (ms)2.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.02 V 115.00 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.97 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.022 W 0.007 W N/A 0.037 W N/A N/A
Apparent Power: 15.288 W 15.267 W N/A 15.311 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.02 V 230.01 V 227.70 V 230.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.100 W 0.063 W N/A 0.136 W N/A N/A
Apparent Power: 50.705 W 50.663 W N/A 50.752 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

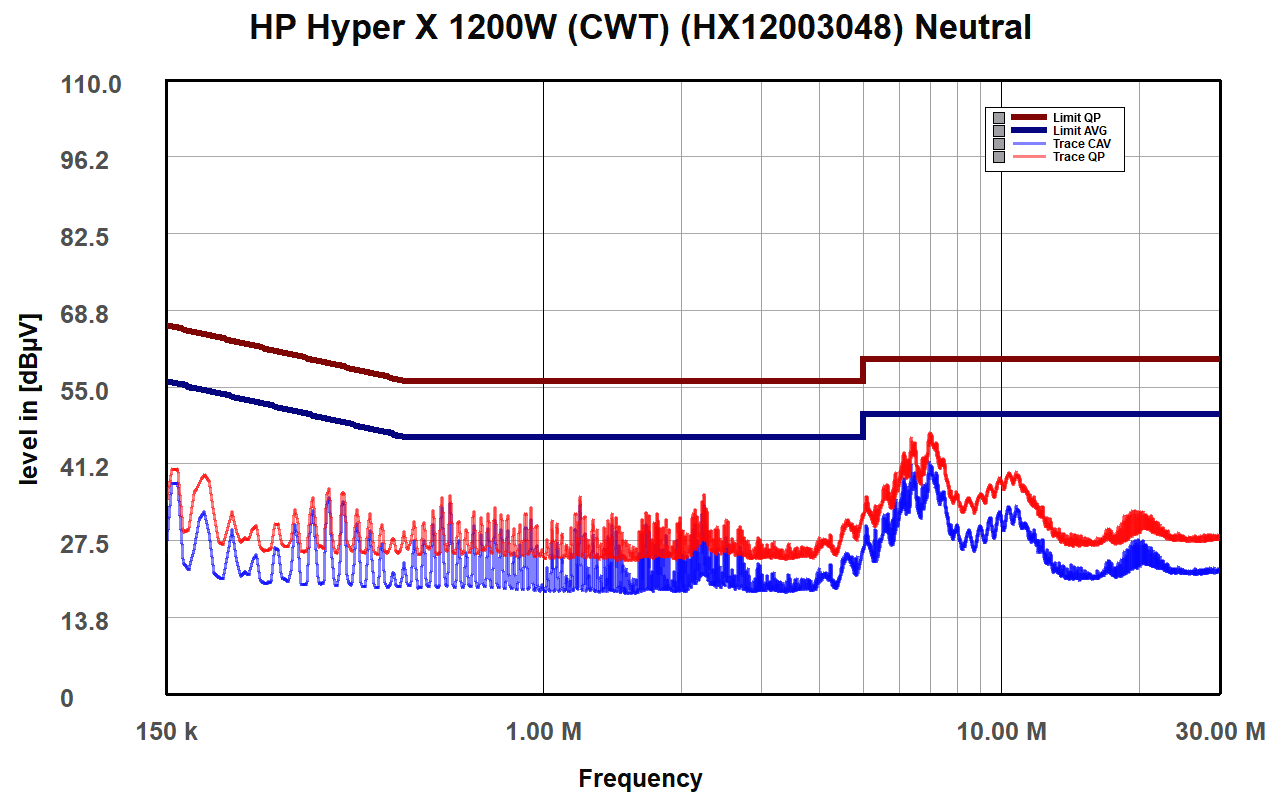

NEUTRAL

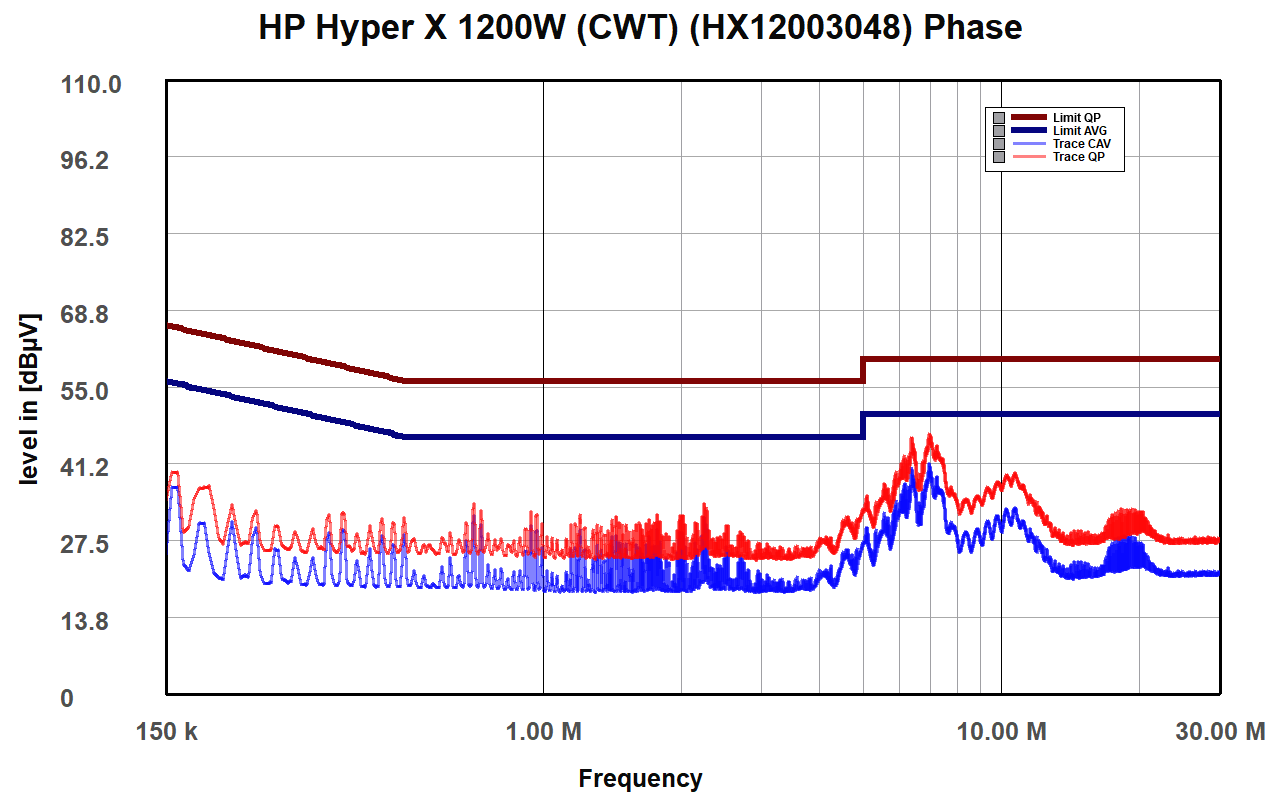

PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

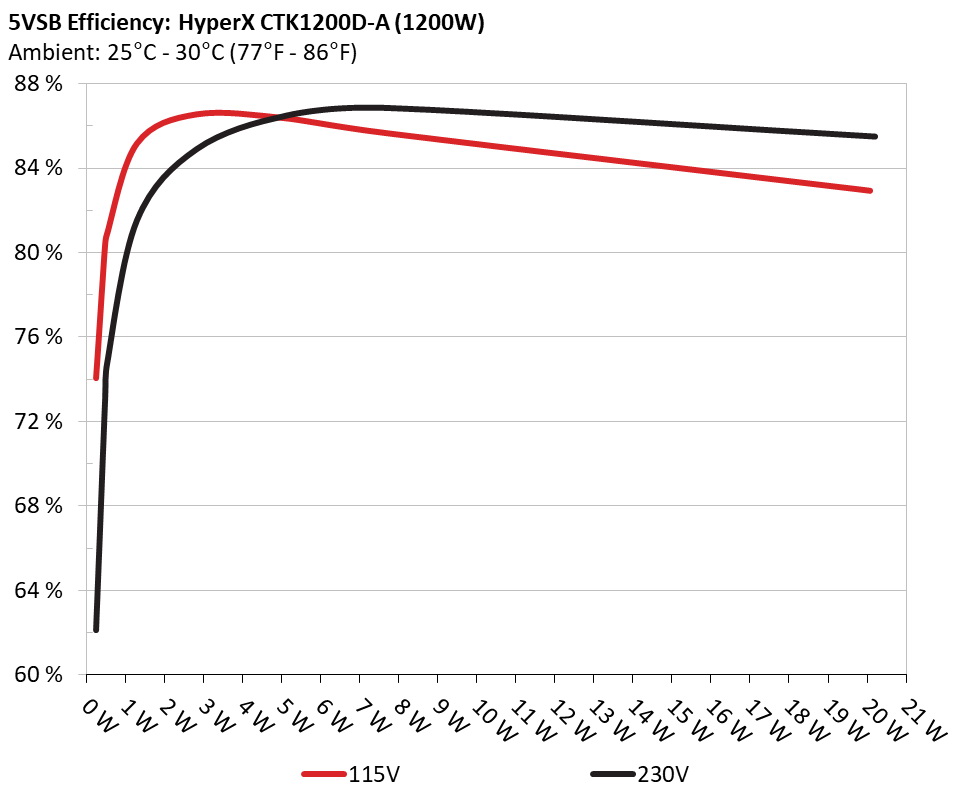

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 74.06% 0.021
5.145V 0.313W 115.07V
2 0.09A 0.461W 80.309% 0.037
5.125V 0.574W 115.08V
3 0.55A 2.812W 86.543% 0.194
5.114V 3.25W 115.09V
4 1A 5.116W 86.351% 0.31
5.116V 5.925W 115.09V
5 1.5A 7.661W 85.657% 0.398
5.107V 8.944W 115.09V
6 4A 20.075W 82.928% 0.554
5.019V 24.208W 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 62.138% 0.007
5.148V 0.373W 230.34V
2 0.09A 0.463W 73.079% 0.013
5.145V 0.634W 230.33V
3 0.55A 2.812W 84.915% 0.064
5.115V 3.312W 230.34V
4 1A 5.113W 86.503% 0.112
5.114V 5.911W 230.33V
5 1.5A 7.668W 86.863% 0.162
5.113V 8.828W 230.33V
6 3.999A 20.195W 85.508% 0.338
5.05V 23.616W 230.32V

Protection Features

OCP (Normal @ 30.1°C)12V: 126.40A (127.68%), 11.920V
5V: 27.8A (111.20%), 4.911V
3.3V: 27.9A (111.60%), 3.264V
5VSB: 6.8A (170.00%), 4.4832V
OCP (Hot @ 41.7°C)12V: 126.80A (128.08%), 11.914V
5V: 27.8A (111.20%), 4.918V
3.3V: 28A (112.00%), 3.26V
5VSB: 6.7A (167.50%), 4.899V
OPP (Normal @ 28.3°C)1554.01W (129.50%)
OPP (Hot @ 42.9°C)1557.03W (129.75%)
OTP✓ (113°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✓
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.175A 1.989A 1.989A 0.98A 119.959 88.426% 0 <6.0 51.04°C 0.977
12.033V 5.027V 3.318V 5.1V 135.727 40.47°C 115.06V
20% 17.385A 2.986A 2.989A 1.179A 239.902 91.156% 0 <6.0 52.03°C 0.98
12.022V 5.023V 3.312V 5.089V 263.147 40.62°C 115.02V
30% 26.887A 3.486A 3.493A 1.379A 358.982 91.366% 0 <6.0 54.56°C 0.996
12.010V 5.02V 3.307V 5.077V 392.763 41.24°C 114.99V
40% 36.516A 3.987A 3.997A 1.579A 479.351 91.459% 0 <6.0 57.19°C 0.998
11.999V 5.016V 3.302V 5.065V 524.034 41.76°C 114.95V
50% 45.770A 4.988A 5.007A 1.781A 599.107 91.19% 0 <6.0 62°C 0.997
11.986V 5.012V 3.295V 5.052V 656.981 42.47°C 114.92V
60% 55.111A 5.992A 6.021A 1.984A 719.654 90.686% 358 <6.0 42.71°C 0.997
11.973V 5.007V 3.289V 5.041V 793.634 63.65°C 114.88V
70% 64.409A 6.997A 7.038A 2.187A 839.396 90.015% 358 <6.0 43.19°C 0.996
11.960V 5.003V 3.282V 5.028V 932.751 69.03°C 114.84V
80% 73.791A 8.002A 8.059A 2.292A 959.354 89.22% 852 20.3 43.76°C 0.997
11.946V 4.997V 3.275V 5.016V 1075.513 62.72°C 114.79V
90% 83.524A 8.509A 8.564A 2.397A 1079.191 88.406% 867 21.1 44.63°C 0.997
11.933V 4.994V 3.269V 5.005V 1220.538 64.4°C 114.74V
100% 92.691A 9.017A 9.104A 4.048A 1199.425 87.309% 1067 27 45.52°C 0.996
11.918V 4.99V 3.262V 4.94V 1373.708 65.65°C 114.69V
110% 102.148A 10.03A 10.23A 4.058A 1319.245 86.196% 1408 36.3 45.88°C 0.996
11.904V 4.984V 3.255V 4.929V 1530.483 65.14°C 114.63V
CL1 0.115A 18.095A 18.231A 0A 151.283 83.193% 359 <6.0 40.79°C 0.981
12.011V 4.99V 3.269V 5.079V 181.735 56.22°C 115.05V
CL2 0.115A 25.074A 0A 0A 126.241 82.325% 358 <6.0 41.37°C 0.98
12.024V 4.98V 3.319V 5.092V 153.451 53.88°C 115.05V
CL3 0.115A 0A 25.364A 0A 83.875 75.87% 359 <6.0 42.17°C 0.969
12.024V 5.032V 3.252V 5.087V 110.583 52.42°C 115.07V
CL4 100.543A 0A 0A 0.001A 1199.818 88.012% 1069 27 46.66°C 0.998
11.933V 5.014V 3.291V 5.034V 1363.061 63.55°C 114.69V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.175A 1.99A 1.988A 0.981A 119.992 90.057% 0 <6.0 44.52°C 0.784
12.035V 5.027V 3.32V 5.098V 133.298 40.35°C 230.25V
20% 17.389A 2.988A 2.988A 1.18A 239.958 93.025% 0 <6.0 47.68°C 0.889
12.022V 5.021V 3.314V 5.087V 257.993 40.96°C 230.22V
30% 26.911A 3.49A 3.494A 1.379A 359.215 93.623% 0 <6.0 51.61°C 0.96
12.008V 5.016V 3.306V 5.076V 383.706 41.44°C 230.19V
40% 36.543A 3.992A 4A 1.58A 479.552 93.782% 0 <6.0 51.54°C 0.984
11.995V 5.011V 3.301V 5.063V 511.37 41.71°C 230.16V
50% 45.798A 4.995A 5.009A 1.783A 599.239 93.625% 0 <6.0 51.58°C 0.991
11.981V 5.006V 3.294V 5.049V 640.111 42.49°C 230.16V
60% 55.148A 6.001A 6.024A 1.986A 719.749 93.286% 359 <6.0 42.62°C 0.994
11.967V 5V 3.287V 5.037V 771.62 55.72°C 230.15V
70% 64.456A 7.009A 7.043A 2.19A 839.461 92.914% 358 <6.0 43.47°C 0.994
11.952V 4.994V 3.28V 5.023V 903.423 57.21°C 230.14V
80% 73.854A 8.018A 8.065A 2.294A 959.418 92.348% 852 20.3 43.82°C 0.996
11.937V 4.988V 3.273V 5.013V 1038.852 56.19°C 230.13V
90% 83.606A 8.528A 8.569A 2.399A 1079.24 91.782% 867 21.1 44.8°C 0.997
11.922V 4.983V 3.267V 5.001V 1176.017 56.66°C 230.11V
100% 92.799A 9.04A 9.108A 4.043A 1199.464 91.186% 1068 27 45.62°C 0.998
11.905V 4.977V 3.26V 4.947V 1315.893 57.53°C 230.09V
110% 102.269A 10.057A 10.234A 4.052A 1319.268 90.511% 1288 34.1 46.04°C 0.999
11.890V 4.971V 3.253V 4.936V 1457.757 58.09°C 230.07V
CL1 0.115A 18.128A 18.163A 0A 151.277 85.328% 358 <6.0 41.68°C 0.829
12.015V 4.981V 3.281V 5.083V 177.306 51.05°C 230.28V
CL2 0.115A 25.132A 0A 0A 126.246 83.612% 358 <6.0 42.59°C 0.804
12.024V 4.968V 3.317V 5.095V 151.261 52.81°C 230.28V
CL3 0.115A 0A 25.242A 0A 83.878 77.424% 359 <6.0 41.89°C 0.744
12.023V 5.029V 3.268V 5.09V 108.545 51.3°C 230.3V
CL4 100.692A 0A 0A 0.001A 1199.866 91.738% 1069 27 46.25°C 0.998
11.916V 5.006V 3.284V 5.034V 1307.434 55.82°C 230.1V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.497A 0.496A 0.196A 19.993 70.788% 0 <6.0 44.48°C 0.688
12.043V 5.032V 3.325V 5.108V 26.586 36.45°C 115.1V
40W 2.714A 0.696A 0.695A 0.294A 39.989 82.482% 0 <6.0 47.01°C 0.888
12.041V 5.032V 3.324V 5.105V 48.412 37.4°C 115.09V
60W 4.196A 0.894A 0.893A 0.392A 59.988 85.819% 0 <6.0 48.21°C 0.939
12.039V 5.031V 3.323V 5.103V 70.048 38.12°C 115.08V
80W 5.673A 1.093A 1.092A 0.49A 79.915 86.936% 0 <6.0 49.43°C 0.96
12.037V 5.03V 3.322V 5.102V 92.003 39.33°C 115.07V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.233A 0.497A 0.496A 0.196A 20.002 78.183% 0 <6.0 37.67°C 0.364
12.046V 5.033V 3.326V 5.113V 25.583 36.82°C 230.32V
40W 2.714A 0.695A 0.695A 0.294A 39.994 85.064% 0 <6.0 41.28°C 0.526
12.044V 5.033V 3.325V 5.107V 47.161 37.41°C 230.32V
60W 4.196A 0.894A 0.893A 0.392A 59.993 88.201% 0 <6.0 43.85°C 0.628
12.042V 5.032V 3.324V 5.104V 68.143 38.51°C 230.32V
80W 5.673A 1.093A 1.092A 0.49A 79.933 88.971% 0 <6.0 49.35°C 0.705
12.040V 5.031V 3.323V 5.101V 89.917 39.46°C 230.3V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load16.45mV15.04mV14.84mV16.93mVPass
20% Load18.25mV15.15mV14.69mV17.39mVPass
30% Load19.03mV15.51mV14.74mV17.40mVPass
40% Load22.68mV17.93mV16.34mV19.41mVPass
50% Load25.52mV16.75mV16.03mV20.96mVPass
60% Load29.80mV17.83mV16.44mV21.37mVPass
70% Load33.36mV18.44mV17.27mV23.69mVPass
80% Load38.56mV19.32mV17.89mV25.19mVPass
90% Load43.26mV19.53mV19.14mV26.48mVPass
100% Load46.74mV19.43mV18.41mV28.97mVPass
110% Load54.99mV21.51mV20.15mV29.41mVPass
Crossload116.14mV18.37mV16.64mV11.87mVPass
Crossload218.56mV26.22mV15.92mV12.13mVPass
Crossload315.72mV14.94mV19.55mV12.34mVPass
Crossload447.46mV19.52mV20.00mV19.99mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load17.27mV18.96mV16.50mV16.98mVPass
20% Load20.42mV17.10mV15.72mV19.10mVPass
30% Load23.20mV21.28mV16.60mV19.77mVPass
40% Load25.00mV18.44mV17.63mV19.31mVPass
50% Load27.53mV18.39mV17.58mV21.27mVPass
60% Load31.76mV19.16mV17.17mV22.71mVPass
70% Load35.58mV18.91mV18.51mV24.26mVPass
80% Load39.70mV20.09mV19.55mV24.73mVPass
90% Load46.09mV21.12mV21.30mV27.41mVPass
100% Load50.34mV20.36mV20.41mV27.52mVPass
110% Load55.71mV21.57mV21.16mV27.95mVPass
Crossload117.35mV16.96mV17.17mV12.07mVPass
Crossload217.69mV24.88mV14.17mV11.30mVPass
Crossload315.41mV15.81mV18.20mV11.66mVPass
Crossload450.35mV19.39mV18.94mV19.85mVPass

The results above are not used in the certification process

HyperX CTK1200D-A 1200W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
