Cybenetics Test - Gigabyte GP-AE1000PM PG5 / PG5 ICE

Gigabyte GP-AE1000PM PG5 / PG5 ICE

Serial Number-

Lab IDGB10003053

Certification ID253053

Test Result Report ID: 25PS3053A
Certificate Issue Date: Dec 8, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Gigabyte
Manufacturer (OEM)	XIAMEN CASTEC ELECTRONIC INDUSTRY
Series	Aorus
Model Number	GP-AE1000PM PG5
Serial Number	-
DUT Notes	The results apply to the ICE models too, as they are identical.

DUT Specifications

Rated Voltage (Vrms)	100 - 240
Rated Current (Arms)	6.5 - 15
Rated Frequency (Hz)	50 - 60
Rated Power (W)	1000
Type	ATX12V
Dimensions (W x H x D)	150 x 85 x 140mm
Cooling	120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation	✓
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	83.3	3	0.3
Max. Power	Watts	125		999.6	15	3.6
Total Max. Power (W)		1000

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (645mm)	1	1	16AWG	Tinned Copper
4+4 pin EPS12V (700mm)	2	2	16AWG	Tinned Copper
6+2 pin PCIe (750mm)	2	2	16AWG	Tinned Copper
6+2 pin PCIe (650mm+150mm)	2	4	16AWG	Tinned Copper
12+4 pin PCIe (700mm) (600W)	1	1	16-26AWG	Tinned Copper
SATA (600mm+150mm+150mm+150mm)	2	8	18AWG	Tinned Copper
4-pin Molex (500mm+145mm+145mm+150mm)	1	4	18AWG	Tinned Copper
AC Power Cord (1370mm) - C13 coupler	1	1	18AWG	-

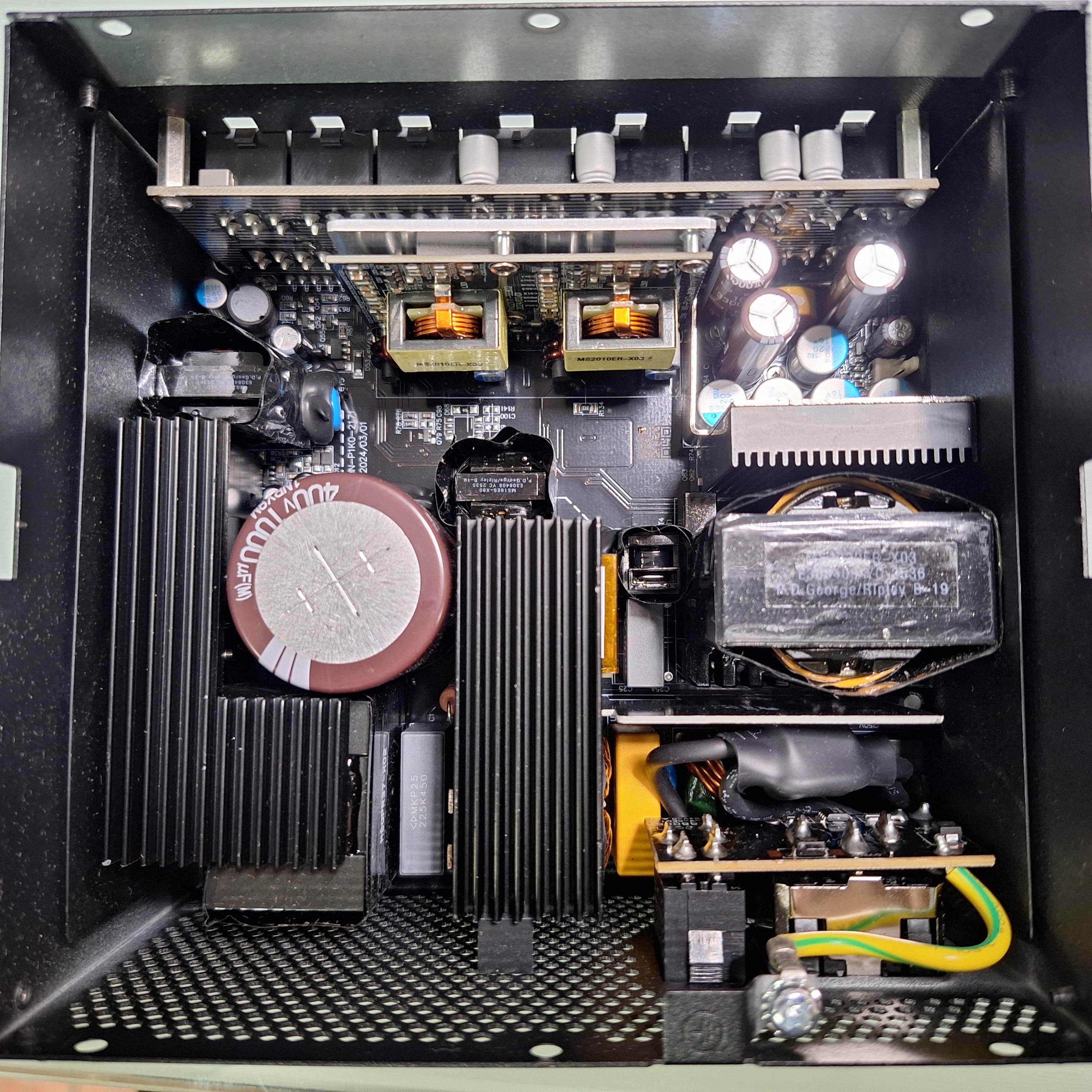

Parts Description

`General Data`
Manufacturer (OEM)	Xiamen Castec Electronic Industry
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor NTC 5D-15 (5 Ohm @ 25°C) & Relay
Bridge Rectifier	2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs	2x Infineon IPP60R099P7 (600V, 31A @ 25°C, Rds(on): 0.099Ohm)
APFC Boost Diode	STMicroelectronics STPSC10H065 (650V, 10A @ 135°C)
Bulk Cap(s)	Nippon Chemi-Con (400V, 1000uF, 2000h @ 105°C, KMW )
Main Switchers	4x Infineon IPP60R160P7 (600V, 20A @ 25°C, Rds(on): 0.160Ohm)
APFC Controller	Champion CM6500UNX & Champion CM03X (reducing no load consumption)
Resonant Controller	Champion CU6901VACN
Topology	Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	6x Nexperia PSMN1R4-40YLD (40V, 240A @ 25°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: no info PWM Controller(s): 2x UPI-Semi uP9303
Filtering Capacitors	Electrolytic: 3x Nippon Chemi-Con (@ 105°C, W) Nippon Chemi-Con (6-10,000h @ 105°C, KY ) 4x Rubycon (4-10,000 @ 105°C, YXJ ) Rubycon (6-10,000 @ 105°C, ZLH ) Rubycon (4-10,000 @ 105°C, YXF ) Polymer: 28x Nippon Chemi-con, 7x FPCAP
Supervisor IC	Weltrend WT7502R (OVP, UVP, OCP, PG)

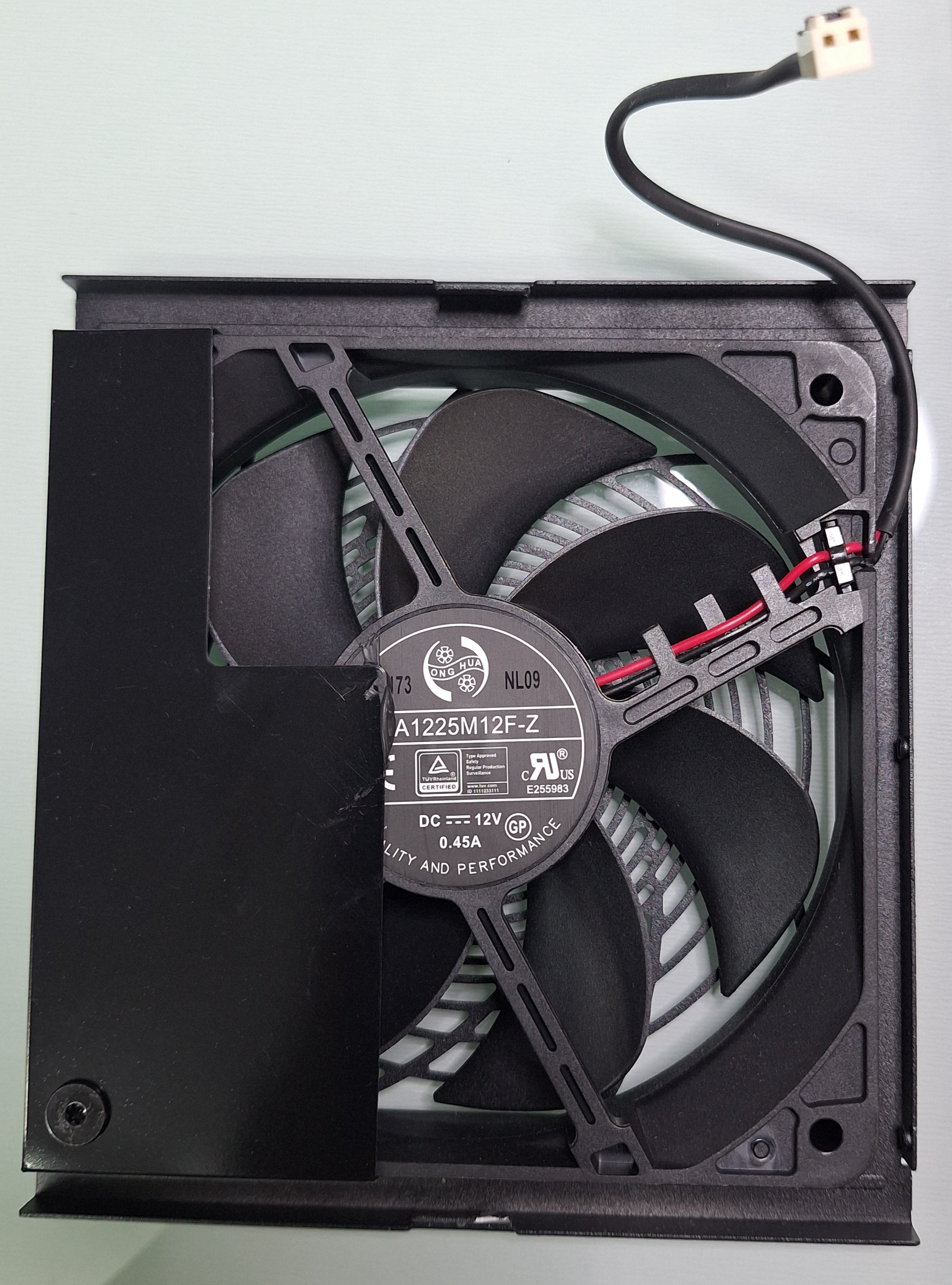

Fan Model	Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
`5VSB Circuit`
Rectifier	Rectron Semiconductor ES1J (600V, 1A)
Standby PWM Controller	Dongke DK025G (650V, 0.8Ohm)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	A++
Average Efficiency (>1450 load combinations)	90.506%
Average Noise Output (>1450 Load Combinations)	12.74dBA
Average PF (>1450 Load Combinations)	0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load	63.716%
Standby Power Consumption	0.0256W
12V Ripple (Full Load)	20.97mV
5V Ripple (Full Load)	20.32mV
3.3V Ripple (Full Load)	14.30mV
5VSB Ripple (Full Load)	25.65mV
12V Load Regulation	0.19%
5V Load Regulation	0.64%
3.3V Load Regulation	1.06%
5VSB Load Regulation	1.93%
Inrush Current	32.900A

Efficiency Rating	PLATINUM
Noise Rating	A++
Average Efficiency (>1450 load combinations)	92.485%
Average Noise Output (>1450 Load Combinations)	11.14dBA
Average PF (>1450 Load Combinations)	0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load	63.591%
Standby Power Consumption	0.0555W
12V Ripple (Full Load)	22.95mV
5V Ripple (Full Load)	22.02mV
3.3V Ripple (Full Load)	14.64mV
5VSB Ripple (Full Load)	26.38mV
12V Load Regulation	0.24%
5V Load Regulation	0.62%
3.3V Load Regulation	1.07%
5VSB Load Regulation	1.91%
Inrush Current	63.140A
12V Transient Response (200%)	11.42V
5V Transient Response (200%)	4.943V
3.3V Transient Response (200%)	3.218V
5VSB Transient Response (200%)	4.969V
Hold-Up Time & Power Ok Signal	17.60ms
AC Loss to PWR_OK Hold Up Time	16.40ms
PWR_OK Inactive to DC Loss Delay	1.20ms
PSU Timings: T1 (20% / 100%)	53.0ms	51.0ms
PSU Timings: T3 (20% / 100%)	129.0ms	128.0ms
12V OCP (29.8°C / 45.1°C)	103.20A (123.89%), 12.046V	103.20A (123.89%), 12.055V
5V OCP (29.8°C / 45.1°C)	32.86A (131.44%), 4.773V	31.5A (126.00%), 4.807V
3.3V OCP (29.8°C / 45.1°C)	31A (124.00%), 3.289V	30.4A (121.60%), 3.285V
5VSB OCP (29.8°C / 45.1°C)	3.7A (123.33%), 5.002V	3.8A (126.67%), 4.998V
OPP (30.93°C / 42.47°C)	122.51%	122.51%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	17.6
AC Loss to PWR_OK Hold Up Time (ms)	16.4
PWR_OK Inactive to DC Loss Delay (ms)	1.2

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.02 V	115.00 V	113.85 V	115.12 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.94 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.026 W	-0.008 W	N/A	0.057 W	N/A	N/A
Apparent Power:	8.944 W	8.922 W	N/A	8.972 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.03 V	230.03 V	227.70 V	230.07 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.056 W	0.015 W	N/A	0.112 W	N/A	N/A
Apparent Power:	29.117 W	29.081 W	N/A	29.151 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

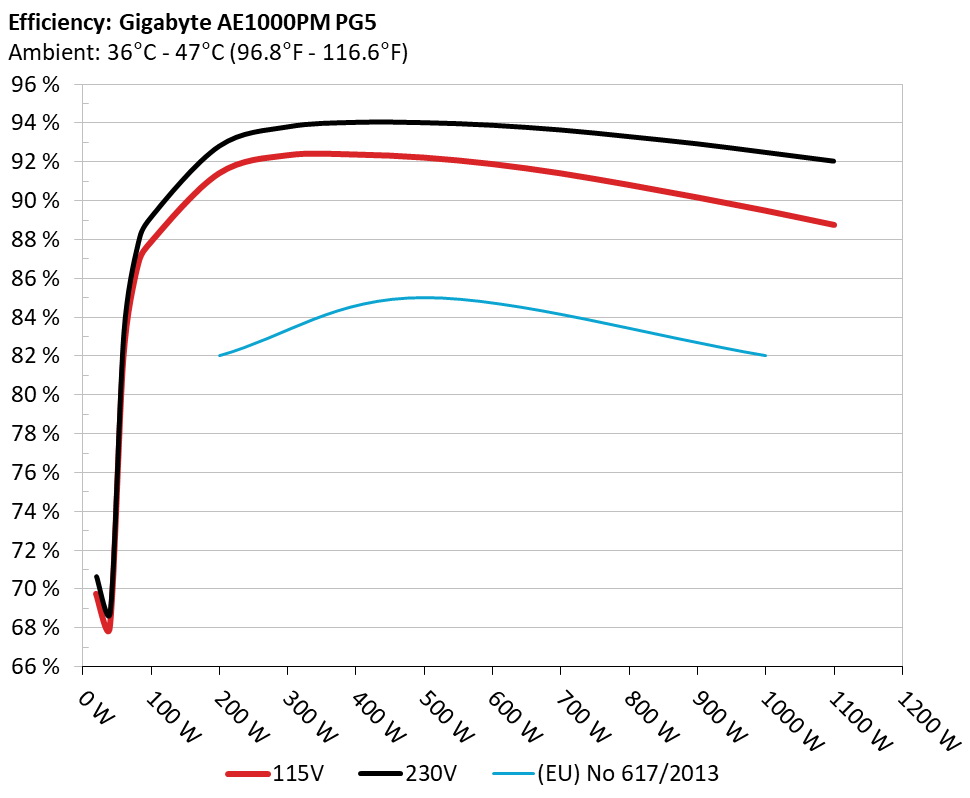

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

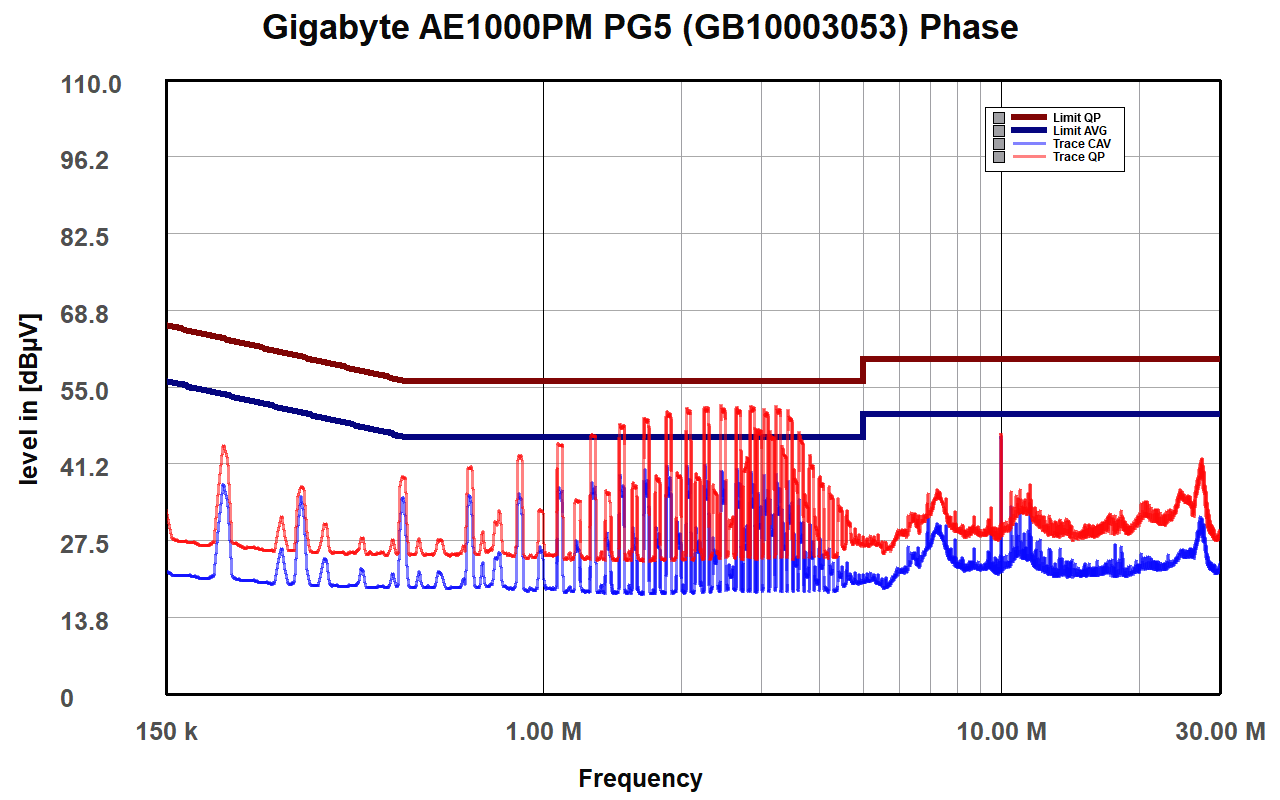

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

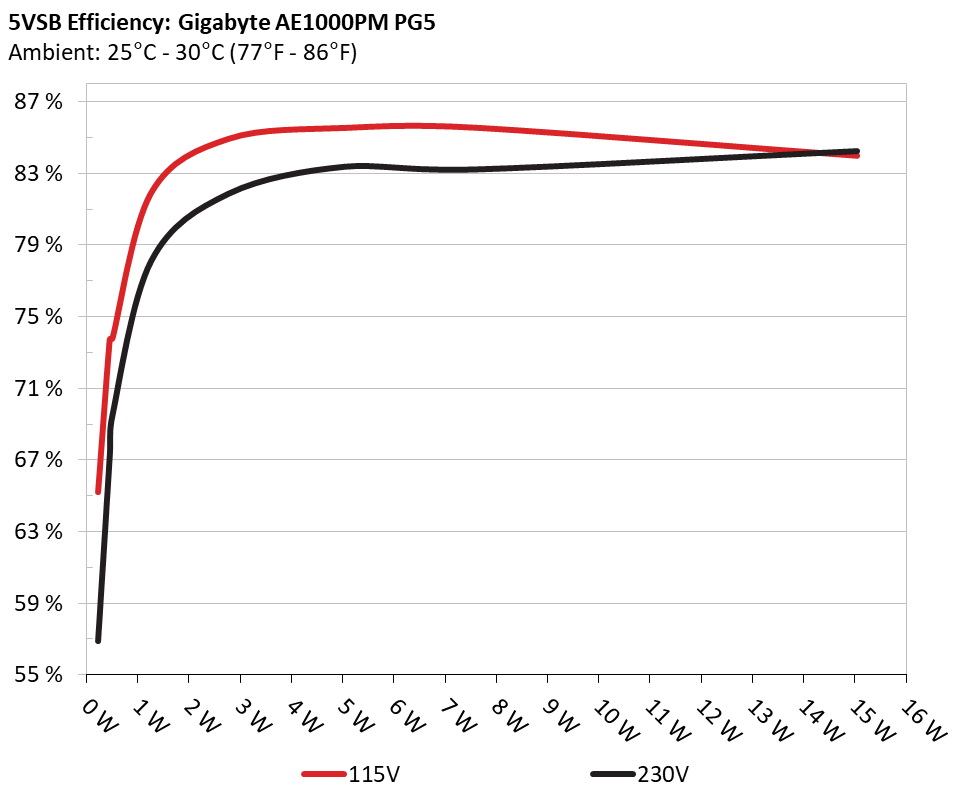

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	65.194%	0.04
1	5.067V	0.35W	65.194%	115.07V
2	0.09A	0.456W	73.726%	0.069
2	5.066V	0.619W	73.726%	115.07V
3	0.55A	2.782W	84.907%	0.277
3	5.058V	3.277W	84.907%	115.07V
4	1A	5.051W	85.51%	0.371
4	5.05V	5.908W	85.51%	115.06V
5	1.5A	7.563W	85.526%	0.418
5	5.041V	8.843W	85.526%	115.06V
6	3.001A	15.048W	83.958%	0.481
6	5.015V	17.923W	83.958%	115.06V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	56.867%	0.014
1	5.068V	0.403W	56.867%	230.33V
2	0.09A	0.456W	67.217%	0.024
2	5.067V	0.678W	67.217%	230.29V
3	0.55A	2.782W	81.884%	0.112
3	5.059V	3.399W	81.884%	230.25V
4	1A	5.051W	83.389%	0.182
4	5.051V	6.058W	83.389%	230.24V
5	1.5A	7.563W	83.232%	0.244
5	5.042V	9.088W	83.232%	230.24V
6	3A	15.047W	84.258%	0.342
6	5.015V	17.859W	84.258%	230.23V

Protection Features

OCP (Normal @ 29.8°C)	12V: 103.20A (123.89%), 12.046V 5V: 32.86A (131.44%), 4.773V 3.3V: 31A (124.00%), 3.289V 5VSB: 3.7A (123.33%), 5.002V
OCP (Hot @ 45.1°C)	12V: 103.20A (123.89%), 12.055V 5V: 31.5A (126.00%), 4.807V 3.3V: 30.4A (121.60%), 3.285V 5VSB: 3.8A (126.67%), 4.998V
OPP (Normal @ 30.9°C)	1225.07W (122.51%)
OPP (Hot @ 42.5°C)	1225.06W (122.51%)
OTP	✓ (115°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.502A	1.977A	1.989A	0.991A	100.011	87.865%	0	<6.0	45.47°C	0.956
10%	12.058V	5.06V	3.319V	5.044V	113.824	87.865%	0	<6.0	40.23°C	115.02V
20%	14.024A	2.969A	2.986A	1.192A	199.969	91.411%	0	<6.0	47.13°C	0.975
20%	12.055V	5.053V	3.315V	5.036V	218.757	91.411%	0	<6.0	40.74°C	114.99V
30%	21.902A	3.469A	3.488A	1.392A	300.027	92.34%	0	<6.0	48.17°C	0.983
30%	12.053V	5.046V	3.312V	5.028V	324.916	92.34%	0	<6.0	41.42°C	114.95V
40%	29.746A	3.969A	3.99A	1.594A	399.632	92.376%	0	<6.0	50.28°C	0.985
40%	12.050V	5.04V	3.308V	5.02V	432.611	92.376%	0	<6.0	41.83°C	114.92V
50%	37.257A	4.964A	4.993A	1.796A	499.361	92.222%	591	<6.0	42.46°C	0.988
50%	12.047V	5.038V	3.305V	5.011V	541.485	92.222%	591	<6.0	66.66°C	114.88V
60%	44.839A	5.959A	5.998A	1.999A	599.872	91.888%	596	6.3	42.54°C	0.989
60%	12.044V	5.036V	3.302V	5.003V	652.832	91.888%	596	6.3	51.63°C	114.84V
70%	52.353A	6.955A	7.006A	2.203A	699.597	91.411%	602	7	43.14°C	0.991
70%	12.043V	5.034V	3.298V	4.994V	765.325	91.411%	602	7	47.28°C	114.8V
80%	59.925A	7.949A	8.014A	2.306A	799.586	90.816%	718	11.3	43.89°C	0.992
80%	12.043V	5.032V	3.294V	4.988V	880.444	90.816%	718	11.3	48.84°C	114.76V
90%	67.839A	8.449A	8.507A	2.41A	899.358	90.171%	1270	28.5	44.18°C	0.993
90%	12.042V	5.03V	3.291V	4.981V	997.404	90.171%	1270	28.5	52.11°C	114.72V
100%	75.569A	8.95A	9.033A	3.021A	999.355	89.489%	1606	35.7	45.26°C	0.994
100%	12.038V	5.028V	3.288V	4.967V	1116.73	89.489%	1606	35.7	52.22°C	114.68V
110%	83.221A	9.949A	10.138A	3.024A	1099.955	88.753%	1896	40.7	46.56°C	0.994
110%	12.036V	5.026V	3.284V	4.962V	1239.34	88.753%	1896	40.7	53.15°C	114.64V
CL1	0.116A	14.943A	14.99A	0A	126.303	85.199%	0	<6.0	54.85°C	0.967
CL1	12.073V	5.039V	3.309V	5.051V	148.244	85.199%	0	<6.0	42.47°C	115.02V
CL2	0.116A	24.807A	0A	0A	126.258	83.323%	0	<6.0	55.43°C	0.967
CL2	12.080V	5.034V	3.313V	5.057V	151.526	83.323%	0	<6.0	40.36°C	115.02V
CL3	0.116A	0A	25.039A	0A	83.884	78.667%	0	<6.0	56.92°C	0.957
CL3	12.075V	5.042V	3.294V	5.048V	106.63	78.667%	0	<6.0	40.15°C	115.03V
CL4	83.009A	0A	0A	0A	999.93	90.002%	1580	35.4	45.55°C	0.994
CL4	12.046V	5.034V	3.293V	5.025V	1111.006	90.002%	1580	35.4	51.21°C	114.69V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.500A	1.977A	1.989A	0.991A	100.004	89.142%	0	<6.0	49.69°C	0.861
10%	12.062V	5.058V	3.318V	5.044V	112.181	89.142%	0	<6.0	40.2°C	230.23V
20%	14.020A	2.97A	2.987A	1.192A	199.959	92.801%	0	<6.0	50.25°C	0.924
20%	12.059V	5.052V	3.314V	5.035V	215.47	92.801%	0	<6.0	40.9°C	230.22V
30%	21.896A	3.469A	3.488A	1.393A	300.018	93.789%	0	<6.0	51.1°C	0.949
30%	12.055V	5.046V	3.311V	5.027V	319.88	93.789%	0	<6.0	41.15°C	230.2V
40%	29.737A	3.969A	3.991A	1.594A	399.603	94.021%	0	<6.0	52.42°C	0.962
40%	12.052V	5.04V	3.308V	5.02V	425.012	94.021%	0	<6.0	41.63°C	230.18V
50%	37.249A	4.965A	4.994A	1.796A	499.325	94.003%	596	6.3	42.37°C	0.969
50%	12.049V	5.037V	3.304V	5.011V	531.179	94.003%	596	6.3	58.76°C	230.17V
60%	44.833A	5.96A	5.999A	1.999A	599.849	93.87%	599	7	42.79°C	0.974
60%	12.046V	5.035V	3.301V	5.003V	639.021	93.87%	599	7	60.65°C	230.15V
70%	52.347A	6.956A	7.007A	2.203A	699.574	93.631%	605	6.9	43.45°C	0.978
70%	12.044V	5.033V	3.297V	4.994V	747.159	93.631%	605	6.9	63.29°C	230.13V
80%	59.923A	7.951A	8.016A	2.306A	799.568	93.29%	846	16.3	43.81°C	0.981
80%	12.044V	5.031V	3.293V	4.988V	857.074	93.29%	846	16.3	67.66°C	230.11V
90%	67.840A	8.451A	8.509A	2.409A	899.354	92.918%	1281	29	44.84°C	0.983
90%	12.041V	5.029V	3.291V	4.982V	967.907	92.918%	1281	29	66.23°C	230.09V
100%	75.571A	8.952A	9.037A	3.021A	999.36	92.477%	1618	35.8	45.56°C	0.984
100%	12.038V	5.027V	3.286V	4.967V	1080.671	92.477%	1618	35.8	65.3°C	230.07V
110%	83.220A	9.951A	10.14A	3.024A	1099.955	92.024%	1922	41.4	46.75°C	0.986
110%	12.036V	5.025V	3.284V	4.962V	1195.286	92.024%	1922	41.4	66.04°C	230.05V
CL1	0.116A	14.948A	15.001A	0A	126.297	86.482%	0	<6.0	48.33°C	0.892
CL1	12.074V	5.037V	3.306V	5.051V	146.045	86.482%	0	<6.0	40.21°C	230.23V
CL2	0.115A	24.941A	0A	0A	126.259	84.511%	0	<6.0	52.95°C	0.894
CL2	12.080V	5.007V	3.313V	5.057V	149.407	84.511%	0	<6.0	41.68°C	230.22V
CL3	0.115A	0A	25.034A	0A	83.881	79.942%	0	<6.0	51.09°C	0.852
CL3	12.075V	5.041V	3.295V	5.048V	104.928	79.942%	0	<6.0	41.2°C	230.23V
CL4	83.012A	0A	0A	0A	999.899	93.011%	1546	34.8	45.92°C	0.984
CL4	12.045V	5.033V	3.293V	5.025V	1075.027	93.011%	1546	34.8	67.22°C	230.07V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.232A	0.495A	0.497A	0.198A	20.007	69.755%	0	<6.0	39.11°C	0.862
20W	12.060V	5.047V	3.323V	5.063V	28.67	69.755%	0	<6.0	36.37°C	115.06V
40W	2.712A	0.694A	0.695A	0.296A	40.006	68.036%	0	<6.0	40.09°C	0.925
40W	12.059V	5.046V	3.322V	5.06V	58.802	68.036%	0	<6.0	37.32°C	115.04V
60W	4.191A	0.892A	0.894A	0.396A	60.006	81.968%	0	<6.0	42.39°C	0.937
60W	12.058V	5.046V	3.321V	5.057V	73.204	81.968%	0	<6.0	38.78°C	115.04V
80W	5.666A	1.09A	1.093A	0.495A	79.959	86.523%	0	<6.0	43.93°C	0.948
80W	12.057V	5.047V	3.32V	5.054V	92.416	86.523%	0	<6.0	39.42°C	115.03V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.231A	0.495A	0.497A	0.198A	20.005	70.634%	0	<6.0	42.67°C	0.576
20W	12.067V	5.047V	3.321V	5.062V	28.32	70.634%	0	<6.0	36.39°C	230.24V
40W	2.710A	0.694A	0.696A	0.296A	40.003	68.821%	0	<6.0	44.72°C	0.752
40W	12.065V	5.046V	3.321V	5.06V	58.128	68.821%	0	<6.0	37.62°C	230.24V
60W	4.189A	0.892A	0.894A	0.395A	60.002	83.16%	0	<6.0	46.47°C	0.794
60W	12.063V	5.046V	3.32V	5.057V	72.155	83.16%	0	<6.0	38.72°C	230.24V
80W	5.664A	1.09A	1.093A	0.495A	79.95	87.613%	0	<6.0	47.59°C	0.833
80W	12.062V	5.046V	3.32V	5.054V	91.253	87.613%	0	<6.0	39.27°C	230.24V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	15.16mV	14.53mV	11.12mV	9.34mV	Pass
20% Load	16.86mV	16.38mV	12.31mV	10.89mV	Pass
30% Load	19.23mV	17.36mV	11.84mV	9.24mV	Pass
40% Load	21.09mV	19.11mV	12.93mV	9.60mV	Pass
50% Load	21.70mV	19.99mV	11.84mV	12.70mV	Pass
60% Load	21.96mV	19.01mV	12.93mV	13.89mV	Pass
70% Load	21.45mV	17.36mV	13.08mV	18.58mV	Pass
80% Load	21.76mV	17.31mV	13.29mV	24.26mV	Pass
90% Load	21.81mV	18.19mV	13.86mV	28.24mV	Pass
100% Load	20.97mV	20.32mV	14.30mV	25.65mV	Pass
110% Load	22.54mV	18.91mV	14.66mV	28.82mV	Pass
Crossload1	15.79mV	13.23mV	14.93mV	13.09mV	Pass
Crossload2	15.11mV	15.81mV	12.36mV	12.23mV	Pass
Crossload3	15.52mV	35.86mV	16.60mV	12.49mV	Pass
Crossload4	20.50mV	11.10mV	12.35mV	29.34mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	16.14mV	15.71mV	12.36mV	9.75mV	Pass
20% Load	18.77mV	16.59mV	12.67mV	9.86mV	Pass
30% Load	20.26mV	18.39mV	12.20mV	9.45mV	Pass
40% Load	22.94mV	19.68mV	13.14mV	10.74mV	Pass
50% Load	24.28mV	21.12mV	13.70mV	12.44mV	Pass
60% Load	23.66mV	20.81mV	13.86mV	17.34mV	Pass
70% Load	23.92mV	19.06mV	14.17mV	15.79mV	Pass
80% Load	23.15mV	19.94mV	15.46mV	16.31mV	Pass
90% Load	24.03mV	18.65mV	15.00mV	18.02mV	Pass
100% Load	22.95mV	22.02mV	14.64mV	26.38mV	Pass
110% Load	24.06mV	19.61mV	15.24mV	24.23mV	Pass
Crossload1	17.35mV	13.61mV	15.62mV	13.96mV	Pass
Crossload2	18.15mV	20.87mV	12.56mV	12.96mV	Pass
Crossload3	17.53mV	36.99mV	18.15mV	13.99mV	Pass
Crossload4	20.51mV	11.98mV	13.21mV	14.19mV	Pass

The results above are not used in the certification process

Gigabyte GP-AE1000PM PG5 / PG5 ICE

Top side

Power specifications label

FAN

PSU INTERNAL
