CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Jemip JP-850F (#2)
Serial Number-
Lab IDJP85003066
Certification ID253066
  • Test Result Report ID: 25PS3066A
  • Certificate Issue Date: Dec 12, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandJemip
Manufacturer (OEM)Sohoo
SeriesJP-F
Model NumberJP-850F
Serial Number-
DUT NotesSome protection features need adjustment.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5-15
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)150 x 85 x 160mm
Cooling140mm Sleeve Bearing Fan (Unlabeled)
Semi-Passive Operation✓
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020702.50.5
Watts13084012.56
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (500mm) 1 1 16-22AWG Tinned Copper / Copper
4+4 pin EPS12V (650mm) 1 1 18AWG Tinned Copper
6+2 pin PCIe (500mm+150mm) 2 4 18AWG Tinned Copper
SATA (405mm+150mm+150mm+150mm) 1 4 18AWG Copper
SATA (405mm+150mm+150mm) 1 3 18AWG Copper
4-pin Molex(405mm+150mm+150mm) 1 3 18AWG Copper

Parts Description

General Data
Manufacturer (OEM) Sohoo
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-20100 (10 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Kanghong PBU1506L (600V, 15A @ 100°C)
APFC MOSFETs
2x Sanrise Tech SRC60R068BS (600V, 48A @ 25°C, Rds(on): 68mOhm)
APFC Boost Diode
Global Power G3S06510A (650V, 10A @ 153.5°C)
Bulk Cap(s)
Teapo (400V, 560uF, 2000h @ 105°C, DG)
Main Switchers
2x Sanrise Tech SRC60R090BS (600V, 42A @ 125°C, Rds(on): 90mOhm)

PFC/PWM Combo Controller

Champion CM6800UBX &
Champion CM03X (Remove Phantom Power)
Topology Primary side: APFC, Double Forward
Secondary side: [12V] Passive Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Jiangsu Mhchxm EBR60L60PT (60V, 60A @ 50% duty cycle)
5V & 3.3V DC-DC Converters: 4x All Power AP180N03G (30V, 180A @ 25°C, Rds(on): 2.1mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
9x ChengX (2-3,000 @ 105°C, GR)
Polymer:
8x Teapo (FG)
Supervisor IC Grenergy GR8323F
Fan Model 140mm Sleeve Bearing Fan (unlabeled)
5VSB Circuit
Rectifier
Jiangsu Mhchxm ER2EL60CS
Standby PWM Controller
Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Efficiency RatingBRONZE
Noise RatingStandard++
Average Efficiency (>1450 load combinations)84.818%
Average Noise Output (>1450 Load Combinations)30.19dBA
Average PF (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load58.475%
Standby Power Consumption0.0535W
12V Ripple (Full Load)60.09mV
5V Ripple (Full Load)40.55mV
3.3V Ripple (Full Load)30.57mV
5VSB Ripple (Full Load)35.42mV
12V Load Regulation1.40%
5V Load Regulation2.27%
3.3V Load Regulation3.11%
5VSB Load Regulation3.12%
Inrush Current18.640A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.3
AC Loss to PWR_OK Hold Up Time (ms)20.3
PWR_OK Inactive to DC Loss Delay (ms)1

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.04 V 115.01 V 113.85 V 115.08 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.94 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.07 % N/A 0.26 % 2.00 % PASS
Real Power: 0.053 W -0.004 W N/A 0.094 W N/A N/A
Apparent Power: 10.013 W 9.987 W N/A 10.042 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A

Graphs 115V

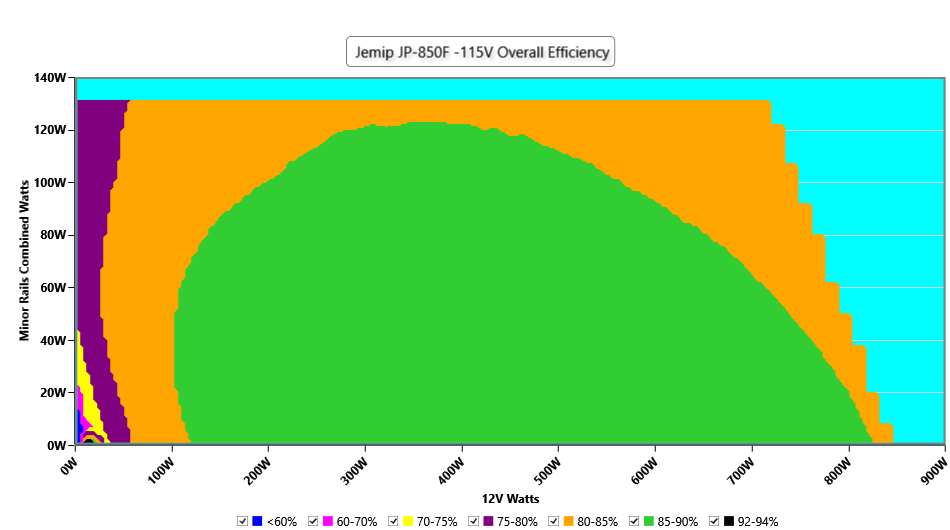

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

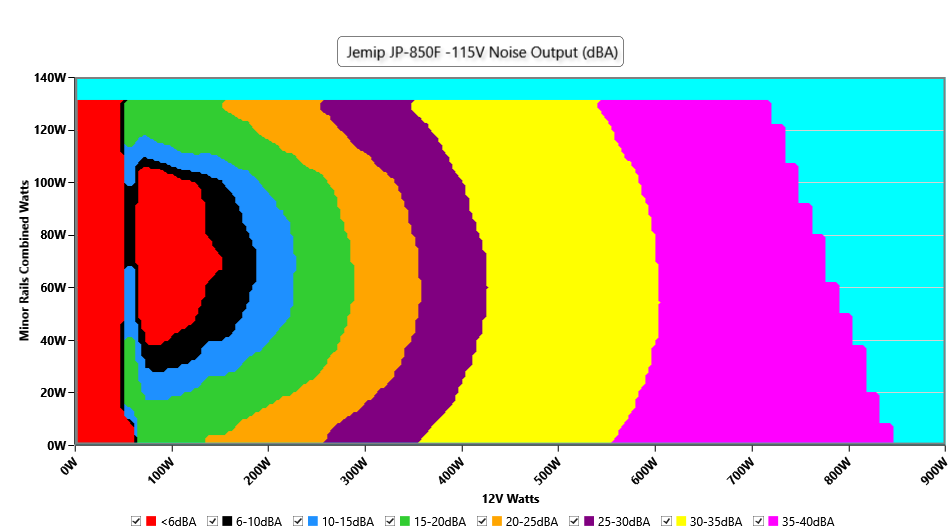

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

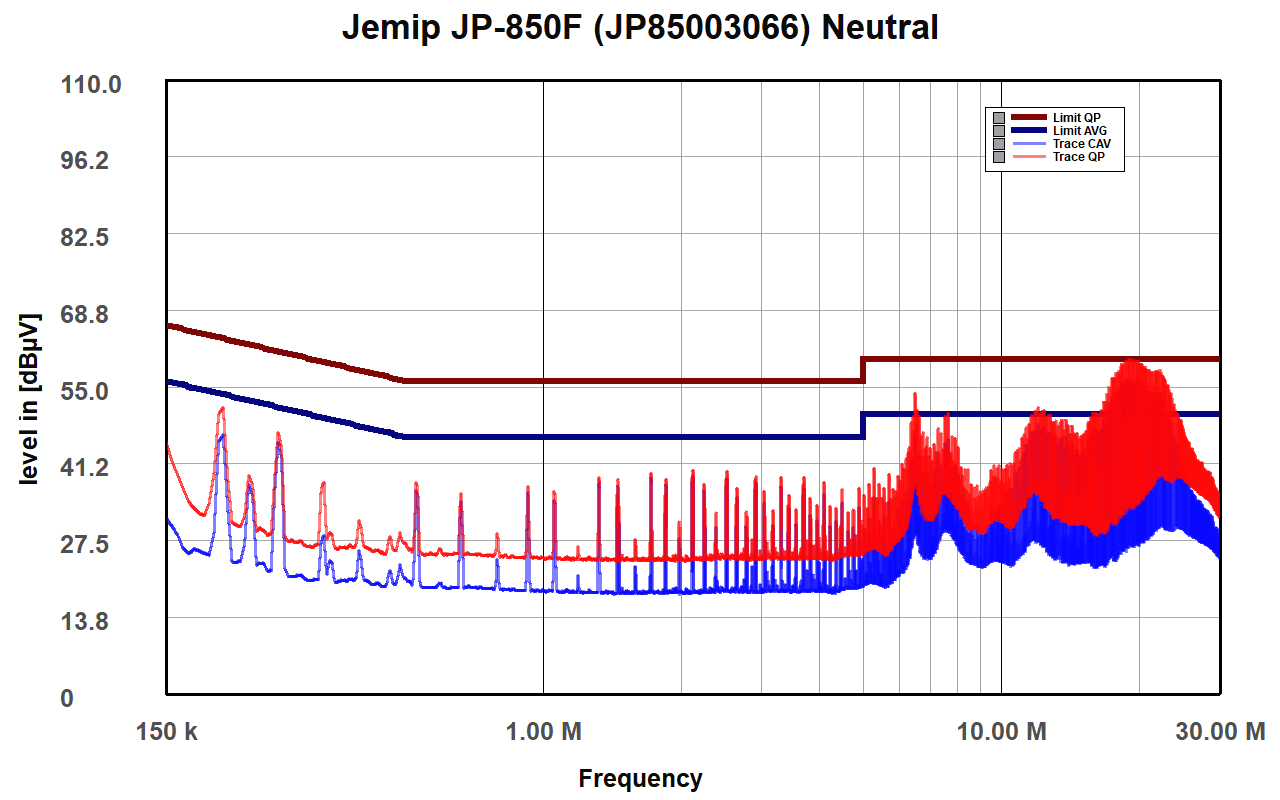

NEUTRAL

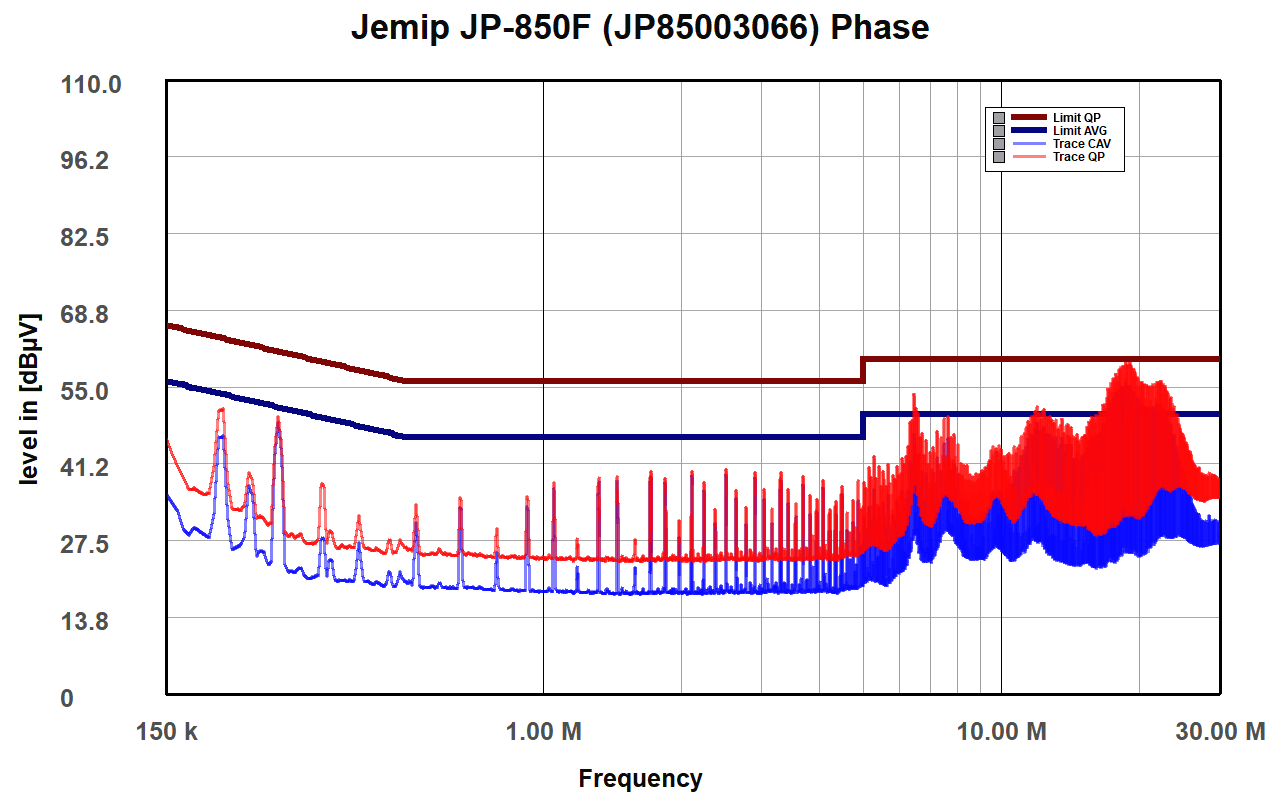

PHASE

Indicative Performance

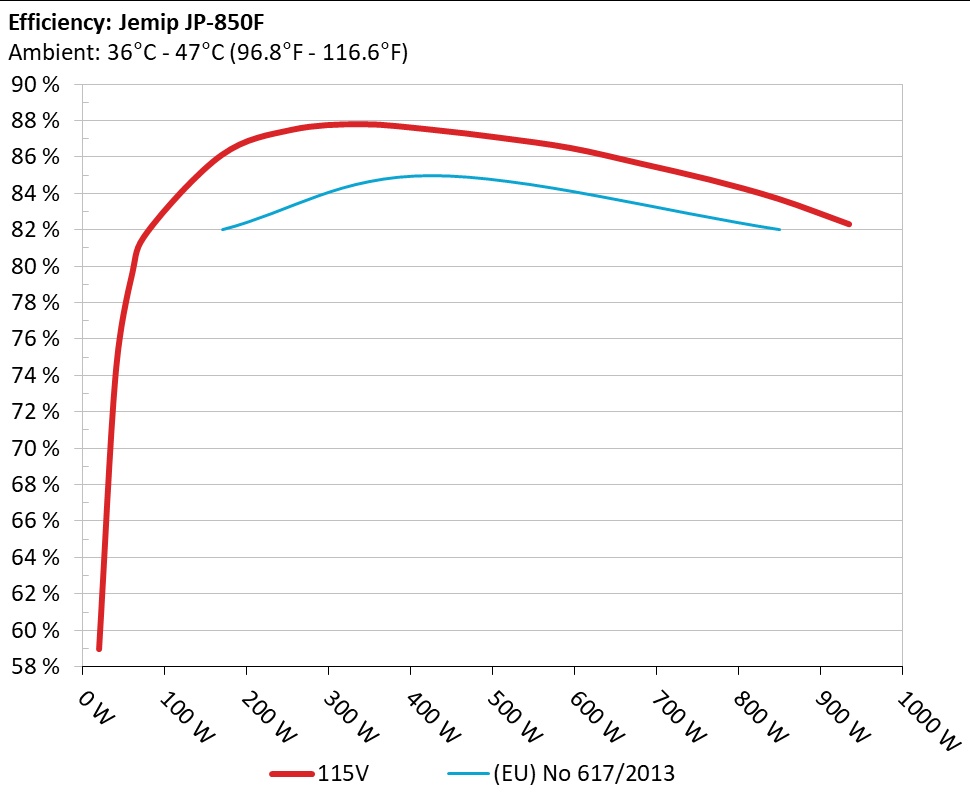

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

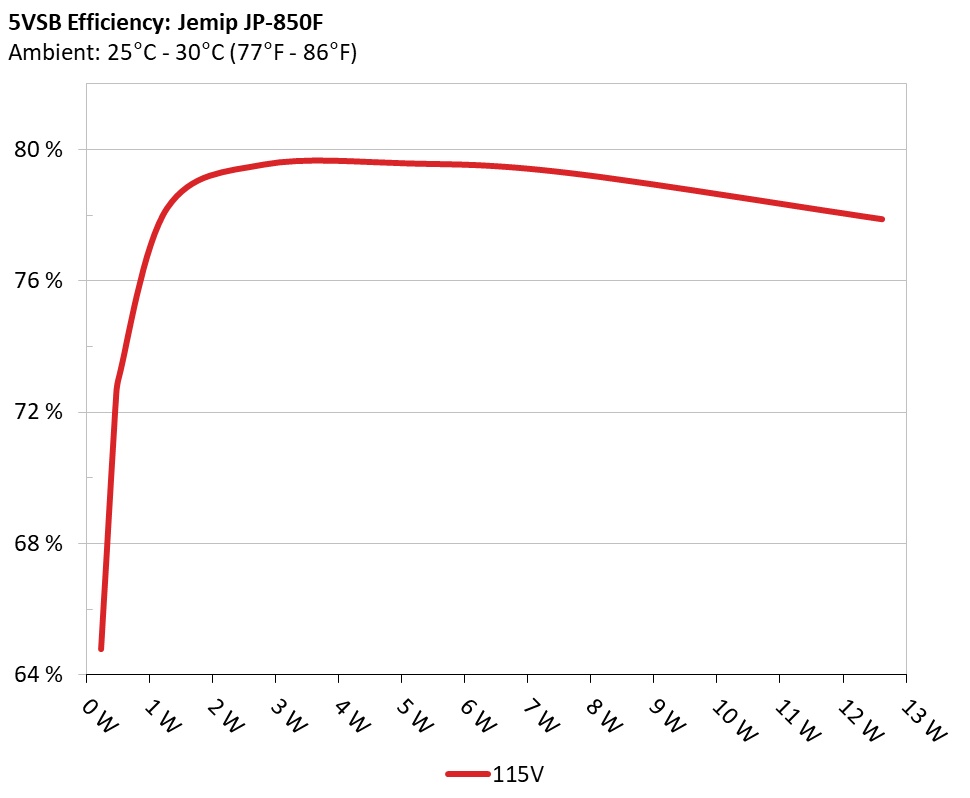

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 64.792% 0.037
5.129V 0.356W 115.04V
2 0.09A 0.462W 72.259% 0.065
5.127V 0.639W 115.04V
3 0.55A 2.814W 79.53% 0.259
5.115V 3.538W 115.04V
4 1A 5.104W 79.565% 0.336
5.103V 6.414W 115.04V
5 1.5A 7.635W 79.277% 0.381
5.089V 9.631W 115.04V
6 2.5A 12.622W 77.87% 0.434
5.049V 16.209W 115.04V

Protection Features

OCP (Normal @ 30.5°C)12V: 84.40A (120.57%), 11.938V
5V: 23.6A (118.00%), 4.932V *High Ripple (75.00mV)
3.3V: 25.1A (125.50%), 3.23V *High Ripple (53.30mV)
5VSB: 4.9A (196.00%), 4.932V
OCP (Hot @ 43.0°C)12V: 82.00A (117.14%), 11.944V
5V: 23.3A (116.50%), 4.926V *High Ripple (76.22mV)
3.3V: 24.2A (121.00%), 3.229V *High Ripple (57.50mV)
5VSB: 4.9A (196.00%), 4.931V
OPP (Normal @ 28.8°C)987.57W (116.18%)
OPP (Hot @ 41.6°C)971.91W (114.34%)
OTP✓ (82°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✗
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.254A 1.99A 1.993A 0.981A 85.007 82.047% 0 <6.0 44.36°C 0.967
12.068V 5.026V 3.311V 5.097V 103.608 40.16°C 115.01V
20% 11.539A 2.991A 2.998A 1.181A 169.955 86.146% 906 21.2 40.6°C 0.985
12.050V 5.015V 3.302V 5.083V 197.29 45.78°C 114.98V
30% 18.195A 3.495A 3.506A 1.381A 254.965 87.517% 972 23.5 41.27°C 0.992
12.031V 5.008V 3.295V 5.069V 291.328 44.32°C 114.95V
40% 24.875A 4.001A 4.017A 1.583A 340.062 87.827% 1154 28.9 41.9°C 0.995
12.014V 4.999V 3.287V 5.055V 387.196 45.62°C 114.92V
50% 31.203A 5.013A 5.038A 1.786A 424.91 87.528% 1288 32.1 42.15°C 0.996
11.999V 4.987V 3.276V 5.04V 485.457 46.06°C 114.89V
60% 37.523A 6.031A 6.066A 1.991A 509.435 87.077% 1428 35 42.71°C 0.997
11.983V 4.975V 3.264V 5.025V 585.039 48.56°C 114.86V
70% 43.924A 7.052A 7.102A 2.196A 594.685 86.522% 1461 35.6 43.48°C 0.997
11.966V 4.963V 3.253V 5.009V 687.325 47.16°C 114.82V
80% 50.352A 8.079A 8.147A 2.302A 679.538 85.674% 1571 37.9 43.73°C 0.998
11.949V 4.95V 3.24V 4.996V 793.171 49.56°C 114.78V
90% 57.190A 8.603A 8.669A 2.409A 764.964 84.777% 1632 39 44.74°C 0.998
11.934V 4.939V 3.23V 4.983V 902.325 51.84°C 114.75V
100% 63.979A 9.13A 9.227A 2.515A 849.69 83.713% 1662 39.6 45.87°C 0.998
11.918V 4.928V 3.219V 4.97V 1015.015 55.15°C 114.71V
110% 70.520A 10.175A 10.391A 2.52A 935.058 82.33% 1666 39.7 46.65°C 0.998
11.902V 4.913V 3.205V 4.961V 1135.748 58.58°C 114.67V
CL1 0.116A 15.8A 15.912A 0.001A 131.289 75.897% 1509 36.7 40.11°C 0.981
12.036V 4.954V 3.243V 5.09V 172.988 51.35°C 114.99V
CL2 0.116A 20.136A 0A 0.002A 101.355 75.651% 1057 26.1 40.65°C 0.972
12.055V 4.964V 3.282V 5.107V 133.976 44.32°C 115V
CL3 0.115A 0A 20.333A 0.001A 67.399 67.909% 911 21.4 40.65°C 0.964
12.056V 4.999V 3.246V 5.104V 99.252 42.97°C 115.01V
CL4 71.112A 0A 0A 0A 849.512 84.698% 1635 39.1 45.28°C 0.998
11.947V 4.983V 3.26V 5.066V 1002.993 52.62°C 114.72V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.496A 0.497A 0.195A 20.01 58.984% 0 <6.0 38.42°C 0.76
12.084V 5.04V 3.319V 5.125V 31.612 36.06°C 115.03V
40W 2.708A 0.695A 0.696A 0.293A 40.006 74.029% 0 <6.0 41°C 0.895
12.076V 5.037V 3.317V 5.121V 54.042 37.96°C 115.03V
60W 4.186A 0.894A 0.896A 0.391A 60.004 79.537% 0 <6.0 43.99°C 0.939
12.073V 5.034V 3.316V 5.116V 75.441 38.64°C 115.02V
80W 5.661A 1.093A 1.095A 0.489A 79.956 81.969% 0 <6.0 44.34°C 0.962
12.070V 5.031V 3.314V 5.112V 97.545 39.14°C 115.01V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load32.03mV30.55mV28.08mV29.67mVPass
20% Load34.33mV31.88mV27.37mV29.98mVPass
30% Load34.99mV33.82mV27.98mV29.05mVPass
40% Load37.30mV32.19mV31.10mV38.11mVPass
50% Load38.93mV33.72mV27.73mV30.64mVPass
60% Load42.00mV34.53mV27.93mV31.25mVPass
70% Load46.25mV38.11mV30.03mV33.76mVPass
80% Load49.73mV39.39mV32.69mV33.76mVPass
90% Load54.69mV39.70mV31.46mV34.12mVPass
100% Load60.09mV40.55mV30.57mV35.42mVPass
110% Load62.35mV41.67mV36.25mV36.66mVPass
Crossload160.28mV47.59mV36.44mV38.54mVPass
Crossload256.84mV67.95mV40.97mV43.68mVFail
Crossload341.49mV39.75mV48.80mV30.49mVPass
Crossload441.64mV31.64mV24.98mV27.30mVPass

The results above are not used in the certification process

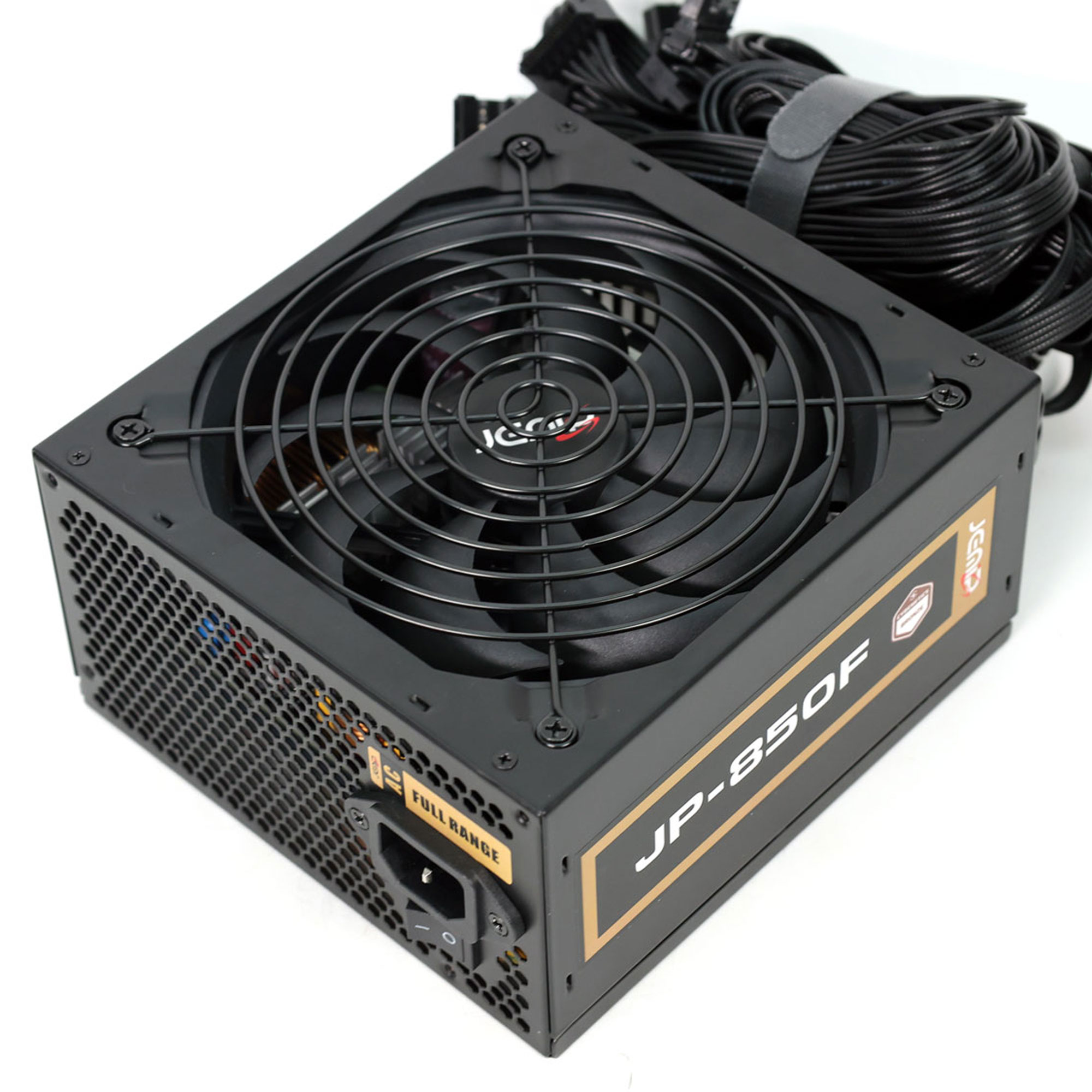

Jemip JP-850F (#2)

Top side

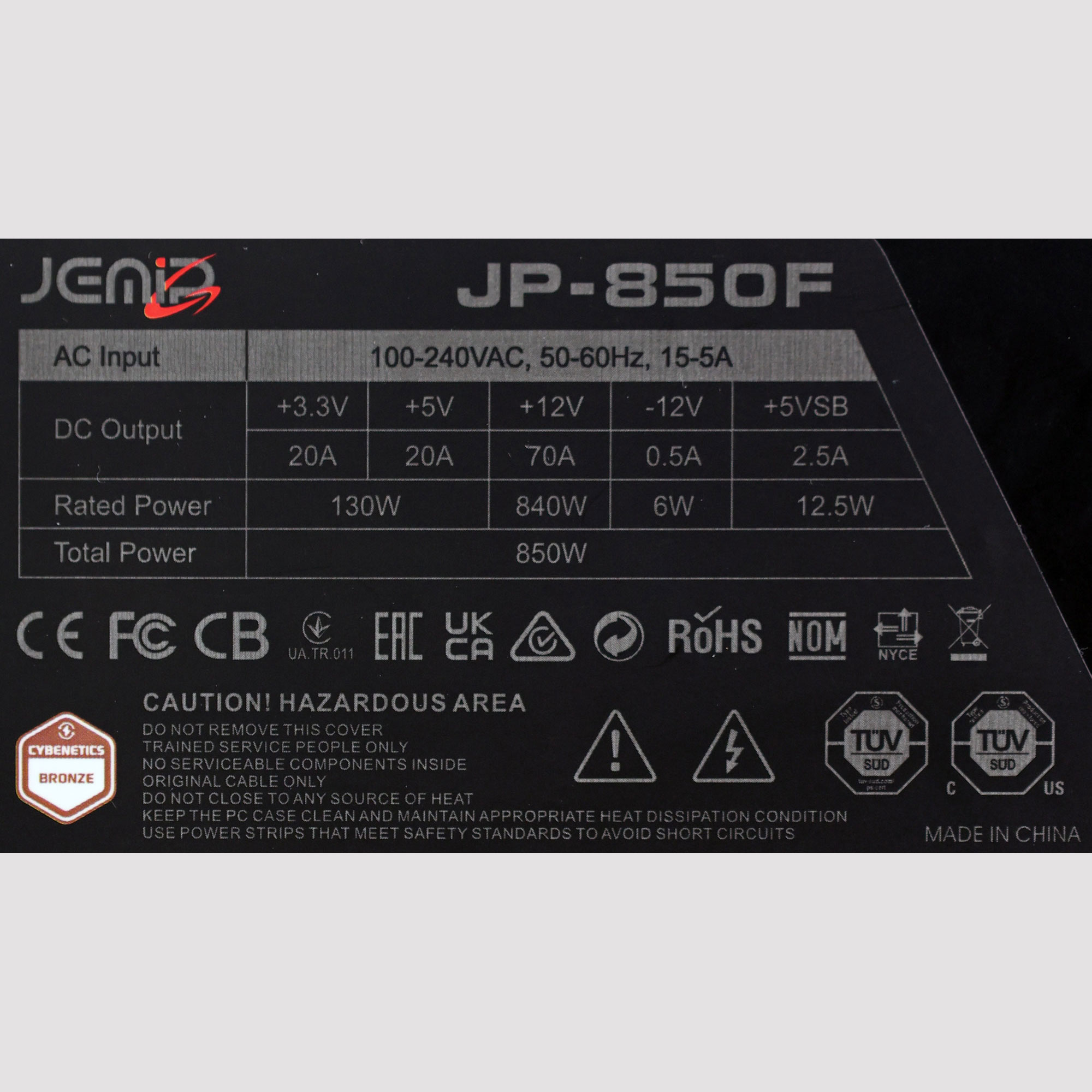

Power specifications label

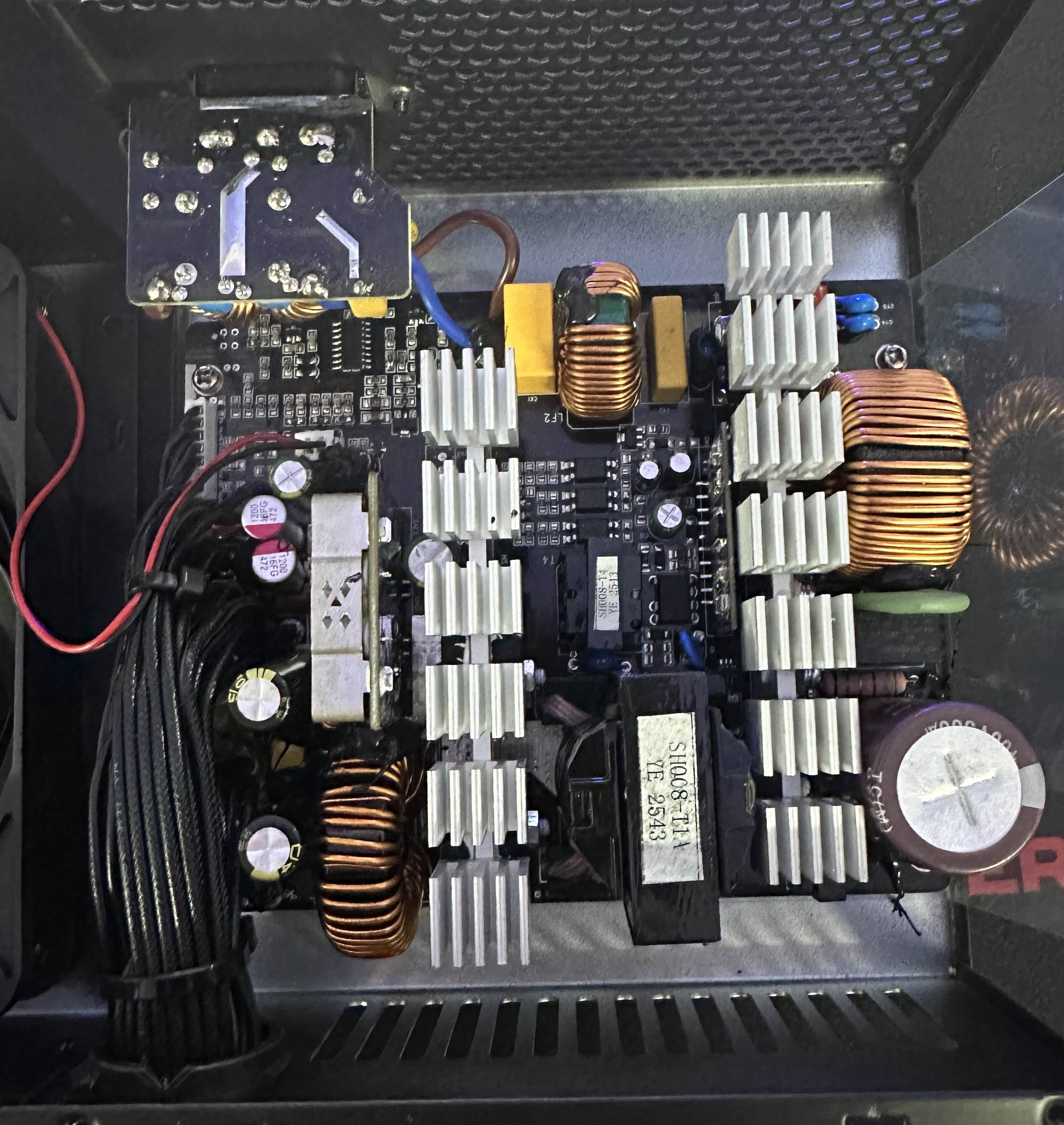

Third Photo

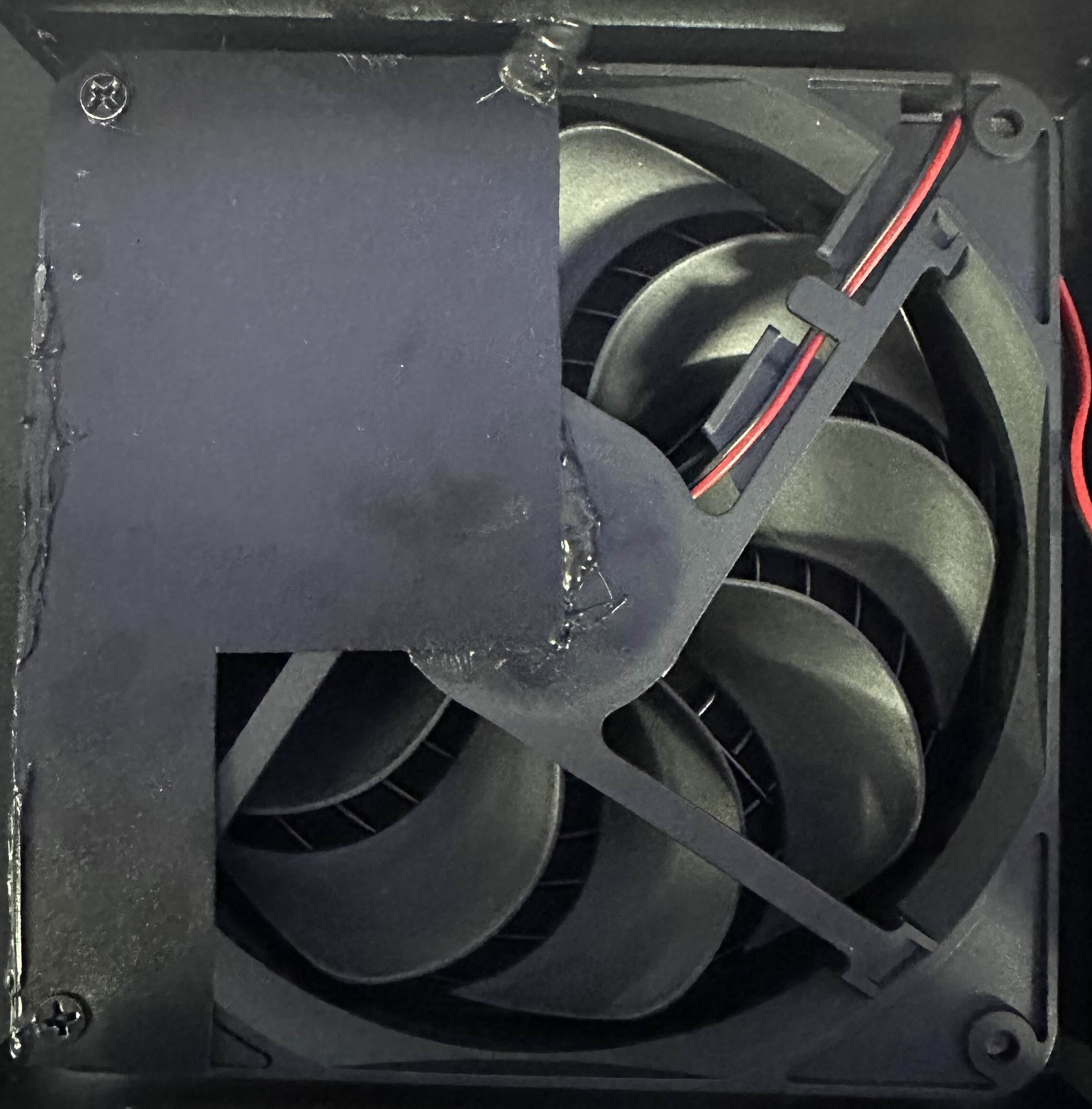

Fourth Photo
