CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

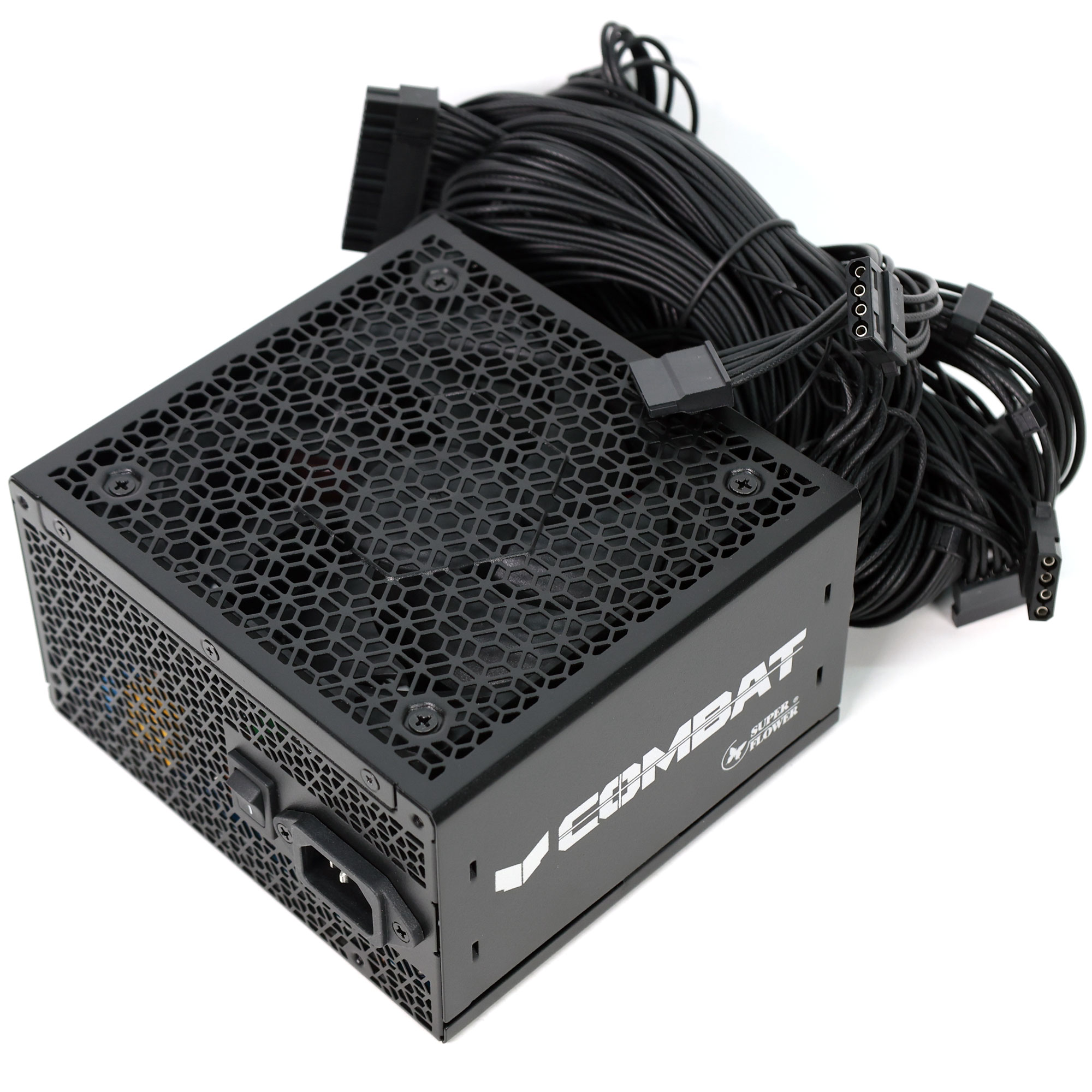

Super Flower Combat DG 1000W
Serial Number-
Lab IDSF10003068
Certification ID253068
  • Test Result Report ID: 25PS3068A
  • Certificate Issue Date: Dec 18, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)CWT
SeriesCombat DG
Model NumberSF-1000C12DG
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Fluid Dynamic Bearing Fan (TSF12025H12F-9)
Semi-Passive Operation✗
Cable DesignFixed cables

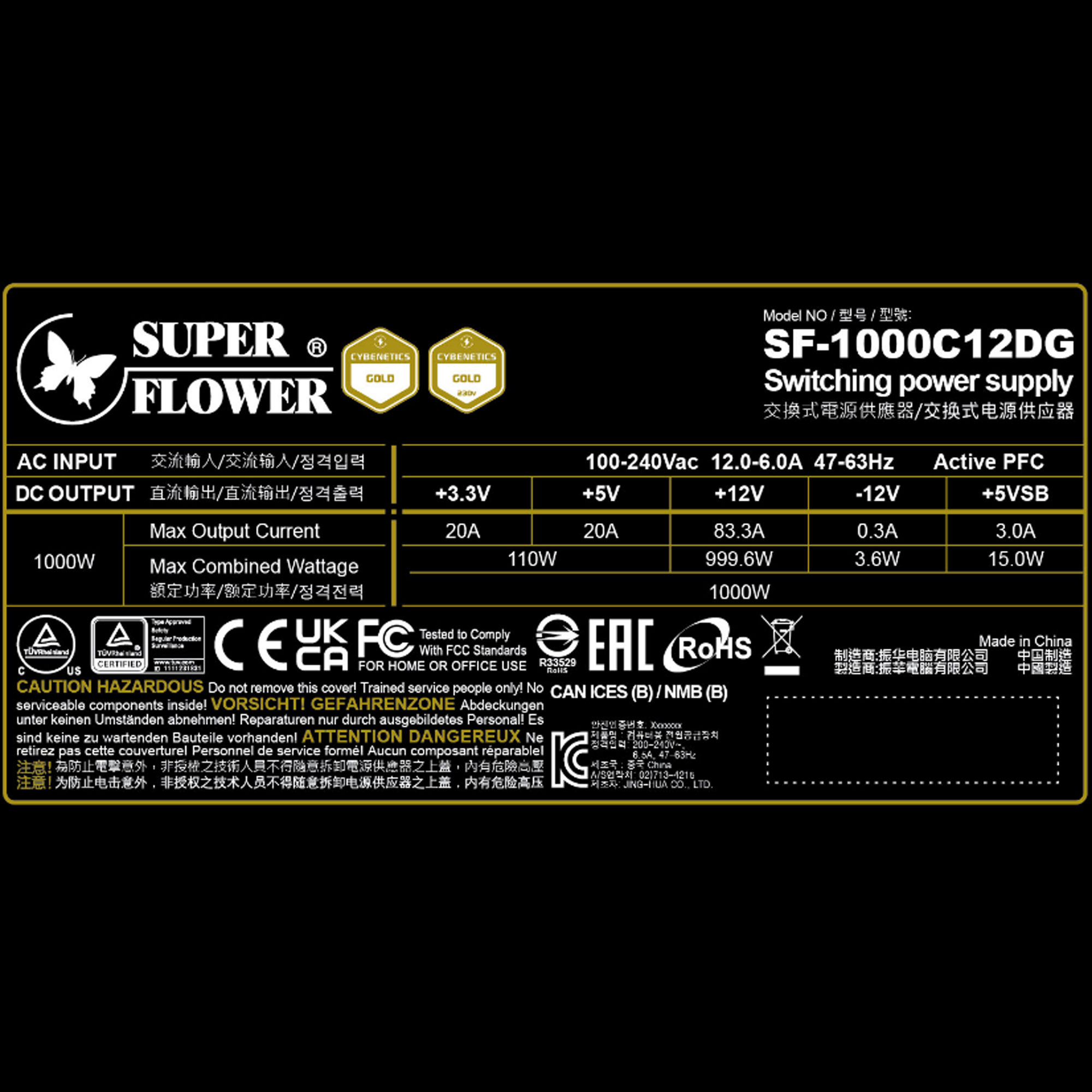

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts1101000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (625mm) 1 1 18-22AWG Tinned Copper
8 pin EPS12V (750mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG Tinned Copper
6+2 pin PCIe (750mm+150mm) 2 4 18AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (470mm+150mm+150mm) 2 6 18AWG Tinned Copper
4-pin Molex (480mm+150mm+150mm) 1 3 18AWG Tinned Copper

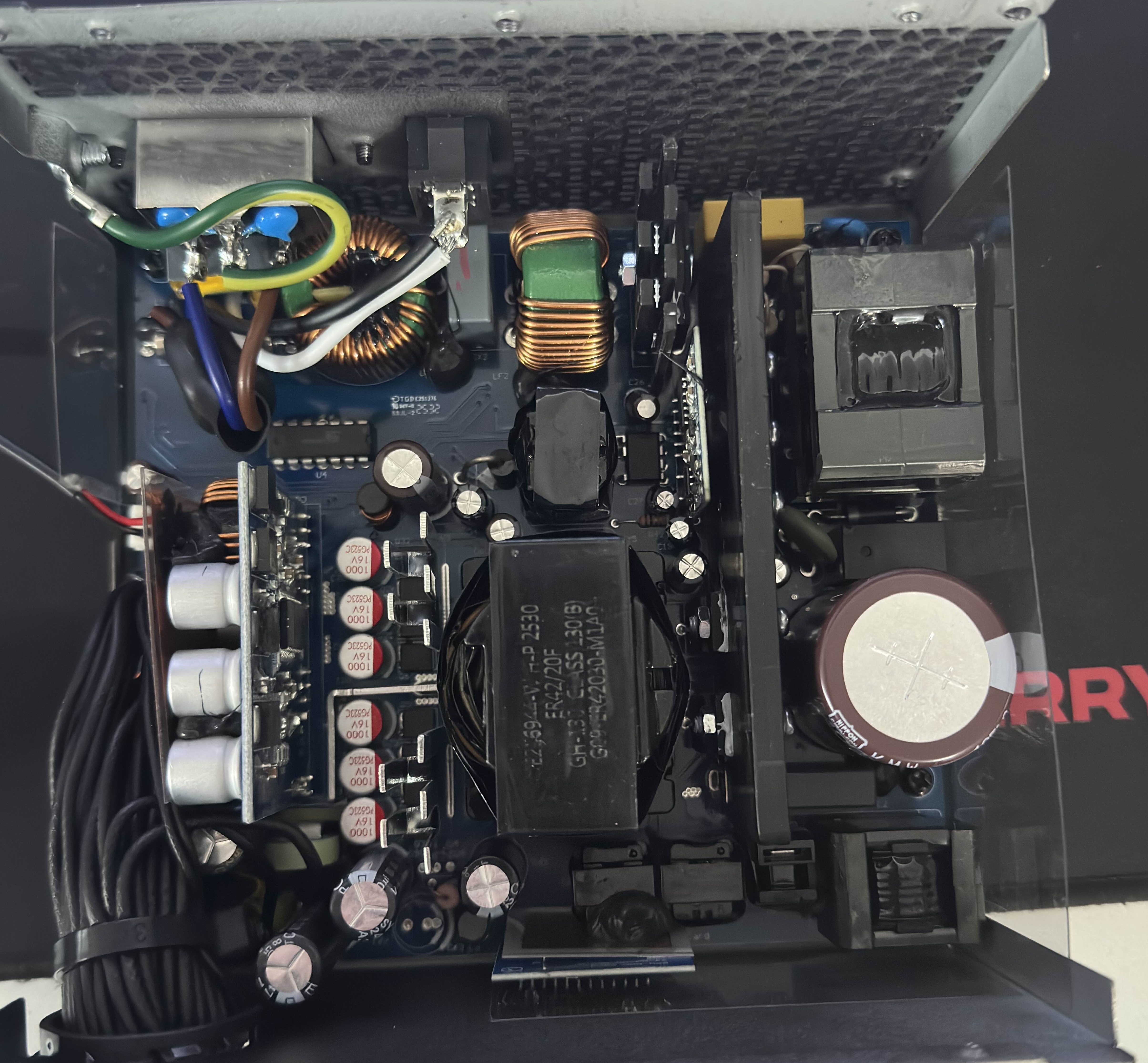

Parts Description

General Data
Manufacturer (OEM) CWT (GPW Platform)
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (X Capacitor Discharge IC)
Inrush Protection NTC Thermistor SCK-056 (5 Ohm @ 25°C) & Relay
Bridge Rectifier
2x PingWei GBU1006 (600V, 10A @ 100°C)
APFC MOSFETs
2x Way-On WML53N60C4 (600V, 50A @ 25°C, Rds(on): 0.07Ohm)
APFC Boost Diode
CRMicro CRXI08D065G2 (650V, 32A @ 25°C)
Bulk Cap(s)
Nippon Chemi-Con (400V, 680uF, 2000h @ 105°C, KMW)
Main Switchers
4x WayOn WML26N65F2 (650V, 18A @ 25°C, Rds(on): 0.21Ohm)

APFC Controller

Champion CM6500UNX &
Sync Power SPN5003 (reducing no load consumption)
Resonant Controller
Champion CM6901X
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x IPS FTG014N04SA
5V & 3.3V DC-DC Converters: 4x Sync Power SPN3006 (30V, 80A @ 25°C, Rds(on): 5.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
6x CapXon (2-5,000 @ 105°C, KF)
2x Teapo (2-6,000 @ 105°C, SY)
Teapo (1-3,000 @ 105°C, SC)
3x Elite (2-5,000 @ 105°C, ED(M))
Elite (4-10,000 @ 105°C, EY(M))
Polymer:
11x Teapo
Supervisor IC IN1S429I-DCG
Fan Controller STMicroelectronics ST69345

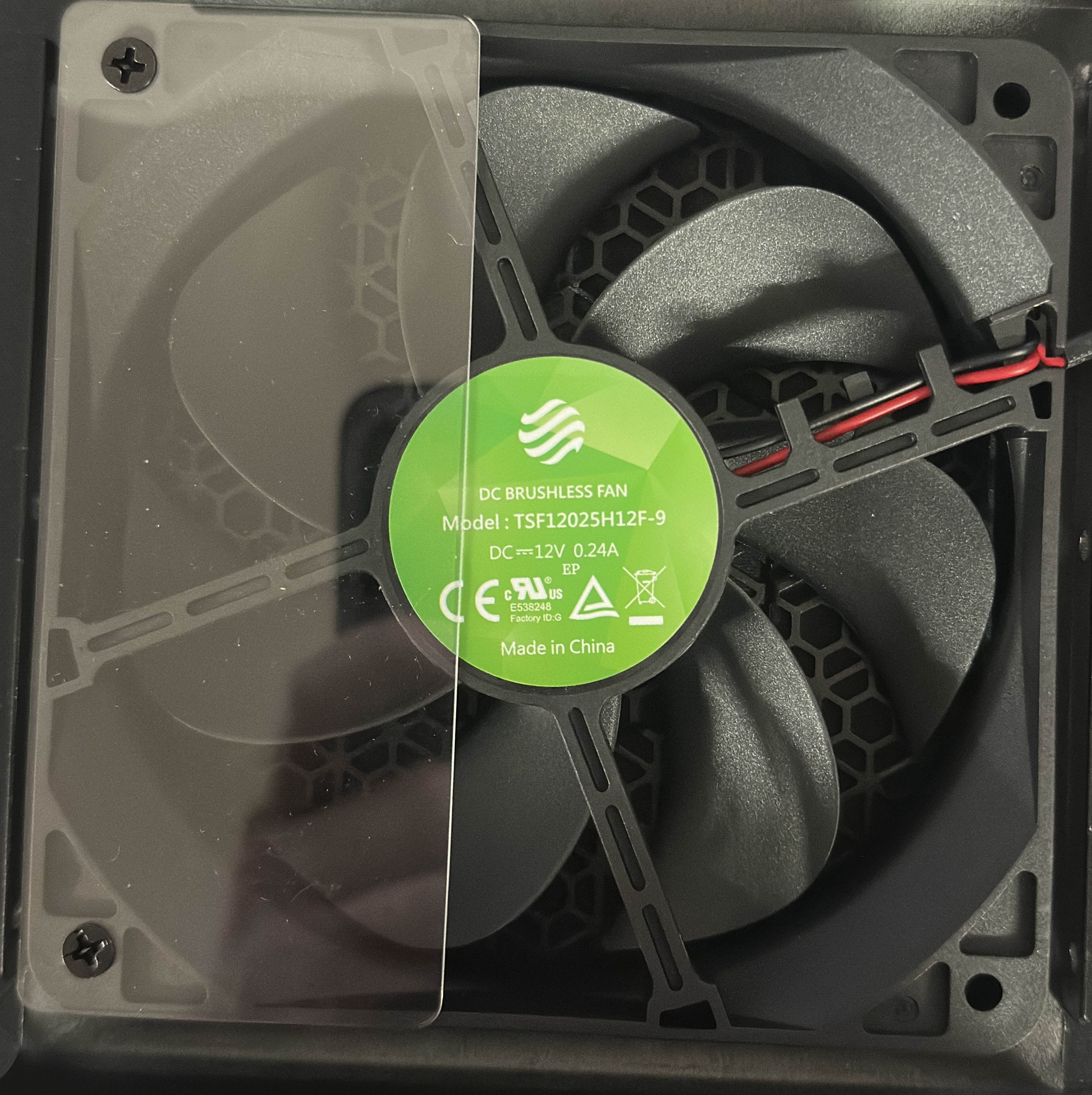

Fan Model TSF12025H12F-9 (120mm, 12V, 0.24A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
ES3JBF (600V, 3A)
Standby PWM Controller
Power Integrations TNY290PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingA
Average Efficiency (>1450 load combinations)88.736%
Average Noise Output (>1450 Load Combinations)24.38dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load66.654%
Standby Power Consumption0.0329W
12V Ripple (Full Load)58.05mV
5V Ripple (Full Load)42.22mV
3.3V Ripple (Full Load)37.50mV
5VSB Ripple (Full Load)49.60mV
12V Load Regulation1.17%
5V Load Regulation1.31%
3.3V Load Regulation2.68%
5VSB Load Regulation4.17%
Inrush Current32.470A
Efficiency RatingGOLD
Noise RatingA
Average Efficiency (>1450 load combinations)90.531%
Average Noise Output (>1450 Load Combinations)23.34dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load70.479%
Standby Power Consumption0.0945W
12V Ripple (Full Load)59.50mV
5V Ripple (Full Load)41.96mV
3.3V Ripple (Full Load)36.92mV
5VSB Ripple (Full Load)49.29mV
12V Load Regulation1.16%
5V Load Regulation1.39%
3.3V Load Regulation2.77%
5VSB Load Regulation4.11%
Inrush Current65.910A
12V Transient Response (200%)11.13V
5V Transient Response (200%)4.854V
3.3V Transient Response (200%)3.143V
5VSB Transient Response (200%)4.887V
Hold-Up Time & Power Ok Signal14.60ms
AC Loss to PWR_OK Hold Up Time13.40ms
PWR_OK Inactive to DC Loss Delay1.20ms
PSU Timings: T1 (20% / 100%)27.0ms24.0ms
PSU Timings: T3 (20% / 100%)127.0ms125.0ms
12V OCP (27.9°C / 44.4°C)107.60A (129.17%), 12.020V104.20A (125.09%), 12.027V
5V OCP (27.9°C / 44.4°C)24.9A (124.50%), 4.977V24.5A (122.50%), 4.981V
3.3V OCP (27.9°C / 44.4°C)27.5A (137.50%), 3.246V26.8A (134.00%), 3.251V
5VSB OCP (27.9°C / 44.4°C)4.3A (143.33%), 4.98V4.4A (146.67%), 4.969V
OPP (31.56°C / 42.14°C)124.27%121.71%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.6
AC Loss to PWR_OK Hold Up Time (ms)13.4
PWR_OK Inactive to DC Loss Delay (ms)1.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.01 V 115.00 V 113.85 V 115.04 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.033 W -0.004 W N/A 0.065 W N/A N/A
Apparent Power: 9.896 W 9.869 W N/A 9.920 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.03 V 230.04 V 227.70 V 230.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.094 W 0.055 W N/A 0.139 W N/A N/A
Apparent Power: 32.351 W 32.317 W N/A 32.383 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

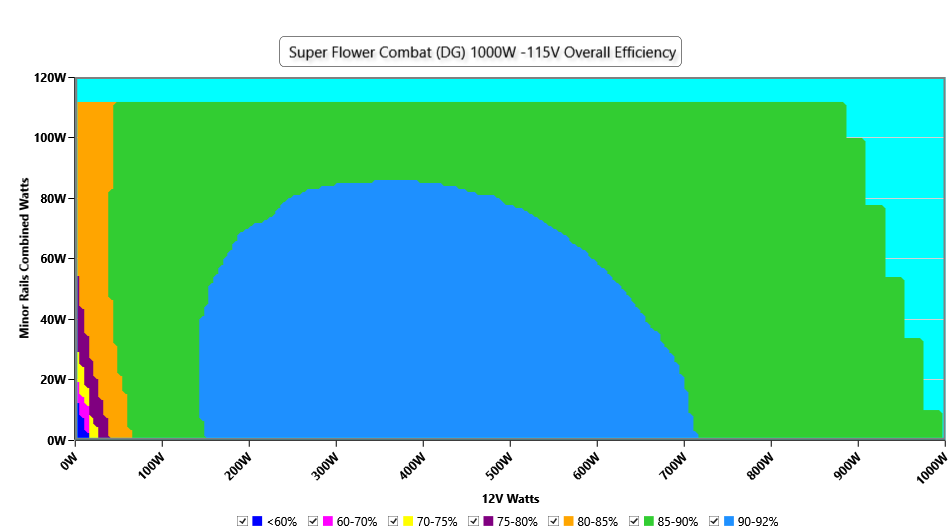

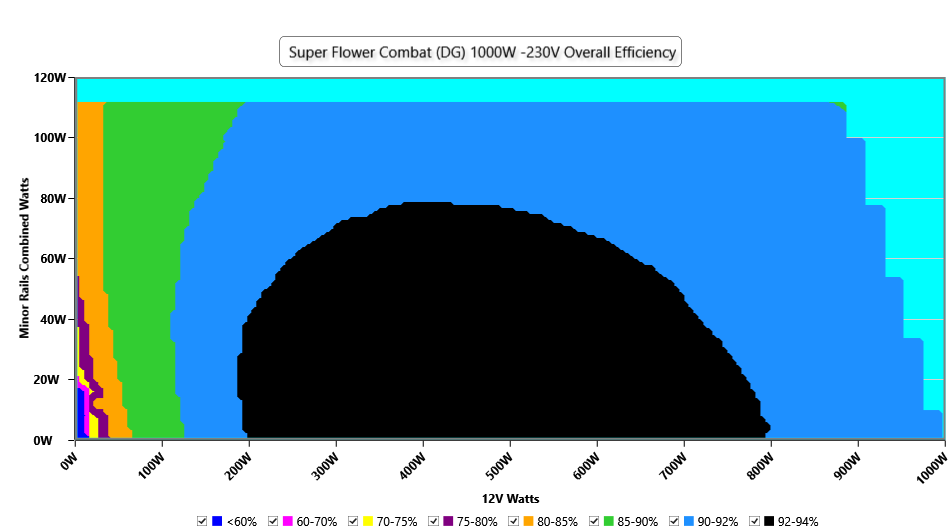

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

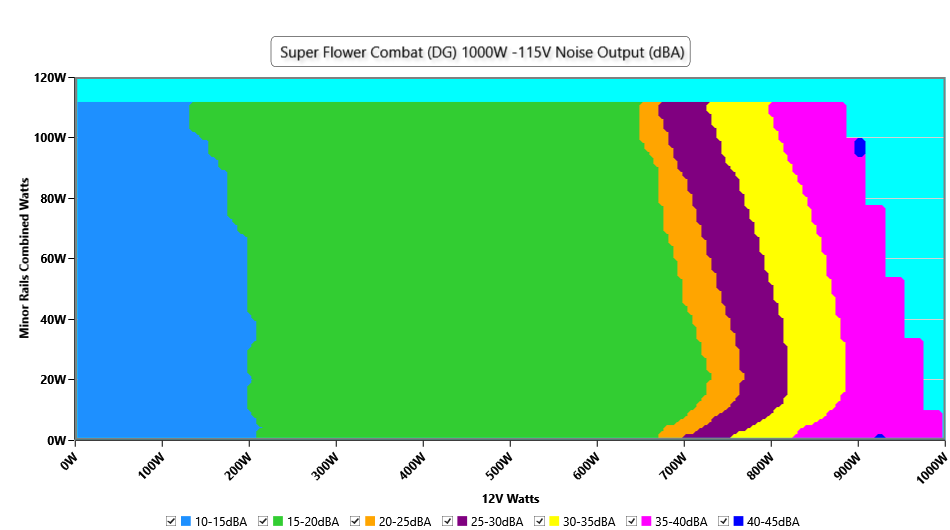

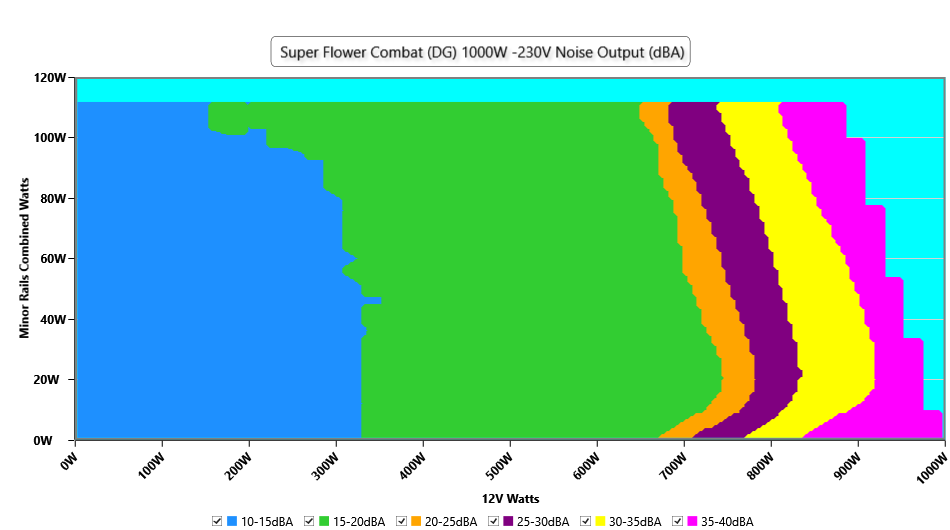

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

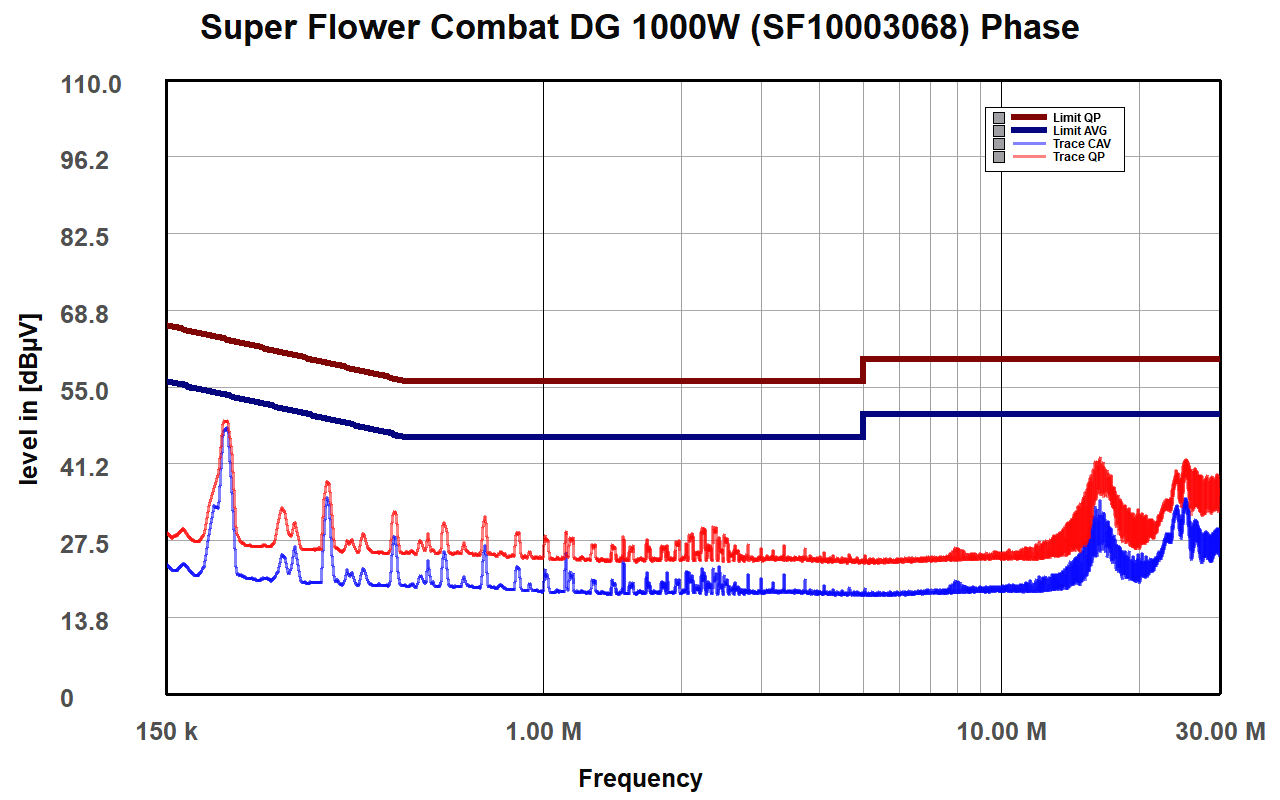

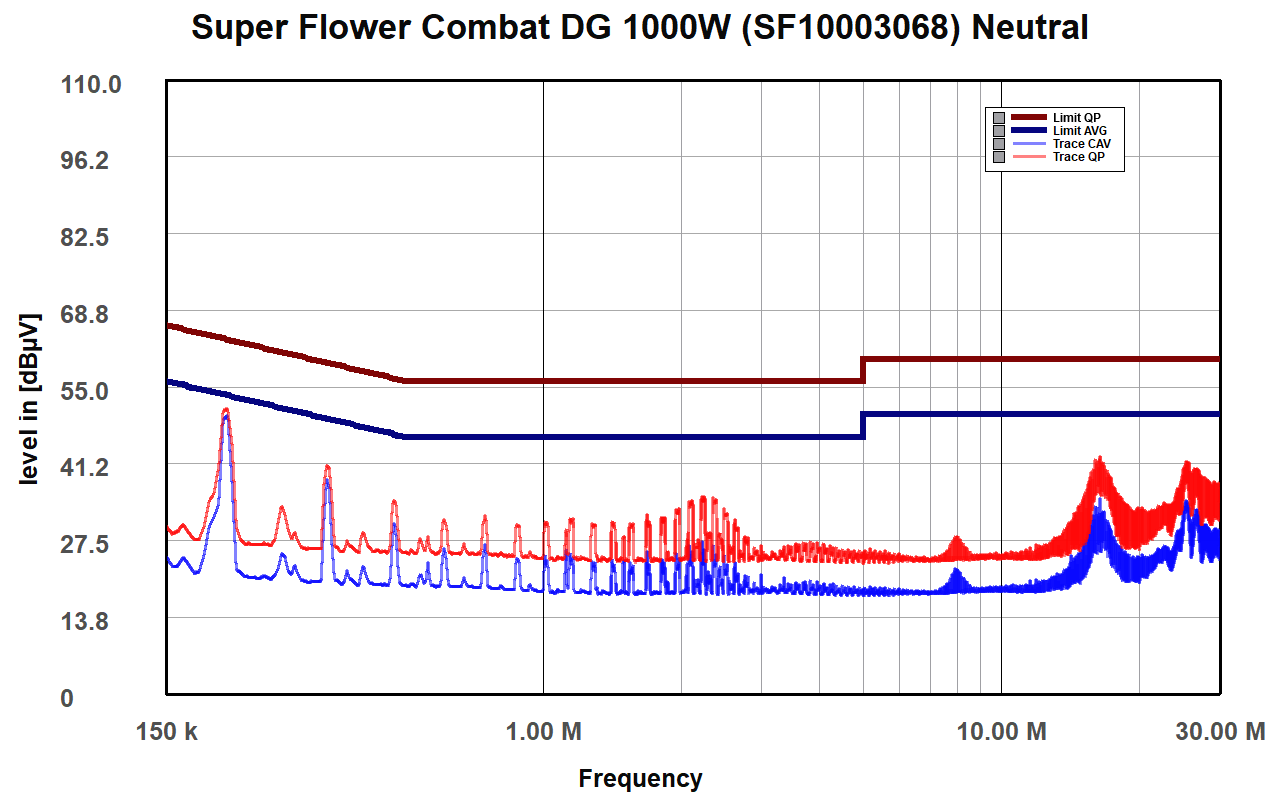

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

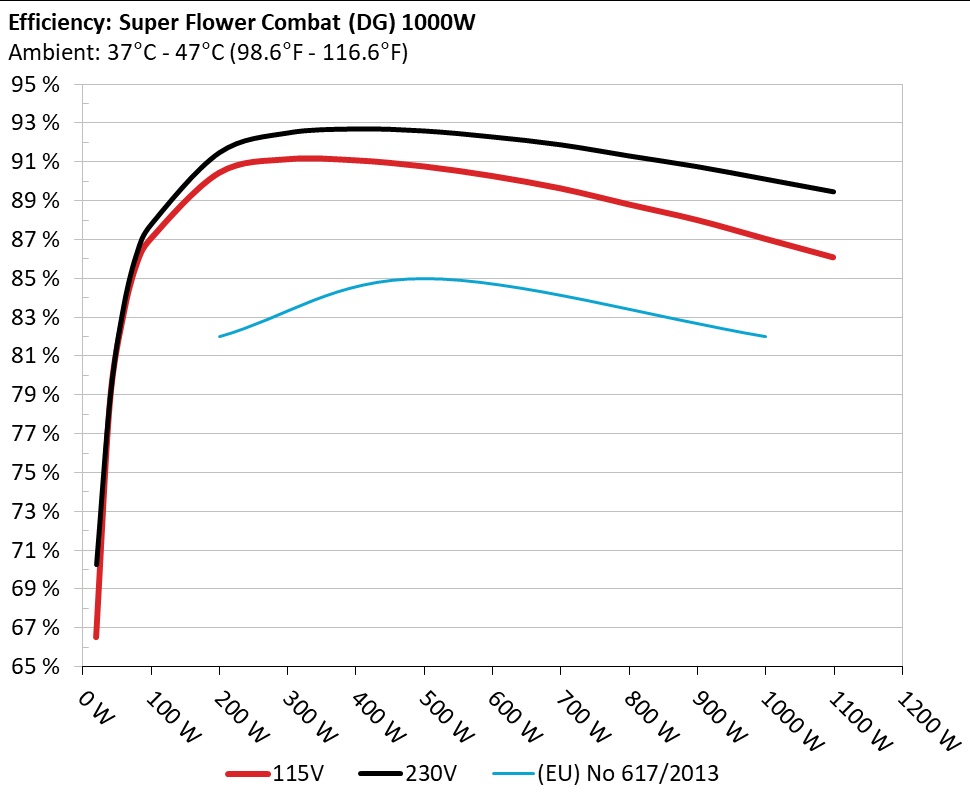

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

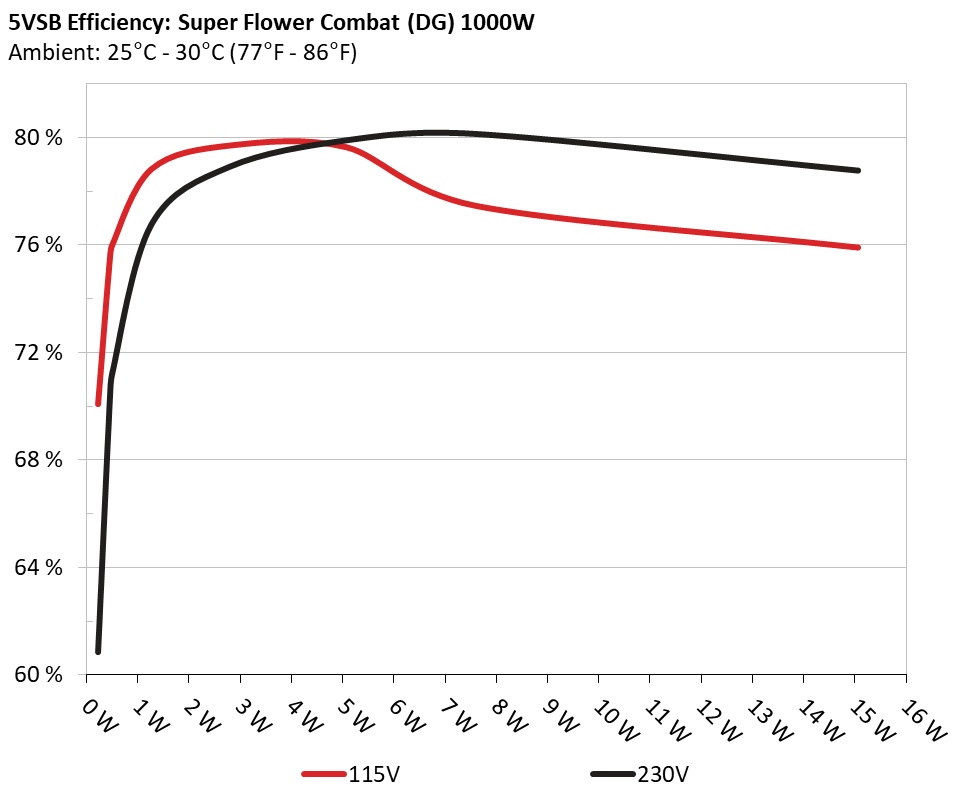

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 70.076% 0.034
5.099V 0.328W 115.04V
2 0.09A 0.459W 75.472% 0.062
5.098V 0.608W 115.04V
3 0.55A 2.798W 79.708% 0.246
5.086V 3.51W 115.04V
4 1A 5.074W 79.649% 0.311
5.073V 6.37W 115.04V
5 1.5A 7.593W 77.468% 0.348
5.061V 9.802W 115.03V
6 3A 15.062W 75.909% 0.385
5.021V 19.842W 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 60.854% 0.012
5.098V 0.378W 230V
2 0.09A 0.459W 70.22% 0.021
5.097V 0.654W 230V
3 0.55A 2.797W 78.899% 0.103
5.086V 3.545W 230V
4 1A 5.075W 79.882% 0.163
5.075V 6.355W 230V
5 1.5A 7.593W 80.119% 0.21
5.062V 9.477W 230V
6 3A 15.056W 78.759% 0.283
5.019V 19.118W 230V

Protection Features

OCP (Normal @ 27.9°C)12V: 107.60A (129.17%), 12.020V
5V: 24.9A (124.50%), 4.977V
3.3V: 27.5A (137.50%), 3.246V
5VSB: 4.3A (143.33%), 4.98V
OCP (Hot @ 44.4°C)12V: 104.20A (125.09%), 12.027V
5V: 24.5A (122.50%), 4.981V
3.3V: 26.8A (134.00%), 3.251V
5VSB: 4.4A (146.67%), 4.969V
OPP (Normal @ 31.6°C)1242.66W (124.27%)
OPP (Hot @ 42.1°C)1217.06W (121.71%)
OTP✓ (130°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.462A 1.988A 1.984A 0.988A 99.994 87.055% 792 16 40.18°C 0.964
12.132V 5.031V 3.327V 5.061V 114.863 43.37°C 115.01V
20% 13.949A 2.986A 2.985A 1.19A 199.942 90.441% 795 15.6 40.56°C 0.983
12.118V 5.023V 3.317V 5.044V 221.077 47.04°C 114.98V
30% 21.805A 3.488A 3.489A 1.392A 299.994 91.143% 799 15.3 41.17°C 0.978
12.105V 5.018V 3.31V 5.027V 329.149 50.48°C 114.94V
40% 29.636A 3.99A 3.996A 1.597A 399.529 91.09% 801 15.2 41.83°C 0.978
12.091V 5.012V 3.303V 5.01V 438.607 54.14°C 114.9V
50% 37.157A 4.994A 5.009A 1.803A 499.247 90.778% 805 15.2 42.13°C 0.98
12.077V 5.006V 3.294V 4.991V 549.968 58.19°C 114.87V
60% 44.763A 6.001A 6.027A 2A 599.715 90.28% 809 15.5 42.52°C 0.983
12.063V 5V 3.285V 4.973V 664.283 62.81°C 114.83V
70% 52.322A 7.009A 7.051A 2.221A 699.497 89.646% 966 21.1 43.14°C 0.984
12.048V 4.994V 3.277V 4.952V 780.289 67.62°C 114.8V
80% 59.966A 8.019A 8.081A 2.33A 799.499 88.822% 1424 33.7 43.76°C 0.986
12.034V 4.987V 3.267V 4.935V 900.11 66.3°C 114.76V
90% 67.965A 8.531A 8.591A 2.439A 899.299 88.021% 1879 40.2 44.35°C 0.986
12.019V 4.98V 3.259V 4.92V 1021.688 65.45°C 114.72V
100% 75.791A 9.047A 9.137A 3.069A 999.317 87.052% 2233 44.7 45.57°C 0.987
12.002V 4.973V 3.251V 4.887V 1147.958 66.65°C 114.66V
110% 83.565A 10.065A 10.276A 2.891A 1099.036 86.096% 2237 44.4 46.03°C 0.988
11.987V 4.966V 3.241V 4.878V 1276.54 68.22°C 114.61V
CL1 0.116A 13.226A 13.359A 0A 111.293 81.894% 823 16.7 40.57°C 0.976
12.128V 5.004V 3.271V 5.069V 135.899 55.08°C 115V
CL2 0.114A 19.986A 0A 0A 101.344 79.882% 819 16 40.87°C 0.972
12.131V 5.001V 3.334V 5.078V 126.872 50.52°C 115V
CL3 0.114A 0A 20.318A 0A 67.399 73.043% 810 15.6 40.57°C 0.961
12.132V 5.04V 3.249V 5.078V 92.276 48.73°C 115.01V
CL4 83.296A 0.002A 0A 0.002A 999.933 88.045% 2170 43.8 45.62°C 0.987
12.004V 5.008V 3.304V 4.99V 1135.718 63.07°C 114.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.464A 1.987A 1.984A 0.988A 100.01 87.796% 796 15.6 40.15°C 0.829
12.131V 5.032V 3.327V 5.06V 113.909 44.26°C 229.99V
20% 13.952A 2.986A 2.985A 1.19A 199.965 91.501% 798 15.5 40.72°C 0.923
12.117V 5.024V 3.317V 5.043V 218.541 45.96°C 229.97V
30% 21.809A 3.488A 3.49A 1.393A 300.024 92.514% 801 15.2 41.15°C 0.946
12.103V 5.018V 3.31V 5.027V 324.304 48.27°C 229.95V
40% 29.647A 3.99A 3.997A 1.597A 399.609 92.721% 804 15.1 41.63°C 0.956
12.089V 5.013V 3.303V 5.009V 430.982 50.36°C 229.93V
50% 37.169A 4.995A 5.01A 1.804A 499.323 92.623% 806 15.3 42.16°C 0.96
12.075V 5.006V 3.294V 4.991V 539.092 52.64°C 229.92V
60% 44.777A 6.002A 6.03A 2A 599.785 92.313% 810 15.6 42.73°C 0.963
12.061V 4.999V 3.284V 4.972V 649.727 55.47°C 229.9V
70% 52.338A 7.01A 7.054A 2.222A 699.563 91.91% 935 19.8 43.17°C 0.966
12.046V 4.994V 3.275V 4.952V 761.136 58.43°C 229.88V
80% 59.987A 8.02A 8.085A 2.331A 799.567 91.336% 1412 33.3 43.66°C 0.967
12.031V 4.986V 3.265V 4.935V 875.407 58.09°C 229.86V
90% 67.986A 8.533A 8.596A 2.44A 899.358 90.786% 1860 40.2 44.65°C 0.968
12.016V 4.979V 3.257V 4.919V 990.64 57.33°C 229.84V
100% 75.805A 9.049A 9.142A 3.069A 999.363 90.14% 2231 44.7 45.8°C 0.969
12.000V 4.972V 3.249V 4.888V 1108.681 57.6°C 229.83V
110% 83.581A 10.069A 10.284A 3.08A 1099.971 89.482% 2232 44.7 46.59°C 0.97
11.984V 4.965V 3.238V 4.871V 1229.256 59.69°C 229.8V
CL1 0.116A 13.227A 13.367A 0A 111.3 82.453% 825 16.7 40.58°C 0.863
12.127V 5.004V 3.269V 5.069V 134.987 53.74°C 229.99V
CL2 0.115A 19.987A 0A 0A 101.351 80.432% 826 16.7 41.77°C 0.85
12.131V 5.001V 3.334V 5.077V 126.008 51.82°C 229.99V
CL3 0.114A 0A 20.33A 0A 67.402 73.26% 815 15.8 41.39°C 0.783
12.132V 5.04V 3.247V 5.077V 92.006 49.96°C 229.99V
CL4 83.294A 0.002A 0A 0.002A 999.919 91.276% 1850 40.2 45.61°C 0.97
12.004V 5.013V 3.307V 4.991V 1095.487 53.78°C 229.82V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.223A 0.496A 0.494A 0.196A 20 66.545% 783 16.8 36.61°C 0.762
12.143V 5.038V 3.338V 5.091V 30.052 40.7°C 115.04V
40W 2.692A 0.695A 0.692A 0.295A 39.998 78.564% 787 16.6 37.47°C 0.893
12.140V 5.037V 3.336V 5.086V 50.911 40.15°C 115.03V
60W 4.163A 0.893A 0.891A 0.394A 59.997 83.146% 788 16.6 38.63°C 0.934
12.138V 5.036V 3.334V 5.082V 72.156 40.9°C 115.02V
80W 5.630A 1.092A 1.089A 0.492A 79.941 85.815% 789 16.6 39.12°C 0.96
12.135V 5.034V 3.332V 5.077V 93.157 42.33°C 115.01V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.496A 0.494A 0.197A 20.003 70.26% 779 16.8 36.65°C 0.596
12.136V 5.041V 3.339V 5.089V 28.771 46.45°C 230V
40W 2.694A 0.695A 0.692A 0.295A 40.01 78.898% 788 16.6 37.93°C 0.589
12.139V 5.039V 3.337V 5.085V 50.72 45.07°C 230V
60W 4.164A 0.893A 0.891A 0.394A 60.006 83.614% 790 16.5 38.12°C 0.702
12.136V 5.037V 3.335V 5.081V 71.767 43.46°C 230V
80W 5.632A 1.092A 1.089A 0.493A 79.959 86.403% 791 16 39.11°C 0.782
12.133V 5.035V 3.333V 5.076V 92.546 42.95°C 230V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load41.69mV27.89mV31.61mV31.00mVPass
20% Load43.85mV28.97mV33.45mV32.84mVPass
30% Load46.30mV31.73mV32.23mV35.70mVPass
40% Load52.95mV34.43mV33.15mV37.34mVPass
50% Load51.72mV36.27mV33.61mV40.72mVPass
60% Load49.32mV36.58mV38.37mV41.84mVPass
70% Load52.64mV42.45mV35.76mV46.14mVPass
80% Load51.77mV44.19mV38.42mV48.90mVPass
90% Load55.15mV44.65mV39.90mV49.06mVPass
100% Load58.05mV42.22mV37.50mV49.60mVPass
110% Load66.16mV46.14mV40.60mV49.84mVPass
Crossload146.83mV33.37mV37.28mV30.01mVPass
Crossload251.62mV41.94mV31.87mV33.71mVPass
Crossload348.91mV31.63mV39.13mV33.51mVPass
Crossload454.65mV42.73mV33.74mV39.22mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load40.52mV29.43mV31.15mV31.66mVPass
20% Load41.80mV30.55mV33.15mV32.02mVPass
30% Load48.45mV31.27mV33.41mV35.70mVPass
40% Load50.04mV31.62mV33.97mV37.29mVPass
50% Load49.17mV35.71mV34.02mV40.82mVPass
60% Load47.88mV36.02mV33.20mV42.41mVPass
70% Load49.17mV39.80mV36.27mV45.12mVPass
80% Load53.00mV43.73mV40.00mV41.41mVPass
90% Load55.82mV43.12mV36.93mV47.77mVPass
100% Load59.50mV41.96mV36.92mV49.29mVPass
110% Load61.75mV46.40mV36.51mV49.30mVPass
Crossload147.19mV34.00mV36.09mV32.95mVPass
Crossload248.60mV42.30mV31.97mV33.19mVPass
Crossload347.58mV32.70mV36.99mV32.28mVPass
Crossload453.05mV41.51mV36.20mV41.37mVPass

The results above are not used in the certification process

Super Flower Combat DG 1000W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
